The observations of seabed sediment erosion and resuspension processes in the Jiaozhou Bay in China
收藏切换
PDF
Xiaolei LIU1, 2, Chaoqi ZHU1, 3, Jiewen ZHENG2, Lei GUO4, Ping YIN4, Yonggang JIA1, 2, *
Acta Oceanologica Sinica | 2017, 36(11) : 79 - 85
Less
收藏切换
Acta Oceanologica Sinica | 2017, 36(11): 79-85
• •
The observations of seabed sediment erosion and resuspension processes in the Jiaozhou Bay in China
Full
Xiaolei LIU1, 2, Chaoqi ZHU1, 3, Jiewen ZHENG2, Lei GUO4, Ping YIN4, Yonggang JIA1, 2, *
Affiliations
  • 1 Shandong Provincial Key Laboratory of Marine Environment and Geological Engineering, Ocean University of China, Qingdao 266100, China
  • 2 Laboratory for Marine Geology, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266061, China
  • 3 Key Laboratory of Marine Environmental and Ecology, Ministry of Education, Ocean University of China, Qingdao 266100, China
  • 4 Qingdao Institute of Marine Geology, Chinese Geology Science, Qingdao 266071, China
Published: 2017-11-01 doi: 10.1007/s13131-016-1072-5
Outline
收藏切换

In estuarine and coastal areas, the seabed is in a constant process of dynamic change under marine conditions. Seabed sediment erosion and resuspension are important processes that safely control the geological environment. Field tripod observations conducted in the Jiaozhou Bay in China are reported, to investigate the effects of hydrodynamic conditions on the erosion and resuspension processes of the seabed. The observational results show that the maximum shear stress created by tidal currents can reach 0.35 N/m2, which is higher than the wave-induced shear stress during fair weather conditions. A seabed erosion frequently occurs during the flood tide, whereas a seabed deposition occurs during ebb tide. Waves can produce a bottom shear stress approximately equivalent to that induced by currents when the local wind reaches Force 4 with a speed of 5 m/s. When the wind reaches 7 m/s and the significant wave height reaches 26 cm, waves play a more significant role than currents in the dynamic processes of the seabed sediment resuspension and lead to a high value of turbidity that is approximately two to eight times higher than that in fair weather. These analyses clearly illustrate that periodic current-induced sediment erosion and resuspension are dominant in fair weather, whereas episodic high waves are responsible for significant sediment resuspension. Additional work is needed to establish a more thorough understanding of the mechanisms of sediment dynamics in the Jiaozhou Bay.

seabed sediment  /  erosion  /  resuspension  /  tripod  /  Jiaozhou Bay
Xiaolei LIU, Chaoqi ZHU, Jiewen ZHENG, Lei GUO, Ping YIN, Yonggang JIA. The observations of seabed sediment erosion and resuspension processes in the Jiaozhou Bay in China[J]. Acta Oceanologica Sinica, 2017 , 36 (11) : 79 -85 . DOI: 10.1007/s13131-016-1072-5
Full Text
Less
1 Introduction
Less
In the shallow coastal waters and deep sea, both anthropogenic and natural processes can regulate sediment erosion and resuspension processes and then influence the chemical, biological and physical characteristics of marine environments (Biria er al., 2015; Churchill, 1989; Ferré et al., 2008; Martín et al., 2014). Moreover, anthropogenic activities have effects on the sediment erosion and resuspension processes in the vicinity of the sources while the natural process generally operates on a larger scale (Sabol et al., 2005). In the shallow coastal waters, both waves and currents play a fundamental role in the physical and biological functioning of coastal systems. The interaction between the hydrodynamic conditions near the seabed and the seabed sediment controls and affects the sediment erosion and resuspension processes and also contributes to the variation of the geological environment for marine engineering facilities (Sumer et al., 1999). In general, wave- and current-induced bottom stresses act as key factors in assessing the sediment resuspension behaviour (Grant and Madsen, 1979; Jing and Ridd, 1996). Recent successful modelling of coupled waves and currents has provided valuable insight in characterizing the sediment dynamic processes in shallow waters (e.g., Dalyander et al., 2013). However, the processes of sediment erosion and resuspension are more complicated and there is no suitable model that can be applied in any seawater environment when considering the differences in specific shorelines, topography, bed forms, sediment types, and other unforeseen factors (Green and Coco, 2014).
It is well known in the scientific world that China’s coastal seas are characterized by high turbidity, particularly in the estuarine areas of large rivers that carry several billion tons of sediment into the sea annually (Milliman and Syvitski, 1992; Ren, 2015). However, recent evidence shows that the sedimentary dynamic system is also complicated in the estuarine areas of small and medium-sized rivers (Liu et al., 2008b). The semienclosed mouth of the Jiaozhou Bay in the western Yellow Sea is an estuarine area characterized by a low sediment supply and a weak hydrodynamic environment that has attracted attention in sedimentology since the 1980s. On the basis of analyses of drilled sediment samples, earlier studies have confirmed that the distribution of sediment particles was related to sediment sources and local hydrodynamic conditions (Wang et al., 1982; Zheng and Shen, 1986). A sedimentation rate is 0.64–1.74 cm/a, based on the sediment cores isotope determination and sediment balance principle (Li et al., 2003; Liu et al., 2008a). Wang and Gao (2007) investigated the transport tendencies of sediment in the Jiaozhou Bay through particle analysis, turbidity measurements and historical data analysis and noted that a significant relationship existed between the temporal and spatial distributions of suspended sediment concentrations and hydrodynamic conditions, terrestrial runoff, and weather conditions. A tidal current can be considered the primary sedimentary dynamic force contributing to the formation of deltas inside the Jiaozhou Bay (Dong et al., 2006). Yuan et al. (2008) deployed a suite of optical and acoustic instruments in this area to study sediment dynamics over two semidiurnal tidal cycles and proposed that a tidal-induced bottom shear stress was a primary stirring factor. There is common understanding that interactions between hydrodynamic forces and the seabed sediments in the Jiaozhou Bay may be a dominant mechanism for removing sediments from coastal deposits and delivering them across the bay mouth (Wang and Gao, 2013). However, it remains unclear how these hydrodynamic forces impact the bottom boundary layer in different environments. This dynamic mechanism must be further studied through comprehensive in situ observations.
The studies on the sediment transport off China’s coast have been typically performed with data from moorings and a numerical simulation (Du et al., 2010; Jia et al., 2014a; Kong et al., 2011), which provide a good view of processes in a water column (Yang et al., 2007, 2008) but require assumptions to be made about processes occurring in the bottom boundary layer. Recently, some observation instruments were used in study on the sediment erosion and resuspension processes. Perez et al. (2010) described a new in situ observation platform to measure shear stress and erosion rate constant of underwater sediments. Some observation instruments were even utilized in deep water to study a deepwater sediment transport, such as turbidity currents (Talling et al., 2015; Xu et al., 2014; Zhang et al., 2014; Zhao et al., 2015). We also developed an underwater in situ tripod to study the bottom boundary layer and deployed it in the Baisha Bay (Zhu et al., 2017a) and the Huanghe River subaqueous delta (Zhu et al., 2017b, c ). This time an in situ bottom-instrumented tripod was deployed in the Jiaozhou Bay to collect data. The synchronous observational results of the hydrodynamic conditions, the turbidity, and a sea floor interface allow us to analyse the sediment dynamic processes in different sea conditions and discuss the mechanisms of the sediment erosion and suspension from the bottom. The findings in this paper may also provide a guidance to fisheries production and marine engineering construction.
2 Study site
Less
The Jiaozhou Bay is located on the shore of the Yellow Sea on the southeast coast of the Shandong Peninsula with a narrow (3 km) inlet. It is a typical semienclosed bay in the shape of a trumpet, with a width of 15 km from east to west and 18 km from north to south. The average water depth is 7 m and the maximum water depth is 64 m (Zhao et al., 2002). The study site is located in the southwest part of the bay (36°7′36″N, 120°10′36″E). The dominant wave direction is consistent with the wind. Inside the bay, the sea states are generally characterized as calm-rippled or smooth-rippled, and few states exceed moderate. Tides in the bay are regular semidiurnal tides with a maximum tidal range of 4.75 m and a mesotidal range of 2.80 m (State Oceanographic Administration, 1993). The flood current is greater than the ebb current, and the flood time is less than the ebb time. The bed sediments in the bay and the Yellow Sea are dominated by silt and clay (mineral content being greater than 90%), although deposits toward the bay mouth become coarser due to the entrainment of tidal currents. The existing borehole data show there are five sediment layers in the sequence of mucky soil, silty clay, medium to coarse sand, silty clay and coarse to gravel sand (Bai, 2005). Given that the upper layer has a direct interact with the sea water, the mucky soil is the most important part for us to understand the erosion and resuspension processes of the seabed. The geotechnical test results for the upper layer showed a high void ratio of 1.07–2.57 and high water content of 26.3%–83.2%. On the basis of a grain-sized data set of in situ bottom grab samples analysed in the laboratory, a significant portion of silt is revealed and the seabed sediment can be classified into medium silt (d50=0.026 mm) on the Wentworth scale (Lane, 1947).
3 Methods
Less

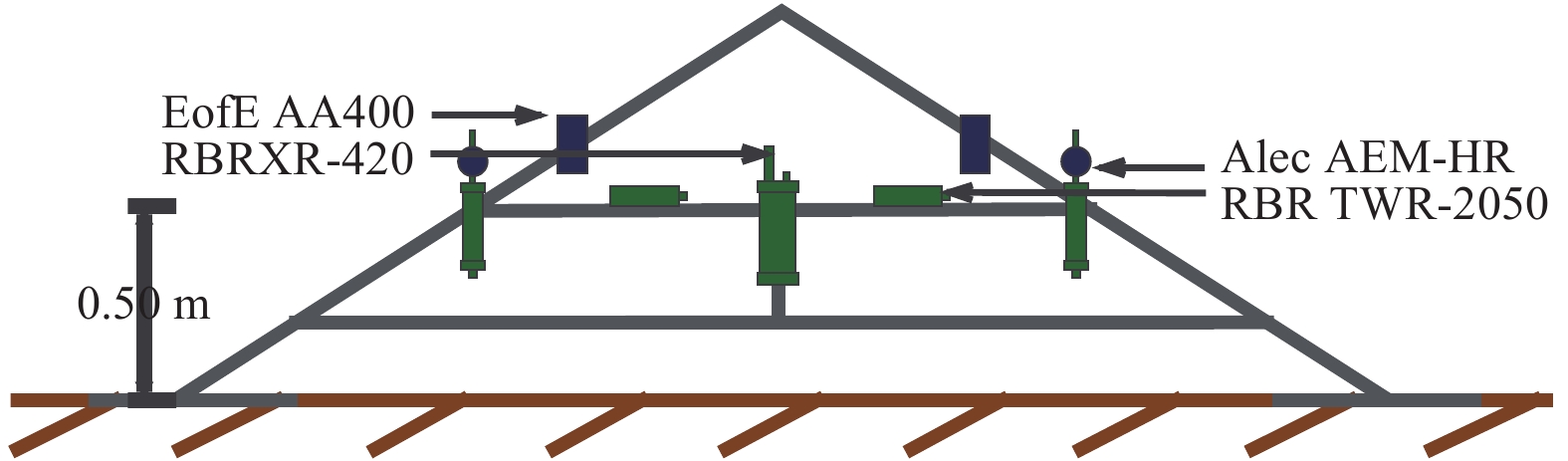

3.1 Instrumentation and deployment
The in situ observation was conducted between September and October 2012 using a bottom-supported tripod at the study site (Fig. 1). The bottom-supported tripod was made of steel with the length of 2 m and the height of 1 m and developed to monitor sediment dynamics near the bottom boundary layer. Three cables with equal length were raised up from a stable base in order to set and retain the tripod. As shown in Fig. 2, mounted instruments include two water gauges (TWR-2050, RBR Company, Canada), two current meters (AEM-HR, Alec Electronics Company, Japan), a turbidity meter (XR-420 CTD+Tu, RBR Company, Canada), and two autonomous altimeters (AA400, EofE Ultrasonics Company, Korea). The sampling frequency was 10 min for both the wave gauges and the turbidity meter, 5 min for the autonomous altimeters, and 30 min for the current meters. The detailed elevation and parameters of the instruments mounted on the tripod are summarized in Table 1. This sampling regime produced a good temporal and spatial resolution of the variations in waves, currents, turbidity, and seabed erosion and deposition processes throughout the entire observation period.
Prior to the in situ observations, the equipment was fixed on the tripod and divers entered the sea to survey the sea floor and ensure that the marine environment satisfied the practical requirements of each piece of equipment. A winch on the deck was used to sling the tripod and place it in the chosen location of the study area with the assistance of the divers. Once the tripod was set on the bottom of the sea, divers again submerged into the sea to examine the state of the in situ observation tripod; a mooring rope tied to a buoy was fastened to the tripod to warn passing ships and pinpoint the facility. After the observations were completed, divers reconnected the lifting hook of the tripod to the winch, recovered the tripod and placed it on the deck.

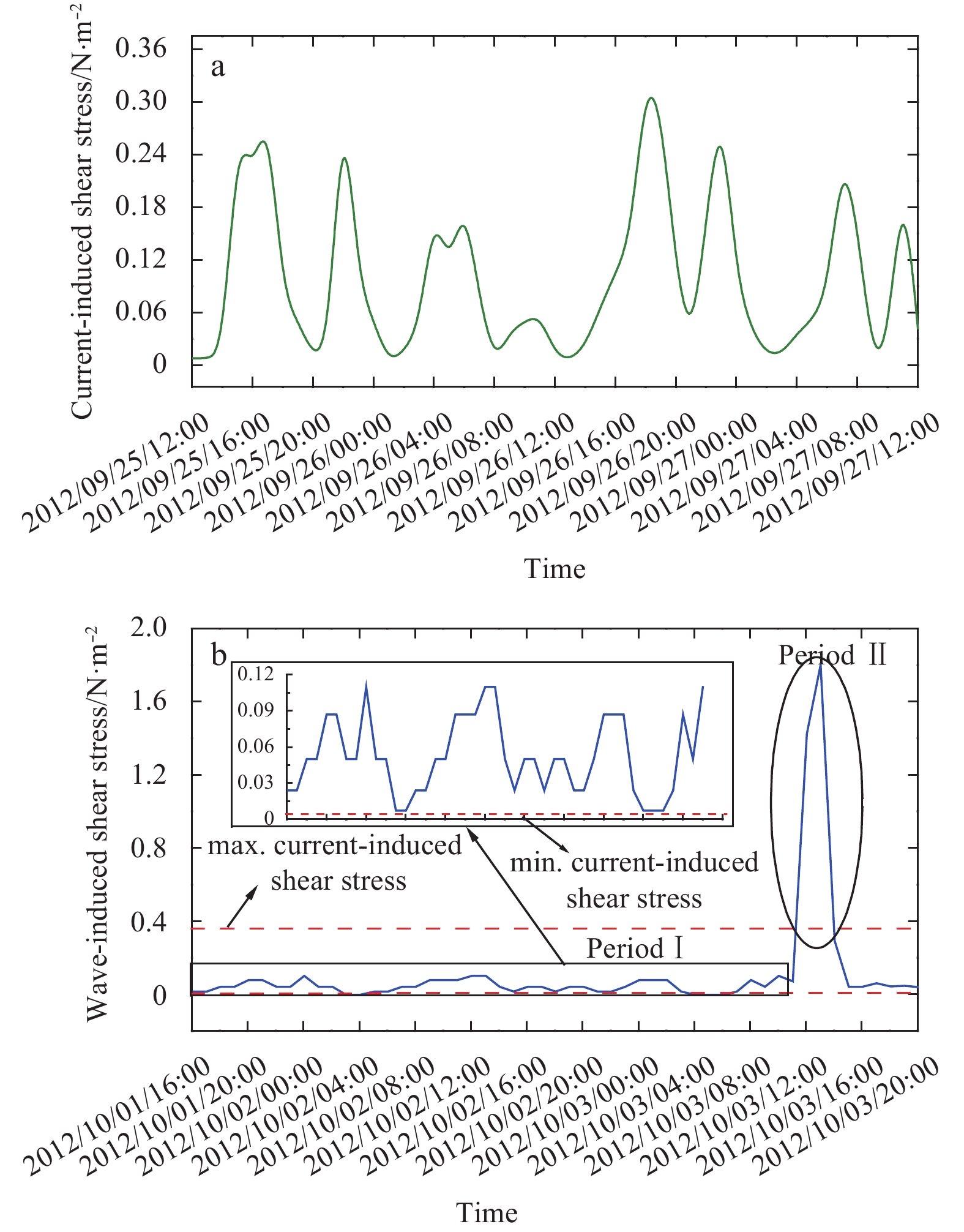

3.2 Calculation of shear stress
The wave forces exerted on the seabed can be classified into a vertical dynamic loading and a horizontal shear force (Jia et al., 2014c). Both linear wave theory and nonlinear wave theory can determine a wavelength and shear stresses (Gao et al., 2003; Jeng and Lin, 1997; Jeng, 2013; Ye et al., 2014). In this paper, the linear wave theory was used in terms of both accuracy and simplification.
The horizontal shear force (Sheng and Lick, 1979) can be calculated as follows:
${\tau _w} = \rho f{\mu ^2}{\cos ^2}\left( {2\text{π} t/T} \right),$
where ρ is the bulk density of the sea water (1.03×103 kg/m3); t is the time (s) variable; T is the significant wave period (s); $\,f $ is the wave friction coefficient; and μ is the horizontal orbital velocity (cm/s) of the waves on the sea floor surface. The latter (Madsen, 1976) can be calculated as follows:
$\mu = \text{π} H/\left[ {T\sin h\left( {2\text{π} h/L} \right)} \right],$
where H is the significant wave height (cm); h is the water depth (m); and L is the significant wave length (m) at elevation h. L and f (Jiang et al., 2000) can be obtained as follows:
$L = \left( {g{T^2}/2\text{π} } \right){\rm{ }}\tan h\left( {2\text{π} h/L} \right),$
$f = \exp \left[ { - 6 + 5.2{{\left( {{A_\delta }/{K_{\rm s}}} \right)}^{ - 0.19}}} \right],$
where Aδ is the near-bottom excursion amplitude, which can then be obtained by using Aδ=H/[2sinh(2πh/L)]; and Ks is the bottom physical roughness (Nielsen et al., 2001), at 0.2 mm in this paper.
The current-induced shear stress (Sheng and Lick, 1979; Hawley, 2000) can be calculated as follows:
${\tau _c} = \rho {\gamma ^2},$
$\gamma = k{\gamma _z}/{\rm ln}\left( {z/{z_o}} \right),$
where γ is the hydrodynamic coefficient; k=0.4, is the Karman constant; γz is the current velocity (cm/s) at the water depth z (z=0.55 m in this case); and zo is the bottom physical roughness (Hawley, 2000), also at 0.2 mm in this paper.
4 Results
Less
4.1 Hydrodynamic results

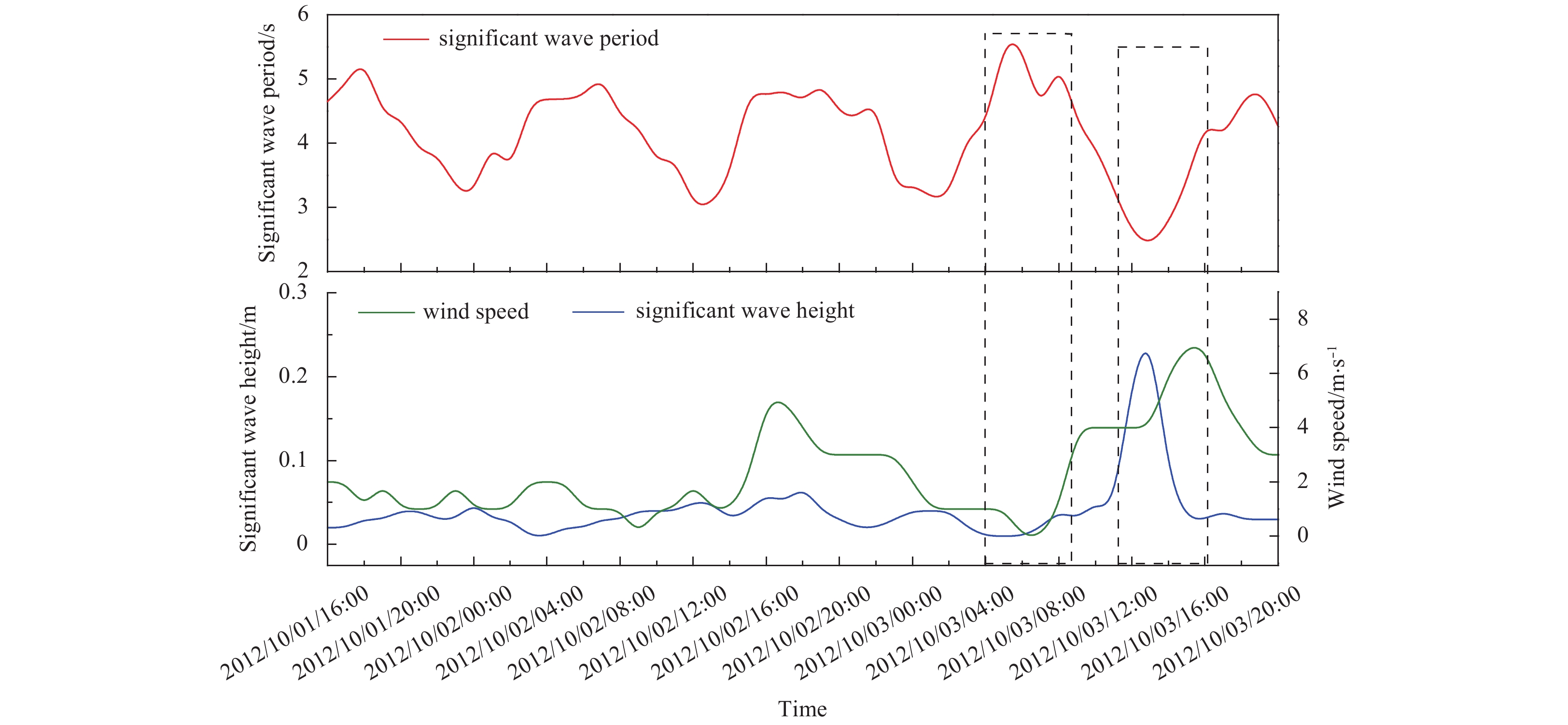

The evolutions of the wave period, wave height, and wind speed over the observation period are depicted in Fig. 3. A significant meteorological event occurred on October 3, 2012 and the wind speed increased to a maximum of 7 m/s at 13:00. The significant wave period was longer when the wind speed was relatively low, with values ranging from 2.5 to 5.6 s over the entire period; there was more congruence between the wind speed and the wave height (Talke and Stacey, 2008). The significant wave height increased from a minimum of 0.01 m during the meteorological event to a maximum of 0.26 m (Fig. 3).

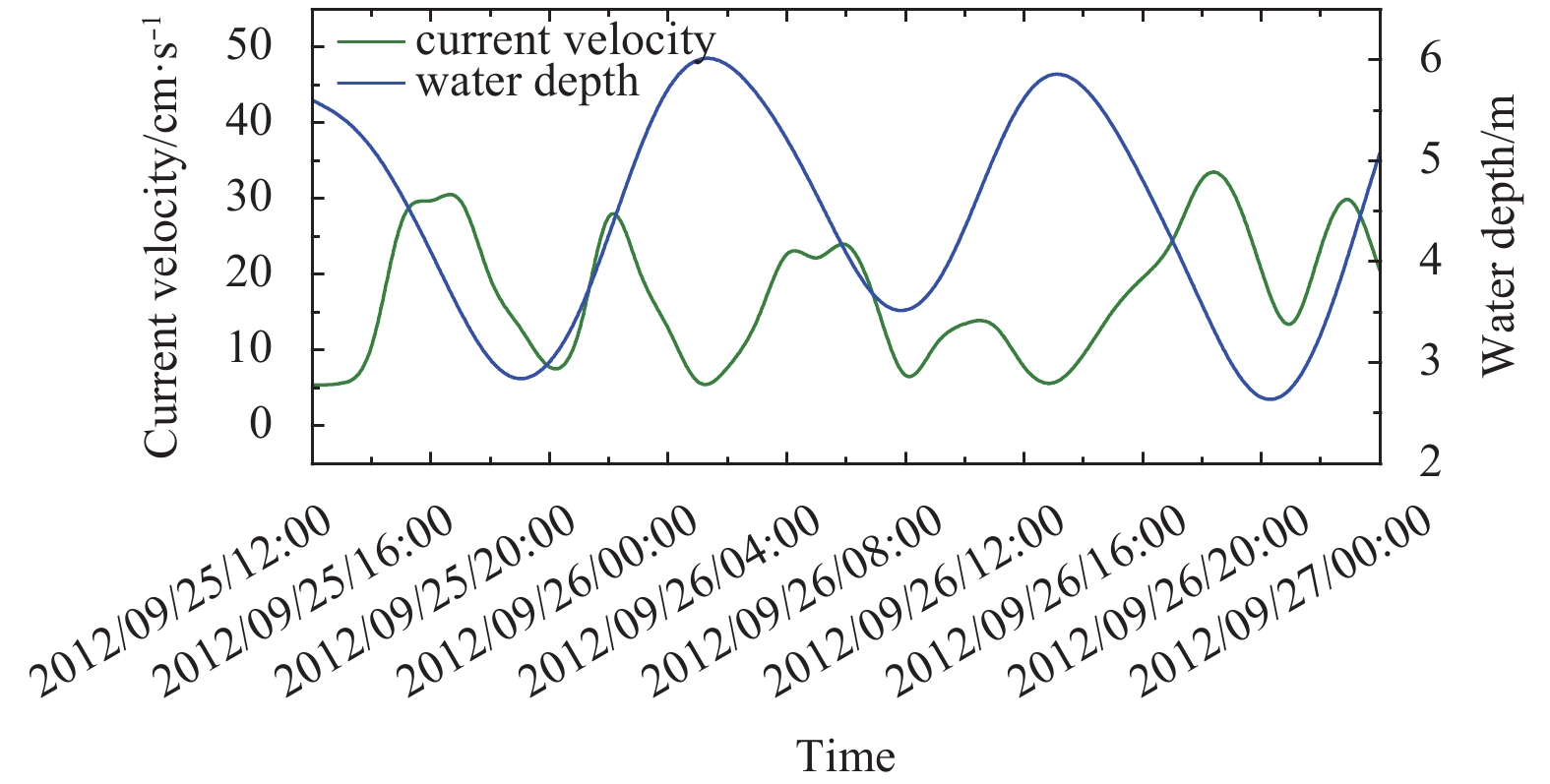

Two days of current data were collected at the study site from 25 to 27 September, 2012 (Fig. 4). It should be noted that no current velocities were reported for the later days (Fig. 3) because the quality of the current meter data was insufficient. The variations in the current velocities during the two periods were approximately the same as the symmetrical time of the astronomical tide when considering that the current conditions were primarily dependent on the tidal process in the Jiaozhou Bay (Yuan et al., 2008). The observational results show that the current velocity presents a periodical variation with the tidal process, with the maximum velocity appearing 1.5–2.0 h before the highest tide. The maximum current velocity reached 36 cm/s and the minimum velocity was 3 cm/s (Fig. 4).

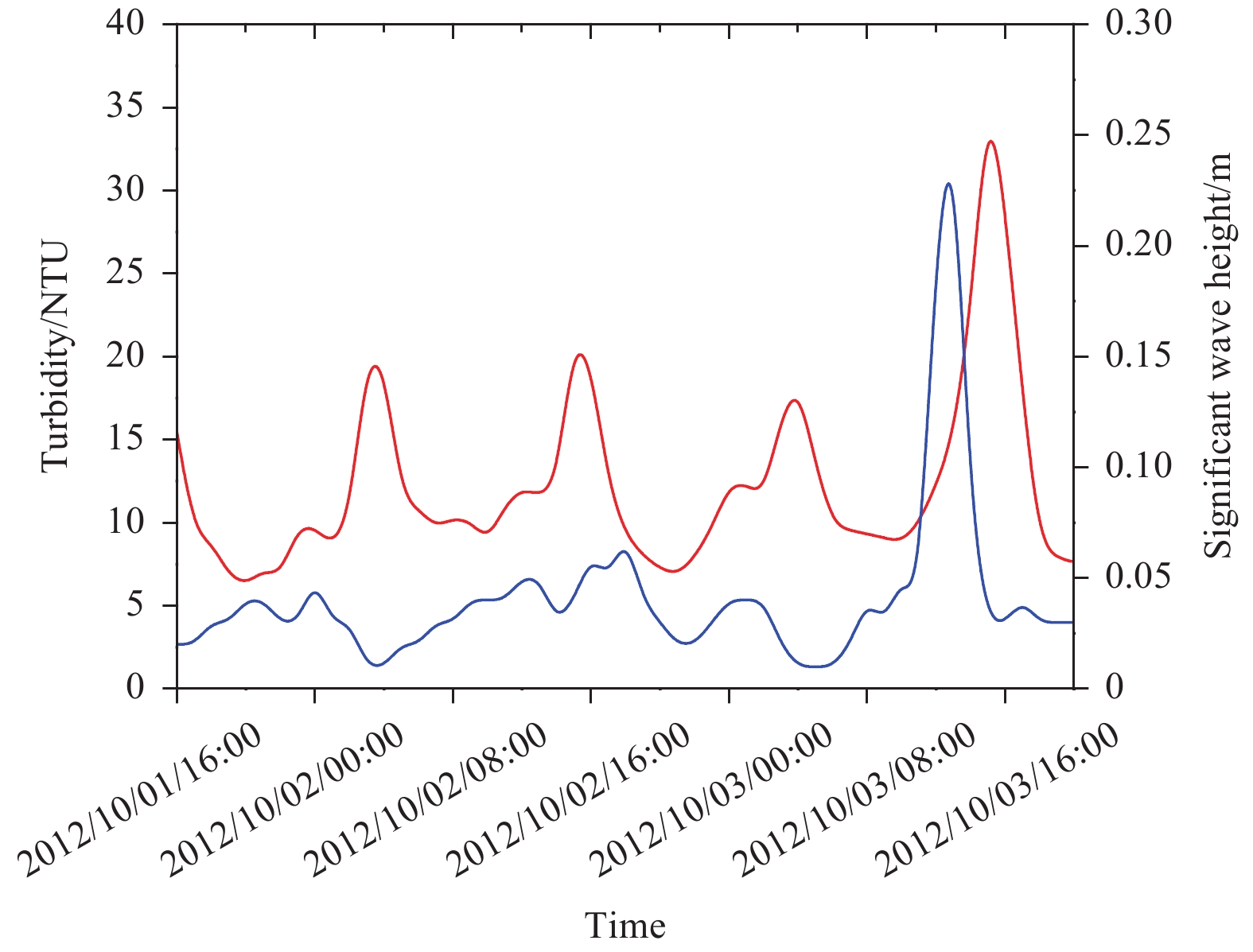

Figure 5 shows the observational results of the turbidity and significant wave height from 1 to 3 October, 2012. There are flour peak values of turbidity. The last peak value of the turbidity is near 35 NTU and it is significantly greater than other previous peak values. Further, the significant wave height increases sharply during the last peak value of turbidity in despite of a phase difference. However the three previous peak values of the turbidity do not change with the significant wave height. Therefore we can conclude that only episodic high waves were responsible for significant increases in the turbidity and the sediment resuspension.
4.2 Sediment dynamic results

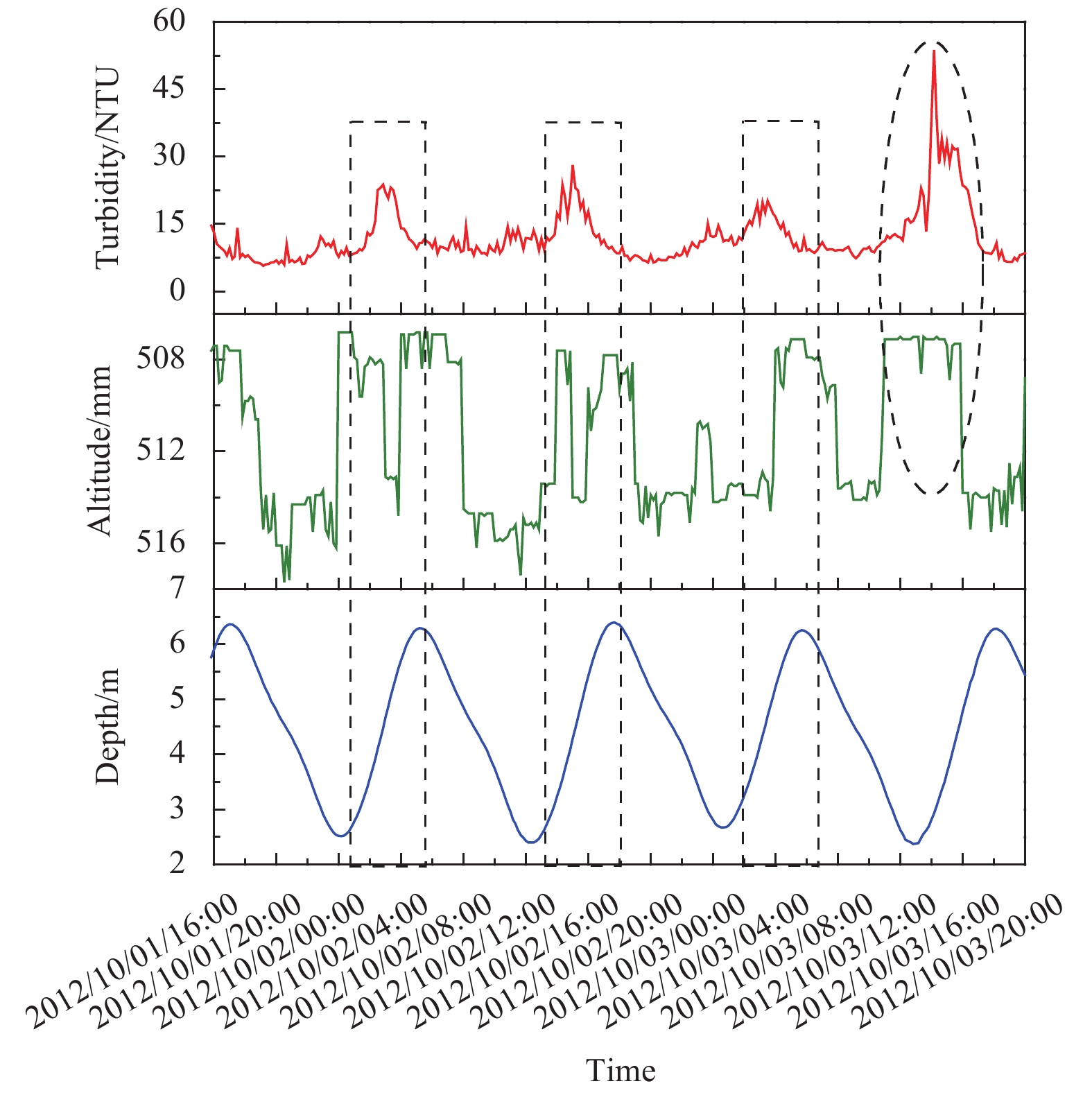

The observational data of the turbidity, altitude, and water depth collected by the RBRXR-420 CTD+Tu and the EofE AA400 are presented in Fig. 6. The distance, measured by EofE AA400 from its sensor to the seabed, can reflect a seabed altitude variation. The time-series curves show that four obvious increases in the water turbidity occurred during the observation period, three of which were closely related to the periodical tidal process. The turbidity gradually increased to its highest value during the flood tide process and then decreased to a normal value (7–10 NTU). The altitude also presented a similar variation trend to the turbidity, indicating that the seabed sediment experienced a process of resuspension and redeposition during the flood tide. The fourth increase in the turbidity was likely induced by a meteorological event occurring on October 3, 2012. The turbidity value reached approximately 53 NTU, which suggests a clear deposition-like phenomenon because the relative distance between the surface of the sea floor and the autonomous altimeter decreased to a low level. A possible explanation is that the seabed sediment is softened by the cyclic wave loading in the windy sea conditions (e.g., Davidson-Arnott and Langham, 2000). Variations in the strength of local seabed sediment would lead to the sediment erosion and the variation of tripod location (Lambrechts et al., 2010; Kirca, 2013), thus producing the observed behaviour.
5 Discussion
Less
It has been shown that both waves and currents are important to sediment resuspension in shallow coastal waters (Jing and Ridd, 1996; Warrick, 2013), although they make different contributions in different sea conditions (Green et al., 1997; Desguée et al., 2011). By providing the calculated bottom shear stresses based on the observational data, the results of this study offer some insight into the mechanism for sediment resuspension in the semienclosed Jiaozhou Bay. The time series of the bottom shear stresses induced by both currents and waves are shown in Fig. 7. The periodic maximum current-induced bottom shear stress is 0.35 N/m2 (Fig. 7a), which is considerably greater than the wave-induced bottom shear stress (0.01–0.11 N/m2) during fair weather conditions (i.e., Period I; Fig. 6b). This suggests that the tidally induced sediment resuspension is dominant on a small scale in fair weather when the tidal currents are responsible for the driving forces; this is consistent with another observation study from Yang et al. (2004). However, the effects of waves on the sediment resuspension should be magnified during windy weather because wave parameters are assumed to be proportional to the wind speeds (Chang, 1991). In comparing the observational hydrodynamic conditions with the calculated bottom shear stresses under waves and currents (see Figs 3 and 7), it is estimated that waves can produce a roughly equivalent bottom shear stress to that induced by currents when the local wind reaches Force 4 with a speed of 5 m/s. It is thus apparent that waves play a dominant role in the process of the sediment resuspension in this area for weather conditions with a wind speed more than 5 m/s. We noted that there were rough sea conditions during the observation (i.e., Period Ⅱ, Fig. 7b) when the wind reached 7 m/s and the significant wave height reached 26 cm, leading to an abrupt increase in the bottom shear stress. The high value (up to 53 NTU) of the water turbidity measured by the turbidity meter, approximately two to eight times higher than that in fair weather, indicated that significant sediment resuspension occurred due to the wave-sediment interaction.
Seabed liquefaction is another important process in the wave-sediment interaction that causes a considerable change in seabed properties in the short term, owing to the vertical cyclic loading and corresponding accumulation of the pore water pressure (Jia et al., 2011; Liu et al., 2013, 2017; Ye and Wang, 2016). Further seabed liquefaction can induce submarine landslides on the ocean floor and pose a great threat to submarine structures (Huang et al., 2015; Jeng, 2011; Jia et al., 2016). It should be noted that during the high turbidity of windy weather there is a clear sign of seabed “deposition” in the altitude data, as seen in Fig. 6. We thus speculate that the bottom-supported tripod subsides due to the wave-induced seabed liquefaction. The strength of the seabed can be reduced when the pore water pressure accumulates inside the sediment under wave cyclic loadings (Zheng et al., 2013). The seabed sediment can be quickly liquefied from its surface downwards when the seabed is exposed to higher waves (Tzang, 1998). Further study also demonstrates that wind waves can considerably increase the bed erosion during the liquefaction process (Lambrechts et al., 2010) and significantly contribute to the sediment resuspension amount through the vertical transportation of particles (Tzang et al., 2009; Jia et al., 2014b; Zhang et al., 2017). It is thus apparent that neglecting the effects of the vertical cyclic loading actions of waves in the resuspension calculation can lead to the underestimation of sediment resuspension (Qin et al., 2004). Unfortunately, specific instrumentations for the sediment liquefaction were not included in our observations, and further investigations will be needed to gain a more thorough understanding of the sediment resuspension in the Jiaozhou Bay.
6 Conclusions
Less
An in situ bottom-instrumented tripod was set in the Jiaozhou Bay to synchronously observe the hydrodynamic conditions, turbidity, and sea floor interface in real time. The combined analysis of the observational results demonstrates the sediment dynamic processes in different sea conditions and displayed the mechanisms of the sediment erosion and suspension from the bottom in the semienclosed Jiaozhou Bay. The following conclusions can be drawn from the studies.
(1) The calculated bottom shear stress is sensitive to the periodic tidal currents and the local wind speeds at the study site. The current-induced sediment erosion and resuspension are dominant in fair weather, and the sediment resuspension induced by the tidal currents is low.
(2) The high waves in windy weather led to an abrupt increase in the bottom shear stress, and episodic high waves are responsible for significant increases in the amount of the sediment resuspension. A significant sediment resuspension results from wave-sediment interactions in windy weather, approximately two to eight times higher than that in fair weather.
(3) The seabed sediment can become liquefied and lose its strength under the action of wave-induced vertical cyclic loading, particularly in stormy sea conditions, and thus easily become eroded and resuspended from the bottom. Neglecting the effect of the vertical cyclic loading actions of waves in the calculation of the sediment resuspension can lead to an underestimation of the sediment resuspension.
Without integrating specific observations for sediment liquefaction, further investigations will be needed to establish a more thorough understanding of the sediment resuspension in the Jiaozhou Bay in China and other places.
Acknowledgements
Less
The authors would like to thank Guo Tengfei, Lian Shengli, Zhang Shaotong, Zhang Shun, Wang Zhen, and Wang Weihong for their help in carrying out the in situ observations.
Funding
Less
  • The National Natural Science Foundation of China under contract Nos 41402253, 41427803 and 41372287; the Project of Qingdao National Laboratory for Marine Science and Technology under contract No. QNLM2016ORP0110.
References
Less
Bai Weiming. 2005. Research on engineering geo-environmental characteristics of Jiaozhou Gulf (in Chinese) [dissertation]. Qingdao: Ocean University of China
Biria H A, Neshaei M A L, Ghabraei A, et al. 2015. Investigation of sediment transport pattern and beach morphology in the vicinity of submerged groyne (case study: Dahane Sar Sefidrood). Frontiers of Structural and Civil Engineering, 9(1): 82–90
Chang Defu. 1991. Analysis of wave conditions in Jiaozhou Bay. Coastal Engineering (in Chinese), 10(4): 13–20
Churchill J H. 1989. The effect of commercial trawling on sediment resuspension and transport over the Middle Atlantic Bight continental shelf. Continental Shelf Research, 9(9): 841–865
Dalyander P S, Butman B, Sherwood C R, et al. 2013. Characterizing wave- and current-induced bottom shear stress: U.S. middle Atlantic continental shelf. Continental Shelf Research, 52: 73–86
Davidson-Arnott R G D, Langham D R J. 2000. The effects of softening on nearshore erosion of a cohesive shoreline. Marine Geology, 166(1–4): 145–162
Desguée R, Robin N, Gluard L, et al. 2011. Contribution of hydrodynamic conditions during shallow water stages to the sediment balance on a tidal flat: Mont-Saint-Michel Bay, Normandy, France. Estuarine, Coastal and Shelf Science, 94(4): 343–354
Dong Heping, Li Shaoquan, Li Guangxue, et al. 2006. On the offshore tidal depositional system in Qingdao. Periodical of Ocean University of China (in Chinese), 36(1): 31–36
Du Panjun, Ding Pingxing, Hu Kelin. 2010. Simulation of three-dimensional cohesive sediment transport in Hangzhou Bay, China. Acta Oceanologica Sinica, 29(2): 98–106
Ferré B, de Madron X D, Estournel C, et al. 2008. Impact of natural (waves and currents) and anthropogenic (trawl) resuspension on the export of particulate matter to the open ocean: application to the Gulf of Lion (NW Mediterranean). Continental Shelf Research, 28(15): 2071–2091
Gao F P, Jeng D S, Sekiguchi H. 2003. Numerical study on the interaction between non-linear wave, buried pipeline and non-homogenous porous seabed. Computers and Geotechnics, 30(6): 535–547
Grant W D, Madsen O S. 1979. Combined wave and current interaction with a rough bottom. Journal of Geophysical Research: Oceans, 84(C4): 1797–1808
Green M O, Black K P, Amos C L. 1997. Control of estuarine sediment dynamics by interactions between currents and waves at several scales. Marine Geology, 144(1–3): 97–116
Green M O, Coco G. 2014. Review of wave-driven sediment resuspension and transport in estuaries. Reviews of Geophysics, 52(1): 77–117
Hawley N. 2000. Sediment resuspension near the Keweenaw Peninsula, Lake Superior during the fall and winter 1990-1991. Journal of Great Lakes Research, 26(4): 495–505
Huang Yu, Bao Yangjuan, Zhang Min, et al. 2015. Analysis of the mechanism of seabed liquefaction induced by waves and related seabed protection. Natural Hazards, 79(2): 1399–1408
Jeng D S. 2011. Mechanism of the wave-induced seabed instability in the vicinity of a breakwater: a review. Ocean Engineering, 28(5): 537–570
Jeng D S. 2013. Porous Models for Wave-seabed Interactions. Berlin Heidelberg: Springer, 1–289
Jeng D S, Lin Y S. 1997. Non-linear wave-induced response of porous seabed: a finite element analysis. International Journal for Numerical and Analytical Methods in Geomechanics, 21(1): 15–42
Jia Liangwen, Ren Jie, Nie Dan, et al. 2014a. Wave-current bottom shear stresses and sediment re-suspension in the mouth bar of the Modaomen Estuary during the dry season. Acta Oceanologica Sinica, 33(7): 107–115
Jia Yonggang, Shan Hongxian, Yang Xiujuan, et al. 2011. Sediment Dynamics and Geologic Hazards in the Estuary of Yellow River, China (in Chinese). Beijing: Science Press, 1–495
Jia Yonggang, Zhang Liping, Zheng Jiewen, et al. 2014b. Effects of wave-induced seabed liquefaction on sediment re-suspension in the Yellow River Delta. Ocean Engineering, 89: 146–156
Jia Yonggang, Zheng Jiewen, Yue Zhongqi, et al. 2014c. Tidal flat erosion of the Huanghe River Delta due to local changes in hydrodynamic conditions. Acta Oceanologica Sinica, 33(7): 116–124
Jia Yonggang, Zhu Chaoqi, Liu Liping, et al. 2016. Marine geohazards: review and future perspective. Acta Geologica Sinica, 90(4): 1455–1470
Jiang Wensheng, Pohlmann T, Sündermann J, et al. 2000. A modelling study of SPM transport in the Bohai Sea. Journal of Marine Systems, 24(3–4): 175–200
Jing Lou, Ridd P V. 1996. Wave-current bottom shear stresses and sediment resuspension in Cleveland Bay, Australia. Coastal Engineering, 29(1–2): 169–186
Kirca V S O. 2013. Sinking of irregular shape blocks into marine seabed under wave-induced liquefaction. Coastal Engineering, 75: 40–51
Kong Lingshuang, Cao Zude, Wang Wei, et al. 2011. Sediment movement characteristics of coast and analysis of seabed evolution. Acta Oceanologica Sinica, 30(5): 101–107
Lambrechts J, Humphrey C, McKinna L, et al. 2010. Importance of wave-induced bed liquefaction in the fine sediment budget of Cleveland Bay, Great Barrier Reef. Estuarine, Coastal and Shelf Science, 89(2): 154–162
Lane E W. 1947. Report of the subcommittee on sediment terminology. EOS, 28(6): 936–938
Li Fengye, Song Jinming, Li Xuegang, et al. 2003. Modern sedimentation rate and flux in the Jiaozhou Bay. Marine Geology & Quaternary Geology (in Chinese), 23(4): 29–33
Liu Guangshan, Li Dongmei, Yi Yong, et al. 2008a. Radionuclide distribution in sediments and sedimentary rates in the Jiaozhou Bay. Acta Geoscientica Sinica (in Chinese), 29(6): 769–777
Liu J P, Liu C S, Xu K H, et al. 2008b. Flux and fate of small mountainous rivers derived sediments into the Taiwan Strait. Marine Geology, 256(1-4): 65–76
Liu Xiaolei, Jia Yonggang, Zheng Jiewen, et al. 2013. Consolidation of sediments discharged from the Yellow River: implications for sediment erodibility. Ocean Dynamics, 63(4): 371–384
Liu Xiaolei, Jia Yonggang, Zheng Jiewen, et al. 2017. An experimental investigation of wave-induced sediment responses in a natural silty seabed: new insights into seabed stratification. Sedimentology, 64(2): 508–529
Madsen O S. 1976. Wave climate of the continental margin: elements of its mathematical description. In: Stanley D J, Swift D J P, eds. Marine Sediment Transport and Environmental Management. New York: Wiley, 65–87
Martín J, Puig P, Palanques A, et al. 2014. Trawling-induced daily sediment resuspension in the flank of a Mediterranean submarine canyon. Deep-Sea Research: Part II. Topical Studies in Oceanography, 104: 174–183
Milliman J D, Syvitski J P M. 1992. Geomorphic/tectonic control of sediment discharge to the ocean: the importance of small mountainous rivers. Journal of Geology, 100(5): 525–544
Nielsen P, Robert S, Møller-Christiansen B, et al. 2001. Infiltration effects on sediment mobility under waves. Coastal Engineering, 42(2): 105–114
Perez S E, Kilpatrick M E, Faulks M M. 2010. A new method for measuring sediment shear and erosion. Journal of Marine Environmental Engineering, 9(2): 115–121
Qin Boqiang, Hu Weiping, Gao Guang, et al. 2004. Dynamics of sediment resuspension and the conceptual schema of nutrient release in the large shallow Lake Taihu, China. Chinese Science Bulletin, 49(1): 54–64
Ren Mei’e. 2015. Sediment discharge of the Yellow River, China: past, present and future-A synthesis. Acta Oceanologica Sinica, 34(2): 1–8
Sabol B, Shafer D J, Lord E. 2005. Dredging effects on eelgrass (Zostera marina) in a New England small boat harbor. Journal of Marine Environmental Engineering, 8(1): 57–81
Sheng Y P, Lick W. 1979. The transport and resuspension of sediments in a shallow lake. Journal of Geophysical Research: Oceans, 84(C4): 1809–1826
State Oceanographic Administration. 1993. China’s Estuaries and Embayments: Southern Shandong Peninsula and Jiangsu Province, Volume 4 (in Chinese). Beijing: China Ocean Press, 157–258
Sumer B M, Fredsøe J, Christensen S, et al. 1999. Sinking/floatation of pipelines and other objects in liquefied soil under waves. Coastal Engineering, 38(2): 53–90
Talke S A, Stacey M T. 2008. Suspended sediment fluxes at an intertidal flat: the shifting influence of wave, wind, tidal, and freshwater forcing. Continental Shelf Research, 28(6): 710–725
Talling P J, Allin J, Armitage D A, et al. 2015. Key future directions for research on turbidity currents and their deposits. Journal of Sedimentary Research, 85(2): 153–169
Tzang S Y. 1998. Unfluidized soil responses of a silty seabed to monochromatic waves. Coastal Engineering, 35(4): 283–301
Tzang S Y, Ou S H, Hsu T W. 2009. Laboratory flume studies on monochromatic wave-fine sandy bed interactions: Part 2, Sediment suspensions. Coastal Engineering, 56(3): 230–243
Wang Yaping, Gao Shu. 2007. Depositional rates on multiple temporal and spatial scales in Jiaozhou Bay, Shandong peninsula. Quaternary Sciences (in Chinese), 27(5): 787–796
Wang Yaping, Gao Shu. 2013. ADCP measurements of suspended sediment flux at the entrance to Jiaozhou Bay, western Yellow Sea. Acta Oceanologica Sinica, 32(12): 96–103
Wang Wenhai, Wang Runyu, Zhang Shuxin. 1982. Sediment source of the Jiaozhou Bay and its natural sedimentation rate. Coastal Engineering (in Chinese), 1(1): 83–90
Warrick J A. 2013. Dispersal of fine sediment in nearshore coastal waters. Journal of Coastal Research, 29(3): 579–596
Xu J P, Sequeiros O E, Noble M A. 2014. Sediment concentrations, flow conditions, and downstream evolution of two turbidity currents, Monterey Canyon, USA. Deep-Sea Research: Part I. Oceanographic Research Papers, 89: 11–34
Yang Zuosheng, Lei Kun, Guo Zhigang, et al. 2007. Effect of a winter storm on sediment transport and resuspension in the distal mud area, the East China Sea. Journal of Coastal Research, 23(2): 310–318
Yang Shilun, Zhang Jianmin, Zhu Jianrong. 2004. Response of suspended sediment concentration to tidal dynamics at a site inside the mouth of an inlet: Jiaozhou Bay (China). Hydrology and Earth System Sciences, 8(2): 170–182
Ye Jianhong, Jeng D, Liu P L F, et al. 2014. Breaking wave-induced response of composite breakwater and liquefaction in seabed foundation. Coastal Engineering, 85: 72–86
Ye Jianhong, Wang Gang. 2016. Numerical simulation of the seismic liquefaction mechanism in an offshore loosely deposited seabed. Bulletin of Engineering Geology and the Environment, 73(3): 1183–1197
Yuan Ye, Wei Hao, Zhao Liang, et al. 2008. Observations of sediment resuspension and settling off the mouth of Jiaozhou Bay, Yellow Sea. Continental Shelf Research, 28(19): 2630–2643
Zhang Shaotong, Jia Yonggang, Wen Mingzheng, et al. 2017. Vertical migration of fine-grained sediments from interior to surface of seabed driven by seepage flows--‘sub-bottom sediment pump action’. Journal of Ocean University of China, 16(1): 15–24
Zhang Yanwei, Liu Zhifei, Zhao Yulong, et al. 2014. Mesoscale eddies transport deep-sea sediments. Scientific Reports, 4: 5937
Zhao Yulong, Liu Zhifei, Zhang Yanwei, et al. 2015. In situ observation of contour currents in the northern South China Sea: applications for deepwater sediment transport. Earth and Planetary Science Letters, 430: 477–485
Zhao Liang, Wei Hao, Zhang Jianzhong. 2002. Numerical study on water exchange in Jiaozhou Bay. Oceanologia et Limnologia Sinica (in Chinese), 33(1): 23–29
Zheng Jiewen, Jia Yonggang, Liu Xiaolei, et al. 2013. Experimental study of the variation of sediment erodibility under wave-loading conditions. Ocean Engineering, 68: 14–26
Zheng Jimin, Shen Weiquan. 1986. The sediment engineering characteristics of the Jiaozhou Bay and its utilization. Coastal Engineering (in Chinese), 5(3): 39–47
Zhu Chaoqi, Jia Yonggang, Liu Xiaolei, et al. 2017a. Influence of waves and currents on sediment erosion and deposition based on in situ observation: case study in Baisha Bay, China. Journal of Marine Environmental Engineering, 10(1): 29–43
Zhu Chaoqi, Jia Yonggang, Wang Zhenhao, et al. 2017b. Dynamics of bottom boundary layers in the yellow river subaqueous delta based on long-term in situ observations. Acta Geologica Sinica, 91(1): 369–370
Zhu Chaoqi, Liu Xiaolei, Shan Hongxian, et al. 2017c. Properties of suspended sediment concentrations in the Yellow River delta based on observation. Marine Georesources & Geotechnology, 35(7): 1–11
