Size fraction of phytoplankton and the contribution of natural plankton to the carbon source of Zhikong scallop Chlamys farreri in mariculture ecosystem of the Sanggou Bay
收藏切换
PDF
Zengjie JIANG1, 2, Meirong DU1, Jinghui FANG1, Yaping GAO1, Jiaqi LI1, Li ZHAO3, Jianguang FANG1, 2, *
Acta Oceanologica Sinica | 2017, 36(10) : 97 - 105
Less
收藏切换
Acta Oceanologica Sinica | 2017, 36(10): 97-105
• •
Size fraction of phytoplankton and the contribution of natural plankton to the carbon source of Zhikong scallop Chlamys farreri in mariculture ecosystem of the Sanggou Bay
Full
Zengjie JIANG1, 2, Meirong DU1, Jinghui FANG1, Yaping GAO1, Jiaqi LI1, Li ZHAO3, Jianguang FANG1, 2, *
Affiliations
  • 1 Key Laboratory of Sustainable Development of Marine Fisheries of Ministry of Agriculture, Yellow Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Qingdao 266071, China
  • 2 Function Laboratory for Marine Fisheries Science and Food Production Processes, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China
  • 3 Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
Published: 2017-12-01 doi: 10.1007/s13131-017-0970-x
Outline
收藏切换

The biomass and size fraction of phytoplankton in terms of chlorophyll a (Chl a) was measured during four cruises conducted in April, July, October 2013 and January 2014 in mariculture area, the Sanggou Bay, China. Results show that total Chl a levels in the surface seawater of the Sanggou Bay generally range from 0.10 to 20.46 μg/L, with an average value of 2.13 μg/L. Nano-phytoplankton was the most important size-fraction and accounted for about 65.1% of total Chl a. In order to evaluate the importance of the “protozoan trophic link” for energy transfer from the microbial loop to filter-feeding feeders, Zhikong scallop Chlamys farreri was then offered a natural planktonic community as potential prey. Results show that scallops obtained carbon source from natural plankton with the rate of 11 033.05 μg/(g·d). Protists (nanoflagellates and ciliates) were the dominant source of carbon retained by scallop (48.78%). The microbial loop provided 58.45% of the carbon source for farmed scallops. These results indicate that the microbial loop represent a valuable trophic resource in mariculture system of the Sanggou Bay.

phytoplankton  /  picoplankton  /  protist  /  microbial food web  /  Chlamys farreri
Zengjie JIANG, Meirong DU, Jinghui FANG, Yaping GAO, Jiaqi LI, Li ZHAO, Jianguang FANG. Size fraction of phytoplankton and the contribution of natural plankton to the carbon source of Zhikong scallop Chlamys farreri in mariculture ecosystem of the Sanggou Bay[J]. Acta Oceanologica Sinica, 2017 , 36 (10) : 97 -105 . DOI: 10.1007/s13131-017-0970-x
Full Text
Less
1 Introduction
Less
China is the largest mariculture country in the world and produces 17.39 million tonnes of seafood in 2013, worth approximately 260.45 billion RMBs (Fisheries Bureau of Ministry of Agriculture, China, 2014). Among the total mariculture production, the production of shellfish takes about 73.18% at an amount of 12.73 million tonnes. Filter-feeding bivalves, such as oysters, scallops, mussels, etc., are the main species and occupied about 90.37% of the total shellfish harvest. Bivalves obtain energy resources by filtering particles from seawater and their growth depends on the nutritive value of the retained seston. The seston consists of plankton of a wide range of sizes and palatability, material re-suspended from the benthos, as well as aggregates consisting of high molecular weight substances, detritus, fecal pellets and microorganisms (Crocker and Passow, 1995; Passow et al., 1994). Stable isotope studies, like morphological-based gut content analyses, have demonstrated the primary importance of phytoplankton (Yokoyama et al., 2005; Marín Leal et al., 2008) and microphytobenthic material (Sauriau and Kang, 2000; Kang et al., 2006) in the diets of suspension feeding bivalves. Phytoplankton can be divided into three size classes: micro-phytoplankton (>20 μm), nano-phytoplankton (2.0–20 μm) and pico-phytoplankton (0.45–2.0 μm) and different size-fractionated phytoplankton carry out different ecological functions (Huang et al., 1999; Kormas et al., 2002; Froneman et al., 2004). However, the gill of the bivalves, which is a dominant feeding organism, cannot retain pico-phytoplankton effectively (Kreeger and Newell, 1996; Yukihira et al., 1999). Heterotrophic protists are an important component of nanoplankton and microplankton assemblages in the marine pelagic ecosystem (Sherr and Sherr, 1994). With their small size and high growth rates, ciliates and heterotrophic fagellates may contribute significantly to trophic flux and nutrient cycling (Sheldon et al., 1986). Heterotrophic protists consume bacteria and phytoplankton and are themselves important prey items for mesozooplankton (Karl et al., 2003). The linked concepts of “microbial loop” and “protozoan trophic link” have been very well documented in filter-feeding microzooplankton such as copepods, but have not been applied to energy transfer to filter-feeding bivalves, with the exception of the recent demonstration of ciliates and flagellates assimilation by oyster and mussels (Le Gall et al., 1997; Dupuy et al., 1999, 2000; Loret et al., 2000; Wong et al., 2003). This raises the question of the role of heterotrophic protists as a valuable trophic link between picoplankton and filter-feeding bivalves under cultivation.
The Sanggou Bay, located in Shandong Province of China, is one of the most intensive mariculture bays in China. It has been under mariculture for more than 30 years. The main cultivation species were seaweed Saccharina japonica, oyster Crassostrea gigas and scallop Chlamys farreri with the annual production 84 500 tons (DW), 60 000 tons (WW) and 15 000 tons (WW) respectively (Rongcheng Fisheries Technology Extension Station, 2012, www.rchy.gov.cn). As for the main food source of the bivalves, a number of studies on phytoplankton communities including their spatial and temporal variations have been conducted in Sanggou Bay (Song et al., 2007; Mu et al., 2009; Li et al., 2010; Hao et al., 2012), but mostly for the entire phytoplankton community rather than for specific size-fractions. To fill this gap, this study aims to describe seasonal variations of Chl a biomass and the relative contribution of different size classes to total Chl a in the Sanggou Bay by means of size fractionation in the first step, and then to assess the contribution of the autotrophic and/or heterotrophic plankton (heterotrophic bacteria, Synechococcus, picoeukaryotes, nanoflagellates, ciliates) to the carbon source of scallop in autumn by flow-through chamber method.
2 Materials and methods
Less
2.1 Description of the study area

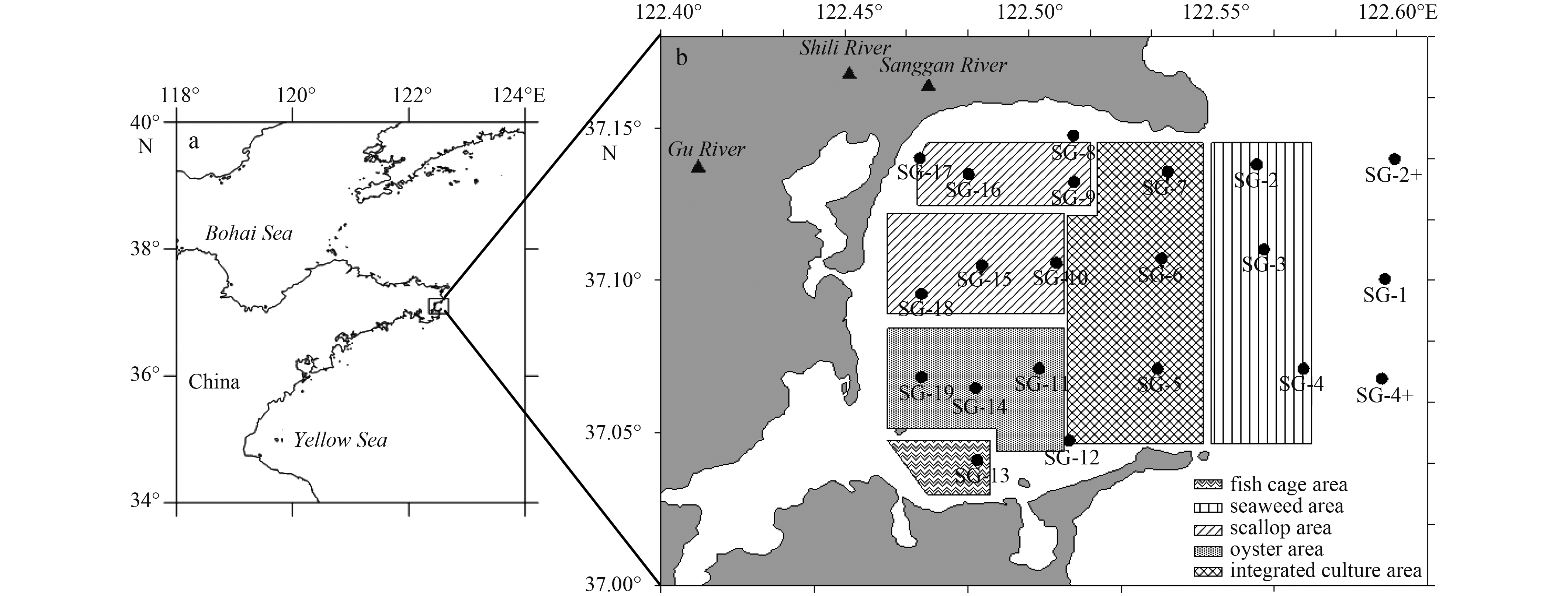

The study was carried out at the aquaculture area of the Sanggou Bay (37°01′–37°09′N, 122°24′–122°35′E), Shandong Province, China. The bay is a small semi-enclosed bay (about 144 km2) with a mean depth of 7.5 m. Water exchange between the bay and Yellow Sea is driven by a semi-diurnal tide (tidal range 2 m) through an 11.5-km opening area of the bay (Jiang et al., 2007). Rivers which flow into the Sanggou Bay include the Gu River, Sanggan River, and Shili River, with the annual water discharge (1.7–2.3)×108 m3 (Annual Report on the River Regime of Rongcheng City 2011, www.rcsl.gov.cn). Among them, Gu River is the largest River and occupies almost 70% of the total water discharge. The Zhikong scallop Chlamys farreri is one of the main species cultured and it is mainly grown in lantern nets suspended underneath buoyed longlines. A lantern net is generally divided into 8–10 tiers by plastic perforated plates, with stocking density ca. 350 individuals per lantern net. Growout period of the cultured Zhikong scallop is from 1.5 to 2 years.
2.2 Experimental design, sample collection and analysis procedures
Four survey cruises were performed in the Sanggou Bay at the 21 stations during April 22 to 25, July 21 to 25, October 17 to 20, 2013 and January 15 to 17, 2014 (Fig. 1). Surface seawater samples (0.5 m below the sea surface) were collected by acid-cleaned 5 L Hydro-bios water sampler and stored in polyethylene bottles. Duplicate subsamples of 1 000 mL seawater samples were sequentially filtered at room temperature after collection onto meshes of 20 μm and polycarbonate 47 mm (Millipore) filters of 2 μm and 0.45 μm of pore size in turn to separate three size classes: micro-phytoplankton (>20 μm), nano-phytoplankton (2.0–20 μm) and pico-phytoplankton (<2.0 μm). The filters were then wrapped in foil and frozen at –20°C before extraction, generally within one week. Phytoplankton cells retained on each size-fractionated mesh or filter were extracted with 90% acetone at 4°C and stored in the dark for 24 h. The contents were subsequently centrifuged for 15 min, after which the clear supernatant fluid was analyzed with a Trilogy Fluorometer (Turner Designs, USA). Chl a concentration was calculated according to method given by Parson et al. (1984). Dissolved inorganic nutrients (nitrates, nitrites, ammonium and phosphate) analyses were carried on filtered water (0.45 μm) spectrophotometrically according to methods described by Strickland and Parsons (1972).
In addition, seawater transparency was measured by plastic secchi disc. Sea surface temperature (SST), salinity and pH were measured using an YSI Professional Plus handheld multi-parameter water quality meter (Yellow Springs Instrument Company, USA). The daily primary production was estimated by the Chlorophyll method (Jiang et al., 2012). Daily illumination time for each sampling day was obtained from website http://www. weather.com.cn/weather/101121304.shtml. Data on percentage of phytoplankton extracellular release (PER) was obtained from published literature (Liu, 2012).
Scallops Chlamys farreri were collected from the commercial suspended lantern nets farm in the Sanggou Bay during October 2014. Scallops (n=45) selected were (18.17±3.77) g wet weight and (55.51±1.77) mm shell height. The valves were cleaned before transport to the acclimation system, where they were acclimated for 2 d in flow-through seawater aquaria with a capacity of 200 L at ambient temperature and salinity ((17.4±0.6)°C and 31.05±0.03) prior to the start of the experiment.

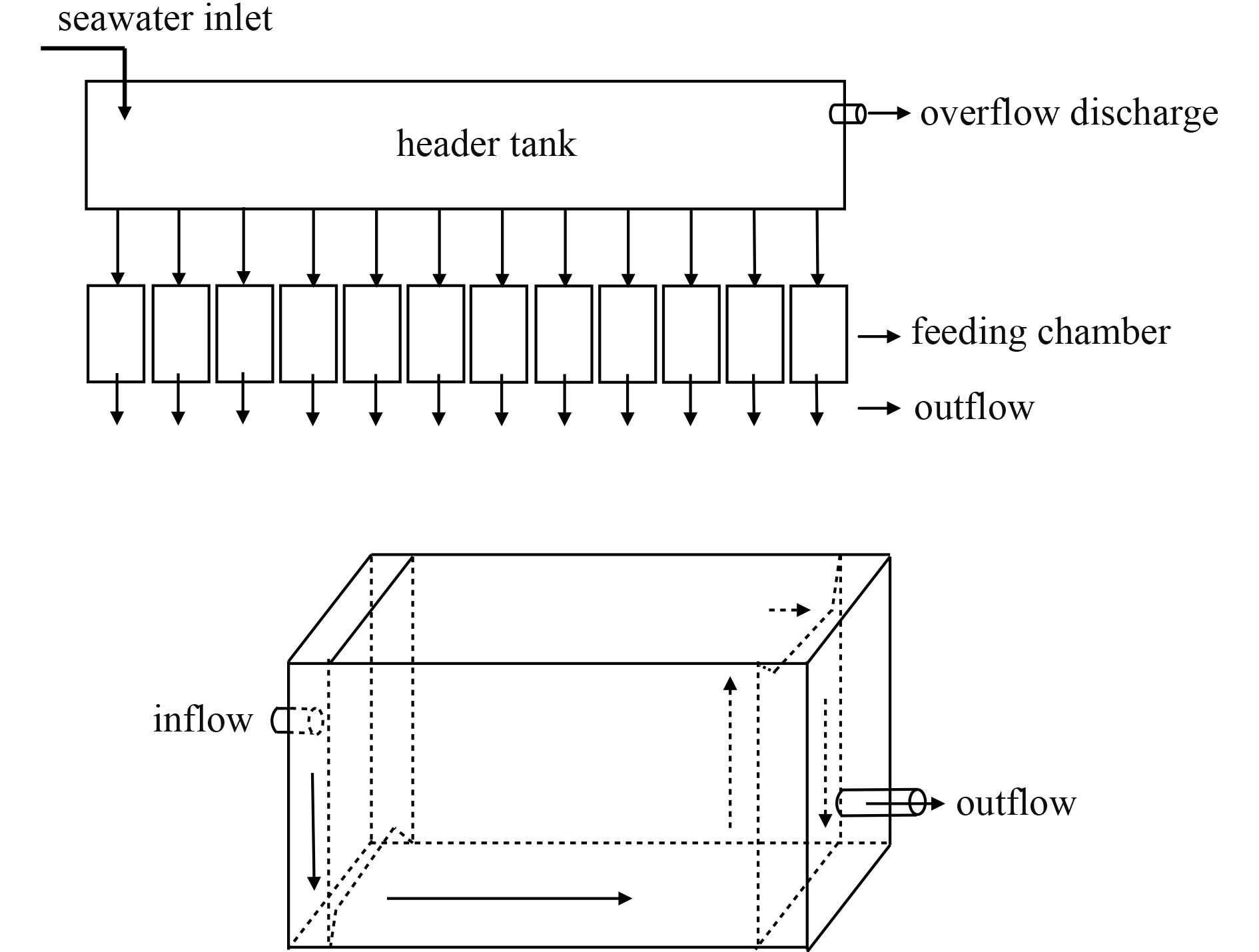

The feeding experiments were performed by transferring scallops from the acclimatization tank to individual flow-through chambers (Fig. 2a). The chambers were continuously supplied with flowing unfiltered seawater from header tank. The internal dimensions of those chambers were 23.6 cm (width)×48.8 cm (length)×28.7 cm (height) and received a continuous flow of seawater (Fig. 2b). This chamber design restrains internal recirculation and helps to prevent refiltration of the water by the scallops (Strohmeier et al., 2009). In this experiment, twelve chambers were used, of which nine were filled with one individual and three served as a control without scallop. Flow rates through each chamber were adjusted to 200–400 mL/min and determined by simultaneously collecting and measuring the volume of water collected from each outflow. The scallops were left undisturbed in chambers with flowing seawater at least 0.5 h to resume feeding before sampling water from the outlet of the chambers. The scallops was exposed to natural photoperiod (11L: 13D) throughout this study. Temperature, salinity and pH were simultaneously measured at 10 min intervals in the header tank using an YSI Professional Plus handheld multi-parameter water quality meter (Yellow Springs Instrument Company, USA).
Water samples (1 000 mL) collected from each chamber outlet were filtered on Millipore filters of 2 μm and 0.45 μm of pore size in turn to separate size classes. Phytoplankton cells retained on each size-fractionated mesh or filter were extracted with 90% acetone at 4°C and stored in the dark for 24 h. The contents were subsequently centrifuged for 15 min, after which the clear supernatant fluid was analyzed with a Trilogy Fluorometer (Turner Designs, USA). Chl a concentration was calculated according to method given by Parson et al. (1984). To convert Chl a>2 μm and Chl a<2 μm concentrations into carbon biomass, we used ratios equal to 50 μg/μg (C/Chl a) and 82 μg/μg (C/Chl a), respectively (Charpy and Charpy-Roubaud, 1990; Charpy, 1996).
Water samples (200 mL) collected from each chamber outlet were analyzed for the abundances of picoplankton (cell/mL), nanoflagellates (ind./mL) and ciliates (ind./L). In this study, picoplankton abundance is defined as the sum of heterotrophic bacteria, Synechococcus and picoeukaryotes abundances. The abundances of picoplankton were counted by flow cytometry using a FACS vantage SE system (Becton Dickinson) equipped with a water-cooled Argon laser (488 nm, 1 W, Coherent) (Zhao et al., 2011). To calculate an average carbon conversion factor for picoplankton, we used conversion factors of 14 fg/cell (Gundersen et al., 2002), 178 fg/cell (Charpy and Blanchot, 1998) and 836 fg/cell (Verity et al., 1992) for bacteria, Synechococcus and picoeukaryotes, respectively.
Samples (100 mL) used to estimate the abundance of nanoflagellates were pre-filtered through a nylon mesh (20 μm pore size), then fixed immediately with glutaraldehyde at a final concentration of 0.5% (v/v). Subsequently, subsamples (10–20 mL) were filtered in triplicate onto a polycarbonate black membrane (0.22 μm) (Millipore) at low pressure (<100 mm Hg). Cells left on the filter membranes were stained immediately by adding 4′, 6-diamidino-2-phenylindole (DAPI) at a concentration of 10 μg/mL for 15 min and examined with an epifluorescence microscope (Leica DM 4500B) at 1 000×magnification. The sizes of the cells were measured using Leica DM4500 software. To obtain a reliable estimation of the abundance, at least 100 cells were counted per sample (Lu et al., 2015). The carbon-biovolume conversion factor of 220 fg/μm3 was used for nanoflagellates (Lu, 2014).
To determine the total abundance of ciliates, 1 000 mL of seawater was fixed with acid Lugol’s iodine solution (at a final concentration of 1%) and stored at 4°C in the dark. After settling for 48 h, the supernatant was siphoned out until 150 mL of sample remained. The concentrated sample was settled in an Utermöhl chamber and then counted using an inverted microscope at 200× or 400×. Ciliates were counted, and the length and diameter of each cell were measured. The carbon-biovolume conversion factor for ciliates was 0.19 pg/μm3 (Putt and Stoecker, 1989).
The individual clearance rates (CR, L/(ind.·h) for the components of the microbial food web were calculated according to the following equations (Hildreth and Crisp, 1976):
$CR = \left[ {\left( {{C_1} - {C_0}} \right)/{C_1}} \right] \times F/100,$
where C1 and C0 are the abundance counts in the control and experimental chamber respectively. F is the flow rate (L/h) measured at the outlet of each chamber.
At the end of the experiments, each scallop height was measured and the flesh was freeze dried and weighted. Freeze dried fresh weight (DW in g) was used to normalize clearance rates per gram of dry flesh (CRw, L/(g·h). Measurements were done repeatedly (2–3 times) at 4 h time interval. The experiment was completed after 12 h exposure to ambient seawater.
To assess the contribution of each plankton type to the diet of Chlamys farreri, we estimated carbon retention rates by the following equation (Fournier et al., 2012):
$RR = CB \times CR_{\rm{w}},$
where RR is retention rates of carbon in μg/(g·h), CB is carbon biomass in μg/L.
2.3 Statistics analysis and contour plots
Statistics were done using the software SPSS 17.0 for Windows. The one-way analysis of variance (ANOVA) was used to analyze the effects of season on variations in Chl a concentration. According to the results of homogeneity test, a posteriori, Tukey’s HSD or Tamhane’s T2 comparisons were applied to determine statistically significant differences (p<0.05) following ANOVA. Contour maps were plotted by Surfer 8.0. A CCA (Canonical Correspondence Analysis) was used to evaluate the combined main environmental variables and the fractioned phytoplankton. A Monte Carlo Test proved that the correlation among the biological and abiotic matrices was statistically significant (p=0.01).
3 Results
Less
3.1 Spatial, seasonal and size-fraction variations of Chl a concentration

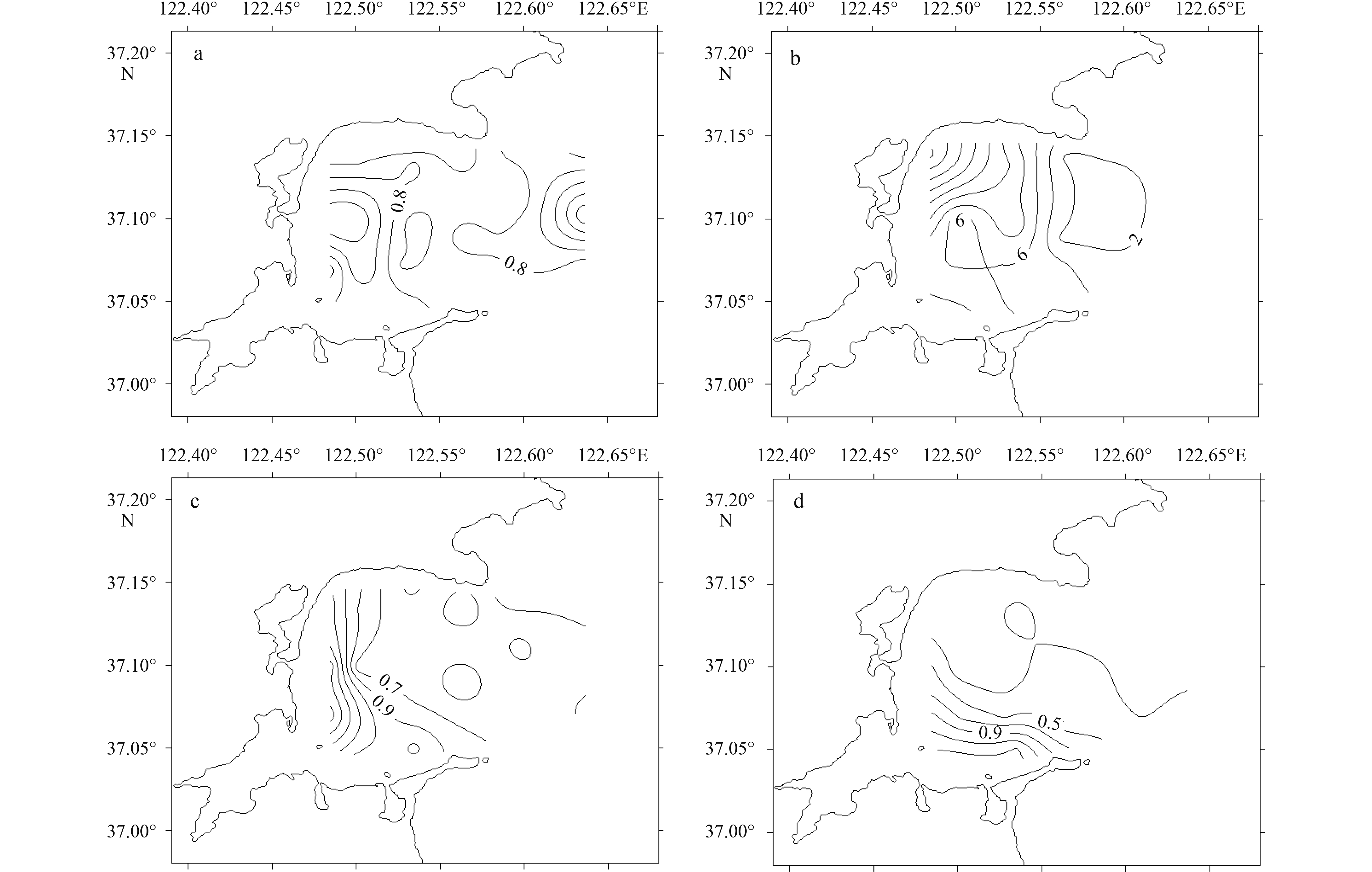

The spatial distributions of Chl a concentration in different seasons are depicted in Fig. 3. During spring, the surface water of the bay had a homogeneous Chl a concentration of (0.83±0.45) μg/L (Fig. 3a). In summer, the highest values were found along the northwestern coast of the bay with the maximum of 20.46 μg/L (Fig. 3b). The Chl a concentration inside the bay was much higher than outside area. In autumn, the Chl a concentration showed a clear increasing trend from outside to inside the bay. The higher Chl a concentration was along the west coast of the bay with the values ranged between 1.14 and 2.00 μg/L. Lowest concentrations were found in the mouth area of the bay, with concentrations as low as 0.36 μg/L (Fig. 3c). In winter, the highest values were found along the southwestern coast of the bay with the maximum of 1.66 μg/L (Fig. 3d).
Total Chl a concentration and primary production values in the four cruises are displayed in Table 1. Median concentrations of Chl a varied significantly among sampling periods (p<0.01) with the highest values observed in summer and the minimum in winter. Intermediate values of Chl a concentrations were observed in spring and autumn. Mean transparency ranged from (0.86±0.27) m (in April 2013) to (2.23±1.22) m (in January 2014).
Seasonal variation of primary production shows the same trend as Chl a. The mean annual primary production in the Sanggou Bay area was 180.32 mg/(m2·d). One-way ANOVA indicated there were very significant differences between different seasons for both Chl a and primary production (p<0.01). The subsequent post hoc Tamhane’s T2 test showed that the values of Chl a in summer differed very significantly from the other three seasons (p<0.01).

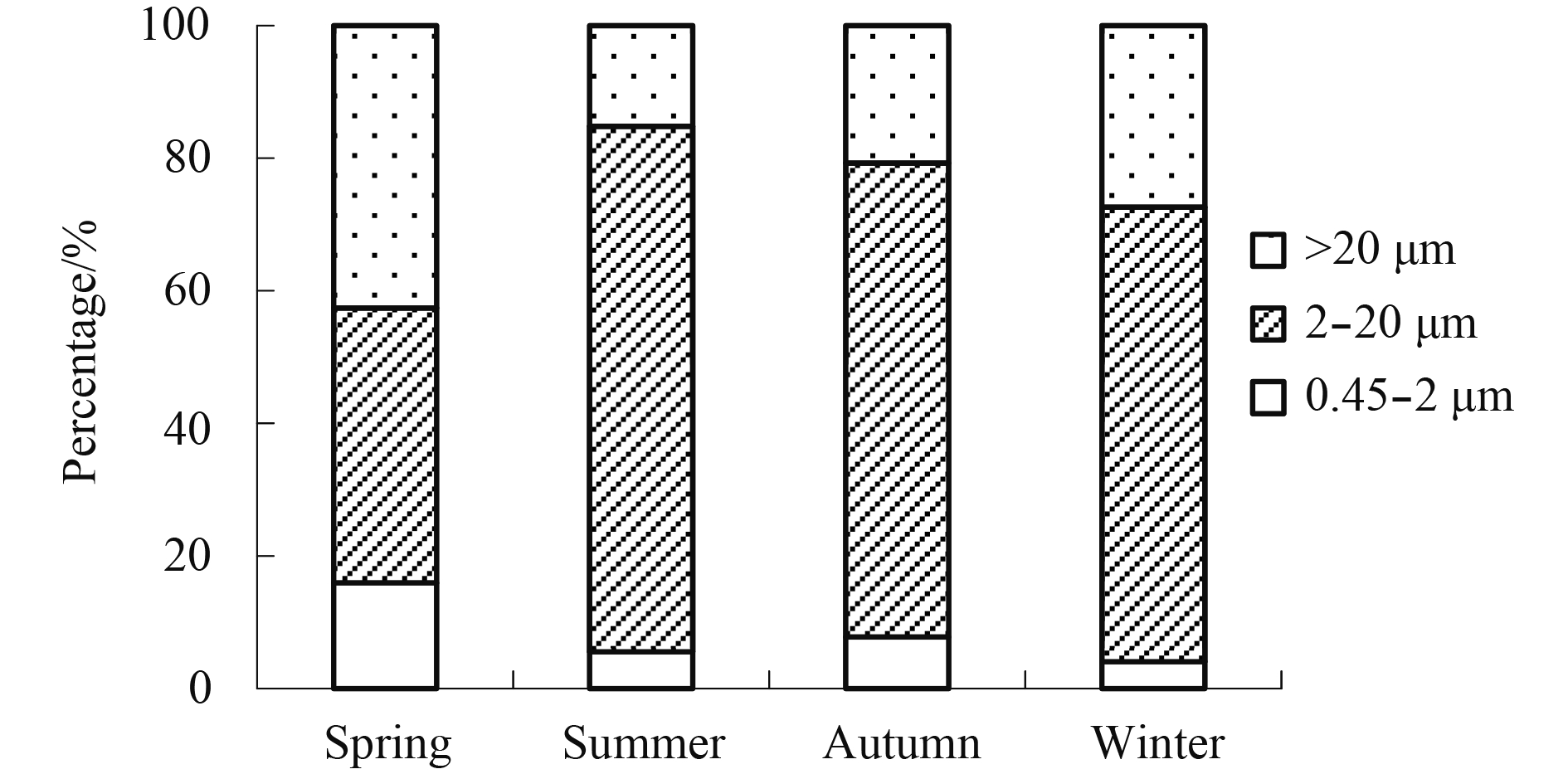

Figure 4 shows the seasonal variations and contribution of size-fraction phytoplankton in surface seawater of the Sanggou Bay. Results show that the nano-phytoplankton was the most important size-fraction and accounted for about 65.1% of total Chl a on average. In contrast, the smaller <2 μm size class contributed a mere 8.4% of the total Chl a. Taking the seasonal variations into account, nano-phytoplankton was dominant during summer, autumn and winter, whereas nano- and micro-phytoplankton together dominated in spring.

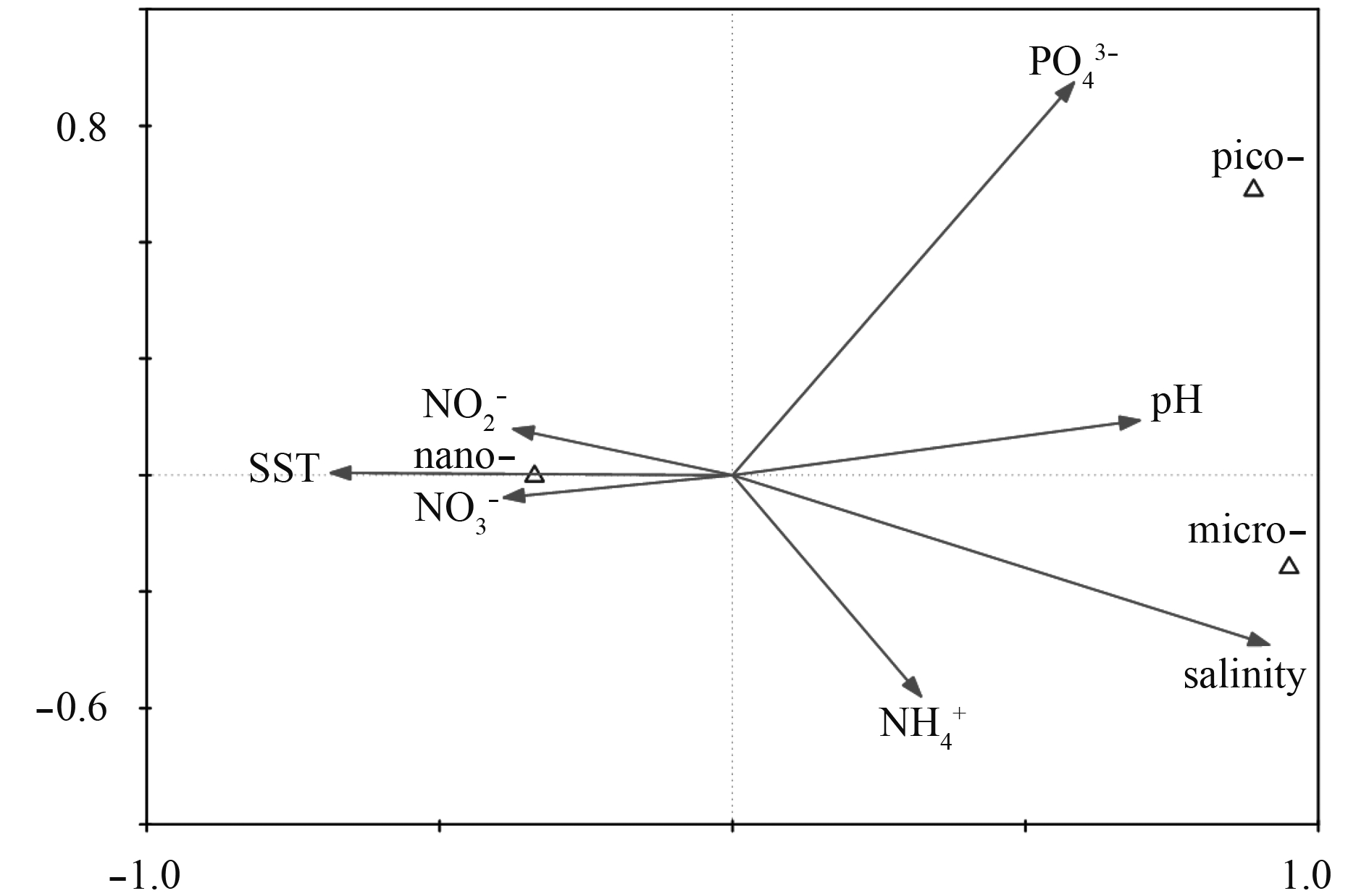

Seasonal variability of different environmental parameters, including SST, salinity, pH and nutrients, in the sea surface of survey area are listed in Table 2. A CCA was performed with seven environmental variables and three phytoplankton fractions (Fig. 5). The eigenvalues of Axis 1 (λ=0.054), Axis 2 (λ=0.004) and Axis 3 (λ=0.009) explain 82.0% of the total data variation. Results show that the nano-phytoplankton fraction was correlated to SST, nitrate and nitrite, whereas micro-phytoplankton fraction was more correlated to salinity and ammonia. The pico-phytoplankton was correlated to phosphate and pH. The Monte Carlo test demonstrated that the correlation between biological and abiotic matrices was statistically significant for all canonical axes (p=0.002).
3.2 Contribution of natural plankton to the carbon source of Zhikong scallop Chlamys farreri
Water temperature and salinity during the clearance rate experiment ranged from 16.8°C to 17.9°C and from 31.01 to 31.09. Abundance and carbon biomass for the different categories in the natural ambient seawater were presented in Table 3. The concentration of Chl a of nano-phytoplankton and micro- phytoplankton was significantly higher than Chl a of pico-phytoplankton (p<0.01). The phytoplankton biomass for Chl a of nano-phytoplankton and micro-phytoplankton and Chl a of pico-phytoplankton was occupied 84.8% and 15.2% of the total biomass respectively. Among the three types of autotrophic and/or heterotrophic plankton, picoplankton and nanoflagellates were the most abundant plankton types with the mean concentration of 1.51×109 and 6.20×106 cell/L. The total planktonic carbon biomass was 121.59 μg/L and nanoflagellates constituted the bulk of total plankton biomass (52.4%).
Clearance rates of scallops for each plankton fraction ranged from 0.60 to 7.10 L/(g·h) and increased with the size of plankton (Table 4). Scallops cleared Chl a of nano-phytoplankton and micro- phytoplankton at a higher rate than Chl a of pico-phytoplankton (p<0.01). Furthermore, clearance of picoplankton by scallops was extremely low compare to clearance of nanoflagellates and ciliates (p<0.01). Based on the clearance rates and carbon biomass, we calculated the contribution of each plankton fraction to the carbon source of scallops in autumn in the Sanggou Bay. The scallops retained much larger amounts of carbon from Chl a of nano-phytoplankton and micro-phytoplankton (95.81%) than from Chl a of pico-phytoplankton (4.19%). For the planktonic fraction, carbon retained by scallops originated mainly from nanoflagellates ((219.30±40.08) μg/(g·h)) and represent 82.20% of carbon resource, then from picoplankton (15.93%), and finally from ciliates (1.86%).
4 Discussion
Less
The physical and chemical properties of a given environment are very important factors controlling the size distribution of phytoplankton (Cermeño et al., 2006). In general, it is accepted that, pico-phytoplankton cells (<2 μm) are dominated in oceanic oligotrophic areas (Zubkov et al., 2000), while in coastal areas where factors influencing the composition and dynamics of the phytoplankton community (nutrient, light availability, predation, among others) are more variable in time and space, nano- and micro-phytoplankton usually dominate for considerable periods of time (Iriarte, 1993). In this study, CCA analysis showed that the concentration of pico-phytoplankton was correlated to phosphate and pH. In the context of the phosphorus-deficient and nitrogen-sufficient trophic condition in the Sanggou Bay (Sun et al., 2007), the size fraction of phytoplankton was most likely controlled by nutrient. There have been many investigations on the size distribution of phytoplankton in areas of the coastal sea of China and importance of different sized phytoplankton was described in those studies. Results show that nano-phytoplankton fraction constituted the most important part in the East China Sea (Huang et al., 2006), southern Yellow Sea (Deng et al., 2008), Jiaozhou Bay (Wu et al., 2004; Pan and Shen, 2009; Sun and Sun, 2012) and Laizhou Bay (Cai et al., 2002). The results of the present investigation indicate that nano-phytoplankton is also the most abundant fraction of the phytoplankton in the Sanggou Bay area and similar to previous reports on the phytoplankton characteristic of coastal sea in China. The Sanggou Bay is famous for its large-scale aquaculture for shellfish and seaweed in northern China. Bivalves (scallop Chlamys farreri and oyster Crassostrea gigas) are the main cultivated shellfish species. Bivalves are suspension feeders and gain nourishment by filtering suspended particles such as phytoplankton and detritus from the water column, the by-products are dissolved ammonium and bio-deposits of feces and pseudofeces, they are therefore considered “keystone” species which exert “top-down” control of phytoplankton by grazing but also “bottom-up” control through biodeposition and promotion of nutrient removal (Newell, 2004). Previous studies showed that the large-scale bivalves’ aquaculture will affect the phytoplankton community composition (Zhang et al., 2005). Song et al. (2007) pointed out that scallop culture reduced the community diversity of phytoplankton in the Sanggou Bay during 1983–2004. With the development of aquaculture, the phytoplankton community structure in the Sanggou Bay has significantly changed in the past 30 years (Yuan et al., 2014). Recent studies show that the reduction in grazing pressure, as well as phosphorus release by bivalves, is likely to explain the higher abundance of picoplankton in the bivalve culture area of the Sanggou Bay (Zhao et al., 2016). Deep understanding of phytoplankton community structure in the Sanggou Bay will provide guiding information for sustainable management of aquaculture there. Furthermore, it must be pointed out that, limited by the multipoint synchronous size fraction processing technical support, the choice of seasonal sampling with only one date of collection do not appear sufficiently accurate to describe the real phytoplankton dynamics within the bay, especially in case where the high variability being measured during winter and summer surveys. How to integrate the long term and continuous monitoring with temporal and spatial size fraction phytoplankton will be an essential work in the future.
Phytoplankton can produce particulate organic carbon (PPOC) through photosynthesis, while it can also release substantial amounts of dissolved organic carbon (PDOC) to the surrounding water (Mague et al., 1980). Most of the past marine production observation were only determined on particulate portion of the primary production. It is well documented that extracellular PDOC released from phytoplankton can serve as energy source for microheterotrophic organisms and then is transferred to higher trophic levels (Hansell and Carlson, 2001; Cherrier and Bauer, 2004). A wide variability of percentage of phytoplankton extracellular release (PER) has been reported in works in situ (0% to 80%), but the average PER was 20.0% in most cases (Marañón et al., 2004, 2005). Previous studies have shown that phytoplankton-released dissolved compounds are labile and quickly consumed by marine bacteria (Baines and Pace, 1991). Morán et al. (2001) investigated the dependence of heterotrophic bacteria on dissolved organic products released by phytoplankton in the Weddell Sea and Scotia Sea, and the results indicated that phytoplanktonically produced DOC would support more than 90% of the bacterial carbon demand. Roland and Cole (1999) provided an empirical formula to estimate the bacterial carbon demand: BGE=0.10+0.68×BP/(5.21+BP), BGE=BP/BCD, where BCD, BGE and BP represent bacterial carbon demand, bacterial growth efficiency and bacterial production respectively. We cite the BP value (125.5 mg/(m2·d)) from the results obtained in the Bohai Sea area close to this research area (Xiao and Wang, 2003), it can be estimated that phytoplanktonically produced DOC would support about 19.12% of the bacterial carbon demand. Our BCD value match with the previous study of Poulton et al. (2016), who found BCD to be 16% (range 4%–43%) in the Nordic seas of the Arctic Ocean. However, key to the estimation of BCD is knowledge of the bacterial growth efficiency, which varies considerably (7%–69%, García-Martín et al., 2014; 15%–65%, Wear et al., 2015). Factors determining bacterial growth efficiency may include the taxonomic source and rate of DOC supply, the physiological condition of the bacterial cells, and the ecological pathways of DOC supply (Fouilland et al., 2014; Wear et al., 2015). This uncertainty in the factors controlling BCD should lead us to develop more long-term and successive measuring technology in the future to improve the precision of the estimation.

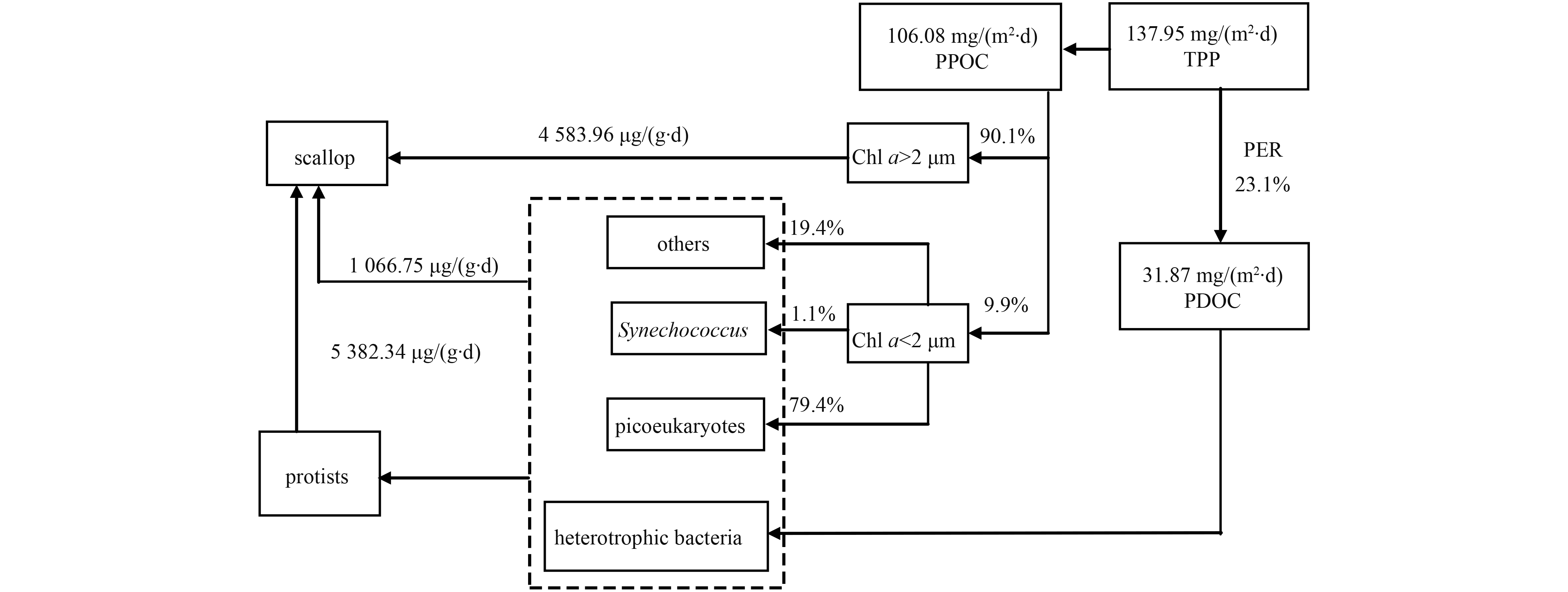

In order to better understand the contribution of natural plankton to carbon source of scallop in the mariculture system, we took the autumn as an example and built up a tentative carbon flow schematic diagram (Fig. 6). Regarding the total primary production (TPP), it can be estimated from the literature data (23.1%) for the percentage of phytoplankton extracellular release (PER) (Liu, 2012) and the calculation of the photosynthetically produced particulate organic carbon (PPOC) by the chlorophyll method. Results show that scallops obtained carbon source from natural plankton with the rate of 11 033.05 μg/(g·d). Protists (nanoflagellates and ciliates) were the dominant source of carbon retained by scallop (48.78%). The second source of carbon for scallops was Chl a of nano-phytoplankton and micro-phytoplankton (41.55%).
Particle-feeding bivalves rely heavily on their highly modified gills to capture their food. The ciliated surface of the gills creates a current that flows through the gills and the mantle cavity and this current brings in food. In general, capture efficiency increases non-linearly with increasing particle size to a maximum (Ward and Shumway, 2004). In this study, mean clearance rates of scallops ranged from 2.79 to 7.10 L/(g·h) for plankton >2 μm (Chl a of nano-phytoplankton and micro-phytoplankton, nanoflagellates and ciliates). Clearance of picoplankton was extremely low (ranged between 0.60 and 0.76 L/(g·h)) compared to clearance of nanoplankton and microplankton. This finding was highly in agreement with observations on the clearance rate of pearl oysters Pinctada margaritifera (Fournier et al., 2012) which highlighted the strong relationship between clearance rates and plankton size/biovolumes. Numerous studies have shown that this relationship was explained by the gill structure and especially by the disposition of cirri on gill filaments (Pouvreau et al., 1999). Jørgensen (1989) reported 90% retention efficiency of 5 μm particles in Crassostrea virginica and 4.5 μm particles in Ostrea edulis, but only 50% retention efficiency of particles 2.5 μm (C. virginica) and 2 μm (O. edulis). Undoubtedly, clearance rates were highly related to the scallop sizes. The size of the scallop selected in the experiment was following the natural growth period and we did not measure the variation of size on clearance rates. A more realistic estimate would be further taken into account what the sizes of different cohorts would be during the different seasons. It has been reported that bivalves cannot efficiently retain particles smaller than 2 μm diameter (Kreeger and Newell, 1996). In this study, although the picoplankton can provide the carbon source of the scallops in the rate of 1 066.75 μg/(g·d), the low contribution (less than 10%) indicate they are only represent a weak carbon resource retained for scallops. The high quantities of carbon resource were from protist (5 382.34 μg/(g·d)). This result supports the important trophic link of protist between picoplankton and the food resources of scallop. Compared to the ciliates (119.23 μg/(g·d)), scallops retained higher quantities from nanoflagellates (5 263.11 μg/(g·d)). Similar results were found in the diet research on the pearl oyster Pinctada margaritifera in Ahe atoll lagoon, Fournier et al. (2012) found that carbon retained by pearls oysters originated mainly from nanoflagellates (64%), then from dinoflagellates and ciliates (27%), and finally from picoplankton (8%). However, the microbial food web is much more complex than food chain due to the existence of multiple trophic levels within the microbial food web (Chen et al., 2009). The predator-prey relationship between protist and picoplankton, even protist themselves still unclear and need to be further studied.
5 Conclusions
Less
The current results suggest that nano-phytoplankton was the most important size-fraction and accounted for about 65.1% of total Chl a in the Sanggou Bay. In autumn, protists (nanoflagellates and ciliates) were the dominant source of carbon retained by scallop. The microbial loop can provide 58.45% of the carbon source for farmed scallops. Microbial loop plays an important role in the marine aquaculture system in the Sanggou Bay.
Funding
Less
  • The National Natural Science Foundation of China under contract Nos 41676147 and 41306117; the Scientific and Technological Innovation Project Financially Supported by Qingdao National Laboratory for Marine Science and Technology under contract No. 2016ASKJ02; the earmarked fund for Modern Agro-industry Technology Research System under contract No. CARS-48; the National Basic Research Program of China under contract No. 2011CB409805.
References
Less
Baines S B, Pace M L. 1991. The production of dissolved organic matter by phytoplankton and its importance to bacteria: patterns across marine and freshwater systems. Limnol Oceanogr, 36(6): 1078–1090
Cai Yuming, Ning Xiuren, Liu Zilin, et al. 2002. Size-fractionated chlorophyll a, primary production and new production in Laizhou Bay, Bohai Sea, China. Studia Marina Sinica (in Chinese), (44): 1–10
Cermeño P, Marañón E, Péreza V, et al. 2006. Phytoplankton size structure and primary production in a highly dynamic coastal ecosystem (Ría de Vigo, NW-Spain): seasonal and short time scale variability. Estuarine, Coastal and Shelf Science, 67(1–2): 251–266
Charpy L. 1996. Phytoplankton biomass and production in two Tuamotu atoll lagoons (French Polynesia). Mar Ecol Prog Ser, 145: 133–142
Charpy L, Blanchot J. 1998. Photosynthetic picoplankton in French Polynesian atoll lagoons: estimation of taxa contribution to biomass and production by flow cytometry. Mar Ecol Prog Ser, 162: 51–70
Charpy L, Charpy-Roubaud C J. 1990. Trophic structure and productivity of the lagoonal communities of Tikehau atoll (Tuamotu Archipelago, French Polynesia). Hydrobiologia, 207(1): 43–52
Chen Bingzhang, Liu Hongbin, Wang Zongling. 2009. Trophic interactions within the microbial food web in the South China Sea revealed by size-fractionation method. J Exp Mar Biol Ecol, 368(1): 59–66
Cherrier J, Bauer J E. 2004. Bacterial utilization of transient plankton-derived dissolved organic carbon and nitrogen inputs in surface ocean waters. Aquat Microb Ecol, 35(3): 229–241
Crocker K M, Passow U. 1995. Differential aggregations of diatoms. Mar Ecol Prog Ser, 117: 249–257
Deng Chunmei, Yu Zhigang, Yao Peng, et al. 2008. Size-fractionated phytoplankton in the East China and Southern Yellow Seas and its environmental factors in autumn 2000. Periodical of Ocean University of China (in Chinese), 38(5): 791–798
Dupuy C, Le Gall S, Hartmann H J, et al. 1999. Retention of ciliates and flagellates by the oyster Crassostrea gigas in French Atlantic coastal ponds: protists as a trophic link between bacterioplankton and benthic suspension-feeders. Mar Ecol Prog Ser, 177: 165–175
Dupuy C, Vaquer A, Lam-Höai T, et al. 2000. Feeding rate of the oyster Crassostrea gigas in a natural planktonic community of the Mediterranean Thau Lagoon. Mar Ecol Prog Ser, 205: 171–184
Fisheries Bureau of Ministry of Agriculture, China. 2014. China Fishery Statistical Yearbook (in Chinese). Beijing: China Agriculture Press
Fouilland E, Tolosa I, Bonnet D, et al. 2014. Bacterial carbon dependence on freshly produced phytoplankton exudates under different nutrient availability and grazing pressure conditions in coastal marine waters. FEMS Microb Ecol, 87(3): 757–769
Fournier J, Dupuy C, Bouvy M, et al. 2012. Pearl oysters Pinctada margaritifera grazing on natural plankton in Ahe atoll lagoon (Tuamotu Archipelago, French Polynesia). Mar Pollut Bull, 65(10–12): 490–499
Froneman P W, Pakhomov E A, Balarin M G. 2004. Size fractionated phytoplankton biomass, production and biogenic carbon flux in the eastern Atlantic sector of the Southern Ocean in late austral summer 1997–1998. Deep Sea Res II, 51(22–24): 2715–2729
García-Martín E E, McNeill S, Serret P, et al. 2014. Plankton metabolism and bacterial growth efficiency in offshore waters along a latitudinal transect between the UK and Svalbard. Deep Sea Res I, 92: 141–151
Gundersen K, Heldal M, Norland S, et al. 2002. Elemental C, N and P cell content of individual bacteria collected at the Bermuda Atlantic Time-series Study (BATS) site. Limnol Oceanogr, 47(5): 1525–1530
Hansell D A, Carlson C A. 2001. Marine dissolved organic matter and the carbon cycle. Oceanography, 14(4): 41–49
Hildreth D I, Crisp D J. 1976. A corrected formula for calculation of filtration rate of bivalve molluscs in an experimental flowing system. J Mar Biol Assoc UK, 56(1): 111–120
Hao Linhua, Sun Pixi, Hao Jianmin, et al. 2012. The spatial and temporal distribution of chlorophyll-a and its influencing factors in Sanggou Bay. Ecology and Environmental Sciences (in Chinese), 21(2): 338–345
Huang Bangqin, Hong Huasheng, Wang Haili. 1999. Size-fractionated primary productivity and the phytoplankton bacteria relationship in the Taiwan Strait. Mar Ecol Prog Ser, 183: 29–38
Huang Bangqin, Liu Yuan, Chen Jixin, et al. 2006. Temporal and spatial distribution of size-fractionized phytoplankton biomass in East China Sea and Huanghai Sea. Haiyang Xuebao (in Chinese), 28(2): 156–164
Iriarte A. 1993. Size-fractionated chlorophyll a biomass and picophytoplankton cell density along a longitudinal axis of a temperate estuary (Southampton Water). J Plankton Res, 15(5): 485–500
Jiang Zengjie, Fang Jianguang, Zhang Jihong, et al. 2007. Forms and bioavailability of phosphorus in surface sediments from Sungo Bay. Environmental Science (in Chinese), 28(12): 2783–2788
Jiang Zengjie, Fang Jianguang, Wang Wei, et al. 2012. Sea-air CO2 flux in Pacific oyster Crassostrea gigas aquaculture area of East Gongjia Island, Rushan, Shandong, in Autumn. Journal of Fisheries of China (in Chinese), 36(10): 1592–1598
Jørgensen C B. 1989. Water processing in ciliary feeders, with special reference to the bivalve filter pump. Comp Biochem Physiol A, 94(2): 383–394
Kang C K, Lee Y W, Choy E J, et al. 2006. Microphytobenthos seasonality determines growth and reproduction in intertidal bivalves. Mar Ecol Prog Ser, 315: 113–127
Karl D M, Laws E A, Morris P, et al. 2003. Global carbon cycle (communication arising): metabolic balance of the open sea. Nature, 426(6962): 32
Kormas K, Garametsi V, Nicolaidou A. 2002. Size-fractionated phytoplankton chlorophyll in an Eastern Mediterranean coastal system (Maliakos Gulf, Greece). Helgoland Mar Res, 56(2): 125–133
Kreeger D A, Newell R I E. 1996. Ingestion and assimilation of carbon from cellulolytic bacteria and heterotrophic flagellates by the mussels Geukensia demissa and Mytilus edulis (Bivalvia, Mollusca). Aquat Microb Ecol, 11(3): 205–214
Le Gall S, Hassen M B, Le Gall P. 1997. Ingestion of a bacterivorous ciliate by the oyster Crassostrea gigas: protozoa as a trophic link between picoplankton and benthic suspension-feeders. Mar Ecol Prog Ser, 152: 301–306
Li Chaolun, Zhang Yongshan, Sun Song, et al. 2010. Species composition, density and seasonal variation of phytoplankton in Sangou bay, China. Progress in Fishery Sciences (in Chinese), 31(4): 91–96
Liu Chenggang. 2012. Photosynthetically produced dissolved organic carbon released of marine phytoplankton in China coastal seas (in Chinese) [dissertation]. Qingdao: Ocean University of China
Loret P, Le Gall S, Dupuy C, et al. 2000. Heterotrophic protists as a trophic link between picocyanobacteria and the pearl oyster Pinctada margaritifera in the Takapoto lagoon (Tuamotu Archipelago, French Polynesia). Aquat Microb Ecol, 22(3): 215–226
Lu Jiachang. 2014. Ecological studies on the nanoflagellates in Sanggou Bay dissertation (in Chinese) [dissertation]. Xiamen: Xiamen University
Lu Jiachang, Huang Lingfeng, Xiao Tian, et al. 2015. The effects of Zhikong scallop (Chlamys farreri) on the microbial food web in a phosphorus-deficient mariculture system in Sanggou Bay, China. Aquaculture, 448: 341–349
Mague T H, Friberg E, Hughes D J, et al. 1980. Extracellular release of carbon by marine phytoplankton; a physiological approach. Limnol Oceanogr, 25(2): 262–279
Marañón E, Cermeño P, Fernández E, et al. 2004. Significance and mechanisms of photosynthetic production of dissolved organic carbon in a coastal eutrophic ecosystem. Limnol Oceanogr, 49(5): 1652–1666
Marañón E, Cermeño P, Pérez V. 2005. Continuity in the photosynthetic production of dissolved organic carbon from eutrophic to oligotrophic waters. Mar Ecol Prog Ser, 299: 7–17
Marín Leal J C, Dubois S, Orvain F, et al. 2008. Stable isotopes (δ13C, δ15N) and modelling as tools to estimate the trophic ecology of cultivated oysters in two contrasting environments. Mar Biol, 153(4): 673–688
Morán X A G, Gasol J M, Pedrós-Alió C, et al. 2001. Dissolved and particulate primary production and bacterial production in offshore Antarctic waters during austral summer: coupled or uncoupled. Mar Ecol Prog Ser, 222: 25–39
Mu Jiandong, Dong Wei, Chen Bijuan, et al. 2009. Ecological characteristics of phytoplankton in Sanggou Bay. Progress in Fishery Sciences (in Chinese), 30(3): 91–96
Newell R I E. 2004. Ecosystem influences of natural and cultivated populations of suspension-feeding bivalve molluscs: a review. J Shellfish Res, 23(1): 51–61
Pan Shengjun, Shen Zhiliang. 2009. Chlorophyll-a concentration and phytoplankton size-fractionated composition in Jiaozhou Bay. Chinese Journal of Applied Ecology (in Chinese), 20(10): 2468–2474
Parsons T R, Maita Y, Lalli C M. 1984. A Manual of Chemical and Biological Methods for Seawater Analysis. New York: Pergamon Press, 101–173
Passow U, Alldredge A L, Logan B E. 1994. The role of particulate carbohydrate exudates in the flocculation of diatom blooms. Deep Sea Res I, 41(2): 335–357
Poulton A J, Daniels C J, Esposito M, et al. 2016. Production of dissolved organic carbon by Arctic plankton communities: responses to elevated carbon dioxide and the availability of light and nutrients. Deep Sea Res II, 127: 60–74
Pouvreau S, Jonquières G, Buestel D. 1999. Filtration by the pearl oyster, Pinctada margaritifera, under conditions of low seston load and small particle size in a tropical lagoon habitat. Aquaculture, 176(3–4): 295–314
Putt M, Stoecker D K. 1989. An experimentally determined carbon: volume ratio for marine “oligotrichous” ciliates from estuarine and coastal waters. Limnol Oceanogr, 34(6): 1097–1103
Roland F, Cole J J. 1999. Regulation of bacterial growth efficiency in a large turbid estuary. Aquat Microb Ecol, 20(1): 31–38
Rongcheng Fisheries Technology Extension Station. 2012. Marine Fishery Statistics Data. Rongcheng: Fishery Technology Station of Rongcheng City
Sauriau P G, Kang C K. 2000. Stable isotope evidence of benthic microalgae-based growth and secondary production in the suspension feeder Cerastoderma edule (Mollusca, Bivalvia) in the Marennes-Oléron Bay. Hydrobiologia, 440(1–3): 317–329
Sheldon R W, Nival P, Rassoulzadegan F. 1986. An experimental investigation of a flagellate-ciliate-copepod food chain with some observations relevant to the linear biomass hypothesis. Limnol Oceanogr, 31(1): 184–188
Sherr E B, Sherr B F. 1994. Bacterivory and herbivory: key roles of phagotrophic protists in pelagic food webs. Microb Ecol, 28(2): 233–235
Song Hongjun, Li Ruixiang, Wang Zongling, et al. 2007. Interannual variations in phytoplankton diversity in the Sanggou Bay. Adv Mar Sci (in Chinese), 25(3): 332–339
Strickland J D H, Parsons T R. 1972. A Practical Handbook of Seawater Analysis. , 1–310
Strohmeier T, Strand Ø, Cranford P. 2009. Clearance rates of the great scallop (Pecten maximus) and blue mussel (Mytilus edulis) at low natural seston concentrations. Mar Biol, 156(9): 1781–1795
Sun Pixi, Zhang Zhaohui, Hao Linhua, et al. 2007. Analysis of nutrient distributions and potential eutrophication in seawater of the Sanggou Bay. Adv Mar Sci (in Chinese), 25(4): 436–445
Sun Xiaoxia, Sun Song. 2012. Phytoplankton size structure and its temporal and spatial changes in Jiaozhou Bay. Oceanologia et Limnologia Sinica (in Chinese), 43(3): 411–418
Verity P G, Robertson C Y, Tronzo C R, et al. 1992. Relationships between cell volume and the carbon and nitrogen content of marine photosynthetic nanoplankton. Limnol Oceanogr, 37(7): 1434–1446
Ward J E, Shumway S E. 2004. Separating the grain from the chaff: particle selection in suspension- and deposit-feeding bivalves. J Exp Mar Biol Ecol, 300(1–2): 83–130
Wear E K, Carlson C A, James A K, et al. 2015. Synchronous shifts in dissolved organic carbon bioavailability and bacterial community responses over the course of an upwelling-driven phytoplankton bloom. Limnol Oceanogr, 60(2): 657–677
Wong W H, Levinton J S, Twining B S, et al. 2003. Assimilation of micro- and mesozooplankton by zebra mussels: a demonstration of the food web link between zooplankton and benthic suspension feeders. Limnol Oceanogr, 48(1): 308–312
Wu Yulin, Sun Song, Zhang Yongshan, et al. 2004. Quantitative study on long-term variation of phytoplankton in Jiaozhou Bay. Oceanologia et Limnologia Sinica (in Chinese), 35(6): 518–523
Xiao Tian, Wang Rong. 2003. Distribution of heterotrophic bacterial production in the Bohai Sea. Haiyang Xuebao (in Chinese), 25(S2): 58–65
Yokoyama H, Tamaki A, Koyama K, et al. 2005. Isotopic evidence for phytoplankton as a major food source for macrobenthos on an intertidal sandflat in Ariake Sound, Japan. Mar Ecol Prog Ser, 304: 101–116
Yuan Mingli, Zhang Cuixia, Jiang Zengjie, et al. 2014. Seasonal variations in phytoplankton community structure in the Sanggou, Ailian, and Lidao Bays. J Ocean Univ China, 13(6): 1012–1024
Yukihira H, Klumpp D W, Lucas J S. 1999. Feeding adaptations of the pearl oysters Pinctada margaritifera and P. maxima to variations in natural particulates. Mar Ecol Prog Ser, 182: 161–173
Zhang Lihong, Zhang Xuelei, Li Ruixiang, et al. 2005. Impact of scallop culture on dinoflagellate abundance in the Sanggou Bay. Adv Mar Sci (in Chinese), 23(3): 342–346
Zhao Yuan, Zhao Li, Xiao Tian, et al. 2011. Spatial and temporal variation of picoplankton distribution in the Yellow Sea, China. Chin J Oceanol Limnol, 29(1): 150–162
Zhao Li, Zhao Yuan, Xu Jianhong, et al. 2016. Distribution and seasonal variation of picoplankton in Sanggou Bay, China. Aquaculture Environment Interactions, 8: 261–271
Zubkov M V, Sleigh M A, Burkill P H, et al. 2000. Picoplankton community structure on the Atlantic Meridional Transect: a comparison between seasons. Prog Oceanogr, 45(3–4): 369–386
