A mass balanced model of trophic structure and energy flows of a semi-closed marine ecosystem
收藏切换
PDF
Dongyan HAN1, Ying XUE1, Chongliang ZHANG1, Yiping REN1, *
Acta Oceanologica Sinica | 2017, 36(10) : 60 - 69
Less
收藏切换
Acta Oceanologica Sinica | 2017, 36(10): 60-69
• •
A mass balanced model of trophic structure and energy flows of a semi-closed marine ecosystem
Full
Dongyan HAN1, Ying XUE1, Chongliang ZHANG1, Yiping REN1, *
Affiliations
  • 1 Fisheries College, Ocean University of China, Qingdao 266003, China
Published: 2017-10-01 doi: 10.1007/s13131-017-1071-6
Outline
收藏切换

The marine ecosystem of the Jiaozhou Bay has degraded significantly in fisheries productivity and its ecological roles as spawning and nursery ground for many species of commercial importance has been declining in recent years. A mass-balanced trophic model was developed using Ecopath with Ecosim to evaluate the trophic structure of the Jiaozhou Bay for improving ecosystem management. The model were parameterized based on the fisheries survey data in the Jiaozhou Bay in 2011, including 23 species groups and one detritus group according to their ecological roles. The trophic levels of these ecological groups ranged from 1 (primary producers and detritus) to 4.3 (large demersal fishes). The estimated total system throughput was 12 917.10 t/(km2·a), with 74.59% and 25.41% contribution of the total energy flows from phytoplankton and detritus, respectively. Network analyses showed that the overall transfer efficiency of the ecosystem was 14.4%, and the mean transfer efficiency was 14.5% for grazing food chain and 13.9% for detritus food chain. The system omnivory index (SOI), Finn’s cycled index (FCI) and connectance index (CI) were relatively low in this area while the total primary production/total respiration (TPP/TR) was high, indicating an immature and unstable status of the Jiaozhou Bay ecosystem. Mixed trophic impact analysis revealed that the cultured shellfish had substantial negative impacts on most functional groups. This study contributed to ecosystem-level evaluation and management planning of the Jiaozhou Bay ecosystem.

Ecopath with Ecosim  /  Jiaozhou Bay  /  energy flow  /  trophic structure
Dongyan HAN, Ying XUE, Chongliang ZHANG, Yiping REN. A mass balanced model of trophic structure and energy flows of a semi-closed marine ecosystem[J]. Acta Oceanologica Sinica, 2017 , 36 (10) : 60 -69 . DOI: 10.1007/s13131-017-1071-6
Full Text
Less
1 Introduction
Less
Coastal ecosystems are productive and critical to the functioning of the earth’s life-support system (Costanza et al., 1998). Coastal ecosystems provide ecological services such as nursery grounds for fish, water purification and various economic services such as support for fisheries and tourism, which are critical for human living. However, many coastal ecosystems are highly susceptible to anthropogenic perturbation (Byron et al., 2011a). Human activities such as fishing not only remove target species directly, but also change marine sediment habitat (Jennings and Kaiser, 1998) and affect other organisms in the ecosystem through biological interactions such as predation and food competition (Pauly et al., 1998; Hobday et al., 2011; Bacalso and Wolff, 2014). Fisheries crises have been acknowledged worldwide with the increasing capacity of industrial fisheries. Recent studies have paid attention to ecosystem-based management (EBM) as a promising strategy for current fisheries crises (Witherell et al., 2000; Cury et al., 2005; Greenstreet and Rogers, 2006; Garcia et al., 2012), which explicitly considers the interactions between exploited marine species and their biotic and abiotic environment to define management strategies (Grüss et al., 2015). Ecological models that deal with trophic interactions among multiple fisheries species play pivotal roles in supporting EBM.
Understanding the status of ecosystems and quality the trophic flow between each trophic group is necessary to evaluate the effect of human activities and management strategies. Various ecosystem models have been used for supporting ecosystem-based fisheries management, e.g., Atlantis model (Fulton et al., 2004), OSMOSE (Shin and Cury, 2004), Ecopath with Ecosim model (Christensen and Walters, 2004) and size-spectrum model (Andersen and Beyer, 2015). The Ecopath modeling approach has been widely applied to inform ecosystem-based management (Link et al., 2009; Guo et al., 2013; Colléter et al., 2015). The relative simplicity of Ecopath modelling, moderate data requirements, and flexibility to accommodate future updates in inputs make it a very useful ecosystem modelling tool to generate information on the overall structure and functioning of a variety of marine ecosystems (Bacalso and Wolff, 2014). The Ecopath model is based on the mass-balance of trophic interactions among all the functional groups (Panikkar and Khan, 2008) and quantifies energy flow between trophic levels to measure the ecosystem stability and resilience (Christensen and Walters, 2004).
This study built a mass-balanced model to evaluate the ecological characteristics of a temporal, semi-enclosed marine ecosystem, using the Jiaozhou Bay, China as an example. This bay used to be productive and of high diversity, with more than 100 fish species recorded in the 1980s (Liu, 1992). It was reported to be an important spawning and nursery ground for more than 40 juvenile fish species captured, including many commercially important species such as Sebastes schlegeli and Pseudopleuronectes yokohamae (Zeng et al., 2012). However, currently the Jiaozhou Bay is widely influenced by human perturbations such as transportation, coastal engineering and land reclaiming. In addition, the Jiaozhou Bay also hosts intensive shellfish farming, which occupied nearly 20% area of the bay and has reached of an annual production nearly 0.3 million tons (Guo et al., 2012). The fishery resources in the Jiaozhou Bay ecosystem have declined significantly in recent years. The number of fish species has decreased sharply compared to the literature of the past 30 years, with 57 fish species caught from a seasonal bottom trawl survey in 2011 (Han et al., 2015). The ecosystem has been dominated by small demersal fishes, such as Amblychaeturichthys hexanema and Chaeturichthys stigmatias (Mei et al., 2010). The degradation of fishery resources in the Jiaozhou Bay ecosystem gives rise to an urgent need for scientific managements based on solid ecological considerations.
We used the Ecopath approach to model the structure of the food web in the Jiaozhou Bay. The objectives of this study are to quantify the trophic web structure and to evaluate the status and ecological properties of the ecosystem. The ecological mode of Jiaozhou Bay could be used for better understanding the ecological characteristics of semi-closed marine ecosystem and future management planning.
2 Methods and materials
Less
2.1 Data collection

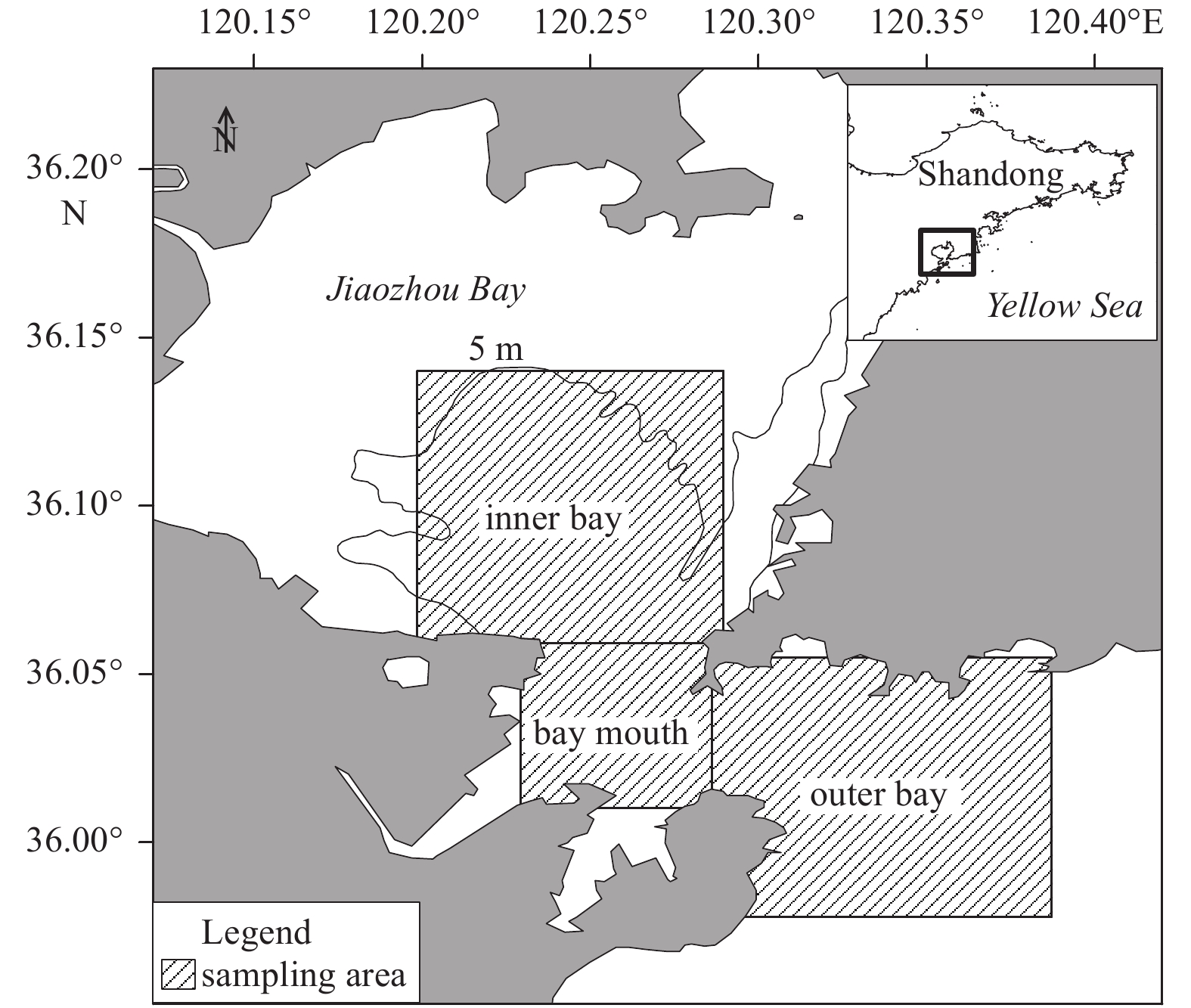

The Jiaozhou Bay is situated in the southern Shandong Peninsula of China, connecting with the Yellow Sea through a narrow mouth and with a mean water depth of 7 m (Wang, 1993). This bay is a typical, semi-enclosed bay covers an area of 350 km2. It provides feeding, spawning and nursery ground for many commercial marine species, such as Paralichthys olivaceus, Liza haematocheila, and Konosirus punctatus (Liu, 1992). As an important shellfish farming area, the dominant species grown in this bay is Manila clam (Ruditapes philippinarum), and small quantities of oyster (Crassostrea ariakensis).
Data were collected from four seasonal bottom-trawl surveys in the Jiaozhou Bay (35°59′–36°07′N, 120°13′–120°23′E) during winter (February), spring (May), summer (August), and autumn (November) in 2011. Because most inshore areas in the Jiaozhou Bay with a water depth less than 5 m are allocated to shellfish aquaculture, sampling stations were sited outside this area. The survey employed a stratified random sampling design with strata defined by embayment degree. The sampling area was divided into three parts based on the embayment degree: inner bay, bay mouth and outer bay (Fig. 1). During each survey, a total of 12 sampling stations were randomly selected, and the number of stations per stratum was five, three and four, respectively. The surveys were conducted in the daytime using a 10-mm stretched mesh cod-end, with a tow duration of 30 min at a speed of ~2 knots/h.
2.2 Mass-balanced modeling approach
A mass-balanced trophic model was constructed using the Ecopath with Ecosim software, Version 6.4 (Christensen et al., 2005). The model includes a set of linear equations that describe mass balance over a given time, which can be expressed as follows:
${B_i} \times {\left( {\frac{P}{B}} \right)_i} \times E{E_i} = \mathop \sum \limits_{j = 1}^j {B_j} \times {\left( {\frac{Q}{B}} \right)_j} \times D{C_{ij}} + {Y_i} + B{A_i} + {E_i},$
where Bi and Bj represent the biomass of Groups i and j, respectively; (P/B)i is the production/biomass ratio of Group i, which is equal to the instantaneous rate of total mortality; (Q/B)j is the consumption/biomass ration for predator Group j; EEi (ecotrophic efficiency) can be described as the proportion of the production of Group i that is utilized in the ecosystem; DCij is the fraction of prey i in the diet of predator j; Yi is the fishery yield of Group i; BAi and Ei is the biomass accumulation rate and net migration rate, respectively.
For each functional group, the DCij and at least three out of the four parameters B, P/B, EE and Q/B must be provided to build the model, and other parameters can be estimated in the model.
The food web of the Jiaozhou Bay was divided into 24 functional groups based on their ecological and biological features such as feeding type and habitat preference (Table A1). The functional groups included detritus, phytoplankton, zooplankton, five groups of benthic organisms, three groups of cephalopod, mantis shrimp, shrimp, crab, and ten groups of fishes. The initial biomass of fish and cephalopod was estimated by swept-area method based on the four seasonal bottom trawl surveys in 2011. The mean biomass in these seasons was used to represent the annual average biomass for each species. The biomass of benthic invertebrate, zooplankton and phytoplankton were obtained from published literatures (Sun et al., 2000, 2011; Sui et al., 2010). The EEi of majority groups were estimated by the model while an EE value of 0.95 was used for the functional groups of small pelagic fish, small benthic fish, small demersal fish and cultured shellfish.
The P/B and Q/B referred to published literature or other Ecopath models in similar ecosystem (Pranovi et al., 2003; Li et al., 2009; Ouyang and Guo, 2010; Nuttall et al., 2011; Liu et al., 2012, 2014; Wu et al., 2012; Lin et al., 2013; Torres et al., 2013). Diet composition of most fish groups were weight average based on individual species diet composition calculated by stomach contents analysis of samples collected by four seasonal bottom trawl survey in 2011. A total of 31 fish species were analyzed in this study, accounting for 84.77% of total fish species biomass. Diet information of other groups was derived from Fishbase and previous literatures (Deng et al., 1988; Xu et al., 1996; Cheng and Zhu, 1997; Yang and Tan, 2000; Yang, 2001; Xue et al., 2004; Zhang, 2007; Suh and Shin, 2013). The diet composition matrices of the model are shown in Table A2.
The yield data of cultured shellfish was obtained from official statistics. For other groups, the yield data were calculated by the following equation:
$Y = BF,$
where Y, B and F represent yield, biomass and fishing mortality, respectively. The biomass values B were calculated from survey data, and the fishing mortality obtained from the relevant studies in the Jiaozhou Bay and adjacent area (Liu et al., 2012, 2014; Lin et al., 2013).
When all the necessary parameters were obtained, the model could be balanced by checking: (1) the EE value for each group is less than 1; (2) the P/Q values of most groups are physiologically realistic (within 0.1–0.3). The input data with high uncertainty were modified following Christensen et al. (2005), especially for diet composition and parameters obtained from areas other than the Jiaozhou Bay. A “Pedigree” routine was used to quantify the uncertainties of input parameters of Ecopath model (Christensen and Walters, 2004).
The imprecise data inputs, especially for biomass and P/B, could lead to greater variation in prediction errors (Essington, 2007). A simple sensitivity analysis was used to evaluate the robustness of model predictions to small variations in input data. The biomass and P/B of function groups varied in steps of 10% from –50% to 50% and the impact of the changes on other parameters was assessed by a proportion, which is given as the ratio (estimated parameter-original parameter)/original parameter.
2.3 Network analysis
After balancing the model, ecological analysis integrated in Ecopath with Ecosim was used to understand trophic structure and function of the Jiaozhou Bay ecosystem. The definitional trophic level of primary producer and detritus was assigned to 1 and the trophic level of consumers was 1+[the weighted average of preys’ TLs]. Multiple indicators were used to analyze the trophic structure:
(1) Trophic interactions between groups were represented by ecotrophic efficiency (EE).
(2) The Omnivory index (OI) of groups was defined as the variance of the trophic level of its prey groups. The zero value of OI indicated specialized predator while a higher value indicated a consumer feeding upon multiple trophic levels.
(3) The mixed trophic impact (MTI) routine was used to quantify direct and indirect trophic effects among functional groups, which indicates the effects that a small change in the biomass of a function group will have on the biomass of other groups in a system (Ulanowicz and Puccia, 1990).
(4) The overall status of the Jiaozhou Bay ecosystem was evaluated by the model’s global indices, including: total consumption, export, respiration, total system throughput (TST), and primary production. Additional indices, such as total primary production/total respiration (TPP/TR), total primary production/total biomass (TPP/TB), connectance index (CI), system omnivory index (SOI) and Finn’s cycling index (FCI) were also calculated to examine the maturity of the Jiaozhou Bay ecosystem.
3 Results
Less
3.1 Trophic structure
The basic input values and the output parameters estimated by Ecopath for the Jiaozhou Bay ecosystem model were shown in Table A3. The pedigree index value of the final balanced model was 0.47, lying in the upper range of 150 previous Ecopath models (Morissette et al., 2006). And the measure of fit is 2.44 in this model, indicating that the model was robust with high confidence (Christensen and Walters, 2004). Sensitivity analysis revealed the impact of altering input parameters on the output parameters. In this study, the largest impact of one parameter on another usually happened within the same group. For example, 20% decrease of P/B ratio of aquaculture shellfish resulted in 25% increase of shellfish biomass. In contrary, changing parameters for one group had a slight impact on other groups. Take mantis shrimp for instance, a 50% change of biomass for mantis shrimp had a 14% impact on the EE of crab, and a 19% impact on the EE of shrimp (Fig. 2).
The estimated trophic levels of each functional group ranged from 1 (phytoplankton and detritus) to 4.29 (large benthic fish). The second TL comprised all benthic invertebrate and zooplankton. Gizzard shad (Konosirus punctatus) showed the lowest TL in fish community. The TLs of other fishes, mantis shrimp and cephalopods were larger than 3 and the piscivorous fish such as large benthic fish and large demersal fish occupies the top trophic level in the Jiaozhou Bay ecosystem.
EE values of most fishes, crustacean, and cephalopoda were higher than 0.5, especially for gunnel (Pholis fangi, 0.998) and pinkgray goby (Amblychaeturichthys hexanema, 0.907). In contrast, echinoderm showed extraordinarily low EE value (0.026), followed by demersal mollusca and polychaetes. The EE values of phytoplankton and detritus were 0.038 and 0.109, respectively. The OI of fishes ranged from 0.05 to 0.33, and the highest OI were obtained from mantis shrimp (0.54), indicating the multi-trophic level feeding strategies of mantis shrimp. Shellfish had an OI of 0, as this group only feeds on phytoplankton and detritus.
3.2 Food chains and transfer efficiencies

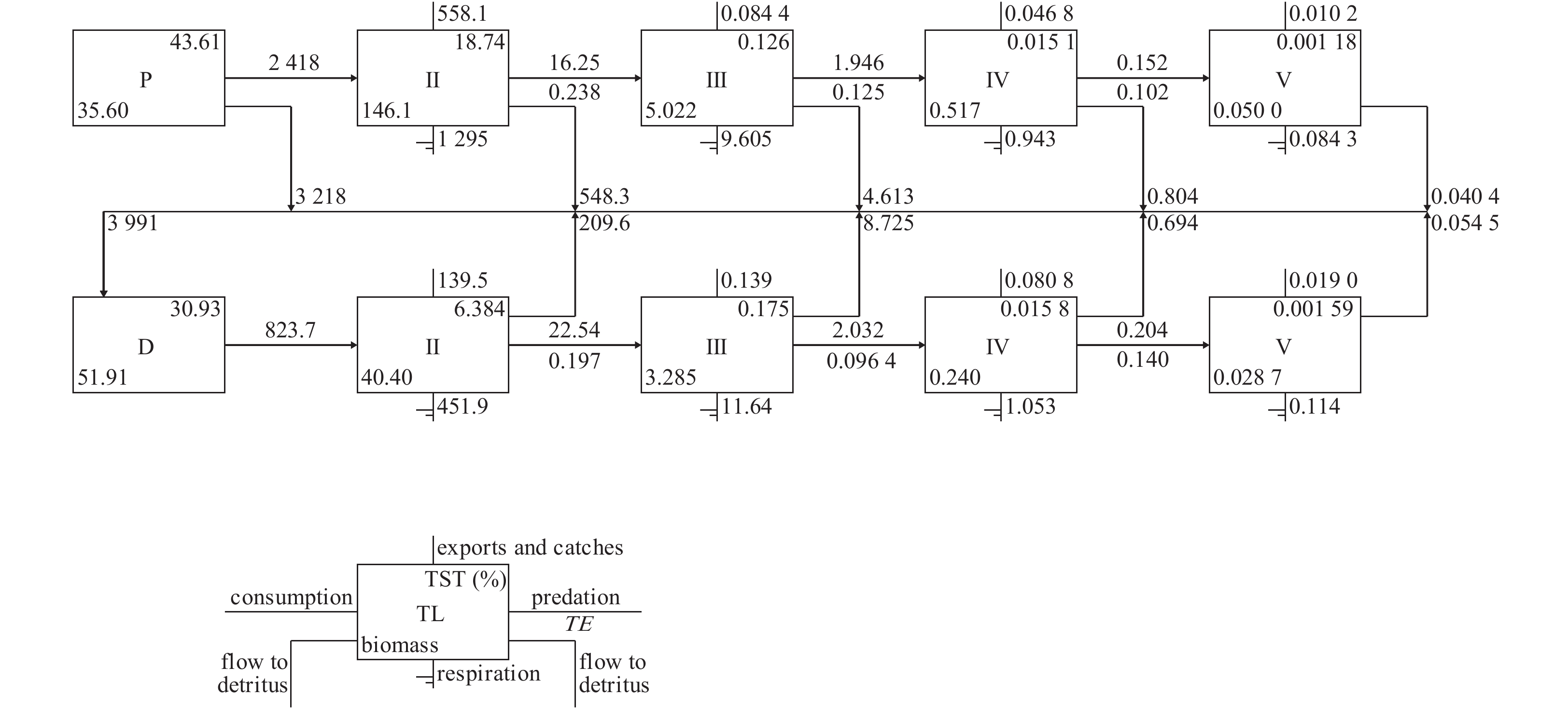

Detrital based food chain and grazing food chain are two main types of food chains in the Jiaozhou Bay ecosystem. Phytoplankton contributed 74.59% of total flow and detrital contributed 25.41%. There were 2 418 t/(km2·a) matter flowing to trophic level 2 in the grazing food chain, compared with 823.7 t/(km2·a) in the detrital food chain (Fig. 3).
The transfer efficiencies from TL2 to TL5 in the grazing food chain of the Jiaozhou Bay ecosystem were 23.8%, 12.5% and 10.2%, respectively, and transfer efficiencies were 19.7%, 9.6% and 14.0% in the detrital food chain, respectively. Mean transfer efficiencies are 14.5% and 13.9% for the grazing food chain and detrital food chain, respectively. The geometric mean of the trophic transfer efficiency for the Jiaozhou Bay ecosystem was 14.4% (Fig. 3).
3.3 Trophic interactions

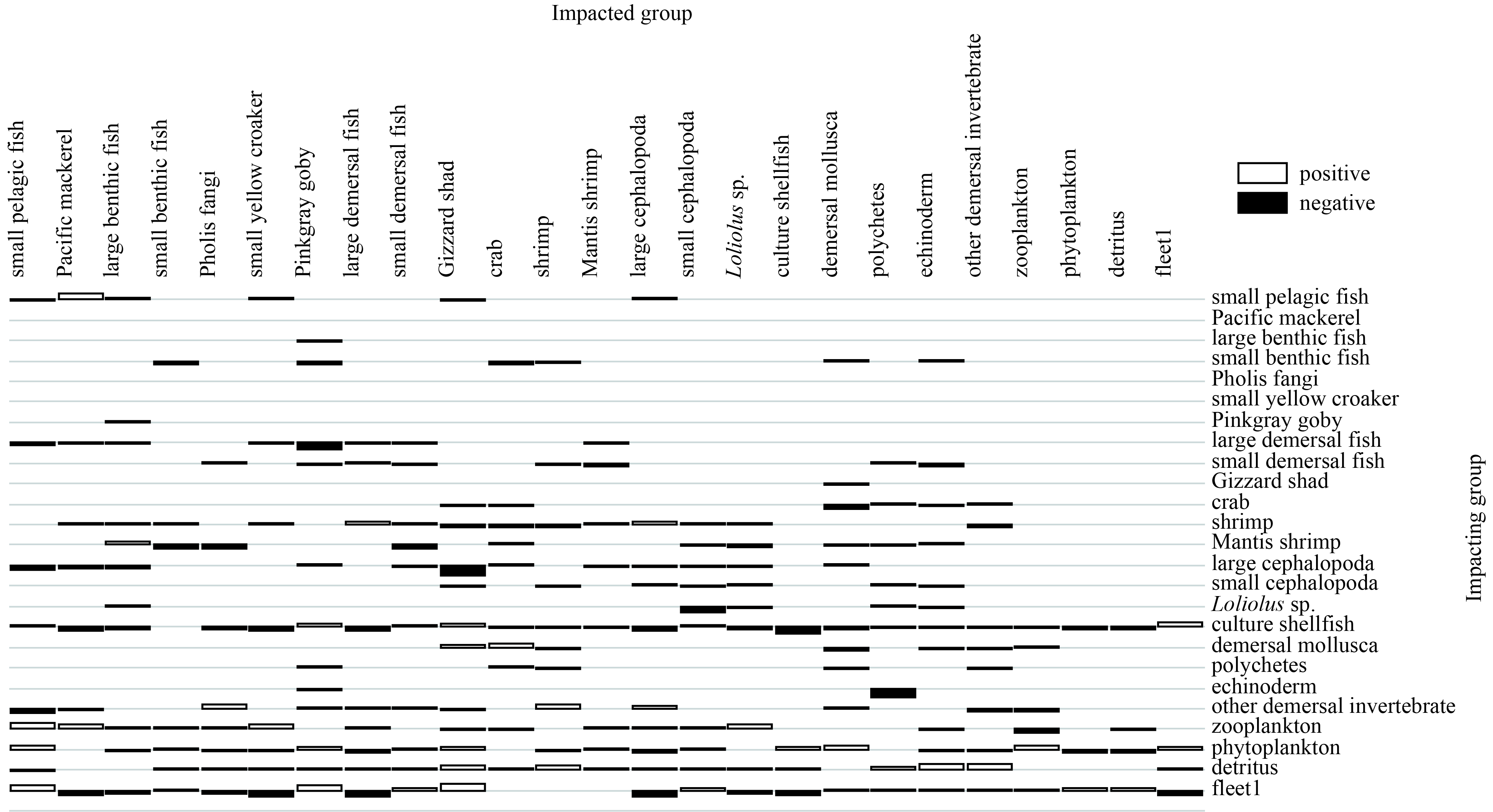

Direct and indirect trophic interactions between different functional groups were analyzed using the “mixed trophic impact” routine in EwE. Detritus, phytoplankton and zooplankton had a largely positive influence on most other function groups (Fig. 4). Small pelagic fishes had strong positive impact on the Pacific mackerel; shrimps had strong positive impact on the large benthic fishes and large demersal fishes. Small demersal fishes had a negative impact on pinkgray goby because they both mainly fed on shrimp. Human activities substantially influenced most functional groups in the ecosystem. Specifically, the cultured shellfish had negative impacts on most functional groups, and fishing activities had negative impacts on large demersal fish such as small yellow croaker and large cephalopoda while positive influence on small pelagic fish, such as pinkgray goby and gizzard shad.
3.4 Ecosystem status
The total system throughput of the Jiaozhou Bay ecosystem was 12 917.1 t/(km2·a), of which 22.54% derived from consumption (3 299.58 t/(km2·a), 29.85% from exports (3 855.53 t/(km2·a)), 13.71% from respiration (1 770.69 t/(km2·a)), and 30.90% eventually flowed into detritus (3 991.30 t/(km2·a)) (Table 1). The total net primary production and the total biomass were 5 626.22 t/(km2·a) and 187.28 t/(km2·a), respectively. The ratio of total primary production/total respiration and total primary production/total biomass were 3.18 and 30.04, respectively. The CI and SOI for the Jiaozhou Bay ecosystem were 0.31 and 0.16 respectively. FCI and Finn’s mean path length calculated by the model were 2.47% and 2.30, respectively.
4 Discussion
Less
The present paper describes the trophic structure of the Jiaozhou Bay ecosystem. The trophic levels of different functional groups in the Jiaozhou Bay ecosystem ranged from 1 (phytoplankton and detritus) to 4.29 (large benthic fishes). Besides the primary producer, the second TL comprised all benthic invertebrate and zooplankton, which were characterized by detritus and phytoplankton diet habits. Large benthic fish and demersal fish had the highest TLs, as these species mainly fed on crustaceans and other fishes. In general, TLs for most groups were similar to those previous studies in the adjacent areas and other temperate ecosystems (Wu et al., 2012; Lin et al., 2013; Zhang et al., 2013), suggesting that these groups have similar trophic roles in these ecosystems. It should be noted that Gizzard shad had the lowest TL in among all fish species as a result of the large proportion of detritus and phytoplankton diet.

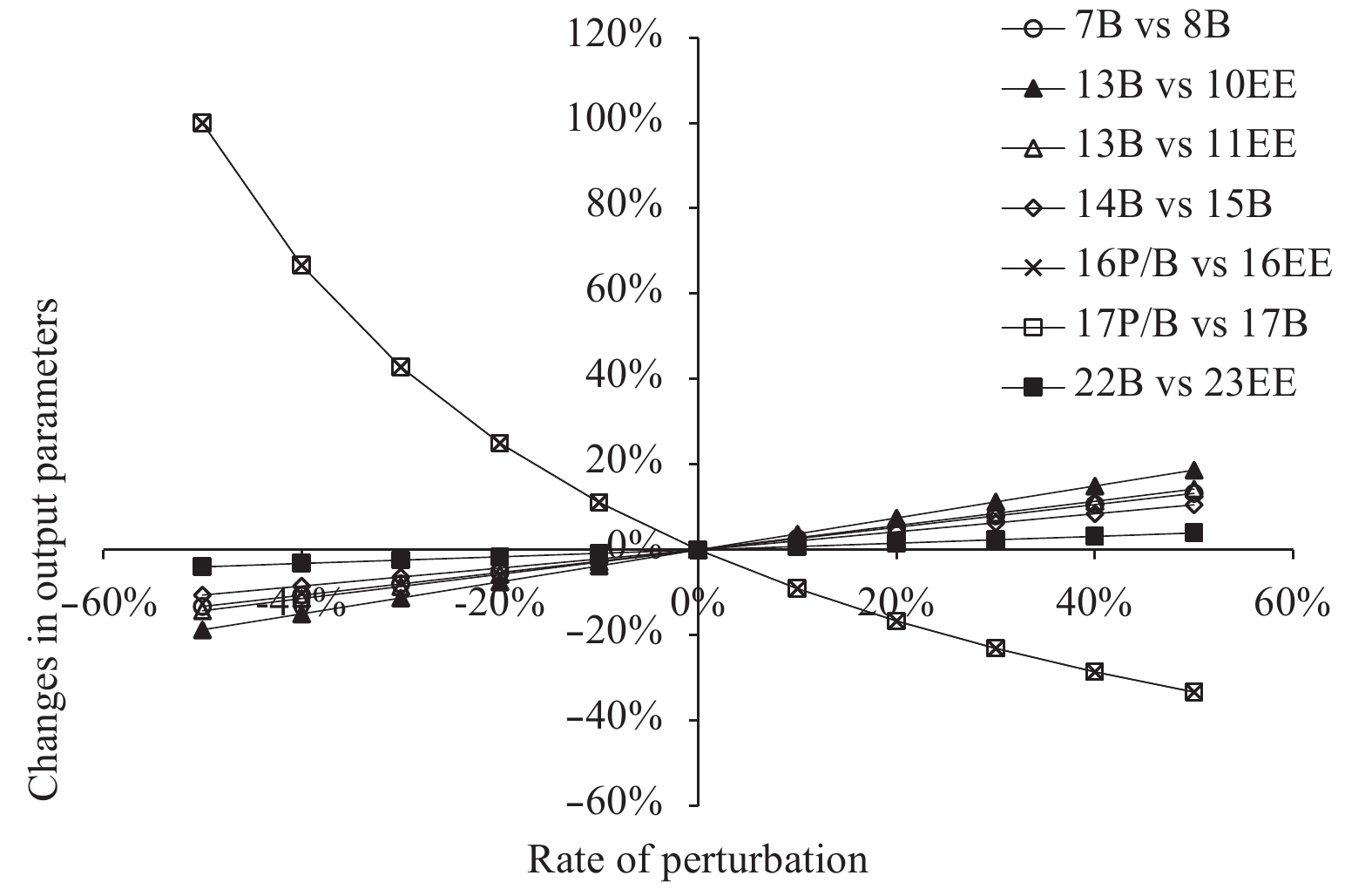

In the sensitivity analysis, the largest impact of one input parameter on estimate parameter usually happened within the same group. This could be easily understood that the Ecopath master equation seeks model solutions that balance total production to total losses. Thus, error in these input variables translated directly into error in estimated values of same groups, and affected the estimated values of other groups indirectly (Essington, 2007). Generally speaking, the sensitivity of estimated parameters to changes in the input parameters of different groups depended on the degree of trophic connection between those groups (Chen et al., 2008). In the Jiaozhou Bay ecosystem, the high SOI make changing parameters for one group had a slightly impact on other groups, which indicated that the Jiaozhou Bay Ecopath model was robust to uncertainty in the input parameters.
The EE values of many functional groups were high in the Jiaozhou Bay ecosystem, including both large predator species groups such as pacific mackerel, large demersal fishes, large cephalopoda and mantis shrimp, as well as prey groups, such as gunnel, pinkgray goby, and shrimp. The results implied a high predation mortality and fishing pressure on the nekton species in the Jiaozhou Bay ecosystem. For example, 83.7% of shrimp production was used in the ecosystem, of which 80.2% was consumed by fish groups. Shrimp was the most important forage species of many fishes, such as Synechogobius ommaturus, Amblychaeturichthys hexanema, and Pholis fangi (Han et al., 2013; Li et al., 2014). The EE value of phytoplankton and detritus were also high, indicating that a major fraction of these primary producers were consumed. This pattern could be largely attributed to the high biomass of cultured shellfish, which occupy 63.24% of total biomass of the Jiaozhou Bay ecosystem and consumed great, amounts of phytoplankton and detritus. In contrast, most benthic invertebrate groups had remarkably low EE values, for example, the EE of demersal mollusa and echinoderm was 0.04 and 0.03, respectively, indicating that a large proportion of these groups were not consumed by high trophic levels but rather contributed to detritus. This is ascribed to the low level of ecological functioning of the benthic feeding groups. The biomass of benthic feeding groups including small benthic fish and small demersal fish were substantially low, occupying only 0.13% of total biomass in the Jiaozhou Bay.
As an important shellfish farming ground, the density of shellfish in the Jiaozhou Bay was 118.438 t/km2, much higher than those of other similar ecosystems with shellfish farming, such as Puget Sound, Rhode Island and Venile lagoon (Pranovi et al., 2003; Byron et al., 2011b; Ferriss et al., 2016). Our study showed that the intensive shellfish farming may have significant impact on the trophic structure of the Jiaozhou Bay. For example, mixed trophic impact analysis indicated a negative impact of culture shellfish on other groups. Mean transfer efficiency of the Jiaozhou Bay ecosystem was 14.4%, which was higher than the 10% assumed by Lindeman (1942), to which the comsumption of shellfish has made large contribution. The highest TE was observed between TL2 and TL3 (23.8%), which was much higher than those of temperate ecosystems, such as 11.2% of Lidao Island ecosystem (Wu et al., 2012), 8.6% of the Bohai Sea (Lin et al., 2009) and 5.0% of the southern Yellow Sea (Lin et al., 2013). The high TE of TL2–TL3, corresponding to the large biomass and high EE value of cultured shellfish. Similar phenomena were also observed in other ecosystems which the shellfish farming was active, for instance the Monte Saint Michel Bay (Leloup et al., 2008), Golden and Tasman Bay (Jiang and Gibbs, 2005). In contrast, the TE between TL3 and TL4 dropped to 10.8%, much lower than 21.3% of the Bohai Sea (Lin et al., 2009) and 18.5% of the Yellow Sea (Lin et al., 2013). The low biomass of top predators in the Jiaozhou Bay was probably one reason. We found that the Jiaozhou Bay trophic network was separated into two partly disconnected trophic sub-systems. One is a short shellfish farming chain (TL2) with high biomass, and the other is a residual “natural” unstable system with relatively low biomass.
Our results suggested that the Jiaozhou Bay ecosystem was in an unstable state. Specifically, primary producer and detritus-based food chains are important components in aquatic ecosystems (Christensen and Pauly, 1993). Studies suggested that a mature ecosystem may depend more on the detritus pathway (Odum, 1969), whereas in the Jiaozhou Bay ecosystem, the producer was the most important food source. Secondly, TPP/TR and NSP are also related to the maturity of ecosystem (Odum, 1969; Christensen, 1995). In a mature ecosystem, the value of TPP/TR should be close to 1 and the NSP should be close to 0 (Christensen, 1995). The value of TPP/TR in the Jiaozhou Bay ecosystem was much larger than 1 (3.18) and NSP is larger than 0, which confirmed the under development stage of the Jiaozhou Bay ecosystem. However, it should be noted that TPP/TR may be overestimated when the decomposer organisms were ignored in the model (Christensen and Pauly, 1993). In addition, FCI represents the fraction of an ecosystem’s throughput that is recycled compared to total system throughput (Finn, 1976), a measurement correlated with ecosystem stability. The FCI value of 2.47% in the Jiaozhou Bay ecosystem was low compared with those given by Lin et al. (2013) for the southern Yellow Sea and Wu et al. (2012) for the Lidao Island, but was similar with the reports for the Maine Gulf (Zhang and Chen, 2007) and Gulf of Cadiz (Torres et al., 2013). Besides, the SOI and CI of an ecosystem which are related to the complexity of food web (Odum, 1971), were similar to other immature ecosystems such as the southern Yellow Sea (Lin et al., 2013), Gulf of Mexico (Geers et al., 2016) and the Lidao Island ecosystem (Wu et al., 2012). In general, the evidence indicated that the food web of the Jiaozhou Bay ecosystem is rather linear like and the ecosystem was unstable.
In summary, we found that this semi-closed bay had a high primary production, immature state, and the intensive aquaculture activities might have substantial effects on this ecosystem. The high primary production implies that the Jiaozhou Bay ecosystem can still support a considerable fisheries resource, however, the current trophic structure has largely diminish the potential. The very pattern arises the urgency for proper ecosystem management in this bay based on deeper understanding the ecological interactions within ecosystem, as provided by this study. Besides, the ecological influences of intensive aquaculture should be seriously considered in making management plans. Further studies are needed to simulate and evaluate the influence of shellfish aquaculture on the trophic structure of the Jiaozhou Bay to provide important information for the management of shellfish aquaculture.
Funding
Less
  • The Public Science and Technology Research Funds Projects of Ministry of Agriculture under contract No. 201303050-02; the Scientific and Technological Innovation Project for the Qingdao National Laboratory for Marine Science and Technology under contract No. 2015ASKJ02; the Fundamental Research Funds for the Central Universities under contract No. 201262004; the National Natural Science Foundation of China under contract No. 41006083; the Shandong Provincial Natural Science Foundation, China under contract No. ZR2010DQ026.
References
Less
Andersen K H, Beyer J E. 2015. Size structure, not metabolic scaling rules, determines fisheries reference points. Fish and Fisheries, 16(1): 1–22
Bacalso R T M, Wolff M. 2014. Trophic flow structure of the Danajon ecosystem (Central Philippines) and impacts of illegal and destructive fishing practices. Journal of Marine Systems, 139: 103–118
Byron C, Link J, Costa-Pierce B, et al. 2011a. Calculating ecological carrying capacity of shellfish aquaculture using mass-balance modeling: narragansett Bay, Rhode Island. Ecological Modelling, 222(10): 1743–1755
Byron C, Link J, Costa-Pierce B, et al. 2011b. Modeling ecological carrying capacity of shellfish aquaculture in highly flushed temperate lagoons. Aquaculture, 314(1–4): 87–99
Chen Zuozhi, Qiu Yongsong, Jia Xiaoping, et al. 2008. Using an ecosystem modeling approach to explore possible ecosystem impacts of fishing in the Beibu Gulf, northern South China Sea. Ecosystems, 11(8): 1318–1334
Cheng Jisheng, Zhu Jinsheng. 1997. Study on the feeding habit and tropchic level of nektonic invertebrate in Yellow Sea. Haiyang Xuebao (in Chinese), 19(6): 102–108
Christensen V. 1995. Ecosystem maturity-towards quantification. Ecological Modelling, 77(1): 3–32
Christensen V, Pauly D. 1993. Trophic models of aquatic ecosystems. In: ICLARM Conference Proceedings 26. Manila, Philippines: International Center for Living Resources Management
Christensen V, Walters C J. 2004. Ecopath with Ecosim: methods, capabilities and limitations. Ecological Modelling, 172(2–4): 109–139
Christensen V, Walters C J, Pauly D. 2005. Ecopath with Ecosim: A User’s Guide. Vancouver, Canada: Fisheries Centre University of British Columbia
Colléter M, Valls A, Guitton J, et al. 2015. Global overview of the applications of the Ecopath with Ecosim modeling approach using the EcoBase models repository. Ecological Modelling, 302: 42–53
Costanza R, d’Arge R, de Groot R, et al. 1998. The value of the world’s ecosystem services and natural capital. Ecological Economics, 25(1): 3–15
Cury P M, Shannon L J, Roux J P, et al. 2005. Trophodynamic indicators for an ecosystem approach to fisheries. ICES Journal of Marine Science, 62(3): 430–442
Deng Jingyao, Meng Tianxiang, Ren Shengmin, et al. 1988. Species composition, abundance and distribution of fishes in the Bohai Sea. Marine Fisheries Research (in Chinese), 9(1): 11–89
Essington T E. 2007. Evaluating the sensitivity of a trophic mass-balance model (Ecopath) to imprecise data inputs. Canadian Journal of Fisheries and Aquatic Sciences, 64(4): 628–637
Ferriss B E, Reum J C P, McDonald P S, et al. 2016. Evaluating trophic and non-trophic effects of shellfish aquaculture in a coastal estuarine food web. ICES Journal of Marine Science, 73(2): 429–440
Finn J T. 1976. Measures of ecosystem structure and function derived from analysis of flows. Journal of Theoretical Biology, 56(2): 363–380
Fulton E A, Smith A D M, Johnson C R. 2004. Effects of spatial resolution on the performance and interpretation of marine ecosystem models. Ecological Modelling, 176(1–2): 27–42
Garcia S M, Kolding J, Rice J, et al. 2012. Reconsidering the consequences of selective fisheries. Science, 335(6072): 1045–1047
Geers T M, Pikitch E K, Frisk M G. 2016. An original model of the northern Gulf of Mexico using Ecopath with Ecosim and its implications for the effects of fishing on ecosystem structure and maturity. Deep Sea Research Part II: Topical Studies in Oceanography, 129: 319–331
Grüss A, Schirripa M J, Chagaris D, et al. 2015. Evaluation of the trophic structure of the West Florida Shelf in the 2000s using the ecosystem model OSMOSE. Journal of Marine Systems, 144: 30–47
Greenstreet S P R, Rogers S I. 2006. Indicators of the health of the North Sea fish community: identifying reference levels for an ecosystem approach to management. ICES Journal of Marine Science, 63(4): 573–593
Guo Chuanbo, Ye Shaowen, Lek S, et al. 2013. The need for improved fishery management in a shallow macrophytic lake in the Yangtze River basin: evidence from the food web structure and ecosystem analysis. Ecological Modelling, 267: 138–147
Guo Feng, Zhao Jun, Chen Jufa, et al. 2012. Nitrogen and phosphorous pollution in shellfish culture areas of Jiaozhou Bay. Progress in Fishery Sciences (in Chinese), 33(5): 116–122
Han Dongyan, Xue Ying, Ji Yupeng, et al. 2013. Trophic and spatial niche of five gobiid fishes in Jiaozhou Bay. Journal of Fishery Sciences of China (in Chinese), 20(1): 148–156
Han Dongyan, Xue Ying, Ren Yiping, et al. 2015. Spatial and seasonal variations in the trophic spectrum of demersal fish assemblages in Jiaozhou Bay, China. Chinese Journal of Oceanology and Limnology, 33(4): 934–944
Hobday A J, Smith A D M, Stobutzki I C, et al. 2011. Ecological risk assessment for the effects of fishing. Fisheries Research, 108(2–3): 372–384
Jennings S, Kaiser M J. 1998. The effects of fishing on marine ecosystems. Advances in Marine Biology, 34: 201–352
Jiang Weimin, Gibbs M T. 2005. Predicting the carrying capacity of bivalve shellfish culture using a steady, linear food web model. Aquaculture, 244(1–4): 171–185
Leloup F A, Desroy N, Le Mao P, et al. 2008. Interactions between a natural food web, shellfish farming and exotic species: the case of the Bay of Mont Saint Michel (France). Estuarine, Coastal and Shelf Science, 76(1): 111–120
Li Yunkai, Chen Yong, Song Bing, et al. 2009. Ecosystem structure and functioning of Lake Taihu (China) and the impacts of fishing. Fisheries Research, 95(2–3): 309–324
Li Shiyan, Han Dongyan, Ma Qiuyun, et al. 2014. Feeding habits of Enedrias fangi in Jiaozhou Bay based on carbon and nitrogen stable isotope analysis. Journal of Fishery Sciences of China (in Chinese), 21(6): 1220–1226
Lin Qun, Jin Xianshi, Zhang Bo, et al. 2009. Comparative study on the changes of the Bohai Sea ecosystem structure based on Ecopath model between ten years. Acta Ecologica Sinica (in Chinese), 29(7): 3613–3620
Lin Qun, Jin Xianshi, Zhang Bo. 2013. Trophic interactions, ecosystem structure and function in the southern Yellow Sea. Chinese Journal of Oceanology and Limnology, 31(1): 46–58
Lindeman R L. 1942. The trophic-dynamic aspect of ecology. Ecology, 23(4): 399–417
Link J, Col L, Guida V, et al. 2009. Response of balanced network models to large-scale perturbation: implications for evaluating the role of small pelagics in the Gulf of Maine. Ecological Modelling, 220(3): 351–369
Liu Ruiyu. 1992. Ecology and Living Resources of Jiaozhou Bay (in Chinese). Beijing: Science Press
Liu Qun, Xu Binduo, Ye Zhenjiang, et al. 2012. Growth and mortality of small yellow croaker (Larimichthys polyactis) inhabiting Haizhou bay of China. Journal of Ocean University of China, 11(4): 557–561
Liu Yuanwen, Xue Ying, Wei Bangfu, et al. 2014. An estimation of population parameters for five major fish species in the Haizhou Bay, Yellow Sea. Journal of Fishery Sciences of China (in Chinese), 21(1): 125–133
Mei Chun, Xu Binduo, Xue Ying, et al. 2010. Fish community structure and species diversity during autumn and winter in the central waters of Jiaozhou Bay. Journal of Fishery Sciences of China (in Chinese), 17(1): 110–118
Morissette L, Hammill M O, Savenkoff C. 2006. The trophic role of marine mammals in the northern Gulf of St. Lawrence. Marine Mammal Science, 22(1): 74–103
Nuttall M A, Jordaan A, Cerrato R M, et al. 2011. Identifying 120 years of decline in ecosystem structure and maturity of Great South Bay, New York using the Ecopath modelling approach. Ecological Modelling, 222(18): 3335–3345
Odum E P. 1969. The strategy of ecosystem development. Science, 164(3877): 262–270
Odum E P. 1971. Fundamentals of Ecology. 3rd ed. Philadelphia: WB Saunders
Ouyang Lijian, Guo Xuewu. 2010. Studies on the Q/B values and food consumption of major fishes in the east China sea and the Yellow Sea. Progress in Fishery Sciences (in Chinese), 31(2): 23–29
Panikkar P, Khan M F. 2008. Comparative mass-balanced trophic models to assess the impact of environmental management measures in a tropical reservoir ecosystem. Ecological Modelling, 212(3–4): 280–291
Pauly D, Christensen V, Dalsgaaard J, et al. 1998. Fishing down marine food webs. Science, 279(5352): 860–863
Pranovi F, Libralato S, Raicevich S, et al. 2003. Mechanical clam dredging in Venice lagoon: ecosystem effects evaluated with a trophic mass-balance model. Marine Biology, 143(2): 393–403
Shin Y J, Cury P. 2004. Using an individual-based model of fish assemblages to study the response of size spectra to changes in fishing. Canadian Journal of Fisheries and Aquatic Sciences, 61(3): 414–431
Suh Y J, Shin K H. 2013. Size-related and seasonal diet of the manila clam (Ruditapes philippinarum), as determined using dual stable isotopes. Estuarine, Coastal and Shelf Science, 135: 94–105
Sui Jixing, Yu Zishan, Qu Fangyuan, et al. 2010. Preliminary ecological study of the macrobenthos in the middle part of the Jiaozhou Bay. Marine Sciences (in Chinese), 34(5): 1–6
Sun Song, Li Chaolun, Zhang Guangtao, et al. 2011. Long-term Changes in the zooplankton community in the Jiaozhou Bay. Oceanologia et Limnologia Sinica (in Chinese), 42(5): 625–631
Sun Jun, Liu Dongyan, Qian Shuben. 2000. Study on phytoplankton biomass: II. Net-phytoplankton measurement biomass estimated from the cell volume in the Jiaozhou Bay. Haiyang Xuebao (in Chinese), 22(1): 102–109
Torres M Á, Coll M, Heymans J J, et al. 2013. Food-web structure of and fishing impacts on the Gulf of Cadiz ecosystem (South-western Spain). Ecological Modelling, 265: 26–44
Ulanowicz R E, Puccia C J. 1990. Mixed trophic impacts in ecosystems. Coenoses, 5(1): 7–16
Wang Jialin. 1993. China’s Bay (in Chinese). Beijing: China Ocean Press
Witherell D, Pautzke C, Fluharty D. 2000. An ecosystem-based approach for Alaska groundfish fisheries. ICES Journal of Marine Science, 57(3): 771–777
Wu Zhongxin, Zhang Xiumei, Zhang Lei, et al. 2012. Structure and function of Lidao artificial reef ecosystem in Rongcheng of Shandong Province, East China: an evaluation based on Ecopath model. Chinese Journal of Applied Ecology (in Chinese), 23(10): 2878–2886
Xu Shanliang, Wang Chunlin, Mei Wenxiang, et al. 1996. Preliminary studies on propagation and feeding habits of Oratosquilla oratoria in northern Zhejiang Sea areas. Journal of Zhejiang College of Fisheries (in Chinese), 15(1): 30–36
Xue Ying, Jin Xianshi, Zhang Bo, et al. 2004. Diet composition and seasonal variation in feeding habits of small yellow croaker Pseudosciaena polyactis Bleeker in the central Yellow Sea. Journal of Fishery Sciences of China (in Chinese), 11(3): 237–243
Yang Jiming. 2001. A study on food and trophic levels of Bohai sea copepoda. Modern Fisheries Information (in Chinese), 16(6): 6–10
Yang Jiming, Tan Xuejing. 2000. Food analysis of three cephalopod species in the Bohai Sea. Marine Sciences (in Chinese), 24(4): 53–55
Zeng Huihui, Xu Binduo, Xue Ying, et al. 2012. Study on fish species composition and seasonal variation in the shallow waters of Jiaozhou Bay. Periodical of Ocean University of China (in Chinese), 42(1–2): 67–74
Zhang Bo. 2007. Diet composition and ontogenetic variation in feeding habits of Cleithenes herzensteini in central Yellow Sea. Chinese Journal of Applied Ecology (in Chinese), 18(8): 1849–1854
Zhang Yuying, Chen Yong. 2007. Modeling and evaluating ecosystem in 1980s and 1990s for American lobster (Homarus americanus) in the Gulf of Maine. Ecological Modelling, 203(3–4): 475–489
Zhang Mingliang, Leng Yueshan, Lv Zhenbo, et al. 2013. Estimating the ecological carrying capacity of Portunus trituberculatus in Laizhou Bay. Marine Fisheries (in Chinese), 35(3): 303–308
