Two new free-living nematode species (Comesomatidae) from the mangrove wetlands in Fujian Province, China
收藏切换
PDF
Yuqing GUO1, *, Yu CHANG1, Peipei YANG1
Acta Oceanologica Sinica | 2018, 37(10) : 161 - 167
Less
收藏切换
Acta Oceanologica Sinica | 2018, 37(10): 161-167
• Articles •
Two new free-living nematode species (Comesomatidae) from the mangrove wetlands in Fujian Province, China
Full
Yuqing GUO1, *, Yu CHANG1, Peipei YANG1
Affiliations
  • 1 Fujian Provincial Key Laboratory of Marine Fishery Resources and Eco-environment, Fisheries College, Jimei University, Xiamen 361021, China
Published: 2018-10-25 doi: 10.1007/s13131-018-1320-3
Outline
收藏切换

Two new free-living marine nematode species from the mangrove wetlands of Fujian Province, China are identified and illustrated. Sabatieria conicoseta sp. nov. is characterized by its short conical somatic setae. There are 12–15 tubular pre-cloacal supplements and 12–15 μm long straight gubernacular apophyses. Dorylaimopsis papilla sp. nov. is characterized by spicules which are 1.5–1.8 a. b. d. long with media cuticularized strip along entire spicules, and have a cephalated proximal end with small hooked. There are 16–18 small papillate pre-cloacal supplements and 37–40 μm long dorso-caudal gubernacular apophyses.

free-living marine nematode  /  new species  /  Sabatieria  /  Dorylaimopsis  /  mangrove
Yuqing GUO, Yu CHANG, Peipei YANG. Two new free-living nematode species (Comesomatidae) from the mangrove wetlands in Fujian Province, China[J]. Acta Oceanologica Sinica, 2018 , 37 (10) : 161 -167 . DOI: 10.1007/s13131-018-1320-3
Full Text
Less
1 Introduction
Less
The mangrove forest in China covers the area of 22 600 hm2, accounting for 0.13% of the world’s total area of the mangroves. Mangrove forests in China are located in the northern edge of mangrove area in the world. Fujian is the northernmost province of mangrove natural distribution, and is also one of the earliest provinces in planted mangrove forests in China (Wang and Wang, 2007). The free-living marine nematode fauna from mangrove wetlands of Fujian Province has been studied in connection with the creation of a new database for the biomonitoring assessment of mangrove wetlands ecosystems. This work is part of the China national project for studying biodiversity of free-living nematodes of the coast of China mangrove wetlands.
Comesomatids typically have the following main characters: annulated cuticle with transverse rows of punctations, multi-spiral amphids, gubernaculum with paired dorsal apophyses and pre-cloacal supplements in the male. Sabatieria is a large genus in this family (Warwick et al., 1998). Platt (1985) revised Sabatieria and divides the species into five subgroups, according to differentiation characteristics including the type and distribution of pre-cloacal supplements, characteristics of the gubernaculum and apophyses, the number of turns of the amphideal fovea, and the cephalic setae (Platt, 1985). Dorylaimopsis is characterised by cylindrical buccal cavity with three teeth, cuticle with lateral differentiation of longitudinal rows of coarse dots. Spicules are usually elongated, arcuate or jointed. Gubernaculum has caudal or dorso-caudally apophyses, pre-cloacal supplements usually present (Jensen, 1979). The genus Dorylaimopsis was described by Ditlevsen in 1918. To date, 21 species in this genus have been recorded worldwide (http://nemys.ugent.be/aphia.php?p=taxlist) (Gagarin, 2013). Sabatieria and Dorylaimopsis species are typical inhabitants of muddy intertidal and subtidal sediments, and are often the dominant members of the nematode fauna in such habitat (Muthumbi et al., 1997; Leduc, 2012).
2 Materials and methods
Less
Undisturbed sediment samples were taken from four mangrove wetlands from the north to south of Fujian Province in July, October, 2012 and January, April, 2013; Zhangjiang Estuary mangrove wetland in Yunxiao County, Jiulong Estuary mangrove wetland in Longhai City, Fenglin mangrove wetland in Xiamen Tong’an Bay, Luoyang Estuary mangrove wetland in Quanzhou City (Table 1). In the four study region, a sampling transect was set within every area, and sampling was conducted at high, mid and low tidal levels along every transect. Samples were taken to a depth of 5 cm using remade-syringe tube with an inner 2.9 cm diameter and then fixed with 5% formalin. The nematodes were extracted by centrifugal-flotation technique and then transferred to anhydrous glycerine and finally made into slides. Drawings were made with the aid of a camera lucida attached to a Nikon Eclipse 80i microscope. Type specimens are deposited in the Third Institute of Oceanography, State Oceanic Administration, Xiamen, China.
Measurements are in µm. Abbreviations are as follows: a, body length divided by maximum body diameter; b, body length divided by pharyngeal length; c, body length divided by tail length; R3, cephalic setae length as percentage of head diameter; A%, amphid diameter divided by corresponding body diameter; c’, tail length divided by anal body diameter; h. d., head diameter; a. b. e., anterior body end; a. b. d., anal body diameter; c. b. d., corresponding body diameter; V, vulva distance from the anterior body end; V%, position of vulva as percentage of body length from anterior body end; and Sc, spicue length as arc.
3 Description of Sabatieria conicoseta sp. nov.
Less
Family Comesomatidae Filipjev, 1918
Subfamily Sabatieriinae Filipjev, 1934
Genus Sabatieria Rouville, 1903
Sabatieria conicoseta sp. nov.

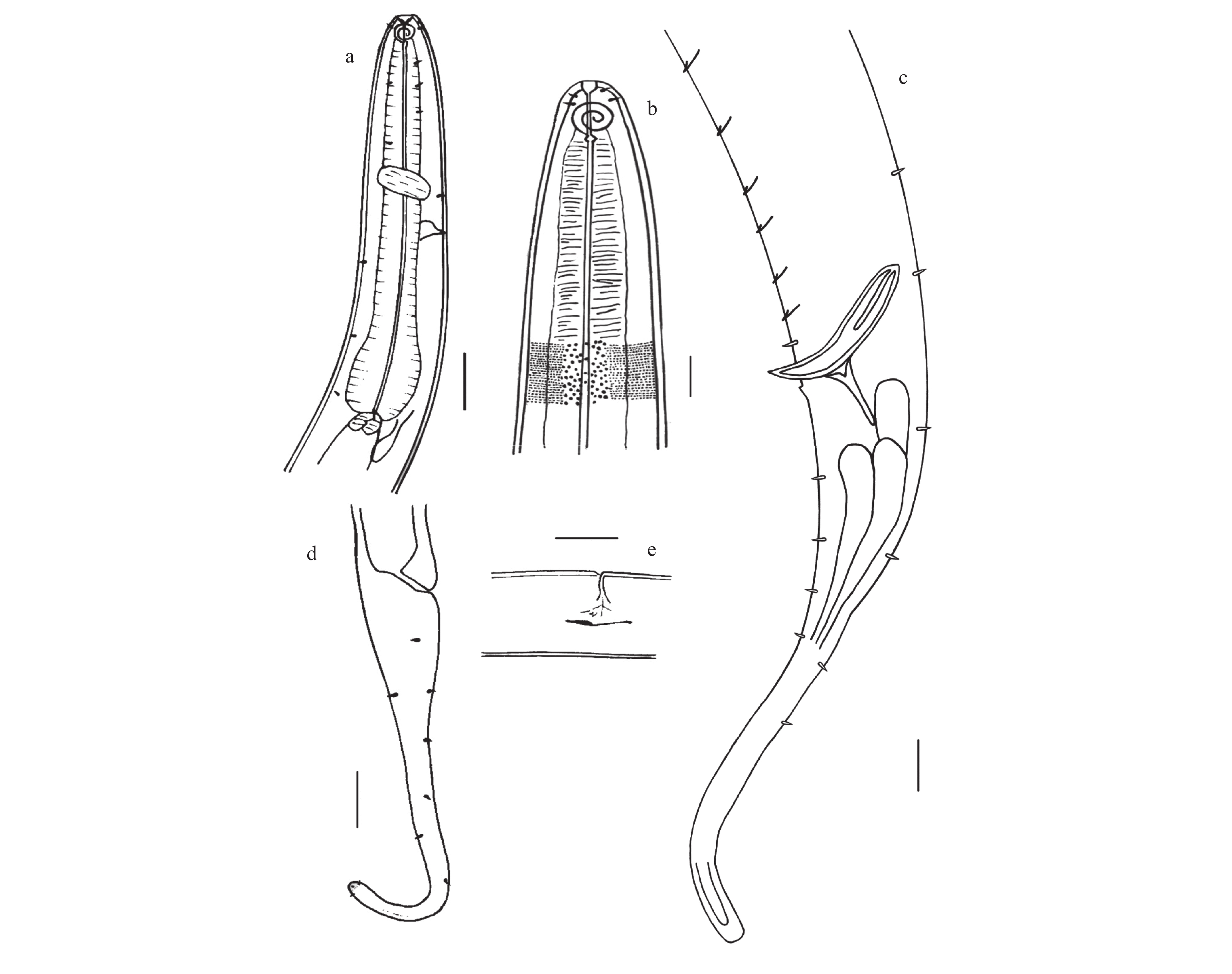

(Figs 1, 2 and Table 2)
3.1 Type material
Five males and five females. Male holotype, slide number: QZ20120713H203. Female allotype, slide number: YX20121021M202;four male paratypes, slides number: QZ20120713H210, QZ20121012L207, QZ20121012H301 and LH20130105L107; four female paratype, slides number: YX20121021M203, YX20121021M207, YX20121021L201 and QZ20121012H406.
3.2 Type locality
♂1–♂4 were collected from the Luoyang Estuary, ♂1 and ♂2 in July, and ♂3 and ♂4 in October. ♂5 was collected from the Jiulong Estuary in January. ♀1–♀4 were collected from the Zhangjiang Estuary in October and ♀5 from the Luoyang Estuary in October. Environmental parameters are shown in Table 1.
3.3 Etymology
Sabatieria conicoseta is given with short conical cephalic and somatic setae.
3.4 Measurements
Holotype ♂1: $ \frac{{ - \;\;181\;\;M\;\;1\;396}}{{ 11\;\;39\;\;41\;\;28}} $ 1 536 µm; a=38, b=9, c=11,Sc=40,
Allotype ♀1: $ \frac{{ - \;202\;\;V\;\;\;\;1\;535}}{{ 14\;\;41\;\;39\;\;28}} $ 1 710 µm; a=43, b=9, c=10,V%=46%.
3.5 Descriptions
Body is cylindrical, attenuated at both ends. Cuticle marked by transverse rows of fine punctuation beginning at the level of middle of the amphid and terminating at the base of conical portion of the tail. Lateral differentiation in the form of larger and more widely spaced dots, irregularly arranged. Three crowns of anterior sensilla: inner labial sensilla invisible, six 1 µm short but distinct outer labial setae and four 1.4–2.1 μm long cephalic setae (11%–18% of head diameter). Short conical somatic setae, distributed unevenly in the dorso- and ventro-lateral longitudinal rows. Amphids are spiral with 2.25 turns, 7–8 μm in diameter and 42%–64% of corresponding body diameter. Anterior border of amphids are 4–6 μm from the front end. Buccal cavity is cup-shaped, with conspicuous tooth-like structures at the base. The pharynx slightly broadens towards posterior end without forming a distinct bulb. Nerve ring 93–108 μm from anterior end of body, 49%–56% of the pharyngeal length. Excretory pore 107–133 μm from anterior end of body and the ventral gland extends well at the level of the cardia. Tail is 131–189 μm long or 4.8–6.3 times anal body diameter.
Males: Spicules paired, equal and curved, 1.4–1.7 a. b. d. long, with a swollen proximal end and central circularized strip extending a half of spicule length as arc from proximal end. Gubernaculum has 12–15 μm long straight apophyses. Twelve to fifteen tubular pre-cloacal supplements are gradually increased in distance apart anteriorly. There is one seta at anterior of the anal opening.
Females: The females are almost similar to the males, except for longer total body length (1 710–2 246 μm in female versus 1 429–1 656 μm in male) and tail length (173–189 μm in female versus 131–149 μm in male). Ovaries are opposite and outstretched. Vulva is located at 44%–46% of the body length.
3.6 Differential diagnosis
Sabatieria conicoseta sp. nov. belongs to praedatrix group because of the simple tubular supplements and straight gubernaculum apophysis. In this group, there are 45 valid species (Rosli et al., 2014). Sabatieria conicoseta sp. nov. resembles Sabatieria fidelis Botelho et al., 2009 in lateral differentiation and amphid turns, but can be distinguished from the known species especially by more shorter cephalic setae length (1.4–2.1 μm versus 3.0–3.7 μm), large “c” ratio (10–13 versus 14–21) and the type of pre-cloacal supplements (12–15 faint but visible tubular supplements versus invisible pore-like supplements). Sabatieria conicoseta sp. nov. is also close to Sabatieria coomansi Chen and Vincx, 1999 in having amphid turns (2.25), conspicuous tooth-like structures in the base of buccal cavity and relatively shorter cephalic setae (Chen and Vincx, 1999). The main differences between these two species are the total body length (1 429–2 246 μm versus 3 236–3 833 μm) and the number of tubular pre-clocal supplements (12–15 versus 23–26) and ${\rm c}' $ (4.8–6.3 versus 2.9–3.6). Sabatieria conicoseta sp. nov. can be differentiated from Sabatieria alata Warwick, 1973 in the number of amphid turns (2.25 versus 2.8–3.2) and the total body length (1 429–2 246 μm versus 2 780–3 220 μm) (Warwick et al., 1998).
4 Description of Dorylaimopsis papilla sp. nov.
Less
Family Comesomatidae Filipjev, 1918
Subfamily Dorylaimopsinae De Coninck, 1965
Genus Dorylaimopsis Ditlevsen, 1918
Dorylaimopsis papilla sp. nov.

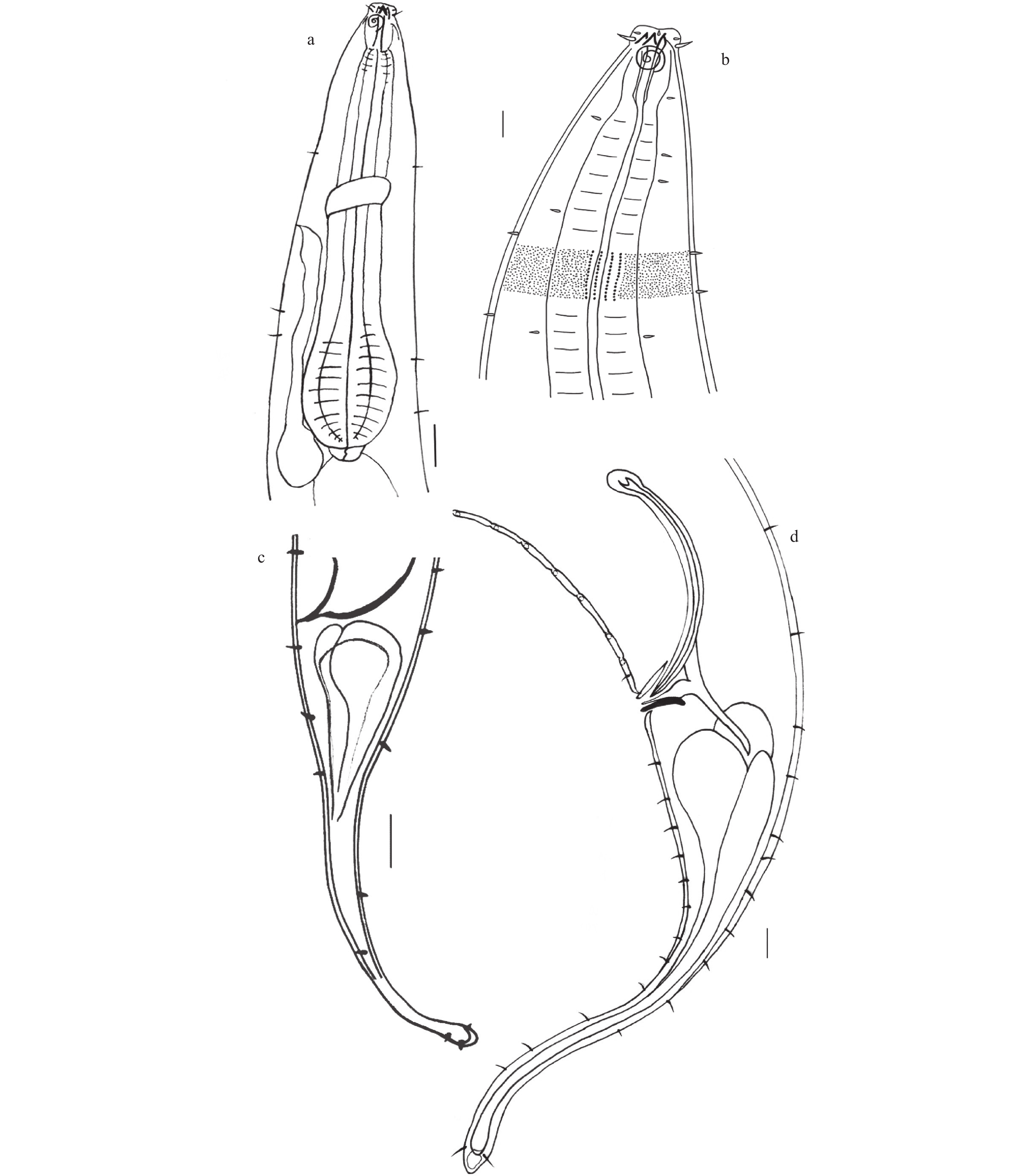

(Figs 3, 4 and Table 3)
4.1 Type material
Three males and one female. Male holotype, slide number: FL20120430L110; two male paratypes, slides number: FL20120430L401 and FL20120430H404; female allotype, slide number: FL20130930L115.
4.2 Type locality
♂1–♂3 were collected from Fenglin in the Tong’an Bay in April. ♀1 was collected from Fenglin in the Tong’an Bay in September. Environmental parameters are shown in Table 1.
4.3 Etymology
Dorylaimopsis. papilla sp. nov. is given after papillate pre-clocal supplements.
4.4 Measurements
Holotype ♂1: $ \frac{{ - \;235\;\;M\;\;1\;803}}{{ 16\;\;91\;\;98\;\;69}} $ 2 019 µm; a=21, b=9, c=9, Sc=101
Allotype ♀1: $ \frac{{ - \;249\;\;M\;\;1\;782}}{{ 16\;\;79\;\;92\;\;55}} $ 2 008 µm; a=22, b=8, c=9,V%=47%
4.5 Descriptions
Body is cylindrical, anteriorly with blunt end and with a conico-cylindrical tail. Punctuation begins at the level of the anterior border of the amphids. Cuticle marked by transverse rows of fine punctuation, with lateral differentiation in the form of longitudinal rows of enlarger dots, running from posterior to the amphids with 4–5 files, in the middle body with 2 files, then increases in four or more files in the spicule region. The lateral differentiation is about 8–10 μm wide in the middle of body, about 9%–10% of c. b. d.. Three crows of anterior sensilla, inner and outer labial sensilla are tiny but distinct and the cephalic ones are long (3.7–4.2 μm) setiform (22%–24% h. d.). The amphids are spiral with 2.5 turns and located immediately posterior of the cephalic sensilla. They are 10–11 μm in diameter (47%–55% c. b. d.). Stoma is tubular (18–21 μm) with three strong triangular teeth in the anterior part and sclerotized walls in the posterior part. The excretory pore is at 56% of pharynx length (52%–58%). The cardia is small.
Males: Two testes are opposite and outstretched. The curved spicules with media cuticularized strip along entire spicules are 1.5–1.8 a. b. d. long, and have a cephalated proximal end. 16–18 small but conspicuous papillate pre-cloacal supplements. The gubernaculum has long (37–40 μm) dorso-caudal apophyses. The tail is 211–216 μm long, and it is conical (1/2) anteriorly. There are numerous setaes on the conical part of the tail and three setaes (5 μm long) at the tip.
Females: Similar to males in general characteristics, but $ {\rm c}'$ is larger (4.1 in female versus 3.1–3.7 in male) and pharyngeal end body diameter shorter (79 μm in female versus 90–93 μm in male). Vulva is at 47% of body length. Two ovaries are opposite and outstretched.
4.6 Differential diagnosis
Dorylaimopsis papilla sp. nov. is characterized by short cephalic sensilla (3.7–4.2 μm, 22%–24%). The amphids are spiral with 2.5 turns. There are 16–18 small papillate pre-cloacal supplements. Punctuated cuticle with lateral differentiation in the form of longitudinal rows of enlarger dots, running from posterior to the amphids with 4–5 files, in the middle body 2 files, then increases in four or more files in the spicule region, on the dorsal and ventral sides, the punctuations are smaller and arranged in transverse rows. The tail is conico-cylindrical, half of the tail is conical portion.
Up to now, two species (Dorylaimopsis rabalaisis Zhang, 1992; Dorylaimopsis turneri Zhang, 1992) in this genus were recorded in China (Zhang, 1992). Our specimens are close to D. rabalaisis in amphid turns, however, D. papilla sp. nov. has longer body length (2 019–2 392 μm versus 1 418–1 919 μm) and shorter cephalic setae (7–10 μm versus 4 μm). Dorylaimopsis papilla sp. nov. has 16–18 small papillate pre-cloacal supplements while 14–21 fine but very indistinct ducts in D. rabalaisis. The ratio of conical portion to the tail is 1/2 in D. papilla sp. nov. while 2/3 in D. rabalaisis. Another difference lies in proximal end of spicule. The spicules are cephalated proximal end with small hooked in D. papilla sp. nov. while with ventral openings at proximal end in D. rabalaisis. And D. rabalaisis has spicules without median cuticularized strip.
Compared with three species found in 1997, including Dorylaimopsis coomansi, Dorylaimopsis gerardi, Dorylaimopsis variabilis from the India Ocean (Muthumbi et al., 1997), D. papilla sp. nov. is close to D. coomansi in amphid turns, however, R3 is 22%–24% in D. papilla sp. nov. while 67%–81% in D. coomansi. Dorylaimopsis papilla sp. nov. has punctuated cuticle with lateral differentiation of four or more regularly longitudinal rows on the pharyngeal and the tail region (including spicules level) while irregularly arranged punctuations in D. coomansi.
The latest record about this genus is described from New Zealand, southwest Pacific Ocean (350 m water depth) (Leduc, 2012). Dorylaimopsis papilla sp. nov. resembles Dorylaimopsis nodderi Leduc, 2012 in amphideal fovea, but can be distinguished from it by the absence of ventral projection at distal end of spicules. A total of 16–18 small papillate pre-cloacal supplements in D. papilla sp. nov., while 12–16 tubular pre-cloacal supplements in D. nodderi. Lateral differentiation consists of four or more longitudinal rows of larger dots in pharyngeal and caudal regions in D. papilla sp. nov. while three rows in D. nodderi.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 31772416; the Science Foundation of Fujian Province under contract No. 2017J01450.
References
Less
Chen Guotong, Vincx M. 1999. Nematodes from the Strait of Magellan and the Beagle Channel (Chile): the genus Sabatieria (Comesomatidae: Nematoda) with the description of Sabatieria coomansi n. sp. Hydrobiologia, 405: 95–115, doi: 10.1023/A:1003752619953
Gagarin V G. 2013. Four new species of free-living marine nematodes of the family Comesomatidae (Nematoda: Araeolaimida) from coast of Vietnam. Zootaxa, 3608(7): 547–560
Jensen P. 1979. Revision of comesomatidae (Nematoda). Zoologica Scripta, 8(1–4): 81–105, doi: 10.1111/j.1463-6409.1979.tb00621.x
Leduc D. 2012. Deep-sea nematodes (Comesomatidae) from the Southwest Pacific Ocean: five new species and three new species records. European Journal of Taxonomy, 24: 1–42
Muthumbi A W, Soetaert K, Vincx M. 1997. Deep-sea nematodes from the Indian Ocean: new and known species of the family Comesomatidae. Hydrobiologia, 346(1–3): 25–57
Platt H M. 1985. The freeliving marine nematode genus Sabatieria (Nematoda: Comesomatidae). Taxonomic revision and pictorial keys. Zoological Journal of the Linnean Society, 83(1): 27–78, doi: 10.1111/j.1096-3642.1985.tb00872.x
Rosli N, Leduc D, Probert P K. 2014. Two new species and a new record of Comesomatidae (Nematoda, Araeolaimida) from Southern Hikurangi Margin, New Zealand. Zootaxa, 3900(4): 505–525, doi: 10.11646/zootaxa.3900.4
Wang Wenqing, Wang Mao. 2007. The Mangroves of China (in Chinese). Beijing: Science Press
Warwick R M, Platt H M, Somerfield P J. 1998. Free-living Marine Nematodes: Part III. London: Field Studies Council, Shrewsbury, 296
Zhang Zhinan. 1992. Two new species of the genus Dorylaimopsis Ditlevsen, 1918 (Nematoda: Adenophora, Comesomatidae) from the Bohai Sea, China. Chinese Journal of Oceanology and Limnology, 10(1): 31–39, doi: 10.1007/BF02844297
