Submarine groundwater discharge around Taiwan
收藏切换
PDF
Chen-Tung Arthur CHEN1, 2, *, Jing ZHANG3, Tsung-Ren PENG4, Selvaraj KANDASAMY5, Deli WANG5, Yi-Jie LIN1
Acta Oceanologica Sinica | 2018, 37(6) : 18 - 22
Less
收藏切换
Acta Oceanologica Sinica | 2018, 37(6): 18-22
• Marine Chemistry •
Submarine groundwater discharge around Taiwan
Full
Chen-Tung Arthur CHEN1, 2, *, Jing ZHANG3, Tsung-Ren PENG4, Selvaraj KANDASAMY5, Deli WANG5, Yi-Jie LIN1
Affiliations
  • 1 Department of Oceanography, National Sun Yat-sen University, Kaohsiung 804, Taiwan, China
  • 2 State Key Laboratory of Satellite Ocean Environmental Dynamics, Second Institute of Oceanography, State Oceanic Administration, Hangzhou 310012, China
  • 3 Environmental Biology and Chemistry, Graduate School of Science and Engineering, University of Toyama, 930-8555 Toyama, Japan
  • 4 Department of Soil and Environmental Sciences, National Chung Hsing University, Taichung 402, Taiwan, China
  • 5 State Key Laboratory of Marine Environmental Science, Xiamen University, Xiamen 361102, China
Published: 2018-06-25 doi: 10.1007/s13131-018-1216-2
Outline
收藏切换

A preliminary study shows that the submarine groundwater discharge (SGD) exists around Taiwan even though groundwater overdrawing on the island is serious. Fifteen of the 20 sites studied for major anions and cations recorded a clear SGD signal with freshwater outflow. A total of 278 salinity and major ion measurements were made. Sixteen nearly freshwater SGD (salinity≤1.0) samples were obtained, providing strong and direct evidence for the existence of fresh meteoric groundwater entering the ocean from Taiwan. The total SGD flux is estimated to be 1.07×1010 t/a which is about 14% of the annual river output. The freshwater component of the SGD is 3.85×109 t which is about 5.2% of the annual river discharge in Taiwan. The collected SGD has a composition similar to seawater with an addition of Ca, CO3 and HCO3 due to dissolution of calcareous rocks. Some samples with high Cl/(Na+K) may indicate pollution.

submarine groundwater discharge  /  Taiwan  /  flux  /  major components  /  seawater intrusion
Chen-Tung Arthur CHEN, Jing ZHANG, Tsung-Ren PENG, Selvaraj KANDASAMY, Deli WANG, Yi-Jie LIN. Submarine groundwater discharge around Taiwan[J]. Acta Oceanologica Sinica, 2018 , 37 (6) : 18 -22 . DOI: 10.1007/s13131-018-1216-2
Full Text
Less
1 Introduction
Less
The coastal zone is marked by rich biodiversity and is of great importance for fisheries, agriculture and human settlements. For islands, the groundwater is a particularly important freshwater resource (Aris et al., 2013). Yet, the groundwater in coastal zones faces many threats; of which, seawater intrusion is a notable example. In order to deal with potential threats to this critical resource it is therefore important to understand the freshwater-seawater interface. The seawater intrusion mentioned above involves the penetration of seawater landward. On the other hand, the submarine groundwater discharge (SGD) involves the flow of groundwater and associated dissolved material seaward (the conceptual model is depicted in Fig. 1 of Moore (2010)). SGD, in a way, is a waste of the freshwater resource, and is the subject of this study.
The subtropical island of Taiwan has an area of 35 873 km2 which is mostly mountainous with abundant rainfall which averages 2 515 mm or 90×109 m3/a. The alluvial plains with elevation of less than 100 m cover an area of just 37%. The mountainous regions store about 125×108–165×108 m3 of groundwater while the alluvial plains store about 45×108–58×108 m3 groundwater. The annual groundwater recharge is about 4×109–5×109 m3 yet the pumping of groundwater is as much as 7×109 m3/a. In some areas of Taiwan, seawater intrusion has occurred due to the overpumping of groundwater (Central Geological Survey (CGS), 2002; Peng et al., 2008; Chiang et al., 2013). Nevertheless, Chen et al. (2005) obtained fresh meteoric groundwater with a seepage meter at a water depth of 7.8 m off Southwest Taiwan. Based on a hydraulic model with the help of salinity, deuterium and oxygen-18, Peng et al. (2008) came to the conclusion that, although some coastal areas in Taiwan are experiencing seawater intrusion, some coastal plains still show a surplus of groundwater moving downstream. Lin et al. (2010) and Zavialov et al. (2012) also found some evidence of SGD off Southwest Taiwan based on oceanic chemistry data. The total SGD flux for Taiwan, however, is not known.
The definition of SGD is any and all flow of water on continental margins from the seabed to the coastal ocean, regardless of fluid composition or driving force (Burnett et al., 2003). Basically, SGD is composed of the terrestrial freshwater and circulated seawater driven by various forces (e.g., density, tides and waves). Thus SGD occurs at land-ocean interface at every moment. Here the total flux of SGD around Taiwan is estimated for the first time. Since part of the aim is to study the components of the SGD we relied on the use of seepage meters to collect samples for further analyses.
2 Methods
Less

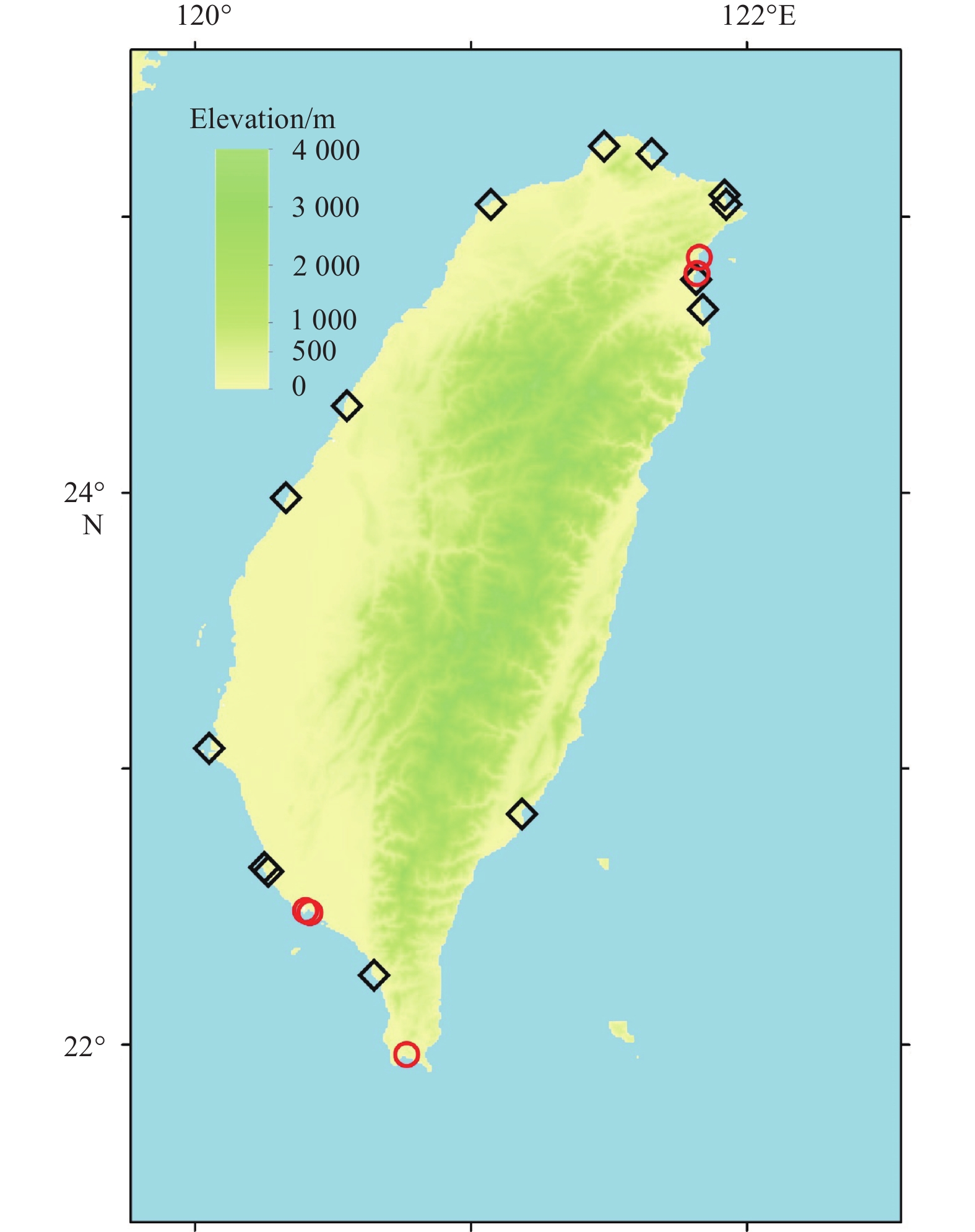

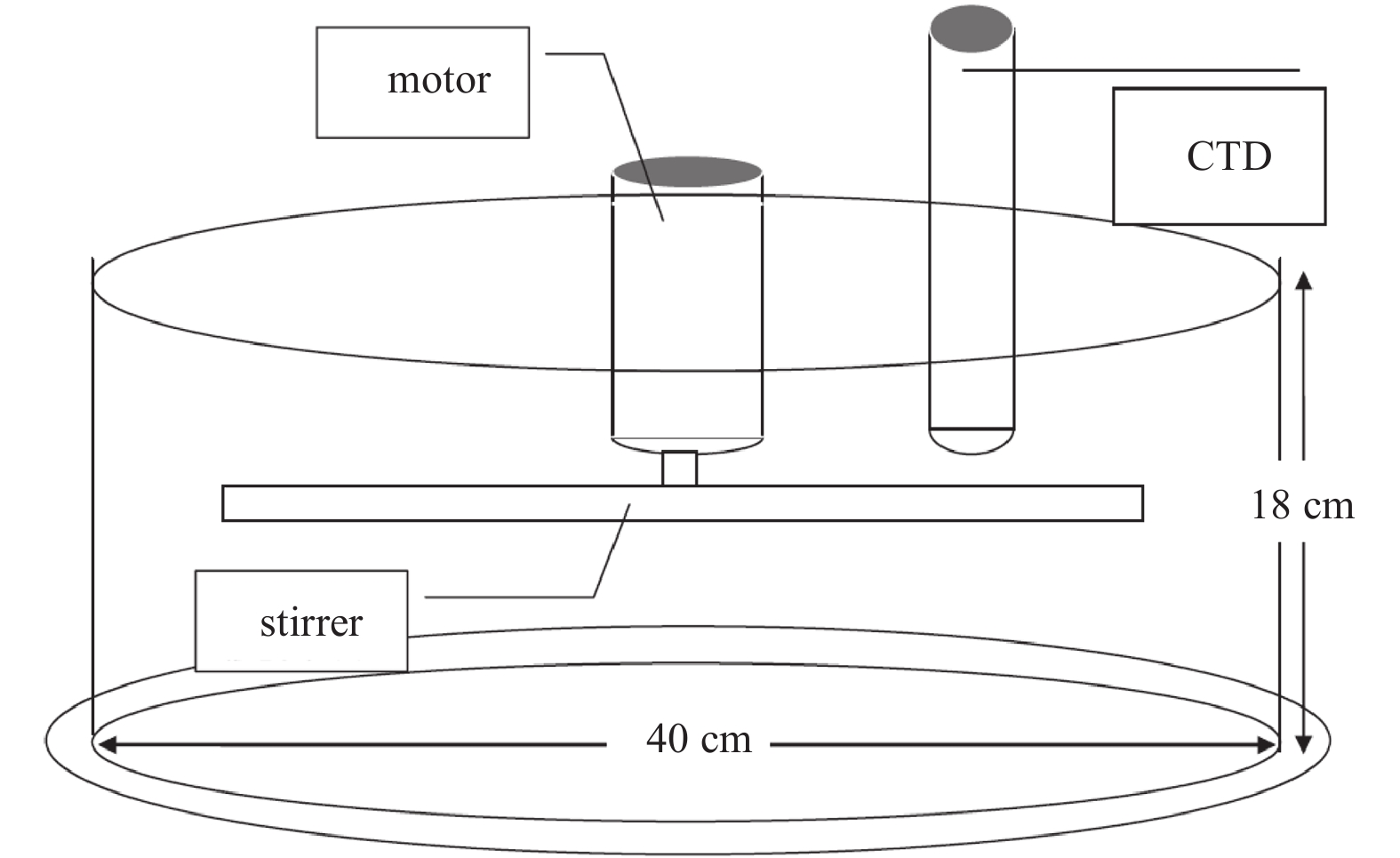

Preliminary sampling of the SGD was performed from 2004 to 2016. Twenty sampling sites around the coasts of Taiwan are shown in Fig. 1. SGD samples for chemical analysis were drawn by a device designed by Zhang and Satake (2003), and either a Lee (1977) type or a conductivity based (Peng et al., 2008) seepage meter (Fig. 2) was used to measure the SGD flux at various tidal ranges. Preserved samples, with saturated HgCl2 added except for salinity and Cl samples, were brought back and Ca, Mg, K, Na, total alkalinity (TA), SO4 and Cl were measured in the laboratory following the methods described in Chen et al. (2008). A total of 278 salinity and major ion measurements were made.
3 Results and discussion
Less

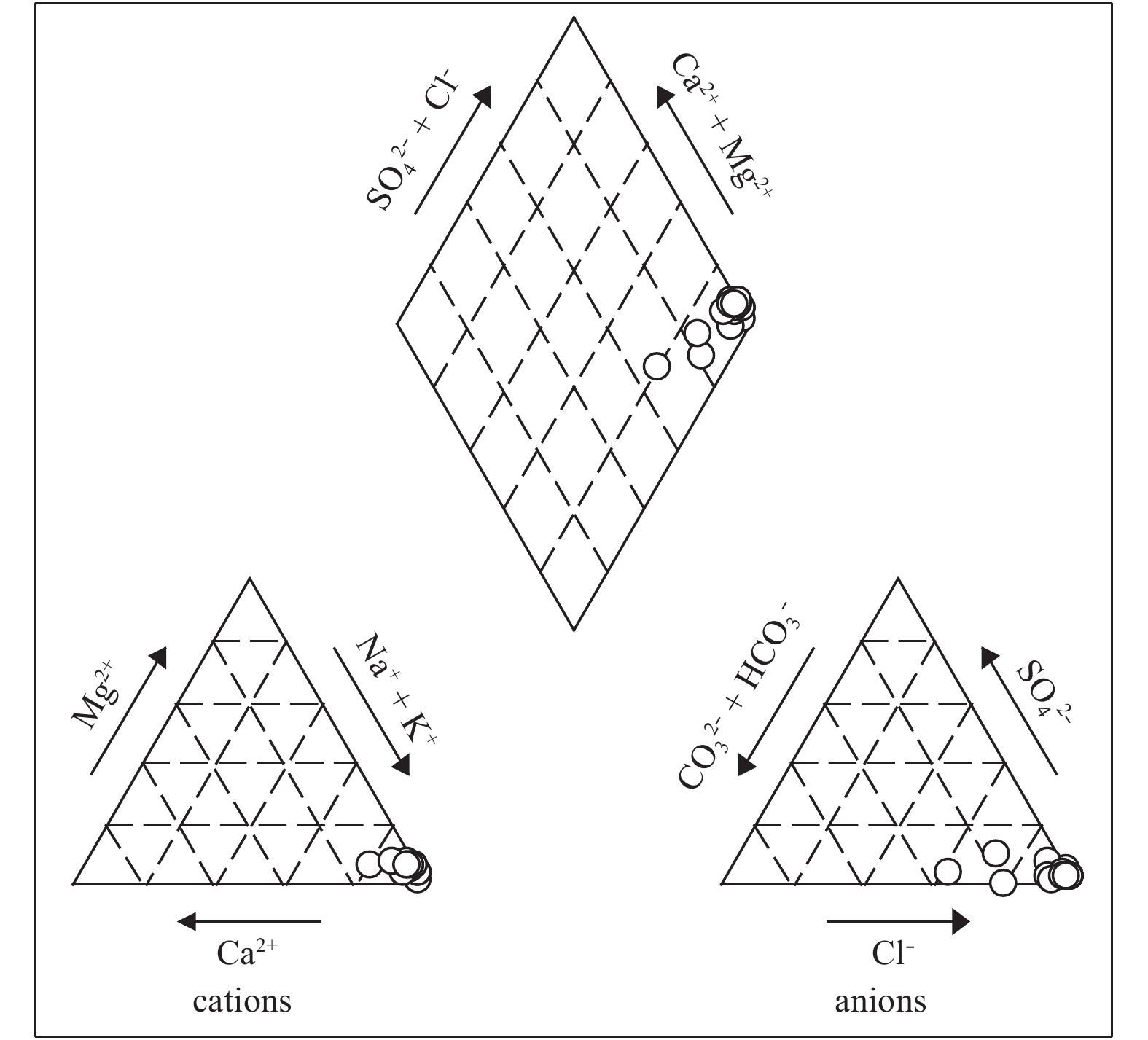

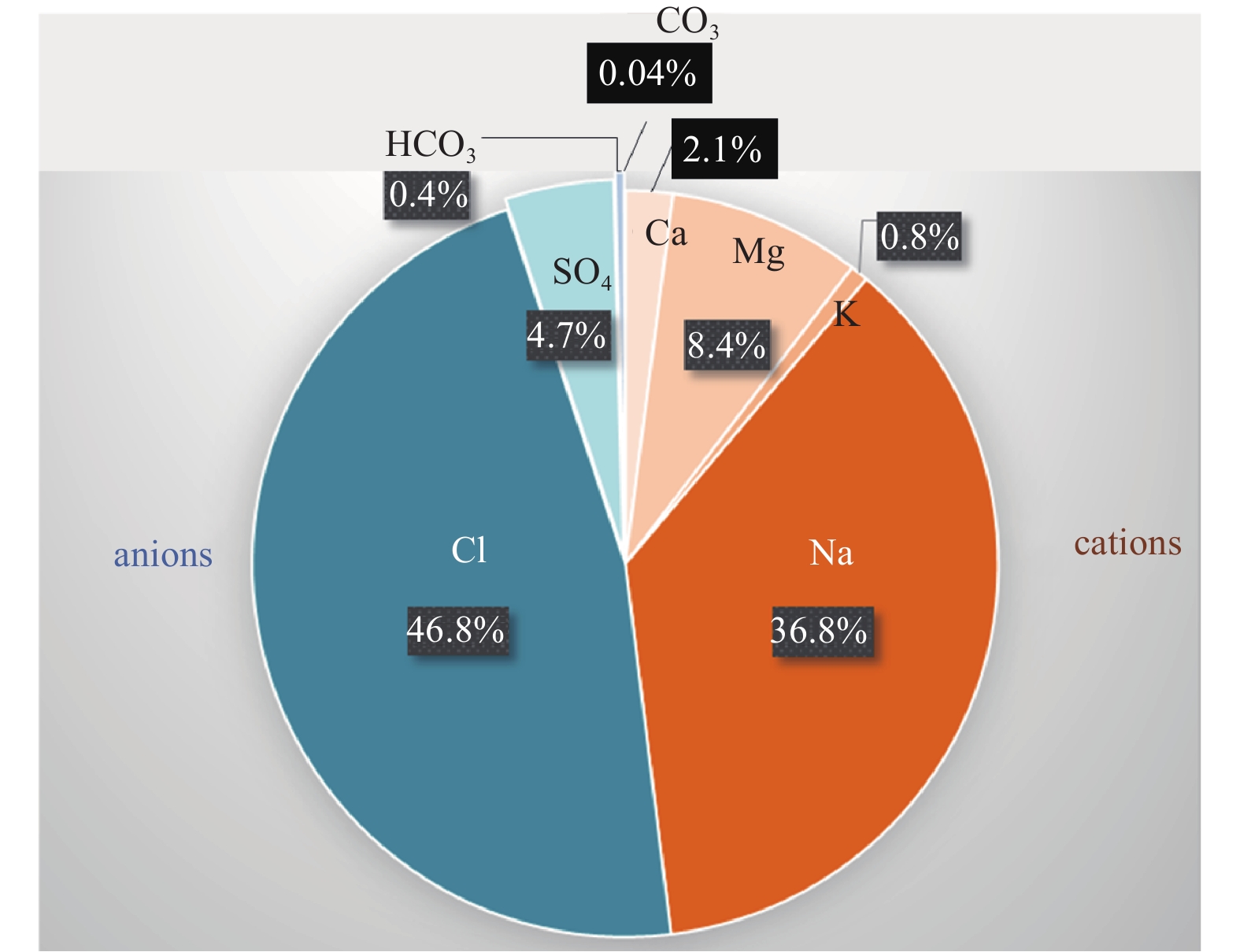

The salinity of 278 measurements varies over a wide range between 0.008 and 34.8 with an average of 21.92±11.43, reflecting seawater intrusion. Other ions also show a wide range. Of note is that 16 samples from five sites showed fresh (salinity≤1.0) SGD. The SGD with a salinity of 0.2 was found at a distance of 350 m and a water depth of 7.8 m off Southwest Taiwan. This is where Lin et al. (2010) and Zavialov et al. (2012) found low salinity seawater based on their measurements in the water column.
The average concentrations of the parameters measured are given in Table 1. Out of the 20 sampling sites, 15 showed evidence of some SGD. Five sites without the evidence of SGD are in areas known to be overpumping groundwater. Na and Cl are the dominating cation and anion, respectively (Fig. 3), followed by Mg and SO4. This is a clear initial indication that seawater is the major component of the SGD either coming directly through submarine intrusion or indirectly through sea spray with subsequent percolation into the groundwater. The Piper plot (Fig. 4) also reveals that the SGD is dominated by the Na(+K)-Cl type (seawater components) with small components of Ca-Cl (mixed seawater and freshwater components) and Ca-HCO3(+CO3) (freshwater components) types. This reflects the influence of seawater and the dissolution of calcareous rocks.

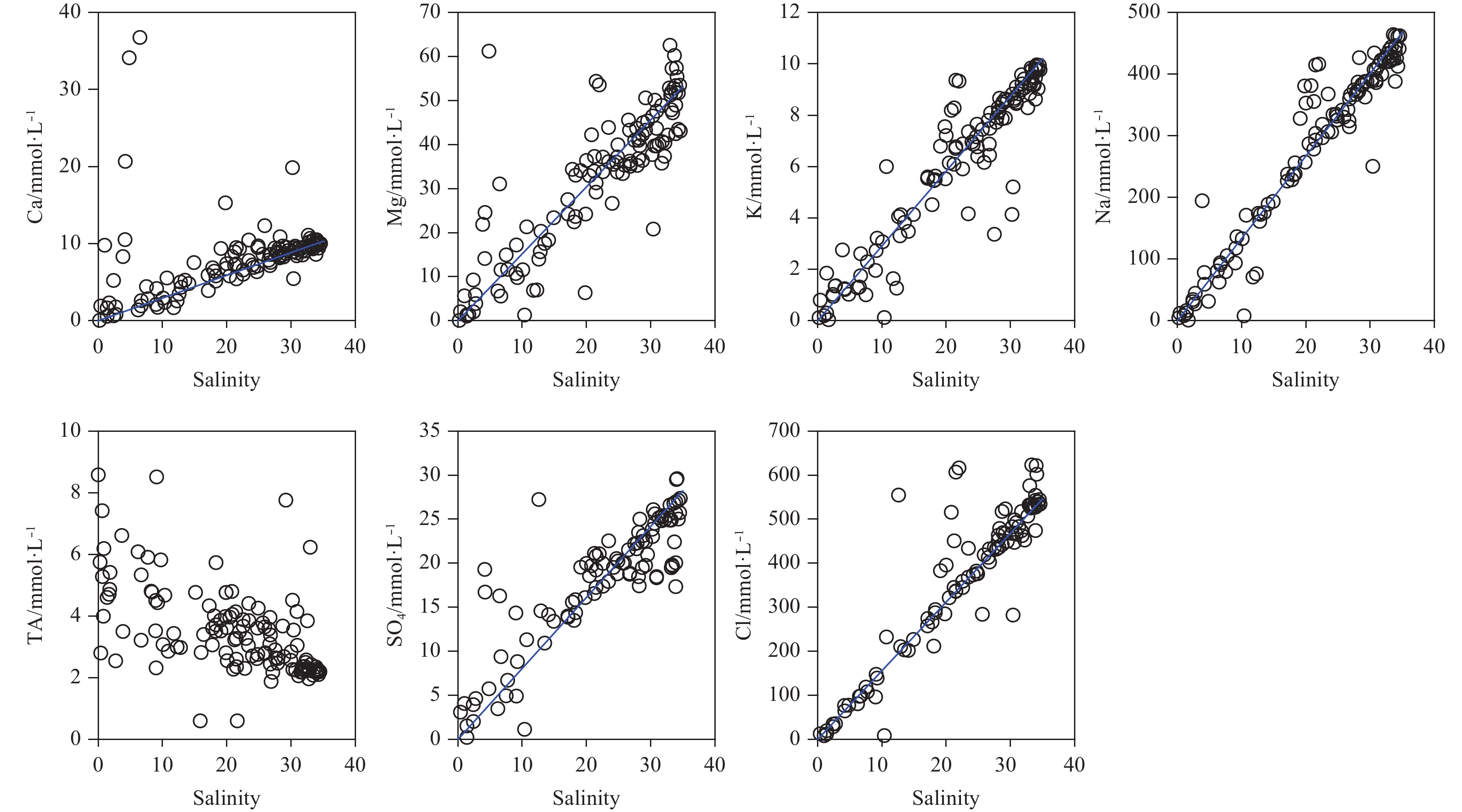

Figure 5 shows the concentrations of major components plotted vs. salinity. Needless to say, all but total alkalinity (TA) increases with salinity. TA is an exception as the values increase at lower salinities, reflecting the dissolution of calcareous rocks which contributes to HCO3 and CO3, both major components of TA. Generally speaking, Ca, Mg, K, Na, SO4 and Cl show a linear trend with respect to salinity (Fig. 4) and the slopes correspond to the seawater composition (Chen, 2007). This, again, is a clear sign of the seawater influence.
Of note is that many Ca, Mg, SO4 and Cl values are clearly above the seawater slope. The higher Ca and Mg values are perhaps due to the dissolution of calcareous rocks or dolomite. The higher TA values at lower salinities support this suggestion. The higher SO4 and Cl concentrations are, however, likely due to pollution to be discussed below.

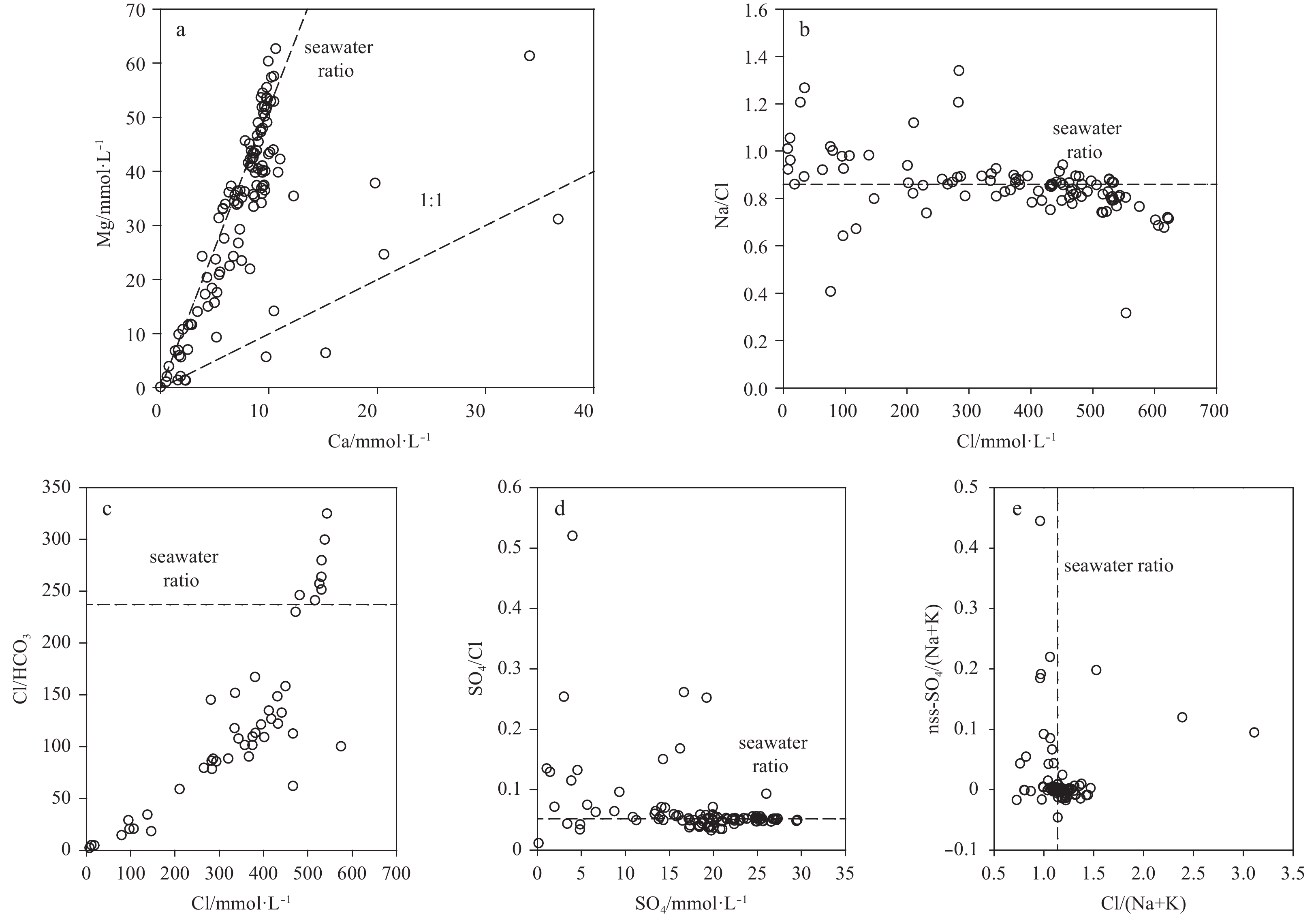

The Mg/Ca ratio is shown in Fig. 6a. Most data follow the seawater ratio but some samples show an excess amount of Ca relative to Mg, suggesting dissolution of calcareous rocks. Ratios of Mg/Ca that exceeds 1.0 indicate that the dolomitization process may take place due to the presence of seawater in the groundwater (Pulido-Leboeuf, 2004). In the case for Taiwan, most SGD samples show a seawater Mg/Ca ratio of 5.14, with only a few having an Mg/Ca ratio below 1.0. The Na/Ca ratio (Fig. 6b) does not show a clear pattern except that the values fall around the seawater ratio. The Cl/HCO3 ratio increases with Cl (Fig. 6c). The SO4/Cl values mostly follow the seawater ratio (Fig. 6d) but there are some high values perhaps reflecting pollution. Figure 6e plots the non-sea salt SO4 (nss-SO4)/(Na+K) vs. Cl/(Na+K). The values above the seawater ratio reflect pollution of Cl from garbage incineration or petrochemical plants.
Altogether there are only 44 flux measurements with an average of (1±0.7) L/(m2·h) for SGD and (0.37±0.47) L/(m2·h) for the freshwater outflow. These small sample numbers are not sufficient to obtain a robust average because of the large seasonal and spatial variations. Besides, fluxes must be heavily influenced by tidal phases due to different sea level responses (Liu et al., 2018). Since we measured the fluxes at various tidal phases the total SGD flux to be given below is subject to large uncertainties.
Assuming that the SGD exists in a 1 km wide band around Taiwan with a 1 200 km long coast line the first approximation of the SGD export results in a value of (1.07±0.7)×1010 t/a; of which, (0.38±0.48)×1010 t/a is the freshwater component. These values are, respectively, about 14% and 5.2% of the total river outflow from Taiwan, and fall within the ranges reported elsewhere (Zektser et al., 1983; Church, 1996; Moore, 1996; Cable et al., 1996; Burnett et al., 2001, 2003; Taniguchi et al., 2002, 2008). More specifically, Moosdorf et al. (2015) estimated the global average fresh groundwater discharge at 7 050 m3/(m·a) with Taiwan having a value of 5 486 m3/(m·a). Our freshwater SGD component translates to (3 200±4 000) m3/(m·a). Considering the large uncertainty, the agreement is reasonable.
Across the Taiwan Strait the SGD has also been studied in the Jiulong River with its 14 700 km2 watershed falling in the same latitude as Taiwan (Fig. 1). The recent work of Wang et al. (2015) reported an SGD value in the Jiulong River Estuary as 8%–19% of the concomitant river discharge, compared with 14% obtained above for Taiwan (Fig. 1). In terms of the freshwater component of the SGD the Jiulong River Estuary exports about 2%–4.8% of the concomitant river discharge, compared to 5.2% for Taiwan. Considering the large uncertainties involved, these values can be considered similar.
4 Conclusions
Less
Two hundred and seventy-eight salinity and major ion measurements were performed on the SGD collected at 20 sites around Taiwan. Fifteen sites showed evidence of some freshwater outflow. The collected SGD has a composition similar to seawater with an addition of Ca, CO3 and HCO3 due to dissolution of calcareous rocks. Some samples with high Cl/(Na+K) may indicate pollution. Forty-four flux measurements reveal that the total flux of SGD from Taiwan amounts to 14% of the total river outflow.
Funding
Less
  • The Aim for the Top University Program of the Ministry of Education under contract No. 06C030203; the Ministry of Science and Technology of Taiwan under contract No. MOST 105-2611-M-110-017.
References
Less
Aris A Z, Praveena S M, Isa N M. 2013. Groundwater composition and geochemical controls in small tropical islands of Malaysia: a comparative study. In: Wetzelhuetter C, ed. Groundwater in the Coastal Zones of Asia-Pacific. Dordrecht: Springer, 229–246
Burnett W C, Bokuniewicz H, Huettel M, et al. 2003. Groundwater and pore water inputs to the coastal zone. Biogeochemistry, 66(1–2): 3–33
Burnett W C, Taniguchi M, Oberdorfer J. 2001. Measurement and significance of the direct discharge of groundwater into the coastal zone. Journal of Sea Research, 46(2): 109–116
Cable J E, Burnett W C, Chanton J P, et al. 1996. Estimating groundwater discharge into the northeastern Gulf of Mexico using radon-222. Earth and Planetary Science Letters, 144(3–4): 591–604
Central Geological Survey (CGS). 2002. Taiwan groundwater monitoring network project phase I: Pingtug Plain (in Chinese). In: Final Summary of Hydrogeology Investigation. Taipei: Ministry of Economic Affairs, 172
Chen C T A. 2007. General chemistry of seawater. In: Nihoul J C J, Chen C T A, eds. Encyclopedia of Life Support Systems. vol 1. Oxford, UK: EOLSS Publishers, 304–330
Chen C T A, Wang S L, Lu X X, et al. 2008. Hydrogeochemistry and greenhouse gases of the Pearl River, its estuary and beyond. Quaternary International, 186(1): 79–90
Chen C T A, Zhang J, Peng T R, et al. 2005. Exploratory sampling of submarine groundwater discharge in Taiwan. Geochemistry, 39(3): 165–171
Chiang H C, Tong L T, Chiang L W, et al. 2013. The spatial variation of principal chemical constituents in groundwater of Cho-Shui Chi Basin, Central Taiwan. Journal of Taiwan Agricultural Engineering, 59(4): 231–1032
Church T M. 1996. An underground route for the water cycle. Nature, 380(6575): 579–580
Lee D R. 1977. A device for measuring seepage flux in lakes and estuaries. Limnology and Oceanography, 22(1): 140–147
Lin I T, Wang C H, You Chenfeng, et al. 2010. Deep submarine groundwater discharge indicated by tracers of oxygen, strontium isotopes and barium content in the Pingtung coastal zone, southern Taiwan. Marine Chemistry, 122(1–4): 51–58
Liu Y, Jiao J J, Liang W Z. 2018. Tidal fluctuation influenced physicochemical parameter dynamics in coastal groundwater mixing zone. Estuaries and Coasts, 41(4): 988–1001, doi: 10.1007/s12237-017-0335-x
Moore W S. 1996. Large groundwater inputs to coastal waters revealed by 226Ra enrichments. Nature, 380(6575): 612–614
Moore W S. 2010. The effect of submarine groundwater discharge on the Ocean. Annual Review of Marine Science, 2: 59–88
Moosdorf N, Stieglitz T, Waska H, et al. 2015. Submarine groundwater discharge from tropical islands: a review. Grundwasser, 20(1): 53–67
Peng T R, Chen C T A, Wang C H, et al. 2008. Assessment of terrestrial factors controlling the submarine groundwater discharge in water shortage and highly deformed island of Taiwan, western Pacific Ocean. Journal of Oceanography, 64(2): 323–337
Pulido-Leboeuf P. 2004. Seawater intrusion and associated processes in a small coastal complex aquifer (Castell de Ferro, Spain). Applied Geochemistry, 19(10): 1517–1527
Taniguchi M, Burnett W C, Cable J E, et al. 2002. Investigation of submarine groundwater discharge. Hydrological Processes, 16(11): 2115–2129
Taniguchi M, Burnett W C, Dulaiova H, et al. 2008. Groundwater discharge as an important land-sea pathway into Manila Bay, Philippines. Journal of Coastal Research, 24(1A): 15–24
Wang G Z, Wang Z Y, Zhai W D, et al. 2015. Net subterranean estuarine export fluxes of dissolved inorganic C, N, P, Si, and total alkalinity into the Jiulong River estuary, China. Geochimica et Cosmochimica Acta, 149: 103–114
Zavialov P O, Kao R C, Kremenetskiy V V, et al. 2012. Evidence for submarine groundwater discharge on the Southwestern shelf of Taiwan. Continental Shelf Research, 34: 18–25
Zektser I S, Dzhamalov R G, Safronova T I. 1983. Role of submarine groundwater discharge in the water balance of Australia. In: International Symposium on Ground Water in Water Resources Planning, ed. Ground Water in Water Resources Planning. Koblenz, Germany: IAHS-AISH Publication
Zhang J, Satake H. 2003. The chemical characteristics of submarine groundwater seepage in Toyama Bay, Central Japan. In: Taniguchi M, Wang K, Gamo T, eds. Land and Marine Hydrogeology. The Netherlands: Elsevier, 45–60
