Coupled carbon and sulfur isotope behaviors and other geochemical perspectives into marine methane seepage
收藏切换
PDF
Lihua LIU1, *, Shaoying FU2, Mei ZHANG1, Hongxiang GUAN1, Nengyou WU3, 4
Acta Oceanologica Sinica | 2017, 36(6) : 12 - 22
Less
收藏切换
Acta Oceanologica Sinica | 2017, 36(6): 12-22
• •
Coupled carbon and sulfur isotope behaviors and other geochemical perspectives into marine methane seepage
Full
Lihua LIU1, *, Shaoying FU2, Mei ZHANG1, Hongxiang GUAN1, Nengyou WU3, 4
Affiliations
  • 1 Key Laboratory of Gas Hydrate, Guangzhou Institute of Energy Conversion, Chinese Academy of Sciences, Guangzhou 510640, China
  • 2 Guangzhou Marine Geological Survey, Guangzhou 510760, China
  • 3 The Key Laboratory of Gas Hydrate of Ministry of Land and Resources, Qingdao Institute of Marine Geology, Qingdao 266071, China
  • 4 Laboratory for Marine Mineral Resources, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China
Published: 2017-06-01 doi: 10.1007/s13131-017-0998-y
Outline
收藏切换

Methane seepage is the signal of the deep hydrocarbon reservoir. The determination of seepage is significant to the exploration of petroleum, gas and gas hydrate. The seepage habits microbial and macrofaunal life which is fueled by the hydrocarbons, the metabolic byproducts facilitate the precipitation of authigenic minerals. The study of methane seepage is also important to understand the oceanographic condition and local ecosystem. The seepage could be active or quiescent at different times. The geophysical surveys and the geochemical determinations reveal the existence of seepage. Among these methods, only geochemical determination could expose message of the dormant seepages. The active seepage demonstrates high porewater methane concentration with rapid SO42– depleted, low H2S and dissolved inorganic carbon (DIC), higher rates of sulfate reduction (SR) and anaerobic oxidation of methane (AOM). The quiescent seepage typically develops authigenic carbonates with specific biomarkers, with extremely depleted 13C in gas, DIC and carbonates and with enriched 34S sulfate and depleted 34S pyrite. The origin of methane, minerals precipitation, the scenario of seepage and the possible method of immigration could be determined by the integration of solutes concentration, mineral composition and isotopic fractionation of carbon, sulfur. Numerical models with the integrated results provide useful insight into the nature and intensity of methane seepage occurring in the sediment and paleo-oceanographic conditions. Unfortunately, the intensive investigation of a specific area with dormant seep is still limit. Most seepage and modeling studies are site-specific and little attempt has been made to extrapolate the results to larger scales. Further research is thus needed to foster our understanding of the methane seepage.

marine seepage  /  authigenic minerals  /  carbon isotopes  /  sulfur isotopes  /  numerical simulation
Lihua LIU, Shaoying FU, Mei ZHANG, Hongxiang GUAN, Nengyou WU. Coupled carbon and sulfur isotope behaviors and other geochemical perspectives into marine methane seepage[J]. Acta Oceanologica Sinica, 2017 , 36 (6) : 12 -22 . DOI: 10.1007/s13131-017-0998-y
Full Text
Less
1 Introduction of marine methane seepage
Less
Marine seepage is formed by the release of deep pressurized pore fluids and considered to be a signal pointing directly to deep hydrocarbon reservoirs. Seep occurs at nm to 3 000 m depth of between a few meters and several kilometers. Escaped gaseous and aqueous hydrocarbons mostly methane supports overlain microbial communities. The metabolic byproducts of microorganisms facilitate the precipitation of authigenic minerals, the minerals provide solid substrates for habitation of macrofaunal organisms (Formolo and Lyons, 2013; Grupe et al., 2015). The macrofaunal activities enhance solute transport and influence the redox zonation of sediments through irrigation and geochemical reactions (Hutchens et al., 2010; Meile et al., 2001). The upwelling flow, the micro- and macro-communities and the solid minerals form a unique ecosystem of methane seepage. This ecosystem and the biogeochemical relationships drive the cycling of carbon, sulfur and other elements. The investigation of seepage is thus an elegant approach to study the local element cycle, to trace the paleoceanographic conditions and guide offshore exploration for hydrocarbon deposits (Judd et al., 2002).
Methane seeps occur where the overpressured fluids rise to the sediment surface through cracks and fissures accompanied sometimes by visible evidences. The most obvious evidence is gas flares. The flares could be identified by observation and multi-beam sonar system (Hovland et al., 2012; Jensen et al., 2002; Judd et al., 2002; Martens et al., 1999). Pockmarks and mud volcanos is another identification (Hovland et al., 2012; Nelson et al., 1979) and could be recognized by the high-resolution multi-beam systems and echo sounder electro-magnetic methods (Hovland et al., 2012; Judd et al., 2002; Röemer et al., 2012; Talukder et al., 2013). Microbial mats, seep-related chemosynthetic animals and authigenic minerals are also visible signals of seeps (Barry et al., 1997; Boetius and Suess, 2004; Feng et al., 2015; Hovland et al., 2012; Joye et al., 2010; Knittel et al., 2005). Above visual quantifications could be revealed by remotely operated vehicle (ROV), by seismic and hydroacoustic surveys (Regnier et al., 2011; Röemer et al., 2012; Talukder et al., 2013).
Worldwide scientists have investigated prospective areas of methane seeps during the past decades (Foucher et al., 2009; Han et al., 2013; Paull et al., 2008; Rollet et al., 2006; Yin et al., 2003). The investigation suggests that methane seeps have been reported from (1) every see and ocean; (2) a broad range of oceanographic settings from the coast to the deep ocean; (3) a wide variety of geological environments (Judd, 2003).
2 Geochemical properties of marine methane seepage
Less
Geochemical properties indicate the seepage especially suitable for the dormant and ancient seepage. High concentrations of methane, even higher than saturated concentration have been determined in many seeping areas (Archer, 2007; Huang et al., 2008; Lim et al., 2011). The high concentration fuels the geochemical reactions and accompanied by a specific isotopic distribution. The coupled processes of geochemical reactions and microorganism activities form the metabolic foundation of marine seeps. The seeps could be revealed by the composition of minerals, the distribution of solutes and isotopic fractionations of elements (Joye et al., 2010; Treude et al., 2007). Dormant or ancient seepage may only be delineated by geochemical signals, e.g., authigenic mineral, solutes distribution, ionic and stable isotopic composition (Bayon et al., 2007; Cook et al., 2011; Feng and Chen, 2015; Han et al., 2008; Malone et al., 2002; van Dongen et al., 2007).
2.1 Authigenic minerals
The presence of authigenic minerals and mineral aggregates indicates a high upwelling flux and the active of microorganism. Among the authigenic minerals, carbonate is the commonest one and has been well investigated (Bouloubassi et al., 2006; Gieskes et al., 2005; Greinert et al., 2002; Luff et al., 2005). The carbonates are mainly aragonite, Mg-calcite and (proto)-dolomite, also Fe- and Mn-carbonates (Haas et al., 2010; Han et al., 2008). Various carbonates appear under different geochemical conditions and the formation of carbonates is mediated by the activities of microorganism (Han et al., 2014; Liebetrau et al., 2014). Other authigenic minerals, e.g., pyrite (FeS2), gypsum (CaSO4·2H2O), barite (BaSO4) and greigite (Fe3S4) have also been reported (Greinert et al., 2001; Joye et al., 2010; Lin et al., 2016a, c ; Peckmann et al., 2001; Sassen et al., 2004; van Dongen et al., 2007; Vanneste et al., 2013). The association of carbonates with gas emissions and populations of chemosynthetic faunas has been a widely used criterion to identify the hydrocarbon seeps (Feng and Chen, 2015; Feng et al., 2015; Suess, 2014).
2.2 Distribution of solutes in interstitial water
The distribution of solutes in interstitial water may directly point the seepage. Methane seepages typically harbor communities of micro- and macro-organism, which mediates the anaerobic oxidation of methane (AOM) to produce HCO3– and HS–. HCO3– is the main part of dissolved inorganic carbon (DIC=[CO32–]+[HCO3–]+[CO2]+[H2CO3]) which could precipitate with metallic ion as carbonate. In the active seep site, porewater CH4 and dissolved organic carbon (DOC) concentrations are thus high with significant NH4+, rapid SO42– depleted, low H2S and DIC, higher rates of sulfate reduction (SR) and AOM (Knittel and Boetius, 2009; Treude et al., 2005). The high rates of methaneogenesis are associated with either abundant natural gas or deep hydrocarbon reservoir. The high methanotrophic rate is accompanied by the high DIC and the recrystallization of carbonates (Boetius et al., 2000; Knittel and Boetius, 2009). The depth of sulfate-methane reaction zone reveals the intensity of upwelling flux (Chuang et al., 2013; Lin et al., 2016c; Luff and Wallmann, 2003). For the inactive or quiescent seepages the distribution of solutes provide limit signal with the geological time (Haeckel et al., 2004). Only carbonate and isotopic fractionations of elements preserve more messages (Ge et al., 2015; Novikova et al., 2015). Some models have been used to quantitatively describe the seepage and the model work will be introduced below (Liu et al., 2016a; Luff et al., 2004; Wallmann et al., 2006).
2.3 Stable isotopic fractionation
The stable isotopes and biomarkers have been the advanced criteria for recognizing ancient seeps (Bohrmann et al., 1998; Feng et al., 2015; Formolo and Lyons, 2013; Gieskes et al., 2005; Hu et al., 2015; Lin et al., 2016c; Lu et al., 2015; Sivan et al., 2007). The fractionation of element isotopes during uptake and metabolism of methanogens and methanotrophy is controlled primarily by the source material and kinetic isotope effects (Feng et al., 2015; Novikova et al., 2015; Whiticar, 1999).
2.3.1 Stable isotope of carbon
(1) Methane gas
Except for methane, hydrogen sulfide and carbon dioxide has been determined in headspace (Himmler et al., 2015; Joye et al., 2010; Kastner et al., 1998; Malone et al., 2002; Suess, 2005). However, only a few sites reported isotopic composition of methane and hydrogen sulfide. The reported gaseous δ13C were listed in Tables 1 and 2 (for sulfide) and marked in Figs 1 and 2 (for sulfide).
Biogenic methane gas commonly shows an extremely negative δ13C value of –110‰ to –50‰ and the thermogenic methane is generally, but not exclusively, enriched in 13C (>–50‰), the mixture located in the transition region (Joye et al., 2010; Whiticar, 1999).
(2) Dissolved inorganic carbon (DIC)

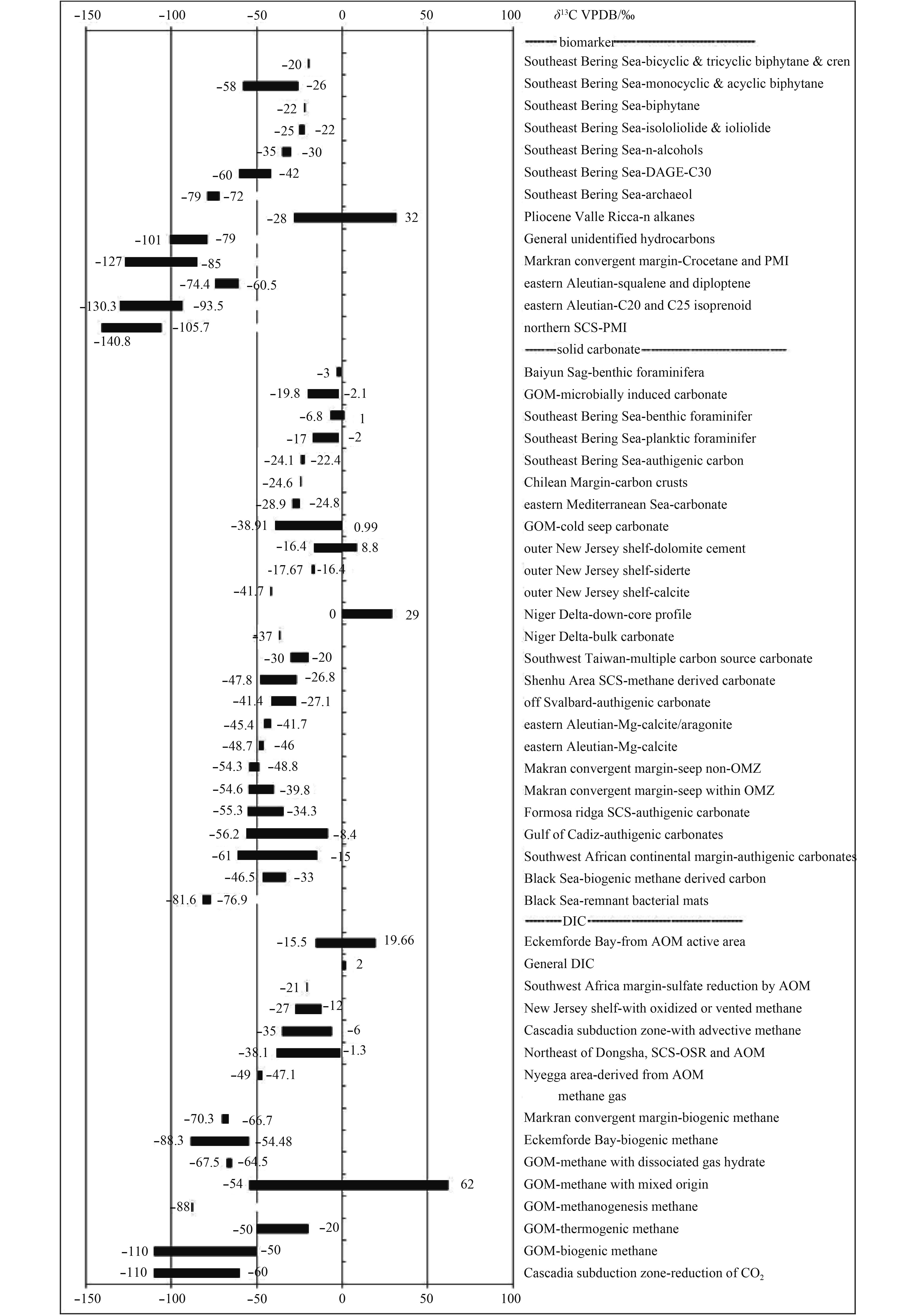

The δ13C in DIC has been widely investigated. The values were listed in Table 1 and shown in Fig. 1. Normal δ13CDIC value of ocean water is around 2‰ (Faure, 1986). The anaerobic oxidation of methane with medium of microorganism will obtain low δ13C of around –20‰ to –50‰ (Hu et al., 2015; Kastner et al., 1998; Lin et al., 2001; Malone et al., 2002; Martens et al., 1999; Roalkvam et al., 2011). Generally, δ13C values of DIC are higher than gaseous methane in a certain sites since the lightest fraction could preferentially escape to gaseous or react.
However, in the inactive seepages, both the distribution of solutes and the isotopic data provide limit message, further information have to recur the signature of solid carbonates.
(3) Authigenic carbonate
A direct consequence of methane consumption is the precipitation of carbonates with depleted 13C (Grupe et al., 2015; Magalhães et al., 2012). The values in remnant bacterial mats could be –81.6‰ (Novikova et al., 2015). Some δ13C of the carbonates are listed in Table 1. Most seepage carbonates show a higher δ13C than gaseous methane and similar to that of DIC (Aloisi et al., 2004; Berndt et al., 2014; Cook et al., 2011; Feng and Chen, 2015; Formolo and Lyons, 2013; Formolo et al., 2004; Himmler et al., 2015; Malone et al., 2002; Treude et al., 2005; Wang et al., 2013). This scheme may be due to the fractionation during evaporation and metabolism. Cold-seep carbonates are characterized by a negative δ13C value, most are between 0‰ to –40‰ or even lower (Tong et al., 2013), and the lowest one was –61‰ in the Southwest African continental margin (Grupe et al., 2015). This value clearly indicates the methane derived carbonates. A high value of 0‰–29‰ was determined in a down core profile in a pockmark area of Niger Delta (Bayon et al., 2007) which could be a geothermal or non-methane driven source.
(4) Biomarkers
Abundant fossilized microbes are preserved in seep carbonates (Cook et al., 2011; Elvert et al., 2000; Guan et al., 2016; Han et al., 2008; Peckmann and Thiel, 2004). Fossilized biomarkers could be extracted with distinctive carbonate fabrics and stable isotope signatures. The extractants could reveal the biogeochemical route and environmental conditions of ancient seep sites. The oldest biomarker recorded in the 300-million-year-old limestone (Birgel et al., 2008; Suess, 2014). The characteristic biomarkers in ancient seep environments are 13C-depleted archaeal isoprenoids, linear and methyl-branched carbon skeletons and hopanoids of bacterial origin (Peckmann and Thiel, 2004). Beyond above species, a wide range of biomarkers, including fatty acids, isoprenoidal and non-isoprenoidal ether lipids and hopanoids have also been determined in cold seeps (Pancost et al., 2001; Schouten et al., 1998; Stadnitskaia et al., 2003, 2005; van Dongen et al., 2007). Above biomarkers are greatly depleted 13C (–40‰ to –140‰), the lightest could be lower than –140.8‰ in a cold seep from the northern South China Sea (Ge et al., 2015). A high value of 32‰ for n-alkanes from iron sulfide nodules (saturated hydrocarbon) could be due to the non-methane source. However, extreme variability over narrow spatial and temporal scales within short distances (m) is common for active and dormant seeps (Formolo and Lyons, 2013; Li et al., 2007).
2.3.2 Stable isotope of sulfur
Isotopic fractionation of sulfur suggests the existence and evolution of seepage because both the degradation of organic carbon and AOM are accompanied by microbial sulfate reduction (Boudreau, 1996; Lin et al., 2016a, b ; Luff et al., 2000). Microorganisms have long been known to fractionate isotopes during their sulfur metabolism. Both 34S and 18O which will be introduced next have been used as indicators of the origin and geochemical routine of seep site (Aharon and Fu, 2000, 2003; Faure, 1986; Feng et al., 2015; Formolo and Lyons, 2013; Kastner et al., 1998).

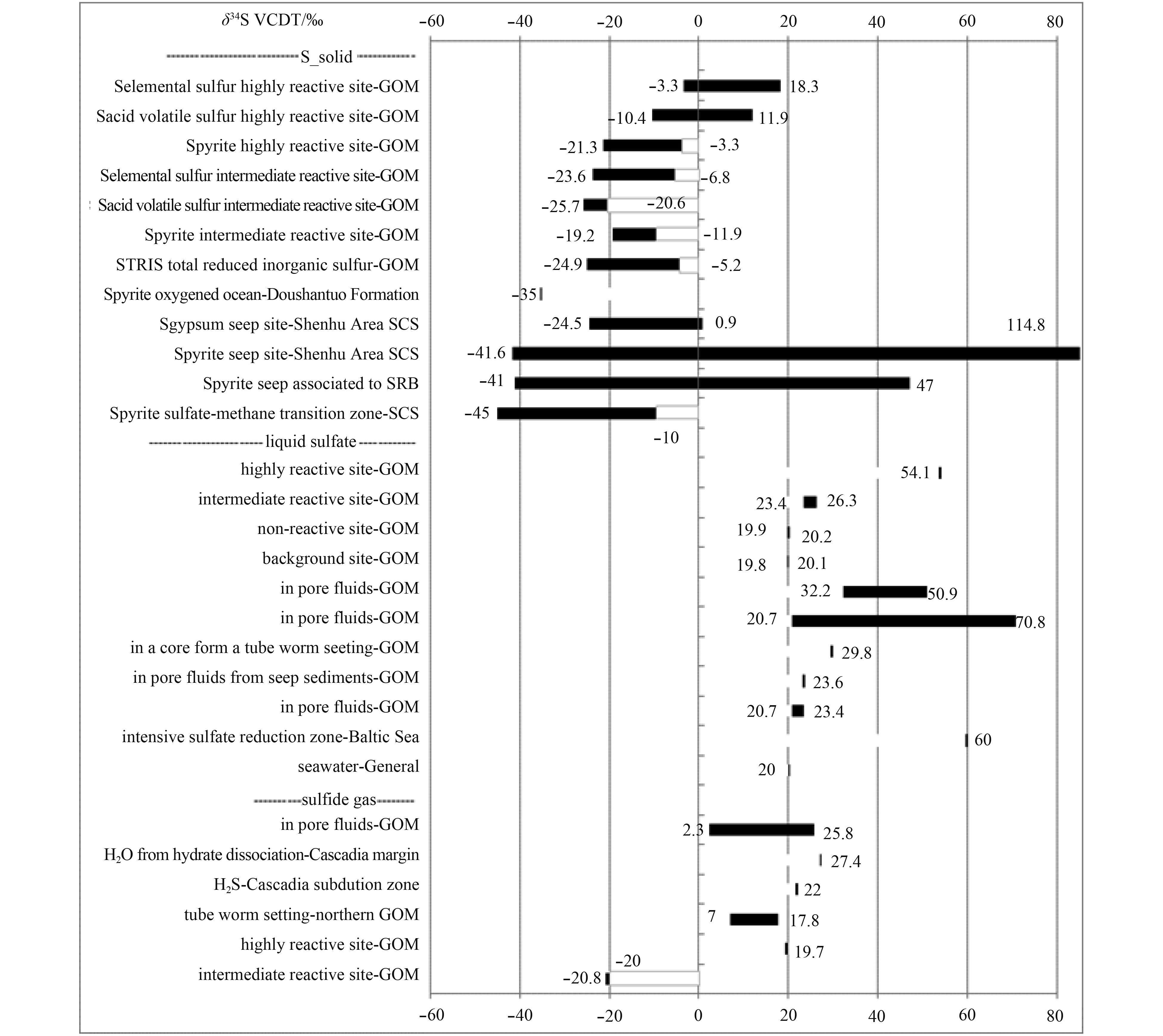

Some of the published δ34S values were listed in Table 2 and Fig. 2. A few values reported gaseous sulfur and hydrogen sulfide and substantial liquid phase, and sulfate in porewater. The extreme high or low value of isotopic fraction appears in the reactive area which indicates the seepage. The range of gaseous hydrogen sulfide was –20‰ to 25‰ depending on the local formation, sulfur source and metabolic processes. Most dissolved sulfate in pore water have δ34S value similar to seawater which is about 20‰ and the maximum could be 70.8‰ in the intensive sulfate reduction area in the Gulf of Mexico (Aharon and Fu, 2003). Pyrite, typically occurring as a framboidal crystal aggregate is the most common non-carbonate mineral in methane seep (Lin et al., 2016b; Peckmann and Thiel, 2004) another one is gypsum (Lin et al., 2016a). Figure 2 and Table 2 show clearly that δ34Spyrite cover a broad range of 47‰ to –45‰ (Lin et al., 2016a; Peckmann and Thiel, 2004) which indicated the complex source and synthesis of pyrite. Most solid phase including pyrite, total reduced inorganic sulfur and acid volatile sulfur. Elemental sulfur obtained light sulfur mainly around 0‰ to –20‰. However, the different among various solid phases is only the extraction method. The mechanism of the formation and fractionation is still unclear, further research is needed.
2.3.3 Stable isotope of oxygen
The δ18O values were reported for carbonate, gypsum, sulfate and interstitial water samples. The determination of 18O in seepage is limit and scattered, the data are listed in Table 3 (Aharon and Fu, 2000; Aharon et al., 1992; Davidson et al., 1978; Faure, 1986; Feng and Chen, 2015; Himmler et al., 2015; Kastner et al., 1998; Malone et al., 2002; Matsumoto, 2000; Novikova et al., 2015; Tong et al., 2013). Most carbonate δ18O lies between 0‰–10‰, only the cold seep area in the Gulf of Mexico shows a high value of 35.33‰ (Formolo et al., 2004). One reported δ18O in gypsum was 5.3‰–12.3‰ in the Shenhu Area, SCS (Lin et al., 2016c). The mineralogy of the authigenic minerals and the source of fluid is probably the main influence on the δ18O (Cook et al., 2011). Two interstitial water samples were around zero, and the samples in active area showed a higher level. The high level could be more than 20‰ which may due to the lighter portion preferentially enter the gaseous phase (Aharon and Fu, 2000).
3 Episodes of methane seepage
Less
The methane seepage in one site may spurt several times over geologic time. Several layers of methane-derived carbonates are direct evidence of the episode (Magalhães et al., 2012). The episode could be determined by the age of carbonates and paleo-environmental condition. The seep carbonates with a series of consecutive U/Th dating has been reported in the northern South China Sea which established the periods of seep events (Feng and Chen, 2015; Han et al., 2014). Different lithologic groups evidenced the extensive episodes (Magalhães et al., 2012) and the fluctuation of depleted δ13C record several leaching events during glacial intervals (Hyun et al., 2014). If the sulfate methane transition zone is deep in the seafloor, the authigenic carbonates formed much older than the episode of methane flux (Cook et al., 2011; Novikova et al., 2015). Periodic, catastrophic release of stored methane in gas hydrates implicated also climate change scenarios (Dickens et al., 1995; Hyun et al., 2014; Ménot and Bard, 2010). However, the seep activity is also affected by tidal, sea level, climate change and orbital. Detailed investigation is needed to identify the episode and causes of seepage.
4 Numerical simulation of the seepage
Less
Simulation tools have greatly improved our quantitative understanding of seepage and help us to reconstruct the environmental conditions in marine sediments. The processes from methaneogenesis to methantrophy have been extensively modeled (Aloisi et al., 2004; Arning et al., 2011; Meysman et al., 2003; Reed et al., 2011; Scholz et al., 2011). The benthic fluxes of dissolved inorganic carbon (DIC) and alkalinity (TA) and carbonate deposition has been estimated from coastal sediments (Boudreau, 1996; Krumins et al., 2013; Luff et al., 2000, 2005). Currently simulations could define the path of geochemical reactions and mineralization and evaluate the kinetic reaction rate (Liu et al., 2016b). However, the knowledge about the episode and the cycle of seepage is still limit and further research is necessary.
5 Conclusions
Less
For the exploration of hydrocarbon reservoir, the investigation of seepage is an elegant method. The study of seepage contributes also to the reconstruction of paleoceanographic and environmental conditions. During the past decades, we got some knowledge about methane source, methane reaction, consumption and the episodes of seep. Generally, the survey of seepage starts from the geophysical reconnaissance to the geochemical determination. The geochemical determination, e.g., methane gas, DIC, carbonates and biomarkers could be used to evaluate the geological background, the geochemical reactions and the mechanism of compound immigration. The seepage could be active or dormant and the geochemical prospection is a suitable approach especially for the dormant seepage. Unfortunately, it is impossible to determine the source neither the transport mechanism with one element isotopic ratio or one phase distribution. The combination of carbon, sulfur and oxygen isotope behaviors with other geochemical determination is always necessary. With the integrated field and geochemical determination, model could quantitatively describe the kinetic reactions, the formation of minerals and the flux of seepage. Eventually we may better understand the system, predicate the leaching events and access the climate effect of methane seepage. However, the intensive investigation of a specific area for methane seepage, especially for dormant seep is still limit. Most seepage investigation tends nevertheless to be site-specific since the geological formations are highly variable even between two adjacent cores separated by less than a meter, and little attempt has been made to extrapolate the results to larger scales. Further research is thus needed to foster our understanding of the methane seepage.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 41376076; the Natural Science Foundation of Guangdong Province under contract No. 2015A030313718; the Scientific Cooperative Project by China National Petroleum Corporation and Chinese Academy of Sciences under contract No. 2015A-4813; the National Marine Geological Project, China Geological Survey under contract No. GZH2012006003.
References
Less
Aharon P, Fu Baoshun. 2000. Microbial sulfate reduction rates and sulfur and oxygen isotope fractionations at oil and gas seeps in deepwater Gulf of Mexico. Geochimica et Cosmochimica Acta, 64(2): 233–246
Aharon P, Fu Baoshun. 2003. Sulfur and oxygen isotopes of coeval sulfate-sulfide in pore fluids of cold seep sediments with sharp redox gradients. Chemical Geology, 195(1–4): 201–218
Aharon P, Roberts H H, Snelling R. 1992. Submarine venting of brines in the deep gulf of mexico: observations and geochemistry. Geology, 20(6): 483–486
Aloisi G, Wallmann K, Haese R R, et al. 2004. Chemical, biological and hydrological controls on the 14C content of cold seep carbonate crusts: numerical modeling and implications for convection at cold seeps. Chemical Geology, 213(4): 359–383
Archer D. 2007. Methane hydrate stability and anthropogenic climate change. Biogeosciences, 4(4): 521–544
Arning E T, Fu Yunjiao, van Berk W, et al. 2011. Organic carbon remineralisation and complex, early diagenetic solid-aqueous solution-gas interactions: case study ODP Leg 204, Site 1246 (Hydrate Ridge). Marine Chemistry, 126(1–4): 120–131
Barry J P, Kochevar R E, Baxter C H. 1997. The influence of pore-water chemistry and physiology on the distribution of vesicomyid clams at cold seeps in Monterey Bay: implications for patterns of chemosynthetic community organization. Limnology and Oceanography, 42(2): 318–328
Bayon G, Pierre C, Etoubleau J, et al. 2007. Sr/Ca and Mg/Ca ratios in Niger Delta sediments: implications for authigenic carbonate genesis in cold seep environments. Marine Geology, 241(1–4): 93–109
Berndt C, Feseker T, Treude T, et al. 2014. Temporal constraints on hydrate-controlled methane seepage off svalbard. Science, 343(6168): 284–287
Birgel D, Himmler T, Freiwald A, et al. 2008. A new constraint on the antiquity of anaerobic oxidation of methane: late Pennsylvanian seep limestones from southern Namibia. Geology, 36(7): 543–546
Boetius A, Ravenschlag K, Schubert C J, et al. 2000. A marine microbial consortium apparently mediating anaerobic oxidation of methane. Nature, 407(6804): 623–626
Boetius A, Suess E. 2004. Hydrate ridge: a natural laboratory for the study of microbial life fueled by methane from near-surface gas hydrates. Chemical Geology, 205(3–4): 291–310
Bohrmann G, Greinert J, Suess E, et al. 1998. Authigenic carbonates from the Cascadia subduction zone and their relation to gas hydrate stability. Geology, 26(7): 647–650
Boudreau B P. 1996. A method-of-lines code for carbon and nutrient diagenesis in aquatic sediments. Computers & Geosciences, 22(5): 479–496
Bouloubassi I, Aloisi G, Pancost R D, et al. 2006. Archaeal and bacterial lipids in authigenic carbonate crusts from eastern Mediterranean mud volcanoes. Organic Geochemistry, 37(4): 484–500
Chuang Peichuan, Dale A W, Wallmann K, et al. 2013. Relating sulfate and methane dynamics to geology: accretionary prism offshore SW Taiwan. Geochemistry, Geophysics, Geosystems, 14(7): 2523–2545
Cook M S, Keigwin L D, Birgel D, et al. 2011. Repeated pulses of vertical methane flux recorded in glacial sediments from the southeast Bering Sea. Paleoceanography, 26(2): PA2210
Davidson D W, Garg S K, Ripmeester J A. 1978. NMR behavior of the clathrate hydrate of tetrahydrofuran: II. Deuterium measurements. Journal of Magnetic Resonance (1969), 31(3): 399–410
Dickens G R, O’Neil J R, Rea D K, et al. 1995. Dissociation of oceanic methane hydrate as a cause of the carbon isotope excursion at the end of the paleocene. Paleoceanography, 10(6): 965–971
Elvert M, Suess E, Greinert J, et al. 2000. Archaea mediating anaerobic methane oxidation in deep-sea sediments at cold seeps of the eastern Aleutian subduction zone. Organic Geochemistry, 31(11): 1175–1187
Faure G. 1986. Principles of Isotope Geology. 2nd ed. New York: Wiley
Feng Dong, Chen Duofu. 2015. Authigenic carbonates from an active cold seep of the northern South China Sea: new insights into fluid sources and past seepage activity. Deep Sea Research Part II: Topical Studies in Oceanography, 122: 74–83
Feng Dong, Cheng Ming, Kiel S, et al. 2015. Using Bathymodiolus tissue stable carbon, nitrogen and sulfur isotopes to infer biogeochemical process at a cold seep in the South China Sea. Deep Sea Research Part I: Oceanographic Research Papers, 104: 52–59
Formolo M J, Lyons T W. 2013. Sulfur biogeochemistry of cold seeps in the Green Canyon region of the Gulf of Mexico. Geochimica et Cosmochimica Acta, 119: 264–285
Formolo M J, Lyons T W, Zhang Chuanlun, et al. 2004. Quantifying carbon sources in the formation of authigenic carbonates at gas hydrate sites in the Gulf of Mexico. Chemical Geology, 205(3–4): 253–264
Foucher J P, Westbrook G K, Boetius A, et al. 2009. Structure and drivers of cold seep ecosystems. Oceanography, 22(1): 92–109
Ge Lu, Jiang Shaoyong, Blumenberg M, et al. 2015. Lipid biomarkers and their specific carbon isotopic compositions of cold seep carbonates from the South China Sea. Marine and Petroleum Geology, 66: 501–510
Gieskes J, Mahn C, Day S, et al. 2005. A study of the chemistry of pore fluids and authigenic carbonates in methane seep environments: kodiak Trench, Hydrate Ridge, Monterey Bay, and Eel River Basin. Chemical Geology, 220(3–4): 329–345
Greinert J, Bohrmann G, Suess E. 2001. Gas hydrate-associated carbonates and methane-venting at Hydrate Ridge: classification, distribution, and origin of authigenic lithologies. In: Paull C K, Dillon W P, eds. Natural Gas Hydrates: Occurrence, Distribution, and Detection. Washington, DC: American Geophysical Union, 99–113
Greinert J, Bollwerk S M, Derkachev A, et al. 2002. Massive barite deposits and carbonate mineralization in the Derugin Basin, Sea of Okhotsk: precipitation processes at cold seep sites. Earth and Planetary Science Letters, 203(1): 165–180
Grupe B M, Krach M L, Pasulka A L, et al. 2015. Methane seep ecosystem functions and services from a recently discovered southern California seep. Marine Ecology, 36(S1): 91–108
Guan Hongxiang, Feng Dong, Wu Nengyou, et al. 2016. Methane seepage intensities traced by biomarker patterns in authigenic carbonates from the South China Sea. Organic Geochemistry, 91: 109–119
Guan Hongxiang, Sun Yongge, Zhu Xiaowei, et al. 2013. Factors controlling the types of microbial consortia in cold-seep environments: a molecular and isotopic investigation of authigenic carbonates from the South China Sea. Chemical Geology, 354: 55–64
Haas A, Peckmann J, Elvert M, et al. 2010. Patterns of carbonate authigenesis at the Kouilou pockmarks on the Congo deep-sea fan. Marine Geology, 268(1–4): 129–136
Haeckel M, Suess E, Wallmann K, et al. 2004. Rising methane gas bubbles form massive hydrate layers at the seafloor. Geochimica et Cosmochimica Acta, 68(21): 4335–4345
Han Xiqiu, Suess E, Huang Yongyang, et al. 2008. Jiulong methane reef: microbial mediation of seep carbonates in the South China Sea. Marine Geology, 249(3–4): 243–256
Han Xiqiu, Suess E, Liebetrau V, et al. 2014. Past methane release events and environmental conditions at the upper continental slope of the South China Sea: constraints by seep carbonates. International Journal of Earth Sciences, 103(7): 1873–1887
Han Xiqiu, Yang Kehong, Huang Yongyang. 2013. Origin and nature of cold seep in northeastern Dongsha area, South China Sea: evidence from chimney-like seep carbonates. Chinese Science Bulletin, 58(30): 3689–3697
Himmler T, Birgel D, Bayon G, et al. 2015. Formation of seep carbonates along the Makran convergent margin, northern Arabian Sea and amolecular and isotopic approach to constrain the carbon isotopic composition of parent methane. Chemical Geology, 415: 102–117
Hovland M, Jensen S, Fichler C. 2012. Methane and minor oil macro-seep systems-Their complexity and environmental significance. Marine Geology, 332–334: 163–173
Hu Yu, Feng Dong, Liang Qianyong, et al. 2015. Impact of anaerobic oxidation of methane on the geochemical cycle of redox-sensitive elements at cold-seep sites of the northern South China Sea. Deep Sea Research Part II: Topical Studies in Oceanography, 122: 84–94
Huang Yongyang, Suess E, Wu Nengyou. 2008. Methane and Gas Hydrate Geology of the Northern South China Sea: Sino-German Cooperative DO-177 Cruise Report (in Chinese). Beijing: Geological Publishing House
Hutchens E, Gleeson D, McDermott F, et al. 2010. Meter-scale diversity of microbial communities on a weathered pegmatite granite outcrop in the wicklow mountains, ireland; evidence for mineral induced selection. Geomicrobiology Journal, 27(1): 1–14
Hyun S, Bahk J J, Yim U H, et al. 2014. Carbon isotope variations in diploptene for methane hydrate dissociation during the last glacial episode in the Japan Sea/East Sea. Geochemical Journal, 48(3): 287–297
Jensen J B, Kuijpers A, Bennike O, et al. 2002. New geological aspects for freshwater seepage and formation in Eckernförde Bay, western Baltic. Continental Shelf Research, 22(15): 2159–2173
Joye S B, Bowles M W, Samarkin V A, et al. 2010. Biogeochemical signatures and microbial activity of different cold-seep habitats along the Gulf of Mexico deep slope. Deep Sea Research Part II: Topical Studies in Oceanography, 57(21–23): 1990–2001
Judd A G. 2003. The global importance and context of methane escape from the seabed. Geo-Marine Letters, 23(3–4): 147–154
Judd A G, Hovland M, Dimitrov L I, et al. 2002. The geological methane budget at Continental Margins and its influence on climate change. Geofluids, 2(2): 109–126
Kastner M, Kvenvolden K A, Lorenson T D. 1998. Chemistry, isotopic composition, and origin of a methane-hydrogen sulfide hydrate at the Cascadia subduction zone. Earth and Planetary Science Letters, 156(3–4): 173–183
Knittel K, Boetius A. 2009. Anaerobic oxidation of methane: progress with an unknown process. Annual Review of Microbiology, 63(1): 311–334
Knittel K, Lösekann T, Boetius A, et al. 2005. Diversity and distribution of methanotrophic archaea at cold seeps. Applied and Environmental Microbiology, 71(1): 467–479
Krumins V, Gehlen M, Arndt S, et al. 2013. Dissolved inorganic carbon and alkalinity fluxes from coastal marine sediments: model estimates for different shelf environments and sensitivity to global change. Biogeosciences, 10(1): 371–398
Li Yiliang, Peacock A D, White D C, et al. 2007. Spatial patterns of bacterial signature biomarkers in marine sediments of the Gulf of Mexico. Chemical Geology, 238(3–4): 168–179
Liebetrau V, Augustin N, Kutterolf S, et al. 2014. Cold-seep-driven carbonate deposits at the Central American forearc: contrasting evolution and timing in escarpment and mound settings. International Journal of Earth Sciences, 103(7): 1845–1872
Lim Y C, Lin S, Yang T F, et al. 2011. Variations of methane induced pyrite formation in the accretionary wedge sediments offshore southwestern Taiwan. Marine and Petroleum Geology, 28(10): 1829–1837
Lin Huiling, Lin C Y, Meyers P A. 2001. Data report: carbonate, organic carbon, and opal concentrations and organic δ13C values of sediments from sites 1075–1082 and 1084, Southwest Africa margin. In: Wefer G, Berger W H, Richter C, eds. Proceedings of the Ocean Drilling Program Scientific Results
Lin Zhiyong, Sun Xiaoming, Lu Yang, et al. 2016a. Stable isotope patterns of coexisting pyrite and gypsum indicating variable methane flow at a seep site of the Shenhu area, South China Sea. Journal of Asian Earth Sciences, 123: 213–223
Lin Zhiyong, Sun Xiaoming, Peckmann J, et al. 2016b. How sulfate-driven anaerobic oxidation of methane affects the sulfur isotopic composition of pyrite: a SIMS study from the South China Sea. Chemical Geology, 440: 26–41
Lin Qi, Wang Jiasheng, Taladay K, et al. 2016c. Coupled pyrite concentration and sulfur isotopic insight into the paleo sulfate-methane transition zone (SMTZ) in the northern South China Sea. Journal of Asian Earth Sciences, 115: 547–556
Liu Lihua, Shao Haibing, Fu Shaoying, et al. 2016a. Theoretical simulation of the evolution of methane hydrates in the case of Northern South China Sea since the last glacial maximum. Environmental Earth Sciences, 75: 596
Liu Xiao, Xu Tianfu, Tian Hailong, et al. 2016b. Numerical modeling study of mineralization induced by methane cold seep at the sea bottom. Marine and Petroleum Geology, 75: 14–28
Lu Yang, Sun Xiaoming, Lin Zhiyong, et al. 2015. Cold seep status archived in authigenic carbonates: mineralogical and isotopic evidence from Northern South China Sea. Deep Sea Research Part II: Topical Studies in Oceanography, 122: 95–105
Luff R, Greinert J, Wallmann K, et al. 2005. Simulation of long-term feedbacks from authigenic carbonate crust formation at cold vent sites. Chemical Geology, 216(1–2): 157–174
Luff R, Wallmann K. 2003. Fluid flow, methane fluxes, carbonate precipitation and biogeochemical turnover in gas hydrate-bearing sediments at Hydrate Ridge, Cascadia Margin: numerical modeling and mass balances. Geochimica et Cosmochimica Acta, 67(18): 3403–3421
Luff R, Wallmann K, Aloisi G. 2004. Numerical modeling of carbonate crust formation at cold vent sites: significance for fluid and methane budgets and chemosynthetic biological communities. Earth and Planetary Science Letters, 221(1–4): 337–353
Luff R, Wallmann K, Grandel S, et al. 2000. Numerical modeling of benthic processes in the deep Arabian Sea. Deep Sea Research Part II: Topical Studies in Oceanography, 47(14): 3039–3072
Magalhães V H, Pinheiro L M, Ivanov M K, et al. 2012. Formation processes of methane-derived authigenic carbonates from the Gulf of Cadiz. Sedimentary Geology, 243–244: 155–168
Malone M J, Claypool G, Martin J B, et al. 2002. Variable methane fluxes in shallow marine systems over geologic time: the composition and origin of pore waters and authigenic carbonates on the New Jersey shelf. Marine Geology, 189(3–4): 175–196
Martens C S, Albert D B, Alperin M J. 1999. Stable isotope tracing of anaerobic methane oxidation in the gassy sediments of Eckernfoerde Bay, German Baltic Sea. American Journal of Science, 299(7–9): 589–610
Matsumoto R. 2000. Methane hydrate estimates from the chloride and oxygen isotopic anomalies: examples from the Blake Ridge and Nankai trough sediments. Annals of the New York Academy of Sciences, 912: 39–50
Meile C, Koretsky C M, Van Cappellen P. 2001. Quantifying bioirrigation in aquatic sediments: an inverse modeling approach. Limnology and Oceanography, 46(1): 164–177
Ménot G, Bard E. 2010. Geochemical evidence for a large methane release during the last deglaciation from Marmara Sea sediments. Geochimica et Cosmochimica Acta, 74(5): 1537–1550
Meysman F J R, Middelburg J J, Herman P M J, et al. 2003. Reactive transport in surface sediments: I. Model complexity and software quality. Computers & Geosciences, 29(3): 291–300
Nelson H, Thor D R, Sandstrom M W, et al. 1979. Modern biogenic gas-generated craters (sea-floor “pockmarks”) on the bering shelf, alaska. Geological Society of America Bulletin, 90(12): 1144–1152
Novikova S A, Shnyukov Y F, Sokol E V, et al. 2015. A methane-derived carbonate build-up at a cold seep on the Crimean slope, north-western Black Sea. Marine Geology, 363: 160–173
Pancost R D, Bouloubassi I, Aloisi G, et al. 2001. Three series of non-isoprenoidal dialkyl glycerol diethers in cold-seep carbonate crusts. Organic Geochemistry, 32(5): 695–707
Paull C K, Ussler W III, Holbrook W S, et al. 2008. Origin of pockmarks and chimney structures on the flanks of the Storegga Slide, offshore Norway. Geo-Marine Letters, 28(1): 43–51
Peckmann J, Gischler E, Oschmann W, et al. 2001. An early carboniferous seep community and hydrocarbon-derived carbonates from the Harz Mountains, Germany. Geology, 29(3): 271–274
Peckmann J, Thiel V. 2004. Carbon cycling at ancient methane-seeps. Chemical Geology, 205(3–4): 443–467
Reed D C, Slomp C P, de Lange G J. 2011. A quantitative reconstruction of organic matter and nutrient diagenesis in Mediterranean Sea sediments over the Holocene. Geochimica et Cosmochimica Acta, 75(19): 5540–5558
Regnier P, Dale A W, Arndt S, et al. 2011. Quantitative analysis of anaerobic oxidation of methane (AOM) in marine sediments: a modeling perspective. Earth-Science Reviews, 106(1–2): 105–130
Roalkvam I, Jorgensen S L, Chen Yifeng, et al. 2011. New insight into stratification of anaerobic methanotrophs in cold seep sediments. FEMS Microbiology Ecology, 78(2): 233–243
Röemer M, Sahling H, Pape T, et al. 2012. Geological control and magnitude of methane ebullition from a high-flux seep area in the Black Sea-the Kerch seep area. Marine Geology, 319–322: 57–74
Rollet N, Logan G A, Kennard J M, et al. 2006. Characterisation and correlation of active hydrocarbon seepage using geophysical data sets: an example from the tropical, carbonate Yampi Shelf, Northwest Australia. Marine and Petroleum Geology, 23(2): 145–164
Sahoo S K, Planavsky N J, Kendall B, et al. 2012. Ocean oxygenation in the wake of the Marinoan glaciation. Nature, 489(7417): 546–549
Sassen R, Roberts H H, Carney R, et al. 2004. Free hydrocarbon gas, gas hydrate, and authigenic minerals in chemosynthetic communities of the northern Gulf of Mexico continental slope: relation to microbial processes. Chemical Geology, 205(3–4): 195–217
Scholz F, Hensen C, Noffke A, et al. 2011. Early diagenesis of redox-sensitive trace metals in the Peru upwelling area-response to ENSO-related oxygen fluctuations in the water column. Geochimica et Cosmochimica Acta, 75(22): 7257–7276
Schouten S, Breteler W C M K, Blokker P, et al. 1998. Biosynthetic effects on the stable carbon isotopic compositions of algal lipids: implications for deciphering the carbon isotopic biomarker record. Geochimica et Cosmochimica Acta, 62(8): 1397–1406
Sivan O, Schrag D P, Murray R W. 2007. Rates of methanogenesis and methanotrophy in deep-sea sediments. Geobiology, 5(2): 141–151
Stadnitskaia A, Baas M, Ivanov M K, et al. 2003. Novel archaeal macrocyclic diether core membrane lipids in a methane-derived carbonate crust from a mud volcano in the Sorokin Trough, NE Black Sea. Archaea, 1(3): 165–173
Stadnitskaia A, Muyzer G, Abbas B, et al. 2005. Biomarker and 16S rDNA evidence for anaerobic oxidation of methane and related carbonate precipitation in deep-sea mud volcanoes of the Sorokin Trough, Black Sea. Marine Geology, 217(1–2): 67–96
Suess E. 2005. RV Sonne cruise report SO 177, Sino-German cooperative project, south China Sea continental margin: geological methane budget and environmental effects of methane emissions and gashydrates. IFM-GEOMAR Reports
Suess E. 2014. Marine cold seeps and their manifestations: geological control, biogeochemical criteria and environmental conditions. International Journal of Earth Sciences, 103(7): 1889–1916
Talukder A R, Ross A, Crooke E, et al. 2013. Natural hydrocarbon seepage on the continental slope to the east of Mississippi Canyon in the northern Gulf of Mexico. Geochemistry, Geophysics, Geosystems, 14(6): 1940–1956
Tong Hongpeng, Feng Dong, Cheng Hai, et al. 2013. Authigenic carbonates from seeps on the northern continental slope of the South China Sea: new insights into fluid sources and geochronology. Marine and Petroleum Geology, 43: 260–271
Treude T, Niggemann J, Kallmeyer J, et al. 2005. Anaerobic oxidation of methane and sulfate reduction along the Chilean continental margin. Geochimica et Cosmochimica Acta, 69(11): 2767–2779
Treude T, Orphan V, Knittel K, et al. 2007. Consumption of methane and CO2 by methanotrophic microbial mats from gas seeps of the anoxic Black Sea. Applied and Environmental Microbiology, 73(7): 2271–2283
van Dongen B E, Roberts A P, Schouten S, et al. 2007. Formation of iron sulfide nodules during anaerobic oxidation of methane. Geochimica et Cosmochimica Acta, 71(21): 5155–5167
Vanneste H, James R H, Kelly-Gerreyn B A, et al. 2013. Authigenic barite records of methane seepage at the Carlos Ribeiro mud volcano (Gulf of Cadiz). Chemical Geology, 354: 42–54
Wallmann K, Aloisi G, Haeckel M, et al. 2006. Kinetics of organic matter degradation, microbial methane generation, and gas hydrate formation in anoxic marine sediments. Geochimica et Cosmochimica Acta, 70(15): 3905–3927
Wang Shuhong, Yan Bin, Yan Wen. 2013. Tracing seafloor methane emissions with benthic foraminifera in the Baiyun Sag of the northern South China Sea. Environmental Earth Sciences, 70(3): 1143–1150
Whiticar M J. 1999. Carbon and hydrogen isotope systematics of bacterial formation and oxidation of methane. Chemical Geology, 161(1–3): 291–314
Yin P, Berné S, Vagner P, et al. 2003. Mud volcanoes at the shelf margin of the East China Sea. Marine Geology, 194(3–4): 135–149
