Influence of the northern Yellow Sea Cold Water Mass on picoplankton distribution around the Zhangzi Island, northern Yellow Sea
收藏切换
PDF
Li ZHAO1, 2, Yanchu ZHAO1, 2, 3, Yi DONG1, 2, Yuan ZHAO1, 2, *, Wuchang ZHANG1, 2, Jianhong XU1, Ying YU4, Guangtao ZHANG5, Tian XIAO1, 2
Acta Oceanologica Sinica | 2018, 37(5) : 96 - 106
Less
收藏切换
Acta Oceanologica Sinica | 2018, 37(5): 96-106
• Marine Biology •
Influence of the northern Yellow Sea Cold Water Mass on picoplankton distribution around the Zhangzi Island, northern Yellow Sea
Full
Li ZHAO1, 2, Yanchu ZHAO1, 2, 3, Yi DONG1, 2, Yuan ZHAO1, 2, *, Wuchang ZHANG1, 2, Jianhong XU1, Ying YU4, Guangtao ZHANG5, Tian XIAO1, 2
Affiliations
  • 1 CAS Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
  • 2 Laboratory for Marine Ecology and Environmental Science, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
  • 3 University of Chinese Academy of Sciences, Beijing 100864, China
  • 4 Tianjin Bohai Sea Fisheries Research Institute, Tianjin 300457, China
  • 5 Jiaozhou Bay Marine Ecosystem Research Station, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
Published: 2018-05-25 doi: 10.1007/s13131-018-1149-9
Outline
收藏切换

Picoplankton distribution around the Zhangzi Island (northern Yellow Sea) was investigated by monthly observation from July 2009 to June 2010. Three picoplankton populations were discriminated by flow cytometry, namely Synechococcus, picoeukaryotes and heterotrophic prokaryotes. In summer (from July to September), the edge of the northern Yellow Sea Cold Water Mass (NYSCWM) resulting from water column stratification was observed. In the NYSCWM, picoplankton (including Synechococcus, picoeukaryotes and heterotrophic prokaryotes) distributed synchronically with extremely high abundance in the thermocline (20 m) in July and August (especially in August), whereas in the bottom zone of the NYSCWM (below 30 m), picoplankton abundance was quite low. Synechococcus, picoeukaryotes and heterotrophic prokaryotes showed similar response to the NYSCWM, indicating they had similar regulating mechanism under the influence of NYSCWM. Whereas in the non-NYSCWM, Synechococcus, picoeukaryotes and heterotrophic prokaryotes exhibited different distribution patterns, suggesting they had different controlling mechanisms. Statistical analysis indicated that temperature, nutrients (NO3– and PO43–) and ciliate were important factors in regulating picoplankton distribution. The results in this study suggested that the physical event NYSCWM, had strong influence on picoplankton distribution around the Zhangzi Island in the northern Yellow Sea.

picoplankton  /  northern Yellow Sea Cold Water Mass  /  thermocline  /  Zhangzi Island
Li ZHAO, Yanchu ZHAO, Yi DONG, Yuan ZHAO, Wuchang ZHANG, Jianhong XU, Ying YU, Guangtao ZHANG, Tian XIAO. Influence of the northern Yellow Sea Cold Water Mass on picoplankton distribution around the Zhangzi Island, northern Yellow Sea[J]. Acta Oceanologica Sinica, 2018 , 37 (5) : 96 -106 . DOI: 10.1007/s13131-018-1149-9
Full Text
Less
1 Introduction
Less
Since the discovery of cyanobacteria Synechococcus (Johnson and Sieburth, 1979; Waterbury et al., 1979) in the late 1970s, a number of studies have widely documented the ecological importance of picoplankton ( ≤2 μm, including Synechococcus, Prochlorococcus, picoeukaryotes and heterotrophic prokaryotes) in various marine environments, from the eutrophic estuaries to the oligotrophic oceans (Platt et al., 1983; Agawin et al., 2003; Pan et al., 2007; Lin et al., 2010). In the coastal waters, picoplankton is generally subjected to higher pressure on environmental variability (i.e., water-mass and tidal front influences) than open oceans (Calvo-Díaz and Morán, 2006; Mitbavkar et al., 2009). For instance in the Uchiumi Bay (Japan), abundance and composition of picophytoplankton was strongly influenced by the physical events of “Kyucho” (warm surface water) and bottom intrusion (Katano et al., 2005). In the South Australian continental shelf waters, picophytoplankton distribution was affected by local physical event (downwelling and dense water outflowing) (Van Dongen-Vogels et al., 2011).
The Yellow Sea is a semi-enclosed marginal sea in the Pacific, which connects to the East China Sea in the southern part and Bohai Sea in the northern part. It is quite shallow with an average depth of about 44 m. One of the most striking hydrological phenomenon is the existence of the Yellow Sea Cold Water Mass (YSCWM) during summer period. The YSCWM forms locally during the previous winter owing to the surface cooling and strong vertical mixing. In summer, the surface water temperature increased, a cold water mass is retained in the bottom zone and forms the YSCWM. It is characterized with low temperature showing a remarkable variation (5–12°C) and a rather constant salinity (31.5–32.5) (He et al., 1959; Su and Huang, 1995). The YSCWM can be recognized as northern and southern parts, with dissimilar characteristics. The northern YSCWM (NYSCWM) locates at the bottom layer within a small area of 37°–38.9°N and 121.3°–124°E, with low temperature (T<8°C) and salinity (S<32.5) in the core. The southern YSCWM (SYSCWM) locates within a larger area of 34°–37°N and 121°–126°E, with relatively higher temperature (T<9°C) and salinity (S>32.5) and more intensive thermocline in the core (Zhang et al., 2008; Bao et al., 2009; Yao et al., 2012; Xin et al., 2015).
The YSCWM has an important effect on marine ecosystems (Hur et al., 1999; Kang and Kim, 2008). The impact of the SYSCWM on picoplankton distribution has been reported by Li et al. (2006) and Zhao et al. (2011), showing low picoplankton abundance inside the SYSCWM. With dissimilar characteristics from SYSCWM, NYSCWM could have a different impact on picoplankton distribution. There has been only few reports about picoplankton variation in the northern Yellow Sea, mentioning that picoplankton abundance deceased sharply in the NYSCWM in summer (Bai et al., 2012). However, it is still unclear how the NYSCWM influenced picoplankton dynamics by changing stratification and nutrient supply. In this manuscript, we investigated the spatial and temporal dynamics of picoplankton around the Zhangzi Island in the northern Yellow Sea from July 2009 to June 2010. It is by far the first report tracking picoplankton variation during the formation to vanishment process of NYSCWM. Our objectives include: (1) clarifying the effect of NYSCWM on picoplankton distribution during summer period; (2) illustrating how NYSCWM influenced picoplankton dynamics around the Zhangzi Island in the northern Yellow Sea.
2 Materials and methods
Less
2.1 Study area and sampling strategy
Thirteen stations around the Zhangzi Island in the northern Yellow Sea were investigated monthly from July 2009 to June 2010, except January and May 2010 (Fig. 1). According to previous studies (Zhang et al., 2008; Bao et al., 2009), Transect 6 (i.e., Sta. A6-B6-C6) was set as the NYSCWM influenced area. At each station, seawater was collected with a rosette multi-sampler equipped with 5 L Niskin bottles. The maximum depth was 55 m and the water samples were collected every 10 m from the surface to 2 m above the bottom, defining vertical profiles by up to five points.
2.2 Physical, chemical and biological measurements
Water temperature and salinity were determined with an AAQ 1183-1F CTD (conductivity, temperature, depth; Alec Electronics Co., Japan). Seawater subsamples (500 mL) for nutrient concentration analysis were filtered through Whatman GF/F filters and kept at -20°C until analysis in the laboratory. The concentrations of NO3– and PO43– were determined using a QuAAtro-SFA Analyzer (Bran-Lubbe Co., Germany). The precision estimated with repeated measurements of selected samples was smaller than 3% in this study (Yin et al., 2013).
For chlorophyll a (Chl a) concentration analysis, another 500 mL subsamples were filtered on-board onto Whatman GF/F filters and kept at –20°C until analysis in the laboratory. Chl a was extracted with 90% acetone at –20°C in darkness for 24 h. The Chl a concentrations were determined using a Turner Designs Model 7200 fluorometer that was calibrated with pure Chl a from Sigma.
Subsamples (1 L) for ciliate enumeration were fixed with 1% acid Lugol’s iodine solution and stored in a cool and dark place until analysis. Each sample was settled for at least 24 h. The supernatant was siphoned out and 150 mL sample was left. The concentrated sample (20–25 mL) was settled in an Utermöhl counting chamber for 24 h and enumerated using an inverted microscope (Olympus IX51) at 100× or 200× (Yu et al., 2013).
2.3 Picoplankton enumeration
Seawater subsamples (4 mL) for picoplankton enumeration were fixed on-board with paraformaldehyde (final concentration 1%) immediately, kept at room temperature for 15 min, and then freeze-trapped in liquid nitrogen until laboratory analysis within two months after the cruise.
A FACSVantage SE (Becton Dickinson, USA) flow cytometer equipped with a water-cooled Argon laser (488 nm, 1 W, Coherent, USA) was used for picoplankton analysis at the single cell level. Five optical signals were recorded: forward scatter (FSC, related to cell size), side scatter (SSC, related to cell structure and shape), green fluorescence ((530±15) nm), orange fluorescence ((585±21) nm, related to phycoerythrin) and red fluorescence ((695±20) nm, related to Chl a).
Before analysis, seawater samples were thawed at room temperature in dark (about 20 min). For each sample, 2 μm fluorescent beads (Polysciences) were used as internal standard for the instrument set-up. When analyzing autotrophic picoplankton, red fluorescence was set as the trigger to eliminate signals from heterotrophic prokaryotes and inorganic particles. Two major autotrophic picoplankton groups: Synechococcus (SYN) and picoeukaryotes (PEUK) were resolved based on the signals of side scatter, orange and red fluorescences. Prochlorococcus was not detected in this study.
For the determination of heterotrophic prokaryote (HP) abundance, seawater samples were diluted five folds with TE buffer (Tris-EDTA, 100 mmol/L Tris-Cl, 10 mmol/L EDTA, pH=8.0, Sigma), and then stained with the nucleic acid dye SYBR Green I (molecular probes) (final dilution 10–4, v/v). Samples were stained and kept in the dark at room temperature for 20 min, then analyzed with flow cytometry for 30 s. Heterotrophic prokaryote cell-groups were resolved on the basis of their green fluorescence ((530±15) nm) and scatter properties.
Flow cytometric data were collected and analyzed with CellQuest software (Version 3.3, Becton Dickinson). Since each 4 mL subsample for flow cytometry analysis was taken from 1 L of homogeneous seawater of a Niskin bottle, the derived cell abundance are representative of that initial volume.
2.4 Standard of thermocline
According to Zou et al. (2001), when water depth less than 200 m, the minimum standards for thermocline and halocline are It=ΔT/ΔZ (strength of thermocline)=0.2°C/m and Is=ΔS/ΔZ (strength of halocline)=0.1 m–1, respectively.
2.5 Data analysis
Seasonal variations of the data were drawn with the software Origin (Version 8.5, OriginLab Corporation). The contour plot graphs were generated using the software Surfer (Version 11, Golden Software). Statistical analysis was conducted using SPSS (Version 19, IBM SPSS Statistics). Spearman rank-order correlation analysis was used to estimate potential relationships between picoplankton abundance and environmental variables (temperature, salinity, NO3–, PO43–, Chl a concentration and ciliate abundance). Picoplankton and ciliate abundances used for statistical analysis were log-transformed to satisfy a roughly normal distribution.
3 Results
Less

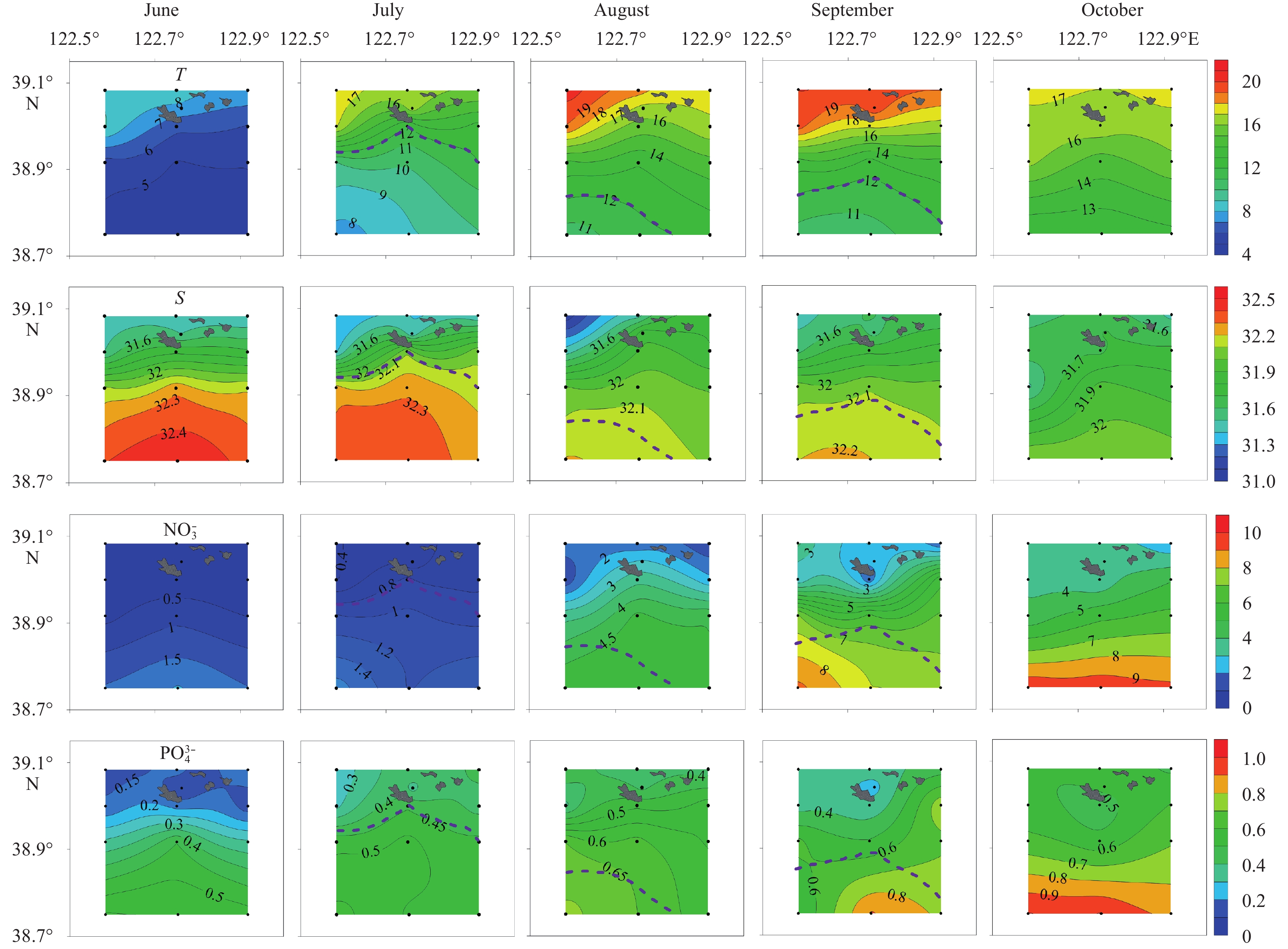

3.1 Physicochemical conditions
In this study, we use the water temperature lower than 12°C in summer as definition of the NYSCWM. The bottom distribution of temperature and salinity in our study revealed the existence of NYSCWM in July, August and September, with temperature lower than 12°C (Fig. 2). The NYSCWM was most prosperous in July, covering 2/3 of the survey area, then diminished in August and September. In October, bottom temperature was higher than 12°C, indicating the vanishing of NYSCWM. Since Transect 6 was mostly covered by the NYSCWM in summer, it was considered as NYSCWM region and the rest stations as non-NYSCWM region (Fig. 1). NO3– and PO43– concentrations in the bottom waters were higher in the NYSCWM than in the non-NYSCWM regions.

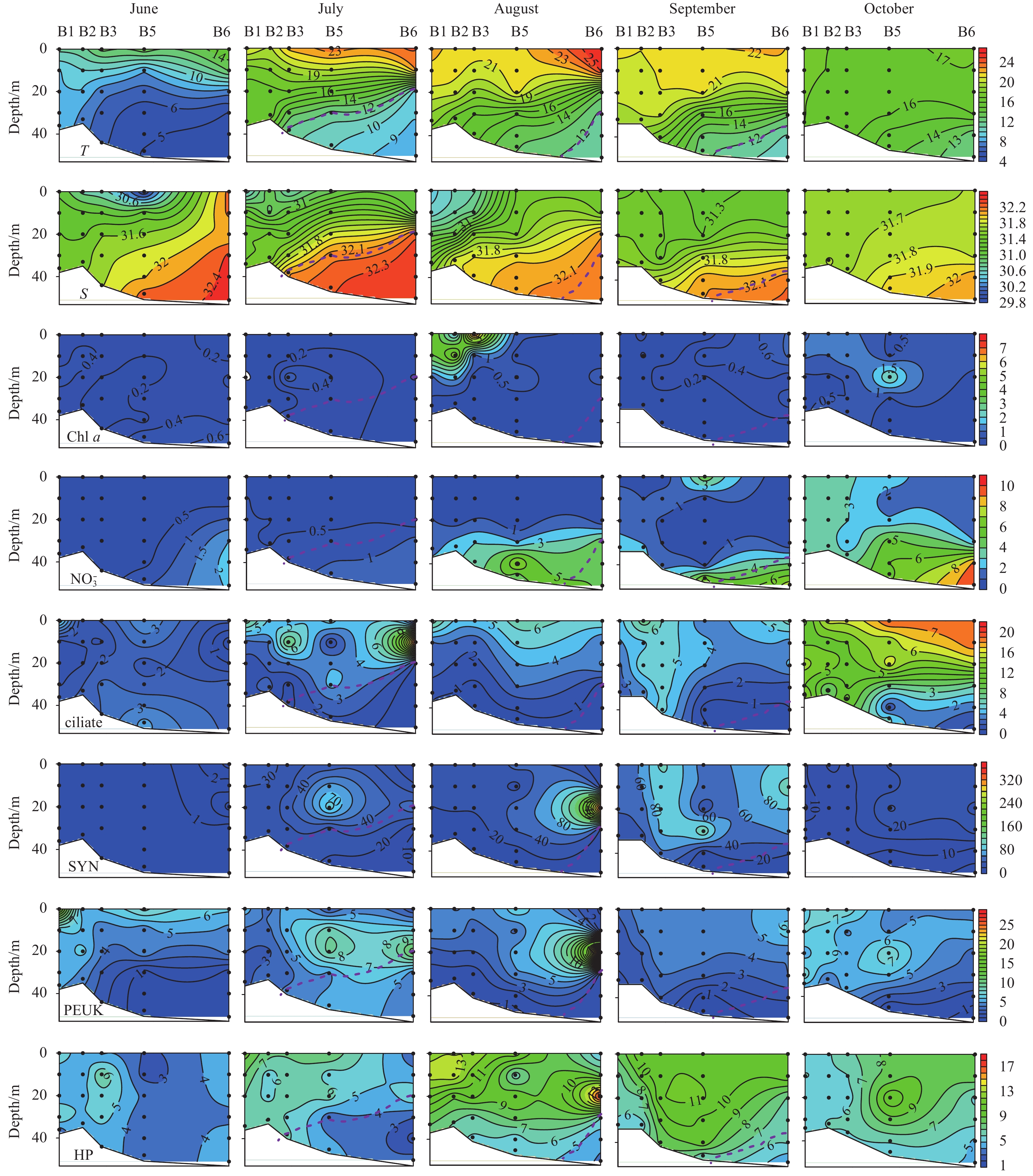

3.2 Spatial-temporal variation of picoplankton abundance in the NYSCWM region

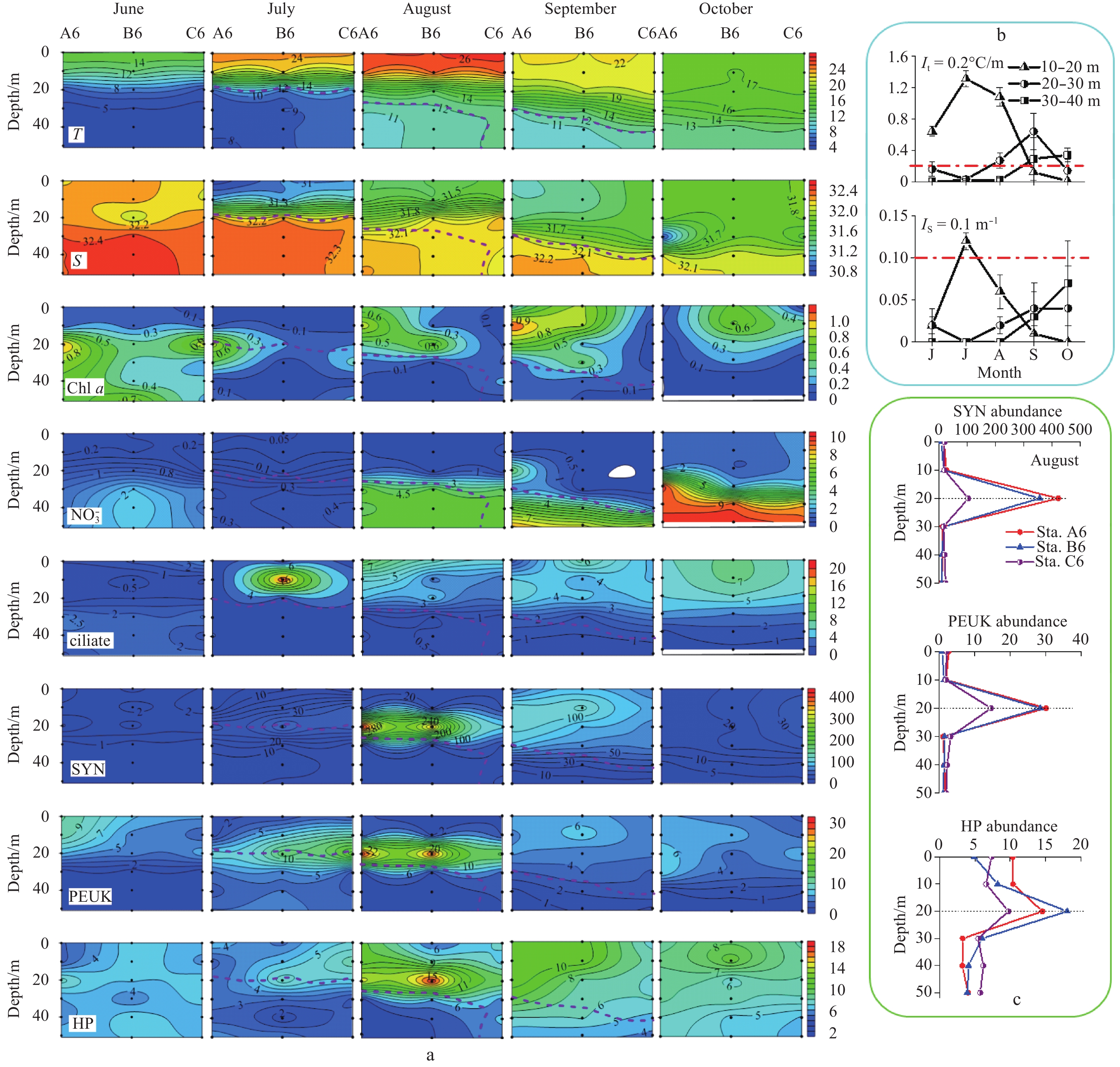

Along Transect 6, water column stratification was observed from June to October. In July and August, pronounced thermocline was found between 10 m and 20 m depth with It>1°C/m. Halocline also existed in July, showing Is>0.1 m–1 between 10 m and 20 m depth. In September, thermocline was less intensive (It>0.6°C/m) and occurred between 20 m and 30 m depth (Figs 3a and b). In June and July, Chl a concentrations were higher below 10 m depth whereas in August, September and October, higher concentrations of Chl a were observed in the upper 20 m layer. From June to October, nutrient NO3– increased gradually with depth and ciliate was more abundant in the upper 20 m layer (Fig. 3a).
In June, September and October, picoplankton was more abundant in the upper layer and decreased gradually with depth (Fig. 3a). In July and August, SYN, PEUK and HP abundances had same vertical pattern with maximum abundances in the thermocline (20 m) and minimum abundances in the bottom zone of the NYSCWM (below 30 m) (Figs 3a and c). Picoplankton abundance in August was much higher than that in July in the thermocline region. In July, the maximum abundances of SYN, PEUK and HP were 47.04×103 cells/mL (20 m, Sta. B6), 15.84×103 cells/mL (20 m, Sta. C6) and 6.37×105 cells/mL (10 m, Sta. C6), respectively. In August, the maximum abundances of SYN and PEUK (421.28×103 cells/mL and 30.15×103 cells/mL, respectively) were found in the thermocline (20 m) of Sta. A6. SYN and PEUK abundances in the thermocline was 1 or 2 order of magnitude higher than the rest of the water column. The maximum abundance of HP (18.08×105 cells/mL) was observed in the thermocline (20 m) of Sta. B6. HP abundance in the thermocline was one order of magnitude higher than the rest of the water column (Figs 3a and c).
From June to October, water column stratification intensified from Stas B1 to B6 (Fig. 4). The NYSCWM was observed below 30 m depth of Sta. B6 in July, August and September. In June, higher concentrations of Chl a and nutrient NO3– were both observed at the bottom of Sta. B6. Ciliate was more abundant at the surface of Stas B1 and B5. SYN was more abundant in the upper 20 m of Sta. B6. PEUK showed maximum abundance in the upper 10 m of Sta. B1. HP abundance varied less obvious than SYN and PEUK, with higher abundance in the middle layer (10–30 m) of Sta. B3. In July, the NYSCWM was observed below 30 m of Sta. B5 and 20 m of Sta. B6. Higher concentration of Chl a was found at 20 m of Sta. B3. Nutrient NO3– exhibited higher concentrations inside the NYSCWM. Ciliate was more abundant at 10 m of Stas B2 and B6. SYN was more abundant in the central part of Transect B and the maximum abundance (86.26×103 cells/mL) was observed at 20 m of Sta. B5. PEUK exhibited similar pattern as SYN with higher abundances in the middle layer of Transect B. HP were more abundant in the non-NYSCWM region. In August, bottom temperature was higher than 11°C, implying the less obvious NYSCWM than in July. Chl a exhibited much higher concentrations (>4 μg/L) at the surface of Stas B1, B2 and B3. In contrast, nutrient NO3– showed higher concentrations at the bottom of Stas B5 and B6. Higher abundance of ciliate was observed at the surface of Stas B1 and B5. SYN and PEUK had extremely high abundances at Sta. B6 (20 m, 355.48×103 cells/mL and 28.53×103 cells/mL, respectively). HP were more abundant above 20 m depth. The maximum abundance (18.08×105 cells/mL) was also observed at 20 m of Sta. B6. In September and October, picoplankton showed similar distribution pattern as temperature and salinity, which was more abundant above 30 m depth and decreased gradually below 30 m (Fig. 4).
3.3 Seasonal comparison of picoplankton abundance between non-NYSCWM and NYSCWM stations

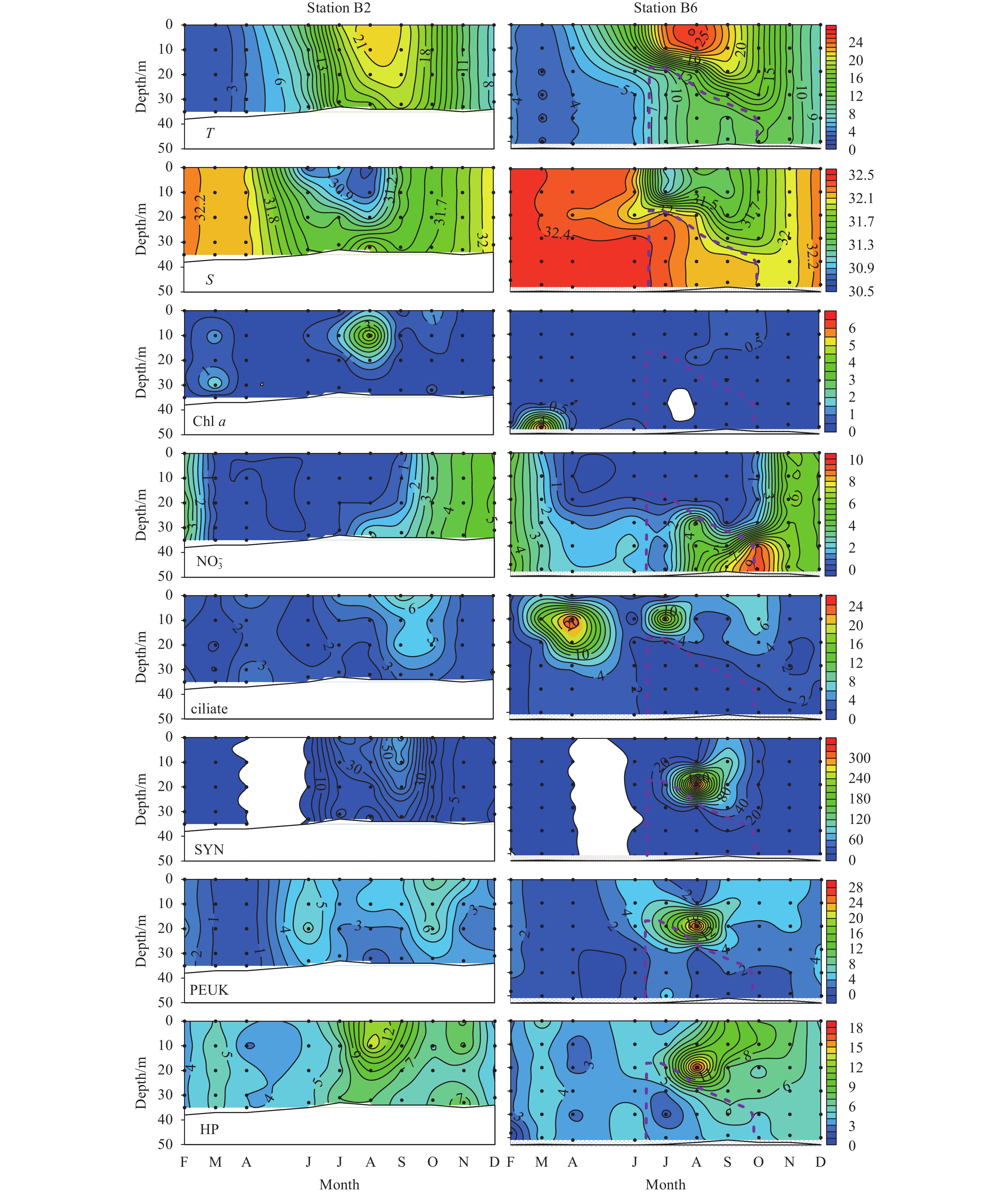

The coastal Sta. B2 was not influenced by the NYSCWM, in contrast with Sta. B6 in the open-water (Fig. 4). At Sta. B2, the vertical distributions of temperature and salinity presented well-mixed water columns almost the whole year. A weak stratification occurred in August and September. A sharp decrease in salinity was observed in the upper 20 m in June, July and August (Fig. 5). Chl a concentration reached its maximum value (10 m, 4.93 μg/L) in August. During the rest of the year, Chl a concentrations were rather low (<2 μg/L). Nutrients NO3– exhibited lower concentrations from March to June and higher concentrations from October to February. Ciliate exhibited higher abundances in September and October, and lower abundances in the rest of the year. The distribution pattern of SYN was synchronized with temperature. SYN abundance sustained extremely low level (<0.2×103 cells/mL) from March to June, and then reached the maximum abundance (63.06×103 cells/mL) at the surface in September when temperature was the highest. PEUK presented a different distribution pattern, exhibiting higher abundances in June and October and lower abundances in March and April. HP showed higher abundances in August, September and November and lower abundances in December, February and April.
At Sta. B6, a well-mixed water column was observed from November to April. Thereafter, water column stratification built up showing the thermocline at about 20 m depth from July to September. Due to the water column stratification in summer, the bottom NYSCWM was observed with temperature lower than 12°C (Figs 2 and 5). Chl a concentration reached a high value (6.53 μg/L) at the bottom in March, but remained low (<0.5 μg/L) from surface to bottom during the rest of the year, especially in the NYSCWM region (Chl a<0.1 μg/L). Nutrient NO3– showed lower concentrations (NO3–<0.5 μmol/L) in the upper 20 m from April to September and higher concentrations in the bottom zone of the NYSCWM. The maximum concentration of NO3– (9.62 μmol/L) were observed at the bottom in October. Ciliate showed higher abundances in April (10 m, 25.05×103 ind./L) and July (10 m, 20.52×103 ind./L). It was less abundant in the NYSCWM (<5×103 ind./L). SYN, PEUK and HP had similar distribution pattern with extremely high abundances (355.48×103 cells/mL, 28.53×103 cells/mL and 18.08×105 cells/mL, respectively) at 20 m depth in August where the thermocline and halocline were well established. From October to June, SYN and PEUK sustained low abundances, especially in March and April. In the bottom zone of the NYSCWM, picoplankton abundance was quite low (Fig. 5).

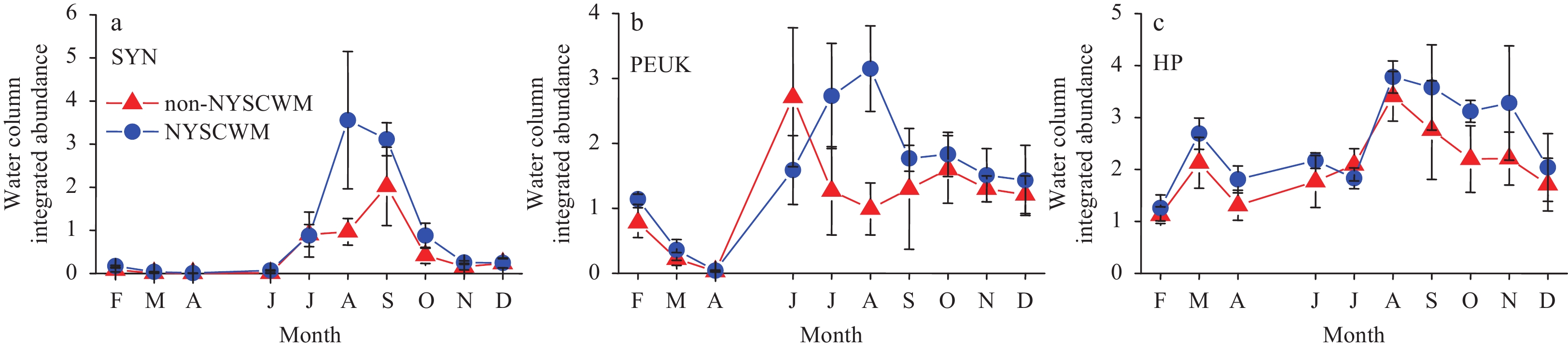

3.4 Seasonal variation of picoplankton water column integrated abundance between non-NYSCWM and NYSCWM regions
The water column integrated abundance of SYN showed similar seasonal pattern in the non-NYSCWM (Transects 1, 3 and 5) and NYSCWM regions (Transect 6), except in summer. The maximum abundance in the NYSCWM was observed in August, one month earlier than that in the non-NYSCWM area. In August, SYN in the NYSCWM region ((3.56±1.59)×1012 cells/m2) was almost three times higher than that in the non-NYSCWM region ((0.97±0.31)×1012 cells/m2) (Fig. 6a).
Similar to SYN, PEUK in the NYSCWM exhibited highest water column integrated abundance ((3.15±0.06)×1011 cells/m2) in August. In the non-NYSCWM, the maximum abundance ((2.71±10.7)×1011 cells/m2) occurred in June, two month earlier than that in the NYSCWM. During the rest of the year, PEUK was slightly higher in the NYSCWM region than the non-NYSCWM region (Fig. 6b).
Unlike the autotrophic picoplankton, HP integrated abundance exhibited similar distribution patterns between the non-NYSCWM and NYSCWM regions, showing major peaks ((3.78±0.31)×1013 cells/m2 and (3.41±0.48)×1013 cells/m2, respectively) in August and minor peaks in March. HP in the NYSCWM were slightly higher than in the non-NYSCWM during the rest of the year except July (Fig. 6c).

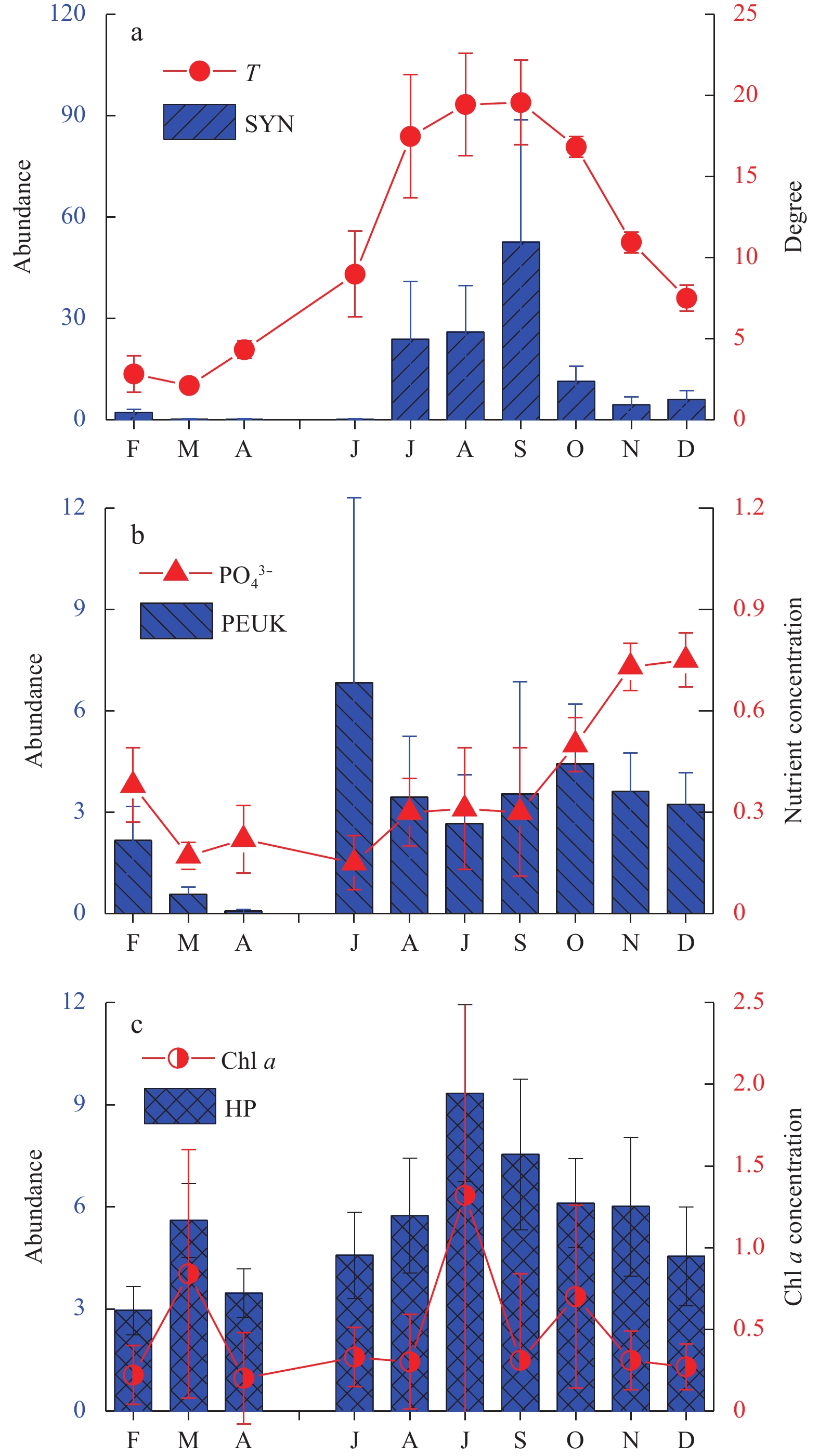

3.5 Relationship between picoplankton abundance and environmental variables
Relationships between picoplankton abundance and environmental variables in the NYSCWM (Transect 6) in summer (July-September) were performed using Spearman correlation analysis (Table 1). In the NYSCWM region in summer, abundances of SYN, PEUK and HP were positively correlated with each other. They were also positively correlated with Chl a and ciliate, and negatively correlated with nutrients NO3– and PO43–. Besides, HP abundances were also positively correlated with temperature and negatively correlated with salinity.
4 Discussion
Less
In previous studies, the contours of 10°C were taken as the boundary of NYSCWM (Zhang et al., 2008; Xin et al., 2015). In this study, it is reasonable to use the relatively broad definition of the NYSCWM with water temperature lower than 12°C since (1) the YSCWM is characterized with low temperature showing a remarkable variation (5–12°C) (He et al., 1959; Su and Huang, 1995), (2) the temperature of NYSCWM has been reported increasing slightly from 1976 to 1999 (Li et al., 2015), and (3) the Zhangzi Island locates on the edge of the NYSCWM.
4.1 Impact of NYSCWM on physical, chemical and biological conditions
The YSCWM is a typically seasonal water mass in the Yellow Sea. It forms locally in winter owing to the surface cooling and strong vertical mixing. In spring, when surface water temperature increases, the cold water is retained in the bottom zone. In summer, this cold water mass flows southward under the thermocline. Extremely high intensity of the YSCWM occurs between July and August. In late autumn and winter, the YSCWM disappear because of the strong vertical mixing (Wang et al., 2000; Li et al., 2006).
In this study, the NYSCWM was observed in summer (July– September) with temperature lower than 12°C. Pronounced thermocline and halocline were observed between 10 and 30 layer, especially in July and August (Figs 2 and 3). Chlorophyll a showed high concentration in the upper layer and low concentration in the bottom zone. The maximum chlorophyll a concentration occurred above the thermocline layer (10–20 m), perhaps resulting from the coaction of thermocline and intensive photosynthesis due to subsurface chlorophyll maximum in the same layer. In the bottom zone, chlorophyll a was the lowest because of the low temperature (<12°C) and insufficient light (Fig. 3).
Nitrogen was considered as the proximal limiting factor for primary production (Davey et al., 2008). In the NYSCWM, nutrient NO3– was almost depleted (<0.5 μmol/L) by phytoplankton above the thermocline, but enriched in the bottom zone of the NYSCWM through organism decomposition. The existence of stratification prevented the exchange of nitrate from the bottom to the surface.
4.2 Impact of NYSCWM on picoplankton distribution
Our study is by far the first report tracking picoplankton variation during the formation to vanishment process of NYSCWM. The impact of YSCWM on picoplankton distribution has been reported by Li et al. (2006) and Zhao et al. (2011) in the southern Yellow Sea and Bai et al. (2012) in the northern Yellow Sea in summer. Li et al. (2006) reported the minimum biomass of SYN and HP in the SYSCWM. Zhao et al. (2011) observed relatively low abundance of picoplankton at the surface and bottom (in the SYSCWM). Bai et al. (2012) found low abundance of SYN and PEUK in the NYSCWM, whereas no significant variations of HP were observed between NYSCWM and non-NYSCWM waters.
In this study, pronounced thermocline was observed in July and August. Picoplankton abundance was much higher in the thermocline (20 m). Especially in August, extremely high abundances of all three picoplankton groups (SYN, PEUK and HP) were observed (Figs 3-5). Whereas in the bottom zone of the NYSCWM, minimum abundance of picoplankton was detected (Fig. 3c). Extremely high abundance in the thermocline was not common in previous studies (Li et al., 2006; Zhao et al., 2011; Bai et al., 2012). How NYSCWM influenced on picoplankton dynamics was still unclear, it is necessary to address the regulating factors on picoplankton distribution.
Temperature is considered an important factor regulating picoplankton variations (Agawin et al., 2000). In colder water (T<14°C), temperature was the dominant factor in SYN distribution (Li, 1998). In this study, temperature in the thermocline was higher than 14°C, indicating temperature was not the limiting factor. Whereas in the bottom zone of the NYSCWM, temperature was lower than 12°C, turning out temperature was the dominant factor on picoplankton distribution. Besides temperature, nutrient supply is another important factor influencing picoplankton distribution (Agawin et al., 2000; Moisan et al., 2010). Although the stratification prevented the exchange of nutrient from the bottom to the surface, in the thermocline layer nutrient was sufficient to supply the growth of picoplankton (Fig. 3). In the bottom zone of the NYCWM, even though nutrient was sufficient, the effect of low temperature seemed to be more important than nutrient supply. Ciliate might be another important controlling factor on picoplankton distribution. Ciliate and heterotrophic nanoflagellates have been recognized as the primary consumers of picoplankton (Tsai et al., 2008; Guo et al., 2014). In the present study, ciliate was less abundant in the thermocline, indicating lower pressure of predating on picoplankton variations. In the bottom zone of the NYSCWM, minimum abundance of ciliate was observed, suggesting ciliate was not important in controlling picoplankton distribution.
In the thermocline, with warmer temperature, sufficient nutrient supply and lower pressure of predating, the environment of thermocline was suitable for the growth of picoplankton, which explains why such high abundance of picoplankton occurring in the thermocline. In the bottom zone of the NYSCWM, in spite of sufficient nutrient supply and low predator pressure, low temperate (T<12°C) was the dominant factor on picoplankton distribution.
4.3 Seasonal comparisons between non-NYSCWM and NYSCWM
Around the Zhangzi Island, stations not influenced by the NYSCWM (namely non-NYSCWM) showed a clear seasonality in picoplankton abundance (Fig. 5). SYN, PEUK and HP exhibited different distribution patterns, which was very common in previous studies. Seasonal dynamics of SYN abundance in this study was similar to previous reports in the coastal waters of Japan (Shimada et al., 1995; Katano et al., 2005), coastal waters of Mediterranean (Agawin et al., 1998; Bec et al., 2005; Charles et al., 2005), Bay of Biscay (Calvo-Díaz and Morán, 2006; Morán, 2007), Bedford Basin (Li, 1998), western English Channel (Tarran and Bruun, 2015) and Levantine Basin shelf waters (Uysal and Köksalan, 2006) (Table 2). A strong relationship between temperature and SYN was observed in this study, suggesting the importance of temperature in regulating SYN distribution (Fig. 7a), which has been conformed in previous studies (Agawin et al., 1998; Moisan et al., 2010). The seasonality of PEUK abundance was more complicated than SYN. PEUK reached maximum abundance in June and low abundances were observed in March and April (Fig. 7b). Our result agreed with previous observations in the southern Yellow Sea (Zhao et al., 2011) and Iwanai Bay (Miyazono et al., 1992) (Table 2). Negative relationship between PO43– and PEUK was observed, indicating the importance of nutrient supply on PEUK distribution (Fig. 7b). HP showed major peak in August and minor peak in March (Fig. 7c). Seasonal variations of HP and Chl a overlapped (Fig. 7c), implying that HP relied on the released substrate by phytoplankton (Garneau et al., 2008). In the non-NYSCWM, SYN, PEUK and HP distributed diversely and they were influenced by different factors, indicating they may have different controlling mechanisms.
In the NYSCWM, the thermocline provided a suitable environment (warm water, sufficient nutrient supply and low predating pressure) for the growth of picoplankton, SYN, PEUK and HP exhibited similar distribution patterns. It seemed they had similar controlling mechanism under the influence of NYSCWM.
5 Conclusions
Less
Around the Zhangzi Island in the northern Yellow Sea, the bottom water mass-NYSCWM had strong influence on picoplankton distribution, showing low abundance in the bottom zone of the NYSCWM and extremely high abundance in the thermocline, which was not exactly the same as the influence of the SYSCWM on picoplankton distribution. How NYSCWM influenced picoplankton dynamics by changing thermocline layer and nutrient supply has been illustrated in this study. Since the survey region locates at the edge of the NYSCWM, it is necessary to investigate picoplankton distribution in the cores of NYSCWM and SYSCWM regions to better understand and compare the influencing strength of NYSCWM and SYSCWM on picoplankton distribution in the future.
Acknowledgements
Less
The authors are grateful to the crew on the research vessel of Dalian Zhangzidao Fishery Group Co., Ltd for their supports on field sampling.
Funding
Less
  • The National Natural Science Foundation of China under contract Nos 41306160; the NSFC-Shandong Joint Fund for Marine Science Research Centers under contract No. U1606404; the Strategic Priority Research Program of the Chinese Academy of Sciences under contract No. XDA11020103.1.
References
Less
Agawin N S R, Duarte C M, Agustí S. 1998. Growth and abundance of Synechococcus sp. in a Mediterranean Bay: seasonality and relationship with temperature. Mar Ecol Prog Ser, 170: 45–53
Agawin N S R, Duarte C M, Agustí S. 2000. Nutrient and temperature control of the contribution of picoplankton to phytoplankton biomass and production. Limnol Oceanogr, 45(3): 591–600
Agawin N S R, Duarte C M, Agustí S, et al. 2003. Abundance, biomass and growth rates of Synechococcus sp. in a tropical coastal ecosystem (Philippines, South China Sea). Estuar Coast Shelf Sci, 56(3–4): 493–502
Bai Xiaoge, Wang Min, Liang Yantao, et al. 2012. Distribution of microbial populations and their relationship with environmental variables in the North Yellow Sea, China. J Ocean Univ China, 11(1): 75–85
Bao Xianwen, Li Na, Yao Zhigang, et al. 2009. Seasonal variation characteristics of temperature and salinity of the North Yellow Sea. Period Ocean Univ China (in Chinese), 39(4): 553–562
Bec B, Husseini-Ratrema J, Collos Y, et al. 2005. Phytoplankton seasonal dynamics in a Mediterranean coastal lagoon: emphasis on the picoeukaryote community. J Plankton Res, 27(9): 881–894
Boras J A, Sala M M, Vázquez-Domínguez E, et al. 2009. Annual changes of bacterial mortality due to viruses and protists in an oligotrophic coastal environment (NW Mediterranean). Environ Microbiol, 11(5): 1181–1193
Calvo-Díaz A, Morán X A G. 2006. Seasonal dynamics of picoplankton in shelf waters of the southern Bay of Biscay. Aquat Microb Ecol, 42(2): 159–174
Charles F, Lantoine F, Brugel S, et al. 2005. Seasonal survey of the phytoplankton biomass, composition and production in a littoral NW Mediterranean site, with special emphasis on the picoplanktonic contribution. Estuar Coast Shelf Sci, 65(1-2): 199–212
Davey M, Tarran G A, Mills M M, et al. 2008. Nutrient limitation of picophytoplankton photosynthesis and growth in the tropical North Atlantic. Limnol Oceanogr, 53(5): 1722–1733
Garneau M È, Roy S, Lovejoy C, et al. 2008. Seasonal dynamics of bacterial biomass and production in a coastal arctic ecosystem: Franklin Bay, western Canadian Arctic. J Geophys Res, 113(C7): C07S91
Grégori G, Colosimo A, Denis M. 2001. Phytoplankton group dynamics in the Bay of Marseilles during a 2-year survey based on analytical flow cytometry. Cytometry, 44(3): 247–256
Guo C, Liu H, Zheng L, et al. 2014. Seasonal and spatial patterns of picophytoplankton growth, grazing and distribution in the East China Sea. Biogeosciences, 11(7): 1847–1862
He Chongben, Wang Yuanxiang, Lei Zongyou, et al. 1959. A prelimenary study of the formation of Yellow Sea Cold Mass and its properties. Oceanol Limnol Sin (in Chinese), 2(1): 11–15
Hur H B, Jacobs G A, Teague W J. 1999. Monthly variations of water masses in the Yellow and East China Seas, November 6, 1998. J Oceanogr, 55(2): 171–184
Johnson P W, Sieburth J M. 1979. Chroococcoid cyanobacteria in the sea: a ubiquitous and diverse phototrophic biomass. Limnol Oceanogr, 24(5): 928–935
Kang J H, Kim W S. 2008. Spring dominant copepods and their distribution pattern in the Yellow Sea. Ocean Sci J, 43(2): 67–79
Katano T, Kaneda A, Takeoka H, et al. 2005. Seasonal changes in the abundance and composition of picophytoplankton in relation to the occurrence of ‘Kyucho’ and bottom intrusion in Uchiumi Bay, Japan. Mar Ecol Prog Ser, 298: 59–67
Lemée, R, Rochelle-Newall E, Van Wambeke F, et al. 2002. Seasonal variation of bacterial production, respiration and growth efficiency in the open NW Mediterranean Sea. Aquat Microb Ecol, 29(3): 227–237
Li W K W. 1998. Annual average abundance of heterotrophic bacteria and Synechococcus in surface ocean waters. Limnol Oceanogr, 43(7): 1746–1753
Li Hongbo, Xiao Tian, Ding Tao, et al. 2006. Effect of the Yellow Sea Cold Water Mass (YSCWM) on distribution of bacterioplankton. Acta Ecol Sini, 26(4): 1012–1019
Li Ang, Yu Fei, Diao Xinyuan, et al. 2015. Interannual variability of temperature of the northern Yellow Sea Cold Water Mass. Haiyang Xuebao (in Chinese), 37(1): 30–42
Lin D, Zhu A, Xu Z, et al. 2010. Dynamics of photosynthetic picoplankton in a subtropical estuary and adjacent shelf waters. J Mar Biol Assoc United Kingdom, 90(7): 1319–1329
Mitbavkar S, Saino T, Horimoto N, et al. 2009. Role of environment and hydrography in determining the picoplankton community structure of Sagami Bay, Japan. J Oceanogr, 65(2): 195–208
Miyazono A, Odate T, Maita Y. 1992. Seasonal fluctuations of cell density of cyanobacteria and other picophytoplankton in Iwanai Bay, Hokkaido, Japan. J Oceanogr, 48(3): 257–266
Moisan T A, Blattner K L, Makinen C P. 2010. Influences of temperature and nutrients on Synechococcus abundance and biomass in the southern Mid-Atlantic Bight. Cont Shelf Res, 30(12): 1275–1282
Morán X A G. 2007. Annual cycle of picophytoplankton photosynthesis and growth rates in a temperate coastal ecosystem: a major contribution to carbon fluxes. Aquat Microb Ecol, 49(3): 267–279
Pan L A, Zhang J, Zhang L H. 2007. Picophytoplankton, nanophytoplankton, heterotrohpic bacteria and viruses in the Changjiang Estuary and adjacent coastal waters. J Plankton Res, 29(2): 187–197
Platt T, Rao D V S, Irwin B. 1983. Photosynthesis of picoplankton in the oligotrophic ocean. Nature, 301(5902): 702–704
Shimada A, Nishijima M, Maruyama T. 1995. Seasonal appearance of Prochlorococcus in Suruga Bay, Japan in 1992-1993. J Oceanogr, 51(3): 289–300
Su Jilan, Huang Daji. 1995. On the current field associated with the Yellow Sea Cold Water Mass. Oceanol Limnol Sin Supp, (in Chinese), 26(5): 1–7
Tarran G A, Bruun J T. 2015. Nanoplankton and picoplankton in the Western English Channel: abundance and seasonality from 2007–2013. Prog Oceanogr, 137: 446–455
Tsai A Y, Chiang K P, Chang J, et al. 2008. Seasonal variations in trophic dynamics of nanoflagellates and picoplankton in coastal waters of the western subtropical Pacific Ocean. Aquat Microb Ecol, 51(3): 263–274
Uysal Z, Köksalan I. 2006. The annual cycle of Synechococcus (cyanobacteria) in the northern Levantine Basin shelf waters (Eastern Mediterranean). Mar Ecol, 27(3): 187–197
Van Dongen-Vogels V, Seymour J R, Middleton J F, et al. 2011. Influence of local physical events on picophytoplankton spatial and temporal dynamics in South Australian continental shelf waters. J Plankton Res, 33(12): 1825–1841
Wang Baodong. 2000. Characteristics of variations and interrelations of biogenic elements in the Huanghai Sea Cold Water Mass. Haiyang Xuebao (in Chinese), 22(6): 47–54
Waterbury J B, Watson S W, Guillard R R L, et al. 1979. Widespread occurrence of a unicellular, marine, planktonic, cyanobacterium. Nature, 277(5694): 293–294
Wikner J, Hagström Å. 1991. Annual study of bacterioplankton community dynamics. Limnol Oceanogr, 36(7): 1313–1324
Xin Ming, Ma Deyi, Wang Baodong. 2015. Chemicohydrographic characteristics of the Yellow Sea Cold Water Mass. Acta Ecol Sin, 34(6): 5–11
Yao Zhigang, Bao Xianwen, Li Na, et al. 2012. Seasonal evolution of the Northern Yellow Sea Cold Water Mass. Period Ocean Univ China (in Chinese), 42(6): 9–15
Yin Jiehui, Zhao Zengxia, Zhang Guangtao, et al. 2013. Tempo-spatial variation of nutrient and chlorophyll-a concentrations from Summer to Winter in the Zhangzi Island area (Northern Yellow Sea). J Ocean Univ China, 12(3): 373–384
Yu Ying, Zhang Wuchang, Wang Shiwei, et al. 2013. Abundance and biomass of planktonic ciliates in the sea area around Zhangzi Island, Northern Yellow Sea. Acta Ecol Sin, 33(1): 45–51
Zhang S W, Wang Q Y, Lü Y, et al. 2008. Observation of the seasonal evolution of the Yellow Sea Cold Water Mass in 1996–1998. Cont Shelf Res, 28(3): 442–457
Zhao Yuan, Zhao Li, Xiao Tian, et al. 2011. Spatial and temporal variation of picoplankton distribution in the Yellow Sea, China. Chin J Oceanol Limnol, 29(1): 150–162
Zou Emei, Xiong Xuejun, Guo Binghuo, et al. 2001. Characteristics and seasonal variations of the thermocline and halocline in the Huanghai Sea and the East China Sea. J Oceanogr Huanghai Bohai Seas (in Chinese), 19(3): 8–18
