Assessment of the Tessier and BCR sequential extraction procedures for elemental partitioning of Ca, Fe, Mn, Al, and Ti and their application to surface sediments from Chinese continental shelf
收藏切换
PDF
Yanli LIU1, Jing ZHANG1, 2, *, Huijun HE1
Acta Oceanologica Sinica | 2018, 37(5) : 22 - 28
Less
收藏切换
Acta Oceanologica Sinica | 2018, 37(5): 22-28
• Marine Chemistry •
Assessment of the Tessier and BCR sequential extraction procedures for elemental partitioning of Ca, Fe, Mn, Al, and Ti and their application to surface sediments from Chinese continental shelf
Full
Yanli LIU1, Jing ZHANG1, 2, *, Huijun HE1
Affiliations
  • 1 Laboratory of Marine Chemistry Theory and Technology of Ministry of Education, Ocean University of China, Qingdao 266100, China
  • 2 Earth and Environmental System, Graduate School of Science and Engineering, University of Toyama, Toyama 9308555, Japan
Published: 2018-05-25 doi: 10.1007/s13131-018-1189-1
Outline
收藏切换

Surface sediments can integrate a wide variety of information of seawater in marginal seas, e.g., the Quaternary sedimentary shelf such as the East China Sea (ECS) and Yellow Sea (YS). The Tessier and BCR sequential extraction procedures (SEPs) have been widely applied for extraction of various geochemical phases from sediments. To choose a suitable SEP for phase extraction of sediments from the above Quaternary sedimentary shelf, efficiency and selectivity experiments were conducted on typical individual minerals and the applicability of each SEP was assessed for natural sediments (the natural sediment standard GSD-9 and three surface sediment samples). The geochemical represented elements (Ca, Fe, Mn, Al, and Ti) were measured using both SEPs. Both SEPs have good dissolution efficiency and selectivity for the targeted geochemical phases; the optimized extractant volume for each fraction was determined. The Tessier SEP is particularly recommended for the study of adsorption-desorption process. The application of the Tessier SEP to surface sediments can furnish valuable information, including the productivity conditions (via the reducible fraction Mn) and sedimentary environments (via the carbonate fraction Ca). These results confirm that the Tessier SEP is suitable for elemental fractionation in sediments from the Chinese continental shelf.

elemental fractionation  /  surface sediments  /  Tessier SEP  /  BCR SEP  /  efficiency  /  selectivity
Yanli LIU, Jing ZHANG, Huijun HE. Assessment of the Tessier and BCR sequential extraction procedures for elemental partitioning of Ca, Fe, Mn, Al, and Ti and their application to surface sediments from Chinese continental shelf[J]. Acta Oceanologica Sinica, 2018 , 37 (5) : 22 -28 . DOI: 10.1007/s13131-018-1189-1
Full Text
Less
1 Introduction
Less
Quaternary sedimentary shelves are characterized by complicated ocean circulation (Lie and Cho, 2002), hypoxia (Chen et al., 2007; Rabalais et al., 1991), and large inputs of terrigenous sediment (Walter et al., 2000). The sediments deposited on these shelves are important records of this information (Li et al., 2017; Ding et al., 2017). With regard to rapid variations in seawater hydrology, if the sedimentation rate is sufficiently high, sediments can provide integrated information concerning seawater dynamics over a period of several years in estuaries and on continental shelves. The sedimentary record can reflect sediment provenance, physical processes (adsorption-desorption), chemical processes (oxidation-reduction) and biological processes. To investigate these different types of information and processes, different components in marine sediments must be extracted separately, including carbonates, hydrous metal oxides, organic substances and crystalline minerals (Szefer et al., 1995).
Chemical fractionation is an efficient approach for speciation analysis. The separation and analysis of individual mineral fractions has been used for studying trace element partitions (Chao, 1972; Chester and Hughes, 1967; Choi et al., 2015; Ray et al., 1957; Gutjahr et al., 2007, 2014; Leleyter and Probst, 1999; Poulton and Canfield, 2005; Song and Choi, 2009; Yang et al., 2002; Zhang et al., 2015; Zhu et al., 2006, 2012). Sequential extraction procedures (SEPs) are designed to isolate specific fractions of the sediments. The Tessier and BCR (Bureau Community of Reference) SEPs are most widely applied to metal fractionation in sediments and soil samples (Rauret et al., 1999; Sahuquillo et al., 1999; Tessier et al., 1979; Usero et al., 1998; Lin et al., 2014; Liu et al., 2016; Esmaeilzadeh et al., 2016). The accuracy and validity of SEPs for trace metal speciation have been extensively examined. However, few studies have assessed SEPs for elemental partitioning in sediments from Quaternary sedimentary shelves, such as the East China Sea (ECS) and Yellow Sea (YS). Assuring the selectivity and efficiency of each step and validating SEPs in this environment remains an important challenge.
The purpose of this study was to choose a proper SEP and optimize the extraction conditions with the methodology to be applied to marine sediments on Chinese continental shelf to accurately determine the diverse origins of sediments and interpret various biogeochemical processes. Typical individual minerals (carbonate minerals, Fe-Mn oxides and clay mineral) were extracted to verify the efficiency and selectivity of the extractants. The Changjiang natural sediment standard GBW07309 (GSD-9) was selected and treated using both SEPs to assess their applicability. Finally, further assessment of the Tessier SEP was conducted using marine surface sediments from the Chinese continental shelf in relation to different sedimentary environments and productivity levels.
2 Materials and methods
Less
2.1 Samples and reagents
The studied samples include typical individual minerals and natural sediments.
Efficiency and selectivity experiments were conducted on the following typical individual minerals: carbonate minerals (calcite, dolomite, rhodochrosite, and siderite), Fe-Mn oxides (pyrolusite, hematite, magnetite, amorphous Fe(OH)3) and clay mineral (kaolinite). Amorphous Fe(OH)3 was synthesized in laboratory, and the remaining chemicals and minerals were purchased. Calcite and dolomite were obtained from the Wuhan Iron and Steel Research Institute; MnCO3 from the State Bureau of Building Materials Geological Institute; siderite from the Wuhan Iron and Steel Corporation; Fe minerals from the Geophysical and Geochemistry Research Institute; and kaolinite from Tianjin Ruijin Chemical Co. LTD.
The natural sediment standard GSD-9 (from Changjiang) was purchased to determine the optimum volume of extractant for each fraction in both SEPs. Three surface sediment samples collected in July 2013 were used for validity assessment (ME3 from south of the Changjiang Estuary, C05 from the Central Yellow Sea, and MT1 from southwest of Cheju Island).
MgCl2, hexahydrate (>99%, ACS reagent) and HClO4 (70%, ACS reagent) were purchased from Acros Organics. NH2OH-HCl (Reagent Plus) and HNO3 (≥65%, ISO. Reag. Ph. Eur.) were purchased from Sigma. NaAc (ACS, Reag. Ph. Eur.), NH4Ac (ACS, Reag. Ph. Eur.), HAc (glacial, 100%, ACS, Reag. Ph. Eur.), H2O2 (30%), and HF (70%, ACS reagent) were purchased from Merck.
2.2 Extraction procedures
The extraction procedures of BCR (Rauret et al., 1999) and Tessier (Tessier et al., 1979) SEPs used in this study are summarized as follows:
BCR SEPs: (1) carbonate fraction (0.11 mol/L HAc), (2) Fe-Mn oxides fraction (0.5 mol/L NH2OH-HCl), (3) organic matter fraction (30% H2O2), and (4) residual fraction (HNO3, HF, HClO4).
Tessier SEPs: (1) exchangeable fraction (1 mol/L MgCl2), (2) carbonate fraction (1 mol/L NaAc-HAc), (3) Fe-Mn oxides fraction (0.04 mol/L NH2OH-HCl), (4) organic matter fraction (30% H2O2), and (5) residual fraction (HNO3, HF, HClO4).
2.2.1 Efficiency and selectivity experiments on typical individual minerals
To study the efficiency and selectivity of both SEPs, typical individual minerals were extracted separately with the various extractants; these minerals included natural calcite, dolomite, rhodochrosite, siderite, pyrolusite, hematite, magnetite, synthetic amorphous Fe(OH)3, and clay mineral (kaolinite). For the efficiency experiment, a series of different mass of each mineral was separately treated with a constant extractant volume in each fraction to determine the maximum mass that could be dissolved. For selectivity experiments, the initial mass of all minerals were 0.25 g, the extractant volume was used as determined in the efficiency experiment. After extraction, the percentages of the elements extracted were used to assess the efficiency and selectivity of the SEPs. The percentage of elements in each fraction was calculated based on the total concentration of each element which was determined by total digestion. If the percentage in the extract was close to 100%, the corresponding mass was considered to be the largest mass that could be dissolved completely. If the mineral content in the samples exceed the maximum mass, this demonstrates that a larger extractant volume should be used. For the exchangeable fraction, all minerals were treated to test the efficiency and selectivity. For the carbonate fraction, calcite and dolomite were utilized to evaluate the efficiency, and Fe-Mn oxides and kaolinite were used to assess selectivity. For the Fe-Mn oxides fraction, MnO2 and amorphous Fe(OH)3 were used to evaluate the efficiency, and hematite, magnetite, and kaolinite were used for selectivity assessment.
2.2.2 Applicability of both SEPs to the natural sediment standard
Different elements are associated with specific phases in natural sediment. To differentiate between these phases with minimal impact from other phases, the optimized extractant volume for each fraction was evaluated for the Tessier and BCR SEPs. A 0.25 g sample of GSD-9 was successively treated with different volumes of extractant for each SEP. Each fraction was subjected to leaching after the completion of the last-step extraction. Representative elements (Ca, Fe, Mn, Al, and Ti) were quantified in each fraction: Ca and Mn for exchangeable dissolution, Ca for carbonate dissolution, Fe and Mn for oxide dissolution, Al and Ti for silicates dissolution. Each supernatant solution was separated by centrifugation at 4 000 r/min for 20 min and then transferred to a polytetrafluoroethylene (PTFE) bottle. The residue was washed once with Milli-Q H2O and decanted into a polyethylene (PE) bottle. The combined supernatant solution was dried to near dryness, 2 mL HNO3 was added, and the solution was dried again to a HNO3 matrix. All fractions were brought up to volume in 2% HNO3 before analysis.
2.2.3 Applicability of the Tessier SEP to surface sediments on the Chinese continental shelf
Different from the natural sediment standard, in view of different geographical environments, sedimentary environments, sedimentation rates and productivity levels, three surface sediments from the Chinese continental shelf were extracted using the Tessier SEP to further validate the applicability. These samples were collected from south of the Changjiang Estuary (ME3); the central YS (C05); and southwest of Cheju Island (MT1).
2.3 Instrumentation
The Ca, Fe, Mn, Al, and Ti concentrations were determined using an inductively coupled plasma atomic emission spectrometer (ICAP 6300, Thermo Fisher Scientific, USA), and the instrument’s reproducibility was less than 3%.
3 Results and discussion
Less
3.1 Efficiency and selectivity evaluation using typical individual minerals
The efficiency and selectivity results obtained using the BCR and Tessier SEPs are discussed separately.
3.1.1 Efficiency
(1) BCR SEP: 7.5 mL of 0.11 mol/L HAc can completely dissolve 0.04 g calcite and 0.025 g dolomite; 7.5 mL of 5 mol/L NH2OH-HCl can fully dissolve 0.15 g MnO2 and 0.025 g amorphous Fe(OH)3.
(2) Tessier SEP: 0.25 g calcite and 0.125 g dolomite could be completely dissolved by 8 mL 1 mol/L NaAc-HAc. Leleyter et al. (1999) also found that sodium acetate (pH=5) was not efficient for dolomite dissolution. 7.5 mL of 0.04 mol/L NH2OH-HCl could dissolve 0.01 g MnO2 and 0.04 g amorphous Fe(OH)3.
Compared with the results using 0.5 mol/L NH2OH-HCl (pH=1.5), a solution of 0.04 mol/L NH2OH-HCl in 25% HAc more effectively dissolved the amorphous Fe oxide while 0.5 mol/L NH2OH-HCl (pH=1.5) more efficiently dissolved MnO2.
Good efficiency usually ensures acceptable selectivity. Selectivity experiments were performed, and the results are listed below.
3.1.2 Selectivity
(1) BCR SEP: As presented in Table 1, the low percentages extracted from the Fe-Mn oxides and kaolinite imply that 7.5 mL of 0.11 mol/L HAc does not dissolve oxides and silicates. The high dissolution percentage of carbonate minerals indicates that 0.11 mol/L HAc has good selectivity for distinguishing between carbonates and non-carbonate minerals. 0.5 mol/L NH2OH-HCl also has poor dissolution efficiency for hematite, magnetite and kaolinite. However, 42% MnO2 and 11% Fe(OH)3 were dissolved. This finding indicates that 0.5 mol/L NH2OH-HCl has a greater extraction efficiency for amorphous Fe-Mn oxides than for crystalline oxides.
(2) Tessier SEP: As shown in Table 1, the low dissolution percentage of each mineral indicates that MgCl2 only dissolved the absorbed elements without contamination from other phases (carbonate phase and Fe-Mn oxides). The leachable elements were adsorbed due to the permanent charge (Leleyter and Probst, 1999).
When treated with 8 mL of 1 mol/L NaAc-HAc, carbonate minerals, but not Fe-Mn oxides, were dissolved. Moreover, 100% calcite, 45% dolomite, and 10%–30% MnCO3 were dissolved. Siderite is not the main carbonate mineral in the ECS (Zou et al., 2008), so only a negligible (0.99%) dissolution of siderite here has little effect. Rongemaille et al. (2011) also reported that siderite was not easily dissolved by 2% and 5% HAc.
When 0.25 g individual mineral was leached with 7.5 mL of 0.04 mol/L NH2OH-HCl, 6.4% MnO2 and 42% Fe(OH)3 were leached. This liberation did not occur for the exchangeable and carbonate fractions.
In summary, both the BCR and Tessier SEPs have good dissolution efficiency and selectivity for the targeted minerals. When the natural sediment with mixture minerals was studied, the applicability was assessed as follows.
3.2 Applicability of both SEPs to the natural sediment standard (GSD-9)

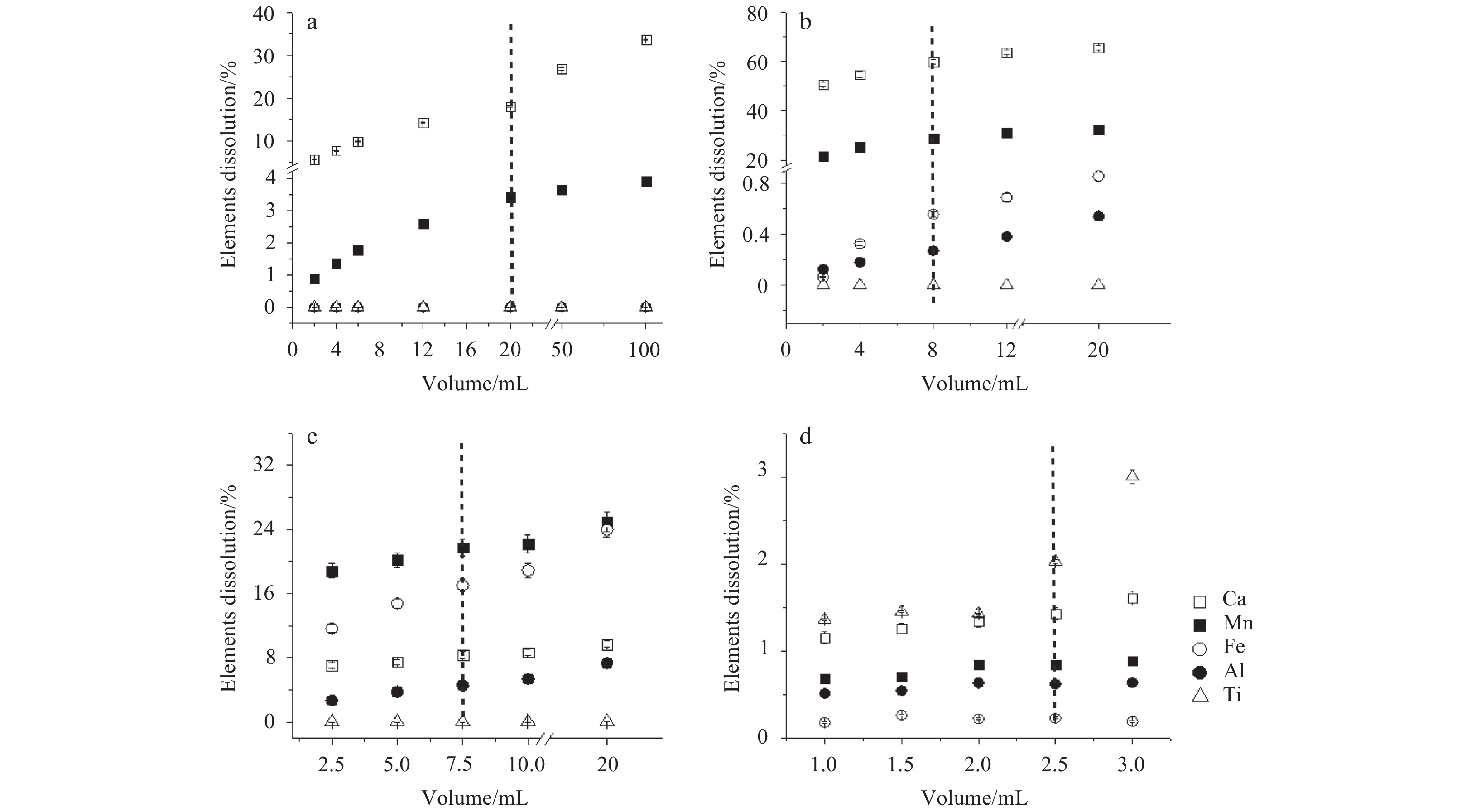

The data are furnished in Fig. 1 and Fig. 2, respectively. The results are discussed below.
3.2.1 BCR SEP
(1) Fraction IB: carbonate fraction
As shown in Fig. 1a, approximately 85% Ca and 35% Mn were leached when the extractant volume was 7.5 mL, similar amounts of Ca and Mn were dissolved when using a larger volume. Notably, carbonates were sufficiently solubilized. The high percentage of Mn (approximately 35%) in this fraction can be attributed to the dissolution of manganese carbonate, which was demonstrated by the treatment of rhodochrosite and MnCO3 with 0.11 mol/L HAc. The low percentages of Al and Fe indicated that the attack of silicate was minimal. The proportions of Al and Fe increased with the increase of extractant volume (over 7 mL), indicating enhanced contributions from the detrital and oxide phases. Previous results have also indicated that the enhanced extractant volume would lead to the dissolution of non-carbonate minerals (Freslon et al., 2014; He et al., 2015).
Therefore, 7.5 mL of 0.11 mol/L HAc was recommended for the extraction of carbonate phase.
(2) Fraction IIB: Fe-Mn oxides fraction
The results are shown in Fig. 1b. Approximately 13% Fe and 16% Mn were removed and the percentages were nearly constant when the volume exceeded 7.5 mL, indicating the dissolution of the reactive Fe-Mn oxides and poor crystalline hydroxides, such as Fe(OH)3. The low percentage of Al indicated only a slight breakdown of silicates. Thus, 7.5 mL of 0.5 mol/L NH2OH-HCl was chosen to extract the reactive Fe-Mn oxides and poor crystalline hydroxides.
(3) Fraction IIIB: organic matter fraction
The dissolved amounts of Ca, Fe, Mn, Al, and Ti are presented in Fig. 1c. Small portions of each element were extracted, implying these elements rarely existed in the organic matter fraction. The percentages of Ca and Mn did not change when the volume exceeded 2.5 mL, except with an increasing amounts of Al and Ti. Consequently, 2.5 mL H2O2 was chosen.
Based on the above experimental work, the optimal volume of each extractant was chosen as follows: 0.25 g GSD-9 was treated progressively with 7.5 mL of 0.11 mol/L HAc at room temperature for 16 h; 7.5 mL of 0.5 mol/L NH2OH-HCl (pH=1.5) at room temperature for 16 h; 2.5 mL of 30% H2O2 (pH=2) at room temperature for 1 h, then at 85°C for 1 h, an additional 2.5 mL of 30% H2O2 (pH=2) at 85°C for 1 h and 20 mL of 1 mol/L NH4Ac (pH=2) at room temperature for 16 h.
3.2.2 Tessier SEP
(1) Fraction IT: exchangeable fraction
According to the concentration plots in Fig. 2a, a logarithmic relationship was observed for Ca and Mn when the volume increased from 2 mL to 20 mL. After an initial rapid increase, the percentage of Mn approached a dynamic balance although there was a slight increasing trend. The low percentages of Al, Fe, and Ti in all extracts implied that MgCl2 treatment did not affect the silicates. The concentration of Ca slowly increased as the volume was larger than 20 mL, indicating minimal attack of the carbonates. Consequently, 20 mL of 1 mol/L MgCl2 (pH=7) was selected.
(2) Fraction IIT: carbonate fraction
The percentages of Ca, Fe, Mn, Al, and Ti are illustrated in Fig. 2b. The Ca and Mn concentration curves show that the carbonates were adequately dissolved at a volume of 8 mL. Previous studies have indicated that carbonates cannot be fully dissolved if the sediment/solvent volume weight ratio is too high (Tessier et al., 1979). The high percentage of Mn (approximately 30%) in this fraction could also be attributed to the dissolution of manganese carbonate, which was proved by the extraction of rhodochrosite and MnCO3. The low levels of Al and Fe indicate that silicate dissolution is minimal. Therefore, 8 mL of 1 mol/L NaAc-HAc was chosen to efficiently extract the carbonate phase.
(3) Fraction IIIT: Fe-Mn oxides fraction
Variations in the amounts of Ca, Fe, Mn, Al, and Ti are presented in Fig. 2c. Similar to the BCR extraction, approximately 18% Fe and 20% Mn were removed and the percentages were constant at a volume of 7.5 mL, indicating the dissolution of reactive Fe-Mn oxides. The low percentage of Al indicates only a slight dissolution of silicate occurred. The Fe content was higher with an increase in volume, indicating partial attack of the crystalline Fe oxides and detrital silicate-rich minerals. Consequently, 7.5 mL of 0.04 mol/L NH2OH-HCl in 25% HAc was chosen.
(4) Fraction IVT: organic matter fraction
The amounts of Ca, Fe, Mn, Al, and Ti are shown in Fig. 2d. Small portions of each element extracted in this fraction implied that these elements rarely occurred in the organic matter fraction. The percentages of Mn, Fe, Ca, and Al did not change when the volume exceeded 2.5 mL, except with an increasing percentage of Ti. Hence, 2.5 mL of 30% H2O2 was chosen.
Based on the above discussion, the optimal volume of each extractant was presented as follows: 0.25 g GSD-9 was successively extracted with 20 mL of 1 mol/L MgCl2 (pH=7) at room temperature for 1 h; 8 mL of 1 mol/L NaAc-HAc (pH=5) at room temperature for 5 h; 7.5 mL of 0.04 mol/L NH2OH-HCl in 25% HAc at 96°C for 6 h; 2.5 mL of 30% H2O2 at 85°C for 5 h and 5 mL of 3.2 mol/L NH4Ac (pH=2) at room temperature for 0.5 h.

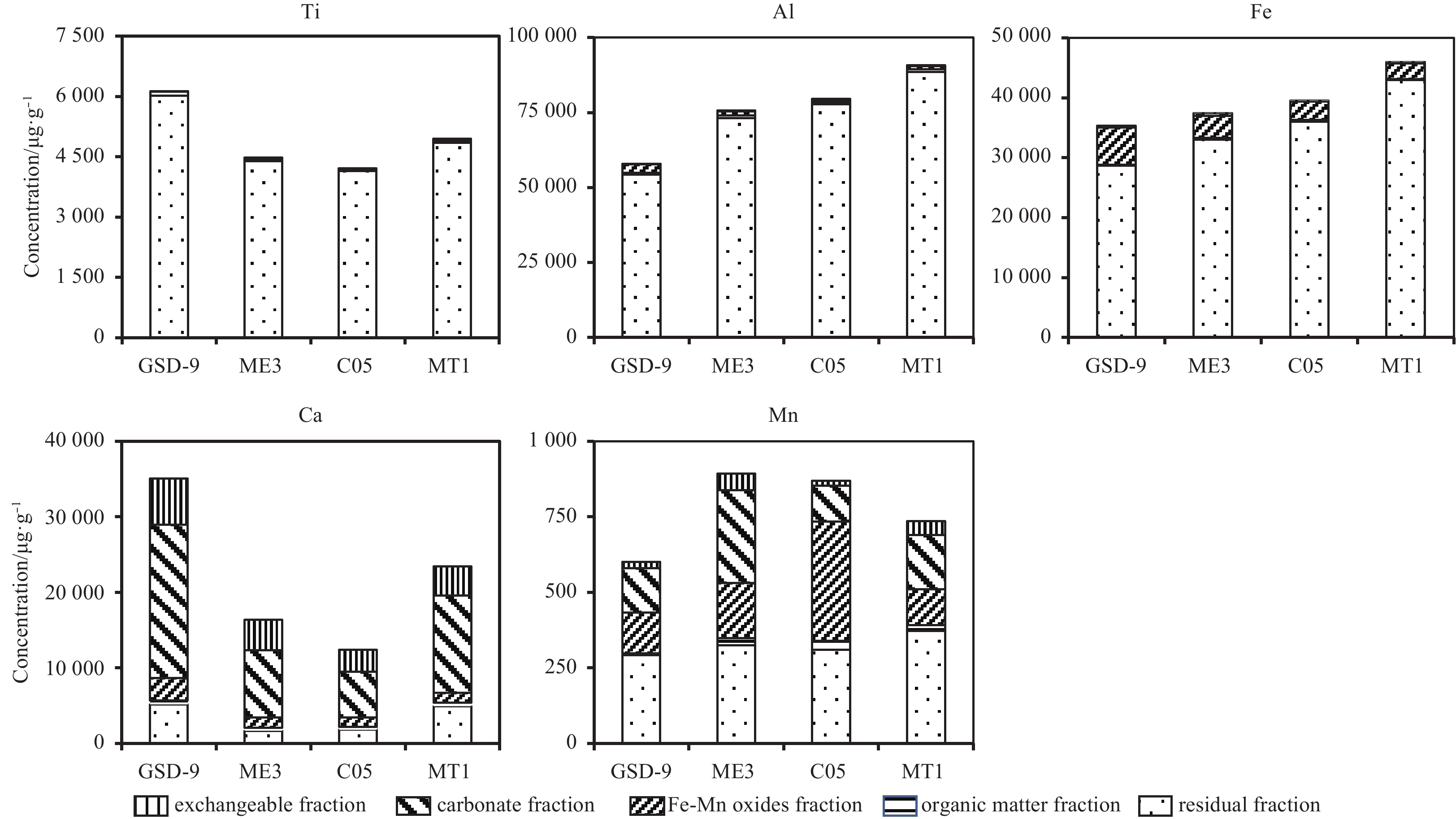

The sums of the individual fractions for both SEPs agree well with the pseudo-total element analyses, ranging from 94% to 106% for the various elements, and the error is within 2% for most elements as shown in Fig. 3a and Fig. 3b, similar dissolution percentages of Fe, Al, and Ti were extracted from each fraction using both SEPs. The distinct difference between the Tessier and BCR SEPs was the exchangeable fraction in the Tessier SEP. Approximately 18% Ca and 4% Mn existed in the exchangeable fraction, the dissolution of this fraction is usually accompanied by the release of nutrient elements, which is important when studying element cycling in estuaries and on continental shelf areas.

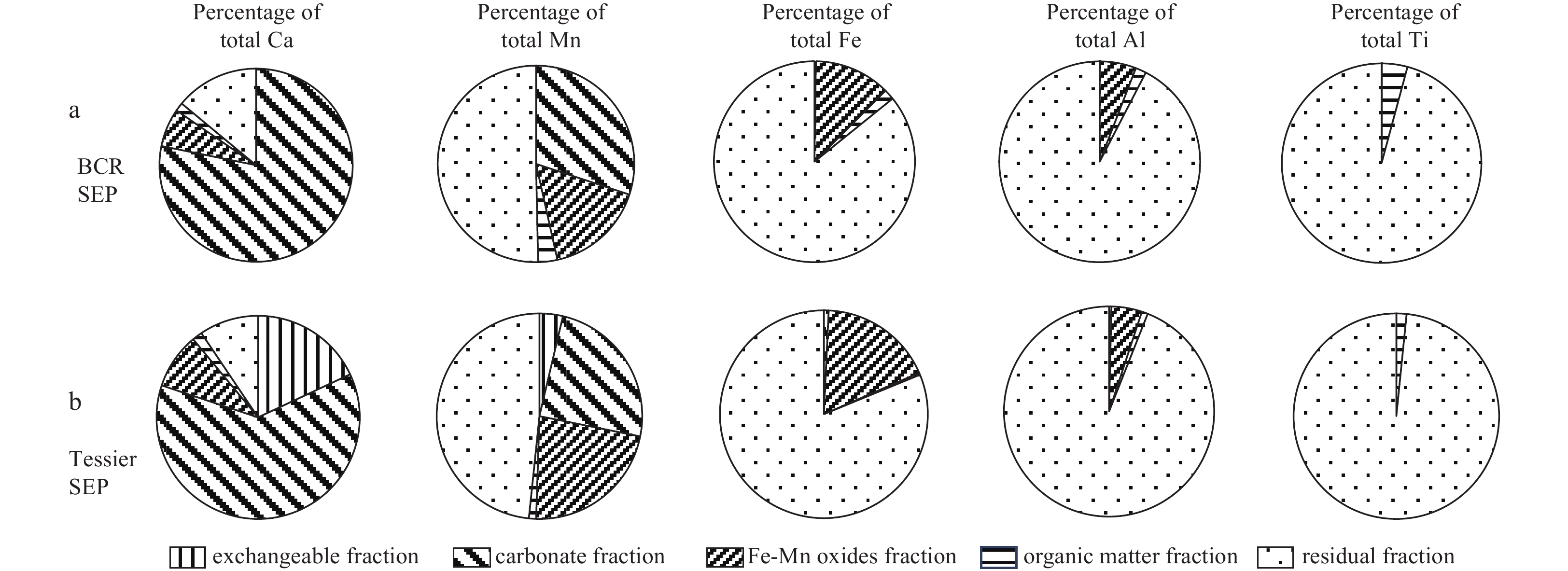

Based on the similarities and differences discussed above between the Tessier and BCR SEPs, we offer several recommendations with regard to the applicability of each SEP to various biogeochemical processes: The Tessier SEP is recommended for the study of the following processes: (1) adsorption-desorption process (exchangeable Ca in estuaries and exchangeable Mn in marine sediments), (2) authigenous origin (carbonate Ca) and carbon cycle, and (3) biogeochemical process of Mn in marine sediments. Both the Tessier and the BCR SEPs can be used for the study of the following processes: (1) oxidation-reduction processes and hypoxia conditions, and (2) clastic rocks and terrigenous sediment provenance.
3.3 Characterizing the difference of surface sediments from various geographical environments on the Chinese continental shelf

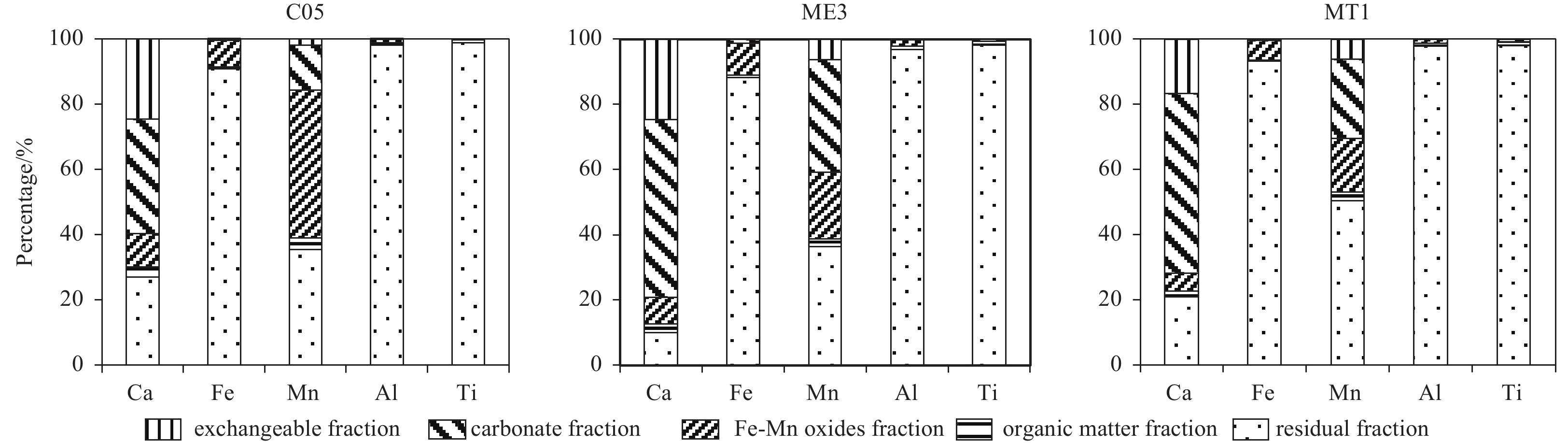

Based on the application recommendations for each SEP, three surface sediments (ME3, south of the Changjiang Estuary; C05, the central YS; and MT1, southwest of Cheju Island) were extracted using the Tessier SEP. The percentages and concentrations of Ca, Fe, Mn, Al, and Ti are shown in Fig. 4 and Fig. 5, respectively. Ti (>98%) was mainly present in the residual fraction, indicating a terrigenous source. Al (>95%) was in the residual fraction, which agrees with previous results (Yuan et al., 2004). The bulk Al/Ti ratio was likely to be used as a sensitive tracer of particle flux and export production (Kryc et al., 2003; Wei et al., 2003). The Al/Ti ratio was found higher in ME3 (16.8), MT1 (18.4) and C05 (18.1) than in the Changjiang (10.5) and Huanghe (16.4) sediments (Zhang et al., 1998), suggesting Al scavenging process by particles. Dou (2007) and Wei et al. (2003) found the excess Al in the ECS and South China Sea (SCS), respectively, suggesting that the excess Al can indicate biogenic matters flux on the shelf area. A total of 80%–90% of Fe was in the residual fraction, followed by 10%–20% Fe in Fe-Mn oxides fraction, agreeing with the results of previous studies (Kryc et al., 2003; Reid et al., 2011). This fraction of Fe arises from oxidation and deposition of Fe in seawater (Huang et al., 1997). About 20%–50%, 20%–40%, 20%–50%, and 2%–5% Mn were in residual, carbonate, reducible, and exchangeable fraction, respectively. The concentration (600 μg/g) and percentage (50%) of Mn in reducible fraction in C05 is higher than that in ME3 and MT1 (100–250 μg/g and 20%–30%, respectively). The excess Mn may result from scavenging of dissolved Mn onto particles settling in high productivity areas near the Yellow Sea Cold Water (Lin et al., 2005). About 30%–60% Ca was associated with carbonates, and 10%–25% was in the exchangeable fraction. This is dissolution of absorbed Ca by electrostatic interaction, poor crystalline Ca and carbonate forms. The concentration of Ca in C05 was lower than that in ME3 and MT1, as a result of the lower concentration of carbonates in the YS (Chen et al., 2000).
4 Conclusions
Less
To choose a suitable SEP for elemental fractionation in Quaternary sediments, the efficiency and selectivity, and application recommendations of the Tessier and BCR SEPs were evaluated.
(1) The extractants used in the BCR and Tessier SEPs have good dissolution efficiency and selectivity for the targeted phases.
(2) The optimal extractant volume for each fraction was determined for each SEP.
(3) To investigate various biogeochemical processes (different elements in specific experimental fraction) the application recommendations for each SEP are given.
(4) The application of the Tessier SEP to the surface sediments on the Chinese continental shelf provides a variety of information including productivity conditions (via higher Al/Ti ratio and the reducible fraction Mn) and sedimentary environments (via carbonate fraction Ca), which further demonstrates the suitability of the Tessier SEP.
Funding
Less
  • The National Natural Science Foundation of China under contract Nos 41530965, 41276071 and 41003052; the JSPS KAKENHI Grants under contract Nos JP26241009 and JP15H00973; the Central Universities under contract Nos 201562008 and 201762031.
References
Less
Chao T T. 1972. Selective dissolution of manganese oxides from soils and sediments with acidified hydroxylamine hydrochloride. Soil Science Society of America Journal, 36(5): 764–768
Chen Chungchi, Gong Gwoching, Shiah F K. 2007. Hypoxia in the East China Sea: one of the largest coastal low-oxygen areas in the world. Marine Environmental Research, 64(4): 399–408
Chen Zhihua, Shi Xuefa, Wang Xiangqin. 2000. Distribution characteristics of carbonate as well as Ca, Sr and Ba in the surface sediments in the South Yellow Sea. Marine Geology & Quaternary Geology (in Chinese), 20(4): 9–16
Chester R, Hughes M J. 1967. A chemical technique for the separation of ferro-manganese minerals, carbonate minerals and adsorbed trace elements from pelagic sediments. Chemical Geology, 2: 249–262
Choi M, Park J, Cho D, et al. 2015. Tracing metal sources in core sediments of the artificial lake An-Dong, Korea: Concentration and metal association. Science of the Total Environment, 527–528: 384–392
Ding Ling, Zhao Meixun, Yu Meng, et al. 2017. Biomarker assessments of sources and environmental implications of organic matter in sediments from potential cold seep areas of the northeastern South China Sea. Acta Oceanologica Sinica, 36(10): 8–19
Dou Weiwei. 2007. Biogeochemical characteristics of metal elements and speciation of aluminum and titanium in sediments in the Yellow Sea and East China Sea (in Chinese) [dissertation]. Qingdao: Ocean University of China
Esmaeilzadeh M, Karbassi A, Moattar F. 2016. Assessment of metal pollution in the Anzali Wetland sediments using chemical partitioning method and pollution indices. Acta Oceanologica Sinica, 35(10): 28–36
Freslon N, Bayon G, Toucanne S, et al. 2014. Rare earth elements and neodymium isotopes in sedimentary organic matter. Geochimica et Cosmochimica Acta, 140: 177–198
Gutjahr M, Frank M, Lippold J, et al. 2014. Peak last glacial weathering intensity on the North American continent recorded by the authigenic Hf isotope composition of North Atlantic deep-sea sediments. Quaternary Science Reviews, 99: 97–111
Gutjahr M, Frank M, Stirling C H, et al. 2007. Reliable extraction of a deepwater trace metal isotope signal from Fe-Mn oxyhydroxide coatings of marine sediments. Chemical Geology, 242(3-4): 351–370
He Jun, Liu Guanglong, Zhu DuanWei, et al. 2015. Sequential extraction of calcium in lake sediments for investigating the cycle of phosphorus in water environment. International Journal of Environmental Science and Technology, 12(3): 1123–1136
Huang Yongyang, Yang Huining. 1997. Controlling of the formation and distribution for polymetallic nodules by the seafloor sediment type and its geochemical environment (in Chinese). Wuhan: China University of Geosciences Press
Kryc K A, Murray R W, Murray D W. 2003a. Elemental fractionation of Si, Al, Ti, Fe, Ca, Mn, P, and Ba in five marine sedimentary reference materials: results from sequential extractions. Analytica Chimica Acta, 487(1): 117–128
Kryc K A, Murray R W, Murray D W. 2003b. Al-to-oxide and Ti-to-organic linkages in biogenic sediment: relationships to paleo-export production and bulk Al/Ti. Earth and Planetary Science Letters, 211(1–2): 125–141
Leleyter L, Probst J L. 1999. A new sequential extraction procedure for the speciation of particulate trace elements in river sediments. International Journal of Environmental Analytical Chemistry, 73(2): 109–128
Li Yanping, Jiang Shaoyong, Yang Tao. 2017. Br/Cl, I/Cl and chlorine isotopic compositions of pore water in shallow sediments: implications for the fluid sources in the Dongsha area, northern South China Sea. Acta Oceanologica Sinica, 36(4): 31–36
Lie H J, Cho C H. 2002. Recent advances in understanding the circulation and hydrography of the East China Sea. Fisheries Oceanography, 11(6): 318–328
Lin Cai, Liu Yang, Li Wenquan, et al. 2014. Speciation, distribution, and potential ecological risk assessment of heavy metals in Xiamen Bay surface sediment. Acta Oceanologica Sinica, 33(4): 13–21
Lin Chen, Ning Xiuren, Su Jilan, et al. 2005. Environmental changes and the responses of the ecosystems of the Yellow Sea during 1976–2000. Journal of Marine Systems, 55(3–4): 223–234
Liu Ming, Fan Dejiang, Liao Yongjie, et al. 2016. Heavy metals in surficial sediments of the central Bohai Sea: their distribution, speciation and sources. Acta Oceanologica Sinica, 35(9): 98–110
Poulton S W, Canfield D E. 2005. Development of a sequential extraction procedure for iron: implications for iron partitioning in continentally derived particulates. Chemical Geology, 214(3–4): 209–221
Rabalais N N, Turner R E, Wiseman W J, et al. 1991. A brief summary of hypoxia on the northern Gulf of Mexico continental shelf: 1985–1988. Geological Society, London, Special Publications, 58(1): 35–47
Rauret G, López-Sánchez J F, Sahuquillo A, et al. 1999. Improvement of the BCR three step sequential extraction procedure prior to the certification of new sediment and soil reference materials. Journal of Environmental Monitoring, 1(1): 57–61
Ray S, Gault H R, Dodd C G. 1957. The separation of clay minerals from carbonate rocks. American Mineralogist, 42: 681–686
Reid M K, Spencer K, Shotbolt L. 2011. An appraisal of microwave-assisted Tessier and BCR sequential extraction methods for the analysis of metals in sediments and soils. Journal of Soils and Sediments, 11(3): 518–528
Rongemaille E, Bayon G, Pierre C, et al. 2011. Rare earth elements in cold seep carbonates from the Niger delta. Chemical Geology, 286(3–4): 196–206
Sahuquillo A, López-Sánchez J F, Rubio R, et al. 1999. Use of a certified reference material for extractable trace metals to assess sources of uncertainty in the BCR three-stage sequential extraction procedure. Analytica Chimica Acta, 382(3): 317–327
Song Y H, Choi M S. 2009. REE geochemistry of fine-grained sediments from major rivers around the Yellow Sea. Chemical Geology, 266(3–4): 328–342
Szefer P, Glasby G P, Pempkowiak J, et al. 1995. Extraction studies of heavy-metal pollutants in surficial sediments from the southern Baltic Sea off Poland. Chemical Geology, 120(1–2): 111–126
Tessier A, Campbell P G C, Bisson M. 1979. Sequential extraction procedure for the speciation of particulate trace metals. Analytical Chemistry, 51(7): 844–851
Usero J, Gamero M, Morillo J, et al. 1998. Comparative study of three sequential extraction procedures for metals in marine sediments. Environment International, 24(4): 487–496
Walter H J, Hegner E, Diekmann B, et al. 2000. Provenance and transport of terrigenous sediment in the South Atlantic Ocean and their relations to glacial and interglacial cycles: Nd and Sr isotopic evidence. Geochimica et Cosmochimica Acta, 64(22): 3813–3827
Wei Gangjian, Liu Ying, Li Xianhua, et al. 2003. Excess Al in the sediments from South China Sea. Bulletin of Mineralogy, Petrology and Geochemistry (in Chinese), 22(1): 23–25
Yang Shouye, Jung H S, Choi M S, et al. 2002. The rare earth element compositions of the Changjiang (Yangtze) and Huanghe (Yellow) river sediments. Earth and Planetary Science Letters, 201(2): 407–419
Yuan Chungang, Shi Jianbo, He Bin, et al. 2004. Speciation of heavy metals in marine sediments from the East China Sea by ICP-MS with sequential extraction. Environment International, 30(6): 769–783
Zhang Chaosheng, Zhang Shen, Wang Lijun, et al. 1998. Geochemistry of metals in sediments from Changjiang River and Huanghe River and their comparison. Acta Geographica Sinica (in Chinese), 53(4): 314–322
Zhang Kan, Zhu Xiangkun, Yan Bin. 2015. A refined dissolution method for rare earth element studies of bulk carbonate rocks. Chemical Geology, 412: 82–91
Zhu Zhaozhou, Liu Congqiang, Wang Zhongliang, et al. 2006. Rare earth element for tracing the source of suspended particulate matter of Lake Chaohu. Journal of Lake Sciences (in Chinese), 18(3): 267–272
Zhu Zhaozhou, Wang Zhongliang, Li Jun, et al. 2012. Distribution of rare earth elements in sewage-irrigated soil profiles in Tianjin, China. Journal of Rare Earths, 30(6): 609–613
Zou Mingliang, Huang Sijing, Hu Zuowei, et al. 2008. The origin of carbonate cements and the influence on reservoir quality of Pinghu Formation in Xihu Sag, East China Sea. Lithologic Reservoirs (in Chinese), 20(1): 47–52
