Differences in planktonic ciliate spatial distribution in spring and autumn in the southern Yellow Sea

Differences in planktonic ciliate spatial distribution in spring and autumn in the southern Yellow Sea

PDF

Shan ZHANG¹^,², Haibo LI¹^,², Xue CHEN¹^,²^,³, Yi DONG¹^,², Fang ZHANG¹^,², Tian XIAO¹^,², Wuchang ZHANG¹^,², Yuan ZHAO¹^,²^,^*

Acta Oceanologica Sinica | 2018, 37(4) : 48 - 57

Less

Acta Oceanologica Sinica | 2018, 37(4): 48-57

• Marine Biology •

Differences in planktonic ciliate spatial distribution in spring and autumn in the southern Yellow Sea

Full

Shan ZHANG¹^,², Haibo LI¹^,², Xue CHEN¹^,²^,³, Yi DONG¹^,², Fang ZHANG¹^,², Tian XIAO¹^,², Wuchang ZHANG¹^,², Yuan ZHAO¹^,²^,^*

Affiliations

¹ CAS Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

² Laboratory for Marine Ecology and Environmental Science, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China

³ University of Chinese Academy of Sciences, Beijing 100049, China

Published: 2018-04-25 doi: 10.1007/s13131-018-1147-y

Outline

Abstract

Less

Seasonal variation of marine plankton spatial distribution is important in understanding the biological processes in the ocean. In this study, we studied spatial distribution of planktonic ciliate abundance and biomass in the central deep area (station depth greater than 60 m) and the coastal shallow area (station depth less than 60 m) of the southern Yellow Sea (32°–36.5°N, 121°–125°E) in spring (April) and autumn (October–November) of 2006. Our results showed that both ciliate abundance and biomass in the surface waters were higher in spring ((1 490±2 336) ind./L; (4.11±7.81) μg/L) than in autumn ((972±823) ind./L; (1.11±1.18) μg/L, calculated by carbon). Ciliate abundance and biomass in the surface waters of the coastal shallow area were similar in spring and autumn. However, in the central deep area, those values were much higher in spring ((1 878±2 893) ind./L; (5.99±10.10) μg/L) than in autumn ((738±373) ind./L; (0.74±0.76) μg/L). High values of ciliate abundance and biomass occurred in the central deep area in spring and in the coastal shallow area in autumn. Mixotrophic ciliate Laboea strobila was abundant in the central deep area in spring, when a phytoplankton bloom occurred. However, in autumn, L. strobila was abundant in the coastal shallow area. Boreal tintinnid Ptychocyli obtusa was found in spring. Both L. strobila and P. obtusa were concentrated in the surface waters when their abundance was more than 1 000 ind./L. Peaks of these species were in the subsurface waters when their abundance was less than 400 ind./L. This study showed that both high abundance and biomass of ciliates occurred in different areas in southern Yellow Sea seasonally.

Key words

ciliates / abundance / biomass / southern Yellow Sea

Cite this Article

Shan ZHANG, Haibo LI, Xue CHEN, Yi DONG, Fang ZHANG, Tian XIAO, Wuchang ZHANG, Yuan ZHAO. Differences in planktonic ciliate spatial distribution in spring and autumn in the southern Yellow Sea[J]. Acta Oceanologica Sinica, 2018 , 37 (4) : 48 -57 . DOI: 10.1007/s13131-018-1147-y

Full Text

Less

1 Instruction

Less

Marine planktonic ciliates are a group of single-celled protozoan in marine ecosystem. They are divided into loricate (tintinnids) and aloricate (naked) forms. With length from 5 μm to 200 μm, they are important members of microzooplankton. As key components of the marine microbial food web, they play an important role in plankton ecosystem and act as the primary consumers of the pico/nano-producers, major food sources of mesozooplanktons and larval fish (Pierce, 1992; Montagnes et al., 2010). Therefore, they are linkages between microbial food web and classical food chain (Edwards and Burkill, 1995). They are also important nutrient regenerators (Laval-Peuto et al., 1986; Pierce and Turner, 1994) in the marine ecosystems. There are seasonal changes of abundance in currents and stratifications in the coastal seas. However, little information was reported about the spatial distribution in different seasons, particularly in coastal seas.

The Yellow Sea (average station depth of 44 m) is a coastal sea located on the continental shelf of the western Pacific Ocean. Here a significant seasonal phenomenon is the formation and dissipation of the Yellow Sea Cold Bottom Water (YSCBW), a basin-scale water mass with low temperature under thermocline in the warm period of a year (Ho et al., 1959; Yu et al., 2006). Another character is the spring phytoplankton bloom (Chl a concentration greater than 4 μg/L) from April to May in the central Yellow Sea (Tang et al., 2013). Spatial distribution of planktonic ciliates has been studied in different parts and seasons. Horizontal distribution of planktonic ciliates in the southern Yellow Sea was limited in April, August (Ding and Xu, 2012) and June (Zhang et al., 2002). High abundance area of planktonic ciliates and anchovy larvae was overlapped in June (Zhang et al., 2002). Jellyfish grazing on ciliates was ascribed as possible reason for low ciliate abundance in some area of the Yellow Sea (Ding and Xu, 2012). The spatial distributions of large tintinnid were well correlated with hydrology (Zhang et al., 2008, 2009). The monthly variation of ciliate abundance in two transects in YSCBW showed that there was low ciliate abundance in the YSCBW while high ciliate abundance occurred in the tidal front at the edge of YSCBW (Yu et al., 2014). The response of ciliates to phytoplankton bloom was not studied before in the Yellow Sea. rDNA sequence diversity has been studied to demonstrate ciliate distribution pattern in the neritic Bohai Sea and the Yellow Sea in June and November, 2011 (Dong et al., 2014). In this paper, we studies the spatial distribution of planktonic ciliates in the southern Yellow Sea in spring (with phytoplankton bloom and without YSCBW) and autumn (with YSCBW). We also highlighted the distribution of the mixotrophic ciliate Laboea strobila and the biogeographically boreal tintinnid species Ptychocylis obtusa in the southern Yellow Sea.

2 Materials and methods

Less

Two cruises were conducted in spring (8-29 April 2006) and autumn (from 16 October to 3 November 2006) in the southern Yellow Sea (32°–36.5°N, 121°–125°E) (Fig. 1) on board R/V Beidou. Study area covered the deep central trough (maximum station depth of 89 m in Sta. 13) and the coastal shallow Subei Bank (minimum station depth of 17 m in Sta. 23). Sampling stations were not completely the same. There were totally 38 stations in spring cruise and 34 stations in autumn cruise, respectively. These stations formed six transects (Transects 1 to 6).

Vertical profiles of water temperature and salinity were measured with Seabird 911 CTD system. Water samples were collected by rosette water sampler at several depths of each station. To determine chlorophyll a (Chl a) concentration, 1 L of sea water was filtered through GF/F glass fiber filters, which was then extracted with 90% acetone at –20°C in darkness for 24 h. Chlorophyll a concentrations were determined using a Turner Designs fluorometer (Strickland and Parsons, 1972). One-liter water for ciliate sample was fixed with Lugol’s solution to a final concentration of 1%. A total of 181 ciliate samples were collected. Samples were kept in cool dark place before analysis.

Ciliate samples were processed according to Utermöhl (1958). Supernatant (about 900 mL) were siphoned out after 48 h sedimentation. The rest 100 mL were well mixed and 20 mL subsample were transferred into settlement chamber. Ciliates in the chamber were examined and counted under Olympus CKX41 inverted microscope with a magnification of ×100 to estimate ciliate abundance. All analysis was finished within two months. Taxa of tintinnid were determined to species according to Zhang et al. (2012, 2015).

For aloricate ciliates, their body length and width were measured as the similar geometrical shape (e.g., cylinder, sphere and pyramids) to obtain the volume. For tintinnids, body volume was equal to 1/3 of loricate volume. Ciliate carbon biomass was calculated based on cell volume with a conversion factor of 0.19 pg/μm³ (Putt and Stoecker, 1989). Correlation analysis was performed by software SPSS (Version 16).

3 Results

Less

3.1 Hydrographic conditions, Chl a and ciliates in spring

3.1.1 Horizontal distribution

Chlorophyll a concentration of the surface waters ranged from 0.89 μg/L (Sta. 2) to 15.38 μg/L (Sta. 11). High value was in the central deep area (station depth greater than 60 m) where a phytoplankton bloom occurred. The other area where high value appeared was Sta. 34, which was near the Changjiang (Yangtze River) Estuary (Fig. 2a).

Surface temperature (6.7–14.4°C) decreased gradually from south to north, with peak value in Sta. 34 near the Changjiang Estuary (Fig. 2b). A warm water tongue intruded along the 70 m isobath. Surface salinity (25.91–34.18) decreased from the center to coastal stations with peak value in Sta. 18 (Fig. 2c).

Ciliate abundance and biomass in the surface waters were (1 490±2 336) (0–10 267) ind./L and (4.11±7.81) (0–32.29) μg/L, respectively. There were two high value areas (Figs 2d, g). One was in the central deep area, where peak abundance (7 080-10 267 ind./L) and biomass (16.03–32.29 μg/L) were in Sta.10 and Sta. 8, respectively. Another one was in Sta. 34 (abundance 6 450 ind./L, biomass 9.68 μg/L). Values of both abundance and biomass were higher in the north than south, and their distribution pattern coincided with that of Chl a.

3.1.2 Vertical distribution

Waters were vertically well mixed without stratification in the six transects (Figs 3 and 4). High Chl a occurred in the subsurface waters of Transects 1 and 4 and the surface waters of other transects. Ciliates abundance peaks were in the 20 m waters of Transects 4 and 5 and the surface waters of Transects 1–3 and 6.

3.2 Hydrographic conditions, Chl a and ciliates in autumn

3.2.1 Horizontal distribution

High values of Chl a in the surface waters were outside YSCBW and peaked in Sta. 23 (3.03 μg/L) and Sta. 32 (2.84 μg/L) (Fig. 5a). Surface temperature ranged from 18.1°C (Sta. 3) to 24.7°C (Sta. 38) and decreased gradually from south to north (Fig. 5b). Surface salinity was in a range of 30.86 (Sta. 23) to 33.87 (Sta. 36) (Fig. 5c). Bottom temperature and salinity showed that the range of YSCBW (bottom temperature less than 12°C) was approximately limited in waters with station depth greater than 60 m (Figs 5e, f).

Ciliate abundance and biomass in the surface waters were (972±823) (35–3 885) ind./L and (1.11±1.18) (0.14–5.330) μg/L, respectively. Abundance peaked in Sta. 30 and biomass peaked in Stas 30, 35 and 37 (4.08–5.33 μg/L). They were all distributed outside YSCBW region (Figs 5d, g).

3.2.2 Vertical distribution of ciliates

The YSCBW spanned from Transects 1 to 4 (34°–36.5°N) where station depth was greater than 60 m with apparent stratification. Unlike the other four transects, waters in Transect 5 and Transect 6 were vertically well mixed (Figs 6 and 7). Chlorophyll a concentration was high in the surface waters in Transects 2 and 6 and the subsurface waters in other transects. Ciliate abundance peaked in the surface waters of Transects 2, 5 and 6 and the subsurface layers of the rest transects. There were some common features on the distribution of ciliates in Transects 1 to 4: peak values of ciliate abundance were in the coastal stations, where Chl a and temperature was relatively high and salinity was low.

3.3 Correlation analysis

Correlation analysis was conducted between biological and environmental data in spring and autumn, separately (Table 1). In spring, significant negative correlations were identified between ciliate abundance/biomass and surface/bottom temperature (P<0.01). There is a significant positive correlation between autumn ciliate biomass and Chl a concentration in surface (P<0.01). Surface ciliate biomass and temperature difference between surface and bottom waters (△T) were negatively related in spring and autumn (P<0.05). In autumn, ciliate biomass was high where bottom temperature was low (P<0.05).

3.4 Laboea strobila

In spring, L. strobila abundance was (952±2 573) ind./L and was mainly distributed in northern Transects 1–4. Higher values (1 125–10 000 ind./L) were in the surface waters of Stas 8, 9 and 10, where average station depth was 74 m (Fig. 8a). In autumn, its abundance dropped dramatically to (228±121) ind./L and was mainly concentrated outside of YSCBW (Fig. 8b). High abundance (350 ind./L) occurred in Stas 7 and 32, where average station depth was only 53.5 m. Abundance of L. strobila accounted for 1%–97% of total ciliate abundance in the water columns.

When abundance of L. strobila (Fig. 9a) was greater than 1 000 ind./L in water column, its peak abundance occurred in the surface waters as in Stas 8, 9 and 10 (Figs 9b1–b3). When its abundance was less than 400 ind./L, peak values appeared in the subsurface waters (Figs 9c1–c6).

3.5 Ptychocyli obtusa

With higher abundances (1 437–2 895 ind./L) in the surface waters of Stas 8, 13 and 9, P. Obtusa (Fig. 10a) was only detected in spring with abundance of (503±874) ind./L. Its distribution was limited in deep stations with station depth of ~76.3 m (Fig. 8c) and surface temperature less than 10°C. The contribution of P. obtusa to total ciliate abundance ranged from 1% to 64% that peaked at Sta. 12. Peak of P. obtusa abundance was in the surface waters when its abundance was greater than 1 000 ind./L (Figs 10b1–b3). Abundance peaks were beneath 20 m when its abundance was less than 400 ind./L (Figs 10c1–c4).

4 Discussion

Less

4.1 Ciliate abundance and biomass

The values of ciliate abundance and biomass in our study were similar with previous reports. In Ding and Xu (2012), ciliate abundance and biomass in the Yellow Sea were (2 034±2 026) (0–7 440) ind./L and (8.04±11.01) (0–42.21) μg/L, respectively, in April. In June, total ciliate abundance was between 40 and 3 420 ind./L and biomass in surface waters was in a range of 0.15–6.76 μg/L (Zhang et al., 2002). Yu et al. (2014) reported annual ranges of ciliate abundance and biomass of 0–3 989 ind./L and 0–6.77 μg/L, respectively, in two transects.

4.2 Ciliates in central deep area and coastal shallow area

The April cruise was carried out during the spring phytoplankton bloom (Chl a concentration greater than 4 μg/L) period, which started from April to May each year (Tang et al., 2013). The maximum Chl a concentration (16.19 μg/L) was near but lower than the recorded 30–35 μg/L (Tang et al., 2013).

In spring, high surface Chl a concentration (>3 μg/L) area was approximately limited in the stations where station depth was greater than 60 m. In autumn, YSCBW, where bottom water temperature was less than 12°C (Yu et al., 2014), was also limited in the same area. Therefore, we considered this area as the central deep area while that with station depth less than 60 m as the coastal shallow area.

In our study, horizontal distributions of ciliate showed different patterns in spring and autumn. Ciliate peaks in surface waters occurred in the central deep area in spring, while they appeared in the coastal shallow area in autumn.

Chlorophyll a, ciliate abundance and biomass in the central deep area of spring was much higher than that of autumn. On the contrary, they were almost equal in autumn. In spring, peak values of Chl a, ciliate abundance and biomass were higher in the central deep area than those in coastal waters, while they were higher in coastal waters in autumn.

Ding and Xu (2012) found that ciliate abundance in Transect 3 (35°N) and Transect 4 (34°N) was higher in April than that in August, while it was opposite in Transect 5 (33°N). It described the same pattern as ours that in spring peak value of ciliates was in north part of southern Yellow Sea, while in autumn it peaks in south. In our study, spring ciliate abundance in the surface of Transects 3 (35°N), 4 (34°N) and 5 (33°N) was (750±954) ind./L, (656±526) ind./L and (160±130) ind./L, respectively. While in autumn, they were (1 020±550) ind./L, (665±177) ind./L and (1 372±1 441) ind./L. Ding and Xu (2012) attributed the sharp decrease of ciliate abundance in Transect 3 (35°N) and Transect 4 (34°N) from April to August to the predation pressure from the increasing number of large jellyfish. In October, there was very little number of large jellyfish (Sun et al., 2015). Therefore, the reason for the phenomenon was not due to large jellyfish in our study.

The difference in the positions of high ciliate abundance and biomass in different seasons might result from the taxonomic difference. We cannot identify aloricate ciliates to species by light microscopy and Lugol’s-fixed samples. The taxonomic information could be obtained from molecular method. For example, Dong et al. (2014) found that the terminal-restriction fragment (T-RF) richness of ciliates was generally higher in the southern Yellow Sea than that in the Bohai Sea.

4.3 Laboea strobila

The mixotrophic ciliate L. strobila was both found in spring and autumn. This species is wide spread in temperate coastal waters. Maximum abundances of 1 700, 135, and 1 800 ind./L were found in the Tyrrhennian Sea (Modigh, 2001), Catalan Sea (Dolan and Maarassé, 1995) and Chesapeake Bay (Dolan, 1991), respectively. The first record in the Yellow Sea was in June 2000 with a maximum abundance of 640 ind./L in the subsurface waters (Zhang et al., 2002). To our knowledge, its peak abundance (10 000 ind./L) in this study was the highest recorded abundance.

Vertical distribution of this species in our studies coincided with previous studies (Dale and Dahl, 1987; Stoecker et al., 1989), which demonstrated that L. stobila was concentrated in the waters where depth greater than 10 m in spring and could only be detected in the waters where depth greater than 30 m in autumn. The reason could be that L. strobila is a mixotrophic ciliate. It can implement photosynthesis for survival by feeding phytoplankton and gobbling up their pigments (Stoecker et al., 1988). Therefore it is crucial to live in the surface water to capture sunlight.

The average Chl a concentration per cell of this species was 82 pg (Putt, 1990). Accordingly, the highest concentration of Chl a in L. strobila was 0.820 μg/L (surface water of Sta. 10) and 0.017 μg/L (subsurface water of Sta. 24) in spring and autumn, respectively. The ratio of Chl a contributed by L. strobila to total Chl a ranged from 0% to 7.11% and from 0% to 4.95% in spring and in autumn, respectively. These values are similar to 2%–3% in temperate coastal Long Island Sound, USA (McManus and Fuhrman, 1986).

4.4 Ptychocyli obtusa

The occurrence of P. obtusa in the southern Yellow Sea is extraordinary. This species was not found previously in the southern Yellow Sea. The size of this species is 100-125 (average 105) μm in length and 60-67 (average 65) μm in width, which could not be caught in the plankton net (mesh pore size 76 μm) used in the studies of Zhang et al. (2008, 2009). Ptychocyli is biogeographically a boreal genus which mainly inhabited in areas with low temperature, such as Arctic Ocean (Gold and Morales, 1975). It was transported from boreal waters southward by the Oyashio Current (Kato and Taniguchi, 1993; Gómez, 2007). In our study, this species was found in waters with temperature less than 10°C. Because the warm current Kuroshio flows northward to the Tsushima Strait and Pacific Ocean west of Japan, it seemed that Oyashio had no chance to intrude into the southern Yellow Sea. Indeed, no boreal genera were found in the year-round monitoring of tintinnid assemblage in coastal waters of the Tsushima Strait for several years (Kim et al., 2012). Therefore, we postulated that P. obtusa might be an indigenous species in the southern Yellow Sea.

Acknowledgements

Less

The authors thank the captain and crews of R/V Beidou for their assistance in the sample collection during the cruises.

Funding

Less

The National Natural Science Foundation of China (NSFC) under contract Nos U1606404 and 41576164; the Strategic Priority Research Programs under contract No. XDA11020103.1.

References

Less

Dale T, Dahl E. 1987. Mass occurrence of planktonic oligotrichous ciliates in a bay in southern Norway. Journal of Plankton Research, 9(5): 871–879

Ding Junjun, Xu Kuidong. 2012. Community structure and distribution of pelagic nanoflagellates and ciliates and their relationship with jellyfish occurrence in southern Yellow Sea. Oceanologia et Limnologia Sinica (in Chinese), 43(3): 527–538

Dolan J R. 1991. Guilds of ciliate microzooplankton in the Chesapeake Bay. Estuarine, Coastal and Shelf Science, 33(2): 137–152

Dolan J R, Maarassé C. 1995. Planktonic ciliate distribution relative to a deep chlorophyll maximum: Catalan Sea, N. W. Mediterranean, June 1993. Deep Sea Research I: Oceanographic Research Papers, 42(11–12): 1965–1987

Dong Jun, Shi Fei, Li Han, et al. 2014. SSU rDNA sequence diversity and seasonally differentiated distribution of nanoplanktonic ciliates in neritic Bohai and Yellow Seas as revealed by T-RFLP. PLoS One, 9(7): e102640

Edwards E S, Burkill P H. 1995. Abundance, biomass and distribution of microzooplankton in the Irish Sea. Journal of Plankton Research, 17(4): 771–782

Gold K, Morales E A. 1975. Tintinnida of the New York Bight: Loricae of Parafavella gigantea, P. parumdentata, and Ptychocylis obtusa. Transactions of the American Microscopical Society, 94(1): 142–145

Gómez F. 2007. Trends on the distribution of ciliates in the open Pacific Ocean. Acta Oecologica, 32(2): 188–202

Ho C P, Wang Yuanxiang, Lei Zongyou, et al. 1959. A prelimenary study of the formation of Yellow Sea cold mass and its properties. Oceanologia et Limnologia Sinica (in Chinese), 2(1): 11–15

Kato S, Taniguchi A. 1993. Tintinnid ciliates as indicator species of different water masses in the western North Pacific Polar Front. Fisheries Oceanography, 2(3–4): 166–174

Kim Y O, Shin K, Jang P G, et al. 2012. Tintinnid species as biological indicators for monitoring intrusion of the warm oceanic waters into Korean coastal waters. Ocean Science Journal, 47(3): 161–172

Laval-Peuto M, Heinbokel J F, Anderson O R, et al. 1986. Role of micro- and nanozooplankton in marine food webs. International Journal of Tropical Insect Science, 7(3): 387–395

McManus G B, Fuhrman J A. 1986. Photosynthetic pigments in the ciliate Laboea strobila from Long Island Sound, USA. Journal of Plankton Research, 8(2): 317–327

Modigh M. 2001. Seasonal variations of photosynthetic ciliates at a Mediterranean coastal site. Aquatic Microbial Ecology, 23(2): 163–175

Montagnes D J S, Dower J F, Figueiredo G M. 2010. The protozooplankton-ichthyoplankton trophic link: an overlooked aspect of aquatic food webs. Journal of Eukaryotic Microbiology, 57(3): 223–228

Pierce R W. 1992. Ecology of planktonic ciliates in marine food webs. Rev Aquat Sci, 6(2): 139–181

Pierce R W, Turner J T. 1994. Plankton studies in Buzzards Bay, Massachusetts, USA: III. Denoflagellates, 1987 to 1988. Marine Ecology Progress Series, 112: 225–234

Putt M. 1990. Abundance, chlorophyll content and photosynthetic rates of ciliates in the Nordic Seas during summer. Deep Sea Research Part A. Oceanographic Research Papers, 37(11): 1713–1731

Putt M, Stoecker D K. 1989. An experimentally determined carbon: volume ratio for marine "oligotrichous" ciliates from estuarine and coastal waters. Limnology and Oceanography, 34(6): 1097–1103

Stoecker D K, Silver M W, Michaels A E, et al. 1988. Obligate mixotrophy in Laboea strobila, a ciliate which retains chloroplasts. Marine Biology, 99(3): 415–423

Stoecker D K, Taniguchi A, Michaels A E. 1989. Abundance of autotrophic, mixotrophic and heterotrophic planktonic ciliates in shelf and slope waters. Marine Ecology Progress Series, 50: 241–254

Strickland J D H, Parsons T R. 1972. A practical Handbook of Seawater Analysis. Ottawa: Fisheries Board of Canada, 167

Sun Song, Zhang Fang, Li Chaolun, et al. 2015. Breeding places, population dynamics, and distribution of the giant jellyfish Nemopilema nomurai (Scyphozoa: Rhizostomeae) in the Yellow Sea and the East China Sea. Hydrobiologia, 754(1): 59–74

Tang Qisheng, Su Jilan, Zhang Jing, et al. 2013. Spring blooms and the ecosystem processes: the case study of the Yellow Sea. Deep Sea Research II: Topical Studies in Oceanography, 97: 1–3

Utermöhl H. 1958. Zur Vervollkommnung der Quantitativen Phytoplankton-Methodik: Mit 1 Tabelle und 15 abbildungen im Text und auf 1 Tafel. Internationale Vereinigung fur Theoretische und Angewandte Limnologir: Mitteilungen, 9(1): 1–38

Yu Fei, Zhang Zhixin, Diao Xinyuan, et al. 2006. Analysis of evolution of the Huanghai Sea Cold Water Mass and its relationship with adjacent water masses. Haiyang Xuebao (in Chinese), 28(5): 26–34

Yu Ying, Zhang Wuchang, Zhang Cuixia, et al. 2014. Basin-scale variation in planktonic ciliate distribution: a detailed temporal and spatial study of the Yellow Sea. Marine Biology Research, 10(7): 641–654

Zhang Wuchang, Feng Meiping, Yu Ying, et al. 2012. Illustrated Guide to Contemporary Tintinnids in the World (in Chinese). Beijing: Science Press, 1–499

Zhang Wuchang, Xu Kuidong, Wan Ruijing, et al. 2002. Spatial distribution of ciliates, copepod nauplii and eggs, Engraulis japonicus post-larvae and microzooplankton herbivorous activity in the Yellow Sea, China. Aquatic Microbial Ecology, 27(3): 249–259

Zhang Cuixia, Zhang Wuchang, Xiao Tian, et al. 2008. Meso-scale spatial distribution of large tintinnids in early summer in southern Yellow Sea. Chinese Journal of Oceanology and Limnology, 26(1): 81–90

Zhang Cuixia, Zhang Wuchang, Xiao Tian, et al. 2009. Wintertime meso-scale horizontal distribution of large tintinnids in the southern Yellow Sea. Chinese Journal of Oceanology and Limnology, 27(1): 31–37

Zhang Wuchang, Yu Ying, Xiao Tian. 2015. An Illustrated Guide to Marine Planktonic Aloricate Oligotrich Ciliates (in Chinese). Beijing: Science Press, 1–135

Appendix

Less

Year 2018 volume 37 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-018-1147-y

Receive Date：2016-06-14
Online Date：2026-04-13
Published：2018-04-25

Article Data

Affiliations

History

Received：2016-06-14
Accepted：2016-08-02

Funding

The National Natural Science Foundation of China (NSFC) under contract Nos U1606404 and 41576164; the Strategic Priority Research Programs under contract No. XDA11020103.1.

Affiliations

¹ CAS Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

² Laboratory for Marine Ecology and Environmental Science, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China

³ University of Chinese Academy of Sciences, Beijing 100049, China

Corresponding:

*E-mail: yuanzhao@qdio.ac.cn

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-018-1147-y

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Season	Ciliate variables	T-Sur	T-Bot	△T	S-Sur	S-Bot	Chl a-Sur
Note: Bot represents bottom, Sur surface, T temperature, S salinity, Chl a chlorophyll a concentration, and △T temperature difference between surface and bottom waters. * Correlation is significant at the 0.05 level (2-tailed); ** correlation is significant at the 0.01 level (2-tailed).
Spring	abundance	–0.541**	–0.512**	–0.283	0.047	0.098	0.337
	biomass	–0.548**	–0.544**	–0.373*	–0.154	–0.135	–0.261
Autumn	abundance	–0.100	–0.046	–0.076	–0.139	–0.135	0.345
	biomass	0.333	–0.455*	–0.407*	0.321	–0.048	0.496**

Fig. 1. Station and Transect map in the southern Yellow Sea. T1 to T6 represent Transect 1 to Transect 6. The black dot represents the sampling station both in spring and autumn and the red triangle the sampling stations in spring only. The contours are isobaths (m).

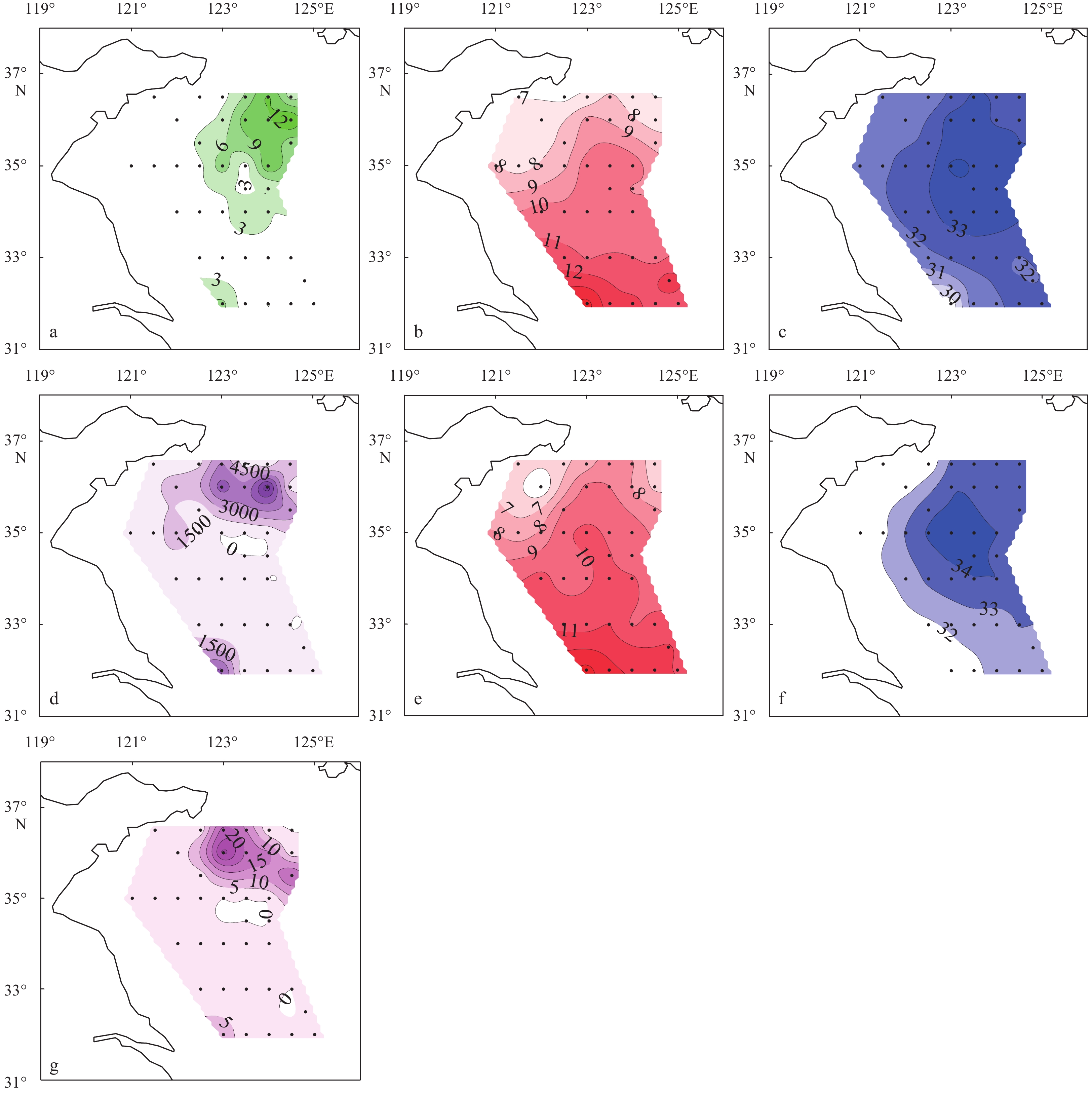

Fig. 2. Horizontal distribution of surface Chl a (μg/L) (a), temperature (°C) (b), salinity (c), ciliate abundance (ind./L) (d), bottom temperature (°C) (e), salinity (f), and biomass (μg/L) (g) in spring.

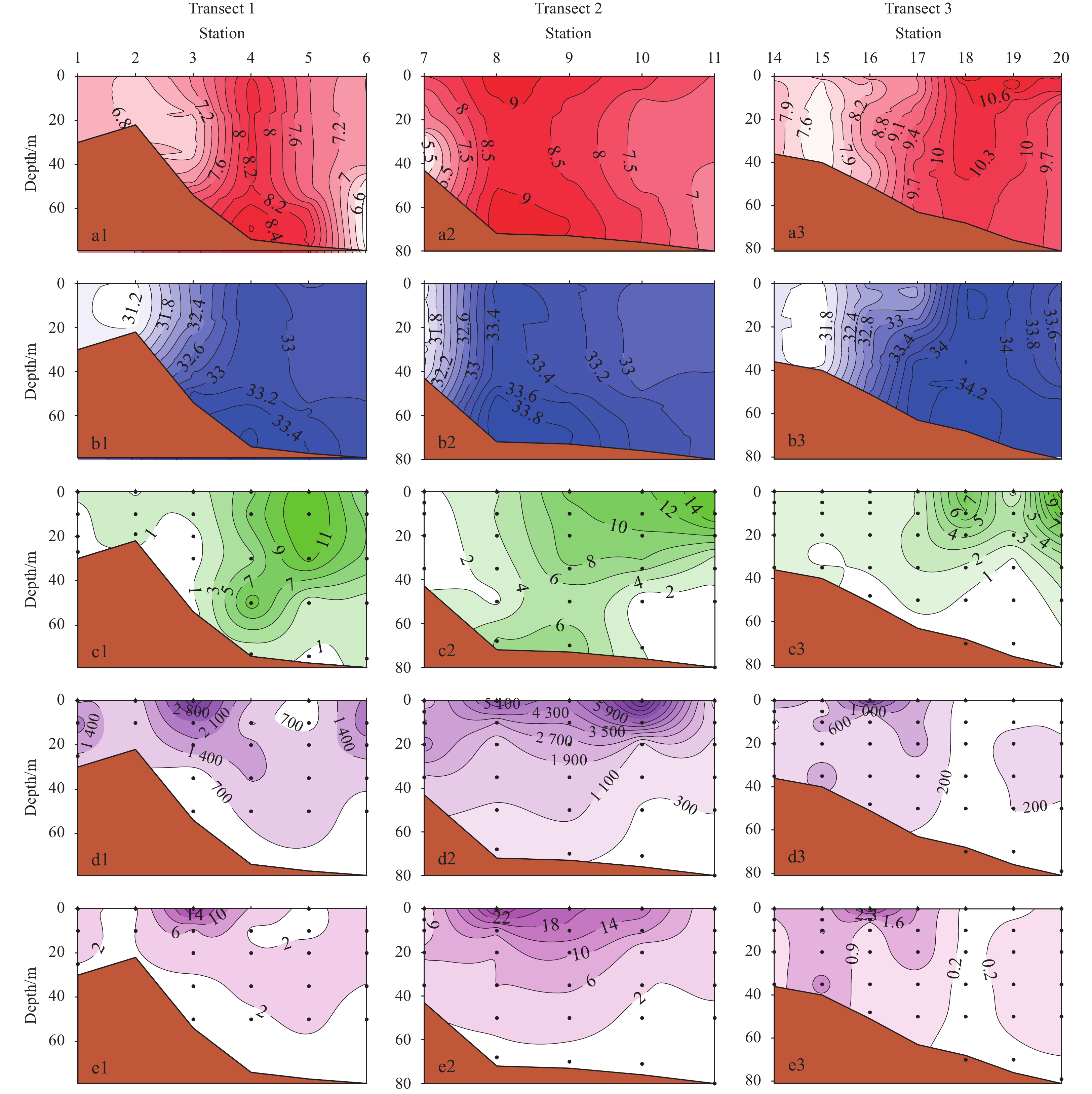

Fig. 3. Vertical distribution of temperature (°C), salinity, Chl a (μg/L), ciliate abundance (ind./L) and biomass (μg/L) of Transects 1, 2 and 3 in spring of 2006. a1. Temperature, b1. salinity, c1. Chl a, d1. ciliate abundance and e1. biomass of Transect 1; a2. temperature, b2. salinity, c2. Chl a, d2. ciliate abundance and e2. biomass of Transect 2; a3. temperature, b3. salinity, c3. Chl a, d3. ciliate abundance and e3. biomass of Transect 3. Dots mean the sampling positions.

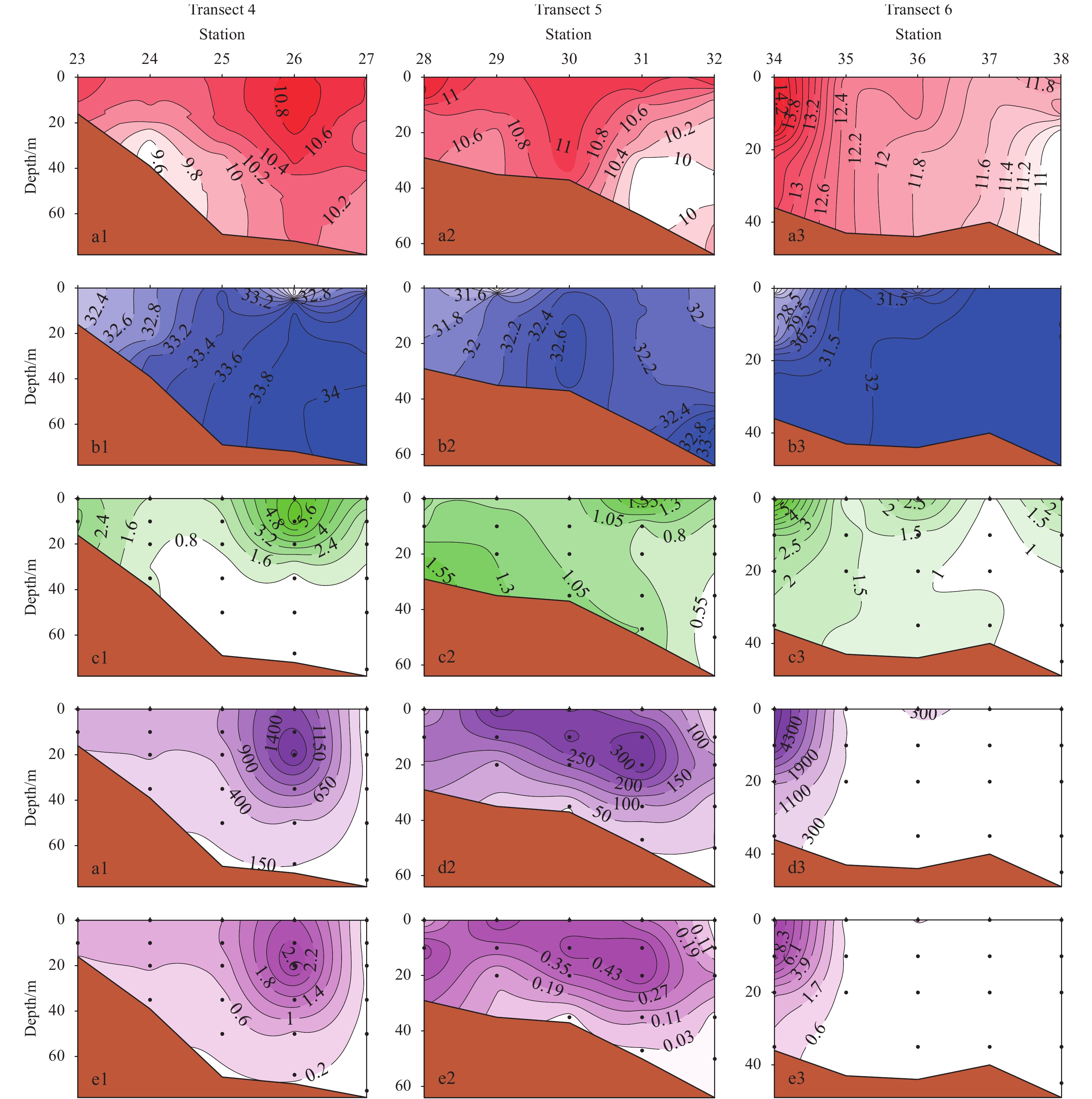

Fig. 4. Vertical distribution of temperature (°C), salinity, Chl a (μg/L), ciliate abundance (ind./L) and biomass (μg/L) of Transects 4, 5 and 6 in spring of 2006. a1. Temperature, b1. salinity, c1. Chl a, d1. ciliate abundance and e1. biomass of Transect 4; a2. temperature, b2. salinity, c2. Chl a, d2. ciliate abundance and e2. biomass of Transect 5; a3. temperature, b3. salinity, c3. Chl a, d3. ciliate abundance and e3. biomass of Transect 6. Dots mean the sampling positions.

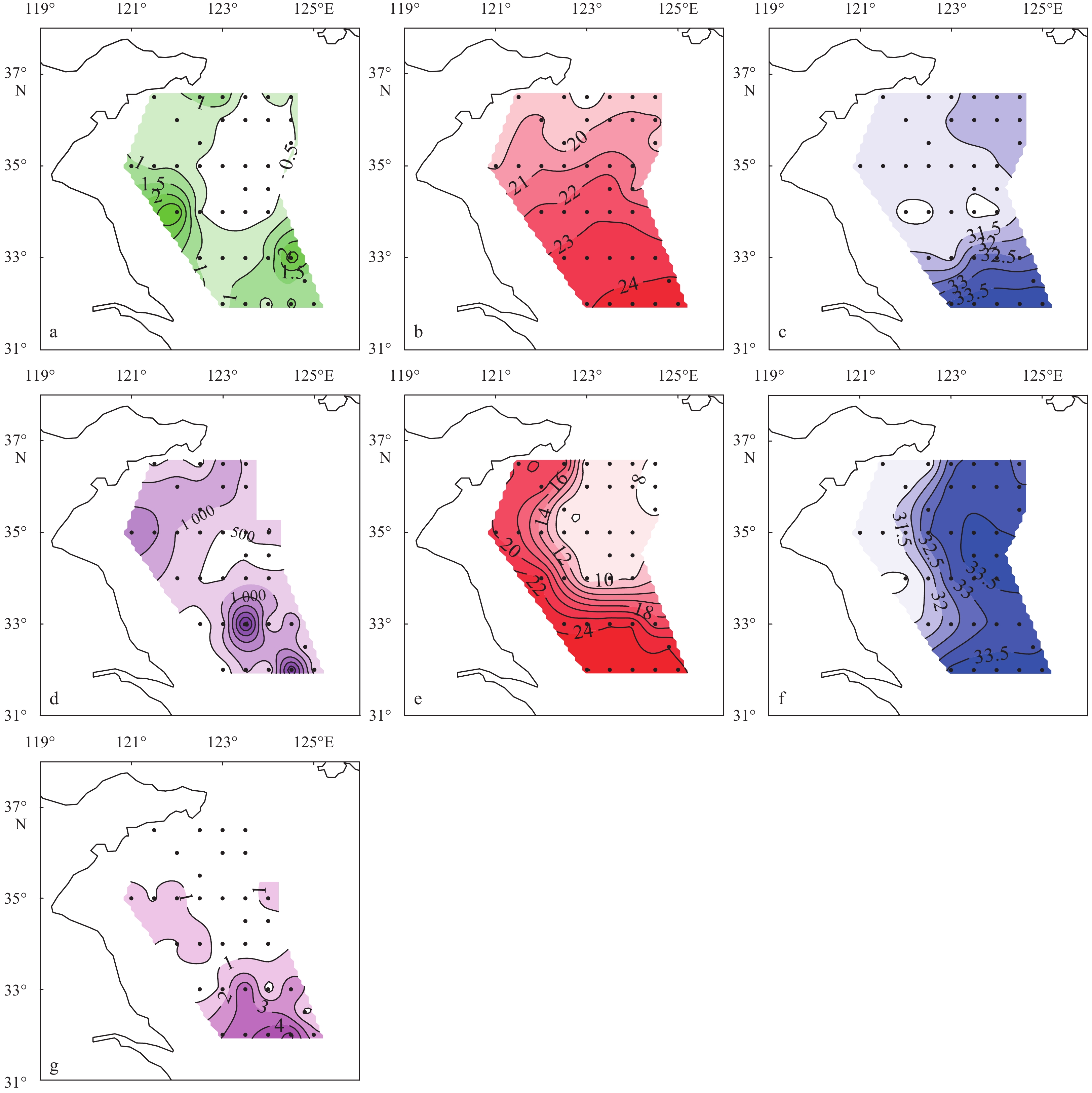

Fig. 5. Horizontal distribution of surface Chl a (μg/L) (a), temperature (°C) (b), salinity (c), ciliate abundance (ind./L) (d), bottom temperature (°C) (e), salinity (f), and biomass (μg C/L) (g) in autumn.

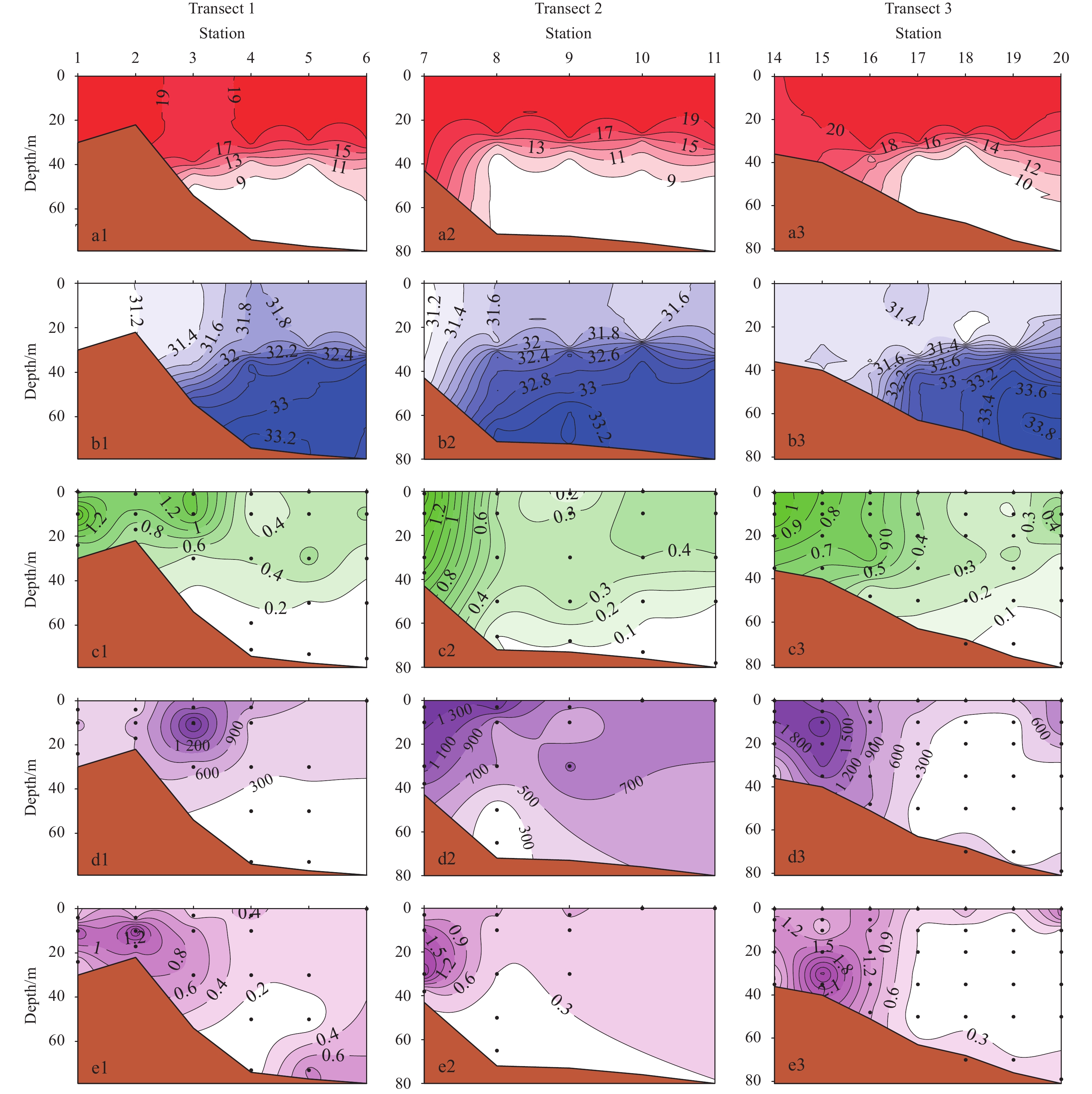

Fig. 6. Vertical distribution of temperature (°C), salinity, Chl a (μg/L), ciliate abundance (ind./L) and biomass (μg/L) of Transects 1, 2 and 3 in autumn of 2006. a1. Temperature, b1. salinity, c1. Chl a, d1. ciliate abundance and e1. biomass of Transect 1; a2. temperature, b2. salinity, c2. Chl a, d2. ciliate abundance and e2. biomass of Transect 2; a3. temperature, b3. salinity, c3. Chl a, d3. ciliate abundance and e3. biomass of Transect 3. Dots mean the sampling positions.

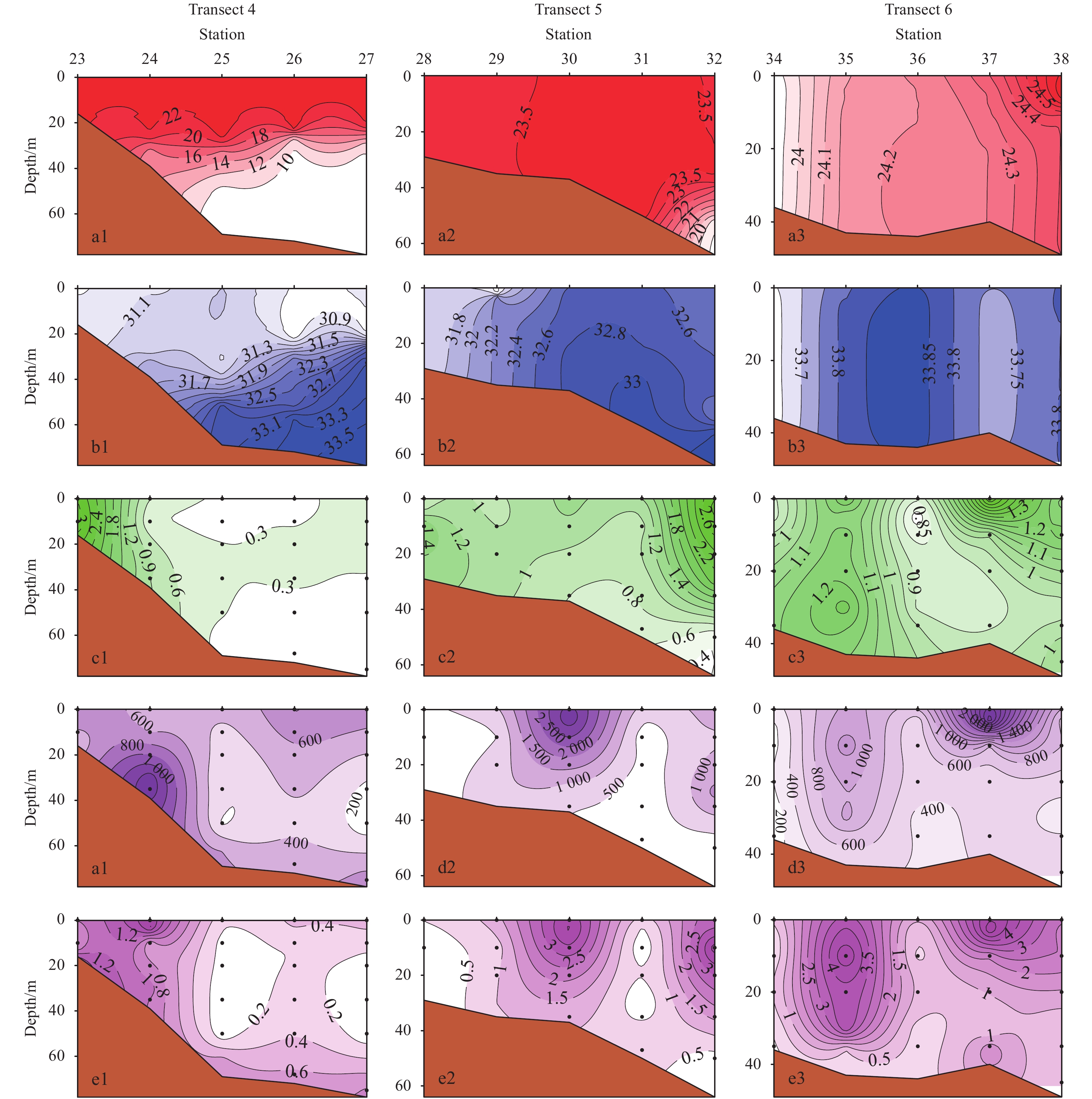

Fig. 7. Vertical distribution of temperature (°C), salinity, Chl a (μg/L), ciliate abundance (ind./L) and biomass (μg/L) of Transects 4, 5 and 6 in autumn of 2006. a1. Temperature, b1. salinity, c1. Chl a, d1. ciliate abundance and e1. biomass of Transect 4; a2. temperature, b2. salinity, c2. Chl a, d2. ciliate abundance and e2. biomass of Transect 5; a3. temperature, b3. salinity, c3. Chl a, d3. ciliate abundance and e3. biomass of Transect 6. Dots mean the sampling positions.

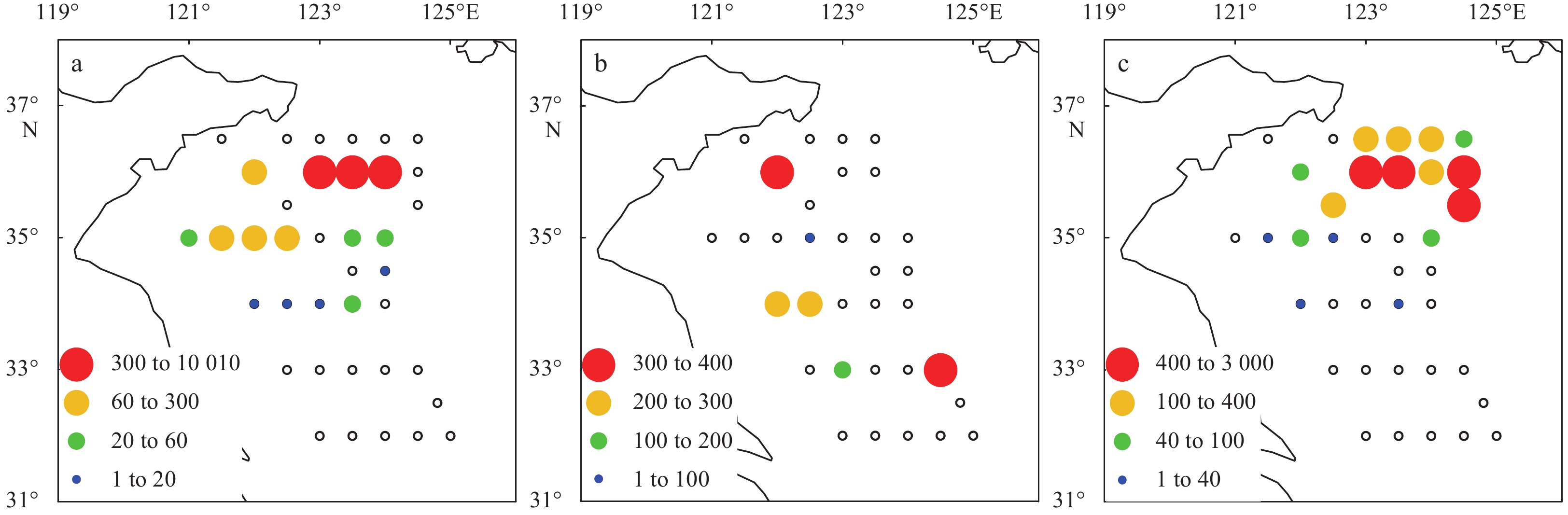

Fig. 8. Horizontal distribution of maximum abundance in water column of Laboea strobila in spring (a), L. strobila in autumn (b) and Ptychocyli obtusa in spring (c). The unit of legends is ind./L.

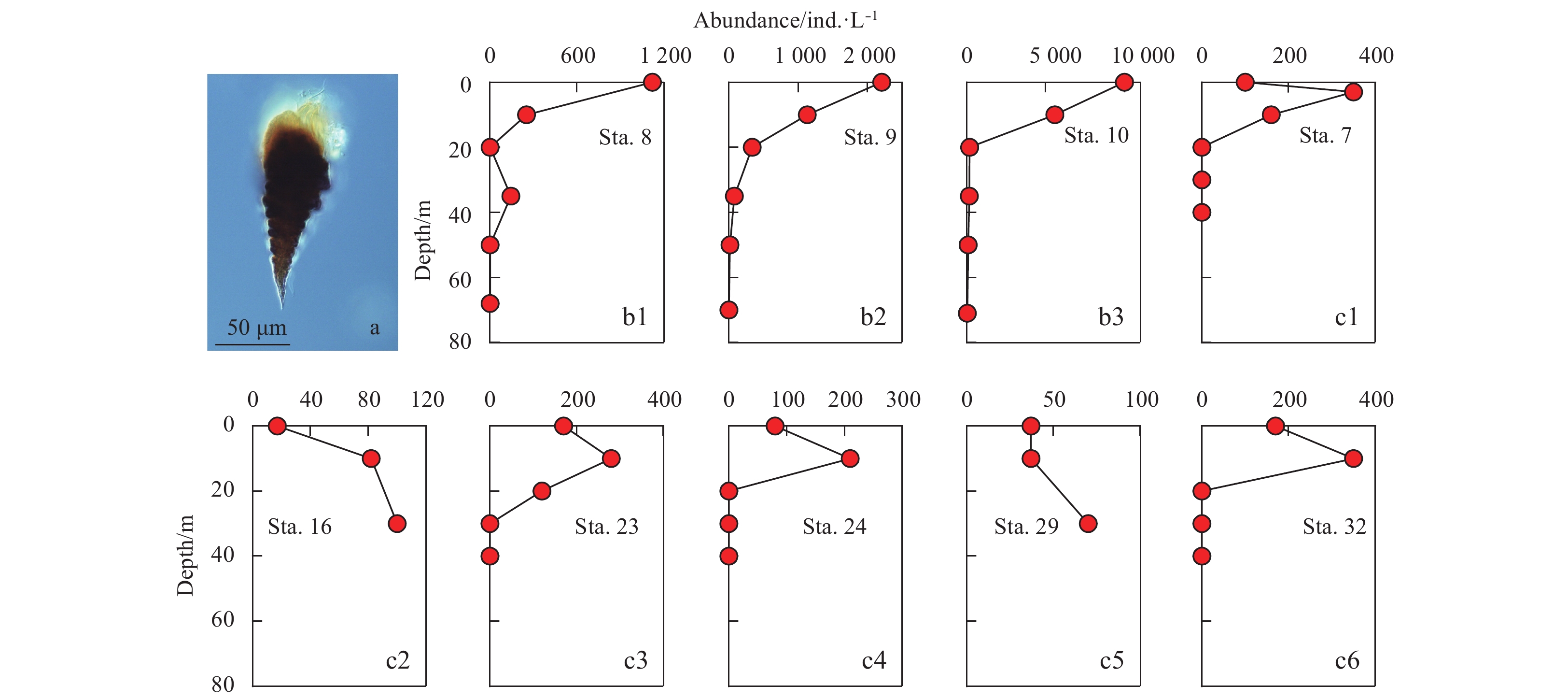

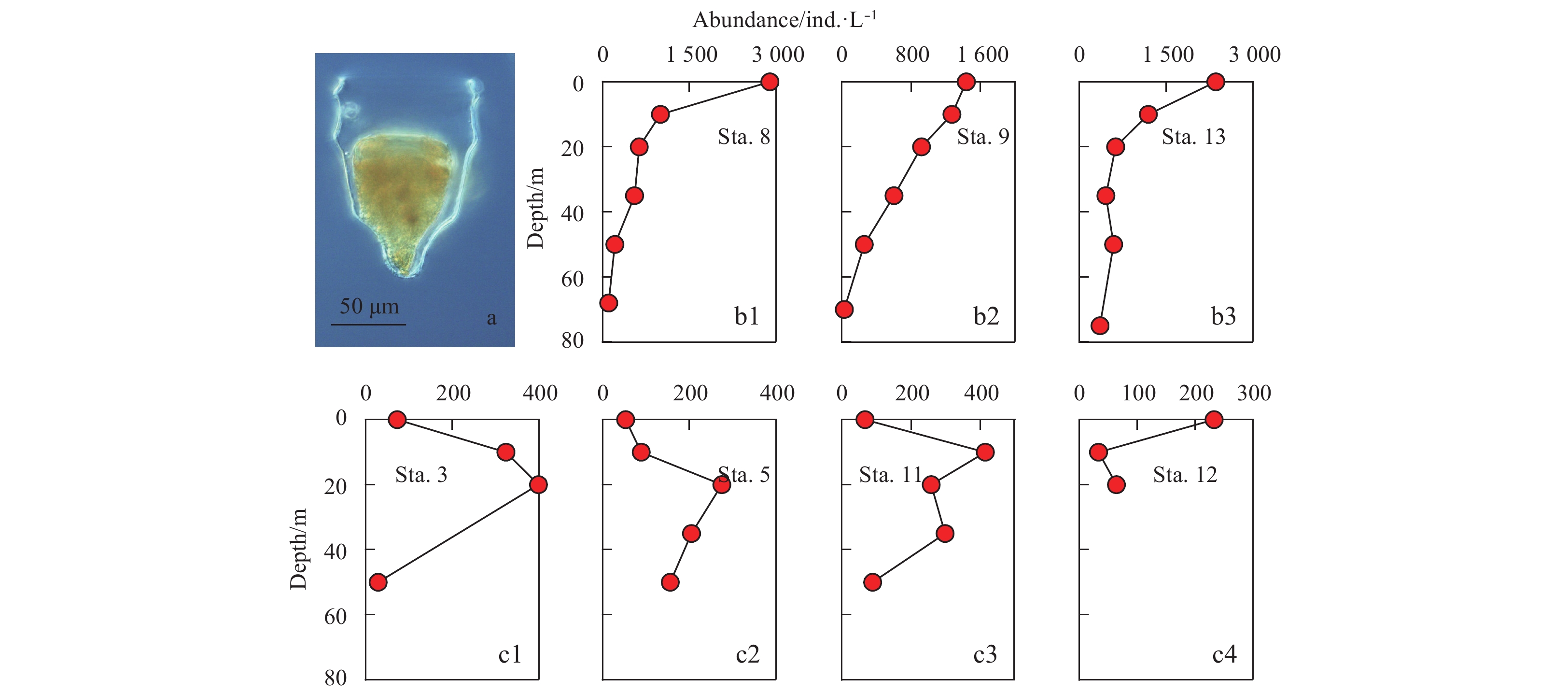

Fig. 9. Vertical distribution of Laboea strobila in spring and autumn. a. Photo of L. strobila; b1–b3. vertical distribution of L. strobila in spring and c1–c6. in autumn in different stations.

Fig. 10. Vertical distribution of Ptychocyli obtusa in spring. a. Photo of P. obtusa; b1-c4. vertical distribution of P. obtusa in spring in different stations.
