The biogenic silica composition, behavior and budget in the Changjiang Estuary
收藏切换
PDF
Xiangbin RAN1, 2, *, Jun LIU1, 2, Sen LIU1, Jiaye ZANG1, Baodong WANG1, 2, Jun ZHAO3
Acta Oceanologica Sinica | 2018, 37(1) : 60 - 72
Less
收藏切换
Acta Oceanologica Sinica | 2018, 37(1): 60-72
• Marine Chemistry •
The biogenic silica composition, behavior and budget in the Changjiang Estuary
Full
Xiangbin RAN1, 2, *, Jun LIU1, 2, Sen LIU1, Jiaye ZANG1, Baodong WANG1, 2, Jun ZHAO3
Affiliations
  • 1 Marine Ecology Research Center, First Institute of Oceanography, State Oceanic Administration, Qingdao 266061, China
  • 2 Laboratory for Marine Geology, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
  • 3 Key Laboratory of Marine Ecosystem and Biogeochemistry, Second Institute of Oceanography, State Oceanic Administration, Hangzhou 310012, China
Published: 2018-01-25 doi: 10.1007/s13131-018-1159-7
Outline
收藏切换

Three comprehensive surveys were performed in the Changjiang (Yangtze River) Estuary (CJE) to understand the biogenic silica (BSi) composition, behavior and budget. It is indicated that the BSi is composed of phytoliths, phytoplankton and sponges; phytolith BSi has 16 forms and account for 23% to 83% of the bulk BSi in the maximum turbidity zone. The budget shows that the major exogenous BSi source in the water column of the CJE is the riverine input, accounting for 95% of the total BSi input. Dominant processes that maintain BSi levels in the water column are the primary production (55 Gmol/a) and the subsequent BSi sedimentation (46 Gmol/a); and the BSi pool produced by the primary production represents two point three times the BSi loading of the Changjiang River and 63% of the BSi output, respectively. The net export (26 Gmol/a) of BSi from the CJE to the East China Sea and Yellow Sea roughly equals the riverine BSi loading. The observed total accumulation of BSi is one point seven times larger than the loading of total BSi output, with 53% to 88% of phytolith BSi and their assemblage, indicating that there has already been a “filter” of terrestrial BSi. The reverse weathering in sediments is an important process for the reactive silica removal in the CJE due to authigenic alterations. It is indicated that the phytolith fluxes in the suspended load represent a significant BSi source in the estuary, and the CJE would act as a net BSi sink.

silica cycle  /  diatoms  /  phytoliths  /  budget  /  Changjiang Estuary
Xiangbin RAN, Jun LIU, Sen LIU, Jiaye ZANG, Baodong WANG, Jun ZHAO. The biogenic silica composition, behavior and budget in the Changjiang Estuary[J]. Acta Oceanologica Sinica, 2018 , 37 (1) : 60 -72 . DOI: 10.1007/s13131-018-1159-7
Full Text
Less
1 Introduction
Less
Silicon is the second most abundant element in the earth’s crust system (Wedepohl, 1995). It occurs as silicate minerals in igneous, metamorphic, and sedimentary rocks. Physical and chemical weathering of these minerals is the major natural source of dissolved silica (dissolved SiO2, hereafter referred to as DSi) in soils, groundwater and rivers (Berner and Berner, 1996). Terrestrial plants take up a significant portion of the DSi produced during weathering (Bartoli, 1983). Phytoliths are rigid, microscopic structures made of silica, found in some plant tissues and persisting is soils and surface water after the decay of the plant. Biogenic silica (BSi) in phytoliths is an important silicon pool and impacts the silicon transfer from the terrestrial to aquatic systems, due to its high dissolution rates compared to other particulate silica forms in sediment flows.
Rivers transport of both DSi and BSi from land to the ocean is the primary source of “new” silicon in the ocean (Conley, 1997), and plays a key role in coastal marine ecosystems, because diatoms are the essential phytoplankton group that needs silicon as a major nutrient (Conley, 2002). Marine diatoms in particular are often limited by silicon (Kristiansen and Hoell, 2002), especially under the increasing pressure of nitrogen and phosphorus loadings. Therefore, silicon in the coastal areas has profound impacts on coastal marine ecosystems (Ragueneau et al., 2005).
The silicon for diatoms in coastal waters is delivered by rivers, there is recycling within the water column at the sediment-water interface, and a minor supply from atmospheric deposition (Tréguer and De La Rocha, 2013). Rivers transport 14 Tmol/a of DSi to the world’s oceans (Beusen et al., 2009) and assuming BSi amounts to 16% (Conley, 1997), total silicon (DSi plus BSi) transport is 16 Tmol/a. In the ocean, diatoms take up approximately 240 Tmol of DSi produced annually (Tréguer and De La Rocha, 2013). This means that in the oceans there is a large reservoir of BSi and intensive recycling of both DSi and BSi.
Phytoliths may be the most abundant BSi form in estuary systems (Olivié-Lauquet et al., 2000; Street-Perrott and Barker, 2008), while BSi in the ocean consists of diatoms, silicoflagellates, radiolarians and sponge spicules (DeMaster, 1981; Conley and Schelske, 2001). The detailed mechanisms and processes controlling the abundance and composition of the BSi transported by rivers remain, however, poorly understood.
Decreases in DSi and BSi may trigger long-term ecological effects in marine systems because of diatom variations and its associated influence (Nelson et al., 1995; Humborg et al., 1997). In the past decades, silicon transport by the Changjiang River has been decreasing (Duan et al., 2007; Dai et al., 2011; Ran et al., 2013) as a result of the construction of dams (e.g., Gezhouba Dam, Three Gorges Dam) and land-use changes (Yang et al., 2007; Dai et al., 2011; Jiang et al., 2013). While the transport of DSi by the Changjiang River has not changed dramatically recently, the transport of BSi has been decreasing due to sediment trapping in reservoirs. This has led to further silica limitation of the East China Sea (Dai et al., 2011). This study focuses on the BSi budget, composition and its biogeochemical behavior in the Changjiang Estuary (CJE), and its contribution to the estuary silicon cycling. The aim is to explore the BSi composition, source roles and quantify the effect of recent riverine sediment and DSi decreasing on estuary silica cycling.
2 Materials and methods
Less
2.1 Study area
Sampling expeditions were performed in the CJE between 121.0°N on the upper section of the CJE and 123.5°N on the East China Sea (ECS). Three comprehensive surveys were made in the CJE in August 2010 (in the rainy season from June to September), November 2010 (in the baseflow season commonly in January to March, and December) and May 2011 (in the interflow periods in April, May, October, and November). Water samples were collected along the salinity gradient, starting from the Xuliujing (a city of Shanghai) Station and moving downwards to the open sea. The sampling locations are shown in Fig. 1.
The water discharge at Datong Station was 1 000 km3 in 2010 (14% higher than the discharge in 1950 minus that in 2010), while in 2011 the discharge was only 670 km3 (26% lower than the mean discharge between 1950 and 2010) (Changjiang Water Resources Commission, 2010, 2011). The sediment discharge was 0.18 Gt and 0.07 Gt in 2010 and 2011, respectively, at Datong Station. The salinity in the study area ranged from 0.1 to 34 (dimensionless, hereinafter), with a mean value of 15 during the rainy season, 21 during the interflow season and 23 during the baseflow season.
2.2 Sample collection
Water samples were taken with 10 L Niskin bottles from the surface water of the CJE (Fig. 1). Suspended particulate matter (SPM) and DSi were determined for all water samples. The BSi in the water column was analyzed for Stas B1, B2, B3 and E1, which were set up in the maximum turbidity zone of the CJE. A specific volume of the water samples (from 30 to 500 mL, depending on the turbidity) were vacuum-filtered on a pre-weighed 0.45 μm polyethersulfone membrane. The filters were used for SPM analyses, and the filtrates were used to determine DSi (the filtrates were stored in darkness at 4°C before measurement). The water samples (50 to 100 L) taken from Stas B1, B2, B3 and E1 (located in the estuary turbidity maximum) were also filtered to collect the suspended load for BSi concentration and BSi composition analyses.
Sediment core samples were taken with a box core sampler at Stas B3 and C5 in November 2010 to determine their BSi composition and reverse weathering effects. After core retrieval, the sediment core was subdivided in 1 to 2 cm intervals. Pore water was separated by centrifugation for DSi and aluminium analyses. After removing the pore water, the resulting sediment plug was collected in pre-cleaned PE Ziploc-type bags and stored at –20°C for biogenic and reactive silica analyses.
Sampling expeditions were carried out in the Jiangyin (a city in Jiangsu Province, China) reach of the Changjiang River during the same period of 2010 to 2011. Water samples for DSi and BSi measurements were collected once per month at approximately 20 cm below the surface with at least three sampling points across the main channel of the river.
2.3 Sample analysis
The DSi concentration was analyzed using a silicomolybdic blue method by a QuAAtro autoanalyzer, with a precision of 5% to 10% at 1 to 10 μmol/dm3, and 1% to 5% at greater than 10 μmol/dm3 (Liu et al., 2003a). The aluminium concentration was determined using a modified aluminum-lumogallion fluorescence measurement (Ren et al., 2001). The SPM concentration was determined by taking the mass difference after drying overnight in an oven at 50°C.
The particulate matter was divided into three parts after drying. One part was for BSi determination, estimated by using an alkaline extraction method (1% Na2CO3, 85°C, 8 h) (DeMaster, 1981). The second part was used to measure different silica pools (Michalopoulos and Aller, 2004; Presti and Michalopoulos, 2008) by using a modified two-step method that included a mild acid pretreatment (0.1 mol/dm3 HCl, 18 h, 22°C) and subsequent alkaline extraction (DeMaster, 1981).
The silicon pools that can be distinguished on the basis of these treatments are: Si-HCl (mild acid-leachable), Si-Alk (mild alkaline-leachable after acid pre-treatment) and BSi (mild alkaline-leachable without acid pre-treatment) based on the definition of Michalopoulos and Aller (2004) and DeMaster (1981). ∑c(Si) is the sum of Si-HCl and Si-Alk concentrations, representing the total reactive silica concentration in the sediment and SPM. Total bioavailable reactive silica (bTSi) is the sum of DSi and BSi.
The third part of the suspended matter was used to determine of BSi composition after a wet extraction procedure (Wang and Lü, 1993; Ran et al., 2015). Part of the separated particles (more than 200) was then observed under an optical microscope (Nikon Eclipse E100). A statistically representative part of slides was investigated, and the bio-volumes of phytoliths, diatoms and siliceous sponge spicules were calculated. General morphological observations of the other extracted particles were performed with a scanning electron microscope (SEM, FEI Quanta 200) equipped with an energy dispersive spectrometer (EDS) system and used for detailed morphological and chemical studies.
2.4 Silica alteration determination
The ratio of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl ([∑c(Si)–c(BSi)]/∑c(Si)) is a proxy commonly related to the “intensity” of the reactive silica regeneration and reverse weathering, and the ratio of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the Si-Alk concentration ([c(Si–Alk)–c(BSi)]/c(Si–Alk)) is a more conservatively proxy generally related to the “extent” of the reactive silica diagenetic alteration (Michalopoulos and Aller, 2004).
2.5 Budget
2.5.1 Water budget
The hydrography of the CJE is largely controlled by the Changjiang River water and exchanges between the CJE and the open sea (including the East China Sea and Yellow Sea). Riverine input, precipitation, groundwater, exchanges between the CJE and the open sea and evaporation are taken into account in the water budget calculation for the shelf in LOICZ budget (Swaney et al., 2011) as follows:
( V r + V p + V x + V g + V o )+( V e + V rf − V x )=0,
( S r V r + S p V p + S sea V x + S g V g + S o V o )+( S e V e + S rf V rf − S sys V x )=0,
where V is the water volume (km3/d), S is salinity, subscripts r, p, x, g, o, rf and e represent for riverine input (r), atmospheric deposition (p), exchanges between study area and open sea (x), groundwater input (g), other flow volume (o), residual flow volume (rf) and evaporation (e), respectively. It should be noted that the net water volume into or out of the box system associated with the exchanges Vx is 0 and thus not a part of the water budget, but the exchanges Vx can be an important flux of DSi and BSi due to the obvious concentration difference between the box and outer sea. Ssys and Ssea are the salinities in the study area and outer seas close to the study area, respectively. Details on the calculation of water and salt budget (Tables A1 and A2) are shown in the appendix.
2.5.2 Silica mass balance
A mass-balance model was employed for the estuary system to explore the estuary processes in silicon on the basis of the water budget calculation. The exogenous inputs of silicon into the CJE water mass include riverine inputs (Fr), groundwater (Fg), atmospheric deposition (Fa), the East China Sea inflow (FECS), the Yellow Sea inflow (FYS), BSi regeneration (Frc, DSi) in the water column and benthic flux (Fb, DSi), while the silicon outputs are residual outflow to the East China Sea (Frf, ECS), residual outflow to the Yellow Sea (Frf, YS), exchange outflow to the East China Sea (Fx, ECS), exchange outflow to the Yellow Sea (Fx, YS) and sedimentation (Fs, BSi). FECS, Fb, DSi, FYS, Frf, ECS, Frf, YS, Fx, ECS, Frc, DSi, Fx, YS and Fs, BSi are calculated by measurements described in this paper, as well as the major contributions of Changjiang River to Fr, while other fluxes are based on literature values. All the loadings are shown in the unit of Gmol/a. Budget terms are discussed in detail below.
River silicon fluxes were calculated based on data measured in the Changjiang River:
F r =k×c×Q,
where Fr represents for the flux of DSi or BSi (Gmol/a), k is the conversion coefficient of unit, c is the concentration of DSi or BSi (μmol/dm3, Tables A3); and Q is the river discharge in 2010–2011 (km3/s). The loads were calculated for each season on the basis of Eq. (1) and then accumulated to annual fluxes.
Atmospheric inputs (Fa) to the CJE were calculated by the DSi concentration in both rainfall and dry deposition at the base station in Qianliyan Island in the Yellow Sea (Zhang et al., 2005, 2007; Han et al., 2013), rainfall (Martin et al., 1993; Zhang et al., 2007), dry deposition rates (Zhang et al., 2007) and areas (9 300 km2) of the study CJE (Table A3). BSi in both the rainwater and dry deposition are neglected due to their minor sources (Tréguer and De La Rocha, 2013).
The loadings of the residual outflows and exchanges outflows to the East China Sea and Yellow Sea were calculated by the silicon concentrations and their corresponding water discharges (Tables A2 and A3).
Benthic flux (Fb, DSi) of DSi on the water-sediment interface was calculated on the basis of Fick’s first law (Berner, 1980):
J f =−φ D s (∂c/∂z),
D s = D 0 φ (m−1) ,
where Jf represents for the DSi diffusion rate (mmol/(m2. d)); φ is the porosity of sediment (dimensionless, 0.55 to 0.83, from Li (2010)); Ds is the diffusion coefficient (1/(m2. d)) in the sediment; ∂c/∂z is the DSi concentration gradient at the water-sediment interface, c is DSi concentration (mmol/dm3), z is depth (m) in core; D0 represents for the solute molecular diffusion coefficient (1/(m2. d)) in infinitely diluted solutions (Li and Gregory, 1974); m is an empirical coefficient (dimensionless, for φ≤0.7, m=2; for φ>0.7, m=2.5–3.0 (Ullman and Aller, 1982)).
Sedimentation of BSi (Fs, BSi) in the CJE was based on the accumulation rate and the surface area in the study system. The accumulation rate was calculated as follows:
r BSi =10 000×c D BSi r r w /28,
F s, BSi = r BSi A,
where rBSi is the BSi accumulation rate (mol/(m2. a)); 10 000 is the unit conversion factor (cm2/m2); cBSi is the concentration of BSi in surface sediments (%); Dr is the sediment accumulation rate (cm/a); rw represents for the dry bulk density (g/cm3), 28 is the silicon molar mass (g/mol); and A is the area (m2). Pang et al. (2011) reported that the net accumulation rate in the CJE is approximately 4.58 cm/a in close proximity to the river mouth based on lead-210 data. We assume a dry bulk density to be approximately 0.9 to 1.0 g/cm3, and a constant accumulation rate.
Groundwater DSi flux (Fg) into the CJE was obtained from radium-228 and radium-226 mass-balance models (Gu et al., 2012) and concentration (cg) was estimated from the station next to CJE from Kim et al. (2005).
F g = Q g c g ,
where Qg represents for the discharge (m3/a); cg represents for the DSi concentration (µmol/dm3) in the groundwater (Table A3), cg=39 µmol/dm3 (Kim et al., 2005).
Primary production (pp) was estimated by carbon-14 method from the in situ measured rate of primary production (mg/(m2. d), calculated by carbon) in the CJE from Zhao et al. (2006). The rates of DSi uptake by phytoplankton and the regeneration rate of BSi were calculated with the ratio of carbon atom number to silicon (108:15) (Brzezinski, 1985). And then BSi fluxes were calculated with the area of CJE. Primary production is calculated as follows:
p p =PAZt,
where P is the carbon fixation rate (mg/(m2. d)), ranged from 600 to 1 800 mg/(m2. d) with a mean value of 1 200 mg/(m2. d) (Zhao et al., 2006); A is the area of study site, 9 300 km2; Z is the euphotic depth (m), the value is 1.5 (Pu et al., 2001); and t is the time period (d–1), t=0.19 d–1 in August, 0.09 d–1 in November and 0.25 d–1 in May, respectively. BSi fixation (Fp1, BSi) is then calculated as follows:
F p1, BSi = 15 p p 12×108 .
BSi regeneration (Frc, DSi) within the water column is estimated by the difference of primary production (Fp1, BSi), the difference of BSi input (Fp2, BSi) and output (Fp3, BSi), and sedimentation (Fs, BSi). Actually, it is a result of the BSi budget calculation.
F rc, DSi = F p1, BSi −( F p2, BSi − F p3, BSi )− F s, BSi ,
where Fp1, BSi is the sum of exogenous BSi (Gmol/a) into the box system, and Fp2, BSi is the total BSi outflow (Gmol/a) out the system.
3 Results
Less
3.1 Suspended particulate matters in water column
The SPM concentration varied between 1.3 and 830 mg/dm3 with an average of 150 mg/dm3 during the rainy season of 2010, 140 mg/dm3 during the interflow season of 2011 and 120 mg/dm3 during the baseflow time period, respectively. The highest SPM concentrations were observed in August 2010, corresponding to maximum salinity values of approximately 8 to 10. In general, the SPM declined seaward between salinity values of 10–34.
3.2 Biogenic silica concentrations in suspended particulate matters
The BSi concentration varied between 2.4 and 45 µmol/g with an average of 14 µmol/dm3 in the CJE (Table 1). The mean Si-Alk concentration was 15 μmol/dm3 in the CJE, with a range of 2.4–51 µmol/g. The BSi concentration was similar to that of Si-Alk. By contrast, the Si-HCl concentrations exceeded BSi and Si-Alk, with an average value of 24 μmol/dm3. The BSi concentrations in the water column show a strong seasonality, with higher values during rainy season (20 μmol/dm3) and lower ones during baseflow (8.3 μmol/dm3) or interflow (10 μmol/dm3) periods. The ratio of BSi concentration to bTSi one was in the range of 7% to 52% with an average of 24% in the upper part of CJE, and decreased seaward.

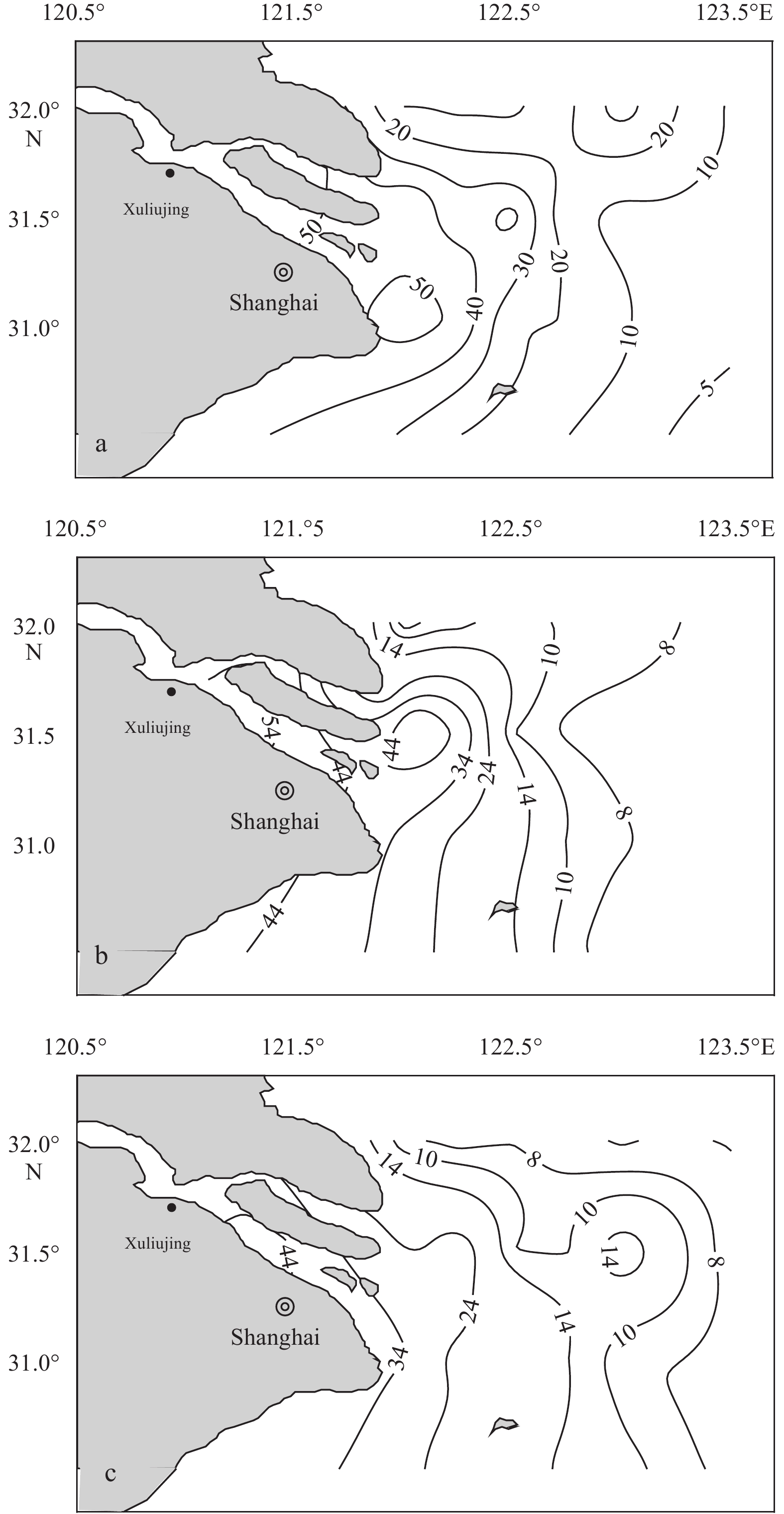

3.3 Dissolved silicate in the water column
The DSi concentration in the CJE varied between 6 and 56 µmol/dm3, with an average of 33 µmol/dm3 during the rainy season, 27 µmol/dm3 during the baseflow period and 23 µmol/dm3 during the interflow period, respectively. The DSi values were higher during the rainy season than during the dry and normal seasons in the CJE, and they were two times higher in the inner part (42 μmol/dm3) than in the seaward part of the CJE (21 μmol/dm3). The DSi concentrations decreased with increasing salinity, i.e. in the seaward direction (Fig. 2). The ratios of BSi concentration to bTSi one in the CJE were respectively 25% for the rainy season, 13% for baseflow, and 25% for interflow conditions, with a mean value of 20% for the whole year (2010).
3.4 Composition of particulate biogenic silica
The particulate BSi is made up of phytoliths (50%), phytoplankton (47%) and sponges (3%). Phytoliths range from 23% to 83%. Elongate phytoliths were generally the most abundant type in the estuary (accounting for 7.6% to 49% of the phytoliths), followed by rondel, cuneiform, lanceolate, orbicular and elongate echinate (Table 2). The proportions of cross, cylindrical polylobate, unciform, trapeziform polylobate, ovate, saddle and bilobate types were low. Phytoplankton BSi contributes 12% to 76% of BSi. Bacillariophyceae were the dominant species to the phytoplankton BSi with an average value of 99%, with less than 1% for Silicoflagellates from the Chrysophyta. Centricae was the most abundant one within the Bacillariophyceae, with an average of 62%; Coscinodiscus, Actinoptychus, Cyclotella and Paralia sulcata were the common species in Centricae. The Pennatae make up 37% of the Bacillariophyceaeon average, consisting of Naviculaceae, Closterium lunula, Pleurosigma and Diploneis. Microscopic observations of phytoliths particles are shown in Fig. A1. Most phytolith sizes ranged from 15 to 150 µm, and the phytoplankton BSi (Figs A2 and A3) was in the range of 20 to 100 µm.
Obviously, phytoliths dominated the BSi forms here during the summer/rainy season, which contributed a mean value of 63%, 50% during the fall/baseflow season and 39% during the spring/interflow season. Phytoplankton BSi makes up 61% of BSi during spring, the dominant BSi form during the low river sediment load. Phytoliths represent a larger share of BSi in the inner estuary (<121.8°E) than in the seaward part of the estuary, while phytoplankton BSi shows the reverse pattern (lower in the inner estuary than in the outer part of the estuary). We found a positive correlation between the ratio of phytolith mass to BSi one (hereinafter) and SPM (r=0.780, n=8, P=0.023)

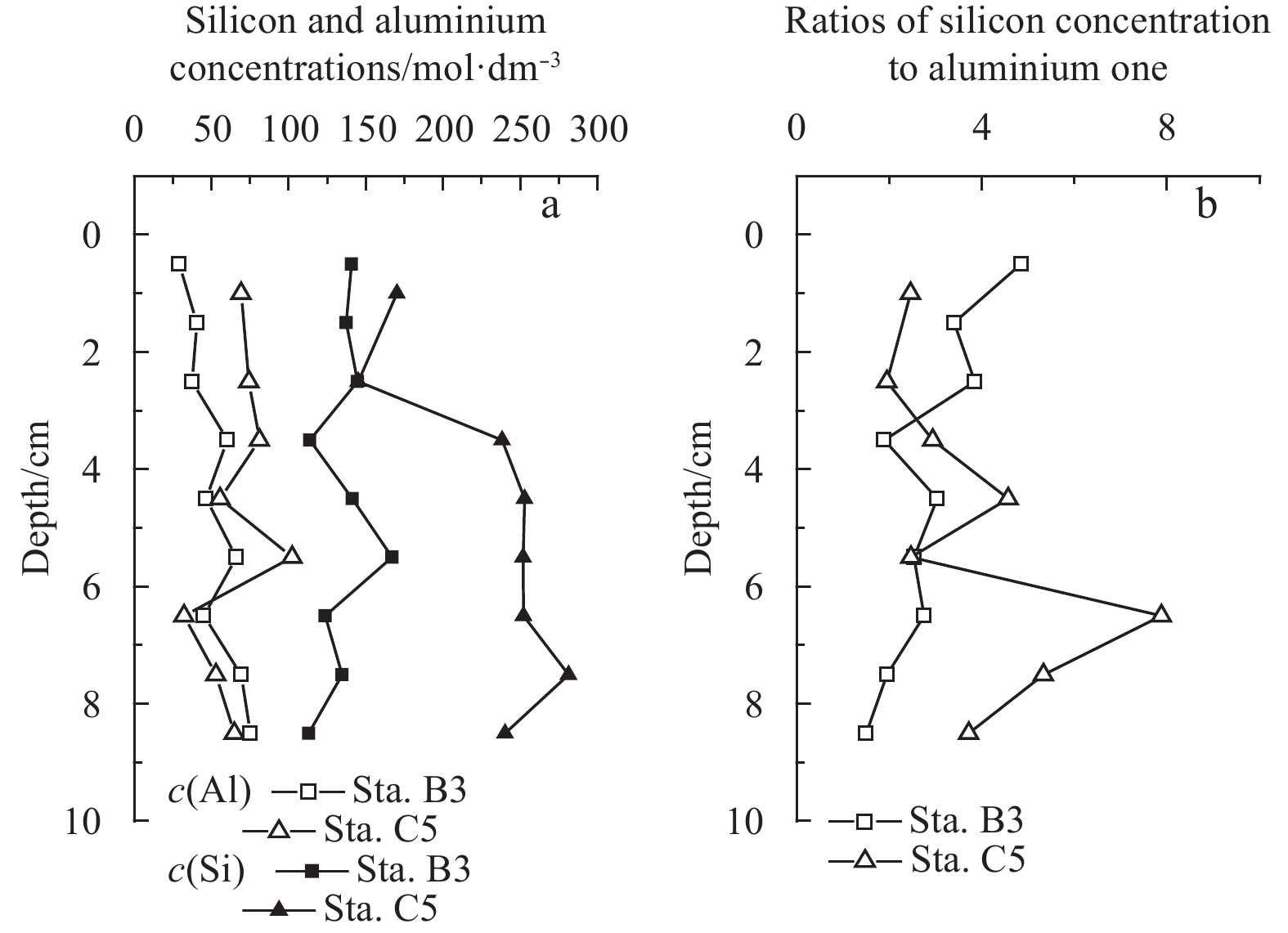

3.5 Concentrations of dissolved silicate and aluminum in sediment pore water
The average DSi concentrations in Cores B3 and C5 were 140 μmol/dm3 and 230 μmol/dm3, respectively. The average aluminium concentrations were 52 μmol/dm3 and 66 μmol/dm3 in Cores B3 and C5, respectively. The gradient of the DSi concentration vs. a depth was generally steep in the top and more gradual at larger depths, and it was relatively constant in Core B3. However, the DSi gradient shows an increasing down-core trend in Core C5. The aluminium concentration in Core C5 is relatively constant, while the aluminium concentration increases with depth in Core B3. The ratios of silicon concentration to aluminium one range from 1.5 to 4.8 at B3, decreasing with depth, and 1.9 to 7.8 at C5, showing an increase with depth (Fig. 3).

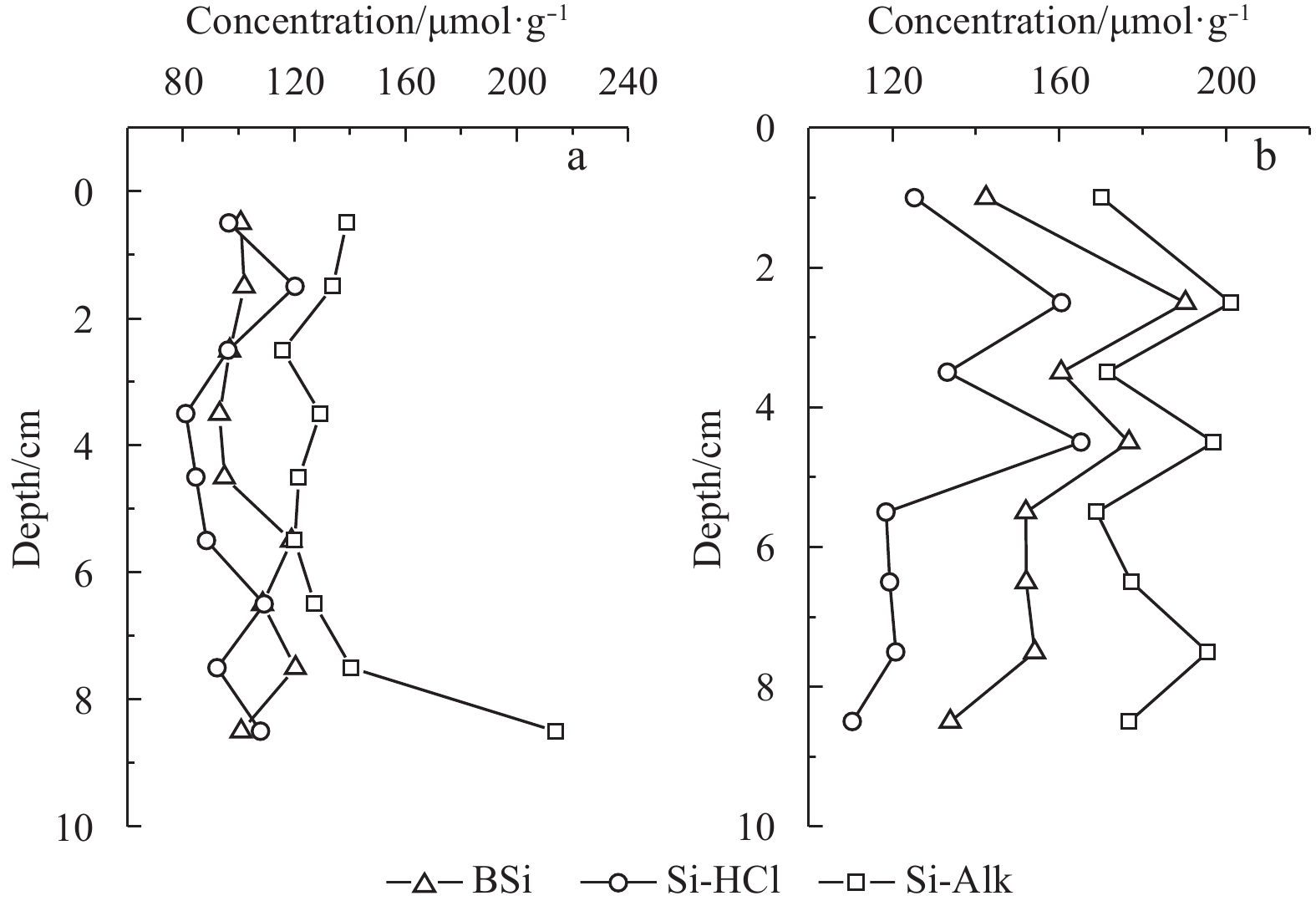

3.6 Concentrations of sedimentary biogenic/reactive silica
The BSi concentration in Core B3 varied between 81 and 120 µmol/g, and averaged 97 µmol/g in the CJE sediments (Fig. 4). The mean sediment Si-Alk concentration was 140 μmol/g, with a range of 120 to 210 µmol/g in Core B3. The mean Si-HCl concentration was 100 µmol/g, with a range between 93 and 120 µmol/g in Core C3. The total silica (∑c(Si)) concentration varied between 210 and 320 µmol/g. BSi represents a substantial portion of the total silica concentration in the core sediments. The BSi concentration was similar to the Si-Alk concentration, and the ratios of Si-Alk concentration minus BSi one to Si-Alk one ranged between 0.1 and 0.5. The average reactive pool ratios at Core B3 were 0.42 of ratio of Si-HCl concentration to the sum of Si-Alk concentration and Si-HCl one, 0.41 of ratio of BSi concentration to the sum of Si-Alk concentration and Si-HCl one, 0.58 of ratio of Si-Alk concentration to the sum of Si-Alk concentration and Si-HCl one, and 0.72 of ratio of BSi concentration to Si-Alk one, respectively.
The BSi concentration varied between 110 and 160 µmol/g with an average of 130 µmol/g in Core C5 for the CJE sediment. The mean Si-Alk concentration was 180 μmol/g, with a range of 170–200 µmol/g in Core C5 for the sediment. The BSi concentration was less than Si-Alk at all depths (Fig. 4), and the ratios of Si-Alk concentration minus BSi one to Si-Alk one ranged between 0.04 and 0.44. The mean Si-HCl concentration was 160 µmol/g, with a range from 130 to 190 µmol/g in Core C5. There was little regular variation with depth for the different reactive silica in both Cores B3 and C5. Generally, the BSi concentration was lower than that of Si-Alk, and it was higher than that of Si-HCl (Fig. 4). The biogenic silica composition in sediment was similar to that of the water column.
3.7 Scanning electron microscope observations of phytolith
SEM observations indicated that the phytolith surface had been corroded (Fig. A4), and part of the phytolith was covered by mineral coatings, which may protect from dissolution by a remnant of surface coatings. Phytolith elements primarily composed of silicon and oxygen, while carbon and aluminium contributed minor to their mass. EDS measurements indicated that the material consists of cation-rich aluminosilicate phases, such as aluminium, potassium, magnesium and iron.

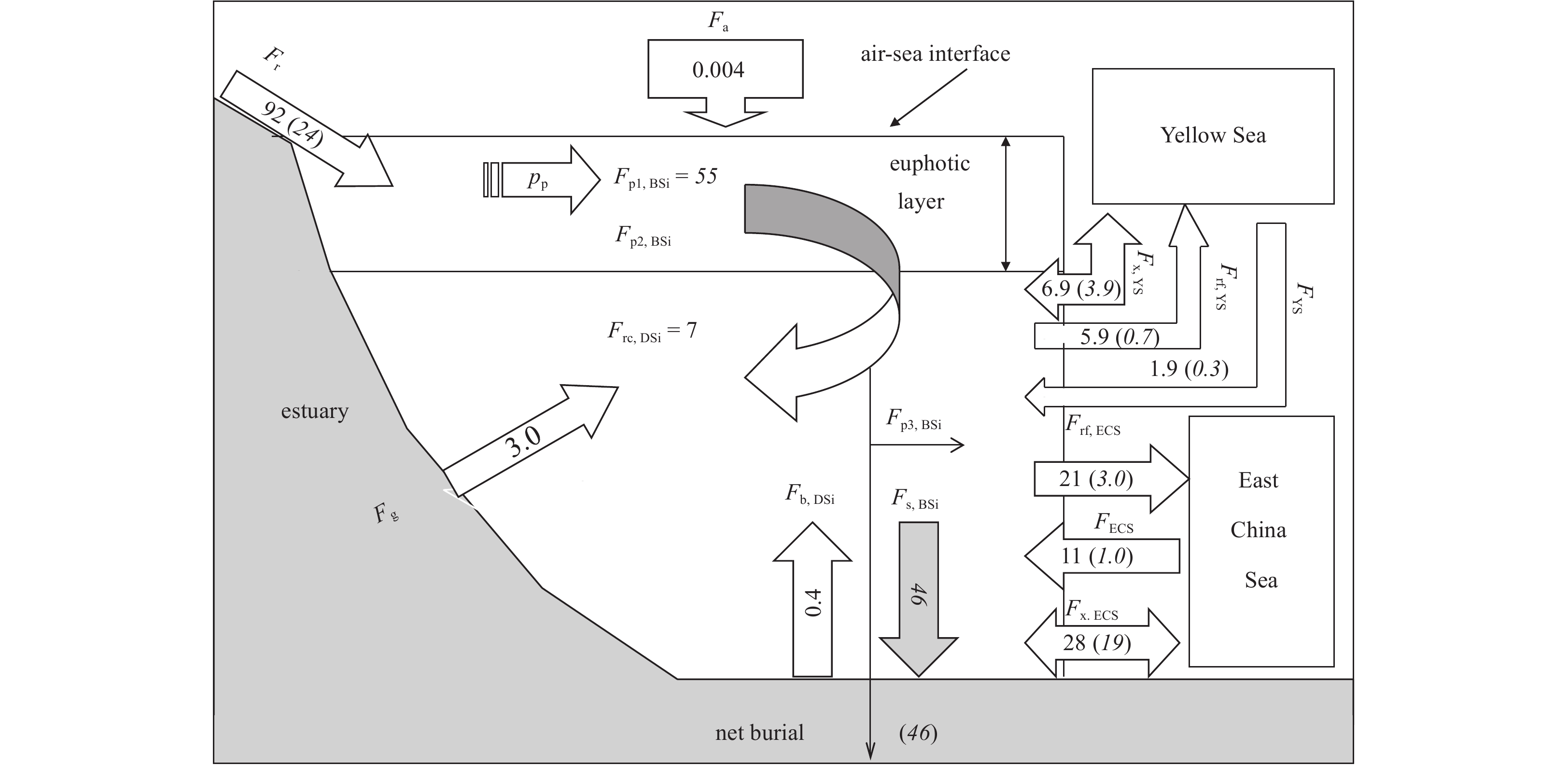

3.8 Budget of dissolved silicate and biogenic silica
The concentration of DSi at Jiangyin station of the Changjiang River varied between 90 and 110 µmol/dm3 with an average of 97 µmol/dm3. An estimate for the Changjiang River indicates that the flux of DSi is 91 Gmol/a. The concentration of BSi at Jiangyin Station varied between 4.9 to 47 µmol/dm3, and averaged 21 µmol/dm3. An estimate for the Changjiang River indicates that the flux of BSi is 24 Gmol/a.
Atmospheric input to the CJE is about 0.004 Gmol/a in 2010–2011. The estimated groundwater DSi flux is 3.0 Gmol/a. And the diffusion rate of DSi ranges from 0.08 to 0.13 mmol/(m2 d), with a yield of 0.3 to 0.5 Gmol/a. The average of the sum of Si-Alk concentration and Si-HCl one in the CJE is 97 to 130 µmol/g; total accumulation of reactive silica is 37 to 55 Gmol/a with an average of 46 Gmol/a (Fig. 5).
Observed bTSi outflows of the Yellow Sea (Fx, YS+Frf, YS, 17 Gmol/a) and the East China Sea (Fx, ECS+Frf, ECS, 71 Gmol/a) roughly equal amounts of river loading of DSi. DSi exports to the East China Sea and the Yellow Sea through the study area account for 46%, and 12% of the total DSi input (110 Gmol/a), respectively. The net exchange of BSi between the CJE and the outer sea (the Yellow Sea and East China Sea) is 26 Gmol/a, is close to results of riverine BSi inputs.
On the basis of the mean rate of primary production, phytoplankton composition, euphotic depth and total area, calculated silicon fixation (Fp1, BSi) is 55 Gmol/a. The estimated sedimentation loading (Fs, BSi) in the CJE is 58% of the total BSi (80 Gmol/a) that is discharged by rivers and produced by diatom each year. While, the BSi regeneration (7 Gmol/a) in the CJE amounts to only 8% of the total BSi pool, and the remain part (34%) is discharged to the open seas.
The groundwater discharge (Fg) and net diffusion between the sediment and the water column are much less than the riverine silica flux, indicating that groundwater and benthic flux are minor sources of exogenous silicon in this fairly small area. Also, the BSi regeneration within the water column is not an important process of DSi in comparison with other processes. Considering all input fluxes of DSi into the CJE, river loading is the major source of DSi in the CJE, contributes 85% of total DSi input. While, groundwater discharge, benthic flux and atmospheric deposition adds only 2.5%, less than 0.4%, and less than 0.004% of DSi, respectively.
Our results indicate that the major exogenous BSi source in the CJE is the riverine input, representing 95% of total BSi input (Fp2, BSi, 25 Gmol/a, Fig. 5). Dominant processes that maintain BSi in the CJE are primary production and subsequent BSi sedimentation; and the BSi pool yielded (Fp3, BSi, 27 Gmol/a) by diatom production accounts for 63% of the BSi output (Fig. 5). The significance of the sedimentary of BSi is in agreement with our observed higher BSi concentration in the sediment.
4 Discussion
Less
4.1 Biogenic silica composition of the Changjiang Estuary water
The BSi concentration in suspended matter accounts for 21% of the sum of BSi and DSi in the CJE, which is lower than the average ratio in the Huanghe River (52%; Ran et al., 2015), but consistent with that in Changjiang River, but higher than that in the East China Sea (11%) (Liu et al., 2005) and the average ratio in the world’s rivers (16%) (Conley, 1997), indicating that BSi is an important contributor for the reactive silica in the CJE.
A positive correlation between the ratio of phytolith concentration to BSi one and SPM one indicates that BSi and SPM have the same sources in the estuary. This phenomenon was further supported by the composition of BSi, in which 23% to 83% of BSi forms are composed by phytoliths in the water column (Table 2). In summary, phytoliths dominated the BSi forms in the CJE water column, suggesting that BSi is transported by rivers and that the river flux of phytoliths in the suspended load represents a significant contribution to the estuary biogeochemical cycle of silica. It should be noted, however, that all the four stations for determination of the BSi composition were located in the estuary turbidity maximum area, suggesting the contribution of the Changjiang River to the estuary BSi; thus, the phytoplankton BSi in the CJE is similar to the diatom composition along the main channel of the Changjiang River (Zeng, 2006) with a fairly high share of freshwater and brackish water species. In fact, Marine species, e.g., Skeletonema costatum, are not found, which is mainly due to the relatively small and low salinity survey area for BSi in the CJE. As the dominant species in the CJE (Li et al., 2007), Skeletonema costatum may have a significant BSi concentration associated in the study area.
4.2 Geochemical behavior of bio-reactive silica
4.2.1 Sediment silica alteration
A reverse weathering process has been proposed as an important silicon trap (Mackenzie and Garrels, 1966; Michalopoulos et al., 2000; Michalopoulos and Aller, 2004; Presti and Michalopoulos, 2008). It is the formation of clay minerals by incorporating DSi, BSi, cations and clay in marine sediments. A significant correlation between the Si-Alk concentration and Si-HCl one (r=0.68, n=16, P<0.01) in the sediment was found, indicating that a diagenetic effect that was established after deposition. At Sta. B3, the ratio of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl one was 0.59 in the sediment with a range of 0.49 to 0.66. Similar to Sta. B3, at Sta. C5 station the ratios of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl one was 0.62 (from 0.49 to 0.68). The ratios of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl one were similar to the average value of 71% for the Zhujiang Etuary (Qin et al., 2012) and the Mississippi River Delta (Presti and Michalopoulos, 2008). In both Stas B3 and C5, the average ratios of the difference between Si-Alk concentration and BSi one to Si-Alk one are 0.28. Thus, the formation of authigenic clays accounts for 28%–62% of the reactive silica alteration in the CJE sediment.
The formation of authigenic clays may have an important role in reactive silica alteration in the CJE sediment. The aluminosilicate matrix consists predominantly of aluminium, potassium and iron in addition to magnesium (Fig. A4), which is required by reverse weathering (Michalopoulos and Aller, 1995, 2004) and gives additional proof for formation of authigenic clays. We observed a significant positive correlation between the ratios of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl one and aluminium (r=0.17, n=16, P<0.05), suggesting that the solubility of aluminium in sediments may limit diagenetic processes.
Although there is no direct documentation for the conversion of phytoliths to clays at the CJE sediment and the majority of the phytolith appear to be unaltered, parts of the frustules are covered by mineral coatings, which is similar to the diatom BSi observations (Michalopoulos and Aller, 2004; Presti and Michalopoulos, 2008). We observed characteristic discoid particles that had size ranges and morphological characteristics identical to those of the well-preserved phytolith frustules (Fig. A4).
4.2.2 Water column silica alteration
The formation of authigenic clay could be 18–36 months (Michalopoulos et al., 2000). Similar authigenic phases can occur in as little as 10 months in lab incubation experiments (Loucaides et al., 2010). Given the time required for reverse weathering (e.g., 10 months at minimum), the residence time (11–22 d) of particles in pelagic environments are way too short for this to be occurring in the water column. The ratios between Si-Alk concentration and BSi one to Si-Alk one in the water column were lower than those in the sediment, while the ratio of the difference between the sum of Si-Alk concentration and Si-HCl one and BSi one to the sum of Si-Alk concentration and Si-HCl one is comparable in both the water column and sediment. Reverse weathering is therefore not an important removal process for reactive silica in the water columns, and aluminosilicate materials within SPM are largely due to the sediment transport and resuspension by physical processes.
4.3 Budget of dissolved silicate and biogenic silica
There is a massive sink (46 Gmol/a) of BSi by the sedimentary to balance the silicon budget (Fig. 5). Total BSi accumulation (Fs, BSi) represents 50% of the Changjiang River DSi load (91 Gmol/a), indicating a significant share of riverine silicon inputs can be removed by estuary processes. Fifty-three percent to eighty-eight percent of phytoliths in the sediment (Table 2) also suggests most of the riverine BSi loading is trapped in the study area. These results suggest that the preservation rate (58%) of BSi in the CJE is much higher than that in the open sea (3%) (Tréguer and De La Rocha, 2013).
The bTSi outflows from the box to the Yellow Sea and East China Sea represent amounts of river loading of DSi, indicating the silicon pool in the CJE is in steady state. In comparison with the riverine loading, the BSi loading contributes to a relatively higher share of reactive silica in the outflows, implying an important contribution of authigenic diatom BSi to the reactive silica.
Benthic recycling (Fb, DSi) of BSi also contributes to the DSi pool in the estuary. Most of DSi in the pore water of the CJE are much higher than those in the water column with a range between 110 to 280 µmol/dm3 in this site, and would be a part of the additions of DSi. The estimated benthic flux (Fb, DSi) in the CJE, however, is less than 1% of the loading of the Changjiang River. In this study, the benthic flux varied from 0.08 to 0.13 mmol/(m2 d), which is lower than the previously reported data (Liu et al., 2003b, 2011) in the Yellow Sea and Bohai Sea and in the East China Sea (Liu et al., 2005). We recognize that the reasonable high (28% to 62%) silica alteration decreases the contribution of DSi from the benthic process. In this region the highest net silicon accumulation and reverse silicate weathering support our argument greatly.
The fairly shallow water depth (about 10 m) and short exchange time (11–22 d) reduce the contribution of BSi regeneration. On the basis of our data, most of riverine BSi were mainly trapped in the CJE, implying that there already has been a sink of terrigeneous silicon. Furthermore, the contribution of phytoliths to the total BSi is fairly higher in the sediment than in the water column, probably suggesting that phytoliths are relatively insensitive to dissolve in comparison with the diatom BSi. The groundwater discharge and the atmospheric deposition also contribute to a minor share of the exogenous silicon, which is much lower than that in the East China Sea (Liu et al., 2005). We think the fairly high riverine silicon loading would decrease the contributions of groundwater and precipitation to the total exogenous silicon.
Similar to DSi, the net exchange of BSi (26 Gmol/a) between the CJE and the outer sea (Yellow Sea and East China Sea) represent major fluxes with roughly equivalent amounts of riverine BSi loading, indicating that the exchange is a huge sources of BSi for the adjacent areas of the CJE with significant impact on the regional carbon cycle. Combined with the observed primary production in the outer sea (Zhao et al., 2006; Li et al., 2014), the continuous supply of silicon from the CJE would imply a fairly higher primary production in the adjacent areas of the CJE than other areas without influence of river plume.
4.4 Implication of changing biogenic silica in the Changjiang Estuary
The controlling factor of BSi is the sedimentation and export to the system other than regeneration; this agrees with the results presented in Table 2 that shows a fairly high share of phytolith BSi in the sediment. Changes in riverine BSi and SPM fluxes may influence the functioning of marine ecosystems. Although the riverine input of DSi to the CJE changed little in the Changjiang River in recent 10 a (Dai et al., 2011), more than 70% of sediment (Yang et al., 2007) was trapped in the Changjiang River relative to the pre-Three Gorges Dam values. The ongoing damming of the Changjiang River basin may lead to further decreasing BSi loads to the CJE due to the retention of SPM, which would alter the BSi composition and the diatom growth in the estuary area, with important consequences for the silicon cycle. The so-called “clear water” by damming may stimulate the primary production due to the improvement of transparency, which would trap more silicon in the study area. Recent study (Li et al., 2014) saw an increase of chlorophyll concentrations in the CJE after the impoundment of the Three Gorges Reservoir. A long-term dataset also reveals that the maximum biomass of phytoplankton has expanded to a lower salinity region with the operation of Three Gorges Dam (Wang et al., 2016), which supports our argument greatly. The BSi composition, the diatom production and the BSi sedimentation have thus probably altered as a result of decreasing riverine SPM and BSi inputs in the Changjiang effluent plume. As a result, the “clear water” can reduce export of DSi to the open sea due to enhancing the primary production, which may decrease silicon availability in the Yellow Sea and East China Seas, which should be concerned in the future.
5 Conclusions
Less
We report the compositions, behaviors and budget of silica in the CJE, which is highly impacted by terrestrial processes. BSi is mainly composed by phytoliths and phytoplankton BSi in the CJE. Phytoplankton BSi is composed of Bacillariophyceae and Chrysophyta (Silicoflagellates), accounting for 97% to 100% of the phytoplankton BSi in the CJE. Approximately 23% to 83% of the BSi was composed of phytoliths, with a mean value of 56% in water column. Authigenic clays account for 28% to 62% of the reactive silica accumulation in the CJE sediment.
The major exogenous BSi source in the water column of CJE is the riverine input, accounting for 95% of total BSi input. The net export (26 Gmol/a) of BSi from the CJE to the East China Sea and Yellow Sea roughly equals the riverine BSi loading. Dominant processes that maintain BSi in the water column of CJE are the primary production (55 Gmol/a) and subsequent BSi sedimentation (46 Gmol Si/a). The total accumulation of BSi is one point seven times larger than the riverine input in this area, in which about 53% to 88% of BSi is phytoliths and their assemblage.
Riverine input contributes 85% of total DSi input in the estuary area, while the groundwater discharge, the benthic flux and the atmospheric deposition adds only 2.5%, less than 0.4%, and less than 0.004% respectively. The exports of DSi to East China Sea and Yellow Sea account for 46%, and 12% of DSi output, respectively.
This study suggests that the flux of phytoliths in the suspended load may represent a significant source of the estuary biogeochemical cycle of silica, and the ongoing damming in the Changjiang River may result in an increasing DSi and BSi removal in the CJE. The CJE therefore acts as a net sink for BSi.
Acknowledgements
Less
The authors thank Ma Yongxing, Wei Qingsheng and Wei Qiming for their help with the field work. They also thank the support and advice from Bouwman Lex and Yu Zhigang.
Funding
Less
  • The Basic Scientific Fund for National Public Research Institutes of China under contract No. GY0216Q03; the National Science Foundation of China under contract Nos 41776089 and 41576084.
References
Less
Bartoli F. 1983. The biogeochemical cycle of silicon in two temperate forest ecosystems. Ecological Bulletins, (35): 469–476
Berner E K, Berner R A. 1996. The Global Environment: Water, Air and Geochemical Cycles. Upper Saddle River, NJ: Prentice-Hall, 376
Berner R A. 1980. Early Diagenesis: A Theoretical Approach. Princeton: Princeton University Press, 241–242
Beusen A H W, Bouwman A F, Dürr H H, et al. 2009. Global patterns of dissolved silica export to the coastal zone: results from a spatially explicit global model. Global Biogeochemical Cycles, 23(4): GB0A02
Brzezinski M A. 1985. The Si:C:N ratio of marine diatoms: interspecific variability and the effect of some environmental variables. Journal of Phycology, 21(3): 347–357
Changjiang Water Resources Commission. 2010. Changjiang Sediment Bulletin 2009 (in Chinese). Wuhan: China Changjiang Publishing House
Changjiang Water Resources Commission. 2011. Changjiang Sediment Bulletin 2010 (in Chinese). Wuhan: China Changjiang Publishing House
Conley D J. 1997. Riverine contribution of biogenic silica to the oceanic silica budget. Limnology and Oceanography, 42(4): 774–777
Conley D J. 2002. Terrestrial ecosystems and the global biogeochemical silica cycle. Global Biogeochemical Cycles, 16(4): 68-1–68-8
Conley D J, Schelske C L. 2001. Biogenic silica. In: Smol J P, Birks H J B, Last W M, eds. Tracking Environmental Change Using Lake Sediments: Terrestrial, Algal, and Siliceous Indicators. Dordrecht: Kluwer Academic Press, 281–293
Dai Zhijun, Du Jinzhou, Zhang Xiaoling, et al. 2011. Variation of riverine material loads and environmental consequences on the Changjiang (Yangtze) Estuary in recent decades (1955–2008). Environmental Science and Technology, 45(1): 223–227
DeMaster D J. 1981. The supply and accumulation of silica in the marine environment. Geochimica et Cosmochimica Acta, 45(10): 1715–1732
Duan Shuiwang, Xu Feng, Wang Lijun. 2007. Long-term changes in nutrient concentrations of the Changjiang River and principal tributaries. Biogeochemistry, 85(2): 215–234
Gu Hequan, Moore W S, Zhang Lei, et al. 2012. Using radium isotopes to estimate the residence time and the contribution of submarine groundwater discharge (SGD) in the Changjiang effluent plume, East China Sea. Continental Shelf Research, 35: 95–107
Han Lijun, Zhu Yumei, Liu Sumei, et al. 2013. Nutrients of atmospheric wet deposition from the Qianliyan Island of the Yellow Sea. China Environment Science (in Chinese), 33(7): 1174–1184
Humborg C, Ittekkot V, Cociasu A, et al. 1997. Effect of Danube river dam on Black Sea biogeochemistry and ecosystem structure. Nature, 386(6623): 385–388
Jiang Xuezhong, Lu Bing, He Yuhong. 2013. Response of the turbidity maximum zone to fluctuations in sediment discharge from river to estuary in the Changjiang Estuary (China). Estuarine, Coastal and Shelf Science, 131: 24–30
Kim G, Ryu J W, Yang H S, et al. 2005. Submarine groundwater discharge (SGD) into the Yellow Sea revealed by 228Ra and 226Ra isotopes: implications for global silicate fluxes. Earth and Planetary Science Letters, 237(1–2): 156–166
Kristiansen S, Hoell E E. 2002. The importance of silicon for marine production. Hydrobiologia, 484(1–3): 21–31
Li Dong, Yao Peng, Bianchi T S, et al. 2014. Organic carbon cycling in sediments of the Changjiang Estuary and adjacent shelf: implication for the influence of Three Gorges Dam. Journal of Marine Systems, 139: 409–419
Li Lingwei. 2010. Effects of exchange fluxes of nutrients at the sediment and water interface and the Huanghe input on nutrient dynamics of the Bohai Sea (in Chinese) [dissertation]. Qingdao: Ocean University of China
Li Maotian, Xu Kaiqin, Watanabe M, et al. 2007. Long-term variations in dissolved silicate, nitrogen, and phosphorus flux from the Yangtze River into the East China Sea and impacts on estuarine ecosystem. Estuarine, Coastal and Shelf Science, 71(1-2): 3–12
Li Yuanhui, Gregory S. 1974. Diffusion of ions in sea water and in deep-sea sediments. Geochimica et Cosmochimica Acta, 38(5): 703–714
Liu Sumei, Li Lingwei, Zhang Zhinan. 2011. Inventory of nutrients in the Bohai. Continental Shelf Research, 31(16): 1790–1797
Liu Sumei, Zhang Jing, Chen Hongtao, et al. 2003a. Nutrients in the Changjiang and its tributaries. Biogeochemistry, 62(1): 1–18
Liu Sumei, Zhang Jing, Chen Shuzhu, et al. 2003b. Inventory of nutrient compounds in the Yellow Sea. Continental Shelf Research, 23(11-13): 1161–1174
Liu Sumei, Zhang Jing, Li Ruixiang. 2005. Ecological significance of biogenic silica in the East China Sea. Marine Ecology Progress Series, 290: 15–26
Loucaides S, Michalopoulos P, Presti M, et al. 2010. Seawater-mediated interactions between diatomaceous silica and terrigenous sediments: results from long-term incubation experiments. Chemical Geology, 270(1–4): 68–79
Mackenzie F T, Garrels R M. 1966. Chemical mass balance between rivers and oceans. American Journal of Science, 264(7): 507–525
Martin J M, Zhang J, Shi M C, et al. 1993. Actual flux of the Huanghe (Yellow River) sediment to the western Pacific Ocean. Netherlands Journal of Sea Research, 31(3): 243–254
Michalopoulos P, Aller R C. 1995. Rapid clay mineral formation in Amazon delta sediments: reverse weathering and oceanic elemental cycles. Science, 270(5236): 614–617
Michalopoulos P, Aller R C. 2004. Early diagenesis of biogenic silica in the Amazon delta: alteration, authigenic clay formation, and storage. Geochimica et Cosmochimica Acta, 68(5): 1061–1085
Michalopoulos P, Aller R C, Reeder R J. 2000. Conversion of diatoms to clays during early diagenesis in tropical, continental shelf muds. Geology, 28(12): 1095–1098
Nelson D M, Tréguer P, Brzezinski M A, et al. 1995. Production and dissolution of biogenic silica in the ocean: revised global estimates, comparison with regional data and relationship to biogenic sedimentation. Global Biogeochemical Cycle, 9(3): 359–372
Olivié-Lauquet G, Allard T, Bertaux J, et al. 2000. Crystal chemistry of suspended matter in a tropical hydrosystem, Nyong basin (Cameroon, Africa). Chemical Geology, 170(1-4): 113–131
Pang Rensong, Pan Shaoming, Wang Andong. 2011. Modern sedimentation rate and its implications for environmental evolutions of the 18# core in the Changjiang Estuary in China. Marine Science Bulletin, 30(3): 294–301
Presti M, Michalopoulos P. 2008. Estimating the contribution of the authigenic mineral component to the long-term reactive silica accumulation on the western shelf of the Mississippi River Delta. Continental Shelf Research, 28(6): 823–838
Pu Xinming, Wu Yulin, Zhang Yongshan. 2001. Nutrient limitation of phytoplankton in the Changjiang Estuary: Ⅱ. Condition of nutrient limitation in spring. Haiyang Xuebao (in Chinese), 23(3): 57–65
Qin Yachao, Weng Huanxin, Jin Haiyan, et al. 2012. Estimation of authigenic alteration of biogenic and reactive silica in Pearl River estuarine sediments using wet-chemical digestion methods. Environmental Earth Sciences, 65(6): 1855–1864
Ragueneau O, Chauvaud L, Moriceau B, et al. 2005. Biodeposition by an invasive suspension feeder impacts the biogeochemical cycle of Si in a coastal ecosystem (Bay of Brest, France). Biogeochemistry, 75(1): 19–41
Ran Xiangbin, Che Hong, Zang Jiaye, et al. 2015. Variability in the composition and export of silica in the Huanghe River Basin. Science China: Earth Sciences, 58(11): 2078–2089
Ran Xiangbin, Yu Zhigang, Chen Hongtao, et al. 2013. Silicon and sediment transport of the Changjiang River. (Yangtze River): could the Three Gorges Reservoir be a filter?. Environmental Earth Sciences, 70(4): 1881–1893
Ren Jingling, Zhang Jing, Luo Jingqing, et al. 2001. Improved fluorimetric determination of dissolved aluminium by micelle-enhanced lumogallion complex in natural waters. The Analyst, 126(5): 698–702.
Street-Perrott F A, Barker P A. 2008. Biogenic silica: a neglected component of the coupled global continental biogeochemical cycles of carbon and silicon. Earth Surface Processes and Landforms, 33(9): 1436–1457
Swaney D P, Smith S V, Wulff F. 2011. The LOICZ biogeochemical modeling protocol and its application to estuarine ecosystems. In: Wolanski E, McLusky D, eds. Treatise on Estuarine and Coastal Science. Vol 9. Waltham: Academic Press, 135–159
Tréguer P J, De La Rocha C L. 2013. The world ocean silica cycle. Annual Review of Marine Science, 5: 477–501
Ullman W J, Aller R C. 1982. Diffusion coefficients in nearshore marine sediments. Limnology and Oceanography, 27(3): 552–556
Wang Baodong, Xin Ming, Sun Xia, et al. 2016. Does reduced sediment load contribute to increased outbreaks of harmful algal blooms off the Changjiang Estuary?. Acta Oceanologica Sinica, 35(8): 16–21
Wang Yongji, Lü Houyuan. 1993. Phytolith Research and Application (in Chinese). Beijing: China Ocean Press, 170–177
Wedepohl K H. 1995. The composition of the continental crust. Geochimica et Cosmochimica Acta, 59(7): 1217–1232
Yang Shilun, Zhang Jing, Dai Shibao, et al. 2007. Effect of deposition and erosion within the main river channel and large lakes on sediment delivery to the estuary of the Yangtze River. Journal of Geophysical Research, 112(F2): F02005
Zeng Hui. 2006. Phytoplankton in Yangtze and Three Gorges Reservoir: dynamics and relationship with nutrients and hydrological conditions (in Chinese) [dissertation]. Wuhan: Institute of Hydrobiology, Chinese Academy of Science, 51–54
Zhang Guosen, Zhang Jing, Liu Sumei. 2007. Characterization of nutrients in the atmospheric wet and dry deposition observed at the two monitoring sites over Yellow Sea and East China Sea. Journal of Atmospheric Chemistry, 57(1): 41–57
Zhang Jing, Zhang Guosen, Liu Sumei. 2005. Dissolved silicate in coastal marine rainwaters: comparison between the Yellow Sea and the East China Sea on the impact and potential link with primary production. Journal of Geophysical Research: Atmospheres, 110(D16): D16304
Zhao Weihong, Wang Jiangtao, Li Jintao, et al. 2006. Contrast of nutrient limiting phytoplankton growth in the Changjiang River Estuary and the adjacent areas between summer and winter. Haiyang Xuebao (in Chinese), 28(3): 119–126
Appendix
Less
Year 2018 volume 37 Issue 1
PDF
41
23
Cite this Article
BibTeX
Article Info
doi: 10.1007/s13131-018-1159-7
  • Receive Date：2016-08-29
  • Online Date：2026-04-13
  • Published：2018-01-25
Article Data
Affiliations
History
  • Received：2016-08-29
  • Accepted：2017-03-21
Funding
The Basic Scientific Fund for National Public Research Institutes of China under contract No. GY0216Q03; the National Science Foundation of China under contract Nos 41776089 and 41576084.
Affiliations
    1 Marine Ecology Research Center, First Institute of Oceanography, State Oceanic Administration, Qingdao 266061, China
    2 Laboratory for Marine Geology, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266237, China
    3 Key Laboratory of Marine Ecosystem and Biogeochemistry, Second Institute of Oceanography, State Oceanic Administration, Hangzhou 310012, China

Corresponding:

References
Share
https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-018-1159-7
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
