Implications of the melting depth and temperature of the Atlantic mid-ocean ridge basalts
收藏切换
PDF
Yili Guan1, 2, 3, Xuefa Shi1, 2, *, Quanshu Yan1, 2, Xun Wei1, 2, Yan Zhang1, 2, Xiaoping Xia3, Haoda Zhou4
Acta Oceanologica Sinica | 2019, 38(12) : 35 - 42
Less
收藏切换
Acta Oceanologica Sinica | 2019, 38(12): 35-42
• Marine Geology •
Implications of the melting depth and temperature of the Atlantic mid-ocean ridge basalts
Full
Yili Guan1, 2, 3, Xuefa Shi1, 2, *, Quanshu Yan1, 2, Xun Wei1, 2, Yan Zhang1, 2, Xiaoping Xia3, Haoda Zhou4
Affiliations
  • 1 Key Laboratory of Marine Sedimentology and Environmental Geology, First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China
  • 2 Laboratory for Marine Geology, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266061, China
  • 3 State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences, Guangzhou 510640, China
  • 4 Zhuhai Central Station of Marine Environmental Monitoring, State Oceanic Administration, Zhuhai 519015, China
Published: 2019-12-25 doi: 10.1007/s13131-019-1363-0
Outline
收藏切换

Mid-ocean ridge basalts (MORBs) are characterized by large variations in trace element compositions and isotopic ratios, which are difficult to be interpreted solely by using magmatic process such as partial melting of a peridotitic mantle and subsequently fractional crystallization. Geochemical diversity of MORBs have been attributed to large-scale heterogeneity within the underlying mantle, and the heterogeneity might have been caused by addition of recycled crustal component, subcontinental lithosphere, metasomatized lithosphere and outer core contribution. In this study, we investigated the MORBs along the Mid-Atlantic Ridge (MAR) by estimating the temperature and pressure of partial melting, and comprehensively comparing trace element and isotope ratios. The data for MORBs from areas close to mantle plumes show large variations. Mantle plumes can affect mid-oceanic ridges 1 400 km away, but plume effects did not cover all of the ridge segments, and those segments without plume effects did not have any abnormalities in temperature, trace element or isotope ratios. We ascribed the above phenomena to result from the shapes of the plume flow, which we categorized as “pipe-like channels” and “pancake-like channels”. The “pancake-like channels” plumes affected the ambient mantle nondirectionally, but the range of the mantle affected by the “pipe-like channels” plumes were selective. Element ratios of MORBs reveal that the mantle source of the MORBs along the MAR is highly heterogeneous. We suggest that most of source heterogeneities of the MORBs may be due to the presence of subducted slab and delaminated lower crust in the source. In addition, the plume that carried materials from the core-mantle boundary may affect some of the segments.

Mid-Atlantic Ridge  /  MORB  /  mantle heterogeneity  /  plume-ridge interaction
Yili Guan, Xuefa Shi, Quanshu Yan, Xun Wei, Yan Zhang, Xiaoping Xia, Haoda Zhou. Implications of the melting depth and temperature of the Atlantic mid-ocean ridge basalts[J]. Acta Oceanologica Sinica, 2019 , 38 (12) : 35 -42 . DOI: 10.1007/s13131-019-1363-0
Full Text
Less
1 Introduction
Less
Numerous geochemical studies on mantle rocks and oceanic basalts have shown that the mantle source beneath the Mid-Atlantic Ridge (MAR) is heterogeneous, which suggests the presence of both enriched and depleted components in the Earth’s mantle (White and Schilling, 1978; Bougault and Treuil, 1980; Schilling, 1985; Fontignie and Schilling, 1996; Le Roux et al., 2002; Hofmann, 2003; Agranier et al., 2005; Class and le Roex, 2011; Hoernle et al., 2011). The isotopic variability in oceanic basalts indicates that most mantle sources consist of complex assemblages of two or more components with long-term isolated chemical evolution (van Keken et al., 2002; Stracke, 2012). It has been proposed that the source of some mid-ocean ridge basalts (MORBs) possibly contains a recycled crustal component (Dixon et al., 2002; Sobolev et al., 2007), subcontinental lithosphere (Dosso et al., 1999; Escrig et al., 2005), metasomatized lithosphere (Pilet et al., 2008), and outer core contribution (Burke, 2011; Kelley et al., 2013). A few trace element ratios (cerium/lead [Ce/Pb], niobium/tantalum [Nb/Ta], and niobium/uranium [Nb/U]) in MORBs remain constant over a variable degree of partial melting of mantle sources with variable isotopic compositions. These ratios are termed “canonical”, and their constancy is interpreted to be the result of similar bulk partition coefficients of trace elements during upper mantle melting (Workman and Hart, 2005 and references therein). Therefore, these ratios in the melts are presumed to be identical to those in the source.
Migrating plume-ridge interaction is a common phenomenon. Such interactions results in elevated mantle temperatures beneath ridges, which lead to increased melt production, shallower bathymetry, and thicker oceanic crust, to unique geochemical signatures in ridge lavas that are reflective of compositional variations in the mantle source (Kelley et al., 2013). The plume-ridge interaction can account for physical and chemical anomalies along 15%–20% of the global mid-ocean ridge system (Ito et al., 2003). The geochemical signatures of MORBs, together with seismic tomographic data, have shown that upper-mantle temperatures are elevated at significant distances (<1 400 km) away from plume–ridge interactions, indicating a far-field, indirect influence of plume–ridge interactions on the upper-mantle structure (Whittaker et al., 2015; Yang et al., 2017). Temperature variations of MORBs may be affected by different types of mantle plumes (Dalton et al., 2014). Therefore, a simple and universal relationship does not exist between plume–ridge interaction segments and abnormal geochemical signature segments (Gale et al., 2013).
In this study, we used the data of MORBs collected by Gale et al. (2013) to calculate the temperature and pressure of MORBs and to discuss the source characteristics of MORBs beneath the MAR and the range of plume-ridge interactions. Our results shed light on the characteristics and evolution of the MAR. The sampling locations of the selected data are shown in Fig. 1.
2 Selection of the MORB data
Less
Primary magmas that have not experienced fractional crystallization are ideal for our study, but they are rare. Therefore, we focuse on the less evolved MORBs (>8 wt% magnesium oxide [MgO]) because these basalts likely have the simplest crystallization histories. All of the MORBs data along the MAR used in this study are from the compilation of Gale et al. (2013). A total of 546 data were selected for this study.
3 Characteristics of the MORB source
Less
3.1 Melting depth and temperature
Knowledge of temperature and pressure inferred from compositions of basaltic lavas is important to understand magmatic evolution. Many methods can be used to calculate the temperature and pressure of magma, including mineral composition and whole-rock chemical composition geothermobarometers, for example, two-pyroxene thermometers and barometers (Brey and Köhler, 1990), plagioclase thermometers and barometers (Putirka, 2005), clinopyroxene thermobarometry (Putirka et al., 1996, 2003), olivine thermometers (Putirka, 2005; Putirka et al., 2007), Na/Ti ratio barometer (Putirka, 1999), and silica activity barometer (Albarede, 1992). Compared with the thermobarometry of whole-rock chemical compositions, the results calculated by mineral compositions might be closer to the value of the melting condition. The average pressure and temperature of melt extracting from the mantle can be determined by estimating the average degree of partial melting. Lee et al. (2009) recently used the major elements of whole rocks to calculate the pressure and temperature of melt, and the uncertainties of the results were comparable to those reported by other geothermobarometers. Therefore, because of insufficient mineralogy, our study of the temperature and pressure of MORBs from the MAR was mainly based on the method of Lee et al. (2009). The equations are as follows:
$ \begin{split}T= & 1\;189.6 + 13.68p \left({{\rm{M}}{{\rm{g}}_4}{\rm{S}}{{\rm{i}}_2}{{\rm{O}}_8}} \right) + \frac{{4\;580}}{p({{{\rm{S}}{{\rm{i}}_4}{{\rm{O}}_8}}})}-\\ & 0.509p \left({{\rm{S}}{{\rm{i}}_{16}}{{\rm{O}}_8}} \right)p \left({{\rm{M}}{{\rm{g}}_4}{\rm{S}}{{\rm{i}}_2}{{\rm{O}}_8}} \right), \end{split}$
$P = \frac{{\ln p \left({{\rm{S}}{{\rm{i}}_4}{{\rm{O}}_8}} \right) - 4.019 + 0.016\;5p \left({{\rm{F}}{{\rm{e}}_4}{\rm{S}}{{\rm{i}}_2}{{\rm{O}}_8}} \right) + 0.000\;5p{{({\rm{C}}{{\rm{a}}_4}{\rm{S}}{{\rm{i}}_2}{{\rm{O}}_8} )}^2}}}{{ - 770{T^{ - 1}} + 0.005\;8{T^{\frac{1}{2}}} - 0.003p \left({{{\rm{H}}_{16}}{{\rm{O}}_8}} \right)}},$
where p(Mg4Si2O8), p(Si4O8), p(Fe4Si2O8), p(Ca4Si2O8) and p(H16O8) are the mole percentage of those species in the liquid, P is in GPa, and T is temperature in Kelvin (K). For more details, the reader is referred to the paper by Lee et al. (2009).

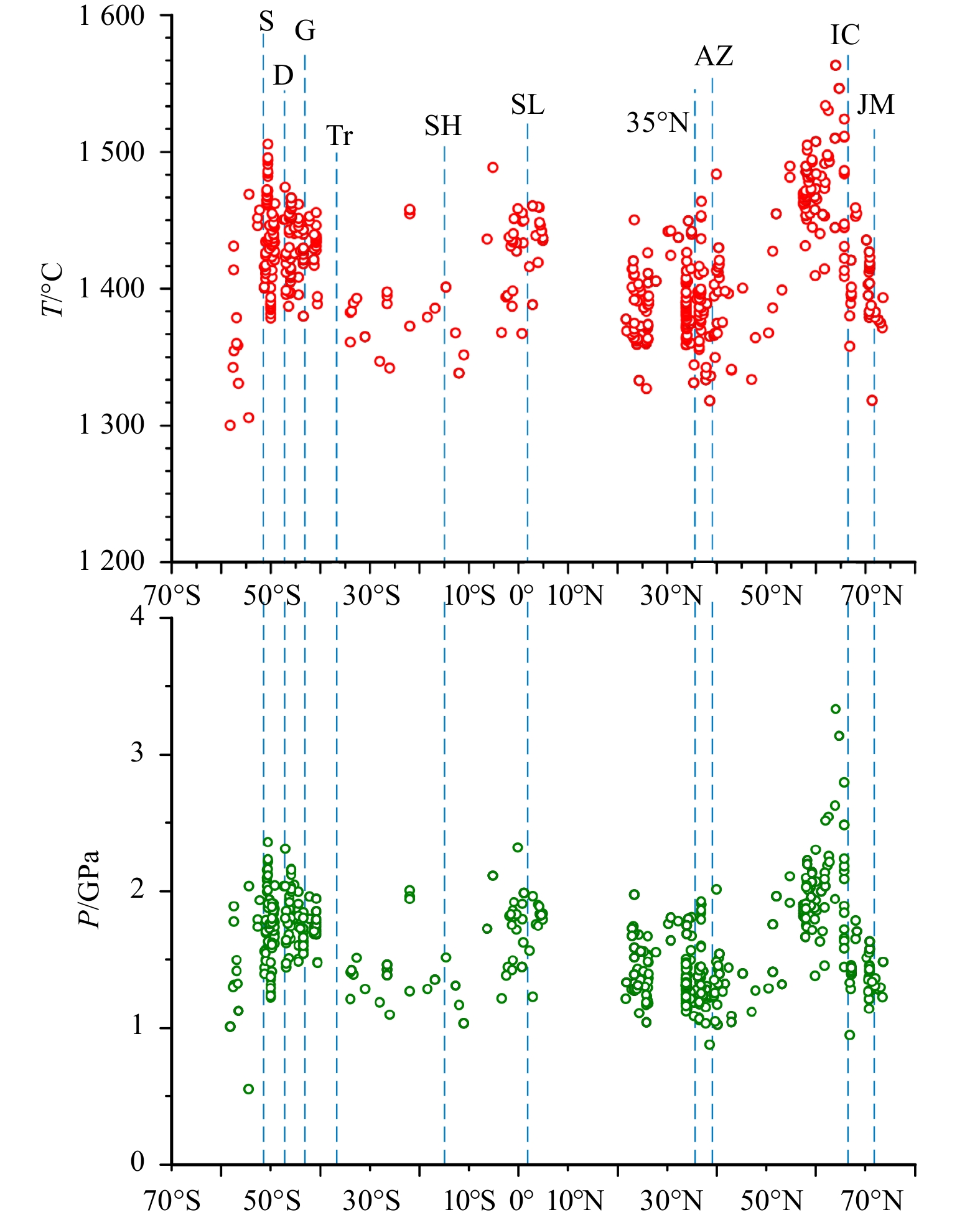

Our calculated results show that the pressure and temperature of melt vary greatly. The melting pressure of MORBs from MAR ranges from 0.55 GPa to 3.33 GPa, and the temperature ranges from 1 300°C to 1 563°C (Fig. 2). Figure 2 shows that pressure and temperature have a good corresponding relationship and the positions of relatively high values are on or close to the mantle plumes.
3.2 Characteristics of the strontium-neodymium-hafnium isotopes

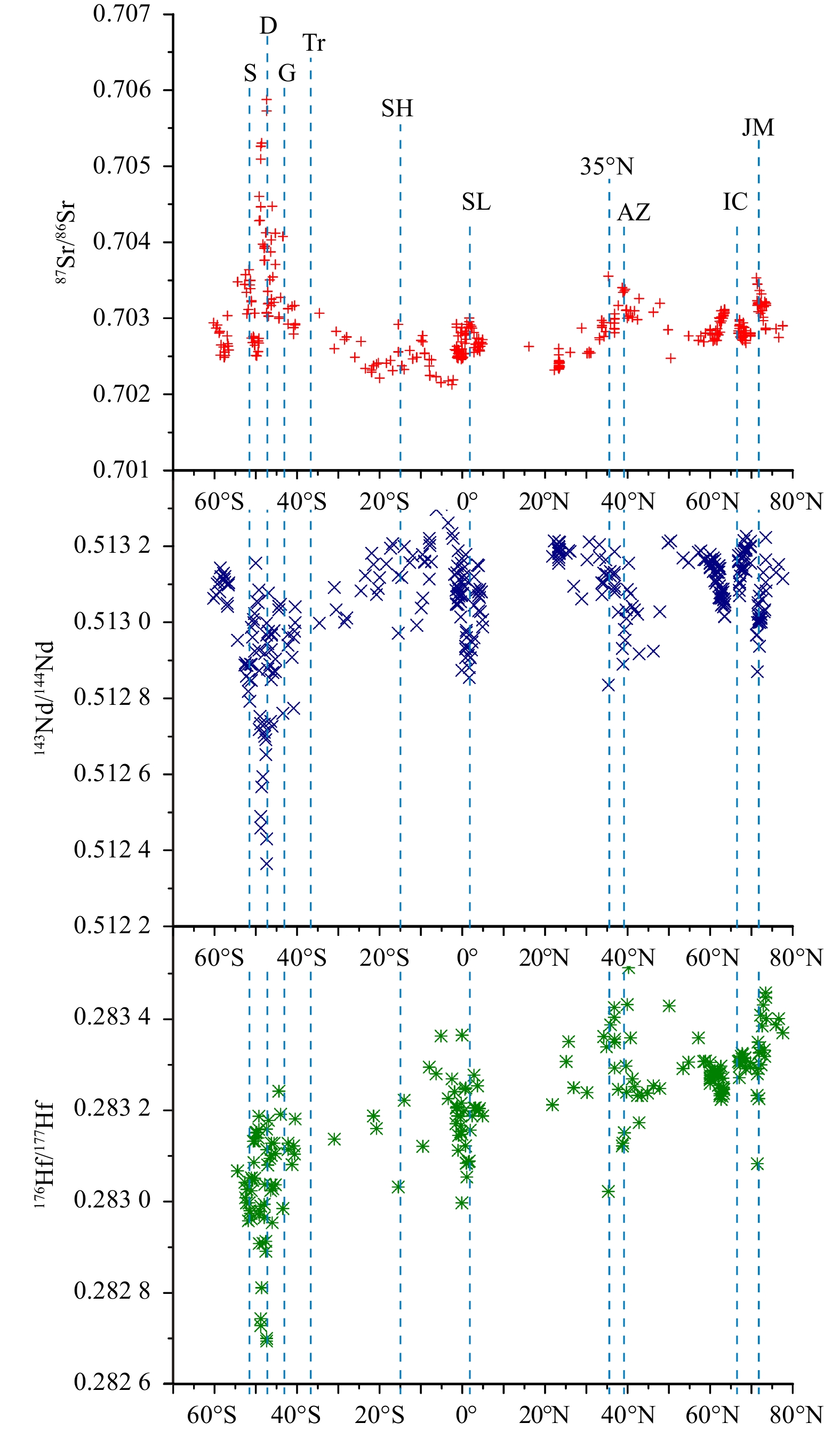

The strontium-neodymium-hafnium (Sr-Nd-Hf) isotopic compositions of MORBs from MAR between 80°N and 60°S have a large range. Most peaks of the isotopic data coincide with the area affected by the mantle plume (Fig. 3). The most pronounced peak occurred at 48°–52°S between Discovery/LOMU and Shona plumes where 87Sr/86Sr has the maximum value (0.705 878), and 143Nd/144Nd and 176Hf/177Hf have the minimum values (0.512 365 and 0.282 694, respectively). Unlike Sr-Nd isotopes, the 176Hf/177Hf value decreased from north to south along the MAR (Fig. 3).
4 Implications for mantle source and magmatic evolution
Less
4.1 Effect of mantle plume on the MORB mantle source
Plume-ridge interaction has long been noticed by researchers (Morgan, 1972; Schilling, 1973; Schilling et al., 1985; Ribe, 1996; Ito et al., 2003; Mittelstaedt et al., 2011; Whittaker et al., 2015), because it represents the two dominant modes (plates tectonics and plumes) of mantle transport and thermal–chemical fluxing between the Earth’s deep interior and the surface. According to the relative position between mid-ocean ridges and mantle plumes, these interactions can be divided into: (1) “ridge-centered” plumes rising directly beneath a ridge (Ribe et al., 1995; Kempton et al., 2000), and (2) “off-ridge” plumes ascending at some distance from a ridge (Kincaid et al., 1996; Ribe, 1996). Asymmetric seafloor spreading may be associated with the “off-ridge” plumes (Müller et al., 1998). Since the depths at which the plumes originate (on- and off-ridges) are diverse (Courtillot et al., 2003; Montelli et al., 2006; Ito and van Keken, 2007), these plumes have different thermal conditions and compositions. Geophysical and geochemical observations have indicated that ascending mantle plumes can interact with ocean ridges located up to 1 400 km away (Ribe, 1996).
Many plumes are located on and off the MAR (Ito and van Keken, 2007) and will increase the temperature of ambient mantle (Dalton et al., 2014). Plume–ridge interactions thus cause many of the largest structural and chemical anomalies (Schilling et al., 1985; Ito et al., 2003). We, however, do not identify any temperature anomalies associated with some of the plumes including Tristan (Tr) and St. Helena (SH) (Fig. 2). The low-temperature zone identified between 7°S and 40°S along the MAR also has been observed by other researchers (2°S to 30°S along the MAR) (Dalton et al., 2014). The low melting temperatures of MORBs near these plumes might be controlled by a variety of factors.

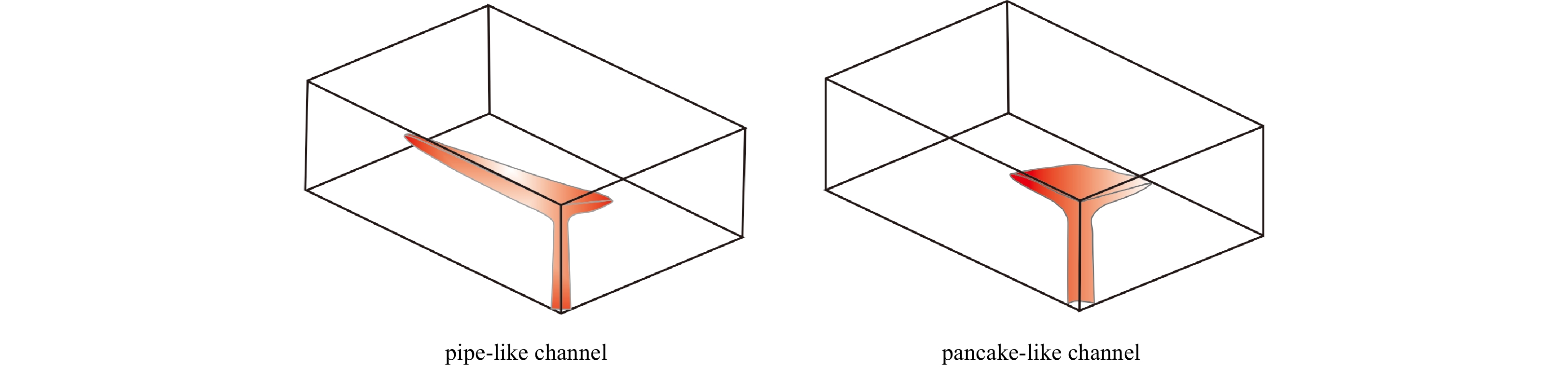

Plumes can flow along and toward ridges in pipe-like channels or pancake-like channels (Fig. 4). The plumes on the ridge (e.g., Iceland) will affect the temperature of the MORB regardless of the channel flowing characteristics. A variety of geophysical and geochemical evidence has indicated that ascending mantle plumes can interact with ocean ridges located up to 1 400 km away (Ribe, 1996). Therefore, off-ridge plumes can still affect the compositions of MORBs on the ridge. If, however, the off-ridge plumes flow along and toward ridges in pipe-like channels, the range of influence of the plumes becomes limited. The direction of the channel is another important consideration. If the direction of channel flow is parallel to the ridge or deviates from the ridge, the plume-ridge interaction will be insignificant. In addition, if the melting source is enriched in volatile elements, it will decrease the melting temperature of the MORB source, and the expression of the plume effect will be weakened. The volatile elements and corresponding incompatible elements reflect the nature of the source characteristics.
MORBs near JM have high 87Sr/86Sr and low 143Nd/144Nd with high water contents (~0.1%–0.2%) (Haase et al., 1996, 2003). The “wet” mantle lowers the solidus temperature although the JM plume increases its temperature. Thus, it is difficult to characterize the plume channel type. MORBs near the Tr and Sh plumes, however, have low 87Sr/86Sr and high 143Nd/144Nd values, which are identical to the depleted mantle. The Tr and Sh plumes have pipe-like channels that are parallel to the ridge or deviate from MAR. Therefore, the plumes do not increase the temperature of the adjacent MORB.
MORBs near Iceland have high potential temperatures (Fig. 2), and the highest temperature is ~1 550°C, which is lower than that (1 637°C) of the Iceland plume (Putirka, 2005). The oceanic crust is sensitive to small temperature fluctuations that change the thickness of newly formed crust by kilometers. Within the region influenced by this plume, the average thickness of the oceanic crust increases from 7 to 14 km (White, 1997; Parnell-Turner et al., 2014). The Reykjanes Ridge crosses the Icelandic plume and has a hot convective upwelling with a radius of at least 1 200 km (Parnell-Turner et al., 2014), which is consistent with estimates by Dalton et al. (2014). Therefore, we suggest the relationship between Iceland and its surrounding ridges to be a pancake-like channel.
Another high temperature region is located at the South Altantic Ridge between 40°S and 52°S (Fig. 2). A mantle plume group (Gough, Discovery/LOMU and Shona) is located near this area, and the root of the plume group is a low shear-wave velocity province located in the lowermost mantle beneath Africa (termed Tuzo) (Courtillot et al., 2003; Torsvik et al., 2014). The Tuzo is also called a superplume (Schubert et al., 2004; Simmons et al., 2007), and the mantle above the superplume has a high geothermal gradient. The mantle plumes (Gough, Discovery/LOMU and Shona) are located at a considerable distance from each other, but the potential temperature of MORBs between 40°S and 52°S are higher than that at the nearby ridges. This finding is consistent with the results of geophysical data (Konter and Becker, 2012). Therefore, we suggest the relationship between the mantle plume group (Gough, Discovery/LOMU and Shona) and the surrounding ridges also to be a pancake-like channel.
4.2 Characteristics of the melting sources
Numerous isotope and trace element studies of MORBs show that the Earth’s mantle is heterogeneous (Schilling, 1985; Zindler and Hart, 1986; Hofmann, 1997; Schiano et al., 1997; Stracke and Bourdon, 2009). The isotopic variability in oceanic basalts indicates that most mantle sources consist of complex assemblages of two or more components with a long-term isolated chemical evolution on both global and local scales (Hofmann, 1997; Hart et al., 2008; Paulick et al., 2010). The ranges in isotope and canonical trace element ratios, including zircon/hafnium Zr/Hf, Ce/Pb and Nb/Ta have been used to characterize mantle sources (Hofmann et al., 1986; Salters and Stracke, 2004; Workman and Hart, 2005; Stracke and Bourdon, 2009; Arevalo and McDonough, 2010). Therefore, we use the isotope and canonical trace element ratios to constrain the mantle characteristics (the source of the MORBs) beneath the MAR.
(1) Zinc/iron and vanadium/scandium ratios

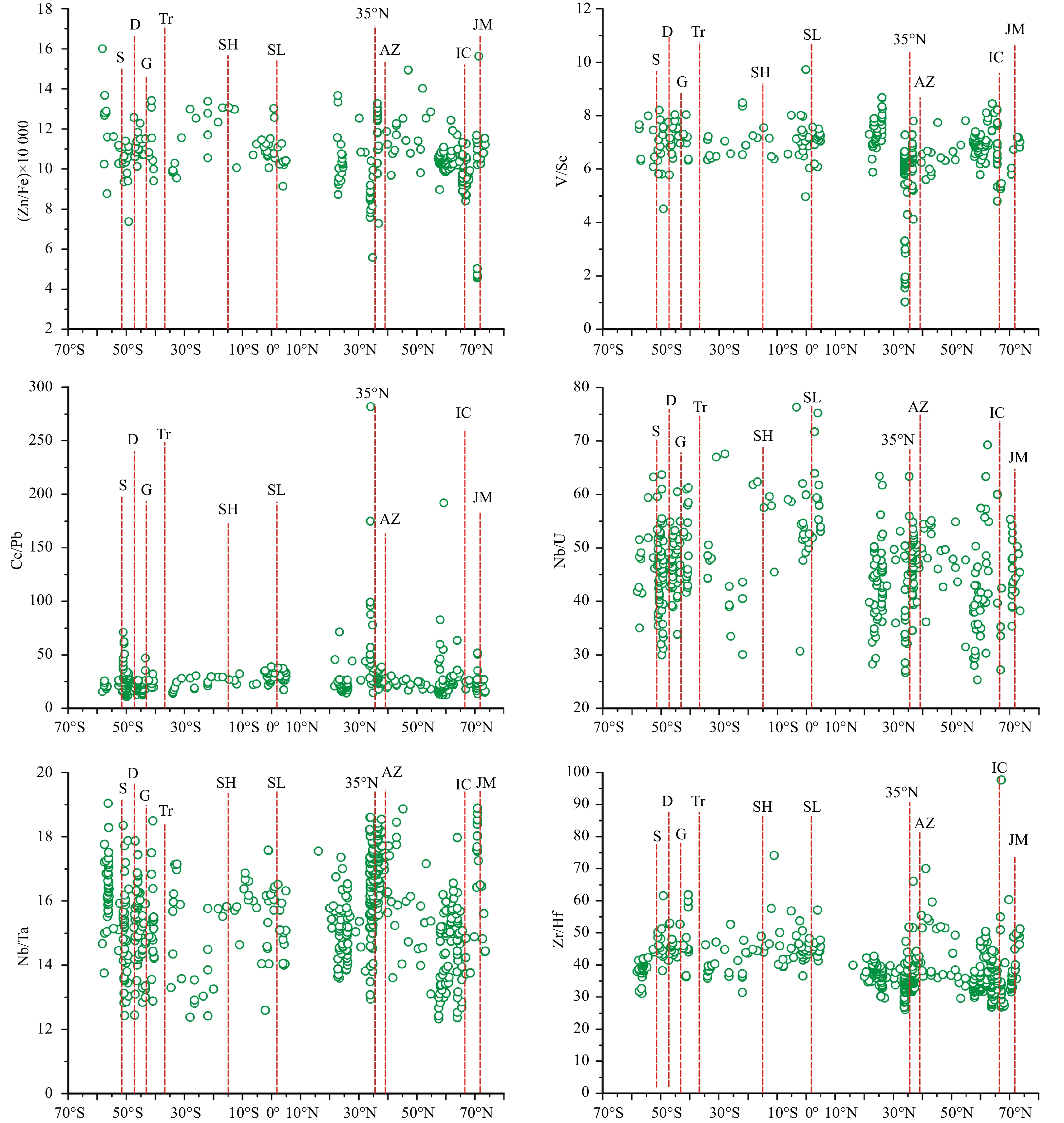

Zinc/iron (Zn/Fe) ratios of MORBs at the MAR are between 4.6 and 16.0, and vanadium/scandium (V/Sc) ratios are between 1.0 and 9.7 (Fig. 5). They are identical to primitive arc magmas, and these ratios are consistent with other researches (e.g., Lee et al., 2005, 2010; Le Roux et al., 2010). Zn/Fe and V/Sc ratios are sensitive to the barometric fO2 and mineral association (e.g., garnet and clinopyroxene as the residue in the source increased the Zn/Fe and V/Sc ratios of melt). These ratios are also similar between MORBs and primitive arc magmas, suggesting that their sources have similar barometric fO2 values and garnet and clinopyroxene contents (Lee et al., 2010). Previous researchers have suggested that subduction of oxidized crustal materials may not significantly alter the redox state of the mantle wedge (Le Roux et al., 2010). Therefore, Zn/Fe and V/Sc ratios of the oceanic slab will not change after subduction. It is difficult to determine whether the sources of MORBs have subducted slab materials. Some Zn/Fe and V/Sc ratios are higher than average ratios (10.60 and 6.66, respectively), which could be explained by the fact, that the garnet or clinopyroxene (or both) exist in the residue at the source regions (Lee et al., 2005; Le Roux et al., 2010). Some ratios however, are much lower than the average (e.g., 35°N; Fig. 5). This cannot be explained by the contribution of the subducted slab to the MORB source. Pyroxenites (including eclogites) from the Dabie and Sulu orogeny in China have Zn/Fe ratios of 3−11 (Le Roux et al., 2010). The intraplate lavas appear to have varied larger variation in V/Sc ratios, including values (>9), higher than those seen in MORBs (average value is 6.7) (Lee et al., 2005). Therefore, the residue after melting in the source of intraplate lavas should have low V/Sc ratios. This is the case, and continental crust is characterized by lower V/Sc ratios of 4–6 (Rudnick and Fountain, 1995). Therefore, we propose that the lower Zn/Fe and V/Sc ratios of MORBs could indicate that the continental materials were introduced into the MORB source. This view is consistent with results of studies in other area (Dosso et al., 1999).
(2) Ce/Pb ratios
The average Ce/Pb ratio of global MORBs is 22.2, which is inferred to represent the composition of the DMM (Arevalo and McDonough, 2010). The Ce/Pb ratios at 35°N, 42°–52°S, and 58°–72°N along the MAR are abnormally high up to 300 (not shown in the plots). The Ce/Pb ratios of the average continental crust and the bulk earth are ~3 and ~10, respectively (Brenan et al., 1995). Therefore, we propose that, a reservoir with a high Ce/Pb ratio is located beneath the abnormal areas.
Pb is preferentially partitioned into the continents, which indicates that (1) Pb behaves as a highly incompatible element during continent formation; and (2) Pb is carried from the subducted oceanic crust and marine sediments to the source of continent-building magmas by fluids before melting (Miller et al., 1994). Therefore, the oceanic crust that subducted into an upper mantle at convergent margins has lower Pb content and a higher Ce/Pb ratio (Brenan et al., 1995). Partial melting of the lower continental crust and the lithospheric mantle, when they delaminated into the asthenospheric mantle, decreases the Pb content of the residue (Lustrino, 2005). Therefore, the residue of the lower continental crust and lithospheric mantle, which delaminated into the asthenospheric mantle, should also have a high Ce/Pb ratio. We consider that the mantle heterogeneity in the three areas indicates the presence of some residual continental material and subducted oceanic crust (Haase et al., 1996; Dosso et al., 1999; Le Roux et al., 2002; Escrig et al., 2005). Therefore, we suggest that a high Ce/Pb ratio of MORBs along MAR is constrained by recycled material, including subducted oceanic crust and delaminated subcontinental lithosphere.
(3) Nb/U
Log (U) versus log (Nb) of MORB pillow-rim glass collected from the Pacific, Atlantic and Indian Oceans shows that the slope is 0.954, close to 1 (Sun et al., 2008). Nb and U are almost not fractionated from each other during partial melting (Willbold and Stracke, 2006). Therefore, the Nb/U ratios of the MORBs should represent those of the mantle source region.
Unlike Ce/Pb ratios with significant variation, the Nb/U ratios of MORBs along the MAR mostly have a restricted range between 30 and 60, which is consistent with the average value (~47) of all MORBs (Gale et al., 2013). Pb-U should have fractionated in the subduction zone, and Pb is preferentially partitioned into the arc relative to U during the subduction of the oceanic crust subducted into the mantle (Kelley et al., 2005). Some 54%–98% of Pb and 25%–50% U will lose from the subducted oceanic crust (Kelley et al., 2005). The subducted residual oceanic crust will melt with the ambient mantle during they rise following the mantle convection. The melt can record signals of residual oceanic crust. Consequently, it can be expected that Ce/Pb ratios of MORBs will experience a more significant change than Nb/U ratios (Fig. 5).
(4) Zr/Hf and Nb/Ta ratios
The Zr/Hf and Nb/Ta ratios displayed large variations (Fig. 5). Previous studies have shown for natural samples that Zr/Hf ratios in mafic melts could be modified by clinopyroxene crystallization (Pfänder et al., 2007). No correlation exists, however, between Sc, nickel (Ni) and Zr/Hf (not shown); thus, crystallization of clinopyroxene and olivine could not affect the Zr/Hf ratios. Therefore, the large variation in the Zr/Hf ratios is controlled by the source heterogeneities.
Nearly all lavas with high Nb/Ta ratios are located close to the plume positions (Fig. 5). This ratio is higher than the estimated Nb/Ta ratios in the continental crust (~12–13) and the bulk-silicate earth (~14) (Pfänder et al., 2007). Like the Zr/Hf ratios, the high Nb/Ta ratios are controlled by the source heterogeneities. Subducted slab with garnet-amphibolite residues has an elevated Nb/Ta ratio after slab melt extraction, and the eclogite (the main component of the lower crust) has a high Nb/Ta ratio (Schmidt et al., 2009). Therefore, the contributions of subducted slab and the delaminated lower crust to MORBs will elevate the Nb/Ta ratios. Materials in the earth’s core, as the hidden reservoir of Nb, could be entrained by the mantle plumes that stemmed from the core-mantle boundary (Wade and Wood, 2001). Alternatively, the plume could supply more Nb and elevate the Nb/Ta ratio. Abyssal peridotites, that are melting residues for MORB, also show strong correlation between Zr/Hf (~2.5–335) and Nb/Ta (~1–170) (Huang et al., 2011). This finding confirms the fact that source heterogeneity is the major cause of significant variations in the Nb/Ta and Zr/Hf ratios.
5 Summary
Less
This study shows that the source regions of the MAR basalts are quite different. The anomalies of temperature and pressure are mainly determined by the influence of mantle plume. The changes in trace element and isotopic compositions, however, are mainly determined by the geochemical diversity in its source region. The source characteristics of MORBs determined in this study are quantitative. Specific to a ridge or to a few ridge segments, detailed issues should be considered (Kempton et al., 2000; Zhang et al., 2016). In addition, quantitative analyses of the source characteristics also need to use more analysis methods. For example, combining osmium (Os) isotope with Sr-Nd-Pb-Hf isotopes and trace elements could be used to quantitatively estimate the source characteristics of MORBs (Escrig et al., 2004). Nevertheless, some problems have not been resolved. For instance, no mantle plume activities exist around some areas with high temperatures (e.g., 5°S and 21°S on the MAR, see Fig. 2). It is unclear, whether there are hidden mantle plumes beneath these areas, and if not, what causes the decrease in Hf isotopes of MORBs from north to south along the MAR. Therefore, future work is needed to solve these problems.
Acknowledgements
Less
We thank Liyan Tian and the other two anonymous reviewers for their constructive comments that have greatly improved the manuscript.
Funding
Less
  • The Basic Scientific Fund for National Public Research Institutes of China under contract No. 2015G07; the National Programme on Global Change and Air-Sea Interaction under contract Nos GASI-GEOGE-02; the National Natural Science Foundation of China under contract Nos 41506079, 41576052, 41506068, 41322036 and 41776070; the AoShan Talents Program Supported by Qingdao National Laboratory for Marine Science and Technology under contract No. 2015ASTP-ES16; the Taishan Scholarship from Shandong Province; the Research Grant of State Key Laboratory of Isotope Geochemistry, Guangzhou Institute of Geochemistry, Chinese Academy of Sciences under contract No. SKLIG-KF-14-03; the China Postdoctoral Science Foundation under contract No. 2016M592120.
References
Less
Agranier A, Blichert-Toft J, Graham D, et al. 2005. The spectra of isotopic heterogeneities along the mid-Atlantic Ridge. Earth and Planetary Science Letters, 238(1–2): 96–109
Albarede F. 1992. How deep do common basaltic magmas form and differentiate?. Journal of Geophysical Research: Solid Earth, 97(B7): 10997–11009, doi: 10.1029/91JB02927
Andres M, Blichert-Toft J, Schilling J G. 2004. Nature of the depleted upper mantle beneath the Atlantic: evidence from Hf isotopes in normal mid-ocean ridge basalts from 79°N to 55°S. Earth and Planetary Science Letters, 225(1–2): 89–103
Arevalo Jr R, McDonough W F. 2010. Chemical variations and regional diversity observed in MORB. Chemical Geology, 271(1–2): 70–85
Bougault H, Treuil M. 1980. Mid-Atlantic Ridge: zero-age geochemical variations between Azores and 22°N. Nature, 286(5770): 209–212, doi: 10.1038/286209a0
Brenan J M, Shaw H F, Ryerson F J. 1995. Experimental evidence for the origin of lead enrichment in convergent-margin magmas. Nature, 378(6552): 54–56, doi: 10.1038/378054a0
Brey G P, Köhler T. 1990. Geothermobarometry in four-phase Lherzolites II. New thermobarometers, and practical assessment of existing thermobarometers. Journal of Petrology, 31(6): 1353–1378
Burke K. 2011. Plate tectonics, the Wilson Cycle, and mantle plumes: geodynamics from the top. Annual Review of Earth and Planetary Sciences, 39: 1–29, doi: 10.1146/annurev-earth-040809-152521
Class C, le Roex A. 2011. South Atlantic DUPAL anomaly—Dynamic and compositional evidence against a recent shallow origin. Earth and Planetary Science Letters, 305(1–2): 92–102
Courtillot V, Davaille A, Besse J, et al. 2003. Three distinct types of hotspots in the Earth’s mantle. Earth and Planetary Science Letters, 205(3–4): 295–308
Dalton C A, Langmuir C H, Gale A. 2014. Geophysical and geochemical evidence for deep temperature variations beneath mid-ocean ridges. Science, 344(6179): 80–83, doi: 10.1126/science.1249466
Dixon J E, Leist L, Langmuir C, et al. 2002. Recycled dehydrated lithosphere observed in plume-influenced mid-ocean-ridge basalt. Nature, 420(6914): 385–389, doi: 10.1038/nature01215
Dosso L, Bougault H, Langmuir C, et al. 1999. The age and distribution of mantle heterogeneity along the Mid-Atlantic Ridge (31–41°N). Earth and Planetary Science Letters, 170(3): 269–286, doi: 10.1016/S0012-821X(99)00109-0
Escrig S, Capmas F, Dupré B, et al. 2004. Osmium isotopic constraints on the nature of the DUPAL anomaly from Indian mid-ocean-ridge basalts. Nature, 431(7004): 59–63, doi: 10.1038/nature02904
Escrig S, Schiano P, Schilling J G, et al. 2005. Rhenium-osmium isotope systematics in MORB from the Southern Mid-Atlantic Ridge (40°–50°S). Earth and Planetary Science Letters, 235(3–4): 528–548
Fontignie D, Schilling J G. 1996. Mantle heterogeneities beneath the South Atlantic: a Nd-Sr-Pb isotope study along the Mid-Atlantic Ridge (3°S–46°S). Earth and Planetary Science Letters, 142(1–2): 209–221
Gale A, Dalton C A, Langmuir C H, et al. 2013. The mean composition of ocean ridge basalts. Geochemistry, Geophysics, Geosystems, 14(3): 489–518, doi: 10.1029/2012GC004334
Haase K M, Devey C W, Mertz D F, et al. 1996. Geochemistry of lavas from Mohns Ridge, Norwegian-Greenland Sea: implications for melting conditions and magma sources near Jan Mayen. Contributions to Mineralogy and Petrology, 123(3): 223–237, doi: 10.1007/s004100050152
Haase K M, Devey C W, Wieneke M. 2003. Magmatic processes and mantle heterogeneity beneath the slow-spreading northern Kolbeinsey Ridge segment, North Atlantic. Contributions to Mineralogy and Petrology, 144(4): 428–448, doi: 10.1007/s00410-002-0408-z
Hart S R, Kurz M D, Wang Z. 2008. Scale length of mantle heterogeneities: constraints from helium diffusion. Earth and Planetary Science Letters, 269(3–4): 508–517
Hoernle K, Hauff F, Kokfelt T F, et al. 2011. On-and off-axis chemical heterogeneities along the South Atlantic Mid-Ocean-Ridge (5–11°S): Shallow or deep recycling of ocean crust and/or intraplate volcanism?. Earth and Planetary Science Letters, 306: 86–97, doi: 10.1016/j.jpgl.2011.03.032
Hofmann A W. 1997. Mantle geochemistry: the message from oceanic volcanism. Nature, 385(6613): 219–229, doi: 10.1038/385219a0
Hofmann A W. 2003. Sampling mantle heterogeneity through oceanic basalts: isotopes and trace elements. In: Carlson R W, Holland H, Turekian K K, eds. Treatise on Geochemistry. Vol 2. Oxford: Elsevier, 61–101
Hofmann A W, Jochum K P, Seufert M, et al. 1986. Nb and Pb in oceanic basalts: new constraints on mantle evolution. Earth and Planetary Science Letters, 79(1–2): 33–45
Huang H, Niu Y L, Zhao Z D, et al. 2011. On the enigma of Nb-Ta and Zr-Hf fractionation—a critical review. Journal of Earth Science, 22(1): 52–66, doi: 10.1007/s12583-011-0157-x
Ito G, Lin J, Graham D. 2003. Observational and theoretical studies of the dynamics of mantle plume–mid-ocean ridge interaction. Reviews of Geophysics, 41(4): 1017, doi: 10.1029/2002RG000117
Ito G, van Keken P E. 2007. Hot spots and melting anomalies. Treatise on Geophysics, 7: 371–435, doi: 10.1016/B978-044452748-6/00123-1
Kelley K A, Kingsley R, Schilling J G. 2013. Composition of plume-influenced mid-ocean ridge lavas and glasses from the Mid-Atlantic Ridge, East Pacific Rise, Galápagos Spreading Center, and Gulf of Aden. Geochemistry, Geophysics, Geosystems, 14(1): 223–242, doi: 10.1002/ggge.20049
Kelley K A, Plank T, Farr L, et al. 2005. Subduction cycling of U, Th, and Pb. Earth and Planetary Science Letters, 234(1–2): 369–383
Kempton P D, Fitton J G, Saunders A D, et al. 2000. The Iceland plume in space and time: a Sr–Nd–Pb–Hf study of the North Atlantic rifted margin. Earth and Planetary Science Letters, 177(1–2): 255–271
Kincaid C, Schilling J G, Gable C. 1996. The dynamics of off-axis plume-ridge interaction in the uppermost mantle. Earth and Planetary Science Letters, 137(1–4): 29–43
Konter J G, Becker T W. 2012. Shallow lithospheric contribution to mantle plumes revealed by integrating seismic and geochemical data. Geochemistry, Geophysics, Geosystems, 13(2): Q02004, doi: 10.1029/2011GC003923
Le Roux P J, Le Roex A P, Schilling J G, et al. 2002. Mantle heterogeneity beneath the southern Mid-Atlantic Ridge: trace element evidence for contamination of ambient asthenospheric mantle. Earth and Planetary Science Letters, 203(1): 479–498, doi: 10.1016/S0012-821X(02)00832-4
Le Roux V, Lee C T A, Turner S J. 2010. Zn/Fe systematics in mafic and ultramafic systems: Implications for detecting major element heterogeneities in the Earth’s mantle. Geochimica et Cosmochimica Acta, 74(9): 2779–2796, doi: 10.1016/j.gca.2010.02.004
Lee C T A, Leeman W P, Canil D, et al. 2005. Similar V/Sc systematics in MORB and arc basalts: implications for the oxygen fugacities of their mantle source regions. Journal of Petrology, 46(11): 2313–2336, doi: 10.1093/petrology/egi056
Lee C T A, Luffi P, Le Roux V, et al. 2010. The redox state of arc mantle using Zn/Fe systematics. Nature, 468(7324): 681–685, doi: 10.1038/nature09617
Lee C T A, Luffi P, Plank T, et al. 2009. Constraints on the depths and temperatures of basaltic magma generation on Earth and other terrestrial planets using new thermobarometers for mafic magmas. Earth and Planetary Science Letters, 279(1–2): 20–33
Lustrino M. 2005. How the delamination and detachment of lower crust can influence basaltic magmatism. Earth-Science Reviews, 72(1–2): 21–38
Miller D M, Goldstein S L, Langmuir C H. 1994. Cerium/lead and lead isotope ratios in arc magmas and the enrichment of lead in the continents. Nature, 368(6471): 514–520, doi: 10.1038/368514a0
Mittelstaedt E, Ito G, van Hunen J. 2011. Repeat ridge jumps associated with plume-ridge interaction, melt transport, and ridge migration. Journal of Geophysical Research: Solid Earth, 116(B1): B01102, doi: 10.1029/2010JB007504
Montelli R, Nolet G, Dahlen F A, et al. 2006. A catalogue of deep mantle plumes: new results from finite-frequency tomography. Geochemistry, Geophysics, Geosystems, 7(11): Q11007, doi: 10.1029/2006GC001248
Morgan W J. 1972. Plate motions and deep mantle convection. In: Shagam R, Hargraves R B, Morgan W J, et al, eds. Studies in Earth and Space Sciences. Boulder, Colo: Geological Society of America, 132: 7–22
Müller R D, Roest W R, Royer J Y. 1998. Asymmetric sea-floor spreading caused by ridge-plume interactions. Nature, 396(6710): 455–459, doi: 10.1038/24850
Parnell-Turner R, White N, Henstock T, et al. 2014. A continuous 55-million-year record of transient mantle plume activity beneath Iceland. Nature Geoscience, 7(12): 914–919, doi: 10.1038/ngeo2281
Paulick H, Münker C, Schuth S. 2010. The influence of small-scale mantle heterogeneities on Mid-Ocean Ridge volcanism: evidence from the southern Mid-Atlantic Ridge (7°30′S to 11°30′S) and Ascension Island. Earth and Planetary Science Letters, 296(3–4): 299–310
Pfänder J A, Münker C, Stracke A, et al. 2007. Nb/Ta and Zr/Hf in ocean island basalts—Implications for crust-mantle differentiation and the fate of Niobium. Earth and Planetary Science Letters, 254(1–2): 158–172
Pilet S, Baker M B, Stolper E M. 2008. Metasomatized lithosphere and the origin of alkaline lavas. Science, 320(5878): 916–919, doi: 10.1126/science.1156563
Putirka K. 1999. Melting depths and mantle heterogeneity beneath Hawaii and the East Pacific Rise: constraints from Na/Ti and rare earth element ratios. Journal of Geophysical Research: Solid Earth, 104(B2): 2817–2829, doi: 10.1029/1998JB900048
Putirka K D. 2005. Mantle potential temperatures at Hawaii, Iceland, and the mid-ocean ridge system, as inferred from olivine phenocrysts: evidence for thermally driven mantle plumes. Geochemistry, Geophysics, Geosystems, 6(5): Q05L08, doi: 10.1029/2005GC000915
Putirka K D. 2005. Igneous thermometers and barometers based on plagioclase + liquid equilibria: tests of some existing models and new calibrations. American Mineralogist, 90(2–3): 336–346
Putirka K, Johnson M, Kinzler R, et al. 1996. Thermobarometry of mafic igneous rocks based on clinopyroxene-liquid equilibria, 0–30 kbar. Contributions to Mineralogy and Petrology, 123(1): 92–108, doi: 10.1007/s004100050145
Putirka K D, Mikaelian H, Ryerson F, et al. 2003. New clinopyroxene-liquid thermobarometers for mafic, evolved, and volatile-bearing lava compositions, with applications to lavas from Tibet and the Snake River Plain, Idaho. American Mineralogist, 88(10): 1542–1554, doi: 10.2138/am-2003-1017
Putirka K D, Perfit M, Ryerson F J, et al. 2007. Ambient and excess mantle temperatures, olivine thermometry, and active vs. passive upwelling. Chemical Geology, 241(3–4): 177–206
Ribe N M. 1996. The dynamics of plume-ridge interaction: 2. Off-ridge plumes. Journal of Geophysical Research: Solid Earth, 101(B7): 16195–16204, doi: 10.1029/96JB01187
Ribe N M, Christensen U R, Theißing J. 1995. The dynamics of plume-ridge interaction, 1: Ridge-centered plumes. Earth and Planetary Science Letters, 134(1–2): 155–168
Rudnick R L, Fountain D M. 1995. Nature and composition of the continental crust: a lower crustal perspective. Reviews of Geophysics, 33(3): 267–309, doi: 10.1029/95RG01302
Salters V J M, Stracke A. 2004. Composition of the depleted mantle. Geochemistry, Geophysics, Geosystems, 5(5): Q05B07
Schiano P, Birck J L, Allègre C J. 1997. Osmium-strontium-neodymium-lead isotopic covariations in mid-ocean ridge basalt glasses and the heterogeneity of the upper mantle. Earth and Planetary Science Letters, 150(3–4): 363–379
Schilling J G. 1973. Iceland mantle plume: geochemical study of reykjanes ridge. Nature, 242(5400): 565–571, doi: 10.1038/242565a0
Schilling J G. 1985. Upper mantle heterogeneities and dynamics. Nature, 314(6006): 62–67, doi: 10.1038/314062a0
Schilling J G, Thompson G, Kingsley R, et al. 1985. Hotspot-migrating ridge interaction in the South Atlantic. Nature, 313(5999): 187–191, doi: 10.1038/313187a0
Schmidt A, Weyer S, John T, et al. 2009. HFSE systematics of rutile-bearing eclogites: new insights into subduction zone processes and implications for the earth’s HFSE budget. Geochimica et Cosmochimica Acta, 73(2): 455–468, doi: 10.1016/j.gca.2008.10.028
Schubert G, Masters G, Olson P, et al. 2004. Superplumes or plume clusters?. Physics of the Earth and Planetary Interiors, 146(1–2): 147–162
Simmons N A, Forte A M, Grand S P. 2007. Thermochemical structure and dynamics of the African superplume. Geophysical Research Letters, 34(2): L02301, doi: 10.1029/2006GL028009
Sobolev A V, Hofmann A W, Kuzmin D V, et al. 2007. The amount of recycled crust in sources of mantle-derived melts. Science, 316(5823): 412–417, doi: 10.1126/science. 1138113
Stracke A. 2012. Earth’s heterogeneous mantle: a product of convection-driven interaction between crust and mantle. Chemical Geology, 330–331: 274–299
Stracke A, Bourdon B. 2009. The importance of melt extraction for tracing mantle heterogeneity. Geochimica et Cosmochimica Acta, 73(1): 218–238, doi: 10.1016/j.gca.2008.10.015
Sun W D, Hu Y H, Kamenetsky V S, et al. 2008. Constancy of Nb/U in the mantle revisited. Geochimica et Cosmochimica Acta, 72(14): 3542–3549, doi: 10.1016/j.gca.2008.04.029
Torsvik T H, van der Voo R, Doubrovine P V, et al. 2014. Deep mantle structure as a reference frame for movements in and on the Earth. Proceedings of the National Academy of Sciences of the United States of America, 111(24): 8735–8740, doi: 10.1073/pnas.1318135111
van Keken P E, Hauri E H, Ballentine C J. 2002. Mantle mixing: the generation, preservation, and destruction of chemical heterogeneity. Annual Review of Earth and Planetary Sciences, 30: 493–525, doi: 10.1146/annurev.earth.30.091201.141236
Wade J, Wood B J. 2001. The Earth’s “missing” niobium may be in the core. Nature, 409(6816): 75–78, doi: 10.1038/35051064
White R S. 1997. Rift-plume interaction in the North Atlantic. Philosophical Transactions of the Royal Society A: Mathematical, Physical and Engineering Sciences, 355(1723): 319–339, doi: 10.1098/rsta.1997.0011
White W M, Schilling J G. 1978. The nature and origin of geochemical variation in Mid-Atlantic Ridge basalts from the central North Atlantic. Geochimica et Cosmochimica Acta, 42(10): 1501–1516, doi: 10.1016/0016-7037(78)90021-2
Whittaker J M, Afonso J C, Masterton S, et al. 2015. Long-term interaction between mid-ocean ridges and mantle plumes. Nature Geoscience, 8(6): 479–483, doi: 10.1038/ngeo2437
Willbold M, Stracke A. 2006. Trace element composition of mantle end-members: implications for recycling of oceanic and upper and lower continental crust. Geochemistry, Geophysics, Geosystems, 7(4): Q04004, doi: 10.1029/2005GC001005
Workman R K, Hart S R. 2005. Major and trace element composition of the depleted MORB mantle (DMM). Earth and Planetary Science Letters, 231(1–2): 53–72
Yang A Y, Zhao T P, Zhou M F, et al. 2017. Isotopically enriched N-MORB: a new geochemical signature of off-axis plume-ridge interaction—a case study at 50°28′E, Southwest Indian Ridge. Journal of Geophysical Research: Solid Earth, 122(1): 191–213, doi: 10.1002/2016JB013284
Zhang H T, Yang Y M, Yan Q S, et al. 2016. Ca/Al of plagioclase-hosted melt inclusions as an indicator for post-entrapment processes at mid-ocean ridges?. Geologica Acta, 14(1): 1–12
Zindler A, Hart S. 1986. Chemical geodynamics. Annual Review of Earth and Planetary Sciences, 14: 493–571, doi: 10.1146/annurev.ea.14.050186.002425
Appendix
Less
Year 2019 volume 38 Issue 12
PDF
28
15
Cite this Article
BibTeX
Article Info
doi: 10.1007/s13131-019-1363-0
  • Receive Date：2018-07-08
  • Online Date：2026-04-01
  • Published：2019-12-25
