Acta Oceanologica Sinica | 2019, 38(10): 27-42
• Marine Biology •
Trophic structure and energy flow of the resettled maritime area of the Bay of Bengal, Bangladesh through ECOPATH
Full
Ehsanul Karim1, 2, Qun Liu1, *, Ying Xue1, Shanur Jahedul Hasan2, M Enamul Hoq2, Yahia Mahmud2
Affiliations
  • 1 College of Fisheries, Ocean University of China, Qingdao 266003, China
  • 2 Bangladesh Fisheries Research Institute (BFRI), Mymensingh-2201, Bangladesh
Published: 2019-10-25 doi: 10.1007/s13131-019-1423-5
Outline
收藏切换

The existing study was taken to represent the current information in order to develop a mass-balanced ecosystem model within the resettled maritime boundary area of the Bay of Bengal (BoB), Bangladesh from July 2016 to June 2017 through ECOPATH approach covering over 90 000 km2. A total of 19 functional groups were considered representing all trophic levels in the foodweb where estimated trophic interactions between the groups were varied from 1 (primary producers and detritus) to 3.45 (sharks). The ecotrophic efficiency (EE) of most of the consumers was greater than 0.80; symbolizing a largely exploited ecosystem and high energy transfer from lower to higher trophic levels. Moreover, the gross efficiency (0.001 8) and transfer efficiency (11.12%) of the whole system symbolizes the “Developing Systems” with somewhat maturity currently. Ecosystem’s overhead (64.6) and ascendancy (35.4) also designate the ecosystem’s stability. Thus, this study determines that the resettled maritime area of BoB reserves significant backup strength to face stress situations having capacity to rapid restoration to the original states.

Ecopath with Ecosim  /  Bay of Bengal  /  ecological groups  /  maritime ecosystem  /  mass balance
Ehsanul Karim, Qun Liu, Ying Xue, Shanur Jahedul Hasan, M Enamul Hoq, Yahia Mahmud. Trophic structure and energy flow of the resettled maritime area of the Bay of Bengal, Bangladesh through ECOPATH[J]. Acta Oceanologica Sinica, 2019 , 38 (10) : 27 -42 . DOI: 10.1007/s13131-019-1423-5
Full Text
Less
1 Introduction
Less
Ecosystems are superbly balanced although they are reasonably complex, non-linear and its structures are composed by the interconnection of living and non-living bodies with their habitat, but every portion of an ecosystem, has a significant role to play and alteration of any portion of a particular ecosystem, the whole ecosystem of that area can be altered. This is not only dynamic but also hierarchically ascended. Ecosystem structures and processes are associated across the spatial and temporal balances. Due to their complication and the array of negative and positive response across balances, the predictability of these structures is inadequate (Gunderson, 1999). Sustainable usage of ecosystem components is unlikely deprived of a better understanding of balancing ecosystem dynamics that foster ecosystem capability (Bengtsson et al., 2003). Coastal and marine ecosystems are among the largest aquatic ecosystems of the world, covering 71% of the earth and fish populations are one of the most vital parts of these systems (BOBLME, 2011). Therefore, management approach that is based on ecosystem to fisheries has reaped consideration for maintaining long-term sustainability to fisheries and balanced ecosystems (ICES, 2000). In recent, the ability of marine ecosystems to produce fish for supporting human interest is extremely degraded by overfishing, excessive trawling, and loss of spawning and nursing grounds (McGlade et al., 2002). Noticeable limitation exists between single and multispecies fisheries management, which does not consider a comprehensive assessment of changes in ecosystem arrangement, and functions linked with the interactions of individuals (Mace, 2001; Pikitch et al., 2004). The concept of ecosystem-based fishery management needs the improvement of tools to gain perceptions in ecosystem functioning and the effect of fishing on ecosystem structure. Some of the critical issues like interspecies interactions within an ecosystem, effects of the enormous environmental and climatic alterations along with the fishing impacts should be incorporated to formulate an ecosystem based management strategy in any habitat (Browman et al., 2004; Pikitch et al., 2004).
Recent improvements in constructing multispecific ecosystem based modeling approach of aquatic ecosystems named “Ecopath with Ecosim (EwE)” are successfully used to evaluate the structure and ecosystem effects of fishing (Polovina, 1984; Christensen and Pauly, 1992). This approach provides a base for feasible and applied simulation model having actual predictive power that can be performed more rapidly and rigorously than ever before (Christensen and Pauly, 1993; Walters et al., 1997; Christensen and Walters, 2004). The construction of such mass-balance models of ecosystems are based mainly on food consumption, diet composition, biomass and mortality estimates. The ECOPATH packages of software have now been improved (Walters et al., 1997, 1999) through including ECOSIM (simulation module) and ECOSPACE (spatial module). These new modules have not only upgraded the quantitative command of the approach but also permitted qualitatively new inquiries.
Recently, Bangladesh has been settled maritime boundary with neighboring states Myanmar and India up to 200 nmile from the coastline comprising about 121 110 km2 (MoFA, 2014), whereas coastal and shallow shelf waters constitute about 20% and 35%, respectively, the rest covers deeper waters (Khan et al., 1997). The entire shelf area of Bangladesh (up to 200 m depth contour) covers about 66 440 km2 and from the coastline to 10 m (0–10 m) depth zone comprises 24 000 km2 (Table 1). Nevertheless, in the context of fisheries resources, from the coastline to 200 m depth zone plays a significant role as it almost covers four major fishing grounds of Bangladeshi waters and also produces most of the marine catch (Khan et al., 1997; Lamboeuf, 1987). The declared areas of four major fishing grounds (Fig. 1) are “South Patches” and “South of South Patches” covering an area about 6 200 km2. In addition, “Middle Ground” contains 4 600 km2 area (Table 1) and “Swatch of No Ground” covers 3 800 km2 (Khan et al., 1997, 1998). Among them “Middle Ground” and “South Patches” have been declared as “Fish Sanctuaries” in the Bay of Bengal (BoB), Bangladeshi martime waters. Still, the detailed ecological and oceanographic data of these areas are limited to determine the suitability of these areas as fish sanctuary.
In the context of the recent settlement of the maritime boundary, “blue economy” recently turned into a buzzword for sustainable development, particularly in highlighting the vision of SDG (Sustainable Development Goals) for Bangladesh. The Government of Bangladesh emphasized those marine and coastal fisheries resources based blue economy might act as a driver for sustainable development, designating development not only for today but also for the upcoming years (Shamsuddoha and Islam, 2016). Moreover, this new relocated vast area could not be accomplished to fishing due to the lack of vessel capability and suitable fishing technology (Hossain et al., 2014). The Bay of Bengal defined as a temperately productive ecosystem among the world’s 64 Large Marine Ecosystems (Hussain and Hoq, 2010) has great potential for fisheries because of the enormous nutrient input from the rivers flow of the Ganges and Brahmaputra (ESCAP, 1987). A total of 475 species of finfish, 36 of shrimps, 15 types of crabs, 5 varieties of lobster, and over 300 species of mollusks were recorded (FRSS, DoF). The fishes which are presently exploited consist mainly of the shallow water estuarine species and some mid-water species. The average total marine catch over the last decade (Table 2) was 540 592 t (DoF, 2016). Functionally, marine fisheries are sub-divided into industrial and artisanal fisheries. The average production of the last ten years shows that the industrial fishery based on trawl fishery (shrimp and fish trawl) contributes only 5% of the total marine captures and the artisanal fisheries (mainly based on Set bag net and Gillnet fisheries) contributes 95%.
Several surveys and studies have been piloted to assess and estimate the potentialities of marine fisheries resources of Bangladesh since 1970 to 1980 (Mustafa and Khan, 1993) by the collaboration of national and international agencies, but no fresh assessment is available. Limited reports are found focusing on biological, environmental and resource management concerns of the BoB (Hossain, 2004; Huntington et al., 2007; Hussain and Hoq, 2010), but such evidences are insufficient to consider and manage of our marine resources systematically. Conversely, in near future, there is a possibility of drop down of the fisheries role on people’s livelihoods as the stocks of various fish and shrimps are showing diminishing trends due to effects of climatic change, water pollution and fishing pressure (BOBLME, 2011). Previously, Mustafa (2003) made an attempt to describe the ecosystem features of BoB based on trawl catch data but overlooked the most vital artisanal fishing areas, e.g., coastal areas. Similarly, Ullah et al. (2012) described the eco-structures of the shallow coastal areas that not exceeded more than 10 m in depth. Therefore, the maritime waters of the BoB, Bangladesh leftovers to be the most unfocused areas in the world, thus limiting the exploitation, exploration, conservation and management of its marine, though this zone is recognized as one of the world’s ample and diversified ecosystems considered by greater productivity (Islam, 2003). All of these studies considered only short-term available data that not properly elucidate long-term outputs. Hence, attempts are made by authors to drive a new study concerning management of the maritime resources of the BoB, Bangladesh using the ecosystem scheme. The EwE (ECOPATH with ECOSIM; Version 6.5) routine package was used in the current study to develop the mass-balance ecosystem model. The aim of this study is to illustrate the interaction between the diverse ecological groups and to define the flow of energy in the maritime area of the Bay of Bengal, Bangladesh. In addition, another aim of this study is to measure the existing capability of the maritime ecosystem of BoB, Bangladesh to cope with the emerging “blue economy” pressure.
2 Materials and methods
Less
2.1 Study areas

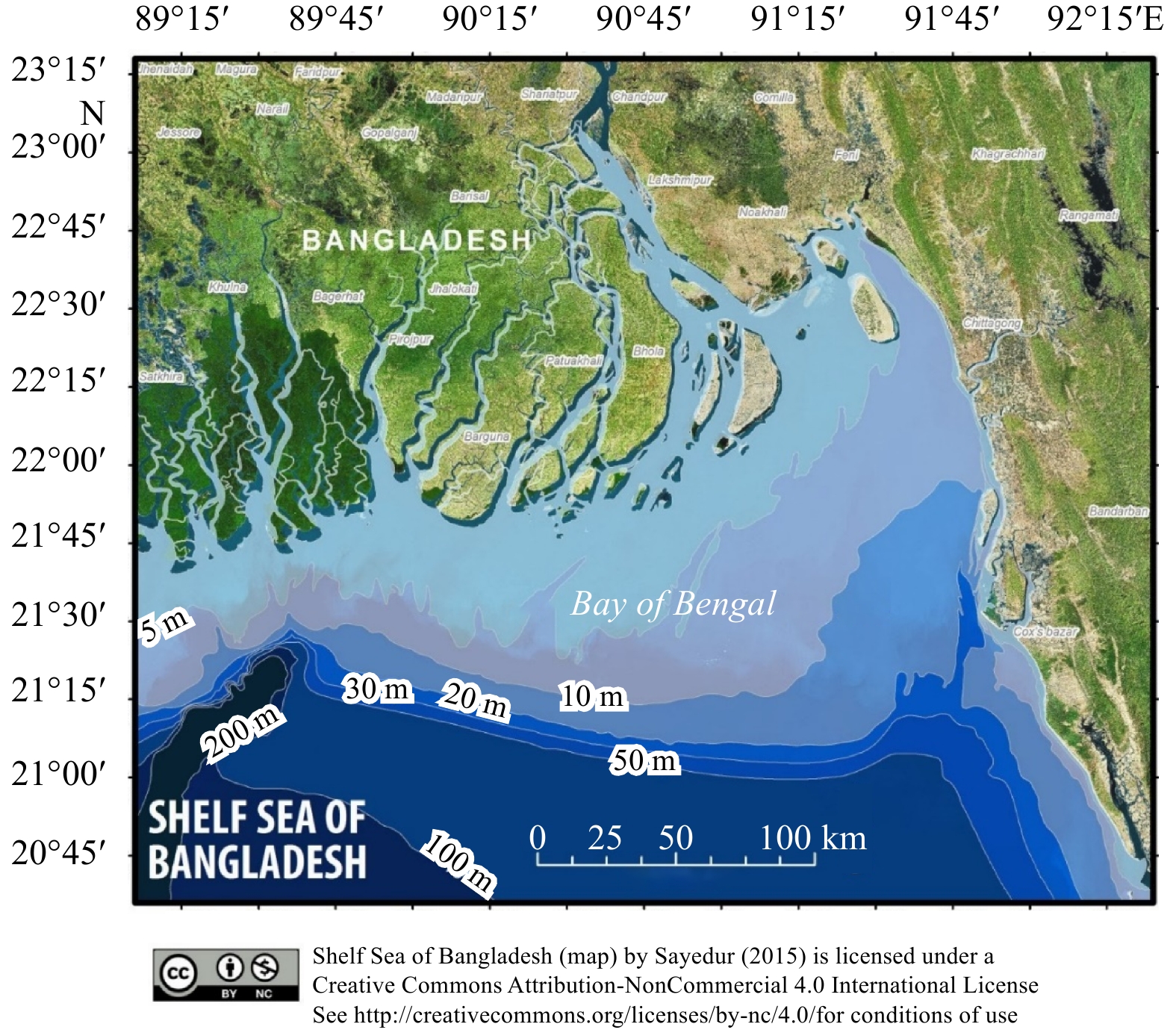

The Bangladesh part of the BoB is located between 20°N and 22°30′N, and 89°E and 92°30′E (Fig. 2). The current study mainly focuses on the ecosystem structures of the major fishing grounds of the BoB which lies from the baseline to 200 m depth zone (Table 1) occupying about 90 000 km2 that covers not only 24 000 km2 of inshore area but also 66 440 km2 of all shelf areas. The demarcation line (Figs 1 and 2) are used to illustrate the depth zone and fishing grounds in the current study. Nevertheless, this area of both offshore and inshore water covers more than 90% of fishing activities in the country (DoF, 2015a, b) and thus, this model can be designated as “Resettled Maritime Ecosystem of the Bay of Bengal, Bangladesh”.

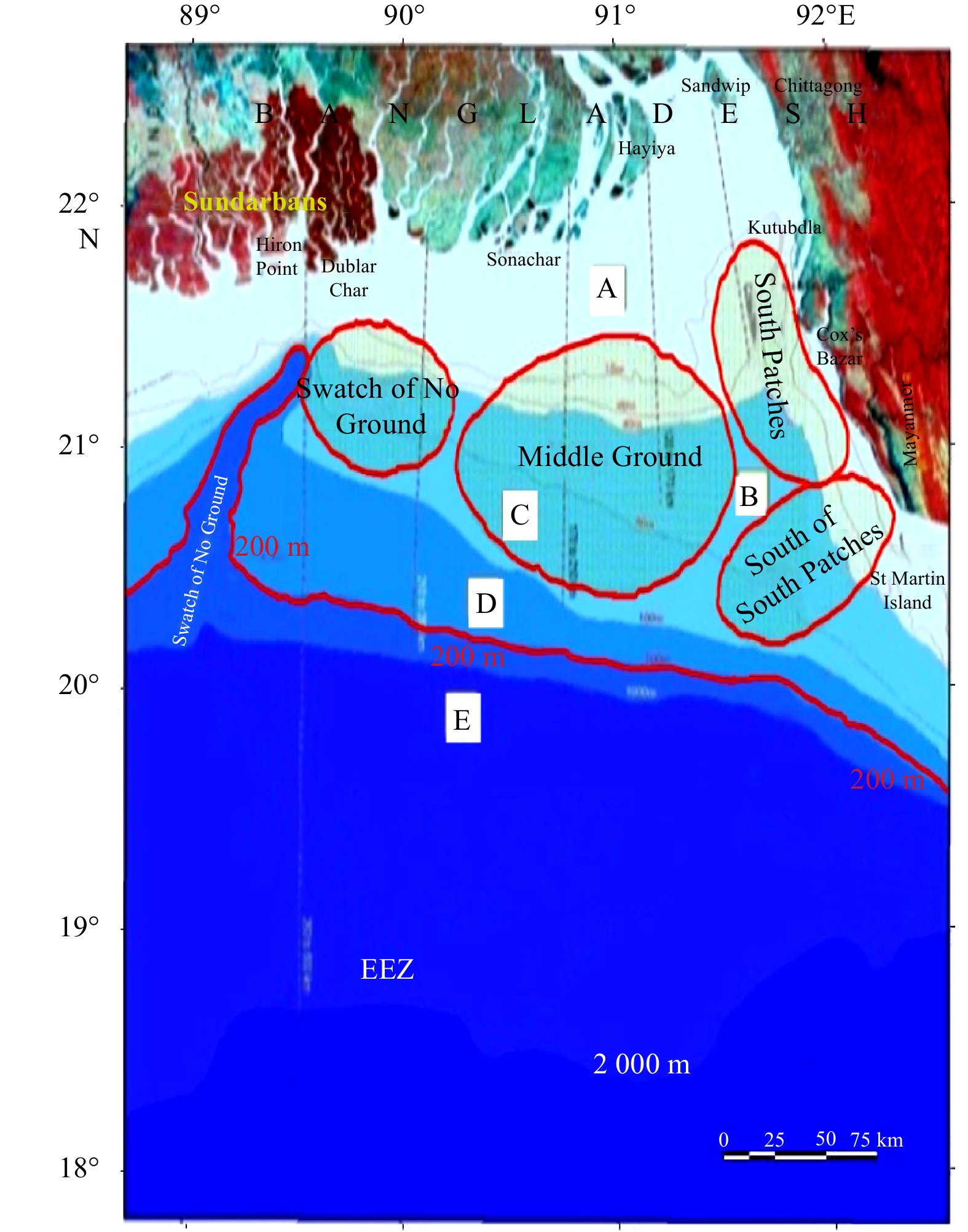

The bottom topography of the shelf sea is usually coarse sandy and muddy with some rocky blotches, but the shallow inshore areas are dominated by muddy bottom. Moreover, the shelf zone down to about 150 m seems to be quite smooth with very limited obstacles to bottom trawling whereas due to existence of precipitous slope trawling is not possible into the waters deeper than 180 m (Khan et al., 1997). The oceanographic features in the BoB mainly depend on three key factors: (1) precipitation, (2) wind direction, and (3) mass siltation from the river discharges (Lamboeuf, 1987) that have a strong influence on the abundance and distribution of fishes too. The annual average temperature is about 27°C and the yearly average rainfall of the BoB, Bangladesh is approximately 3 800 mm where over 80% precipitation is received from June to September (DoE, 2015). Hence, these areas are treated as a sole homogenous area as it covers a wide range of marine habitats. However, this zone has been carefully chosen for the present study because of the availability of fisheries landing data from the period of July 2016 to June 2017.
2.2 Overview of Ecopath model (Version 6.5)
The software “Ecopath” was designed for analyzing trophic dynamic interactions within the fisheries resources systems (Christensen and Pauly, 1992, 1995). This scheme is based on the previous work, which was first demonstrated by Polovina (1984), and it has been widely applied to aquatic systems after successive improvements (Christensen and Pauly, 1993; Pauly et al., 2000). Ecopath is basically a large spreadsheet that is instantaneously keeping track of all the individuals or species and entire feeding interactions occurring within the ecosystem (Christensen and Pauly, 1993). This approach designates an ecosystem at steady-state for a certain period and assumes mass balance in production of any specified prey that is equivalent to the biomass consumed by predators in combination with the estimated captured biomass (e.g., in fisheries) and any other exports from the system, i.e.,
${B_i}{\left({P/B} \right)_i}E{E_i} = {Y_i} + \sum \left({{B_j}} \right){\left({Q/B} \right)_j}D{C_{ij}} + E{X_i},$
where Bi represents the biomass of prey i group, (P/B)i is the production/biomass ratio of that group, and EEi is the ecotrophic efficiency. Yi symbolizes the yield (or catch rate of fisheries) of i groups, Bj is the biomass of predator j group, (Q/B)j is the food export or consumption per unit biomass of j, DCji is the fraction of prey i in the diet of j, and EXi is the export of i. When the input values of the parameters of the model are delivered, ECOPATH assesses the missing parameters for each group within the model, e.g., the annual biomass production, the annual biomass consumption or ecotrophic efficiency for each functional groups of the ecosystem.
2.3 Model construction
2.3.1 Fisheries landing data
Existing marine capture fisheries of BoB are categorized into two major sub-divisions, i.e., industrial trawl captures and artisanal captures which contribut about 95% of the total marine landings. The term “industrial captures” indicate “large-scale” which mainly focus on demersal fish and penaeid shrimps in the offshore waters. Artisanal consist of a number of diverse categories of traditional fishing gears and crafts, i.e., gillnets, set bag nets (SBN), longline, trammel net, purse seine, etc. (Table 2).
Annual catch data of the last 10 years (from 2005–2006 to 2014–2015) from the Fisheries Resource Survey System (FRSS) of Department of Fisheries (DoF), Bangladesh were considered in this study (Table 2). Due to the scarcity of an efficient data collecting and recording system, it is not possible to find the total species-wise annual landing data but group-wise data in FRSS. In addition, some of the reference reports (Nabi, 2007; Mustafa, 1999) and reports from the NGO organizations (e.g., FAO country data) were also considered for this study. To acquire necessary percentage of yield data, it was combined all of the source data under various species or groups and a weighted average technique was used. Weighted average is a techniques in where each quantity to be averaged is assigned a weight and these weightings determine the relative significance of each amount on the average. The formula for calculating weighted average is (Gupta, 2000):
$\dot X_{\rm w}\mathop { = \sum }\nolimits WX/\mathop \sum \nolimits W,$
where Ẋw symbolizes the weighted average, X symbolizes the variable values, i.e., x1, x2,…, xn, respectively while W symbolizes the weights variable values, i.e., w1, w2,…, wn, respectively.
2.3.2 Ecological or functional groups
Functional groups were characterized based on similarities in feeding habits, bulk body mass, life history parameters, physiological behavior and spatial distributions to keep homogeneous characteristics throughout the species within a group (Yodzis and Winemiller, 1999). More than 82 fish species and 20 types of shrimps and crustacean’s are regularly collected by FRSS, thus, over 77 taxonomic families of fish, shrimps, crustaceans, mollusks were included in this study. Representative species were selected based on their significance to fisheries and available information in the statistics (Table A1 in Appendix).
Greater preference was given to collect data from those literatures having local and regional data for every group when life history parameters, diet composition, food consumption, habitat and other information were considered for the modelling (Table 3). If diet data was not available, information from similar ecosystems were considered. Fishbase (www.fishbase.org; Fröese and Pauly, 2006) has also been applied to linkup the gaps whenever possible. Data sources of non-fish groups are given in Table 4.
2.3.3 Basic parameters of fish
2.3.3.1 Estimation of biomss (B)
The biomass (t/km2) of each ecological group per unit area in the habitat area was estimated in average by using Gulland (1971) formula of B=Y/F, where Y represents the annual yield of each group and F symbolizes the coefficient of fishing mortality. Biomass of sharks and other unexploited groups, i.e., benthos, aquatic invertebrates, zooplankton, phytoplankton, and detritus were obtained from various reference data (Table 4). In addition, biomass of other crustaceans, gastropods and cephalopod group were obtained from Arreguín-Sánchez et al. (1993) and Christensen and Pauly (1993).
2.3.3.2 Estimation of production/biomass (P/B)
Estimation of this ratio is equivalent to the total mortality (Z) (Pauly et al., 2000) as it was really hard to assess directly. Consequently, this parameter was calculated by obtaining the sum of the fishing (F) and natural (M) mortalities while the entry of P/B ratios is optional. The estimated P/B values and other population parameters are given in Table 3.
2.3.3.3 Estimation of relative food consumption (Q/B)
Consumption/biomass (Q/B) ratio of each group was calculated through the following empirical relationship suggested by Palomares and Pauly (1998).
$\begin{split}\lg Q/B = &7.964 - 0.204\lg{W_{{\rm{inf}}}} - 1.965T + 0.083A + \\&0.532h + 0.398d,\end{split}$
where Winf represents the asymptotic weight that can be calculated from the asymptotic length Linf (one of the VBGF parameter found from ELEFAN routine of FiSAT II package) and length-weight relationships (LWR) of the representative species derived from various sources (Table 3). T symbolizes the average annual temperature of that habitat which is expressed as 1 000/(Tc + 273.1). Here Tc represents the annual average temperature of sea surface (27°C) (DoE, 2015). A signifies the ratio of the square of the caudal fin height and its surface area, and h and d are binary variables demonstrating the feeding class of the fish species, i.e., for detritivore (h=0, d=1) and herbivore (h=1, d=0) and for carnivore (h=0, d=0). The aspect ratio of the caudal fin (A), which is the indication of metabolic activity, was collected mostly from the Fishbase (Fröese and Pauly, 2006) and also from the laboratory works that were conducted in the Population Dynamics laboratory of Bangladesh Fisheries Research Institute (BFRI) during the data collection period. For other functional groups, Q/B was assembled from various literatures (Table 4).
2.3.4 Diet composition of every group
Still today, there is no complete investigations about trophic interactions of the coastal and marine ecosystem of Bangladesh. Only limited works have been done on diet composition of fishes in this area (Mazid, 1998; Mustafa and Mansura, 1994). Most of the studies are qualitative in nature where diet items of fish are frequently lumped together. Due to the deficiency of available data on diet composition of functional groups considered, Mustafa (2003), Fishbase (www.fishbase.org) data (Fröese and Pauly, 2006) and the study of Mohamed et al. (2005) were used to complete the diet matrix of this study (Table A2 in Appendix).
2.3.5 Ecotrophic efficiency
It provides the fraction of the yield of a group that is consumed within the system (i.e., transported through the trophic web) or caught by any fishery. In most cases, maintenance of the input values that provide the output fraction of EE between 0 and 1 are not possible as EE by definition, it’s fraction lies between 0 and 1. The EE is used to be computed from additional parameters in the Ecopath model since there is no field calculation to assess this parameter (Christensen et al., 2000).
2.3.6 Estimation of pedigree index
It categorizes the given input sources of an Ecopath through computing the type of source data on which it is based and specifying the probable uncertainty associated with the input. The main principles used here is that input estimated from native data (i.e., from the area covered by the model in question) as a rule is better than the data from elsewhere, be it a guesstimate, derived from other models or derived from empirical relationships. Three scales meet the above principles here, firstly for biomass assessing, second one for the estimating of P/B and Q/B and the rest for diet composition that are varied between 0 to 1. When the score is close to 0 that indicates the used input data is not rooted within local data, whereas value close to 1 means that are fully rooted within local data. The measure of fit (t*) is also computed to define how well rooted the given model is in local data.
2.4 Evaluating the model through mass balancing method
The parametrization of Ecopath is based on it’s master Eq. (1) which requires mass-balancing states of the functional groups. For this reason, the input parameters need to be adjusted in a style to maintain the EE values less than 1. This practice depends on the understanding of which adjustments need to be done (Kavanagh et al., 2004). Primarily, input parameters like biomass, production-consumption rate, food consumption and fishing catch records were set into the basic input tools sheet of the package. Biomass accumulation value was taken as zero as the model was considered to describe an average for one year. Initial running of the routine provided the P/Q ratio and EE, but some of them were not balanced as EE values were greater than 1 which pointed out their higher demand in relation with sustainability. Initially EE values were found in case of diadromous pelagic (0.86), minor pelagic (0.96), medium mesopelagic (0.89), minor demersal (0.98), medium demersal (0.99), Gastropods (0.68) and benthos (1.26). On the other hand, some groups showed the exceeded value (one) of respiration/assimilation, which is not possible because respiration value cannot be exceeded from assimilation (Christensen et al., 2000). Thus, new run continues with the revised entries of biomass and diet composition values of the previous run, till to the achievement of mass balance. New run was also performed to obtain EE and gross efficiency values of all groups as it should be less than one. In order to get mass-balance, diet matrix need to be adjusted because of its variation and instability of food sources and feeding habits throughout the groups. The foremost output of Ecopath modeling is the assessment of trophic levels which sometimes may be beyond expectation. In this case, one must check the diet matrix of the input data and also compare the data with the trophic levels of same or similar species data of Fishbase.
3 Results
Less
3.1 Basic input and output variables
The basic estimated parameters as well as basic input variables of the mass-balanced ecosystem models of maritime ecosystem of BoB, Bangladesh are listed in Table 5 and pre-balancing diagnostics of the maritime ecosystem BoB, Bangladesh model are illustrated in Fig. 3. Under this study, mean trophic level was found 2.53, with the highest value obtained from sharks (3.45) and rays (3.04) groups followed by medium demersal (2.80) and gastropods (2.85), while the lowest value was obtained from phytoplankton (Table 5). In case of estimating ecotrophic efficiency, most of the commercial fisheries groups were showed greater EE values (EE>0.8) in where, penaeid shrimps showed the higher EE value (0.99) followed by cephalopods (0.98), while sharks showed lower value (0.16). Typically, the EE values of all functional groups of this system were less than 1 while P/Q values for each group were within the permissible range from 0.1 to 0.3. Most of the P/Q values under this study were in between 0.103 and 0.296 that cover the balanced-model requirements. The highest net efficiency value was obtained from the rays and minor demersal groups (0.37). In case of respiration-assimilation ratio, benthos showed the highest ratio (0.87) whereas shrimps, rays and crustaceans showed the lower ratio (Table 5). In this system, the maximum omnivory index was found from the apex predators, e.g., rays group (0.61) followed by sharks (0.49).
The life-history parameters and production-consumption data of non-fish groups are presented in Tables 3 and 4. Most of the fish groups showed the lower fishing mortality rate over the predation mortalities. In addition, maximum prey overlaps were detected for benthos and zooplankton groups. The relative and absolute results of flows and biomasses are showed in Table 6. In case of cycles and pathways, mean length of pathways from prey to predator was found 6.33 and the total number of pathway was 680.

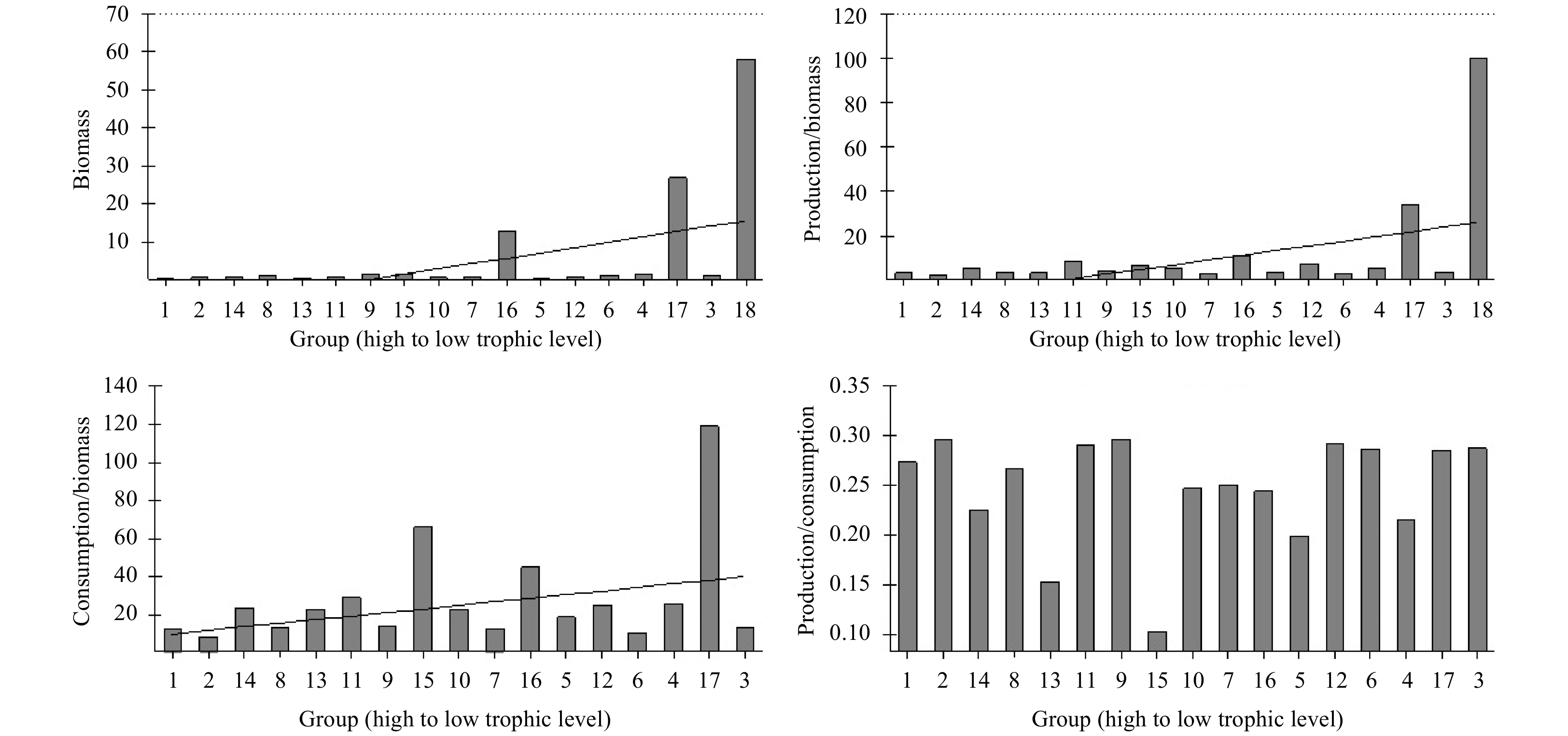

The resource biomass assembly of the BoB, Bangladesh maritime ecosystem model points out that it is predominantly a low trophic level driven ecosystem. However, the assessed pedigree index of the BoB maritime ecosystem was found 0.631 (Table 7) that conformed the developing stage of overall quality of an Ecopath approach as discussed by Christensen et al. (2005). Another finding of this study, Shanon diversity index of the maritime ecosystem of BoB was found 1.56 that was also within a satisfactory level (Table 7).
3.2 Ecosystem (food-web) structure and trophic analysis

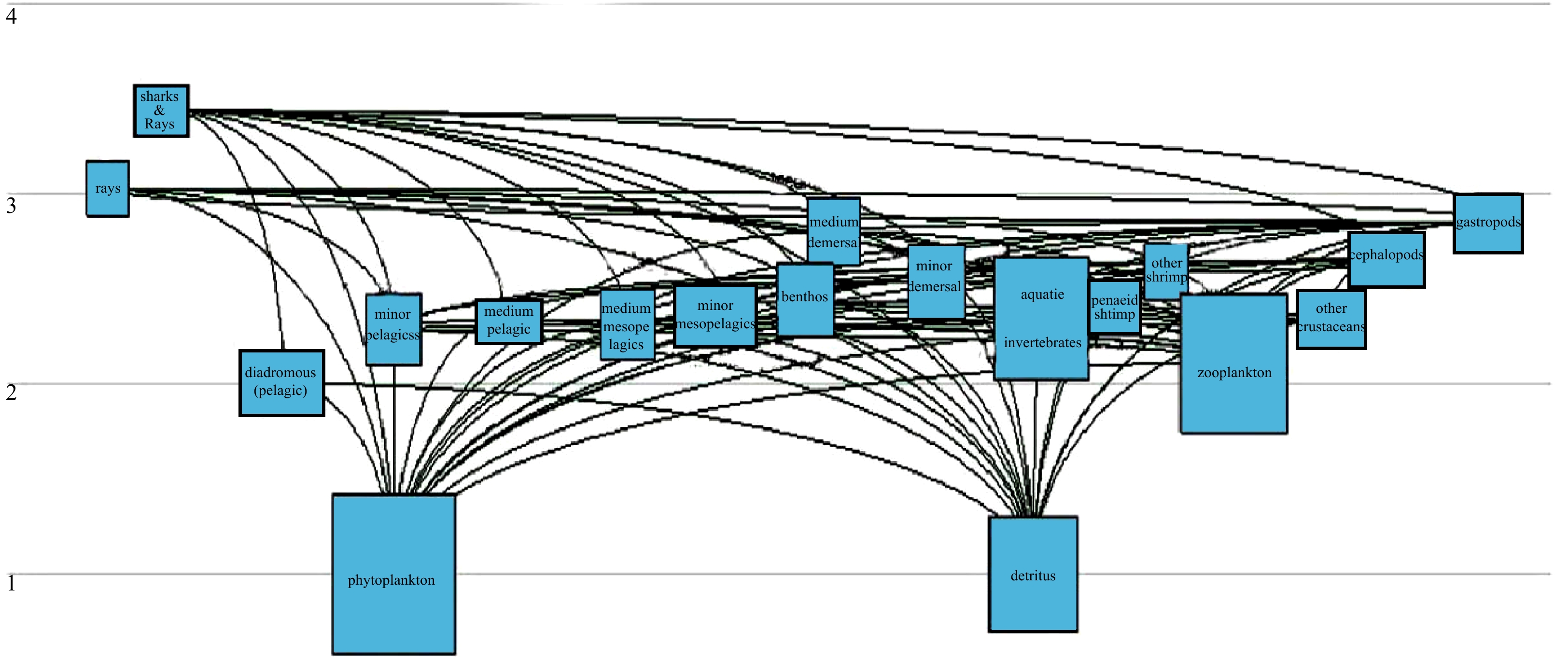

A more concisely web-like figure is displayed in the Fig. 4 to designate the whole interactions or trophic relationships and energy flows of the resettled maritime ecosystem of the Bay of Bengal, Bangladesh. In the flow diagram, the greatest flows were observed from phytoplankton to zooplankton and from detritus to aquatic invertebrates, benthos and others in this system.
3.2.1 Transfer efficiencies (TEs)
There are two major flows or food chains can be recognized under this study, a foraging or grazing (phytoplankton-based) flow and a detritus-based flow (Fig. 4). Eight discrete trophic levels (TL, from I to VIII) including all the functional groups of the BoB are also displayed in the Table 6. The transfer efficiencies (TEs) of this system, from primary producers was 11.09% and from the detritus was 8.8%. Proportion of total flow originating from detritus was 0.30. Trophic level I, which was comprised of detritus and primary producers further considered for the flows analyses that related to each group. Flows were mostly connected to TL I-III and declined gradually from TL to upper.
3.2.2 Mixed trophic impact (MTI)

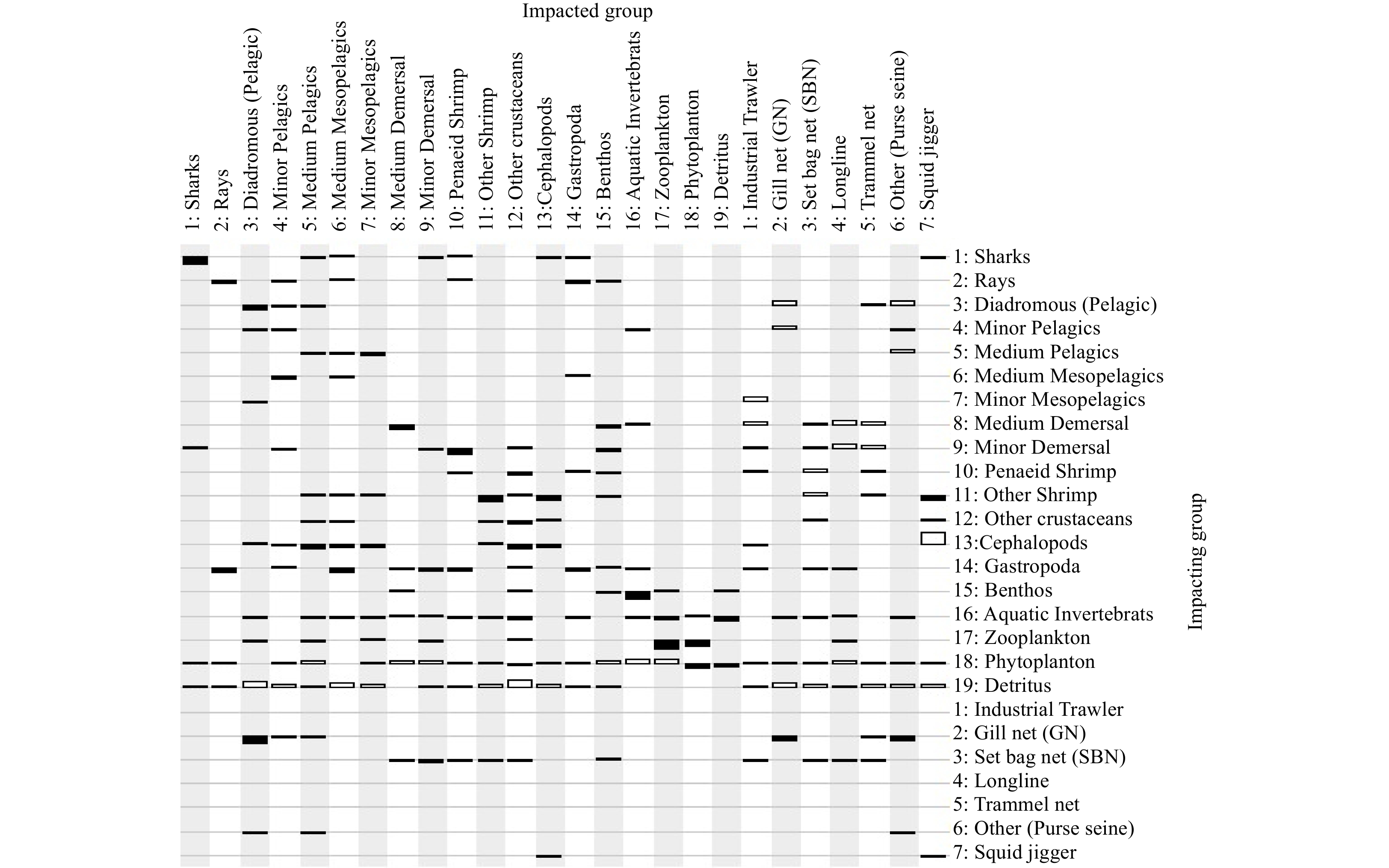

The result of MTI illustrates both negative and positive impacts among every part of the system (Fig. 5). MTI routine is a tool for indicating the possible impact of direct and indirect interactions (including competition) in a steady-state system (Ulanowlcz and Puccia, 1990). The groups with the most positive impact on most of the other groups were detritus, phytoplankton and benthos. Interestingly, some of the pelagics, shrimps and minor demersal fish groups were also expressed similar trends of positive impact on the fishing gears, i.e., SBN, log lines and others (Fig. 5). In contrast, most of the demersals, shrimp groups and crustaceans showed the greater negative impacts on other groups. Predator-prey relations, competition and cascading impacts were seen among the parts while most of the groups exerted a negative impact on itself perhaps due to competition for food and habitation (Christensen et al., 2005). In addition, zooplankton expressed its cannibalistic behavior through produced greater negative impact on itself.
3.3 Over-all system statistics or ecosystem properties
The over-all system statistics of the maritime ecosystem of the BoB maritime ecosystem of Bangladesh are presented in Table 7. The total system throughput (TST) of this ecosystem now has been reached to 13 753.08 t/(km2·a), in where 30.16% generated from consumption, 26.27% from exports and 15.9% from respiration while 27.65% ultimately flowing into detritus. The values of ascendancy and overhead were 35.4% and 64.61%, respectively, which somewhat revealed the system maturity of the maritime ecosystem of BoB (Table 7). Finally, comparative study of the functional characteristics of maritime ecosystem model of BoB, Bangladesh with some other marine ecosystem models are displayed in Table 8.
4 Discussion
Less
The relative biomass of the ecological groups of this study initially estimated from the Ecopath model that revealed considerable differences due to three issues. First, all groups were not equally captured through the all gears and same catchability was not found in every gear types. Therefore, some may be under or over-exploited in the survey. Second, Ecopath computes the biomass by the data of given catch. So, the larger the catch, the greater the biomass estimate. Lastly, the estimated catch data was mostly on group-wise rather than species-wise which may led to comparatively diverge catch value for different species. The estimated biomasses of the BoB maritime ecosystem varied from 0.42 to 1.65 mainly for targeted catch groups, i.e., demersal fishery and lowest for sharks group due to absence of large predators.
Diet matrix preparation for this Ecopath model was the most difficult task due to lack of earlier studies on feeding ecology. In order to make the study realistic some stomach content studies and diet isolations have been done. But most of the qualitative data provided by external studies were converted into a quantitative form for preparing the diet matrix. Although this model contains many groups (19 groups), the diet matrix comprises some low proportions. In fact, these values are hard to determine from field data. This nature might be significantly influenced the ultimate result.
Production-consumption (P/Q) rate of less than 0.3 may assist as a diagnostic feature in a balanced model. In most cases, the P/Q values of all possible functional groups range from 0.05 to 0.3, but some exceptions may happen in case of coral reefs, fish larvae, nauplii, bacteria and other minute, fast-growing organisms. The present study supports this concept for all groups which was 0.103 to 0.296. Demersal groups showed higher P/Q ratio than most of the pelagic groups (Table 5), this may be due to higher consumption rate of benthic communities and some predatory behavior of few demersal species. Nevertheless, pelagic species are typically herbivores and generally dependent on phytoplankton and detritus.
One of the most significant feature of an ecosystem is to assess the EE (Christensen et al., 2000) which is mainly the fraction of production consumed by predators. In the BoB model, the EE values varied extensively from 0.24 to 0.99 (Table 5). Normally, just over the zero value points out the “group” was not consumed until now by any other groups throughout the system while close or equal to 1 designates that heavily preyed, leaving no individuals to die of old age. Only sharks (0.16) showed lower EE value which was realistic and expected as for the top predator (Christensen et al., 2000). In addition, in both cases of phytoplankton and detritus, the EE values were less than 1.0 that was settled with the systems proposed by Christensen and Pauly (1992) that indicates more producers will be entered than exiting. However, the estimated EE value of detritus (0.15) which was the lowest among the groups probably due to absence of typical primary consumers in the ecosystem. Out of all targeted groups, the estimated EE value of penaeid shrimps and cephalopods were shown the highest values over 0.9 (Table 5) that were likely to be the consequence of greater fishing pressure and predation. Similar reports was found from Islam et al. (1993) that penaeid shrimps were highly exploited throughout the maritime waters of the BoB.
Mean trophic level is the vital index of the complete exploitation level of fisheries groups low in the food web and its effect on predator and prey species. Fishing down the marine food web, in which fishing fleets gradually target species minimum in the food web, may or may not be the reason for decline in global mean trophic levels of catches. The BoB maritime ecosystem had a mean trophic level of 2.53, with the highest 3.45 (sharks) and lowest being 1 (phytoplankton and detritus) (Fig. 4). Except predators maximum group’s biomass and ecological production occupied the place at around TL III (Table 6). Ecopath generally computes trophic levels higher than IV (Ulanowicz, 1995). A total of six TLs were counted in this study (Table 6), which may be due to the cannibalistic characters of the peak trophic levels (Haputhantri et al., 2008). Therefore, the trophic accumulation routine in Ecopath gathered the 19 groups in a normal food chain with ten trophic levels where primary producers (TL I) comprised detritus and phytoplankton (Table 6). The result displayed that the maximum flow of the system was transferred from secondary consumers mainly composed of zooplankton group followed by TL I where phytoplankton was the single contributor. This output reveals the significance of zooplankton for the activation of trophic level of the BoB maritime ecosystem which is dominated by lower trophic level of fisheries resources as reported by Hossain (2004). For each group, the flow to the detritus contains non-absorption rate of diet and those components of the group that die of old age, diseases, etc. The detritus flow indicates that almost every functional group of the BoB maritime ecosystem are severely exploited by either excessive fishing pressure or predation along with other mortalities, i.e., cannibalism (Table 6).
Gross efficiency of the system was 0.001 8 indicates less crowd of target fisheries in the food chain. Actually increasing trend of gross efficiency index represents the fisheries “development” which is generally much lesser than 1.0 as globally it is about 0.000 2. This results is almost similar with Mohamed et al. (2005) and Ullah et al. (2012). In addition, the average transfer efficiency (TE) was 11.02% where flows from phytoplankton were demonstrated more essential than flows from detritus demonstrating a significant planktonic food chain throughout the maritime ecosystem of BoB (Table 6). Actually, TE acts as an index of the significance of detritus in a system. The TEs for TL II, as suggested by Ryther (1969), are 15% for marine areas, but the most common range is 10%–20% (Odum, 1971; Barnes and Hughes, 1988). However, the accounted of all flows was 11.89% (Table 6) which covers the above range demonstrating ecosystem maturity (Odum, 1971). In addition, estimated TEs of the TLs III, IV and V of this study were within the standardize range of 10%–20% for coastal zones (Odum, 1971; Barnes and Hughes, 1988). Hence, the existence of some dominating fish groups having higher EE value around TL III may be the basis of the higher TE in TL III.
Mixed trophic impacts may be direct or indirect, i.e., as for a prey; a group causes a positive impact on others while as a direct predator, impact is negative. In the current observation, zooplankton, phytoplankton, and detritus were showed positive impact on most other groups. The impact was greater on their direct consumers, i.e., most of the pelagic fishes depend on either phytoplankton or detritus or both. Negative impacts were due to benthos or zooplankton as a consumer of aquatic invertebrates, phytoplankton, and detritus or as a competitor for the same food source. Phytoplankton and detritus were shown a significant positive impact on pelagic groups and moderately positive on some of the demersal groups whereas a very few impact found on penaeid shrimps and cephalopods (Fig. 5). The system package designated that the impact on detritus would be negative since detritus normally accompanied by phytoplankton in the regimes of several primary consumers. Thus, upsurge of phytoplankton would stimulate primary consumers to forage more detritus. Zooplankton was significantly negative impacted on themselves due to the existence of greater quantity of carnivory zooplankton and relatively low negative impacted on phytoplankton also indicates existence of herbivory zooplankton in that ecosystem. Remarkable positive impacts of detritus was observed on most of the functional groups whereas detritus had neither positive nor negative impact on itself in that ecosystem. Comparable results are also observed in other ecosystems (Christensen and Pauly, 1993). Fishing fleets were also negatively affected several groups, i.e., pelagic groups were negatively impacted by Gill net whereas demersal by SBN operations. Thus, it can be concluded that increased fishing pressure by gillnet and SBN in the BoB maritime ecosystem would have generated more negative impact on fish groups, especially on the demersal and predators.
The TST is the sum of all flows (e.g., total consumption, total respiration, total export and total flows to detritus) in a system which represents the “size” of the entire system in relation to flow (Ulanowicz, 1986). The estimated TST (13 753 t/(km2·a)) for the BoB was relatively higher (Table 7) but consistent with tropical marine ecosystems with much turnover. This result was also similar (Table 8) with the studies of San-Pedro Bay, Phillipines by Campos (2003) and Karnataka, India by Mohamed et al. (2005).
The ratio of total primary production (PP) and total respiration (R) is considered by Odum (1971) to be a significant ratio to describe the “maturity” of an ecosystem. Previously, system need to be developed for balancing as the production is expected to exceed respiration, that providing a ratio greater than 1. Finally, in “mature” systems, the PP/R ratio should be 1; when energy is constant that is roughly balanced by maintenance (Odum, 1971). The PP/R value was found 2.65 which was higher than 1, thus, it is concluded that the BoB marine ecosystem is not so developed or still in developing stage. The net system production value of 3 613.7 t/(km²·a) was assessed for the BoB maritime ecosystem, which again points out the developing nature of the ecosystem but little bit matured too comparing with the other studies. Generally, system production is greater in immature systems and nearby zero in maturity stages. The net system production value of British Columbia shelf ecosystem were also provided 4 106 t/(km2·a) (Table 8) which was greater than the current value. This may be happened due to absence of large predators as well as lower trophic level as this system completely based on TLII to TLIII. Moreover, the ratio between a system’s PP and total biomass (B) was 51.24, which was higher and also indicates some sorts of immaturity. Beacause, production exceeds respiration largely in immature systems and therefore it will influence the system’s PP/B ratio which dimension is per unit time, and it can take any positive value.
The available ecosystem energy flow directly supports the total system biomass which can be expected to rise maximum for the utmost maturity stages of a system (Odum, 1971). The ratio of B/TST is directly proportional to the system maturity, where the estimated value tends to be low during the ecosystem development stage and increases as a purpose of maturity (Christensen, 1995). From the present study, system biomass/throughput ratio was found 0.008 being lower compared with those given by Ullah et al. (2012), Mohamed et al. (2005), and Garces et al. (2003), which showed the status of comparative maturity of the ecosystem (Table 8). The yield of a group throughout a system is size-specific that has been revealed that the inverse of a group’s production/biomass ratio is a degree of size (Christensen and Pauly, 1993). However, the estimated total biomass (excluding detritus) 113.2 t/km2 was higher than the study of Ullah et al. (2012) but lower than the value of Mohamed et al. (2005), as their study based on the adjacent area of the BoB. But the total catch (10.5) was comparatively higher than the above studies which may be due to excessive artisanal fishing pressure in Bangladeshi waters.
The trophic flows to detritus were observed highest for zooplankton and smallest for top predators. For each group, the flow to the detritus contains non-absorption rate of diet and those components of the group that die of old age, diseases, etc. The detritus flow indicates that almost every functional group of the BoB maritime ecosystem are severely exploited by either excessive fishing pressure or predation along with other mortalities, i.e., cannibalism (Table 6). The cycling matter and energy flow is considered as a vital process of any active natural ecosystems (Odum, 1969). The percentage of cycling index is the fraction of an ecosystem’s throughput that was developed by Finn (1976). It was basically intended to calculate Odum’s (1969) system maturity. However, its explanation was not as simple as originally conceived that intensify recycling as a system matures. Detritus played a supreme role in all flows (cycled) in the BoB model where the total cycled flow was 328.2 t/(km2·a). The Finn’s cycling index was obtained 2.93%, which was lower compared with the study by Mohamed et al. (2005) for Karnataka, India and Ullah et al. (2012) for coastal ecosystem of BoB. Similar close output was reported by Christensen and Pauly (1993) for Yacutan and northern Gulf of Mexico. Actually, Finn’s cycling index gives the proportion of flow in a system that is recycled compared with total system throughput and immature systems give lower value while matured provide higher. Finn’s mean path length is the measurement of the mean quantity of groups that a unit of flux will experience from it’s entry into the system until it leaves the system. Over-all 680 pathways was obtained from the BoB maritime ecosystem and the mean length of pathways was computed as 6.33, found little bit higher when compared with the range (2.86–4.95) reported by Baird and Ulanowicz (1993) for the four estuaries. But the lower number of pathways proves the simplified feature of that ecosystem and it is cycled through detrital pathways.
The connectance index (CI) and system omnivory index (SOI) of the BoB maritime ecosystem was 0.322 and 0.285, respectively. In fact, the CI can be predictable and associated with maturity which can be define by the ratio of “the quantity of actual links with the number of possible links”. The connectance index are mostly determined by the level of taxonomic aspect used to characterize prey groups. On the other hand, the system omnivory index is proposed as a substitute which is defined as the mean omnivory index of all consumer’s weight-mass by the logarithm of each consumer’s consumption. The SOI is a measurement of how the diet interactions are scattered between trophic levels. The SOI is stimulated by apparent drawbacks of the CI. In the development stage of a ecosystem, CI would be close to 1 in most systems and increase maturity reduce the value of connectance. Moreover, a prey having the same “score” in case of connectance index whether it supports 1%, 10% or 100% of its higher trophic’s diet.
Another important fact is ascendancy which is a measurement of system growth and development of network links whereas proportion of a system’s capacity not considered. When the system’s capacity is considered, it is known as system’s overhead, which was the reserved energy of an ecosystem (Ulanowlcz and Norden, 1990). The relative values of ascendancy (35.4) and system’s overhead (64.6) of the maritime ecosystem of BoB indicated the ecosystem’s stability and some sorts of maturity. This proved that maritime ecosystem of BoB have significant backup strength also have the capacity to control any pressure situations through fast reformation to the original stages.
5 Conclusions
Less
The software outputs indicate that maritime ecosystem of BoB is steadily reaching to the system maturity, although it is still considered as developing phase. Excessive artisanal fishing pressure is the main hindrance to develop ecosystem quality. One of the major challenge for this multispecies ecological modelling was the scarce of studies on the feeding ecology of the various functional groups. Therefore, further studies should be required in order to get more specific estimations for a multispecies approach to improve basic inputs of the system and also improve the catch landing statistics of the national record.
Acknowlegements
Less
The first author expresses gratitude to the Chinese Scholarship Council (CSC) and State Oceanic Administration (SOA) for sponsorship during his doctoral degree. We are also grateful to Bangladesh Fisheries Research Institute (BFRI), Bangladesh and Department of Fisheries (DoF) for their valuable care, support and best wishes.
Funding
Less
  • The Fundamental Research Funds for the Central Universities of China under contract No. 201562030.
References
Less
Amin S M N, Rahman M A, Haldar G C, et al. 2002. Population dynamics and stock assessment of hilsa shad, Tenualosa ilisha in Bangladesh. Asian Fisheries Science, 15(2): 123–128
Arreguín-Sánchez F, Seijo J C, Valero-Pacheco E. 1993. An application of Ecopath II to the North continental shelf ecosystem of Yucatan, Mexico. In: Christensen V, Pauly D, eds. Trophic Models of Aquatic Ecosystems. UK: ICLARM, 269–278
Baird D, Ulanowicz R E. 1993. Comparative study on the trophic structure, cycling and ecosystem properties of four tidal estuaries. Marine Ecology Progress Series, 99: 221–237, doi: 10.3354/meps099221
Barnes R S K, Hughes R N. 1988. An Introduction to Marine Ecology. 2nd ed. Oxford: Blackwell Scientific Publications
Bengtsson J, Angelstam P, Elmqvist T, et al. 2003. Reserves, resilience and dynamic landscapes. AMBIO: A Journal of the Human Environment, 32(6): 389–396, doi: 10.1579/0044-7447-32.6.389
BOBLME (Bay of Bengal Large Marine Ecosystem-Program). 2011. Country report on pollution in the BOBLME–Bangladesh. BOBLME-2011-Ecology, 0–53. Phuket: BOBLME
Browman H I, Cury P M, Hilborn R, et al. 2004. Perspectives on ecosystem-based approaches to the management of marine resources. Marine Ecology Progress Series, 274: 269–303, doi: 10.3354/meps274269
Campos W L. 2003. An ecosystem model of san pedro bay, leyte, philippines: initial parameter estimates. In: Silvestre G, Garces L, Stobutzki I, et al., eds. Assessment, Management and Future Directions for Coastal Fisheries in Asian Countries. Malaysia: The WorldFish Center, 353–364
Christensen V. 1995. Ecosystem maturity-towards quantification. Ecological Modelling, 77(1): 3–32, doi: 10.1016/0304-3800(93)E0073-C
Christensen V, Pauly D. 1992. ECOPATH II—a software for balancing steady-state ecosystem models and calculating network characteristics. Ecological Modelling, 61(3–4): 169–185, doi: 10.1016/0304-3800(92)90016-8
Christensen V, Pauly D. 1993. Trophic Models of Aquatic Ecosystems. Manila: ICLARM Conference Proceedings, 26: 390
Christensen V, Pauly D. 1995. Fish production, catches and the carrying capacity of the world oceans. Naga, ICLARM Quarterly, 18(3): 34–40
Christensen V, Walters C J. 2004. Ecopath with Ecosim: methods, capabilities and limitations. Ecological Modelling, 172(2–4): 109–139, doi: 10.1016/j.ecolmodel.2003.09.003
Christensen V, Walters C J, Pauly D. 2000. Ecopath with Ecosim: A User’S Guide. Vancouver: Fisheries Center, Univeristy of British Columbia
Christensen V, Walters C J, Pauly D. 2005. Ecopath with Ecosim: A User’s Guide. Vancouver: Fisheries Centre, University of British Columbia
DoE (Department of Environment). 2015. Fifth national report to the convention on biological diversity. Dhaka: Department of Environment, Ministry of Environment and Forests, Government of the People‘s Republic Bangladesh
DoF (Department of Fisheries). 2015a. The ecosystem-based fishery management in the Bay of Bengal. Thailand: Ministry of Agriculture and Cooperatives, 250
DoF (Department of Fisheries). 2015b. National fish week 2015-compendium (in Bengali). Bangladesh: Department of Fisheries, Ministry of Fisheries and Livestock
DoF (Department of Fisheries). 2016. National fish week 2016-compendium (In Bengali). Bangladesh: Department of Fisheries, Ministry of Fisheries and livestock, 136
ESCAP. 1987. Coastal environmental management plan for Bangladesh. Dhaka, Bangladesh: ESCAP
Finn J T. 1976. Measures of ecosystem structure and function derived from analysis of flows. Journal of Theoretical Biology, 56(2): 363–380, doi: 10.1016/S0022-5193(76)80080-X
Fröese R, Pauly D. 2006. Fishbase. 2006. World Wide Web electronic publication. http://www.fishbase.org [2017-08-16]
Garces L R, Man A, Ahmad A T, et al. 2003. A trophic model of the coastal fisheries ecosystem off the West Coast of Sabah and Sarawak, Malaysia. In: Silvestre G, Garces L, Stobutzki I, et al., eds. Assessment, Management and Future Directions for Coastal Fisheries in Asian Countries. WorldFish Center Conference Proceedings, 67: 333–352
Guénette S. 2014. An exploratory ecosystem model of the Bay of Bengal large marine ecosystem. Phuket, Thailand: Bay of Bengal Large Marine Ecosystem Project (BOBLME), 69
Gulland J A. 1971. The Fish Resources of the Ocean. West Byfleet, Surrey: Fishing News (Books), Ltd., 255
Gunderson L H. 1999. Resilience, flexibility and adaptive management: antidotes for spurious certitude?. Conservation Ecology, 3(1): 7, doi: 10.5751/ES-00089-030107
Gupta S P. 2000. Statistical Methods. New Delhi, India: Sultan Chand and Sons, 1425
Haputhantri S S K, Villanueva M C S, Moreau J. 2008. Trophic interactions in the coastal ecosystem of Sri Lanka: an ECOPATH preliminary approach. Estuarine, Coastal and Shelf Science, 76(2): 304–318, doi: 10.1016/j.ecss.2007.07.013
Haque M A. 1998. Population dynamics of five commercially important marine fishes in north-eastern part of the Bay of Bengal [dissertation]. Chittagong, Bangladesh: Institute of Marine Sciences, University of Chittagong
Hossain M M. 2004. National report of bangladsh on the sustainable management of the Bay of Bengal large marine ecosystem. Chennai, India: BOBLME, FAO, 121
Hossain M S, Roy K, Datta D K. 2014. Spatial and temporal variability of rainfall over the south-west coast of Bangladesh. Climate, 2(2): 28–46, doi: 10.3390/cli2020028
Huntington T, Khan G, Islam S, et al. 2007. Towards sustainable coastal and marine fisheries in Bangladesh: initiating a precautionary approach. Dhaka, Bangladesh: WorldFish Center
Hussain M G, Hoq M E. 2010. Sustainable Management of Fisheries Resources of the Bay of Bengal-Compilation of national and regional workshop reports. Dhaka: Dhaka Press, 122
ICES (International Council for the Exploration of the Sea). 2000. Ecosystem effects of fishing. ICES Journal of Marine Science, 57(3): 1–791
Islam M S. 2003. Perspectives of the coastal and marine fisheries of the Bay of Bengal, Bangladesh. Ocean and Coastal Management, 46(8): 763–796, doi: 10.1016/S0964-5691(03)00064-4
Islam M S, Khan M, Quayum S A, et al. 1993. The estuarine set bagnet fishery. Reports of interactive marine fisheries of Bangladesh. Bangladesh: DoF
Joseph M C, Devaraj M. 1997. The biology and population dynamics of the spade nose shark Scoliodon laticaudus in the coastal waters of Maharashtra State, India. Indian Journal of Fisheries, 44(1): 11–27
Kavanagh P, Newlands N, Christensen V, et al. 2004. Automated parameter optimization for Ecopath ecosystem models. Ecological Modelling, 172(2–4): 141–149, doi: 10.1016/j.ecolmodel.2003.09.004
Khan M G, Alamgir M, Sada M N. 1997. The coastal fisheries of Bangladesh. In: Silvestre G, Pauly D, eds. Status and Management of Tropical Coastal Fisheries in Asia. Manila, Philippines: ICLARM Conference Proceedings, 26–37
Khan M G, Islam M S, Chowdhury Z A, et al. 1998. Shrimp resources of Bangladesh—Jour crates of exploitation and its comparative effect on the stock. Marine Fisheries Research Management & Development Project, DoF, 12
Lamboeuf M. 1987. Bangladesh demersal fish resources of the continental shelf. Marine fisheries research management and development project. FE: DP, BGD
Mace P M. 2001. A new role for MSY in single-species and ecosystem approaches to fisheries stock assessment and management. Fish and Fisheries, 2(1): 2–32, doi: 10.1046/j.1467-2979.2001.00033.x
Mathew C J, Devraj M. 1997. The biology and population dynamics of the spade nose shark Scoliodon laticaudus in the coastal waters of Maharashtra State, India. Indian Journal of Fisheries, 44: 11–27
Mazid M A. 1998. An overview of hilsa fisheries research in Bangladesh. In: Mazid M A, Blaber S J M, eds. BFRI/ACIAR/CSIRO Workshop on Hilsa Fisheries Research in Bangladesh. Mymensingh, Bangladesh: Bangladesh Fisheries Research Institute, 6–10
McGlade J M, Cury P, Koranteng K A, et al. 2002. The Gulf of Guinea Large Marine Ecosystem: Environmental Forcing & Sustainable Development of Marine Resources. Amsterdam: Elsevier, 392
MoFA (Ministry of Foreign Affairs). 2014. Press Release: press statement of Foreign Minister on the verdict of the Arbitral Tribunal/PCA. http://www.mofa.gov.bd/PressRelease/./2014 [2014–07–08/2017–05–02]
Mohamed K S, Zacharia P U, Muthiah C, et al. 2005. A trophic model of the arabian sea ecosystem off karnataka and simulation of fishery yields for its multigear marine fisheries. Kerala, India: Central Marine Fisheries Research Institute, 1–83
Mustafa M G. 1999. Population dynamics of penaeid shrimps and demersal finfishes from trawl fishery in the Bay of Bengal and implications for the management [dissertation]. Dhaka, Bangladesh: Department of Zoology, University of Dhaka, 223
Mustafa M G. 2003. Trophic model of the coastal ecosystem in the waters of Bangladesh, Bay of Bengal. In: Silvestre G, Garces L, Stobutzki I, et al., eds. Assessment, Management and Future Directions of Coastal Fisheries in Asian Countries. World Fish Center Conference Proceedings, 67: 263–280
Mustafa M G, Khan M G. 1993. The bottom trawl fishery. Studies of interactive marine fisheries of Bangladesh. Madras, India: Bay of Bengal Programme, 89–106
Mustafa M G, Mansura B. 1994. Some aspects of the biology of the ribbon fish lepturacanthus savala cuvier in the Bay of Bengal. In: Proceedings of Ninth National Zoology Conference. Dhaka, Bangladesh, 23–30
Mustafa M G, Zafar M, Matin A K M A, et al. 1998. Population dynamics of Harpodon nehereus (Ham-Buch.) from the Kutubdia channel of Bangladesh. Bangladesh Journal of Fisheries Research, 2(1): 83–90
Nabi M R. 2007. Management of estuarine set bag net fisheries of Bangladesh: application of traditional scientific method, local indigenous knowledge and sustainable livelihood approach [dissertation]. Malaysia: Borneo Marine Research Institute, University Malaysia Sabah, 259
Odum E P. 1969. The strategy of ecosystem development. Science, 164(3877): 262–270, doi: 10.1126/science.164.3877.262
Odum E P. 1971. Fundamentals of Ecology. 3rd ed. Philadelphia: W B Saunders Co
Palomares M L D, Pauly D. 1998. Predicting the food consumption of fish populations as functions of mortality, food type, morphometrics, temperature, and salinity. Marine and Freshwater Research, 49(5): 447–453, doi: 10.1071/MF98015
Pauly D, Christensen V, Walters C. 2000. Ecopath, Ecosim, and Ecospace as tools for evaluating ecosystem impact of fisheries. ICES Journal of Marine Science, 57(3): 697–706, doi: 10.1006/jmsc.2000.0726
Pikitch E K, Santora C, Babcock E A, et al. 2004. Ecosystem-based fishery management. Science, 305(5682): 346–347, doi: 10.1126/science.1098222
Polovina J J. 1984. Model of a coral reef ecosystem I. The ECOPATH model and its application to french frigate shoals. Coral Reefs, 3(1): 1–11, doi: 10.1007/BF00306135
Ryther J H. 1969. Photosynthesis and fish production in the sea. Science, 166(3901): 72–76, doi: 10.1126/science.166.3901.72
Sayedur R C. 2015. Map of the coastal zone of Bangladesh, University of Chittagong. Chittagong, Bangladesh. http://mapsnmaps.blogspot.in/2015/01/map-of-coastal-zone-ofbangladesh.html [2018-01-12]
Shamsuddoha M, Islam M M. 2016. Bangladesh national conservation strategy: coastal and marine resources. Department forest and international union for conservation of nature. http://fd.portal.gov.bd/sites/default/files/files/fd.portal.gov.bd/notices/…._NCS.pdf [2018-01-12]
Silvestre G, Selvanathan S, Salleh A H M. 1993. Preliminary trophic model of the coastal fishery resources of Brunei Darussalem, South China Sea. In: Christensen V, Pauly D, eds. Trophic Models of Aquatic Ecosystems. Manilla, Philippines: ICLARM Conference Proceedings, 300–306
Trites A W, Livingston P A, Mackinson S, et al. 1999. Ecosystem change and the decline of marine mammals in the Eastern Bering Sea: testing the ecosystem shift and commercial whaling hypotheses. Vancouver: University of British Columbia
Ulanowicz R E. 1986. Growth and Development: Ecosystem Phenomenology. New York: Springer
Ulanowicz R E. 1995. Ecosystem trophic foundations: lindeman exonerata. In: Patten B C, Jørgensen S E, eds. Complex Ecology: The Part-whole Relation in Ecosystems. Englewood Cliffs, New Jersey: Prentice-Hall, 549–560
Ulanowlcz R E, Norden J S. 1990. Symmetrical overhead in flow and networks. International Journal of Systems Science, 21(2): 429–437, doi: 10.1080/00207729008910372
Ullah M H, Rashed-Un-Nabi M, Al-Mamun M A A. 2012. Trophic model of the coastal ecosystem of the Bay of Bengal using mass balance Ecopath model. Ecological Modelling, 225: 82–94, doi: 10.1016/j.ecolmodel.2011.11.013
Walters C, Christensen V, Pauly D. 1997. Structuring dynamic models of exploited ecosystems from trophic mass-balance assessments. Reviews in Fish Biology and Fisheries, 7(2): 139–172, doi: 10.1023/A:1018479526149
Walters C, Pauly D, Christensen V. 1999. Ecospace: prediction of mesoscale spatial patterns in trophic relationships of exploited ecosystems, with emphasis on the impacts of marine protected areas. Ecosystems, 2(6): 539–554, doi: 10.1007/s100219900101
Yodzis P, Winemiller K O. 1999. In search of operational trophospecies in a tropical aquatic food web. Oïkos, 87(2): 327–340
