Jingteng GUO¹^,³, Tiegang LI²^,⁴^,^*, Zhifang XIONG²^,⁴^,^*, Xiaohua QIU⁵, Fengming CHANG¹^,⁴

Acta Oceanologica Sinica | 2019, 38(9) : 71 - 86

Less

Acta Oceanologica Sinica | 2019, 38(9): 71-86

• Marine Geology •

Revisiting the dependence of thermocline-dwelling foraminiferal B/Ca on temperature and [

${\text {CO}_3^{2-}}$

], and its application in reconstruction of the subsurface carbonate system in the tropical western Pacific since 24 ka

Full

Jingteng GUO¹^,³, Tiegang LI²^,⁴^,^*, Zhifang XIONG²^,⁴^,^*, Xiaohua QIU⁵, Fengming CHANG¹^,⁴

Affiliations

¹ CAS Key Laboratory of Marine Geology and Environment, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

² First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

³ University of Chinese Academy of Sciences, Beijing 100049, China

⁴ Laboratory for Marine Geology and Environment, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

⁵ No. 1 Institute of Geology and Mineral Resources of Shandong Province, Jinan 250014, China

Published: 2019-09-25 doi: 10.1007/s13131-019-1476-y

Outline

Abstract

Less

The B/Ca ratio of planktonic foraminifer shells has been used as a proxy for reconstructing past ocean carbonate chemistry. However, recent studies have revealed significant uncertainties associated with this proxy, such as whether seawater temperature or [${\rm {CO}}_3^{2-}$] is the dominant control on the partition coefficient (K_D) of planktonic foraminiferal B/Ca. To address these uncertainties and thus improve our understanding of the planktonic foraminiferal B/Ca proxy, we analysed B/Ca ratios in the tests of Neogloboquadrina dutertrei (300–355 μm) and Pulleniatina obliquiloculata (355–400 μm) in surface sediment samples from the tropical western Pacific and South China Sea. The relationship between these B/Ca ratios and bottom water calcite saturation states (Δ[${\rm {CO}}_3^{2-}$]) is weak, thus suggesting only a small dissolution effect on the B/Ca of the two species. The correlation coefficients (R²) between the B/Ca ratios of N. dutertrei and P. obliquiloculata and environmental parameters (e.g., temperature, salinity, phosphate, DIC and ALK) in the tropical western Pacific and South China Sea are not high enough to justify using B/Ca ratios as a palaeoenvironmental proxy in the study areas. The significant correlation between K_D values of N. dutertrei and P. obliquiloculata and carbonate system parameters (e.g., [${\rm {CO}}_3^{2-}$], DIC, ALK, pH and [${\rm {HCO}}_3^{-}$]) in the study area reflect chemical links between the K_D denominator and these variables. Based on our surface sediment calibration, an empirical relationship between the K_D of N. dutertrei and temperature is proposed in the tropical western Pacific. We also generated a record of B/Ca ratios in N. dutertrei (300–355 μm) from Core MD06-3052 in the tropical western Pacific over the past 24 ka to evaluate the application of the revised B/Ca proxy method. Based on the reconstructed empirical relationship for B/Ca and subsurface seawater ALK, we estimated subsurface seawater carbonate system parameters in the tropical western Pacific since 24 ka. In general, the estimated subsurface seawater pH and [${\rm {CO}}_3^{2-}$] show an increase with time, and the record of subsurface seawater pCO₂ shows a decrease with time, in the tropical western Pacific over the past 24 ka. The consistent trends in subsurface seawater pCO₂ and opal flux during deglaciation may imply that the reported increase in subsurface water pCO₂ in the study area was promoted by enhanced upwelling in the Southern Ocean.

Key words

planktonic foraminifera / B/Ca / carbonate chemistry / tropical western Pacific / South China Sea

Cite this Article

Jingteng GUO, Tiegang LI, Zhifang XIONG, Xiaohua QIU, Fengming CHANG. Revisiting the dependence of thermocline-dwelling foraminiferal B/Ca on temperature and [

${\text {CO}_3^{2-}}$

], and its application in reconstruction of the subsurface carbonate system in the tropical western Pacific since 24 ka[J]. Acta Oceanologica Sinica, 2019 , 38 (9) : 71 -86 . DOI: 10.1007/s13131-019-1476-y

Full Text

Less

1 Introduction

Less

Reconstructing the carbonate chemistry of seawater requires an understanding of its temperature, salinity, pressure and at least two of the six carbonate system parameters: pH, [CO₂], concentrations of bicarbonate ([

${\rm {HCO}}_3^{-}$

]) and carbonate ions ([

${\rm {CO}}_3^{2-}$

]), total alkalinity (ALK) and total dissolved carbon (DIC). Given that direct measurements of past carbonate system parameters are not possible, proxies such as B/Ca ratios of foraminiferal calcite have been developed and applied in this context (Yu et al., 2007, 2010; Foster, 2008; Naik et al., 2010; Foster and Sexton, 2014; Naik et al., 2015). Dissolved boron in seawater is present in two species, boric acid (B(OH)₃) and the borate ion (

$\rm{B}(\rm{OH})_{4}^{-}$

), the relative proportions of which are pH-dependent (Dickson, 1990; Klochko et al., 2006). Boron is found mainly in

$\rm{B}(\rm{OH})_{4}^{-}$

at high pH, and B(OH)₃ at low pH.

$\rm{B}(\rm{OH})_{4}^{-} $

is thought to be the predominant form of boron incorporated into calcium carbonate, and Hemming and Hanson (1992) proposed the following balanced exchange reaction for the substitution of boron into carbonate:

(1)

$\rm{CaCO}_{3}+\rm{B}(\rm{OH})_{4}^{-} \longleftrightarrow \rm{Ca}\left(\rm{HBO}_{3}\right)+\rm{HCO}_{3}^{-}+\rm{H}_{2} \rm{O}.$

The partition coefficient, K_D, for this reaction has been defined as follows (Yu et al., 2007):

(2)

${{{K}}_{\rm{D}}} = \frac{{{{[{\rm{B}}{\rm{/}}{\rm{Ca}}]}_{{\rm{CaC}}{{\rm{O}}_3}}}}}{{{{[{\rm{B}}({\rm{OH}})_4^ - /{\rm{HCO}}_3^ - ]}_{{\rm{seawater}}}}}}.$

Thus, with an accurate constraint on K_D, it should be possible to estimate seawater palaeo-pH using B/Ca ratios in marine calcium carbonate (Yu et al., 2007).

Yu et al. (2007) found that K_D is strongly dependent on calcification temperature. However, later studies found that seawater [CO₃^2–] also affects K_D (Foster, 2008). Furthermore, both negative and positive correlations between K_D and temperature have been reported in different studies (Yu et al., 2007; Foster, 2008; Tripati et al., 2009), whereas culture experiments with living planktonic foraminifera suggest that temperature has little influence on K_D (Allen et al., 2011). In addition, Allen and Hönisch (2012) demonstrated that the correlation between K_D and [

${\rm {CO}}_3^{2-} $

] is artificial. In summary, there are major inconsistencies in the reported empirical relationships for K_D, which suggest that the factors that control K_D have yet to be identified.

Previous studies on B/Ca ratios in the shells (or “tests”) of planktonic foraminifera suggest that boron incorporation is species-specific, which implies a potential influence of symbiosis and/or depth habitat on boron incorporation (Yu et al., 2007; Hendry et al., 2009; Seki et al., 2010; Allen et al., 2011; Allen and Hönisch, 2012). Other factors such as salinity (Allen et al., 2011; Henehan et al., 2015), growth and calcification rates (Ni et al., 2007; Salmon et al., 2016), [

${\rm {PO}}_4^{3-} $

] (Henehan et al., 2015), light intensity (Babila et al., 2014) and DIC (Allen and Hönisch, 2012; Haynes et al., 2017) have also been reported as influences on the incorporation of boron into planktonic foraminifera tests. However, Holland et al. (2017), Haynes et al. (2017), and Allen et al. (2016) all suggest that it is likely that B/Ca does not depend on growth rate in cultured planktonic foraminifera. The uncertainties surrounding the fundamental kinetics of boron incorporation again show that the factors controlling planktonic foraminiferal B/Ca remain poorly constrained.

Furthermore, dissolution can significantly affect the ratios of trace elements to calcium (e.g., Mg/Ca and Sr/Ca) in foraminifer tests (Rosenthal and Boyle, 1993; Brown and Elderfield, 1996; Dekens et al., 2002; Regenberg et al., 2006; Johnstone et al., 2010). To quantify the influence of dissolution, Dekens et al. (2002) analysed Mg/Ca in the tests of the planktonic foraminifer species Globigerinoides ruber, G. sacculifer, and Neogloboquadrina dutertrei, and their results suggested that N. dutertrei is the most sensitive to dissolution and that G. sacculifer is the most resistant. Later, Seki et al. (2010) and Coadic et al. (2013) reported that B/Ca ratios in the tests of G. sacculifer can indeed be modified by dissolution, whereas the B/Ca ratios in G. ruber tests were not altered (Seki et al., 2010). B/Ca values in tests of Globorotalia inflata from the North Atlantic were also reported to be largely resistant to dissolution (Yu et al., 2007). Other studies have also suggested that dissolution effects on planktonic foraminiferal B/Ca are species-specific (Dai et al., 2016). Therefore, the effect of dissolution on B/Ca ratios of planktonic foraminifera, and thus their application in palaeoceanographic reconstructions, remains debated.

The main aim of this study was to investigate the application of the B/Ca proxy to the reconstruction of the seawater carbonate system. To ensure the veracity of the results, we firstly evaluated the effect of dissolution on B/Ca ratios of planktonic foraminifera by exploring the relationship between B/Ca ratios and seawater depth and bottom water calcite saturation states (Δ[

${\rm {CO}}_3^{2-} $

]). We used sediment samples from the tropical western Pacific and South China Sea to explore the relationship between planktonic foraminiferal B/Ca and seawater parameters (e.g., temperature, salinity, [

${\rm {PO}}_4^{3-} $

], DIC, ALK, pH, [

${\rm {CO}}_3^{2-} $

], [

${\rm {HCO}}_3^{-} $

] and [B

$({\rm {OH}})_4^– $

]) in the subsurface carbonate system, and we then used these samples to investigate the controls of the seawater parameters on K_D. We focused on two planktonic foraminifera species (N. dutertrei and Pulleniatina obliquiloculata) and performed measurements on a restricted test size fraction to minimize the influence of growth rate and ontogenetic and species-specific effects on B/Ca (Ni et al., 2007; Yu et al., 2007; Allen and Hönisch, 2012; Salmon et al., 2016). Finally, using our revised empirical relationships for K_D, we undertook down-core measurements of B/Ca ratios in foraminifera tests and reconstructed the subsurface carbonate system of the tropical western Pacific over the past 24 ka.

2 Materials and methods

Less

2.1 Samples

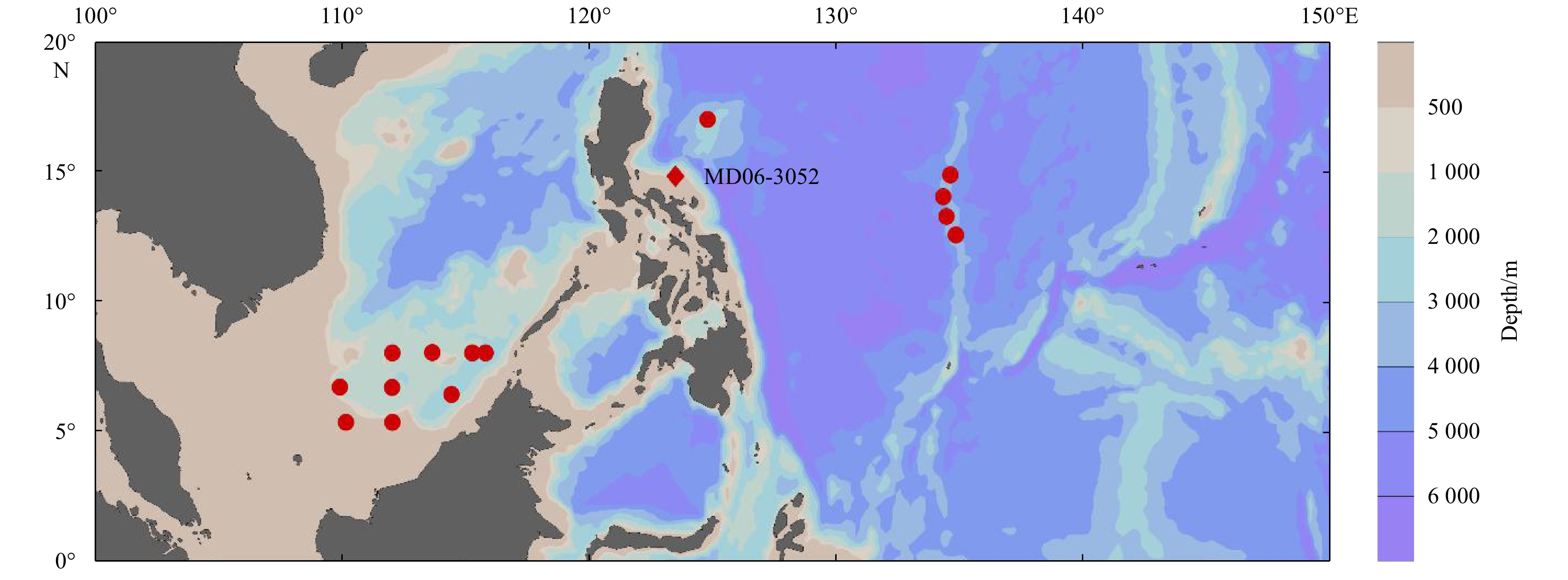

We selected 15 surface sediment samples from the tropical western Pacific and South China Sea, including two core-top samples (Fig. 1, Table 1). The core-top samples, MD06-3047B (2–3 cm) and MD06-3052 (6–8 cm), were collected using the Calypso Giant Piston Corer during the International Marine Global Change Studies Program (IMAGES) cruise “Marco Polo 2” on the R/V Marion-Dufresne in 2006. Surface sediment samples from the South China Sea and tropical western Pacific were collected using a box corer onboard the R/V Science No. 1 in 2012 and R/V Science in 2015, respectively. From these samples, we picked tests of two planktonic species from two size fractions: N. dutertrei (300–355 μm) and P. obliquiloculata (355–400 μm). These surface sediment samples were collected from water depths between 128 and 3 556 m (Table 1), thereby providing an ideal opportunity to investigate the effects of dissolution on B/Ca ratios in the two species. In addition, by analysing N. dutertrei and P. obliquiloculata in the tropical western Pacific and South China Sea we could distinguish the effects of seawater parameters including [CO₃^2–] and temperature on B/Ca and K_D and develop empirical relationships for B/Ca in these areas. Following this, we generated a down-core record of B/Ca ratios in N. dutertrei (300–355 μm) from core MD06-3052 (Fig. 1) spanning the past 24 ka (based on the age model of Qiu et al. (2014)). We then used our empirical relationships to reconstruct the palaeo-carbonate system in the subsurface waters of the tropical western Pacific over the past 24 ka.

2.2 B/Ca measurements

In this study, 0.3–0.6 mg of foraminifera tests from surface sediment samples were picked for B/Ca analysis. Foraminiferal B/Ca ratios were measured in the State Key Laboratory of Marine Geology, Tongji University. Prior to analysis, the foraminifer tests were gently cracked to open the individual chambers. Clays were removed using methanol. Metal oxides were then removed through a reduction step involving a hydrazine/ammonium citrate solution, and organic material was removed via oxidization using a buffered H₂O₂ solution. Samples were leached with a 0.001 mol/L HNO₃ solution and dissolved in 0.15 mol/L HNO₃ (Lea et al., 2000; Martin and Lea, 2002). B/Ca and Mg/Ca ratios were determined on an inductively coupled plasma mass spectrometry (ICP–MS) following the method of Yu et al. (2005). All samples were measured at 100×10^–6[Ca] to avoid potential matrix effect on B/Ca ratios. A standard sample was analysed after every three unknowns to determine the accuracy of the results and to correct for measurement bias such as long-term drift. Based on replicate measurements of the in-house consistency standard, the long-term precision (2σ) was 1.4% for B/Ca and 2.2% for Mg/Ca. Mn/Ca and Al/Ca were also measured to examine the efficiency of the removal steps for Mn-oxyhydroxide coatings and clay. Neither ratio showed a correlation with B/Ca or Mg/Ca ratios, indicating the effectiveness of the cleaning methodology.

2.3 Hydrological data calculations

Previous studies have shown that N. dutertrei and P. obliquiloculata are most abundant in respective water depths of 50–100 m (within the deep chlorophyll maximum; DCM) and 100–200 m in the Western Pacific Warm Pool (Rippert et al., 2016). This is in line with the findings in other ocean basins that N. dutertrei inhabits water depths close to the DCM (Ravelo and Fairbanks, 1992; Dekens et al., 2002; Schmuker and Schiebel, 2002; Sadekov et al., 2013) and P. obliquiloculata lives in the thermocline (Ravelo and Fairbanks, 1992; Mohtadi et al., 2009; Rincón-Martínez et al., 2011). Thus, modern hydrographic parameters, including temperature (T), [

${\rm {CO}}_3^{2-} $

], and [B

${\rm {(OH)}}_4^- $

${\rm {HCO}}_3^{-}$

] were estimated at depths of 50–100 and 100–200 m for N. dutertrei and P. obliquiloculata, respectively (Table 1).

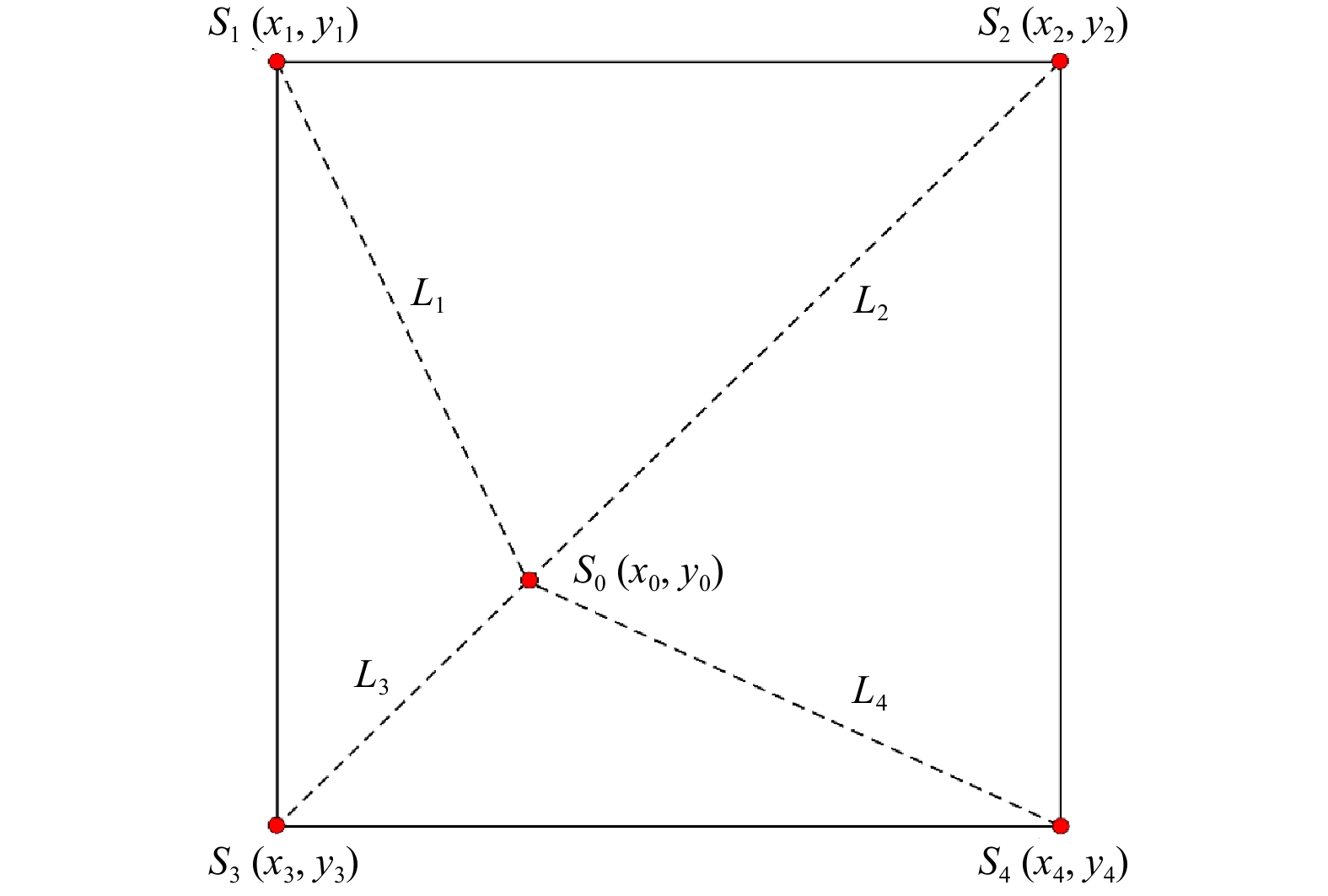

Hydrographic data from the vicinity of the study sites were obtained from Ocean Data View (http://odv.awi.de). Modern seawater temperature, salinity, and pressure (or water depth) data were collected from the World Ocean Atlas (WOA 13) database for the tropical western Pacific and South China Sea. DIC, ALK, nutrient levels (PO₄ and SiO₃), and anthropogenic CO₂ data were collected from the Global Ocean Data Analysis Project (GLODAP) (Key et al., 2004) for the tropical western Pacific as well as Global Alkalinity and Total Dissolved Carbon Estimates (Global Alkalinity & TCO₂) (Goyet et al., 2000) for the South China Sea. Temperature, salinity, DIC, ALK and nutrient levels at the study sites were then obtained for water depths of 50, 75, 100, 125, 150, 175 and 200 m by applying the inverse distance weighting method of Henehan et al. (2013) to the hydrographic data of the adjacent sites. Specifically, we calculated the hydrological parameters of the study sites using the following equations (Fig. 2):

(3)

${L_m} = \sqrt {{{({x_m} - {x_0}{\rm{)}}}^2}{\rm{ + (}}{y_{\mathop{ m}\nolimits} } - {y_0}{{\rm{)}}^2}} \;\;\;\;\;(m=1, 2, 3, 4),$

(4)

${L_{\rm {total}}} = \sum\limits_{m = 1}^4 ({1/{L_m}}) \;\;\;\;\;(m=1, 2, 3, 4),$

(5)

${P_0} = \sum\limits_{m = 1}^4 {{P_m}} {\rm{[(1/}}{{L} _m}{\rm{)/}}{L_{{\rm{total}}}}{\rm{]}}\;\;\;\;\;(m=1, 2, 3, 4),$

where P₀ denotes the hydrological parameters of the study site and P_m (m = 1, 2, 3, 4) denotes the hydrological parameters of the hydrographic data site near the study sites. Furthermore, the [

${\rm {CO}}_3^{2-} $

], [

${\rm{HCO}_{3}^{-}}$

] and [

$\rm{B}(\rm{OH})_{4}^{-} $

] data from different water depths at the study sites were calculated using CO₂sys.xls (Pelletier et al., 2007). In accordance with previous studies (Yu et al., 2007; Foster, 2008), we selected the carbonic acid dissociation constants (K₁ and K₂) from Mehrbach et al. (1973) as refitted by Dickson and Millero (1987),

$K_{{\rm {SO}}_4}$

from Dickson (1990), total boron ([B]_tot) from Uppström (1974), and the total pH scale. Finally, seawater parameters (temperature, salinity, [

${\rm {PO}}_4^{3-} $

], DIC, ALK, pH, [

$ {\rm {CO}}_3^{2-}$

], [

${\rm{HCO}_{3}^{-}} $

], [

$ \rm{B}(\rm{OH})_{4}^{-}$

], [

$\rm{B}(\rm{OH})_{4}^{-} $

]/DIC, [

$ \rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm {CO}}_3^{2-}$

] and [

$\rm{B}(\rm{OH})_{4}^{-} $

]/[

${\rm{HCO}_{3}^{-}} $

]) values from water depths of 50–100 m (for N. dutertrei) and 100–200 m (for P. obliquiloculata) at the study sites were obtained by calculating the average values of hydrographic data from different water depths at the study sites; K_D values were then calculated for the planktonic foraminifera using Eq. (2) (Table 1).

In addition, we also estimated bottom water Δ[

${\rm {CO}}_3^{2-} $

] of the study sites using data from the nearby GLODAP sites (Key et al., 2004) for the tropical western Pacific as well as Global Alkalinity & TCO₂ sites (Goyet et al., 2000) for the South China Sea. Assuming constant [Ca²⁺] in seawater, Δ[

$ {\rm {CO}}_3^{2-}$

] is defined as: Δ[

$ {\rm {CO}}_3^{2-}$

] = [

${\rm {CO}}_3^{2-}$

] – [

${\rm {CO}}_3^{2-} $

]/Ω (Ω denotes calcite saturation states) (Yu and Elderfield, 2007). Bottom water [

${\rm {CO}}_3^{2-} $

] and Ω were calculated using CO₂sys.xls (Pelletier et al., 2007). In this calculation, we used the same constants as for calculating the other seawater parameters.

3 Results

Less

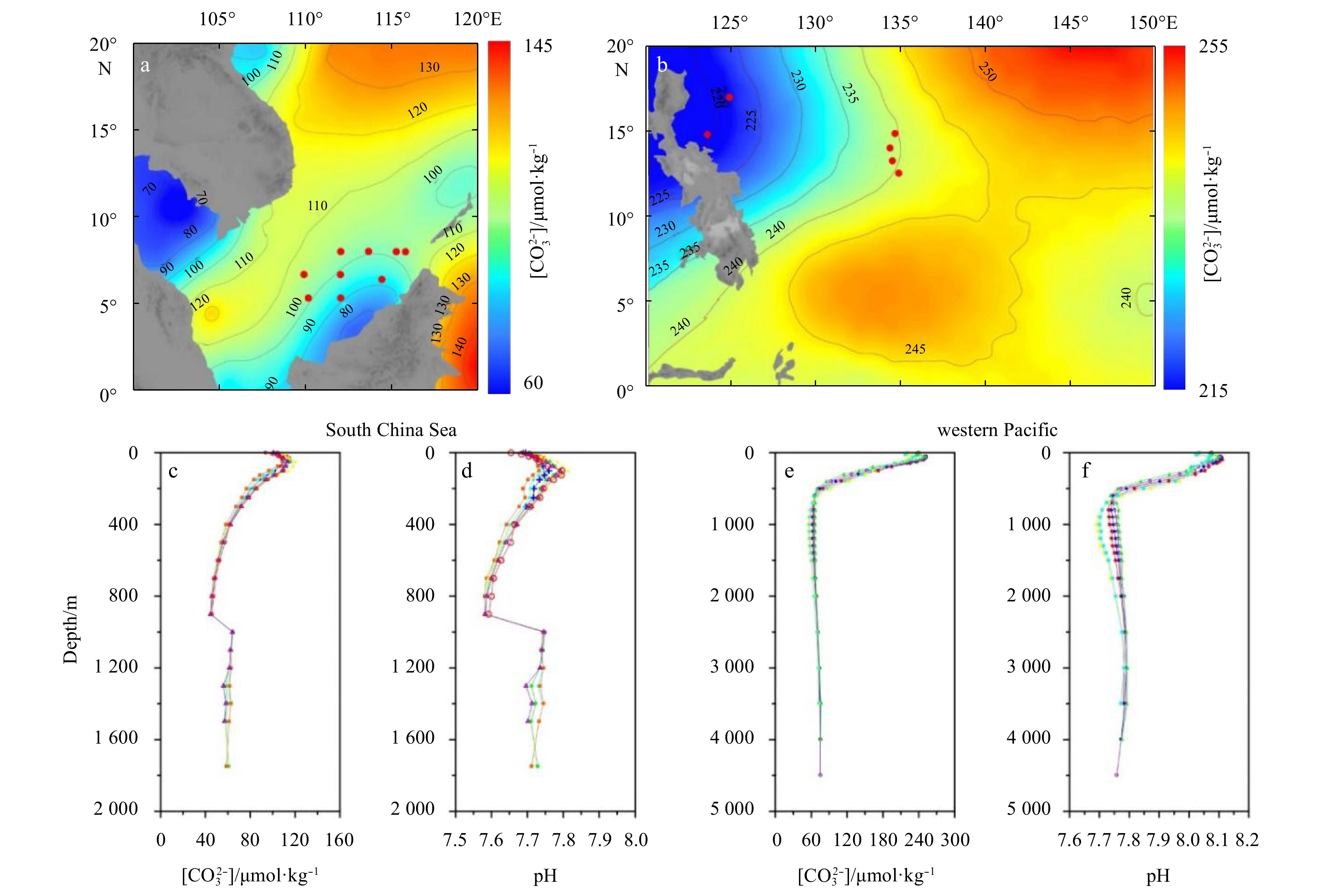

In the tropical western Pacific, [

${\rm {CO}}_3^{2-} $

] values in the habitat depths of N. dutertrei and P. obliquiloculata lie within the ranges 250–280 and 210–245 μmol/kg, respectively. In contrast, in the South China Sea, [

${\rm {CO}}_3^{2-} $

] values in the habitat depths of N. dutertrei and P. obliquiloculata lie within the ranges 105–120 and 85–100 μmol/kg, respectively. Unfortunately, the water depths at the hydrographic sites near some of the study areas in the South China Sea were shallower than 100 m. As a result, the relevant data for P. obliquiloculata (whose habitat depth is 100–200 m) could not be calculated (Table 1). Therefore, we reconstruct the correlation of B/Ca and K_D only with some seawater parameters at these sites. On the whole, in the study area, [

${\rm {CO}}_3^{2-}$

] values show a clear gradient along the horizontal section and the depth transects, thereby enabling a reconstruction of the empirical relationships for K_D (Fig. 3).

B/Ca ratios in the tests of N. dutertrei and P. obliquiloculata from all depths in the two study areas agree within analytical uncertainty (Table 1, Fig. 4). In the tropical western Pacific, B/Ca ratios are 62–70 and 57–66 μmol/mol in N. dutertrei and P. obliquiloculata, respectively. The fact that B/Ca ratios are higher in N. dutertrei than in P. obliquiloculata at sites in the tropical western Pacific suggests species-specific influences (Allen and Hönisch, 2012). However, in the South China Sea, B/Ca ratios are 49–57 and 49–56 μmol/mol in N. dutertrei and P. obliquiloculata, respectively (Table 1, Fig. 4). The fact that B/Ca ratios in the two species are so similar at the South China Sea sites suggests that species-specific influences are negligible in this area. To understand the reasons for this difference, further investigation is needed.

Bottom water Δ[

${\rm {CO}}_3^{2-}$

] values at the study sites extend over a large range in the tropical western Pacific and South China Sea (Table 2). Specifically, in the tropical western Pacific, Δ[

${\rm {CO}}_3^{2-} $

] values range from –9.80 to 14.29 μmol/kg in water depths of 732–3 556 m; and in the South China Sea, Δ[

${\rm {CO}}_3^{2-} $

] values range from –35.40 to 61.04 μmol/kg in water depths of 148.1–2 551 m. The large range in Δ[

${\rm {CO}}_3^{2-}$

] values make the study sites ideal to investigate dissolution effects on B/Ca.

4 Discussion

Less

4.1 Dissolution effects on planktonic foraminiferal B/Ca

Processes relating to the dissolution of foraminifer tests are complex, as a combination of factors may be involved. Examples of such factors include: (1) organic matter degradation, which facilitates the acidification of pore waters (Emerson and Bender, 1981; Archer et al., 1989); (2) the saturation state of bottom water relative to calcium carbonate (Broecker et al., 2001; Marchitto et al., 2005; Regenberg et al., 2006); and (3) the sensitivity of the tests of foraminifer species to dissolution (Berger, 1968; Dekens et al., 2002). Dissolution effects on B/Ca of different planktonic foraminifer species have been reported previously (e.g., Wara et al., 2003; Seki et al., 2010; Coadic et al., 2013). Some studies have suggested that B/Ca ratios of G. inflata and G. sacculifer are not altered by dissolution, whereas they are altered in other species such as G. ruber (e.g., Yu et al., 2007; Seki et al., 2010). B/Ca ratios in the tests of G. ruber, G. sacculifer, N. dutertrei, and P. obliquiloculata from three depth transects (Caribbean Sea, southwestern Indian Ocean, and Ontong Java Plateau) suggest species-specific dissolution effects (Dai et al., 2016). Specifically, the data indicate that B/Ca ratios in G. ruber and G. sacculifer decrease with increasing water depth as a response to dissolution. In contrast, B/Ca ratios in N. dutertrei and P. obliquiloculata remain invariant along depth transects (Dai et al., 2016).

In the tropical western Pacific and South China Sea, B/Ca ratios of N. dutertrei and P. obliquiloculata in the surface sediment samples show negligible change (within analytical uncertainty) from the shallowest to deepest station (Figs 4a and c). This is consistent with a previous study in the Ontong Java Plateau and southwestern Indian Ocean (Figs 4b and d) (Dai et al., 2016). The fact that there is little change in B/Ca ratios with increasing water depth suggests that dissolution has little effect on B/Ca ratios of N. dutertrei and P. obliquiloculata. In order to further verify this conclusion, we examined the correlations between B/Ca ratios of N. dutertrei and P. obliquiloculata and bottom water Δ[

${\rm {CO}}_3^{2-} $

] in the study area (Fig. 5). In the tropical western Pacific, B/Ca values of N. dutertrei and P. obliquiloculata are weakly correlated with Δ[

$ {\rm {CO}}_3^{2-}$

] (R² = 0.304 and 0.250, respectively) (Fig. 5, purple symbols). In the South China Sea, B/Ca values of N. dutertrei and P. obliquiloculata are not correlated with Δ[

${\rm {CO}}_3^{2-} $

] (R² = 0.001 and 0.090, respectively) (Fig. 5, red symbols). Poor correlations between B/Ca ratios and Δ[

${\rm {CO}}_3^{2-} $

] in the study areas also indicate that dissolution had little effect on B/Ca ratios in both species. Given that the dissolution effect on B/Ca ratios of N. dutertrei and P. obliquiloculata is not significant, we consider that the B/Ca values of these species are mainly affected by upper ocean environmental parameters.

4.2 B/Ca calibration and empirical relationships

Different methods and a variety of foraminifer species have been used for B/Ca calibrations in recent years (Yu et al., 2007; Foster, 2008; Tripati et al., 2009). If the K_D in Eq. (2) can be quantified and used in combination with the B/Ca ratios of marine calcium carbonate, it should be possible to estimate the parameters of the seawater carbonate system. However, recent studies have suggested that B/Ca ratios are directly correlated with factors such as salinity, [

${\rm {PO}}_4^{3-}$

] and DIC (Allen and Hönisch, 2012; Henehan et al., 2015; Haynes et al., 2017). Thus, we examined the environmental controls (specifically temperature, salinity, phosphate, DIC, ALK, pH, [

${\rm {CO}}_3^{2-}$

], [

${\rm{HCO}_{3}^{-}} $

], [

$ \rm{B}(\rm{OH})_{4}^{-}$

], [

$\rm{B}(\rm{OH})_{4}^{-}$

]/DIC, [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm {CO}}_3^{2-}$

], and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

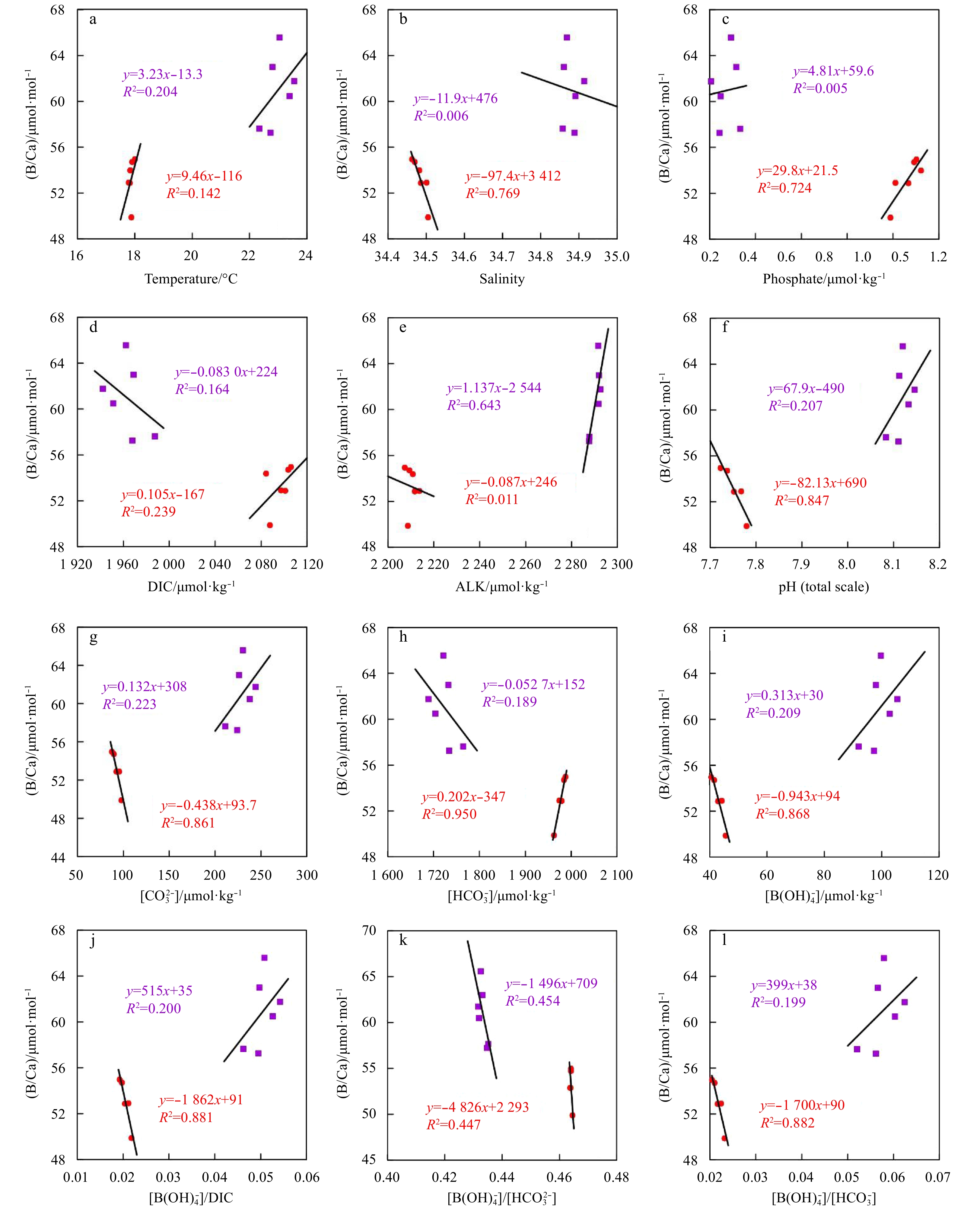

]) on boron concentrations (Figs 6 and 7) and K_D values (Figs 8 and 9) of N. dutertrei and P. obliquiloculata.

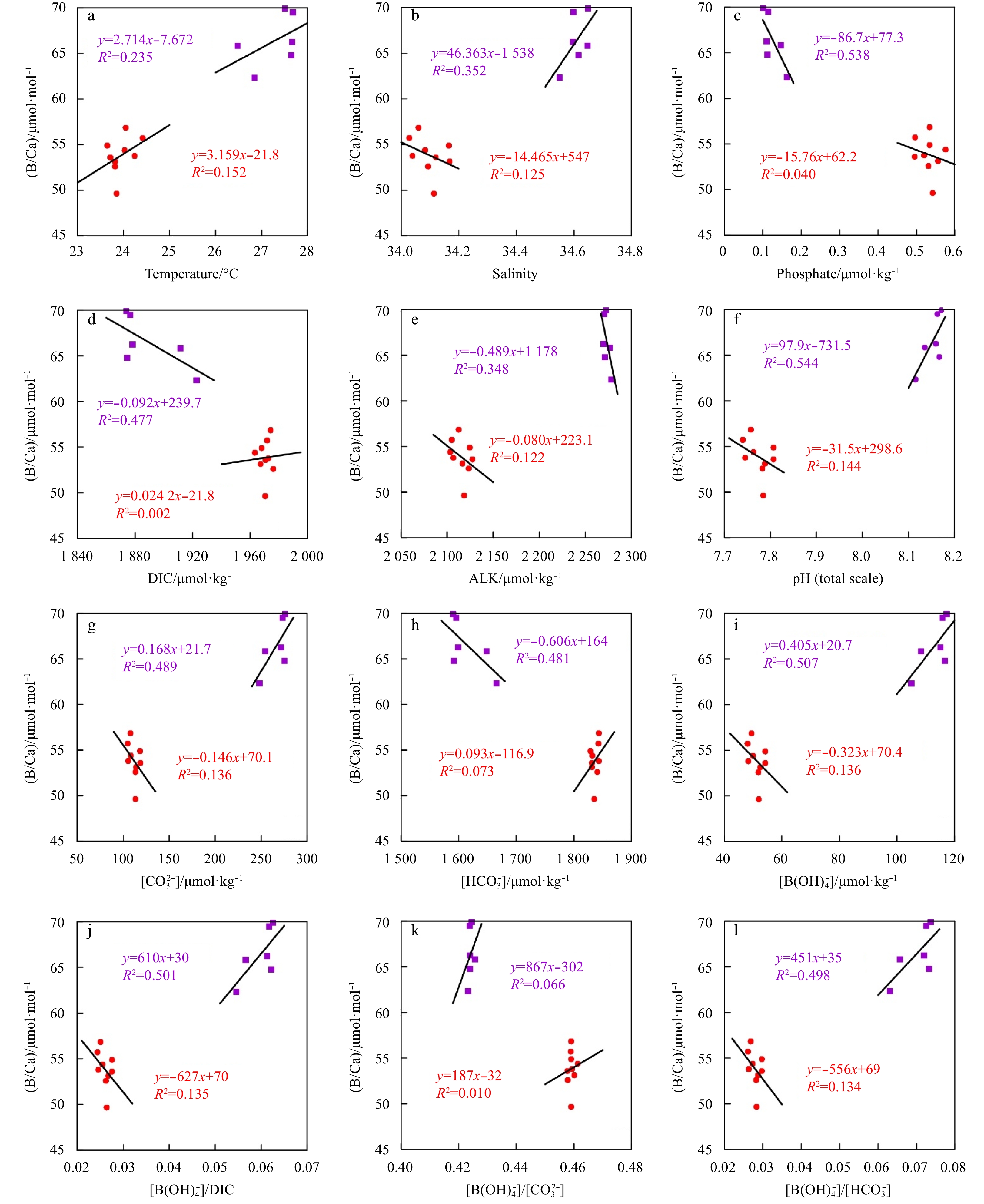

In the tropical western Pacific, in addition to correlations with temperature (R²=0.235) and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm {CO}}_3^{2-}$

] (R²=0.066), B/Ca ratios of N. dutertrei from surface sediment samples are significantly correlated with salinity, phosphate, DIC, ALK, pH, [

${\rm {CO}}_3^{2-}$

], [

${\rm{HCO}_{3}^{-}}$

], [

$\rm{B}(\rm{OH})_{4}^{-} $

], [

$\rm{B}(\rm{OH})_{4}^{-}$

]/DIC and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] (Fig. 6; purple symbols). However, in the South China Sea, B/Ca ratios of N. dutertrei are not correlated with these environmental parameters (Fig. 6 red symbols). The correlation between B/Ca values of N. dutertrei and environmental parameters is significant in the tropical western Pacific and insignificant in the South China Sea (Fig. 6), which suggests that B/Ca values of N. dutertrei cannot be used to directly reconstruct environmental parameters in the study area.

In the tropical western Pacific, in addition to strong correlations with ALK (R²=0.643) and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm {CO}}_3^{2-}$

] (R²=0.454), B/Ca ratios of P. obliquiloculata from surface sediment samples do not co-vary with other environmental parameters (Fig. 7; purple symbols). In contrast, in the South China Sea, in addition to correlations with temperature (R²=0.142), DIC (R²=0.239) and ALK (R²=0.011), B/Ca ratios of P. obliquiloculata from surface sediment samples are significantly correlated with other environmental parameters (Fig. 7; purple symbols). In summary, from all the investigated relationships between B/Ca ratios of P. obliquiloculata and environmental parameters, the correlation between B/Ca ratios and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

$ {\rm {CO}}_3^{2-}$

] is the only one that is significant in the tropical western Pacific and South China Sea (R²=0.454 and 0.447, respectively) (Fig. 7k). Previous studies have suggested that B/Ca ratios of planktonic foraminiferal or inorganic calcite are controlled by related carbonate system variables such as DIC (Allen and Hönisch, 2012; Haynes et al., 2017). The strong correlation between B/Ca ratios of P. obliquiloculata and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm {CO}}_3^{2-}$

] was thus surprising, and the controls of this environmental parameter on B/Ca ratios will be explored in future research.

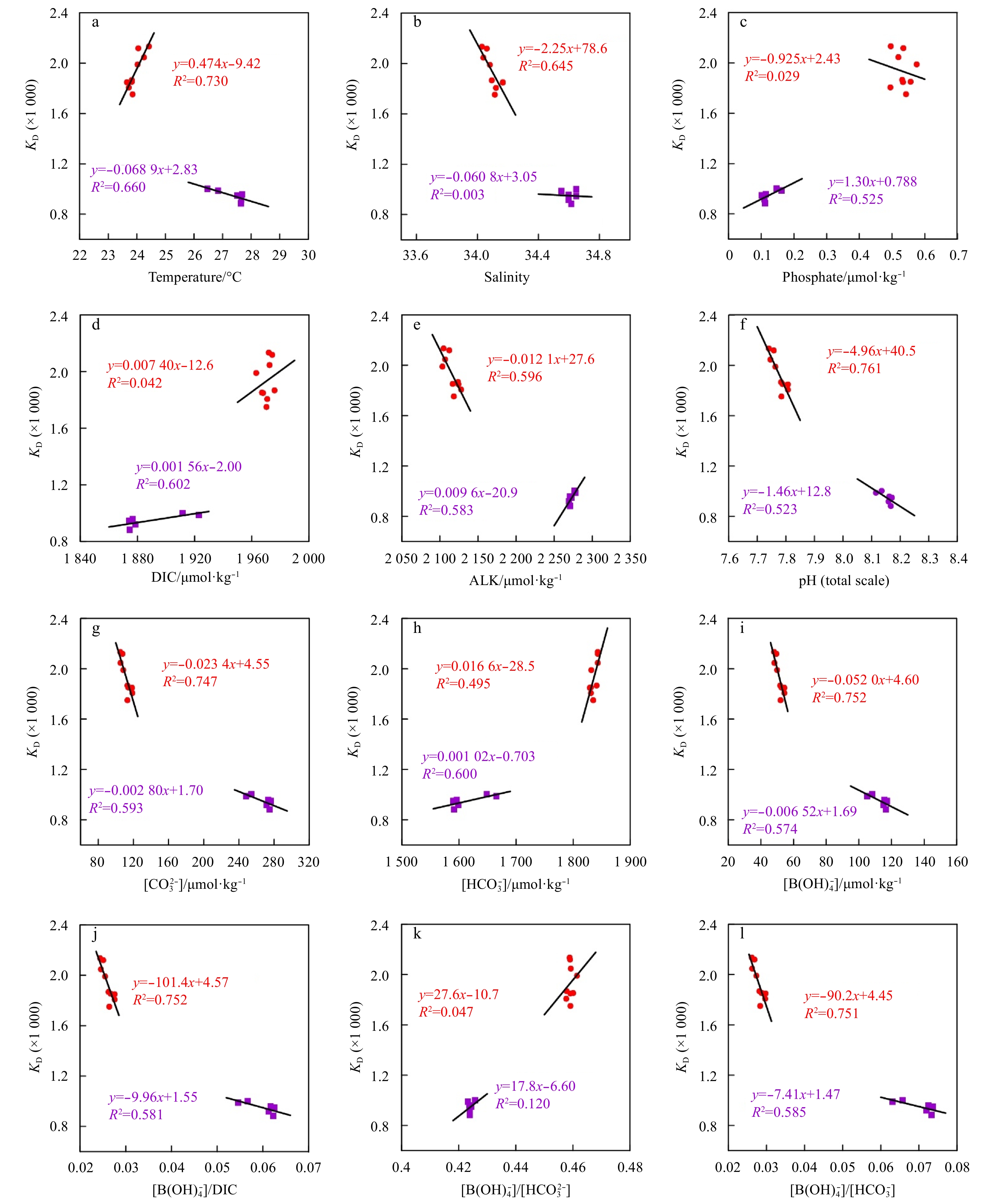

Given that the relationship between B/Ca ratios of N. dutertrei and environmental parameters is not significant, and B/Ca ratios in this species are unsuitable as a palaeoenvironmental proxy, we investigated the empirical relationships between K_D and environmental parameters (Figs 8 and 9). K_D values of N. dutertrei are significantly correlated with temperature, ALK, pH, [

${\rm {CO}}_3^{2-}$

], [

${\rm{HCO}_{3}^{-}}$

], [

$\rm{B}(\rm{OH})_{4}^{-} $

], [

$\rm{B}(\rm{OH})_{4}^{-}$

]/DIC, and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

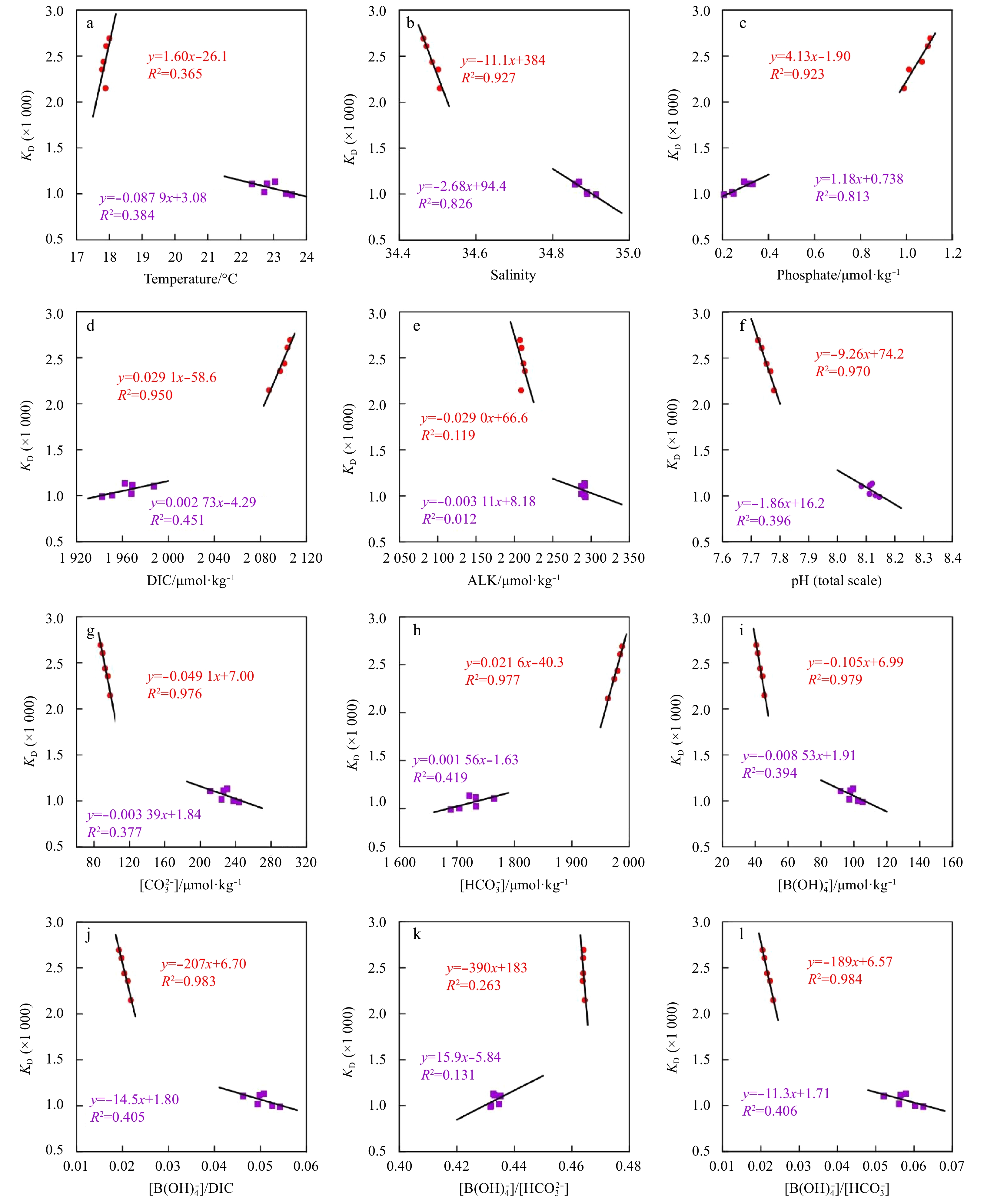

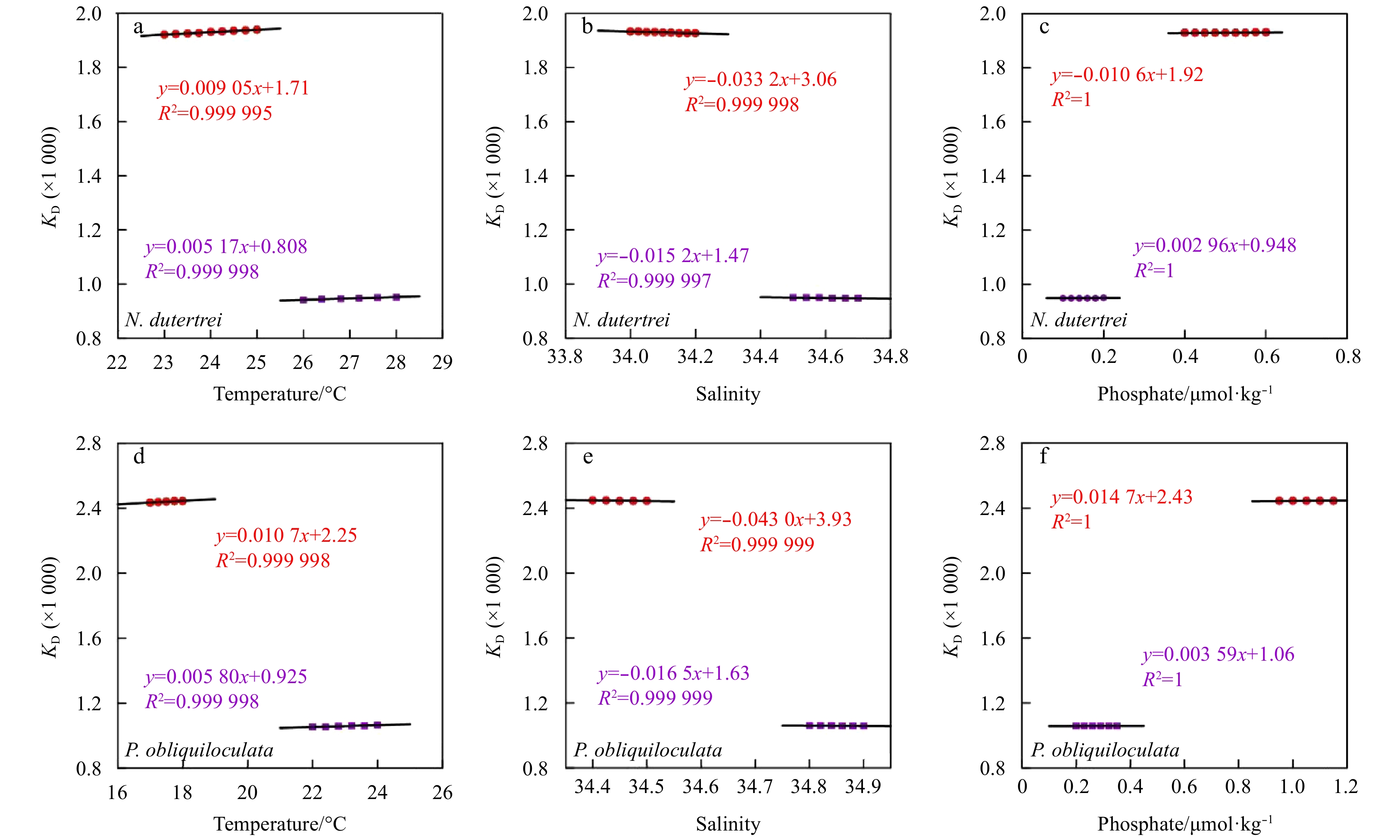

] in the tropical western Pacific and South China Sea (Fig. 8). K_D values of P. obliquiloculata are significantly correlated with temperature, salinity, phosphate, DIC, pH, [

${\rm {CO}}_3^{2-}$

], [

${\rm{HCO}_{3}^{-}} $

], [

$ \rm{B}(\rm{OH})_{4}^{-}$

], [

$\rm{B}(\rm{OH})_{4}^{-}$

]/DIC and [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] in the tropical western Pacific and South China Sea (Fig. 9).

In this study, we found that K_D values for N. dutertrei and P. obliquiloculata are negatively correlated with temperature in the tropical western Pacific (Figs 8a and 9a), which is consistent with the results of Foster (2008). However, our results also show that K_D values for N. dutertrei and P.obliquiloculata are positively correlated with temperature in the South China Sea. Similarly, the analysis of Globorotalia inflata from core-top and down-core samples in the Atlantic (Yu et al., 2007), and G. ruber and G. sacculifer from down-core material in the Pacific (Tripati et al., 2009) revealed an exponential positive relationship between K_D and temperature. Despite the opposing relationships, the data show that K_D and temperature are significantly related, perhaps indicating that temperature can strongly affect K_D. Foster (2008) suggested that temperature is not the only factor controlling the incorporation of boron into calcite, and that [CO₃^2–] in seawater is the dominant environmental control on K_D values of planktonic foraminiferal B/Ca. In our study, we also found a significant negative linear correlation between K_D values for B/Ca and [

${\rm {CO}}_3^{2-} $

] in seawater in both the tropical western Pacific and South China Sea. In addition, significant relationships between K_D values for B/Ca and other environmental parameters (e.g., pH, [

${\rm {CO}}_3^{2-} $

], [

${\rm{HCO}_{3}^{-}}$

], and [

$\rm{B}(\rm{OH})_{4}^{-} $

]) were identified in this study (Figs 8 and 9).

A core-top calibration of B/Ca ratios in the Pacific Ocean suggests that many of these potential controlling variables are autocorrelated (Krupinski et al., 2017). Therefore, the relationship between environmental parameters was examined in this study. Based on an empirical investigation of these potential controlling variables, we found that the K_D denominator [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] (Eq. 2) is significantly correlated with the other environmental parameters. Allen and Hönisch (2012) suggested that the significant correlation between K_D and [

${\rm {CO}}_3^{2-} $

] reflects the chemical links between the K_D denominator [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] and [

${\rm {CO}}_3^{2-} $

]. Thus, given that K_D is a function of [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] (Eq. (2)) and that [

$\rm{B}(\rm{OH})_{4}^{-}$

]/[

${\rm{HCO}_{3}^{-}}$

] is correlated with the other carbonate system parameters, we consider that the correlations between K_D and these carbonate system parameters in our study (Figs 8 and 9) reflect the chemical links between the K_D denominator and these variables, implying that the correlations are artificial.

In the calculation of K_D, the parameters needed are temperature, salinity, phosphate, ALK, DIC, and B/Ca. Using temperature, salinity, phosphate, DIC, and ALK data, we can calculate [

${\rm{HCO}_{3}^{-}}$

] and [

$\rm{B}(\rm{OH})_{4}^{-} $

], and then combine them with B/Ca to obtain the value of K_D from Eq. (2). Temperature, salinity, and phosphate are not part of the carbonate system, and so their correlation with the K_D values for B/Ca may be a true response to the effects of these environmental parameters on K_D. To verify this hypothesis, we replaced the values of the other environmental parameters with mean values throughout the calculation of K_D, and then explored the effect of changes in individual variables (e.g., temperature, salinity, or phosphate) on K_D values. The K_D values generated through changing a single variable are very similar (Fig. 10), indicating that temperature, salinity, and phosphate alone have little effect on the K_D values. Thus, the data show that the significant dependence of K_D on temperature (Fig. 8a), salinity (Fig. 9b), and phosphate (Fig. 9c) reported in this study is robust. In addition, in light of the lack of correlation between the K_D values of N. dutertrei and salinity and phosphate (Figs 8b and c), we derived an empirical relationship between K_D for B/Ca in N. dutertrei and temperature in the tropical western Pacific as follows (Fig. 8a):

(6)

${K_D}\;(\times 1\;000) = - 0.068\;9 \times T + 2.83\;\;\;\;\;\;\;{R^2} = 0.660.$

4.3 Variations in the subsurface carbonate system in the tropical western Pacific over the past 24 ka

4.3.1 Reconstruction of subsurface seawater ALK and pH in the tropical western Pacific

In this study, utilizing the method of Tripati et al. (2009), we used B/Ca ratios of N. dutertrei from core MD06-3052 to calculate subsurface seawater pH in the tropical western Pacific over the past 24 ka. The method is as follows:

(1) Based on the empirical relationship between K_D and temperature (Eq. (6)), combined with the B/Ca ratios of N. dutertrei from core MD06-3052 in the tropical western Pacific, [B(OH)₄^–]/[HCO₃^–] of subsurface seawater was obtained from Eq. (2).

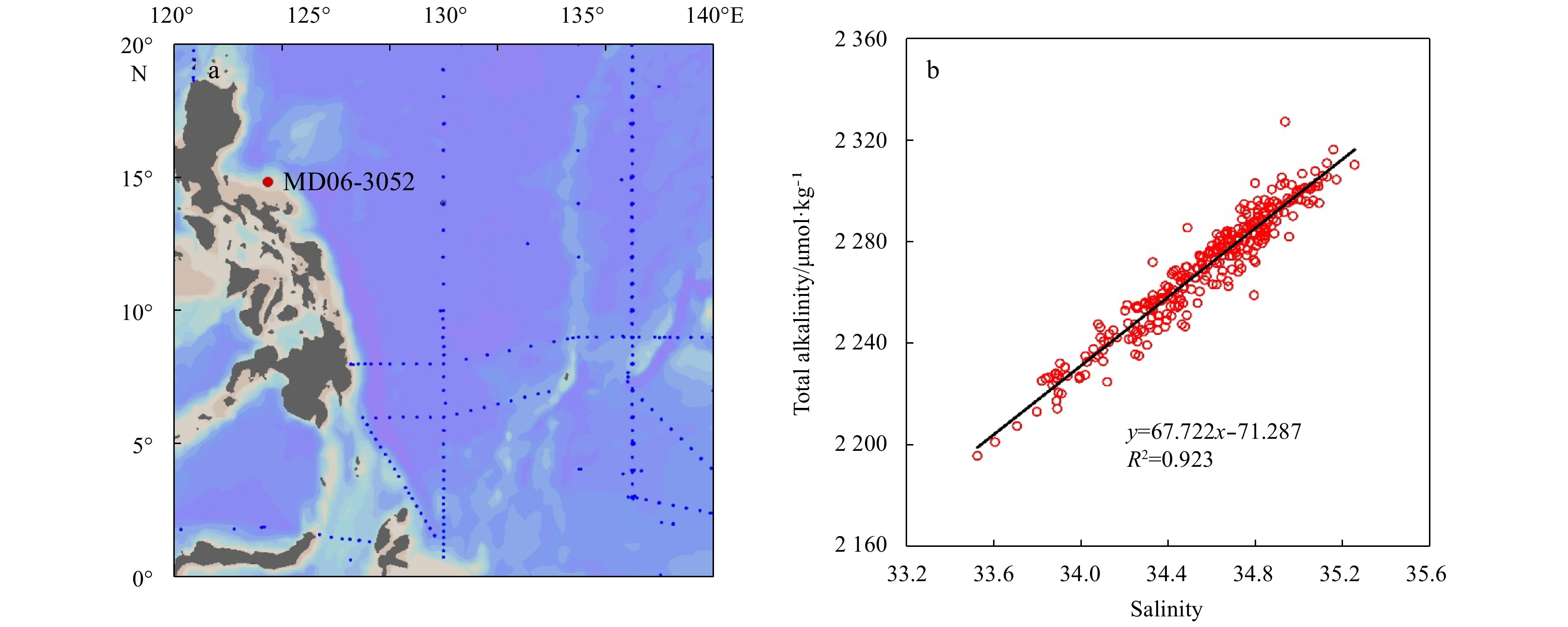

(2) ALK was reconstructed based on the local relationship between subsurface salinity and total alkalinity. The local relationship was determined using data (Olsen et al., 2016) for the region 0–20°N and 120–140°E at water depths of 50–100 m. We obtained the following equation for this area (Fig. 11):

(7)

${\rm {ALK}} = 67.722 \times S - 71.287\quad\;\;\;\;\;\;{R^2} = 0.923.$

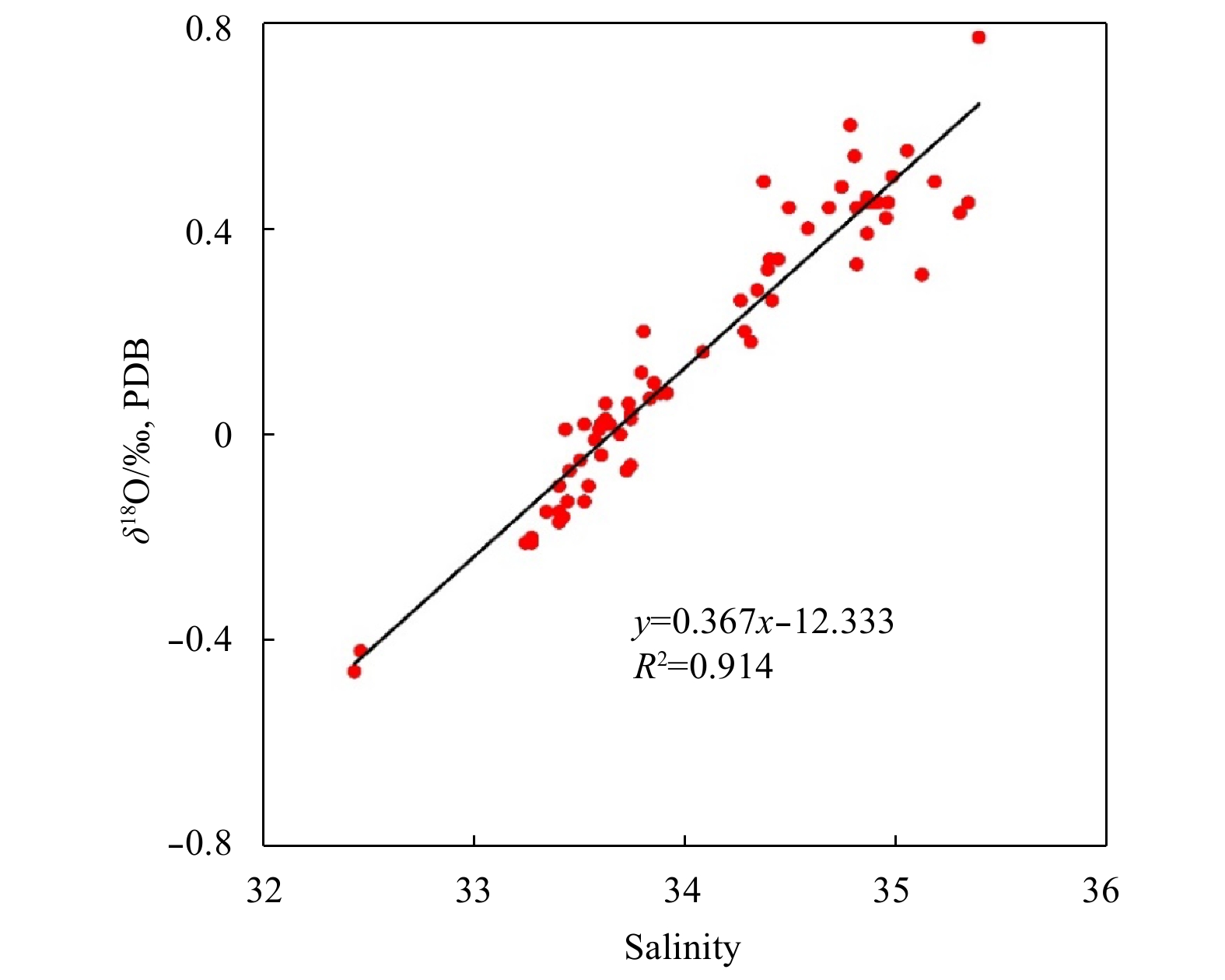

(3) Local salinity was calculated using the following equation that was derived from seawater δ¹⁸O and salinity data (n=70; R²=0.914) (Schmidt et al., 1999) in the modern ocean from the area 0°–20°N and 120°–170°E at water depths of 0–100 m (Fig. 12):

(8)

$S= ({\delta ^{18}}{\rm O} + 12.333)/0.367\quad\quad\;\;\;\;{R^2} = 0.914.$

We derived salinity data using Mg/Ca and δ¹⁸O data measured in N. dutertrei from core MD06-3052 (Qiu et al., unpublished data). Mg/Ca data were not available for the entire core section spanning the past 24 ka, and so we made additional Mg/Ca measurements.

(4) We obtained ALK estimates using Eqs (7) and (8), and foraminiferal δ¹⁸O data for which the temperature signal and effect of continental ice volume had been removed (in accordance with Bemis et al. (1998) and Waelbroeck et al. (2002), respectively).

(5) Finally, the practical alkalinity is used as an approximation for total alkalinity in seawater (Zeebe and Wolf-Gladrow, 2001). The practical alkalinity is defined as:

(9)

$[\mathrm{ALK}]=\left[\mathrm{HCO}_{3}^{-}\right]+2\left[\mathrm{CO}_{3}^{2-}\right]+\left[\mathrm{B}(\mathrm{OH})_{4}^{-}\right]+\left[\mathrm{OH}^{-}\right]-\left[\mathrm{H}^{+}\right] .$

We substituted the following Eqs (10)–(13) into Eq. (9):

(10)

$[{\rm {CO}}_3^{2 - }] = {{[{\rm {HCO}}_3^ - ] \times {k_2}} / {[{{\rm H}^ + }]}},$

(11)

$[{\rm {B(OH)}}_4^ - ] = {{[{B_{\rm {tot}}}] \times {K_{\rm B}}} / {([{{\rm H}^ + }] + {K_{\rm B}})}},$

(12)

$[{\rm {OH}^ - }] = {{{K_{\rm w}}} / {[{\rm {H}^ + }]}},$

(13)

$\begin{aligned}[{\rm {HCO}}_3^ - ] =& {K_{\rm B}} \times {B_{\rm {tot}}} \times ([{{\rm H}^ + }] + {K_{\rm B}}) \times\\& {({{[{\rm {B(OH)}}_4^ - ]} / {[{\rm {HCO}}_3^ - ]}})^{ - 1}}.\end{aligned}$

One element cubic equation for [H⁺] can be obtained by algebraic manipulation of the resultant equation. [H⁺] can be acquired by solving the one element cubic equation, and then the pH value of the subsurface seawater in the tropical western Pacific was determined for the past 24 ka.

Using ALK and pH in addition to temperature and salinity, allows pCO₂ and [

${\rm {CO}}_3^{2-} $

] of the subsurface seawater to be calculated using CO₂sys.xls (Pelletier et al., 2007) (Fig. 13). Throughout the calculation process, we selected the carbonic acid dissociation constants (K₁ and K₂) from Mehrbach et al. (1973) as refitted by Dickson and Millero (1987), K_B and

$K_{{\rm {SO}}_4} $

from Dickson (1990), K_w from Millero (1995), total boron ([B]_tot) from Uppström (1974), and the total pH scale.

4.3.2 Down-core record of subsurface seawater pCO₂ over the past 24 ka from core MD06-3052

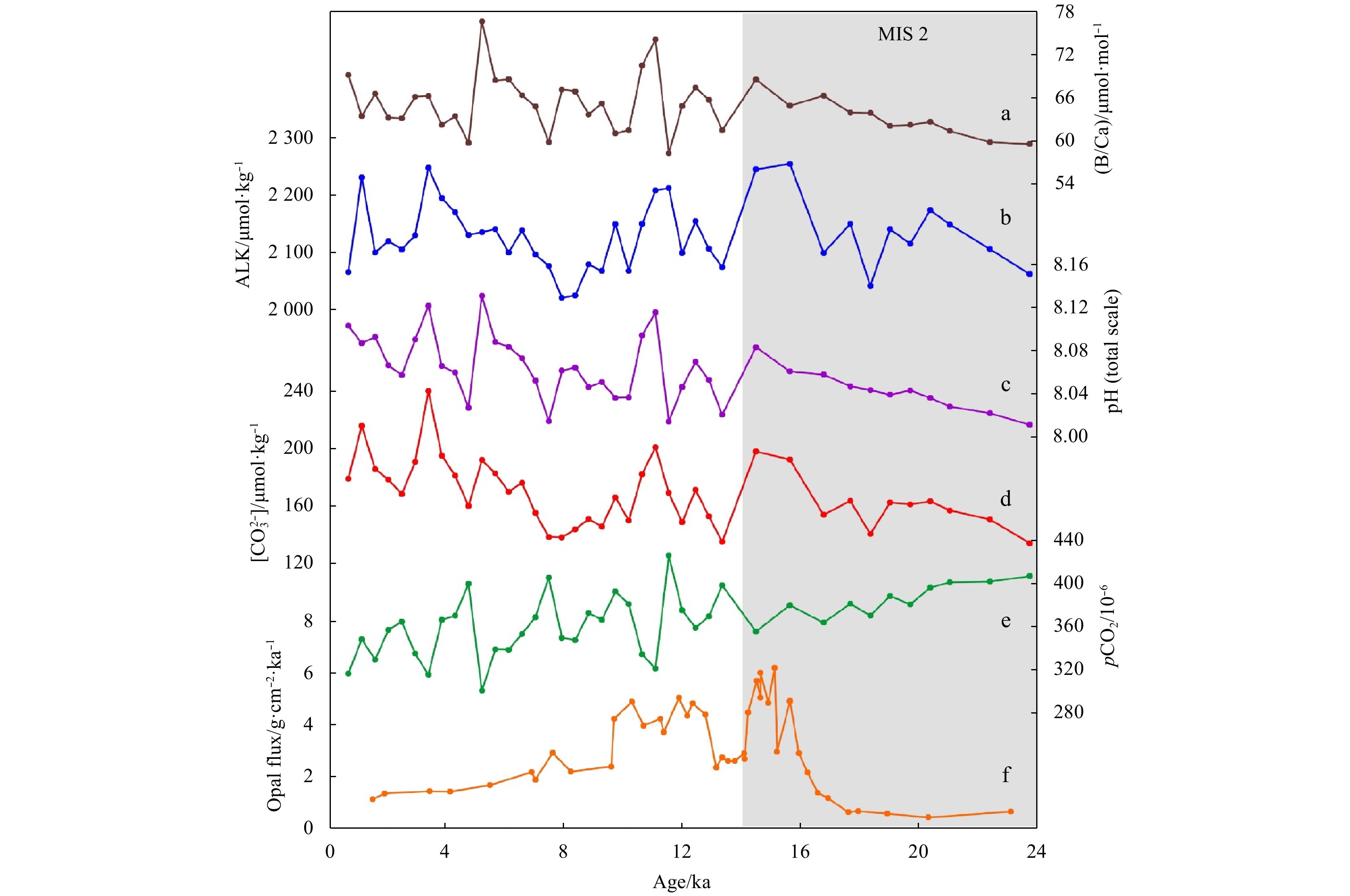

In general, the B/Ca ratios of N. dutertrei (Fig. 13a) and the reconstructed subsurface seawater ALK (Fig. 13b) in the tropical western Pacific shows no obvious directional change over the past 24 ka. In contrast, the estimated subsurface seawater pH (Fig. 13c) and [

${\rm {CO}}_3^{2-} $

] (Fig. 13d) in the tropical western Pacific show an increase with time, and the record of subsurface seawater pCO₂ in the tropical western Pacific shows a decrease with time (Fig. 13e). In general, the values of subsurface seawater pH, [

${\rm {CO}}_3^{2-}$

] and pCO₂ in MIS 2 are more stable than those in the Holocene (Fig. 13), which may indicate that the subsurface carbonate system was more active in the Holocene than in MIS 2. During the last deglacial, subsurface seawater pCO₂ values peak while subsurface seawater pH and [

${\rm {CO}}_3^{2-}$

] lie in a minima.

It has been established that upwelling of Circumpolar Deep Water (CDW) during deglaciation releases CO₂ that was previously stored in deep water, and increases atmospheric CO₂ concentrations. This upwelling water, which contains elevated nutrient and dissolved CO₂ concentrations, and DIC with low δ¹³C values, was also carried to low-latitude regions through the enhanced Antarctic Intermediate Water (AAIW) and Subantarctic Mode Water (SAMW) (Spero and Lea, 2002; Anderson et al., 2009). It has been suggested that opal flux, and thus upwelling, were enhanced during deglaciation in the Southern Ocean (Anderson et al., 2009) (Fig. 13f). The consistent variations in the tropical western Pacific subsurface pCO₂ during the last interval resemble the changes in the opal flux in the Southern Ocean (Figs 13e and f), and potentially imply a palaeoceanographic linkage between the two areas. Thus, we deduce that upwelling of deep water in the Southern Ocean likely imparted a chemical signature (e.g., dissolved CO₂ concentrations and DIC with low δ¹³C values) via the AAIW and SAMW to our study area during the deglaciation.

5 Conclusions

Less

We measured B/Ca ratios in the tests of N. dutertrei and P. obliquiloculata in surface sediment samples from the tropical western Pacific and South China Sea to investigate the effects of dissolution on B/Ca values and to re-assess the relationship between B/Ca and temperature and [

${\rm {CO}}_3^{2-} $

] for these species. We also reconstructed the subsurface carbonate parameters in the tropical western Pacific over the past 24 ka using B/Ca ratios of N. dutertrei in core MD06-3052. The results of this study led to the following conclusions:

(1) Analysis of surface sediment samples indicates a negligible dissolution effect on the B/Ca ratios of N. dutertrei and P. obliquiloculata in the tropical western Pacific and South China Sea.

(2) B/Ca ratios of N. dutertrei and P. obliquiloculata in the tropical western Pacific and South China Sea cannot be used to directly reconstruct seawater parameters. The correlation between K_D values of B/Ca in the studied N. dutertrei and P. obliquiloculata and carbonate system parameters (e.g., [

${\rm {CO}}_3^{2-} $

], DIC, ALK, pH, and [

${\rm{HCO}_{3}^{-}}$

]) are artificial. There is a robust and significant dependence of K_D values in N. dutertrei and P. obliquiloculata on temperature in the tropical western Pacific and South China Sea.

(3) The reconstructed subsurface pCO₂ record from core MD06-3052 shows a decrease over the last 24 ka. Our results serve as a preliminary attempt to apply the B/Ca ratios of subsurface dwelling planktonic foraminifera to reconstructions of subsurface seawater carbonate chemistry.

Funding

Less

The Open Fund of Qingdao National Laboratory for Marine Science and Technology under contract No. QNLM2016ORP0205; the Basic Scientific Fund for National Public Research Institutes of China under contract Nos 2017Y07 and 2019S04; the National Natural Science Foundation of China under contract Nos 41230959, 41830539, 91858106 and 41576051; the Taishan Scholars Project Funding; the Shandong Provincial Natural Science Foundation under contract No. ZR2016DQ17; the Scientific and Technological Innovation Project of Qingdao National Laboratory for Marine Science and Technology under contract No. 2016ASKJ13.

References

Less

Allen K A, Hönisch B. 2012. The planktic foraminiferal B/Ca proxy for seawater carbonate chemistry: A critical evaluation. Earth and Planetary Science Letters, 345-348: 203–211, doi: 10.1016/j.jpgl.2012.06.012

Allen K A, Hönisch B, Eggins S M, et al. 2011. Controls on boron incorporation in cultured tests of the planktic foraminifer Orbulina universa. Earth and Planetary Science Letters, 309(3-4): 291–301, doi: 10.1016/j.jpgl.2011.07.010

Allen K A, Hönisch B, Eggins S M, et al. 2016. Trace element proxies for surface ocean conditions: A synthesis of culture calibrations with planktic foraminifera. Geochimica et Cosmochimica Acta, 193: 197–221, doi: 10.1016/j.gca.2016.08.015

Anderson R, Ali S, Bradtmiller L, et al. 2009. Wind-driven upwelling in the Southern Ocean and the deglacial rise in atmospheric CO₂. Science, 323(5920): 1443–1448, doi: 10.1126/science.1167441

Archer D, Emerson S, Reimers C. 1989. Dissolution of calcite in deep-sea sediments: pH and O₂ microelectrode results. Geochimica et Cosmochimica Acta, 53(11): 2831–2845, doi: 10.1016/0016-7037(89)90161-0

Babila T L, Rosenthal Y, Conte M H. 2014. Evaluation of the biogeochemical controls on B/Ca of Globigerinoides ruber white from the Oceanic Flux Program, Bermuda. Earth and Planetary Science Letters, 404: 67–76, doi: 10.1016/j.jpgl.2014.05.053

Bemis B E, Spero H J, Bijma J, et al. 1998. Reevaluation of the oxygen isotopic composition of planktonic foraminifera: Experimental results and revised paleotemperature equations. Paleoceanography, 13(2): 150–160, doi: 10.1029/98PA00070

Berger W H. 1968. Planktonic Foraminifera: selective solution and paleoclimatic interpretation. Deep-Sea Research and Oceanographic Abstracts, 15(1): 31–43, doi: 10.1016/0011-7471(68)90027-2

Broecker W S, Anderson R, Clark E, et al. 2001. Record of seafloor CaCO₃ dissolution in the central equatorial Pacific. Geochemistry, Geophysics, Geosystems, 2(6): 1050–7, doi: 10.1029/2000GC000151

Brown S J, Elderfield H. 1996. Variations in Mg/Ca and Sr/Ca ratios of planktonic foraminifera caused by postdepositional dissolution: Evidence of shallow Mg-dependent dissolution. Paleoceanography, 11(5): 543–551, doi: 10.1029/96PA01491

Coadic R, Bassinot F, Dissard D, et al. 2013. A core-top study of dissolution effect on B/Ca in Globigerinoides sacculifer from the tropical Atlantic: Potential bias for paleo-reconstruction of seawater carbonate chemistry. Geochemistry, Geophysics, Geosystems, 14(4): 1053–1068, doi: 10.1029/2012GC004296

Dai Yuhao, Yu Jimin, Johnstone H J H. 2016. Distinct responses of planktonic foraminiferal B/Ca to dissolution on seafloor. Geochemistry, Geophysics, Geosystems, 17(4): 1339–1348, doi: 10.1002/2015GC006199

Dekens P S, Lea D W, Pak D K, et al. 2002. Core top calibration of Mg/Ca in tropical foraminifera: Refining paleotemperature estimation. Geochemistry, Geophysics, Geosystems, 3(4): 1022

Dickson A G. 1990. Thermodynamics of the dissociation of boric acid in synthetic seawater from 273. 15 to 318.15 K. Deep Sea Research Part A. Oceanographic Research Papers, 37(5): 755–766, doi: 10.1016/0198-0149(90)90004-F

Dickson A G, Millero F J. 1987. A comparison of the equilibrium constants for the dissociation of carbonic acid in seawater media. Deep Sea Research Part A. Oceanographic Research Papers, 34(10): 1733–1743, doi: 10.1016/0198-0149(87)90021-5

Emerson S, Bender M. 1981. Carbon fluxes at the sediment-water interface of the deep-sea. Calcium carbonate preservation. Journal of Marine Research, 39: 139–162

Foster G L. 2008. Seawater pH, pCO₂ and [CO₃^2-] variations in the Caribbean Sea over the last 130 kyr: A boron isotope and B/Ca study of planktic foraminifera. Earth and Planetary Science Letters, 271(1–4): 254–266, doi: 10.1016/j.jpgl.2008.04.015

Foster G L, Sexton P F. 2014. Enhanced carbon dioxide outgassing from the eastern equatorial Atlantic during the last glacial. Geology, 42(11): 1003–1006, doi: 10.1130/G35806.1

Goyet C, Healy R J, Ryan J P. 2000. Global distribution of total inorganic carbon and total alkalinity below the deepest winter mixed layer depths. ORNL/CDIAC-127, NDP-076. Oak Ridge, Tennessee: Carbon Dioxide Information Analysis Center, Oak Ridge National Laboratory, U.S. Department of Energy

Haynes L L, Hönisch B, Dyez K A, et al. 2017. Calibration of the B/Ca proxy in the planktic foraminifer Orbulina universa to Paleocene seawater conditions. Paleoceanography, 32(6): 580–599, doi: 10.1002/2016PA003069

Hemming N G, Hanson G N. 1992. Boron isotopic composition and concentration in modern marine carbonates. Geochimica et Cosmochimica Acta, 56(1): 537–543, doi: 10.1016/0016-7037(92)90151-8

Hendry K R, Rickaby R E M, Meredith M P, et al. 2009. Controls on stable isotope and trace metal uptake in Neogloboquadrina pachyderma (sinistral) from an Antarctic sea-ice environment. Earth and Planetary Science Letters, 278(1–2): 67–77, doi: 10.1016/j.jpgl.2008.11.026

Henehan M J, Foster G L, Rae J W B, et al. 2015. Evaluating the utility of B/Ca ratios in planktic foraminifera as a proxy for the carbonate system: A case study of Globigerinoides ruber. Geochemistry, Geophysics, Geosystems, 16(4): 1052–1069, doi: 10.1002/2014GC005514

Henehan M J, Rae J W B, Foster G L, et al. 2013. Calibration of the boron isotope proxy in the planktonic foraminifera Globigerinoides ruber for use in palaeo-CO₂ reconstruction. Earth and Planetary Science Letters, 364: 111–122, doi: 10.1016/j.jpgl.2012.12.029

Holland K, Eggins S M, Hönisch B, et al. 2017. Calcification rate and shell chemistry response of the planktic foraminifer Orbulina universa to changes in microenvironment seawater carbonate chemistry. Earth and Planetary Science Letters, 464: 124–134, doi: 10.1016/j.jpgl.2017.02.018

Johnstone H J H, Schulz M, Barker S, et al. 2010. Inside story: An X-ray computed tomography method for assessing dissolution in the tests of planktonic foraminifera. Marine Micropaleontology, 77(1-2): 58–70, doi: 10.1016/j.marmicro.2010.07.004

Key R M, Kozyr A, Sabine C L, et al. 2004. A global ocean carbon climatology: Results from Global Data Analysis Project (GLODAP). Global Biogeochemical Cycles, 18(4): GB4031, doi: 10.1029/2004GB002247

Klochko K, Kaufman A J, Yao Wengsheng, et al. 2006. Experimental measurement of boron isotope fractionation in seawater. Earth and Planetary Science Letters, 248(1–2): 276–285, doi: 10.1016/j.jpgl.2006.05.034

Krupinski N B Q, Russell A D, Pak D K, et al. 2017. Core-top calibration of B/Ca in Pacific Ocean Neogloboquadrina incompta and Globigerina bulloides as a surface water carbonate system proxy. Earth and Planetary Science Letters, 466: 139–151, doi: 10.1016/j.jpgl.2017.03.007

Lea D W, Pak D K, Spero H J. 2000. Climate impact of late Quaternary equatorial Pacific sea surface temperature variations. Science, 289(5485): 1719–1724, doi: 10.1126/science.289.5485.1719

Marchitto T M, Lynch-Stieglitz J, Hemming S R. 2005. Deep pacific CaCO₃ compensation and glacial-interglacial atmospheric CO₂. Earth and Planetary Science Letters, 231(3-4): 317–336, doi: 10.1016/j.jpgl.2004.12.024

Martin P A, Lea D W. 2002. A simple evaluation of cleaning procedures on fossil benthic foraminiferal Mg/Ca. Geochemistry, Geophysics, Geosystems, 3(10): 8401, doi: 10.1029/2001GC000280

Mehrbach C, Culberson C H, Hawley J E, et al. 1973. Measurement of the apparent dissociation constants of carbonic acid in seawater at atmospheric pressure. Limnology and Oceanography, 18(6): 897–907, doi: 10.4319/lo.1973.18.6.0897

Millero F J. 1995. Thermodynamics of the carbon dioxide system in the oceans. Geochimica et Cosmochimica Acta, 59: 661–677, doi: 10.1016/0016-7037(94)00354-O

Mohtadi M, Steinke S, Groeneveld J, et al. 2009. Low-latitude control on seasonal and interannual changes in planktonic foraminiferal flux and shell geochemistry off south Java: A sediment trap study. Paleoceanography, 24(1): PA1201, doi: 10.1029/2008PA001636

Naik S S, Naidu P D, Foster G L, et al. 2015. Tracing the strength of the southwest monsoon using boron isotopes in the eastern Arabian Sea. Geophysical Research Letters, 42(5): 1450–1458, doi: 10.1002/2015GL063089

Naik S S, Naidu P D, Govil P, et al. 2010. Relationship between weights of planktonic foraminifer shell and surface water CO₃^2- concentration during the Holocene and Last Glacial Period. Marine Geology, 275(1-4): 278–282, doi: 10.1016/j.margeo.2010.05.004

Ni Yunyan, Foster G L, Bailey T, et al. 2007. A core top assessment of proxies for the ocean carbonate system in surface-dwelling foraminifers. Paleoceanography, 22(3): PA3212, doi: 10.1029/2006PA001337

Olsen A, Key R M, Van Heuven S, et al. 2016. The global ocean data analysis project version 2 (GLODAPv2)-an internally consistent data product for the world ocean. Earth System Science Data, 8(2): 297–323, doi: 10.5194/essd-8-297-2016

Pelletier G, Lewis E, Wallace D. 2007. CO2SYS. XLS: A Calculator for the CO₂ System in Seawater for Microsoft Excel/VBA. Olympia, WA/Upton, NY, USA: Washington State Department of Ecology/Brookhaven National Laboratory

Qiu Xiaohua, Li Tiegang, Chang Fengming, et al. 2014. Sea surface temperature and salinity reconstruction based on stable isotopes and Mg/Ca of planktonic foraminifera in the western Pacific Warm Pool during the last 155 ka. Chinese Journal of Oceanology and Limnology, 32(1): 187–200, doi: 10.1007/s00343-014-3073-y

Ravelo A C, Fairbanks R G. 1992. Oxygen isotopic composition of multiple species of planktonic foraminifera: recorders of the modern photic zone temperature gradient. Paleoceanography, 7(6): 815–831, doi: 10.1029/92PA02092

Regenberg M, Nürnberg D, Steph S, et al. 2006. Assessing the effect of dissolution on planktonic foraminiferal Mg/Ca ratios: Evidence from Caribbean core tops. Geochemistry, Geophysics, Geosystems, 7(7): Q07P15, doi: 10.1029/2005GC001019

Rincón-Martínez D, Steph S, Lamy F, et al. 2011. Tracking the equatorial front in the eastern equatorial Pacific Ocean by the isotopic and faunal composition of planktonic foraminifera. Marine Micropaleontology, 79(1–2): 24–40, doi: 10.1016/j.marmicro.2011.01.001

Rippert N, Nürnberg D, Raddatz J, et al. 2016. Constraining foraminiferal calcification depths in the western Pacific warm pool. Marine Micropaleontology, 128: 14–27, doi: 10.1016/j.marmicro.2016.08.004

Rosenthal Y, Boyle E A. 1993. Factors controlling the fluoride content of planktonic foraminifera: An evaluation of its paleoceanographic applicability. Geochimica et Cosmochimica Acta, 57(2): 335–346, doi: 10.1016/0016-7037(93)90435-Y

Sadekov A Y, Ganeshram R, Pichevin L, et al. 2013. Palaeoclimate reconstructions reveal a strong link between El Niño-Southern Oscillation and Tropical Pacific mean state. Nature Communications, 4: 2692, doi: 10.1038/ncomms3692

Salmon K H, Anand P, Sexton P F, et al. 2016. Calcification and growth processes in planktonic foraminifera complicate the use of B/Ca and U/Ca as carbonate chemistry proxies. Earth and Planetary Science Letters, 449: 372–381, doi: 10.1016/j.jpgl.2016.05.016

Schmidt G A, Bigg G R, Rohling E J. 1999. Global seawater oxygen-18 database–v1. 21. http: //data.giss.nasa.gov/o18data [2018–2]

Schmuker B, Schiebel R. 2002. Planktic foraminifers and hydrography of the eastern and northern Caribbean Sea. Marine Micropaleontology, 46(3–4): 387–403, doi: 10.1016/S0377-8398(02)00082-8

Seki O, Foster G L, Schmidt D N, et al. 2010. Alkenone and boron-based Pliocene pCO₂ records. Earth and Planetary Science Letters, 292(1-2): 201–211, doi: 10.1016/j.jpgl.2010.01.037

Spero H J, Lea D W. 2002. The cause of carbon isotope minimum events on glacial terminations. Science, 296(5567): 522–525, doi: 10.1126/science.1069401

Tripati A K, Roberts C D, Eagle R A. 2009. Coupling of CO₂ and ice sheet stability over major climate transitions of the last 20 million years. Science, 326(5958): 1394–1397, doi: 10.1126/science.1178296

Uppström L R. 1974. The boron/chlorinity ratio of deep-sea water from the Pacific Ocean. Deep Sea Research and Oceanographic Abstracts, 21(2): 161–162, doi: 10.1016/0011-7471(74)90074-6

Waelbroeck C, Labeyrie L, Michel E, et al. 2002. Sea-level and deep water temperature changes derived from benthic foraminifera isotopic records. Quaternary Science Reviews, 21(1–3): 295–305, doi: 10.1016/S0277-3791(01)00101-9

Wara M W, Delaney M L, Bullen T D, et al. 2003. Possible roles of pH, temperature, and partial dissolution in determining boron concentration and isotopic composition in planktonic foraminifera. Paleoceanography, 18(4): 1100, doi: 10.1029/2002PA000797

Yu Jimin, Day J, Greaves M, Elderfield H. 2005. Determination of multiple element/calcium ratios in foraminiferal calcite by quadrupole ICP‐MS. Geochemistry, Geophysics, Geosystems, 6(8): Q08P01, doi: 10.1029/2005GC000964

Yu Jimin, Elderfield H. 2007. Benthic foraminiferal B/Ca ratios reflect deep water carbonate saturation state. Earth and Planetary Science Letters, 258(1–2): 73–86, doi: 10.1016/j.jpgl.2007.03.025

Yu Jimin, Elderfield H, Hönisch B. 2007. B/Ca in planktonic foraminifera as a proxy for surface seawater pH. Paleoceanography, 22(2): PA2202, doi: 10.1029/2006PA001347

Yu Jimin, Foster G L, Elderfield H, et al. 2010. An evaluation of benthic foraminiferal B/Ca and δ11B for deep ocean carbonate ion and pH reconstructions. Earth and Planetary Science Letters, 293(1–2): 114–120, doi: 10.1016/j.jpgl.2010.02.029

Zeebe R E, Wolf-Gladrow D. 2001. CO₂ in seawater: equilibrium, kinetics, isotopes. Netherlands: Elsevier

Appendix

Less

Year 2019 volume 38 Issue 9

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-019-1476-y

Receive Date：2018-04-25
Online Date：2026-04-01
Published：2019-09-25

Article Data

Affiliations

History

Received：2018-04-25
Accepted：2018-09-10

Funding

The Open Fund of Qingdao National Laboratory for Marine Science and Technology under contract No. QNLM2016ORP0205; the Basic Scientific Fund for National Public Research Institutes of China under contract Nos 2017Y07 and 2019S04; the National Natural Science Foundation of China under contract Nos 41230959, 41830539, 91858106 and 41576051; the Taishan Scholars Project Funding; the Shandong Provincial Natural Science Foundation under contract No. ZR2016DQ17; the Scientific and Technological Innovation Project of Qingdao National Laboratory for Marine Science and Technology under contract No. 2016ASKJ13.

Affiliations

¹ CAS Key Laboratory of Marine Geology and Environment, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

² First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

³ University of Chinese Academy of Sciences, Beijing 100049, China

⁴ Laboratory for Marine Geology and Environment, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

⁵ No. 1 Institute of Geology and Mineral Resources of Shandong Province, Jinan 250014, China

Corresponding:

*E-mail: tgli@fio.org.cn (LI Tiegang)

zhfxiong@fio.org.cn (XIONG Zhifang)

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-019-1476-y

Share to

${\text {CO}_3^{2-}}$], and its application in reconstruction of the subsurface carbonate system in the tropical western Pacific since 24 ka"> ${\text {CO}_3^{2-}}$], and its application in reconstruction of the subsurface carbonate system in the tropical western Pacific since 24 ka&url=https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-019-1476-y">

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. B/Ca ratios of N. dutertrei and P. obliquiloculata from surface sediment samples^*

Core ID	North latitude/(°)	East longitude/(°)	Water depth/m	N. dutertrei					P. obliquiloculata
Core ID	North latitude/(°)	East longitude/(°)	Water depth/m	T/°C	[${\rm {CO}}_3^{2-}$]/ μmol·kg^–1	([$\rm{B}(\rm{OH})_{4}^{-}$/ ${\rm{HCO}_{3}^{-}}$])/ mol·mol^–1	(B/Ca)/ μmol·kg^–1	K_D/10^–3	T/°C	[${\rm {CO}}_3^{2-}$]/ μmol·kg^–1	([$\rm{B}(\rm{OH})_{4}^{-}$/ ${\rm{HCO}_{3}^{-}}$])/ mol·mol^–1	(B/Ca)/ μmol·kg^–1	K_D/10^–3
Note: ^* Also shown are modern seawater temperatures, [${\rm {CO}}_3^{2-}$], [$\rm{B}(\rm{OH})_{4}^{-}$/${\rm{HCO}_{3}^{-}}$], measured B/Ca, and calculated K_D. [${\rm {CO}}_3^{2-}$] and [$\rm{B}(\rm{OH})_{4}^{-}$/${\rm{HCO}_{3}^{-}}$] were estimated CO₂sys.xls (Pelletier et al., 2007) using the GLODAP (Key et al., 2004), Global Alkalinity & TCO₂ (Goyet et al., 2000), and WOA 13 datasets for 50–100 m water depth for N. dutertrei and 100–200 m for P. obliquiloculata.
Tropical western Pacific
3001	14.866 9	134.627 5	3 364	27.51	276.40	0.073 77	69.93	0.948 0	23.56	244.27	0.062 43	61.76	0.989 3
3046	14.028 5	134.338 7	3 407	27.65	275.38	0.073 34	64.79	0.883 3	23.40	237.95	0.060 32	60.49	1.002 9
3091	13.267 6	134.474 3	2 632	27.69	273.35	0.072 59	69.52	0.957 7	23.05	230.61	0.057 95	65.59	1.131 8
3138	12.552 9	134.850 2	3 556	27.67	271.85	0.072 07	66.25	0.919 2	22.80	226.30	0.056 57	63.01	1.113 7
MD06-3047B	17.007 3	124.798 8	2 510	26.48	254.59	0.0657 4	65.85	1.001 6	22.73	224.03	0.056 17	57.26	1.019 4
MD06–3052	14.810 0	123.490 0	732	26.85	248.45	0.063 13	62.35	0.987 6	22.35	211.37	0.052 12	57.65	1.106 2
South China Sea
C02A09	8.006 7	112.035 2	1 694	23.82	113.28	0.028 18	52.60	1.866 6	17.78	95.66	0.022 47	52.90	2.353 6
C02A15	8.013 1	113.649 0	1 825	24.05	107.78	0.026 84	56.84	2.117 6	17.83	92.59	0.021 70	52.88	2.437 3
C02A21	8.005 9	115.263 5	2 240	24.25	105.47	0.026 28	53.78	2.046 3	17.91	89.75	0.020 99	54.71	2.606 8
C02A23	8.000 6	115.801 2	2 551	24.42	104.88	0.026 12	55.73	2.133 8	18.00	87.45	0.020 41	54.95	2.692 1
C02F01	6.682 1	109.897 9	1 398	23.72	118.73	0.029 68	53.60	1.806 0				54.39
C02F09	6.678 9	112.024 0	1 957	23.85	113.35	0.028 36	49.65	1.750 7	17.88	98.12	0.023 22	49.87	2.147 7
C02G18	6.400 4	114.423 6	2 139	24.03	108.58	0.027 35	54.39	1.988 7	17.84			53.99
C02K02	5.331 3	110.150 1	148.1	23.65	118.34	0.029 71	54.89	1.847 8				53.91
C02K09	5.330 4	112.034 7	128	23.82	114.25	0.028 70	53.13	1.851 1				55.94

Table 2. Bottom water Δ[${\rm {CO}}_3^{2-}$] values for the study sites in the tropical western Pacific and South China Sea

Core ID	North latitude/(°)	East longitude/(°)	Water depth/m	[${\rm {CO}}_3^{2-}$]/μmol·kg^–1	Ω	Δ[${\rm {CO}}_3^{2-}$] /μmol·kg^–1
Tropical western Pacific
3001	14.866 9	134.627 5	3 364	74.65	0.908 4	–7.53
3046	14.028 5	134.338 7	3 407	75.02	0.905 3	–7.85
3091	13.267 6	134.474 3	2 632	70.82	0.995 3	–0.34
3138	12.552 9	134.850 2	3 556	75.50	0.885 1	–9.80
MD06-3047B	17.007 3	124.798 8	2 510	69.45	1.000 0	0.00
MD06-3052	14.810 0	123.490 0	732	62.50	1.296 5	14.29
South China Sea
C02A09	8.006 7	112.035 2	1 694	60.51	1.029 1	1.71
C02A15	8.013 1	113.649 0	1 825	59.97	0.996 3	–0.22
C02A21	8.005 9	115.263 5	2 240	53.38	0.813 4	–12.20
C02A23	8.000 6	115.801 2	2 551	54.86	0.786 0	–14.90
C02F01	6.682 1	109.897 9	1 398	36.66	0.662 1	–18.70
C02F09	6.678 9	112.024 0	1 957	50.49	0.813 7	–11.60
C02G18	6.400 4	114.423 6	2 139	28.96	0.450 1	–35.40
C02K02	5.331 3	110.150 1	148.1	103.83	2.426 9	61.04
C02K09	5.330 4	112.034 7	128	108.42	2.548 5	65.88

Fig. 1. Locations of surface sediment (red circles) and core sediment (red diamond) samples. The base map was drawn using the ODV (Ocean Data View; http://odv.awi.de) software package.

Fig. 2. Schematic diagram showing the hydrological parameter calculations for the study sites. S₀ represents the study site; S₁–S₄ represent hydrographic sites near the study sites; (x, y) represents longitude and latitude, respectively; and L₁–L₄ indicate the distance between the study site and the hydrographic site.

Fig. 3. Carbonate system in the study areas, as inferred from surface sediment data. [${\rm {CO}}_3^{2-} $] in surface waters is shown for the South China Sea (a) and the tropical western Pacific (b). Depth profiles of [${\rm {CO}}_3^{2-} $] and pH are shown for the South China Sea (c, d) and the tropical western Pacific (e, f). [${\rm {CO}}_3^{2-} $] and pH were estimated with CO₂sys.xls (Pelletier et al., 2007) using the Global Alkalinity & TCO₂ (Goyet et al., 2000), GLODAP (Key et al., 2004), and WOA13 datasets.

Fig. 4. Four depth transects of B/Ca values in N. dutertrei and P. obliquiloculata. Data in (a) and (c) are from this study; data in (b) and (d) are from Dai et al. (2016).

Fig. 5. Plots of B/Ca ratios versus bottom water Δ[${\rm {CO}}_3^{2-}$] for N. dutertrei (a) and P. obliquiloculata (b). The purple and red symbols represent the study sites from the tropical western Pacific and South China Sea, respectively.

Fig. 6. Variations in B/Ca ratios of N. dutertrei versus various environmental parameters at assigned depths in the tropical western Pacific (purple symbols) and South China Sea (red symbols).

Fig. 7. Variations in B/Ca ratios of P. obliquiloculata with environmental parameters at assigned depths in the tropical western Pacific (purple symbols) and South China Sea (red symbols).

Fig. 8. K_D values of N. dutertrei versus environmental parameters at assigned depths in the tropical western Pacific (purple symbols) and South China Sea (red symbols).

Fig. 9. K_D values of P. obliquiloculata versus environmental parameters at assigned depths in the tropical western Pacific (purple symbols) and South China Sea (red symbols).

Fig. 10. Variation of K_D values of N. dutertrei and P. obliquiloculata with single variables. The purple and red symbols represent the study sites from the tropical western Pacific and South China Sea, respectively.

Fig. 11. Regional relationship between subsurface seawater total alkalinity and salinity. a. Locations from which data were used to reconstruct the regional relationship; the red dot represents the core MD06-3052; and b. regression equation for total alkalinity and salinity. The data are from the dataset complied by GLODAPv2 (Olsen et al., 2016). The base map was drawn using Ocean Data View (http://odv.awi.de).

Fig. 12. Local relationship between seawater δ¹⁸O and salinity (data are from Schmidt et al. (1999)).

Fig. 13. Changes in the subsurface carbonate system in the tropical western Pacific over the past 24 ka. B/Ca ratios in N. dutertrei from core MD06-3052 (a). Calculated subsurface seawater ALK (b) and pH (c) in the tropical western Pacific. Reconstructed subsurface seawater [${\rm {CO}}_3^{2-} $] (d) and pCO₂ (e) in the tropical western Pacific. Opal flux from core TN057-13PC in the Southern Ocean (Anderson et al., 2009) (f). The grey vertical bar indicates marine isotope stage 2 (MIS 2).

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
