A 10-year wave energy resource assessment and trends of Indonesia based on satellite observations
收藏切换
PDF
Amiruddin1, Agustinus Ribal2, *, Khaeruddin2, Sri Astuti Thamrin2
Acta Oceanologica Sinica | 2019, 38(8) : 86 - 93
Less
收藏切换
Acta Oceanologica Sinica | 2019, 38(8): 86-93
• Ocean Engineering •
A 10-year wave energy resource assessment and trends of Indonesia based on satellite observations
Full
Amiruddin1, Agustinus Ribal2, *, Khaeruddin2, Sri Astuti Thamrin2
Affiliations
  • 1 Department of Physics, Faculty of Mathematics and Natural Sciences, Hasanuddin University, Makassar 90245, Indonesia
  • 2 Department of Mathematics, Faculty of Mathematics and Natural Sciences, Hasanuddin University, Makassar 90245, Indonesia
Published: 2019-08-25 doi: 10.1007/s13131-019-1400-z
Outline
收藏切换

Wave energy resource assessment and trends around Indonesian’s ocean has been carried out by means of analyzing satellite observations. Wave energy flux or wave power can be approximated using parameterized sea states derived from satellite data. Unfortunately, only some surface parameters can be measured from remote sensing satellites, for example for ocean surface waves: significant wave height. Others, like peak wave period and energy period are not available, but can instead be estimated using empirical models. The results have been assessed by meteorological season. The assessment shows clearly where and when the wave power resource is promising around Indonesian’s ocean. The most striking result was found from June to August, in which about 30–40 kW/m (the 90th percentile: 40–60 kW/m, the 99th percentile: 50–70 kW/m) wave power energy on average has been found around south of the Java Island. The significant trends of wave energy at the 95% level have also been studied and it is found that the trends only occurred for the extreme cases, which is the 99th percentile (i.e., highest 1%). Wave power energy could increase up to 150 W/m per year. The significant wave heights and wave power have been compared with the results obtained from global wave model hindcast carried out by wave model WAVEWATCH III. The comparisons indicated excellent agreements.

wave power energy  /  trends  /  ENVISAT altimeter  /  significant wave height  /  wave period
Amiruddin, Agustinus Ribal, Khaeruddin, Sri Astuti Thamrin. A 10-year wave energy resource assessment and trends of Indonesia based on satellite observations[J]. Acta Oceanologica Sinica, 2019 , 38 (8) : 86 -93 . DOI: 10.1007/s13131-019-1400-z
Full Text
Less
1 Introduction
Less
The national energy council of Indonesia reported that Indonesia energy demand would increase every year (Prasodjo et al., 2016). They projected that the energy price will increase in which the coal, gas, diesel oil and fuel oil, and biomass will increase up to 1.2%, 0.9%, 2.3% and 1.2%, respectively, per year. At the time of writing, the majority of electricity generation in Indonesia is from oil which mostly depends on foreign imports and thus depends on the oil price. For example, in 2015 the import ratio for the oil was about 44% which increased about 9% from 2007 where import ratio was 35% (Prasodjo et al., 2016).
In order to reduce such dependency, renewable energy has been considered. This consideration has been started in 2006 where Indonesian government stated explicitly in the presidential decree No. 5. Based on this decree, it is expected that renewable energy contribution will be 17% of total primary energy mix in 2025. From this figure, 5% should come from hydro-power which including ocean renewable energy such as ocean wave, ocean current and tidal energy. Other sources renewable energy are from biofuel (5%), geothermal (5%) and liquefied coal (2%). Recently, these figures have been revised by the Indonesia government regulation No. 79 in 2014. In this new regulation, the expectation from the renewable energy has been increased from 17% to 23% in 2025. Moreover, the government also has put another target in 2050 in which 31% of total energy mix should come from renewable energy. In order to achieve such targets, assessments on renewable energy should pay more attentions particularly for ocean renewable energy which has not been really explored.
Since Indonesia is an archipelago country that has more ocean than land, i.e., 64.97%, it has a great potential of wave energy resources (Mudho, 2011) as well as tidal energy (Ribal et al., 2017; Purnamasari et al., 2018). This is also supported by the Agency for the Assessment and Application of Technology of Indonesia which found that Indonesia has relatively high ocean wave energy potential especially in the region of west of Sumatera, south of Java, Bali, West Nusa Tenggara and East Nusa Tenggara (BPPT, 2014). Therefore, it is a great of importance to assess the wave energy potential in more intensive manner.
Recently, Ribal and Zieger (2016) have done a preliminary assessment of wave energy resources around Indonesia by analyzing the calibrated ENVISAT data. However, their assessment was limited to two years period which are from 2010 until 2011. Their results are in a good agreement with the data obtained from global wave model (Ardhuin et al., 2010; Durrant et al., 2014; Hemer et al., 2017).
In the present paper, we will extend the work of Ribal and Zieger (2016) by using ENVISAT altimeter data over the full period from 2002 to 2012. In addition, the trends in wave energy at the 95% level will be studied and a seasonal assessment is given which beyond the work of Ribal and Zieger (2016). Moreover, the results based on the altimeter observations will be compared with the 10-year hindcast of global wave model carried out by well-known wave model WAVEWATCH III version 4.08 (Tolman, 2009; Ardhuin et al., 2010; Durrant et al., 2014).
The structure of this paper is as follows. The description of the calibrated ENVISAT altimeter data will be described in Section 2 following by mean significant wave height and peak period in Section 3. Wave power energy potential in Indonesia as well as its trends over the ENVISAT observations will be presented in Sections 4 and 5, respectively. The comparison with the results obtained from global wave model WAVEWACTH III will be shown in Section 6 following the conclusions in Section 7.
2 ENVISAT altimeter data
Less
The European Space Agency (ESA) launched many missions including ERS1 (European Remote-sensing Satellite), ERS2 and ENVISAT altimeter. The later satellite was launched on March 1, 2002 in French Guiana. This satellite was operated for 10 years, which is from 2002 to 2012. The main purpose of the ENVISAT mission was to monitor land, ocean, atmosphere and ice (Zieger, 2010). Moreover, ENVISAT altimeter has some similarities with ERS2 where both satellites have the same exact repeat mission (ERM) which is 35 d, inclination (98.54°), altitude (784 km) and size of footprint (Quartly et al., 2001; Zieger, 2010). All data over the duration of this satellite observation will be used in this present work where the calibrated data is available from Globwave database, http://globwave.ifremer.fr/ (Queffeulou and Croizé-Fillon, 2012). Moreover, the validation and the quality control procedure that have been used in Zieger et al. (2009) (also see Zieger, 2010; Young et al., 2011; Zieger et al., 2013; Babanin et al., 2014a, b), will also be applied here to obtain the significant wave height and Ku-band radar altimeter backscatter for our need. Furthermore, the data have been binned to a resolution of 1°×1° which represents the optimal resolution for continues global coverage based on the characteristic geometry of altimeter ground tracks (Zieger, 2010; Vinoth and Young, 2011).
3 Significant wave height and peak wave period
Less
The significant wave height is one of the most important parameters in assessing wave energy resources. This parameter is available in the ENVISAT and it can be extracted in the straightforward manner. Another parameter in estimating wave power energy is peak wave period. The details of these two parameters will be presented in the following two subsections.
3.1 Mean significant wave height

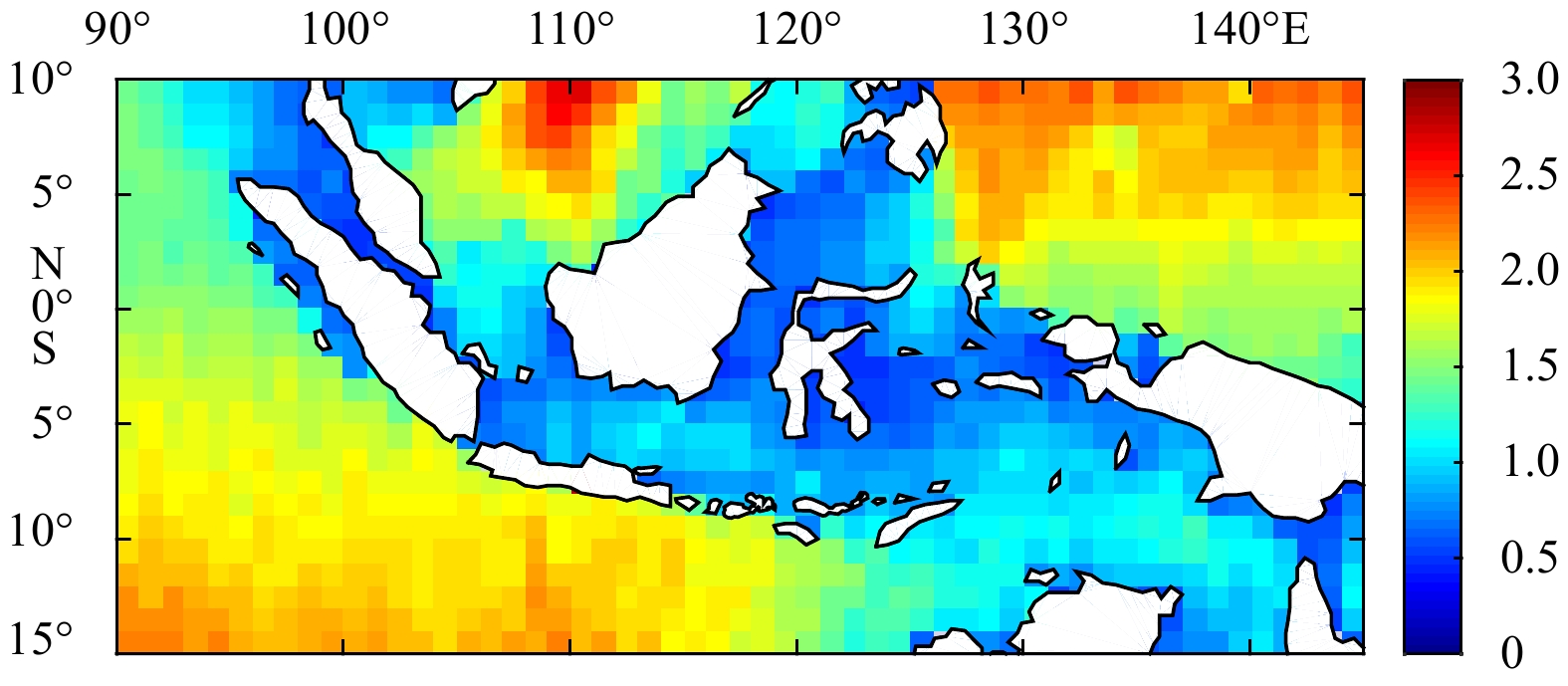

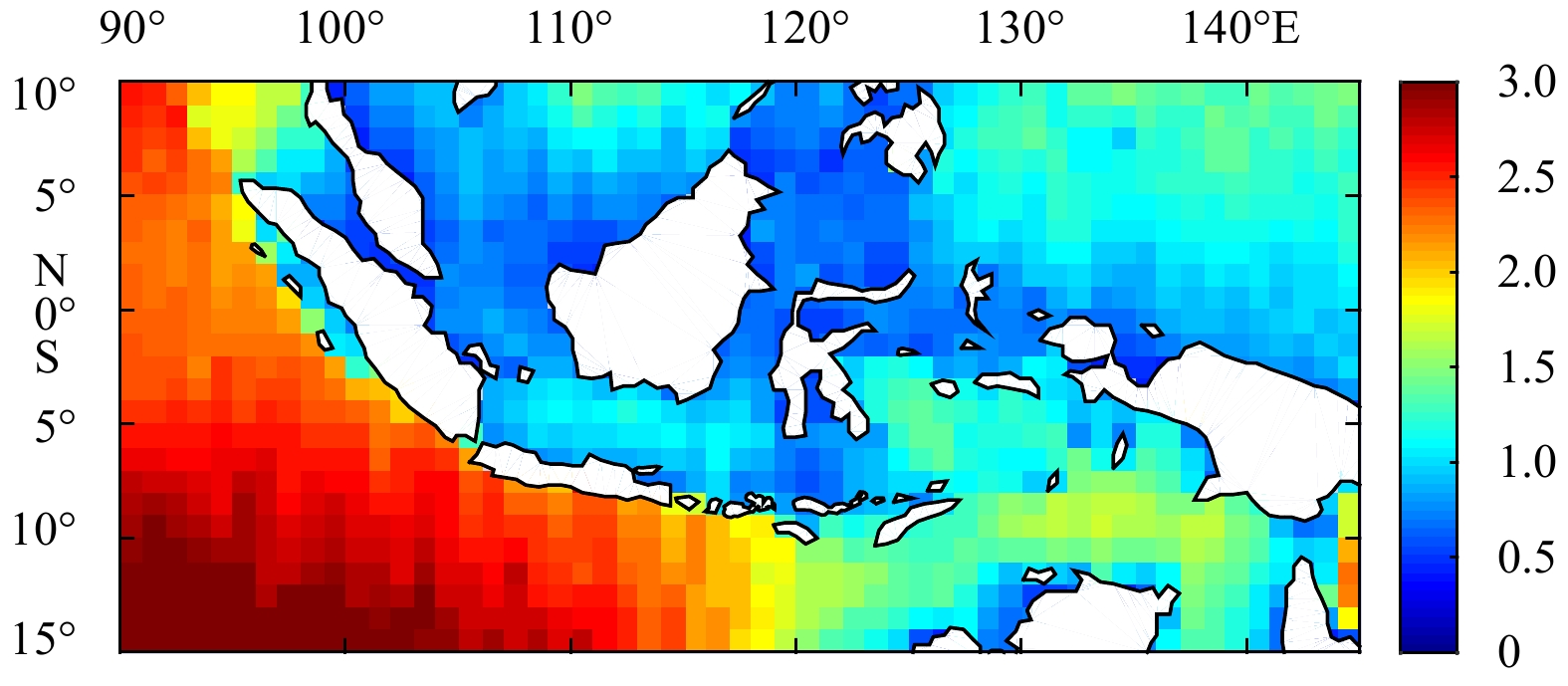

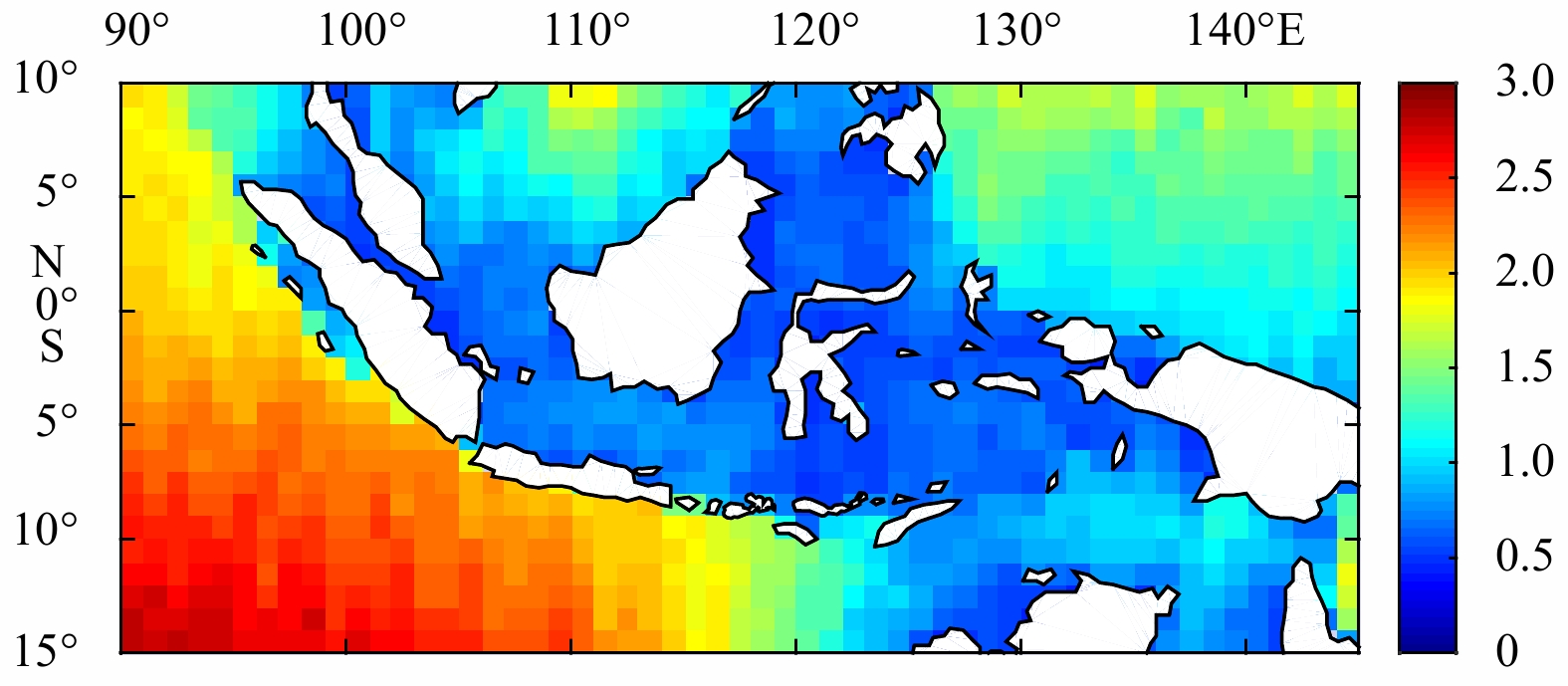

As aforementioned, significant wave height parameter is recorded in the ENVISAT which can be extracted in straightforward manner. As a result, mean value of the significant wave heights for each month or years can be documented. Hence, mean significant wave height based on ENVISAT altimeter mission for ten years is presented in Fig. 1. As shown in the figure, the highest mean wave height during the observation time can be found in the south of the Java Island, southwest of the Sumatera Island, south of Bali and south of West Nusa Tenggara as well as East Nusa Tenggara where mean significant wave height is more than 2 m. It should be noted that since this is the mean of significant wave height, some individual waves could be more or less than the significant wave height. Unfortunately, the figure can only give the general picture of the location in which the significant wave heights are high that is our interest.
In order to obtain more detail information about the time in which mean significant wave heights are very high in some locations in Indonesia, then period of time has been classified into four different seasons based on the meteorological season, namely December–January–February (DJF), March–April–May (MAM), June–July–August (JJA), and September–October– November (SON). Mean significant wave heights for each season during ten-year observations are shown in Figs 2–5, respectively.

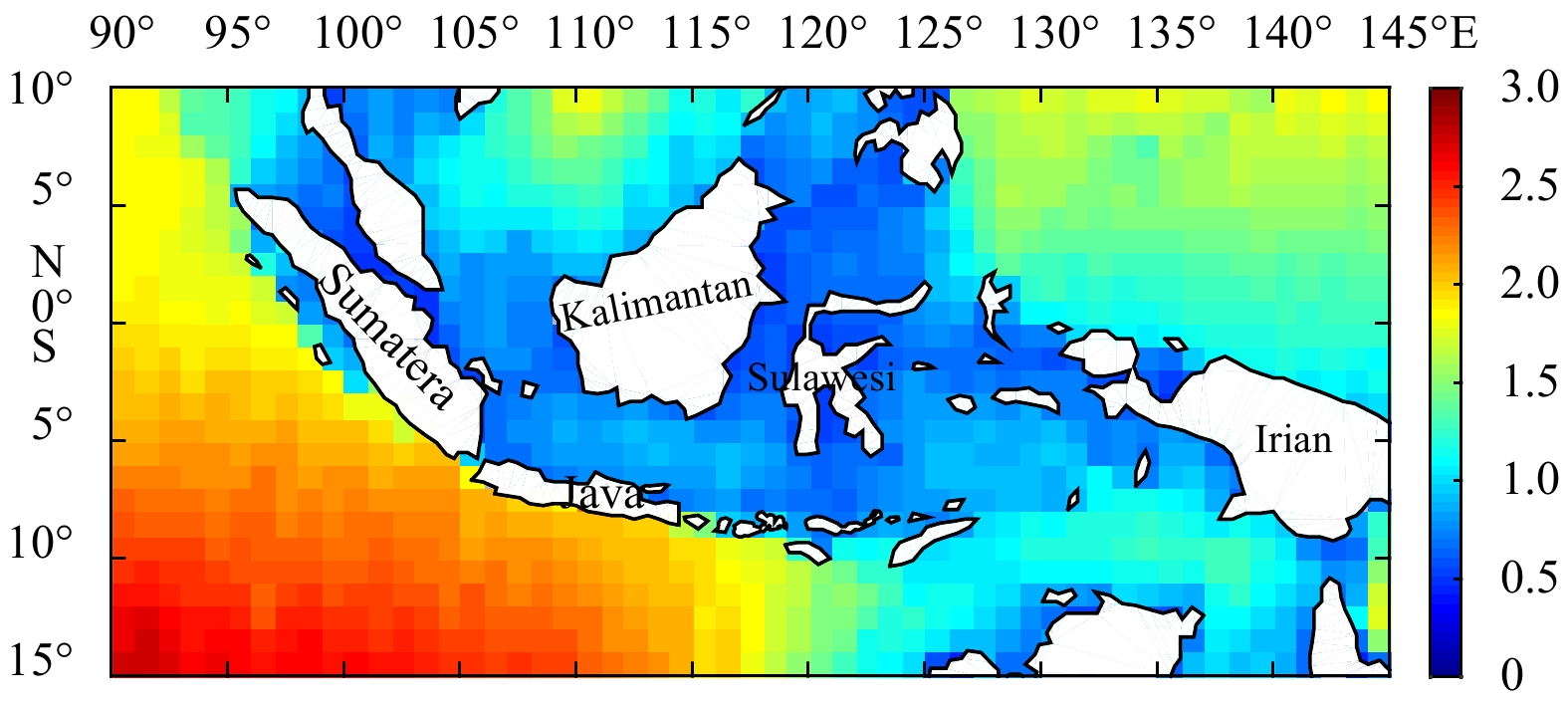

Figure 2 shows mean significant wave heights during ten years satellite observation for three months which are from December until February each year in which rainy season in Indonesia. During this period of time, mean significant wave heights around south of Java and southwest of Sumatera have almost similar to the wave heights around north of Irian which are about 2 m. It should be noted that during these three months period, winter in the northern hemisphere and summer in the southern hemisphere. Interestingly, mean significant wave heights between March and May and between September and November are similar in which mean significant wave heights are less than three meters. These results were presented in Figs 3 and 5, respectively. The most striking significant wave height occurred from June to August every year where the highest mean significant wave height occurred at this time as shown in Fig. 4. In fact, mean wave heights could reach up to more than 3 m at some locations. These results give us the idea of wave power energy in which the higher the significant wave height, the higher the wave power energy.
3.2 Mean peak wave period
As a matter of fact, from all parameters recorder in ENVISAT altimeter, none of them is the peak period or in other words, it should be mentioned that peak period parameter is not available from ENVISAT altimeter. Fortunately, Gommenginger et al. (2003) (also see Gommenginger et al., 2004, 2005), has proposed a simple empirical model to estimate peak wave period (Tp) based on Ku-band radar altimeter backscatter (${\sigma ^0}$), and the significant wave height (Hs). Their model was based on co-located TOPEX-buoy measurements that is
${\log _{10}}{{T_{\rm p}}} = 0.154 + 1.797 \times {\log _{10}}X, $
where $X = {\left({{\sigma ^0} \times H_{\rm s}^2} \right)^{0.25}}$. Moreover, Gommenginger et al. (2003) concluded that wave period can be estimated globally with an accuracy of 0.8 s root-mean-square error. In addition, Zieger et al. (2009) also found that ENVISAT derive wave height on the other hand was found to be within 0.156 m accurate (root-mean-square error) when compared to selected buoys.

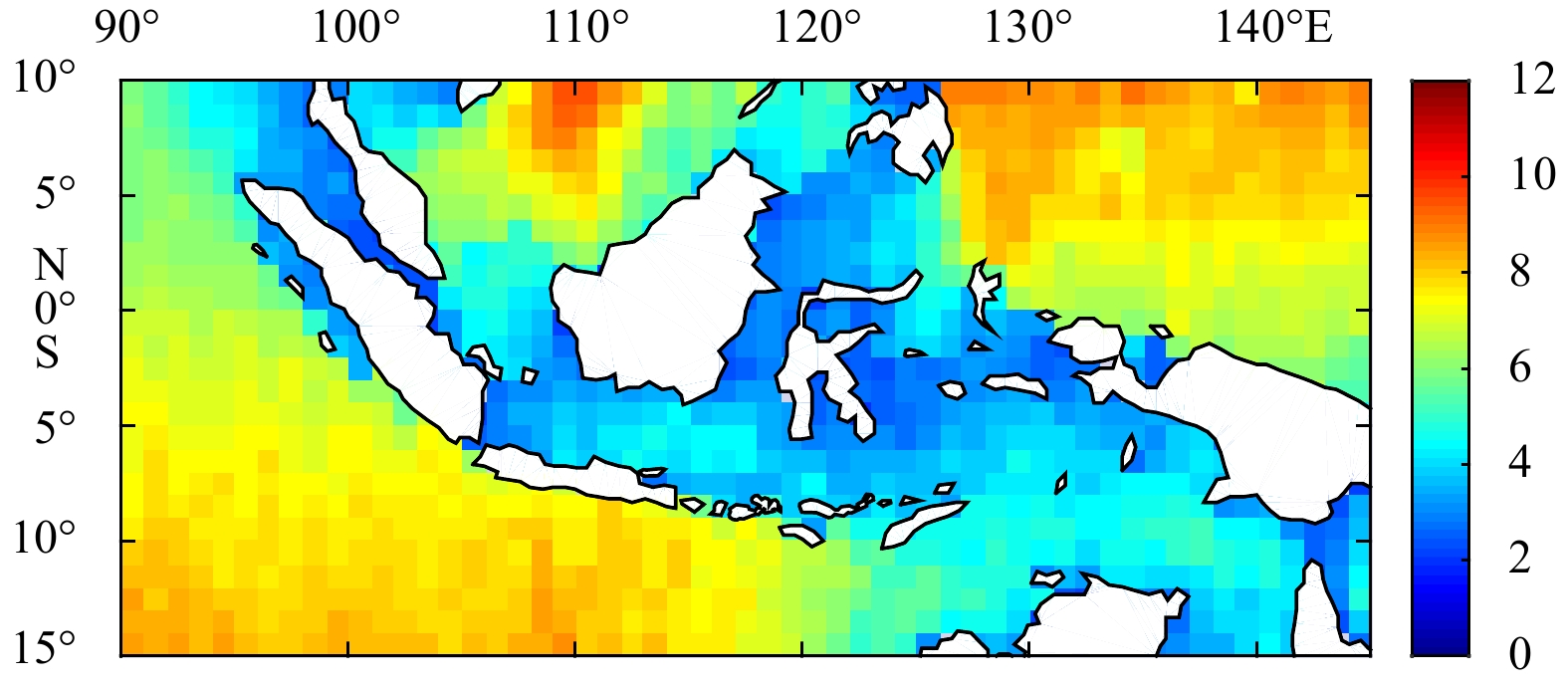

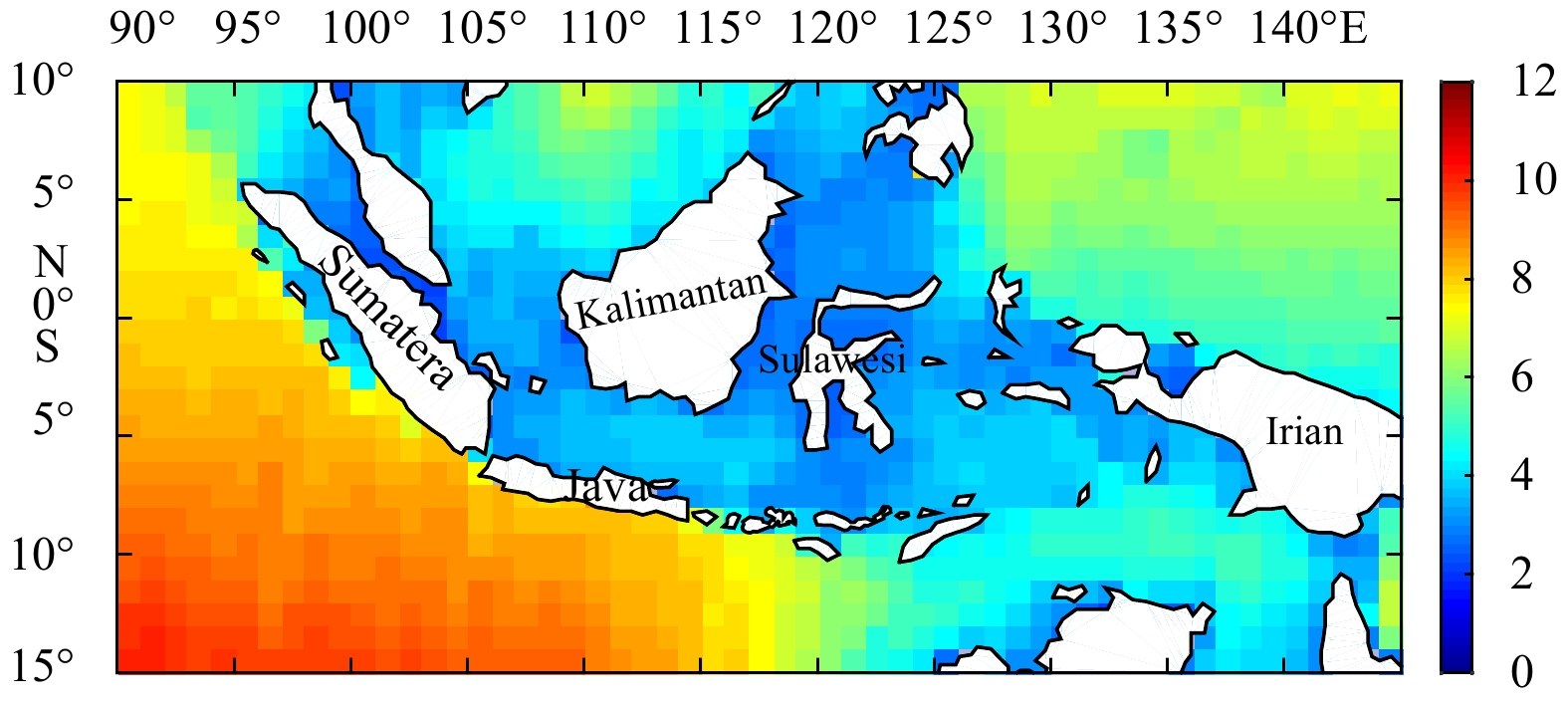

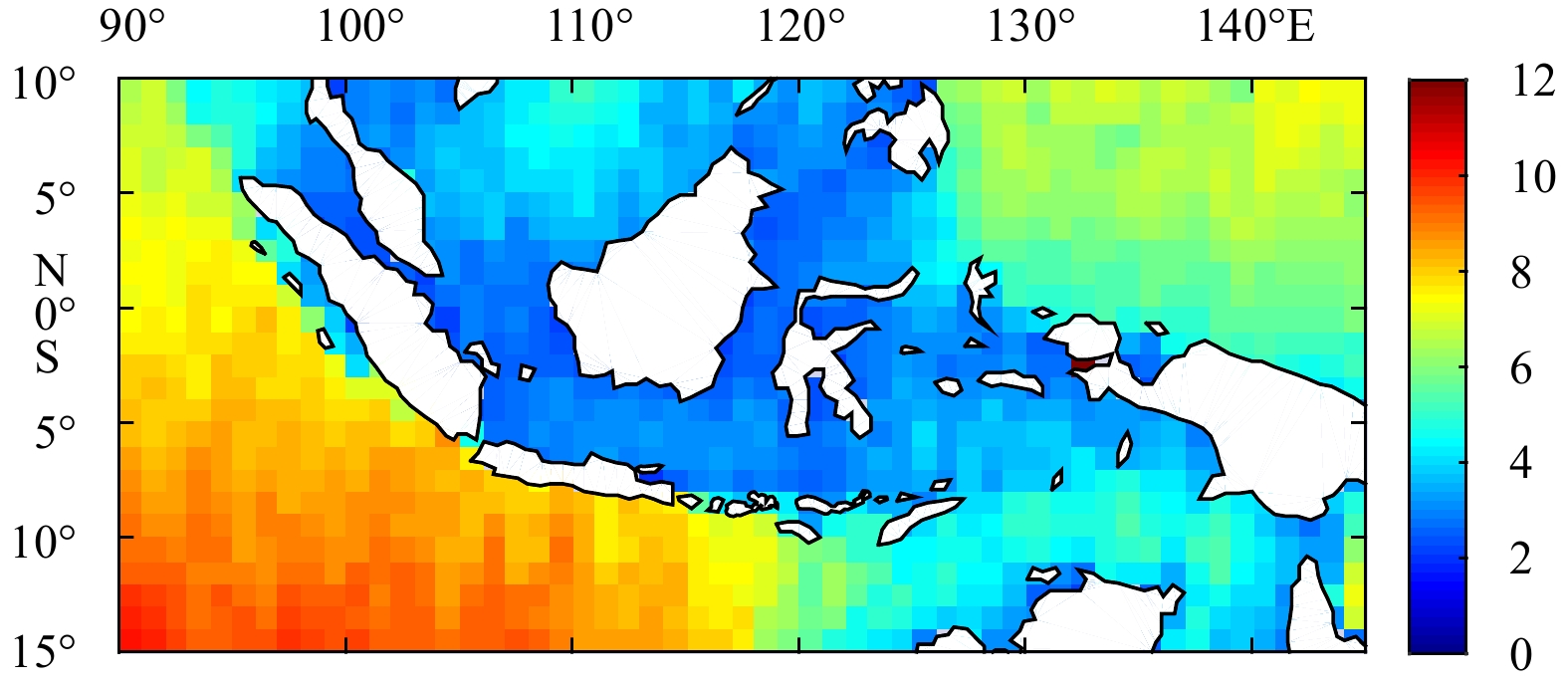

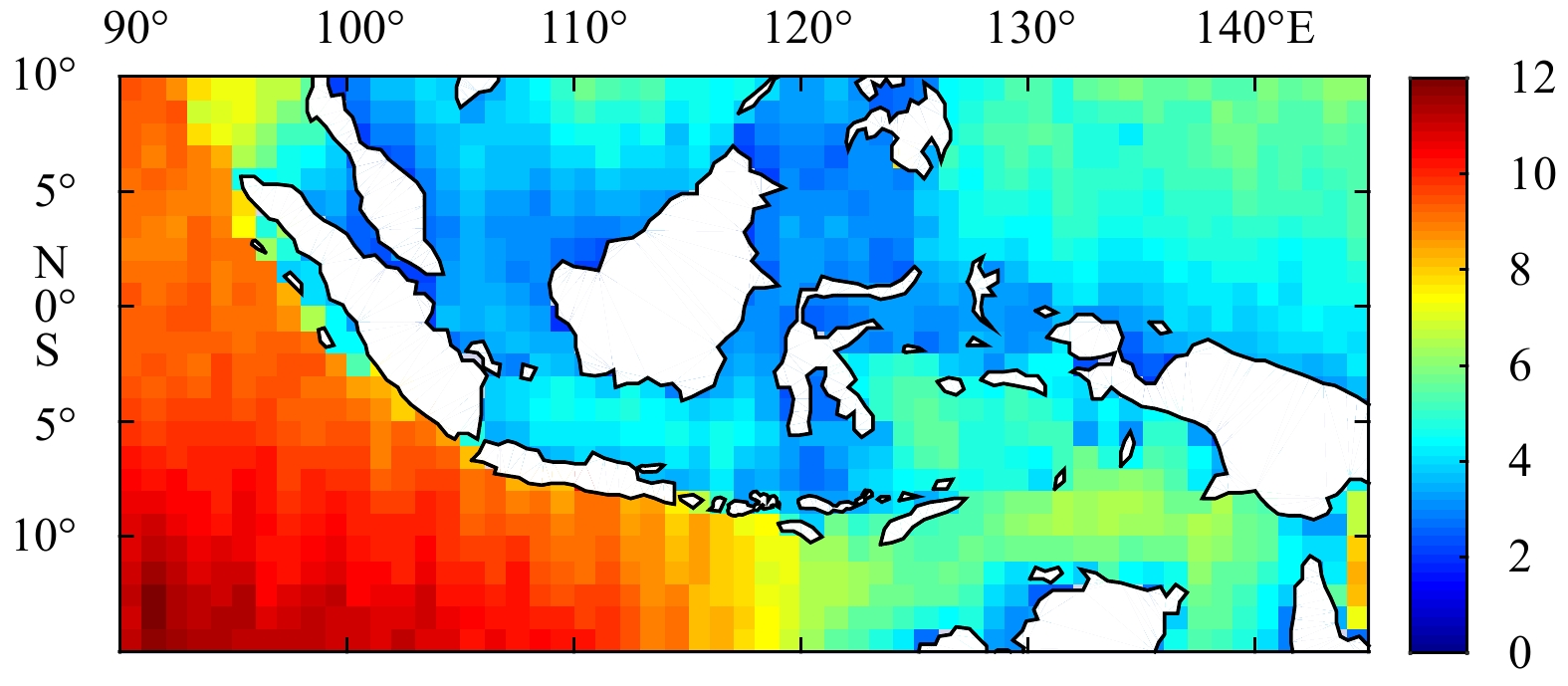

Applying Eq. (1) by utilizing significant wave heights and Ku-band radar altimeter backscatters, mean wave periods for a decade are revealed in Fig. 6. As shown in the figure, all mean peak periods are less than 12 s and interestingly mean peak period has similar patterns to the significant wave height. Following a similar fashion to the significant wave height, mean peak period is also classified into four seasons as shown in Figs 7–10, respectively.
4 Wave power energy potential in Indonesia
Less
Following the procedure that has been used by Ribal and Zieger (2016), at least two parameters have to be specified in order to estimate the wave power energy namely significant wave height (Hs) and wave energy period (Te). However, as has been pointed out by some researchers such as Cornett (2008), the later parameter is rarely specified. As a consequence, this parameter has to be estimated from other variables when information about the wave spectra is unknown. Cornett (2008) reported that if the peak period is known, then relation between wave energy period and peak period is given by Te=αTp. He, then, used α=0.90 or Te=0.9Tp in his work by arguing that it is equivalent to assuming a standard JONSWAP spectrum with a peak enhancement factor of γ=3.3. Recently, IEC (International Electrotechnical Commission) (Peacock, 2015) improved the ratio between wave energy period and peak wave period to 0.857, that is Te=0.857Tp. However, for simplicity, Hagerman (2001) used wave energy period is the same as peak wave period, e.g., Te=Tp. Following this approach, we choose to represent wave energy period with the peak wave period.
Using parametrized sea states and assuming deep water as also applied by some researchers such as Pontes (1998) and Zheng et al. (2013), (also see Wan et al. (2016) and the references therein), wave energy density, P (W/m), can be estimated by
$P = \frac{{\rho {g^2}}}{{64\text{π} }}H_{\rm s}^2{T_{\rm e}}, $
where ρ is the water density (~1 027 kg/m3), g is the gravity acceleration, and Hs is the significant wave height. Again, we assumed that Te = Tp and hence, wave energy density (kW/m) is approximated by
$P = 0.5H_{\rm s}^2{T_{\rm p}}.$
It is clearly seen from Eq. (3) that errors of wave power are highly contributed from errors of significant wave height than wave period. This is because wave power energy is proportional to the significant wave height squared. Furthermore, the estimated wave power energy throughout Indonesia for ten years will be presented in the following subsections.
4.1 A decade of mean wave power energy

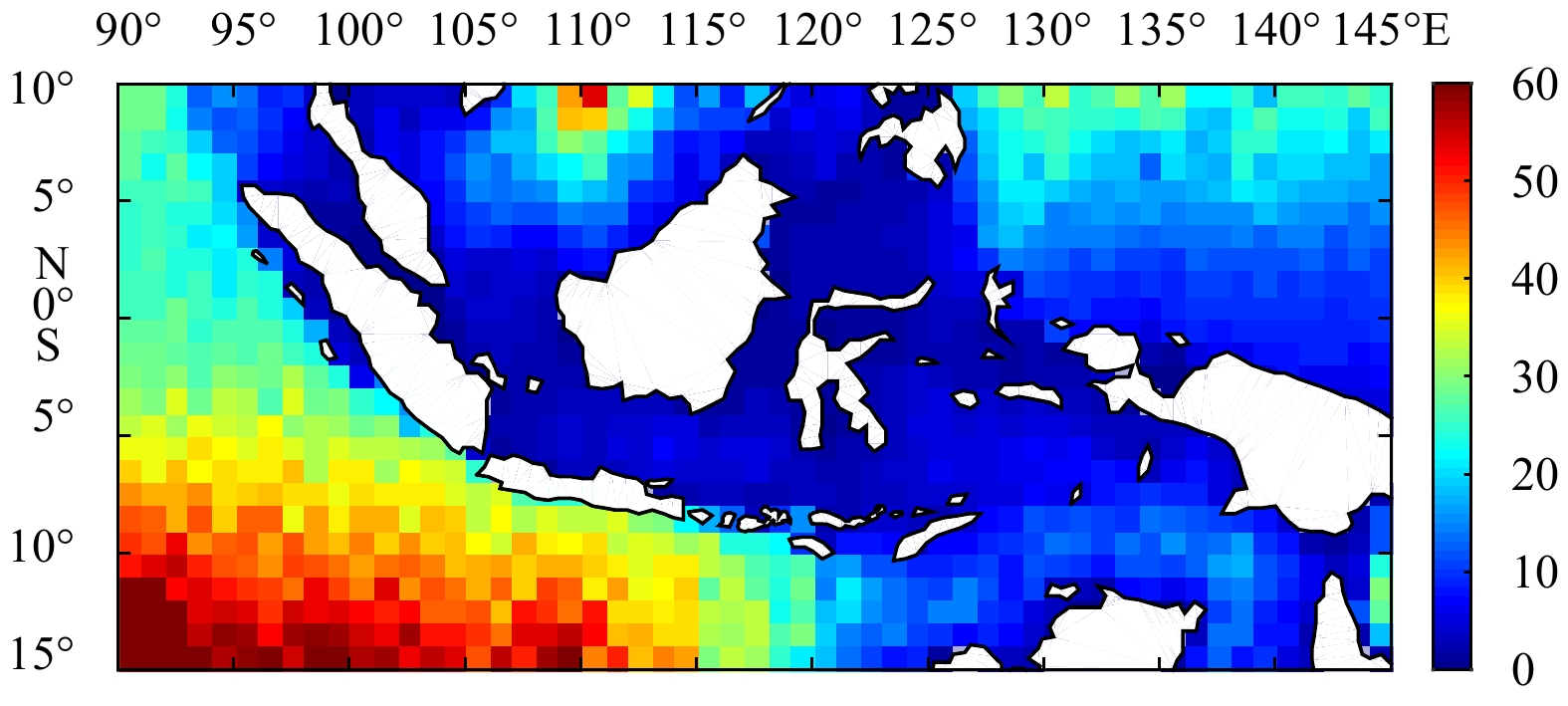

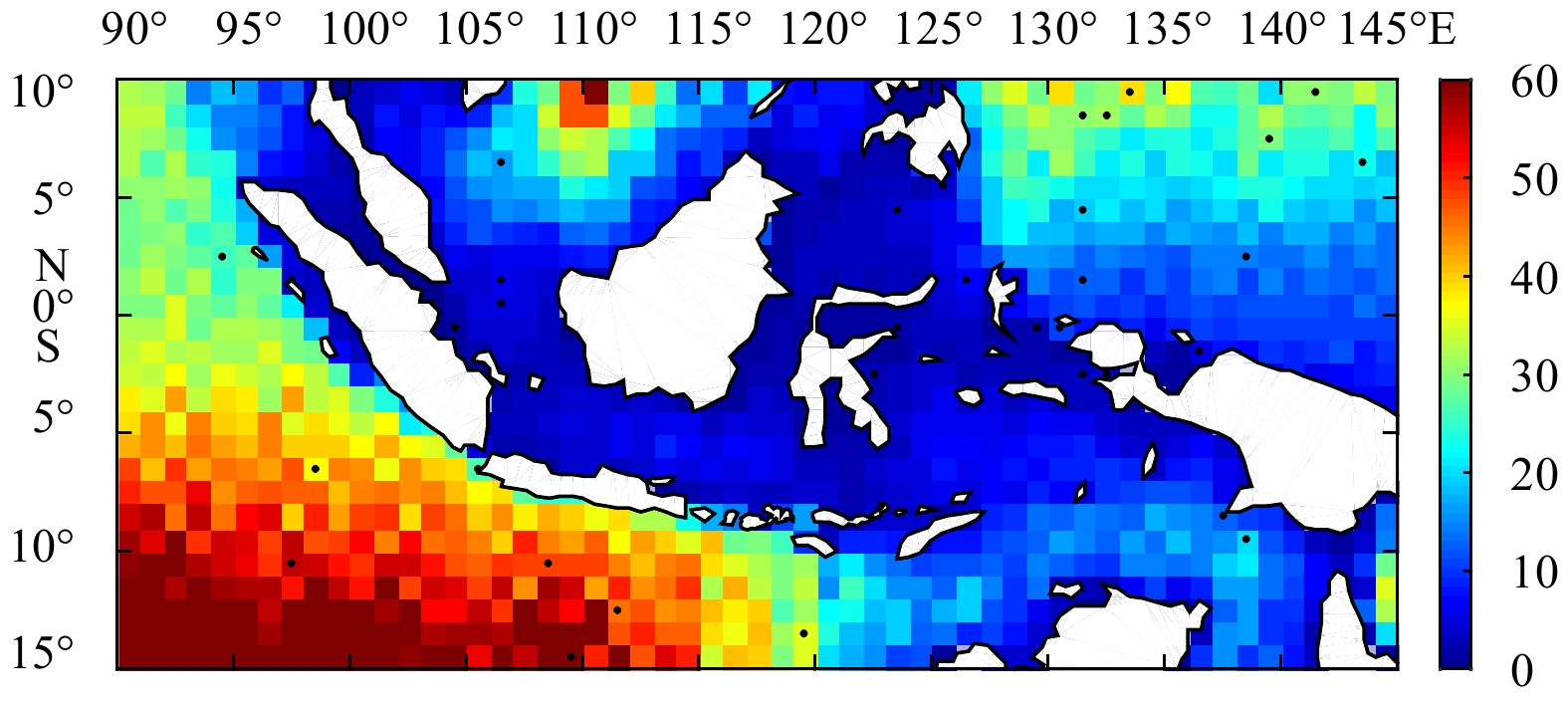

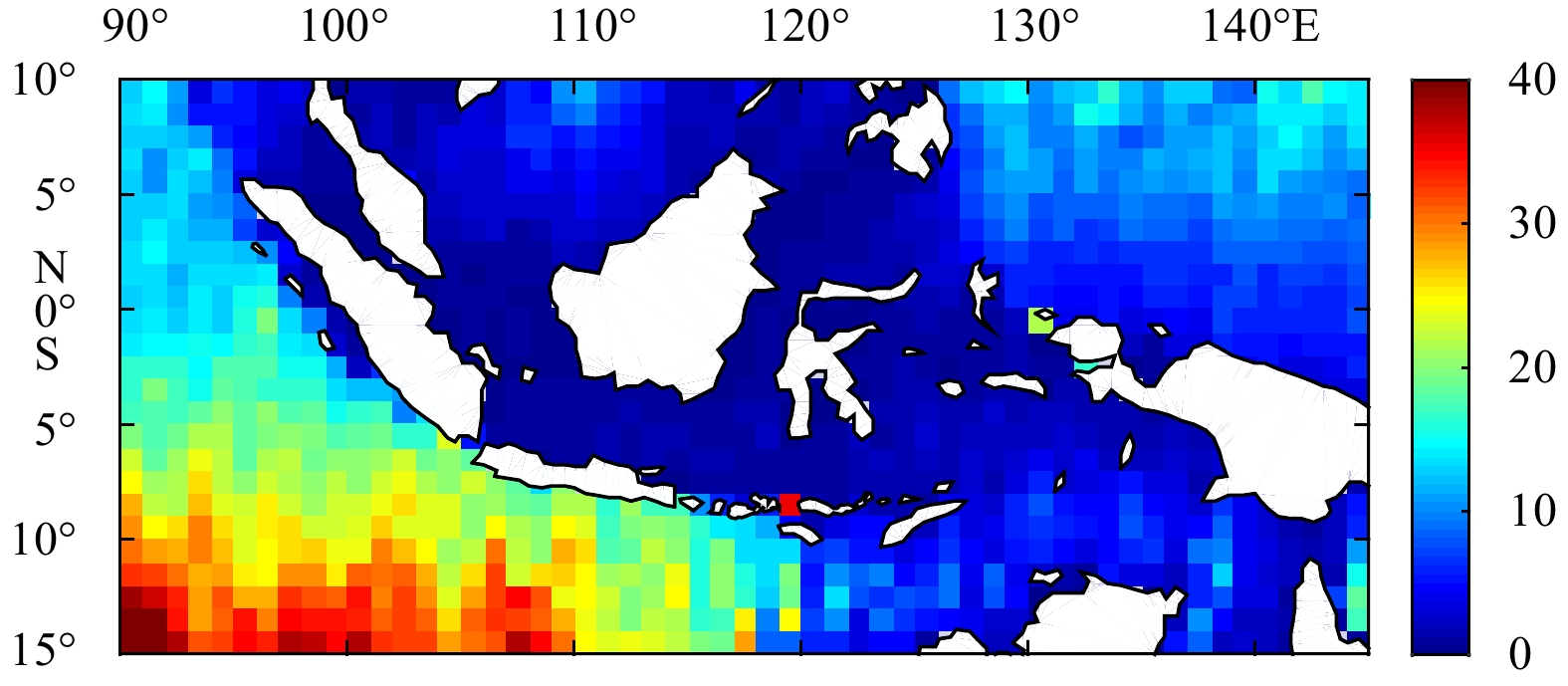

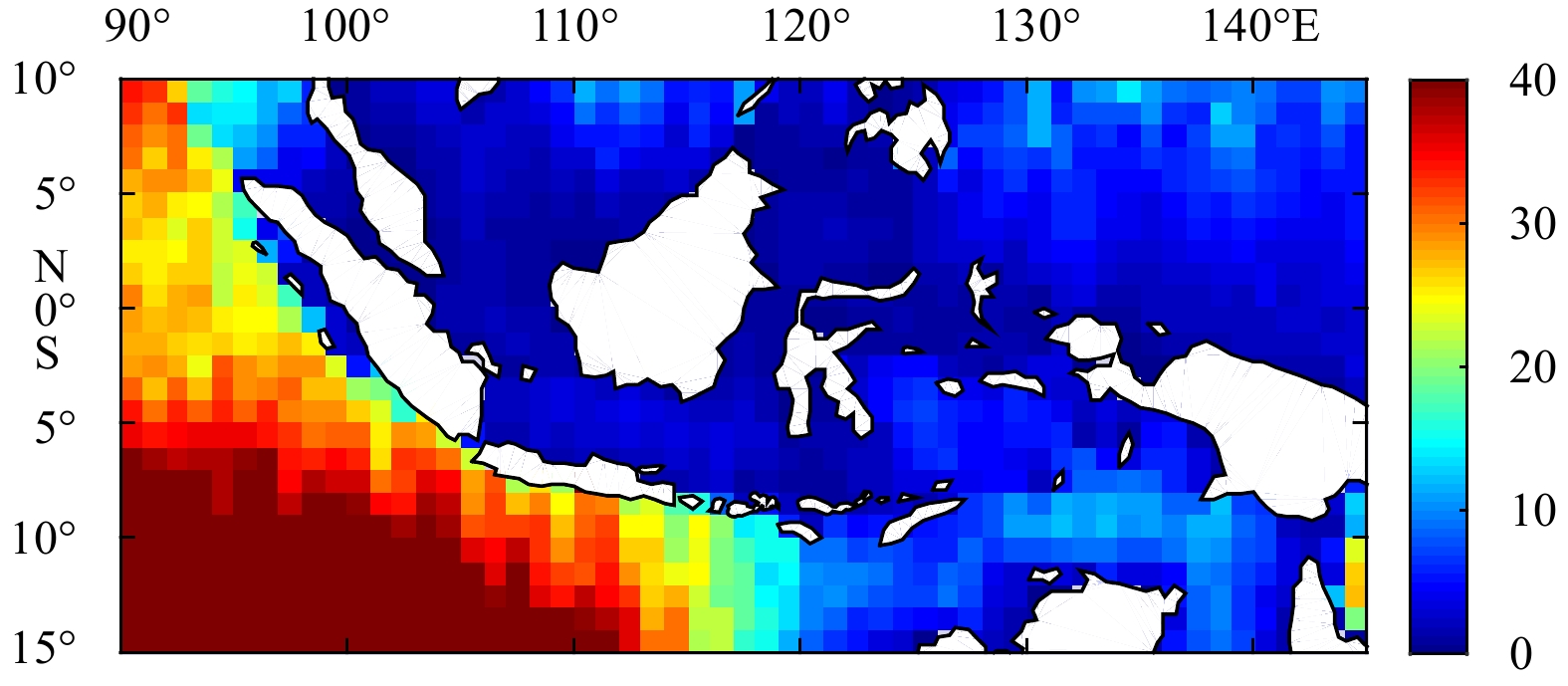

As aforementioned, the highly correlated parameter for wave power energy assessment is the significant wave height. As a result, the pattern of the wave power is similar to the pattern of the significant wave height. In fact, the most promising wave power energy along Indonesia’ archipelago is similar to the place where significant wave height is also high after applying Eq. (3). Hence, as shown in Fig. 11, the highest wave power is located in the south of the Java Island, south of Bali, south of West Nusa Tenggara as well as East Nusa Tenggara. Another location is around, southwest of the Sumatera Island, particularly for some small islands such as the Simeulue Island, Nias Island and Siberut Island. In these locations, the wave power can be obtained up to 30 kW/m. In addition, wave power with highest 10% or the 90th percentile is also calculated as shown in Fig. 12. It is clear seen from the figure that the wave power is about 30–50 kW/m. Moreover, wave power in the extreme conditions as depicted in Fig. 13 gives wave power about 40–60 kW/m. Again, mean wave power has also been classified into four seasons in order to observe more details of wave power that will be presented in the following subsection.
4.2 Seasonal wave power energy resources

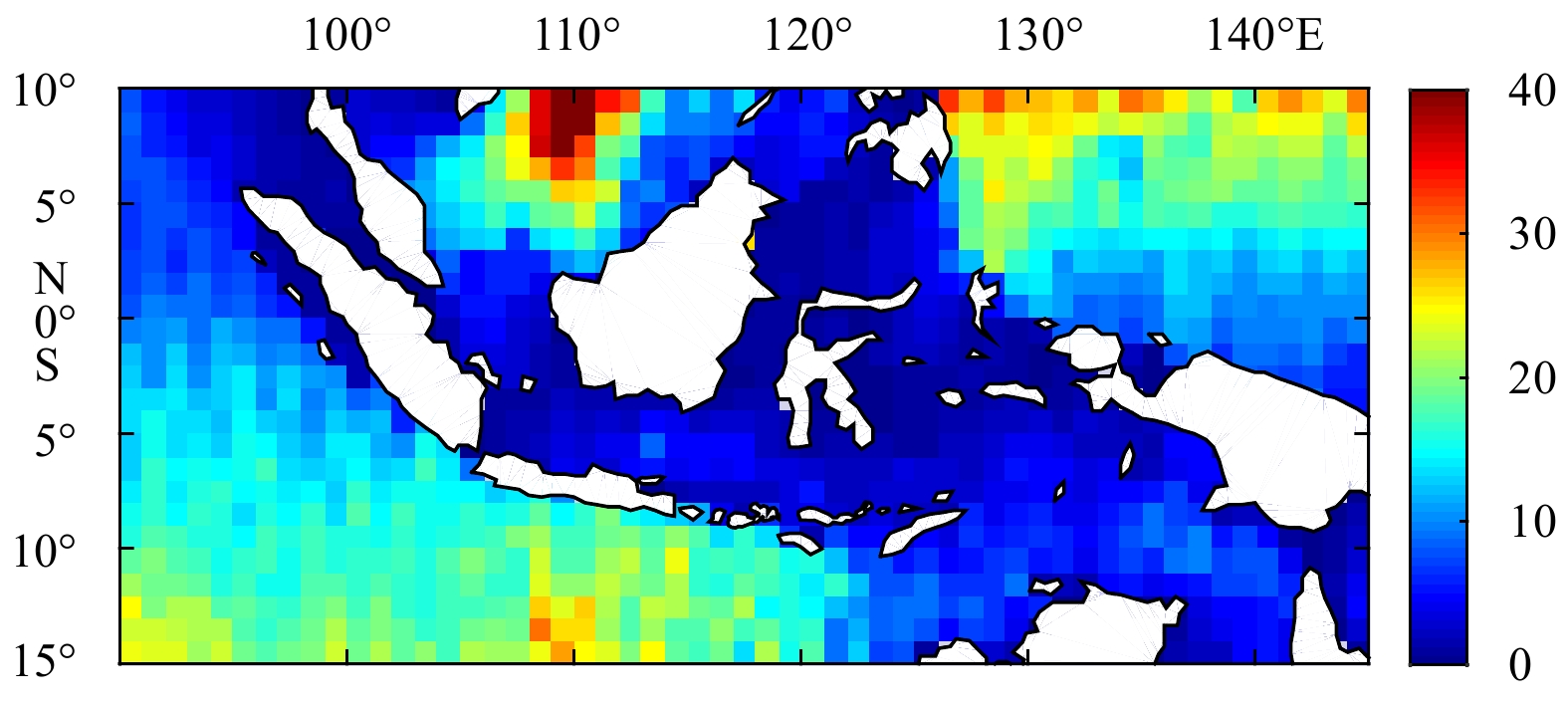

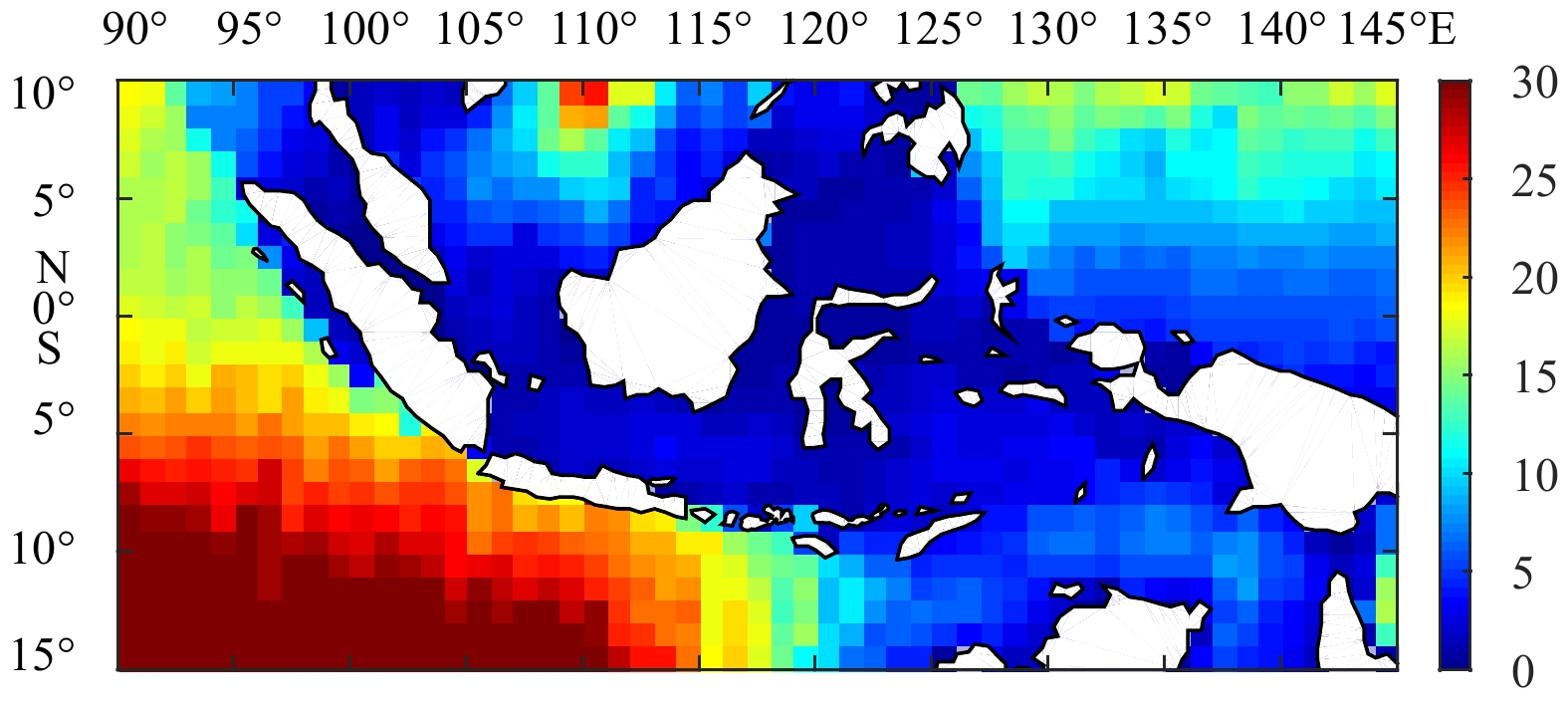

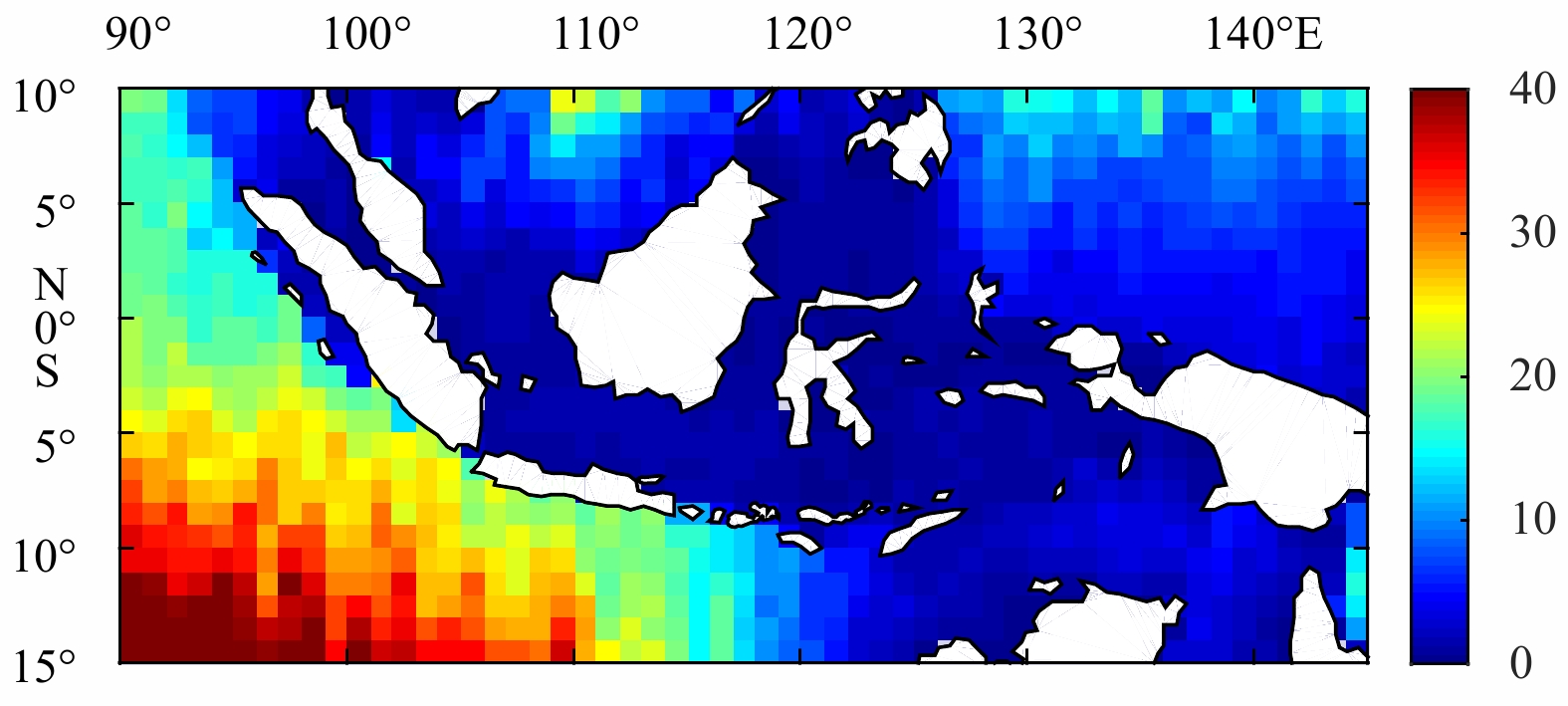

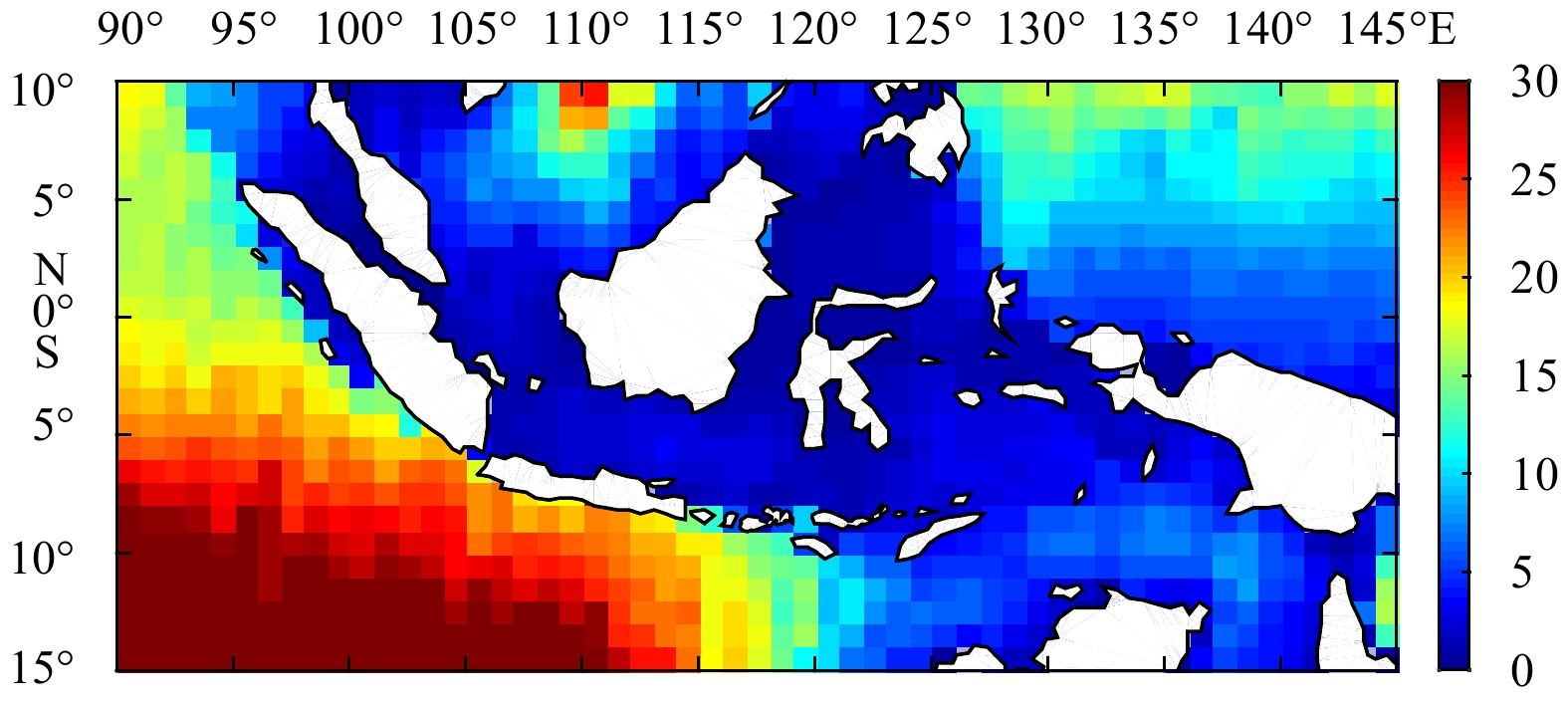

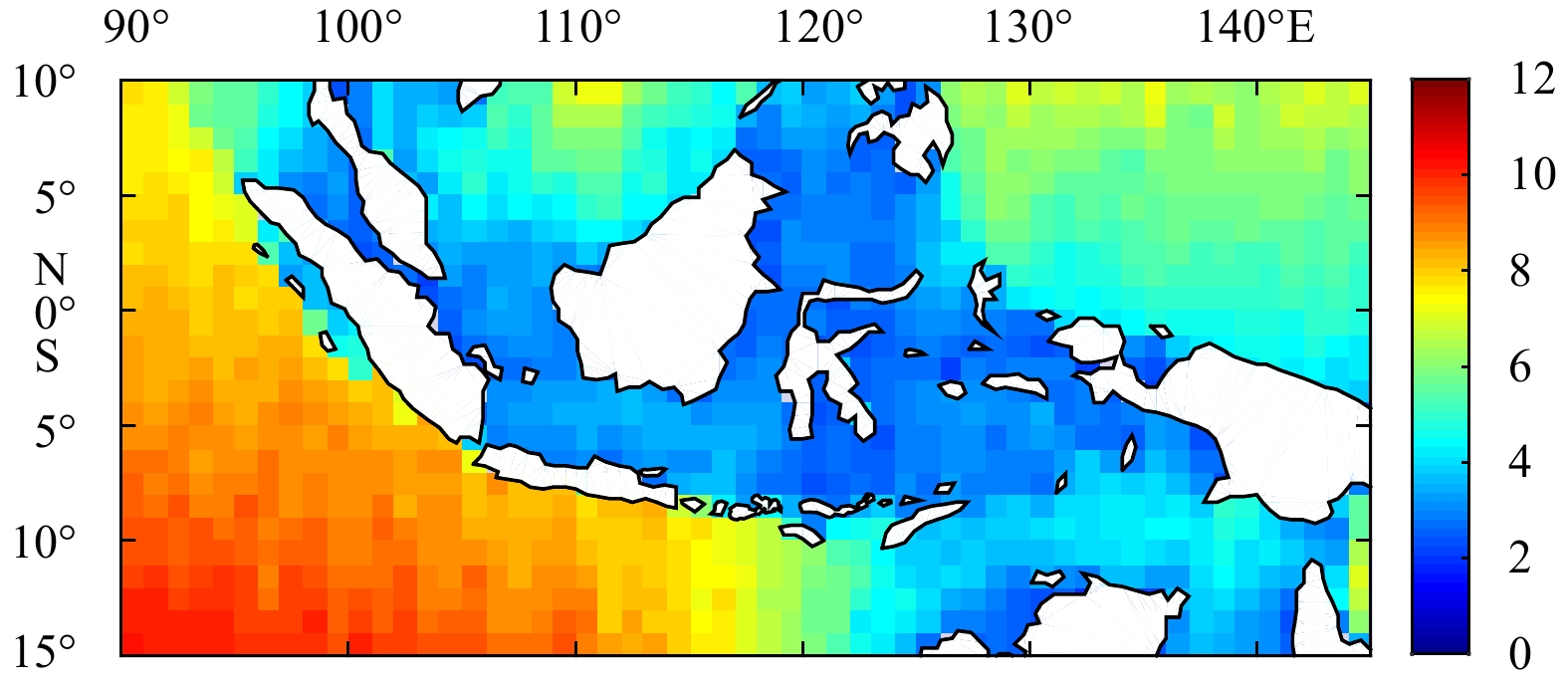

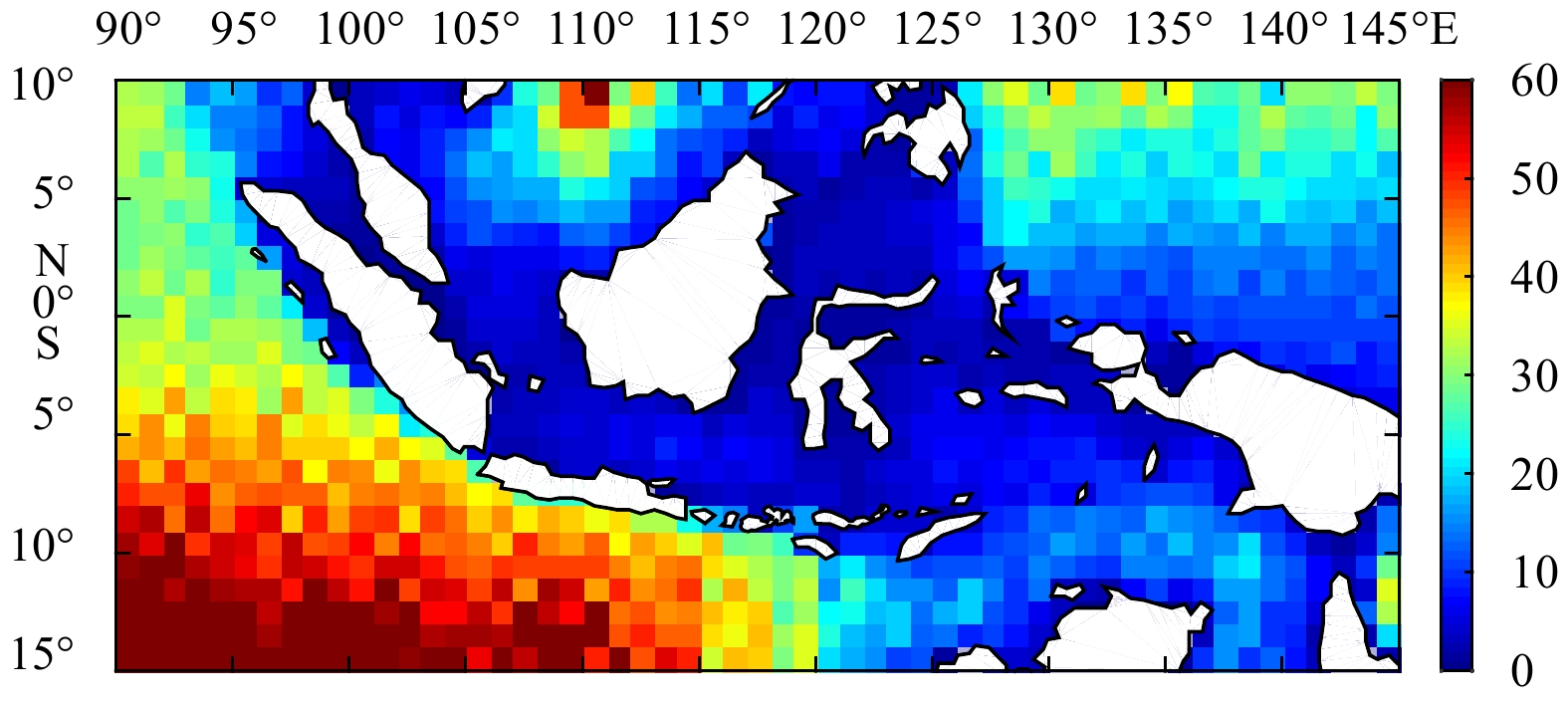

By looking at four different seasons for significant wave height as well as peak wave period, one can identify key seasons for wave power energy. Similar to the significant wave height, wave power energy is very weak from December to January every year. In fact, less than 25 kW/m of wave power energy were found from locations which are located in the south of the Java Island, southwest of the Sumatera Island, south of Bali, south of West Nusa Tenggara and also East Nusa Tenggara as shown in Fig. 14. Wave power energy in between March and May as well as between September and November are similar where wave power can be expected up to 30 kW/m as presented in Figs 15 and 16, respectively. Unlike other three seasons, Fig. 17 depicts the most promising season from harvesting wave power energy where more than 30 kW/m can be obtained during the season. The highest 10% or the 90th percentile of wave power have also been estimated and we found that more than 40 kW/m can be gained from this season. Moreover, the highest 1% or the 99th percentile, which is for extreme events, gives more than 50 kW/m during this season which is from June until August. Figures for the 90th and the 99th percentiles are not presented from simplicity.
5 Wave power energy trends for 10 years
Less

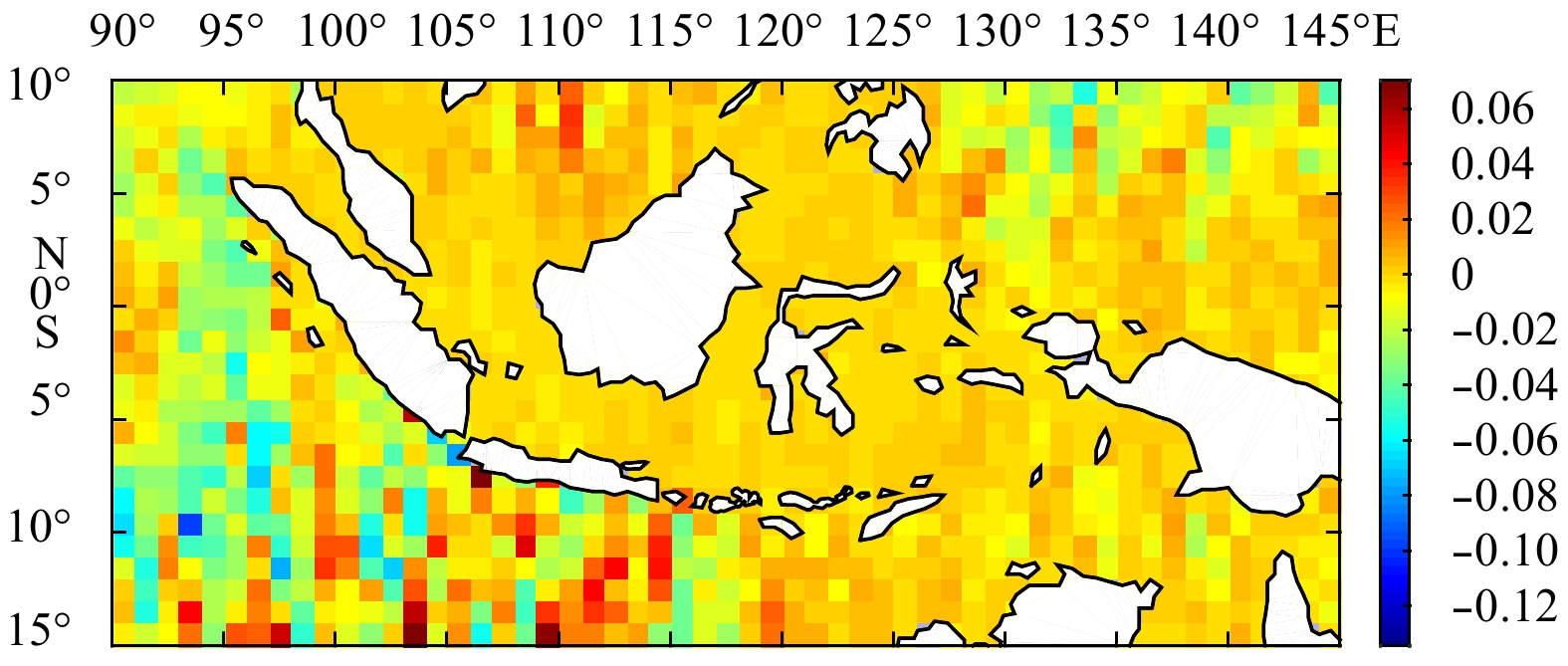

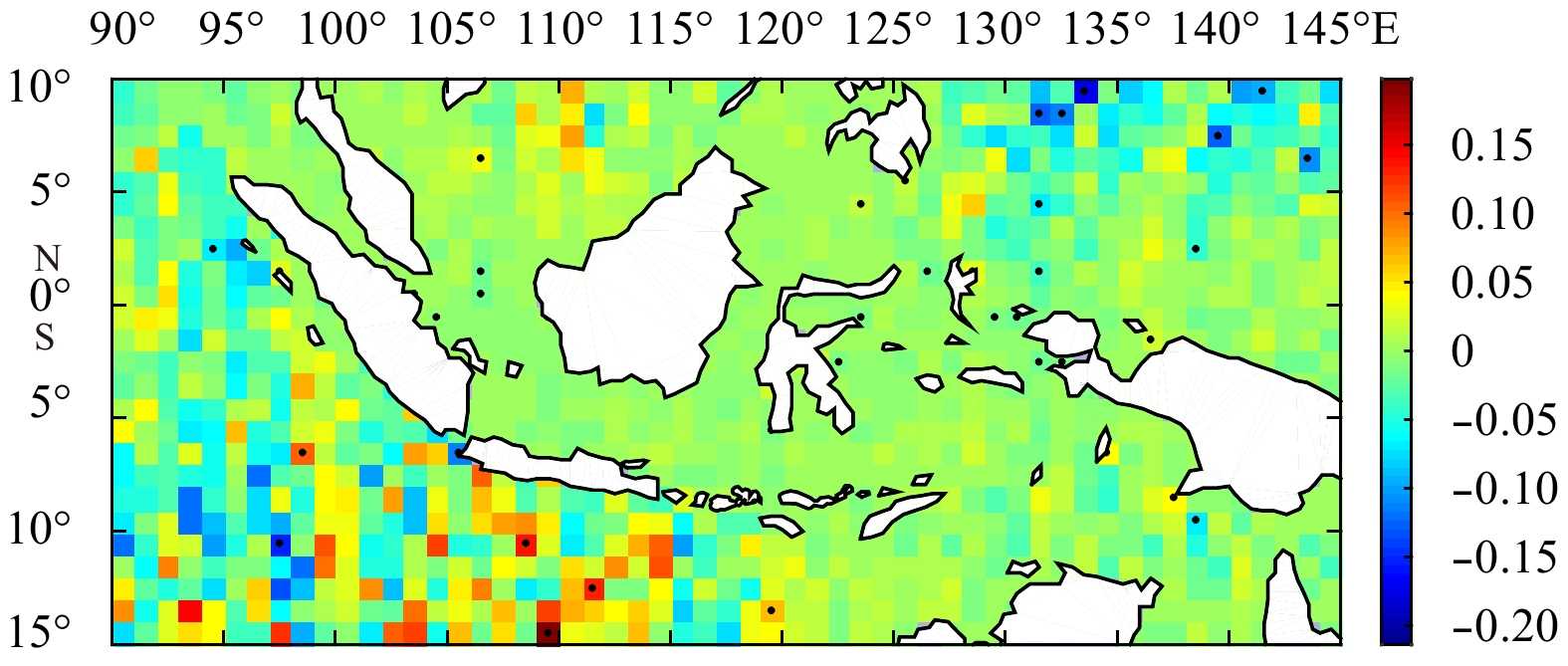

Another important consideration for this study is to estimate the slope of the linear trends at the 95% level of the wave power over the entire duration of the ENVISAT mission based on the Mann-Kendall test. This test is a nonparametric test (Mann, 1945; Kendall, 1955; Sen, 1968) of randomness against trend which is robust against outliers and missing data (Young et al., 2011; Zieger et al., 2014). The magnitude of trend can be estimated from Kendall’s rank correlations (Sen, 1968). The effect of autocorrelation was taken into account (Young et al., 2011; Zieger et al., 2014). The Mann-Kendall test statistic depends on the autocorrelation which would increase the apparent level of significance if the correlation is positive and vice-versa. For each grid box, the Mann-Kendall test has been applied to estimate trends. The trends of wave power energy and the 99th percentile are presented in Figs 18 and 19, respectively. The dots on the figures depict the significant trends of wave power at the location at the 95% level. As seen, Fig. 18 does not have any dots which means that wave power for ten years does not have any trends at the 95% level which indicates that during the period of time, the wave power is relatively steady. In addition, the magnitude of the trends shown in Fig. 20 are very small. However, for the 99th percentile, the trends of wave power do occur in some areas as shown in Fig. 19 and their slopes are presented in Fig. 21. It should also be mentioned that the trends for the extreme case are not uniform in time and space which indicates that both increase and decrease in mean wave power depending on the location. In addition, the trends of the significant wave heights have also been estimated and it is consistent with the results obtained by Zieger (2010).
6 Comparison to global wave model
Less
In order to compare our result with respect to the global wave model, we will use the data obtained from global wave model hindcast that have been done using WAVEWATCH III wave model Version 4.08. These simulations have been carried out by Durrant et al. (2014) for the duration of more than 30 years, which are from 1979 to 2013 (http://opendap.bom.gov.au:8080/thredds/catalog/paccsapwaves_gridded/catalog.html, accessed on May 29, 2018). For global coverage, the hindcast resolution is 0.4°. In order to perform the comparisons for significant wave heights and wave power between model and altimeter, we were inspired by the method used by Rascle et al. (2008) in which we compare between the average data along the satellite track and the interpolated model data with respect to the satellite track over 1° latitude steps. However, in this work, we use the number of data average which are greater or equal to 14 instead of 12 that have been used by the previous authors. Four different statistical parameters, namely bias (B), root-mean-square error (RMSE), Pierson’s correlation coefficient (ρ) and scatter index (SI) will be used. The comparison between model (M) and altimeter (A) are carried out by using the following equations where N is the number of points used (Zieger et al., 2015).
$B = \frac{1}{N}\sum\limits_{i = 1}^N {\left({{M_i} - {A_i}} \right)},$
$RMSE = \sqrt {\frac{1}{N}\sum\limits_{i = 1}^N {{{\left({{M_i} - {A_i}} \right)}^2}}} ,$
$\rho = \frac{{\operatorname{cov} (M, A)}}{{\sqrt {\operatorname{cov} (M)\operatorname{cov} (A)} }},$
$SI = \frac{{\sqrt {\displaystyle\frac{1}{N}\displaystyle\sum\limits_{i = 1}^N {{{\left({{M_i} - {A_i} - {B_i}} \right)}^2}} } }}{{\displaystyle\frac{1}{N}\displaystyle\sum\limits_{i = 1}^N {{A_i}} }}.$

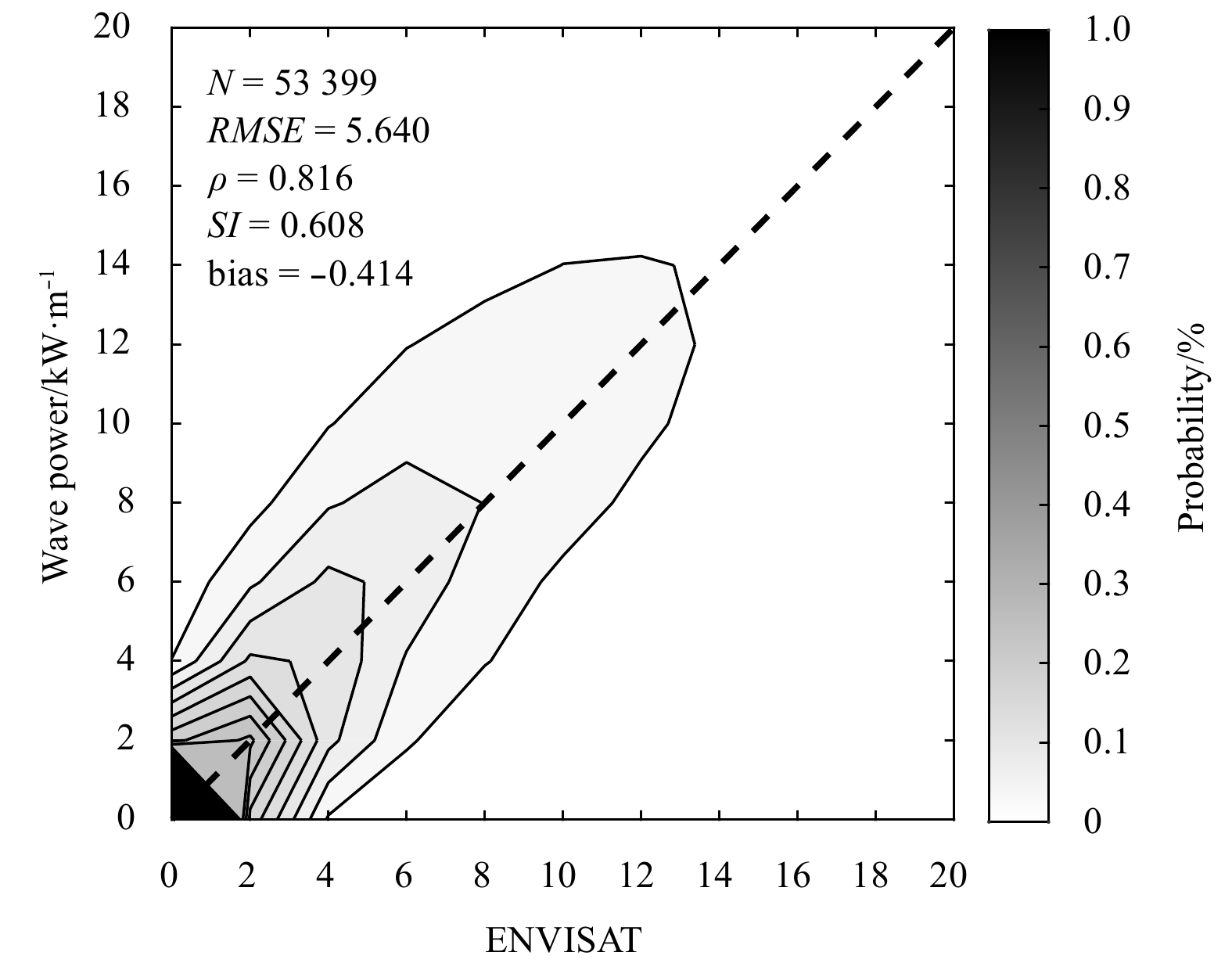

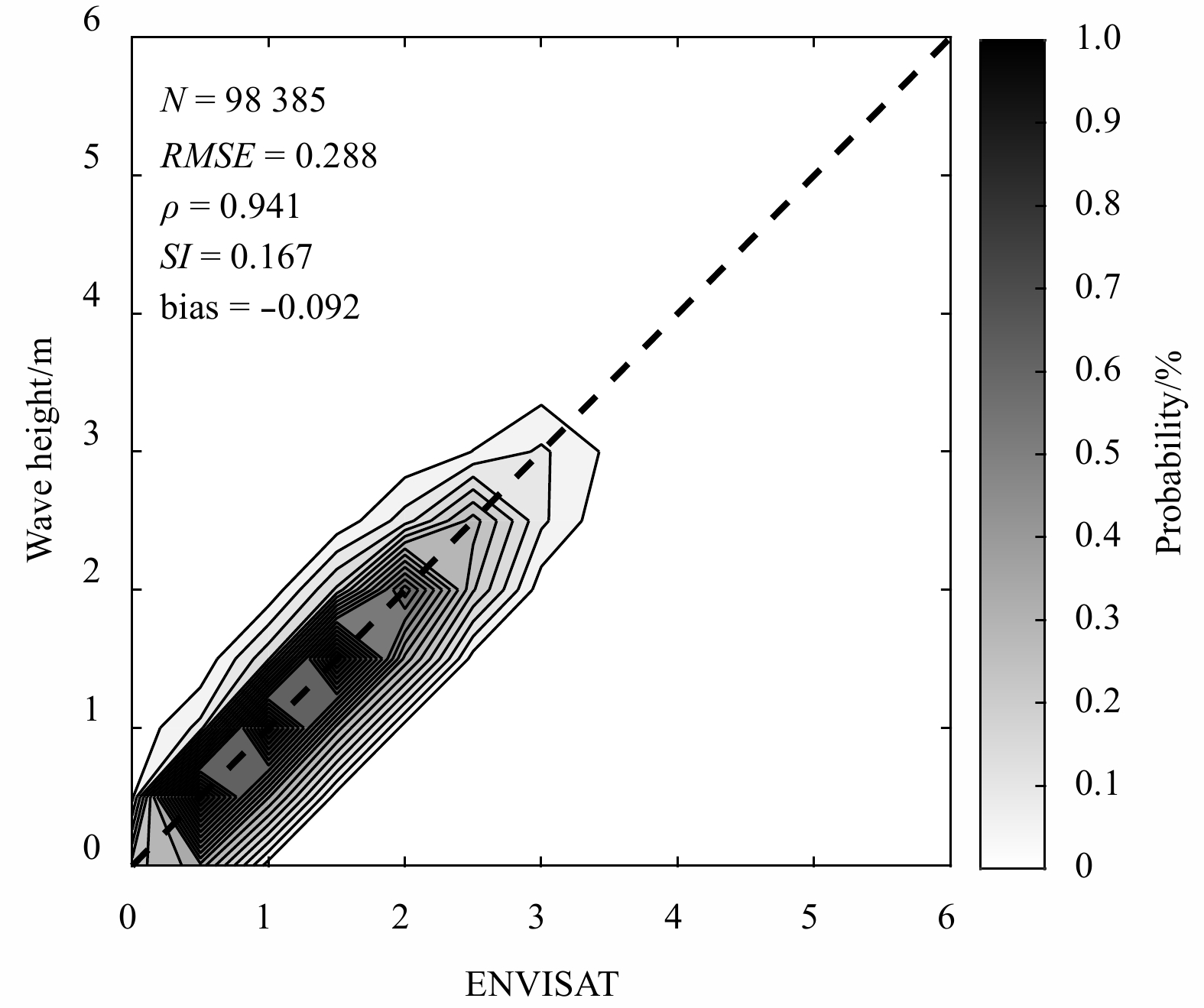

The summary of the comparisons is presented in the following Table 1 and the scatter density for significant wave heights and wave power are presented in Figs 22 and 23, respectively.
In general, as can be seen from the table, the significant wave heights from altimeter and the global wave model are in an excellent agreement. In fact, RMSE for ten years comparison is 0.288 m and the correlation coefficient is 0.941. The scatter index is very small, that is 0.167 and bias is negative which is –0.092 m. The number of points used for the significant wave heights’ comparison between the model and altimeter are 98 385.
Although the wave power from ENVISAT altimeter and WAVEWATCH III wave model is less accuracy compared to the significant wave heights, the results are also still acceptable where bias, root-mean-square error, Pierson’s correlation coefficient and scatter index are –0.414 kW/m, 5.640 kW/m, 0.816 and 0.608, respectively. This small discrepancy could be caused by many things in which one of them is the choice of peak period and is the same as peak wave energy.
7 Conclusions
Less
Wave energy resource assessment and trends around Indonesian’s ocean has been carried out by means of analyzing satellite observations and utilizing all over the 10-year ENVISAT mission (2002–2012). The results have been analyzed by season. The highest wave power was found in JJA season (June to August), in which about 30–40 kW/m (the 90th percentile: 40–60 kW/m, the 99th percentile: 50–70 kW/m) on average is expected around south of the Java Island, south of Bali, south of West Nusa Tenggara and also East Nusa Tenggara. Other locations, which are also promising, are around southwest of the Sumatera Island, particularly for some small islands such as the Simeulue Island, Nias Island and Siberut Island. The significant wave heights and wave power obtained from altimeter have been compared relative to the results obtained from global wave model, WAVEWATCH III. It is found that the results are in excellent agreements.
These results are not only beneficial for wave energy interest, but they are also useful information for constructing offshore infrastructures such as oil explorations. Moreover, it also can give some ideas for Indonesia government to consider harvesting wave energy in some small islands such as the Simeulue Island, Nias Island and Siberut Island instead of obtaining the electricity from main island of Sumatera.
Since ENVISAT altimeter retired in 2012, if one is interested in approximating wave power energy after 2012, then they could use the data from other satellites such as JASON-2, JASON-3, SARAL (Satellite with ARgos and ALtiKa), Sentinel-3A, CRYOSAT-2 and Hai Yang-2 (HY-2) which is China’s first dynamic environmental satellite. Although the data from satellites have been proven highly accuracy, the resolution is very coarse as the optimum gridded is one degree. Therefore, for future work, it will be good to utilize ocean global model as well as coastal model to assess wave power energy such as WAVEWATCH III and SWAN (Simulating WAves Nearshore) to achieve high-resolution wave-power energy assessment.
Funding
Less
  • The Minister for Research, Technology and Higher Education, Indonesia under contract No. 2611/UN4.21/LK.23/2017 through Research and Community Service Institution at Hasanuddin University, Makassar, Indonesia.
References
Less
Ardhuin F, Rogers E, Babanin A V, et al. 2010. Semiempirical dissipation source functions for ocean waves. Part I: definition, calibration, and validation. Journal of Physical Oceanography, 40(9): 1917–1941, doi: 10.1175/2010JPO4324.1
Babanin Alexander, Zieger Stefan, Ribal Agustinus. 2014a. Satellite Observations of Waves in the Arctic Ocean. 22nd IAHR International Symposium on Ice. Singapore: International Association for Hydro-Environment Engineering and Research (IAHR), 798–805
Babanin Alexander, Zieger Stefan, Ribal Agustinus. 2014b. Ocean waves in the Arctic: observations and trends. International Symposium on Sea Ice in a Changing Environment. Hobart, Australia: The International Glaciological Society, 69A576
BPPT. 2014. Outlook Energi Indonesia 2014. Jakarta: Badan Pengkajian dan Penerapan Teknologi (BPPT), 793
Cornett A M. 2008. A global wave energy resource assessment. Sea Technology, 50(4): 59
Durrant T H, Greenslade D J M, Hemer M A, et al. 2014. A Global Wave Hindcast Focussed on the Central and South Pacific. Melbourne: Bureau of Meteorology Australia and CSIRO
Gommenginger C, Cotton D, Srokosz M, et al. 2005. Ocean wave period from satellite altimeters. In: Lacoste H, Ouwehand L, eds. Proceedings of the 2004 Envisat & ERS Symposium. Salzburg, Austria: CD-Rom
Gommenginger C P, Srokosz M A, Challenor P G, et al. 2003. Measuring ocean wave period with satellite altimeters: A simple empirical model. Geophysical Research Letters, 30(22): 2150
Gommenginger C P, Srokosz M A, Challenor P G, et al. 2004. Measuring ocean wave period and wave height with satellite altimeters. In: Proceedings of the International Conference on Offshore Mechanics and Arctic Engineering. Vancouver, British Columbia, Canada: The American Society of Mechanical Engineers (ASME), 353-360
Hagerman G. 2001. Southern new england wave energy resource potential. In: Building Energy 2001. Boston, MA, USA: Tufts University, 13
Hemer M A, Zieger S, Durrant T, et al. 2017. A revised assessment of Australia’s national wave energy resource. Renewable Energy, 114: 85–107, doi: 10.1016/j.renene.2016.08.039
Kendall M G. 1955. Rank Correlation Methods. 2nd ed. London: Charles Griffin & Co. Ltd, 936
Mann H B. 1945. Nonparametric tests against trend. Econometrica, 13(3): 245–259, doi: 10.2307/1907187
Mudho Yulistyo. 2011. Marine and Fisheries in Figures 2011. Jakarta: Ministry of Marine Affairs and Fisheries
Peacock D. 2015. IEC TS 62600-101: 2015: Marine energy-Wave, tidal and other water current converters-Part 101: Wave energy resource assessment and characterization. Geneva, Switzerland: The International Electrotechnical Commission, 1–42
Pontes M T. 1998. Assessing the European wave energy resource. Journal of Offshore Mechanics and Arctic Engineering, 120(4): 226–231, doi: 10.1115/1.2829544
Prasodjo E, Nurzaman H, Walujanto, et al. 2016. Indonesia Energy Outlook 2016. Jakarta: National Energy Council, 940
Purnamasari R, Ribal A, Kusuma J. 2018. Prediction of tidal elevations and barotropic currents in the gulf of bone. Journal of Physics: Conference Series, 979: 012071, doi: 10.1088/1742-6596/979/1/012071
Quartly G D, Srokosz M A, McMillan A C. 2001. Analyzing altimeter artifacts: statistical properties of ocean waveforms. Journal of Atmospheric and Oceanic Technology, 18(12): 2074–2091, doi: 10.1175/1520-0426(2001)018<2074:AAASPO>2.0.CO;2
Queffeulou P, Croizé-Fillon D. 2012. Global altimeter SWH data set-version 9. 0. Plouzané, France: IFREMER
Rascle N, Ardhuin F, Queffeulou P, et al. 2008. A global wave parameter database for geophysical applications. Part 1: Wave-current-turbulence interaction parameters for the open ocean based on traditional parameterizations. Ocean Modelling, 25(3–4): 154–171, doi: 10.1016/j.ocemod.2008.07.006
Ribal A, Amir A K, Toaha S, et al. 2017. Tidal current energy resource assessment around buton island, southeast Sulawesi, Indonesia. International Journal of Renewable Energy Research, 7(2): 857–865
Ribal A, Zieger S. 2016. Wave energy resource assessment based on satellite observations around Indonesia. AIP Conference Proceedings, 1737: 060001, doi: 10.1063/1.4949308
Sen P K. 1968. Estimates of the regression coefficient based on kendall’s tau. Journal of the American Statistical Association, 63(324): 1379–1389, doi: 10.1080/01621459.1968.10480934
Tolman H L. 2009. User manual and system documentation of WAVEWATCH III version 3. 14. Technical note, MMAB Contribution. Camp Springs, USA: National Centers for Environmental Prediction, 220
Vinoth J, Young I R. 2011. Global estimates of extreme wind speed and wave height. Journal of Climate, 24(6): 1647–1665, doi: 10.1175/2010JCLI3680.1
Wan Yong, Zhang Jie, Meng Junmin, et al. 2016. Study on wave energy resource assessing method based on altimeter data-A case study in Northwest Pacific. Acta Oceanologica Sinica, 35(3): 117–129, doi: 10.1007/s13131-016-0804-2
Young I R, Zieger S, Babanin A V. 2011. Global trends in wind speed and wave height. Science, 332(6028): 451–455, doi: 10.1126/science.1197219
Zheng C W, Pan J, Li J X. 2013. Assessing the China Sea wind energy and wave energy resources from 1988 to 2009. Ocean Engineering, 65: 39–48, doi: 10.1016/j.oceaneng.2013.03.006
Zieger S. 2010. Long term trends in ocean wind speed and wave height [dissertation]. Melbourne: Swinburne University of Technology
Zieger S, Babanin A V, Erick R W, et al. 2015. Observation-based source terms in the third-generation wave model WAVEWATCH. Ocean Modelling, 96: 2–25, doi: 10.1016/j.ocemod.2015.07.014
Zieger S, Babanin A V, Ribal A. 2013. Wave climate in the marginal ice zone as observed by altimeters. In: American Geophysical Union Fall Meeting. San Francisco, CA, US: AGU
Zieger S, Babanin A V, Young I R. 2014. Changes in ocean surface wind with a focus on trends in regional and monthly mean values. Deep Sea Research Part I: Oceanographic Research Papers, 86: 56–67, doi: 10.1016/j.dsr.2014.01.004
Zieger S, Vinoth J, Young I R. 2009. Joint calibration of multiplatform altimeter measurements of wind speed and wave height over the Past 20 Years. Journal of Atmospheric and Oceanic Technology, 26(12): 2549–2564, doi: 10.1175/2009JTECHA1303.1
