The MOCs selected in this work were HA, carrageenan (CAS Number 9000-07-1) as a representative of APS and bovine serum albumin (BSA) a representative of proteins (Yang et al., 2013; Lin et al., 2015), and the details are shown in Table 1. Two experimental conditions were designed in this research: (1) the ultraviolet irradiated natural seawater (UVSW) condition in which DOM was removed but inorganic matrix was present; (2) the natural seawater (NSW) condition in which both DOM and inorganic matrix were present (the concentration of the dissolved organic carbon, DOC, was 2.06 mg/L). The condition (1) was used to investigate the effects of the types of MOCs, and the condition (2) was used to examine the effects of the molecular weights of NDOM. The NSW was taken from the North Yellow Sea (37.768°N, 123.726°E), filtered through a 0.2 μm capsule filter (Opticap^®, EMD Millipore Corporation) and stored in a 4 L polypropylene bottle (Thermo^®) at 4°C before used (not exceed 48 h). The UVSW was prepared by irradiating NSW under the ultraviolet light (500 W) for over 48 h; most active NDOM was removed and the concentration of DOC was less than 0.1 mg/L. The mixed stock solution of 1 000 mg/L of each element was prepared in 2% HNO₃ (Turner et al., 2006; Cobelo-García et al., 2008) by Pt, Pd and Rh standards (chloride form, and supplied by General Research Institute for Nonferrous Metals, China). The preparation of the adsorption experiments was conducted in a clean bench. All experimental wares were prepared following a strict cleaning process, washed with Decon^® 90 (2% in Q-water) firstly and soaked in 10% HNO₃ for 48 h, then, rinsed five times with ultrapure deionized water (PALL^®) and dried in a clean bench.

The natural seawater used in this study was filtered beforehand with 0.2 μm membrane, removing most microorganisms, viruses, and nanoparticles. Hence, the filtered seawater could mainly contain macromolecules, ion pairs, and hydrated ions (Guo and Santschi, 2007). Considering the purpose and the centrifugal ultrafiltration (CFU) devices used in this study, we defined natural organic matter to the colloidal phase (1 kDa cutoff to 0.2 µm NDOM fraction) and the dissolved phase (<1 kDa NDOM fraction) (Guo and Santschi, 1997). The results of this study were the adsorption behaviors of PGE ions interacting with the colloidal fractions between 1 kDa and 0.2 µm NDOM (>1 kDa fraction) and between 3 kDa and 0.2 µm NDOM (>3 kDa fraction) (Guo and Santschi, 2007). The <1 kDa NDOM was not taken into account because there was no effective method to separate organic matter with the molecular weight <1 kDa and inorganic ions (Guo and Santschi, 2007).

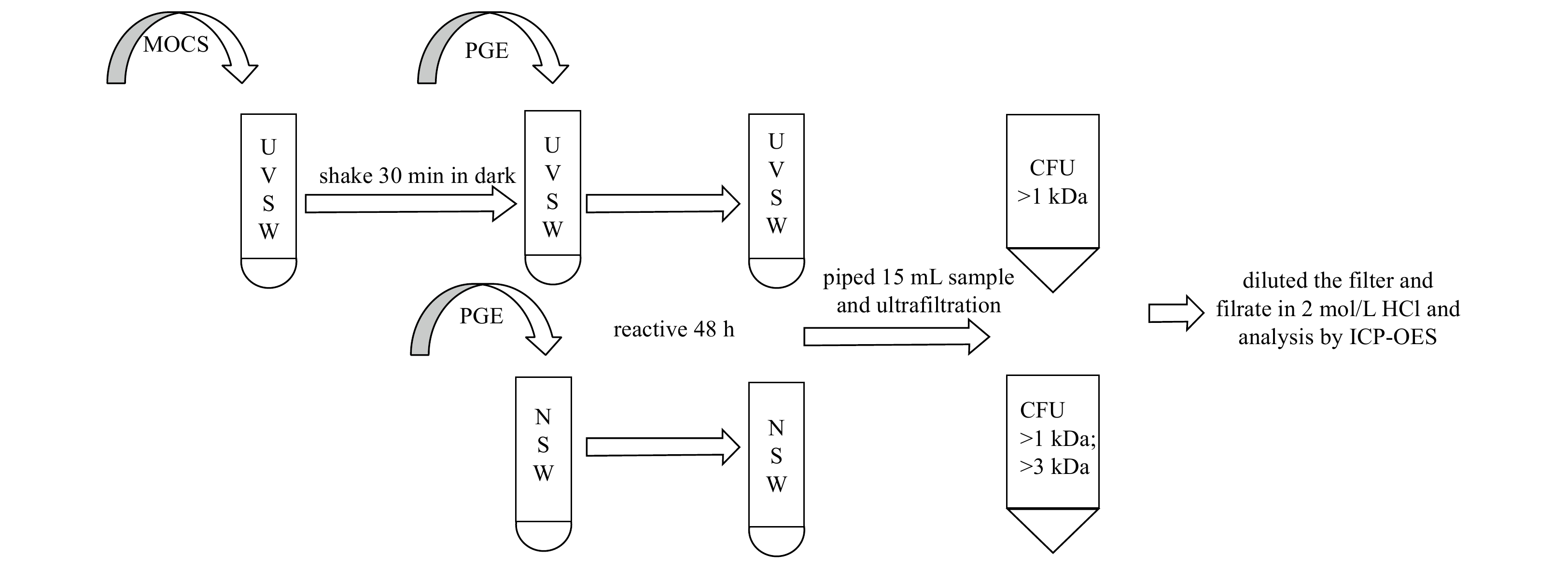

The adsorption experiments were operated in polypropylene (PP) Erlenmeyer flasks. PP wares were reported to have low surface adsorption of PGE ions (Cobelo-García et al., 2007). Figure 1 shows the schema of the adsorption process. A total of 196 mL of the UVSW was added into a 250 mL PP Erlenmeyer flask (VITLAB^®) and then the MOCs were spiked. The final MOC concentrations were 2 mg/L, which was close to the DOC concentration of the NSW, i.e., 2.06 mg/L. Before the spiking of the PGEs, the solutions were stirred for 30–45 min to ensure the homogeneous distribution of MOCs in seawater (Yang et al., 2013). In order to make the adsorption of MOCs achieve saturation, 1.25 mL of PGE stock solution was added to make the concentration of each Pt, Pd and Rh ion achieve 4 mg/L, i.e., 20.5 μmol/L Pt, 37.6 μmol/L Pd and 38.9 μmol/L Rh. The pH of the solution was adjusted to ~8.2 by adding ~2 mL non-complexing Tris-HCl buffer solution (pH ~8.5) to maintain it. The volume of the final working solution was 200 mL. The experiment was conducted in a shaker in the dark and sampled at 1, 3, 6, 8, 16, 24 and 48 h, respectively. The same experiment procedure was performed in NSW, but no MOCs were added. The samples gained in the experiments on the UVSW were fractionated using centrifugal ultrafiltration (CFU) devices (Microsep^®, Pall Corporation) with 1 kDa (MAP001C36) cutoffs to ensure the MOCs phase were completely separated. The samples in the NSW were fractionated using CFU with 1 kDa and 3 kDa cutoffs to separate the natural organic matter of different moleculr weight. The following is the brief introduction of the CFU operation. A total of 15 mL sample was loaded in a CFU unit, and then centrifuged (4 000× g) to near dryness (or <0.5 mL), followed the details in Xu and Guo (2017). Pipetted residual solution on the ultrafiltration membrane was added into a 15 mL PP centrifuge tube (FCOLON^TM) and diluted to 7.5 mL with 2 mol/L HCl to be digested for 48 h. A total of 0.5 mL ultrafiltrate was transferred into a 15 mL PP centrifuge tube, diluted to 12.5 mL with 2 mol/L HCl. All treated samples were stored at 4°C until further analysis. The pH during the adsorption should be strictly controlled, for the excessive changes of pH might result in the formation of colloids, which could inferfer the adsorption significantly. Three reapeat operations were conducted simultaneouly for each adsorption process to eliminate experimental errors.

Pt, Pd and Rh were analyzed with the inductively coupled plasma optical emission spectrometer (ICP-OES, Optima 7000, PerkinElmer^®). To minimize the saline interference, the filtrates were diluted 25-fold in 2 mol/L HCl to maintain the dissolved salt <0.1% (w/v). The instrument was calibrated using multi-element standards prepared in UVSW that was acidified and diluted with 2 mol/L HCl. The concentrations of Pt, Pd and Rh were determined by the spectral signals at 265.95, 363.47 and 343.49 nm, respectively. The drift of the standard curve caused by the operation of the instrument was eliminated by the correction of the curves every 30 samples. The possible interference mainly came from the adsorption of PGE ions on the vessel wall. Therefore, the flasks were filled with 2 mol/L HCl after the adsorption experiments and digestd for about 48 h, and then the concentrations of PGEs in the solutions were determined.

The partition coefficient (K_d) of PGEs between the dissolved phase and colloidal phase was calculated by a traditional formula expressed as the following form (Honeyman and Santschi, 1989; Yang et al., 2013):

where C_fa is the concentrations of PGEs in the colloidal phase; C_ft is the concentrations of PGEs in the dissolved phase; C_T is the total concentration of MOCs or DOC in the samples. Hereafter, the K_d values are reported in the form of log₁₀K_d (in L/g).

In view of the precipitation of PGEs, adsorption of the vessel wall, and other interferences during the experiments, the total recoveries (consisting of the concentrations of PGEs in the CFU filtrates (C_fa) and cutoffs (C_ft) and the loss in the adsorptoion experiments (C_p)) of Pt, Pd and Rh were investigated. The average recoveries of PGEs in the adsorption experiments in UVSW and NSW ranged from 75.8% to 111.8%. The loss increased with the order Pt>Rh>Pd. For Pt, the average recovery was 99.3%; for Pd, the average recovery was 82.8%, with the highest loss being about 17.2%; the average loss of Rh was about 10%.

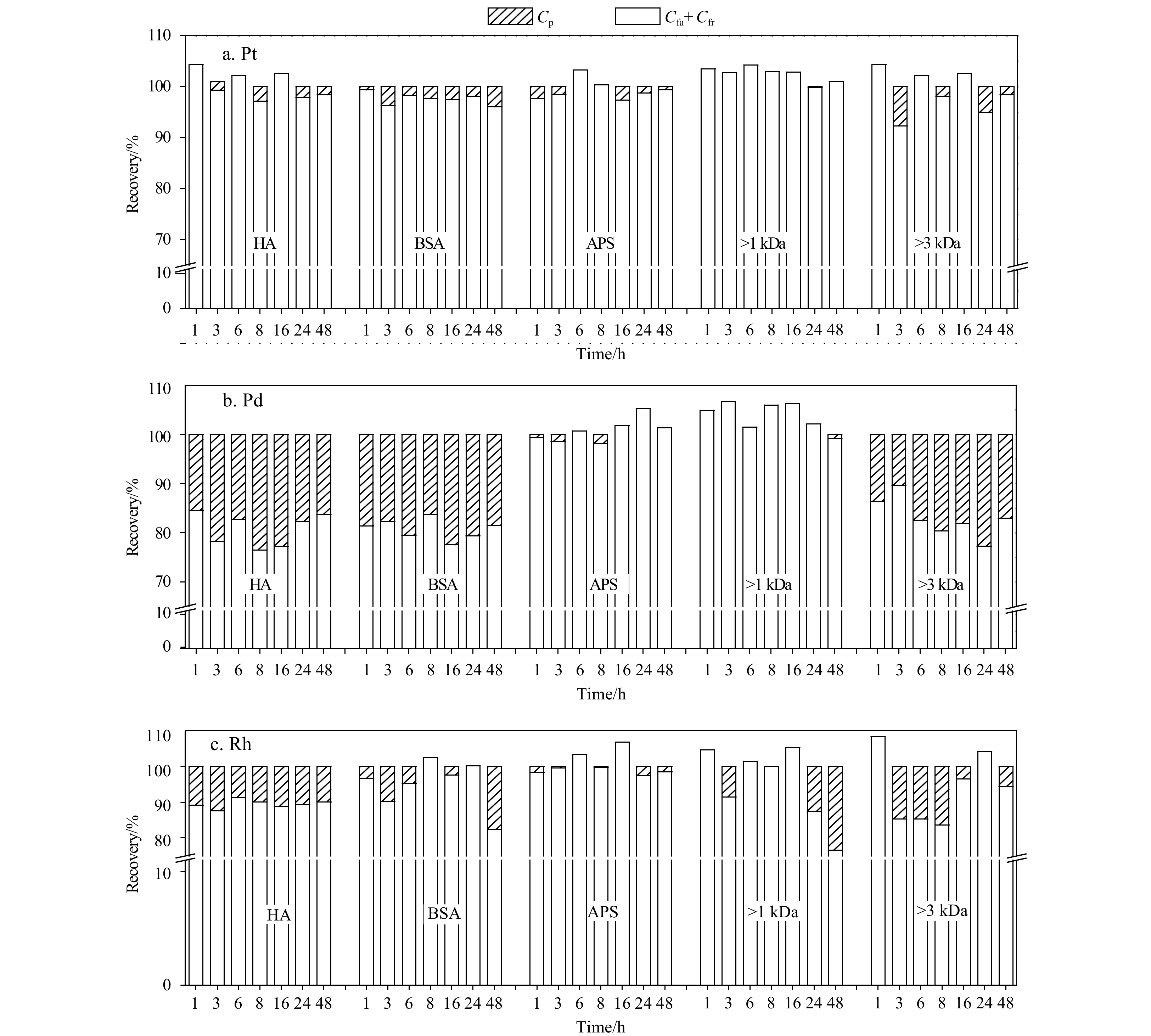

It could be concluded that the precipitation was the main factor to cause the loss of PGEs during the experiments, because there was no obvious adsorption onto the vessel wall (<0.1%). Moreover, the precipitation loss of PGEs varied with the types of MOCs and the CFU cutoffs (Fig. 2). For Pt, the total recovery was higher than those of Pd and Rh, and the precipitation loss was less than 3% (Fig. 2a). Nevertheless, the loss of Pd showed another characteristic. In the presence of HA and APS, a significant loss of Pd occurred (about 20%), but its loss was less than 3% in the presence of BSA. No obvious Pd loss occurred in the >1 kDa fraction of NDOM, and about 20% loss occurred in the >3 kDa fraction (Fig. 2b). For Rh, the slightest loss (<1%) occurred in the presence of APS but the loss increased to about 9.1% in the presence of HA. In the presence of BSA, the obvious loss was only found at 48 h (about 17.6%) and no remarkable changes occurred at other time. In the NDOM experiments, the loss of Rh increased with time in the >1 kDa fraction but decreased in the >3 kDa fraction (Fig. 2c).

The loss characteristics of PGEs showed that the constituents of NDOM could influence the migration of PGEs in seawater. Compared to Pd and Rh, the slight loss of Pt indicated that the complexes formed by this element and organic matter was more soluble in seawater (Wood et al., 1994; Takahashi et al., 1999; Sures and Zimmermann, 2007; Cobelo-García et al., 2008). The migration of Pd could be deeply influenced by BSA and HA because Pd precipitates easily with these two MOCs in seawater (Turner et al., 2006; Sures and Zimmermann, 2007). Moreover, the higher loss of Pd in the >3 kDa fraction showed that the organic matter with higher molecular weight might dominate the precipitation behavior of Pd-NDOM complexes in seawater. It was easy for Rh to form precipitates at the pH used in this research (Colombo et al., 2008; Cobelo-García, 2013). However, the higher total recoveries of this element in the presence of BSA and APS indicated that the complexes they formed were more soluble than Rh-HA. The change of Rh loss in different fractions of NDOM indicated that the amount of 1–3 kDa constituents might a dominating factor to influence the migration of Rh.

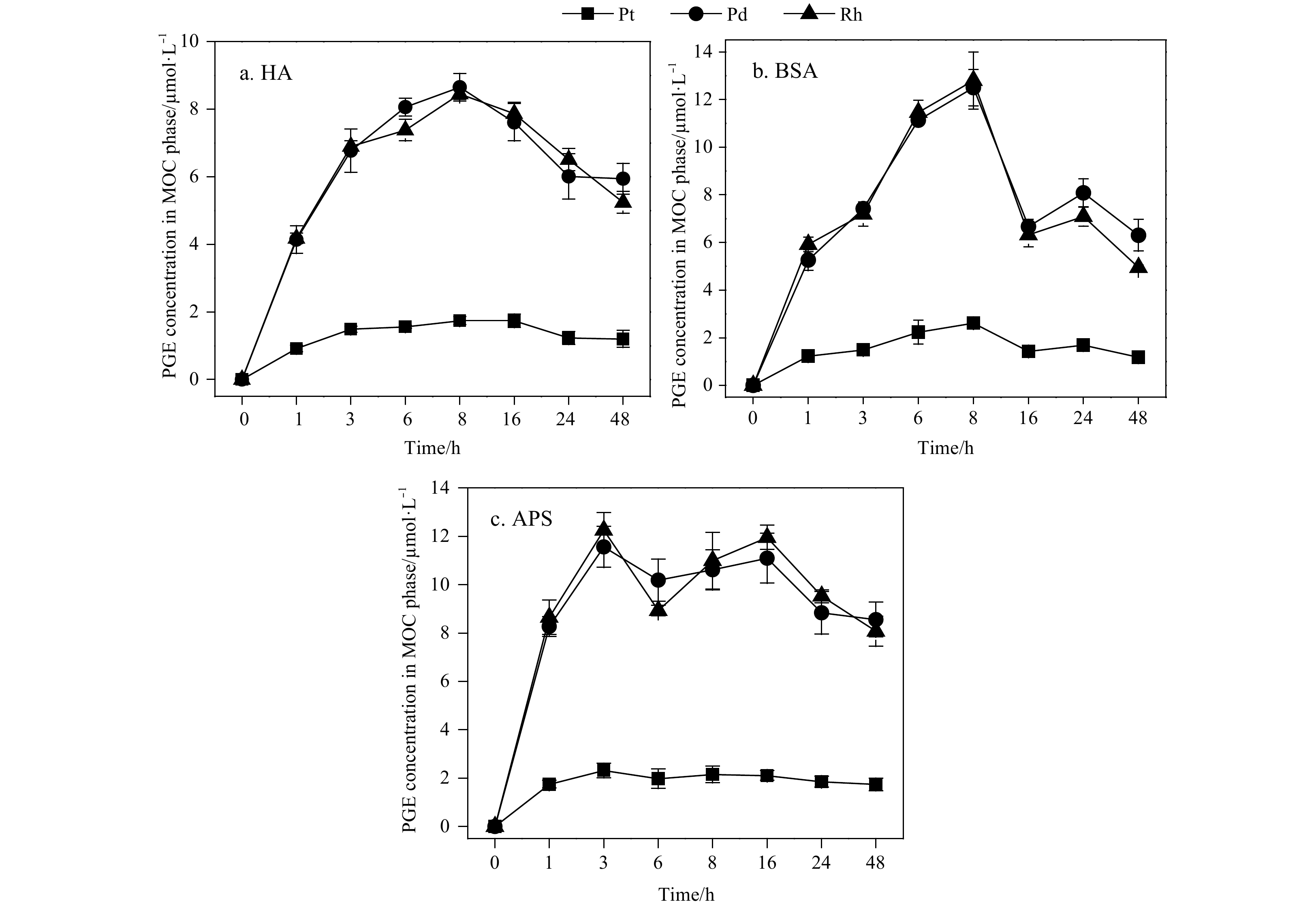

The behaviors of Pt, Pd and Rh distributing between the colloidal phase and dissolved phase varied and changed significantly with time (Fig. 3). For a given element of PGEs, the fractionation changed with the type of MOCs; but for a given type of MOCs, the fractionation tended to have the same situation.

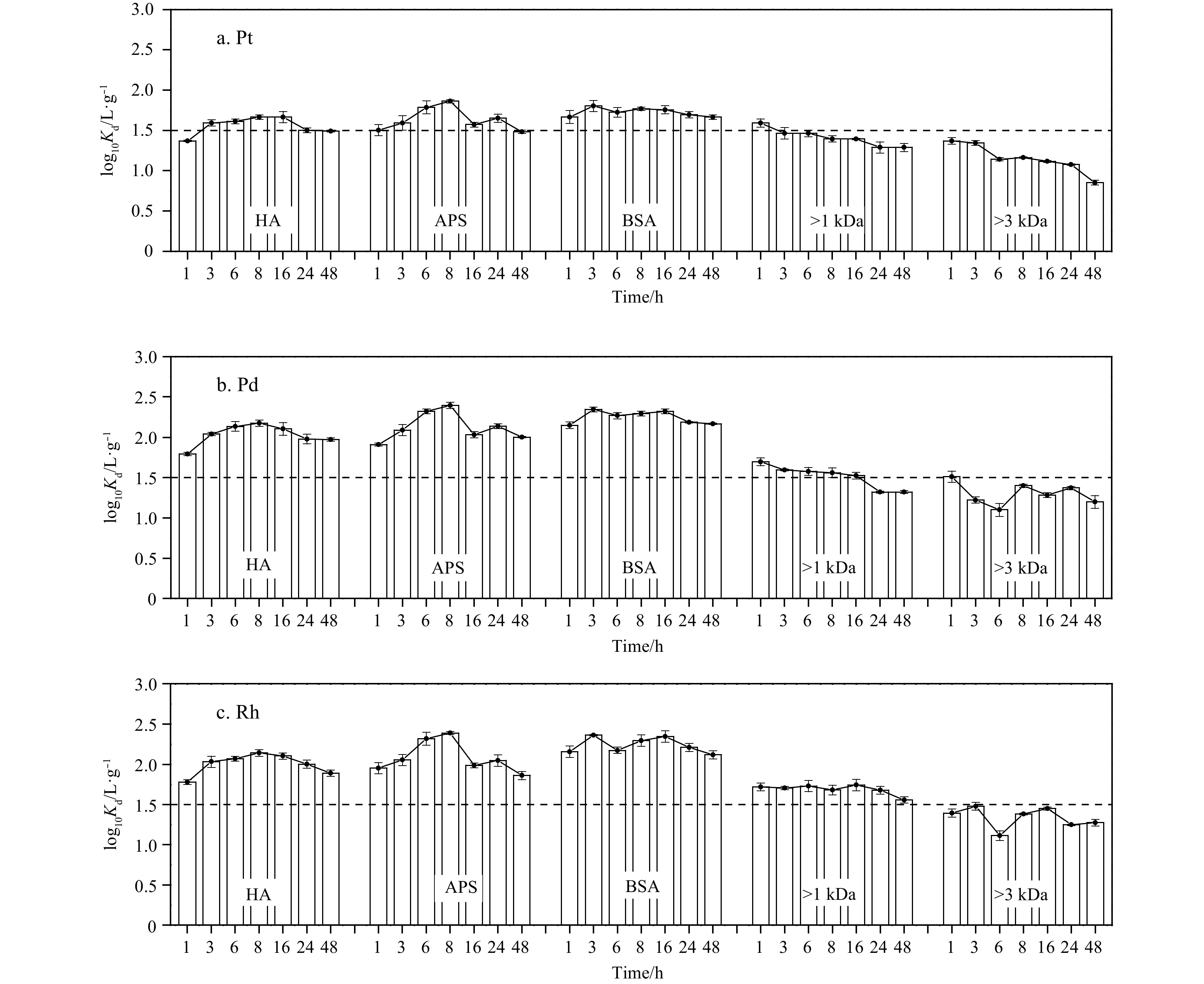

The kinetic curves of Pt, Pd and Rh interacting with HA could be divided into two stages, the first 8 h and the remaining 40 h (Fig. 3a). In the first 8 h, the adsorption and the log₁₀K_d increased with time (Figs 3a and 4). The maximum adsorption appeared at 8 h; with the experiment entering the second stage (8–48 h), PGE ions started to desorb from HA (Fig. 4). The trend of log₁₀K_d with time was consistent with changes of the adsorption (Figs 3a and 4). The adsorption of Pd onto HA reached equilibrium because the log₁₀K_d did not change after 24 h (Fig. 4). However, the interactions between Pt and HA and Rh and HA were still active. This phenomenon may be related to the formation of the PGE–HA complexes (Cook and Fletcher, 1993). The interactions between Pd and HA were faster than that of Pt in the aquatic environment and formed stable Pd–humate complexes (Wood et al., 1994). However, for Pt, the interactions were slow and it was impossible to determine whether the Pt-HA complexes existe (Wood, 1996). Moreover, the interactions between Rh and HA may be more complicated, because there could be some unstable Rh-HA complexes appearing during the experiments (Cobelo-García, 2013). The difference in the adsorption quantity (Pd≈Rh>Pt) may be the result of the Cl^– presence in seawater (Takahashi et al., 1999; Byrne and Yao, 2000). Pd and Rh tended to form complexes with HA, but Pt tended to bind with chloride ions (Takahashi et al., 1999). Hence, Cl^– could enhance the solubility of Pt in seawater (Colombo et al., 2008).

For BSA, the kinetic curves were similar to those of HA, but a slight difference was observed in the desorption stage (Fig. 3b). The 8 h was still the demarcation point of the adsorption experiments (Figs 3b and 4). However, none of the given elements reached adsorption equilibrium within 48 h and the desorption process became more complicated. A rapid desorption stage was found at 8–16 h, whereas a slight adsorption stage occurred again between 16 to 24 h, and then desorption continued after 24 h (Figs 3 and 4). This complicated process may be the result of the interactions between PGE ions and the colloids formed by BSA. It was known that Pt, Pd and Rh should form some stable complexes with the S- or N-donors of the proteins (Wood et al., 1996). But under the conditions of this research, the zeta potential of BSA was around –10 mV, the colloids formed by BSA were not stable and the dispersion layer surface gathered a large number of hydroxyl groups (Xu et al., 2003; Ye et al., 2007; Jin et al., 2013; Liu et al., 2014). Hence, the lager number of the O-donor would compete with the S- or N-donors in adsorbing the PGE ions in seawater, resulting in the complicated adsorption behavior.

The adsorption of PGEs on APS was different from the other two model organic compounds, with the maximum adsorption point disappearing and the kinetic curves being smooth (Fig. 3c). The adsorption process could be divided into three stages, the rapid adsorption stage, the maximum adsorption stage and the desorption stage (Figs 3 and 4). The rapid adsorption stage ended at 3 h, and the maximum adsorption stage lasted nearly 13 h with the fluctuations less than 4%. The desorption stage occured after 16 h, and the desorption magnitude was less than that in the experiments with BSA. The kinetic process did not achieve equilibrium by the end the experiments because the log₁₀K_d was still decreasing. This kinetic behavior may be related to the structure and dispersion of carrageenan in seawater. Unlike HA as a mixture and BSA containing multiple amino acid residues, carrageenan possesses a stable structure. Hence, the complexes between PGEs and APS might be simple. In addition, carrageenan tends to form a colloidal system with network structures in saline solutions (Langendorff et al., 2000; Guo et al., 2009; Lundin et al., 2000), which could result in the complicated adsorption process. The adsorption of PGEs on APS did not reach equilibrium within 48 h and this could be related to the change of the colloidal structure formed by APS (Fig. 4), but more proofs are needed to better explain this phenomenon.

Unlike the model organic matter, the composition and molecular weight of natural organic matter is unclear. But with the ultrafiltration, the constituents in different molecular weights of NDOM could be separated effectively (Xu and Guo, 2017). The adsorption of PGEs on the two fractions of NDOM, i.e., the >1 kDa fraction and the >3 kDa fraction, was investigated to explore the roles of the NDOM constituents in this study.

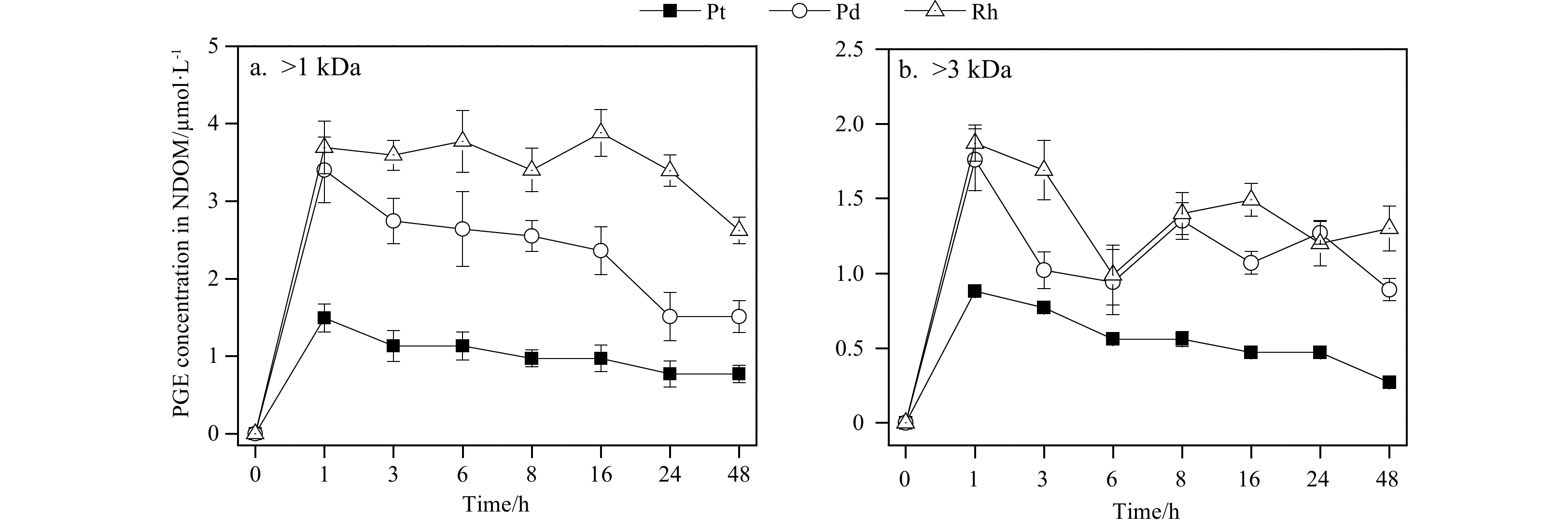

In the experiments with the >1 kDa NDOM fraction, the kinetic curves showed two stages, adsorption and desorption (Fig. 5), but the log₁₀K_d showed another trend. For Pd and Pt (Fig. 4), a similar kinetic curve was observed, but the change of log₁₀K_d was different. The partition coefficient of Pt fluctuated slightly in the experiments with the >1 kDa fraction, about 1.30–1.59. But for Pd, an obvious decrease of log₁₀K_d occurred in 0–24 h. For Rh in the experiments with the >1 kDa fraction, a stable adsorption process was found before 18 h and it changed to the desorption stage by then (Fig. 4). The interaction of PEGs with the >1 kDa NDOM fraction reached equilibrium around 24 h for Pt but achieved no equilibrium for Pd and Rh (Fig. 4). During the whole kinetic process, the adsorption of Rh was obviously higher than other elements in the experiments with the >1 kDa fraction, and the adsorption of Pd was slightly higher than that of Pt (Fig. 5). But for the change of log₁₀K_d, the partition ability of Rh was the weakest and Pt was the highest (Fig. 4). This phenomenon might be owing to the loss of Rh in the experiments with the >1 kDa fraction, in which the precipitation removed more Rh from dissolved phase (Fig. 2). Another possible factor might be related to the compound composition of the NDOM used in this study. But more evidence is needed in the future because the separation and identification of the compounds of NDOM are difficult.

In the experiments with the >3 kDa NDOM fraction, the kinetic curves were smooth and with little change (Fig. 5). A rapid adsorption process occurred in 1 h and the quantity of PGEs that interacted with the >3 kDa fraction was smaller than with the >1 kDa fraction (Figs 4 and 5). However, like the partition in the experiments with the >1 kDa fraction, the log₁₀K_d showed another trend. Based on the kinetic curves, no obvious desorption of Pt and Pd occurred, and Rh only showed slight desorption (Fig. 5). But for the log₁₀K_d, an obvious decrease was observed (Fig. 4). However, the kinetic curve showed that there were no obvious fluctuations with time during the dsorption. Hence, the loss of PGEs in the colloidal phase could be caused by the precipitation (Fig. 2). A portion of PGE ions complexing with organic matter precipitated to the bottom of the solution which resulted in the decrease in the total colloidal phase but no obvious influence on the dissolved phase. Therefore, the migration of PGEs between dissoved and colloidal phases in seawater was likely dominated by the organic constituents with molecular weight of <3 kDa.

For all the cases, it could be found that the adsorption of PGEs on NDOM was closely related to the composition of NDOM and the precipitation of the PGE-NDOM complexes. The partition coefficient of Pt in the experiments with the >1 kDa fraction was higher than that with the >3 kDa fraction. It was reported that Pt responded slightly to the change of molecular weight of NDOM and the migration behavior was probably mainly dominated by its ions themselves (Colombo et al., 2008). The adsorption of Pd also had similar behavior with Pt which showed that NDOM with with molecular weight of 1–3 kDa had a great influence on the partition of these two elements. Rh had higher adsorption in the experiments with the >1 kDa fraction than that with the >3 kDa fraction but their log₁₀K_d values were similar, which showed that Rh might be combined with some specific organic constituents. The different trend of log₁₀K_d and kinetic curves of PGEs interacting with NDOM indicated siginificant influence of precipitation on the migration of PGEs in seawater. However, owing to the limitations in physical and chemical separation, there is insufficient information in this subject. Hence, further research is needed to get the information about the impact of NDOM on the fractionation of PGEs in seawater.

As discussed in Sections 3.1–3.3, the fractionations of Pt, Pd and Rh in seawater were significantly influenced by NDOM. Based on the trend of log₁₀K_d, changes of precipitation with time and kinetic curves (Figs 2-5), it could be inferred that there was a possible migration of PGEs between the colloidal phase and the dissolved phase in seawater. When the PGE ions met the colloidal organic matter in seawater, a portion of ions adsorbed on the surface of colloids or entered the interior of the colloids, and a portion of them precipitated to the bottom of the solution owing to flocculation. These behaviors were related to the constituents of NDOM. In natural seawater, Pd had light extent of precipitation in the experiments with the >1 kDa fraction and larger precipitation loss occurred in the experiments with the >3 kDa fraction (Fig. 2). This suggests that Pd may form some insoluble matter with the >3 kDa NDOM (Sures and Zimmermann, 2007; Zimmermann et al., 2017). However, the organic substances that easily precipitates with Pd were humic- and protein-like constituents, and as much as 90% of which were reported to be found in the <3 kDa fraction (Xu and Guo, 2017). Hence, the complexes formed by Pd and the 1–3 kDa NDOM were unstable and prone to coagulation. Moreover, the precipitation of Pd in the >3 kDa fraction might be caused by the higher molecular weight of NDOM. The behaviors of Pt were similar to Pd, but the lighter precipitation extent of Pt-NDOM complexes indicated that they might be more stable than other PGE-NDOM complexes. Rh had similar log₁₀K_d and adsorption in the experiments with different NDOM fractions, and the data gained in the experiments with the >1 kDa fraction was more stable than those with the >3 kDa fraction. It indicated that Rh might form complexes with specific organic substances. In general, the 1–3 kDa NDOM may be the key fraction of dominating the behavior of PGEs in seawater. In addition, a large number of low molecular weight organic constituents, accounting for up to 90% of DOM (Wood, 1996; Xu and Guo, 2017), may also bind with PGE ions in the dissolved phase. Those organic complexes formed by PGE ions and lower molecular weight organic constituents are not easy to make a colloidal mixture, which makes PGE ions more soluble in seawater. Comparing the log₁₀K_d and kinetic curves of PGEs in the NDOM and MOC solutions, no similar behaviors were observed. Hence, the interaction of PGE ions with colloidal organic matter might be the result of the combination of their complexation with multiple organic constituents. However, there are few studies in this aspect and further research is needed.
