Concentrations and sinking rates of transparent exopolymer particles (TEPs) in a coastal sea: the Changjiang River (Yangtze River) Estuary
收藏切换
PDF
Shujin Guo2, 3, Jun Sun1, *
Acta Oceanologica Sinica | 2020, 39(10) : 58 - 69
Less
收藏切换
Acta Oceanologica Sinica | 2020, 39(10): 58-69
• Marine Chemistry •
Concentrations and sinking rates of transparent exopolymer particles (TEPs) in a coastal sea: the Changjiang River (Yangtze River) Estuary
Full
Shujin Guo2, 3, Jun Sun1, *
Affiliations
  • 1 College of Marine Science and Technology, China University of Geosciences (Wuhan), Wuhan 430074, China
  • 2 Jiaozhou Bay Marine Ecosystem Research Station, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
  • 3 Center for Ocean Mega-Science, Chinese Academy of Sciences, Qingdao 266071, China
Published: 2020-10-25 doi: 10.1007/s13131-020-1660-7
Outline
收藏切换

Transparent exopolymer particles (TEPs) are ubiquitous throughout the oceans, and their sedimentation is considered an efficient biological carbon sink pathway. To investigate the role of coastal TEPs in sinking carbon from the upper layer, samples were collected in the spring and summer of 2011 in the Changjiang River (Yangtze River) Estuary, a typical coastal water. The concentrations and sinking rates of TEPs were measured, and potential sedimentation flux of TEPs was estimated. TEPs concentrations ranged from 40.00 μg/L to 1 040.00 μg/L (mean=(209.70±240.93) μg/L) in spring and 56.67 μg/L to 1 423.33 μg/L (mean=(433.33±393.02) μg/L) in summer, and they were higher at bloom stations than at non-bloom stations during both cruises. A significant positive correlation between TEPs concentration and chlorophyll a (Chl a) concentration was detected, suggesting that phytoplankton was the primary source of TEPs in this area. TEPs sinking rates ranged from 0.08 m/d to 0.57 m/d with a mean of (0.28±0.14) m/d in spring and 0.10 m/d to 1.08 m/d with a mean of (0.34±0.31) m/d in summer. The potential sedimentation flux of TEP-C ranged from 4.95 mg/(m2·d) to 29.40 mg/(m2·d) with a mean of (14.66±8.83) mg/(m2·d) in spring and 6.80 mg/(m2·d) to 30.45 mg/(m2·d) with a mean of (15.71±8.73) mg/(m2·d) in summer, which was ~17.81% to 138.27% (mean=65.15%±31.75%) of sedimentation flux of phytoplankton cells in the study area. Due to the increase of TEPs concentrations and their sinking rates, sedimentation fluxes of TEPs at the bloom station were obviously higher than at the non-bloom station during both cruises. This study indicates that TEPs serve as a carbon sink in the Changjiang River Estuary, especially during bloom events, and their sedimentation should be taken into account when we study the carbon sedimentation in the coastal sea.

transparent exopolymer particles  /  sinking rates  /  Changjiang River (Yangtze River) Estuary  /  coastal sea
Shujin Guo, Jun Sun. Concentrations and sinking rates of transparent exopolymer particles (TEPs) in a coastal sea: the Changjiang River (Yangtze River) Estuary[J]. Acta Oceanologica Sinica, 2020 , 39 (10) : 58 -69 . DOI: 10.1007/s13131-020-1660-7
Full Text
Less
1 Introduction
Less
Transparent exopolymer particles (TEPs) are transparent gel-like particles in the ocean that were first identified in the early 1990s (Alldredge et al., 1993). They are formed from polysaccharides mostly exuded by phytoplankton cells and bacteria (Stoderegger and Herndl, 1999; Passow, 2002a). TEPs were largely ignored before the method for visualization and quantification was established in the 1990s (Passow and Alldredge, 1995). Being stained with the polysaccharide specific dye Alcian Blue (Alldredge et al., 1993; Passow, 2002a), recent studies showed that TEPs are abundant in most marine ecosystems with concentrations of up to 8 000 mL–1 (Passow, 2002a).
TEPs are classified as particles, but exhibit gel-like properties, such as a high degree of adhesion, high flexibility, and the ability to swell/shrink depending on environmental conditions (Passow, 2002a). These properties allow TEPs to form aggregates with other particles, such as phytoplankton cells, bacteria, and detritus in the water column (Simon et al., 2002; Bar-Zeev et al., 2011), which could in turn enhance sinking fluxes and stimulate the biological carbon pump in the ocean (Koeve, 2005). The size and abundance of TEPs are on the same order of magnitude as phytoplankton cells, which suggests that they could contribute significantly to the total particulate pool in the ocean (Engel and Passow, 2001; Engel, 2002). The C:N ratio of TEPs is higher than the usual Redfield ratio (Mari, 1999; Engel and Passow, 2001), making the fast sedimentation of TEPs an efficient pathway of carbon sedimentation in the ocean (Passow et al., 2001; Engel, 2004).
Several studies have been carried out to study the sedimentation and export of TEPs in open oceans. Martin et al. (2011) found that 25%–43% of the TEPs-containing particulate carbon at 100 m depth was exported below 750 m during a spring phytoplankton bloom in the sub-polar North Atlantic. Bar-Zeev et al. (2009) found that during a diatom bloom in the Gulf of Aqaba, export flux of TEPs from surface waters to deeper waters (down to 300 m) accounted for 24%–78% of total particulate organic carbon (POC) fluxes. Ramaiah et al. (2005) found that TEPs export flux ranged from 29 mg/(m2∙d) to 62 mg/(m2∙d), accounting for 8%–14% of total POC flux at 200 m depth in the western subarctic Pacific. Several other studies also suggested that TEPs could play an important role in the POC export in the ocean (Waite et al., 2005; Reigstad and Wassmann, 2007; Ignacio, 2015). However, to our knowledge, there has been no study carried out in coastal seas.
Coastal seas receive large amounts of riverine inputs and upwelled nutrients, sustaining a disproportionately high biological productivity in these areas (Chen and Borges, 2009). Despite their small surface area, coastal seas play an important role in the global oceanic carbon cycle (Cai, 2011; Bauer et al., 2013), and most of them serve as sinks of atmospheric CO2 (Chen and Borges, 2009). TEPs levels are also high in coastal waters due to the high phytoplankton biomass there (Passow and Alldredge, 1994; Klein et al., 2011; Sun et al., 2012; Jennings et al., 2017). Despite their high levels and potential importance in carbon sedimentation in the productive coastal waters, few studies have examined the sinking dynamics of TEPs in the coastal sea, and their sinking behavior is quite unclear in these areas. This research gap hampers a more comprehensive understanding of carbon sedimentation in coastal seas.
The Changjiang River (Yangtze River) Estuary, located on the continental shelf at the western rim of the Pacific Ocean, is one of the most eutrophic coastal seas in the world with large amounts of nutrients input from the Changjiang River (Chen et al., 2010; Cheng et al., 2012). The high nutrient supply results in high phytoplankton biomass in this area, and phytoplankton blooms frequently occur during spring and summer, with Prorocentrum dentatum and Skeletonema cf. costatum being the most common bloom species (Tang et al., 2006; Liu et al., 2016; Xiao et al., 2018). Due to the high biological productivity and efficient export of particulate organic matter, the Changjiang River Estuary serves as a net sink of atmospheric CO2 (Zhai and Dai, 2009). Several studies have been carried out to study the biological pump or carbon export in the Changjiang River Estuary, and these studies mainly focused the attention on the sedimentation of phytoplankton cells and zooplankton fecal pellets (Guo et al., 2016, 2019; Qiu et al., 2018). Until now, there has been no report that investigates TEPs concentrations and their sinking behavior in this area. In this study, samples were collected in the Changjiang River Estuary in spring and summer 2011, and sinking experiments were carried out aboard. The main goal of this study is to: (1) determine the concentration of TEPs in the Changjiang River Estuary, clarify their distribution pattern and evaluate the relationship between TEPs and environmental and biological parameters; (2) determine TEPs sinking rates, estimate their carbon sedimentation flux, and finally discuss the role of TEPs in carbon sedimentation in the Changjiang River Estuary.
2 Materials and methods
Less
2.1 Study area

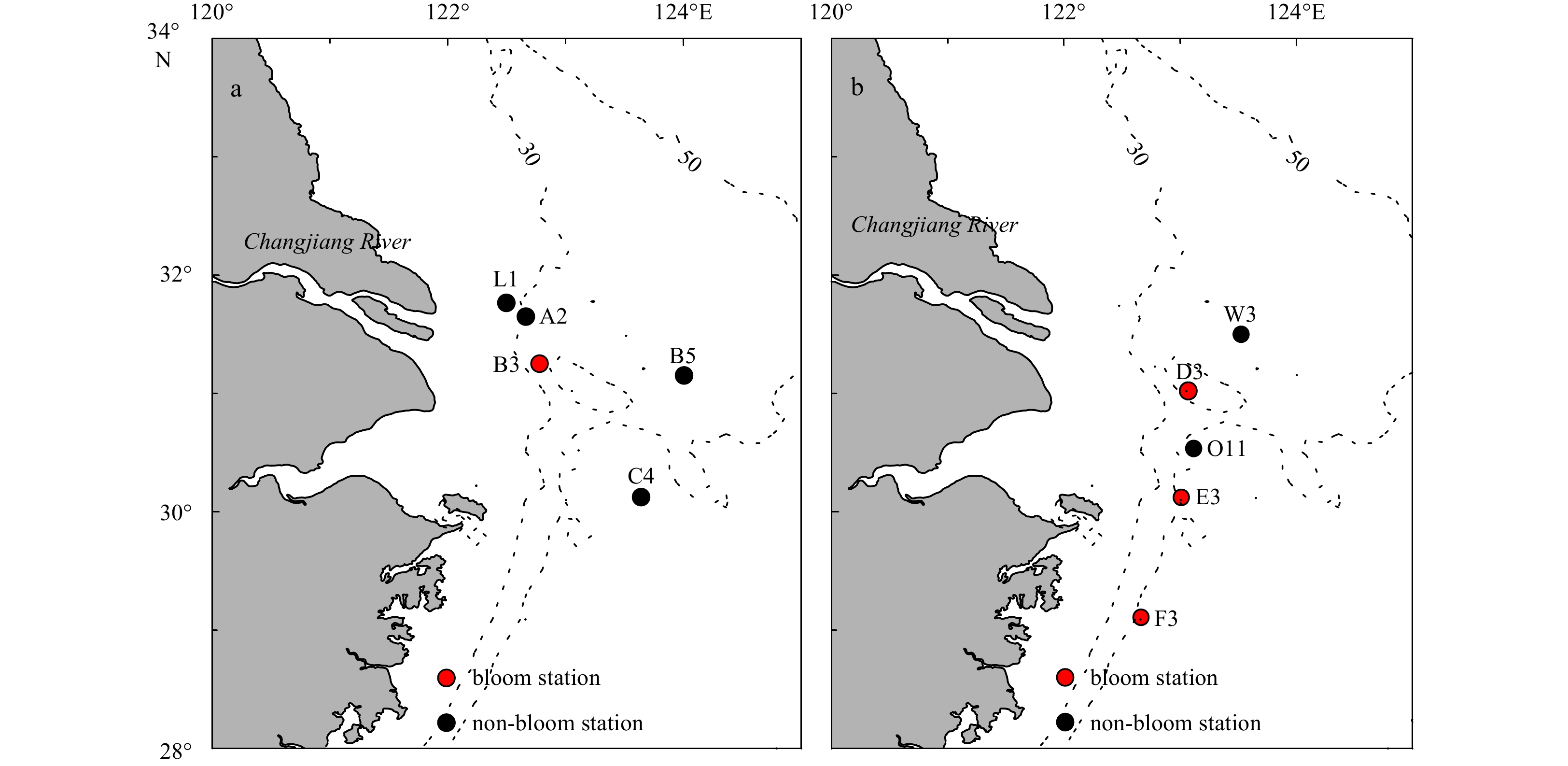

Two cruises were carried out in the Changjiang River Estuary during 22–31 May (spring) and 19–27 August (summer) 2011. During each cruise, five stations with varying chlorophyll a (Chl a) fluorescence levels were selected to collect the samples and carry out the sinking experiments. One bloom station (B3) and four non-bloom stations (C4, B5, A2, L1) were selected in spring and three bloom stations (F3, E3, D3) and two non-bloom stations (W3, O11) were selected in summer (Fig. 1). The detailed information and surface environmental parameters of these stations were shown in Table 1 of Guo et al. (2016).
2.2 Sampling and analysis
The vertical profiles of temperature (T), salinity (S) and fluorescence were recorded with a Seabird conductivity, temperature, and depth device (SBE 9/11 plus) complemented with a SeaTech fluorometer from surface to bottom at each station. Water samples were collected using a rosette sampler at 4 to 5 water depths at each station from the surface to the bottom, evenly distributed throughout the water column, for analysis of nutrients, Chl a, phytoplankton cell abundance and species composition, and TEPs concentration.
2.2.1 Nutrient analysis
Water samples for determination of nutrient concentrations were filtered through acid-cleaned acetate cellulose filters with a 0.45-μm pore size. After being poisoned by HgCl2 solution, the filtrates were stored at 0–4°C in dark until analysis. In the laboratory, nutrients (${\rm {NO}}_3^- $, ${\rm {NO}}_2^- $, ${\rm {PO}}_4^{3-} $, ${\rm {SiO}}_3^{2-} $, and ${\rm {NH}}_4^+ $) were determined with an autoanalyzer (model: SkalarSANplus, Skalar Analysis, Netherlands) according to Liu et al. (2011).
2.2.2 Chl a analysis
Samples for Chl a concentration analysis were filtered using 25 mm GF/F filters (WhatmanTM) and then stored at –20°C in dark until analysis. Chl a was then extracted with 90% acetone for 24 h at –20°C in dark, and samples were then analyzed with a Turner-Designs TrilogyTM laboratory fluorometer (Welschmeyer, 1994).
2.2.3 Phytoplankton analysis
Samples for phytoplankton analysis were preserved with 2% buffered formalin on board the vessel. In the laboratory, phytoplankton cells were identified and enumerated with an inverted microscope (Olympus, Japan) at a magnification of 200× or 400× according to the Utermöhl method (Utermöhl, 1958). The dominance of phytoplankton species was described by the dominance index (Y):
$Y = {\rm{ }}\left({{n_i}/N} \right) \times {f_i},$
where ni is the sum of cell abundance for species i in all samples, N is the sum of cell abundance for all species, and fi is the frequency of occurrence for species i in all samples (Guo et al., 2014).
The volume of phytoplankton cells was calculated from their linear dimensions using the geometric models (Sun and Liu, 2003). Thirty or more individual cells of each phytoplankton species were measured for their linear dimensions. Phytoplankton cell carbon (Phytoplankton-C) was then calculated from the cell volume with the equation formulated by Menden-Deuer and Lessard (2000).
$C = 0.288 \times {V^{0.811}}\;{\rm{for}}\;{\rm{diatoms}},$
$C = 0.760 \times {V^{0.819}}\;{\rm{for}}\;{\rm{dinoflagellates}},$
$C = 0.216 \times {V^{0.939}}\;{\rm{for}}\;{\rm{other}}\;{\rm{algae}},$
where C is the carbon content of each species expressed in pg/cell, and V is the cell biovolume expressed in μm3.
2.2.4 TEPs and carbon analysis
TEPs concentration was measured followed Passow and Alldredge (1995). Three replicated 150–200 mL samples were vacuum filtered (<20 kPa) with polycarbonate filters (Millipore; 25 mm diameter; 0.20 μm). Filters were first stained for <5 s with 1 mL of 0.02% Alcian Blue 8GX in 0.06% acetic acid (pH 2.5), and then samples were rinsed with 3 mL of deionized water. Alcian Blue-stained material in the filters was extracted with 6 mL of 80% sulfuric acid for 2 h on an oscillator, and the absorbance of the extracted material was then measured spectrophotometrically at 787 nm using a Varian Cary spectrophotometer. TEPs were quantified by a standard curve prepared with xanthan gum (XG) particles as described by Passow and Alldredge (1995), and concentrations are expressed in micrograms of XG equivalents per liter (μg/L). The detection limit of the measurements was 5.9 μg/L and the standard deviation of the replicate samples was less than 13% in all cases. Triplicate blanks (empty filters stained with Alcian Blue) were also prepared with every batch of samples. TEP-carbon (TEP-C, μg/L) was calculated with the slope (0.75) from the equation as follows (Engel and Passow, 2001):
${\rm{TEP-C}} = 0.75 \times TE{P_{{\rm{color}}}},$
where TEPcolor is the TEPs concentration with the unit of μg/L.
2.2.5 Sinking rates
Sinking rates of TEPs were determined at each station, and the SETCOL method (Bienfang, 1981) was used to measure the sinking rates. For analysis, a Plexiglass column (height=0.45 m and volume=750 mL) was filled completely with a homogeneous water sample within 10 min after sampling, and a cover was then placed on the set-up. The content in Plexiglass column was allowed to settle undisturbed for 2–3 h aboard the vessel, and the temperature was maintained by pumping water from a thermostatically controlled water bath with water jackets. In order to minimize the effect of vibrations of the vessel body, the SETCOL column was put in opaque sleeves and fixed with soft foam during the incubation as suggested by Mei et al. (2003). The settlement experiment was terminated by successively draining the upper, top, and bottom compartments of the Plexiglass column via taps in the wall of column. The TEPs concentration was measured before and after the settlement in all three compartments. These measurements were combined to calculate the sinking rate of TEPs according to the formula:
$V = \left({{B_{\rm{s}}}/{B_{\rm{t}}}} \right) \times L/t,$
where V is sinking rate, Bs is the amount of TEPs settled into the bottom compartment, Bt is the total amount of TEPs in the column, L is length of the column, and t is settling interval. Three replicates of the settlement columns were filled with seawater collected from each sampling depth, and the mean of the three sinking rate values was calculated to represent the sinking rate at a particular sampling depth. Sinking rates of phytoplankton cells were also determined with the SETCOL method, with the Chl a being measured to calculate the sinking rates. Carbon flux of TEPs and phytoplankton cells estimates were provided by the product of the SETCOL-determined sinking rates mentioned above and the TEP-carbon or phytoplankton-carbon at the bottom layer. As the effect of water turbulence was not considered in the estimation on flux of TEPs and phytoplankton cells, the sedimentation flux in this study was treated as the “potential sedimentation flux”.
2.3 Data analysis
SPSS 14.0 was applied to carry out the Pearson Correlation Analysis between TEPs concentrations and various environmental parameters. Significant differences of environmental parameters and TEPs concentrations between different stations were tested using one-way ANOVA analysis. A probability of p<0.05 was considered significant in all statistical analyses.
3 Results
Less
3.1 Hydrographic conditions and phytoplankton community structure

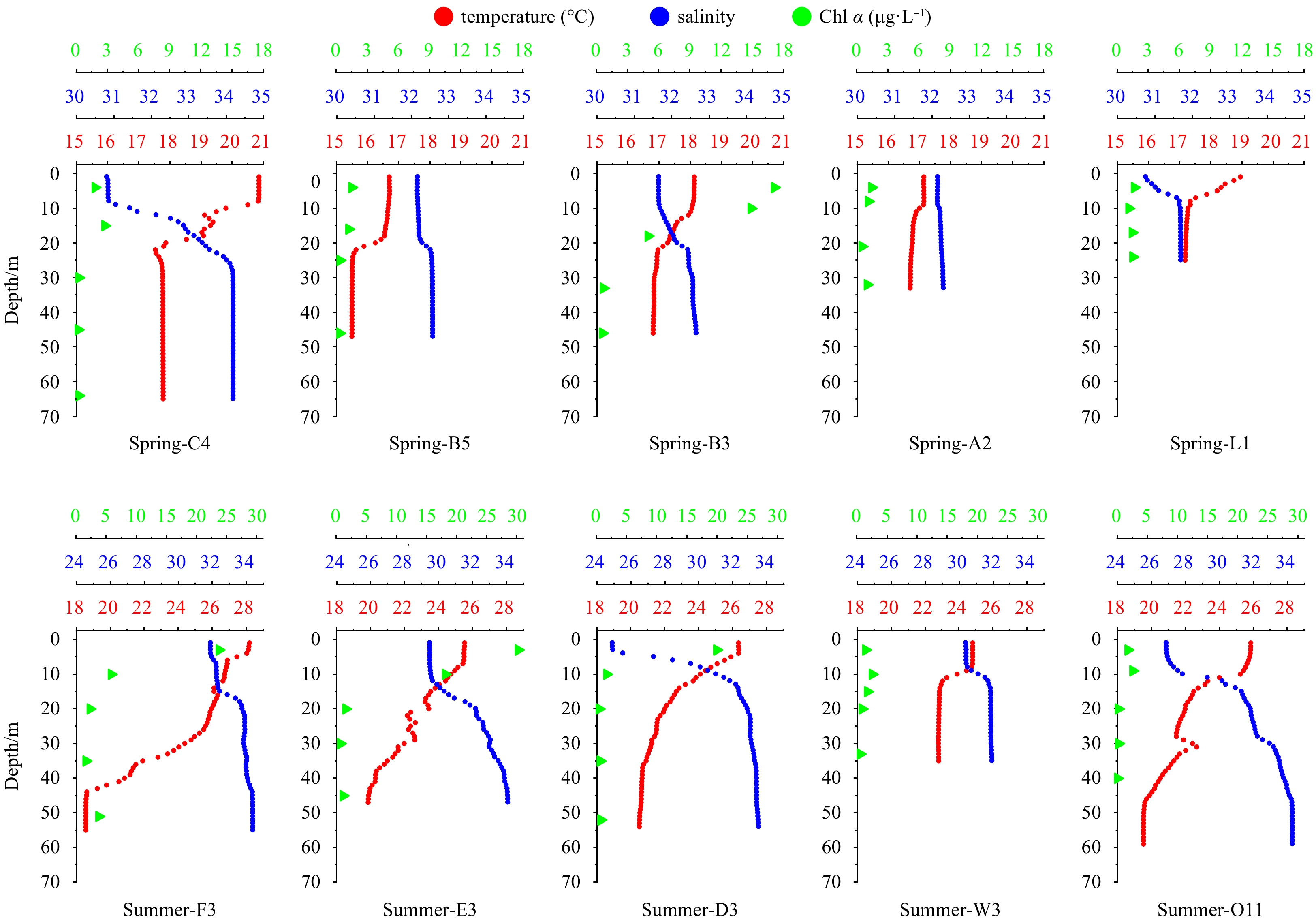

Vertical profiles of temperature, salinity, and Chl a concentration at each station are presented in Fig. 2. Surface temperatures ranged from 16.70°C to 20.87°C (mean=(18.23±1.45)°C) in spring, which was lower than that in summer, ranging from 24.79°C to 28.13°C (mean=(26.13±1.12)°C). Surface salinity ranged from 30.84 to 32.15 (mean=31.56±0.55) in spring, which was higher than that in summer, ranging from 24.92 to 31.88 (mean=28.70±2.50). During both cruises, the upper layers were dominated by warm and low salinity water and the deeper layers were dominated by cool and high salinity water. In spring, the highest surface Chl a concentration (17.15 μg/L) was observed at Station B3, and a Prorocentrum dentatum bloom was observed here with cell abundance exceeding 106 cells/L. At this station, P. dentatum accounted for over 95% of total phytoplankton cell abundance. Surface Chl a concentrations at the other four stations were generally low (<2.0 μg/L), and cell abundances at these stations were less than 20×103 cells/L. In summer, high surface Chl a concentrations (>20 μg/L) were observed at Stations F3, E3 and D3, which was more than 10 fold of that at Stations W3 and O11 (<2 μg/L). A S. cf. costatum bloom was observed at Stations F3, E3 and D3 with cell abundance exceeding 106 cells/L. At other stations (W3 and O11), phytoplankton cell abundance was less than 15×103 cells/L. The detailed composition of dominant phytoplankton species at each station was shown in Fig. 4 of Guo et al. (2016), and the phytoplankton community was dominated by dinoflagellates in spring and diatoms in summer in the study area. In the vertical direction, Chl a concentrations at each station were always higher in upper layers than in underlying layers, and this was most apparent at the bloom station during both cruises.
3.2 TEPs concentrations

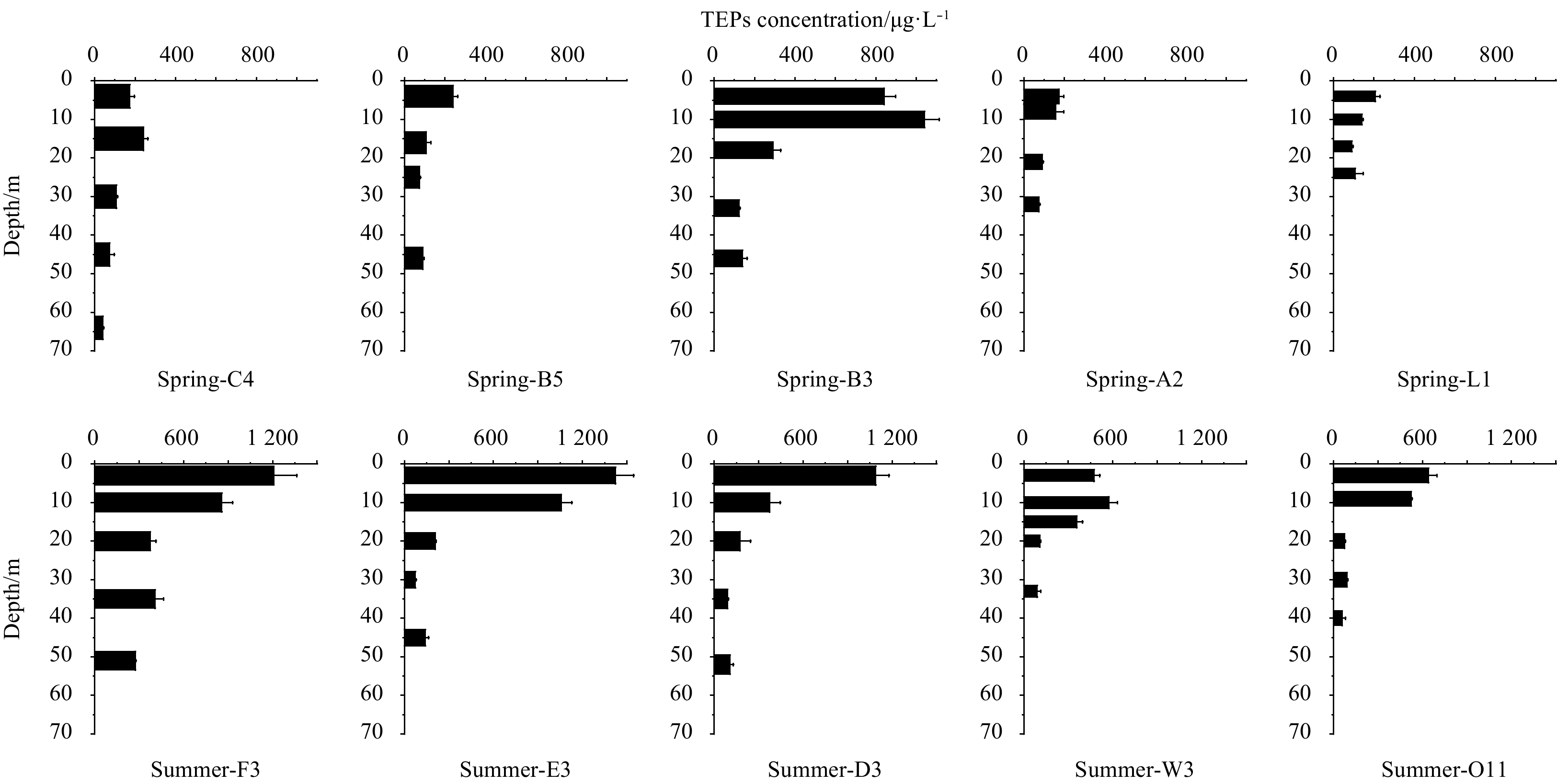

Concentrations of TEPs at each station are shown in Fig. 3. TEPs concentrations ranged from 40.00 μg/L to 1 040.00 μg/L with an average value of 209.70 μg/L in spring, and they ranged from 56.67 μg/L to 1 423.33 μg/L in summer with an average value of 433.33 μg/L. In spring, surface TEPs concentration was highest with a value of 840.00 μg/L at Station B3, which was at least 3 fold of that at the non-bloom Stations C4, B5, A2 and L1. In summer, surface TEPs concentrations at the bloom Stations F3, E3 and D3 (>1 000 μg/L) were also higher than at non-bloom Stations W3 and O11 (<700 μg/L). In the vertical direction, the TEPs depth-profiles showed consistently higher concentrations in the upper layer than in deeper layers during both cruises.
TEPs concentration showed significant positive correlation with Chl a concentration during both cruises, and showed significant positive correlation with temperature with all the data of these two cruises (Table 1). No other environmental parameter was found to have a significant correlation with TEPs concentration. The equation obtained for the TEPs-Chl a relationship is lg TEPs = 2.13 + 0.59 × lg Chl a (n=22, r2=0.81 and p<0.01) in spring and lg TEPs = 2.30 + 0.61 × lg Chl a (n=25, r2=0.83 and p<0.01) in summer.
3.3 Sinking rates of TEPs

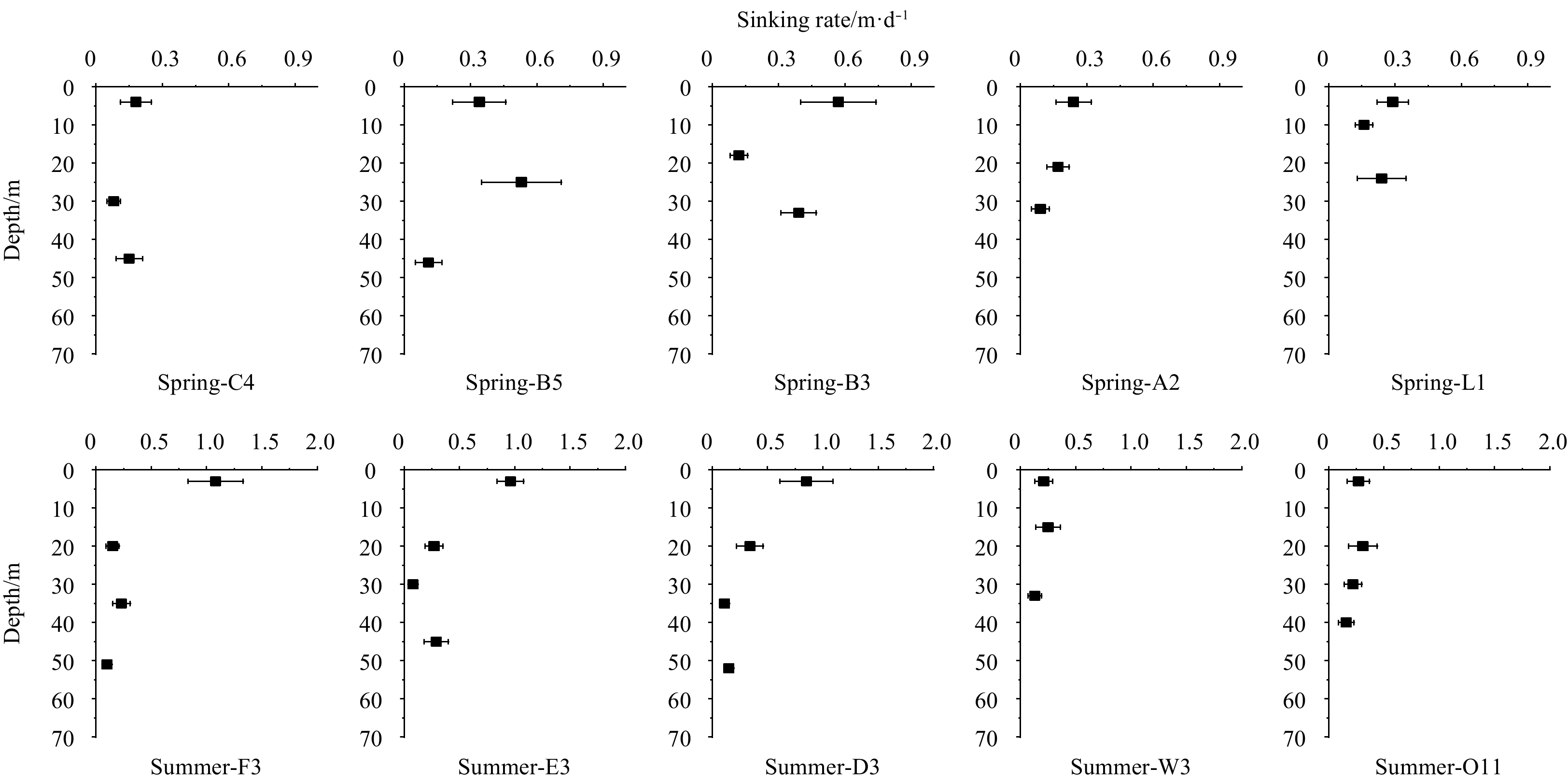

Sinking rates of TEPs are shown in Fig. 4. Sinking rates of TEPs ranged from 0.08 m/d to 0.57 m/d in spring with an average value of 0.28 m/d and from 0.10 m/d to 1.08 m/d in summer with an average value of 0.34 m/d. Except for the surface layer at Station F3 in summer, most of the sinking rates determined in the study area were below 1 m/d. For the surface layer in spring, the sinking rate of TEPs at the bloom Station B3 ((0.57±0.17) m/d) was the highest, followed by Stations B5, L1, and A2. Station C4 exhibited the lowest TEPs sinking rate. For the surface layer in summer, sinking rates of TEPs were obviously higher at the bloom Station F3, E3, and D3 (mean=(0.96±0.09) m/d) than at the non-bloom Stations W3 and O11 (mean=(0.24±0.03) m/d). In the vertical direction, TEPs sinking rates were higher in the surface layer than in underlying layers at most stations, and it is particularly apparent in summer (Fig. 5).

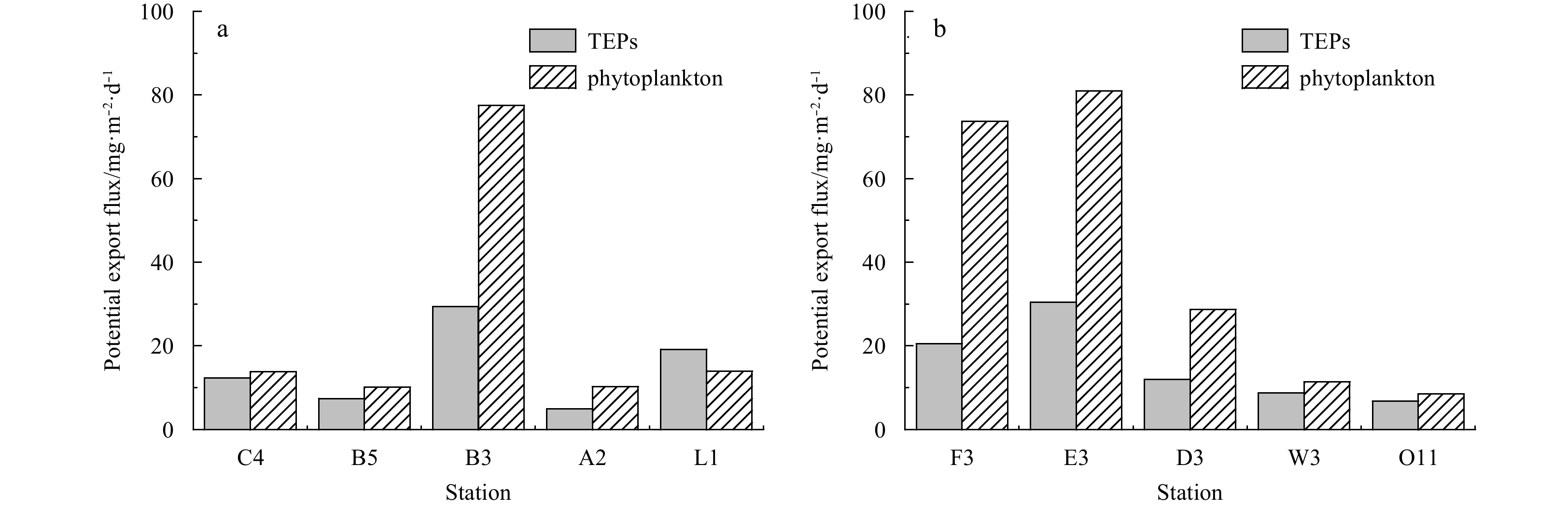

The potential sedimentation flux of TEP-C estimated with SETCOL-determined sinking rates at each station is shown in Fig. 6. In spring, the sedimentation flux of TEP-C ranged from 4.95 mg/(m2∙d) to 29.40 mg/(m2∙d) with an average value of (14.66±8.83) mg/(m2∙d), and the flux at the bloom Station B3 was higher than that at the non-bloom Stations C4, B5, A2 and L1. In summer, the potential sedimentation flux of TEP-C ranged from 6.80 mg/(m2∙d) to 30.45 mg/(m2∙d) with an average value of (15.71±8.73) mg/(m2∙d), and the flux at the bloom Stations F3, E3 and D3 were higher than that at the non-bloom Stations W3 and O11. The potential sedimentation flux of phytoplankton-C in the study area ranged from 10.13 mg/(m2∙d) to 77.52 mg/(m2∙d) in spring and from 8.50 mg/(m2∙d) to 80.95 mg/(m2∙d) in summer. Sedimentation flux of TEP-C equalled to 27.82%–138.27% (mean=65.15%±31.75%) of that of phytoplankton-C during the two cruises in the study area.
4 Discussion
Less
4.1 Correlation between TEPs and biological/environmental parameters
In this study, TEPs concentrations in the 10 m layer at Station B3 during spring and within the surface layer at Stations F3, E3, and D3 during summer were high, exceeding 1 000 μg/L (Fig. 3). Phytoplankton biomasses at these stations were also high (Fig. 2). A P. dentatum bloom was observed at Station B3 in spring, and a S. cf. costatum bloom was observed at Stations F3, E3 and D3 in summer. The coincident maxima for TEPs and phytoplankton biomass at these stations are consistent with the concept that TEPs are mainly produced by growing and senescing phytoplankton cells (Passow et al., 2001; Passow, 2002b). The significant positive correlation between TEPs concentrations and Chl a concentrations in this study provides further support for this concept (Table 1).
Several studies have found that TEPs concentrations were high during phytoplankton blooms (Ramaiah and Furuya, 2002; Ortega-Retuerta et al., 2017). In particular, diatom blooms are always associated with high TEPs concentrations during their actively growing and/or senescent phases (Mari and Burd, 1998). This is consistent with the observed high TEPs concentrations at Stations F3, E3 and D3 in summer (Fig. 3). Skeletonema cf. costatum has already been proven to be a very important producer of TEPs (Engel, 2000; Beauvais et al., 2003), and the stations mentioned above represent only the stations where S. cf. costatum bloomed. In spring, TEPs concentration in the surface layer at Station B3 where P. dentatum bloomed was also higher than at other stations (Fig. 3). To date, there has been no report on the production of TEPs by P. dentatum. However, several studies have observed high TEPs levels during blooms dominated by dinoflagellates (Alldredge et al., 1998; Berman and Viner-Mozzini, 2001), and Han et al. (2016) found that Prorocentrum could produce copious amounts of mucous. Qiu et al. (2018) also found that P. dentatum could form aggregates during a spring bloom in the coastal East China Sea (ECS). Therefore, the ability of P. dentatum to produce TEPs and their precursors needs to be clarified in the future.
The TEPs profiles in the water column of this study presented maximum values in the upper layers and decreased as water depth increased (Fig. 3), which was consistent with that of Chl a (Fig. 2). Previous studies in other coastal waters have reported similar vertical distribution pattern (Bar-Zeev et al., 2011; García et al., 2002; Corzo et al., 2005; Zamanillo et al., 2019). These studies and our observations establish that this vertical distribution pattern of TEPs with higher concentrations in the upper layer decreasing with depth, is common in coastal seas during warm seasons, and this is mainly due to the higher phytoplankton biomass in the upper layer (Zamanillo et al., 2019). In most studies, the relationship between TEPs and Chl a was expressed with a potential function of the form lg TEPs=α + β × lg Chl a, and the value of α and β obtained in this study fell in the range reported in historical studies (Table 2).
Besides phytoplankton biomass and species composition, TEPs formation and distribution are also controlled by several environmental factors, including temperature (Claquin et al., 2008; Fukao et al., 2012), salinity (Mari et al., 2012) and nutrient levels (Mari et al., 2005). In this study, TEPs concentrations showed a significant positive correlation with temperature (Table 1). Claquin et al. (2008) studied the effects of temperature on photosynthetic parameters and TEPs production in eight species of marine microalgae, and they found that temperature influenced TEPs production by affecting the photosynthetic activity of phytoplankton cells. Fukao et al. (2012) studied the effects of temperature on cell growth and production of TEPs by the diatom Coscinodiscus granii, and they found higher growth rates of C. granii at higher temperatures. This is likely responsible for the high production of TEPs at higher temperature. Therefore, temperature impacts TEPs production by affecting phytoplankton physiological activity. In this study, salinity and nutrient concentrations showed no significant correlations with TEPs concentration (Table 1), despite their reported effects on TEPs formation (Mari et al., 2005, 2012; Pedrotti et al., 2010). The limited sample data and insignificant variation in salinity and nutrient concentrations among sampling stations (refer to Table 1 of Guo et al. (2016)) may be responsible for the poor correlations between TEPs and these environmental parameters in this study.
4.2 Comparison with other oceanic systems

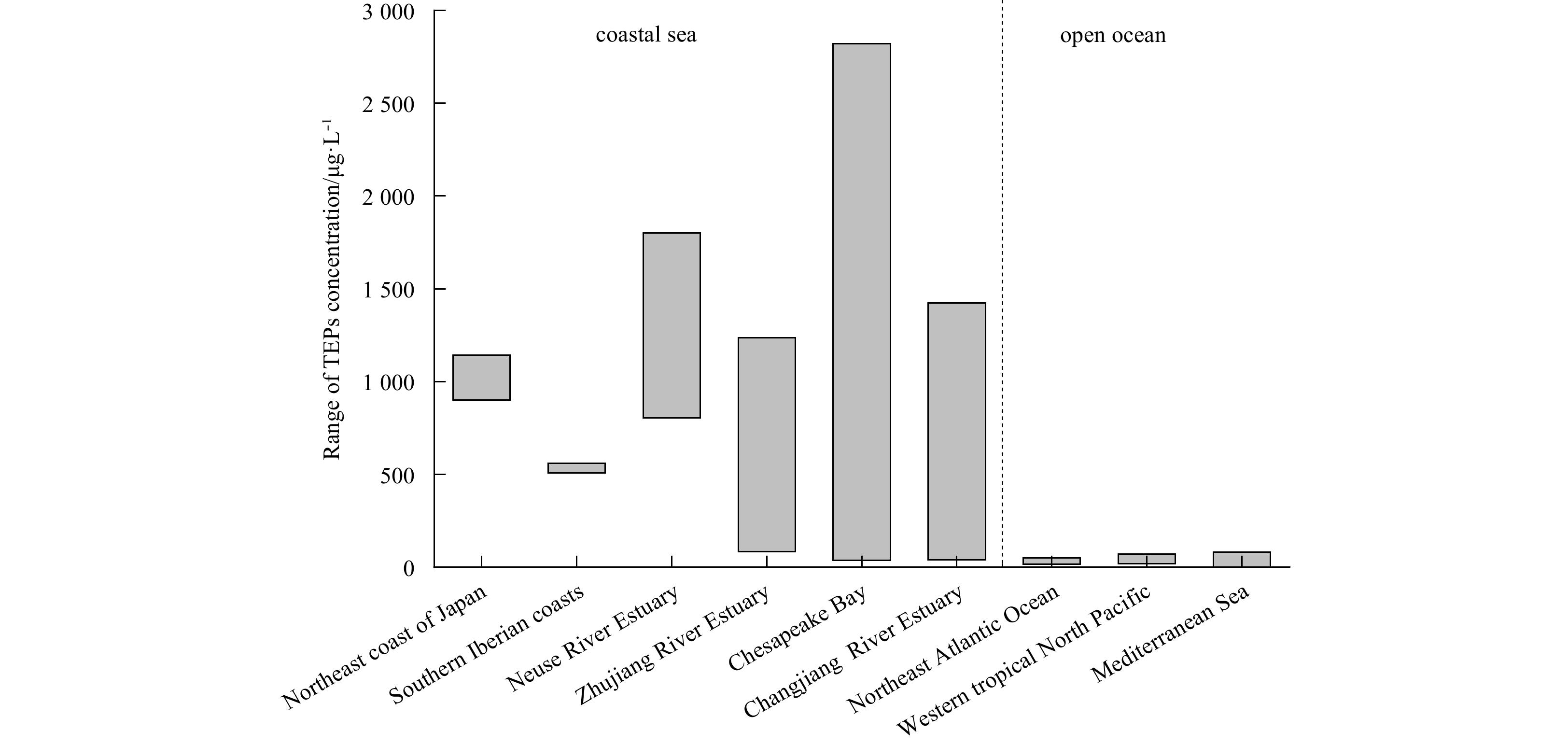

TEPs concentrations ranged from 40.00 μg/L to 1 423.33 μg/L in the study area, which is within the range reported in other coastal seas (Fig. 7). It has been found that coastal seas always present high TEPs concentrations (Passow, 2002a), which were higher than those reported in some open oceans (Kodama et al., 2014; Iuculano et al., 2017; Ortega-Retuerta et al., 2019). However, due to higher nutrient inputs and shallower mixing depths, phytoplankton biomass is also higher in coastal seas (Chang et al., 2003). For a better comparison, the ratio between TEPs concentration and phytoplankton biomass (Chl a) is considered here. Average TEP:Chl a ratios (w/w) in the study area ranged between 48.98 μg/μg and 380.95 μg/μg (mean=(148.83±90.47) μg/μg) in spring and 47.10 μg/μg and 385.19 μg/μg (mean=(182.84±103.60) μg/μg) in summer. These values are comparable to TEP:Chl a ratios determined in other coastal seas, such as the Ross Sea (~85 μg/μg) (Hong et al., 1997) and Subarctic Pacific (125–144 μg/μg) (Ramaiah et al., 2001), and lower than those in open oceans, such as the north-eastern Aegean Sea ((578±485) μg/μg) (Parinos et al., 2017) and the oligotrophic Pacific Ocean ((357.3±126.6) μg/μg) (Iuculano et al., 2017). These widely varying TEP:Chl a ratios imply that TEPs concentration, although associated with phytoplankton biomass, is also a factor of various physical and biological processes. The relatively high TEP:Chl a ratios in open oceans was most probably due to the strong nutrients limitation which promote TEPs production by phytoplankton cells (Pedrotti et al., 2010). Furthermore, as bacteria and other heterotrophic organisms also produce TEPs and its precursors (Sugimoto et al., 2007; Ortega-Retuerta et al., 2019), the active regeneration process in the open ocean (Capblancq, 1990) could also contribute to the high TEP:Chl a ratios there.
4.3 TEP-C in the Changjiang River Estuary

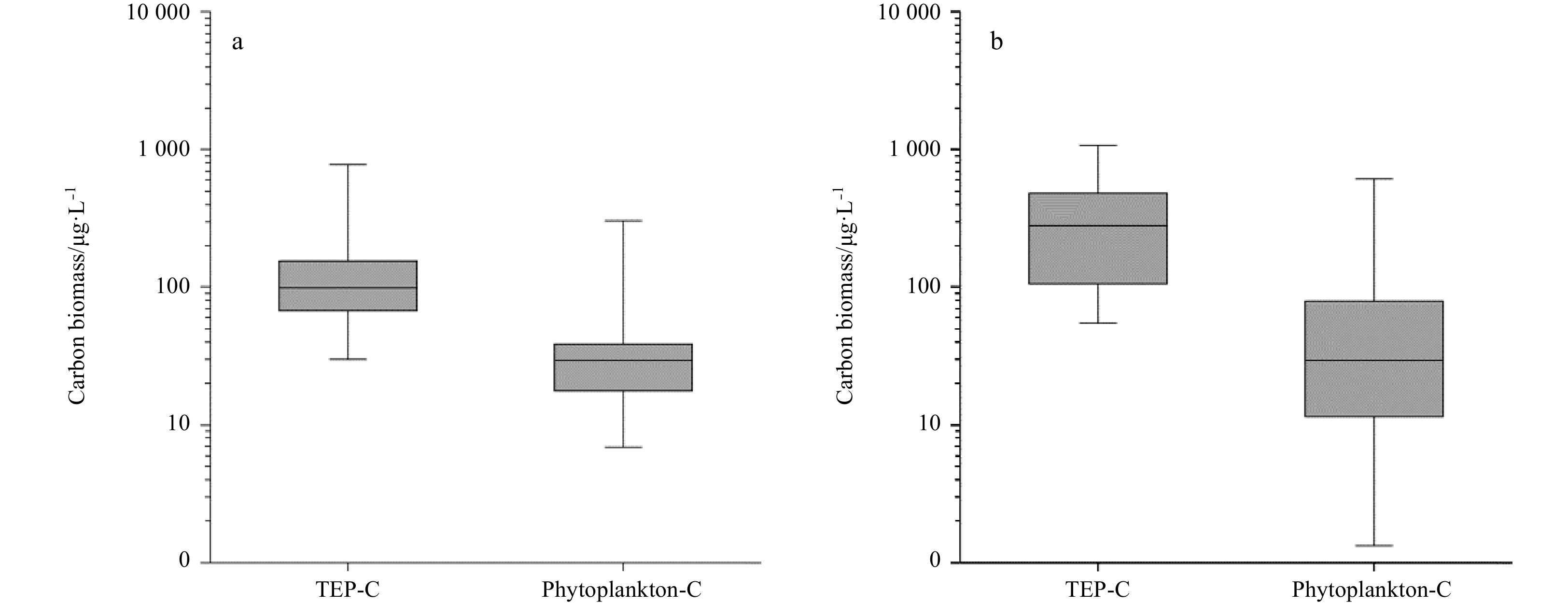

TEP-C calculated in this study ranged from 30.05 μg/L to 780.00 μg/L (mean=(157.27±180.70) μg/L) in spring and from 42.50 μg/L to 1 067.50 μg/L (mean=(325.10±294.77) μg/L) in summer. Phytoplankton-C were within the ranges of 6.84–293.17 μg/L (mean=(57.43±84.65) μg/L) in spring and from 1.33 μg/L to 595.52 μg/L (mean=(91.21±153.76) μg/L) in summer. Generally, TEP-C was at a similar level to phytoplankton-C and even slightly higher than phytoplankton-C during both cruises in the study area (Fig. 8). It should be noted that in the study of Guo et al. (2016), phytoplankton cell carbon was converted from cell volume with the equation in Eppley et al. (1970) in the Changjiang River Estuary. However, phytoplankton cell carbon was calculated from the cell volume with the equation formulated by Menden-Deuer and Lessard (2000) in this study. To our knowledge, the formula in Menden-Deuer and Lessard (2000) is more widely accepted in recent years compared to that of Eppley et al. (1970). Therefore, we calculated phytoplankton cell carbon with the equation in Menden-Deuer and Lessard (2000).
Several studies have revealed that TEPs could constitute an important part of the POC pool in coastal environments. Wetz et al. (2009) found that TEP-C averaged 16% of the total POC in the Neuse River Estuary of North Carolina. Sun et al. (2012) found that TEP-C could constitute 15% of the total POC in the Zhujiang River Estuary in China. Malpezzi et al. (2013) found that TEP-C could constitute 32% of the total POC in the Chesapeake Bay. Ortega-Retuerta et al. (2017) observed that in early summer TEPs represented 77% of the POC on average in the coastal northwestern Mediterranean Sea. Ignacio (2015) estimated that TEPs would represent between one quarter and two fifths of the total POC of the epipelagic zone for the global ocean by studying TEPs concentrations across the tropical and subtropical regions of the Atlantic, Indian and Pacific Oceans. It is unfortunate that POC data are not available for this analysis. However, phytoplankton-C was calculated from the geometric model (Sun and Liu, 2003). We compared TEP-C and phytoplankton-C with the assumption that this kind of comparison would reflect the importance of TEP-C in the POC pool. TEP-C was at a similar level to phytoplankton-C or even higher than it during spring and summer (Fig. 8). As phytoplankton-C always constitutes a significant part of the POC pool in eutrophic coastal seas (Chang et al., 2003), TEPs would also most probably constitute a significant part of the POC pool in the Changjiang River Estuary. It should be noted that our calculations and conversion factors for TEP-C come from the only available theoretical concentration relationships. These relationships were determined from TEPs produced from a variety of pure diatom cultures as well as a natural assemblage of diatoms (Engel and Passow, 2001), ranging from 0.53 μg C (μg Xeq)–1 to 0.88 μg C (μg Xeq)–1 with an average value of 0.75 μg C (μg Xeq)–1. Assuming that the production of exudates is likely to be species-specific for phytoplankton cells (Penna et al., 1999), the C content of TEPs would also change among species. Therefore, the conversion factors from Engel and Passow et al. (2001) may be inaccurate for estimating TEP-C in phytoplankton groups other than diatoms.
4.4 TEPs sinking rates and their potential role in the carbon sedimentation in the Changjiang River Estuary
There have been already several studies on carbon sedimentation in the Changjiang River Estuary and adjacent coastal ECS. Hung et al. (2013) estimated that POC export fluxes are 486–785 mg/(m2∙d) in the coastal ECS with sediment trap measurements and vertical mixing models. Guo et al. (2016) studied sinking rates of phytoplankton cells in the Changjiang River Estuary and estimated that export flux of phytoplankton cells was (26.10±26.25) mg/(m2∙d) in spring and (63.13±48.16) mg/(m2∙d) in summer. Qiu et al. (2018) reported simultaneous estimates of the POC fluxes from phytoplankton cells and zooplankton fecal pellets in the coastal ECS, and found that POC fluxes at the bloom station could be as high as 24 g/(m2∙d), which was about 100 times the rate at non-bloom stations (0.26 g/(m2∙d)). Until now, there has been no study on TEPs sinking rates and their export flux in this area.
To our knowledge, we present here the first data of TEPs sinking rates in the Changjiang River Estuary, and the 0.08–1.08 m/d range of TEPs sinking rates measured with the SETCOL method in this study fell within the range reported in other studies (Table 3). It has been reported that TEPs are less dense than seawater, with an estimated density between 0.70 g/cm3 to 0.84 g/cm3 (Azetsu-Scott and Passow, 2004). Therefore, ballast-free, “pure” TEPs would ascend in the seawater. This is consistent with the results of Azetsu-Scott and Passow (2004) and Mari (2008) that the sinking rates of TEPs could be negative (Table 3). However, ballast-free TEPs are unlikely to exist in large numbers in coastal seas due to high concentrations of suspended inorganic and organic particulate matter in these areas. As TEPs are extremely sticky (Rochelle-Newall et al., 2010), they can form aggregates with ambient phytoplankton cells, bacteria, mineral clays, and detritus (Prieto et al., 2002). This aggregation probably increases the weight of TEPs and allows them to sink to deeper waters (Mari et al., 2017). De Vicente et al. (2009) calculated TEPs sinking rates in an oligotrophic reservoir via sediment trap results. They found that TEPs sinking rates ranged from 1.12 m/d to 1.31 m/d, which is slightly higher than our results. In the Vincente study, they found large phytoplankton aggregates in the sediment traps, and these aggregates containing TEPs are likely responsible for the higher TEPs sinking rates reported in their study. However, these large phytoplankton aggregates containing TEPs might be lost during the discrete sampling of the SETCOL method. Therefore, this study underestimated TEPs sinking rates by excluding the effect of large phytoplankton aggregates.

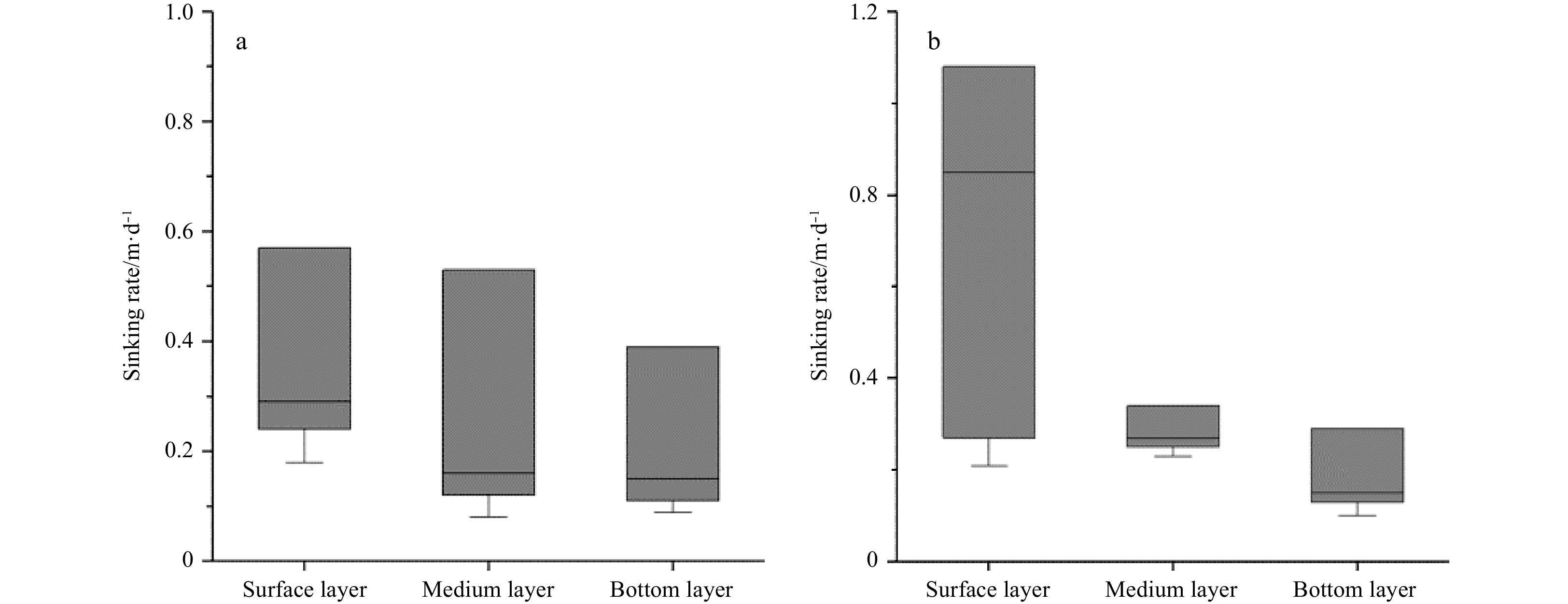

During both cruises, sinking rates of TEPs at the bloom station were obviously higher than at the non-bloom station (Fig. 4). In the vertical direction, TEPs sinking rates were higher in the surface layer than in underlying layers (Fig. 5). Therefore, sinking rate of TEPs in this study was high at sites where phytoplankton biomass was high. According to coagulation theory, aggregation of particles depends on collision rates and their sticking coefficients (Burd and Jackson, 2009). The higher abundance of phytoplankton cells would result in the higher collision rates between TEPs and phytoplankton cells, further leading to the enhanced formation of fast sinking phytoplankton-TEPs aggregates (Jackson and Burd, 1998). Qiu et al. (2018) found that phytoplankton sinking rates at the bloom event was more than 10 times the rate at non-bloom stations during a P. dentatum bloom in the ECS, and the microscopic observation indicated that the formation of phytoplankton aggregates was responsible for the high sinking rates during the bloom. Therefore, there is a larger probability for TEPs and phytoplankton cells to collide and form aggregates at the bloom station in this study, which should be responsible for the higher TEPs sinking rates there.
It has been reported that TEPs disappear from the euphotic zone via two main pathways: degradation by bacteria and sinking processes associated with other particles (Prieto et al., 2006). Researchers have concluded that the former pathway is less important than the sinking process due to the refractory nature of TEPs (Obernosterer and Herndl, 1995). Therefore, sedimentation of TEPs represents the dominant pathway of their removal in the ocean. As the concentration and carbon content of TEPs is sometimes within the same order of magnitude as that of phytoplankton cells (Passow, 2002a), export of carbon via sedimentation of TEPs is significant. In the Santa Barbara Channel, the sedimentation flux of TEPs at 500 m was found to range from 7 mg/(m2∙d) to 70 mg/(m2∙d), contributing roughly 30% to the POC flux in this area (Passow et al., 2001). In an oligotrophic reservoir in southern Spain, the sedimentation flux of TEPs ranged from 0.51 mg/(m2∙d) to 177.04 mg/(m2∙d) at the bottom layer, contributing between 0.02% and 31% to the carbon sedimentation to sediments (Mari et al., 2017). In this study, the potential sedimentation flux of TEPs was calculated within the range of 4.95–29.40 mg/(m2∙d) in spring and 6.80–30.45 mg/(m2∙d) in summer (Fig. 6). It is unfortunate that no data regarding the sedimentation flux of POC was obtained for this study. However, we estimated the potential sedimentation flux of phytoplankton cells with the SETCOL-determined sinking rates in this study, and found that the sedimentation flux of TEPs could be equalled to 27.82%–138.27% of sedimentation flux of phytoplankton cells in the study area. Because phytoplankton cell sedimentation is always considered an important pathway of carbon sedimentation in the coastal sea (Turner, 2002, 2015), the results of this study indicate that sedimentation of TEPs should also be an important pathway of POC export in the Changjiang River Estuary. As TEPs are types of transparent gel-like particles found in seawater, they have been largely ignored and have received much less attention in studies on POC export when compared with phytoplankton cells and zooplankton fecal pellets (Turner, 2002, 2015). The results of this study suggest that they should be taken into account when studying sinking POC in eutrophic coastal seas around the world.
5 Conclusions
Less
This study reported concentrations and sinking rates of TEPs in the Changjiang River Estuary during the spring and summer of 2011, and the potential sedimentation flux of TEPs was also estimated and compared with phytoplankton cells to reveal their importance in the carbon sedimentation in the eutrophic coastal sea. TEPs concentrations ranged from 40.00 μg/L to 1 423.33 μg/L in the study area, which is within the range reported in other coastal seas around the world. TEPs concentrations exhibited a significant positive correlation with Chl a concentrations, with high values being observed at the bloom station during both cruises. TEP-C was at a similar level to phytoplankton-C or even higher than it during both cruises, indicating that TEPs would most probably constitute a significant part of the POC pool in the study area. The sedimentation flux of TEPs was estimated with the SETCOL-determined sinking rates, and it equalled to 27.82%–138.27% (mean=65.15%±31.75%) of sedimentation flux of phytoplankton cells in the study area, indicating that TEPs play a significant role in the carbon sedimentation in the Changjiang River Estuary.
Acknowledgements
Less
We thank the crew and captain of the R/V Shiyan3 and R/V Beidou for the logistic support during the cruise. We also thank Sumei Liu for providing the nutrients data and Daji Huang for providing the temperature and salinity data.
Funding
Less
  • The National Key Research and Development Project of China under contract No. 2019YFC1407805; the National Natural Science Foundation of China under contract Nos 41876134, 91751202, 31700425, 41676112 and 41276124; the Tianjin 131 Innovation Team Program under contract No. 20180314; the Changjiang Scholar Program of Chinese Ministry of Education (T2014253) to Jun Sun.
References
Less
Alldredge A L, Passow U, Haddock S H D. 1998. The characteristics and Transparent Exopolymer Particle (TEP) content of marine snow formed from thecate dinoflagellates. Journal of Plankton Research, 20(3): 393–406, doi: 10.1093/plankt/20.3.393
Alldredge A L, Passow U, Logan B E. 1993. The abundance and significance of a class of large, transparent organic particles in the ocean. Deep Sea Research Part I: Oceanographic Research Papers, 40(6): 1131–1140, doi: 10.1016/0967-0637(93)90129-Q
Azetsu-Scott K, Passow U. 2004. Ascending marine particles: significance of transparent exopolymer particles (TEP) in the upper ocean. Limnology and Oceanography, 49(3): 741–748, doi: 10.4319/lo.2004.49.3.0741
Bar-Zeev E, Berman T, Rahav E, et al. 2011. Transparent Exopolymer Particle (TEP) dynamics in the eastern Mediterranean Sea. Marine Ecology Progress Series, 431: 107–118, doi: 10.3354/meps09110
Bar-Zeev E, Berman-Frank I, Stambler N, et al. 2009. Transparent exopolymer particles (TEP) link phytoplankton and bacterial production in the Gulf of Aqaba. Aquatic Microbial Ecology, 56(2–3): 217–225
Bauer J E, Cai Weijun, Raymond P A, et al. 2013. The changing carbon cycle of the coastal ocean. Nature, 504(7478): 61–70, doi: 10.1038/nature12857
Beauvais S, Pedrotti M L, Villa E, et al. 2003. Transparent Exopolymer Particle (TEP) dynamics in relation to trophic and hydrological conditions in the NW Mediterranean Sea. Marine Ecology Progress Series, 262: 97–109, doi: 10.3354/meps262097
Berman T, Viner-Mozzini Y. 2001. Abundance and characteristics of polysaccharide and proteinaceous particles in Lake Kinneret. Aquatic Microbial Ecology, 24(3): 255–264
Bienfang P K. 1981. SETCOL-a technologically simple and reliable method for measuring phytoplankton sinking rates. Canadian Journal of Fisheries and Aquatic Sciences, 38(10): 1289–1294, doi: 10.1139/f81-173
Burd A B, Jackson G A. 2009. Particle aggregation. Annual Review of Marine Science, 1: 65–90, doi: 10.1146/annurev.marine.010908.163904
Cai Weijun. 2011. Estuarine and coastal ocean carbon paradox: CO2 sinks or sites of terrestrial carbon incineration?. Annual Review of Marine Science, 3(1): 123–145, doi: 10.1146/annurev-marine-120709-142723
Capblancq J. 1990. Nutrient dynamics and pelagic food web interactions in oligotrophic and eutrophic environments: an overview. Hydrobiologia, 207: 1–14, doi: 10.1007/BF00041435
Chang J, Shiah F K, Gong G C, et al. 2003. Cross-shelf variation in carbon-to-chlorophyll a ratios in the East China Sea, summer 1998. Deep Sea Research Part II: Topical Studies in Oceanography, 50(6–7): 1237–1247, doi: 10.1016/S0967-0645(03)00020-1
Chen C T A, Borges A V. 2009. Reconciling opposing views on carbon cycling in the coastal ocean: continental shelves as sinks and near-shore ecosystems as sources of atmospheric CO2. Deep Sea Research Part II: Topical Studies in Oceanography, 56(8–10): 578–590, doi: 10.1016/j.dsr2.2009.01.001
Chen Hongtao, Yu Zhigang, Yao Qingzheng, et al. 2010. Nutrient concentrations and fluxes in the Changjiang Estuary during summer. Acta Oceanologica Sinica, 29(2): 107–119, doi: 10.1007/s13131-010-0029-8
Cheng F, Song X, Yu Z, et al. 2012. Historical records of eutrophication in Changjiang (Yangtze) River estuary and its adjacent East China Sea. Biogeosciences Discussions, 9(6): 6261–6291, doi: 10.5194/bgd-9-6261-2012
Claquin P, Probert I, Lefebvre S, et al. 2008. Effects of temperature on photosynthetic parameters and TEP production in eight species of marine microalgae. Aquatic Microbial Ecology, 51(1): 1–11
Corzo A, Rodríguez-Gálvez S, Lubian L, et al. 2005. Spatial distribution of transparent exopolymer particles in the Bransfield Strait, Antarctica. Journal of Plankton Research, 27(7): 635–646, doi: 10.1093/plankt/fbi038
De Vicente I, Ortega-Retuerta E, Romera O, et al. 2009. Contribution of transparent exopolymer particles to carbon sinking flux in an oligotrophic reservoir. Biogeochemistry, 96(1–3): 13–23, doi: 10.1007/s10533-009-9342-8
Engel A. 2000. The role of Transparent Exopolymer Particles (TEP) in the increase in apparent particle stickiness (α) during the decline of a diatom bloom. Journal of Plankton Research, 22(3): 485–497, doi: 10.1093/plankt/22.3.485
Engel A. 2002. Direct relationship between CO2 uptake and transparent exopolymer particles production in natural phytoplankton. Journal of Plankton Research, 24(1): 49–53, doi: 10.1093/plankt/24.1.49
Engel A. 2004. Distribution of Transparent Exopolymer Particles (TEP) in the northeast Atlantic Ocean and their potential significance for aggregation processes. Deep Sea Research Part I: Oceanographic Research Papers, 51(1): 83–92, doi: 10.1016/j.dsr.2003.09.001
Engel A, Passow U. 2001. Carbon and nitrogen content of Transparent Exopolymer Particles (TEP) in relation to their Alcian Blue adsorption. Marine Ecology Progress Series, 219: 1–10, doi: 10.3354/meps219001
Eppley R W, Reid F M H, Strickland J D H. 1970. Estimates of phytoplankton crop size, growth rate and primary production. In: Strickland J D H, ed. The Ecology of the Plankton off La Jolla, California in the Period April through September 1967. Part III. California: Bulletin of the Scripps Institution of Oceanography of the University of California, 17: 33–42
Fukao T, Kimoto K, Kotani Y. 2012. Effect of temperature on cell growth and production of transparent exopolymer particles by the diatom Coscinodiscus granii isolated from marine mucilage. Journal of Applied Phycology, 24(2): 181–186, doi: 10.1007/s10811-011-9666-3
García C M, Prieto L, Vargas M, et al. 2002. Hydrodynamics and the spatial distribution of plankton and TEP in the Gulf of Cádiz (SW Iberian Peninsula). Journal of Plankton Research, 24(8): 817–833, doi: 10.1093/plankt/24.8.817
Guo Shujin, Feng Yuanyuan, Wang Lei, et al. 2014. Seasonal variation in the phytoplankton community of a continental-shelf sea: the East China Sea. Marine Ecology Progress Series, 516: 103–126, doi: 10.3354/meps10952
Guo Shujin, Sun Jun, Wang Yu. 2019. Production and export of copepods fecal pellets in an eutrophic coastal sea: the Changjiang (Yangtze River) estuary. Estuarine, Coastal and Shelf Science, 218: 163–172, doi: 10.1016/j.ecss.2018.12.001
Guo Shujin, Sun Jun, Zhao Qibiao, et al. 2016. Sinking rates of phytoplankton in the Changjiang (Yangtze River) estuary: a comparative study between Prorocentrum dentatum and Skeletonema dorhnii bloom. Journal of Marine Systems, 154: 5–14, doi: 10.1016/j.jmarsys.2015.07.003
Han M S, Wang Pengbin, Kim J H, et al. 2016. Morphological and molecular phylogenetic position of Prorocentrum micans sensu stricto and description of Prorocentrum koreanum sp. nov. from Southern Coastal Waters in Korea and Japan. Protist, 167(1): 32–50
Hong Ying, Smith Jr W O, White A M. 1997. Studies on Transparent Exopolymer Particles (TEP) produced in the Ross Sea (Antarctica) and by Phaeocystis antarctica (Prymnesiophyceae). Journal of Phycology, 33(3): 368–376, doi: 10.1111/j.0022-3646.1997.00368.x
Hung C C, Tseng C W, Gong G C, et al. 2013. Fluxes of particulate organic carbon in the East China Sea in summer. Biogeosciences, 10(10): 6469–6484, doi: 10.5194/bg-10-6469-2013
Ignacio P M. 2015. Exopolymer particles in the ocean: production by microorganisms, carbon export and mesopelagic respiration [dissertation]. Granada: Universidad de Granada
Iuculano F, Duarte C M, Marbà N, et al. 2017. Seagrass as major source of transparent exopolymer particles in the oligotrophic Mediterranean coast. Biogeosciences, 14(22): 5069–5075, doi: 10.5194/bg-14-5069-2017
Jackson G A, Burd A B. 1998. Aggregation in the marine environment. Environmental Science & Technology, 32(19): 2805–2814
Jennings M K, Passow U, Wozniak A S, et al. 2017. Distribution of Transparent Exopolymer Particles (TEP) across an organic carbon gradient in the western North Atlantic Ocean. Marine Chemistry, 190: 1–12, doi: 10.1016/j.marchem.2017.01.002
Klein C, Claquin P, Pannard A, et al. 2011. Dynamics of soluble extracellular polymeric substances and transparent exopolymer particle pools in coastal ecosystems. Marine Ecology Progress Series, 427: 13–27, doi: 10.3354/meps09049
Kodama T, Kurogi H, Okazaki M, et al. 2014. Vertical distribution of transparent exopolymer particle (TEP) concentration in the oligotrophic western tropical North Pacific. Marine Ecology Progress Series, 513: 29–37, doi: 10.3354/meps10954
Koeve W. 2005. Magnitude of excess carbon sequestration into the deep ocean and the possible role of TEP. Marine Ecology Progress Series, 291: 53–64, doi: 10.3354/meps291053
Liu Sumei, Li Ruihuan, Zhang Guiling, et al. 2011. The impact of anthropogenic activities on nutrient dynamics in the tropical Wenchanghe and Wenjiaohe Estuary and Lagoon system in East Hainan, China. Marine Chemistry, 125(1–4): 49–68, doi: 10.1016/j.marchem.2011.02.003
Liu Xin, Xiao Wupeng, Landry M R, et al. 2016. Responses of phytoplankton communities to environmental variability in the East China Sea. Ecosystems, 19(5): 832–849, doi: 10.1007/s10021-016-9970-5
Malpezzi M A, Sanford L P, Crump B C. 2013. Abundance and distribution of transparent exopolymer particles in the estuarine turbidity maximum of Chesapeake Bay. Marine Ecology Progress Series, 486: 23–35, doi: 10.3354/meps10362
Mari X. 1999. Carbon content and C: N ratio of Transparent Exopolymeric Particles (TEP) produced by bubbling exudates of diatoms. Marine Ecology Progress Series, 183: 59–71, doi: 10.3354/meps183059
Mari X. 2008. Does ocean acidification induce an upward flux of marine aggregates?. Biogeosciences Discussion, 5: 1631–1654, doi: 10.5194/bgd-5-1631-2008
Mari X, Burd A. 1998. Seasonal size spectra of Transparent Exopolymeric Particles (TEP) in a coastal sea and comparison with those predicted using coagulation theory. Marine Ecology Progress Series, 163: 63–76, doi: 10.3354/meps163063
Mari X, Passow U, Migon C, et al. 2017. Transparent exopolymer particles: effects on carbon cycling in the ocean. Progress in Oceanography, 151: 13–37, doi: 10.1016/j.pocean.2016.11.002
Mari X, Rassoulzadegan F, Brussaard C P D, et al. 2005. Dynamics of Transparent Exopolymeric Particles (TEP) production by Phaeocystis globosa under N- or P-limitation: a controlling factor of the retention/export balance. Harmful Algae, 4(5): 895–914, doi: 10.1016/j.hal.2004.12.014
Mari X, Torréton J P, Trinh C B T, et al. 2012. Aggregation dynamics along a salinity gradient in the Bach Dang estuary, North Vietnam. Estuarine, Coastal and Shelf Science, 96: 151–158, doi: 10.1016/j.ecss.2011.10.028
Martin P, Lampitt R S, Perry M J, et al. 2011. Export and mesopelagic particle flux during a North Atlantic spring diatom bloom. Deep Sea Research Part I: Oceanographic Research Papers, 58(4): 338–349, doi: 10.1016/j.dsr.2011.01.006
Mei Zhiping, Legendre L, Gratton Y, et al. 2003. Phytoplankton production in the North Water Polynya: size-fractions and carbon fluxes, April to July 1998. Marine Ecology Progress Series, 256: 13–27, doi: 10.3354/meps256013
Menden-Deuer S, Lessard E J. 2000. Carbon to volume relationships for dinoflagellates, diatoms, and other protist plankton. Limnology and Oceanography, 45(3): 569–579, doi: 10.4319/lo.2000.45.3.0569
Obernosterer I, Herndl G J. 1995. Phytoplankton extracellular release and bacterial growth: dependence on the inorganic N: P ratio. Marine Ecology Progress Series, 116: 247–257, doi: 10.3354/meps116247
Ortega-Retuerta E, Mazuecos I P, Reche I, et al. 2019. Transparent Exopolymer Particle (TEP) distribution and in situ prokaryotic generation across the deep Mediterranean Sea and nearby North East Atlantic Ocean. Progress in Oceanography, 173: 180–191, doi: 10.1016/j.pocean.2019.03.002
Ortega-Retuerta E, Reche I, Pulido-Villena E, et al. 2009. Uncoupled distributions of transparent exopolymer particles (TEP) and dissolved carbohydrates in the Southern Ocean. Marine Chemistry, 115: 59–65, doi: 10.1016/j.marchem.2009.06.004
Ortega-Retuerta E, Sala M M, Borrull E, et al. 2017. Horizontal and vertical distributions of Transparent Exopolymer Particles (TEP) in the NW Mediterranean Sea are linked to Chlorophyll a and O2 variability. Frontiers in Microbiology, 7: 2159
Parinos C, Gogou A, Krasakopoulou E, et al. 2017. Transparent Exopolymer Particles (TEP) in the NE Aegean Sea frontal area: seasonal dynamics under the influence of Black Sea water. Continental Shelf Research, 149: 112–123, doi: 10.1016/j.csr.2017.03.012
Passow U, Alldredge A L. 1994. Distribution, size and bacterial colonization of Transparent Exopolymer Particles (TEP) in the ocean. Marine Ecology Progress Series, 113: 185–198, doi: 10.3354/meps113185
Passow U, Alldredge A L. 1995. A dye-binding assay for the spectrophotometric measurement of Transparent Exopolymer Particles (TEP). Limnology and Oceanography, 40(7): 1326–1335, doi: 10.4319/lo.1995.40.7.1326
Passow U, Shipe R F, Murray A, et al. 2001. The origin of Transparent Exopolymer Particles (TEP) and their role in the sedimentation of particulate matter. Continental Shelf Research, 21(4): 327–346, doi: 10.1016/S0278-4343(00)00101-1
Passow U. 2002a. Transparent Exopolymer Particles (TEP) in aquatic environments. Progress in Oceanography, 55(3–4): 287–333, doi: 10.1016/S0079-6611(02)00138-6
Passow U. 2002b. Production of Transparent Exopolymer Particles (TEP) by phyto- and bacterioplankton. Marine Ecology Progress Series, 236: 1–12, doi: 10.3354/meps236001
Pedrotti M L, Peters F, Beauvais S, et al. 2010. Effects of nutrients and turbulence on the production of transparent exopolymer particles: a mesocosm study. Marine Ecology Progress Series, 419: 57–69, doi: 10.3354/meps08840
Penna A, Berluti S, Penna N, et al. 1999. Influence of nutrient ratios on the in vitro extracellular polysaccharide production by marine diatoms from the Adriatic Sea. Journal of Plankton Research, 21(9): 1681–1690, doi: 10.1093/plankt/21.9.1681
Prieto L, Navarro G, Cózar A, et al. 2006. Distribution of TEP in the euphotic and upper mesopelagic zones of the southern Iberian coasts. Deep Sea Research Part II: Topical Studies in Oceanography, 53(11–13): 1314–1328, doi: 10.1016/j.dsr2.2006.03.009
Prieto L, Ruiz J, Echevarría F, et al. 2002. Scales and processes in the aggregation of diatom blooms: high time resolution and wide size range records in a mesocosm study. Deep Sea Research Part I: Oceanographic Research Papers, 49(7): 1233–1253, doi: 10.1016/S0967-0637(02)00024-9
Qiu Yong, Laws E A, Wang Lei, et al. 2018. The potential contributions of phytoplankton cells and zooplankton fecal pellets to POC export fluxes during a spring bloom in the East China Sea. Continental Shelf Research, 167: 32–45, doi: 10.1016/j.csr.2018.08.001
Ramaiah N, Furuya K. 2002. Seasonal variations in phytoplankton composition and transparent exopolymer particles in a eutrophicated coastal environment. Aquatic Microbial Ecology, 30(1): 69–82
Ramaiah N, Takeda S, Furuya K, et al. 2005. Effect of iron enrichment on the dynamics of transparent exopolymer particles in the western subarctic Pacific. Progress in Oceanography, 64(2–4): 253–261, doi: 10.1016/j.pocean.2005.02.012
Ramaiah N, Yoshikawa T, Furuya K. 2001. Temporal variations in Transparent Exopolymer Particles (TEP) associated with a diatom spring bloom in a subarctic ria in Japan. Marine Ecology Progress Series, 212: 79–88, doi: 10.3354/meps212079
Reigstad M, Wassmann P. 2007. Does Phaeocystis spp. contribute significantly to vertical export of organic carbon?. Biogeochemistry, 83(1–3): 217–234
Rochelle-Newall E J, Mari X, Pringault O. 2010. Sticking properties of Transparent Exopolymeric Particles (TEP) during aging and biodegradation. Journal of Plankton Research, 32(10): 1433–1442, doi: 10.1093/plankt/fbq060
Simon M, Grossart H P, Schweitzer B, et al. 2002. Microbial ecology of organic aggregates in aquatic ecosystems. Aquatic Microbial Ecology, 28(2): 175–211
Stoderegger K E, Herndl G J. 1999. Production of exopolymer particles by marine bacterioplankton under contrasting turbulence conditions. Marine Ecology Progress Series, 189: 9–16, doi: 10.3354/meps189009
Sugimoto K, Fukuda H, Baki M A, et al. 2007. Bacterial contributions to formation of Transparent Exopolymer Particles (TEP) and seasonal trends in coastal waters of Sagami Bay, Japan. Aquatic Microbial Ecology, 46(1): 31–41
Sun Jun, Liu Dongyan. 2003. Geometric models for calculating cell biovolume and surface area for phytoplankton. Journal of Plankton Research, 25(11): 1331–1346, doi: 10.1093/plankt/fbg096
Sun Cuici, Wang Youshao, Li Q P, et al. 2012. Distribution characteristics of transparent exopolymer particles in the Pearl River estuary, China. Journal of Geophysical Research: Biogeosciences, 117(G4): G00N17
Sun Cuici, Wang Youshao, Wu Meilin, et al. 2010. Distribution of transparent exopolymer particles in the Pearl River Estuary in summer. Journal of Tropical Oceanography (in Chinese), 29(5): 81–87
Tang Danling, Di Baoping, Wei Guifeng, et al. 2006. Spatial, seasonal and species variations of harmful algal blooms in the South Yellow Sea and East China Sea. Hydrobiologia, 568: 245–253, doi: 10.1007/s10750-006-0108-1
Turner J T. 2002. Zooplankton fecal pellets, marine snow and sinking phytoplankton blooms. Aquatic Microbial Ecology, 27(1): 57–102
Turner J T. 2015. Zooplankton fecal pellets, marine snow, phytodetritus and the ocean’s biological pump. Progress in Oceanography, 130: 205–248, doi: 10.1016/j.pocean.2014.08.005
Utermöhl H. 1958–1996. Zur Vervollkommnung der quantitativen Phytoplankton-Methodik. SIL Communications, 9(1): 1–38
Waite A M, Gustafsson Ö, Lindahl O, et al. 2005. Linking ecosystem dynamics and biogeochemistry: sinking fractionation of organic carbon in a Swedish fjord. Limnology and Oceanography, 50(2): 658–671, doi: 10.4319/lo.2005.50.2.0658
Welschmeyer N A. 1994. Fluorometric analysis of chlorophyll a in the presence of chlorophyll b and pheopigments. Limnology and Oceanography, 39(8): 1985–1992, doi: 10.4319/lo.1994.39.8.1985
Wetz M S, Robbins M C, Paerl H W. 2009. Transparent Exopolymer Particles (TEP) in a river-dominated estuary: spatial-temporal distributions and an assessment of controls upon TEP formation. Estuaries and Coasts, 32(3): 447–455, doi: 10.1007/s12237-009-9143-2
Xiao Wupeng, Liu Xin, Irwin A J, et al. 2018. Warming and eutrophication combine to restructure diatoms and dinoflagellates. Water Research, 128: 206–216, doi: 10.1016/j.watres.2017.10.051
Zamanillo M, Ortega-Retuerta E, Nunes S, et al. 2019. Distribution of Transparent Exopolymer Particles (TEP) in distinct regions of the Southern Ocean. Science of the Total Environment, 691: 736–748, doi: 10.1016/j.scitotenv.2019.06.524
Zhai Weidong, Dai Minhan. 2009. On the seasonal variation of air-sea CO2 fluxes in the outer Changjiang (Yangtze River) estuary, East China Sea. Marine Chemistry, 117(1–4): 2–10, doi: 10.1016/j.marchem.2009.02.008
Appendix
Less
Year 2020 volume 39 Issue 10
PDF
51
27
Cite this Article
BibTeX
Article Info
doi: 10.1007/s13131-020-1660-7
  • Receive Date：2019-10-16
  • Online Date：2026-03-31
  • Published：2020-10-25
Article Data
Affiliations
History
  • Received：2019-10-16
  • Accepted：2019-11-14
Funding
The National Key Research and Development Project of China under contract No. 2019YFC1407805; the National Natural Science Foundation of China under contract Nos 41876134, 91751202, 31700425, 41676112 and 41276124; the Tianjin 131 Innovation Team Program under contract No. 20180314; the Changjiang Scholar Program of Chinese Ministry of Education (T2014253) to Jun Sun.
Affiliations
    1 College of Marine Science and Technology, China University of Geosciences (Wuhan), Wuhan 430074, China
    2 Jiaozhou Bay Marine Ecosystem Research Station, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
    3 Center for Ocean Mega-Science, Chinese Academy of Sciences, Qingdao 266071, China

Corresponding:

References
Share
https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-020-1660-7
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
