Study on characteristics of internal solitary waves in the Malacca Strait based on Sentinel-1 and GF-3 satellite SAR data
收藏切换
PDF
Jing Ning1, Lina Sun2, Haiji Cui1, Kexiao Lu1, Jing Wang1, *
Acta Oceanologica Sinica | 2020, 39(5) : 151 - 156
Less
收藏切换
Acta Oceanologica Sinica | 2020, 39(5): 151-156
• Marine Information Science •
Study on characteristics of internal solitary waves in the Malacca Strait based on Sentinel-1 and GF-3 satellite SAR data
Full
Jing Ning1, Lina Sun2, Haiji Cui1, Kexiao Lu1, Jing Wang1, *
Affiliations
  • 1 College of Information Science and Engineering, Ocean University of China, Qingdao 266100, China
  • 2 First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266100, China
Published: 2020-05-25 doi: 10.1007/s13131-020-1604-2
Outline
收藏切换

The study of the characteristics of internal solitary waves happened in the Malacca Strait is an urgent problem for submarine, ship navigation and marine engineering. Based on SAR remote sensing data obtained from the high spatial resolution Sentinel-1 and GF-3, the internal solitary wave characteristics of the Malacca Strait are investigated. By use of 20 Sentinel-1 SAR images from June 2015 to December 2016 and 24 GF-3 images from April 2018 to March 2019, the spatial distribution characteristics of internal solitary wave s are statistically analyzed. It is found that the internal solitary waves are usually in the form of wave packets and single solitary waves, and the maximum crest length of the leading wave can reach 39 km. The amplitude and group velocity of internal solitary wave s can be calculated by the inversion model of high-order nonlinear Schrodinger (NLS) equation, and the calculated amplitude of the internal solitary wave s and the propagation group velocity of the wave packets range from 4.7 m to 23.9 m and 0.12 m/s to 0.40 m/s, respectively. The range of phase velocity of single internal solitary waves obtained by KdV equation is 0.26 m/s to 0.60 m/s. In general, the amplitude and the velocity of internal solitary wave s in Malacca strait are related to the topography.

internal solitary waves  /  SAR  /  amplitude  /  group velocity  /  phase velocity  /  Malacca Strait
Jing Ning, Lina Sun, Haiji Cui, Kexiao Lu, Jing Wang. Study on characteristics of internal solitary waves in the Malacca Strait based on Sentinel-1 and GF-3 satellite SAR data[J]. Acta Oceanologica Sinica, 2020 , 39 (5) : 151 -156 . DOI: 10.1007/s13131-020-1604-2
Full Text
Less
1 Introduction
Less
The Malacca Strait with 1 080 km long is the most important energy transport route. Due that the internal solitary waves (ISWs) have great influence on the navigation of ships and submarines, especially, Malacca Strait is the area where the ISWs occur frequently, it is necessary to study the characteristics of the ISWs in Malacca Strait.
It is well known that ISWs phenomenon shows strong randomness, and its amplitude, propagation velocity and wavelength are greatly affected by hydrology and other external environment (Fang and Du, 2005; Li et al., 2013; Alford et al., 2010; Cai and Xie, 2010; Huang et al., 2007; Hyder et al., 2005; Lai et al., 2010). The research of ISWs based on SAR image usually includes the following two aspects. One is to study the temporal and spatial distribution of ISWs. For example, in 2000, Hsu et al. (2000) studied the distribution of ISWs in the South China Sea based on 5-year satellite remote sensing images. Using satellite SAR data from July to October 2007, Kozlov et al. (2015) studied the characteristics of short-period ISWs in the Kara Sea. Filonov et al. (2014) studied the spatial distribution of ISWs of Todos Santos by means of the combination of real measurement and remote sensing. Another one is the imaging mechanism of ISWs on SAR image and the inversion of ISWs parameters. For example, in 2013, Liu et al. (2013) calculated the nonlinear phase velocity of the ISWs in the South China Sea using multi-source remote sensing data, and found that the velocity of the ISWs was greatly affected by the depth of water. In 2016, combined with nonlinear Schrodinger (NLS) equation, our team obtained the inversion model of SAR ISWs parameters, and the inversion results are close to the measured data (Zhang et al., 2016). With the increasing number of satellites in orbit, the understanding of ISWs by multi-source remote sensing becomes to be more and more comprehensive (Jackson, 2007; Schuler et al., 2003).
In a word, there is no research on the ISWs in Malacca Strait up to date. In this paper, ISWs in Malacca Strait are investigated from the spatial distribution of the waves, the velocity and amplitude of the ISWs, and so on, which will provide valuable scientific references for maritime navigation and marine engineering.
2 Spatial distribution characteristic of ISWs
Less
The Malacca Strait is located in the region of 0°–6°N and 97°–104°E. In order to observe and analyze the characteristics of ISWs in the Malacca Strait, Sentinel-1 SAR data from June 2015 to December 2016 and GF-3 data from April 2018 to March 2019 are collected. Because of the limitation of SAR orbital period, we obtain 20 Sentinel-1 images and 24 GF-3 images in total, and 344 ISW packets and ISWs are collected.

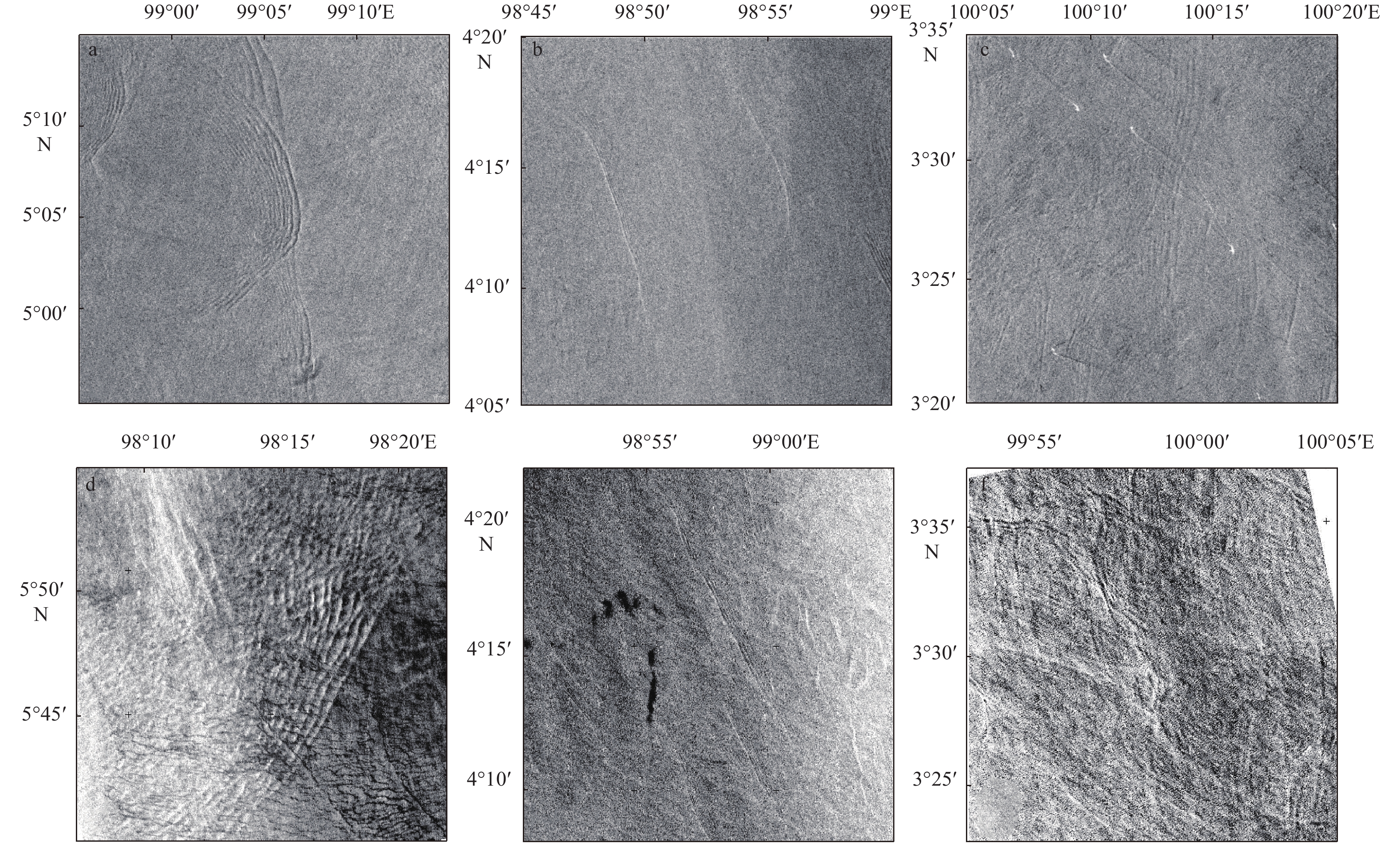

It can be seen from Fig. 1 that the ISWs in the Malacca Strait mainly appear in the form of wave packets and single solitary waves. Though the direction of ISWs propagation seems to be very complex, however, it always tends to propagate towards the shore.

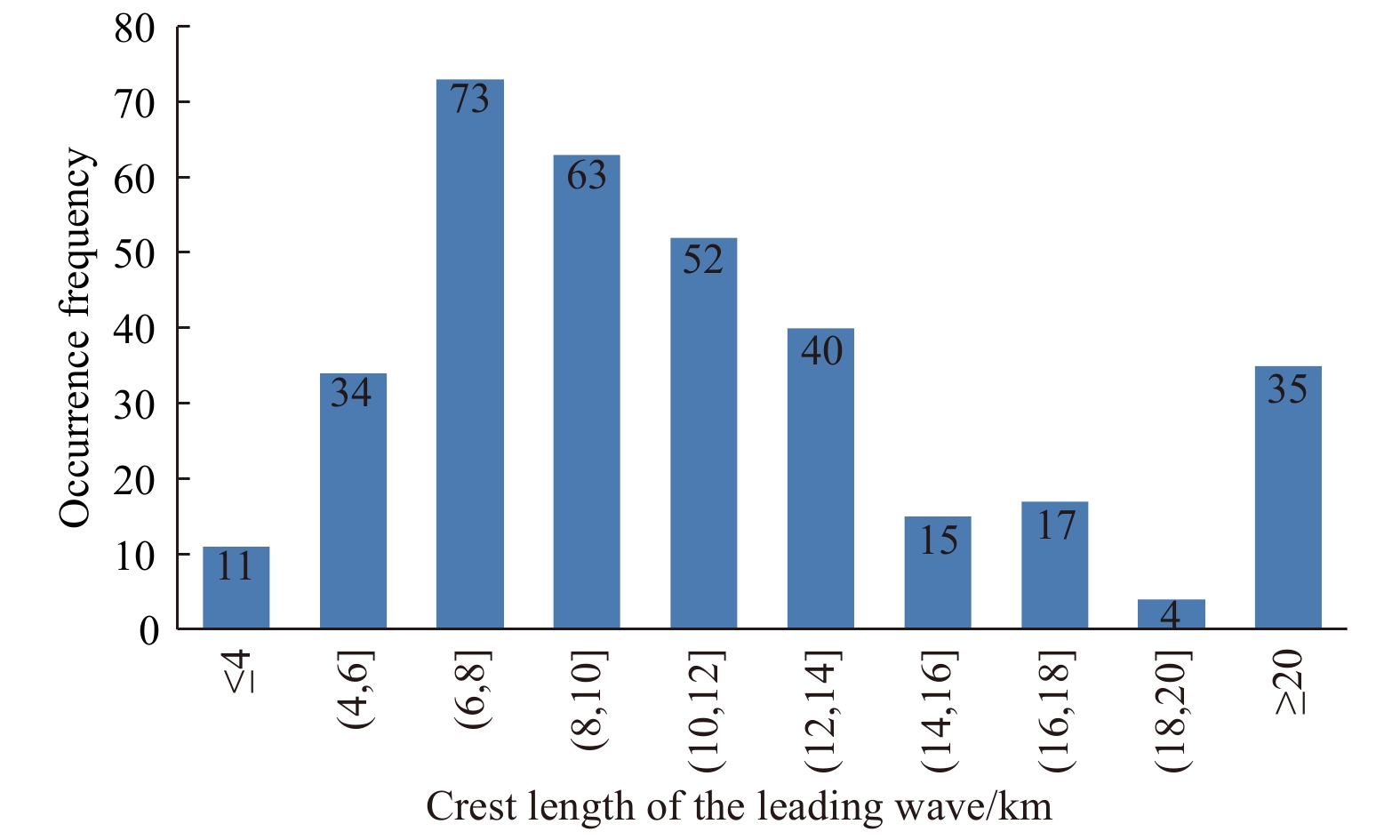

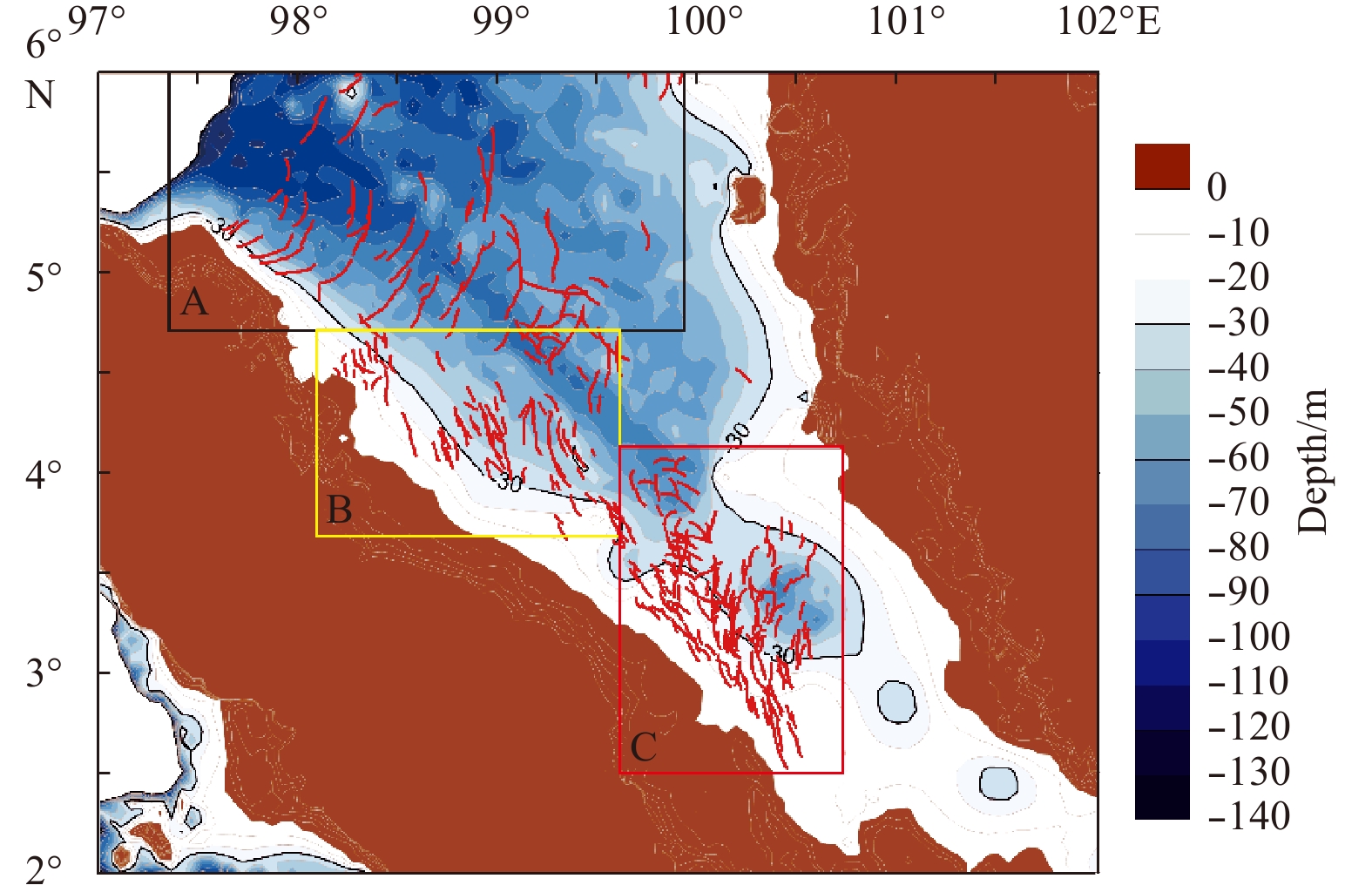

Furtherly, according to the position and the crest length of the leading wave in the ISW packets in 45 SAR images, the spatial distribution of the wave and the length distribution of the leading wave crest in the Malacca Strait are obtained, which are shown in Fig. 2 and Fig. 3, respectively. As shown in Fig. 2, in region A, the depth of water in this area is about 50–100 m, and the largest wave packets is observed, accompany with a relatively long crest length of the leading wave. In the middle of the Malacca Strait (region B), the water depth is about 20–50 m, the ISW propagates in the form of wave packets and single solitary waves, and the crest length of the leading wave becomes shorter. In the southeast of the Malacca Strait (region C), the water depth is relatively shallow, with the shallowest part of only 4 m, and the ISW is mostly in the form of wave packets and single solitary waves, with the shortest crest length of the leading wave, but it is noticing that the ISWs is broken seriously, and the direction of the ISWs is also relatively messy.
By observed from satellite images, it can be found that there are three to seven ISWs on average in the Malacca Strait, with a maximum of 12 ISWs. The maximum (minimum) crest length of the wave packet is about 39 km (1.5 km) in the Fig. 2, and the crest length of the leading wave becomes to be shorter and shorter towards the southeast. Totally, 344 crest length of the leading wave are observed, in which 35 lines are more than 20 km in length, and most of them are located in the northwest region. In addition, most crest length of the leading wave less than 20 km are located in the regions B and C, and the number of crest length of the leading wave from 4 km to 14 km is about 273 crest lines, which accounts for the vast majority of total lines.

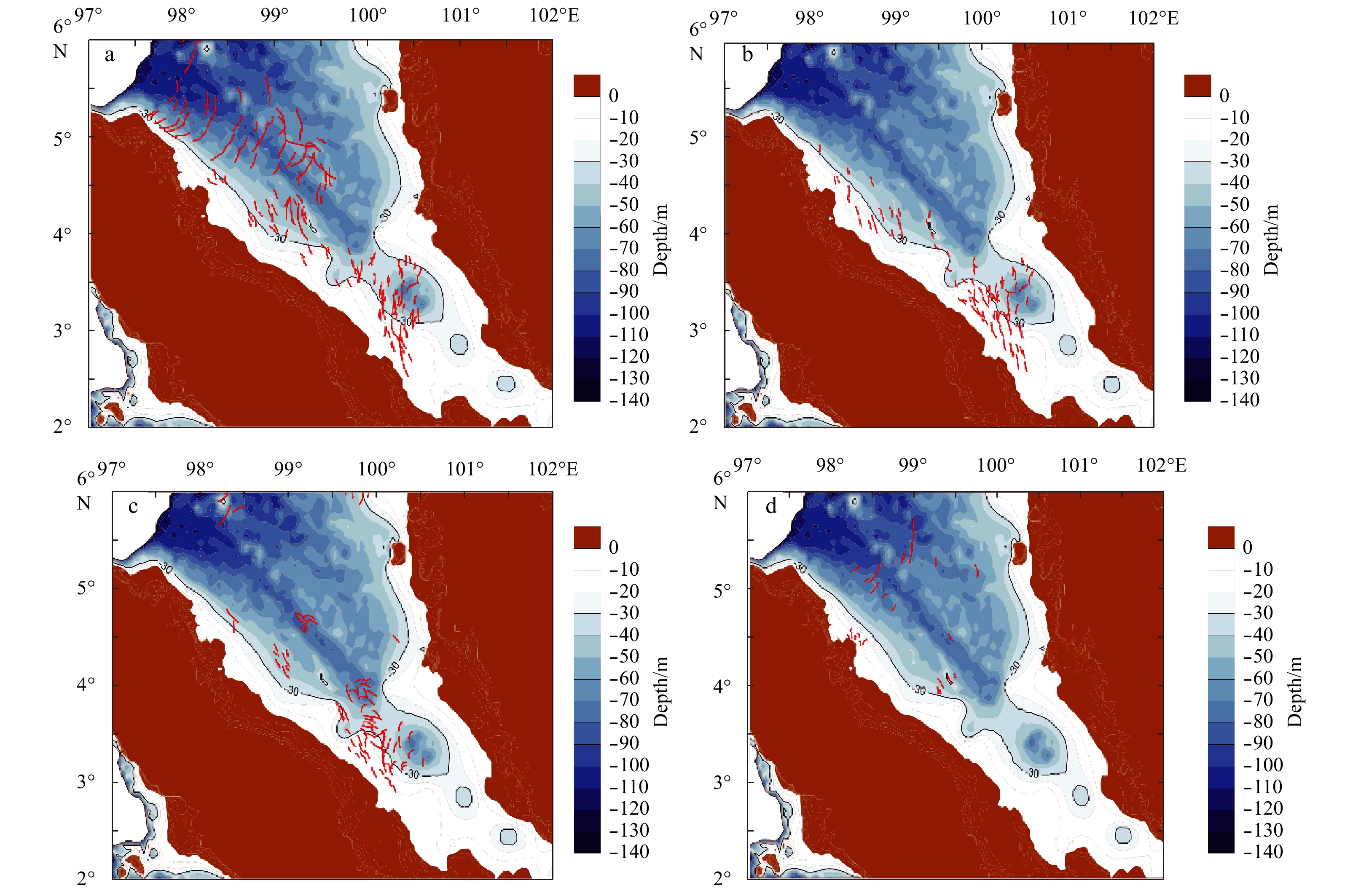

In addition, the occurrence of ISWs has a great relationship with seasons. Figure 4 shows the distribution of ISWs in different seasons. The largest number of ISWs observed from remote sensing images occurred from January to march, and the smallest from October to December. Most of the ISWs observed in SAR images from April to September occurred in region C.
3 Inversion of ISWs parameters
Less
3.1 Stratification

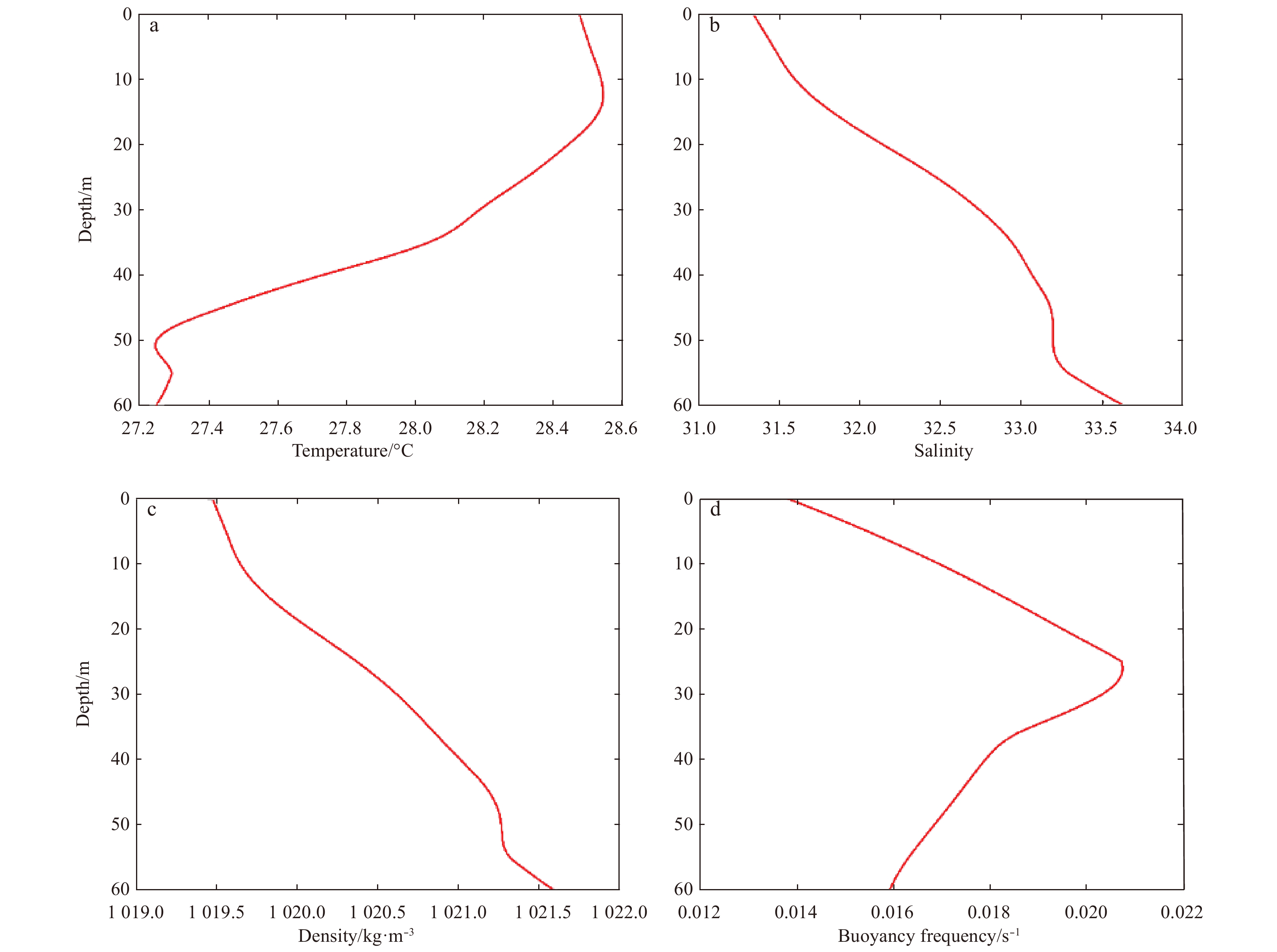

The inversion of the ISWs parameters greatly depends on the two layer stratification. Temperature, salt and density data of the studied area are selected from the annual average data of World Ocean Atlas (2013), and hierarchical information is obtained by calculating the vertical distribution. The calculated temperature, salinity, density and buoyancy frequency curve are showed in Fig. 5. The water depth corresponding to the inflection point of buoyancy frequency in Fig. 5d is the upper water depth, about 25 m. The density corresponding to the upper water depth is found in the density curve, and the upper and lower average densities are calculated as 1 019.9 kg/m3 and 1 020.9 kg/m3 respectively.
3.2 Amplitude of ISWs
Because of the balance between nonlinear effect and dispersion effect, the ISWs can be stable and spread over long distance.
The ISWs propagation equation adopts NLS equation. Combined with the SAR imaging mechanism of the ISWs, the amplitude inversion model of the ISWs based on the SAR image is established (NLS equation) (Zhang et al., 2016).
$\left\{ \begin{split}& D = 1.76l,\qquad \alpha \beta > 0\\& D = 1.32l,\qquad \alpha \beta < 0\end{split} \right.,$
$\left\{ \begin{split}& {A_0} = \frac{{1.76}}{D}\sqrt {\left| {\frac{{2\alpha }}{\beta }} \right|},\qquad \alpha \beta > 0\\& {A_0} = \frac{{1.32}}{D}\sqrt {\left| {\frac{{2\alpha }}{\beta }} \right|},\qquad \alpha \beta < 0\end{split} \right.,$
where A0 is the amplitude of the ISWs, $l$ is the half-wave width of the ISWs. D is the distance between the brightest spot and the darkest spot in SAR images, and the D of the ISWs can be obtained directly from the remote sensing image. $\alpha $ is the dispersion coefficient, $\beta $ is the nonlinear coefficient, which are related to depth of water, stratification, and density difference. The stratification condition mentioned in Section 3.1 are used. Combined with SAR images and local hydrological data, the amplitude of ISWs can be calculated.

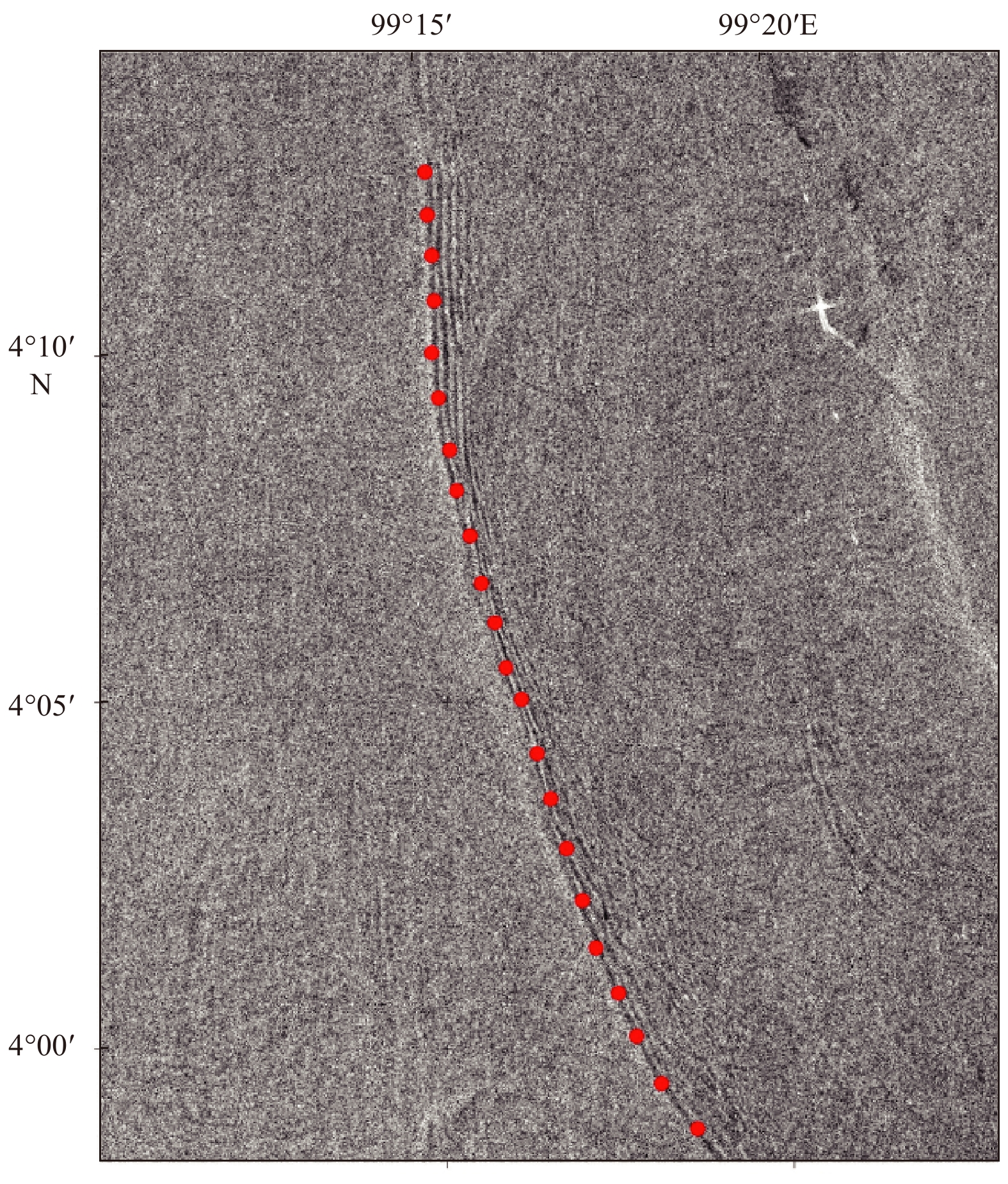

Then we apply the NLS amplitude inversion model to the previous 45 SAR images, and extract the distance D between the brightest spot and the darkest spot and hydrological parameters from each SAR image. The amplitude A0 of ISWs can be obtained from Eq. (2). We calculate the amplitude of ISWs happened in the Malacca Strait with water depth greater than 30 m.

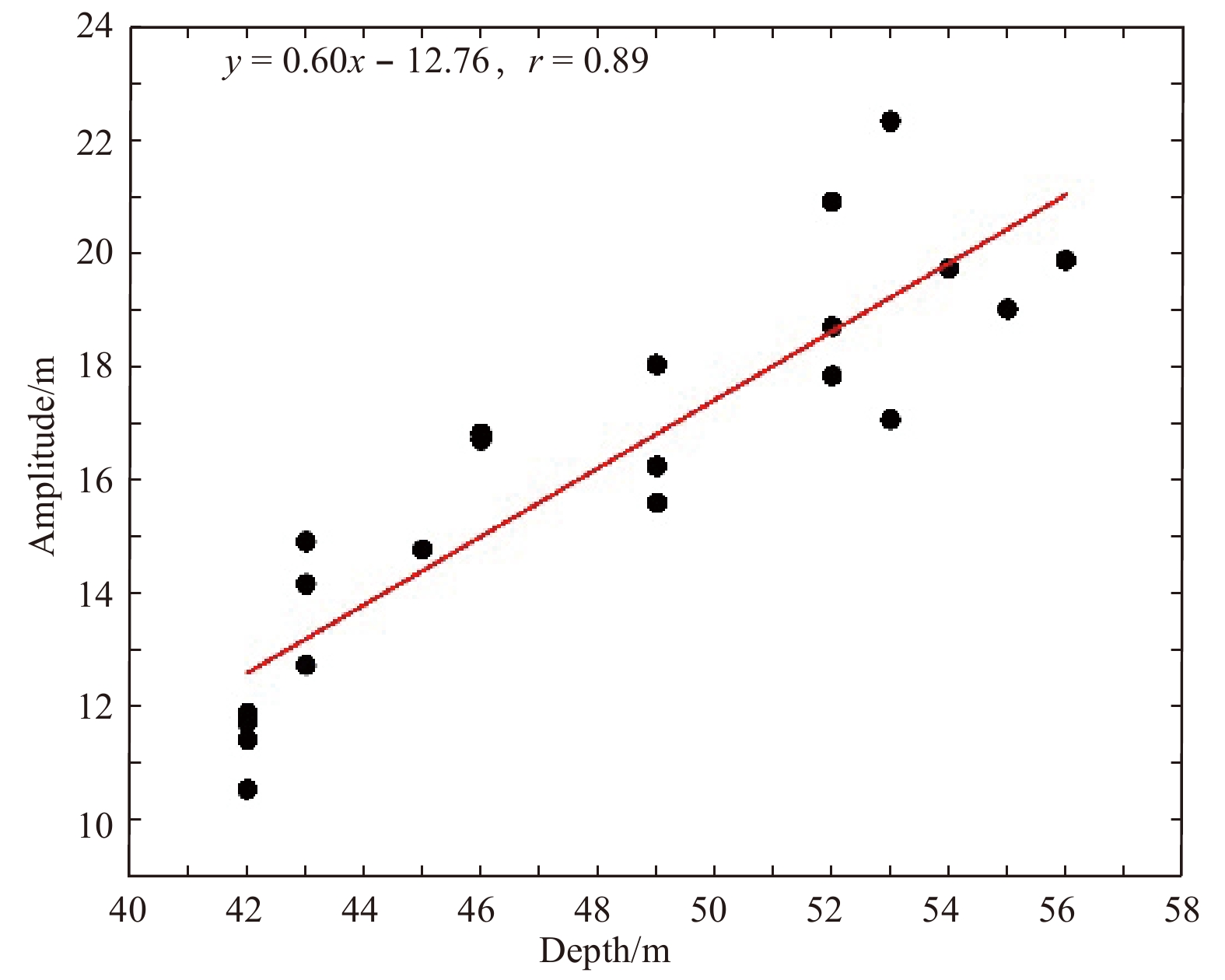

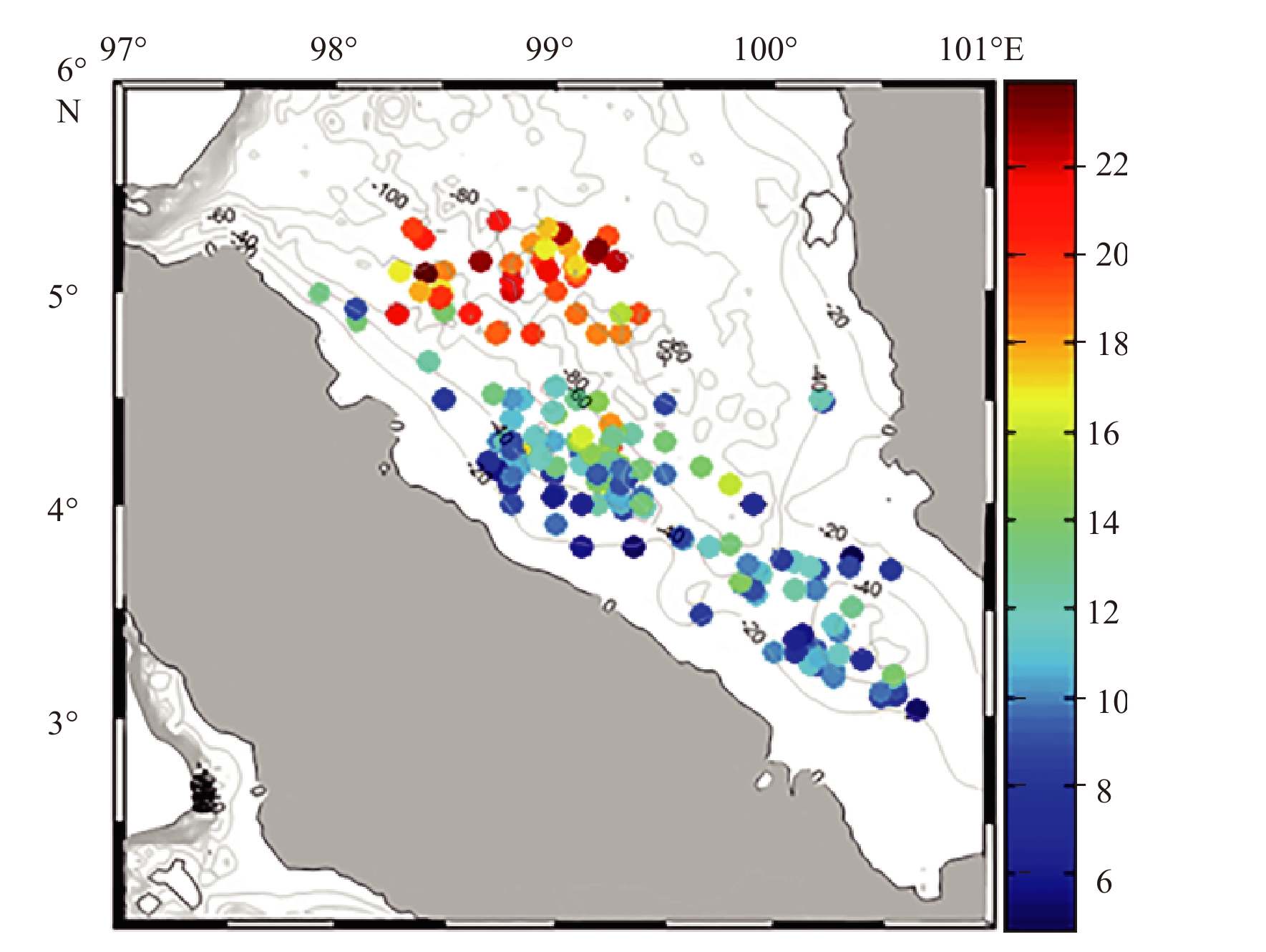

By extracting the characteristic parameters of ISWs in the Malacca Strait, the amplitude distribution is obtained, as shown in Fig. 6. In region A, the maximum amplitude obtained by NLS amplitude inversion model is 23.9 m, which is located at the water depth of 78 m, and the average amplitude of ISWs in this area is about 18.4 m. The maximum amplitude in region B calculated by NLS amplitude inversion model is 17.9 m, the minimum amplitude is 4.7 m, and the average amplitude of ISWs is about 10.9 m. The water depth in region C is shallow. The maximum and minimum amplitude calculated by NLS amplitude inversion model are 14.1 m and 4.7 m respectively, and the average amplitude is 9.6 m. In addition, we also analyze the amplitude of the one ISW. Figure 7 is a SAR image from March 14, 2016, we extracted the parameter and calculated the amplitude of ISWs. Each red dot in Fig. 7 is the extraction position of the ISWs parameter, combined with the local depth of water, the relationship between amplitude and depth of water is shown in Fig. 8. From Fig. 8, it can be found that even in the same ISW, the amplitude of ISWs is different, and the amplitude distribution is linearly related to the water depth. Figures 4 and 8 show that in Malacca Strait, with the decrease of water depth, the amplitude decreases. This may be due to the increase of the nonlinear effect of ISWs with the shallow water depth, which leads to the breakage of ISWs.
3.3 Velocity of ISWs
ISWs in the Malacca Strait can be divided into two types: single solitary waves and solitary wave packets. Therefore, we use NLS equation to derive the group velocity of solitary wave packets and KdV equation to obtain the phase velocity of single solitary waves.
The group velocity formula derived from the NLS equation (Zhang et al., 2015) is
${c_g} = \frac{{\rm d\omega }}{{\rm dk}} = \frac{\omega }{{2k}}\left[ {1 + \frac{{2k{h_2}}}{{ {\rm {sh}}(2k{h_2})}}} \right] ,$
where k is the wave number, h2 is the depth of the lower layer, and $\omega $ is the frequency.
The phase velocity formula obtained by KdV equation (Zheng et al., 2001) is
$c = {\left[ {\frac{{g({\rho _2} - {\rho _1}){h_1}{h_2}}}{{{\rho _2}{h_1} + {\rho _1}{h_2}}}} \right]^{1/2}} + \frac{{\alpha {A_0}}}{3}, $
where hl and h2 are the thickness of the upper and lower layers, respectively, and their water densities are ${\rho _1}$ and ${\rho _2}$, which are uniform within the layer. The stratification condition mentioned in Section 3.1 are used. Combined with SAR images and local hydrological data, the velocity of ISWs can be calculated.
The propagation velocity of ISWs is affected by many factors, such as water depth, stratification. The two-dimensional water depth distribution map of Malacca Strait has been given in Fig. 2. It can be seen that the depth of the water in the south is the shallower, and the deeper is to the northwest. The distribution characteristics of the group velocity and the phase velocity in Malacca Strait are analyzed. Figure 9 shows the group velocity distribution of ISWs in Malacca Strait calculated by using the group velocity formula derived from the NLS equation. Figure 10 shows the distribution of phase velocity calculated by KdV equation.

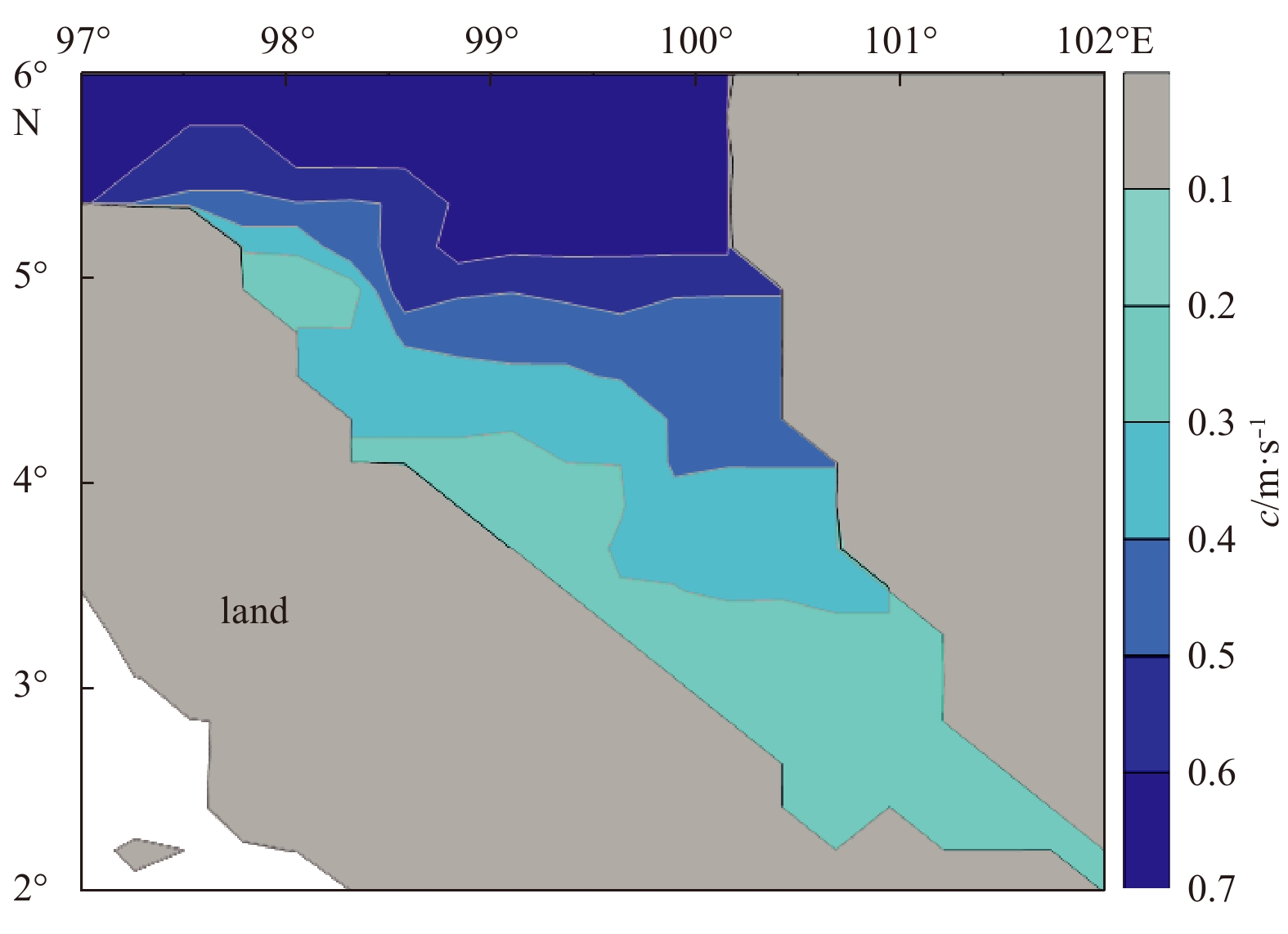

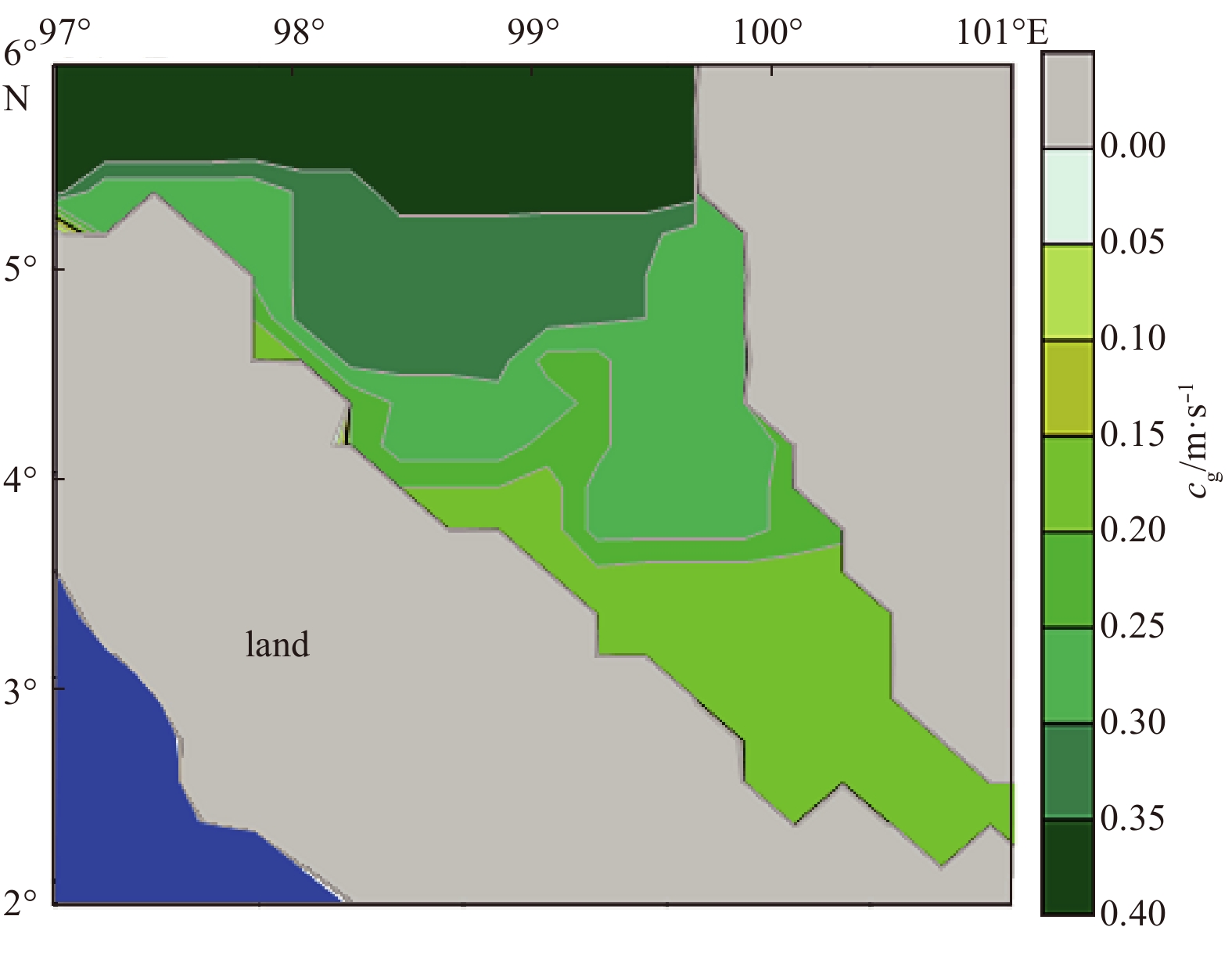

As can be seen from Fig. 9, the group velocity of the wave packets reduced from 0.4 m/s to 0.12 m/s and the phase velocity of ISWs in Fig. 10 decreases from 0.6 m/s to 0.26 m/s. In general, the group velocity and phase velocity of ISWs in Malacca Strait are related to the topography.
4 Conclusions
Less
Based on the Sentinel-1 and GF-3 SAR data, totally 45 SAR images in Malacca Strait are obtained, and the characteristic parameters of the ISWs in Malacca Strait are studied. The distribution of ISWs and crest length of the leading waves in Malacca Strait are statistically analyzed. It is found that ISWs are present in most of Malacca Strait, and the ISWs appear in the form of wave packets and single solitary waves. Furthermore, the direction of ISWs propagation is more complex, but the ISWs always tends to propagate towards the shore. The crest length of the leading wave is the longest in the northwest.
In addition, the group velocity and amplitude distributions of the area are calculated based on the high-order completely NLS equation inversion model. The phase velocity is obtained by KdV equation. The group velocity and phase velocity of ISWs are closely related to water depth and stratification. From northwest to southeast, with the water depth becoming shallow, the group velocity and phase velocity of ISWs becomes smaller. The group velocity distribution is between 0.12 m/s and 0.40 m/s, the phase velocity distribution is between 0.26 m/s and 0.6 m/s, and the amplitude of the ISWs is in the range of 4.7–23.9 m. The general trend of the amplitude and velocity is decreasing, which indicates that with the depth of water decreases, the nonlinearity increases, leading to the breakup of ISWs.
Funding
Less
  • The National Key R&D Program of China under contract No. 2017YFC1405602; the National Natural Science Foundation of China (NSFC) under contract No. 61871353.
References
Less
Alford M H, Lien R C, Simmons H, et al. 2010. Speed and evolution of nonlinear internal waves transiting the South China Sea. Journal of Physical Oceanography, 40(6): 1338–1355
Cai Shuqun, Xie Jieshuo. 2010. A propagation model for the internal solitary waves in the northern South China Sea. Journal of Geophysical Research: Oceans, 115(C12): C12074
Fang Xinhua, Du Tao. 2005. Fundamentals of Oceanic Internal Waves and Internal Waves in the China Seas (in Chinese). Qingdao: Ocean University of China Press
Filonov A, Lavín M F, Ladah L B, et al. 2014. Spatial variability of internal waves in an open bay with a narrow steep shelf in the Pacific off NW Mexico. Continental Shelf Research, 78: 1–15
Hsu M K, Liu A K, Liu C. 2000. A study of internal waves in the China Seas and Yellow Sea using SAR. Continental Shelf Research, 20(4-5): 389–410, doi: 10.1016/S0278-4343(99)00078-3
Huang Xiaodong, Zhang Zhiwei, Zhang Xiaojiang, et al. 2007. Impacts of a mesoscale eddy pair on internal solitary waves in the Northern South China Sea revealed by mooring array observations. Journal of Physical Oceanography, 47(7): 1539–1554
Hyder P, Jeans D R G, Cauquil E, et al. 2005. Observations and predictability of internal solitons in the northern Andaman Sea. Applied Ocean Research, 27(1): 1–11
Jackson C. 2007. Internal wave detection using the Moderate Resolution Imaging Spectroradiometer (MODIS). Journal of Geophysical Research: Oceans, 112(C11): C11012, doi: 10.1029/2007JC004220
Kozlov I E, Kudryavtsev V N, Zubkova E V, et al. 2015. Characteristics of short-period internal waves in the Kara Sea inferred from satellite SAR data. Izvestiya, Atmospheric and Oceanic Physics, 51(9): 1073–1087
Lai Zhigang, Chen Changsheng, Beardsley R C, et al. 2010. Impact of high-frequency nonlinear internal waves on plankton dynamics in Massachusetts Bay. Journal of Maring Research, 68(2): 259–281, doi: 10.1357/002224010793721415
Li X F, Jackson C R, Pichel W G. 2013. Internal solitary wave refraction at Dongsha Atoll, South China Sea. Geophysical Research Letters, 40(12): 3128–3132
Liu Bingqing, Yang Hong, Ding Xianwei, et al. 2013. Fusion of SAR and MODIS images for oceanic internal waves tracking in the South China Sea. Proceedings of SPIE, 41(2): 89210L
Schuler D L, Jansen R W, Lee J S, et al. 2003. Polarisation orientation angle measurements of ocean internal waves and current fronts using polarimetric SAR. IEE Proceedings-Radar, Sonar and Navigation, 150(3): 135
Zhang Xudong, Wang Jing, Sun Li’na, et al. 2015. Study on group velocity of oceanic internal solitary wave. Proceedings of 2015 International Conference on Computer Information Systems and Industrial Applications(CISIA2015). Paris: Atlantis press. 803-806.
Zhang Xudong, Wang Jing, Sun Lina, et al. 2016. Study on the amplitude inversion of internal waves at Wenchang area of the South China Sea. Acta Oceanologica Sinica, 35(7): 14–19, doi: 10.1007/s13131-016-0902-1
Zheng Quanan, Yuan Yeli, Klemas V, et al. 2001. Theoretical expression for an ocean internal soliton synthetic aperture radar image and determination of the soliton characteristic half width. Journal of Geophysical Research: Oceans, 106(C12): 31415–31423
