Blooms of Prorocentrum donghaiense reduced the species diversity of dinoflagellate community
收藏切换
PDF
Huan Wang1, 3, Zhangxi Hu1, 2, 4, Zhaoyang Chai1, 2, 4, Yunyan Deng1, 2, 4, Zifeng Zhan5, Ying Zhong Tang1, 2, 4, *
Acta Oceanologica Sinica | 2020, 39(4) : 110 - 119
Less
收藏切换
Acta Oceanologica Sinica | 2020, 39(4): 110-119
• Marine Biology •
Blooms of Prorocentrum donghaiense reduced the species diversity of dinoflagellate community
Full
Huan Wang1, 3, Zhangxi Hu1, 2, 4, Zhaoyang Chai1, 2, 4, Yunyan Deng1, 2, 4, Zifeng Zhan5, Ying Zhong Tang1, 2, 4, *
Affiliations
  • 1 CAS Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
  • 2 Laboratory for Marine Ecology and Environmental Science, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China
  • 3 University of Chinese Academy of Sciences, Beijing 100049, China
  • 4 Center for Ocean Mega-Science, Chinese Academy of Sciences, Qingdao 266071, China
  • 5 Department of Marine Organism Taxonomy and Phylogeny, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
Published: 2020-04-25 doi: 10.1007/s13131-020-1585-1
Outline
收藏切换

Most of reported harmful algal blooms (HABs) of microalgae (75%) have been caused by dinoflagellates. Studies on the negative effects of HABs have generally focused on animals, valuable organisms in particular, and environmental factors such as dissolved oxygen and nutrients, but relatively fewer on community level, particularly that using metagenomic approach. In this study, we reported an investigation on the effects of a HAB caused by the dinoflagellate Prorocentrum donghaiense on the species diversity and community structure of the dinoflagellate sub-community via a pyrosequencing approach for the samples taken before, during, and after the bloom season of P. donghaiense in the East China Sea. We sequenced partial 28S rRNA gene of dinoflagellates for the field samples and evaluated the species richness and diversity indices of the dinoflagellate community, as a sub-community of the total phytoplankton. We obtained 800 185 valid sequences (categorized into 560 operational taxonomic units, OTUs) of dinoflagellates from 50 samples and found that the biodiversity of dinoflagellate community was significantly reduced during the blooming period in comparison to that in pre- and after-blooming periods, as reflected in the four diversity indices: the species richness expressed as the number of OTUs, Chao1 index, Shannon index (evenness), and Gini-Simpson index. These four indices were all found to be negatively correlated to the cell density of the bloom species P. donghaiense. Correlation analyses also revealed that the P. donghaiense cell abundance was correlated negatively with ${\rm{NO}}_3^- $-N, and ${\rm{NO}}_2^- $-N, but positively with total nitrogen (TN) and total phosphorus (TP). Principal coordinates analysis (PCoA) showed that the community structure of dinoflagellates was markedly different among the different sampling periods, while the redundancy analysis (RDA) revealed P. donghaiense abundance, salinity, ${\rm{NO}}_3^- $-N, and ${\rm{SiO}}_3^{2-} $ were the most four significant factors shaping the dinoflagellate community structure. Our results together demonstrated that HABs caused by the dinoflagellate P. donghaiense could strongly impact the aquatic ecosystem on the sub-community level which the blooming species belongs to.

Prorocentrum donghaiense  /  dinoflagellate community  /  diversity  /  pyrosequencing  /  East China Sea
Huan Wang, Zhangxi Hu, Zhaoyang Chai, Yunyan Deng, Zifeng Zhan, Ying Zhong Tang. Blooms of Prorocentrum donghaiense reduced the species diversity of dinoflagellate community[J]. Acta Oceanologica Sinica, 2020 , 39 (4) : 110 -119 . DOI: 10.1007/s13131-020-1585-1
Full Text
Less
1 Introduction
Less
Harmful algal blooms (HABs) have been increasing globally in extension and impacts on public health, aquaculture industry, fisheries, and ecosystems such as oxygen depletion, reduction in water quality (Anderson et al., 2012, 2002; Smayda, 1990). Among all HABs-causing species, dinoflagellates are the most important contributors, as about 75% of reported HABs were caused by dinoflagellates (Smayda, 1997). Dinoflagellates have a number of characteristic features (Burkholder et al., 2006) and are one of the most important primary producers and a vital component of coral reef symbiotic system (Aranda et al., 2016; Lin et al., 2015). While HAB events may be caused by a variety of environmental and autecological factors such as illumination, water temperature, nutrients availability, growth rate, vertical migration, and special life history (Anderson et al., 2002; Xu et al., 2010), as feedbacks, HABs may cause many negative effects on the ecosystems that can be viewed from different levels (from ecosystem, community to sub-cellular and molecular levels) and aspects (physical, chemical, biological, public health, and economic). In general, previous studies on the negative effects of HABs have been mainly focused on fisheries, aquaculture, and human public health (Anderson et al., 2012; Landsberg, 2002), relatively fewer studies, however, have investigated the effects of HABs on the level of community, and even fewer using high throughput metagenomic approach, such as phytoplankton community diversity, community structure, function and stability (Cui et al., 2018; Zhou et al., 2018). This oddness was at least partly due to the limitations in how to obtain comprehensive lists of species and identify species of small sizes, simple or similar morphologies, low abundances, and to process numerous samples efficiently. Conventional methods for identifying and quantifying phytoplankton species from field samples generally involved in the use of light microscopy, and sometimes were aided with flow cytometry and alike, pigment analysis, however they all have limitations in identifying and quantifying those species of highly small sizes, simple or similar morphologies, low abundances, and novel taxa that have not been described (Chai et al., 2018). With the development of molecular approaches, high-throughput gene sequencing (e.g., 18S and 28S rRNA genes) have recently been increasingly applied to environmental samples to conquer these limitations (Chai et al., 2018, 2020; Vaulot et al., 2008; Xu et al., 2017; Zhou et al., 2018). The well-developed, high-throughput sequencing allows us to deeply sequence environmental samples and to sensitively and accurately identify species, and thus detect slight changes at the community level (Miao et al., 2017; Schneider et al., 2017; Sunagawa et al., 2015).
In this study, we investigated the effects of blooms of a common HABs-causing dinoflagellate in China, Prorocentrum donghaiense, on the dinoflagellate sub-community level, which the bloom species belongs to, in terms of species richness and other biodiversity indices by applying a high-throughput amplicon sequencing approach. We applied a pair of particularly designed primers targeting the large subunit rRNA gene to sequencing the samples taken before, during, and after P. donghaiense blooming from the Sansha Bay, Fujian Province, China. We also measured other variables including cell density of P. donghaiense, chlorophyll content, nutrients (total nitrogen (TN), nitrate ($ {\rm{NO}}_3^- $-N), nitrite ($ {\rm{NO}}_2^- $-N), ammonium ($ {\rm{NH}}_4^+ $-N), total phosphorus (TP), phosphate (${\rm{PO}}_4^{3-} $-P), silicate (${\rm{SiO}}_3^{2-} $)), salinity, and temperature to examine the interactions among these variables, P. donghaiense blooms, and the dinoflagellates community succession.
2 Materials and methods
Less
2.1 Sampling sites, dates and procedures

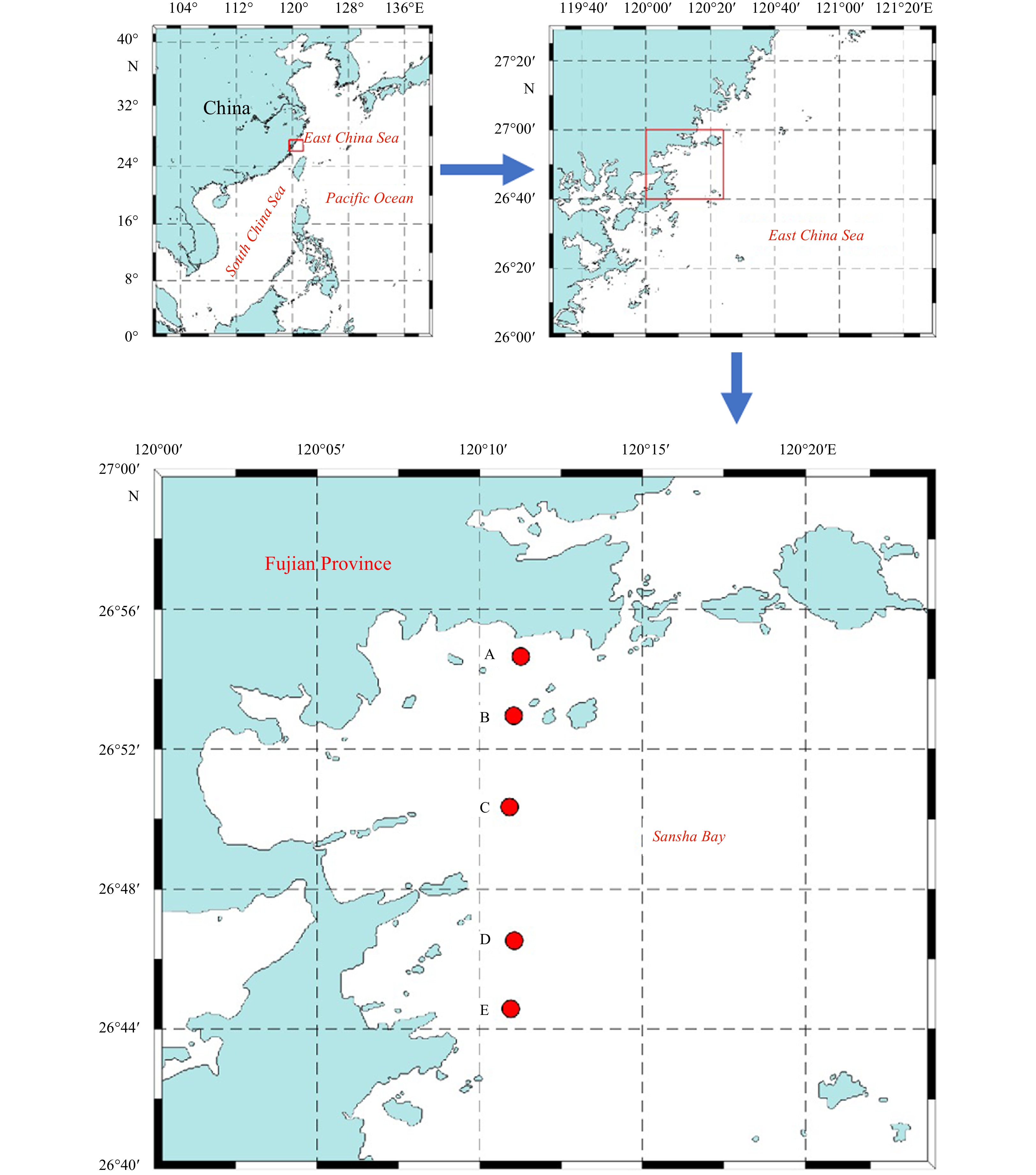

The study area, Sansha Bay, is located at the northeast to Ningde, Fujian Province (26°44.5′–26°54.5′N, 120°10.9′–120°11.3′E), one of Fujian Province’s major aquaculture water in the East China Sea (Fig. 1), where has observed highly frequent HABs caused by P. donghaiense, Karenia mikimotoi, and, occasionally, other species (Lin et al., 2014; Lu et al., 2005; Yao et al., 2006). There were about 161 HAB incidents during 2001–2010 and 65 events between 2011 and 2015, amongst them P. donghaiense being the main causative species (State Oceanic Administration, 2001–2015).
From March to July, 2016, we conducted six cruises and collected a total of 50 samples, which covered pre-, during, and post-bloom periods. Four or five sampling sites were selected in the study area (Table 1). March 31 (0331) was a time prior to the bloom, the dates April 22 (0422), May 3 (0503), May 13 (0513) were categorized as during-bloom period based on cell counts of P. donghaiense, with May 3 observing the peak of a bloom, and May 31 (0531) and July 19 (0719) were categorized as post-bloom period. Here, we simply define a bloom according to chlorophyll a (Chl a) content and dominant specie concentration, with Chl a content higher than 5 µg/L when there is a dominant species (Jonsson et al., 2009) and 20 000 cells/mL of the dominant species, with an awareness of no commonly accepted standard of cell density to define a bloom. The sample IDs include sampling sites (A, B, C, D, E), sampling dates (0331, 0422, 0503, 0513, 0531, 0719), and the duplicate letters a and b. For example, the sample ID A0331a refers to the first sample taken on March 31 from Site A.
Water temperature and salinity were measured on site using a hand-held thermometer (BoBang Ltd, China) and a refractometer (Atago Ltd, Japan). Water samples were taken from 0.5 m below the surface and transferred into 5 L polyethylene bucket. Plankton samples for DNA extraction were collected by filtering 1.5 L water through a hydrophilic polycarbonate membrane (47 mm diameter, 0.4 μm pore size, Merck Millipore Ltd, Germany) with duplicates, put into an icebox and then –20°C immediately after arriving the laboratory and then stored at –80°C until DNA extraction. Water samples (1 L) were also fixed with Lugol’s iodine solution (final concentration, 2%) for counting cells of P. donghaiense using plankton counting chamber under an inverted light microscope (IX73, Olympus, Tokyo, Japan). Samples for ${\rm{NO}}_3^- $-N, ${\rm{NO}}_2^- $-N, ${\rm{NH}}_4^+ $-N, $ {\rm{PO}}_4^{3-}$-P, and ${\rm{SiO}}_3^{2-} $ were filtered through Whatman GF/C filters (pore size ~1.2 μm), and added 2 drops of chloroform per 100 mL sample. Samples for TN (total nitrogen) and TP (total phosphorous) were pretreated by adding two drops of 98% sulfuric acid per 100 mL sample. Samples for Chl a (at least 500 mL for each sample) were filtered onto Whatman GF/F glass fiber filters (pore size ~0.7 μm) and frozen until analysis. All samples were immediately transported to the laboratory in cold conditions and subjected to measurements of the nutrients and Chl a.
2.2 Measurements of nutrients and other variables
${\rm{NO}}_3^- $-N, ${\rm{NO}}_2^- $-N, ${\rm{NH}}_4^+ $-N, ${\rm{PO}}_4^{3-} $-P, and ${\rm{SiO}}_3^{2-} $ were analyzed colorimetrically using a nutrient analyzer (Skalar Ltd, Netherland) according to the protocols of JOGFS report No. 19 (JOGFS International Project Office, 1994). For TN and TP analyses, samples were digested using potassium persulfate under high temperature (115°C, 30 min) according to the standard protocol (Valderrama, 1981), and then the treated samples were also analyzed colorimetrically using the nutrient analyzer. Chl a was extracted with 90% aqueous acetone, and measured fluorometrically using a Turner Designs fluorometer (Parsons et al., 1984).
2.3 Primer design, DNA extraction, PCR amplification, and pyrosequencing
The forward and reverse primers were designed to target the partial 28S rRNA gene (rDNA) including the highly variable D2 domain mainly for dinoflagellates. Reference sequences of 28S rDNA for microalgae of different groups and ciliates were selected and aligned with that of dinoflagellates to verify the suitability of the selected oligonucleotide sequences as primers using Primer 3 (Rozen and Skaletsky, 2000). The specificity of the generated primer candidates were checked against the GenBank sequence collection by a standard nucleotide-nucleotide BLAST search for the sake of amplifying all dinoflagellates, resulting in the primers as follows: forward primer LSU347 (5′-CAAGTACCATGAGGGAAA-3′) and reverse primer LSU929 (5′-ACGAACGATTTGCACGTCAGTA-3′).
Genomic DNA was extracted with a plant DNA extraction kit (Tiangen, Beijing, China) according to the manufacturer’s protocol. PCR was then conducted in 20 μL reaction mixture containing 2 μL of deoxynucleoside triphosphate at a concentration of 2.5 mmol/L, 0.8 μL of forward and reverse primers (5 μmol/L each), respectively, 0.4 μL FastPfu Polymerase, 5× FastPfu Buffer 4 μL, and 1 μL of template DNA (final amount 10 ng) under the following PCR conditions: 94°C for 5 min, 35 cycles of 94°C for 30 s, 46°C for 30 s, and 72°C for 30 s and 72°C for 10 min extension. PCR amplicons were purified with an AxyPrep DNA gel extraction kit (Axygen, USA) and quantified using the QuantiFluor-ST Fluorescence quantitative system (Promega, USA). Amplicons from different water samples were then mixed to achieve equal mass concentrations in the final mixture, which was then pyrosequenced using a 454 Genome Sequencer (GS) FLX Titanium platform (LC-Bio Technology Co. Ltd, Hangzhou, China) as previously described (Sun et al., 2014). FASTA-formatted sequences and corresponding quality scores (QC) were extracted from the “.sff” data file using the GS Amplicon software package. Raw sequencing data of this study have been deposited in the NCBI database under Accession No. SRR8163577.
2.4 Statistics and bioinformatic analyses
Aligned sequences were clustered into operational taxonomic units (OTUs) defined by 97% similarity (identity) using the average neighbor algorithm. The taxonomy assignment of OTUs was done by Global Alignment for Sequence Taxonomy (GAST) process (Huse et al., 2008). Community diversity parameters ((Shannon index, Gini-Simpson index (1-λ), and Chao1 index (as an asymptotic species richness estimator)) for each sample were calculated as described in the Mothur software manual (http://www.mothur.org/). Principal coordinates analysis (PCoA) were conducted at the OTU level with the community ecology package (http://www.mothur.org/). Redundancy analysis (RDA) was performed to analyze the major environmental factors affecting the community structure using the R-vegan and R-map tools for Linux (Legendre et al., 2011). Spearman’s rank correlation coefficient (or Spearman’s rho) was calculated to measure possible correlation between two variables using the software SPSS 22.0. Since the Spearman correlation evaluates the monotonic relationship between two variables that they may tend to change together but not necessarily at a constant rate, we chose to use the Spearman correlation coefficient, as we assumed that the two variables might be correlated but not necessarily correlated linearly. The significance level was set at 0.05 for all tests unless otherwise stated.
3 Results
Less

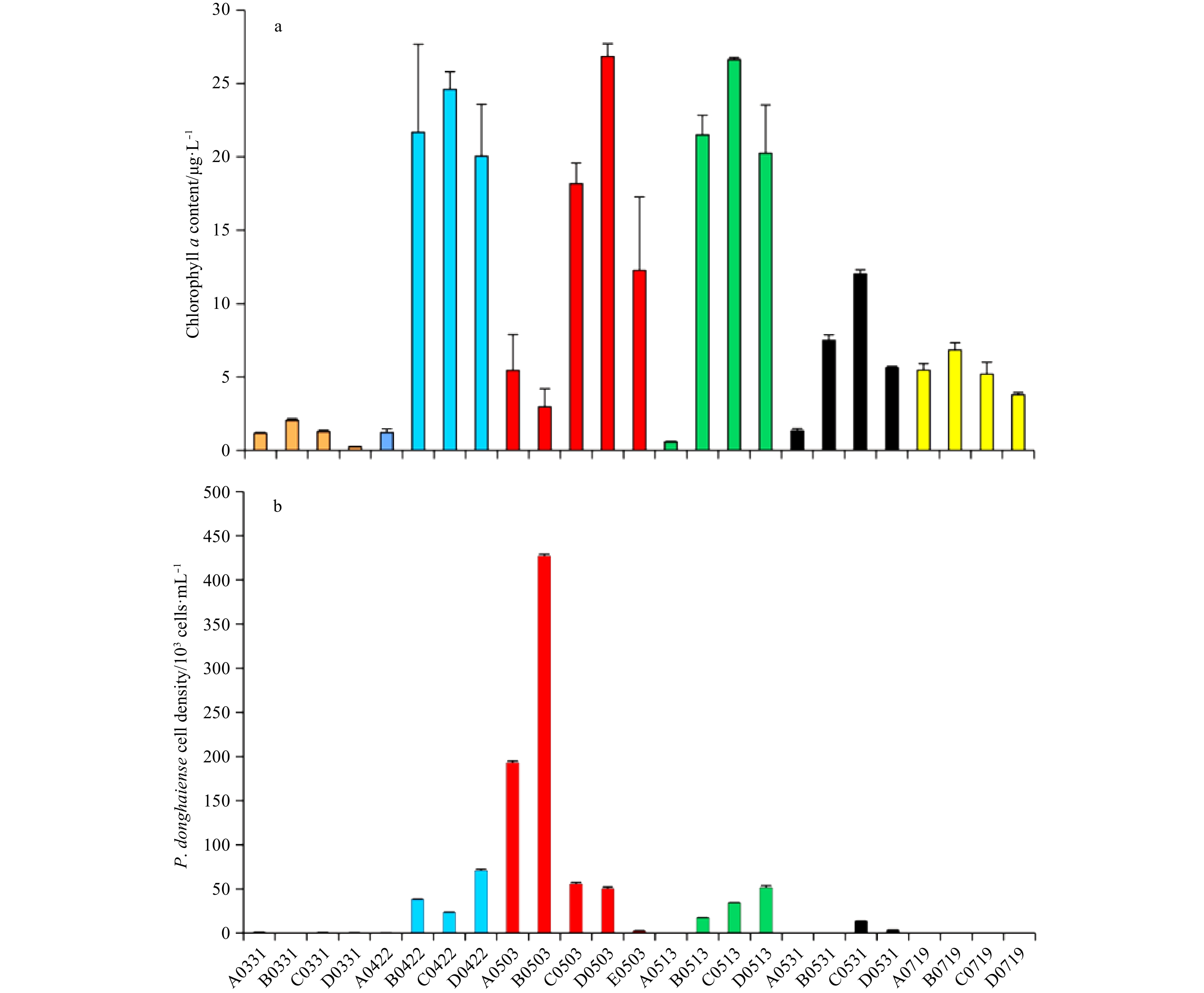

3.1 Variations and dynamics of P. donghaiense cell density, Chl a content, and nutrients
During the six cruises from March to July of 2016, P. donghaiense reached the maximum cell density of ~4.3×105 cells/mL on May 3 (Fig. 2). The cell density of P. donghaiense was 270 cells/mL on March 31 (pre-blooming) and the lowest cell density of 83 cells/mL was on July 19 (after blooming). During the blooming period of late April to early May, P. donghaiense abundance ranged from 300 to ~4.3×105 cells/mL. However, among the sampling sites, P. donghaiense cell density varied significantly, with Site B or Site C having significantly higher abundance than that of Site A (p<0.05).
The Chl a level ranged from 0.3 to 26.8 μg/L, with the highest observed at Site D on May 3, where and when the bloom of P. donghaiense was observed (with a cell density of P. donghaiense ~5.0×104 cells/mL). There existed a significant positive correlation between P. donghaiense cell density and Chl a (Spearman rho=0.54, p<0.05), indicating P. donghaiense was one of, but not the only, major contributors of phytoplankton biomass. Strikingly, it is noteworthy that for the sample B0503, there was a discrepancy between Chl a and the cell abundance of P. donghaiense (Fig. 2), which we think was possibly due to a lower Chl a content per cell for P. donghaiense relative to that of other phytoplankton species such as diatoms and green microalgae because of the highly small-sized cells and pigment composition of P. donghaiense. In addition, the extremely high abundance of P. donghaiense during the blooming period (e.g., early May) also decreased the abundance of other phytoplankton with higher Chl a content per cell.
Water temperature ranged from 13.9°C to 29.5°C during the sampling period. No significant correlation was observed between water temperature and Chl a (Spearman rho=0.16, p > 0.05), neither between temperature and P. donghaiense cell density (Spearman rho=–0.19, p>0.05). Regarding the correlations between nutrients and P. donghaiense cell density, we observed no correlation for ${\rm{NH}}_4^+ $-N and ${\rm{PO}}_4^{3-} $-P, but P. donghaiense cell density significantly correlated with ${\rm{NO}}_3^- $-N, ${\rm{NO}}_2^- $-N, TN, TP, and ${\rm{SiO}}_3^{2-} $, respectively (p<0.05), with ${\rm{NO}}_3^- $-N and ${\rm{NO}}_2^- $-N being negative (Spearman rho=–0.59 and –0.60, respectively; p<0.05), and TN, TP, and ${\rm{SiO}}_3^{2-} $ being positive (Spearman rho=0.75, 0.84, and 0.51, respectively; p<0.05), indicating N and P as supporting or driving factors for the bloom of P. donghaiense. The ratios of dissolved inorganic nitrogen (DIN, the sum of ${\rm{NO}}_3^- $-N, ${\rm{NO}}_2^- $-N and ${\rm{NH}}_4^+ $-N) to dissolved inorganic phosphorus (DIP, as ${\rm{PO}}_4^{3-} $-P) in the surface water tended to decrease along with the development and maintenance of bloom (Table 2). At the beginning of the survey (March 31), the DIN to DIP ratios in the surface layer was 18–22 on average, while, during the blooming period of P. donghaiense, the ratio showed a downward trend in general. On May 13, the ratio reached the minimum (3.4, Table 2). There existed a significant negative correlation between P. donghaiense cell density and DIN/DIP (Spearman rho=–0.64; p<0.05).
3.2 General description for pyrosequencing results
A total of 800 185 valid sequence reads of dinoflagellates with an average length of about 400 bp were generated from the 50 samples (Table S2). By clustering the unique sequences at 97% similarity level, these dinoflagellate sequences were grouped into 560 OTUs, with the number of OTUs ranging from 39 to 304 per sample. The highest richness was observed in the sample C0719b (after bloom) and the lowest richness was observed in A0503b (during bloom). OTU richness decreased during the blooming period from April 22 to May 13, and then increased with the disappearance of bloom from May 31 to July 17, and the Chao1 index (an indicator of total species richness) exhibited the same trend as OTU-indicated species richness.
3.3 Prorocentrum donghaiense bloom negatively affected species diversity of the dinoflagellate community
We determined if the species diversity of the dinoflagellate community was affected by the presence of P. donghaiense bloom using the rank correlation coefficient or Spearman’s rho. Note that the alpha diversity indices here included species richness as expressed in the number of OTUs and Chao1 index, the Shannon index (indicating species evenness of community), and Gini-Simpson index (1-λ, indicating the probability that the two entities taken at random from a dataset of interest represent different species). It can be seen that all the number of OTUs, Chao1 index, Shannon-Wiener index, and Gini-Simpson index were negatively correlated with the cell density of P. donghaiense significantly (Table 3, Spearman’s rho = –0.52, –0.67, –0.609, and –0.37, respectively; p<0.001). Because of the interactions of phytoplankton dynamics and ambient nutrients, the four indices were also significantly correlated with Chl a, ${\rm{NO}}_2^- $-N, ${\rm{NO}}_3^- $-N, TP, and TN, but not with ${\rm{PO}}_4^{3-} $-P and ${\rm{NH}}_4^+ $-N (Table 3).
3.4 Dominant dinoflagellate groups varied among pre-, during and post-blooms of P. donghaiense

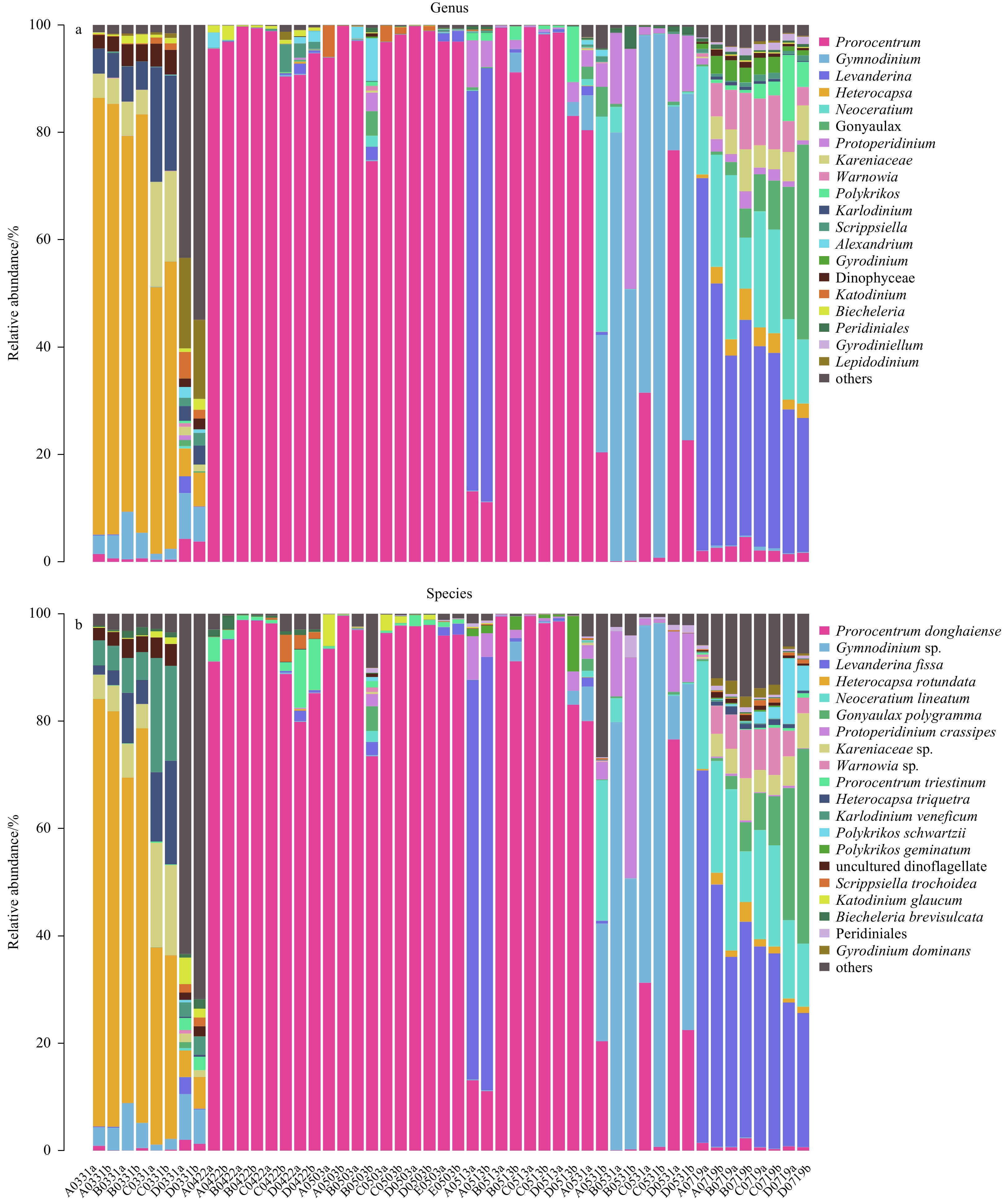

Metagenomic analysis revealed changes in the abundance of OTUs classifiable to various taxonomic levels, including shifts in dominant genera and species on date basis. The top 20 most abundant genera and species of each sample showed that 26 of the 50 samples were dominated by Prorocentrum (76.6%–99.6% of the top 20), while during the before-blooming period, the dinoflagellate community was dominated by Heterocapsa_rotundata (4.9%–79.6% dominance) that could not be well identified to any currently accepted genus of dinoflagellates (Fig. 3). All samples taken on April 22, May 3, and May 13 except for A0513a and A0513b were from blooming area and dominated by P. donghaiense. The samples of A0513a and A0513b were from non-blooming area and dominated by Levanderina fissa. After the blooming period, all samples taken on July 19 were dominated by L. fissa for most of the samples (25.0%–69.3% dominance; Fig. 3).
3.5 Principal coordinates analysis (PCoA) and redundancy analysis (RDA)

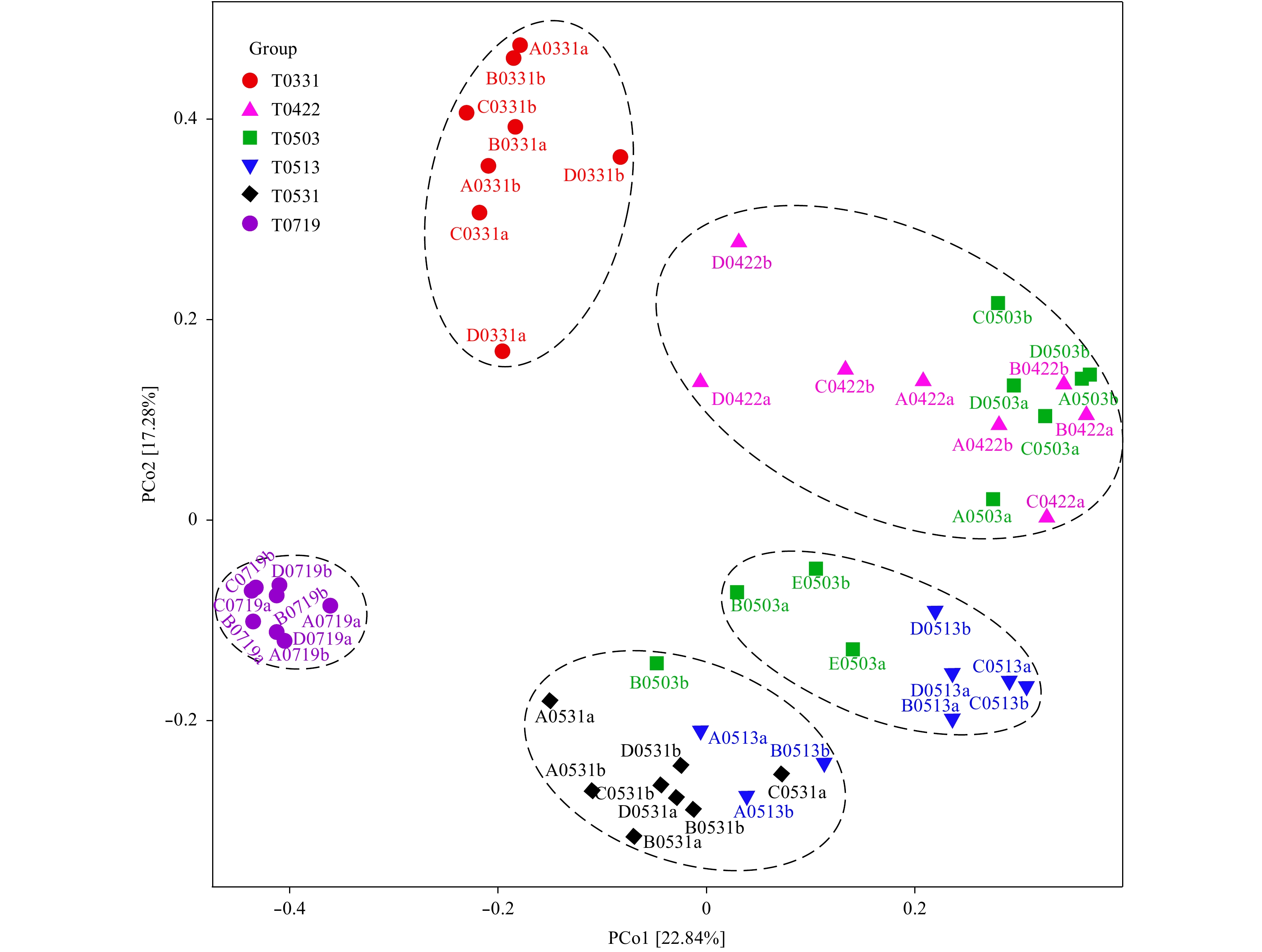

Principal coordinates analysis was conducted to evaluate similarities among different surface samples at the OTU level. The PCoA results for all samples showed that all samples formed roughly five clusters: the samples of March 31, the samples of July 19, samples were each formed a tight cluster distinctly separated from other samples, while the samples of April 22 and May 03 (except for B0503a, B0503b, E0503a and E0503b) as one, the samples of May 13 (plus samples B0503a, E0503a and E0503b, except for A0513a, A0513b and B0513b) formed one cluster and the samples of May 31 (plus samples A0513a, A0513b, B0513b and B0503b) formed one cluster, respectively (Fig. 4), corresponding to the periods of before bloom (March 31), early bloom (April 22), bloom (May 3 and 13), and postal bloom (May 31 and July 19) of P. donghaiense. The samples that made the clusters expanded (i.e., part of the samples taken on April 22 and May 13) represented transitions of the blooming period. The location of samples B0503b and B0513b might be caused by experimental error or the duplicated samples differing greatly. The cluster of March 31 (plus samples D0422a and D0422b) represented transitions between before bloom and early bloom, while the cluster of May 31 (plus samples A0513a and A0513b) represented transitions between bloom and postal bloom. That the samples from 0422, 0503, 0513 and 0531 were not completely separated into three clusters (i.e., somehow mixed) represented transitions of different stages of blooms.
The results of RDA showed that the dinoflagellate community was regulated by multiple environmental variables (Fig. 5). The first axis of RDA explained 42.5% of the variation of species-environment relation, while the two axes together explained 66.3% of variation (p=0.001). P. donghaiense abundance, salinity, ${\rm{SiO}}_3^{2-} $ and ${\rm{NO}}_3^- $-N appeared to be the four most significant factors affecting the dinoflagellate community, compared to other factors (T, TN, TP, ${\rm{NO}}_2^- $-N, ${\rm{NH}}_4^+ $-N, ${\rm{PO}}_4^{3-} $-P), and among those factors, P. donghaiense abundance made the greatest contribution. RDA analysis also showed that the environmental variables affected the population dynamics of some dinoflagellate species as well as P. donghaiense abundance. For example, H. rotundata and Karlodinium veneficum were positively correlated with ${\rm{NO}}_3^- $-N and ${\rm{PO}}_4^{3-} $-P, while P. triestinum and Katodinium glaucum were positively correlated with TN and TP (Fig. 5).
4 Discussion
Less
4.1 Prorocentrum donghaiense blooms affected the bio-diversity of dinoflagellate community
This study demonstrated that the bloom of P. donghaiense affected the structure of dinoflagellate sub-community of the total phytoplankton in terms of reducing the species richness and diversity estimators, as expressed in the number of OTUs, Chao1 index, Shannon index, and Gini-Simpson index. As seen from the PCoA analysis, the dinoflagellate community during the blooming period differed significantly from those before and after blooming periods. The species composition of dinoflagellate community changed with transition stages of the P. donghaiense bloom. For instance, the dinoflagellate community was dominated by a species that has not been well described (“uncultured dinoflagellate”), P. donghaiense, and L. fissa for the periods of before, during, and after blooming, respectively. RDA analysis revealed that P. donghaiense abundance affected the dinoflagellate community as the most important factor. These results well supported our hypothesis that P. donghaiense bloom would reduce the diversity of dinoflagellate community and alter the community structure.
Investigations on the effect of HABs on species diversity and community succession have been comparatively rare, particularly so for that using high throughput metagenomic approach. In an early study, West et al. (1996) investigated abundance and composition of phytoplankton populations during different bloom stages of Gymnodinium breve (=Karenia brevis), and found that total phytoplankton abundance increased regardless of G. breve abundance. Further, they discovered that the cell densities of some groups increased but others decreased, which is in contrast to our results, possibly because K. brevis bloom was not monospecific bloom. Besides, about 127 phytoplankton species were identified microscopically from all water samples (West et al., 1996), which was a relatively low number in comparison to our work targeting on dinoflagellates only. However, a very recent study, using high-throughput pyrosequencing approach also but targeting on a broader spectrum of microorganisms, demonstrated that microbial community structure is strongly linked to the bloom progression of Alexandrium catenella (Zhou et al., 2018). Multiple aspects of this study are consistent to our results presented above, such as that a decrease in diversity of the entire community of plankton during the bloom of A. catenella and reflects complex interactions among taxa comprising the phycosphere environment. An early study on freshwater and brackish water ecosystems has demonstrated that the diversity of phytoplankton communities is the best predictor for resource use efficiency (e.g., nutrients) of phytoplankton and factors reducing phytoplankton diversity may have direct detrimental effects on the amount and predictability of aquatic primary production (Ptacnik et al., 2008). While environmental variables such as temperature, turbulence, and nutrient levels are generally the primary forces shaping the community structure and driving HABs (see the discussion below), a bloom can be a vital driving force by its own for the transition of phytoplankton community structure due to the biological features of the blooming species. For example, most of HABs-causing species have been demonstrated to be allelopathic to other co-occurring phytoplankton species via releasing allelochemicals (Felpeto et al., 2018; Leão et al., 2009; Leflaive and Ten-Hage, 2007). A blooming species generally can squeeze the living space of other species via fast growth, which will consequently reduce the nutrient and space availability to competitors.
4.2 Effects of environmental variables on the dinoflagellate community
Our RDA results showed that P. donghaiense abundance, ${\rm{NO}}_3^- $-N, and ${\rm{SiO}}_3^{2-} $ were the three most important environmental factors affecting the dinoflagellate community. Prorocentrum donghaiense abundance was correlated negatively to ${\rm{NO}}_3^- $-N, ${\rm{NO}}_2^- $-N, ${\rm{PO}}_4^{3-} $-P, ${\rm{NH}}_4^+ $-N, temperature and salinity, but positively to TN, TP, Chl a and ${\rm{SiO}}_3^{2-} $. Although dinoflagellates do not need ${\rm{SiO}}_3^{2-} $ for growth, the RDA results showed ${\rm{SiO}}_3^{2-} $ appeared to be one of those important factors in shaping the dinoflagellate community, which might be indirectly caused via the effects of ${\rm{SiO}}_3^{2-} $ on the transition of diatom community during the sampling period. The ratio of DIN to DIP tended to decrease along with the development and maintenance of bloom, and increase along with disappearance of bloom. At the beginning of the survey (March 31), the cell density of P. donghaiense was comparatively low (270 cells/mL), and the DIN to DIP ratio was 18–22, which was more suitable for the growth of P. donghaiense (Li et al., 2009), while, during the blooming period of P. donghaiense, the ratio showed a downward trend in general, possibly due to the different absorption rates for different nutrients by the bloom-forming organism (Zhang et al., 2008). This trend indicates a faster absorption rate of DIN by P. donghaiense and consequently a larger effect of DIN on the growth of P. donghaiense, compared to ${\rm{PO}}_4^{3-} $-P. On May 13, the ratio reached the minimum, indicating a limiting level of DIN to the P. donghaiense growth (Li et al., 2014; Zhang et al., 2008). Supportively, it was observed there were significant negative correlations between TP and the four diversity indices (the number of OTUs, Shannon index, Gini-Simpson index, and Chao1 index), indicating that TP also stimulated the growth or bloom of P. donghaiense. However, ${\rm{PO}}_4^{3-} $ did not exhibit a significant correlation with these four diversity indices, indicating the utilization or uptake of P by P. donghaiense was not linearly correlated with the ambient concentration of ${\rm{PO}}_4^{3-} $-P. Our RDA analysis revealed that, in addition to nutrients, temperature and salinity also made contributions to the transition of the dinoflagellate community, which is somehow in contrast to the recent result of Zhou et al. (2018) where temperature and salinity were two key environmental factors associated with changes in bacterial and archaeal community structure but not with variations in eukaryotic community. While it is well understandable that temperature acted as an important factor, the apparent correlation between salinity and P. donghaiense and the dinoflagellate community might be a good indication of nutrient input from freshwater runoff.
In summary, our investigation observed that the bloom of P. donghaiense negatively affected bio-diversity in the dinoflagellate sub-community level both in reducing the species richness (as expressed in the number of OTUs and Chao1 index) and diversity indices (Shannon index and Gini-Simpson index). PCoA results showed that the dinoflagellate community during the blooming period of P. donghaiense differed significantly from the community before and after the blooming period. RDA analyses indicated that P. donghaiense abundance was the most important factor affecting the dinoflagellate community, which strongly indicates that the bloom of P. donghaiense played a vital role in shaping the dinoflagellate community structure, possibly via processes such as allelopathy (Ens et al., 2009; Leão et al., 2012), nutrient and space competition, and fast growth itself. Although these results are not beyond our anticipation, we believe the present work provides meaningful and solid evidence for the negative effects of HABs on the plankton community and coastal ecosystem based on a comprehensive series of field sampling and high throughput pyrosequencing.
Funding
Less
  • The National Natural Science Foundation of China under contract Nos 61533011 and 41776125; the NSFC-Shandong Joint Fund for Marine Ecology and Environmental Sciences under contract No. U1606404; the Scientific and Technological Innovation Project of the Qingdao National Laboratory for Marine Science and Technology under contract No. 2016ASKJ02; the National Key R&D Program of China under contract No. 2017YFC1404300; the Creative Team Project of the Laboratory for Marine Ecology and Environmental Science, Qingdao National Laboratory for Marine Science and Technology under contract No. LMEES-CTSP-2018-1.
References
Less
Anderson D M, Cembella A D, Hallegraeff G M. 2012. Progress in understanding harmful algal blooms: paradigm shifts and new technologies for research, monitoring, and management. Annual Review of Marine Science, 4: 143–176, doi: 10.1146/annurev-marine-120308-081121
Anderson D M, Glibert P M, Burkholder J M. 2002. Harmful algal blooms and eutrophication: nutrient sources, composition, and consequences. Estuaries, 25: 704–726, doi: 10.1007/BF02804901
Aranda M, Li Y, Liew Y J, et al. 2016. Genomes of coral dinoflagellate symbionts highlight evolutionary adaptations conducive to a symbiotic lifestyle. Scientific Reports, 6: 39734, doi: 10.1038/srep39734
Burkholder J M, Azanza R V, Sako Y. 2006. The ecology of harmful dinoflagellates. In: Granéli E, Turner J T, eds. Ecology of Harmful Algae. Berlin, Heidelberg: Springer, 53–66
Chai Zhaoyang, He Zhili, Deng Yunyan, et al. 2018. Cultivation of seaweed Gracilaria lemaneiformis enhanced biodiversity in a eukaryotic plankton community as revealed via metagenomic analyses. Molecular Ecology, 27(4): 1081–1093, doi: 10.1111/mec.14496
Chai Zhaoyang, Wang Huan, Deng Yunyan, et al. 2020. Harmful algal blooms significantly reduce the resource use efficiency in a coastal plankton community. Science of The Total Environment, 704: 135381, doi: 10.1016/j.scitotenv.2019.135381
Cui Lei, Lu Xinxin, Dong Yuelei, et al. 2018. Relationship between phytoplankton community succession and environmental parameters in Qinhuangdao coastal areas, China: a region with recurrent brown tide outbreaks. Ecotoxicology and Environmental Safety, 159: 85–93, doi: 10.1016/j.ecoenv.2018.04.043
Ens E J, French K, Bremner J B. 2009. Evidence for allelopathy as a mechanism of community composition change by an invasive exotic shrub, Chrysanthemoides monilifera spp. rotundata. Plant and Soil, 316(1–2): 125–137, doi: 10.1007/s11104-008-9765-3
Felpeto A B, Roy S, Vasconcelos V M. 2018. Allelopathy prevents competitive exclusion and promotes phytoplankton biodiversity. Oikos, 127(1): 85–98, doi: 10.1111/oik.04046
Huse S M, Dethlefsen L, Huber J A, et al. 2008. Exploring microbial diversity and taxonomy using SSU rRNA hypervariable tag sequencing. PLoS Genetics, 4(11): e1000255, doi: 10.1371/journal.pgen.1000255
JOGFS International Project Office. 1994. JGOFS report No. 19. protocols for the Joint Global Ocean Flux Studies (JGOFS) core measurements. Bergen, Norway: JGOFS International Project Office, Center for Studies of Environment and Resources
Jonsson P R, Pavia H, Toth G. 2009. Formation of harmful algal blooms cannot be explained by allelopathic interactions. Proceedings of the National Academy of Sciences of the United States of America, 106(27): 11177–11182, doi: 10.1073/pnas.0900964106
Landsberg J H. 2002. The effects of harmful algal blooms on aquatic organisms. Reviews in Fisheries Science, 10(2): 113–390, doi: 10.1080/20026491051695
Leão P N, Ramos V, Vale M, et al. 2012. Microbial community changes elicited by exposure to cyanobacterial allelochemicals. Microbial Ecology, 63(1): 85–95, doi: 10.1007/s00248-011-9939-z
Leão P N, Vasconcelos M T S D, Vasconcelos V M. 2009. Allelopathy in freshwater cyanobacteria. Critical Reviews in Microbiology, 35(4): 271–282, doi: 10.3109/10408410902823705
Leflaive J, Ten-Hage L. 2007. Algal and cyanobacterial secondary metabolites in freshwaters: a comparison of allelopathic compounds and toxins. Freshwater Biology, 52(2): 199–214, doi: 10.1111/j.1365-2427.2006.01689.x
Legendre P, Oksanen J, ter Braak C J F. 2011. Testing the significance of canonical axes in redundancy analysis. Methods in Ecology and Evolution, 2(3): 269–277, doi: 10.1111/j.2041-210X.2010.00078.x
Li Hongmei, Tang Hongjie, Shi Xiaoyong, et al. 2014. Increased nutrient loads from the Changjiang (Yangtze) River have led to increased Harmful Algal Blooms. Harmful Algae, 39: 92–101, doi: 10.1016/j.hal.2014.07.002
Li Ji, Glibert P M, Zhou Mingjiang, et al. 2009. Relationships between nitrogen and phosphorus forms and ratios and the development of dinoflagellate blooms in the East China Sea. Marine Ecology Progress Series, 383: 11–26, doi: 10.3354/meps07975
Lin Senjie, Cheng Shifeng, Song Bo, et al. 2015. The Symbiodinium kawagutii genome illuminates dinoflagellate gene expression and coral symbiosis. Science, 350(6261): 691–694, doi: 10.1126/science.aad0408
Lin Jianing, Yan Tian, Zhang Qingchun, et al. 2014. In situ detrimental impacts of Prorocentrum donghaiense blooms on zooplankton in the East China Sea. Marine Pollution Bulletin, 88(1–2): 302–310, doi: 10.1016/j.marpolbul.2014.08.026
Lu Douding, Goebel J, Qi Yuzao, et al. 2005. Morphological and genetic study of Prorocentrum donghaiense Lu from the East China Sea, and comparison with some related Prorocentrum species. Harmful Algae, 4(3): 493–505, doi: 10.1016/j.hal.2004.08.015
Miao Yu, Wang Zhu, Liao Runhua, et al. 2017. Assessment of phenol effect on microbial community structure and function in an anaerobic denitrifying process treating high concentration nitrate wastewater. Chemical Engineering Journal, 330: 757–763, doi: 10.1016/j.cej.2017.08.011
Parsons T R, Maita Y, Lalli C M. 1984. A Manual of Chemical & Biological Methods for Seawater Analysis. Oxford: Pergamon Press, 423–453
Ptacnik R, Solimini A G, Andersen T, et al. 2008. Diversity predicts stability and resource use efficiency in natural phytoplankton communities. Proceedings of the National Academy of Sciences of the United States of America, 105(13): 5134–5138, doi: 10.1073/pnas.0708328105
Rozen S, Skaletsky H. 2000. Primer3 on the WWW for general users and for biologist programmers. In: Misener S, Krawetz S A, eds. Bioinformatics Methods and Protocols. Totowa: Humana Press, 365-386
Schneider A R, Gommeaux M, Duclercq J, et al. 2017. Response of bacterial communities to Pb smelter pollution in contrasting soils. Science of the Total Environment, 605-606: 436–444, doi: 10.1016/j.scitotenv.2017.06.159
Smayda T J. 1990. Novel and nuisance phytoplankton blooms in the sea: evidence for a global epidemic. In: Granéli E, Sundström B, Edler L, et al., eds. Toxic Marine Phytoplankton. New York, USA: Elsevier, 29–40
Smayda T J. 1997. Harmful algal blooms: their ecophysiology and general relevance to phytoplankton blooms in the sea. Limnology and Oceanography, 42: 1137–1153, doi: 10.4319/lo.1997.42.5_part_2.1137
State Oceanic Administration. 2001–2015. Bulletin of marine disaster of China (in Chinese). http://www.mnr.gov.cn/sj/sjfw/hy/gbgg/zghyzhgb [2019-12-03/2020-02-24]
Sun Zhen, Li Guoping, Wang Chengwei, et al. 2014. Community dynamics of prokaryotic and eukaryotic microbes in an estuary reservoir. Scientific Reports, 4: 6966
Sunagawa S, Coelho L P, Chaffron S, et al. 2015. Structure and function of the global ocean microbiome. Science, 348(6237): 1261359, doi: 10.1126/science.1261359
Valderrama J C. 1981. The simultaneous analysis of total nitrogen and total phosphorus in natural waters. Marine Chemistry, 10(2): 109–122, doi: 10.1016/0304-4203(81)90027-X
Vaulot D, Eikrem W, Viprey M, et al. 2008. The diversity of small eukaryotic phytoplankton (≤3 μm) in marine ecosystems. FEMS Microbiology Reviews, 32(5): 795–820, doi: 10.1111/j.1574-6976.2008.00121.x
West T L, Marshall H G, Tester P A. 1996. Natural phytoplankton community responses to a bloom of the toxic dinoflagellate Gymnodinium breve Davis off the North Carolina coast. Castanea, 61(4): 356–368
Xu Ning, Duan Shunshan, Li Aifen, et al. 2010. Effects of temperature, salinity and irradiance on the growth of the harmful dinoflagellate Prorocentrum donghaiense Lu. Harmful Algae, 9(1): 13–17, doi: 10.1016/j.hal.2009.06.002
Xu Xin, Yu Zhiming, Cheng Fangjin, et al. 2017. Molecular diversity and ecological characteristics of the eukaryotic phytoplankton community in the coastal waters of the Bohai Sea, China. Harmful Algae, 61: 13–22, doi: 10.1016/j.hal.2016.11.005
Yao Weiming, Li Chao, Gao Junzhang. 2006. Red tide plankton along the south coastal area in Zhejiang province. Marine Science Bulletin (in Chinese), 25(3): 87–91
Zhang Chuansong, Wang Jiangtao, Zhu Dedi, et al. 2008. The preliminary analysis of nutrients in harmful algal blooms in the East China Sea in the spring and summer of 2005. Haiyang Xuebao (in Chinese), 30(3): 153–159
Zhou Jin, Richlen M L, Sehein T R, et al. 2018. Microbial community structure and associations during a marine dinoflagellate bloom. Frontiers in Microbiology, 9: 1201, doi: 10.3389/fmicb.2018.01201
