Chaofeng Wang¹^,²^,³^,⁴^,^†, Haibo Li¹^,²^,⁴^,^†, Zhiqiang Xu⁴^,⁵, Shan Zheng⁴^,⁵, Qiang Hao⁶^,⁷, Yi Dong¹^,²^,⁴, Li Zhao¹^,²^,⁴, Wuchang Zhang¹^,²^,⁴^,^*, Yuan Zhao¹^,²^,⁴^,^*, Gérald Grégori⁸, Tian Xiao¹^,²^,⁴

Acta Oceanologica Sinica | 2020, 39(4) : 9 - 17

Less

Acta Oceanologica Sinica | 2020, 39(4): 9-17

• Marine Biogeochemical Sciences for the Sustainability of the West Pacific Biosphere •

Difference of planktonic ciliate communities of the tropical West Pacific, the Bering Sea and the Arctic Ocean

Full

Affiliations

¹ CAS Key Laboratory of Marine Ecology and Environmental Sciences, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

² Laboratory for Marine Ecology and Environmental Science, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

³ University of Chinese Academy of Sciences, Beijing 100049, China

⁴ Center for Ocean Mega-Science, Chinese Academy of Sciences, Qingdao 266071, China

⁵ Jiaozhou Bay Marine Ecosystem Research Station, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China

⁶ State Key Laboratory of Satellite Ocean Environment Dynamics, Hangzhou 310012, China

⁷ Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China

⁸ Aix-Marseille University, Toulon University, CNRS, IRD, Mediterranean Institute of Oceanology UM110, Marseille 13288, France

Published: 2020-04-25 doi: 10.1007/s13131-020-1541-0

Outline

Abstract

Less

Ciliates are important components in planktonic food webs, but our understanding of their community structures in different oceanic water masses is limited. We report pelagic ciliate community characteristics in three seas: the tropical West Pacific, the Bering Sea and the Arctic Ocean. Planktonic ciliate abundance had “bimodal-peak”, “surface-peak” and “DCM (deep chlorophyll a maximum layer)-peak” vertical distribution patterns in the tropical West Pacific, the Bering Sea and the Arctic Ocean, respectively. The abundance proportion of tintinnid to total ciliate in the Bering Sea (42.6%) was higher than both the tropical West Pacific (7.8%) and the Arctic Ocean (2.0%). The abundance proportion of small aloricate ciliates (10–20 μm size-fraction) in the tropical West Pacific was highest in these three seas. The Arctic Ocean had higher abundance proportion of tintinnids in larger LOD (lorica oral diameter) size-class. Proportion of redundant species increased from the Arctic Ocean to the tropical West Pacific. Our result provided useful data to further understand ecology roles of planktonic ciliates in different marine habitats.

Key words

planktonic ciliates / vertical distribution / community structure / tropical West Pacific / Bering Sea / Arctic Ocean

Cite this Article

Chaofeng Wang, Haibo Li, Zhiqiang Xu, Shan Zheng, Qiang Hao, Yi Dong, Li Zhao, Wuchang Zhang, Yuan Zhao, Gérald Grégori, Tian Xiao. Difference of planktonic ciliate communities of the tropical West Pacific, the Bering Sea and the Arctic Ocean[J]. Acta Oceanologica Sinica, 2020 , 39 (4) : 9 -17 . DOI: 10.1007/s13131-020-1541-0

Full Text

Less

1 Introduction

Less

Oceanic environments varied from the equator to high latitudes. In addition to the obvious decrease in surface water temperature with a progression northward to the pole, the stratification type varied from alpha oceans (subtropical seas stratified by temperature) to beta oceans (high-latitude seas stratified by salinity) (Carmack, 2007). The deep chlorophyll a maximum layer (DCM) became shallow in the area between the alpha and beta oceans. It ultimately changed into surface chlorophyll a maximum layer as in the Bering Sea (Wolf and Woods, 1988; Sohrin et al., 2010; Arrigo and van Dijken, 2011; Jiang et al., 2015; Burridge et al., 2017).

Biogeographically, plankton distribution can be determined by large gyres (Longhurst, 2007), of which three exist from the northern Pacific Ocean to the Arctic Ocean: the North Pacific Gyre, the Subarctic Gyre, and the Beaufort Gyre (Springer et al., 1996; Longhurst, 2007; Steele et al., 2004, 2011; Hu et al., 2015; Li et al., 2016). In addition to the difference in species composition and abundance in these different habitats, the structure and function of planktonic ecosystems were different (Megrey et al., 2009; Legendre and Niquil, 2013).

Planktonic ciliates belong to the phylum Ciliophora, class Spirotrichea, and subclasses Oligotrichia and Choreotrichia (Lynn, 2008). They comprise tintinnids with lorica, and aloricate ciliates without lorica. These ciliates are primary consumers of pico-(0.2–2 μm) and nano-(2–20 μm) sized producers, and are important food source for metazoan and fish larvae (Gómez, 2007). Accordingly, ciliates play an important role in material circulation and energy flow, from microbial food webs to the traditional food chain (Azam et al., 1983; Pierce and Turner, 1992; Calbet and Saiz, 2005).

It has been established that different tintinnid taxa dominate each of these gyres (Taniguchi, 1984; Dolan et al., 2014; Li et al., 2016; Wang et al., 2019). There was no study on other community characteristics of ciliates in addition to the taxonomic difference. In this study, we examined community characteristics of ciliates in the tropical West Pacific, the Bering Sea and the Arctic Ocean. The three study areas belong to the three gyres (the North Pacific Gyre, the Subarctic Gyre and the Beaufort Gyre), respectively. We hypothesize that ciliates characteristics differ due to the influence of each gyre. We examine following characteristics of ciliate community: (1) distribution patterns in their vertical direction, (2) abundance proportions of tintinnids to total ciliates, (3) the abundance proportion of aloricate ciliate size-fractions, and (4) tintinnid abundance proportion of different lorica oral diameter (LOD) size-classes and proportions of tintinnid redundant species in total tintinnids. Our results will assist in understanding differences in vertical distributions of ciliate communities in these three seas, exploit considerable mechanism that how pelagic ciliates structured in water column, and enable prediction of variation in tintinnid community species richness and LOD size-class composition in world oceans.

2 Materials and methods

Less

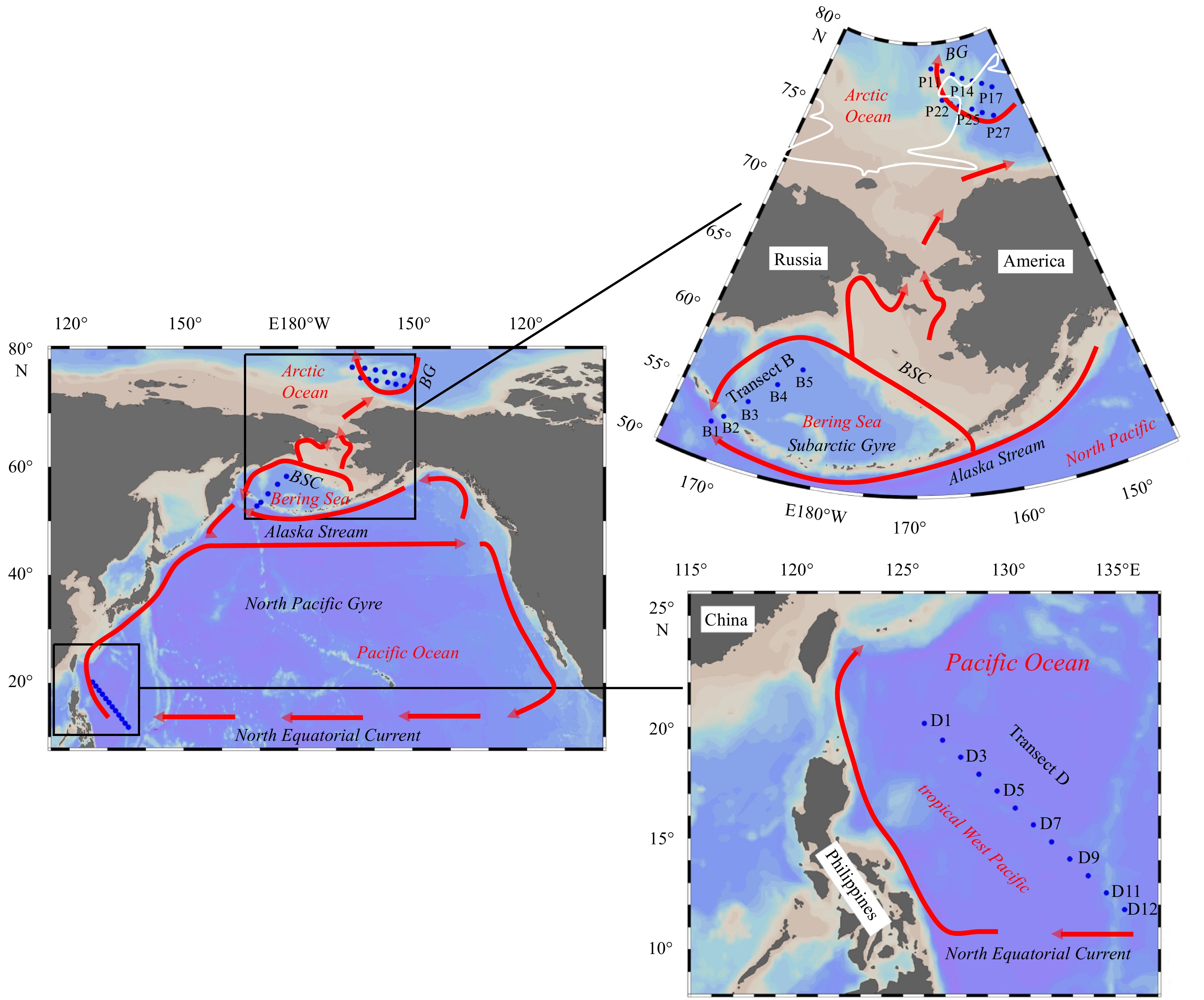

Planktonic ciliates were sampled during two cruises: one to the tropical West Pacific (12 stations, deeper than 3 000 m) from 28 November to 31 December, 2015 aboard R/V Kexue (Fig. 1), and the other to the Bering Sea (5 stations, deeper than 500 m) and the Arctic Ocean (13 stations, deeper than 2 000 m) from 18 July to 10 September, 2016, during the 7th Chinese National Arctic Research Expedition aboard R/V Xuelong (Fig. 1).

At each station, temperature and salinity profiles were obtained from the surface to 200 m using a conductivity-temperature-pressure (CTD) sensor (Sea-Bird Electronics, Bellevue, WA, USA). Water samples were collected at seven depths (sampling points) using 12-L Niskin bottles attached to a rosette wheel. Most sampling occurred at the surface (5 m), 30 m, 50 m, 75 m, 100 m, 150 m and 200 m in each station, but sampling within the DCM necessitated some variation in sampling depth.

Chlorophyll a (Chl a) concentration was determined by filtering 250 mL of seawater through a Whatman GF/F glass fiber filter. Plankton retained on the filter was extracted in 90% (v/v) acetone, and its fluorescence measured according to the JGOFS protocol (Knap et al., 1996) using a Turner Trilogy fluorometer Model 10.

Water samples (1 L) collected from each depth for ciliate enumeration were fixed with 1% acid Lugol’s iodine and stored below 4°C in darkness. In the laboratory, samples were concentrated to about 100 mL by gently siphoning off supernatant after settling for at least 48 h. This settling and siphoning processes was repeated until a final concentrated volume of 50 mL was achieved, which was then settled in two Utermöhl counting chambers (25 mL per chamber) (Utermöhl, 1958) for at least 24 h.

The samples in the two chambers was examined using an Olympus IX 71 inverted microscope (100× or 400×). Less-abundant species were counted in two chambers, while high abundance species were counted in one chamber. Because mechanical and chemical disturbance associated with collection and fixation may have provoked detachment of the protoplasma from the lorica (Paranjape and Gold, 1982; Alder, 1999), empty tintinnid loricae were counted as living cells. We acknowledge the possibility that some lorica might have been empty at collection (Kato and Taniguchi, 1993; Dolan and Yang, 2017), and that our abundances might be overestimates.

For each species, size (length, width, according to shape) of the cell (aloricate ciliate) or lorica (tintinnid, especially length and oral diameter) were measured for at least 20 individuals if possible. Aloricate ciliates were categorized into size-fractions in increments of 10 μm for maximum body length for each individual. According to lorica morphology and size, tintinnids were identified to species following Kofoid and Campbell (1929, 1939), Lynn (2008) and Zhang et al. (2012). Ciliate volumes were estimated using appropriate geometric shapes (cone, ball, and cylinder). Tintinnid carbon biomass was estimated using the equation: carbon = lorica volume (μm³) × 0.053 + 444.5 (Verity and Lagdon, 1984). We used a conversion factor of carbon biomass for aloricate ciliates of 0.19 pg/μm³ (Putt and Stoecker, 1989).

There was no existing standardized reference to aloricate ciliate size-fraction. Though Marquis et al. (2011) suggested using equivalent spherical diameter (ESD) to calculate microzooplankton communities, but this method does not reveal the exact length of each aloricate ciliate. We categorized aloricate ciliate size-fractions based on measurement of their longest cell length, following Lessard and Murrell (1996), Taylor et al. (2011) and Liang et al. (2018).

Tintinnid lorica length at different life stages might differ greatly (Gold and Morales, 1976), while the lorica oral diameter (LOD) variation was low for the same tintinnid species (Dolan, 2010). Therefore, LOD was used as a proxy for tintinnid size in this study. The tintinnids were divided into different LOD size-classes which were 4 μm apart (12–16 μm, 16–20 μm and so on). Redundant tintinnid species were defined as these species in the same LOD size-classes. If one LOD size-class has species number (n) larger than one, redundant species number of this LOD size-class was n–1. For a tintinnid assemblage, redundant species number is the sum of that in every LOD size-class. Methematically, redundant species number of a tintinnid assemblage could be calculated as the number of species minus the number of LOD size-classes (Dolan et al., 2016). The proportion of redundant tintinnid species was calculated as the percentage of redundant species number in total species number.

3 Results

Less

3.1 Hydrographic features

Surface temperature and salinity decreased from the tropical West Pacific (27.2–28.6°C, 33.8–34.7) to the Bering Sea (10.1–10.5°C, 32.7–33.0), then to the Arctic Ocean (−1.2–0.7°C, 26.5–28.3). Surface average Chl a was highest in the Bering Sea ((0.8±0.5) μg/L), and values in the tropical West Pacific and the Arctic Ocean were (0.1±0.0) μg/L and (0.0±0.0) μg/L, respectively (Fig. 2).

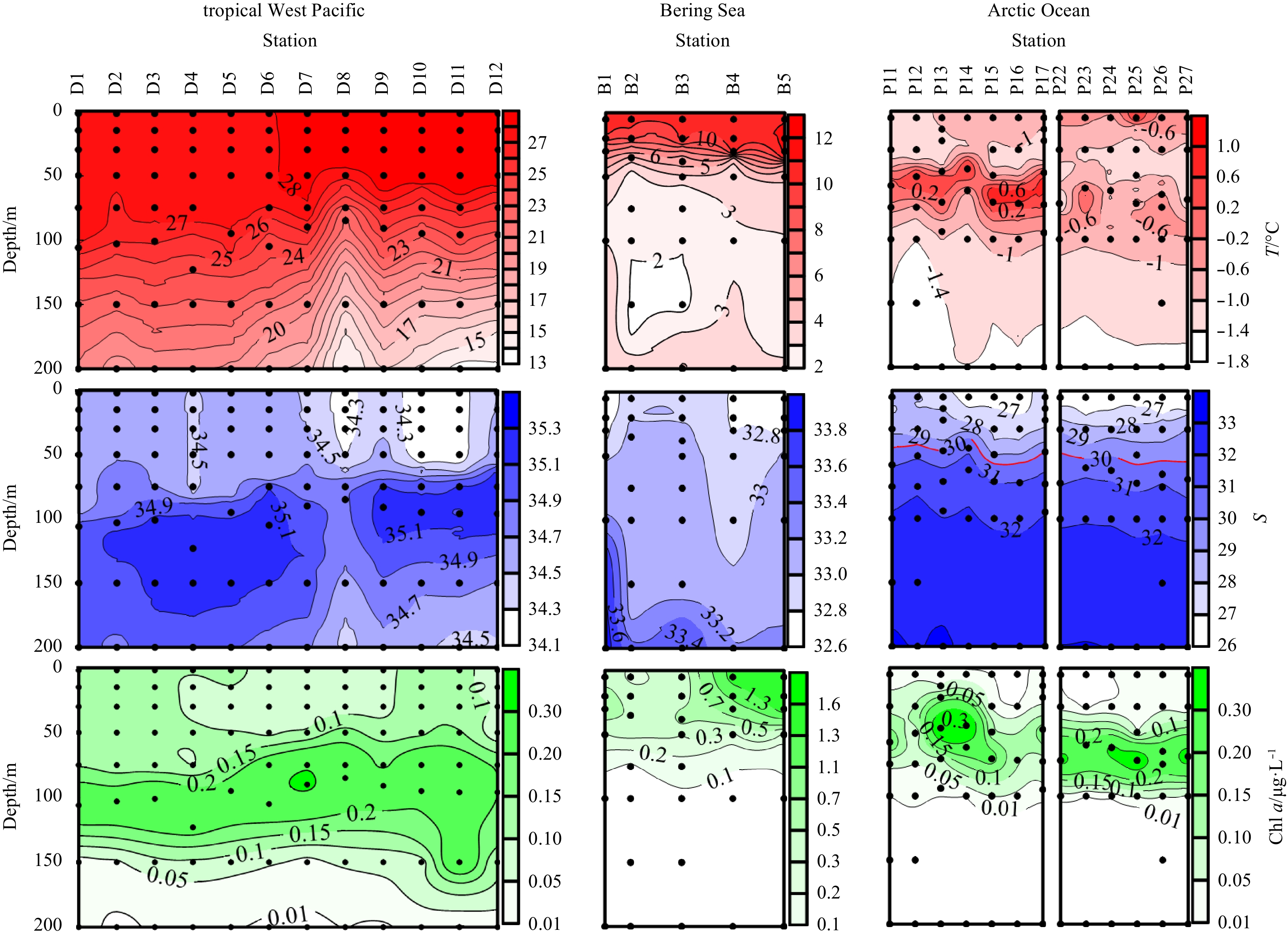

Vertical temperature, salinity and Chl a concentration profiles differed in the three seas. The thermocline in the tropical West Pacific occurred at about 100 m, much deeper than in the Bering Sea (about 30 m) and the Arctic Ocean (about 5 m). In the Arctic Ocean, a second temperature peak occurred between 50 and 75 m (Fig. 2).

Salinity was stratified with depth, with lower salinity in surface waters of each sea. The magnitude of differences in temperature and salinity between surface waters and those at 200 m differed in the three seas: temperature ranges in the tropical West Pacific (13.9–28.6°C, difference 14.7°C) and the Bering Sea (1.5–11.3°C, difference 9.8°C) were larger than in the Arctic Ocean (−1.6–1.2°C, difference 2.8°C); salinity ranges in the tropical West Pacific (34.3–35.1, difference 0.8) and the Bering Sea (32.8–33.4, difference 0.6) were smaller than in the Arctic Ocean (27.4–33.4, difference 6.0) (Fig. 2).

Chl a concentration differed significantly among the three seas. DCM occurred in both the tropical West Pacific ((101±17) m) and the Arctic Ocean ((66±7) m), but not the Bering Sea, where high Chl a concentration occurred in the surface (Fig. 2).

3.2 Ciliate abundance, biomass and vertical distribution

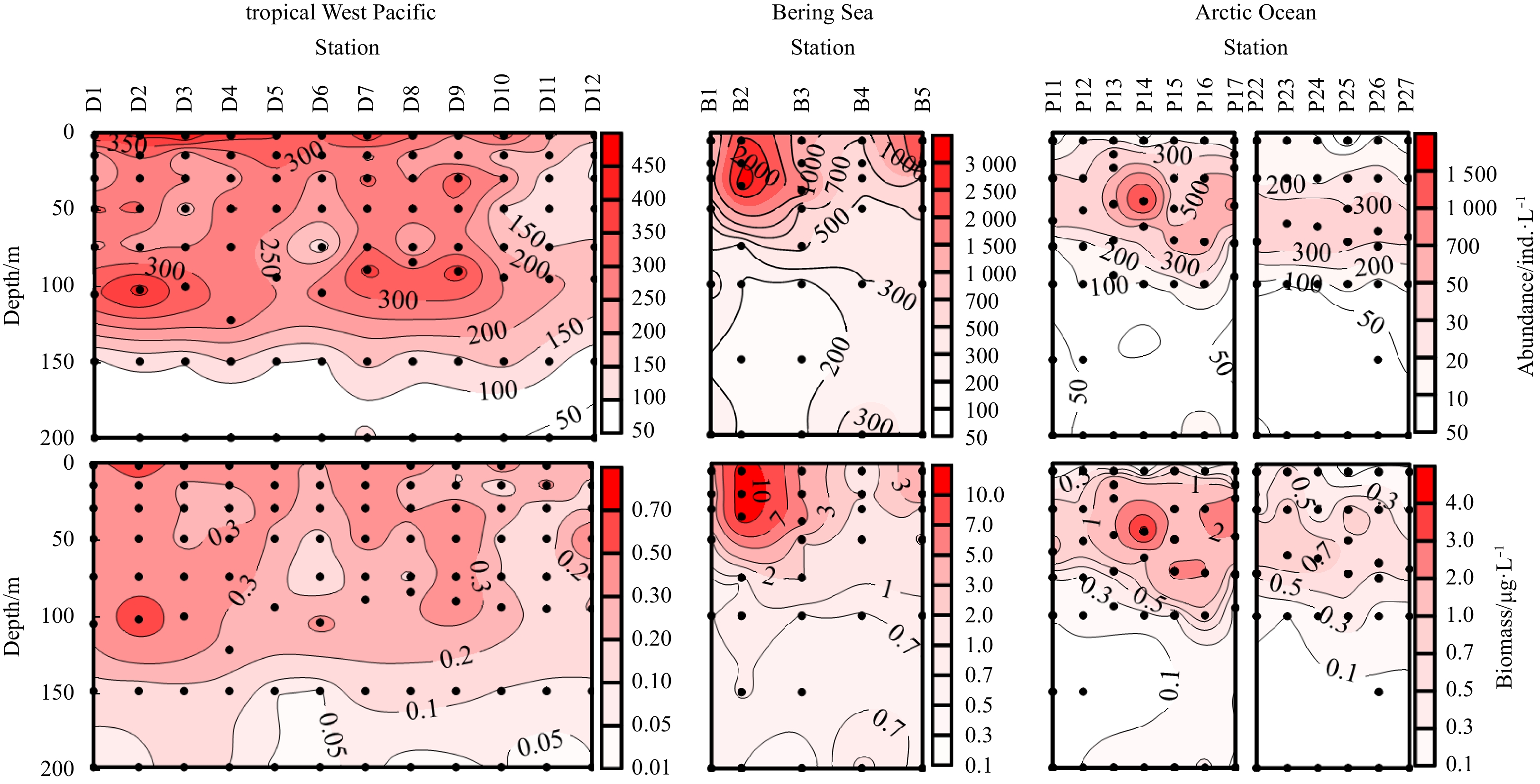

Basically ciliate abundance and biomass (calculated by carbon) in the Bering Sea (152–3 267 ind./L, 0.3–11.6 μg/L) was larger than in the tropical West Pacific (35–443 ind./L, 0–0.7 μg/L) and the Arctic Ocean (12–1 615 ind./L, 0–4.5 μg/L) (Fig. 3). In the surface layer, average abundances in the Bering Sea ((1 830±1 046) ind./L) were 5.7 times and 12.0 times higher than those in the tropical West Pacific ((320±88) ind./L) and Arctic Ocean ((153±94) ind./L), respectively (Fig. 4).

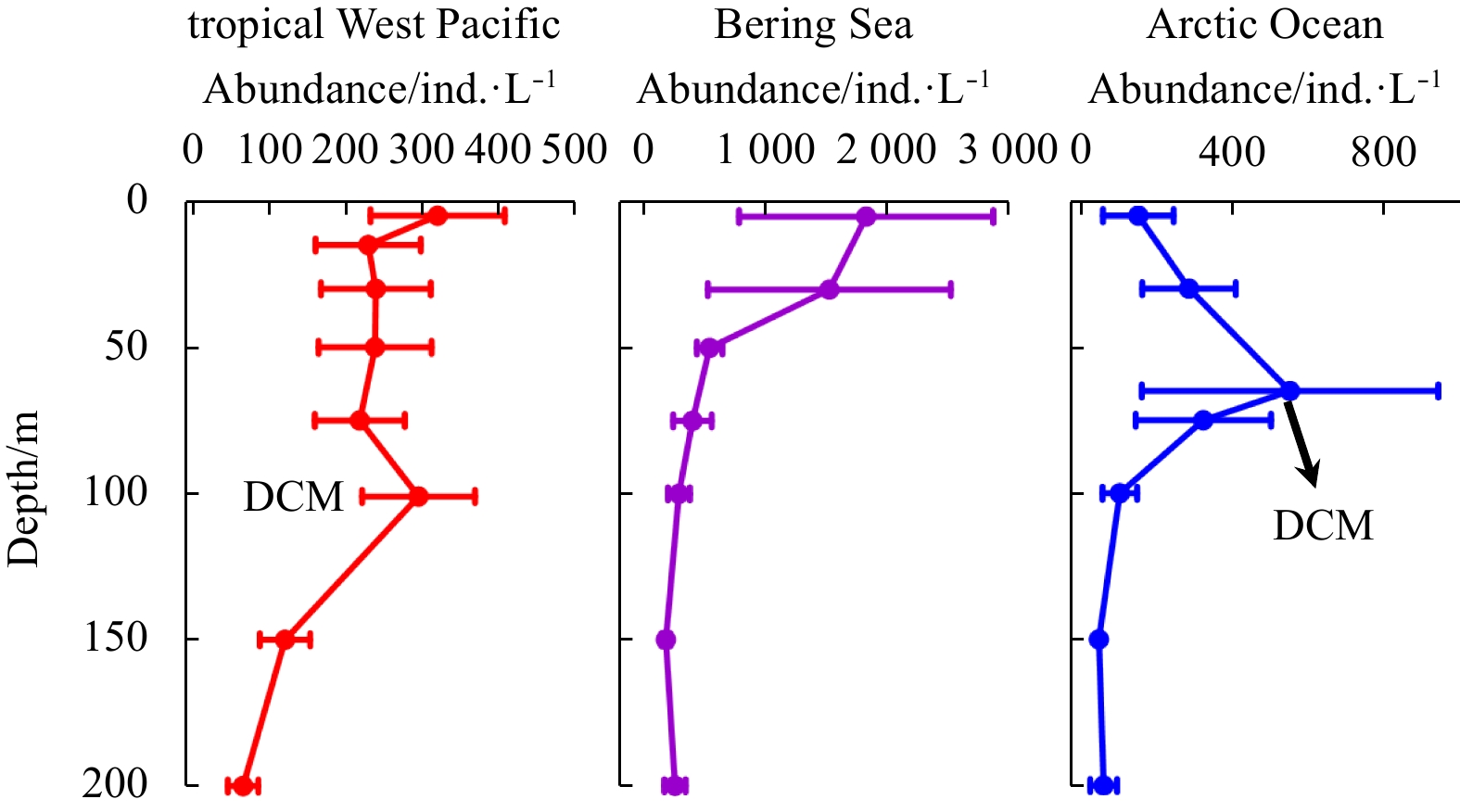

Vertical distribution trend of average abundances of ciliates for each depth in the tropical West Pacific, the Bering Sea and the Arctic Ocean differed (Fig. 4). Average abundance had a “bimodal-peak” (high abundance in both surface and DCM layers), “surface-peak” (high abundance in surface layers), and “DCM-peak” (high abundance in DCM layers), in the tropical West Pacific, the Bering Sea, and the Arctic Ocean, respectively (Fig. 4).

3.3 Abundance proportion of tintinnid to total ciliate

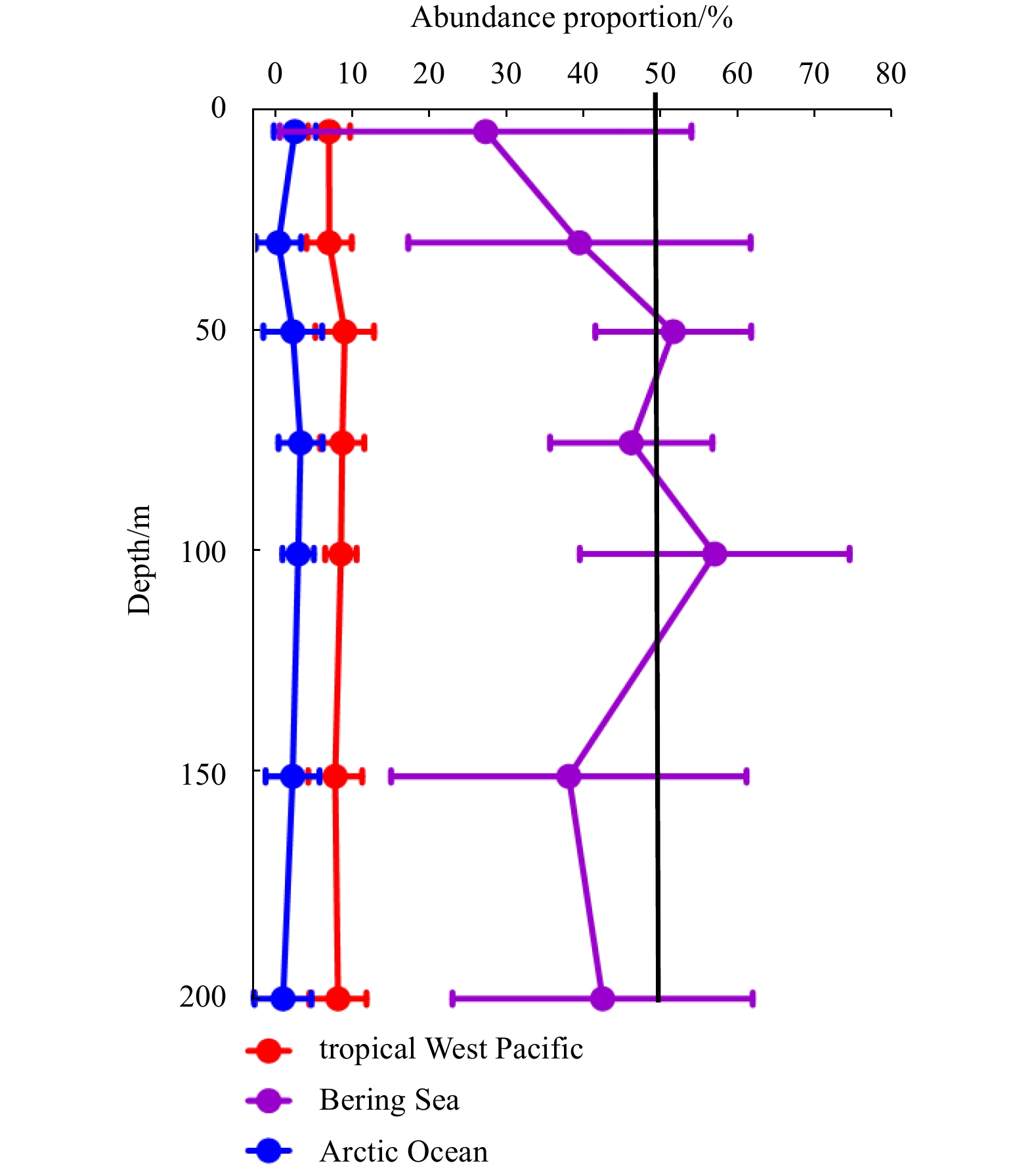

Generally, tintinnids were not the dominant (abundance proportion >50%) group of planktonic ciliates. However, tintinnids were the dominant group at layers of 50 m and 100 m (abundance proportion 51.7% and 57.0%, respectively) in the Bering Sea. In terms of average abundance proportion in different layers, tintinnids represented 0.0%–18.3% (average 7.8%±3.1%), 3.9%–75.1% (average 42.6%±20.9%), and 0.0%–9.7% (average 2.0%±2.2%) of all ciliates in the tropical West Pacific, the Bering Sea and the Arctic Ocean, respectively (Fig. 5).

3.4 Aloricate ciliate size-fraction difference

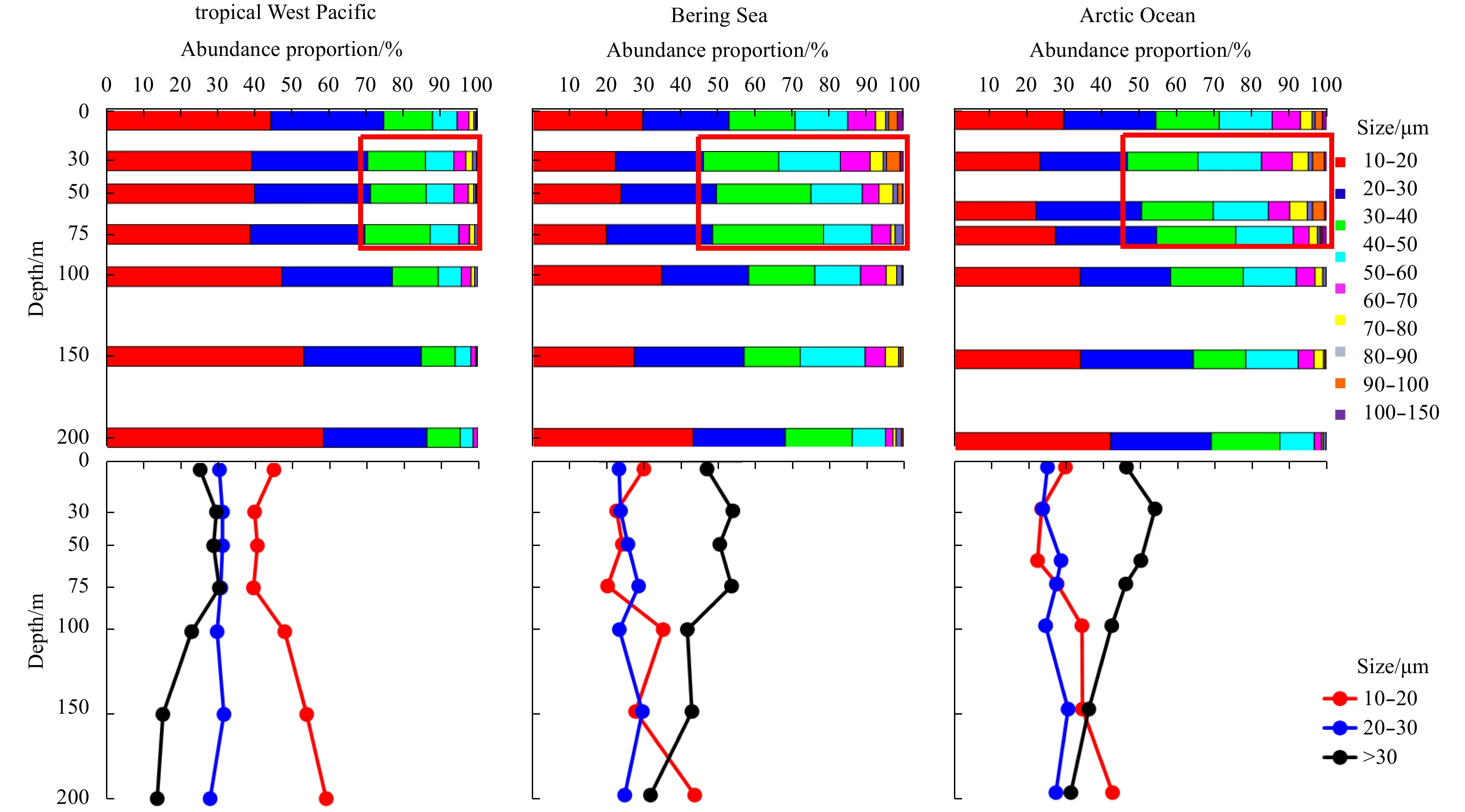

Abundance proportions of different size-fractions of aloricate ciliates revealed individuals of 10–30 μm size-fractions were more abundant at each depth in the tropical West Pacific than in the Bering Sea and Arctic Ocean (Fig. 6). The 10–30 μm size-fraction in surface waters represented 76.5%±6.8% of aloricate ciliates in the tropical West Pacific, about 20% higher than in both the Bering Sea (54.6%±7.5%) and the Arctic Ocean (56.7%±7.8%). Aloricate ciliates >30 μm size-fraction in surface waters represented less than 30% of all aloricate ciliates in the tropical West Pacific, but more than 40% in both the Bering Sea and the Arctic Ocean (Fig. 6). From surface waters to 200 m depth, aloricate ciliates abundance proportion of 10–20 μm size-fraction were most abundant in the tropical West Pacific, representing more than 40% of all aloricate ciliates. In the Bering Sea and the Arctic Ocean, aloricate ciliates >30 μm size-fraction were the dominant size-fraction component from surface waters to 150 m depth, but at 200 m the 10–20 μm size-fraction predominated (>40% of all aloricate ciliates) (Fig. 6).

In all three gyres, the abundance proportion of aloricate ciliates in the 10–20 μm size-fraction decreased from surface layers to 75 m (in both the tropical West Pacific and Bering Sea) or 50 m (in the Arctic Ocean), then increased to 200 m depth, while that of the 20–30 μm size-fraction was relatively constant throughout the water column to depths of 200 m. The abundance proportion of aloricate ciliates >30 μm size-fraction first increased from surface waters to 75 m (in both the tropical West Pacific and Bering Sea) or 30 m (in the Arctic Ocean), but then decreased to 200 m in all three water masses. In the layers of 30–75 m, the average abundance proportions of aloricate ciliates >30 μm size-fraction were about 4.4%, 4.9% and 3.8% higher than in surface layers in the tropical West Pacific, the Bering Sea and the Arctic Ocean, respectively (Fig. 6).

3.5 Lorica oral diameter size-classes and proportion of redundant tintinnid species

From the tropical West Pacific to the Arctic Ocean, abundance proportion of tintinnids with larger lorica oral diameter (LOD) became higher (Fig. 7). Tintinnid species with LOD ranging 12–16 μm and 24–28 μm size-classes were proportionally most abundant (26.7% and 59.5%) in the tropical West Pacific and the Bering Sea, respectively, while in the Arctic Ocean, tintinnids of LOD 60–64 μm size-class was proportionally most abundant (50.0%) (Fig. 7).

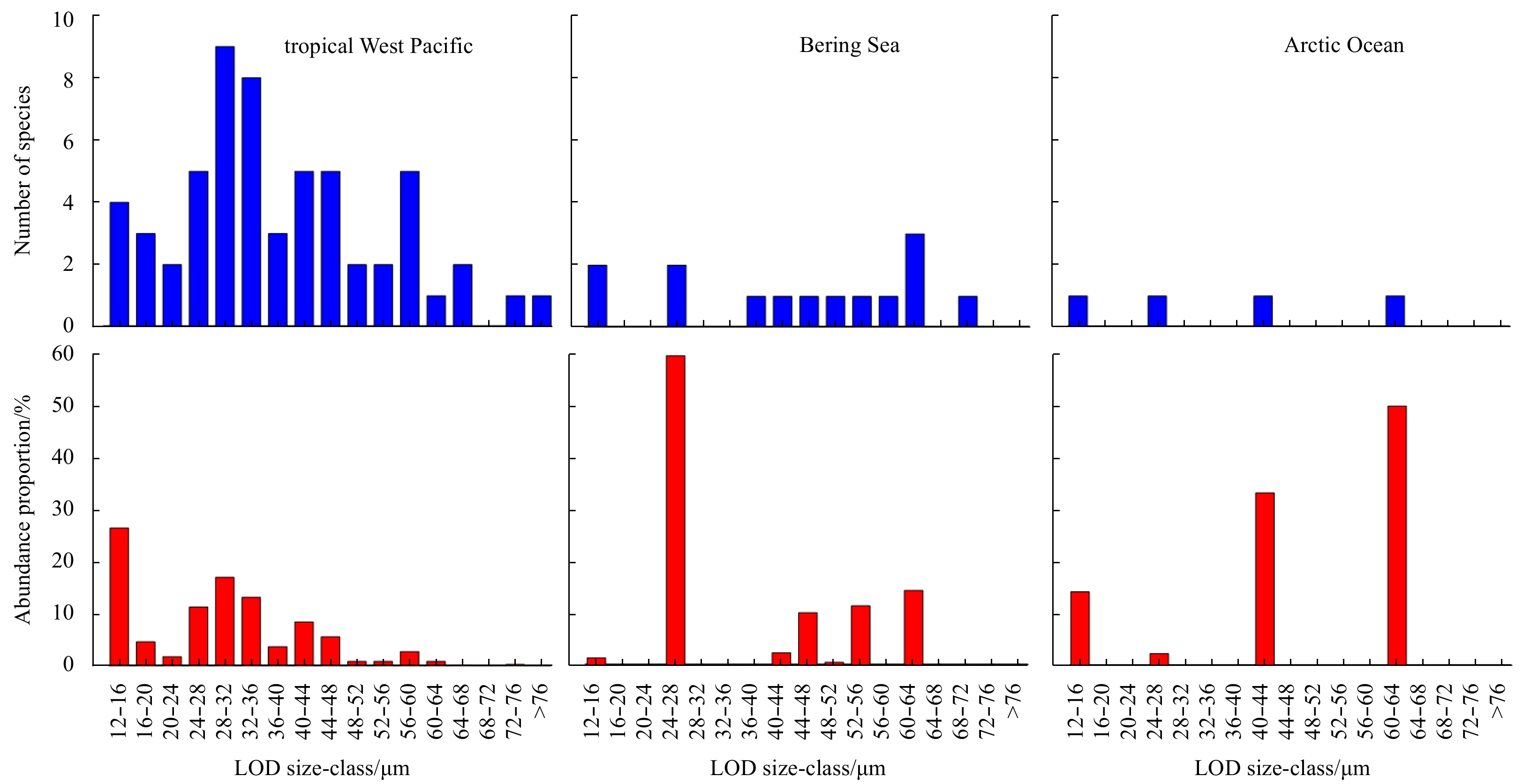

Different seas had different tintinnid species richness patterns in LOD size-classes, and proportions of redundant species. Tintinnids ranging 28–32 μm and 32–36 μm LOD size-classes were the two most species rich size-classes, with 9 and 8 tintinnid species, respectively, in the tropical West Pacific (Fig. 7). Tintinnids of LOD ranging 60–64 μm size-class was the most species rich (3 species) in the Bering Sea. In the tropical West Pacific and Bering Sea there were 48 and 4 redundant species, with the proportion of redundant species being 72.4% and 28.6%, respectively. In the Arctic Ocean, four species were equally distributed in four LOD size-classes, and there were no redundant species.

4 Discussion

Less

4.1 Planktonic ciliate vertical distribution

In our study, the distributions of planktonic ciliates in the oceanic area through the water column in the Bering Sea and the Arctic Ocean were revealed to be “surface-peak” and “DCM-peak” patterns, respectively. Though previous studies have not specifically described the patterns in the vertical distribution of planktonic ciliates in either of these two areas, their data revealed that comparable patterns existed: high abundances were reported from surface layers in the Bering Sea (Taniguchi, 1984), and in the Arctic Ocean DCM at 40–80 m (Yang et al., 2015); while a “bimodal-peak” pattern was reported from the Bering Strait to the western Arctic Ocean based on average values (Xu et al., 2018a). The surface peak in Xu et al. (2018a) might be due to high values at shelf stations in the Bering Strait (Matsuno et al., 2014; Yang et al., 2015; our unpublished data), so results of Xu et al. (2018a) may be not representative for the oceanic Arctic Ocean.

Planktonic ciliate vertical distributions have been reported for oceanic waters of the Pacific Ocean (Strom et al., 1993; Leakey et al., 1996; Yang et al., 2004; Gómez, 2007; Sohrin et al., 2010; Zhao et al., 2017; Wang et al., 2016, 2019). However, only Wang et al. (2019) explicitly described ciliate vertical distribution patterns as having a “bimodal-peak” in the tropical West Pacific.

Several studies have shown ciliate abundance to be positively correlated with Chl a concentration (Dolan and Marrasé, 1995; Yu et al., 2013; Jiang et al., 2015; Xu et al., 2018a, b). Our studies showed that there were ciliate peaks in the maximum Chl a layer, no matter it is in the subsurface (DCM) or surface layer. Although the tropical West Pacific and the Arctic Ocean had low Chl a concentration in the surface, but there was no surface ciliate peak in the Arctic Ocean as in the tropical West Pacific. We do not know the reasons of this phenomenon because there were differences in surface temperature and salinity between the two areas.

Low salinity in the Arctic Ocean might not be a decisive factor for the low ciliate abundance in the surface layer. In the estuaries such as Changjiang River Estuary, fresh water river discharge causes low salinity (<30) as well as high Chl a and nutrient concentrations in the surface waters (Wang et al., 2013; Zhang et al., 2015). In this case, ciliate in the surface freshwater was higher than in the subsurface layer (Yu et al., 2015).

4.2 Abundance proportion of tintinnid to total ciliate

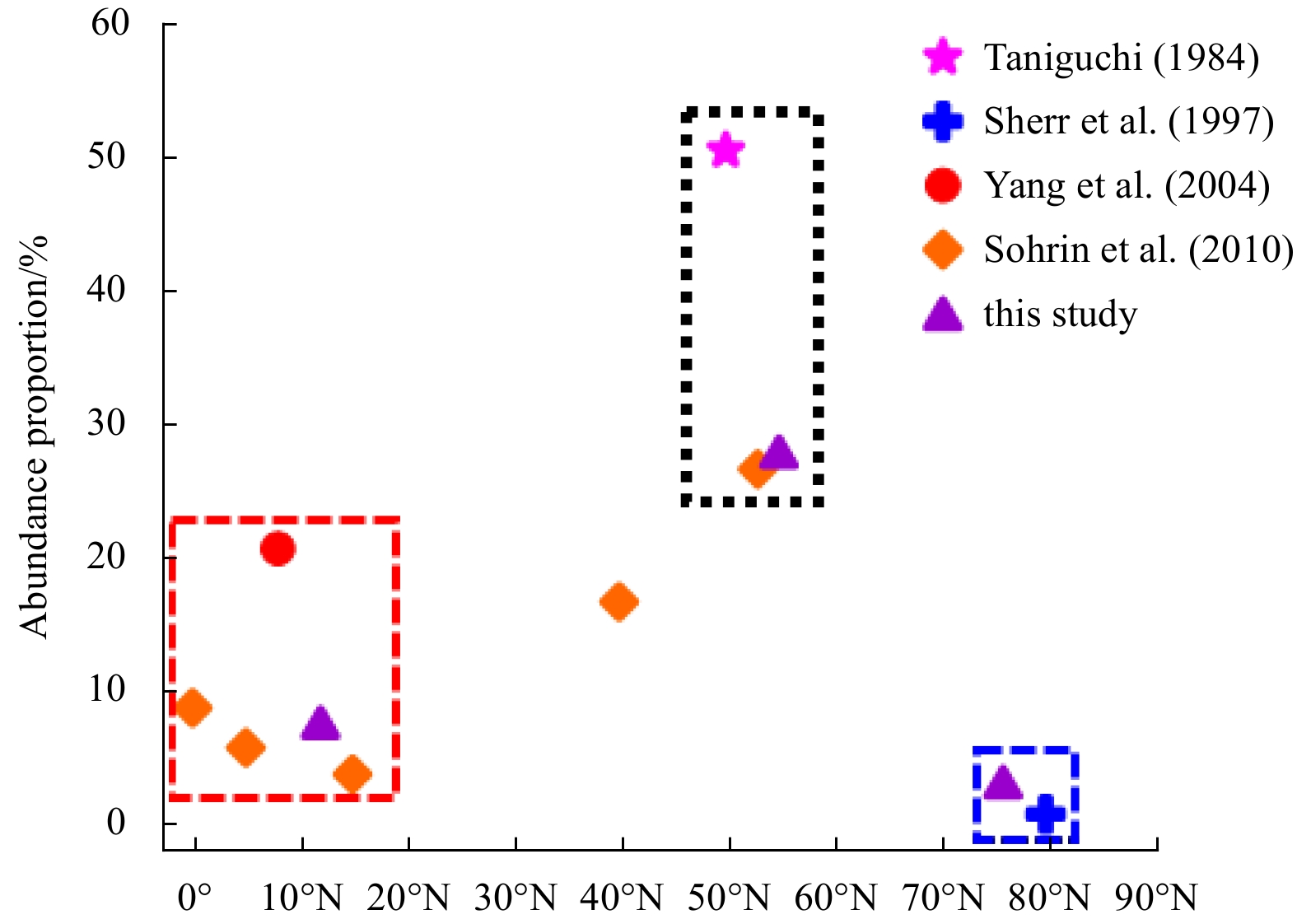

Abundance proportion of tintinnid to total ciliate have been described for tropical and subtropical waters (Fig. 8) (Yang et al., 2004; Gómez, 2007; Sohrin et al., 2010; Wang et al., 2016, 2019). In the tropical West Pacific, average tintinnid abundance proportions varied from 20% (Yang et al., 2004) to less than 10% (Wang et al., 2016, 2019), and in other studies, abundance proportions about 10% in surface equatorial waters to 5% in waters from 10°–15°N (Sohrin et al., 2010). Our result of 7.8% for the tropical West Pacific is comparable to that of Wang et al. (2016) and Sohrin et al. (2010).

Abundance proportion of tintinnid to total ciliates were unknown for the Bering Sea and the Arctic Ocean. The abundance proportion (42.6%) in the Bering Sea waters (52°–58°N) in our study was higher than that (25%) for the same latitude (53°N) along 160°W in the subarctic Pacific (Sohrin et al., 2010). We estimate previous abundance proportion (from the surface to 160 m depth) for the Bering Sea based on values in Fig. 2 of Taniguchi (1984) to be about 50%, which is close to our result from this region. The very low value (2.0%) we report for the Arctic Ocean is consistent with Sherr et al. (1997), where tintinnids were reported to be rarely observed from 70°–90°N.

Our data and previous studies showed that the Bering Sea and the Arctic Ocean had the highest and lowest abundance proportion of tintinnids to total ciliates. Until now, environmental factors responsible for these differences were unknown. Loricate ciliates are adapted to high Chl a environment where food is sufficient (Suzuki and Taniguchi, 1998). High Chl a concentration in the Bering Sea might contribute to the high tintinnid abundance proportion (Fig. 2).

4.3 Difference in aloricate ciliate size-fractions

The bathymetric distributions of different size-fractions of aloricate ciliates have been rarely reported from oceanic environments. Ours is the first report of the vertical distribution of aloricate ciliate size-fractions in these three gyres. Our results reveal aloricate ciliates <20 μm size-fraction comprise about 45% of all ciliates in surface waters of the tropical West Pacific. This result is consistent with that reported for the northeast equatorial Pacific (5°–11°N), where the average abundance proportion of aloricate <20 μm to total ciliates in the surface was about 50% (Yang et al., 2004), and the Red Sea (29.5°N, depth 650 m), where it was >50% in surface water (Claessens et al., 2008).

No reports of the size-fraction composition of aloricate ciliates in the Bering Sea and the Arctic Ocean are known. In the Prydz Bay (65°–68°S, Southern Ocean), the aloricate ciliates <20 μm size-fraction represented about 40% of the total numbers of aloricate ciliate (Liang et al., 2018), which is both higher than in the Bering Sea and the Arctic Ocean.

We found abundance proportion of aloricate ciliate >30 μm size-fraction in each depth increased from the tropical West Pacific to the Arctic Ocean. The Arctic Ocean has a lower percentage of smaller size-fraction aloricate ciliates. This result supports Bergmann’s rule, that, in general, larger-bodied animals tend to live further north than their smaller-bodied relatives (Bergmann, 1847). Some subarctic and subantarctic zooplankton tend to be larger than their relatives in subtropical species (Reid et al., 1978; Martin et al., 2006; Gallienne et al., 2001). For example, species in genus Euphausia is 20 mm in body length in subarctic, while it is only 8 mm in subtropical area (Reid et al., 1978).

Why proportionally more larger-sized aloricate ciliates occur in subsurface layers, and more smaller-sized aloricate ciliates occur in deeper waters in all the three areas is unknown in vertical direction. As maximum Chl a concentration layers occurred at different depths in the three areas, we speculate that Chl a concentration might not be the reason.

4.4 Variation of dominant lorica oral diameter size-class and proportion of tintinnid redundant species

Tintinnid LOD (lorica oral diameter) size-class in these three seas has not been previously compared. Dominant tintinnid LOD size-classes have been reported for the Bering Sea (Li et al., 2016) and the Jiaozhou Bay (Feng et al., 2018). Our result that the dominant LOD size-class (24–28 μm) in the Bering Sea is similar to that (22–26 μm) of Li et al. (2016). The space difference in our study that the dominant LOD size-class is large in the cold Arctic Ocean, but small in the warm tropical West Pacific is similar to seasonal changes in dominant LOD size-classes in the Jiaozhou Bay (Feng et al., 2018), where it is larger (48–52 μm) in winter than summer (24–32 μm). Thus, we speculate dominant LOD size-class might be large in cold areas, which might be another aspect of the Bergman’s Rule in tintinnids.

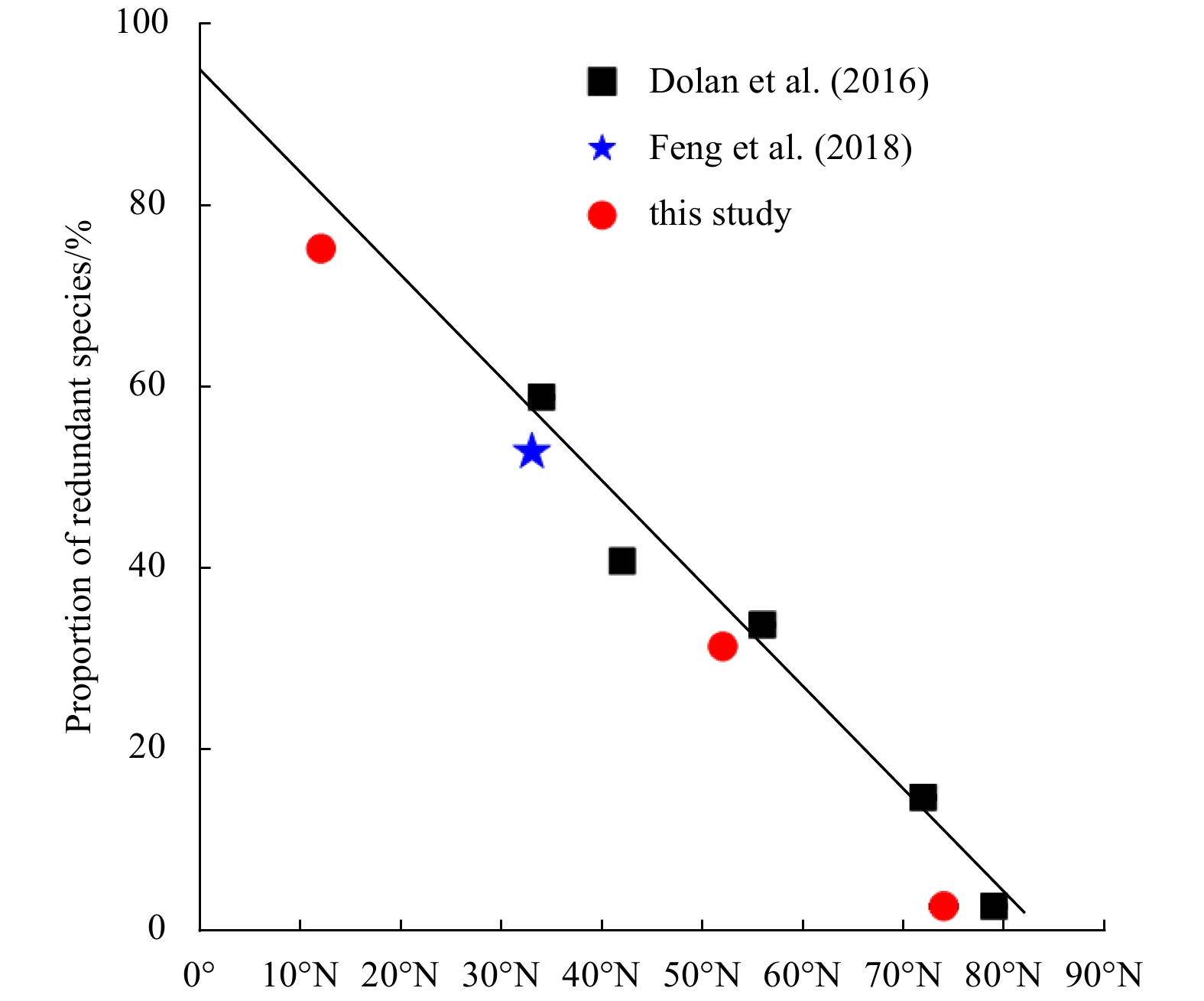

Proportions of redundant species in tintinnid assemblages increased markedly from polar to low latitude areas in the northern hemisphere. From 83°N to 37°N, this proportion increased from 0% to 57% (Dolan et al., 2016), while in the Jiaozhou Bay (36°N), this value was 50% all year round (Feng et al., 2018). We found this value to continue increasing with progression from the Arctic Ocean to 15°N, in a linear manner (Fig. 9). Further study is needed to support whether this value will continue to increase southward to equatorial waters.

5 Conclusions

Less

We report changes in ciliate community characteristics in some transects influenced by three gyres (the North Pacific Gyre, the Subarctic Gyre and the Beaufort Gyre). Planktonic ciliates manifest “bimodal-peak”, “surface-peak” and “DCM-peak” patterns of bathymetric distribution in the tropical West Pacific, the Bering Sea and the Arctic Ocean, respectively. The abundance proportion of tintinnid to total ciliate increased from the tropical West Pacific to the Bering Sea, then decreased to the Arctic Ocean. Abundance proportion of aloricate ciliate in larger size-fraction increased from tropical West Pacific waters to the Arctic Ocean. Finally, the dominant LOD size-class was small in the tropical West Pacific waters, but large in the Arctic Ocean, with the proportion of redundant species decreasing from the former to the latter. Our results represent a snapshot of ciliate community structure in each gyre, which constitute a baseline for further comparative study on temporal and spatial variation of ciliate communities in the three gyres.

Acknowledgements

Less

Special thanks to the great efforts of the crew of R/V Kexue during the cruise in the tropical West Pacific, and R/V Xuelong during the cruise in the Bering Sea and the Arctic Ocean, respectively. We thank Steve O’Shea of the Edanz Group (www.edanzediting.com/ac) for editing a draft of this manuscript.

Funding

Less

The National Natural Science Foundation of China under contract No. 41706192; the Science & Technology Basic Resources Investigation Program of China under contract No. 2017FY100803; the National Natural Science Foundation of China-Shandong Joint Fund for Marine Science Research Centers under contract No. U1606404; the CNRS-NSFC Joint Research Projects Program under contract No. NSFC 41711530149; the 2017–2019 Sino-French Cai Yuanpei Programme; the National Natural Science Foundation of China under contract No. 41706217.

References

Less

Alder V A. 1999. Tintinnoinea. In: Boltovskoy D, ed. South Atlantic Zooplankton. Leiden: Backhuys, 321–384

Arrigo K R, van Dijken G L. 2011. Secular trends in Arctic Ocean net primary production. Journal of Geophysical Research, 116(C9): C09011

Azam F, Fenchel T, Field J G, et al. 1983. The ecological role of water-column microbes in the sea. Marine Ecology Progress Series, 10: 257–263, doi: 10.3354/meps010257

Bergmann C. 1847. Über die verhältnisse der wärmeökonomie der thiere zu ihrer größe. Göttinger Studien (in German), 3: 595–708

Burridge A K, Goetze E, Wall-Palmer D, et al. 2017. Diversity and abundance of pteropods and heteropods along a latitudinal gradient across the Atlantic Ocean. Progress in Oceanography, 158: 213–223, doi: 10.1016/j.pocean.2016.10.001

Calbet A, Saiz E. 2005. The ciliate-copepod link in marine ecosystems. Aquatic Microbial Ecology, 38(2): 157–167

Carmack E C. 2007. The alpha/beta ocean distinction: a perspective on freshwater fluxes, convection, nutrients and productivity in high-latitude seas. Deep Sea Research Part II: Topical Studies in Oceanography, 54(23–26): 2578–2598, doi: 10.1016/j.dsr2.2007.08.018

Claessens M, Wickham S A, Post A F, et al. 2008. Ciliate community in the oligotrophic Gulf of Aqaba, Red Sea. Aquatic Microbial Ecology, 53(2): 181–190

Dolan J R. 2010. Morphology and ecology in tintinnid ciliates of the marine plankton: correlates of lorica dimensions. Acta Protozoologica, 49: 235–244

Dolan J R, Marrasé C. 1995. Planktonic ciliate distribution relative to a deep chlorophyll maximum: Catalan Sea, N. Mediterranean, June 1993. Deep Sea Research Part I: Oceanographic Research Papers, 42(11–12): 1965–1987, doi: 10.1016/0967-0637(95)00092-5

Dolan J R, Yang E J. 2017. Observations of apparent lorica variability in Salpingacantha (Ciliophora: tintinnida) in the Northern Pacific and Arctic Oceans. Acta Protozoologica, 56(3): 217–220

Dolan J R, Yang E J, Kang S H, et al. 2016. Declines in both redundant and trace species characterize the latitudinal diversity gradient in tintinnid ciliates. The ISME Journal, 10(9): 2174–2183, doi: 10.1038/ismej.2016.19

Dolan J R, Yang E J, Kim T W, et al. 2014. Microzooplankton in a warming Arctic: a comparison of tintinnids and radiolarians from summer 2011 and 2012 in the Chukchi Sea. Acta Protozoologica, 53(1): 101–113

Feng Meiping, Wang Chaofeng, Zhang Wuchang, et al. 2018. Annual variation of species richness and lorica oral diameter characteristics of tintinnids in a semi-enclosed bay of western Pacific. Estuarine, Coastal and Shelf Science, 207: 164–174, doi: 10.1016/j.ecss.2018.04.003

Gallienne C P, Robins D B, Woodd-Walker R S. 2001. Abundance, distribution and size structure of zooplankton along a 20° west meridional transect of the northeast Atlantic Ocean in July. Deep Sea Research Part II: Topical Studies in Oceanography, 48(4–5): 925–949, doi: 10.1016/S0967-0645(00)00114-4

Gold K, Morales E A. 1976. Observations on the nature and significance of the particles used by Tintinnida during lorica-building. Transactions of the American Microscopical Society, 95(1): 69–72, doi: 10.2307/3225353

Gómez F. 2007. Trends on the distribution of ciliates in the open Pacific Ocean. Acta Oecologica, 32(2): 188–202, doi: 10.1016/j.actao.2007.04.002

Hu Dunxin, Wu Lixin, Cai Wenju, et al. 2015. Pacific western boundary currents and their roles in climate. Nature, 522(7556): 299–308, doi: 10.1038/nature14504

Jiang Yong, Yang E J, Min J O, et al. 2015. Vertical variation of pelagic ciliate communities in the western Arctic Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 120: 103–113, doi: 10.1016/j.dsr2.2014.09.005

Kato S, Taniguchi A. 1993. Tintinnid ciliates as indicator species of different water masses in the western North Pacific Polar Front. Fisheries Oceanography, 2(3–4): 166–174, doi: 10.1111/j.1365-2419.1993.tb00132.x

Knap A H, Michaels A, Close A R, et al. 1996. Protocols for the joint global ocean flux study (JGOFS) core measurements. Bergen, Norway: JGOFS Core Project Office, Centre for Studies of Environment and Resources, University of Bergen, 155–162

Kofoid C A, Campbell A S. 1929. A conspectus of the marine and fresh-water ciliata belonging to the suborder tintinnoinea, with descriptions of new species principally from the Agassiz expedition to the Eastern Tropical Pacific 1904–1905. University of California, Publications in Zoology, 34: 1–403

Kofoid C A, Campbell A S. 1939. The ciliata: the tintinnoinea. Reports on the scientific results of the expedition to the eastern tropical Pacific, 1904–1905. Cambridge: Museum of Comparative Zoology at Harvard College, 1–473

Leakey R J G, Burkill P H, Sleigh M A. 1996. Planktonic ciliates in the northwestern Indian Ocean: their abundance and biomass in waters of contrasting productivity. Journal of Plankton Research, 18(6): 1063–1071, doi: 10.1093/plankt/18.6.1063

Legendre L, Niquil N. 2013. Large-scale regional comparisons of ecosystem processes: methods and approaches. Journal of Marine System, 109-110: 4–21, doi: 10.1016/j.jmarsys.2011.11.021

Lessard E J, Murrell M C. 1996. Distribution, abundance and size composition of heterotrophic dinoflagellates and ciliates in the Sargasso Sea near Bermuda. Deep Sea Research Part I: Oceanographic Research Papers, 43(7): 1045–1065, doi: 10.1016/0967-0637(96)00052-0

Li Haibo, Xu Zhiqiang, Zhang Wuchang, et al. 2016. Boreal tintinnid assemblage in the Northwest Pacific and its connection with the Japan Sea in summer 2014. PLoS One, 11(4): e0153379, doi: 10.1371/journal.pone.0153379

Liang Chen, Li Haibo, Dong Yi, et al. 2018. Planktonic ciliates in different water masses in open waters near Prydz Bay (East Antarctica) during austral summer, with an emphasis on tintinnid assemblages. Polar Biology, 41(11): 2355–2371, doi: 10.1007/s00300-018-2375-5

Longhurst A R. 2007. Ecological Geography of the Sea. 2nd ed. Amsterdam: Academic Press

Lynn D H. 2008. The Ciliated Protozoa: Characterization, Classification, and Guide to the Literature. New York: Springer, 1–455

Marquis E, Niquil N, Dupuy C. 2011. Does the study of microzooplankton community size structure effectively define their dynamics? Investigation in the Bay of Biscay (France). Journal of Plankton Research, 33(7): 1104–1118, doi: 10.1093/plankt/fbr009

Martin E S, Harris R P, Irigoien X. 2006. Latitudinal variation in plankton size spectra in the Atlantic Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 53(14–16): 1560–1572, doi: 10.1016/j.dsr2.2006.05.006

Matsuno K, Ichinomiya M, Yamaguchi A, et al. 2014. Horizontal distribution of microprotist community structure in the western Arctic Ocean during late summer and early fall of 2010. Polar Biology, 37(8): 1185–1195, doi: 10.1007/s00300-014-1512-z

Megrey B A, Link J S, Hunt G L Jr, et al. 2009. Comparative marine ecosystem analysis: applications, opportunities, and lessons learned. Progress in Oceanography, 81(1–4): 2–9, doi: 10.1016/j.pocean.2009.04.002

Paranjape M A, Gold K. 1982. Cultivation of marine pelagic protozoa. Annales de L’institut Ocèanographique, Paris, 58(S): 143–150

Pierce R W, Turner J T. 1992. Ecology of planktonic ciliates in marine food webs. Reviews in Aquatic Sciences, 6(2): 139–181

Putt M, Stoecker D K. 1989. An experimentally determined carbon: volume ratio for marine “oligotrichous” ciliates from estuarine and coastal waters. Limnology and Oceanography, 34(6): 1097–1103, doi: 10.4319/lo.1989.34.6.1097

Reid J L, Brinton E, Fleminger A, et al. 1978. Ocean circulation and marine life. In: Charnock H, Deacon G, eds. Advances in Oceanography. Boston: Springer, 65–130

Sherr E B, Sherr B F, Fessenden L. 1997. Heterotrophic protists in the Central Arctic Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 44(8): 1665–1673, doi: 10.1016/S0967-0645(97)00050-7

Sohrin R, Imazawa M, Fukuda H, et al. 2010. Full-depth profiles of prokaryotes, heterotrophic nanoflagellates, and ciliates along a transect from the equatorial to the subarctic central Pacific Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 57(16): 1537–1550, doi: 10.1016/j.dsr2.2010.02.020

Springer A M, Mcroy C P, Flint M V. 1996. The Bering Sea green belt: shelf-edge processes and ecosystem production. Fisheries Oceanography, 5(3–4): 205–223, doi: 10.1111/j.1365-2419.1996.tb00118.x

Steele M, Ermold W, Zhang Jinlun. 2011. Modeling the formation and fate of the near-surface temperature maximum in the Canadian Basin of the Arctic Ocean. Journal of Geophysical Research, 116(C11): C11015, doi: 10.1029/2010JC006803

Steele M, Morison J, Ermold W, et al. 2004. Circulation of summer Pacific halocline water in the Arctic Ocean. Journal of Geophysical Research, 109(C2): C02027

Strom S L, Postel J R, Booth B C. 1993. Abundance, variability, and potential grazing impact of planktonic ciliates in the open subaratic Pacific Ocean. Progress in Oceanography, 32(1–4): 185–203, doi: 10.1016/0079-6611(93)90013-4

Suzuki T, Taniguchi A. 1998. Standing crops and vertical distribution of four groups of marine planktonic ciliates in relation to phytoplankton chlorophyll a. Marine Biology, 132(3): 375–382, doi: 10.1007/s002270050404

Taniguchi A. 1984. Microzooplankton biomass in the Arctic and subarctic Pacific Ocean in summer. Memoris of the National Institute of Polar Research, Special Issue, 32: 63–76

Taylor A G, Landry M R, Selph K E, et al. 2011. Biomass, size structure and depth distributions of the microbial community in the eastern equatorial Pacific. Deep Sea Research Part II: Topical Studies in Oceanography, 58(3–4): 342–357, doi: 10.1016/j.dsr2.2010.08.017

Utermöhl H. 1958. Zur vervollkommnung der quantitativen phytoplankton-Methodik: mit 1 tabelle und 15 abbildungen im text und auf 1 tafel. Internationale Vereinigung für Theoretische und Angewandte Limnologie: Mitteilungen, 9(1): 1–38

Verity P G, Lagdon C. 1984. Relationships between lorica volume, carbon, nitrogen, and ATP content of tintinnids in Narragansett Bay. Journal of Plankton Research, 6(5): 859–868, doi: 10.1093/plankt/6.5.859

Wang Kui, Chen Jianfang, Jin Haiyan, et al. 2013. Nutrient structure and limitation in Changjiang River Estuary and adjacent East China Sea. Haiyang Xuebao (in Chinese), 35(3): 128–136

Wang Chaofeng, Li Haibo, Zhao Li, et al. 2019. Vertical distribution of planktonic ciliates in the oceanic and slope areas of the western Pacific Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 167: 70–78, doi: 10.1016/j.dsr2.2018.08.002

Wang Chaofeng, Zhao Li, Zhao Yuan, et al. 2016. Vertical distribution of planktonic ciliates in tropical western Pacific. Oceanologia et Limnologia Sinica (in Chinese), 47(2): 429–437

Wolf K U, Woods J D. 1988. Lagrangian simulation of primary production in the physical environment-the deep Chlorophyll maximum and nutricline. In: Rothschild B J, ed. Toward a Theory on Biological-Physical Interactions in the World Ocean. Dordrecht: Springer, 51–70

Xu Guangjian, Yang E J, Jiang Yong, et al. 2018a. Can pelagic ciliates indicate vertical variation in the water quality status of western Arctic pelagic ecosystems?. Marine Pollution Bulletin, 133: 182–190, doi: 10.1016/j.marpolbul.2018.05.017

Xu Guangjian, Yang E J, Lee Y, et al. 2018b. Vertical shift in ciliate body-size spectrum and its environmental drivers in western Arctic pelagic ecosystems. Environmental Science and Pollution Research, 25(19): 19082–19091, doi: 10.1007/s11356-018-2094-z

Yang E J, Choi J K, Hyun J H. 2004. Distribution and structure of heterotrophic protist communities in the northeast equatorial Pacific Ocean. Marine Biology, 146(1): 1–15, doi: 10.1007/s00227-004-1412-9

Yang E J, Ha H K, Kang S H. 2015. Microzooplankton community structure and grazing impact on major phytoplankton in the Chukchi Sea and the western Canada Basin, Arctic Ocean. Deep Sea Research Part II: Topical Studies in Oceanography, 120: 91–102, doi: 10.1016/j.dsr2.2014.05.020

Yu Ying, Luo Xuan, Zhang Cuixia, et al. 2015. Distribution of tintinnids (Ciliophora, Tintinnida) in the Changjiang Estuary and adjacent areas in spring. Advances in Marine Sciences (in Chinese), 2(3): 45–52, doi: 10.12677/AMS.2015.23007

Yu Ying, Zhang Wuchang, Wang Shiwei, et al. 2013. Abundance and biomass of planktonic ciliates in the sea area around Zhangzi Island, Northern Yellow Sea. Acta Ecologica Sinica, 33(1): 45–51

Zhang Wuchang, Feng Meiping, Yu Ying, et al. 2012. Illustrated Guide to Contemporary Tintinnids in the World (in Chinese). Beijing: Science Press

Zhang Cuixia, Zhang Wuchang, Ni Xiaobo, et al. 2015. Influence of different water masses on planktonic ciliate distribution on the East China Sea shelf. Journal of Marine System, 141: 98–111, doi: 10.1016/j.jmarsys.2014.09.003

Zhao Li, Zhao Yanchu, Wang Chaofeng, et al. 2017. Comparison in the distribution of microbial food web components in the Y3 and M2 seamounts in the tropical western Pacific. Oceanologia et Limnologia Sinica (in Chinese), 48(6): 1446–1455

Appendix
