Acta Oceanologica Sinica | 2020, 39(2): 89-100

• Marine Biology •

Physiological performance of three calcifying green macroalgae Halimeda species in response to altered seawater temperatures

Full

Zhangliang Wei¹^,², Jiahao Mo¹^,², Ruiping Huang³, Qunju Hu¹^,², Chao Long¹^,², Dewen Ding¹^,⁴, Fangfang Yang¹^,^*, Lijuan Long¹^,^*

Affiliations

¹ CAS Key Laboratory of Tropical Marine Bio-resources and Ecology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China

² University of Chinese Academy of Sciences, Beijing 100049, China

³ State Key Laboratory of Marine Environmental Science, College of Ocean and Earth Sciences, Xiamen University, Xiamen 361102, China

⁴ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

Published: 2020-02-25 doi: 10.1007/s13131-019-1471-3

Outline

Abstract

Less

The effects of seawater temperature on the physiological performance of three Halimeda species were studied for a period of 28 d. Five treatments were established for Halimeda cylindracea, Halimeda opuntia and Halimeda lacunalis, in triplicate aquaria representing a factorial temperature with 24°C, 28°C, 32°C, 34°C and 36°C, respectively. The average F_v/F_m of these species ranged from 0.732 to 0.756 between 24°C and 32°C but declined sharply between 34°C (0.457±0.035) and 36°C (0.122±0.014). Calcification was highest at 28°C, with net calcification rates (G_net) of (20.082±2.482) mg/(g·d), (12.825±1.623) mg/(g·d) and (6.411±1.029) mg/(g·d) for H. cylindracea, H. opuntia and H. lacunalis, respectively. Between 24°C and 32°C, the specific growth rate (SGR) of H. lacunalis (0.079%–0.110% d^–1) was lower than that of H. cylindracea (0.652%–1.644% d^–1) and H. opuntia (0.360%–1.527% d^–1). Three Halimeda species gradually bleached at 36°C during the study period. Malondialdehyde (MDA) and proline levels in tissues of the three Halimeda were higher in 34–36°C than those in 24–32°C. The results indicate that seawater temperature with range of 24–32°C could benefit the growth and calcification of these Halimeda species, however, extreme temperatures above 34°C have negative impacts. The measured physiological parameters also revealed that H. cylindracea and H. opuntia displayed broader temperature tolerance than H. lacunalis.

Key words

calcifying macroalgae / climate change / seawater temperature / physiological performance / photosynthesis / calcification

Cite this Article

Zhangliang Wei, Jiahao Mo, Ruiping Huang, Qunju Hu, Chao Long, Dewen Ding, Fangfang Yang, Lijuan Long. Physiological performance of three calcifying green macroalgae Halimeda species in response to altered seawater temperatures[J]. Acta Oceanologica Sinica, 2020 , 39 (2) : 89 -100 . DOI: 10.1007/s13131-019-1471-3

Full Text

Less

1 Introduction

Less

Climate change presents various challenges, because of the large scale of its effects and the difficulty of alleviating them by human management (Hughes et al., 2003). Previous studies indicated that seawater surface temperature has continuously and slowly risen by approximately 1°C over the last century in tropical sea areas, and an additional 1–2°C is predicted by the end of year 2100 (Deser et al., 2010; Collins et al., 2013). Marine ecosystems in shallow waters are suffering a variety of environmental stresses, including temperature fluctuations. McKenzie and Campbell (2004) reported that the seasonal seawater temperatures in tropical areas fluctuated from 19.8 to 41.0°C, which has obvious impacts on the temporal and spatial distribution and biomass of marine species. A study of macroalgal herbaria in tropical oceans along the Australian coast showed that in the last 70 years a number of temperate macroalgae showed a poleward shift, and this trend is predicted to continue (Wernberg et al., 2011). Therefore, an improved understanding of patterns of interactions between species and environmental factors is urgently needed (Hofmann et al., 2015; Vogel et al., 2015).

Coral reef ecosystems, one of the most productive and species-rich types of ecosystems, appear to be particularly vulnerable and sensitive to the global increasing seawater temperature (Price et al., 2011). The vast, three-dimensional structures of coral reefs are created by calcifying organisms and provide habitats and shelters for many marine animals (Koch et al., 2013). Within coral reef ecosystems, there are taxonomic differences between marine calcifiers in terms of environmental parameters such as nutrient availability, sunlight irradiance and water currents (Koch et al., 2013). Martin and Gattuso (2009) suggested that a 3.0°C-increase in seawater temperature improved the productivity and net calcification of healthy coralline algae, Lithophyllum cabiochae, in autumn and winter when the ambient temperature was 13.3–22.0°C. However, necrosis and mortality occurred when the algae were exposed to long period of high temperatures (~25.0°C) in summer. In addition, a significant decrease (~50%) in growth rate was documented in the crustose coralline algae Porolithon gardineri under a 2.5–4.5°C temperature increase by Agegian (1985). Thus, it is essential to identify the thermal optima and tolerance ranges of calcareous macroalgae, especially in the tropics, as they have massive impacts on calcium carbonate (CaCO₃) formation and primary productivity (Littler et al., 1991; Nelson, 2009).

Calcifying algae within the genus Halimeda Lamouroux (order Bryopsidales) are conspicuous components of coral reef ecosystems as they are widely distributed across tropical and subtropical environments which contribute to reef accretion in their habitats (Walters et al., 2002; Campbell et al., 2016). The thalli may be erect, pendant, or sprawling and are anchored by rhizoids produced from inner and outer cortical cells (Wizemann et al., 2015). On coral reefs, Halimeda segments accumulated through shedding from living thalli or after holocarpic sexual reproduction to protect lagoons and the reef flat environments (Hillis-Colinvaux, 1980). In certain marine locations, the CaCO₃ production rate of this genus can reach 1.4 kg/(m²·a), which suggest that this genus is a major contributor to carbonate assimilation in reefs (Payri, 1988). Given the importance of Halimeda species within coastal habitats, further studies of the responses of Halimeda species to elevated temperature is needed. Potin et al. (1990) and Martin et al. (2006, 2007) have reported seasonal changes in algal photosynthesis and calcification in response to warmer seawater during summer months in the Mediterranean. Work by Campbell et al. (2016) has demonstrated that increased temperature (28–31°C) could mitigate the negative effects of ocean acidification by enhancing the metabolic performance of Halimeda spp. (photosynthesis and calcification). While these findings have contributed to understanding the effects of elevated temperature on these calcareous algae, the upper lethal and sublethal temperature thresholds for Halimeda species still need to be determined.

The South China Sea is located in the northern tropics in China, which is one of the most diverse shallow water marine areas in the world (Morton and Blackmore, 2001). Many offshore islands and archipelagos provide convenient sites for the formation and maintenance of coral communities in South China Sea. However, few studies of high thermal stress on calcareous macroalgae, especially Halimeda, have been done. Thus, in this study, the responses of three species of Halimeda to elevated temperatures are studied. Using a series of artificial incubations, we examine the effects of thermal stress on photosynthesis, calcification and other measures of physiological performance and analyze the tolerance and ability to adapt to extreme temperature in tropical seawaters of these calcareous macroalgae. The aim of this study was to predict the physiological responses of Halimeda to climate changes in the future and provide evidence that conservation of coral reef ecosystems may require more proactive managements.

2 Materials and methods

Less

2.1 Samples collection

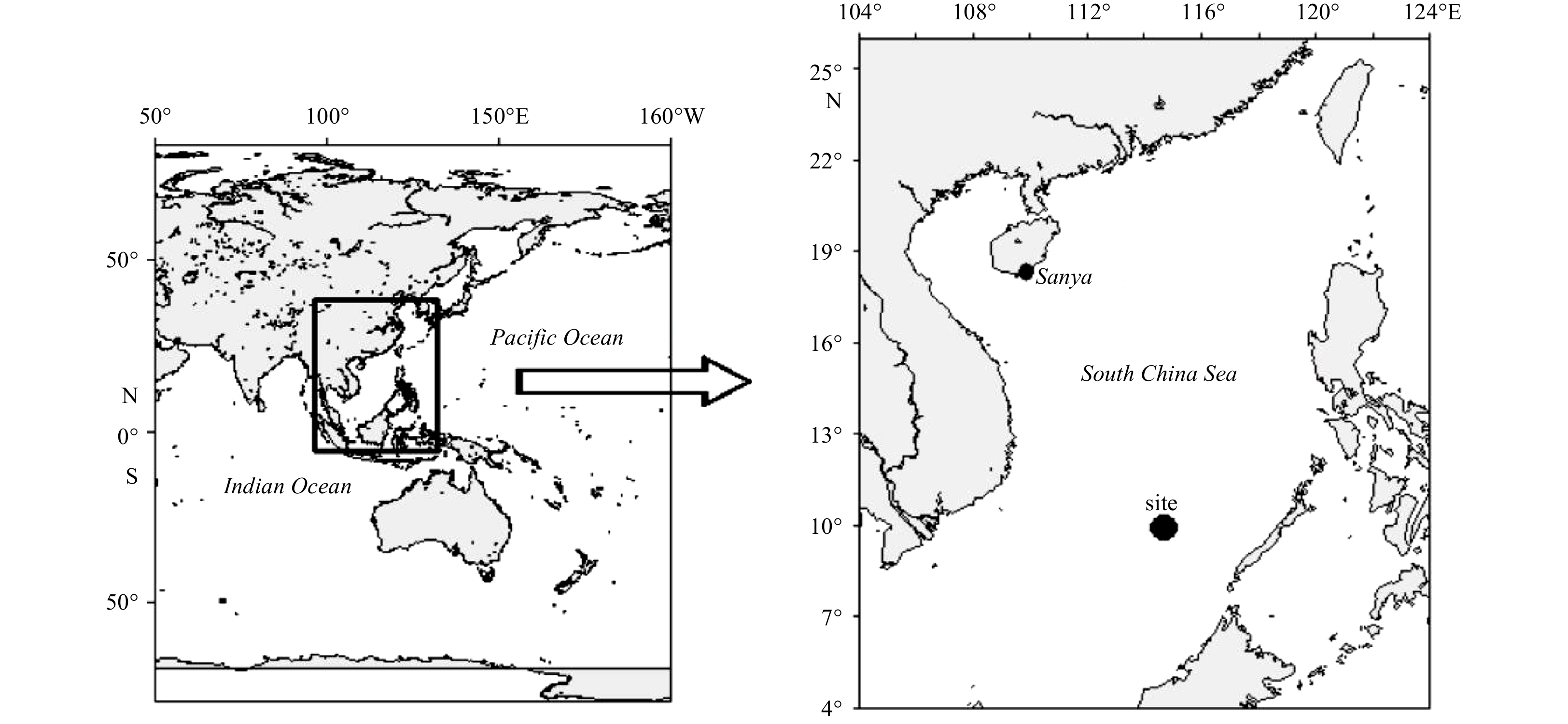

Thalli of three Halimeda species were sampled from reef sites in the South China Sea at depths ranging from 6 m to 8 m in July 2017 (9.53º–9.60°N, 115.34°–115.46°E). The sampling sites were composed of sloping shores which principally consisted of sand, stones, massive dead fragments of branched corals (Fig. 1). All algal specimens were carefully uprooted with the holdfast intact from the substrate. After collection, the samples were placed in a polyethene-free, continuous-flow, seawater system aboard ship for transport to the Tropical Marine Biological Research Station at the Hainan Chinese Academy of Sciences in Sanya, China. The macroalgae were maintained temporarily in three 800 L flow-through mesocosm tanks at the Sanya Station for 2 weeks (salinity 34–35, temperature ~28°C, pH 8.1–8.3). Irradiance for each tank was provided by a series of full spectrum T5 fluorescent bulbs delivering 150 μmol photons m^–2 s^–1 to the bottom of the tank on a 12 h/12 h day/night cycle (Hofmann et al., 2014).

2.2 Molecular phylogenetic analysis

Before molecular analysis, all Halimeda thalli samples were classified according to their morphological features as described by Dijoux et al. (2012). Each morphotype sample was cleaned 4–5 times with sterile seawater. Approximately 100 mg of Halimeda tissue from each sample was finely ground in liquid nitrogen with a mortar and pestle and total DNA was extracted using the DNeasy Plant Mini Kit (Qiagen, Hilden, Germany) following the manufacturer’s instructions. Polymerase chain reaction (PCR) was carried out in a total volume of 25 μL containing 2 μL DNA solution, 12.5 μL 2×EasyTaq PCR Supermix, including 1.5 mmol/L of MgCl₂ (Transgen Biotech, Beijing, China), and 10 μmol/L of forward and reverse primers with a PCR Eppendorf Mastercler pros (Hamburg, Germany). The following primers were used for PCR of the plastid elongation factor Tu (tufA) region (Famà et al., 2002):

tufA–A1 (forward), ATGRCWCGHGMAAAATTTSAACG;

tufA–H2 (forward), ATTTTAGTVGTNTCNGGTGC;

tufA–R (reverse), CCTTCNCGAATMGCRAAWCGC.

The profile of touch down PCR conditions was designed and improved according to Kojima et al. (2015). The nested PCR was performed with conditions described as follows using tufA–A1/ tufA-R and tufA–H2/ tufA–R primers, respectively: an initial denaturation phase at 94°C for 2 min; and 3 cycles of 10 s at 94°C, 30 s at 50°C, 30 s at 68°C; and 3 cycles of 10 s at 98°C, 30 s at 48°C, 30 s at 68°C; and 30 cycles of 10 s at 98°C, 30 s at 42°C, 30 s at 68°C; and a final extension of 10 min at 72°C. The PCR products were tested on ethidium bromide-stained 1.0% agarose gels. After polyethylene glycol (PEG) purification (Lis, 1980), the products were sequenced in both directions by BGI Genomics Co. Ltd., Shenzhen, China. Then, all sequences were aligned using the BioEdit sequence alignment editor (Hall, 1999). Phylogenetic tree analyses were obtained using maximum likelihood (ML) in MEGA6 (Tamure et al., 2007). The reliability of each branch was checked using 1 000 bootstrap replications. Evolutionary distance was computed using the Kimura two-parameter method (Kimura, 1980).

2.3 Experimental design and treatments

A factorial experimental design was used, with three species (H. cylindracea, H. opuntia and H. lacunalis) and five temperature treatments (24°C, 28°C, 32°C, 34°C and 36°C). The experiment was conducted in 3 replicates for each treatment. There was 45 L of seawater volume in each aquarium and using a total of 15 aquaria. There was a total of 30 individuals of three species (340–360 g, fresh weight) in one aquarium. Once identified, 10 individuals of each species were designed to each temperature regulated aquarium for 4 weeks (25 August–21 September, 2017). Filtered seawater changes were conducted twice per week to ensure seawater chemistry conditions stable. The seawater temperature was elevated by 1°C every 12 h using water thermostats (TC10, Teco Italy) until the treatment temperature was reached. Samples from each treatment were collected every 4 d during the 28-d experiment.

Seawater parameters, including salinity, temperature, pH (NBS scale) and total alkalinity (TA) was monitored daily. Seawater salinity and temperature were measured with a calibrated handheld YSI meter (YSI, Yellow Springs, OH, USA). Water samples for TA were stored in brown glass bottles and then mixed with a 0.002% volume saturated solution of HgCl₂ solution at 4°C in dark conditions before measurement. TA was measured as the Gran titration method using a TitroLine alpha 05 plus titrator (Xylem Analytics, Weilheim, Germany) with an automated sample changer and pH electrode. Salinity, temperature, pH and TA were used to assess dissolved inorganic carbon components (CO₂, CO₃^2– and HCO₃^–) with the CO2SYS program (Pierrot et al., 2006). All measurements were completed within 24 h of sampling.

2.4 Photosynthetic performance and pigment concentrations

The photosynthetic maximum quantum yield of photosystem (PS) II (F_v/F_m) was measured at the end of the experiment using a DIVING-PAM fluorometer fitted with an 8.0 mm diameter fiber-optic cable (Heinz Walz GmbH, Germany). On the sampling date, haphazard selected mature segments (~3.0 cm) of the three Halimeda species in five treatments were removed and dark-adapted for approximately 10 min before measurement. To reduce the possibility of photochemical quenching causing by the measuring light of the diving PAM, the measurement was operated with a constant intensity of measuring light (setting “8”) in the “Burst mode” for three Halimeda species. Initial measurements of F_v and F_m were recorded to test for bias to elevate the PS II photophysiology activity.

The chlorophyll (Chl) a and carotenoid concentrations of each Halimeda species were determined using the spectrophotometric methods described by Wellburn (1994) during the experiment. A total of 100.0 mg of mature segments was ground in 10 mL of 90% acetone, and then stored for extraction at 4°C in darkness for 24 h. Then, all samples were centrifuged at 5 000 r/min for 10 min at 4°C (Eppendorf centrifuge 5810 R, Germany). The supernatant was transferred to a quartz cuvette and its absorbance was measured at 664, 647 and 470 nm on a spectrophotometer (UV 530, Beckman counlter, USA).

2.5 Calcification and tissue mineral content

Net calcification rates (G_net) of each Halimeda species were determined by comparing buoyant weights to initial fresh mass at the beginning and end of the experiment. Segments that shed down from the thalli during the experiment were also taken into measurement (Jokiel et al., 1978; Peach et al., 2017). However, the buoyant weights of the Halimeda thalli which suffered mortality, with complete segments disarticulating and bleaching, were not measured in this study. A whole Halimeda thallus was placed on an acrylic Petri dish hung below an electronic balance (AR224CN, OHAUS, USA; accuracy, ~0.1 mg) using nylon thread suspended in seawater. It involves weighing samples in seawater using the density according to Archimedes’ principle to normalize the fresh weight (Jokiel et al., 1978; Langdon et al., 2010).

Tissue mineral content was assumed to be equal to CaCO₃ content (%) in this study. At the end of the aquaria experiment, the mature (>7 d old) and new apical segments (5–7 d old) were placed in separate, pre-weighed glass vials and rinsed with distilled water 3–4 times to remove dirt and salts, then dried at 60°C in an oven until a constant weight was obtained. Then, all samples were acidified with 5% of 12 mol/L HCl until no effervescence was generated by the addition of acid, after which samples were rinsed with distilled water 3–4 times to remove HCl trances, and then dried in oven to a constant weight. CaCO₃ content (%) was determined by the difference between the dry weights before and after removal of calcification.

2.6 Growth rate and physiological responses

The fresh weight (FW, g) was measured at the beginning and end of the experiment by blotting whole Halimeda thalli dry with paper towels until no change in mass was detectable. The growth rate was calculated using the following formula:

${{\rm{SGR}} = [(\ln {W_t} - \ln {W_{t0}})/d] \times 100,}$

where SGR is the specific growth rate (% d^–1), W_t is the fresh weight obtained at time t, W_t₀ is the fresh weight collected on the day before time t, and d is 28 d between two sampling time points. Production of new segments on mature thalli was also tracked to calculate the new segments proportion of whole thalli.

The concentrations of proline and malondialdehyde (MDA) in Halimeda segments were measured to indicate physiological responses to temperature. The proline conferred integrity to maintain the photosynthetic system functioning and to protect the membranes from various damages (Sun et al., 2013). For proline analysis, 500.0 mg of fresh tissue material was ground in 5 mL of 3% sulfosalicylic acid, followed by heating at 100°C for 10 min with continuous shaking. The samples of extract solution were centrifuged at 3 000 r/min for 10 min. Subsequently, 2 mL of supernatant was added with 2 mL each of glacial acetic acid and distilled water and 4 mL of 2.5% acid ninhydrin reagent composed of 2.5 g of ninhydrin, 60 mL of glacial acetic acid and 40 mL of 6 mol/L orthophosphoric acid. Next, the samples were heated at 100°C for 60 min and after cooling to ambient air temperature, 4 mL toluene was mixed to partition the reaction solution. Its absorbance was measured at 520 nm. The values of optical density (OD) were compared with a standard curve to determine the amount of proline (Shan et al., 2007).

The occurrence of MDA was considered as a useful indirect evaluation of general lipid peroxidation under certain environmental stresses (Hodges et al., 1999). Thus, MDA has been used extensively to estimate peroxidation of lipids in membrane and biological systems (Hodges et al., 1999). Approximately 500.0 mg FW of the Halimeda segments was ground in 10 mL of 10% trichloroacetic acid (TCA), followed by centrifugation at 4 000 r/min for 10 min. Then, 3 mL of aqueous extract was reacted with 3 mL of 0.6% 2-thiobarbituric acid, heated at 100°C for 15 min, then cooled, and centrifuged at 3 000 r/min for 5 min. Absorbances were measured at 532 and 450 nm. MDA equivalent was calculated as follows:

${C_{{\rm{MDA}}}} = 6.45 \times {{\rm{OD}}_{532}} - 0.56 \times {\rm{O}}{{\rm{D}}_{450,}}$

where C_MDA is the MDA concentration, OD₅₃₂ and OD₄₅₀ represent the absorbance values at 532 nm and 450 nm, respectively.

2.7 Scanning electron microscopy samples preparation and analyses

The crystalline microstructure of mature mid-growth segments at 28°C and 34°C was imaged using scanning electron microscopy (SEM). Fresh segments of three Halimeda species were soaked in 2% glutaraldehyde and then fixed in 1% OsO₄, subsequently, dehydrated by graded ethanol liquid (20%–100%) and soaked in hexamethyldisilazane. Dehydrated segments of thalli were cut across the segment mid-plane with a razor to expose interior surfaces. Afterwards, the samples were sputter coated with gold and observed using an SEM (S-3400N, Hitachi, Japan) equipped with an energy dispersive spectrometer. All SEM images were measured using image processing software (ImageJ v 1.47).

2.8 Data analysis

All statistical analyses were conducted using Microsoft Excel 2010 and Minitab 16.0 software. The figures were constructed using Origin 8.1. All data were tested for normality and equal variances prior to statistical analysis. Data in this study were reported as mean ± standard deviation (mean±SD) and were analyzed by a three-way analysis of variance (ANOVA). Least significant difference (LSD) was used to make post hoc comparisons between different groups. Differences were significant at P<0.05 and extremely significant at P<0.01.

3 Results

Less

3.1 Molecular phylogenetic analysis

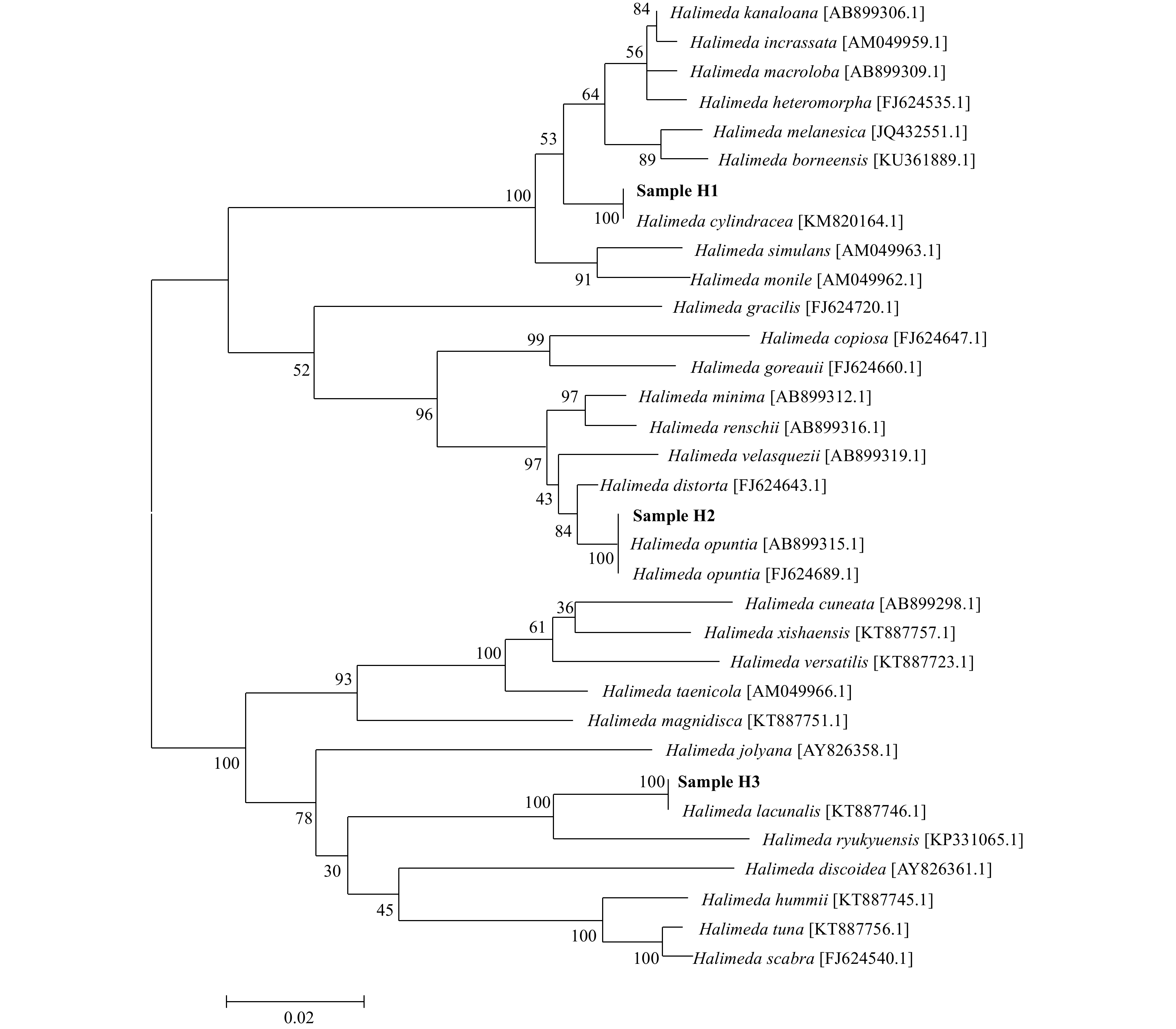

Based on morphological characteristics, segments were classified as: Halimeda cylindracea, with an obviously cylindrical or trilobed shape; Halimeda opuntia, with highly branched thalli and a flat, reniform sometimes ribbed surface; and Halimeda lacunalis, with a flat, rounded-oval or cuneate shape. According to molecular identification analysis, the aligned tufA sequences of Halimeda species were about 800 bp in length. Molecular phylogenetic trees based on ML showed essentially identical tree topologies (Fig. 2). According to the ML tree, the samples of Halimeda thalli (Samples H1, H2 and H3) were reproduced with moderate to high statistical support, which showed that the samples fell into distinct clades. Using detailed phylogenetic analysis of ML conducted using tufA sequences, samples of H1, H2 and H3 were divided into H. cylindracea, H. opuntia and H. lacunalis.

3.2 Experimental conditions

The mean seawater chemistry conditions for each treatment during the study period are shown in Table 1. The pH was very similar across all treatments with mean value of 8.10±0.05 and no significant differences (F=0.284, P>0.05). Seawater salinity did not differ significantly between treatments with a mean value of 34.6±0.1 during the experiment. Calculated values of CO₂, CO₃²⁻ and HCO₃⁻ values for each treatment ranged between 9.9 and 12.4 μmol/kg, 158.4 and 207.0 μmol/kg, and 1 471.9 and 1 624.5 μmol/kg. The pCO₂ value fluctuated from 375.9 to 528 μatm (1 atm=1.013×10⁵ Pa) during the monitoring period.

3.3 Photosynthetic performance and pigment concentrations

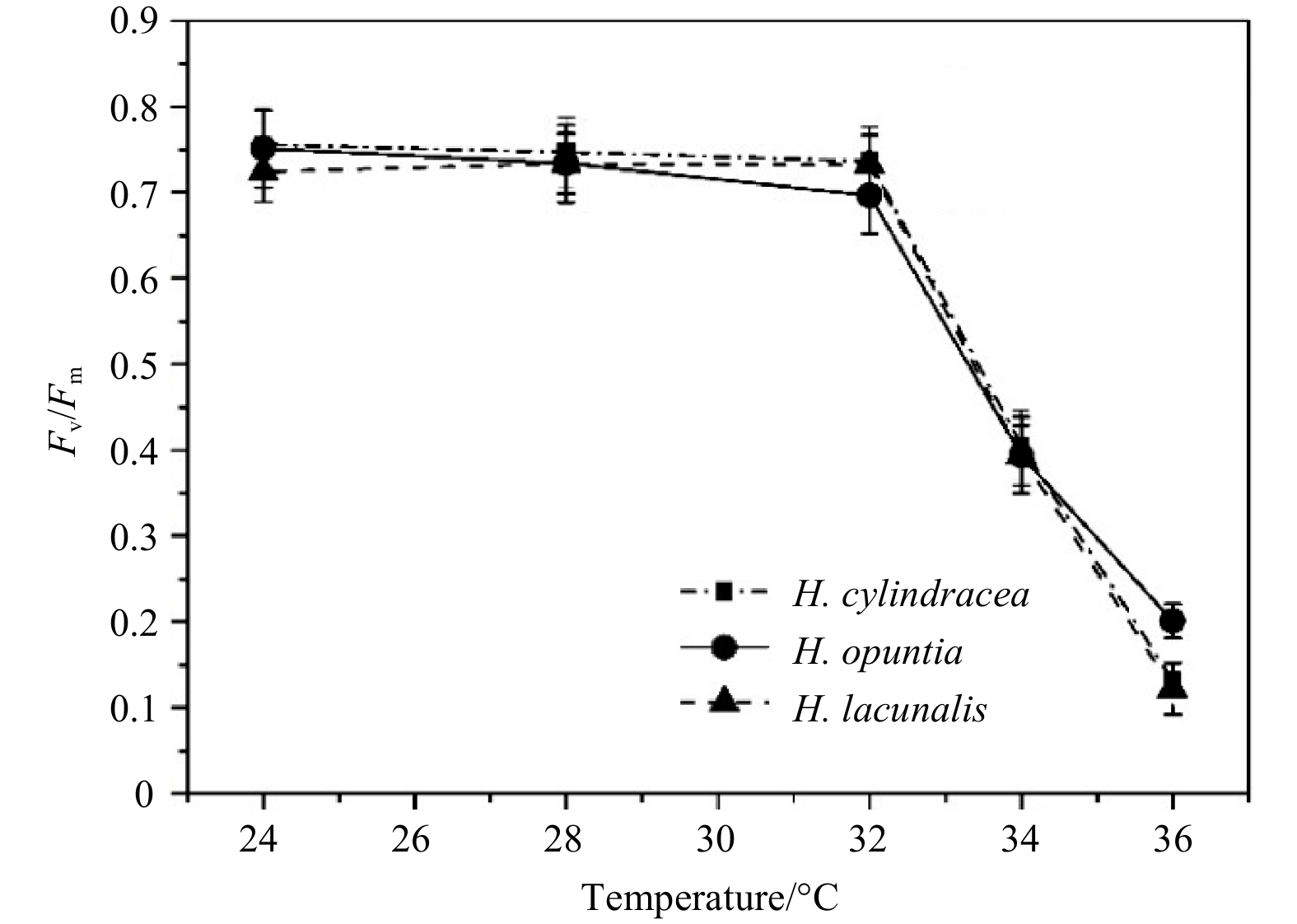

The photosynthetic performance of the three Halimeda species had similar responses to the five seawater temperature treatments (Fig. 3). There was a significant decrease in the F_v/F_m in the 34°C and 36°C treatments (P<0.01), but no obvious change between 24°C and 32°C (P>0.05) (Table 2). The average F_v/F_m values of these species ranged from 0.732 to 0.756 between 24°C to 32°C and had much lower range of 0.122 to 0.457 between 34°C and 36°C. Variations in pigment concentrations also indicate differences in photosynthesis between the Halimeda species in each treatment (Fig. 4). At the end of experiment, the average Chl a concentrations of the three Halimeda species were 2–3 times higher in the 28°C treatment than those in the 34°C and 36°C treatments. Small changes in Chl a concentrations were observed between the 24°C and 32°C treatments with mean values of (226.8±10.7) and (241.0±13.7) μg/(g FW); (216.8±9.1) and (176.6±14.3) μg/(g FW); and (184.9±11.2) and (154.0±12.1) μg/(g FW) in H. cylindracea, H. opuntia and H. lacunalis, respectively. Carotenoid concentrations were also affected by temperature differences and were higher for the first 8–12 d, with ranges of 13.7–34.4, 9.1–21.9 and 12.2–28.7 μg/(g FW) for H. cylindracea, H. opuntia and H. lacunalis, respectively. At the end of the experiment, carotenoid concentrations were lowest in the high temperature treatments (34°C and 36°C) (Fig. 4).

3.4 Calcification rate and tissue mineral content

Net calcification rates (G_net) varied among the three Halimeda species and across the five treatments (P<0.01) (Table 3). Calcification was highest at 28°C, with net calcification rates (G_net) of (20.082±2.482) mg/(g·d), (12.825±1.623) mg/(g·d) and (6.411±1.029) mg/(g·d) for H. cylindracea, H. opuntia and H. lacunalis, respectively. The G_net of H. cylindracea in the 24°C and 28°C treatments were higher than those of the other species, ranging from 14.775 to 20.082 mg/(g·d). The G_net of H. cylindracea in 32°C treatment showed a significant reduction compared with the 24°C and 28°C treatments. This result should not be over interpreted because excessive segment-shedding of certain H. cylindracea thalli restricted our ability to obtain accurate calcification rates resulting in an underestimate of the true rate of G_net. No calcification rates were measured for the 36°C treatment, or for H. lacunalis in the 34°C treatment, due to the high segment shedding rate at high seawater temperatures. The CaCO₃ content was not significantly affected by temperature or species. However, CaCO₃ content varied between new and mature segments. The average CaCO₃% of new segments was 10.83% lower than the mature segments. Water content of three Halimeda species thalli ranged from 51.72% to 63.91% and did not appear to be affected by temperature treatment.

3.5 Growth rate, proline and MDA concentrations

During the study period, the SGR of H. cylindracea and H. opuntia were consistently higher than that of H. lacunalis in the 24°C, 28°C and 32°C treatments (Table 4). Halimeda cylindracea incubated at 28°C had the highest SGR value of (1.644±0.253)% d^–1, and the highest SGR of H. opuntia occurred in the 32°C treatment at (1.527±0.216)% d^–1. Compared with these two species, H. lacunalis grew slowly ranging from 0.079% to 0.119% d^–1 at 24–32°C. However, SGR of H. cylindracea and H. opuntia decreased to (0.364±0.145)% d^–1 and (0.118±0.038)% d^–1 in the 34°C treatment, respectively. In the 36°C treatment, all three Halimeda species shed excessively, meaning that no SGR could be obtained at the end of experiment. The proportion of new segment production differed between the three Halimeda species and between the five temperature treatments (P<0.01). The highest new segment production rates of H. cylindracea, H. opuntia and H. lacunalis occurred at 28°C with 54.55%, 34.78% and 23.08%, respectively. Segment production rates of H. cylindracea and H. opuntia were significantly decrease at 34°C while H. lacunalis was bleaching gradually in the 34°C and 36°C treatments.

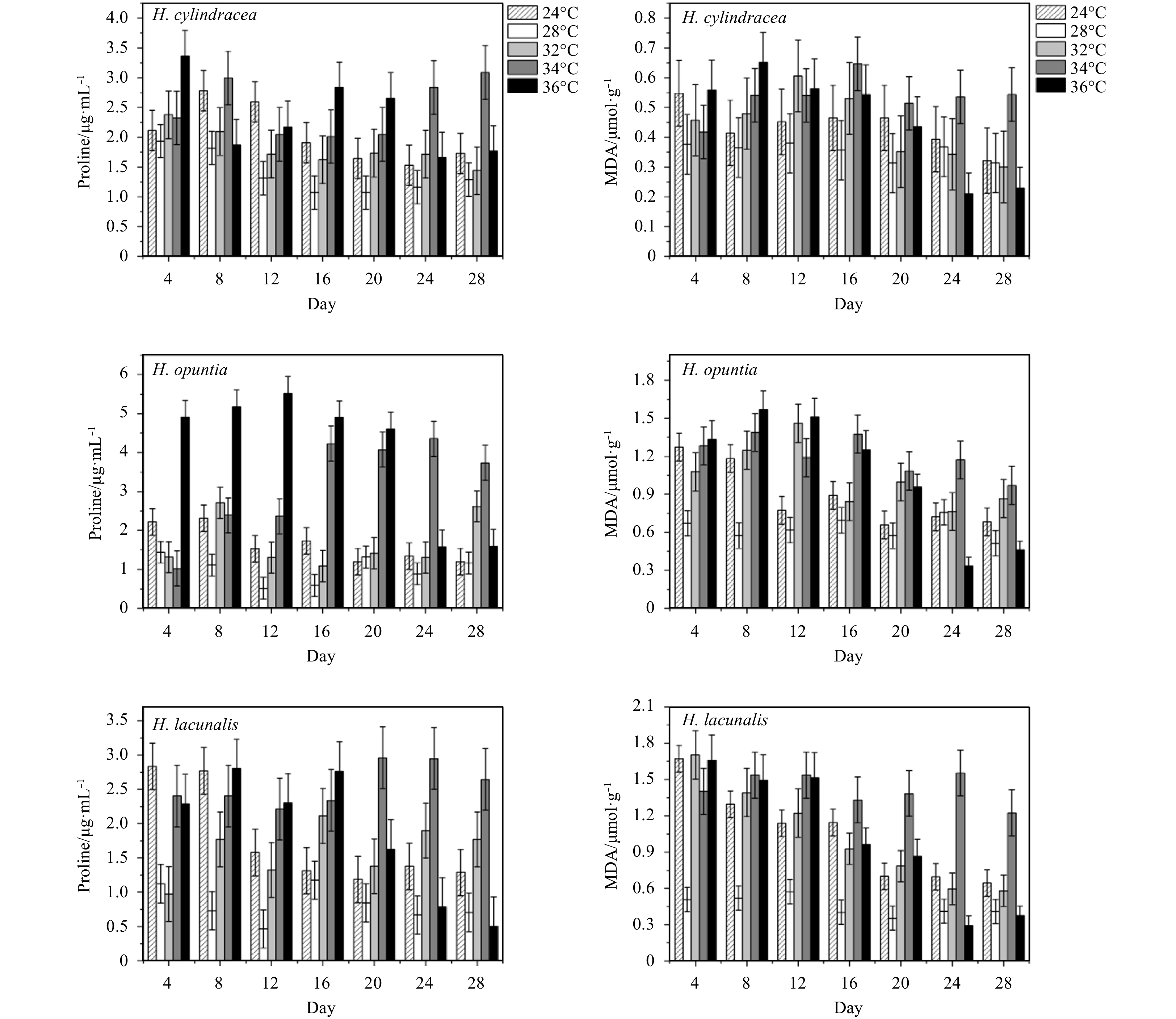

The accumulated concentrations of proline and MDA in the tissues of the three Halimeda species are shown in Fig. 5. Across all species, proline levels were similar between 24°C and 32°C; however, under high temperature stress tissue proline concentration was 2–4 times higher (Table 5). The concentrations of MDA were assessed in normal and high temperature conditions and were about 2–3-fold higher in the 34°C and 36°C treatments from Day 4 to Day 16. However, after 16 d, the concentrations of proline and MDA greatly decreased as the thalli bleached (Table 5).

3.6 Aragonite crystal formation

The aragonite crystals in segments of the three Halimeda species under 28°C and 34°C conditions are shown in Figs 6 and 7. There were no obvious differences in crystal shape and size between species in same temperature treatment. Short needles, approximately 5 μm in length, principally occupied the primary inter-utricular space (pIUS) across all three species. Nevertheless, at 34°C, the micro-anhedral carbonate filled less of the pIUS than that at 28°C. The rims of micro-anhedral carbonate in the central medullary utricles (mU) were thinner in the 34°C treatment. Segments of the three Halimeda species from the 34°C treatment showed irregular and porous structures of the peripheral utricle surface (Us) compared with those at 28°C, which exhibited a heavily abraded surface. In the 28°C treatment, mU in segments showed thick CaCO₃ as the rims of micro-anhedral carbonate gained thickness when segment age increased, and secondary needles and euhedral orthorhombic CaCO₃ crystals in mature segments were lager.

4 Discussion

Less

The genus Halimeda is widely distributed in the marine tropics, especially in coral reef ecosystem, contributing to the structure and stability of coral reefs and atolls (Beach et al., 2003; Hensley et al., 2013). During the past few decades, the numerous Halimeda species have been collected and identified mostly based on morphological and anatomical analyses (Dijoux et al., 2012). The species H. cylindracea in this study generally colonized in sandy habitats displayed distinct species-specific morphological features such as cylindrical segments. However, the shapes and size of segments in a Halimeda thallus can be strongly influenced by environmental conditions, meaning that identifying biological species by morphological differences is difficult. For instance, the segments on the top half of H. opuntia, Halimeda minima, and Halimeda micronesica thalli all have multiple flat or/and reniform shapes (Dijoux et al., 2012). Since the early 1990s, molecular phylogenetic analysis has been used for species identification. In recent years, the plastid tufA sequence was put forward as the DNA barcode of delimitation for the Ulvophyceae (Saunders and Kucera, 2010) and the genus Halimeda (Verbruggen et al., 2006, 2007). In this study, use of the tufA gene for molecular analysis allowed three species-level clades to be distinguished, corresponding to H. cylindracea, H. opuntia and H. lacunalis.

The results of the present study regarding photosynthetic performance and concentrations of Chl a and carotenoid reveal that the physiological performance of Halimeda varied between species and between temperature treatments. During the experimental period, the seawater conditions were kept relatively stable in order to allow that tolerance of Halimeda to elevated temperatures to be determined accurately (Table 1). The three Halimeda species exhibited similar photosynthetic responses to fluctuations in seawater temperature. Average F_v/F_m values of these species were higher at 24–32°C than that at 34–36°C. The concentrations of Chl a and carotenoid were also high in the 24–32°C treatments, which could increase the ability of photosystem II to harvest light (Teichberg et al., 2013). Together with lower pigment concentrations, opposing photosynthetic characteristics were obvious in the 34–36°C treatments, especially after 28 d of exposure. These results agree with those of the previous temperature-related studies. Lee and Hsu (2009) demonstrated that the F_v/F_m values of siphonous green algae Codium edule dropped slowly in the first 4 h at 35°C and then decreased rapidly after 8 h, indicating that the 35°C temperature inhibited and impaired photosynthetic activities that the effects were more severe after a long period of exposure. Another calcareous species in this genus, Halimeda incrassata showed an obvious decline in photosynthesis at 32°C conditions and succumbed to 75.0% mortality at 34°C (Anderson, 2006).

Previous studies have shown that the chemical reactions of calcification are influenced by the saturation state of CaCO₃ (Ω_Ca), seawater temperature, and salinity, among other factors (Millero et al., 2006; Millero, 2007). The results of this study point to the existence of upper temperature thresholds for calcification, indicating that additional warming is likely to disrupt intrinsic metabolic processes, with a parabolic relationship forming between seawater temperature and calcification of calcareous organisms (Lough and Barnes, 2000; Muehllehner and Edmunds, 2008; Edmunds et al., 2012). Castillo et al. (2014) found that the calcification rate of the reef-building coral Siderastrea siderea exhibited a thermal performance curve, accelerating from 25°C to 28°C and declining from 28°C to 32°C. The G_net of H. cylindracea in this study was highest at 24–28°C while the maximum G_net of H. opuntia was obtained between 28°C and 32°C. Halimeda lacunalis showed lower calcification rates at 24–32°C during the experiment and no obvious G_net could be obtained above 34°C, suggesting that the temperature thresholds for calcification vary between Halimeda species. Peach et al. (2017) measured the calcification rates of six Halimeda species and found that the G_net of H. opuntia (~44 mg/(g·d)) were extremely higher than Halimeda copiosa, Halimeda goreauii, Halimeda incrassata, Halimeda monile and Halimeda tuna rates, ranging from 2 to 5 mg/(g·d), which was also higher than the G_net of H. opuntia measured in this study. Marine calcareous macroalgae have multiple crystalline forms of CaCO₃ and species-specific rates of calcification (Koch et al., 2013). The crystals of genus Halimeda were majorly formed by calcification in intercellular spaces (Peach et al., 2017). In this study, SEM images show obvious effects of changes in seawater temperature on the inter-utricular space due to physiological changes in the calcification metabolism and the shapes and sizes of the CaCO₃ microstructures in Halimeda segments. It is likely that primary needle formation and organic matrix components are actively enhanced by calcification (Wizemann et al., 2014). Optimal seawater temperature leads to elevated external carbonic anhydrase activity in Halimeda so that HCO₃^– is used more effectively by calcifying proteins in CaCO₃ biomineralization (Bertucci et al. 2013; Hofmann et al., 2014).

In the context of organic osmolytes, proline could protect cellular structures and combine with other defense-related enzyme systems under environmental stresses (Sun et al., 2013). In this study, high concentrations of proline may have kept the physiological systems functioning and relieved stresses in 34°C treatment. A similar conclusion can be drawn regarding the 36°C treatment over the initial ~20 d. However, at the end phase of the experiment (Day 20–28), the concentrations of proline decreased as a result of Halimeda thalli bleaching and breaking down gradually. Better growth of the three Halimeda species was correlated with lower lipid peroxidation, which was revealed by low MDA concentrations in the 24–32°C treatments, demonstrating that the Halimeda suffered less oxidative damage under thermal stress conditions (Sun et al., 2013). In the first 4–8 d, MDA levels of Halimeda at 32°C were high, after which the levels declined, demonstrating that the algae were adjusting in response to temperature stress. All these results in the present study suggest that Halimeda species positively altered physiological responses to thermal stresses, and that the upper sublethal and lethal temperatures were 34°C and 36°C, respectively. This corresponds with the optimal temperature range (28–32°C) determined in previous studies (Beach et al., 2003; Biber and Irlandi, 2006; Peach et al., 2017) and the thermal threshold (34°C) for growth (Sinutok et al., 2011). Thorhaug (1976) reported that many macroalgae (e.g., Halimeda, Udotea, Penicillus) in tropical marine ecosystems at Turkey Point exhibited fast growth in the summer when seawater temperatures reached up to 31–32°C, extremely close to the upper thermal thresholds (~32–38°C), and pointed out that thermal acclimation did not alter algal thermal limits.

Most studies on Halimeda species, including the present study, indicate that they have great capacity to adapt quickly to temperature variations (Reynaud et al., 2003; Hoegh-Guldberg et al., 2007; Manzello, 2010; Sinutok et al., 2011; McCulloch et al., 2012). The seawater temperature at our sampling sites ranges from 26.5°C to 32.0°C throughput the year (unpublished data). In the 24°C treatment, which was below the average temperature at the sampling sites, the concentrations of proline and MDA in the Halimeda tissues declined slowly after 8 d, indicating that acclimation was taking place. Campbell et al. (2016) has reported that, in experiments which couple ocean acidification and waring, moderate increases in temperature could improve metabolic performances (e.g., photosynthesis and calcification) and alleviate the detrimental effects of shifts in seawater chemistry. These findings are strongly relevant to coral reef ecosystems that are facing climate changes caused by human activities, as growth and distribution of common calcareous algae may significantly affect coral survival and growth (Teichberg et al., 2012). The wide distribution of calcifying organisms, including Halimeda species, is likely not only due to seawater temperatures, but also light intensities, nutrient availability and so on (Kleypas et al., 2006; Hurd et al., 2009; Hofmann et al., 2014). Furthermore, most previous work has focused largely on Pacific species, which may be acclimated to cooler seawaters than their Caribbean counterparts (Campbell et al., 2016). As a result, conclusions regarding the physiological effects of temperature may strongly depend on organismal acclimation and regional environmental factors (Campbell et al., 2016).

In conclusion, this study demonstrated that from 24°C to 32°C, elevated temperature enhanced growth and while extreme high temperatures (34–36°C) damaged Halimeda tissues. Baseline measurements of SGR and calcification rate in 34°C treatments, only H. cylindracea and H. opuntia could grow even if these physiological performances were slowly, which displayed broader tolerance to a range of temperatures than H. lacunalis. However, upper lethal temperature thresholds for the three Halimeda species was 36°C with all thalli disarticulating and bleaching. High concentrations of proline in Halimeda tissues were released to keep the physiological systems functioning under environmental stresses. As temperature changes do not occur in isolation, it will be important to conduct further experiments which combine temperature with other factors such as acidification, light and nutrient availability in order to determine the likely interactive and/or cumulative impacts these parameters have on the physiology of calcareous Halimeda species.

Acknowledgements

Less

We thank the anonymous reviewers for their valuable comments and suggestions.

Funding

Less

The Guangzhou Science and Technology Project under contract No. 201707010174; the Strategic Priority Research Program of the Chinese Academy Sciences under contract No. XDA13020203; the Ocean Public Welfare Scientific Research Project under contract No. 201305018-3.

References

Less

Agegian C R. 1985. The biogeochemical ecology of Porolithon gardineri (Foslie). Honolulu: University of Hawaii, 178

Anderson B C. 2006. Response of tropical marine macroalgae to thermal stress [dissertation]. Boca Raton, FL: Florida Atlantic University

Beach K, Walters L, Vroom P, et al. 2003. Variability in the ecophysiology of Halimeda spp. (Chlorophyta, Bryopsidales) on Conch Reef, Florida Keys, USA. Journal of Phycology, 39(4): 633–643, doi: 10.1046/j.1529-8817.2003.02147.x

Bertucci A, Moya A, Tambutté S, et al. 2013. Carbonic anhydrases in anthozoan coralsja review. Bioorganic & Medicinal Chemistry, 21(6): 1437–1450

Biber P D, Irlandi E A. 2006. Temporal and spatial dynamics of macroalgal communities along an anthropogenic salinity gradient in Biscayne Bay (Florida, USA). Aquatic Botany, 85(1): 65–77, doi: 10.1016/j.aquabot.2006.02.002

Campbell J E, Fisch J, Langdon C, et al. 2016. Increased temperature mitigates the effects of ocean acidification in calcified green algae (Halimeda spp.). Coral Reefs, 35(1): 357–368, doi: 10.1007/s00338-015-1377-9

Castillo K D, Ries J B, Bruno J F, et al. 2014. The reef-building coral Siderastrea siderea exhibits parabolic responses to ocean acidification and warming. Proceedings of the Royal Society B: Biological Sciences, 281(1797): 20141856, doi: 10.1098/rspb.2014.1856

Collins M, Knutti R, Arblaster J, et al. 2013. Long-term climate change: projections, commitments and irreversibility. In: Stocker T F, Qin D, Plattner G K, et al., eds. Climate Change 2013: the Physical Science Basis. Contribution of Working Group I to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change. Cambridge, UK: Cambridge University Press

Deser C, Phillips A S, Alexander M A. 2010. Twentieth century tropical sea surface temperature trends revisited. Geophysical Research Letters, 37(10): L10701

Dijoux L, Verbruggen H, Mattio L, et al. 2012. Diversity of Halimeda (Bryopsidales, Chlorophyta) in New Caledonia: a combined morphological and molecular study. Journal of Phycology, 48(6): 1465–1481, doi: 10.1111/jpy.12002

Edmunds P J, Brown D, Moriarty V. 2012. Interactive effects of ocean acidification and temperature on two scleractinian corals from Moorea, French Polynesia. Global Change Biology, 18(7): 2173–2183, doi: 10.1111/j.1365-2486.2012.02695.x

Famà P, Wysor B, Kooistra W H C F, et al. 2002. Molecular phylogeny of the genus Caulerpa (Caulerpales, Chlorophyta) inferred from chloroplast tufA gene. Journal of Phycology, 38(5): 1040–1050, doi: 10.1046/j.1529-8817.2002.t01-1-01237.x

Hall T A. 1999. BioEdit: a user-friendly biological sequence alignment editor and analysis program for Windows 95/98/NT. Nucleic Acids Symposium Series, 41: 95–98

Hensley N M, Elmasri O L, Slaughter E I, et al. 2013. Two species of Halimeda, a calcifying genus of tropical macroalgae, are robust to epiphytism by cyanobacteria. Aquatic Ecology, 47(4): 433–440, doi: 10.1007/s10452-013-9456-x

Hillis-Colinvaux L. 1980. Ecology and taxonomy of Halimeda: primary producer of coral reefs. Advances in Marine Biology, 17: 1–327, doi: 10.1016/S0065-2881(08)60303-X

Hodges D M, DeLong J M, Forney C F, et al. 1999. Improving the thiobarbituric acid-reactive-substances assay for estimating lipid peroxidation in plant tissues containing anthocyanin and other interfering compounds. Planta, 207(4): 604–611, doi: 10.1007/s004250050524

Hoegh-Guldberg O, Mumby P J, Hooten A J, et al. 2007. Coral reefs under rapid climate change and ocean acidification. Science, 318(5857): 1737–1742, doi: 10.1126/science.1152509

Hofmann L C, Bischof K, Baggini C, et al. 2015. CO₂ and inorganic nutrient enrichment affect the performance of a calcifying green alga and its noncalcifying epiphyte. Oecologia, 177(4): 1157–1169, doi: 10.1007/s00442-015-3242-5

Hofmann L C, Heiden J, Bischof K, et al. 2014. Nutrient availability affects the response of the calcifying chlorophyte Halimeda opuntia (L.) J.V. Lamouroux to low pH. Planta, 239(1): 231–242, doi: 10.1007/s00425-013-1982-1

Hughes T P, Baird A H, Bellwood D R, et al. 2003. Climate change, human impacts, and the resilience of coral reefs. Science, 301(5635): 929–933, doi: 10.1126/science.1085046

Hurd C L, Hepburn C D, Currie K I, et al. 2009. Testing the effects of ocean acidification on algal metabolism: considerations for experimental designs. Journal of Phycology, 45(6): 1236–1251, doi: 10.1111/j.1529-8817.2009.00768.x

Jokiel P L, Maragos J E, Franzisket L. 1978. Coral growth: buoyant weight technique. In: Stoddart D R, Johannes R E, eds. Coral Reefs: Research Methods. Paris: UNESCO, 529–541

Kimura M. 1980. A simple method for estimating evolutionary rates of base substitutions through comparative studies of nucleotide sequences. Journal of Molecular Evolution, 16(2): 111–120, doi: 10.1007/BF01731581

Kleypas J A, Feely R A, Fabry V J, et al. 2006. Impacts of ocean acidification on coral reefs and other marine calcifiers: a guide for future research. St. Petersburg, FL: NSF, NOAA, U.S. Geological Survey

Koch M, Bowes G, Ross C, et al. 2013. Climate change and ocean acidification effects on seagrasses and marine macroalgae. Global Change Biology, 19(1): 103–132, doi: 10.1111/j.1365-2486.2012.02791.x

Kojima R, Hanyuda T, Kawai H. 2015. Taxonomic re-examination of Japanese Halimeda species using genetic markers, and proposal of a new species Halimeda ryukyuensis (Bryopsidales, Chlorophyta). Phycological Research, 63(3): 178–188, doi: 10.1111/pre.12095

Langdon C, Gattuso J P, Andersson A. 2010. Measurements of calcification and dissolution of benthic organisms and communities. In: Riebesell U, Fabry V J, Hansson L, et al., eds. Guide to Best Practices for Ocean Acidification Research and Data Reporting. Luxembourg: European Union, 213–232

Lee T C, Hsu B D. 2009. Disintegration of the cells of siphonous green alga Codium edule (Bryopsidales, Chlorophyta) under mild heat stress. Journal of Phycology, 45(2): 348–356, doi: 10.1111/j.1529-8817.2009.00656.x

Lis J T. 1980. Fractionation of DNA fragments by polyethylene glycol induced precipitation. Methods in Enzymology, 65: 347–353, doi: 10.1016/S0076-6879(80)65044-7

Littler M M, Littler D S, Hanisak M D. 1991. Deep-water rhodolith distribution, productivity, and growth history at sites of formation and subsequent degradation. Journal of Experimental Marine Biology and Ecology, 150(2): 163–182, doi: 10.1016/0022-0981(91)90066-6

Lough J M, Barnes D J. 2000. Environmental controls on growth of the massive coral Porites. Journal of Experimental Marine Biology and Ecology, 245(2): 225–243, doi: 10.1016/S0022-0981(99)00168-9

Manzello D P. 2010. Coral growth with thermal stress and ocean acidification: lessons from the eastern tropical Pacific. Coral Reefs, 29(3): 749–758, doi: 10.1007/s00338-010-0623-4

Martin S, Castets M D, Clavier J. 2006. Primary production, respiration and calcification of the temperate free-living coralline alga Lithothamnion corallioides. Aquatic Botany, 85(2): 121–128, doi: 10.1016/j.aquabot.2006.02.005

Martin S, Clavier J, Chauvaud L, et al. 2007. Community metabolism in temperate maerl beds. I. Carbon and carbonate fluxes. Marine Ecology Progress Series, 335: 19–29, doi: 10.3354/meps335019

Martin S, Gattuso J P. 2009. Response of Mediterranean coralline algae to ocean acidification and elevated temperature. Global Change Biology, 15(8): 2089–2100, doi: 10.1111/j.1365-2486.2009.01874.x

McCulloch M, Falter J, Trotter J, et al. 2012. Coral resilience to ocean acidification and global warming through pH up-regulation. Nature Climate Change, 2(8): 623–627, doi: 10.1038/nclimate1473

McKenzie L J, Campbell S J. 2004. Surviving the summer heat: seagrass burns as corals bleach. Seagrass-Watch News, 19: 1

Millero F J. 2007. The marine inorganic carbon cycle. Chemical Reviews, 107(2): 308–341, doi: 10.1021/cr0503557

Millero F J, Graham T B, Huang Fen, et al. 2006. Dissociation constants of carbonic acid in seawater as a function of salinity and temperature. Marine Chemistry, 100(1–2): 80–94, doi: 10.1016/j.marchem.2005.12.001

Morton B, Blackmore G. 2001. South China Sea. Marine Pollution Bulletin, 42(12): 1236–1263, doi: 10.1016/S0025-326X(01)00240-5

Muehllehner N, Edmunds P J. 2008. Effects of ocean acidification and increased temperature on skeletal growth of two scleractinian corals, Pocillopora meandrina and Porites rus. In: Proceedings of the 11th International Coral Reef Symposium. Ft. Lauderdale, Florida: ICRS, 57–61

Nelson W A. 2009. Calcified macroalgae-critical to coastal ecosystems and vulnerable to change: a review. Marine and Freshwater Research, 60(8): 787–801, doi: 10.1071/MF08335

Payri C E. 1988. Halimeda contribution to organic and inorganic production in a Tahitian reef system. Coral Reefs, 6(3–4): 251–262, doi: 10.1007/BF00302021

Peach K E, Koch M S, Blackwelder P L, et al. 2017. Calcification and photophysiology responses to elevated pCO₂ in six Halimeda species from contrasting irradiance environments on Little Cayman Island reefs. Journal of Experimental Marine Biology and Ecology, 486: 114–126, doi: 10.1016/j.jembe.2016.09.008

Pierrot D, Lewis E, Wallace D W R. 2006. MS excel program developed for CO₂ system calculations. ORNL/CDIAC-105a, Oak Ridge, Tennessee: Carbon Dioxide Information Analysis Center, Oak Ridge National Laboratory, US Department of Energy

Potin P, Floc’h J Y, Augris C, et al. 1990. Annual growth rate of the calcareous red alga Lithothamnion corallioides (Corallinales, Rhodophyta) in the Bay of Brest, France. Hydrobiologia, 204(1): 263–267

Price N N, Hamilton S L, Tootell J S, et al. 2011. Species-specific consequences of ocean acidification for the calcareous tropical green algae Halimeda. Marine Ecology Progress Series, 440: 67–78, doi: 10.3354/meps09309

Reynaud S, Leclercq N, Romaine-Lioud S, et al. 2003. Interacting effects of CO₂ partial pressure and temperature on photosynthesis and calcification in a scleractinian coral. Global Change Biology, 9(11): 1660–1668, doi: 10.1046/j.1365-2486.2003.00678.x

Saunders G W, Kucera H. 2010. An evaluation of rbcL, tufA, UPA, LSU and ITS as DNA barcode markers for the marine green macroalgae. Cryptogamie Algologie, 31(4): 487–528

Shan Dapeng, Huang Jinguang, Yang Yutao, et al. 2007. Cotton GhDREB1 increases plant tolerance to low temperature and is negatively regulated by gibberellic acid. New Phytologist, 176(1): 70–81, doi: 10.1111/j.1469-8137.2007.02160.x

Sinutok S, Hill R, Doblin M A, et al. 2011. Warmer more acidic conditions cause decreased productivity and calcification in subtropical coral reef sediment-dwelling calcifiers. Limnology and Oceanography, 56(4): 1200–1212, doi: 10.4319/lo.2011.56.4.1200

Sun Yanguo, Wang Bo, Jin Shanghui, et al. 2013. Ectopic expression of arabidopsis glycosyltransferase UGT85A5 enhances salt stress tolerance in tobacco. PLoS One, 8(3): e59924, doi: 10.1371/journal.pone.0059924

Tamura K, Dudley J, Nei M, et al. 2007. MEGA4: molecular evolutionary genetics analysis (MEGA) software version 4.0. Molecular Biology and Evolution, 24(8): 1596–1599, doi: 10.1093/molbev/msm092

Teichberg M, Fricke A, Bischof K. 2013. Increased physiological performance of the calcifying green macroalga Halimeda opuntia in response to experimental nutrient enrichment on a Caribbean coral reef. Aquatic Botany, 104: 25–33, doi: 10.1016/j.aquabot.2012.09.010

Teichberg M, Martinetto P, Fox S E. 2012. Bottom-up versus top-down control of macroalgal blooms. In: Wiencke C, Bischof K, eds. Seaweed Biology. Berlin, Heidelberg: Springer, 449–467

Thorhaug A. 1976. Tropical macroalgae as pollution indicator organisms. Micronesica, 12(1): 49–68

Verbruggen H, De Clerck O, N’Yeurt A D R, et al. 2006. Phylogeny and taxonomy of Halimeda incrassata, including descriptions of H. kanaloana and H. heteromorpha spp. nov. (Bryopsidales, Chlorophyta). European Journal of Phycology, 41: 337–362, doi: 10.1080/09670260600709315

Verbruggen H, Littler D S, Littler M M. 2007. Halimeda pygmaea and Halimeda pumila (Bryopsidales, Chlorophyta): two new dwarf species from fore reef slopes in Fiji and the Bahamas. Phycologia, 46(5): 513–520, doi: 10.2216/07-01.1

Vogel N, Meyer F W, Wild C, et al. 2015. Decreased light availability can amplify negative impacts of ocean acidification on calcifying coral reef organisms. Marine Ecology Progress Series, 521: 49–61, doi: 10.3354/meps11088

Walters L J, Smith C M, Coyer J A, et al. 2002. Asexual propagation in the coral reef macroalga Halimeda (Chlorophyta, Bryopsidales): production, dispersal and attachment of small fragments. Journal of Experimental Marine Biology and Ecology, 278(1): 47–65, doi: 10.1016/S0022-0981(02)00335-0

Wellburn A R. 1994. The spectral determination of chlorophylls a and b, as well as total carotenoids, using various solvents with spectrophotometers of different resolution. Journal of Plant Physiology, 144: 307–313, doi: 10.1016/S0176-1617(11)81192-2

Wernberg T, Russell B D, Thomsen M S, et al. 2011. Seaweed communities in retreat from ocean warming. Current Biology, 21(21): 1828–1832, doi: 10.1016/j.cub.2011.09.028

Wizemann A, Meyer F W, Hofmann C L, et al. 2015. Ocean acidification alters the calcareous microstructure of the green macro-alga Halimeda opuntia. Coral Reefs, 34(3): 941–954, doi: 10.1007/s00338-015-1288-9

Wizemann A, Meyer F W, Westphal H. 2014. A new model for the calcification of the green macro-alga Halimeda opuntia (Lamouroux). Coral Reefs, 33(4): 951–964, doi: 10.1007/s00338-014-1183-9

Appendix

Less

Year 2020 volume 39 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-019-1471-3

Receive Date：2018-12-20
Online Date：2026-03-31
Published：2020-02-25

Article Data

Affiliations

History

Received：2018-12-20
Accepted：2019-03-18

Funding

The Guangzhou Science and Technology Project under contract No. 201707010174; the Strategic Priority Research Program of the Chinese Academy Sciences under contract No. XDA13020203; the Ocean Public Welfare Scientific Research Project under contract No. 201305018-3.

Affiliations

¹ CAS Key Laboratory of Tropical Marine Bio-resources and Ecology, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China

² University of Chinese Academy of Sciences, Beijing 100049, China

³ State Key Laboratory of Marine Environmental Science, College of Ocean and Earth Sciences, Xiamen University, Xiamen 361102, China

⁴ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

Corresponding:

* E-mail: ycuyang@163.com;

longlj@scsio.ac.cn

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-019-1471-3

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Summary of measured and calculated parameters of treatments determined daily during the 28 d aquaria experiment (25 August–21 September, 2017)

Treatment	Measured			Calculated
Treatment	pH_NBS	TA/μmol·L⁻¹	SSS	CO₂/μmol·kg⁻¹	${{\rm {CO}}_3^{2-}} $/μmol·kg⁻¹	${\rm{HCO}}_3^- $/μmol·kg⁻¹	pCO₂/μatm
24°C	8.11±0.04	2 023.2±56.3	34.5±0.1	12.4±0.6	158.4±16.7	1 624.5±48.6	425.7±23.5
28°C	8.13±0.03	1 916.5±59.21	34.7±0.1	9.9±0.8	174.6±19.6	1 471.9±52.3	375.9±17.9
32°C	8.14±0.06	2 132.4±64.82	34.3±0.2	10.7±0.6	207.0±20.5	1 619.2±47.1	443.6±19.4
34°C	8.09±0.09	2 078.6±48.93	34.6±0.2	11.1±0.9	198.8±14.8	1 582.0±53.6	483.8±17.2
36°C	8.07±0.04	2 124.4±54.82	34.6±0.1	11.6±0.7	204.4±23.2	1 614.5±55.2	528.0±20.6

Table 2. Results of a three-way ANOVA on F_v/F_m and concentrations of Chl a and carotenoid of treatments exposed to the crossed factors of species (H. cylindracea, H. opuntia and H. lacunalis), temperature (Temp: 24°C, 28°C, 32°C, 34°C and 36°C), and time (after 16 and 28 d)

Source of variation	df	SS	MS	F	P
Note: Significant P values of factors and interactions (P<0.05) are denoted in bold.
F_v/F_m
Species	2	0.000	0.000	0.13	0.875
Temp	4	1.467	0.367	154.32	0.000
Time	1	0.005	0.005	2.02	0.160
Species×Temp	8	0.017	0.002	0.89	0.530
Species×Time	2	0.036	0.018	7.64	0.001
Temp×Time	4	0.022	0.006	2.33	0.066
Species×Temp×Time	8	0.032	0.004	1.69	0.119
Error	60	0.143	0.002
Chl a
Species	2	74 760	37 380	141.81	0.000
Temp	4	166 946	41 737	158.34	0.000
Time	1	3 210	3 210	12.18	0.001
Species×Temp	8	31 724	3 966	15.04	0.000
Species×Time	2	442	221	0.84	0.438
Temp×Time	4	33 007	8 252	31.31	0.000
Species×Temp×Time	8	6 108	764	2.90	0.008
Error	60	15 815	264
Carotenoid
Species	2	866.53	433.27	51.14	0.000
Temp	4	242.33	60.58	7.15	0.000
Time	1	845.43	845.43	99.79	0.000
Species×Temp	8	467.31	58.41	6.89	0.000
Species×Time	2	19.15	9.57	1.13	0.330
Temp×Time	4	476.32	119.08	14.05	0.000
Species×Temp×Time	8	119.97	15.00	1.77	0.101
Error	60	508.35	8.47

Table 3. Calcification responses of three Halimeda species to five temperature-related treatments over the 28 d experiment

Group		G_net/mg·g^–1·d^–1	New segment CaCO₃/%	Mature segment CaCO₃/%	Water content/%
Note: Net calcification rate (G_net) is shown as total CaCO₃ production compared to initial fresh thalli weight. Tissue mineral content of new (5–7 d old) and mature (>7 d old) segments is shown as CaCO₃ percentage. Water content represents the reduction in dried weight compared to fresh weight.
24°C	H. cylindracea	14.775±2.003	81.22±3.12	89.38±1.81	58.91±3.26
	H. opuntia	4.579±1.023	80.71±2.73	92.18±2.11	51.72±2.61
	H. lacunalis	1.457±0.392	72.83±1.62	84.72±1.02	63.91±3.10
28°C	H. cylindracea	20.082±2.482	81.28±1.22	91.82±2.33	55.73±4.15
	H. opuntia	12.825±1.623	83.21±3.52	84.11±3.26	53.28±3.15
	H. lacunalis	6.411±1.029	73.49±3.21	87.51±5.21	58.36±1.91
32°C	H. cylindracea	8.282±1.934	73.91±2.45	89.98±2.81	63.23±4.22
	H. opuntia	8.296±1.236	85.12±2.37	90.29±3.45	54.23±3.84
	H. lacunalis	1.521±0.294	82.33±1.92	86.28±1.09	57.23±4.19
34°C	H. cylindracea	3.246±0.923	64.23±4.11	92.17±2.62	54.12±1.23
	H. opuntia	0.979±0.063	75.73±2.42	85.26±3.11	59.23±2.81
	H. lacunalis	–	–	88.41±3.12	55.32±3.77
36°C	H. cylindracea	–	–	75.83±5.23	56.38±2.73
	H. opuntia	–	–	84.76±4.17	61.34±1.54
	H. lacunalis	–	–	83.35±2.81	56.61±3.55

Table 4. The growth responses of three Halimeda species to five temperature-related treatments over the 28 d experiment

Group		Maximum new Segment/%	SGR/% d^–1
Note: Maximum new segment production rate (%) is the maximum proportion of the thalli that produced new segments. Specific growth rate (SGR) is expressed as % d^–1.
24°C	H. cylindracea	34.78	0.652±0.102
	H. opuntia	21.05	0.360±0.089
	H. lacunalis	7.69	0.079±0.006
28°C	H. cylindracea	54.55	1.644±0.253
	H. opuntia	34.78	0.885±0.192
	H. lacunalis	23.08	0.109±0.021
32°C	H. cylindracea	37.50	1.157±0.302
	H. opuntia	27.71	1.527±0.216
	H. lacunalis	11.76	0.110±0.051
34°C	H. cylindracea	15.49	0.364±0.145
	H. opuntia	10.45	0.118±0.038
	H. lacunalis	–	–
36°C	H. cylindracea	–	–
	H. opuntia	–	–
	H. lacunalis	–	–

Table 5. Results of a three-way ANOVA on proline and MDA concentrations of Halimeda in five treatments exposed to the crossed factors of species (H. cylindracea, H. opuntia and H. lacunalis), temperature (Temp: 24°C, 28°C, 32°C, 34°C and 36°C), and time (after 16 and 28 d). Significant P values of factors and interactions (P<0.05) are denoted in bold.

Source of variation	df	SS	MS	F	P
Proline
Species	2	5.248	2.624	9.08	0.000
Temp	4	33.078	8.269	28.61	0.000
Time	1	2.509	2.509	8.68	0.005
Species×Temp	8	13.262	1.658	5.74	0.000
Species×Time	2	0.132	0.066	0.23	0.797
Temp×Time	4	15.736	3.394	13.61	0.000
Species×Temp×Time	8	7.457	0.932	3.22	0.004
Error	60	17.342	0.289
MDA
Species	2	5.977	2.988	145.61	0.000
Temp	4	3.021	0.755	36.79	0.000
Time	1	2.718	2.718	132.41	0.000
Species×Temp	8	1.110	0.139	6.76	0.000
Species×Time	2	0.731	0.366	17.82	0.000
Temp×Time	4	1.142	0.353	17.20	0.000
Species×Temp×Time	8	0.353	0.044	2.15	0.044
Error	60	1.231	0.021

Fig. 1. The sample site located in an outer fore-reef ledge (6–8 m) in the South China Sea and location of the experimental facility in Sanya, China.

Fig. 2. Maximum likelihood (ML) molecular phylogenetic tree of the genus Halimeda based on tufA. The scale bar is 0.02 substitutions per site. Numbers on branches indicate bootstrap values from ML analysis. Sample H1, H2 and H3 represented Halimeda cylindracea, Halimeda opuntia and Halimeda lacunalis.

Fig. 3. Photosynthetic maximum quantum yield (F_v/F_m) of three Halimeda species incubated in five temperature treatments at the end of the experiment.

Fig. 4. Variations in concentrations of Chl a and carotenoid between the tissues of three Halimeda species from five temperature treatments during the 28 d experiment.

Fig. 5. Proline and MDA concentrations in tissues of the three Halimeda species exposed to five temperature treatments for 28 d.

Fig. 6. Representative segment of H. cylindracea fractured on the segment vertical mid-plane to expose internal microstructure. Image shows locations of aragonite crystal formation in primary inter-utricular spaces (pIUS), primary utricles (pU), utricle surface (Us) and central medullary utricles (mU).

Fig. 7. SEM vertical-section images of mid-growth segments of three Halimeda species sampled under 28°C (1–4, 9–12 and 17–20) and 34°C (5–8, 13–16 and 21–24) treatments. 1, 5, 9, 13, 17, and 21 corresponding utricle surface (Us). 2, 6, 18, and 22 cross-sectional overviews of the microstructure of a complete segment. 10 and 14 magnification of segments showing the location of utricles (U) and primary inter-utricular spaces (pIUS). 3–4, 7–8, 11–12, 15–16, 19–20, and 23–24 detailed analyses of central medullary utricles (mU) and the thin calcified segment rim.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
