Occurrence and transfer of heavy metals in sediments and plants of <i>Aegiceras corniculatum</i> community in the Qinzhou Bay, southwestern China

Occurrence and transfer of heavy metals in sediments and plants of Aegiceras corniculatum community in the Qinzhou Bay, southwestern China

PDF

Xing Huang¹^,^†, Xueping Wang¹^,^†, Xiuzhen Li²^,^*, Zhongzheng Yan², Yongguang Sun³

Acta Oceanologica Sinica | 2020, 39(2) : 79 - 88

Less

Acta Oceanologica Sinica | 2020, 39(2): 79-88

• Marine Biology •

Occurrence and transfer of heavy metals in sediments and plants of Aegiceras corniculatum community in the Qinzhou Bay, southwestern China

Full

Xing Huang¹^,^†, Xueping Wang¹^,^†, Xiuzhen Li²^,^*, Zhongzheng Yan², Yongguang Sun³

Affiliations

¹ Guangxi Key Laboratory of Marine Disaster in the Beibu Gulf, Beibu Gulf University, Qinzhou 535011, China

² State Key Laboratory of Estuarine and Coastal Research, East China Normal University, Shanghai 200062, China

³ National Marine Environment Monitoring Center, Dalian 116023, China

Published: 2020-02-25 doi: 10.1007/s13131-020-1555-7

Outline

Abstract

Less

Mangrove wetlands can reduce heavy metal pollution by trapping heavy metals. In this study, the concentration, transport and bioaccumulation of Cr, Cd, Cu, Zn and Pb in the sediments and different parts of Aegiceras corniculatum at four different sites in the Qinzhou Bay in southwestern China were investigated. The results showed that although the potential ecological risk of all five heavy metals was slight, the concentration of Cr was at a moderate pollution level due to the emissions of industries and aquaculture waste water. Core sediment records indicated that the concentrations of heavy metals at the depth of 0–20 cm were relatively high, showing an increasing trend of heavy metals over the past 20–30 years. Cr, Cu, Pb and Cd accumulated mainly in the roots of A. corniculatum, while Zn accumulated mainly in the stems. Aegiceras corniculatum showed the strongest transport capacity for Zn and Cu and the strongest bioaccumulation ability for Cd. Compared with other mangrove communities, A. corniculatum can be chosen as a restoration species in tropical and subtropical coastal zones polluted by Zn, Cu and Cd.

Key words

Aegiceras corniculatum / sediment / heavy metals / accumulation

Cite this Article

Xing Huang, Xueping Wang, Xiuzhen Li, Zhongzheng Yan, Yongguang Sun. Occurrence and transfer of heavy metals in sediments and plants of Aegiceras corniculatum community in the Qinzhou Bay, southwestern China[J]. Acta Oceanologica Sinica, 2020 , 39 (2) : 79 -88 . DOI: 10.1007/s13131-020-1555-7

Full Text

Less

1 Introduction

Less

Mangroves are woody plant communities in the intertidal zone of tropical and subtropical land-sea intersections. Mangroves play multiple roles in coastal ecosystems, such as protection against storm surges, promoting siltation and land reclamation, embankment protection, offering habitats for birds, fish and other species, and improving the ecological environment of the bay (Lau, 2000; MacFarlane et al., 2007; Nagelkerken et al., 2008; Wang et al., 2019). Due to the special and open habitats, developed roots, and the rich organic matter in sediments, mangroves receive a variety of contaminants from different channels and can act as important sources and sinks of pollutants in coastal and estuarine environments (Tam and Wong, 1995, 2000; MacFarlane and Burchett, 1999, 2002; Ray et al., 2006).

In mangrove ecosystems, due to the unique physiochemical conditions of the sediment and root structure of mangrove trees, heavy metals, including Cu, Zn, Cd, Cr and Pb, usually accumulate to considerable levels and may accumulate via the food chain to hazardous levels due to toxicity and persistence (Pan and Wang, 2012; Zhang et al., 2014b).

In mangrove wetlands, sediments are the main storage media of heavy metals, with small amounts absorbed by plants (Lau, 2000; Machado et al., 2002). Among different parts of mangrove plants, heavy metals mainly accumulate in the roots, and only a small fraction is transported to leaves (Cheng et al., 2010). Mangrove plants can excrete excessive non-essential elements, such as Pb, and control the concentrations of basic elements in vivo, such as Cu and Zn (MacFarlane et al., 2007; Yan and Tam, 2013). Mangrove wetlands may mitigate various pollutants through a series of physical, chemical, and biological effects, resulting in purification through absorption, accumulation and translocation (Tam and Wong, 1995, 1997; Tam et al., 2009).

It is worth noting that when the concentrations of heavy metals are above the upper tolerance limit of mangrove species, the toxic effects may lead to plant death (MacFarlane and Burchett, 2002; Qin et al., 2007). In cultivation experiments on Avicennia marina, MacFarlane and Burchett (2002) found that when the concentration of Cu in soils was 400 μg/g, the total biomass decreased and root growth was inhibited, while the levels of overall growth were suppressed when the concentration of Cu reached 800 μg/g. Liu et al. (2009) studied the tolerance of mangroves to mixed heavy metals and found that the heavy metals could inhibit the growth of mangrove seedlings. In cultivation experiments, Cheng et al. (2010) found that with an increase in Zn, only the seedling height and total biomass of Bruguiera gymnorrhiza decreased, but the seedling height, the number of stems and leaves and the total biomass decreased in Rhizophora stylosa and Aegiceras corniculatum. According to previous studies, a mangrove ecosystem is capable of accumulating toxic metals, thus reducing heavy metal pollution in adjacent estuarine and marine systems (Ramos e Silva et al., 2006; MacFarlane et al., 2007), and the translocation and bioaccumulation factors of heavy metals by mangroves showed a variety of trends (Analuddin et al., 2017). Thus, maintaining high diversity of mangroves is crucial to ensure the health and productivity of coastal zones. Therefore, it is necessary to investigate the distribution of heavy metals in mangrove soils and organs and to then choose appropriate species to prevent poor growth of restoration plants at sites polluted by heavy metals.

The Qinzhou Bay is an important international trade port in southwestern China, where mangroves are widely distributed along the coast. In recent decades, many heavy metals have been discharged into the bay with the rapid development of harbours, maritime industries, and tourism, which has resulted in the pollution of mangrove ecosystems (Zhang et al., 2010, 2014; Li et al., 2014; Li and Dai, 2015; Xu et al., 2017). Many studies (Zhang et al., 2010, 2014; Xu et al., 2017) have indicated that heavy metal pollution is a serious problem in the Qinzhou Bay, especially the Maowei Sea, which was established as the National Ocean Park of China in 2011. Previous studies focused on the distributions and ecological risks of heavy metals in marine sediments, but few studies have focused on mangrove sediments and the plant parts of mangrove species in the Qinzhou Bay. Therefore, the specific objectives of this study were to investigate the concentrations of Cu, Zn, Pb, Cd and Cr in the sediments of different soil layers and different parts of A. corniculatum, the most widespread species in the Qinzhou Bay. In addition, the potential ecological risks caused by the translocation and bioconcentration of heavy metals were evaluated to provide knowledge for the pollution control and rehabilitation of the mangrove coastal system in this area.

2 Materials and methods

Less

2.1 Study area

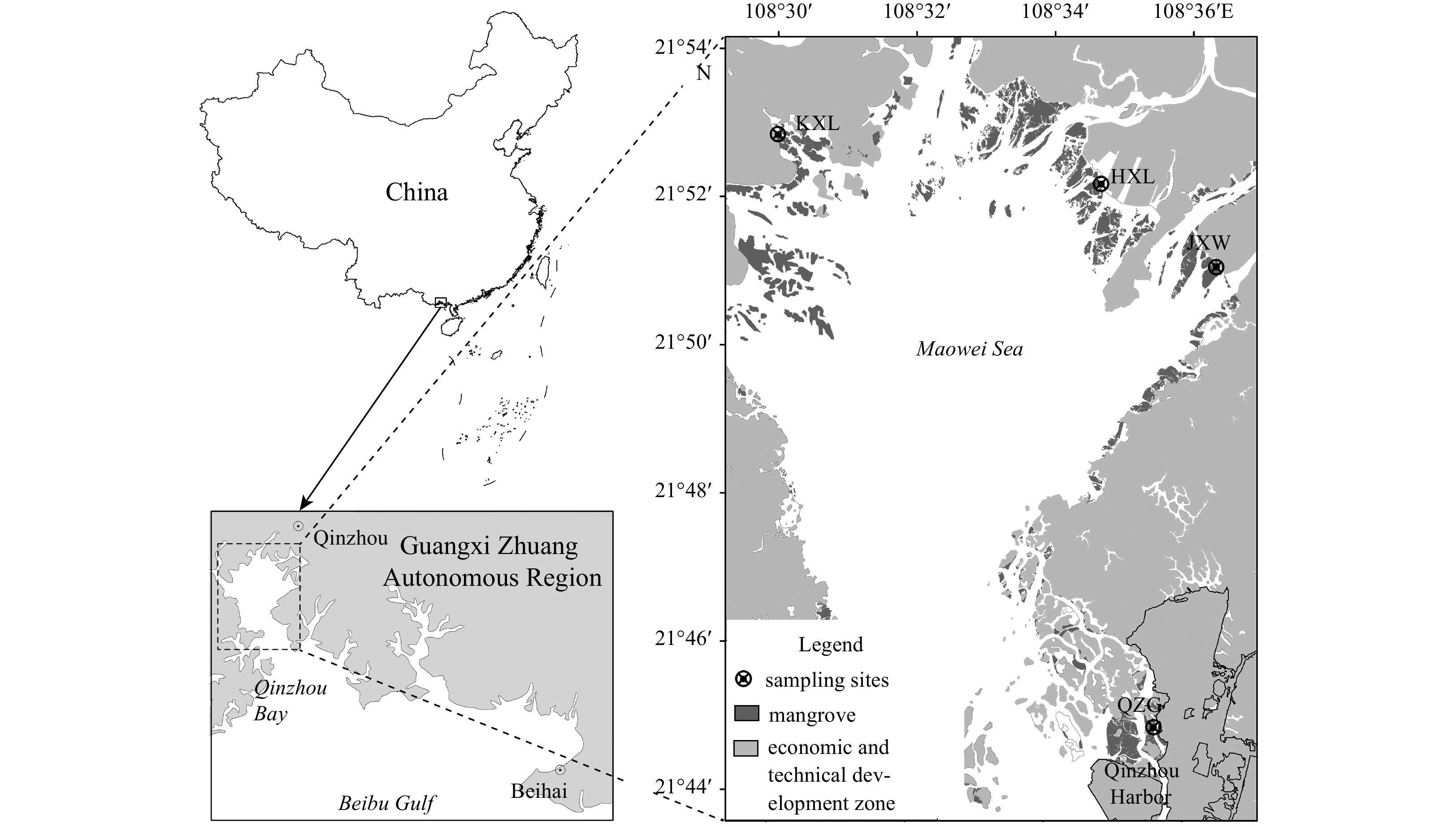

The Qinzhou Bay is located at the top of the Beibu Gulf along the coast of Guangxi, China. It is a semi–enclosed natural estuary composed of an inner bay (Maowei Sea), neck bay, and outer bay. It has a subtropical monsoon climate with an average annual temperature between 21°C and 23°C and an annual precipitation of 1 500–1 800 mm. The tide is a regular diurnal tide with a range of –0.69–5.83 m and an average tidal height of 2.40 m. The major mangrove species in the Qinzhou Bay include A. marina, A. corniculatum, Kandelia obovata, and R. stylosa, with A. corniculatum being the most widely distributed (Yan and Liu, 2006; He et al., 2011).

2.2 Sample collection

Sampling was performed from July 25 to 28, 2014, at four sites: Kangxiling (KXL), Haixialou (HXL), Jianxinwei (JXW), and Qinzhougang (QZG) (Fig. 1). Leaves, stems, roots and fruits of A. corniculatum and surface sediments at depths of 0–10 cm were collected, and each sample was collected at least in triplicate. Core sediment samples from a depth of 0–100 cm, except at KXL (0–60 cm), were collected using a self–made polyvinyl chloride (PVC) corer and were divided into layers, i.e., 0–10 cm, 10–20 cm, 20–40 cm, 40–60 cm, 60–80 cm and 80–100 cm. All samples were sealed in polyethylene plastic bags and transported to the laboratory for analysis.

2.3 Sample pretreatment and heavy metal determination

Sediment samples and plant samples were dried at room temperature. After mixing, all the samples were sieved through a nylon sieve (140 mesh). First, a 0.1 g soil sample and a 0.5 g plant sample were weighed in a 25 mL Teflon vessel, and then 3 mL of nitric acid, 3 mL of hydrofluoric acid, and 1 mL of perchloric acid were added to the tube and allowed to stand until the samples were fully soaked. Then, these Teflon vessels were placed in a digestion high-pressure tank at 160°C for 9 h. After cooling to room temperature, the digestion tanks were placed on a hot plate to evaporate the acid, and the solutions were then transferred to tubes, diluted with 2% nitric acid solution to 50 mL, and analysed (Wang et al., 2008). Given the differences in A. corniculatum among sample plots, all of the samples of the plant parts were divided into sub-samples of 0.5 g after drying and mixing. The numbers of the sub-samples are shown in Table 1.

Cu, Zn, Pb, Cr and Cd were determined with flame atomic absorption spectrometry (AAS) (AAnalyst 800, USA); Cr, Cu and Zn were analysed with the flame atomic absorption method, while Cd and Pb were subjected to single-element analysis using the graphite furnace atomic absorption method.

2.4 Quality assurance (QA) and quality control (QC)

The quality control standard materials for the sediment samples and plant samples were GBW07603 (GSV–2) and GBW07406 (GSS–6), respectively. One blank sample was added to the experimental sequence every seven samples, and one sample was selected randomly to assess the reproducibility of the method. The recoveries of heavy metals in sediment samples and plant samples were 91.8%±10.4% and 95.4%±14.3%, respectively, with corresponding relative standard deviations of 2.75%–3.59% and 2.23%–4.01%, respectively.

2.5 Data processing

Pollution level and ecological risk assessments of heavy metals in the sediments were performed according to Hakanson (1980), who proposed the single factor index (E_rⁱ) and potential ecological risk index (RI). These calculations are as follows:

(1)

$C_f^i = C_s^i/C_n^i,$

(2)

${C_d} = \sum C_f^i,$

(3)

$E_r^i = T_r^i \times C_f^i,$

(4)

$RI = \sum E_r^i,$

where C_fⁱ is the pollution index of heavy metal i; C_sⁱ is the measured concentration of heavy metal i in the sediment; C_nⁱ is the background value of heavy metal i; C_d is the comprehensive pollution index adopted from Wu et al. (2014). The background values of Cr, Cd, Cu, Zn and Pb were the concentrations of heavy metals in the sediments of pre-industrial times, which were 90, 1, 50, 175 and 170 μg/g, respectively (Hakanson, 1980). The toxic–response factor (T_rⁱ) for Cr, Cd, Cu, Zn and Pb was 2, 30, 5, 1 and 5, respectively (Hakanson, 1980). C_fⁱ, C_d and RI can be classified into four levels: low risk (C_fⁱ<1, C_d<5, RI<150), moderate risk (1≤C_fⁱ<3, 5≤C_d<10, 150≤RI<300), considerable risk (3≤C_fⁱ<6, 10≤C_d<20, 300≤RI<600), and very high risk (C_fⁱ≥6, C_d≥20, RI≥600). The degree of E_rⁱ is as follows: low risk (E_rⁱ<40), moderate risk (40≤E_rⁱ<80), considerable risk (80≤E_rⁱ<160), high risk (160≤E_rⁱ<320), and very high risk (E_rⁱ≥320).

The bioconcentration factor (BCF) and translocation factor (TF) of heavy metals in different parts of A. corniculatum were calculated with the formulas proposed by Agoramoorthy et al. (2008) and Usman et al. (2012, 2013) as follows:

(5)

$BC{F_{{\rm{parts}}}} = {C_{{\rm{parts}}}}/{C_{{\rm{sediment}}}},$

(6)

$T{F_{{\rm{leaf/stem/fruit}}}} = {C_{{\rm{leaf/stem/fruit}}}}{\rm{ }}/{C_{{\rm{root}}}},$

where C_parts are the metal concentrations in the leaf, stem, fruit and root; C_sediment is the metal concentration in the sediment; C_{leaf/stem/fruit} represents the metal concentrations in the leaf, stem and fruit, respectively; and C_root is the metal concentration in the root.

2.6 Statistical analyses

The concentrations of heavy metals, BCF and TF in different sites and plant parts were subjected to one-way analysis of variance (ANOVA) with the least significant difference (LSD) test to understand the difference between each statistical indicator using SPSS 19.0 (SPSS Inc. USA). The significance was based on the p-value, which was less than 0.05.

3 Results

Less

3.1 Heavy metals in mangrove sediments

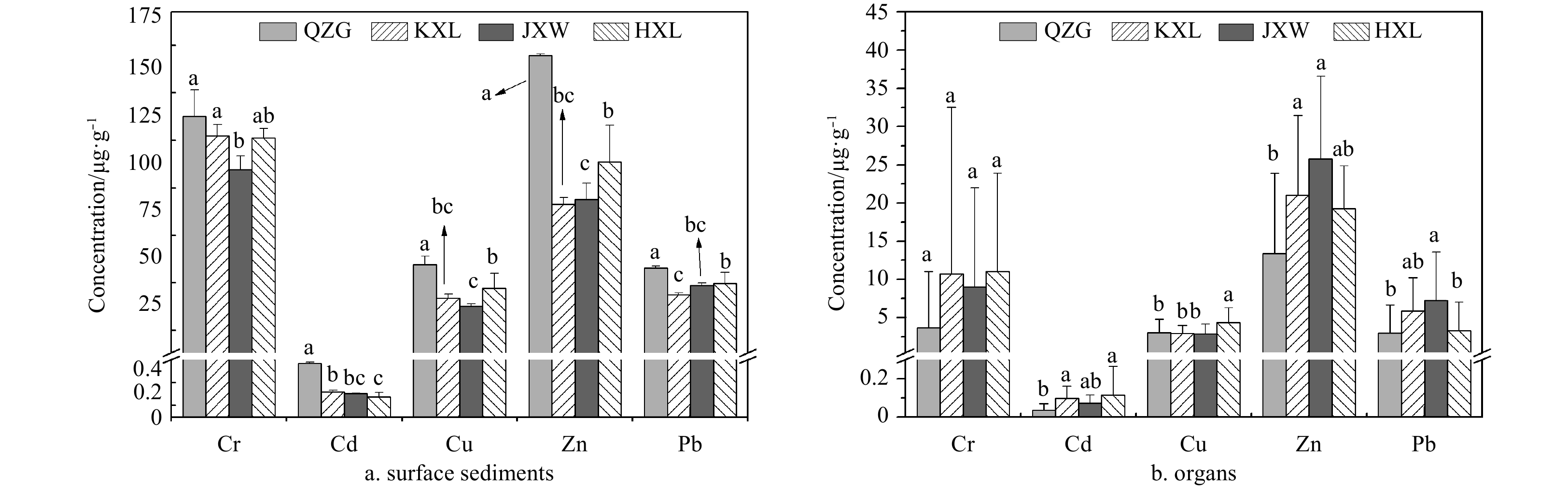

The concentrations of Cr, Cd, Cu, Zn and Pb in the mangrove surface sediments of the Qinzhou Bay are shown in Table 1. Cr showed the highest concentration of (113.66±13.42) μg/g (mean±SD), followed by Zn ((108.69±35.75) μg/g), Pb ((37.69±6.00) μg/g), Cu ((34.95±9.90) μg/g), and Cd ((0.28±0.13) μg/g). Compared with the marine sediment quality (GB 18668—2002), Cr in all surface sediments was above level I (80 μg/g), while Cd and Pb were below level I (0.5 and 60 μg/g for Cd and Pb, respectively). Figure 2a illustrates the distribution of heavy metals at the four different sampling sites. The concentrations of Cd, Cu, Zn and Pb in the surface sediments of QZG were significantly higher than those at the three other sites. Moreover, the concentrations of Cu, Zn, Pb and Cd in the mangrove surface sediments of the Qinzhou Bay were at the medium level compared with other mangrove areas worldwide (Table 2).

According to the calculation results of C_fⁱ, the pollution index of Cr in the mangrove surface sediments of the Qinzhou Bay reached a moderate pollution level (1.002–1.58), but the pollution indexes of Cd, Cu, Zn and Pb were all less than 1, while the comprehensive pollution index (C_d) of these five heavy metals was less than 5. Potential ecological risk results showed that the individual potential ecological risk indexes (E_rⁱ) of Cr, Cu, Zn, Pb and Cd were less than 40, and the RI values were between 13.72 and 26.21, which are considerably lower than 150. The pollution indexes or the RI of Cr, Cu, Zn, Pb and Cd in mangrove surface sediments showed no significant difference among the four sampling sites of the Qinzhou Bay. In general, the concentrations of Cr in mangrove surface sediments in the Qinzhou Bay were relatively high and at the moderate pollution level, but the concentrations of Cu, Zn, Pb and Cd were low and were at the low pollution level, and the potential ecological risk results indicate that these five heavy metals have a slight ecological risk.

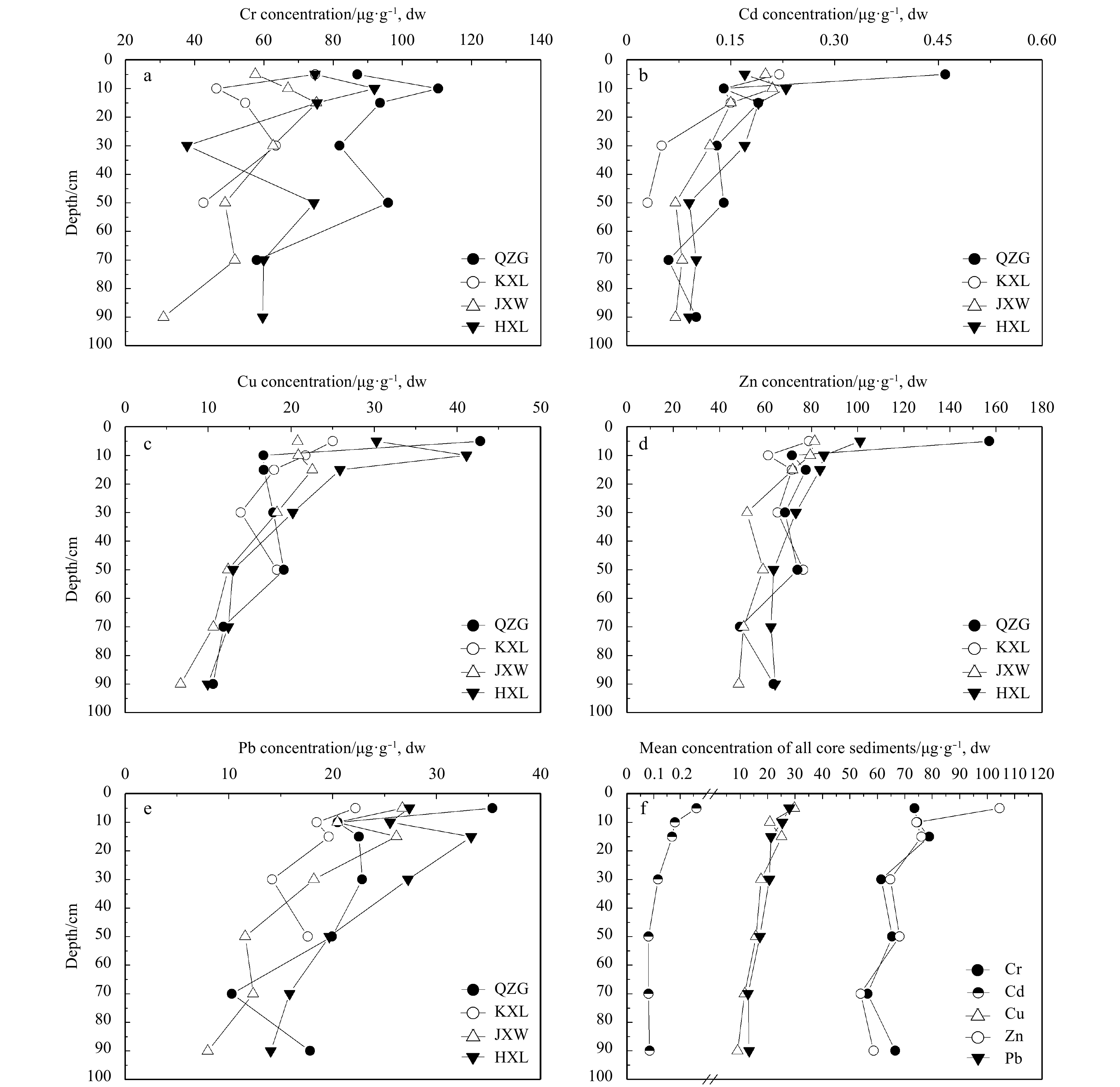

The concentrations of Cr, Cd, Cu, Zn and Pb in mangrove core sediments of the Qinzhou Bay are also shown in Table 1, and the distribution of those heavy metals at different depths is shown in Fig. 3. The concentrations of Cd, Cu, Zn, Pb and Cr generally decreased from the surface to the bottom of core sediments at QZG, KXL, JXW and HXL, and the concentrations of the five heavy metals in the 0–20 cm layer at QZG were the highest. Specifically, as shown in Fig. 3f, the mean concentrations of Cd, Cu and Pb in the core sediments of all sites decreased with core depth, although the concentrations of Cr (Fig. 3a) and Zn (Fig. 3d) at depths of 40–60 cm and 80–100 cm increased slightly.

3.2 Heavy metals in different plant parts

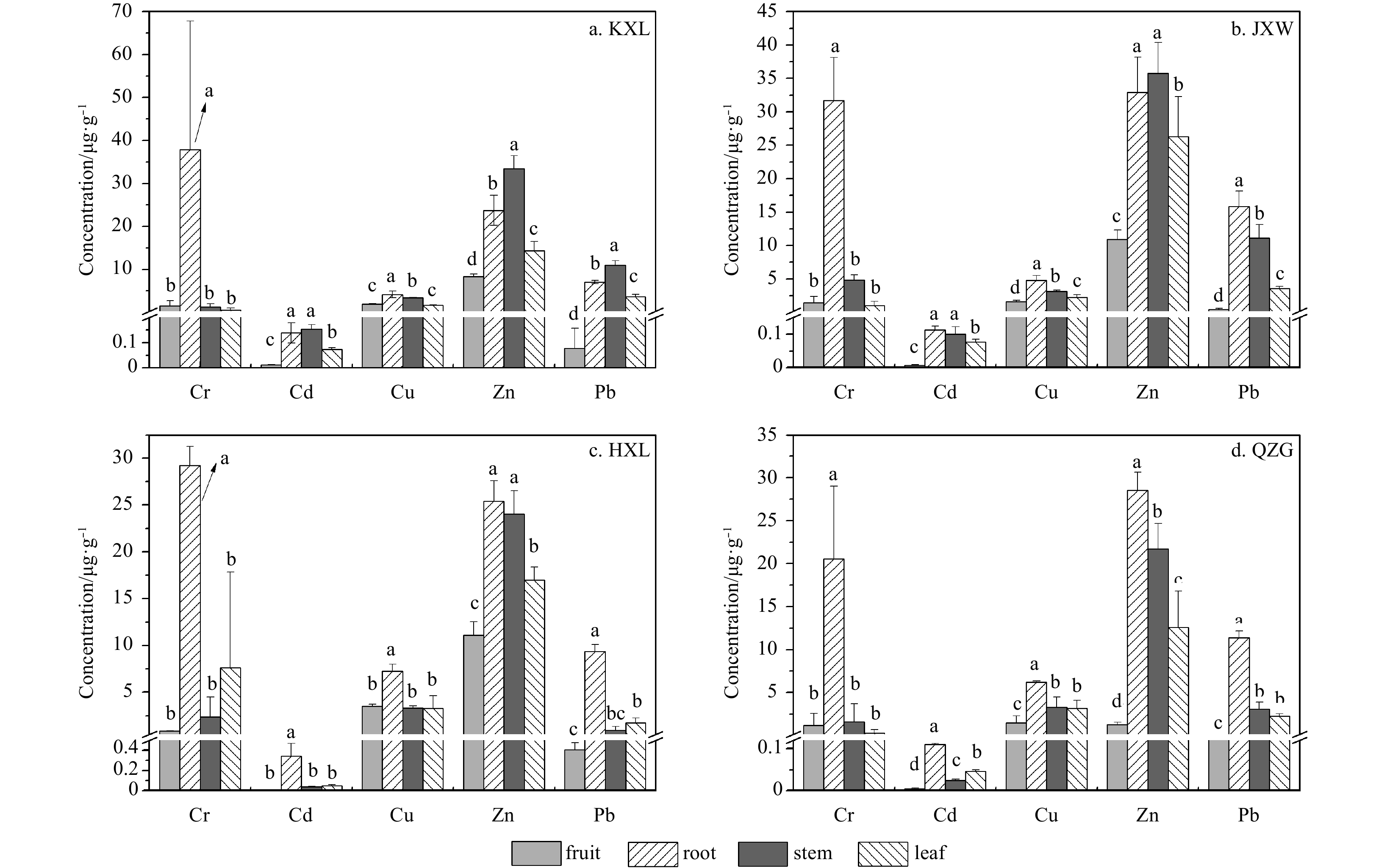

The concentrations of Cr, Cd, Cu, Zn and Pb in fruits, roots, stems and leaves of A. corniculatum in the Qinzhou Bay are shown in Table 1. In all plant parts, Zn showed the highest concentration, followed by Zn, Pb, Cu, and Cd. In the different mangrove parts, the concentrations of Cr, Cd, Cu, and Pb were highest in roots but lowest in fruits. The accumulation of Zn was highest in the stem, followed by the root, leaf and fruit. The spatial distributions of heavy metals in all parts of A. corniculatum varied across site (Fig. 2b). The concentrations of Zn, Pb, Cr and Cd in the plants were the lowest at QZG (Fig. 2b), although they were the highest in the surface sediments at QZG (Fig. 2a). Among different parts (Fig. 4), the concentrations of Cr, Cd, Cu and Pb in roots were significantly higher than those in the fruits, stems and leaves of A. corniculatum at the four different sites, except that the concentration of Zn in the stem of A. corniculatum at JXW and KXL was the highest among different parts. In addition, the concentrations of the five heavy metals in the fruits were significantly lower than those in other parts.

3.3 Bioconcentration and translocation of heavy metals

The BCFs of Cr, Cd, Cu, Zn and Pb in parts of A. corniculatum in the Qinzhou Bay and other mangrove plants worldwide are shown in Table 3. In general, the BCFs of different parts showed no significant difference among the four sites in this study, and the BCFs of Cr, Cu, Pb and Cd in the roots of A. corniculatum in the Qinzhou Bay were significantly higher than those in the stems, leaves and fruits, while the BCFs of Cu, Cd, Zn and Pb in the fruits were significantly lower than those in the stems, roots and leaves.

The TFs of Cr, Cd, Cu, Zn and Pb in stems, leaves, and fruits of A. corniculatum in the Qinzhou Bay are shown in Table 3. The TFs showed no significant difference among the four sites in the Qinzhou Bay, and the TFs of Cd, Cu, Zn and Pb in different parts of A. corniculatum decreased in the following order: stem>leaf>fruit. The TFs of Cd, Cu, Zn and Pb in the stems of A. corniculatum were significantly higher than those in the leaves and fruits. Specifically, the TF of Zn in the stems of A. corniculatum was the highest (1.12). In addition, the TF of Pb in the stems was 0.87±0.61 (mean±SD), which was higher than that in the leaves and fruits. Therefore, the translocation ability of stems of A. corniculatum with respect to Zn and Pb in the Qinzhou Bay was relatively high.

4 Discussion

Less

4.1 Trend of heavy metal pollution in sediments in the Qinzhou Bay

The past decade has been an important development and the fastest growing period of Qinzhou. Due to the rapid development of industrialization, urbanization, and fisheries, undesirable ecological and environmental problems have occurred in this area, including the Qinzhou Harbour, constructed as one of the most important harbours of the Maritime Silk Road in the Beibu Gulf. In this study, the sampling site QZG, located in the Qinzhou Harbour, had the highest concentrations of heavy metals (Fig. 2a). Compared with previous investigations in the Xiandao Park (near the Qinzhou Harbour), the concentrations of Cr, Cd, Cu and Zn in the mangrove surface sediments increased during the last ten years (Li et al., 2008, 2014), especially with respect to Cr (Table 2), which indicated that an external source of Cr existed outside of the mangrove swamp in the Qinzhou Bay. The spatial and temporal distributions of Cr in the Qinzhou Bay might be related to emissions from the chemical industry and improper discharge of aquaculture waste water through surface runoff (Mokrzycki et al., 2003; Liang and Wong, 2003; Bayen, 2012). It also caused higher concentrations of Cr in the Qinzhou Bay (present study) than those in the Dongzhai Harbour, Sanya Bay, and Yanglong Bay in Hainan Province (Qiu et al., 2011), Quanzhou in Fujian Province and Zhanjiang in Guangdong Province (Liu et al., 2014), as shown in Table 2.

The trend of increasingly serious pollution of heavy metals in surface sediments was verified by the investigation of core sediments in this study. In general, heavy metals accumulated in the 0–20 cm layer, which is consistent with previous studies (Tam and Wong, 1996; Machado et al., 2002; Kehrig et al., 2003; Wu et al., 2014). In the Qinzhou Bay, the average deposition rate of mangrove wetlands has been 0.93 cm/a since the 1920s (Gan et al., 2013). Therefore, core sediment deposition in this study occurred over the past 60–100 years, and the concentrations of heavy metals in the sediment layer of 0–20 cm can basically indicate the trends of heavy metals in the study area over the past 20–30 years. In the past 20 to 30 years, China experienced rapid development of the era of reform and opening–up, during which the mangrove landscape in the Qinzhou Bay was significantly affected by human activities and was converted into aquaculture ponds, salt pans, or constructed areas (Li and Dai, 2015). Meng et al. (2016) and Xia et al. (2016) found a significant degradation in the mangrove ecosystem from 1968 according to ²¹⁰Pb dating, which corresponded to an increase in human activities, especially shrimp-pond reclamation and artificial seawalls.

In contrast, the concentrations of Cu and Zn in this study were similar to those in the 0–45 cm core sediment in the Hainan Island, with a low industrialization level (Qiu et al., 2011), while in the Zhujiang (Pearl) River Estuary with higher levels of urbanization and industrialization, the concentrations of Cr, Cd, Cu, Zn and Pb in the mangrove sediments within a 0–70 cm depth in Nansha and 0–45 cm depth on Qi’ao Island were higher than those in this study (Liu et al., 2011; Wu et al., 2014). These differences further proved that the levels and processes of urbanization and industrialization deeply affect the distribution and pollution of heavy metals in mangrove wetlands (Zuo et al., 2009; Percival and Outridge, 2013; Senthilkumar et al., 2013).

4.2 Association between heavy metals in the tissues of A. corniculatum and sediments

The distributions of Cd, Cu and Pb in different parts of A. corniculatum in this study were similar to those in Shantou (Zhou et al., 2011). The concentrations of Zn in roots and leaves of A. corniculatum in Ting Kok, Hong Kong, reported by Chen et al. (2003), were 26–44 μg/g and 12–22 μg/g, respectively, and were close to the concentrations of Zn in this study, while the concentrations of Cu and Pb were higher than those in this study. The concentrations of Zn, Pb, Cu and Cd in this study were lower than those in the roots of A. corniculatum in Mai Po Tung, Hong Kong, while Cr was higher (Che, 1999). In the leaves of A. corniculatum of Newington (Saenger et al., 1991), the concentrations of Cu and Zn were 9.6 μg/g and 30 μg/g, respectively, which were higher than those in this study, but the concentration of Pb (1.6 μg/g) was lower than that in the Qinzhou Bay in this study. Overall, the widespread spatial variability of heavy metals in different parts of A. corniculatum in different areas was probably due to the difference in the pollution level of heavy metals in the local environmental media, especially sediment (Chen et al., 2003).

Higher concentrations of Cr, Cd, Cu, and Pb in the roots of A. corniculatum than in other parts in this study may indicate that the roots act as a barrier for heavy metal translocation. Moreover, higher concentrations of Zn in the stems of A. corniculatum might indicate that the stems can take up and store Zn (Analuddin et al., 2017). Mangrove plants accumulate different amounts of trace elements in their aerial tissues because some metals are required as nutrients for growth and survival. The uptake of metals is primarily influenced by plant metabolic requirements, e.g., Cu and Zn, which are essential micro-nutrients and are more mobile than non-essential elements, such as Pb, resulting in variable metal accumulation in plant tissue (MacFarlane et al., 2007). In this study, the data did not show a significant positive linear trend in trace heavy metal accumulations in mangrove roots with increasing sediment concentrations except for Cu (r=0.536, p<0.05). This observation is also true for the correlation between Cr, Cd, Zn and Pb elements in leaves, stems and fruits. The differences in heavy metals among different parts of A. corniculatum may suggest that at low metal concentrations, plants translocate metals from the root to the stem to meet metabolic requirements, while at higher concentrations, metal translocation is restricted to prevent toxicity; thus, leaves and fruits only show a slight response to toxic levels of metals present in the underlying sediments, e.g., Pb and Cd (Macfarlane et al., 2003; Wu et al., 2014).

4.3 Role of A. corniculatum in restoration of sites polluted with heavy metals

The BCFs of Cu in roots and leaves of A. corniculatum in Ting Kok were 1.62 and 1.66, respectively (Chen et al., 2003). These values are much higher than those measured in the Qinzhou Bay in this study (0.17 and 0.08, respectively, Table 3) and those in Futian, Shenzhen (Tam et al., 1995), in addition to the values reported by Saenger et al. (1991) and Zhou et al. (2011). The BCFs of Zn in the roots and leaves of A. corniculatum in the Qinzhou Bay were 0.31 and 0.2, respectively, which are similar to the results reported by Zhou et al. (2011) and Che (1999) but much lower than those reported by Chen et al. (2003). High BCFs of Pb in the roots of A. corniculatum were reported by Zhou et al. (2011) and Chen et al. (2003), i.e., 1.30 and 0.94, respectively, and these values are higher than the value in this study (0.3). In general, the roots of A. corniculatum can absorb and accumulate Cr, Cu and Cd relatively easily.

The BCFs of Pb and Cu in the roots of K. obovata and of Zn in the roots of Avicennia marina were 0.95, 1.34 and 1.21, respectively (Chen et al., 2003; MacFarlane et al., 2003), which are much higher than those in the roots of A. corniculatum in this study. On the Hainan Island (Qiu et al., 2011), the BCFs of Cr, Cd, Cu, Zn and Pb in the various parts of R. stylosa, A. corniculatum, Bruguiera sexangula, and Sonneratia caseolaris ranged from 0.02 to 0.61, and the highest BCFs of Zn and Cu were found in fruits, of Pb and Cr were found in stems, and of Cd were found in roots. The BCFs of heavy metals in Sonneratia apetala and Cyperus malaccensis in Nansha were as low as ND–0.098 and 0.298–0.07 (Wu et al., 2014). Previous studies reported that the mobility of Zn, Cu and other essential elements were higher than that of Pb, Cr and other non-essential elements in mangrove plants, such as A. marina and A. corniculatum (Chen et al., 2003; MacFarlane et al., 2003, 2007; Zhou et al., 2011). In S. apetala, the BCFs of heavy metals were low, but the TFs of Pb, Cr and Zn were no less than 1, indicating that valid translocation of heavy metals from roots to the aboveground organs occurred (Wu et al., 2014). In general, A. corniculatum shows relatively high bioconcentration capability for Cd compared with other mangrove plant species and might be used as a restoration species together with S. apetala in intertidal zones contaminated by Cd (MacFarlane et al., 2007; Zhou et al., 2011).

The TF of Zn in this paper was higher than that reported by Chen et al. (2003) but lower than that in the leaves of A. marina reported by Alongi et al. (2003) and Chen et al. (2003). The TFs of Cr, Cu, Zn and Pb in the leaves of A. corniculatum in this study were lower than those in previous reports, while that of Cd was higher (Chen et al., 2003; Zhou et al., 2011). Weis and Weis (2004) reported that Zn could be rapidly accumulated in the leaves of some mangrove plants, but the TF value of Zn in the leaves of A. corniculatum was 0.65 in this study, which was lower than that in the stems.

These differences between BCFs and TFs of heavy metals in different parts indicated that the bioaccumulation of heavy metals in mangroves was not necessarily correlated with the translocation of the heavy metals. In this study, although the BCFs of heavy metals in different parts of A. corniculatum in Qinzhou Bay were low, the TFs were relatively high. Moreover, A. corniculatum has a high biomass; thus, this species can absorb and accumulate a large amount of heavy metals such as Zn and Cu (with high TFs) and Cd (with a high BCF). A. corniculatum may be a suitable mangrove plant for the restoration of intertidal zones contaminated by Zn, Cu and Cd (Tam and Wong, 1995; Thomas and Fernandez, 1997; Usman et al., 2013; Wu et al., 2014; Wang et al., 2015). However, it is worth noting that maintaining a high diversity in mangrove ecosystems is very important for the restoration of heavy metals in coastal zones due to the poor pollution mitigation ability of single-species communities. Therefore, it is necessary to investigate additional mangrove species to address the complex situation of polluted coasts.

5 Conclusions

Less

The present study revealed that the concentrations of Cd, Cu, Zn, Cr and Pb in surface sediments in the Qinzhou Bay were at the low to moderate pollution level compared with other reports worldwide and posed a slight potential ecological risk. The pollution of heavy metals in the surface sediments of the A. corniculatum community in QZG was relatively high compared with the three other sampling sites due to the influence of the harbour. Core sediments at depths of 0–20 cm showed significantly higher levels of heavy metals compared with those in the deeper layers. In the A. corniculatum plants, the accumulation of Cr was mainly restricted to the roots, while Cd, Cu, Zn and Pb showed considerable translocation potential to the aboveground part (stem), indicated by relatively high TF values. According to the results of the present study, we conclude that A. corniculatum can be chosen as a potential bioremediation species in wetlands polluted by Zn, Cu and Cd because of its strong bioconcentration ability for Cd and considerable transport capacity for Zn and Cu.

Acknowledgements

Less

We are very grateful to the technicians of the Guangxi Mangrove Research Center and First Institute of Oceanography, Ministry of Natural Resources, China, for their participation and technical assistance with the fieldwork.

Funding

Less

The National Basic Research Program (973 Program) of China under contract No. 2010CB951203; the National Natural Science Foundation of China under contract Nos 41201179, 41201525, 41907320 and 41901226; the foundation of the State Key Laboratory of Estuarine and Coastal Research under contract No. SKLEC-KF-201309; the foundations of Guangxi Key Laboratory of Marine Disaster in the Beibu Gulf, Beibu Gulf University under contract Nos 2018TS01 and 2018TS04.

References

Less

Agoramoorthy G, Chen Fnan, Hsu M J. 2008. Threat of heavy metal pollution in halophytic and mangrove plants of Tamil Nadu, India. Environmental Pollution, 155(2): 320–326, doi: 10.1016/j.envpol.2007.11.011

Alongi D M, Clough B F, Dixon P, et al. 2003. Nutrient partitioning and storage in arid-zone forests of the mangroves Rhizophora stylosa and Avicennia marina. Trees, 17(1): 51–60, doi: 10.1007/s00468-002-0206-2

Analuddin K, Sharma S, Jamili, et al. 2017. Heavy metal bioaccumulation in mangrove ecosystem at the coral triangle ecoregion, Southeast Sulawesi, Indonesia. Marine Pollution Bulletin, 125(1–2): 472–480, doi: 10.1016/j.marpolbul.2017.07.065

Bayen S. 2012. Occurrence, bioavailability and toxic effects of trace metals and organic contaminants in mangrove ecosystems: a review. Environment International, 48: 84–101, doi: 10.1016/j.envint.2012.07.008

Che R G O. 1999. Concentration of 7 heavy metals in sediments and mangrove root samples from Mai Po, Hong Kong. Marine Pollution Bulletin, 39(1–12): 269–279, doi: 10.1016/S0025-326X(99)00056-9

Chen Xiaoyong, Tsang E P K, Chan A L W. 2003. Heavy metals contents in sediments, mangroves and bivalves from Ting Kok, Hong Kong. China Environmental Science (in Chinese), 23(5): 480–484

Cheng Han, Liu Yong, Tam N F Y, et al. 2010. The role of radial oxygen loss and root anatomy on zinc uptake and tolerance in mangrove seedlings. Environmental Pollution, 158(5): 1189–1196, doi: 10.1016/j.envpol.2010.01.025

Cuong D T, Bayen S, Wurl O, et al. 2005. Heavy metal contamination in mangrove habitats of Singapore. Marine Pollution Bulletin, 50(12): 1732–1738, doi: 10.1016/j.marpolbul.2005.09.008

Defew L H, Mair J M, Guzman H M. 2005. An assessment of metal contamination in mangrove sediments and leaves from Punta Mala Bay, Pacific Panama. Marine Pollution Bulletin, 50(5): 547–552, doi: 10.1016/j.marpolbul.2004.11.047

Gan Huayang, Liang Kai, Lin Jinqing, et al. 2013. Distribution and accumulation of arsenic, cadmium and mercury in coastal wetland sediment of northern Beibu Gulf. Marine Geology & Quaternary Geology (in Chinese), 33(3): 15–28

Hakanson L. 1980. An ecological risk index for aquatic pollution control. a sedimentological approach. Water Research, 14(8): 975–1001, doi: 10.1016/0043-1354(80)90143-8

He Qinfei, Jiang Yi, Liu Xiu, et al. 2011. An analysis of soil properties of different types of mangroves in Qinzhou bay. Wetland Science & Management (in Chinese), 7(3): 45–48

Kehrig H A, Pinto F N, Moreira I, et al. 2003. Heavy metals and methylmercury in a tropical coastal estuary and a mangrove in Brazil. Organic Geochemistry, 34(5): 661–669, doi: 10.1016/S0146-6380(03)00021-4

Lau S S S. 2000. The significance of temporal variability in sediment quality for contamination assessment in a coastal wetland. Water Research, 34(2): 387–394, doi: 10.1016/S0043-1354(99)00344-9

Li Chungan, Dai Huabing. 2015. Mechanism analysis of temporal dynamics in mangrove spatial distribution in Guangxi, China: 1960–2010. Acta Ecologica Sinica (in Chinese), 35(18): 5992–6006

Li Liuqiang, Ding Zhenhua, Liu Jinling, et al. 2008. Distribution of heavy metals in surficial sediments from main mangrove wetlands of China and their influence factors. Haiyang Xuebao (in Chinese), 30(5): 159–164

Li Lilin, Mo Liping, Lu Yuan. 2014. Heavy metal content studies in sediments of Qinzhou port mangrove wetlands. Western China Communication Science & Technology (in Chinese), (5): 76–80

Liang Yan, Wong Minghung. 2003. Spatial and temporal organic and heavy metal pollution at Mai Po Marshes Nature Reserve, Hong Kong. Chemosphere, 52(9): 1647–1658, doi: 10.1016/S0045-6535(03)00505-8

Liu Baolin, Hu Ke, Jiang Zhenglong, et al. 2011. Distribution and enrichment of heavy metals in a sediment core from the Pearl River Estuary. Environmental Earth Sciences, 62(2): 265–275, doi: 10.1007/s12665-010-0520-8

Liu Yong, Tam N F Y, Yang Jingxian, et al. 2009. Mixed heavy metals tolerance and radial oxygen loss in mangrove seedlings. Marine Pollution Bulletin, 58(12): 1843–1849, doi: 10.1016/j.marpolbul.2009.07.023

Liu Jinling, Wu Hao, Feng Jianxiang, et al. 2014. Heavy metal contamination and ecological risk assessments in the sediments and zoobenthos of selected mangrove ecosystems, South China. CATENA, 119: 136–142, doi: 10.1016/j.catena.2014.02.009

MacFarlane G R, Burchett M D. 1999. Zinc distribution and excretion in the leaves of the grey mangrove, Avicennia marina (Forsk.) Vierh. Environmental and Experimental Botany, 41(2): 167–175, doi: 10.1016/S0098-8472(99)00002-7

MacFarlane G R, Burchett M D. 2002. Toxicity, growth and accumulation relationships of copper, lead and zinc in the grey mangrove Avicennia marina (Forsk.) Vierh. Marine Environmental Research, 54(1): 65–84, doi: 10.1016/S0141-1136(02)00095-8

MacFarlane G R, Koller C E, Blomberg S P. 2007. Accumulation and partitioning of heavy metals in mangroves: a synthesis of field-based studies. Chemosphere, 69(9): 1454–1464, doi: 10.1016/j.chemosphere.2007.04.059

MacFarlane G R, Pulkownik A, Burchett M D. 2003. Accumulation and distribution of heavy metals in the grey mangrove, Avicennia marina (Forsk.) Vierh.: biological indication potential. Environmental Pollution, 123(1): 139–151, doi: 10.1016/S0269-7491(02)00342-1

Machado W, Silva-Filho E V, Oliveira R R, et al. 2002. Trace metal retention in mangrove ecosystems in Guanabara Bay, SE Brazil. Marine Pollution Bulletin, 44(11): 1277–1280, doi: 10.1016/S0025-326X(02)00232-1

Meng Xianwei, Xia Peng, Li Zhen, et al. 2016. Mangrove degradation and response to anthropogenic disturbance in the Maowei Sea (SW China) since 1926 AD: mangrove-derived OM and pollen. Organic Geochemistry, 98: 166–175, doi: 10.1016/j.orggeochem.2016.06.001

Mokrzycki E, Uliasz-Bocheńczyk A, Sarna M. 2003. Use of alternative fuels in the Polish cement industry. Applied Energy, 74(1–2): 101–111, doi: 10.1016/S0306-2619(02)00136-8

Nagelkerken I, Blaber S J M, Bouillon S, et al. 2008. The habitat function of mangroves for terrestrial and marine fauna: a review. Aquatic Botany, 89(2): 155–185, doi: 10.1016/j.aquabot.2007.12.007

Pan Ke, Wang Wenxiong. 2012. Trace metal contamination in estuarine and coastal environments in China. Science of the Total Environment, 421–422: 3–16, doi: 10.1016/j.scitotenv.2011.03.013

Percival J B, Outridge P M. 2013. A test of the stability of Cd, Cu, Hg, Pb and Zn profiles over two decades in lake sediments near the Flin Flon Smelter, Manitoba, Canada. Science of the Total Environment, 454–455: 307–318, doi: 10.1016/j.scitotenv.2013.03.011

Perdomo L, Ensminger I, Fernanda Espinosa L, et al. 1999. The mangrove ecosystem of the Ciénaga Grande de Santa Marta (Colombia): observations on regeneration and trace metals in sediment. Marine Pollution Bulletin, 37(8–12): 393–403, doi: 10.1016/S0025-326X(99)00075-2

Preda M, Cox M E. 2002. Trace metal occurrence and distribution in sediments and mangroves, Pumicestone region, southeast Queensland, Australia. Environment International, 28(5): 433–449, doi: 10.1016/S0160-4120(02)00074-0

Qin Guangqiu, Yan Chongling, Lu Haoliang. 2007. Influence of heavy metals on the carbohydrate and phenolics in mangrove, Aegiceras corniculatum L., seedlings. Bulletin of Environmental Contamination and Toxicology, 78(6): 440–444, doi: 10.1007/s00128-007-9204-9

Qiu Yaowen, Yu Kefu, Zhang Gan, et al. 2011. Accumulation and partitioning of seven trace metals in mangroves and sediment cores from three estuarine wetlands of Hainan Island, China. Journal of Hazardous Materials, 190(1–3): 631–638, doi: 10.1016/j.jhazmat.2011.03.091

Ramanathan A L, Subramanian V, Ramesh R, et al. 1999. Environmental geochemistry of the Pichavaram mangrove ecosystem (tropical), southeast coast of India. Environmental Geology, 37(3): 223–233, doi: 10.1007/s002540050380

Ramos e Silva C A, da Silva A P, de Oliveira S R, et al. 2006. Concentration, stock and transport rate of heavy metals in a tropical red mangrove, Natal, Brazil. Marine Chemistry, 99(1–4): 2–11, doi: 10.1016/j.marchem.2005.09.010

Ray A K, Tripathy S C, Patra S, et al. 2006. Assessment of Godavari estuarine mangrove ecosystem through trace metal studies. Environment International, 32(2): 219–223, doi: 10.1016/j.envint.2005.08.014

Saenger P, McConchie D, Clark M W. 1991. Mangrove forests as a buffer zone between anthropogenically polluted areas and the sea. In: Proceedings of 1990 Workshop on Coastal Zone Management. Yeppoon, Qld: Geo-Processors Pty Ltd, 280–299

Senthilkumar B, Purvaja R, Ramesh R. 2013. Vertical profile distribution and accumulation of heavy metals in mangrove sediments (Pichavaram), southeast coast of India. Journal of Applied Geochemistry, 15(3): 318–355

Shriadah M M A. 1999. Heavy metals in mangrove sediments of the United Arab Emirates shoreline (Arabian Gulf). Water, Air, and Soil Pollution, 116(3–4): 523–534

Tam N F Y, Wong Y S. 1995. Spatial and temporal variations of heavy metal contamination in sediments of a mangrove swamp in Hong Kong. Marine Pollution Bulletin, 31(4–12): 254–261, doi: 10.1016/0025-326X(95)00141-9

Tam N F Y, Wong Y S. 1996. Retention and distribution of heavy metals in mangrove soils receiving wastewater. Environmental Pollution, 94(3): 283–291, doi: 10.1016/S0269-7491(96)00115-7

Tam N F Y, Wong Y S. 1997. Accumulation and distribution of heavy metals in a simulated mangrove system treated with sewage. Hydrobiologia, 352(1–3): 67–75

Tam N F Y, Wong Y S. 2000. Spatial variation of heavy metals in surface sediments of Hong Kong mangrove swamps. Environmental Pollution, 110(2): 195–205, doi: 10.1016/S0269-7491(99)00310-3

Tam N F Y, Wong Y S, Lan C Y, et al. 1995. Community structure and standing crop biomass of a mangrove forest in Futian Nature Reserve, Shenzhen, China. Hydrobiologia, 295(1–3): 193–201, doi: 10.1007/BF00029126

Tam N F Y, Wong Y S, Wong M H. 2009. Novel technology in pollutant removal at source and bioremediation. Ocean & Coastal Management, 52(7): 368–373

Thomas G, Fernandez T V. 1997. Incidence of heavy metals in the mangrove flora and sediments in Kerala, India. Hydrobiologia, 352(1–3): 77–87

Usman A R A, Alkredaa R S, Al-Wabel M I. 2013. Heavy metal contamination in sediments and mangroves from the coast of Red Sea: Avicennia marina as potential metal bioaccumulator. Ecotoxicology and Environmental Safety, 97: 263–270, doi: 10.1016/j.ecoenv.2013.08.009

Usman A R A, Lee S S, Awad Y M, et al. 2012. Soil pollution assessment and identification of hyperaccumulating plants in chromated copper arsenate (CCA) contaminated sites, Korea. Chemosphere, 87(8): 872–878, doi: 10.1016/j.chemosphere.2012.01.028

Wang Beihong, Ma Zhihong, Fu Weili. 2008. Determination of heavy metal in soil by high pressure sealed vessels assisted digestion-atomic absorption spectrometry. Transactions of the Chinese Society of Agricultural Engineering (in Chinese), 24(S2): 255–259

Wang Qiang, Mei Degang, Chen Jingyan, et al. 2019. Sequestration of heavy metal by glomalin-related soil protein: implication for water quality improvement in mangrove wetlands. Water Research, 148: 142–152, doi: 10.1016/j.watres.2018.10.043

Wang Xiaojuan, Wang Wenbin, Yang Long, et al. 2015. Transport pathways of cadmium (Cd) and its regulatory mechanisms in plant. Acta Ecologica Sinica (in Chinese), 35(23): 7921–929

Weis J S, Weis P. 2004. Metal uptake, transport and release by wetland plants: implications for phytoremediation and restoration. Environment International, 30(5): 685–700, doi: 10.1016/j.envint.2003.11.002

Wu Qihang, Tam N F Y, Leung J Y S, et al. 2014. Ecological risk and pollution history of heavy metals in Nansha mangrove, South China. Ecotoxicology and Environmental Safety, 104: 143–151, doi: 10.1016/j.ecoenv.2014.02.017

Xia Peng, Meng Xianwei, Li Zhen, et al. 2016. Sedimentary records of mangrove evolution during the past one hundred years based on stable carbon isotope and pollen evidences in Maowei, SW China. Journal of Ocean University of China, 15(3): 447–455, doi: 10.1007/s11802-016-2687-4

Xu Youhou, Liao Riquan, Su Jia, et al. 2017. The content and pollution evaluation of six heavy metals in surface water and plankton in the eastern area of Qinzhou Bay. Oceanologia et Limnologia Sinica (in Chinese), 48(5): 960–969

Yan Xinxing, Liu Guoting. 2006. Study on deposition characteristics and channel siltation in offshore zone of Qinzhou Bay. Journal of Waterway and Harbor (in Chinese), 27(2): 79–83

Yan Zhongzheng, Tam N F Y. 2013. Differences in lead tolerance between Kandelia obovata and Acanthus ilicifolius seedlings under varying treatment times. Aquatic Toxicology, 126: 154–162, doi: 10.1016/j.aquatox.2012.10.011

Zhang Dan, Li Darong, Chen Jianhua, et al. 2014a. Distribution and pollution characteristics of heavy metals in marine and riverine sediments of Qinzhou Bay, China. Safety and Environmental Engineering (in Chinese), 21(5): 11–15

Zhang Shaofeng, Lin Mingyu, Wei Chunlei, et al. 2010. Pollution assessment and potential ecological risk evolution for heavy metals in the sediments of Qinzhou Bay. Marine Science Bulletin (in Chinese), 29(4): 450–454

Zhang Zaiwang, Xu Xiangrong, Sun Yuxin, et al. 2014b. Heavy metal and organic contaminants in mangrove ecosystems of China: a review. Environmental Science and Pollution Research, 21(20): 11938–11950, doi: 10.1007/s11356-014-3100-8

Zhou Yanwu, Peng Yisheng, Li Xulin, et al. 2011. Accumulation and partitioning of heavy metals in mangrove rhizosphere sediments. Environmental Earth Sciences, 64(3): 799–807, doi: 10.1007/s12665-011-0904-4

Zuo Ping, Wang Yaping, Min Fengyang, et al. 2009. Distribution characteristics of heavy metals in surface sediments and core sediments of the Shenzhen Bay in Guangdong Province, China. Acta Oceanologica Sinica, 28(6): 53–60

Appendix

Less

Year 2020 volume 39 Issue 2

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-020-1555-7

Receive Date：2019-03-12
Online Date：2026-03-31
Published：2020-02-25

Article Data

Affiliations

History

Received：2019-03-12
Accepted：2019-05-06

Funding

The National Basic Research Program (973 Program) of China under contract No. 2010CB951203; the National Natural Science Foundation of China under contract Nos 41201179, 41201525, 41907320 and 41901226; the foundation of the State Key Laboratory of Estuarine and Coastal Research under contract No. SKLEC-KF-201309; the foundations of Guangxi Key Laboratory of Marine Disaster in the Beibu Gulf, Beibu Gulf University under contract Nos 2018TS01 and 2018TS04.

Affiliations

¹ Guangxi Key Laboratory of Marine Disaster in the Beibu Gulf, Beibu Gulf University, Qinzhou 535011, China

² State Key Laboratory of Estuarine and Coastal Research, East China Normal University, Shanghai 200062, China

³ National Marine Environment Monitoring Center, Dalian 116023, China

Corresponding:

* E-mail: xzli@sklec.ecnu.edu.cn

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-020-1555-7

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Statistics of heavy metal concentrations (μg/g, dw) in sediments and mangrove parts in the mangrove areas of the Qinzhou Bay, China (values are the mean±SD)

	n	Cr	Cd	Cu	Zn	Pb
Surface sediments	12	113.66±13.42	0.28±0.13	34.95±9.90	108.69±35.75	37.90±6.00
Core sediments	4	68.65±20.85	0.14±0.09	19.16±8.67	72.68±21.2	20.32±6.71
Fruit	19	1.32±1.07	0.01±0.003	1.87±0.73	7.58±4.14	0.24±0.19
Root	16	32.12±18.67	0.17±0.10	5.17±1.37	27.51±5.37	10.75±4.01
Stem	18	2.43±1.96	0.1±0.06	3.29±0.53	30.43±6.71	8.16±4.42
Leaf	19	2.50±5.78	0.06±0.02	2.58±1.03	18.43±6.83	2.82±0.92
All plant parts	72	8.75±15.55	0.08±0.08	3.15±1.52	20.59±10.72	5.24±5.06

Table 2. Concentrations (mean or range, μg/g, dw) of heavy metals in mangrove surface sediments of mangrove wetlands around the world

Location	Sampling year	Cu	Zn	Pb	Cd	Cr	References
Qinzhou Bay, China	2014	24.11–50.65	73.17–158.24	30.19–46.3	0.14–0.48	90.20–142.22	this study
Xiandao Park, Qinzhou Bay, China	2013	41.06	104.59	111.90	0.25	55.04	Li et al. (2014)
Qinzhou Bay, China	2006	17.08	65.08	46.74	0.07	13.41	Li et al. (2008)
Mai Po, Hong Kong, China	—	78.50	240.00	79.20	2.62	39.20	Tam and Wong (2000)
Dongzhai Harbor, Hainan, China	2008	18.00	57.00	19.00	0.11	40.00	Qiu et al. (2011)
Sanya Bay, Hainan, China	2008	9.00	53.00	18.00	0.13	12.00	Qiu et al. (2011)
Yalong Bay, Hainan, China	2008	5.00	26.00	15.00	0.12	11.00	Qiu et al. (2011)
Changle, Fujian, China	2009, 2011	30.90	77.20	86.40	0.23	84.30	Liu et al. (2014)
Quanzhou, Fujian, China	2009, 2011	14.30	50.90	59.50	0.11	59.80	Liu et al. (2014)
Yunxiao, Fujian, China	2009, 2011	25.20	83.70	65.80	0.29	70.00	Liu et al. (2014)
Zhanjiang, Guangdong, China	2009, 2011	14.00	33.20	25.30	0.16	36.30	Liu et al. (2014)
the United Arab Emirates, Arabian Gulf	—	7.21	11.30	28.10	4.82	11.90	Shriadah (1999)
Jequia’mangrove, Brazil	—	98.60	483.00	160.80	1.32	42.40	Kehrig et al. (2003)
Punta Mala Bay, Panama	2003	56.30	105.00	78.20	<10	23.30	Defew et al. (2005)
Sungei Buloh, Singapore	2004	7.06	51.24	12.28	0.18	16.61	Cuong et al. (2005)
Sungei Khatib Bongsu, Singapore	2004	32.00	120.33	30.98	0.27	32.07	Cuong et al. (2005)
Coast of Red Sea, Saudi Arabia	—	112.00	57.20	45.20	1.23	9.61	Usman et al. (2013)
Pichavaram, India	1995	43.40	93.00	11.20	6.60	141.20	Ramanathan et al. (1999)
Cienaga Grande, Colombia	1995	23.30	91.00	12.60	ND	13.20	Perdomo et al. (1999)
Queensland, Australia	1995	1.00–12.00	23.00–56.00	36.00	0.60	1.00–72.00	Preda and Cox (2002)
Newington, Australia	1996	71.30	229.90	121.90	ND	ND	MacFarlane et al. (2003)

Table 3. Bioconcentration factors (BCFs) and translocation factors (TFs) of heavy metals in plant parts of A. corniculatum in the Qinzhou Bay and other mangrove wetlands

Element	Location	BCF				TF			References
Element	Location	Fruit	Root	Stem	Leaf	Fruit	Stem	Leaf	References
Cr	Qinzhou Bay, China	0.01±0.01	0.29±0.17	0.02±0.02	0.02±0.05	0.04±0.04	0.08±0.07	0.08±0.2	this study
	Shantou, China		0.58	0.06	0.04		0.10	0.08	Zhou et al. (2011)
Cd	Qinzhou Bay, China	0.03±0.02	0.8±0.64	0.44±0.27	0.28±0.11	0.06±0.03	0.74±0.43	0.45±0.22	this study
	Shantou, China		1.85	0.33	0.15		0.18	0.08	Zhou et al. (2011)
Cu	Qinzhou Bay, China	0.06±0.02	0.17±0.04	0.11±0.02	0.08±0.03	0.37±0.12	0.67±0.16	0.46±0.12	this study
	Ting Kok, Hong Kong, China		1.62		1.66			1.03	Chen et al. (2003)
	Wynnum site, Northern Australia				0.28				Saenger et al. (1991)
	Shantou, China		0.93	0.32	0.27		0.35	0.29	Zhou et al. (2011)
	Shenzhen, China				0.1				Tam et al. (1995)
	Mai Po, Hong Kong, China		0.71						Che (1999)
Zn	Qinzhou Bay, China	0.09±0.05	0.31±0.09	0.34±0.13	0.2±0.1	0.27±0.15	1.12±0.29	0.65±0.18	this study
	Ting Kok, Hong Kong, China		0.63		0.31			0.5	Chen et al. (2003)
	Shenzhen, China				0.58				Tam et al. (1995)
	Mai Po, Hong Kong, China		0.29						Che (1999)
	Wynnum site, Northern Australia				0.31				Saenger et al. (1991)
	Shantou, China		0.28	0.19	0.07		0.68	0.26	Zhou et al. (2011)
Pb	Qinzhou Bay, China	0.01±0.01	0.3±0.1	0.24±0.14	0.08±0.03	0.02±0.01	0.87±0.61	0.27±0.14	this study
	Ting Kok, Hong Kong, China		0.94		0.28			0.29	Chen et al. (2003)
	Wynnum site, Northern Australia				0.13				Saenger et al. (1991)
	Mai Po, Hong Kong, China		0.14						Che (1999)
	Shantou, China		1.30	0.08	0.01		0.06	0.01	Zhou et al. (2011)

Fig. 1. Locations of sampling sites in the A. corniculatum forest in the Qinzhou Bay, China.

Fig. 2. Distributions of heavy metals in the mangrove surface sediments and different parts of A. corniculatum from four sites in the Qinzhou Bay, China. The letters a, b and c were used to indicate the ANOVA (p<0.05) results; and the different letters indicate significant differences.

Fig. 3. Vertical profiles of heavy metal concentrations in mangrove core sediments in the Qinzhou Bay.

Fig. 4. Concentrations of heavy metals in different parts of A. corniculatum in the Qinzhou Bay. Bars with different letters are significantly different at p<0.05.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
