Hysteresis of a periodic or leaking western boundary current flowing by a gap
收藏切换
PDF
Xinxin Song1, 2, 4, 5, Dongliang Yuan1, 3, 5, *, Zheng Wang1, 3
Acta Oceanologica Sinica | 2019, 38(4) : 90 - 96
Less
收藏切换
Acta Oceanologica Sinica | 2019, 38(4): 90-96
• Articles •
Hysteresis of a periodic or leaking western boundary current flowing by a gap
Full
Xinxin Song1, 2, 4, 5, Dongliang Yuan1, 3, 5, *, Zheng Wang1, 3
Affiliations
  • 1 Key Laboratory of Ocean Circulation and Waves, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
  • 2 College of Meteorology and Oceanography, National University of Defense Technology, Nanjing 211101, China
  • 3 Function Laboratory for Ocean Dynamics and Climate, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China
  • 4 Key Laboratory of Marine Science and Numerical Modeling, First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China
  • 5 University of Chinese Academy of Sciences, Beijing 100049, China
Published: 2019-04-25 doi: 10.1007/s13131-018-1251-z
Outline
收藏切换

A 1.5-layer quasi-geostrophic reduced gravity model is used to study the hysteresis of a periodic or leaking western boundary current (WBC) flowing by a gap. When the periods of the WBC variations are much longer than the Rossby adjustment time scales of the circulation in the vicinity of the gap, the Hopf bifurcations during the Re-increase and Re-decrease loops are delayed to produce a new domain of hysteresis of the Reynolds numbers, and the critical Reynolds numbers of the WBC regime transitions change significantly, with the domain of the hysteresis Reynolds number larger for shorter periodic forcing. When the periods of the WBC variations are comparable to those of the Rossby adjustment time scales of the circulation in the vicinity of the gap, the WBC path inside the gap becomes periodic without hysteresis. The intrusion of the WBC into the western basin generally gets smaller as the period decreases. In addition, the partial leakage of the WBC transport through the gap into the western basin is found to have significant impact on the hysteresis loop of the WBC path when the leaked transport is larger than 1/2 of the WBC. Both the intrusion extent and the critical Reynolds numbers of the WBC regime transition are changed, and the larger the throughflow transport, the larger the change.

hysteresis  /  periodic western boundary current  /  throughflow
Xinxin Song, Dongliang Yuan, Zheng Wang. Hysteresis of a periodic or leaking western boundary current flowing by a gap[J]. Acta Oceanologica Sinica, 2019 , 38 (4) : 90 -96 . DOI: 10.1007/s13131-018-1251-z
Full Text
Less
1 Introduction
Less
The path of a western boundary current (WBC) flowing by a meridional gap in the western boundary is dynamically similar to the Kuroshio flowing by the Luzon Strait and the Gulf Stream by the Yucatan Strait. Observations and model studies suggest that the Kuroshio sometimes leaps across the Luzon Strait and sometimes intrudes into the South China Sea (SCS) in a large anti-cyclonic path (Nitani, 1972; Shaw, 1989, 1991; Liu et al., 1996; Li and Liu, 1997; Li et al., 1998; Metzger and Hurlburt, 2001; Yang et al., 2002; Xue et al., 2004; Hsueh and Zhong, 2004; Qu, 2000; Su, 2005; Caruso et al., 2006; Yuan et al., 2006). Although the dynamics of the formation and transition of flow pattern is complicated, there are much work on the physical processes, the main dominant factors of which are WBC transport (Sheremet, 2001; Yuan and Wang, 2011), wind stress curl (Farris and Wimbush, 1996; Wang et al., 2010; Zhong et al., 2013), Rossby eddies (Zheng et al., 2011; Hu et al., 2012; Lu and Liu, 2013; Song et al., 2018), topography and so on (Hou et al., 2017; Guo et al., 2018).
Sheremet (2001) studied the path of a steady WBC in the vicinity of a meridional gap using a 1.5-layer quasi-geostrophic ocean circulation model, showing that the hysteresis of the WBC path in the vicinity of the gap controlled by the transport of the WBC. The transport of the WBC in that study is scaled by a nondimensional number–transport Reynolds number (Re). When Re of the WBC is small, the steady path of the WBC is an anti-cyclone intrusion through the gap; when Re of the WBC is large, the WBC takes a straight leaping path across the gap; when Re is in the intermediate range, the WBC takes either a leaping or a penetrating path, depending on the initial state of the WBC. The multiple equilibria of the WBC path are controlled by the multiple balances between the inertial, horizontal mixing, and the beta terms of the quasi-geostrophic potential vorticity equation. The existence of the multiple equilibria and the hysteresis of the gap-leaping WBC path have been verified by laboratory rotating table experiments (Sheremet and Kuehl, 2007; Kuehl and Sheremet, 2009, 2014).
The hysteresis of a steady WBC flowing in a gap based on numerical computations inspired some studies on the interactions of the gap-leaping WBC with meso-scale eddies or winds. The regime shift of the WBC path can be induced by perturbations of meso-scale eddies approaching the gap from the east, or by winds (Yuan and Li, 2008; Wang et al., 2010; Yuan and Wang, 2011; Zhong et al., 2013; Song et al., 2018), which explains some of the observed variations of the Kuroshio path in the vicinity of the Luzon Strait.
Latest studies suggest that the existence of a SCS throughflow from the Luzon Strait to the Indonesian seas, and the transport of the SCS throughflow is 2×106–3×106 m3/s (Yaremchuk et al., 2009; Qu et al., 2009; Fang et al, 2010). The Kuroshio is also subject to significant intraseasonal-to-interannual forcing of the regional monsoon. How the multiple equilibrium and hysteresis would change under the periodic WBC and throughflow forcing is an open question to study.
In this study, hysteresis of a periodic or leaking WBC flowing by a gap is studied using a 1.5-layer quasi-geostrophic reduced gravity model. The next section is the details about the model and method. Section 3 is the model results and Section 4 is the discussion and conclusion.
2 The numerical model and method
Less

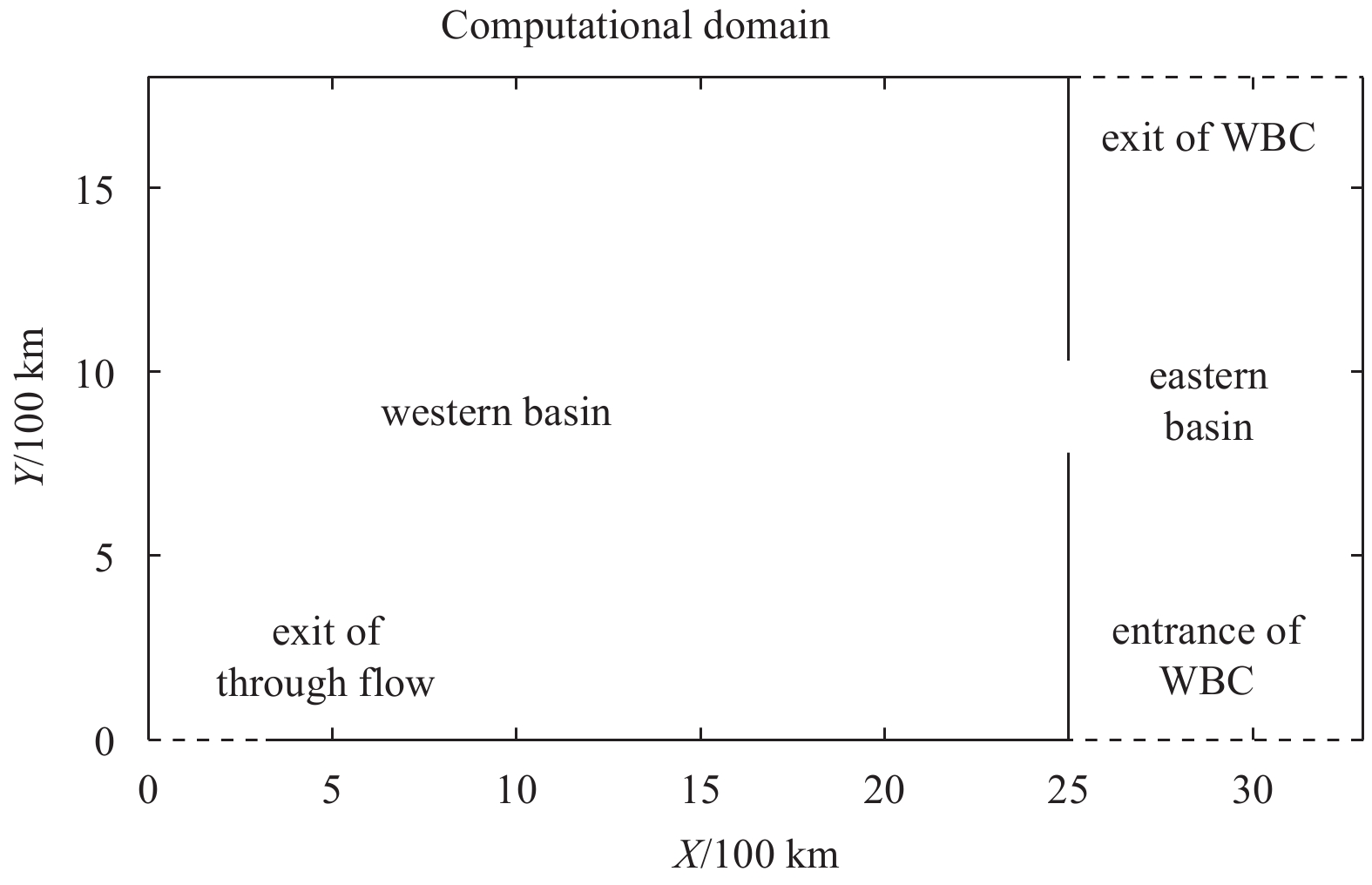

The model used in this study is the same as Yuan and Wang (2011), which is a 1.5 layer quasi-geostrophic (QG) circulation model. The potential vorticity equation of the model is
$ - \frac{1}{{{L_{\rm R}^2}}}{\psi _t} + {\zeta _t} + J\left( {\psi ,\zeta } \right) + \beta {\psi _x} = {A_{\rm H}}{\nabla ^2}\zeta ,$
$\zeta = {\nabla ^2}\psi ,$
where $\psi$ is the stream function of a depth-averaged flow, and ζ is the relative vorticity. The model coefficients in this study are set up as follows. The Coriolis coefficient gradient β=2×10–11 m–1·s–1 and the baroclinic deformation radius is LR=50 km, which are the character parameters of the Kuroshio in the Luzon Strait according to Nitani (1972), also, LR=50 km is a proper choice for the QG model to reproduce the whole hysteresis cycle of the WBC in the gap (Yuan and Wang, 2011). The viscosity coefficient AH=300 m2/s, which is determined based on a set of numerical experiments from AH=10 m2/s to AH=9 000 m2/s, is a proper value to adjust the QG model to study the hysteresis of a periodic or leaking WBC flowing by a gap in this paper. If AH is too small, the nonlinear term will be stronger than the friction term in Eq. (1), leading to unstable submesoscale turbulence; if AH is too large, the friction term of Eq. (1) is too strong to damp the energy of the model. The details about the 1.5-layer QG model used in this paper referenced to Li (2008). The Munk WBC thickness LM=25 km (${L_{\rm M}} = \sqrt[3]{{{{{A_{\rm H}}} / \beta }}}$). The calculation area of model is two basins joined separated partially by a gappy boundary as shown in Fig. 1. The zonal western and eastern basins are 2 500 and 800 km respectively and the meridional width of the gap in the middle is 240 km, and the grid resolution is 10 km. The northern, southern and eastern boundaries in the eastern basin are open boundaries. The model is set up by the initial WBC of different transports and calculated by the vorticity equation without any other surface forcing. Nonslip boundary conditions are applied along the meridional barrier wall in the middle of the basin. For the throughflow experiments, a gap of 300 km width is opened in the southwestern corner of the basin with the transport of the throughflow specified through the gap.
The WBC in the model is driven by the stream function gradient between the eastern boundary and western boundary of the eastern basin. Specifically, the stream function is set to be 0 along the western boundary of the eastern basin, and it is set to be Q=Re×AH along the western boundary of the eastern basin. The stream function gradient drives a northward WBC of vertical averaged transport Q in the eastern basin. Throughout this paper, the strength of the WBC is indicated by Re.
The hysteresis of a steady WBC flowing in the gap is reproduced based on the QG model. Then the range of Re that ensures the hysteresis process can occur is determined, and the detailed calculation and results are showed in Section 3.1.
The periodic WBC is forced by the periodic stream function gradient of the eastern basin. Specifically, the stream function is also set to be 0 along the western boundary of the eastern basin, but it is set to be a sinusoidal function at the eastern boundary of the eastern basin. After long enough integration, the WBC in the eastern basin becomes strictly periodic. By changing the period of Re changes in different time scales, we study the hysteresis of the periodic WBCs in the gap, compared with the hysteresis of the steady WBC. The sensitivity of the WBC path on the initial state is examined by setting the WBC initial state as either a stable penetrating or a leaping state, respectively. The detailed calculation and results are showed in Section 3.2.
A throughflow exiting from a zonal opening gap in the southwestern corner of the western basin is forced by the stream function setting along boundaries. The transport of the throughflow is determined by the gradient of the stream functions between the two ends of the zonal opening gap in the western basin. The sensitivity of the hysteresis of the WBC in the vicinity of the meridional gap on the transport of the throughflow is examined by setting the transport of the throughflow equal to 2/15, 1/5, 1/3, 1/2, 4/5 and 9/10 of the WBC, respectively. Then the hysteresis curves of WBC in the vicinity of the meridional gap are calculated, which are compared with the hysteresis curve of a steady WBC without the throughflow. The conclusions are summarized in Section 3.3.
3 Results
Less
3.1 Hysteresis of a steady WBC
The hysteresis map for a WBC, with a baroclinic deformation radius of 50 km, is calculated based on the 1.5-layer QG model (Fig. 2). Following Sheremet (2001), the westward extent of the streamline $\psi $=Q/2 of the WBC defined as XP, which is a function of Re and the gap width. Here Q is the vertical averaged WBC transport and Re=Q/AH.
The evolution of the XP of the WBC is computed in the following way. For a set of the open boundary conditions in the eastern basin, starting from a small Re, the QG model is integrated into a steady state so that an XP is determined. The steady state is determined if the change of the kinetic energy levels out. Then the open boundary conditions are changed so that Re increases, and a new integration is conducted until a new steady or periodic steady state is reached so that a new XP is calculated. For periodic eddy-shedding states, the XP is time dependent. In the following text, only the farthest and closest positions of the first XP from the gap during one period of the eddy-shedding cycle are plotted. The Re is gradually increased from a small value to a large enough value and then decreased back to a small value. We call the first procedure the increasing Re course and the second procedure the decreasing Re course.

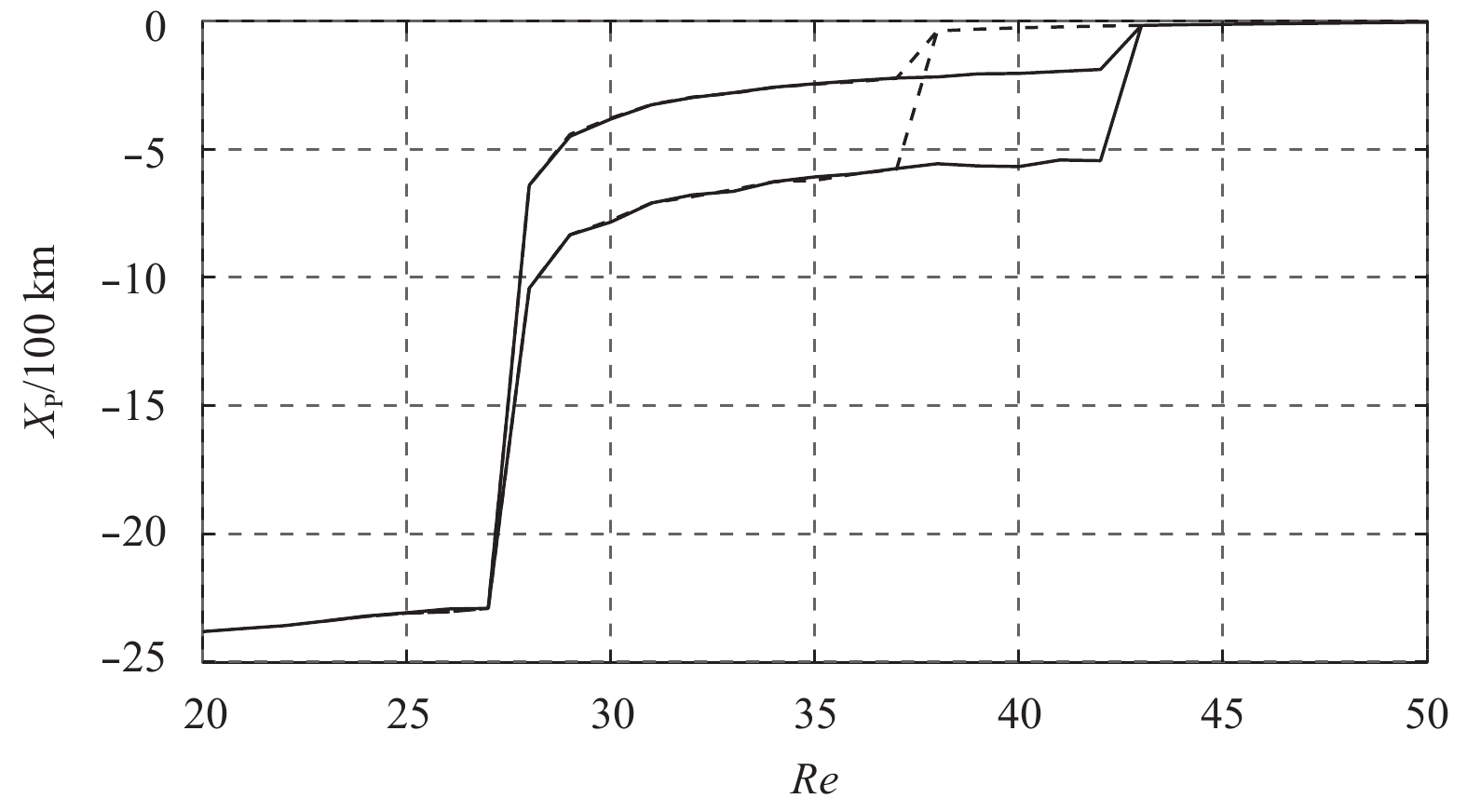

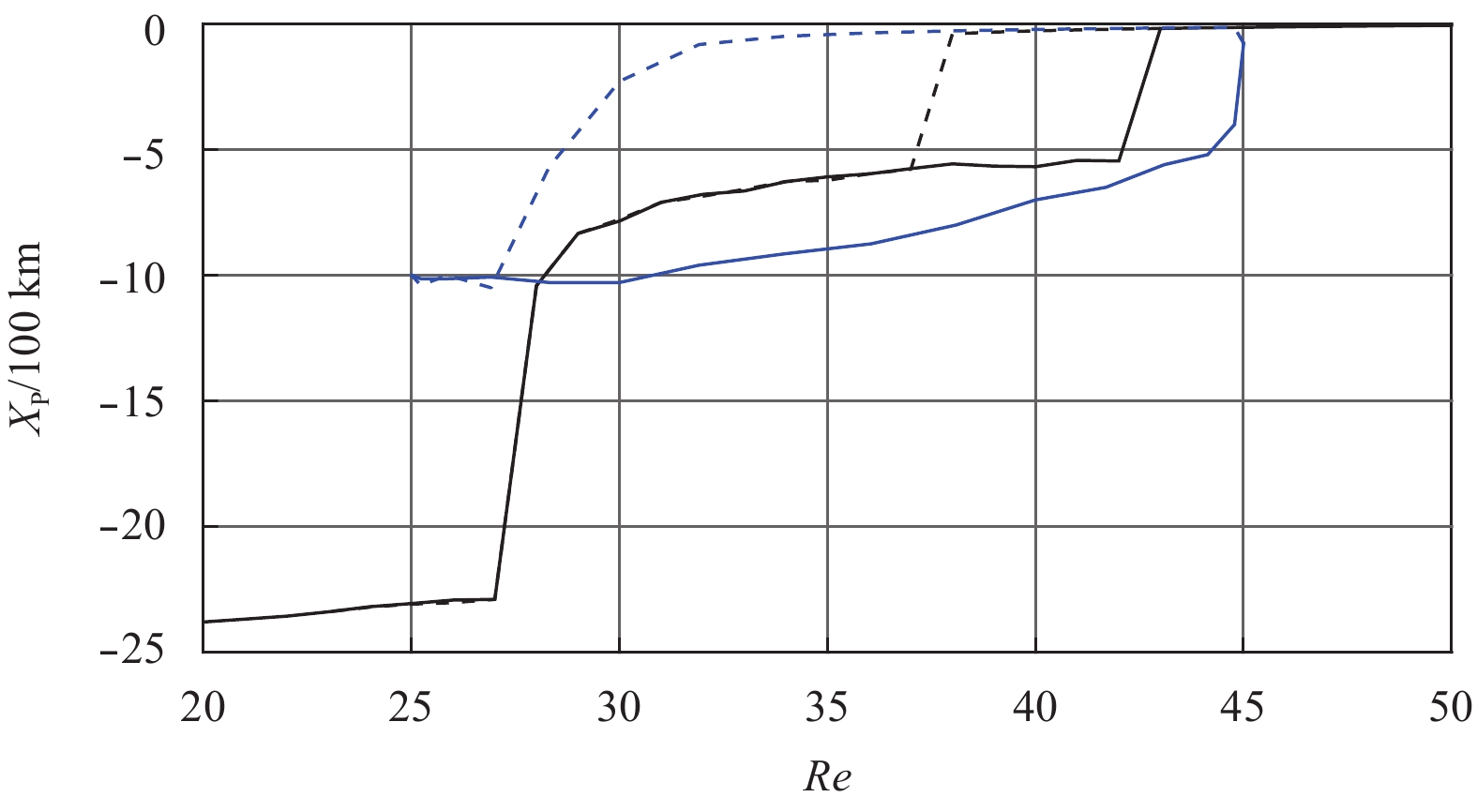

Figure 2 shows that there exist two steady (periodic steady) states of the WBC in the range of 37.5≤Re≤43 in the vicinity of the gap. The WBC intrudes into the western basin through the gap and reaches the western side of the western basin, forming the β-plume when Re≤27, whereas it leaps across the gap when Re≥43. In the increase case from Re=27 to Re=43, the WBC sheds eddies to the western basin through the gap, as indicated by the double thick curves of the hysteresis loop. The equilibrium of the WBC in the vicinity of the gap when 37.5<Re<43 depends on the initial condition of the model integration. If the initial condition is a penetrating state, the final equilibrium of the WBC is an eddy-shedding state. If the initial condition is a leaping state, the equilibrium is a leaping state. The final equilibrium depends on the initial state, hence is the hysteresis. There are three critical points of the Re in the hysteresis loop, at which the WBC path shifts regimes at small perturbations. Re=42 is the critical value where the WBC is prone to transition from a penetrating state to a gap leaping state. Re=37.5 is the critical value where the WBC is prone to transition to a penetrating state. Re=27 is a Hopf bifurcation, where the WBC transits between steady penetrating to periodical eddy shedding states.
In the following text, we study the hysteresis of the WBC in the gap impacted by the periodic boundary conditions and throughflow separately.
3.2 Periodic boundary condition
Based on the discussion of the hysteresis of the steady WBC in the previous section, a steady WBC with Re changing in the range of 25≤Re≤45 could experience the whole process of hysteresis and cover all the steady and critical states in the gap. In order to force a periodic WBC with Re also changing in the range of 25≤Re≤45 in the eastern basin, the stream function along the western boundary of the eastern basin is still set to be 0, but it is set to be a sinusoidal function along the eastern boundary of the eastern basin, then Re is pecified to be
$Re = 35 + 10{\rm{sin}}(\omega t - \text{π} /2),$
where $ \omega {\rm{ = }}2 \text{π} /T$, T is the period of the sinusoidally changing WBC transport. Because the integration of the whole hysteresis process of the steady WBC including the increasing and decreasing Re course between 25≤Re≤45 in Section 3.1 needs more than 30 years, the hysteresis of the periodic WBC changing in various time scales less than 30 years are studies. The Rossby adjustment time scale in the vicinity of the gap is estimated based on the Rossby wave speed and the width of the meridional gap as the following:
${T_{\rm{w}}} = \left( {240\;{\rm{km}}} \right)/\left( {0.08\;{\rm{m/s}}} \right) = 34.7\;{\rm{d}}.$

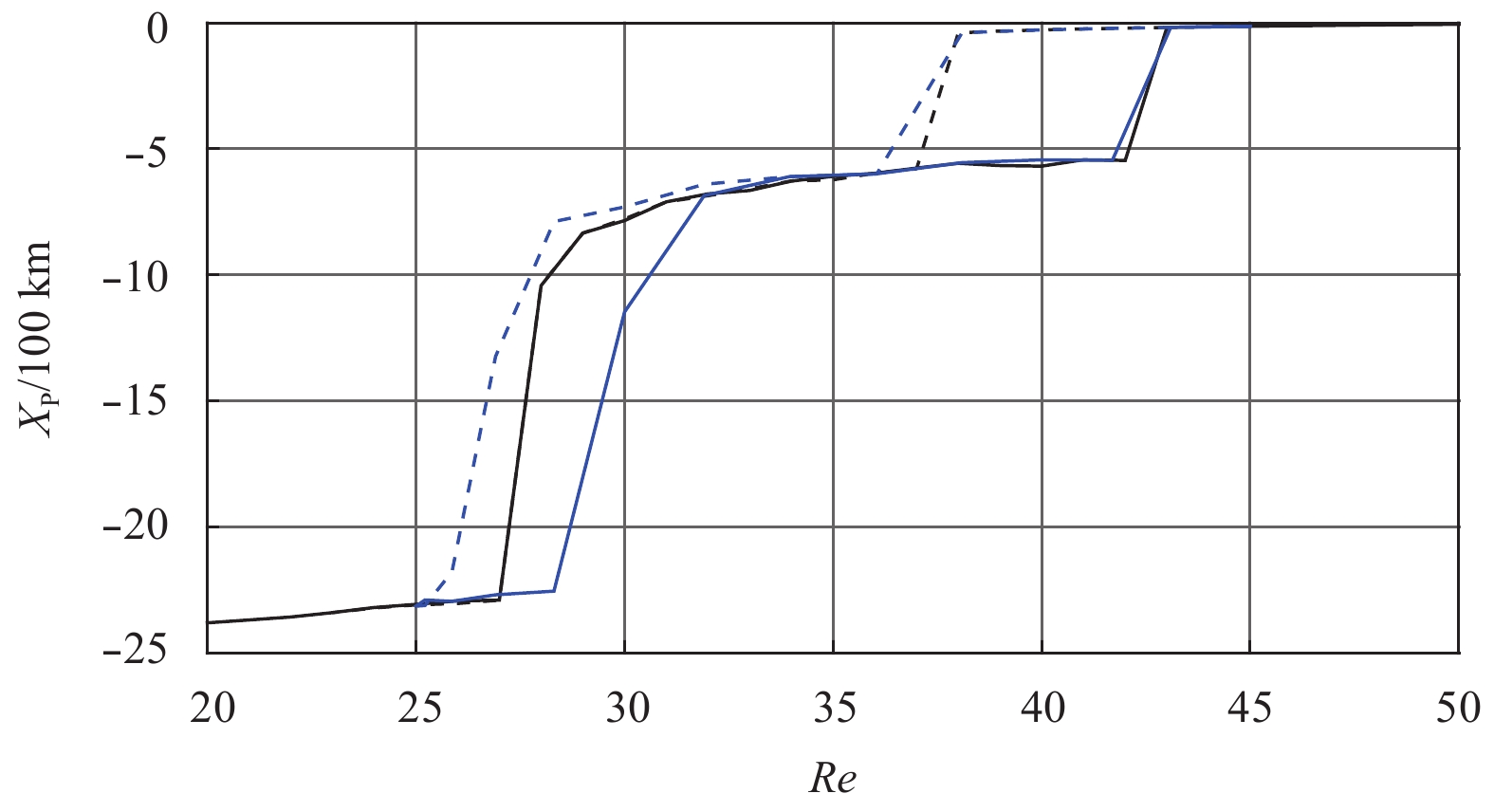

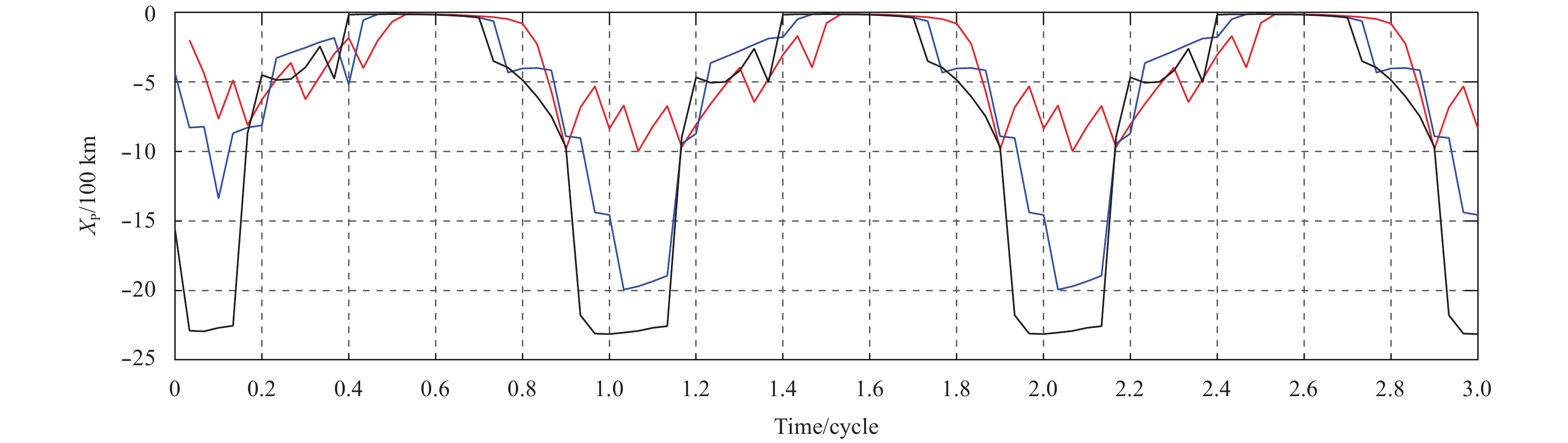

Model results show that when the transport of the WBC (Re) changes in a period much longer than Tw (15 years), the western intrusion distance of WBC in the gap (XP) follows the hysteresis curve of a steady WBC closely (Fig. 3). The critical values of Re of the WBC regime transitions between eddy shedding state and leaping state are coincident with those of the steady WBC. As a result, the hysteresis domain is unchanged by the periodic forcing. In comparison, the Hopf bifurcation of the WBC path between steady penetrating and eddy shedding states have been altered by the periodic forcing. The periodic forcing obviously has facilitated eddy shedding in the Re-decrease leg of the hysteresis loop so that the transition from the periodic to steady penetrations occurs at a smaller Re than that of a steady WBC. In the Re-increase leg of the hysteresis loop, however, the increase of the WBC transport takes a long time to reach the WBC loop in the western basin far away from the gap so that the Hopf bifurcation occurs at a larger Re due to the periodic forcing. The change of the Hopf bifurcations in the Re-increase and Re-decrease loop produces a new domain of hysteresis, which is non-existence in the steady WBC experiments.

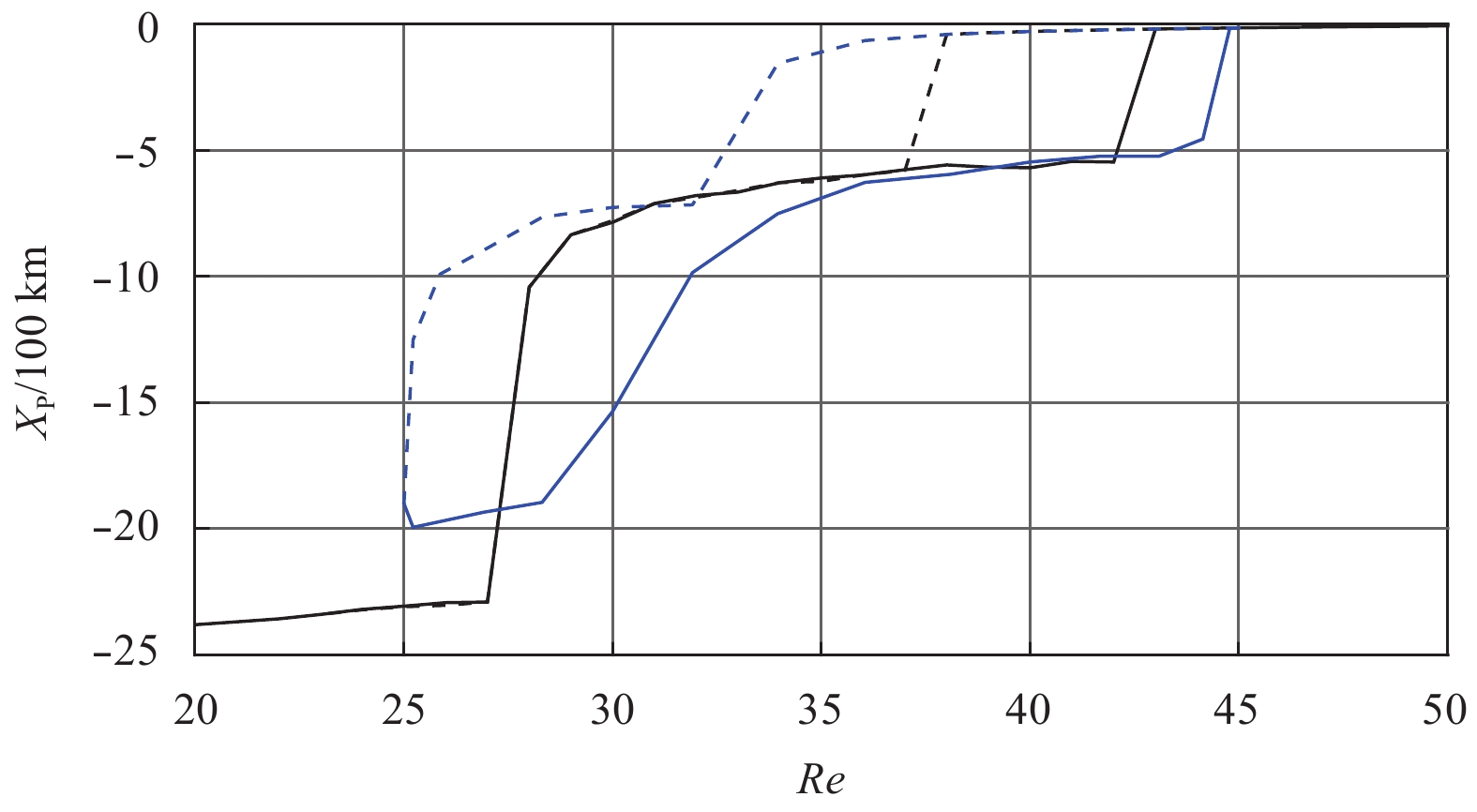

As the periods of the WBC variation decrease enough, which is still much longer than Tw, the critical Re numbers of the WBC regime transition are no longer in agreement with those of the steady WBC. Figure 4 shows the XP-Re curve of a WBC oscillating at a 3-year period. The hysteresis domain is larger than that of a steady WBC. The distance of the westward intrusion of the WBC is also reduced. Figure 5 shows the XP-Re curve of a WBC varying at a 1-year period. It can be seen that the critical Re numbers has been changed further, with the hysteresis domain larger than that of a WBC varying at longer periods. The distance of the westward intrusion of the WBC is reduced at shorter periods. Figure 6 shows the variations of XP with time in the above three experiments. The decrease of the western intrusion of the WBC is shown to decrease for shorter periods of the oscillations.

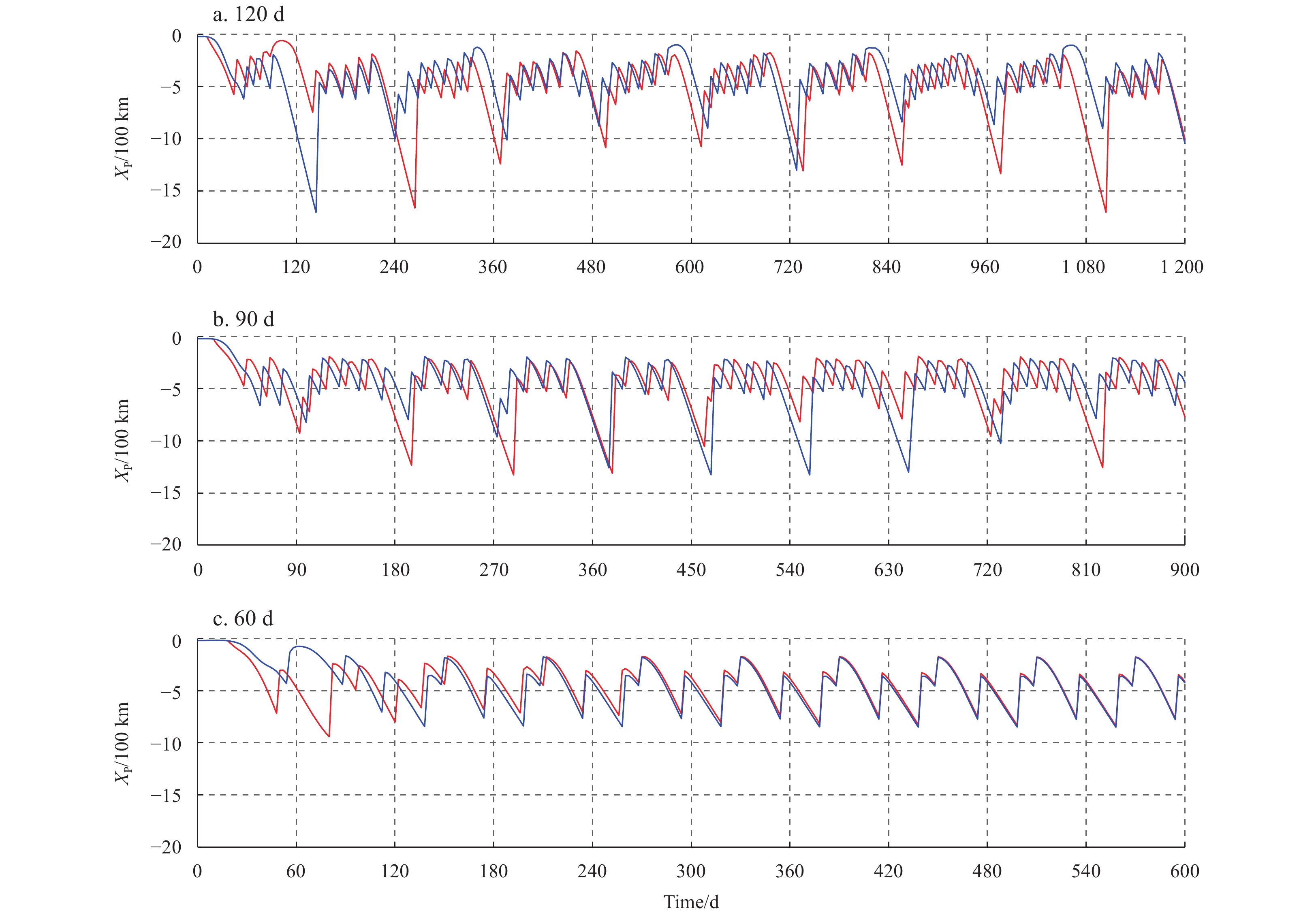

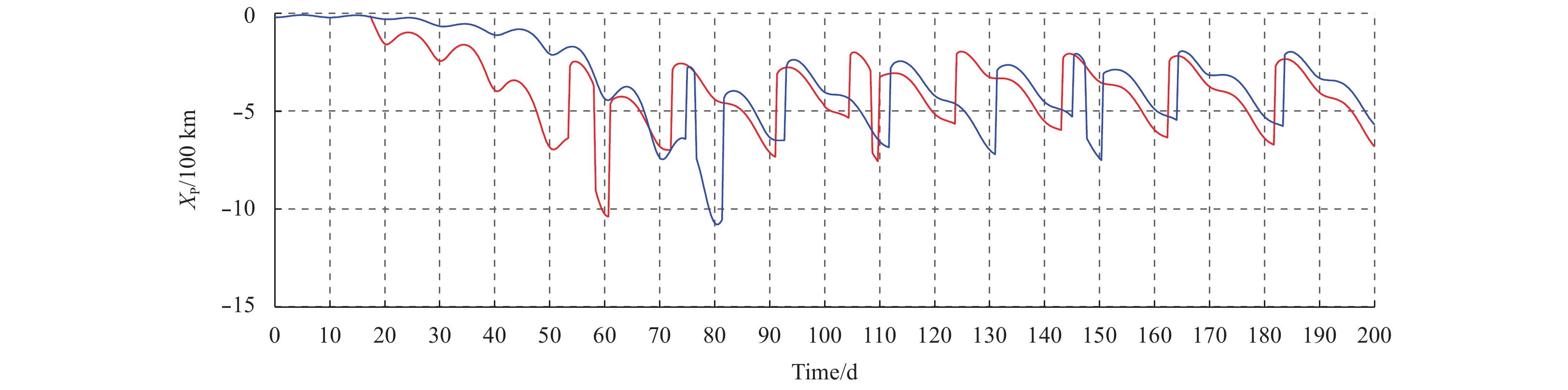

When the periods of the WBC are comparable with Tw, the WBC path varies at a much higher frequency, which is quite different with the hysteresis process of the steady WBC. The evolution of XP becomes a zigzag shape and would not stop in any state for a while. The panels in Fig. 7 show the evolution of XP when the WBC changing in periods of 120 d, 90 d, and 60 d, respectively. It shows that XP oscillating in a range of less than 1 000 km most of the time, occasionally reaching a large value. Specifically, the XP evolution of the WBC changing in 120-d period is similar to that of the 90-d period. XP mainly oscillates in a zigzag shape in the range of less than 6 000 km, occasionally reaches a great value over than 10 000 km. When the period of the WBC is 60-d, XP could not reach 10 000 km any more. When the period of the WBC decreases to as short as 10 d, the WBC in the vicinity of the gap could not penetrate deeply into the western basin as shown in Fig. 8. Instead, it stays in a periodic penetration less than 750 km. The most significant difference from the larger period cases is that the periods of XP evolution sometimes doubled that of the WBC transport variations. Because the period of the WBC changing is much shorter than the Rossby adjustment time scale, the evolution of XP cannot keep up with the frequency of Re changing, so that the period doubled happens.
The sensitivity of the initial state of the WBC is also studied in all above experiments. Results show that the evolution of the WBC in the gap is not sensitive to the initial state. Figures 7 and 8 show the comparisons of the evolution of the WBC starting from the stable penetrating state (red) and gap leaping state (blue). After a few cycles, the XP follows nearly the same periodic variations.
3.3 Effects of a throughflow
The hysteresis of a leaking WBC flowing by a gap is studied by opening a zonal gap in the southwestern corner of the western basin. The width of the zonal gap is 300 km. The WBC with a throughflow is forced by the gradient of streamfunction along the boundaries. Specifically, the streamfunction along the eastern boundary of the eastern basin is set to be Q=Re×AH, the streamfunction along the southern boundary of the western basin get rid of opening gap and connected with southern part of gappy barrier in the middle of the computation domain is set to be 0, the streamfunction along both the western and northern boundaries of the western basin, which is also connected with the northern part of the gappy barrier in the middle of computational domain is set to be Qt. The stream function gradient drives a northward WBC of depth-averaged transport Q in the eastern basin, with a leakage throughflow in the western basin of depth-averaged transport Qt out of the southwestern zonal gap.

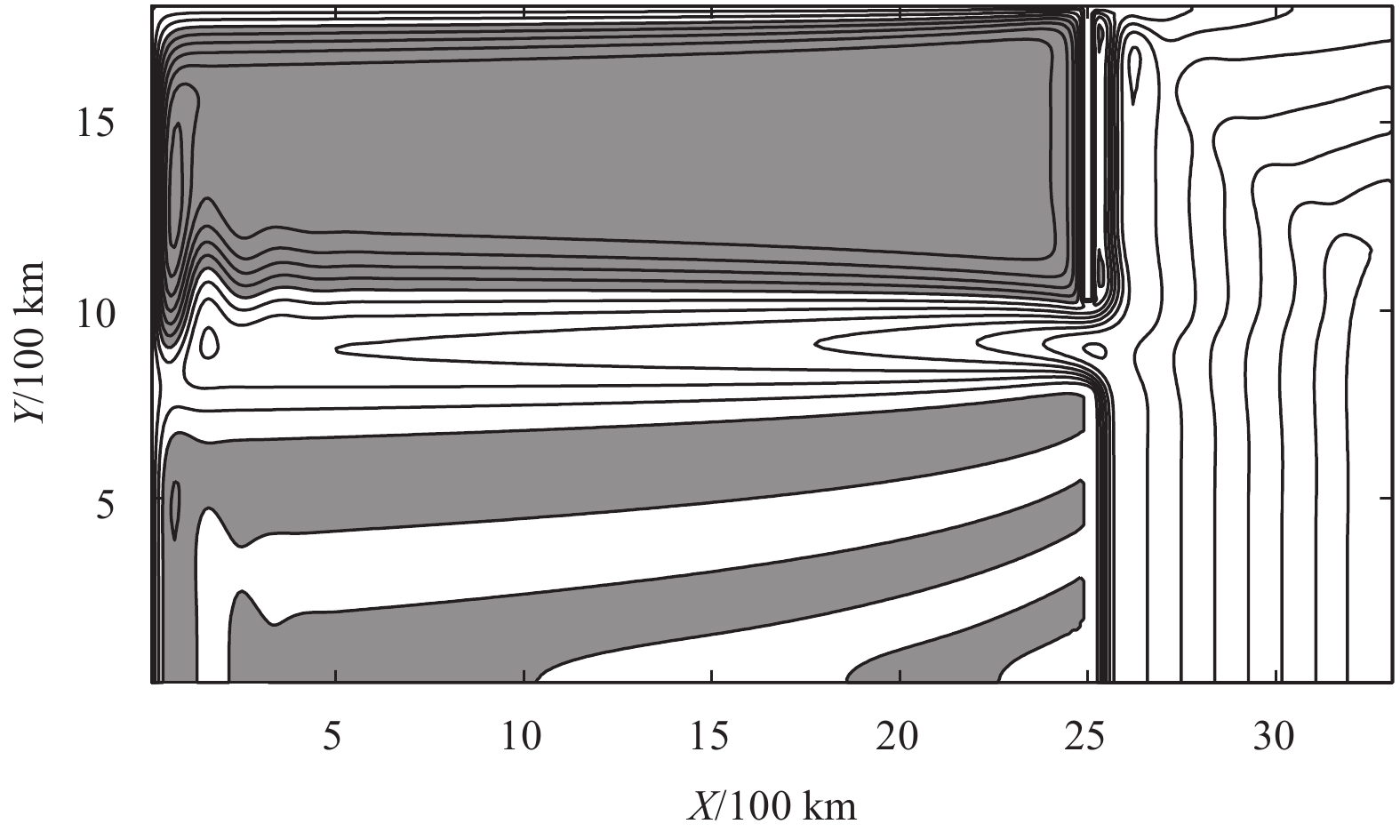

The path of the leaking WBC in the vicinity of the meridional gap is similar to that of the WBC without throughflow, and experience a hysteresis process dominated the transport of the WBC. The steady penetrating state of the WBC with small transport of Re=10 is showed in Fig. 9. The WBC penetrates into the western basin through the meridional gap, a throughflow exits out of the zonal openning gap in the southwestern corner of the western basin, and the transport of the throughflow is 1/2 of which of the WBC in the eastern basin.

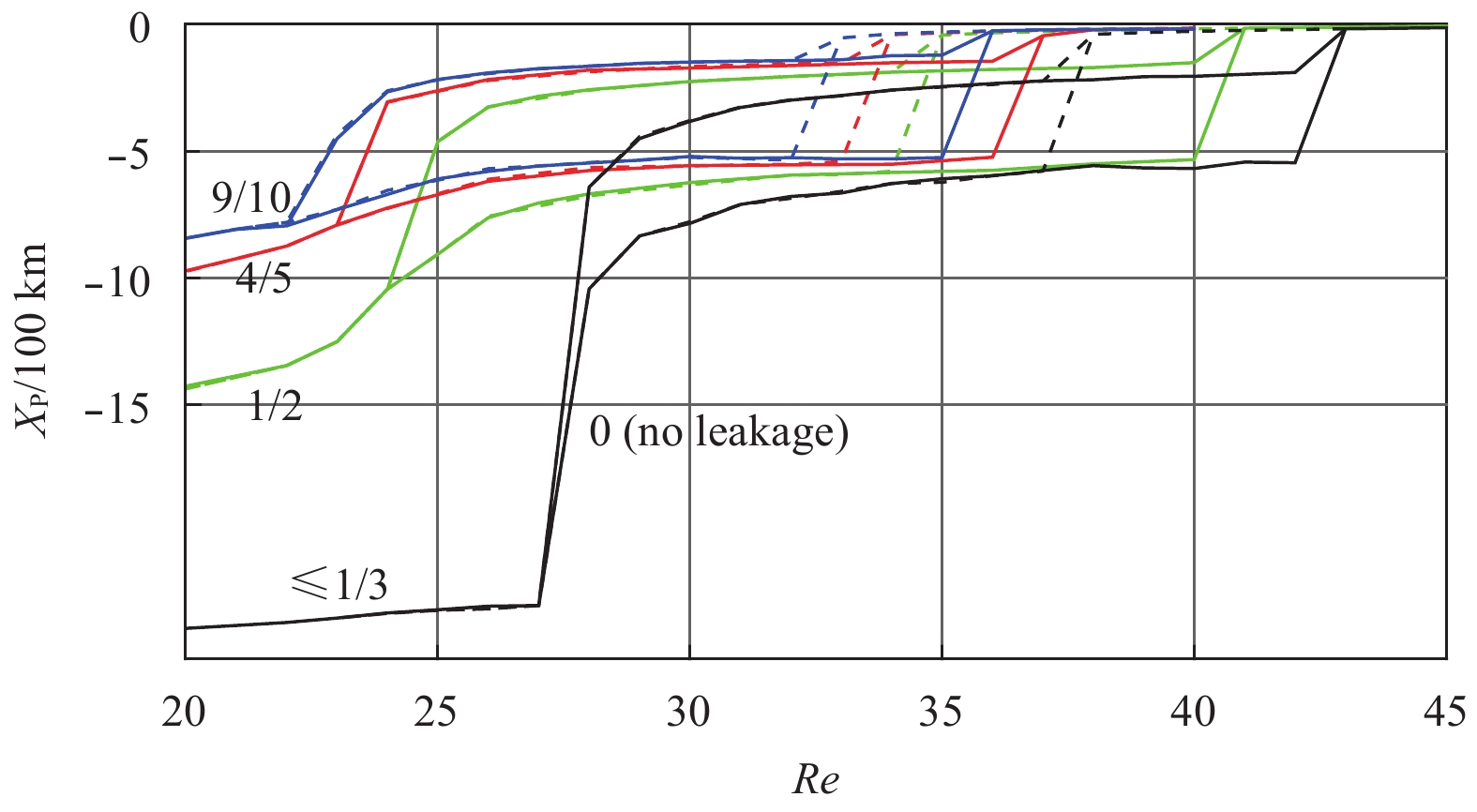

The existence of the throughflow is found to have no significant impact on the hysteresis loop of the WBC in the gap when the transport of the throughflow is less than or equal to 1/3 of the transport of the WBC. Figure 10 shows the hysteresis curves of the WBC in the vicinity of the gap influenced by the throughflow of different transport. The transport of the throughflow is 9/10 (blue), 4/5 (red), 1/2 (green) and ≤1/3 (black) of the WBC, respectively. When the transport of the throughflow is larger than 1/2 of the WBC, the critical points of the WBC state transitions have obviously been shifted significantly by the leaking transport of the WBC through in the western basin. The larger the throughflow transport is, the larger the change is. For instance, The Hopf bifurcation from penetrating state to eddy shedding state of the WBC without the leaking throughflow happens at the Re-increase course when Re=27, which has been shifted into Re=24 when the throughflow of the transport is 1/2 of the WBC, and Re=23 when the transport of the throughflow is 4/5 of the WBC, also Re=22 when the ratio of the transport of the throughflow to the WBC is 9/10. The other Hopf bifurcation from leaping state into eddy shedding state of the WBC without leaking throughflow happens at the Re-decrease course when Re=37.5, which has shifted into Re=35 when the throughflow of the transport is 1/2 of the WBC, and Re=34 when the transport of the throughflow is 4/5 of the WBC, also Re=33 when the ratio of the transport of the throughflow to the WBC is 9/10.
4 Discussion and conclusions
Less
The evolution of the WBC path flowing by a meridional gap is subject to hysteresis process depending on the Re number of the WBC. In this study, a 1.5-layer quasi-geostrophic reduced gravity model is used to study the hysteresis of a periodic WBC or a WBC with leaking transport through the gap.
There are two main effects of the periodic and leaking WBC forcing, one is changing the critical Re when the WBC regime shifts, and the other is reducing the farthest westward intrusion distance of the WBC in the gap. When the period of the WBC variations is 15-year, much longer than the Rossby wave propagation time scales in the vicinity of the gap which is equal to 34.7 d, the path of the periodic WBC follows the hysteresis loop of a steady WBC. The critical Re numbers of the regime transitions of the hysteresis are nearly unchanged by the periodic forcing. In comparison, the Hopf bifurcation of the WBC path between steady penetrating and eddy shedding states have been altered by the periodic forcing. The change of the Hopf bifurcations in the Re-increase and Re-decrease loop produces a new domain of hysteresis, which is non-existence in the steady WBC experiments. When the period of the WBC variations decreases shorter to 3-year, the critical Re numbers of the WBC regime transitions also change significantly, with the domain of the hysteresis larger than that of the 15-year period forcing. When the period of the WBC changing decreases shorter to 1-year, the domain of hysteresis turns even larger as a result of the critical Re from leaping state to penetrating state turns even smaller, and the WBC cannot intrusion westward so deeply as the longer period situation.
When the periods of the WBC variations are 120, 90 and 60 d, which are comparable with those of the Rossby wave propagation time scales 34.7 d, the WBC path in the vicinity of the gap becomes periodic with no hysteresis, so it is significantly different with the evolution of the steady WBC. The westward intrusion extent of the WBC oscillates high frequency in a small range, occasionally reach a large value, and this may be more consistent with the real ocean than the hysteresis process. The intrusion of the WBC into the western basin generally gets smaller as the period decreases. When the WBC changing in an extremely small period such as 10 d, the evolution of WBC path in the gap would be in a doubled period. Numerical experiments have also shown that the existence of a more than half leakage of the WBC transport through the gap into the western basin has changed the hysteresis loop of the WBC path. The smaller the throughflow transport is, the smaller the change is.
These studies represent the investigation of the nonlinear WBC path in the vicinity of a meridional gap forced by the periodic or leaking WBC. The numerical results are important because they provide a basis for understanding the impact on the evolution of the WBC in the gap by the periodic and leaking conditions. The comparison of the numerical experiment results with the altimeter sea level in the vicinity of the Luzon Strait and further studies on the dynamics of the forced evolution are undergoing and will help to under the behavior of the WBCs near gappy western boundaries and the evolution of Kuroshio in the Luzon Strait.
Funding
Less
  • The National Program on Global Change and Air-Sea Interaction under contract Nos GASI-03-01-01-05, GASI-IPOVAI-01-02, GASI-IPOVAI-02, GASI-IPOVAI-03, GASI-IPOVAI-01-05 and GASI-03-01-01-02; the National Natural Science Foundation of China (NSFC) under contract Nos 41421005, 41720104008, 41476025, 41376038 and 41876025; the National Natural Science Foundation of China (NSFC)—Shandong Joint Fund for Marine Science Research Centers of China under contract Nos U1606402 and U1606405; the CAS Strategic Priority Project under contract No. XDA11010205; the Scientific and Technological Innovation Project of Qingdao National Laboratory for Marine Science and Technology under contract No. 2016ASKJ04; the National Science and Technology Major Project under contract No. 2016ZX05057015; the Open Fund of Shandong Provincial Key Laboratory of Marine Ecology and Environment & Disaster Prevention and Mitigation under contract No. 201701.
References
Less
Caruso M J, Gawarkiewicz G G, Beardsley R C. 2006. Interannual variability of the Kuroshio intrusion in the South China Sea. Journal of Oceanography, 62(4): 559–575, doi: 10.1007/s10872-006-0076-0
Fang Guohong, Susanto R D, Wirasantosa S, et al. 2010. Volume, heat, and freshwater transports from the South China Sea to Indonesian seas in the boreal winter of 2007–2008. Journal of Geophysical Research: Oceans, 115(C12): C12020, doi: 10.1029/2010JC006225
Farris A, Wimbush M. 1996. Wind-induced kuroshio intrusion into the South China Sea. Journal of Oceanography, 52(6): 771–784, doi: 10.1007/BF02239465
Guo Jingsong, Zhang Zhixin, Xia Changshui, et al. 2018. Topographic-baroclinic instability and formation of Kuroshio current loop. Dynamics of Atmospheres and Oceans, 81: 15–29, doi: 10.1016/j.dynatmoce.2017.11.002
Hou Yijun, Liu Yahao, Hu Po, et al. 2017. Nonlinear dynamics of Kuroshio intrusion in the Luzon Strait. Science China Earth Sciences, 60(4): 761–769, doi: 10.1007/s11430-016-9012-7
Hsueh Y, Zhong Liejun. 2004. A pressure-driven South China Sea Warm Current. Journal of Geophysical Research: Oceans, 109(C9): C09014
Hu Jianyu, Zheng Quanan, Sun Zhenyu, et al. 2012. Penetration of nonlinear Rossby eddies into South China Sea evidenced by cruise data. Journal of Geophysical Research: Oceans, 117(C3): C03010
Kuehl J J, Sheremet V A. 2009. Identification of a cusp catastrophe in a gap-leaping western boundary current. Journal of Marine Research, 67(1): 25–42, doi: 10.1357/002224009788597908
Kuehl J J, Sheremet V A. 2014. Two-layer gap-leaping oceanic boundary currents: experimental investigation. Journal of Fluid Mechanics, 740: 97–113, doi: 10.1017/jfm.2013.645
Li Ruixiang. 2008. Dynamics of eddy-induced Kuroshio variability in the Luzon Strait (in Chinese) [dissertation]. Qingdao: Insitute of Oceanology, Chinese Academy of Sciences, 1–44
Li Wei, Liu Qinyu. 1997. A preliminary study of the deformation and its dynamics of western boundary current at a gap. Journal of Ocean University of Qingdao (in Chinese), 27(3): 277–281
Li Li, Nowlin W D Jr, Su Jilan. 1998. Anticyclonic rings from the Kuroshio in the South China Sea. Deep Sea Research Part I: Oceanographic Research Papers, 45(9): 1469–1482, doi: 10.1016/S0967-0637(98)00026-0
Liu Qinyu, Liu Zhuoteng, Zheng Shipei, et al. 1996. The deformation of Kuroshio in the Luzon Strait and its dynamics. Journal of Ocean University of Qingdao (in Chinese), 26(4): 413–420
Lu Jiuyou, Liu Qinyu. 2013. Gap-leaping Kuroshio and blocking westward-propagating Rossby wave and eddy in the Luzon Strait. Journal of Geophysical Research: Oceans, 118(3): 1170–1181, doi: 10.1002/jgrc.20116
Metzger E J, Hurlburt H E. 2001. The nondeterministic nature of Kuroshio penetration and eddy shedding in the South China Sea. Journal of Physical Oceanography, 31(7): 1712–1732, doi: 10.1175/1520-0485(2001)031<1712:TNNOKP>2.0.CO;2
Nitani H. 1972. Beginning of the Kuroshio. In: Stommel H, Yoshida K, eds. Kuroshio, Its Physical Aspects. Tokyo: University of Tokyo Press, 129–163
Qu Tangdong. 2000. Upper-layer circulation in the South China Sea. Journal of Physical Oceanography, 30(6): 1450–1460, doi: 10.1175/1520-0485(2000)030<1450:ULCITS>2.0.CO;2
Qu Tangdong, Song Y T, Yamagata T. 2009. An introduction to the South China Sea throughflow: Its dynamics, variability, and application for climate. Dynamics of Atmospheres and Oceans, 47(1–3): 3–14, doi: 10.1016/j.dynatmoce.2008.05.001
Shaw P. 1989. The intrusion of water masses into the sea southwest of Taiwan. Journal of Geophysical Research, 94(C12): 18213–18226, doi: 10.1029/JC094iC12p18213
Shaw P T. 1991. The seasonal variation of the intrusion of the Philippine Sea water into the South China Sea. Journal of Geophysical Research: Oceans, 96(C1): 821–827, doi: 10.1029/90JC02367
Sheremet V A. 2001. Hysteresis of a western boundary current leaping across a gap. Journal of Physical Oceanography, 31(5): 1247–1259, doi: 10.1175/1520-0485(2001)031<1247:HOAWBC>2.0.CO;2
Sheremet V A, Kuehl J. 2007. Gap-leaping western boundary current in a circular tank model. Journal of Physical Oceanography, 37(6): 1488–1495, doi: 10.1175/JPO3069.1
Song Xinxin, Yuan Dongliang, Li Ruixiang, et al. 2018. Migration of mesoscale eddies across a leaping or penetrating western boundary current in the vicinity of a gap. Journal of Oceanology and Limnology, 36(6): 2098–2109, doi: 10.1007/s00343-019-7296-9
Su Jilan. 2005. Overview of the South China Sea circulation and its dynamics. Haiyang Xuebao (in Chinese), 27(6): 1–8
Wang Zheng, Yuan Dongliang, Hou Yijun. 2010. Effect of meridional wind on gap-leaping western boundary current. Chinese Journal of Oceanology and Limnology, 28(2): 354–358, doi: 10.1007/s00343-010-9281-1
Xue Huijie, Chai Fei, Pettigrew N, et al. 2004. Kuroshio intrusion and the circulation in the South China Sea. Journal of Geophysical Research: Oceans, 109(C2): C02017
Yang Haijun, Liu Qinyu, Liu Zhengyu, et al. 2002. A general circulation model study of the dynamics of the upper ocean circulation of the South China Sea. Journal of Geophysical Research: Oceans, 107(C7): 3085, doi: 10.1029/2001JC001084
Yaremchuk M, McCreary J Jr, Yu Zuojun, et al. 2009. The South China Sea throughflow retrieved from climatological data. Journal of Physical Oceanography, 39(3): 753–767, doi: 10.1175/2008JPO3955.1
Yuan Dongliang, Han Weiqing, Hu Dunxin. 2006. Surface Kuroshio path in the Luzon Strait area derived from satellite remote sensing data. Journal of Geophysical Research: Oceans, 111(C11): C11007, doi: 10.1029/2005JC003412
Yuan Dongliang, Li Ruixiang. 2008. Dynamics of eddy-induced Kuroshio variability in Luzon Strait. Journal of Tropical Oceanography (in Chinese), 27(4): 1–9
Yuan Dongliang, Wang Zheng. 2011. Hysteresis and dynamics of a western boundary current flowing by a gap forced by impingement of mesoscale eddies. Journal of Physical Oceanography, 41(5): 878–888, doi: 10.1175/2010JPO4489.1
Zheng Quanan, Tai Changkuo, Hu Jianyu, et al. 2011. Satellite altimeter observations of nonlinear Rossby eddy-Kuroshio interaction at the Luzon Strait. Journal of Oceanography, 67(4): 365–376, doi: 10.1007/s10872-011-0035-2
Zhong Shenlei, Wang Zheng, Yuan Dongliang. 2013. The impact of local wind stress on the path of the west boundary current flowing through a gap. Marine Sciences (in Chinese), 37(12): 68–75
