Zexun Wei¹^,²^,^*, Shujiang Li¹^,², R. Dwi Susanto³^,⁴, Yonggang Wang¹^,², Bin Fan¹^,², Tengfei Xu¹^,², Budi Sulistiyo⁵, T. Rameyo Adi⁵, Agus Setiawan⁵, A. Kuswardani⁵, Guohong Fang¹^,²

Acta Oceanologica Sinica | 2019, 38(4) : 1 - 11

Less

Acta Oceanologica Sinica | 2019, 38(4): 1-11

• Review •

An overview of 10-year observation of the South China Sea branch of the Pacific to Indian Ocean throughflow at the Karimata Strait

Full

Affiliations

¹ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

² Laboratory for Regional Oceanography and Numerical Modeling, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

³ Department of Atmospheric and Oceanic Science, University of Maryland, College Park, Maryland 20742, USA

⁴ Faculty of Earth Sciences and Technology, Bandung Institute of Technology, Bandung 40116, Indonesia

⁵ Agency for Marine & Fisheries Research, Ministry of Marine Affairs and Fisheries, Jakarta 14430, Indonesia

Published: 2019-04-25 doi: 10.1007/s13131-019-1410-x

Outline

Abstract

Less

Besides the Indonesian throughflow (ITF), the South China Sea throughflow (SCSTF) also contributes to the water transport from the Pacific to the Indian Ocean. However, this South China Sea (SCS) branch at the Karimata Strait is poorly observed until 2007, even though its importance has been suggested by numerical studies for decades. In this paper, we review the nearly 10-year field measurement in the Karimata Strait by the execution of the projects of “SCS-Indonesian Seas Transport/Exchange (SITE) and Impacts on Seasonal Fish Migration” and “The Transport, Internal Waves and Mixing in the Indonesian Throughflow regions (TIMIT) and Impacts on Marine Ecosystem”, which extend the observations from the western Indonesian seas to the east to include the main channels of the ITF, is introduced. Some major achievements from these projects are summarized.

Key words

South China Sea / Indonesian seas / Indonesian throughflow (ITF) / Karimata Strait / South China Sea throughflow

Cite this Article

Zexun Wei, Shujiang Li, R. Dwi Susanto, Yonggang Wang, Bin Fan, Tengfei Xu, Budi Sulistiyo, T. Rameyo Adi, Agus Setiawan, A. Kuswardani, Guohong Fang. An overview of 10-year observation of the South China Sea branch of the Pacific to Indian Ocean throughflow at the Karimata Strait[J]. Acta Oceanologica Sinica, 2019 , 38 (4) : 1 -11 . DOI: 10.1007/s13131-019-1410-x

Full Text

Less

1 Introduction

Less

Ocean circulation plays critical roles in the heat balance around the globe. At its most basic level, the warm water from the tropical Pacific Ocean flows into the Indian Ocean through the Indonesian seas, which in turn joins the Agulhas Current to loop around the Africa and travels northward in terms of the Gulf Stream in the Atlantic Ocean. Upon reaching the North Atlantic, these waters sink and creep southward along the ocean floor. While exiting the Atlantic, it joins the eastward flow in the Southern Ocean, with part of the waters move northward to intrude into the Indian Ocean, whereas most of them enter and cross the Antarctic Circumpolar Current (ACC) to become a source of the Antarctic Bottom Water (AABW). The deep and bottom waters move northward to enter the Pacific Ocean where they upwell, only to seep back into the Indian Ocean through the South China Sea (SCS) and the Indonesian seas at low latitudes. This throughflow from the Pacific to the Indian Ocean joins the Agulhas Current subsequently, making the so called “great ocean conveyor belt” closed (Broecker, 1991; Gordon, 2005; Talley, 2013).

The seepage of warm waters from the equatorial West Pacific Ocean to the Indian Ocean via the Indonesian seas is called the Indonesian throughflow (ITF), which has been long time recognized as a key component of global ocean circulation (Wyrtki, 1961; Gordon et al., 2003; Gordon and Fine, 1996). The driving force of the ITF is the pressure gradient between the West Pacific and the eastern Indian Ocean across the Indonesian seas (Wyrtki, 1961, 1987; Gordon, 1986). The water transport of the Indonesian throughflow is estimated at a low value of 1.5 Sv (1 Sv=10⁶ m³/s) by Wyrtki (1961) and much higher values from 5.1 up to 18 Sv summarized by Gordon (1986) before direct measurements of current are available. Since 1983, expendable bathythermograph (XBT) have been repeatedly used along a section between Fremantle, Australia and Sunda Strait, Indonesian (IX1 section) to measure the upper ocean temperature and monitor the ITF variability. With the temperature data from XBT along the IX1 section, Meyers et al. (1995) calculated the mean geostrophic throughflow-transport to be 5 Sv relative to 400 m water depth. This has been followed by more studies and the transport across the IX1 section has been shown to have large uncertainty (Liu et al., 2005, 2015; Wijffels et al., 2008). Satellite altimeter provides a proxy for the ITF transport by empirical formula, which can be used to produce a longer time series for the interannual variability of ITF (Potemra, 2005; Sprintall and Révelard, 2014; Susanto and Song, 2015).

Direct measurements of the ITF come from the International Nusantara Stratification and Transport (INSTANT) program from 2004 to 2006 (Sprintall et al., 2004, 2009; Gordon et al., 2010) and earlier Arlindo program from 1996 to 1998 (Gordon and Susanto, 1999; Susanto and Gordon, 2005). When the INSTANT program ended in 2006, a single mooring in the Makassar Strait was carried through (Susanto et al., 2012). Meanwhile, a mooring array in the Timor Passage was operated to monitor the ITF as part of the Australian Integrated Marine Observing System (IMOS) since 2007 (Moltmann et al., 2010; Moltmann, 2011). The efforts of direct velocity measurements of the ITF provide better estimation of the ITF, improving our knowledge about the ITF and its relationship with the Indian and Pacific climate (Sprintall and Révelard, 2014; Van Sebille et al., 2014; Yuan et al., 2011, 2013).

The other passage for the throughflow from the Pacific to the Indian Ocean is through the SCS, with inflow of clod and salty water via the Luzon Strait and outflow of warm and fresh water via the Karimata Strait (Fang et al., 2003, 2005, 2009; Qu et al., 2005, 2009; Du and Qu, 2010). The outflow waters then travel eastward and southward to join the main route of the ITF and flow into the Indian Ocean through the Sunda Strait, respectively (Fang et al., 2010; Susanto et al., 2013). This passage is referred as the SCS branch of the Pacific to Indian Ocean throughflow or the SCS throughflow (Fig. 1a) (Fang et al., 2003, 2005; Qu et al., 2005; Wang et al., 2006). The SCS branch or SCS Throughflow is an important conveyor for bring the signals from the Pacific to the SCS, which can influence the SCS circulation or even to reach at the eastern Indonesian seas and the Indian Ocean (Qu et al., 2004, 2006; Liu et al., 2011).

The water transport across the Karimata Strait derived from numerical simulations are between 1.3 and 4.4 Sv from the SCS to the Java Sea (JS) in boreal winter, and between 0.3 and 2.1 Sv from the JS to the SCS in boreal summer, respectively (Lebedev and Yaremchuk, 2000; Cai et al., 2005; Fang et al., 2005; Yaremchuk et al., 2009; Xu and Malanotte-Rizzoli, 2013; He et al., 2015). Although the volume transport of the SCS branch is relatively smaller than the ITF, the heat and freshwater transports by it could be up to 0.2 PW and 0.1 Sv (Qu et al., 2006; Fang et al., 2009), comparable to the heat transport of 0.41 PW for the ITF (Vranes et al., 2002). The significant heat and freshwater transports make the SCS branch play an important role in the modulation of ITF variability (Tozuka et al., 2007, 2009; Gordon et al., 2012). For example, the freshwater transported by the SCS branch can affect the ITF vairiability in two aspects: it contributes to the total ITF, and at the same time it reduces the ITF by inhibiting the main ITF through the Makassar Strait (Fang et al., 2010; Gordon et al., 2012). Numerical experiment shows that blocking the SCSTF would warm the SCS, and change the period of the El Niño-South Oscillation (ENSO) (Tozuka et al., 2015). Meanwhile, numerical experiment of blocking SCSTF results in significant changes of the Pacific low-latitude western boundary current system including the Kuroshio and Mindanao Currents as well as the North Equatorial Current bifurcation (Wang et al., 2011a). In addition, the phytoplankton community and environmental parameters in the Sunda shelf are found influenced by the SCS branch transport (Ke et al., 2014), which in turn influence the local fishery (Hendiarti et al., 2004, 2005).

So far, most of the investigations about the SCS branch of the throughflow at the Karimata Strait rely on the numerical simulation. The only in situ observation was done more than 50 years ago by Wyrtki (1961) until the “SCS-Indonesian Seas Transport/Exchange (SITE) and Impact on Seasonal Fish Migration” project was initiated jointly by researchers from China, Indonesia, and the United State in October 2006 (Fang et al., 2010; Susanto et al., 2010). Based on the observation of the first stage of the SITE cruise, the volume, heat and freshwater transport from the SCS to the Indonesian seas are estimated at 3.6 Sv, 0.36 PW, and 0.14 Sv during 13 January to 12 February 2008, respectively (Fang et al., 2010; Susanto et al., 2013). Up to 2016, a total of 19 cruises have been accomplished, providing nearly 10 years of time series for the current velocities at the Karimata Strait. A detailed description of the SITE project is introduced in Section 2. Section 3 introduces the project entitled “The Transport, Internal Waves and Mixing in the Indonesian Throughflow Regions (TIMIT) and Impacts on Marine Ecosystem”, which extend the observation from western Indonesian seas to the east to include the main channels of ITF such as the Lombok and Makassar Straits. Achievements from the SITE and TIMIT projects are reviewed in Section 4. Section 5 is a summary.

2 The SITE project

Less

In view of a lack of any direct observations of the SCS branch in the Karimata Strait, researchers from the First Institute of Oceanography (FIO), Ministry of Natural Resources of China, the Agency for Marine & Fisheries Research (AMFR), Ministry of Marine Affairs and Fisheries of Indonesia, and the Columbia University and University of Maryland from the United States, conducted a collaborative observing project, the South China Sea-Indonesian Seas Transport/Exchange (SITE), to explore the heat and freshwater fluxes between the SCS and the Indonesian seas through the Karimata Strait. The Karimata Strait is located between the southern SCS and the Java Sea with a mean water depth shallower than 50 m (Fig. 1a). The Gaspar Strait is located between the Bangka Island and Belitung Island. The Karimata Strait is located between Bilitung Island and Kalimantan Island (Fig. 1b).

The first two cruises were carried out between December 2007 and January 2008, during which there were two Trawl Resistant Bottom Mounts (TRBMs) deployed at A1 and A2 in the Karimata Strait (Fig. 1b). The TRBM at A1 was carried a LinkQuest Inc. 600 kHz acoustic Doppler Current Profile (ADCP), and a RBR Ltd. Temperature-pressure logger. The configuration of the TRBM at A2 was same as that at A2 except that a Sea-Bird conductivity-temperature-pressure recorder was used instead of the RBR logger. The averaged depths at A1 and A2 are 36.6 and 48.0 m, respectively, as measured from the pressure sensors. Both TRMBs were equipped with an acoustic modem to communicate with the ship-deck to retrieve data from the ADCP in case of TRBM cannot be recovered in the next cruise. The third cruise only retrieved the data from the ADCP in both Stas A1 and A2, with the TRBMs remain under service. The TRBMs were recovered in the fourth and fifth cruises in May 2008 for A1 and November 2008 for A2, respectively.

Since November 2008, the SITE project was extended to include the Sunda Strait with the consideration of their impacts on seasonal fish migration. Moreover, in order to depict detailed feature of the Karimata throughflow, the stations were changed to B1 in the Gaspar Strait between the Bangka Island and Belitung Island, and B2 and B3 in the Karimata Strait between the Belitung Island and Kalimantan Island in the subsequent observations (Fig. 1b). During the 12th cruise in June 2012, we deployed an additional TRBM at B4 in the Gaspar Strait, hence the maintenance of TRBMs at B1–B4 and B2–B3 were continued until May 2016. In the Sunda Strait, a total of three TRBMs stations were selected (Fig. 1c). All the TRBMs along Section B and in the Sunda Strait were equipped with an upward-looking ADCP (Fig. 1d). There were different types of ADCP including Flowquest 300 kHz, RDI Inc. 300 or 600 kHz ADCP being opted for each of the TRBMs. These TRBMs were repeatedly recovered and redeployed from 2008 through 2016 at the same positions in the Karimata Strait and Sunda Strait. So far, a total of 19 cruises have been accomplished (Table 1).

Throughout the SITE period, over 250 CTD casts were taken within the Karimata, Sunda and Lombok Straits (Fig. 2a). After the 13th cruise, the interaction between the SCS branch and the ITF has been considered. Whereafter, we carried out the 14th cruise to deploy a subsurface mooring equipped with two Flowquest 150 kHz ADCP and a SBE 37 CTD in the Lombok Strait. The CTD casts (Fig. 2a), mixing measurement using TurboMAP (Fig. 2b) and five section of towed vehicle (Fig. 2c) were done during the cruise. The towed vehicle carried multi-sensors including temperature, conductivity, pressure, chlorophyll a, turbidity, dissolved oxygen, pH and nutrients (Cui et al., 2010; Wang et al., 2011b). The towed vehicle was operated to draw undulating profiles at a range of 20–200 m along the section.

3 TIMIT project

Less

The INSTANT program deployed 11 subsurface mooring in the main inflow and outflow passages, i.e., the Makassar, Lombok, Ombai Straits and the Lifamatola and Timor Passages. However, it overlooked the Karimata Strait, and the mooring in the Lifamatola Passage only covers the water depth greater than 1 250 m. The lack of observations in these places leads to the nonconservation around 2.3–3 Sv for the inflow and outflow transport of the ITF. Therefore, synchronized observations covering the entire water column in the inflow passages (Karimata, Makassar and Lifamatola) and outflow passages (Sunda, Lombok, Ombai, Savu and Timor) are required. Meanwhile, the Indonesia is concerned about how the ITF dynamics impacts on the marine ecosystem of the surrounding seas. Hence, as an integral part of the arrangement between China and Indonesia for the Indonesia-China Center for Ocean and Climate (ICCOC), the plan of operation for “The Transport, Internal Waves and Mixing in the Indonesian Throughflow regions (TIMIT) and Impacts on Marine Ecosystem” was signed by scientist from FIO and AMFR in December 2013. The TIMIT project is proposed under these circumstances to observe long-term current velocity profile time series in the Makassar, Lombok and Ombai Straits, and the Lifamatola Passage. Combined with the observations of SITE in the Karimata and Sunda Straits and that in the Timor Passage by the IMOS, it will be possible to quantify the total inflow and outflow of the Pacific to Indian Ocean throughflow and related processes within the Indonesian seas. The first cruise of the TIMIT project was carried out in October 2015, during which three subsurface moorings were deployed in the Makassar and Lombok Straits (Fig. 3). The CTD casts, TurboMAP mixing, and towed vehicle sections were also done (Fig. 3). The subsurface mooring in the Lombok and Makassar Straits were recovered in September 2016. The TIMIT project was then suspended due to some reason and no more cruises were carried out. Nevertheless, an independent cooperation between the Institute of Oceanology, Chinese Academy of Sciences (IOCAS) and the Indonesian Institute of Sciences (LIPI) has been established to observe the source of the ITF, and the observation was subsequently extended to the internal Indonesian seas.

4 Achievements based on SITE and TIMIT observations

Less

Based on the early observation of the SITE project at Stas A1 and A2, the volume, heat and freshwater transport from the SCS to the Indonesian seas are estimated to be 3.6 Sv, 0.36 PW, and 0.14 Sv during 13 January to 12 February 2008, respectively (Fang et al., 2010). The mean along-channel velocity, temperature, and salinity during 13 January to 12 February 2008 are shown in Fig. 4. The mean volume, heat and freshwater transport is (–2.7±1.1) Sv, (–0.30±0.11) PW, and (–0.18±0.07) Sv during boreal winter (December 2007 to March 2008), and (1.2±0.6) Sv, (0.14±0.03) PW, and (0.12±0.04) Sv during boreal summer (May to September 2008), respectively (Susanto et al., 2013). The along-strait velocity time series for the Karimata Strait during 4 December 2007 to 1 November 2008 are shown in Fig. 5. Throughout the SITE period, the annual mean volume transport through the Karimata Strait is around 0.75 Sv, with significant seasonal and interannual variability (Fig. 6).

The oceanpgraphy in the Sunda Strait is also investigated based on SITE observation (Susanto et al., 2016; Xu et al., 2018; Li et al., 2018). Zonal wind is found to be the dominate force for the water transport across the Sunda Strait. During boreal winter, there is around 0.24 Sv low-salinity water entering the Java Sea through the Sunda Strait to reduce the main ITF in the Makassar Strait. During boreal summer, there are 0.83 Sv lower-salinity water entering the Indian Ocean from the Java Sea (Susanto et al., 2016). The seasonal variability of wind stress and along strait velocity in Sunda Strait are shown in Fig. 7.

In addition, strong intraseasonal variability (ISV) of the current is found in the Sunda Strait (Fig. 8). The ISV accounts for up to 59% of the total subtidal current variance in the Sunda Strait. During the period of observations, the annual mean of intraseasonal exchange rate in the Sunda Strait was (0.26±0.17) Sv. This value is comparable to the seasonal exchange rate of (0.34±0.15) Sv, suggesting that the ISV makes an important contribution to the water exchange between the Java Sea and Indian Ocean (Li et al., 2018).

The ISV of the Sunda Strait throughflow is found to influence the distribution of chlorophyll a concentrations in the Sunda Strait (Xu et al., 2018). The chlorophyll a concentrations in the south of the Sunda Strait are lower/higher during the inflow/outflow period of the ISV events in March through May (Fig. 9). The mechanism attributes to both the nutrient-rich water transported by the intraseasonal flow in the Sunda Strait and by the upwelling and Ekman transport driven by the local sea surface wind anomalies.

The tidal elevation, current and energy flux in the Karimata Strait is investigated using the sea level record and current profile observation (Wei et al., 2016). The results show that the diurnal tides are the dominant constituents in the Karimata Strait, with the largest amplitude greater than 50 cm for the constituent K₁, whereas smaller than 5 cm for the constituent M₂. The tidal currents are rectilinear type in the strait. The diurnal tidal energy flows from the SCS to the JS. The semi-diurnal tidal energy flows from the SCS to the JS through the Karimata Strait and flows from the JS to the SCS through the Gaspar Strait (Fig. 10). These characteristics imply that the Karimata Strait locate in the anti-nodal band of the diurnal tidal waves and in the nodal band of the semidiurnal tidal waves.

5 Summary

Less

The pathway of the throughflow from the Pacific to the Indian Ocean is the only oceanic channel for the heat and salt transport between the two oceans. Moreover, the throughflow region locates on the “21st-Century Maritime Silk Road”, which is the key route for the international trade between China and Southeast Asia and Africa countries—over 95% of the cargoes rely on the maritime freightage, most of which are through the Karimata, Makassar, Lombok, Sunda and Maluca Straits. The throughflow regions are strongly influenced by climate or oceanic variability from intraseasonal to interannual timescale (e.g., Madden-Julian Oscillation, Kelvin waves, monsoon, Indian Ocean Dipole, ENSO). Meanwhile, complicated topography and geometry in the throughflow regions resulting in complicate tidal system and wave system, which influence the navigation directly. Although there have been some observations in the Indonesian seas, it is still insufficient. As the importance of the Indonesian seas in marine environment and climate, a new round of monitor the joining area of the Indo-Pacific Ocean is still urgently required and expected to be conducted in the near future.

Acknowledgements

Less

We appreciate the captain and the crews of the R/V Baruna Jaya VIII, III, IV, I, Geomarin III and Madidihang for their skillful operation during the voyages and their cooperation in fieldwork, and we thank all participants in the cruises.

Funding

Less

The National Key Research and Development Program of China under contract No. 2016YFC1402604; the Marine S&T Fund of Shandong Province for Pilot National Laboratory for Marine Science and Technology (Qingdao) under contract No. 2015ASKJ01; the SOA Program on Global Change and Air-Sea Interactions under contract Nos GASI-IPOVAI-03, GASI-IPOVAI-02 and GASI-IPOVAI-01-02; the National Natural Science Foundation of China under contract Nos 40476025, 41506036 and 41876027; the NSFC-Shandong Joint Fund for Marine Science Research Centers under contract No. U1606405; the Office of Naval Research of United States under contract No. N00014-08-01-0618; the China-Indonesia Maritime Cooperation Fund.

References

Less

Broecker W. 1991. The great ocean conveyor. Oceanography, 4(2): 79–89, doi: 10.5670/oceanog

Cai Shuqun, Liu Hailong, Li Wei, et al. 2005. Application of LICOM to the numerical study of the water exchange between the South China Sea and its adjacent oceans. Acta Oceanologica Sinica, 24(4): 10–19

Cui Tingwei, Zhang Jie, Wang Yanfeng, et al. 2010. Validation of satellite remote sensing product by ship-towed profiling system. Haiyang Xuebao (in Chinese), 32(6): 102–107

Du Yan, Qu Tangdong. 2010. Three inflow pathways of the Indonesian throughflow as seen from the simple ocean data assimilation. Dynamics of Atmospheres and Oceans, 50(2): 233–256, doi: 10.1016/j.dynatmoce.2010.04.001

Fang Guohong, Susanto D, Soesilo I, et al. 2005. A note on the South China Sea shallow interocean circulation. Advances in Atmospheric Sciences, 22(6): 946–954, doi: 10.1007/BF02918693

Fang Guohong, Wei Zexun, Chio B H, et al. 2003. Interbasin freshwater, heat and salt transport through the boundaries of the East and South China Seas from a variable-grid global ocean circulation model. Science in China Series D: Earth Sciences, 46(2): 149–161, doi: 10.1360/03yd9014

Fang Guohong, Susanto R D, Wirasantosa S, et al. 2010. Volume, heat and freshwater transports from the South China Sea to Indonesian seas in the boreal winter of 2007–2008. Journal of Geophysical Research: Oceans, 115(C12): C12020, doi: 10.1029/2010JC006225

Fang Guohong, Wang Yonggang, Wei Zexun, et al. 2009. Interocean circulation and heat and freshwater budgets of the South China Sea based on a numerical model. Dynamics of Atmospheres and Oceans, 47(1–3): 55–72, doi: 10.1016/j.dynatmoce.2008.09.003

Gordon A L. 1986. Interocean exchange of thermocline water. Journal of Geophysical Research: Oceans, 91(C4): 5037–5046, doi: 10.1029/JC091iC04p05037

Gordon A L. 2005. Oceanography of the Indonesian Seas and their throughflow. Oceanography, 18(4): 14–27, doi: 10.5670/oceanog

Gordon A L, Fine R A. 1996. Pathways of water between the Pacific and Indian oceans in the Indonesian seas. Nature, 379(6561): 146–149, doi: 10.1038/379146a0

Gordon A L, Huber B A, Metzger E J, et al. 2012. South China Sea throughflow impact on the Indonesian throughflow. Geophysical Research Letters, 39(11): L11602, doi: 10.1029/2012GL052021

Gordon A L, Sprintall J, Van Aken H M, et al. 2010. The indonesian throughflow during 2004-2006 as observed by the INSTANT program. Dynamics of Atmospheres and Oceans, 50(2): 115–128, doi: 10.1016/j.dynatmoce.2009.12.002

Gordon A L, Susanto R D. 1999. Makassar Strait transport: initial estimate based on Arlindo results. Marine Technology Society Journal, 32(4): 34–45

Gordon A L, Susanto R D, Vranes K. 2003. Cool Indonesian throughflow as a consequence of restricted surface layer flow. Nature, 425(6960): 824–828, doi: 10.1038/nature02038

He Zhigang, Feng Ming, Wang Dongxiao, et al. 2015. Contribution of the Karimata Strait transport to the Indonesian Throughflow as seen from a data assimilation model. Continental Shelf Research, 92: 16–22, doi: 10.1016/j.csr.2014.10.007

Hendiarti N, Siegel H, Ohde T. 2004. Investigation of different coastal processes in Indonesian waters using SeaWiFS data. Deep Sea Research Part Ⅱ: Topical Studies in Oceanography, 51(1–3): 85–97, doi: 10.1016/j.dsr2.2003.10.003

Hendiarti N, Suwarso, Aldrian E, et al. 2005. Seasonal variation of pelagic fish catch around java. Oceanography, 18(4): 112–123, doi: 10.5670/oceanog

Ke Zhixin, Tan Yehui, Ma Yane, et al. 2014. Effects of surface current patterns on spatial variations of phytoplankton community and environmental factors in Sunda shelf. Continental Shelf Research, 82: 119–127, doi: 10.1016/j.csr.2014.04.017

Lebedev K V, Yaremchuk M I. 2000. A diagnostic study of the Indonesian throughflow. Journal of Geophysical Research: Oceans, 105(C5): 11243–11258, doi: 10.1029/2000JC900015

Li Shujiang, Wei Zexun, R. Dwi Susanto, et al 2018. Observations of intraseasonal variability in the Sunda Strait throughflow. Journal of Oceanography, 74: 541–547, doi: 10.1007/s10872-018-0476-y

Liu Yun, Feng Ming, Church J, et al. 2005. Effect of salinity on estimating geostrophic transport of the indonesian throughflow along the IX1 XBT section. Journal of Oceanography, 61(4): 795–801, doi: 10.1007/s10872-005-0086-3

Liu Qinyan, Feng Ming, Wang Dongxiao. 2011. ENSO-induced interannual variability in the southeastern South China Sea. Journal of Oceanography, 67(1): 127–133, doi: 10.1007/s10872-011-0002-y

Liu Qinyan, Feng Ming, Wang Dongxiao, et al. 2015. Interannual variability of the Indonesian Throughflow transport: A revisit based on 30 year expendable bathythermograph data. Journal of Geophysical Research: Oceans, 120(12): 8270–8282, doi: 10.1002/2015JC011351

Meyers G, Bailey R J, Worby A P. 1995. Geostrophic transport of Indonesian throughflow. Deep Sea Research Part Ⅰ: Oceanographic Research Papers, 42(7): 1163–1174, doi: 10.1016/0967-0637(95)00037-7

Moltmann T. 2011. Ocean observing systems a national perspective from Australia. In: 2011 GEOSS Workshop XLII-Oceans. Kona, HI, USA: IEEE, doi: 10.1109/GEOSS-XLII.2011.6105429

Moltmann T, Proctor R, Hill K, et al. 2010. The Integrated Marine Observing System-delivering data-streams to support marine research and applications. In: OCEANS'10 IEEE SYDNEY. Sydney, NSW, Australia: IEEE, doi: 10.1109/OCEANSSYD.2010.5603606

Potemra J T. 2005. Indonesian Throughflow transport variability estimated from satellite altimetry. Oceanography, 18(4): 98–107, doi: 10.5670/oceanog

Qu Tangdong, Du Yan, Meyers G, et al. 2005. Connecting the tropical Pacific with Indian Ocean through South China Sea. Geophysical Research Letters, 32(24): L24609, doi: 10.1029/2005GL024698

Qu Tangdong, Du Yan, Sasaki H. 2006. South China Sea throughflow: a heat and freshwater conveyor. Geophysical Research Letters, 33(23): L23617, doi: 10.1029/2006GL028350

Qu Tangdong, Kim Y Y, Yaremchuk M, et al. 2004. Can Luzon Strait transport play a role in conveying the impact of ENSO to the South China Sea?. Journal of Climate, 17(18): 3644–3657, doi: 10.1175/1520-0442(2004)017<3644:CLSTPA>2.0.CO;2

Qu Tangdong, Song T, Yamagata T. 2009. An introduction to the South China Sea throughflow: Its dynamics, variability, and application for climate. Dynamics of Atmospheres and Oceans, 47(1–3): 3–14, doi: 10.1016/j.dynatmoce.2008.05.001

Sprintall J, Révelard A. 2014. The indonesian throughflow response to indo-pacific climate variability. Journal of Geophysical Research: Oceans, 119(2): 1161–1175, doi: 10.1002/2013JC009533

Sprintall J, Wijffels S E, Gordon A L, et al. 2004. INSTANT: A new international array to measure the Indonesian Throughflow. EOS, 85(39): 369–376

Sprintall J, Wijffels S E, Molcard R, et al. 2009. Direct estimates of the Indonesian Throughflow entering the Indian Ocean: 2004-2006. Journal of Geophysical Research: Oceans, 114(C7): C07001, doi: 10.1029/2008JC005257

Susanto R D, Fang Guohong, Soesilo I, et al. 2010. New surveys of a branch of the Indonesian Throughflow. EOS, 91(30): 261–262

Susanto R D, Ffield A, Gordon A L, et al. 2012. Variability of Indonesian throughflow within Makassar Strait, 2004-2009. Journal of Geophysical Research, 117(C9): C09013, doi: 10.1029/2012JC008096

Susanto R D, Gordon A L. 2005. Velocity and transport of the Makassar Strait Throughflow. Journal of Geophysical Research: Oceans, 110(C1): C01005, doi: 10.1029/2004JC002425

Susanto R D, Song Y T. 2015. Indonesian throughflow proxy from satellite altimeters and gravimeters. Journal of Geophysical Research: Oceans, 120(4): 2844–2855, doi: 10.1002/2014JC010382

Susanto R D, Wei Zexun, Adi T R, et al. 2016. Oceanography surrounding Krakatau Volcano in the Sunda Strait, Indonesian. Oceanography, 29(2): 264–272

Susanto R D, Wei Zexun, Rameyo T, et al. 2013. Observations of the Karimata Strait Througflow from December 2007 to November 2008. Acta Oceanologica Sinica, 32(5): 1–6, doi: 10.1007/s13131-013-0307-3

Talley L D. 2013. Closure of the global overturning circulation through the Indian, pacific, and southern oceans: schematics and transports. Oceanography, 26(1): 80–97, doi: 10.5670/oceanog

Tozuka T, Qu Tangdong, Masumoto Y, et al. 2009. Impacts of the South China Sea throughflow on seasonal and interannual variations of the Indonesian Throughflow. Dynamics of Atmospheres and Oceans, 47(1–3): 73–85, doi: 10.1016/j.dynatmoce.2008.09.001

Tozuka T, Qu Tangdong, Yamagata T. 2007. Dramatic impact of the South China Sea on the Indonesian Throughflow. Geophysical Research Letters, 34(12): L12612, doi: 10.1029/2007GL030420

Tozuka T, Qu Tangdong, Yamagata T. 2015. Impacts of South China Sea throughflow on the mean state and El Niño/Southern Oscillation as Revealed by a coupled GCM. Journal of Oceanography, 71(1): 105–114, doi: 10.1007/s10872-014-0265-1

Van Sebille E, Sprintall J, Schwarzkopf F U, et al. 2014. Pacific-to-Indian Ocean connectivity: Tasman leakage, Indonesian Throughflow, and the role of ENSO. Journal of Geophysical Research: Oceans, 119(2): 1365–1382, doi: 10.1002/2013JC009525

Vranes K, Gordon A L, Field A. 2002. The heat transport of the Indonesian Throughflow and implications for the Indian Ocean heat budget. Deep Sea Research Part Ⅱ: Topical Studies in Oceanography, 49(7–8): 1391–1410, doi: 10.1016/S0967-0645(01)00150-3

Wang Dongxiao, Liu Qinyan, Huang Ruixin, et al. 2006. Interannual variability of the South China Sea throughflow inferred from wind data and an ocean data assimilation product. Geophysical Research Letters, 33(14): L14605, doi: 10.1029/2006GL026316

Wang Weiwen, Wang Dongxiao, Zhou Wen, et al. 2011a. Impact of the South China Sea throughflow on the Pacific low-latitude western boundary current: a numerical study for seasonal and interannual time scales. Advances in Atmospheric Sciences, 28(6): 1367–1376, doi: 10.1007/s00376-011-0142-4

Wang Yanfeng, Yi Xingfu, Guan Sheng, et al. 2011b. Design and experiment of 500 m undulating towed vehicle. Ocean Technology, 30(3): 1–4

Wei Zexun, Fang Guohong, Susanto R D, et al. 2016. Tidal elevation, current, and energy flux in the area between the South China Sea and Java Sea. Ocean Science, 12(2): 517–531, doi: 10.5194/os-12-517-2016

Wijffels S E, Meyers G, Godfrey J S. 2008. A 20-yr average of the Indonesian Throughflow: Regional currents and the interbasin exchange. Journal of Physical Oceanography, 38(9): 1965–1978, doi: 10.1175/2008JPO3987.1

Wyrtki K. 1961. Physical oceanography of the southeast Asian waters. In: Scientific Results of Marine Investigations of the South China Sea and the Gulf of Thailand. v 2. La Jolla, California: Scripps Institution of Oceanography, 195

Wyrtki K. 1987. Indonesian Through flow and the associated pressure gradient. Journal of Geophysical Research: Oceans, 92(C12): 12941–12946, doi: 10.1029/JC092iC12p12941

Xu Tengfei, Li Shujiang, Faisal Hamzah, et al. 2018. Intraseasonal flow and its impact on the chlorophyll-a concentration in the Sunda Strait and its vicinity. Deep Sea Research Part I: Oceanographic Research Papers, 136: 84–90, doi: 10.1016/j.dsr.2018.04.003

Xu Danya, Malanotte-Rizzoli P. 2013. The seasonal variation of the upper layers of the South China Sea (SCS) circulation and the Indonesian through flow (ITF): An ocean model study. Dynamics of Atmospheres and Oceans, 63: 103–130, doi: 10.1016/j.dynatmoce.2013.05.002

Yaremchuk M, McCreary J Jr, Yu Zuojun, et al. 2009. The South China Sea throughflow retrieved from climatological data. Journal Physical Oceanography, 39(3): 753–767, doi: 10.1175/2008JPO3955.1

Yuan Dongliang, Wang Jing, Xu Tengfei, et al. 2011. Forcing of the Indian Ocean Dipole on the interannual variations of the tropical Pacific Ocean: Roles of the Indonesian Throughflow. Journal of Climate, 24(14): 3593–3608, doi: 10.1175/2011JCLI3649.1

Yuan Dongliang, Zhou Hui, Zhao Xia. 2013. Interannual climate variability over the tropical Pacific ocean induced by the Indian ocean dipole through the Indonesian throughflow. Journal of Climate, 26(9): 2845–2861, doi: 10.1175/JCLI-D-12-00117.1

Appendix

Less

Year 2019 volume 38 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-019-1410-x

Receive Date：2018-06-03
Online Date：2026-03-31
Published：2019-04-25

Article Data

Affiliations

History

Received：2018-06-03
Accepted：2018-07-05

Funding

The National Key Research and Development Program of China under contract No. 2016YFC1402604; the Marine S&T Fund of Shandong Province for Pilot National Laboratory for Marine Science and Technology (Qingdao) under contract No. 2015ASKJ01; the SOA Program on Global Change and Air-Sea Interactions under contract Nos GASI-IPOVAI-03, GASI-IPOVAI-02 and GASI-IPOVAI-01-02; the National Natural Science Foundation of China under contract Nos 40476025, 41506036 and 41876027; the NSFC-Shandong Joint Fund for Marine Science Research Centers under contract No. U1606405; the Office of Naval Research of United States under contract No. N00014-08-01-0618; the China-Indonesia Maritime Cooperation Fund.

Affiliations

¹ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

² Laboratory for Regional Oceanography and Numerical Modeling, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China

³ Department of Atmospheric and Oceanic Science, University of Maryland, College Park, Maryland 20742, USA

⁴ Faculty of Earth Sciences and Technology, Bandung Institute of Technology, Bandung 40116, Indonesia

⁵ Agency for Marine & Fisheries Research, Ministry of Marine Affairs and Fisheries, Jakarta 14430, Indonesia

Corresponding:

*E-mail: weizx@fio.org.cn

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-019-1410-x

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Schedule of the SITE cruises

Sequence	Period	Vessel name	Objective
1	1–5 Dec. 2007	R/V Baruna Jaya IV	Deploy 1 TRBMs in Karimata, CTD casts
2	10–13 Jan. 2008	R/V Baruna Jaya I	Deploy 1 TRBMs in Karimata, CTD casts
3	11–17 Feb. 2008	R/V Baruna Jaya III	Retrieve ADCP data from 2 TRBMs via modem in Karimata, CTD casts
4	5–13 May 2008	R/V Baruna Jaya VIII	Recover 1 TRBMs in Karimata, CTD casts
5	23 Oct.–10 Nov. 2008	R/V Baruna Jaya VIII	Recover 2 TRBMs in Karimata, deploy 3 TRBMs in Karimata and 2 in Sunda, CTD casts
6	7–21 Aug. 2009	R/V Geomarin III	Recover 3 TRBMs in Karimata and 2 in Sunda, CTD casts
7	11–26 Oct. 2009	R/V Geomarin III	Recover 3 TRBMs in Karimata and 2 in Sunda, CTD casts
8	17 Feb.–3 Mar. 2010	R/V Geomarin III	deploy 2 TRBMs in Sunda, CTD casts
9	5–19 Nov. 2010	R/V Madidihang	Recover 3 TRBMs in Karimata and 3 in Sunda, deploy 1 TRBMs in Karimata and 1 in Sunda, CTD casts
10	13 Sep.–8 Oct. 2011	R/V Baruna Jaya VIII	Recover 2 TRBMs in Karimata and 3 in Sunda, deploy 1 TRBMs in Karimata and 1 in Sunda, CTD casts
11	7–29 Jun. 2012	R/V Baruna Jaya III	Recover 1 TRBMs in Karimata and 3 in Sunda, deploy 4 TRBMs in Karimata, CTD casts
12	20–29 Nov. 2012	R/V Baruna Jaya VIII	Recover 4 TRBMs in Karimata, deploy 4 TRBMs in Karimata, CTD casts
13	28 Jun.–7 Jul. 2013	R/V Baruna Jaya VIII	Recover 4 TRBMs in Karimata and 1 in Sunda, deploy 4 TRBMs in Karimata, CTD casts
14	15–24 Nov. 2013	R/V Baruna Jaya VIII	deploy 1 subsurface mooring in Lombok, CTD casts
15	18 Apr.–4 May 2014	R/V Baruna Jaya IV	Recover 4 TRBMs in Karimata, deploy 4 TRBMs in Karimata, CTD casts
16	10–21 Sep. 2014	R/V Baruna Jaya VIII	Recover 1 subsurface mooring in Lombok, CTD casts, Towed CTD, TurboMAP turbulence
17	18–25 Dec. 2014	R/V Baruna Jaya VIII	Recover 4 TRBMs in Karimata, deploy 4 TRBMs in Karimata, CTD casts
18	2–20 Jun. 2015	R/V Baruna Jaya VIII	Recover 4 TRBMs in Karimata, deploy 4 TRBMs in Karimata and 2 in Sunda, CTD casts
19	17–28 May 2016	R/V Baruna Jaya VIII	Recover 4 TRBMs in Karimata and 2 in Sunda, CTD casts

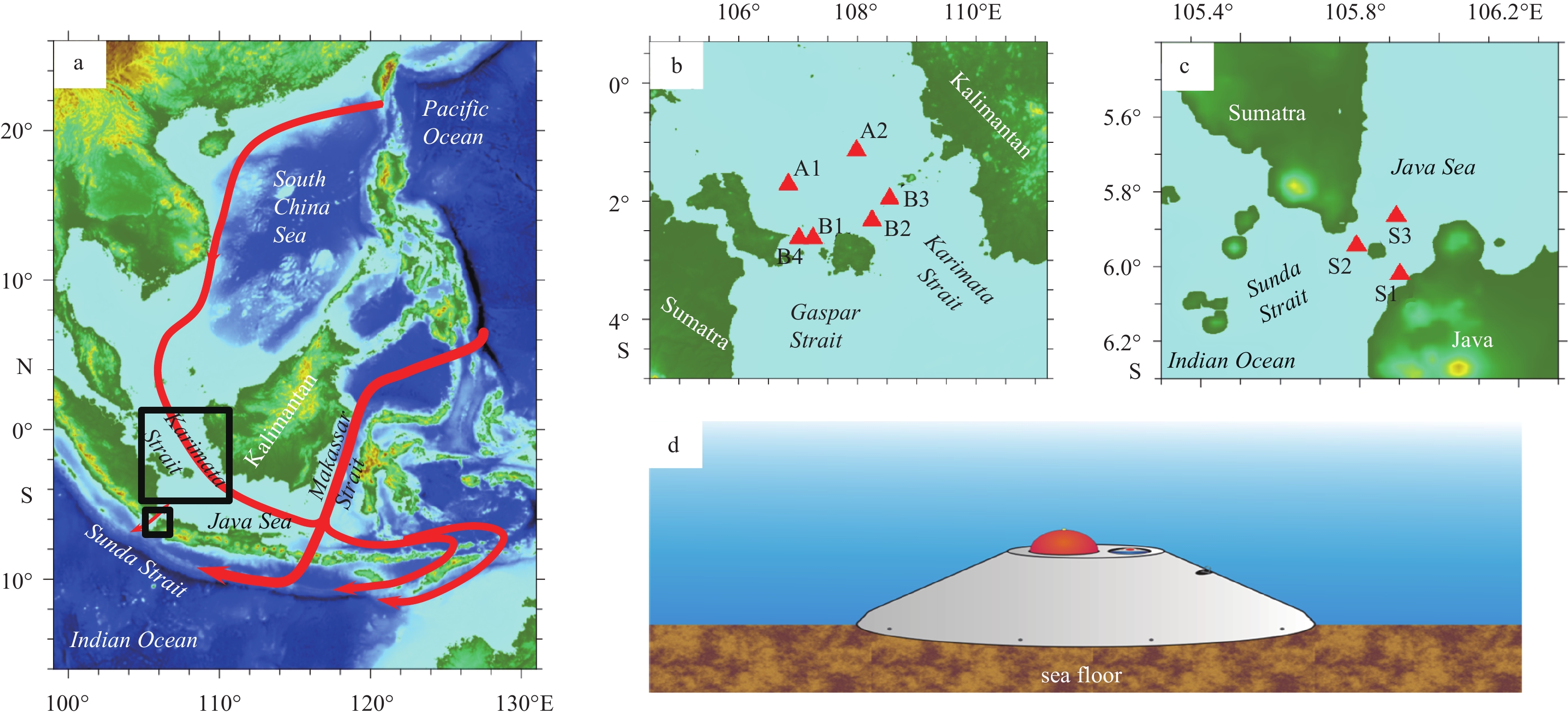

Fig. 1. Schematic map of the Indonesian throughflow (solid) and the South China Sea branch (dashed) of the Pacific to Indian Ocean throughflow (a), TRBM stations in the Karimata Strait (b), TRBM stations in the Sunda Strait (c), and TRBM deployed on the sea floor (d).

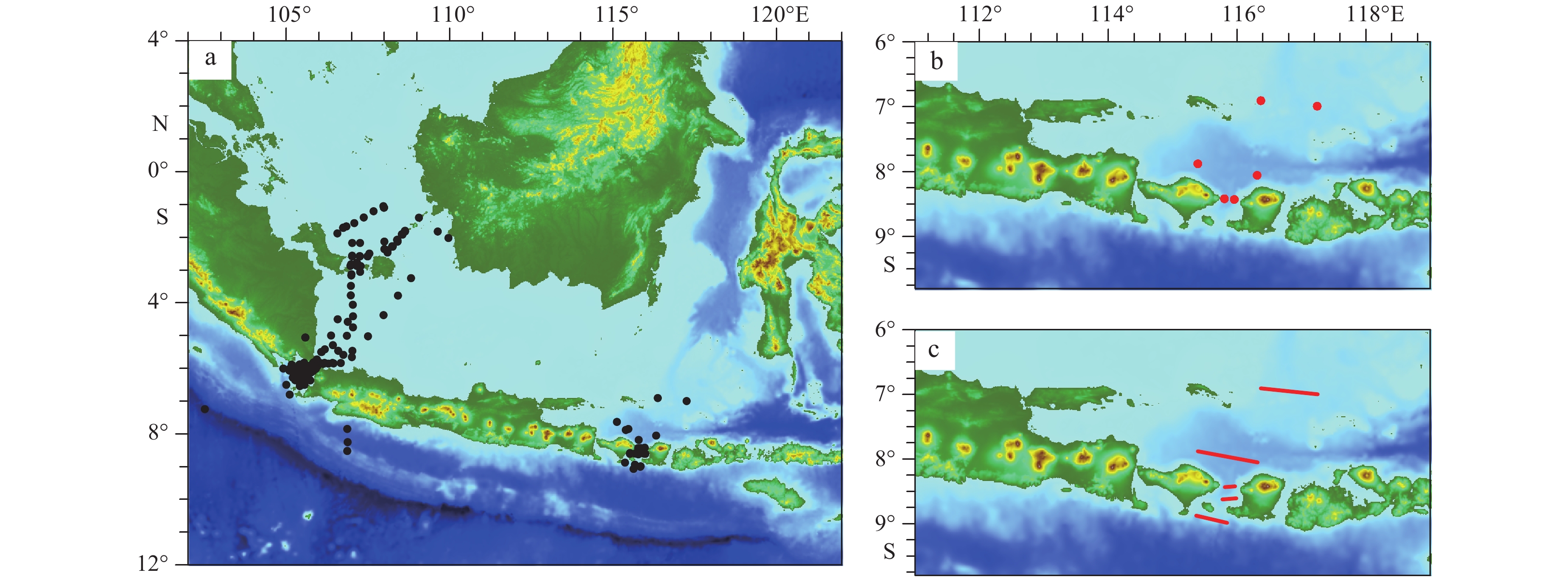

Fig. 2. CTD stations (a), TurboMAP stations (b) and towed vehicle sections (c).

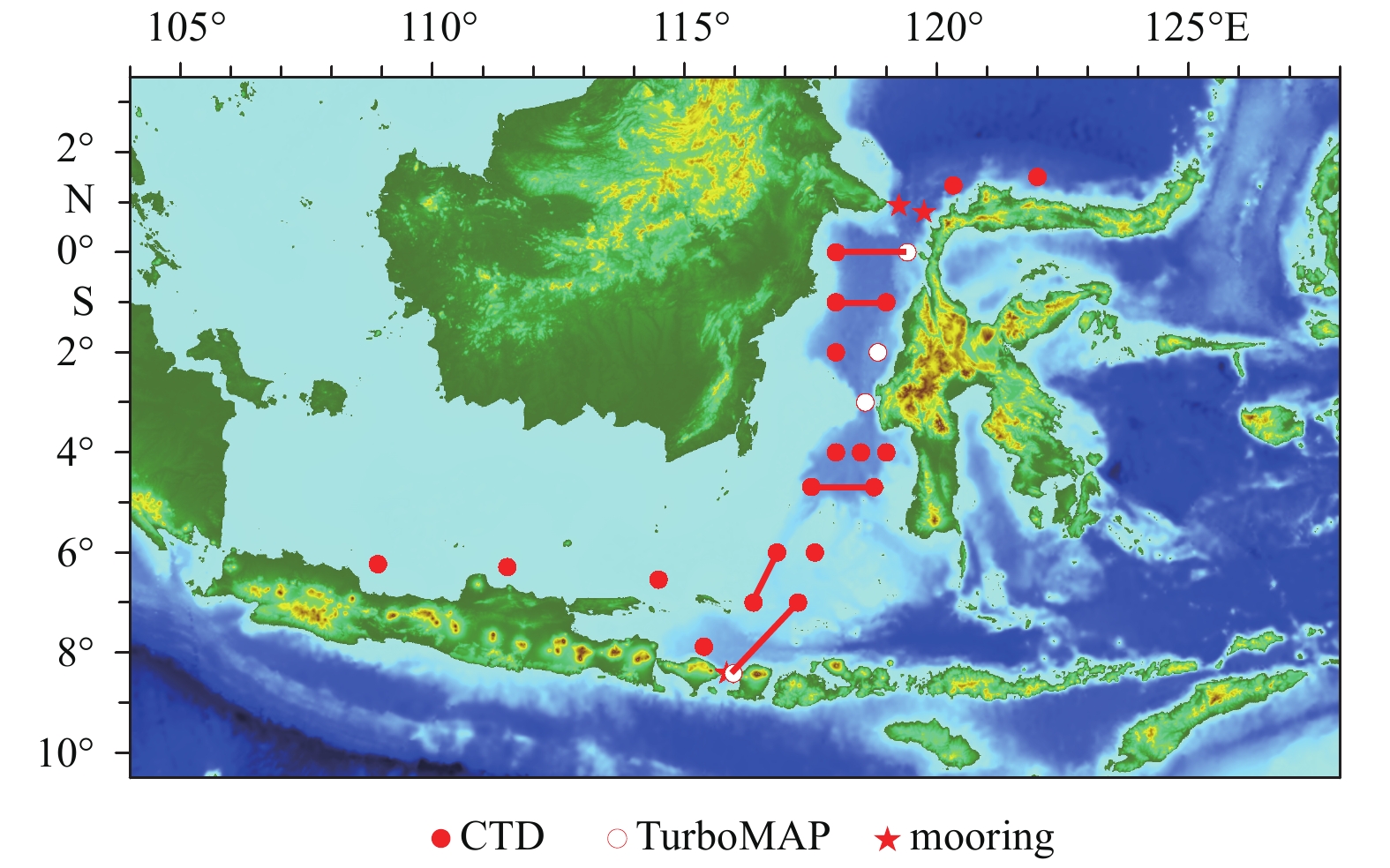

Fig. 3. CTD (solid dot), TurboMAP (dashed dot), subsurface mooring (solid star) stations and towed vehicle sections (solid line) of the first TIMIT cruise.

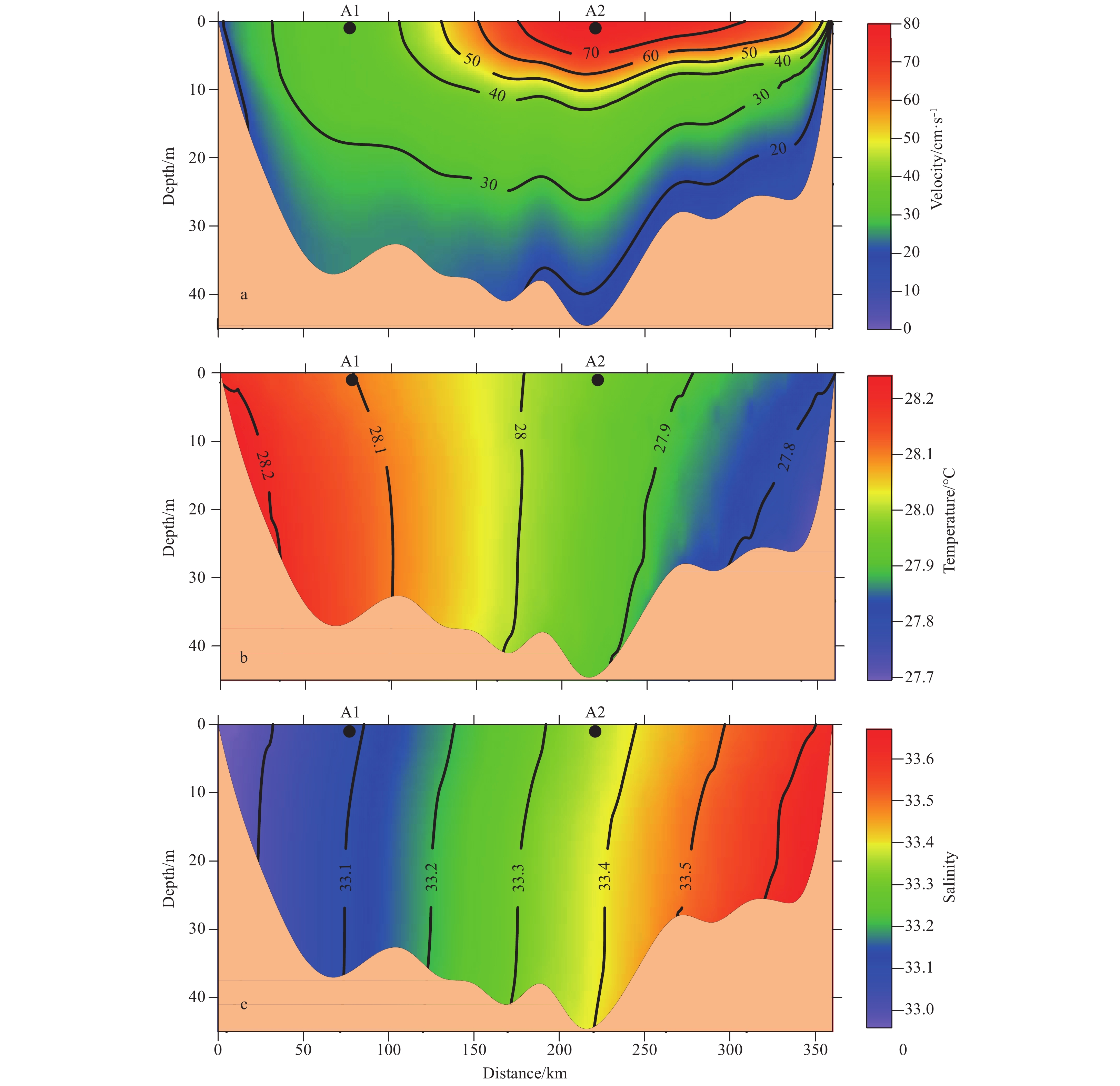

Fig. 4. Distributions of mean along-channel velocity (a), temperature (b), and salinity (c) on Section A for the month from 13 January to 12 February 2008. Bathymetry along the section is based on the nautical chart published by the Indonesian Hydro-Oceanographic Service, with minor adjustment near A1 and A2 based on bottom pressure observations at these two stations (Fang et al., 2010).

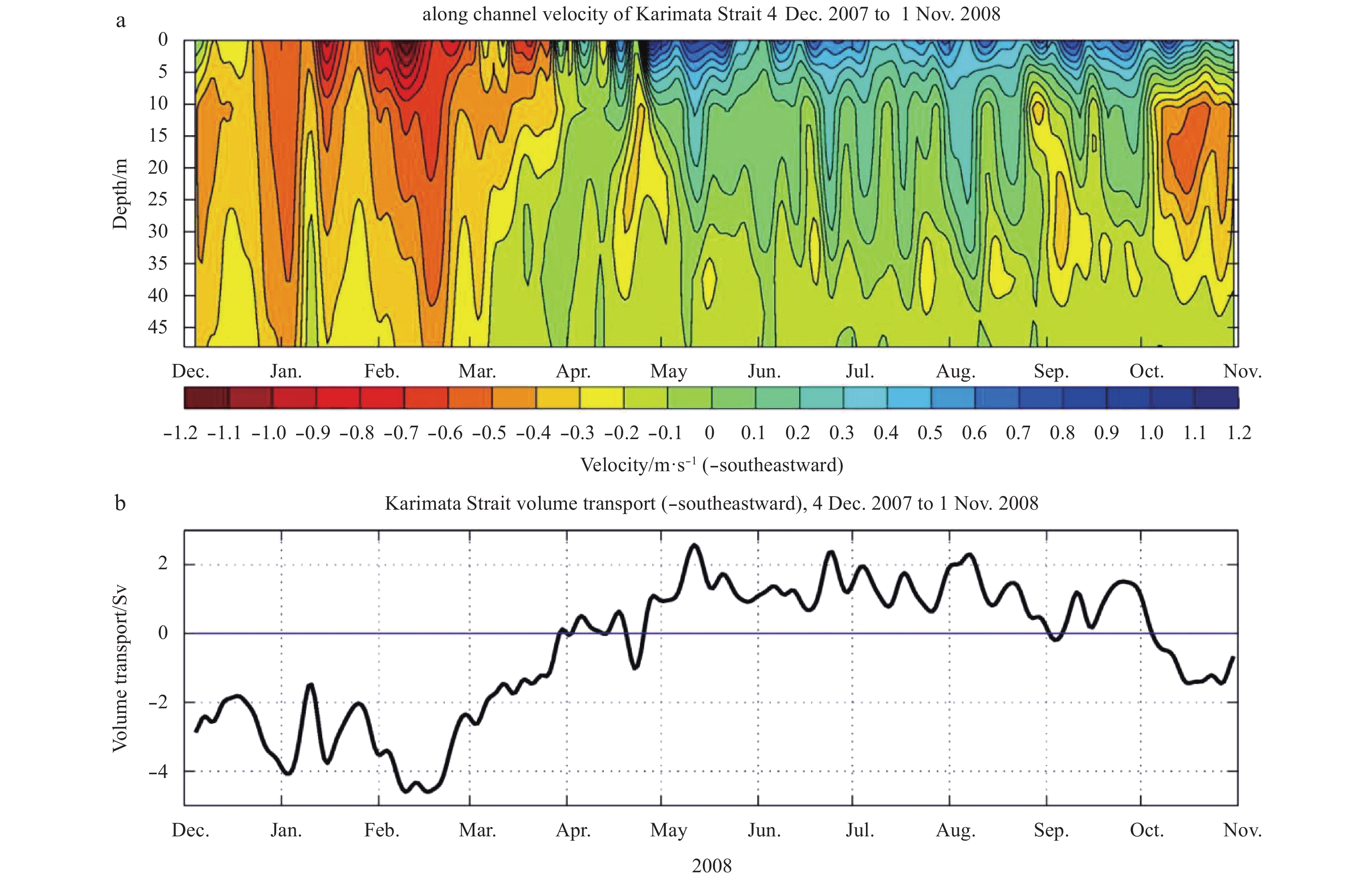

Fig. 5. The along-strait velocity time series for the Karimata Strait derived from the ADCP at the A2 mooring for the period from 4 December 2007 to 1 November 2008 (a), and estimated Karimata Strait volume transport for the same period (b). a. The contour interval is 0.1 m/s, and negative values denote southeastward flow along strait velocity, which is parallel to the axis of the Karimata Strait (154° referenced to true north). b. Negative values indicate water transfer from the South China Sea to the Indonesian seas (Susanto et al., 2013).

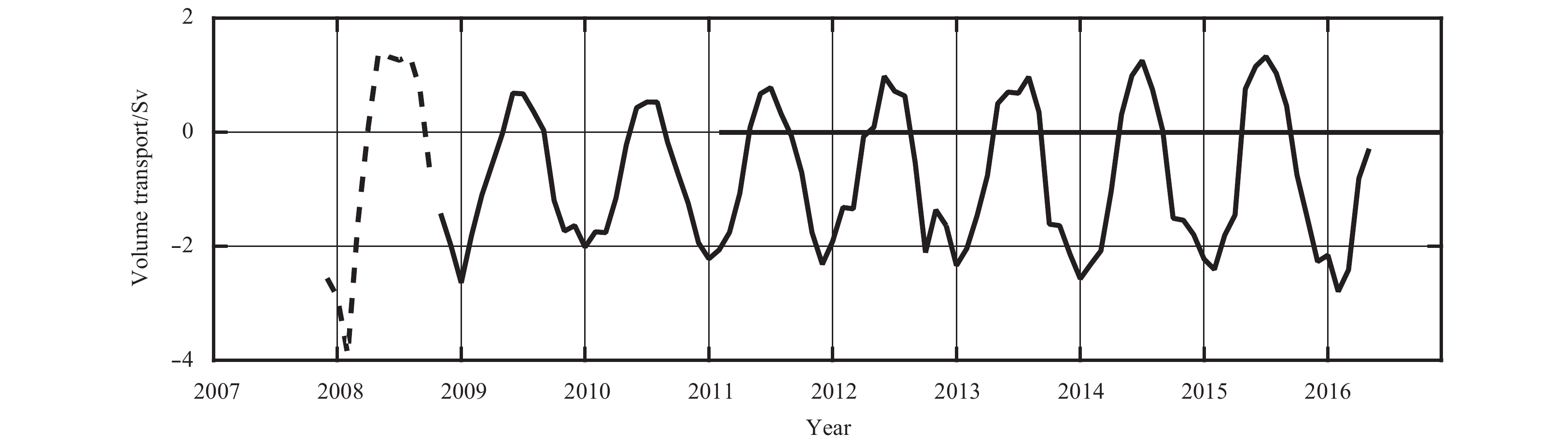

Fig. 6. Volume transport through the Karimata Strait. Dashed and solid lines indicate the transport along Sections A (December 2007 to November 2008) and B (December 2008 to May 2016), respectively.

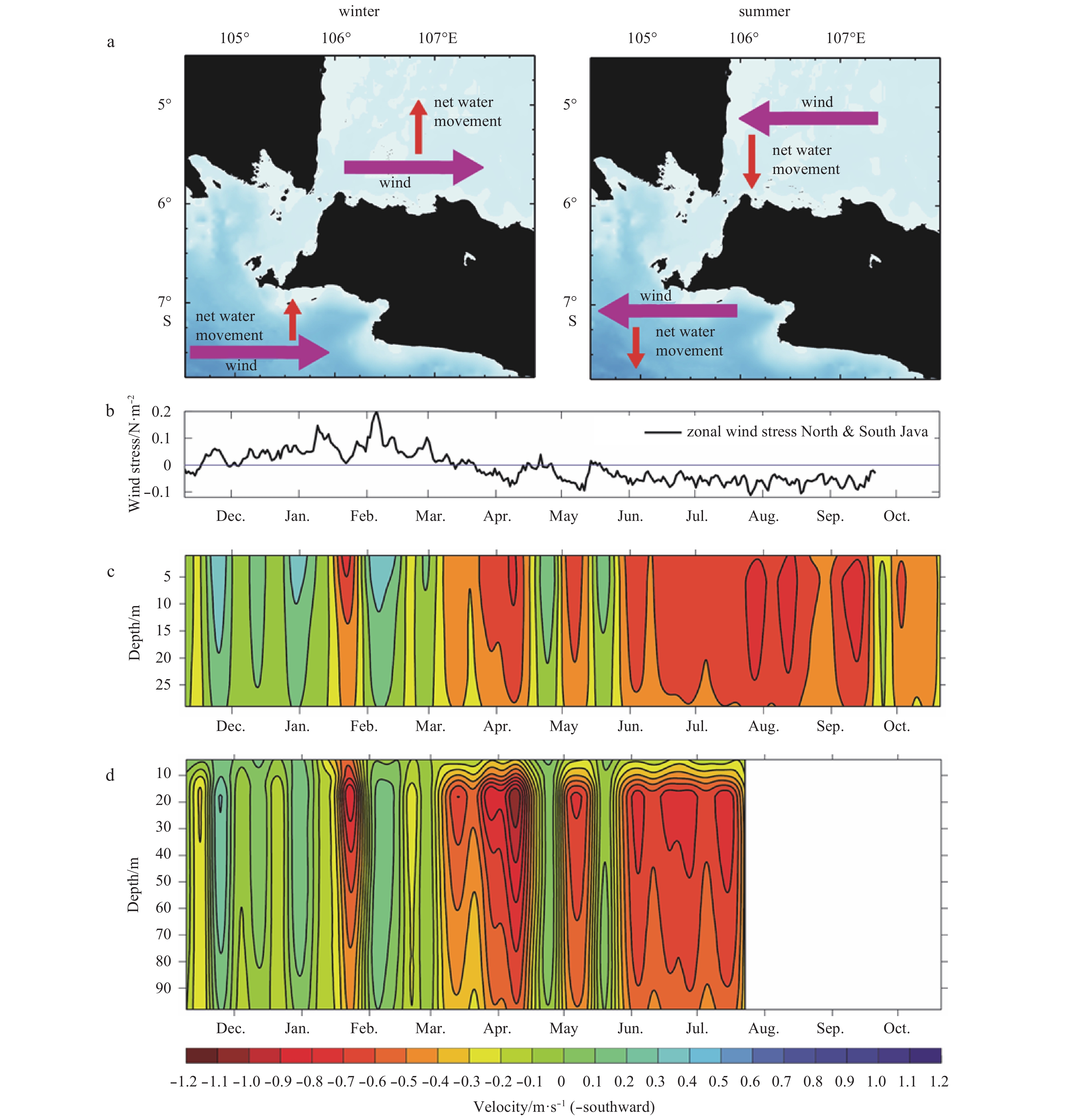

Fig. 7. The variability of wind stress and along-strait current in the Sunda Strait. a. Schematic of Ekman transport in the Southern Hemisphere during boreal winter and summer monsoons. Wind directions are indicated by the purple arrows and their net water transport/displacements, which are 90° to the left of wind directions, by the red arrows. b. Averaged zonal wind stress to the north and south of the Java Island from 12°S to 3°S and 100°E to 115°E. c. Along-strait velocity profile time series in the Sunda Strait based on trawl-resistant, bottom-mounted acoustic Doppler current profiler (ADCP) data collected at Sunda East from November 2008 to October 2009. d. Similar data as in c, based on the Sunda West ADCP from November 2008 to July 2009. For clarity in the velocity plots, a two-week low-pass filter has been applied (Susanto et al., 2016).

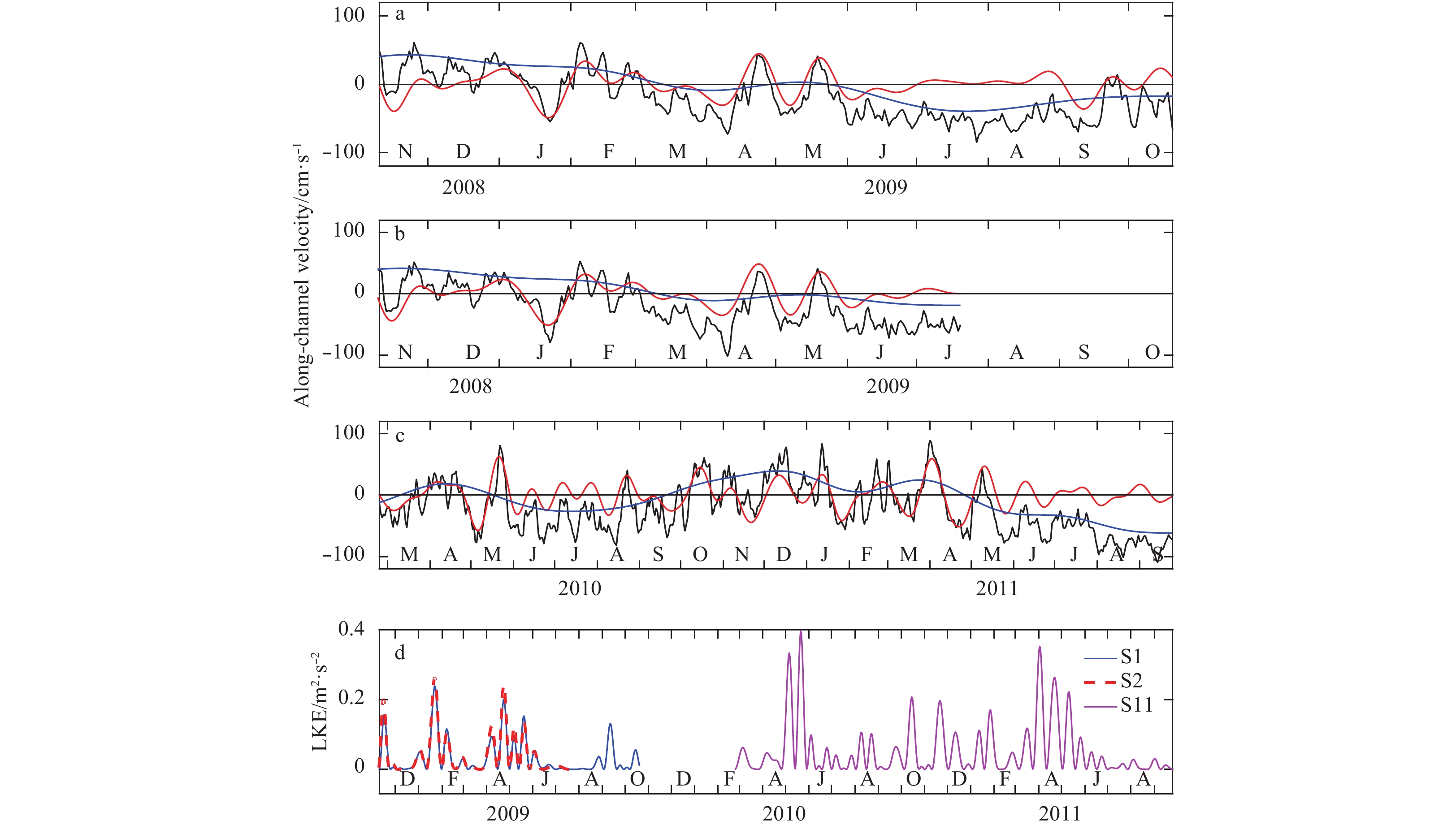

Fig. 8. Time series of vertically averaged along-channel velocities at S1 (a), S2 (b), and S3 (c); and time series of the low-frequency kinetic energy (LKE) at these stations in the Sunda Strait (d). In a, b and c, the black lines indicate the daily mean values; the red lines the intraseasonal variation after 20-90-day bandpass filtering; and the blue lines the seasonal variation after 90-day low-pass filtering. The annual means (–17, –25 and –18 cm/s at S1, S2 and S11, respectively) are removed before plotting. Positive/negative values represent inflow/outflow into/from the Java Sea along the channel (Li et al., 2018).

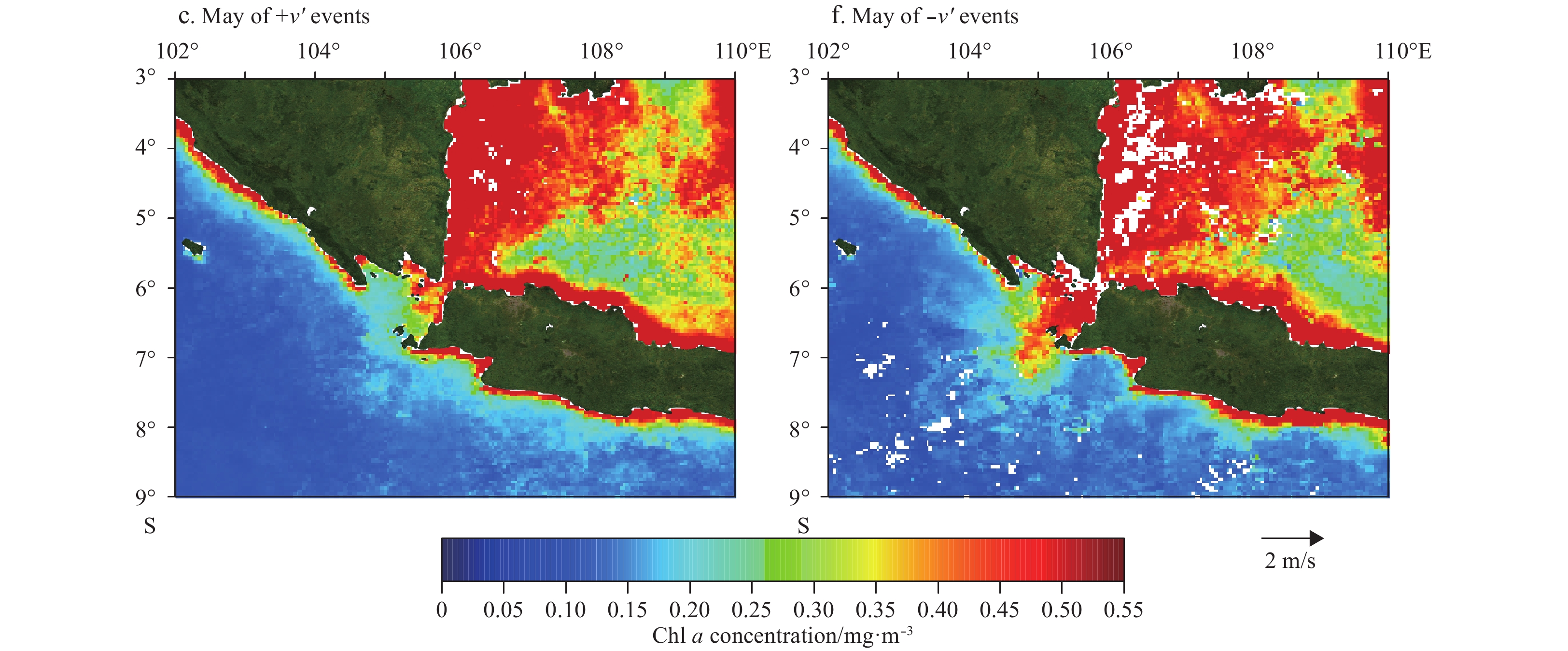

Fig. 9. Composite chlorophyll a concentrations (mg/m³) and sea surface winds (m/s) for positive (a–c) and negative ISV (d–f) events from March through May. The positive and negative ISV events refer to the net inflow (form Indian Ocean to Java Sea) and net outflow (from Java Sea to Indian Ocean) through the Sunda Strait, respectively (Xu et al., 2018). +v′ means positive ISV, and –v′ negative ISV.

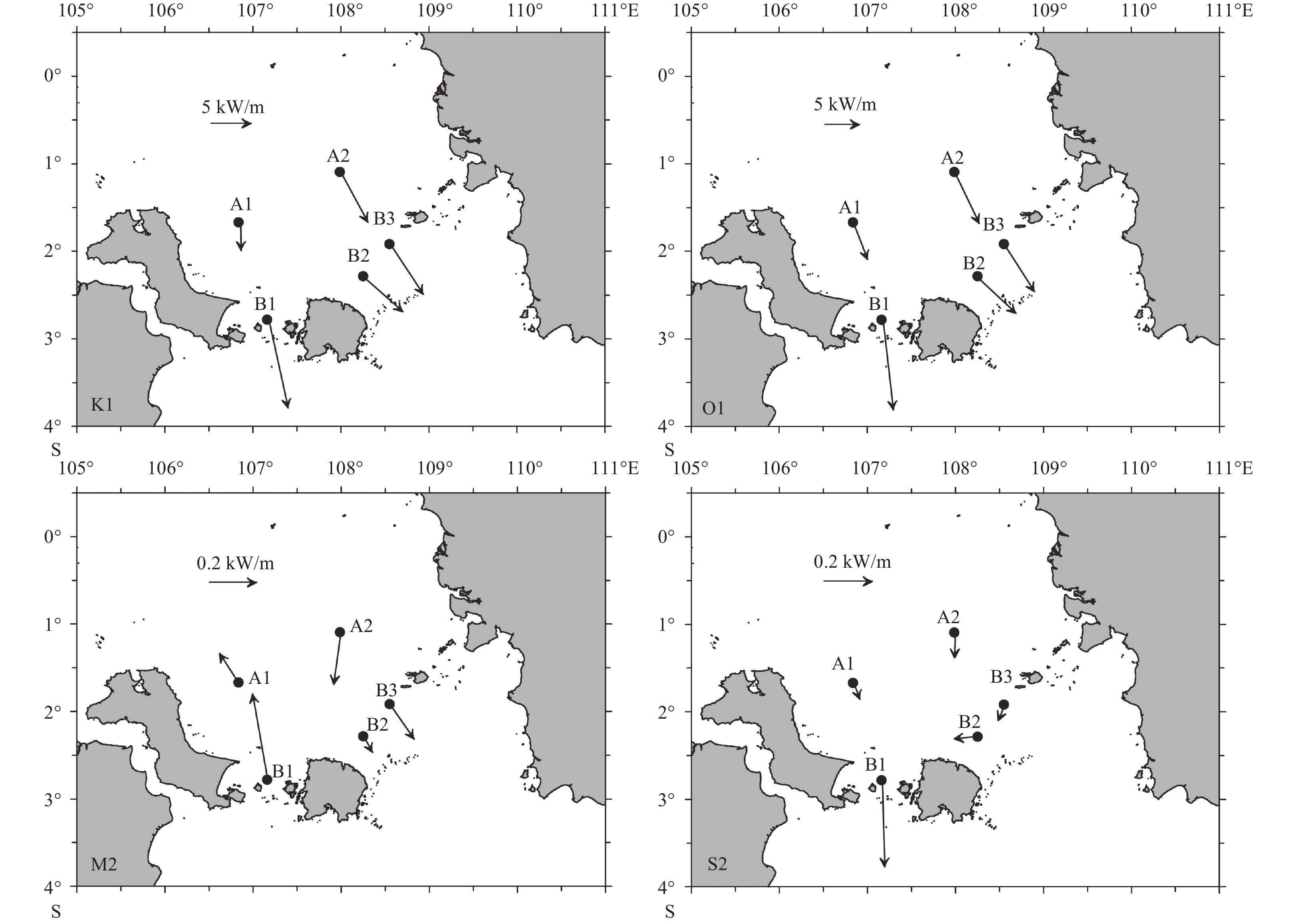

Fig. 10. Horizontal tidal energy flux density across the Karimata Strait derived from sea level record and current profile observations of the SITE project (Wei et al., 2016).
