The B/Ca and Cd/Ca of a subsurface-dwelling foraminifera Pulleniatina obliquiloculata in the tropical Indo-Pacific Ocean: implications for the subsurface carbonate chemistry estimation
收藏切换
PDF
Haowen DANG1, 2, *, Tingting WANG1, Peijun QIAO1, Franck BASSINOT2, Zhimin JIAN1
Acta Oceanologica Sinica | 2019, 38(3) : 138 - 150
Less
收藏切换
Acta Oceanologica Sinica | 2019, 38(3): 138-150
• Marine Geology •
The B/Ca and Cd/Ca of a subsurface-dwelling foraminifera Pulleniatina obliquiloculata in the tropical Indo-Pacific Ocean: implications for the subsurface carbonate chemistry estimation
Full
Haowen DANG1, 2, *, Tingting WANG1, Peijun QIAO1, Franck BASSINOT2, Zhimin JIAN1
Affiliations
  • 1 State Key Laboratory of Marine Geology, Tongji University, Shanghai 200092, China
  • 2 Laboratoire des Sciences du Climat et de l’Environnement/IPSL, CEA-CNRS-UVSQ, Université Paris-Saclay, Gif-sur-Yvette 91190, France
Published: 2019-03-25 doi: 10.1007/s13131-019-1406-6
Outline
收藏切换

Pulleniatina obliquiloculata shells from 16 core-top samples from the tropical Indo-Pacific Oceans are analyzed for the ratios of boron and cadmium to calcium (B/Ca and Cd/Ca). The B/Ca ratios show a very weak positive relationship with $\left[ {{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - } \right]$ and the dissolved carbonate species at the apparent calcification depth of P. obliquiloculata. The boron partition coefficients (KD) between P. obliquiloculata B/Ca and seawater $\left[ {{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - } \right]/\left[ {{\rm{HCO}}_3^ - } \right]$ distribute around 1.1×10-3–1.3×10-3 with a mean value of (1.19±0.12)×10-3, and are significantly related to the nutrient concentration, especially phosphate. The lack of any clear correlation between the P. obliquiloculata B/Ca and seawater carbonate chemical parameters suggests that the physiochemical controls on boron incorporation are masked by the complexity of natural seawater condition. But the significant dependence of KD on nutrient may likely be explained by a nutrient related growth-rate effect. Cd/Ca of P. obliquiloculata shows significant correlation with seawater phosphate concentration, and its partition coefficients (DCd) are significantly related to temperature. A first-principle methodology of P. obliquiloculata B/Ca is applied, with the aid of Cd/Ca as a phosphate proxy and a constraint on KD, to estimating sea water carbonate chemistry (e.g., pH). The results are fairly promising and allow us to propose the possibility to apply the combination of B/Ca and Cd/Ca proxies (and also Mg/Ca and δ18O for estimating temperature and salinity) for the paleo-reconstruction of seawater carbonate chemistry.

Pulleniatina obliquiloculata  /  B/Ca  /  Cd/Ca  /  paleo-pH estimation
Haowen DANG, Tingting WANG, Peijun QIAO, Franck BASSINOT, Zhimin JIAN. The B/Ca and Cd/Ca of a subsurface-dwelling foraminifera Pulleniatina obliquiloculata in the tropical Indo-Pacific Ocean: implications for the subsurface carbonate chemistry estimation[J]. Acta Oceanologica Sinica, 2019 , 38 (3) : 138 -150 . DOI: 10.1007/s13131-019-1406-6
Full Text
Less
1 Introduction
Less
The ratio of boron to calcium contents (B/Ca) in foraminiferal shells may be used to reconstruct seawater carbon chemistry because of the theoretical pH-dependency of boron content in carbonate. When dissolved in sea water, boron exists as tetrahedrally-coordinating ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ and trigonally-coordinating B(OH)3, and their relative abundances are pH-dependent due to the reaction: B(OH)3 + H2O = ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ + H+, i.e., [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] (${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ concentration) increases with increasing pH. Since the primary species of dissolve B(OH)3 boron incorporated into carbonate is believed to be ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ (Vengosh et al., 1991; Hemming and Hanson, 1992), the relative content of boron in carbonate is supposed to increase with pH at constant total dissolved boron (BT) (Sanyal et al., 2000; He et al., 2013). Assessments of the relationship between solid carbonate B/Ca and the liquid inorganic carbon chemistry has been performed on inorganic calcite (e.g., Sanyal et al., 2000; Uchikawa et al., 2015) and several planktonic foraminifera species from core-top sediment (e.g., Foster, 2008; Yu et al., 2013; Dai et al., 2016; Quintana Krupinski et al., 2017), sediment traps (e.g., Hendry et al., 2009; Babila et al., 2014; Salmon et al., 2016) and culture experiments (e.g., Allen et al., 2011, 2012, 2016; Henehan et al., 2015; Haynes et al., 2017; Howes et al., 2017). But, regarding the B/Ca ratio, it is still under fierce debate about the fundamental kinetic of boron incorporation, the correlation of B/Ca with sea-water physiochemical parameters, and the practical application of B/Ca proxy.
Owing to different molecular geometries and vibrational frequencies, B(OH)3 is more enriched in 11B than ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ by a constant δ11B offset of 27.2‰ at equilibrium (Klochko et al., 2006). Since the δ11B of BT in modern seawater is at 39.6‰ (Foster et al., 2010), the δ11B of B(OH)3 and ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ are pH dependent. Based on the close agreement between δ11B values of either biogenic or synthetic CaCO3 and the ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ of seawater or other experimental solutions (Vengosh et al., 1991; Hemming and Hanson, 1992; Sanyal et al., 1996, 2000, 2001; Henehan et al., 2013), as well as the positive correlation of the boron content in synthetic CaCO3 with the solution pH and BT (Hemming et al., 1995; Sanyal et al., 2000; He et al., 2013) (raising BT at constant pH increases both [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] and [B(OH)3], while raising pH at constant BT increases [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] but decreases [B(OH)3]), it was suggested that ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ should be the major species of boron to be incorporated into CaCO3 lattice: CaCO3 + ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ → Ca(HBO3) + ${{\rm{HCO}}_3^ - }$ + H2O. The fluid-solid B distribution coefficient “KD” may be expressed as: ${K_D} = {\left[ {{\rm{HBO}}_3^{2 - }/ {\rm{CO}}_3^{2 - }} \right]_{{\rm{solid}}}}/ {\left[ {{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - /{\rm{HCO}}_3^ - } \right]_{{\rm{fluid}}}}$ (Hemming and Hanson, 1992), and simplified later as KD = [B/Ca]solid /[${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/${{\rm{HCO}}_3^ - }$]fluid based on the stoichiometric approximation of [Ca2+] and [${{\rm{CO}}_3^{2 - }}$] in carbonate (Yu et al., 2007).
However, such a mode of B incorporation requires a tetrahedral to trigonal coordination change from ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ to ${{\rm{HBO}}_3^{2 - }}$, and is controversial because both trigonal and tetrahedral forms of boron were reported to exist in calcite and aragonite (Sen et al., 1994; Klochko et al., 2009) and B may also reside in non-lattice (defect) sites in calcite (Ruiz-Agudo et al., 2012). Moreover, the B abundance in calcite increases with calcite growth rates (Gabitov et al., 2014; Uchikawa et al., 2015). The kinetic enrichment of B at a higher calcification rate could be explained by a “growth entrapment model” which posits the boron incorporation as a competition between the calcite growth rate and the diffusivity of B within the outermost regions of the growing crystals (Watson, 2004; Gabitov et al., 2014), or a “surface kinetic model” which views the boron incorporation as a competition between the calcite precipitation rate and the molecular exchange on the solid-fluid interface through dissolution-reprecipitation cycles (DePaolo, 2011). Uchikawa et al. (2015) suggest that there is a potential threshold of calcification rate, below which the primary pathway of B incorporation is via ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$, and conversely above which incorporation of B(OH)3 is kinetically enhanced.
Practically, the B/Ca ratio in planktonic foraminiferal calcite was applied to estimate seawater pH via calculation of seawater [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/${{\rm{HCO}}_3^ - }$] on the basis of that the partitioning coefficient KD and at least one more carbonate chemistry parameter (e.g., alkalinity) could be independently constrained or estimated (Yu et al., 2007; Tripati et al., 2009). However, the temperature effect on KD was found either positive (Wara et al., 2003; Yu et al., 2007; Tripati et al., 2009) or negative (Foster, 2008). For cultured planktonic foraminifers, little influence of temperature variations on KD could be found (Sanyal et al., 1996; Allen et al., 2011, 2012). Factors other than temperature were noted to influence KD, including seawater [${{\rm{CO}}_3^{2 - }}$] (Foster, 2008), foraminifer growth rate (Ni et al., 2007), as well as pH, BT and salinity (Sanyal et al., 1996; Allen et al., 2011, 2012). In addition, besides [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/${{\rm{HCO}}_3^ - }$], the ratio of borate to dissolved inorganic carbon (DIC) [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/DIC] could be a controlling parameter for B/Ca due to the potential incorporation of ${{\rm{CO}}_3^{2 - }}$ ion into calcite (Allen and Hönisch, 2012; Allen et al., 2012). While, in practical terms the difference between using [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/${{\rm{HCO}}_3^ - }$] and [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/DIC] is negligible as DIC is composed mainly of ${{\rm{HCO}}_3^ - }$ under typical seawater conditions.
Recently, several planktonic foraminifera culture studies have been conducted to investigate direct linkages of B/Ca with seawater properties and shown that B/Ca can be positively correlated to pH, [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/${{\rm{HCO}}_3^ - }$] and [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$/DIC], and potentially negatively correlated to DIC (Allen et al., 2011, 2012; Henehan et al., 2015; Haynes et al., 2017; Howes et al., 2017). However, these relationships are usually lost or largely weakened in plankton tows or sedimentary samples (e.g., Haynes et al., 2017; Quintana Krupinski et al., 2017). On the basis of foraminifera samples from plankton tows, sediment traps and core-top sediments, it is found that phosphate concentration [${\rm{PO}}_3^{4 - }$] strongly affects the B/Ca of Globigerinoides ruber (Henehan et al., 2015), test thickness correlates well with the B/Ca of several spinose planktonic foraminifers (Orbulina universa, G. ruber pink and Globorotalia truncatulinoides) (Salmon et al., 2016), and seawater calcite saturation (Ωcalcite) significantly determines the B/Ca of G. bulloides and Neogloboquadrina incompta (Quintana Krupinski et al., 2017). These observations may imply a growth rate control on the B/Ca of planktonic foraminifers. When applying the laboratory-based empirical calibrations of the B/Ca proxy directly with carbonate system parameters for marine sedimentary samples, several difficulties may be met: (1) many physiochemical parameters co-vary in seawater, (2) other environmental factors may mask the relationships found in laboratory; and (3) the chemistry of the calcification pool may deviate from the ambient seawater due to species-specific biological processes (i.e., vital effect).
Therefore, although cultured foraminifera and synthesized carbonate experiments can provide empirical evidences about the physiochemical controls on B/Ca, measurements on the field samples are also important for the practical usage of this proxy for sediment-based paleo-reconstructions. By far, several studies have been performed for photosymbiont-bearing and mixed-layer dwelling species of planktonic foraminifera (Allen et al., 2011, 2012; Babila et al., 2014; Henehan et al., 2015; Haynes et al., 2017; Howes et al., 2017). But the B/Ca calibration work has been under-studied for asymbiotic and subsurface dwelling species (Yu et al., 2013; Quintana Krupinski et al., 2017), whose carbonate chemistry is supposed to be simpler due to the lack of symbiont photosynthesis. The subsurface dwelling planktonic foraminifera carry key information about the water beneath the mixed-layer, and thus would help to better understand the ocean-atmosphere interaction in terms of upper-water vertical carbon exchange.
In this study, we focus on P. obliquiloculata, a subsurface dwelling planktonic foraminifer that has been deployed for reconstructions of the thermocline condition in low-latitude oceans (Prell and Damuth, 1978; Kennett et al., 1985; Jian et al., 2000; Xu et al., 2008). B/Ca of P. obliquiloculata was proved to be barely affected by post-depositional dissolution effect (Dai et al., 2016). We analyze the B/Ca and Cd/Ca ratios of P. obliquiloculata taken from 16 core-top samples from the tropical western Pacific, Indian and Atlantic Oceans. Our results may provide practical constraints for the paleoceanographic application of B/Ca and Cd/Ca proxies to reconstruct subsurface water carbonate chemistry and nutrient concentration.
2 Methods
Less

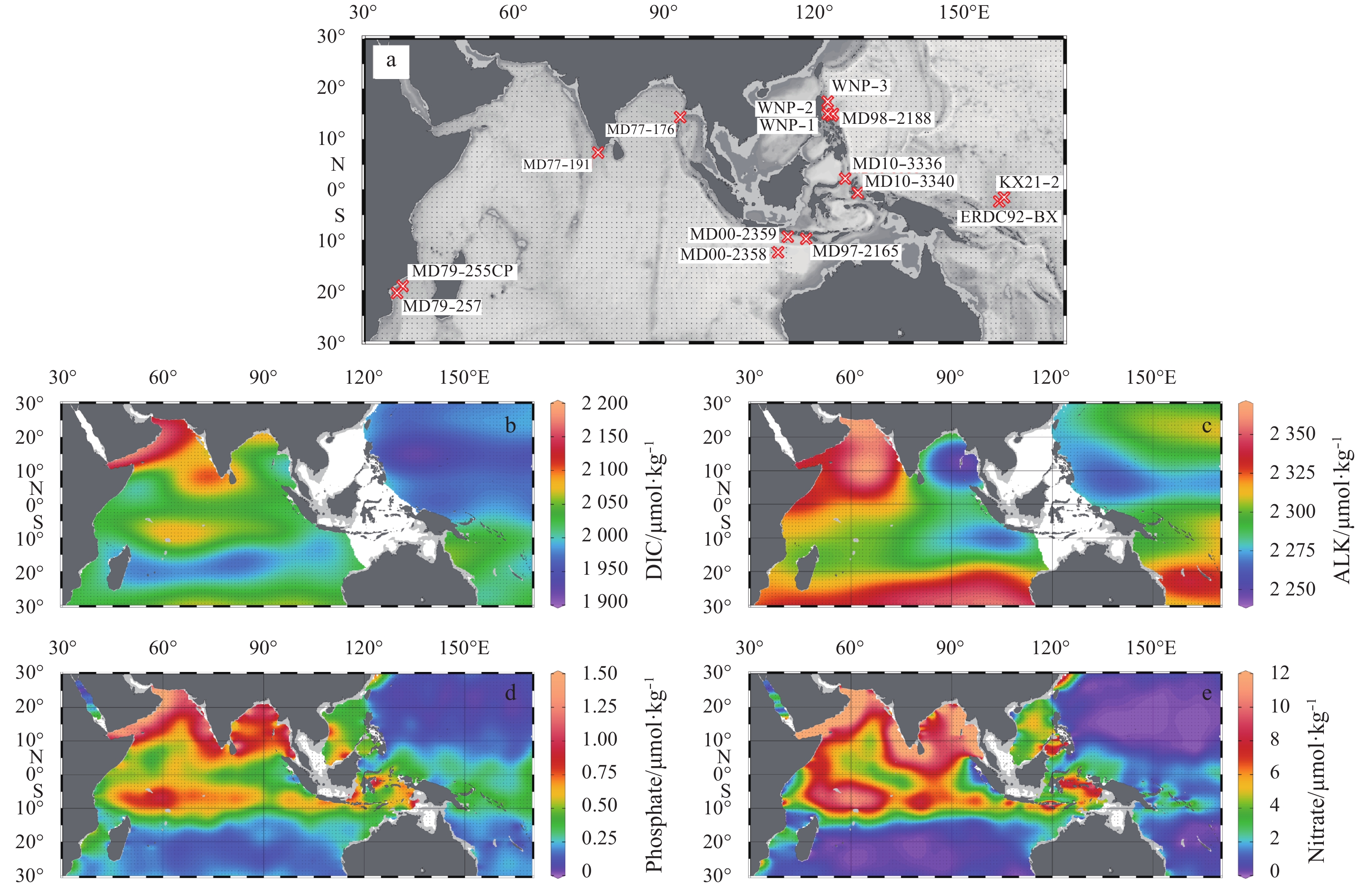

2.1 Materials
The core-top samples were collected from the sediment core repository of LSCE (Laboratoire des Sciences du Climat et de l’Environnement/IPSL) and two Chinese cruises (Table 1). These cores were retrieved from sub-basins or sea-mounts above the calcium compensation depth (water depth less than 3 000 m) (Table 1). The samples range over the tropical western Pacific and Indian Oceans (Fig. 1, with one tropical North Atlantic sample), where modern seawater properties in the water column, including alkalinity and total CO2, are determined (Table 1). All these core-top samples are younger than 2 ka, based on AMS 14C dates and δ18O stratigraphy.
2.2 Laboratory analyses
More than 24 clean and intact P. obliquiloculata tests were picked from the 350–450 μm size fraction of each sample. The specimens were weighted by a Sartorius microbalance scale and then gently cracked, and the fragments were well mixed. One third (>0.15 mg) of the fragments were cleaned by ultrapure water (18.2 MΩ) and methanol in ultrasonic bath, and analyzed on a MAT252/253 for δ18O. The δ18O analyses were monitored by China National Standard GBW04405, and converted to PDB standard via NBS19. The analytical error of δ18O is 0.07‰ (1σ) by replicate measurements on GBW04405 (Cheng et al., 2005).
The other two thirds (>0.3 mg) were cleaned following the “Cd-cleaning” protocol (Martin and Lea, 2002; Rosenthal et al., 2004). After cleaning, we inspected all samples under a microscope and removed all shell fragments attaching possible contamination (e.g., dark minerals, brownish clusters). All sample handling following crushing was done in a laminar flow fume hood in the air-cleaned laboratory, and samples were kept closed in vials to avoid possible contamination from the air. All the plasticwares used for the pretreatment processes were pre-washed by ultrapure water and 10 mol/L nitric acid (optima grade), to remove all possible contaminations.
The elemental ratios were analyzed on a Thermo-X7 ICP-MS following a method revised from Yu et al. (2005). Samples were fully dissolved on the day of measurement by 300 μL of 0.075 mol/L nitric acid (optima grade), then 50 μL of the solutions were mixed with 50 μL 0.075 mol/L nitric acid and then measured for a first-run to acquire the calcium concentration. For the final measurement, the [Ca] of all samples were diluted to 100×10–6, or 60×10–6 if the concentrations were low, and the total volume of the samples is kept larger than 350 μL to ensure at least five runs for each sample. The calibration equations of the element to calcium ratios were established by a matrix of standards with varying [Ca] of 60×10–6 and 100×10–6 for each element. Between every three samples, one consistency standard is inserted to monitor and correct the drifting and mass bias effects. The mean relative uncertainties of P. obliquiloculata B/Ca, Mg/Ca and Cd/Ca are 2.3%, 4.4% and 18.7% (2σ), respectively, indicated by 11 replicate samples. The relatively large uncertainty in Cd/Ca results relates to the low cadmium content in foraminifera shells, and perhaps to the remnant contamination due to diagenetic oxides.
2.3 Main apparent calcification depth of P. obliquiloculata
The main calcification depth of P. obliquiloculata was believed to situate mainly in the seasonal thermocline (e.g., Xu et al., 2006 and references therein). However, recent tropical Indo-Pacific core-top study and plankton tow observations reveal that the calcification depth of P. obliquiloculata may fluctuate between 30 and 150 m. Therefore, in this study, we calculated the inorganic carbonate δ18O by seawater temperature and salinity (McCrea, 1950), where the salinity was converted to seawater δ18O using the region-specific equations of LeGrande and Schmidt, (2011). Then we compared the measured shell δ18O of P. obliquiloculata with the predicted inorganic carbonate δ18O. Consequently, we can define the main apparent calcification depth of P. obliquiloculata as the depth where minimal differences between the shell and inorganic carbonate δ18O are found (Dang et al., 2018). Accordingly, for the following seawater carbonate system calculations and related discussions, we will always deal with the related seawater parameters at the defined apparent calcification depths (Table 1).
2.4 Seawater CO2 chemistry calculation
For each site, the seawater temperature and salinity (from SODA2.1.6) (Carton and Giese, 2010), and the concentrations of nutrients (from WOA09) (Garcia et al., 2010) are retrieved from the most nearby grid point (1°×1° grids). Seawater alkalinity and DIC are taken from the most nearby GLODAP grids (Key et al., 2004). The other parameters of seawater CO2 system are calculated by CO2Sys V2.1 (Lewis and Wallace, 1998) (the physiochemical constants for the calculations are selected based on the default settings of the program and the units of parameters used in this study). The uncertainties of temperature, salinity, nutrients, alkalinity and total CO2 are given by the respective datasets. The 2σ error of seawater [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$], [${{\rm{HCO}}_3^ - }$], [${{\rm{CO}}_3^{2 - }}$] are estimated by Monte Carlo simulations, using 3 000 random sub-samples.
3 Results and discussion
Less
3.1 P. obliquiloculata B/Ca and the carbonate system parameters
The B/Ca of our core-top P. obliquiloculata samples range between 49 and 66 μmol/mol (Table 1). The P. obliquiloculata B/Ca values of this study are comparable to the observations on other subsurface foraminifer species (Henehan et al., 2016), e.g., N. dutertrei from tropical eastern Pacific and Atlantic core-tops (B/Ca=48–62 μmol/mol) (Foster, 2008), and N. pachyderma (sinistral) from North Atlantic core-tops (B/Ca=56–67 μmol/mol) (Yu et al., 2013) and a sub-Antarctic sediment trap (B/Ca=45–77 μmol/mol) (Hendry et al., 2009). However, P. obliquiloculata B/Ca results from the tropical Indo-Pacific in this study are slightly lower than those from the Ontong-Java Plateau and Mauritius-Mascarene Seas (62–74 μmol/mol) (Dai et al., 2016), which were performed on smaller P. obliquiloculata tests (300–355 μm).

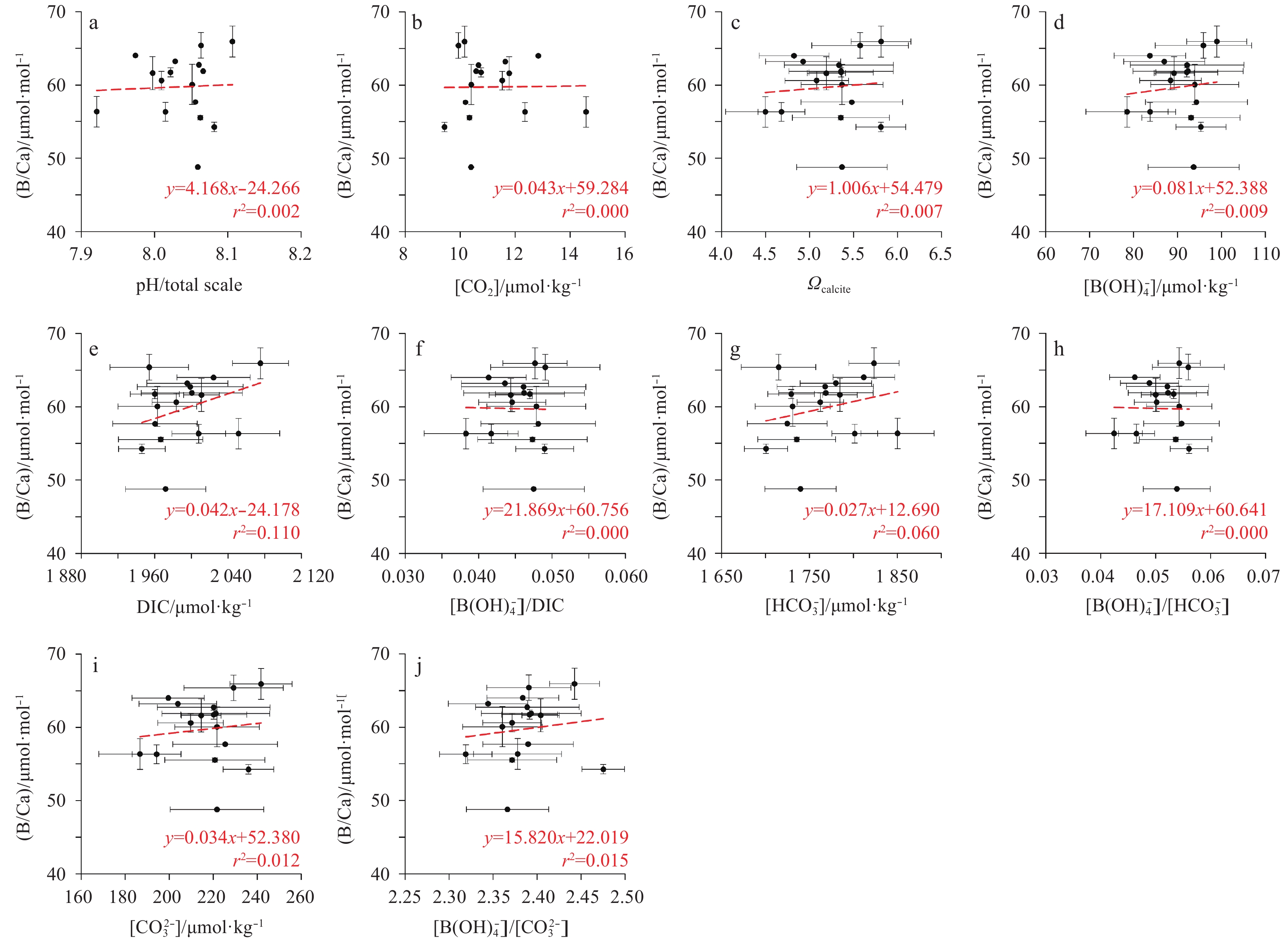

We plotted the P. obliquiloculata B/Ca against parameters of the seawater carbonate system at the defined main apparent calcification depth, including pH, [CO2] (aqueous CO2), Ωcalcite, [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$], and the dissolved inorganic carbon species and their ratios to [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] (Fig. 2). By and large, B/Ca variation is insensitive to all these carbonate system parameters, while the highest correlation coefficients are found in B/Ca-DIC (r2=0.110) and B/Ca-[${{\rm{HCO}}_3^ - }$] (r2=0.060) and may suggest positive relationships between the respective parameters, although the correlations may not be that significant. (Fig. 2). A significant positive relationship between B/Ca and [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] (or BT) has been revealed by previous studies of synthesized calcite (e.g., Uchikawa et al., 2015), cultured foraminifera (e.g., Allen et al., 2011, 2012; Haynes et al., 2017; Howes et al., 2017) and surface-sediment foraminifera (e.g., Quintana Krupinski et al., 2017), suggesting the dominant influence of the dissolved B concentration on boron incorporation into calcite. However, such an effect is not clear in our results, possibly due to the complication of natural seawater environment. More importantly, it is suggested that some other factors may play a stronger role in the boron incorporation of P. obliquiloculata in the tropical Indo-Pacific.
The very weak B/Ca-DIC relationship and the positive B/Ca-[${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$] relationship contrast with the findings from the planktonic foraminifera culture experiments in which B/Ca decreases with increasing dissolved inorganic carbon (DIC and/or [${{\rm{HCO}}_3^ - }$]) (Allen et al., 2012; Haynes et al., 2017). The negative effect of DIC on planktonic foraminifera B/Ca was interpreted as that borate and carbon species compete for the inclusion of boron in the calcite lattice (Howes et al., 2017). But, in the inorganic carbonate experiments, B/Ca of synthesized calcite increases with increasing [DIC] (Uchikawa et al., 2015). Additionally, B/Ca of Pacific core-top N. incompta and G. bulloides are also positively related to [DIC] (and Ωcalcite) (Quintana Krupinski et al., 2017). The positive effect of DIC on calcite B/Ca was explained by a kinetic effect of the calcite growth rate, which is positively related to DIC and Ωcalcite (Uchikawa et al., 2015). Hence, it is implied that potentially the growth rate effect exerts a strong influence on the boron incorporation of P. obliquiloculata.

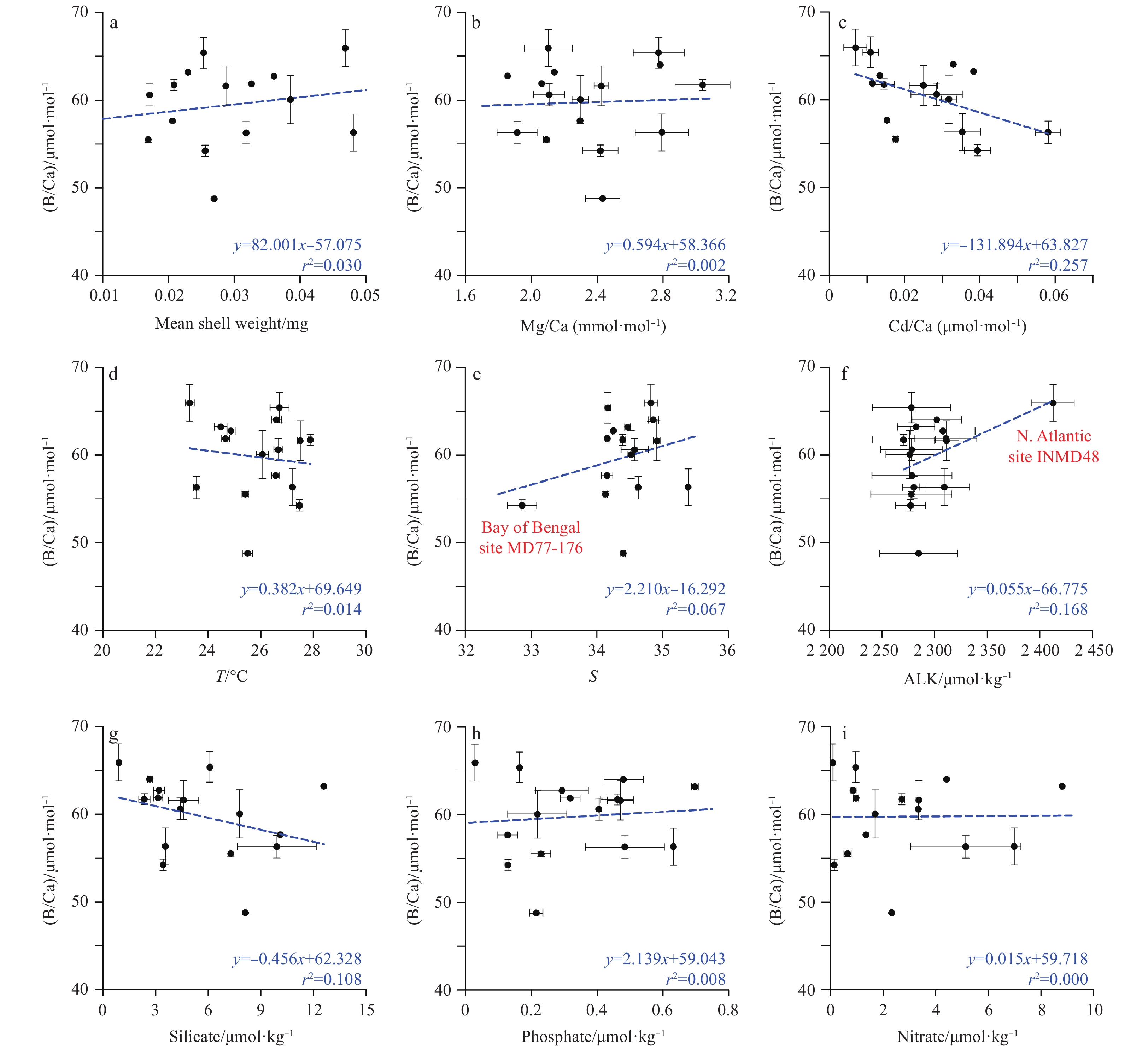

3.2 P. obliquiloculata B/Ca and the other related variables
The P. obliquiloculata B/Ca was further compared with properties of the shells (mean shell weight, Mg/Ca, Cd/Ca) and parameters of the seawater at the main apparent calcification depth (temperature, salinity, alkalinity and the nutrient concentrations) (Fig. 3). Again, the correlations between B/Ca and these variables are very weak, except for the salinity and the alkalinity which includes some outlying low-salinity and high-alkalinity sites (Figs 3e and f).
The B/Ca ratios of these core-top P. obliquiloculata samples show a very weak positive relationship with the mean shell weight (Fig. 3a). The P. obliquiloculata B/Ca results of Dai et al. (2016) show positive correlations with the shell weight for the Mauritius-Mascarene Sea samples, but negative correlations for those from the Ontong-Java Plateau. So, a rightful correlation between B/Ca and the shell weight is yet to be determined by the limited results.

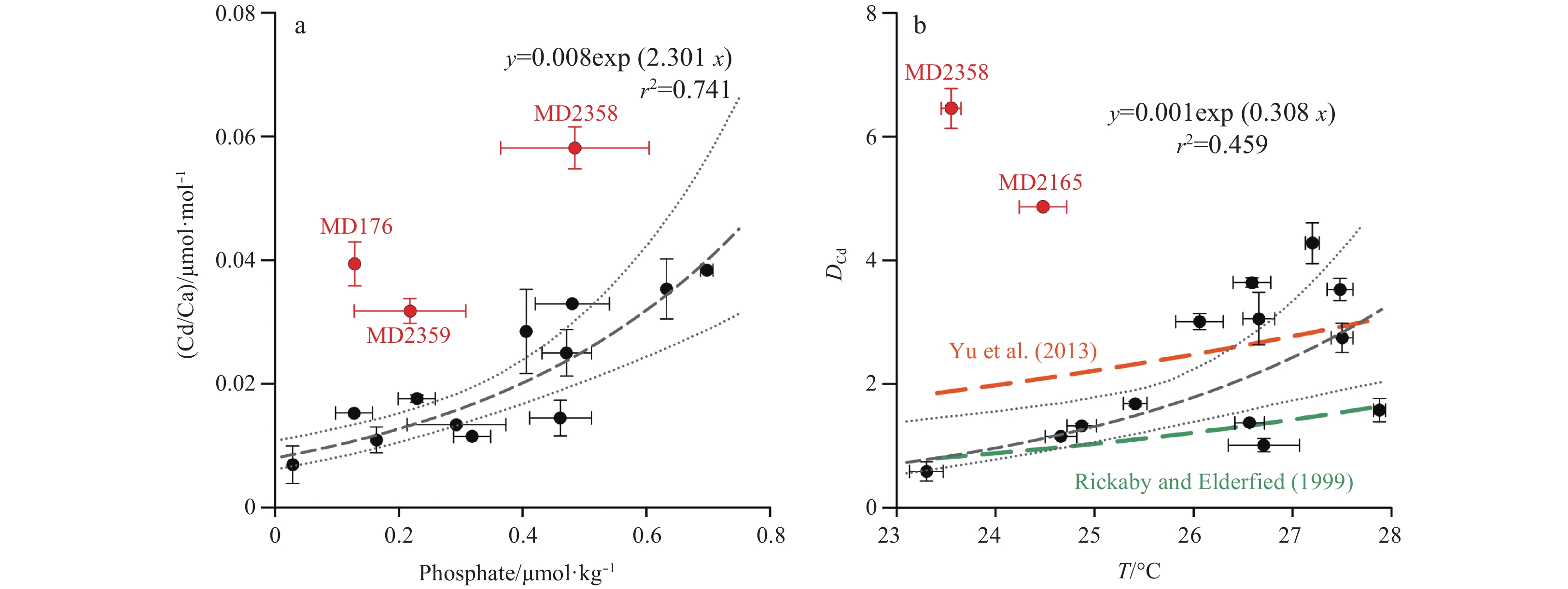

3.3 P. obliquiloculata Cd/Ca and phosphate concentration
On the basis of the preferential incorporation of cadmium (Cd) relative to phosphate (P) during particle formation in the surface ocean and the vertical and latitudinal correlations of the distributions of Cd/P and P, Cd/Ca ratios in foraminifer shells can serve as an indicator of seawater phosphate concentration (Boyle, 1981; Rickaby and Elderfield, 1999; Elderfield and Rickaby, 2000). Our P. obliquiloculata Cd/Ca results demonstrate a strong exponential correlation to seawater phosphate concentration (r2=0.741, three outliers excluded, Fig. 4a). The three outlying sites are from seasonal upwelling (MD00-2358, MD00-2359) and permanent upwelling (MD77-176) regions (Figs 1d and e). Their Cd/Ca ratios are abnormally high with respect to the atlas phosphate data (Fig. 4a). The apparent mismatch between Cd/Ca and seawater phosphate of these three sites may be primarily caused by the inappropriate selection of seawater phosphate data caused by factors like seasonal and long-term fluctuation in local upwelling, variations in the habitat depth of P. obliquiloculata, etc. Additional uncertainties in Cd/Ca measurements (contamination on specimens, etc.) may also be a problem.
To better constrain the P. obliquiloculata Cd/Ca proxy, we calculated seawater [Cd] from seawater phosphate using the relationship defined by Elderfield and Rickaby (2000), Cdsw = Cdt/[α × (Pt/P–1) + 1], where Cdt = 1.2 nmol/kg, Pt = 3.3 μmol/kg, and α = 2. Assuming the seawater Ca concentration to be 0.01 mol/kg (0.412 g/kg), the Cd partition coefficient for P. obliquiloculata is estimated as DCd = (Cd/Ca)foram /(Cd/Ca)sw. The relation between DCd of P. obliquiloculata and temperature is shown in Fig. 4b. The positive exponential correlation observed in this study is consistent with the results of N. pachyderma by Rickaby and Elderfield (1999) and Yu et al. (2013), while there is a constant temperature offset of 23°C between our study and those on N. pachyderma (Fig. 4b).

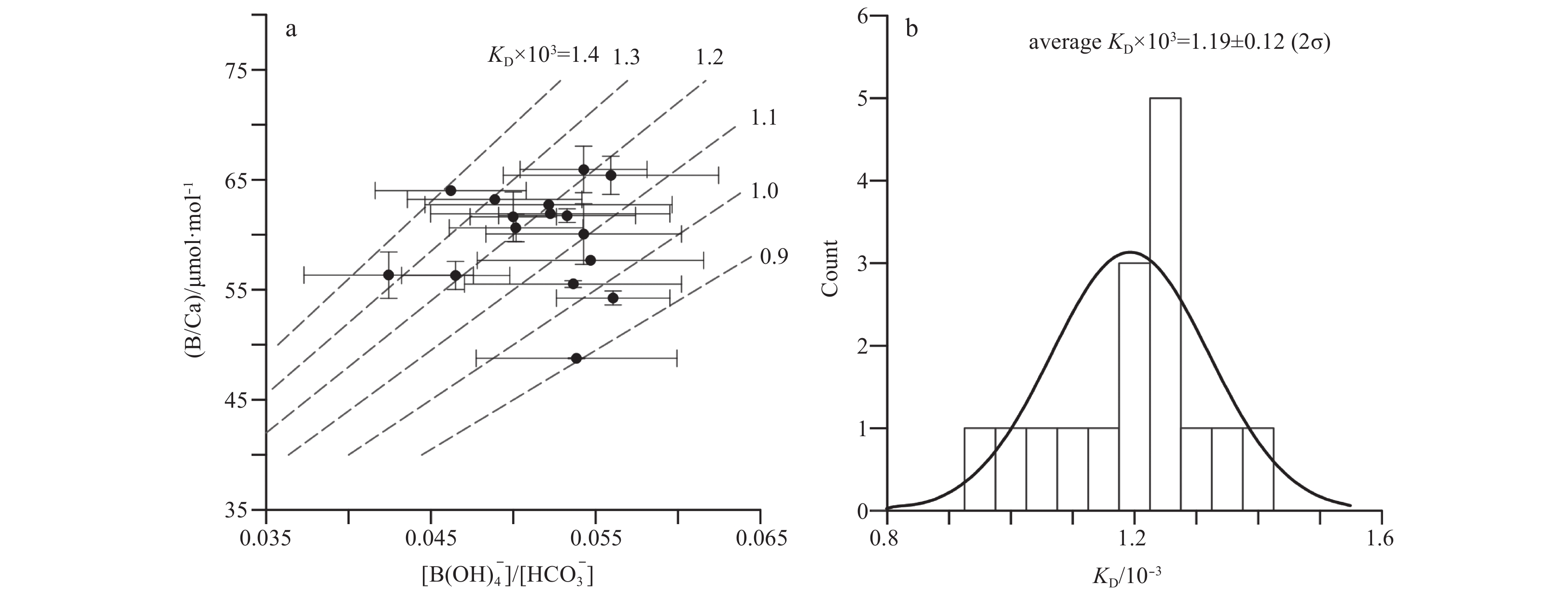

3.4 P. obliquiloculata KD and potential influencing factors
The partitioning coefficient KD of P. obliquiloculata B/Ca is calculated as the ratio between B/Ca and seawater [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$]/[${{\rm{HCO}}_3^ - }$] (Fig. 5a). The P. obliquiloculata KD×103 values of this study distribute between 0.9 and 1.4, and centralize around 1.1–1.3 with an average of 1.19±0.12 (2σ) (Fig. 5b). The rather loose correlation between P. obliquiloculata B/Ca and [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$]/[${{\rm{HCO}}_3^ - }$]seawater is similar to the observation for G. ruber and N. dutertrei (Foster, 2008), but different from the tight relations (i.e., KD is nearly a constant) of G. bulloides, N. incompta (Quintana Krupinski et al., 2017), N. pachyderma (Yu et al., 2013) and T. sacculifer (Foster, 2008).

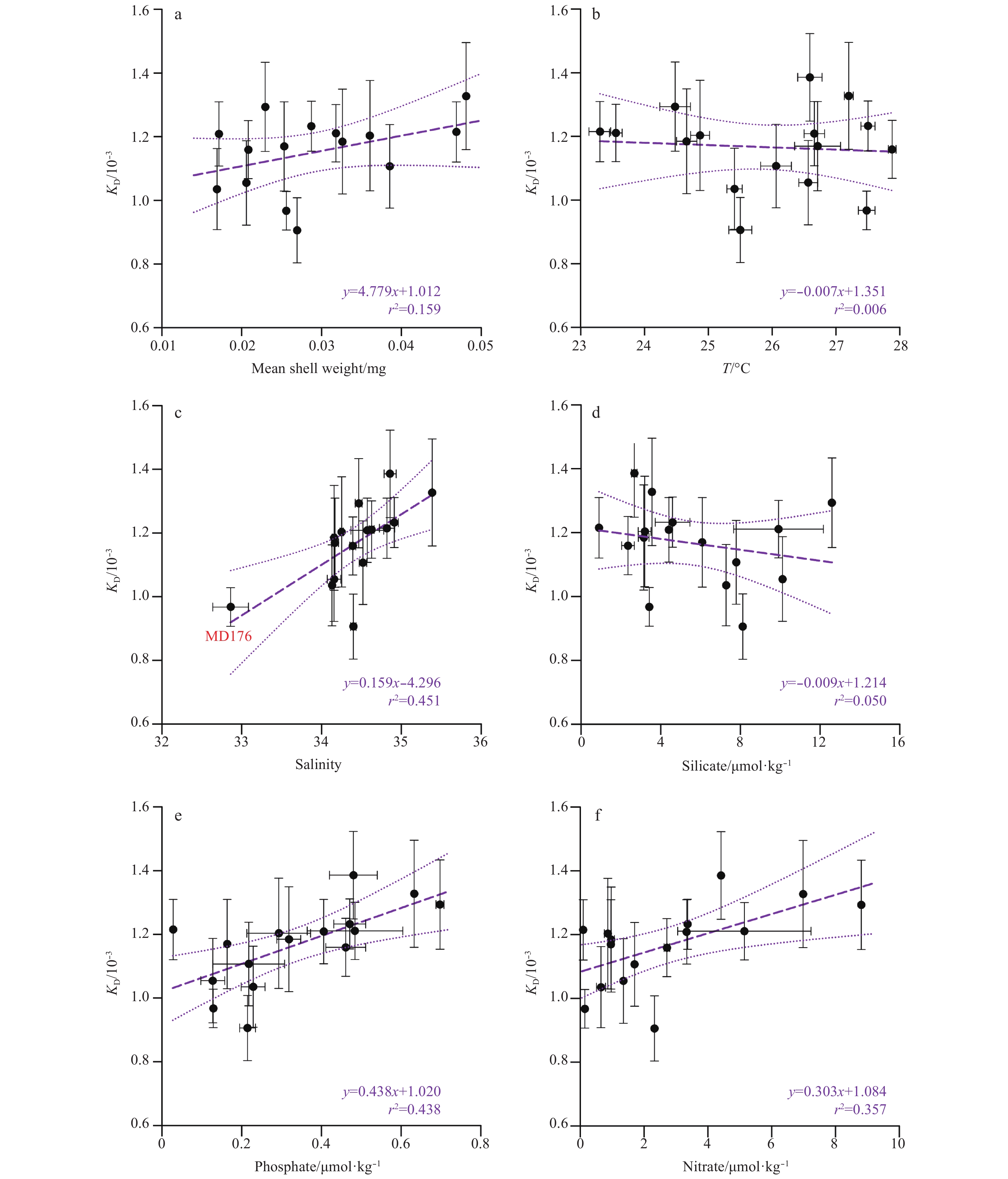

The estimated KD for P. obliquiloculata in this study shows a weak correlation with shell weight (r2=0.159, significance F=0.4) (Fig. 6a), but scatters widely versus temperature (Fig. 6b). P. obliquiloculata KD are negatively correlated with seawater [${{\rm{CO}}_3^{2 - }}$] at its calcification depth to some degree (r2=0.37, not shown), similar to the observations on some other planktonic foraminifers (Yu et al., 2007; Foster, 2008; Allen et al., 2011). The sensitivity (slope of linear fitting) of P. obliquiloculata KD to [${{\rm{CO}}_3^{2 - }}$] is –0.005 26, in consistence with the results of N. dutertrei (–0.004 3) but different from those of G. ruber (–0.008 42) and T. sacculifer (–0.002 55) (Foster, 2008).
Interestingly, significant positive correlations are observed between P. obliquiloculata KD and the salinity (Fig. 6c) as well as seawater phosphate and nitrate concentrations at its calcification depths (Figs 6e and f), suggesting that B incorporation might be enhanced when the salinity and the nutrients increase. The influence of salinity may be explained via the BT effect (Uchikawa et al., 2015), as total dissolved boron is tightly linked to salinity (Uppström, 1974; Lee et al., 2010). The correlation is slightly more significant between KD and phosphate (r2=0.438) than between KD and nitrate (r2=0.357). Hence, it is implied that the nutrient level within the calcification environment of P. obliquiloculata may exert influence on the boron incorporation process of this species.
Henehan et al. (2015) had found a similar positive correlation between B/Ca of G. ruber and the phosphate concentration, hence they argued that the influence of phosphate on boron incorporation possibly function via: (1) some other hydrographic factors like productivity-related food supply and hence foraminifera growth rate; and/or (2) the kinetic influence of phosphate on crystallographic processes like the promotion effect of phosphate ions on amorphous calcium carbonate formation and/or paired substitution of ${\rm{PO}}_4^{3 - }$ and ${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$ for two ${{\rm{CO}}_3^{2 - }}$ (Section 4.2 of Henehan et al. (2015) for further discussion and references). Essentially, in terms of the kinetic of carbonate precipitation, phosphate and phosphorous compounds are known to retard CaCO3 precipitation (e.g., Mucci, 1986), but the boron incorporation into calcite is known to be enhanced with increasing precipitation rate (Gabitov et al., 2014; Uchikawa et al., 2015). Hence, it is difficult to explain the positive effect of phosphate on KD by any simple kinetic influence of phosphate on the calcite formation.
It is noticeable that the G. ruber B/Ca of Henehan et al. (2015) only correlates with phosphate concentration, but not any other nutrients like nitrate or silicate. While, in the case of our study, the KD of P. obliquiloculata is significantly correlated with both phosphate and nitrate, but not silicate (Figs 6e and f). So, it is highly likely that KD of P. obliquiloculata is positively linked to the nutrient necessary for calcareous organisms. With higher nutrient, the food supply for P. obliquiloculata, a symbiont-barren foraminifer, should increase, and hence results in higher growth rate and enhanced boron incorporation (Gabitov et al., 2014; Uchikawa et al., 2015). Such a conjecture may find support from the positive correlation between KD and the mean shell weight (Fig. 6a), which should be primarily related to the shell development rather than bottom dissolution, since our P. obliquiloculata samples are all taken above the lysocline.
Therefore, our results may provide the first clues that suggest a positive correlation between boron incorporation and calcification rate for P. obliquiloculata. The aforementioned relation between B/Ca values and dissolved inorganic carbon species may consistently indicate the role played by the calcification rate. In the natural marine environment, the nutrient may be an important limiting factor for the boron incorporation of P. obliquiloculata. Therefore, practically, we may apply nutrient level as an independent variable relating to the calcification rate to supplement the estimation using P. obliquiloculata B/Ca proxy to deal with the subsurface seawater carbonate system.
3.5 Estimating seawater pH by the combination of P. obliquiloculata B/Ca and Cd/Ca
If KD could be constrained by a relative independent variable, e.g., temperature (Wara et al., 2003; Yu et al., 2007; Tripati et al., 2009), seawater carbonate chemical parameters like pH can be reconstructed by B/Ca-estimated [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$]/[${{\rm{HCO}}_3^ - }$], with the aid of estimations of at least one more related parameters like alkalinity or [${{\rm{CO}}_3^{2 - }}$]. For the paleo-reconstruction using planktonic foraminifera proxies, temperature and salinity could be calibrated by Mg/Ca and δ18O (see references in Tripati et al., 2009). The alkalinity could then be estimated by salinity based on the overall linear relationship between them (Lee et al., 2006; Foster, 2008; Jiang et al., 2014). Hence the seawater CO2 system may be resolved by the combination of B/Ca, Mg/Ca and δ18O of planktonic foraminifera (Yu et al., 2007, 2013; Foster 2008; Tripati et al., 2009).
However, this approach was questioned because of the uncertainty of the temperature effect on KD (Yu et al., 2007, 2013; Foster 2008; Allen et al., 2011, 2012) and the extra factors besides temperature that may influence boron incorporation and KD (Henehan et al., 2015; Haynes et al., 2017; Howes et al., 2017; Quintana Krupinski et al., 2017). In the case of this study, the KD of P. obliquiloculata is apparently not affected by temperature, but significantly related to the seawater nutrient level. Therefore, we would like to examine a potential methodology based on the phosphate dependency of P. obliquiloculata KD for calculating seawater carbonate parameters.

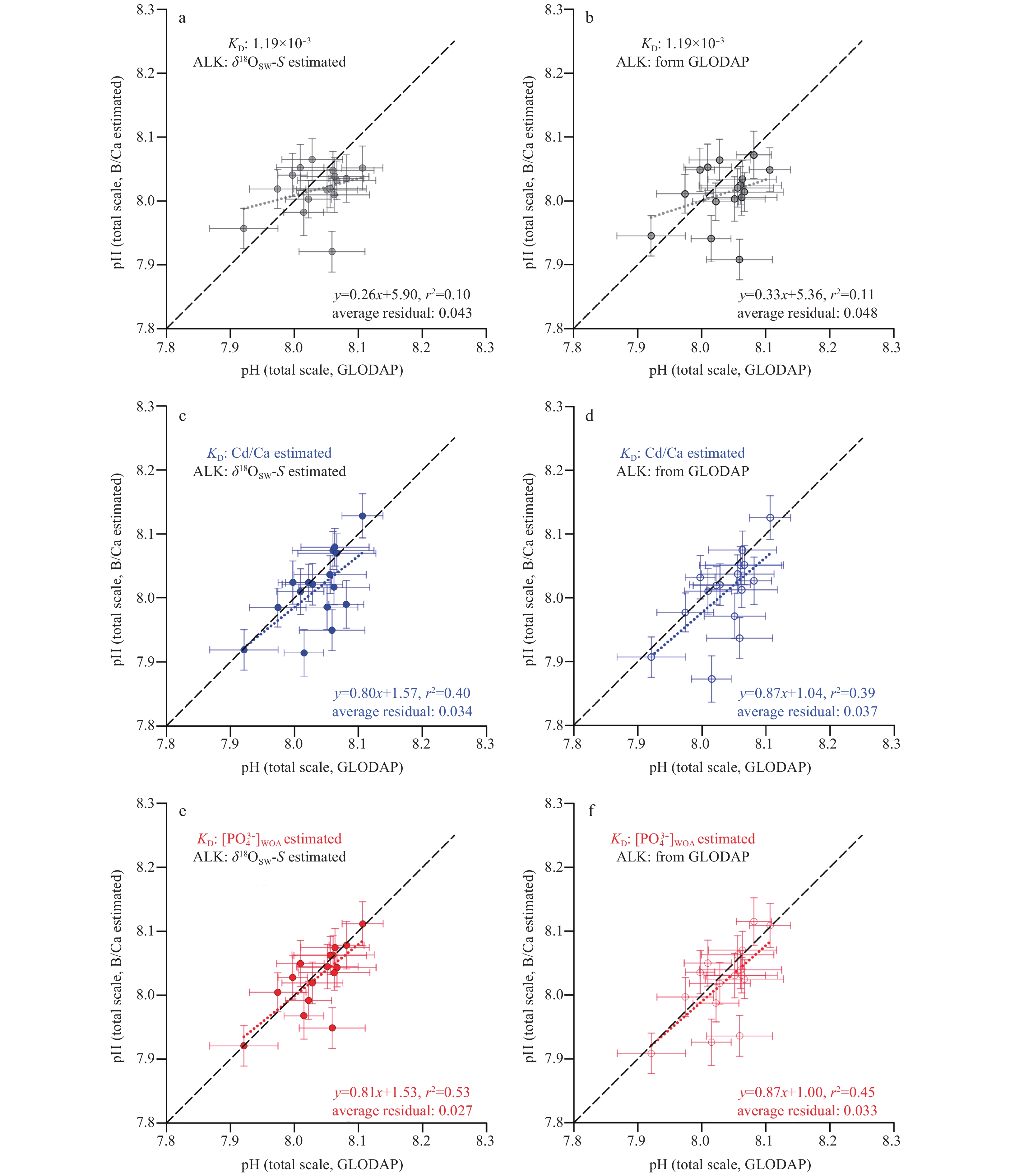

We calculated the seawater pH for the study sites, using the modern atlas data of temperature and salinity from SODA2.1.6 (Carton and Giese, 2010), [${\rm{PO}}_4^{3 - }$] from WOA09 (Garcia et al., 2010) and ALK from GLODAP (Key et al., 2004). The pH values are calculated based on the estimated [${{\rm{B}}\left( {{\rm{OH}}} \right)_4^ - }$]/[${{\rm{HCO}}_3^ - }$] as well as temperature, salinity, alkalinity and pressure at the defined calcification depth, following the approach described by Tripati et al. (2009). The calculated pH results are shown against the modern seawater pH (GLODAP) in three groups of various KD: (1) KD×103 = 1.19 (the mean value) (Figs 7a and b); (2) KD calibrated by Cd/Ca-derived [${\rm{PO}}_4^{3 - }$] (Figs 7c and d); (3) KD estimated by WOA09 [${\rm{PO}}_4^{3 - }$] (Figs 7e and f). Calculations based on different ALK, from GLODAP (Key et al., 2004) (Figs 7b, d and f) or estimated by δ18O-derived salinity (ALK=43.173×Salinity+798.62, derived from the ALK and salinity data of tropical Indo-Pacific of GLODAP, Figs 7a, c and e), are also compared. It is demonstrated that an average KD value is clearly not applicable for the pH estimation, as the results differ largely from the observed seawater pH of GLODAP (Figs 7a and b). While, the Cd/Ca- or [${\rm{PO}}_4^{3 - }$]-corrected KD may result in proper pH estimations, as indicated by the significant correlations and close relations with respect to the observed pH (Figs 7c–f). It is further implied that the uncertainties of δ18O-salinity and salinity-alkalinity calibrations may introduce little influence for the pH calculation, at least for the results of this study. Therefore, we may propose that for P. obliquiloculata of the tropical Indo-Pacific, a combination of B/Ca and Cd/Ca (as well as Mg/Ca and δ18O) could serve as a rather applicable proxy method for estimating the subsurface seawater pH and the other carbonate system parameters. However, given the limited number of samples of this study, the calibrations given in this study may need further examination before applying to paleo-reconstructions. The uncertainties of the pH calculation using B/Ca method are large (e.g., Tripati et al., 2009). The variability of the relationship between salinity and δ18O would introduce significant uncertainty into the pH calculation, especially for paleo-reconstructions.
4 Concluding remarks
Less
In this study, we reported the B/Ca and Cd/Ca of P. obliquiloculata from 16 core-top samples from the tropical Indo-Pacific and attempt to examine the potential factors influencing the boron and cadmium contents of P. obliquiloculata shells. The Cd/Ca of P. obliquiloculata could be well correlated to the seawater phosphate concentration at the defined calcification depth of this species. The B/Ca of P. obliquiloculata shows no significant relation to the seawater carbonate chemical or other physiochemical parameters, except for some weak correlations to dissolved inorganic carbon. The KD of P. obliquiloculata is apparently not affected by the temperature, but increases with increasing mean shell weight, salinity and nutrient level. The relationships between B/Ca and dissolved carbon and between KD and nutrient may be comprehensively explained by a positive effect of the growth rate on the boron incorporation into P. obliquiloculata shells. On the basis of the rather tight correlations of Cd/Ca–phosphate and KD–nutrient, we established a preliminary calibration method for estimating pH, which might be applied for paleo-reconstructions of the subsurface water carbonate system by the combination of B/Ca, Cd/Ca, Mg/Ca and δ18O proxies of P. obliquiloculata. However, it is cautioned that the empirical calibrations given in this study are only practically robust, further in-depth investigations about the kinetic of boron incorporation and its relation to the carbonate chemistry of the calcifying fluid are needed for P. obliquiloculata.
Acknowledgements
Less
This work is supported by the Fundamental Research Funds for the Central Universities and implemented under the France-China Framework of LIA-MONOCL. We gratefully acknowledge the support of K. C. Wong Education Foundation. This manuscript was firstly composed onboard “JOIDES Resolution” during the transit across Indonesian Waters of IODP Expedition 363.
Funding
Less
  • The National Natural Science Foundation of China (NSFC) and NSFC-Shandong Joint Fund for Marine Science Research Centers under contract Nos 41606049, U1606401 and 41376054; the China Postdoctoral Science Foundation under contract No. 2015M581658.
References
Less
Allen K A, Hönisch B. 2012. The planktic foraminiferal B/Ca proxy for seawater carbonate chemistry: a critical evaluation. Earth and Planetary Science Letters, 345–348: 203–211, doi: 10.1016/j.jpgl.2012.06.012
Allen K A, Hönisch B, Eggins S M, et al. 2011. Controls on boron incorporation in cultured tests of the planktic foraminifer Orbulina universa. Earth and Planetary Science Letters, 309: 291–301, doi: 10.1016/j.jpgl.2011.07.010
Allen K A, Hönisch B, Eggins S M, et al. 2012. Environmental controls on B/Ca in calcite tests of the tropical planktic foraminifer species Globigerinoides ruber and Globigerinoides sacculifer. Earth and Planetary Science Letters, 351–352: 270–280, doi: 10.1016/j.jpgl.2012.07.004
Allen K A, Hönisch B, Eggins S M, et al. 2016. Trace element proxies for surface ocean conditions: a synthesis of culture calibrations with planktic foraminifera. Geochimica et Cosmochimica Acta, 193: 197–221, doi: 10.1016/j.gca.2016.08.015
Babila T L, Rosenthal Y, Conte M H. 2014. Evaluation of the biogeochemical controls on B/Ca of Globigerinoides ruber white from the Oceanic Flux Program, Bermuda. Earth and Planetary Science Letters, 404: 67–76, doi: 10.1016/j.jpgl.2014.05.053
Boyle E A. 1981. Cadmium, zinc, copper, and barium in foraminifera tests. Earth and Planetary Science Letters, 53(1): 11–35, doi: 10.1016/0012-821X(81)90022-4
Carton J A, Giese B S. 2010. A reanalysis of ocean climate using simple ocean data assimilation (SODA). Monthly Weather Review, 136(8): 2999–3017
Cheng Xinrong, Huang Baoqi, Jian Zhimin, et al. 2005. Foraminiferal isotopic evidence for monsoonal activity in the South China Sea: a present-LGM comparison. Marine Micropaleontology, 54(1-2): 125–139, doi: 10.1016/j.marmicro.2004.09.007
Dai Yuhao, Yu Jimin, Johnstone H J H. 2016. Distinct responses of planktonic foraminiferal B/Ca to dissolution on seafloor. Geochemistry, Geophysics, Geosystems, 17(4): 1339–1348, doi: 10.1002/2015GC006199
Dang Haowen, Jian Zhimin, Wu Jiawang, et al. 2018. The calcification depth and Mg/Ca thermometry of Pulleniatina obliquiloculata in the tropical Indo-Pacific: A core-top study. Marine Micropaleontology, 145: 28–40, doi: 10.1016/j.marmicro.2018.11.001
DePaolo D J. 2011. Surface kinetic model for isotopic and trace element fractionation during precipitation of calcite from aqueous solutions. Geochimica et Cosmochimica Acta, 75(4): 1039–1056, doi: 10.1016/j.gca.2010.11.020
Elderfield H, Rickaby R E M. 2000. Oceanic Cd/P ratio and nutrient utilization in the glacial Southern Ocean. Nature, 405(6784): 305–310, doi: 10.1038/35012507
Foster G L. 2008. Seawater pH, pCO2 and [CO32-] variations in the Caribbean Sea over the last 130 kyr: a boron isotope and B/Ca study of planktic foraminifera. Earth and Planetary Science Letters, 271(1-4): 254–266, doi: 10.1016/j.jpgl.2008.04.015
Foster G L, Pogge Von Strandmann P A E, et al. 2010. Boron and magnesium isotopic composition of seawater. Geochemistry, Geophysics, Geosystems, 11(8): Q08015, doi: 10.1029/2010GC003201
Gabitov R I, Rollion-Bard C, Tripati A, et al. 2014. In situ study of boron partitioning between calcite and fluid at different crystal growth rates. Geochimica et Cosmochimica Acta, 137: 81–92, doi: 10.1016/j.gca.2014.04.014
Garcia H E, Locarnini R A, Boyer T P, et al. 2010. World Ocean Atlas 2009, Volume 4: nutrients (phosphate, nitrate, silicate). In: Levitus S, ed. NOAA Atlas NESDIS 71. Washington DC: US Government Printing Office, 398
Haynes L L, Hönisch B, Dyez K A, et al. 2017. Calibration of the B/Ca proxy in the planktic foraminifer Orbulina universa to Paleocene seawater conditions. Paleoceanography, 32(6): 580–599, doi: 10.1002/2016PA003069
He Maoyong, Xiao Yingkai, Jin Zhangdong, et al. 2013. Quantification of boron I ncorporation into synthetic calcite under controlled pH and temperature conditions using a differential solubility technique. Chemical Geology, 337-338: 67–74, doi: 10.1016/j.chemgeo.2012.11.013
Henehan M J, Rae J W B, Foster G L, et al. 2013. Calibration of the boron isotope proxy in the planktonic foraminifera Globigerinoides ruber for use in palaeo-CO2 reconstruction. Earth and Planetary Science Letters, 364: 111–122, doi: 10.1016/j.jpgl.2012.12.029
Henehan M J, Foster G L, Bostock H C, et al. 2016. A new boron isotope-pH calibration for Orbulina universa, with implications for understanding and accounting for ‘vital effects’. Earth and Planetary Science Letters, 454: 282–292, doi: 10.1016/j.jpgl.2016.09.024
Hemming N G, Hanson G N. 1992. Boron isotopic composition and concentration in modern marine carbonates. Geochimica et Cosmochimica Acta, 56(1): 537–543, doi: 10.1016/0016-7037(92)90151-8
Hemming N G, Reeder R J, Hanson G N. 1995. Mineral-fluid partitioning and isotopic fractionation of boron in synthetic calcium carbonate. Geochimica et Cosmochimica Acta, 59(2): 371–379, doi: 10.1016/0016-7037(95)00288-B
Hendry K R, Rickaby R E M, Meredith M P, et al. 2009. Controls on stable isotope and trace metal uptake in Neogloboquadrina pachyderma (sinistral) from an Antarctic sea-ice environment. Earth and Planetary Science Letters, 278(1–2): 67–77, doi: 10.1016/j.jpgl.2008.11.026
Henehan M J, Foster G L, Rae J W B, et al. 2015. Evaluating the utility of B/Ca ratios in planktic foraminifera as a proxy for the carbonate system: a case study of Globigerinoides ruber. Geochemistry, Geophysics, Geosystems, 16(4): 1052–1069, doi: 10.1002/2014GC005514
Howes E L, Kaczmarek K, Raitzsch M, et al. 2017. Decoupled carbonate chemistry controls on the incorporation of boron into Orbulina universa. Biogeosciences, 14(2): 415–430, doi: 10.5194/bg-14-415-2017
Jian Zhimin, Wang Pinxian, Saito Y, et al. 2000. Holocene variability of the Kuroshio Current in the Okinawa Trough, northwestern Pacific Ocean. Earth and Planetary Science Letters, 184(1): 305–319, doi: 10.1016/S0012-821X(00)00321-6
Jiang Zongpei, Tyrrell T, Hydes D J, et al. 2014. Variability of alkalinity and the alkalinity-salinity relationship in the tropical and subtropical surface ocean. Global Biogeochemical Cycles, 28(7): 729–742, doi: 10.1002/2013GB004678
Kennett J P, Elmstrom K, Penrose N. 1985. The last deglaciation in orca Basin, gulf of Mexico: high-resolution planktonic foraminiferal changes. Palaeogeography, Palaeoclimatology, Palaeoecology, 50(1): 189–216, doi: 10.1016/S0031-0182(85)80013-4
Key R M, Kozyr A, Sabine C L, et al. 2004. A global ocean carbon climatology: results from Global Data Analysis Project (GLODAP). Global Biogeochemical Cycles, 18(4): GB4031, doi: 10.1029/2004GB002247
Klochko K, Cody G D, Tossell J A, et al. 2009. Re-evaluating boron speciation in biogenic calcite and aragonite using 11B MAS NMR. Geochimica et Cosmochimica Acta, 73(7): 1890–1900, doi: 10.1016/j.gca.2009.01.002
Klochko K, Kaufman A J, Yao Wengsheng, et al. 2006. Experimental measurement of boron isotope fractionation in seawater. Earth and Planetary Science Letters, 248(1–2): 276–285, doi: 10.1016/j.jpgl.2006.05.034
Lee K, Kim T W, Byrne R H, et al. 2010. The universal ratio of boron to chlorinity for the North Pacific and North Atlantic oceans. Geochimica et Cosmochimica Acta, 74(6): 1801–1811, doi: 10.1016/j.gca.2009.12.027
Lee K, Tong L T, Millero F J, et al. 2006. Global relationships of total alkalinity with salinity and temperature in surface waters of the world’s oceans. Geophysical Research Letters, 33(19): L19605, doi: 10.1029/2006GL027207
LeGrande A N, Schmidt G A. 2011. Water isotopologues as a quantitative paleosalinity proxy. Paleoceanography, 26(3): PA3225, doi: 10.1029/2010PA002043
Martin P A, Lea D W. 2002. A simple evaluation of cleaning procedures on fossil benthic foraminiferal Mg/Ca. Geochemistry, Geophysics, Geosystems, 3(10): 1–8, doi: 10.1029/2001GC000280
McCrea J M. 1950. On the isotopic chemistry of carbonates and a paleotemperature scale. The Journal of Chemical Physics, 18(6): 849–857, doi: 10.1063/1.1747785
Mucci A. 1986. Growth kinetics and composition of magnesian calcite overgrowths precipitated from seawater: quantitative influence of orthophosphate ions. Geochimica et Cosmochimica Acta, 50(10): 2255–2265, doi: 10.1016/0016-7037(86)90080-3
Ni Yunyan, Foster G L, Bailey T, et al. 2007. A core top assessment of proxies for the ocean carbonate system in surface-dwelling foraminifers. Paleoceanography, 22(3): PA3212, doi: 10.1029/2006PA001337
Lewis E, Wallace D W R. 1998. Program Developed for CO2 System Calculations. ORNL/CDIAC-105. Oak Ridge, Tennessee: Carbon Dioxide Information Analysis Center, Oak Ridge National Laboratory, U S Department of Energy
Prell W L, Damuth J E. 1978. The climate-related diachronous disappearance of Pulleniatina obliquiloculata in late quaternary sediments of the Atlantic and Caribbean. Marine Micropaleontology, 3(3): 267–277, doi: 10.1016/0377-8398(78)90031-2
Quintana Krupinski N B, Russell A D, Pak D K, et al. 2017. Core-top calibration of B/Ca in Pacific Ocean Neogloboquadrina incompta and Globigerina bulloides as a surface water carbonate system proxy. Earth and Planetary Science Letters, 466: 139–151, doi: 10.1016/j.jpgl.2017.03.007
Rickaby R E M, Elderfield H. 1999. Planktonic foraminiferal Cd/Ca: paleonutrients or paleotemperature?. Paleoceanography, 14(3): 293–303, doi: 10.1029/1999PA900007
Rosenthal Y, Perron-Cashman S, Lear C H, et al. 2004. Interlaboratory comparison study of Mg/Ca and Sr/Ca measurements in planktonic foraminifera for paleoceanographic research. Geochemistry, Geophysics, Geosystems, 5(4): Q04D09, doi: 10.1029/2003GC000650
Ruiz-Agudo E, Putnis C V, Kowacz M, et al. 2012. Boron incorporation into calcite during growth: implications for the use of boron in carbonates as a pH proxy. Earth and Planetary Science Letters, 345–348: 9–17, doi: 10.1016/j.jpgl.2012.06.032
Sabine C L, Feely R A, Gruber N, et al. 2004. The oceanic sink for anthropogenic CO2. Science, 305: 367–371, doi: 10.1126/science.1097403
Salmon K H, Anand P, Sexton P F, et al. 2016. Calcification and growth processes in planktonic foraminifera complicate the use of B/Ca and U/Ca as carbonate chemistry proxies. Earth and Planetary Science Letters, 449: 372–381, doi: 10.1016/j.jpgl.2016.05.016
Sanyal A, Bijma J, Spero H, et al. 2001. Empirical relationship between pH and the boron isotopic composition of Globigerinoides sacculifer: implications for the boron isotope paleo-pH proxy. Paleoceanography, 16(5): 515–519, doi: 10.1029/2000PA000547
Sanyal A, Hemming N G, Broecker W S, et al. 1996. Oceanic pH control on the boron isotopic composition of foraminifera: evidence from culture experiments. Paleoceanography, 11(5): 513–517, doi: 10.1029/96PA01858
Sanyal A, Nugent M, Reeder R J, et al. 2000. Seawater pH control on the boron isotopic composition of calcite: evidence from inorganic calcite precipitation experiments. Geochimica et Cosmochimica Acta, 64(9): 1551–1555, doi: 10.1016/S0016-7037(99)00437-8
Sen S, Stebbins J F, Hemming N G, et al. 1994. Coordination environments of B impurities in calcite and aragonite polymorphs; A 11B MAS NMR study. American Mineralogist, 79(9–10): 819–825
Tripati A K, Roberts C D, Eagle R A. 2009. Coupling of CO2 and ice sheet stability over major climate transitions of the last 20 million years. Science, 326(5958): 1394–1397, doi: 10.1126/science.1178296
Uchikawa J, Penman D E, Zachos J C, et al. 2015. Experimental evidence for kinetic effects on B/Ca in synthetic calcite: implications for potential B(OH)4− and B(OH)3 incorporation. Geochimica et Cosmochimica Acta, 150: 171–191, doi: 10.1016/j.gca.2014.11.022
Uppström L R. 1974. The boron/chlorinity ratio of deep-sea water from the Pacific Ocean. Deep Sea Research and Oceanographic Abstracts, 21(2): 161–162, doi: 10.1016/0011-7471(74)90074-6
Vengosh A, Kolodny Y, Starinsky A, et al. 1991. Coprecipitation and isotopic fractionation of boron in modern biogenic carbonates. Geochimica et Cosmochimica Acta, 55(10): 2901–2910, doi: 10.1016/0016-7037(91)90455-E
Wara M W, Delaney M L, Bullen T D, et al. 2003. Possible roles of pH, temperature, and partial dissolution in determining boron concentration and isotopic composition in planktonic foraminifera. Paleoceanography, 18(4): 1100, doi: 10.1029/2002PA000797
Watson E B. 2004. A conceptual model for near-surface kinetic controls on the trace-element and stable isotope composition of abiogenic calcite crystals. Geochimica et Cosmochimica Acta, 68(7): 1473–1488, doi: 10.1016/j.gca.2003.10.003
Xu Jian, Holbourn A, Kuhnt W, et al. 2008. Changes in the thermocline structure of the Indonesian outflow during Terminations I and II. Earth and Planetary Science Letters, 273(1–2): 152–162, doi: 10.1016/j.jpgl.2008.06.029
Xu Jian, Kuhnt W, Holbourn A, et al. 2006. Changes in the vertical profile of the Indonesian Throughflow during Termination II: evidence from the Timor Sea. Paleoceanography, 21(4): PA4202, doi: 10.1029/2006PA001278
Yu Jimin, Day J, Greaves M, et al. 2005. Determination of multiple element/calcium ratios in foraminiferal calcite by quadrupole ICP-MS. Geochemistry, Geophysics, Geosystems, 6(8): Q08P01, doi: 10.1029/2005GC000964
Yu Jimin, Elderfield H, Hönisch B. 2007. B/Ca in planktonic foraminifera as a proxy for surface seawater pH. Paleoceanography, 22(2): PA2202, doi: 10.1029/2006PA001347
Yu Jimin, Thornalley D J R, Rae J W B, et al. 2013. Calibration and application of B/Ca, Cd/Ca, and δ11B in Neogloboquadrina pachyderma (sinistral) to constrain CO2 uptake in the subpolar North Atlantic during the last deglaciation. Paleoceanography, 28(2): 237–252, doi: 10.1002/palo.20024
