The spatial distribution of major and trace elements of surface sediments in the northeastern Beibu Gulf of the South China Sea
收藏切换
PDF
Qian GE1, 2, *, George Z XUE3, 4, 5, Liming YE1, 2, Dong XU1, 2, Jianru ZHAO1, 2, Fengyou CHU1, 2
Acta Oceanologica Sinica | 2019, 38(3) : 93 - 102
Less
收藏切换
Acta Oceanologica Sinica | 2019, 38(3): 93-102
• Marine Geology •
The spatial distribution of major and trace elements of surface sediments in the northeastern Beibu Gulf of the South China Sea
Full
Qian GE1, 2, *, George Z XUE3, 4, 5, Liming YE1, 2, Dong XU1, 2, Jianru ZHAO1, 2, Fengyou CHU1, 2
Affiliations
  • 1 Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China
  • 2 Key Laboratory of Submarine Geosciences, State Oceanic Administration, Hangzhou 310012, China
  • 3 Department of Oceanography and Coastal Sciences, Louisiana State University, Baton Rouge, LA 70803, USA
  • 4 Center for Computation and Technology, Louisiana State University, Baton Rouge, LA 70803, USA
  • 5 Coastal Studies Institute, Louisiana State University, Baton Rouge, LA 70803, USA
Published: 2019-03-25 doi: 10.1007/s13131-019-1402-x
Outline
收藏切换

A multi-index analysis including grain size, major and trace elements is performed on the surface sediments from the northeastern Beibu Gulf to trace the sources of the sediments and to understand the controlling factors for elements distribution. The mean grain size exhibits a wide variation ranging from 0.09Φ to 8.05Φ with an average value of 5.33Φ. The average contents of major elements descend in an order of c(SiO2)>c(Al2O3)>c(Fe2O3)>c(CaO)>c(MgO)>c(K2O)>c(Na2O)>c(TiO2)>c(P2O5)>c(MnO), while those of trace elements exhibit a descending order of c(Sr)>c(Rb)>c(V)>c(Zn)>c(Cr)>c(Pb)>c(Ni)>c(Cu)>c(As). On the basis of elementary distribution characteristics and statistical analyses, the study area is divided into the four zones: Zone I is located in the northeastern coastal area of the gulf, which receives large amount of fluvial materials from local rivers in Guangxi and Guangdong, China, and the Qiongzhou Strait; Zone II is located in the center of the study area, where surface sediments exhibits a multiple source; Zone III is located in the Qiongzhou Strait, where surface sediments are dominated by materials from the Zhujiang River and Hainan; Zone IV is located in the southwest of the study area, where surface sediments are mainly originated from the Red River and Hainan. The statistical analyses of sediment geochemical characteristics reveal that the grain size, which is mainly influenced by hydrodynamics and mineral composition of terrigenous materials, is the leading factor controlling the elementary distribution. Meanwhile, impacts from anthropogenic activities and marine biogenic process will also be taken into consideration.

grain size  /  major and trace elements  /  Beibu Gulf  /  spatial distribution  /  sediment source
Qian GE, George Z XUE, Liming YE, Dong XU, Jianru ZHAO, Fengyou CHU. The spatial distribution of major and trace elements of surface sediments in the northeastern Beibu Gulf of the South China Sea[J]. Acta Oceanologica Sinica, 2019 , 38 (3) : 93 -102 . DOI: 10.1007/s13131-019-1402-x
Full Text
Less
1 Introduction
Less
The provenance of sediments and sedimentary rocks is a key index to reconstruct regional paleoclimate, paleoceanography and tectonic history. Most marine sediments in the marginal sea are composed of terrigenous materials that are transported by rivers and/or wind from the surrounding continent (Wang et al., 1999). Compared with the riverine inputs, the eolian supply was a minor source in the marginal seas, especially for the areas far away from the source and dominant atmospheric wind pathways, such as the South China Sea (Boulay et al., 2007). The complicated sedimentary processes make it hard to distinguish the differences between terrigenous sediments and those with a marine source. In this regard, geochemical analyses, specifically those based on elemental geochemistry, have been an effective way to identify sediment provenance (e.g., McLennan et al., 1993; Mange and Morton, 2007; Li et al., 2016). Meanwhile, elemental compositions of marine sediments are controlled by many complex factors, including mineralogical compositions in source rocks, grain size, sediment sorting, post-depositional diagenesis, as well as anthropogenic inputs (Calvert, 1976; Li et al., 2016).
Over the past few decades, lots of research have been focused on the flux and transport process of riverine sediments in marginal seas (e.g., Nittrouer et al., 1986; Allison et al., 2000; Liu et al., 2004, 2009, 2007b; Xue et al., 2010). Recent studies have been mainly focused on large river systems and only few of them discussed transport process of sediments from relative small rivers. In this study we focus on the Beibu Gulf, which is a semi closed marginal sea surrounded by northern Vietnam and Guangxi, Guangdong and Hainan, China (Fig. 1).
The Beibu Gulf is heavily influenced by the East Asian monsoon system making it an ideal place to understand the source (weathering), transport, and sink of sediments. The main objectives of the present study are to: (1) characterize the spatial distribution of major and trace elements in the surface sediments of the northeastern Beibu Gulf, (2) understand the source of the modern sediments in the study area, and (3) evaluate sedimentological and geochemical factors that control the distribution patterns of the major and trace elements.
2 Regional background
Less

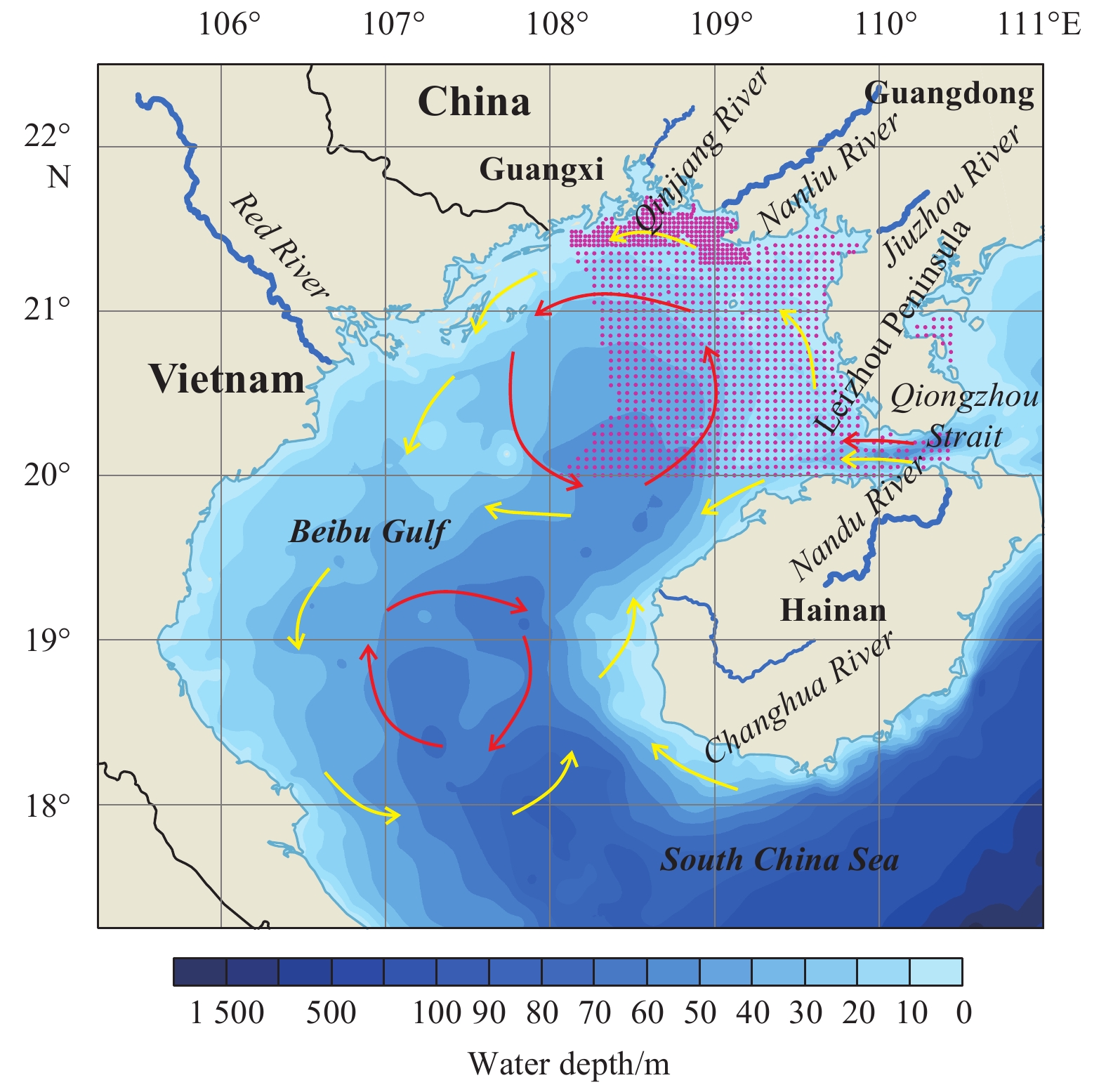

The Beibu Gulf is located in the northwestern South China Sea (SCS), covering waters from approximately 17°N to 22°N and from 105°E to 110°E (Fig. 1). It is surrounded by the Leizhou Peninsula, Qiongzhou Strait, Hainan, and northern Vietnam, and extends to the Guangxi coast in the north, with an area of approximately 1.3×105 km2 (Gao et al., 2017). The water depth in the Beibu Gulf is typically less than 100 m, with a mean depth of 40 m. The Beibu Gulf is characterized by tropical-subtropical monsoon climate with an average temperature of 23°C and annual precipitation of 1 300–2 500 mm. A large number of rivers discharge into the Beibu Gulf, such as the Red River, Qinjiang River, Nanliu River, Nandu River, Jiuzhou River and others, which also provide the main sediment source. Bedrock around the Beibu Gulf consists mainly of Pre-Quaternary granite and Late Quaternary basalt (Ma et al., 2002).
Circulation in the Beibu Gulf is characterized by contrasting patterns during the summer and winter monsoon seasons (Fig. 1). The summer season brings a large anticyclonic eddy in the southern gulf and a cyclonic gyre in the northern gulf, with a boundary located around 19°30′N (Gao et al., 2015). Flows are northward along the eastern part of the upper gulf and westward along the northern coastline. In winter, the gulf-wide circulation is cyclonic, which nests a cyclonic gyre in the southern gulf. Circulation in fall is similar to that in winter. However, the cyclonic gyre in the southern gulf in fall is stronger than that in winter, which can intrude to the area around 19°N. The current off the coast of Vietnam and northwestern coast of Hainan is weaker in fall than that in winter. The current off the northwestern coast of Hainan is found to be southwestward instead of northeastward (Gao and Chen, 2014; Gao et al., 2017). Additionally, strong currents enter the gulf via the Qiongzhou Strait from the east all year round, with the maximum strength in winter (Shi, 2014).
3 Materials and methods
Less
A total of 1 202 surface sediments were collected in the northeastern Beibu Gulf jointly by Second Institute of Oceanography, Ministry of Natural Resources and South China Sea Branch of State Oceanic Administration in 2007 (samples locations are shown in Fig. 1). The samples were stored at 4°C immediately after collection. Sediment grain size was measured using a Mastersizer-2000 laser particle size analyzer (analysis range: 0.01–2 000.00 μm). For the pre-treatment of a grain size analysis, excess H2O2 (30%) and HCl (1 mol/L) were added to remove the organic matter and carbonate in bulk samples, respectively. Then 5–10 mL sodium hexametaphosphate (0.5 mol/L) was added to let the sediment disperse. The preparation and measurement of the grain size were carried out by the Key Laboratory of Submarine Geosciences, State Oceanic Administration, China.
A total of 305 samples were chosen for geochemical analysis. Major (SiO2, Al2O3, Fe2O3, CaO, MgO, K2O, Na2O, TiO2, P2O5 and MnO) and trace elements (Ni, Cu, Zn, Pb, Cr, Rb, Sr, V and As) were identified using an X-ray fluorescence spectrometer (XRF) and an inductively coupled plasma mass spectrometer (ICP-MS) at the Institute of Geophysical and Geochemical Exploration, Chinese Academy of Geological Sciences, China, respectively. Prior to chemical analysis, the samples were dried below 105°C, crushed to less than 200 mesh size (74 μm) in an agate mortar, and stored in clean polyethylene bags at room temperature for major elements analysis. For trace elements analysis, precisely 0.25 g of each sample was put in a Teflon bomb with an acid mixture (5:4:1 V (HNO3) +V (HCl) +V (HF)) (Loring and Rantala, 1992) and then heated to 120°C for 12 h on a heating plate. The acid digestion was repeated until only a negligible amount of white residue remained. Then, the solution was evaporated to dry and extracted with HNO3. The standard sediment samples (GSD-9 and GSD-10) were analyzed for data quality assurance and control. The results show that the errors are mostly less than 5% for the major and trace elements.
4 Results
Less
4.1 Grain size of surface sediments

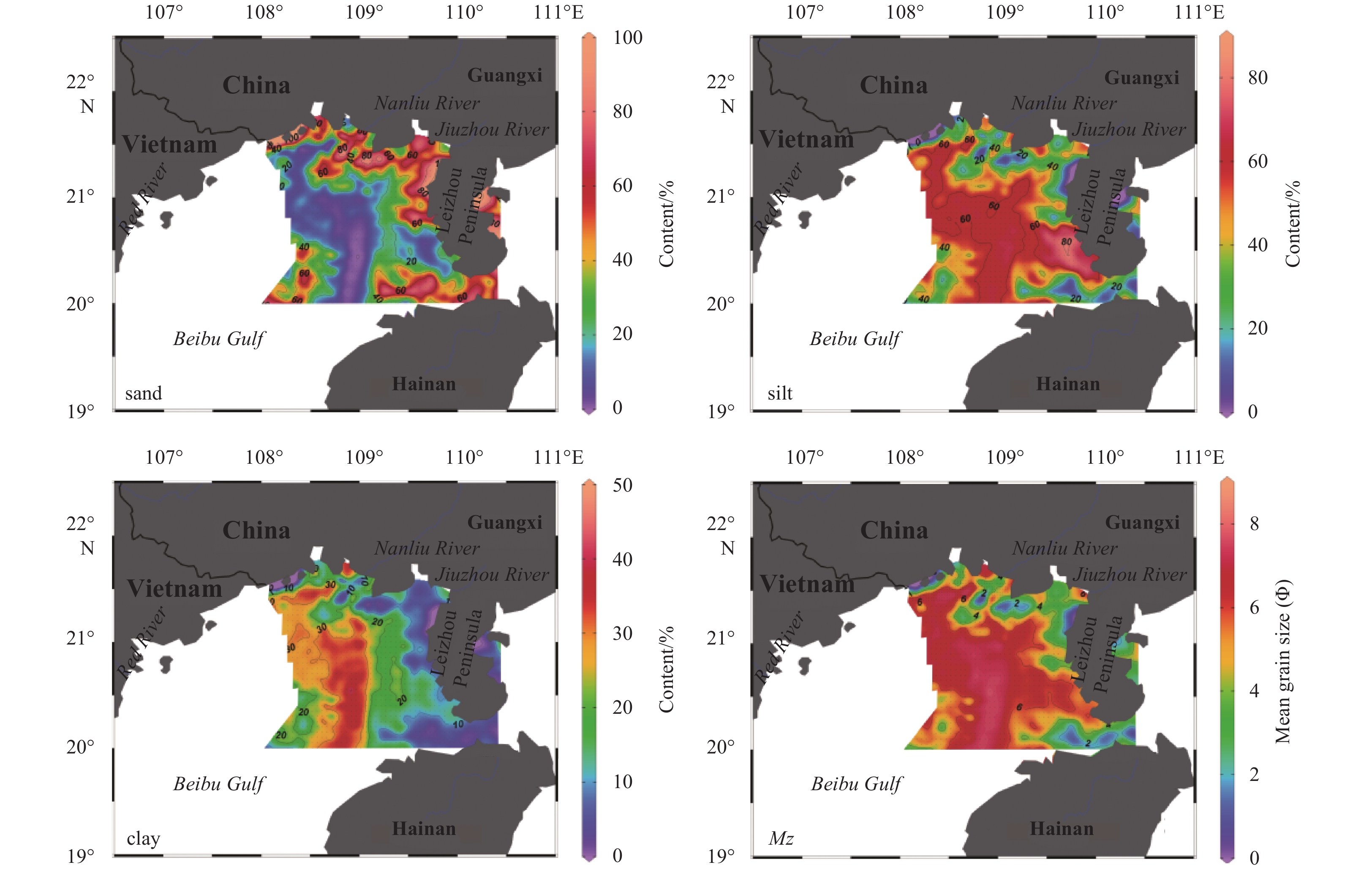

The grain size distribution of surface sediments in the northeastern Beibu Gulf is shown in Fig. 2. The average contents of sand, silt and clay fractions are 33%, 47% and 20%, respectively. The silt and clay fractions exhibit similar distribution patterns, having the high content in the center of the study area. The sand fraction shows a contrary distribution pattern, with the highest value in the Qiongzhou Strait, along the coast and the relict deposit on the middle of Beibu Gulf (Fig. 2). The mean grain size (Mz) varies from 0.09Φ to 8.05Φ with a mean value of 5.33Φ, the spatial distribution pattern shows similar characteristics of silt fraction’s (Fig. 2).
4.2 Features of elemental contents
The average contents of the major elements, in a descending order, are as follows: SiO2, Al2O3, Fe2O3, CaO, MgO, K2O, Na2O, TiO2, P2O5 and MnO (Fig. 3; Table 1). The content of SiO2 is more than 63.00% of the major elements. And the content of Al2O3 is between 0.44%–21.70%, with an average of 12.88%. The contents of other major elements are generally less than 5.00%. The average contents of the trace elements in a descending order are as follows: Sr, Rb, V, Zn, Cr, Pb, Ni, Cu and As (Fig. 4; Table 1).

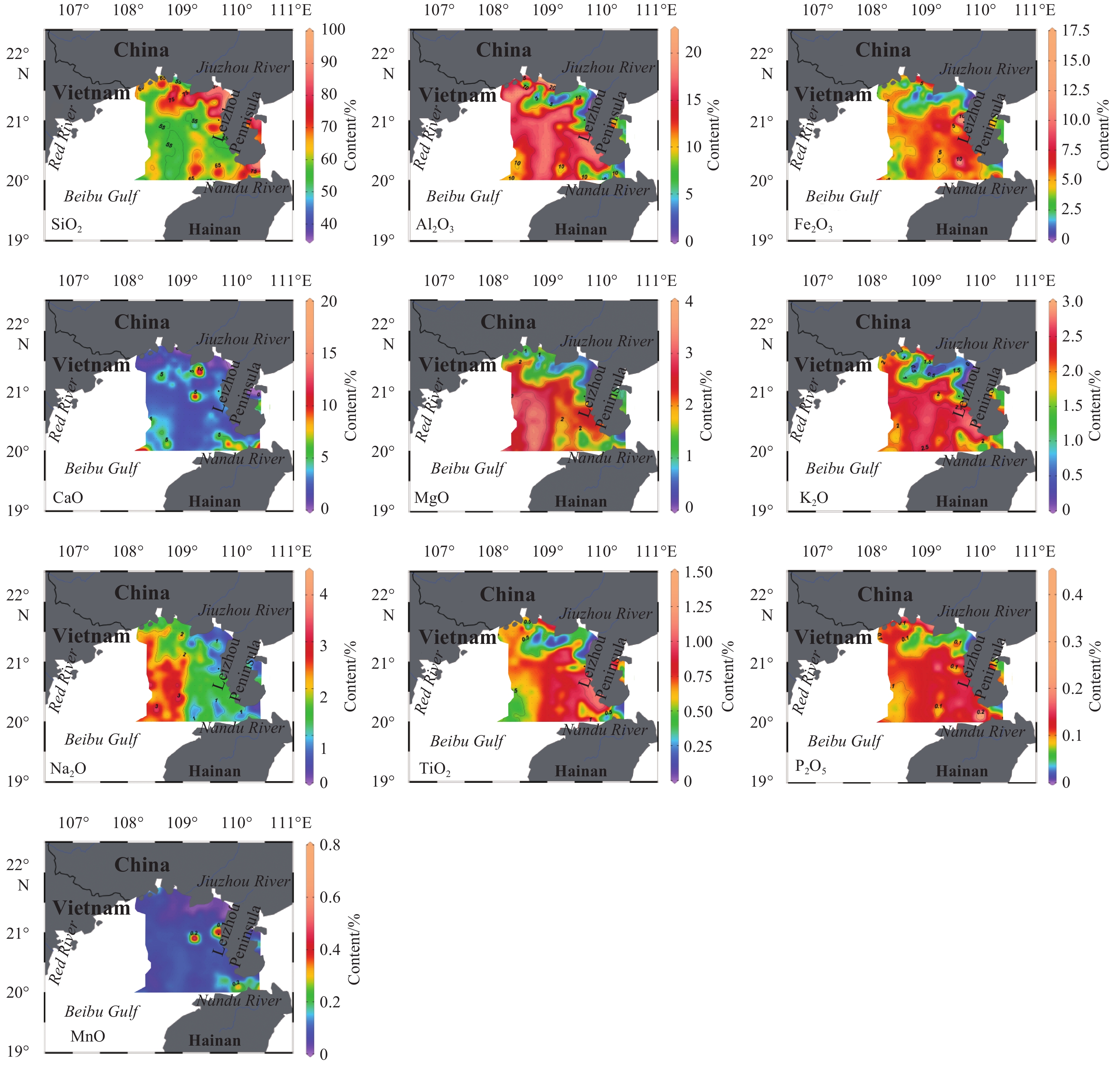

The major and trace elements exhibit various distribution patterns in the study area (Figs 3 and 4). Overall, most elements exhibit a similar pattern with that of silt fraction, excluding SiO2, CaO, MnO, Sr and As (Figs 2–4). SiO2 is the dominant element, and the content decreases from greater than 70.00% along the coastal zone to less than 60.00% in the center of the study area. Such variation corresponds to decreases of sand fraction and As content. In contrast, Al2O3 content is more than 15.00% in the center of study area and west of the Leizhou Peninsular. And Al2O3 content decreases to less than 10.00% in the Qiongzhou Strait, along the coastal zone and southeast of the Leizhou Peninsular. This spatial distribution pattern corresponds to that of silt fraction. The distribution patterns of Fe2O3, MgO, K2O, Na2O, TiO2, P2O5, Rb, V, Zn, Cr, Pb, Ni and Cu are similar with that of Al2O3. For instance, Fe2O3 shows an increasing trend from north to south. CaO and Sr are mostly abundant in sandy deposit, especially on the shelf off the Nanliu River Estuary, the exits of the Qiongzhou Strait, and relict deposit in the middle of the Beibu Gulf. The content pattern of MnO is also similar, although with a less abundance, to those of CaO and Sr.
4.3 Pearson correlation
Pearson correlation coefficients (r) between major elements, trace elements, and grain size data were calculated and displayed in Table 2. Most elemental contents exhibit a strong positive correlation with the content of silt fraction, except for SiO2, CaO, MnO, Sr and As. A strong correlation was found between CaO and Sr contents.
4.4 Cluster and principal component analysis

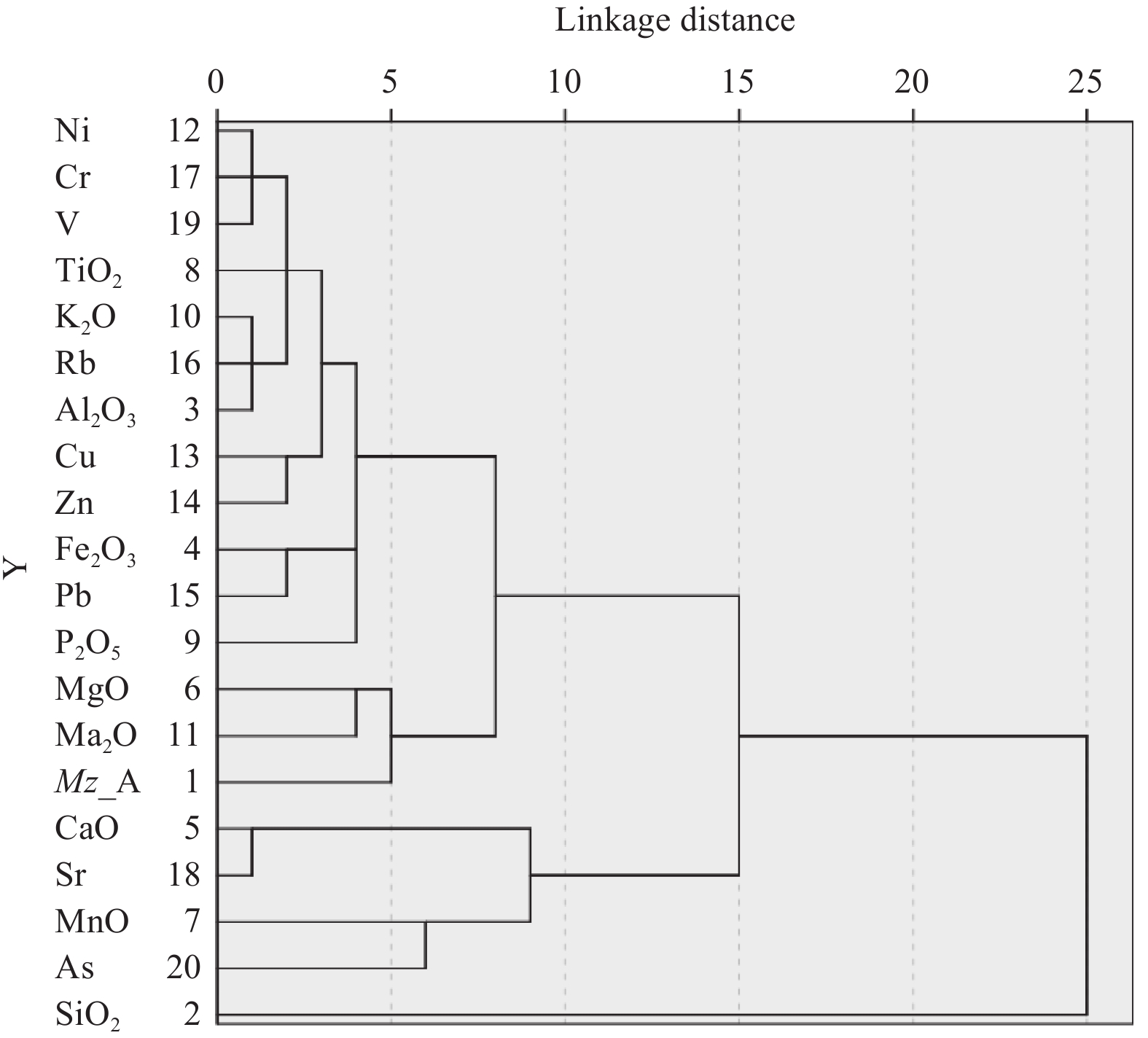

Bulk elemental contents were standardized using Z scores before a cluster analysis. An R-mode hierarchical cluster analysis showed a correlation among elements and identified several suites (Fig. 5), with Cluster I including Ni, Cr, V, TiO2, K2O, Rb, Al2O3, Cu, Zn, Fe2O3, Pb and P2O5, Cluster II including MgO and Na2O, and Cluster III including CaO and Sr. For the rest elements, MnO, As, and SiO2 belongs to Clusters IV, V and VI, respectively. Clusters I and II are strongly positively correlated with the silt fraction (Table 2). SiO2 from Cluster VI is highly affiliated with the sand fraction. To analyze the provenances of the sediments, we also use a Q-mode hierarchical cluster analysis to group samples with a similar petrographical characteristic. Combining with the samples location and the surrounding environment, we divide the study area into four zones (Fig. 6).

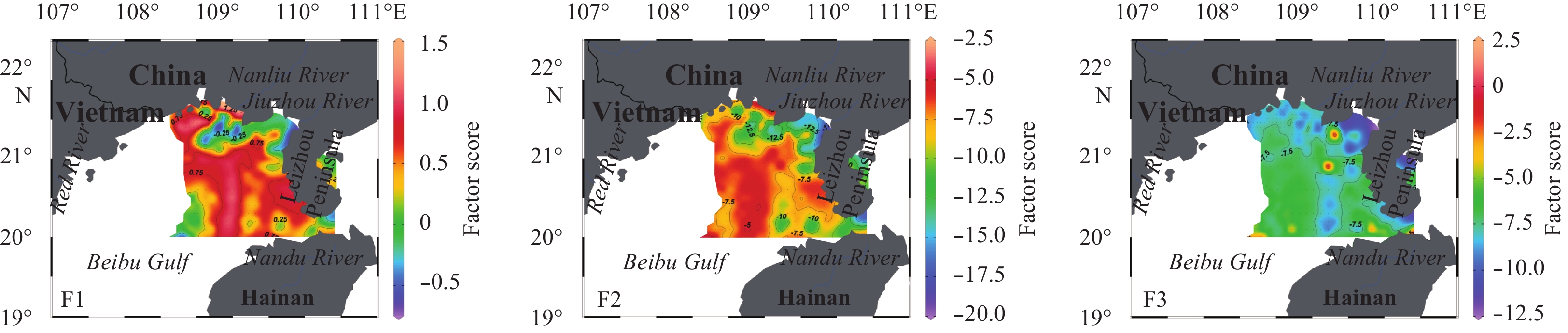

We performed principal component analysis on elemental contents and Mz. To maximize the sum of the variances of the squared loadings, a varimax rotation was used in principal components calculation. The top three principal components explained 83.9 % of the total variances. Table 3 presents the factor loading results: F1 (52.2% of variance) shows high positive loadings of Al2O3, Fe2O3, TiO2, P2O5, K2O, Ni, Cu, Zn, Pb, Rb, Cr and V, and high negative loading of SiO2. Scores of F1 display a similar distribution pattern with that of Mz (Figs 2 and 7). The low F1 scores are calculated along the coastal zone and relict deposit in the center of Beibu Gulf (Fig. 7). F2 (16.8% of variance) displays high positive loadings of MgO and Na2O, and a moderate negative loading of As. The pattern of F2’s score is similar with that of F1 (Fig. 7). F3 (14.9% of variance) exhibits high positive loadings of CaO, MnO and Sr. Scores of F3 correlate well with the distribution of CaO, MnO and Sr (Figs 3, 4 and 7).
5 Discussion
Less
5.1 Sediment provinces
The western Pacific marginal seas are mainly covered by biogenic, volcanogenic and especially terrigenous sediments, and the fluvial contribution is dominated in the terrigenous component (Wang, 1999). The major element composition of marine sediments can be used to discuss the source of terrigenous materials through assessing the state of chemical and physical weathering. The chemical composition of weathering products of the river basin is expected to demonstrate well-established concepts on mobility of various elements during weathering processes (Nesbitt et al., 1980; Singh et al., 2005; Liu et al., 2007a). The identification and evaluation of major element mobility during weathering was done with the help of elemental ratios calculated with respect to the least mobile element aluminium. The ratio of the content of element X and c(Al2O3) in the samples divided by the ratio of the same element content in upper continental crust (UCC) gives the following element ratio (Singh et al., 2005):

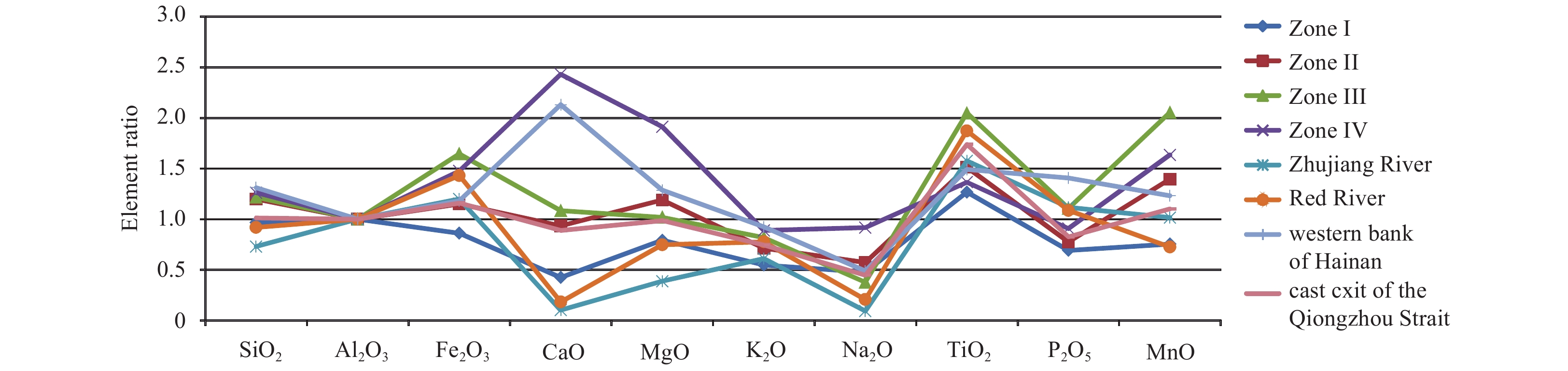

${\rm{Element}}\;{\rm{ratio}}\left(X \right) = \frac{{\left[ {c\left(X \right)/c({\rm{A}}{{\rm{l}}_2}{{\rm{O}}_3}} \right){]_{\left({{\rm{samples}}} \right)}}}}{{\left[ {c\left(X \right)/c({\rm{A}}{{\rm{l}}_2}{{\rm{O}}_3}} \right){]_{\left({{\rm{UCC}}} \right)}}}}.$
This element ratio refers to the relative enrichment or depletion of the element, i.e., being greater than 1 indicates enrichment, being less than 1 indicates depletion and equaling 1 indicates no change in the relative abundance of element.
According to the previous studies based on clay minerals and rare earth elements, the Zhujiang River, and Red River, Hainan, small rivers in Guangxi and Guangdong, and Qiongzhou Strait are the potential provenances for the northeastern Beibu Gulf sediments (e.g., Dou et al., 2012; Zhou et a., 2014). Figure 8 displays the element ratios calculated from average major element contents normalized to the UCC. As demonstrated, the samples from Zones I, II and III, east exit of Qiongzhou Strait (Cui et al., 2015), Zhujiang River and Red River (Liu et al., 2007a) show a similar chemical mobility with little difference. The mobility of silica is critical for understanding of chemical weathering. The SiO2 content is depleted in the Zhujiang River sediments but rather stable in the sediments from the Red River, east exit of the Qiongzhou Strait, and Zone I, suggesting stronger chemical weathering occurring in the Zhujiang River basin. The highly mobile elements calcium and sodium from Zhujiang River and Red River, and Zone I show similar low values related to their chemical weathering. The CaO content is obviously enriched in Zone IV and western bank of Hainan sediments (Cui et al., 2015) (Fig. 8), indicating a relatively weak weathering environment. In contrast to sodium, potassium is preferentially absorbed by clay minerals in the sediments (Zhao and Yan, 1994). In comparison, more depleted potassium in Zhujiang River sediments suggests stronger chemical weathering. The calculation of the element ratios indicates that sediments in Zone I experience strongest chemical weathering, followed by those from Zones II and III, while sediments deposited in Zone IV experience the weakest chemical weathering (Fig. 8). The degree of chemical weathering can be estimated by the chemical index of alternation (CIA) (Nesbitt and Young, 1982):

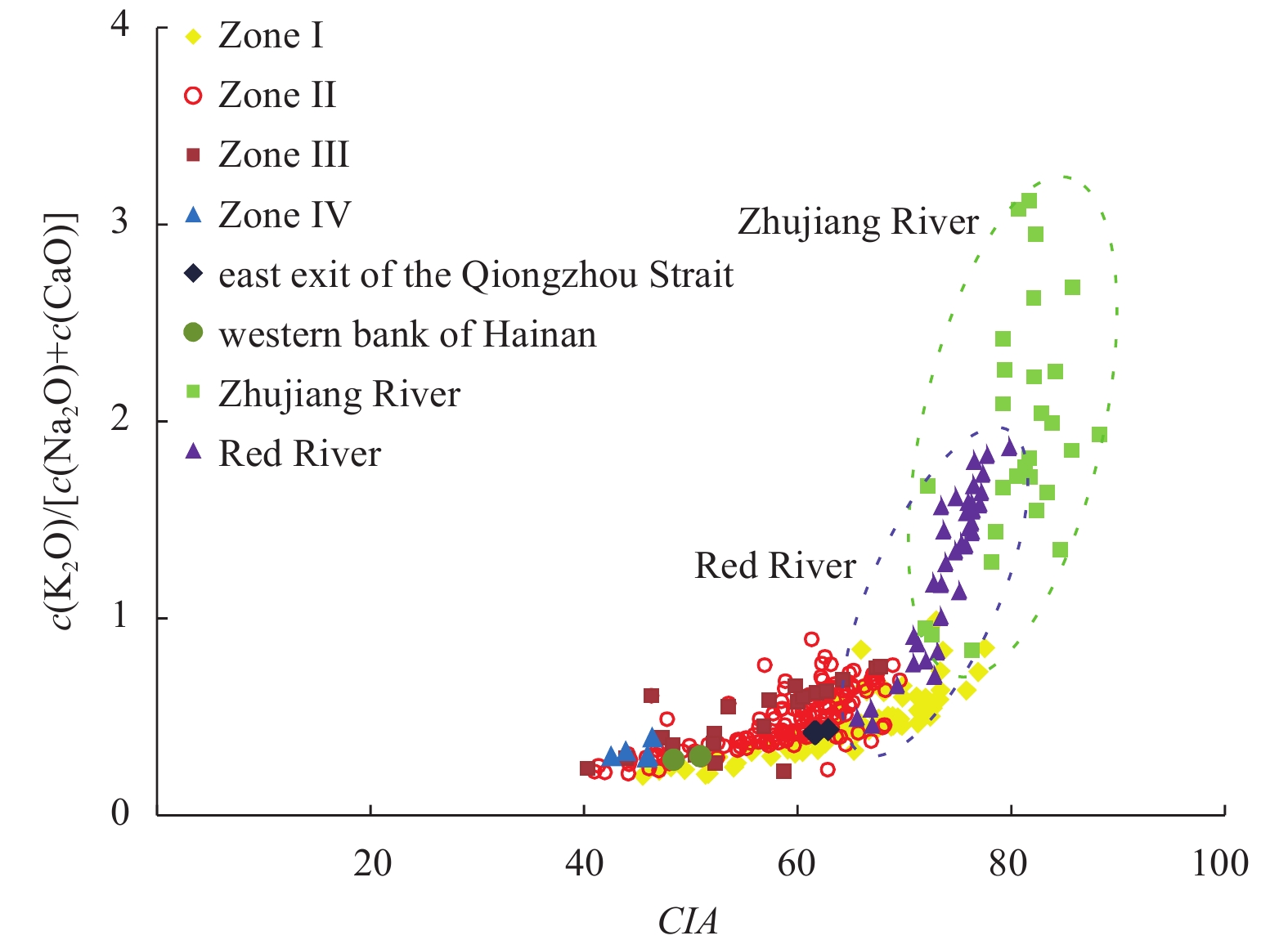

${{CIA}} = \frac{{c\left({{\rm{A}}{{\rm{l}}_2}{{\rm{O}}_3}} \right)}}{{c({\rm{A}}{{\rm{l}}_2}{{\rm{O}}_3}) + c\left({{\rm{Ca}}{{\rm{O}}^{\rm{*}}}} \right) + c\left({{\rm{N}}{{\rm{a}}_2}{\rm{O}}} \right) + c\left({{{\rm{K}}_2}{\rm{O}}} \right)}} \times 100.$
Using molecular proportions and with CaO* representing calcium oxide in silicates only (Nesbitt and Young, 1989). This value is thought to quantify the state of chemical weathering of the rocks by referring to the loss of labile elements such as sodium, calcium, and potassium (Liu et al., 2007a). The CIA values are well correlated with the c(K2O)/[c(Na2O)+c(CaO)] molar ratio for sediments in the study area as well as those from their potential provenances (Fig. 9).

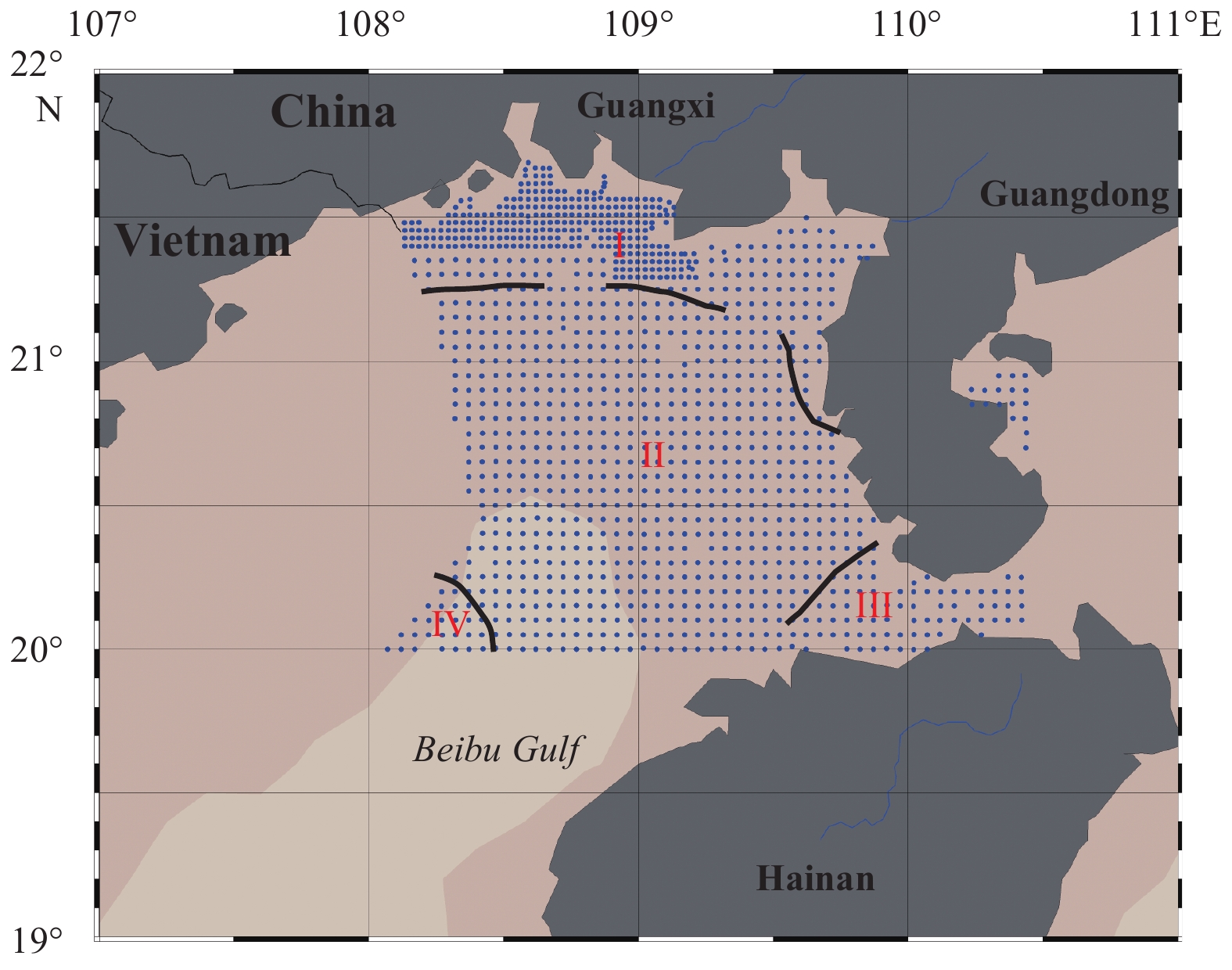

On the basis of the Q-mode cluster analysis and distribution of major and trace elements, we divided the study area into four zones (Fig. 6). Zone I is located in the northeastern coastal area of the gulf, around the Guangxi and Guangdong coastal areas. Through analyzing the distribution pattern of SiO2 (Fig. 3), rivers in Guangxi and Guangdong, such as Nanliu River, Qinjiang River and Jiuzhou River (Fig. 1), should contribute sediments to this zone. Combining with the circulation patterns (Fig. 1) and plots in Fig. 9, the contribution from the Qiongzhou Strait should also be considered as a possible source. Therefore, the fluvial materials from rivers in Guangxi and Guangdong, and the Qiongzhou Strait are the main sources of sediments in Zone I. Zone II is located in the center of study area, where most major and trace elements are concentrated (except for SiO2, CaO, MnO, Sr and As, see Figs 3 and 4). Here the sediments could be from a multiple sources: the riverine materials from Guangxi are firstly deposited in the coastal area in summer, and then resuspended and transported into this zone in winter. Such “summer deposit and winter transport” mechanism is similar with that of the Huanghe River, Changjiang River, Zhujiang River, and Mekong River-derived sediments (Yang et al., 1992; Liu et al., 2004, 2006; Xue et al., 2010; Ge et al., 2014). Because of the westward currents flowing through the Qiongzhou Strait all year around (Fig. 1), sediments from east exit of the Qiongzhou Strait can be transported into this zone (Fig. 9). Moreover, the sediments from the western bank of Hainan can also be transported here (Figs 1 and 9). Zone III is located in the Qiongzhou Strait, where the contents of SiO2, MnO, CaO, Sr, Pb and As are high (Figs 3 and 4). There are strong westward currents flowing through the Qiongzhou Strait all year round, therefore, the Zhujiang River-derived sediments can be transported into the Qiongzhou Strait. Sediments from the Hainan, including those from the Nandu River and eroded from the coast, can also contribute to Zone III. Zone IV is located in the southwest of the study area, where Fe2O3, CaO, K2O, MgO, Sr and As are abundant (Figs 3 and 4). This area is part of the paleo-Red River Delta, and is covered by relict sediments (Chen and Zhang, 1986; Dou et al., 2012). Therefore, the contribution from the Red River should not be ignored. In addition, the sediments originate from Hainan and western bank coastal erosion can also be transported into this zone in winter (Figs 1 and 9).
5.2 Geochemical elements distribution and controlling factors
The cluster and principal component analysis effectively reduce the dimensionality of geochemical data. The two dimension-reduction methods produced consistent results regarding the elemental assemblages in surface sediments. Elements in Clusters I and II exhibit high positive loadings over F1 and F2, respectively. And elements in Clusters VI and V exhibit negative loadings over F1 and F2, respectively. Moreover, F3 corresponds to Clusters III and IV.
F1 and F2 mostly exhibit high positive loading for silt and clay fractions. The contents of aluminium and titanium in sea water are very low, and they are mostly regarded as terrigenous materials in marine sediments (Bruland, 1983; Goldberg and Arrhenius, 1958). Thus, F1 and F2 can be inferred as terrigenous detritus derived from weathered crustal continental rocks. The distribution patterns of these elements and Mz, along with the cluster and principal component analyses, indicate that the grain size is the most important factor controlling the distribution of elements in these two groups (Figs 2–5, Table 2). Fine-grained sediments are rich in Al2O3, Fe2O3, TiO2, P2O5, K2O, MgO, Na2O, Ni, Cu, Zn, Pb, Rb, Cr and V, while coarse-grained sediments have high SiO2 and As contents. The characteristics of the grain size are mostly controlled by a hydrodynamic environment and the mineral composition of terrigenous components (e.g., Self, 1977; Gao and Collins, 1992; Gao, 2009). The strong hydrodynamics in coastal area leads to deposition of coarse-grained sediments (Zone I, Figs 2 and 6). Xie et al. (2014) indicated that Nandu River-derived sediments were mainly influenced by flood-induced jet currents and alongshore tidal currents passing through the Qiongzhou Strait, which are mainly composed of sand. Meanwhile, the potential vorticities between the inflow from the southern gulf circulation and outflow in the Qiongzhou Strait were essentially cancelled each other (Gao et al., 2015). Sand, which is transported from the Qiongzhou Strait, would be deposited in the strait and its west exit (Zone III, Figs 2 and 6). Coarse-grained sediments contain more quartz, which raises SiO2 content while dilute that of other elements. Therefore, the SiO2 content has a high value in these two zones (Fig. 3). On the other hand, riverine materials experienced the processes of transportation, deposition, resuspension, transportation, and redeposition, and the sorting effect results the fine-grained sediments to be deposited in the center of the study area (Zone II, Figs 2 and 6). Aluminium mostly resides in aluminum silicates, which are detrital minerals dominated by clay minerals (Zhao and Yan, 1994). The Al2O3 content is high in Zone II. The aluminum silicates are one of the most important carriers of absorbed metals in the nearshore sediments (Zhao and Yan, 1994; Jonathan et al., 2004). Meanwhile, the isomorphism phenomenon makes some metallic element ions (such as Ni2+, Cr3+, and so on) are easily substituted by the ions (such as Mg2+, Fe3+, and so on) from silicates (Zhao and Yan, 1994). Accordingly, Fe2O3, K2O, MgO, Na2O, Ni, Cu, Zn, Pb, Rb, Cr and V contents are positively correlated with Al2O3 content (Table 3).
Anthropogenic activity is another important factor affecting the spatial variations of elements, especially that of heavy metal. Rivers flowing through catchments with rapid industrial and economic developmental are ideal carriers of heavy metal (Zhang et al., 2017). The Cu, Cr, Pb, Zn and As contents are found to be much higher than their background values in most of the samples (Fig. 4). Especially in the estuary and Zone III, the high values are centered off the estuaries in Guangxi and Hainan, which indicates impacts from human activities.
F3 displays significant positive loadings for CaO, Sr and MnO. Because of the similar ionic radius of Ca2+ and Sr2+, the phenomenon of isomorphism is widespread (Zhao and Yan, 1994). The variations of these two elements are always synchronism, and they are mainly biogenic sourced. The highest F3 scores present around the Weizhou Island off the Guangxi coast. As flourishing coral reef platforms are reported in the center gulf (Wang et al., 2016), the relict deposit could be introduced by coral debris (Fig. 7). The MnO content is also controlled by the oxide content in the environment, except for the riverine inputs and sediments transportation process. The manganese would deposit as an authigenic oxide in the oxic environment (Wei et al., 2003). The distribution pattern of MnO content is similar with that of CaO and Sr, which indicates that the high value areas are oxic environment that favorite the authigenic manganese deposition.
6 Conclusions
Less
We performed the grain size, major and trace elements analyses on surface sediments from the northeastern Beibu Gulf in the South China Sea. Most elements, except for SiO2, CaO, MnO, Sr and As, exhibit a similar spatial distribution with that of silt fraction. On the basis of the Q-mode cluster analysis and the elements distribution, the study area was divided into four zones: Zone I is located in the northeastern coastal area of the gulf, where sediments are mainly from the rivers in Guangxi and Guangdong, and the Qiongzhou Strait; Zone II is located in the center of the study area, and the sediments here have a multiple source; Zone III is located in the Qiongzhou Strait, which is dominated by sediments from the Zhujiang River and Hainan Island; Zone IV is located in the southwest of the study area, and the sediments here mainly originated from the Red River and Hainan. Our analysis reveals that while the grain size, which is mainly controlled by the hydrodynamics and mineral composition, is the dominant factor for the elements distribution in the Beibu Gulf, impacts from the anthropogenic activity and the marine biogenic process should be also taken into consideration.
Acknowledgements
Less
We thank the Institute of Geophysical and Geochemical Exploration, Chinese Academy of Geological Sciences, China for the technical assistance in laboratory analysis, Yanhui Dong and Chunguo Yang from the Second Institute of Oceanography, Ministry of Natural Resources, China for useful discussion.
Funding
Less
  • The National Programme on Global Change and Air-Sea Interaction of China under contract Nos GASI-GEOGE-03, GASI-04-01-02 and GASI-GEOGE-05; the National Natural Science Foundation of China under contract Nos 41476047, 41106045, 41506012 and 41206045.
References
Less
Allison M A, Lee M T, Ogston A S, et al. 2000. Origin of Amazon mudbanks along the northeastern coast of South America. Marine Geology, 163(1–4): 241–256
Boulay S, Colin C, Trentesaux A, et al. 2007. Sedimentary responses to the Pleistocene climatic variations recorded in the South China Sea. Quaternary Research, 68(1): 162–172, doi: 10.1016/j.yqres.2007.03.004
Bruland K W. 1983. Trace elements in sea-water. In: Riley J P, Chester R, eds. Chemical Oceanography, Vol. 8. New York: Academic Press, 157–220
Calvert S E. 1976. The mineralogy and geochemistry of near-shore sediments. In: Riley J P, Chester R, eds. Chemical Oceanography. 2nd ed. New York: Academic Press, 187–280
Chen Lirong, Zhang Xiurong. 1986. Mineral assemblages and their distribution pattern of the sediments from the Beibu Gulf. Haiyang Xuebao (in Chinese), 8(3): 340–346
Cui Zhenang, Hou Yueming, Xia Zhen, et al. 2015. Geochemical characteristics and provenance analysis of Holocene sediments in Beibu Gulf, South China Sea. Global Geology (in Chinese), 34(3): 605–614
Dou Yanguang, Li Jun, Li Yan. 2012. Rare earth element compositions and provenance implication of surface sediments in the eastern Beibu Gulf. Geochimica (in Chinese), 41(2): 147–157
Gao Shu. 2009. Grain size trend analysis: principle and applicability. Acta Sedimentologica Sinica (in Chinese), 27(5): 826–836
Gao Jingsong, Chen Bo. 2014. Analysis on characteristics and formation mechanism of the winter boreal circulation in the Beibu Gulf. Guangxi Sciences (in Chinese), 21(1): 64–72
Gao Jingsong, Chen Bo, Shi Maochong. 2015. Summer circulation structure and formation mechanism in the Beibu Gulf. Science China: Earth Sciences, 58(2): 286–299, doi: 10.1007/s11430-014-4916-2
Gao Shu, Collins M. 1992. Net sediment transport patterns inferred from grain-size trends, based upon definition of “transport vectors”. Sedimentary Geology, 81(3–4): 47–60
Gao Jingsong, Wu Guidan, Ya Hanzheng. 2017. Review of the circulation in the Beibu Gulf, South China Sea. Continental Shelf Research, 138: 106–119, doi: 10.1016/j.csr.2017.02.009
Ge Qian, Liu Jingpu, Xue Zuo, et al. 2014. Dispersal of the Zhujiang River (Pearl River) derived sediment in the Holocene. Acta Oceanologica Sinica, 33(8): 1–9, doi: 10.1007/s13131-014-0407-8
Goldberg E D, Arrhenius G O S. 1958. Chemistry of Pacific pelagic sediments. Geochimica et Cosmochimica Acta, 13(2–3): 153–212
Jonathan M P, Ram-Mohan V, Srinivasalu S. 2004. Geochemical variations of major and trace elements in recent sediments, off the Gulf of Mannar, the southeast coast of India. Environmental Geology, 45(4): 466–480, doi: 10.1007/s00254-003-0898-7
Li Gang, Yan Wen, Zhong Lifeng. 2016. Element geochemistry of offshore sediments in the northwestern South China Sea and the dispersal of Pearl River sediments. Progress in Oceanography, 141: 17–29, doi: 10.1016/j.pocean.2015.11.005
Liu Zhifei, Colin C, Huang Wei, et al. 2007a. Climatic and tectonic controls on weathering in South China and Indochina Peninsula: clay mineralogical and geochemical investigations from the Pearl, Red, and Mekong drainage basins. Geochemistry, Geophysics, Geosystems, 8(5): Q05005, doi: 10.1029/2006GC001490
Liu Jingpu, Li Anchun, Xu Kehui, et al. 2006. Sedimentary features of the Yangtze River-derived along-shelf clinoform deposit in the East China Sea. Continental Shelf Research, 26(17–18): 2141–2156
Liu J P, Milliman J D, Gao Shu, et al. 2004. Holocene development of the Yellow River’s subaqueous delta, North Yellow Sea. Marine Geology, 209(1–4): 45–67
Liu Jingpu, Xu Kehui, Li Anchun, et al. 2007b. Flux and fate of Yangtze River sediment delivered to the East China Sea. Geomorphology, 85(3–4): 208–224
Liu Jingpu, Xue Zuo, Ross K, et al. 2009. Fate of sediments delivered to the sea by Asian large rivers: long-distance transport and formation of remote alongshore clinothems. The Sedimentary Record, 7(4): 4–9, doi: 10.2110/sedred.
Loring D H, Rantala R T T. 1992. Manual for the geochemical analyses of marine sediments and suspended particulate matter. Earth-Science Reviews, 32(4): 235–283, doi: 10.1016/0012-8252(92)90001-A
Ma Lifang, Min Longrui, Xie Liangzhen, et al. 2002. Geological Map of China (in Chinese). Beijing: China Geological Publishing House
Mange M A, Morton A C. 2007. Geochemistry of heavy minerals. Developments in Sedimentology, 58: 345–391, doi: 10.1016/S0070-4571(07)58013-1
McLennan S M, Hemming S, McDaniel D K, et al. 1993. Geochemical approaches to sedimentation, provenance, and tectonics. Geological Society of America, Special Paper, 284: 21–40, doi: 10.1130/SPE284
Nesbitt H W, Mackovics G, Price R C. 1980. Chemical processes affecting alkalis and alkaline earths during continental weathering. Geochimica et Cosmochimica Acta, 44(11): 1659–1669, doi: 10.1016/0016-7037(80)90218-5
Nesbitt H W, Young G M. 1982. Early Proterozoic climates and plate motions inferred from major element chemistry of lutites. Nature, 299(5885): 715–717, doi: 10.1038/299715a0
Nesbitt H W, Young G M. 1989. Formation and diagenesis of weathering profiles. The Journal of Geology, 97(2): 129–147, doi: 10.1086/629290
Nittrouer C A, Curtin T B, DeMaster D J. 1986. Concentration and flux of suspended sediment on the Amazon continental shelf. Continental Shelf Research, 6(1–2): 151–174
Self R P. 1977. Longshore variation in beach sands Nautla area, Veracruz, Mexico. Journal of Sedimentary Research, 47(4): 1437–1443
Shi Maochong. 2014. Study comments on circulation in Beibu Gulf. Guangxi Sciences , 21(4): 313–324
Singh M, Sharma M, Tobschall H J. 2005. Weathering of the Ganga alluvial plain, northern India: implications from fluvial geochemistry of the Gomati River. Applied Geochemistry, 20(1): 1–21, doi: 10.1016/j.apgeochem.2004.07.005
Wang Pinxian. 1999. Response of Western Pacific marginal seas to glacial cycles: paleoceanographic and sedimentological features. Marine Geology, 156(1–4): 5–39
Wang Lvjiang, Sarnthein M, Erlenkeuser H, et al. 1999. East Asian monsoon climate during the Late Pleistocene: high-resolution sediment records from the South China Sea. Marine Geology, 156(1–4): 245–284
Wang Wenhuan, Yu Kefu, Wang Yinghui. 2016. A review on the research of coral reefs in the Weizhou Island, Beibu Gulf. Tropical Geography (in Chinese) , 36(1): 72–79
Wei Gangjian, Liu Ying, Li Xianhua, et al. 2003. High-resolution elemental records from the South China Sea and their paleoproductivity implications. Paleoceanography, 18(2): 1054
Xie Hualiang, Dai Zhijun, Wu Ying, et al. 2014. Sedimentation dynamic modes of the Nandujiang estuary, Hainan Island. Acta Sedimentologica Sinica , 32(5): 884–892
Xue Zuo, Liu J P, DeMaster D, et al. 2010. Late Holocene evolution of the Mekong subaqueous delta, southern Vietnam. Marine Geology, 269(1–2): 46–60
Yang Zuosheng, Guo Zhigang, Wang Zhaoxiang, et al. 1992. The macro pattern of suspended particulate matter transport to the eastern open ocean on the Yellow and East China Sea shelf. Haiyang Xuebao (in Chinese), 14(2): 81–90
Zhang Zhiqiang, Chen Liang, Wang Weiping, et al. 2017. The origin, historical variations, and distribution of heavy metals in the Qiongzhou Strait and nearby marine areas. Journal of Ocean University of China, 16(2): 262–268, doi: 10.1007/s11802-017-2926-3
Zhao Yiyang, Yan Mingcai. 1994. Geochemistry of Sediments of the China Shelf Sea (in Chinese). Beijing: China Ocean Press, 1–203
Zhou Shiwen, Liu Zhifei, Zhao Yulong, et al. 2014. A high-resolution clay mineralogical record and its paleoenvironmental significance in the northeastern Gulf of Tonkin over the past 2000 years. Quaternary Sciences (in Chinese), 34(3): 600–610
