Benthodytes palauta, a new species of deep-sea holothuroid (Elasipodida: Psychropotidae) from the western Pacific Ocean
收藏切换
PDF
Chuan Yu1, 2, Chunsheng Wang1, 2, 3, *, Dongsheng Zhang1, 2, 3, Ruiyan Zhang1, 2
Acta Oceanologica Sinica | 2021, 40(12) : 50 - 54
Less
收藏切换
Acta Oceanologica Sinica | 2021, 40(12): 50-54
• Environmental Study of Seamounts and Adjacent Waters in the Northwestern Pacific Ocean •
Benthodytes palauta, a new species of deep-sea holothuroid (Elasipodida: Psychropotidae) from the western Pacific Ocean
Full
Chuan Yu1, 2, Chunsheng Wang1, 2, 3, *, Dongsheng Zhang1, 2, 3, Ruiyan Zhang1, 2
Affiliations
  • 1 School of Oceanography, Shanghai Jiao Tong University, Shanghai 200030, China
  • 2 Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China
  • 3 Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai), Zhuhai 519082, China
Published: 2021-11-25 doi: 10.1007/s13131-021-1937-5
Outline
收藏切换

A new species of Psychropotidae holothuroid, Benthodytes palauta sp. nov., was collected from the Kyushu-Palau Ridge at a depth of 2 666 m. This new species is characterized by a leathery body wall, red-violet skin, five pairs of dorsal papillae, nineteen pairs of tube feet, and a narrow brim. The internal organs include one Polian vesicle, two tufts of gonads, and no respiratory trees. Ventral ossicles are large and spinous, with crosses of four arms with central bipartite apophyses. Papillae ossicles are crosses with four arms with bipartite apophyses. The dorsal ossicles were few and large, and cross-shaped with four arms and central bipartite apophyses. Tentacle ossicles were large and rod-shaped or slender rods. Gonad ossicles were primary crosses of four arms and brim ossicles were cross-shaped with spines. The phylogenetic analyses of this species support that B. palauta sp. nov. belongs to Benthodytes. Furthermore, the paraphyletic relationships were confirmed; however, a revision of the genus Benthodytes is needed to resolve its phylogenetic relationship.

16S  /  COI  /  Kyushu-Palau Ridge  /  phylogenetic analyses  /  Psychropotes  /  Psycheotrephes
Chuan Yu, Chunsheng Wang, Dongsheng Zhang, Ruiyan Zhang. Benthodytes palauta, a new species of deep-sea holothuroid (Elasipodida: Psychropotidae) from the western Pacific Ocean[J]. Acta Oceanologica Sinica, 2021 , 40 (12) : 50 -54 . DOI: 10.1007/s13131-021-1937-5
Full Text
Less
1 Introduction
Less
Holothurians of the family Psychropotidae that can swim in the water column were first identified by Théel (1882), who described the deep-sea sea cucumbers discovered on the H.M.S. Challenger Expedition and defined the genus of Benthodytes. Benthodytes is characterized by a brim that enables the sea cucumber to swim through undulating or flapping. The ossicles in Benthodytes are cross-shaped, or rod-shaped. The swimming activity of Benthodytes gosarsi was first reported in the northern mid-Atlantic ridge (Rogacheva et al., 2012).
The genus Benthodytes is widely distributed, and the least studied deep-sea holothurians. Benthodytes was established by Théel (1882) with the characteristics of dorsal retractile or non-retractile inconsiderable processes. Hansen (1975) revised this genus and described eight species, two of which were identified as new species. In the last 12 years, five new species of Benthodytes have been described (Gebruk, 2008; Rogacheva et al., 2009; Martinez et al., 2014; Xiao et al., 2018; Li et al., 2018). According to WoRMS (WoRMS, 2021), the genus includes 14 valid species: B. abyssicola Théel, 1882; B. gosarsi Gebruk, 2008; B. incerta Ludwig, 1894; B. lingua Perrier, 1896; B. manusensis Xiao et al., 2018; and B. marianensis Li et al., 2018; B. plana Hansen, 1975; B. sanguinolenta Théel, 1882; B. sibogae Sluiter, 1901a; B.superba Koehler & Vaney, 1905; B. typica Théel, 1882; B. valdiviae Hansen, 1975; B. violeta Martinez, SolísMarín & Penchaszadeh, 2014; and B. wolffi Rogacheva & Cross in Rogacheva et al., 2009.
During cruise DY59 of the China Ocean Mineral Resources R &D Association (COMRA), one specimen of the genus Benthodytes was collected from a seamount on the Kyushu-Palau Ridge. Based on the analysis of the external morphological characters and ossicles, it was identified as a new species of the genus Benthodytes. In addition, we analyzed the phylogenetic relationships of family Psychropotidae, which were the least studied.
2 Materials and methods
Less
2.1 Sampling and morphological observations
The specimen (catalog number: RSIO591006) used in this study was collected by a remotely operated vehicle, Hailong-IV, from the Kyushu-Palau Ridge (13°23.98'N, 134°34.74'E) at a depth of 2666 m. The specimen was fixed in 10% seawater formalin, and a piece of tissue was cut and frozen under −20°C for DNA extraction. Upon arrival at the laboratory, the intact specimen, fixed in seawater formalin, was dissected, and pictures of the worm body were taken using a Canon EOS 5DII camera (Canon Inc., Tokyo, Japan). Small pieces of the body tissues of tentacles, dorsum, ventrum, brim and gonad were dissolved in 60% sodium hypochlorite and the ossicles were examined using a scanning electron microscope (TM 1000; Hitachi, Ltd., Tokyo, Japan).
2.2 PCR amplification and phylogenetic analyses
Total genomic DNA was extracted from 100 mg muscle tissue using a DNeasy Blood & Tissue Kit (QIAGEN, Hilden, Germany) according to the manufacturer’s instructions. The partial sequences of 16S rRNA and COI genes were amplified with primers that were used in Miller et al. (2017). The PCR amplification reactions were carried out in a 50 μL volume system, containing 25 μL 2× Phanta Max Master Mix (Vazyme, Biotech CO., Ltd., NanJing, China), 20 μL DNase free ddH2O, 2 μL of each primer, and 1-μL template DNA, as suggested by the manufacturer. The PCR amplification procedure of 16S rRNA was as follows: an initial denaturation at 95°C for 3 min, followed by 35 cycles at 95°C for 40 s, 50°C for 40 s and 68°C for 50 s, and a final extension at 68°C for 5 min. The PCR amplification procedure of COI was as follows: an initial denaturation at 95°C for 3 min, followed by 40 cycles at 95°C for 40 s, 45°C for 40 s, and 72°C for 50 s, and a final extension at 72°C for 5 min. The seizes of the PCR products were checked through 1.5% agarose gel electrophoresis, and purified using OMEGA PCR kit (Omega, Biotek, Norcross). The purifed PCR products were sequenced on an ABI 3730XL sequencer (Sangon, Biotec CO., Ltd., Shanghai). Sequence data were edited with Geneious R6.1.6 (Kearse et al., 2012) and deposited in GenBank (Table 1).
For phylogenetic analyses, thirteen COI gene sequences and twelve 16S rRNA gene sequences were downloaded from GenBank, and two species of Elpidiidae were chosen as the outgroup (Table 1). COI and 16S sequences were aligned using MAFFT 7 (Katoh and Standley, 2013) with the G-INS-I strategy for COI and the E-INS-I strategy for 16S rRNA. Later, COI and 16S were concatenated into the dataset (COI/16S=678/571 bp). Maximum likelihood (ML) and Bayesian inference (BI) analyses were performed for the dataset. To obtain the best-fit tree, JModelTest 2.1.10 (Darriba et al., 2012) was performed to find the best-fit model from 88 competing models using Akaike Information Criterion (AIC) calculations. The best-fit model was GTR+I+G. BI analysis was conducted with Mrbayes 3.2 (Huelsenbeck and Ronquist, 2001). Markov Chains Monte Carlo (MCMC) iterations were run for 1 000 000 generations, with topologies being sampled every 100 generations. The first 25% of trees were discarded as burn-in and the remaining trees were summarized in 75% majority rule consensus tree. ML analysis was performed with RAxML GUI 1.5 (Silvestro and Michalak, 2012; Stamatakis, 2014) using the GTR+GAMMA+I substitution model for 1000 bootstraps, as recommend by Miller et al. (2017).
3 Results and discussion
Less
3.1 Morphological observations
Order Elasipodida Théel, 1882
Suborder Psychropotina Hansen, 1975
Family Psychropotidae Théel, 1882
Genus Benthodytes Théel, 1882
Diagnosis (according to Hansen, 1975)
Anus dorsal. Unpaired dorsal appendages absent. Circum-oral (or post-oral) papillae present. Tentacles soft, pliable, and retractile.
Benthodytes palauta sp. nov.
(Figs 1– 4)
Diagnosis

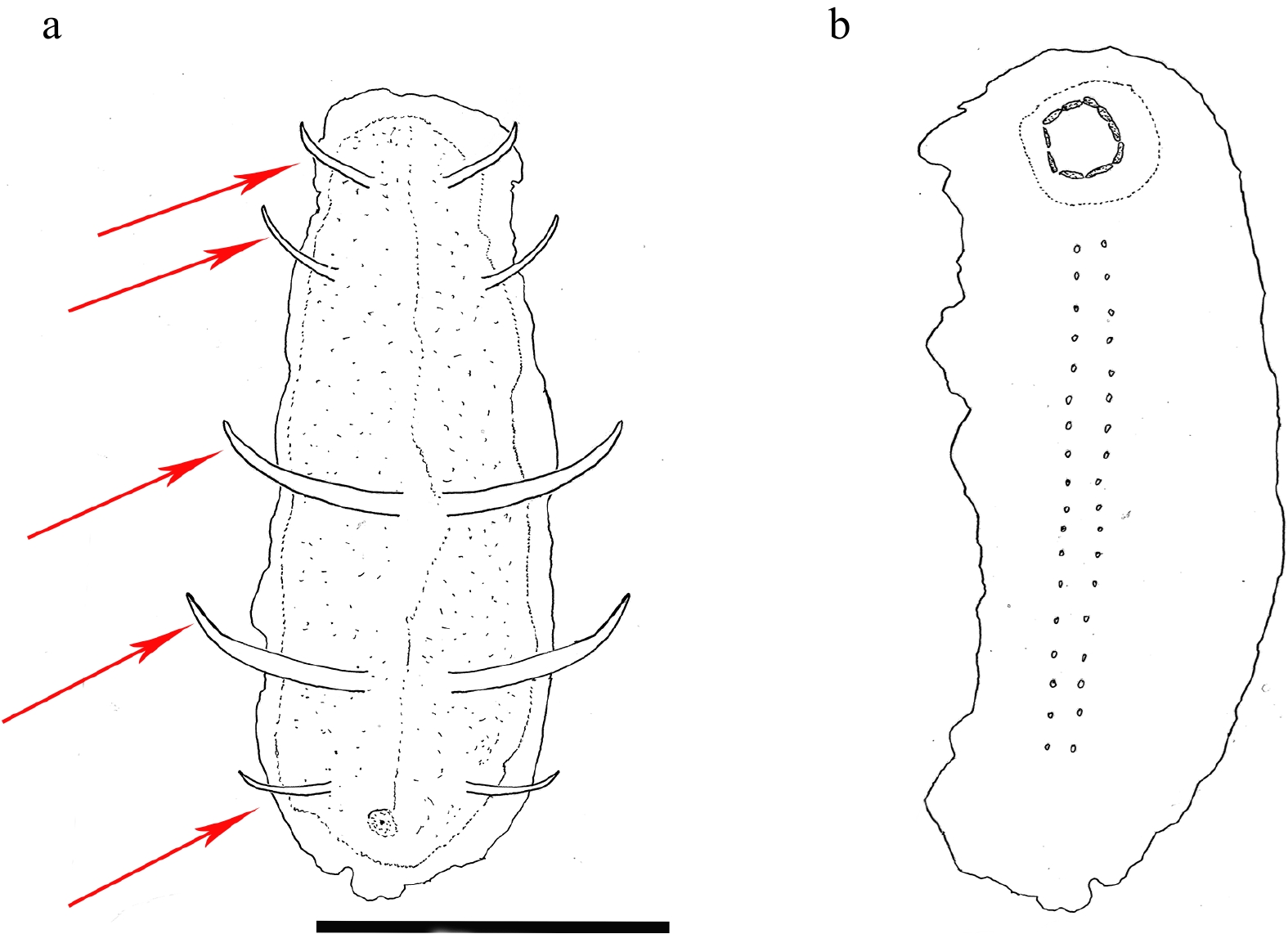

Body elongated and subcylindrical when fixed. Skin red with light violet, thick, soft, and leathery. Tentacles ten, retracted after fixing. Mouth ventral, anus dorsal. Five pairs of dorsal papillae, conical, with filiform tips, arranged in two single rows. Brim narrow, thin, flattened, with visible pigment canals. Gonads branched, with two tufts. Ossicles, with large, spinous crosses of four arms with central bipartite apophyses scattered on the ventrum and papillae. Brim ossicles cross-shaped with spines and rods present in tentacles. Dorsal ossicles very few, cross-shaped with four arms and central bipartite apophyses, and rod-shaped.

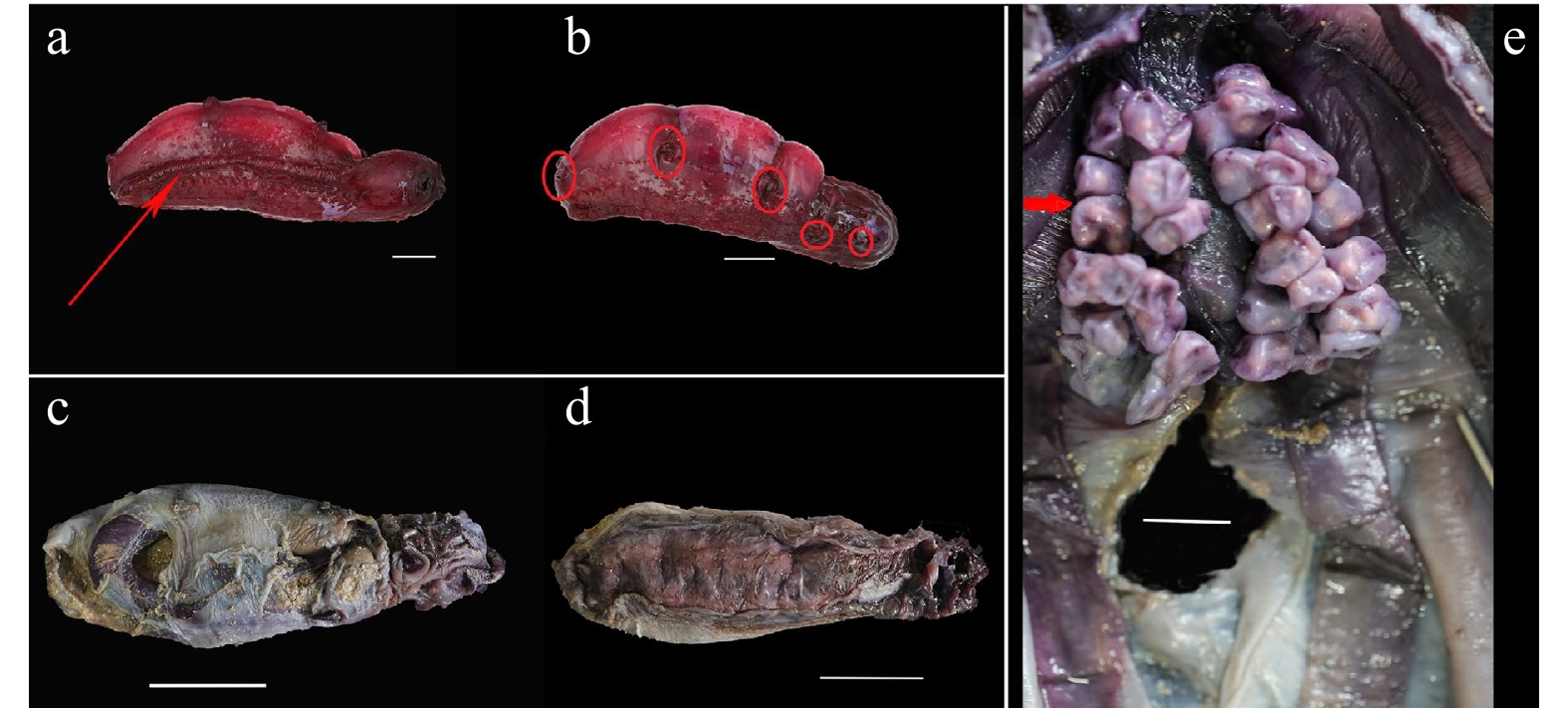

Description of holotype. The central body of the specimen was inflated after collection and was approximately 28 cm in length before being preserved in 10% seawater formalin (Figs 2a and b). When the specimen arrived at the laboratory, the dorsum was damaged (Fig. 2c) and approximately 22 cm in length (Fig. 2d). The skin was red with light violet on the deck and decolorized into white violet after fixing.
The mouth was ventral, close to the anterior edge of the body, with circum-oral papillae, and anus was at the dorsal terminal (Fig. 1a). Ten tentacles were retracted into the stalks. Five pairs of papillae were arranged in two rows: the first pair was located anterior to the dorsum; the second pair was distributed one-fourth of the distance along the dorsum but on the outer edge; the third and fourth pairs increased in size toward inner dorsum; the last pair was close to the terminal of the dorsum; and some minute papillae were scattered on the dorsal surface. Nineteen pairs of tube feet were arranged in two rows along the mid-ventrum and retracted to the body when fixed (Fig. 1b).
The Polian vesicle was drop-shaped, and 30 mm in length. No respiratory trees were observed. Gonads were branched with two tufts (Fig. 2e), and each tuft included 12 oocytes. The maximum size of oocytes was nearly 1 cm and each contained 6–8 yellow globules.

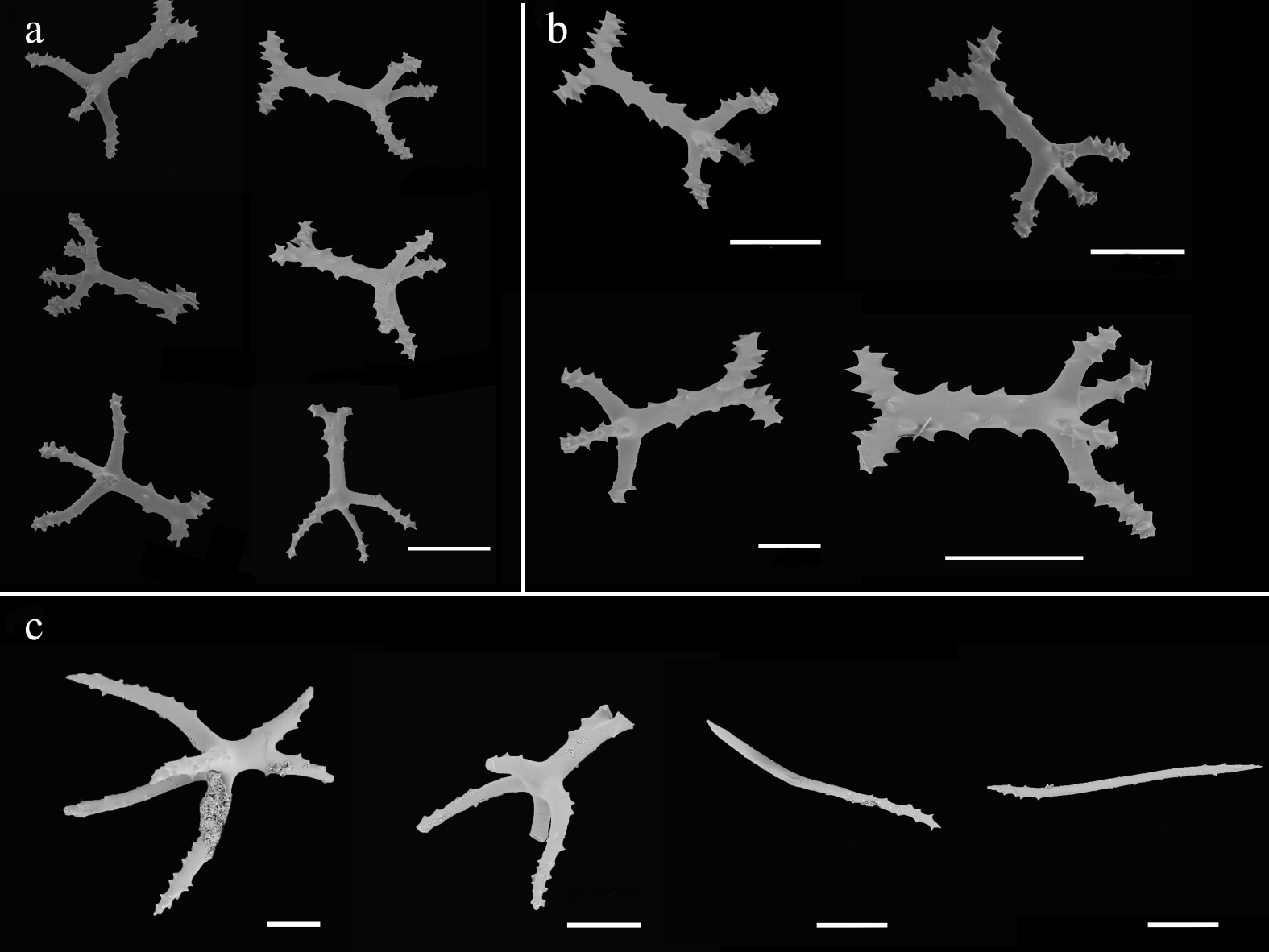

Ossicles in the ventral body wall were approximately 300−350 μm in length, with four arms crosses-shaped of central bipartite apophyses. The large arms were approximately 150 μm in length, and the small one was approximately 80 μm (Fig. 3a). Papillae ossicles were similar to the ventral type, but larger. The papillae ossicles were approximately 350−400 μm in length, and the arms were approximately 200 μm. Furthermore, the central bipartite apophyses of the papillae ossicles were fully developed, with clear spines (Fig. 3b). The ossicles in the dorsal body wall were very few and large. They were approximately 1100 μm in length with four arms in a cross with central bipartite apophyses, or rod-shaped and approximately 650 μm in length. The large arms were approximately 600 μm, and the arms of the apophyses were approximately 200 μm. The opening angles of the arms of central bipartite apophyses of the dorsal ossicles were smaller than those of the other ossicles (Fig. 3c).

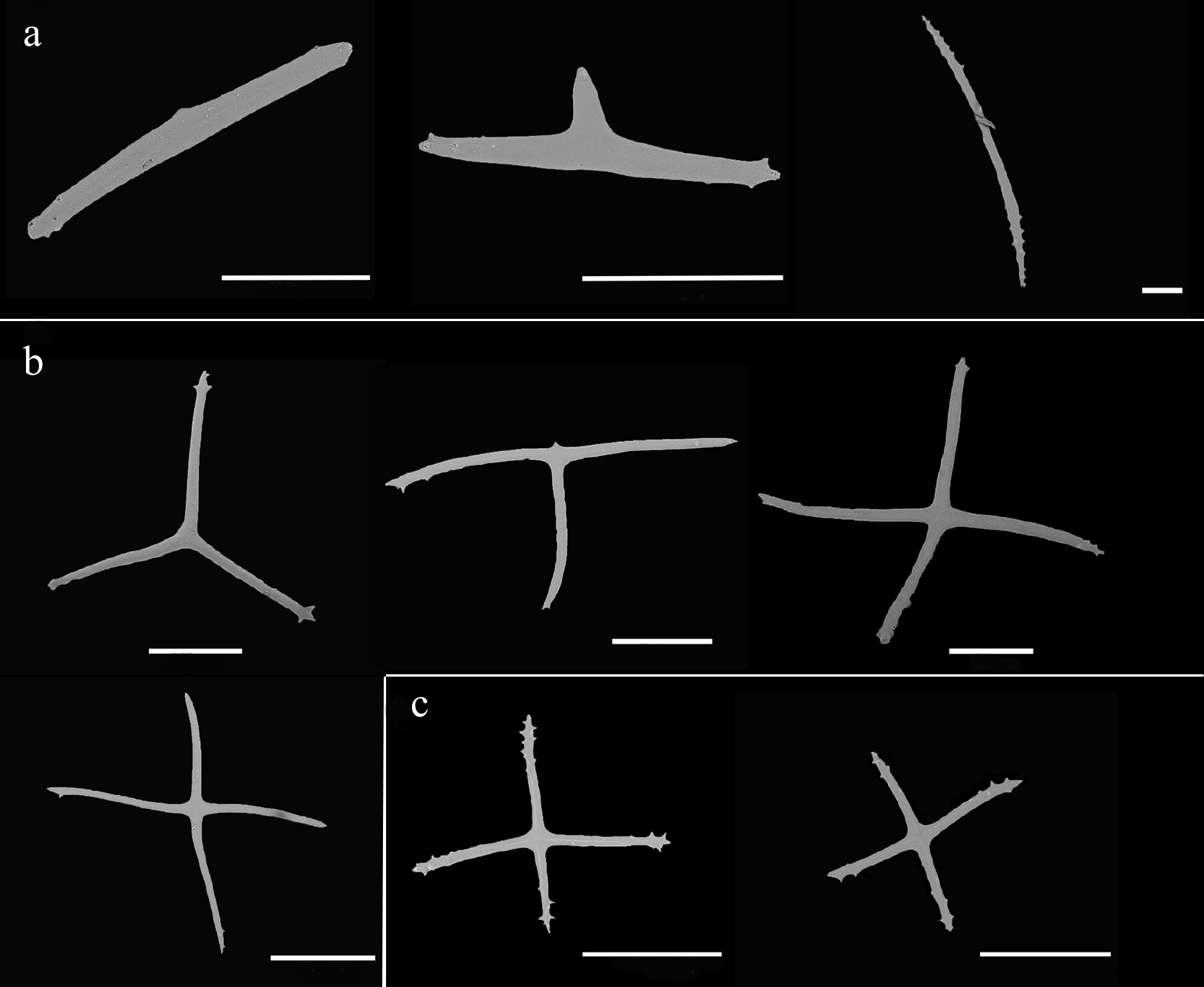

Ossicles in the tentacles were rod-shaped, but with variations: (1) large rods, approximately 300 μm in length; (2) smaller, approximately 200 μm in length, with an apophysis in the middle area; (3) slender, but the longest with a length of 600 μm (Fig. 4a). Gonad ossicles had three or four axes. The arms and the apophyses were approximately 400 μm (Fig. 4b). Brim ossicles were primarily cross-shaped with spines, with a width of approximately 350 μm (Fig. 4c).
Material examined. Holotype: 1 adult specimen, catalog number RSIO591006.
Type locality. Kyushu-Palau Ridge, tropical western Pacific (13°23.98'N, 134°34.74'E). Depth 2 666 m, muddy sediments, August 5, 2020, Ruiyan Zhang, Bo Lu.
Distribution. Known only from the type locality.
Etymology. The specific epithet palauta refers to the type locality Kyushu-Palau Ridge.
Remarks. According to its external morphology, B. palauta sp. nov. is similar to B. sibogae Sluiter, 1901a. Both species share five pairs of dorsal papillae, an inflated dorsum, and a narrow brim. In addition, ossicles from the ventrum and papillae are similar. B. sibogae was described by Sluiter in 1901 based on specimens from the Siboga-Expedition. Hansen (1975) re-examined B. sibogae, and proposed B. hystrix as a junior synonym of B. sibogae. Hansen (1975) believed that the original description of the ossicles was not typical. In his report, dorsal ossicles were spinous crosses with bipartite apophyses; ventral ossicles were rod-shaped, tripartite, or cross-shaped, without apophyses, or rudimentary and undivided; and gonad ossicles were cross-shaped with four arms. Xiao et al. (2020) reported a new record of B. sibogae from the South China Sea, and described papillae ossicles which was not mentioned before. The papillae ossicles were cross-shaped with spinous arms and, central bipartite apophyses.
Three morphological distinguishing characteristics were detected between B. palauta sp. nov. and B. sibogae: (1) the ventral ossicles of B. palauta sp. nov. only presented as four arms cross with central bipartite apophyses (Fig. 3a), while B. sibogae have rod-shape, tripartite; (2) the arm and apophyses of the papillae cross ossicles were similar to B. sibogae (Fig. 3b), but larger; (3) both cross and rod ossicles are found in the dorsum of the new species, but rod ossicle was absent and the cross ossicles were smaller in B. sibogae (Fig. 3c).
In addition, the body wall of B. palauta sp. nov. differed from that of B. sibogae, and was red-violet before preservation. These evidences in differences in external morphology and ossicles support B. palauta sp. nov. as a valid new species.
3.2 Phylogenetic analyses

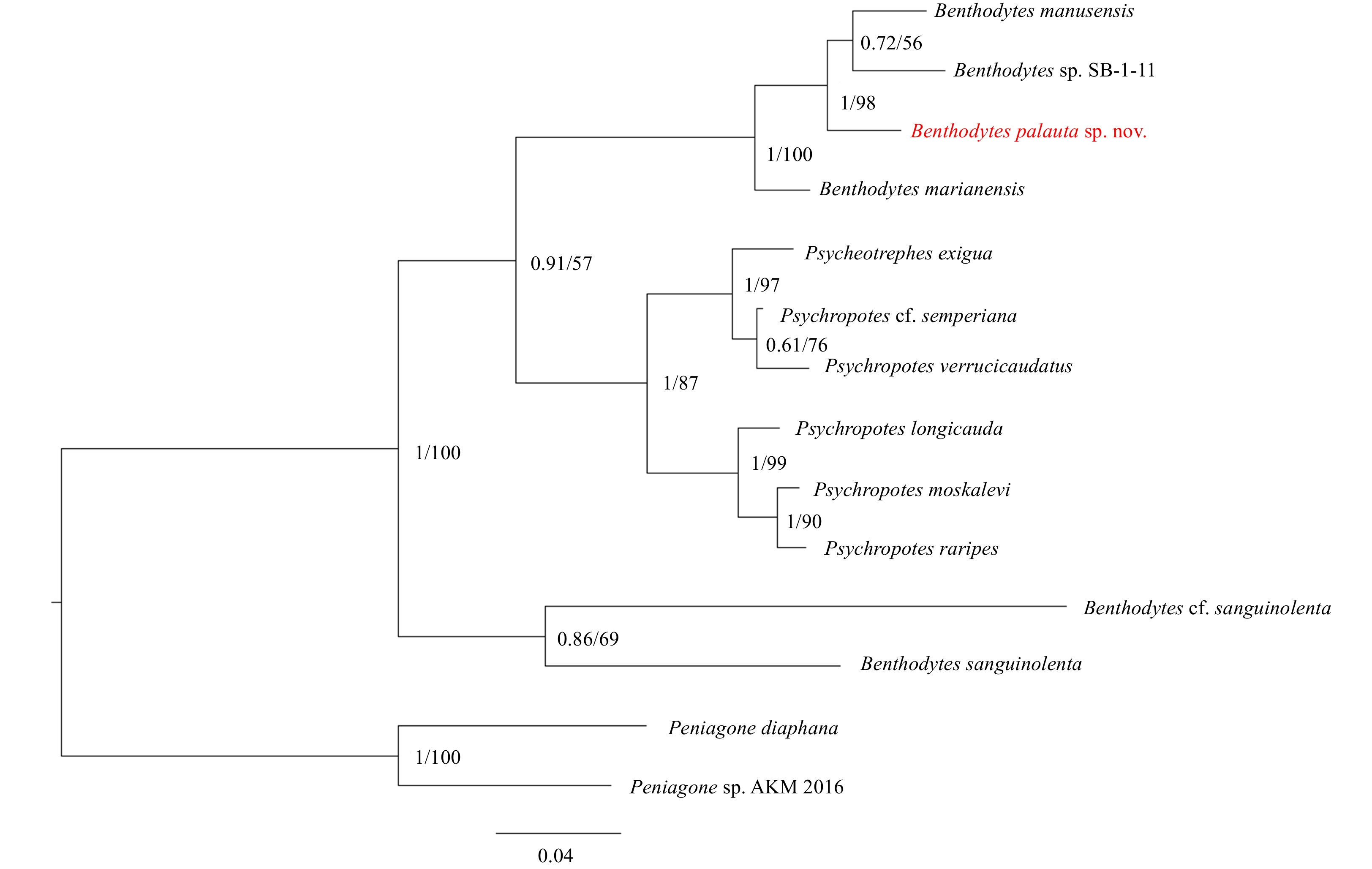

Both ML and BI trees were consistent, and showed that species of the genus Benthodytes were divided into two clades. The new species was closely related with B. manusensis, Benthodytes sp. SB-1-11 and B. marianensis, while B. sanguinolenta and B. cf. sanguinolenta were clustered together and placed at the root of Psychropotidae. Our results suggested that Benthodytes was a paraphyletic group (Li et al., 2018) (Fig. 5).
In addition, Psychropotes showed paraphyletic relationships with Psycheotrephes. The clade of Psychropotes moskalevi and Psychropotes raripes were clustered together, and Psychropotes longicauda was their sister group. Psychropotes verrucicaudatus and Psychropotes cf. semperiana were clustered into a group, but the probability of the clade was very low. Psycheotrephes exigua was located in the lateral clade of the sister group.
In general, the relationships of Psychropotid can be presented as follows: (((Psychropotes + Psycheotrephes) + Benthodytes) + (Benthodytes sanguinolenta + Benthodytes cf. sanguinolenta)). However, since only 10 sequences were available among the 37 existing species, more molecular data combined with morphological data are required to explore the phylogenetic relationships of Psychropotid.
4 Discussion
Less
Based on the morphology and phylogenetic analyses, B. palauta sp. nov. clearly belongs to Benthodytes. However, a revision of the genus Benthodytes is required based on the divergences of the morphology and phylogenetic analyses.
According to the review by Hansen (1975), the genus Benthodytes was well defined, particularly on its circum-oral papillae, but the species of Benthodytes were difficult to evaluate taxonomically. Hansen (1975) proposed that Benthodytes, except Benthodytes superba, can be divided into two distinct groups. The first group included five species (B. incerta, B. lingua, B. valdiviae, B. sibogae and B. plana) according to the regular crosses ossicles with large bipartite central apophysis and 15 tentacles. The remaining species B. typica and B. sanguinolenta consisted of another group by the strongly reduced rod ossicles, a high tentacle number and the minute dorsal papillae. Recently, more five species were identified: B. gosarsi, B. violeta, B. wolffi, B. manusensis, and B. marianensis. Together with Benthodytes palauta sp. nov., these species can be assigned into the first group by the well-developed papillae and crosses ossicles.
There were few works on the molecular phylogeny of the Psychropotid (Miller et al., 2017; Li et al., 2018). Phylogenetic analyses in this study supported that Benthodytes is a paraphyletic group. The clade of B. sanguinolenta and Benthodytes cf. sanguinolenta was placed at the lateral clade of other Psychropotid species. This result was consistent with the views of Hansen (1975) and Li et al. (2018).
Nevertheless, the gene sequences are limited in the genus Benthodytes or the family Psychropotidae, and only few studies on molecular phylogeny have been conducted. Thus, the relationships within Benthodytes remain unresolved and await more works combine morphology and molecular data in depth work.
Acknowledgements
Less
We thank Xiao Ning for her help and valuable comments on the paper. We also thank Gebruk and Rogacheva for their help and valuable critical comments. Special thanks to Lu Bo for the sampling work. In addition, Mariano I. Martinez provided assistance with references and answers to my questions.
Funding
Less
  • The Foundation of the China Ocean Mineral Resources R&D Association under contract Nos DY135-E2-2-03 and DY-XZ-02.
References
Less
Darriba D, Taboada G L, Doallo R, et al. 2012. jModelTest 2: More models, new heuristics and parallel computing. Nature Methods, 9(8): 772
Gebruk A V. 2008. Holothurians (Holothuroidea, Echinodermata) of the northern Mid-Atlantic Ridge collected by the G. O. Sars MAR-ECO expedition with descriptions of four new species. Marine Biology Research, 4(1–2): 48–60
Hansen B. 1975. Scientific results of the Danish deep-sea expedition round the world 1950–52. Systematics and biology of the deep-sea holothurians: Part. l. Elasipoda. Vinderup: The Galathea Committee, 1–262
Huelsenbeck J P, Ronquist F. 2001. MRBAYES: Bayesian inference of phylogenetic trees. Bioinformatics, 17(8): 754–755, doi: 10.1093/bioinformatics/17.8.754
Katoh K, Standley D M. 2013. MAFFT multiple sequence alignment software version 7: Improvements in performance and usability. Molecular Biology and Evolution, 30(4): 772–780, doi: 10.1093/molbev/mst010
Kearse M, Moir R, Wilson A, et al. 2012. Geneious Basic: An integrated and extendable desktop software platform for the organization and analysis of sequence data. Bioinformatics, 28(12): 1647–1649, doi: 10.1093/bioinformatics/bts199
Li Ya’nan, Xiao Ning, Zhang Lvping, et al. 2018. Benthodytes marianensis, a new species of abyssal elasipodid sea cucumbers (Elasipodida: Psychropotidae) from the Mariana Trench area. Zootaxa, 4462(3): 443–450, doi: 10.11646/zootaxa.4462.3.10
Martinez M I, Solís-Marín F A, Penchaszadeh P E. 2014. Benthodytes violeta, a new species of a deep-sea holothuroid (Elasipodida: Psychropotidae) from Mar del Plata Canyon (south-western Atlantic Ocean). Zootaxa, 3760(1): 89–95, doi: 10.11646/zootaxa.3760.1.6
Miller A K, Kerr A M, Paulay G, et al. 2017. Molecular phylogeny of extant Holothuroidea (Echinodermata). Molecular Phylogenetics and Evolution, 111: 110–131, doi: 10.1016/j.ympev.2017.02.014
Rogacheva A, Cross I A, Billett D S M. 2009. Psychropotid holothurians (Echinodermata: Holothuroidea: Elasipodida) collected at abyssal depths from around the Crozet Plateau in the Southern Indian Ocean. Zootaxa, 2096(1): 460–478, doi: 10.11646/zootaxa.2096.1.28
Rogacheva A, Gebruk A, Alt C H S. 2012. Swimming deep-sea holothurians (Echinodermata: Holothuroidea) on the northern Mid-Atlantic Ridge. Zoosymposia, 7(1): 213–224, doi: 10.11646/zoosymposia.7.1.19
Silvestro D, Michalak I. 2012. raxmlGUI: a graphical front-end for RAxML. Organisms Diversity & Evolution, 12(4): 335–337
Sluiter C P. 1901a. Neue Holothurien aus der Tiefsee des indischen Archipels gesammelt durch die Siboga-Expedition (in Spanish). Leiden: Tijdschrift der Nederlandsche Dierkundige Vereeniging, 1–28
Sluiter C P. 1901b. Die Holothurien der Siboga-Expedition (in Spanish). Leiden: Tijdschrift der Nederlandsche Dierkundige Vereeniging, 1–142
Stamatakis A. 2014. RAxML version 8: A tool for phylogenetic analysis and post-analysis of large phylogenies. Bioinformatics, 30(9): 1312–1313, doi: 10.1093/bioinformatics/btu033
Théel H. 1882. Report on Holothurioidea. Pt. I. Report of the Scientific Results of the Voyage of H. M. S. Challenger. Zoology, 4(13): 1–176
WoRMS. 2021. Benthodytes Théel, 1882. http://www.marinespecies.org/aphia.php?p=taxdetails&id=123529 [2021-10-28]
Xiao Ning, Li Xiaomeng, Sha Zhongli. 2018. Psychropotid holothurians (Echinodermata: Holothuroidea: Elasipodida) of the tropical Western Pacific collected by the KEXUE expedition with description of one new species. Marine Biology Research, 14(8): 816–826, doi: 10.1080/17451000.2018.1546012
Xiao Yunlu, Xiao Ning, Zeng Xiaoqi. 2020. New records of a genus and a species of psychropotidae (Echinodermata: Holothuroidea: Elasipodida) from the South China Sea. Oceanologia et Limnologia Sinica, 51(3): 644–647
