Oceanic vertical mixing of the lower halocline water in the Chukchi Borderland and Mendeleyev Ridge
收藏切换
PDF
Long Lin1, 2, Hailun He1, 2, *, Yong Cao3, Tao Li3, Yilin Liu3, Mingfeng Wang3
Acta Oceanologica Sinica | 2021, 40(11) : 39 - 49
Less
收藏切换
Acta Oceanologica Sinica | 2021, 40(11): 39-49
• Physical Oceanography, Marine Meteorology and Marine Physics •
Oceanic vertical mixing of the lower halocline water in the Chukchi Borderland and Mendeleyev Ridge
Full
Long Lin1, 2, Hailun He1, 2, *, Yong Cao3, Tao Li3, Yilin Liu3, Mingfeng Wang3
Affiliations
  • 1 State Key Laboratory of Satellite Ocean Environment Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China
  • 2 Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai), Zhuhai 519082, China
  • 3 Key Laboratory of Physical Oceanography, Ministry of Education, Qingdao 266003, China
Published: 2021-11-25 doi: 10.1007/s13131-021-1825-z
Outline
收藏切换

Oceanic vertical mixing of the lower halocline water (LHW) in the Chukchi Borderland and Mendeleyev Ridge was studied based on in situ hydrographic and turbulent observations. The depth-averaged turbulent dissipation rate of LHW demonstrates a clear topographic dependence, with a mean value of 1.2×10–9 W/kg in the southwest of Canada Basin, 1.5×10–9 W/kg in the Mendeleyev Abyssal Plain, 2.4×10–9 W/kg on the Mendeleyev Ridge, and 2.7×10–9 W/kg on the Chukchi Cap. Correspondingly, the mean depth-averaged vertical heat flux of the LHW is 0.21 W/m2 in the southwest Canada Basin, 0.30 W/m2 in the Mendeleyev Abyssal Plain, 0.39 W/m2 on the Mendeleyev Ridge, and 0.46 W/m2 on the Chukchi Cap. However, in the presence of Pacific Winter Water, the upward heat released from Atlantic Water through the lower halocline can hardly contribute to the surface ocean. Further, the underlying mechanisms of diapycnal mixing in LHW—double diffusion and shear instability—was investigated. The mixing in LHW where double diffusion were observed is always relatively weaker, with corresponding dissipation rate ranging from 1.01×10–9 W/kg to 1.57×10–9 W/kg. The results also show a strong correlation between the depth-average dissipation rate and strain variance in the LHW, which indicates a close physical linkage between the turbulent mixing and internal wave activities. In addition, both surface wind forcing and semidiurnal tides significantly contribute to the turbulent mixing in the LHW.

oceanic vertical mixing  /  lower halocline water  /  dissipation rate  /  vertical heat flux
Long Lin, Hailun He, Yong Cao, Tao Li, Yilin Liu, Mingfeng Wang. Oceanic vertical mixing of the lower halocline water in the Chukchi Borderland and Mendeleyev Ridge[J]. Acta Oceanologica Sinica, 2021 , 40 (11) : 39 -49 . DOI: 10.1007/s13131-021-1825-z
Full Text
Less
1 Introduction
Less
Atlantic Water (AW) flows at intermediate depths of the entire Arctic Ocean (Aagaard et al., 1981; Rudels et al., 1996). Warm AW contains a large amount of heat, and when it moved up to the surface, could melt all the sea ice within a few years (Turner, 2010). However, observations show that the upward heat transfer of AW is inhibited by strong stratification of the surface and subsurface layers (Jackson et al., 2010; Toole et al., 2010). Therefore, quantifying the vertical heat flux of AW is crucial in understanding the dynamics and thermodynamics of the Arctic Ocean (Zhang and Steele, 2007).
Direct measurements of vertical heat flux above AW in the Arctic Ocean remain sparse both in time and space, and the values span several orders of magnitude from O(10–1) to O(102) W/m2. The observed vertical heat fluxes were always less than 1 W/m2 in the central basin (Rainville and Winsor, 2008; Timmermans et al., 2008; Lenn et al., 2009; Sirevaag and Fer, 2012; Guthrie et al., 2013; Lique et al., 2014; Meyer et al., 2017), whereas reaching 20 W/m2 over the Yermak Plateau (Padman and Dillon, 1991; D’Asaro and Morison, 1992) and the continental slope poleward of the Svalbard and Severnaya Zemlya archipelagos (Rippeth et al., 2015). Vertical heat flux was more than 30 W/m2 in the northern Kara Sea (Dmitrenko et al., 2014) and exceeded 100 W/m2 north of Svalbard (Steele and Morison, 1993; Fer et al., 2010). Accordingly, within central basins, vertical diffusivity is close to molecular levels (Rainville and Winsor, 2008; Fer, 2009; Shaw and Stanton, 2014a). Lique et al. (2014) suggested that computing diffusive vertical heat flux with a constant vertical diffusivity of 2×10–6 m2/s provides a reasonable estimate of the upward diffusive heat transfer from the AW layer in the central Canada Basin. In contrast, Rainville and Winsor (2008) found that diffusivity was enhanced to 1×10–5 m2/s above the Lomonosov Ridge, and Padman and Dillon (1991) calculated vertical diffusivity as large as 2.5×10–4 m2/s above the Yermak Plateau.
The Chukchi Borderland and Mendeleyev Ridge (CBLMR) is an extremely tortuous topographic feature, with northward Pacific-origin water on the surface (Steele et al., 2004) and a circuitous AW boundary current at the intermediate depths (Woodgate et al., 2007). In addition, it has experienced the largest increase in total annual solar heat input (Perovich et al., 2007). However, the vertical shear instability and heat flux from AW to the surface ocean and sea ice are not investigated well. In this study, we obtained high-resolution hydrographic and vertical turbulent shear data from a summer expedition, and aim to estimate turbulent dissipation rate, diffusivity, and vertical heat flux across the lower halocline from the AW to the subsurface ocean, and investigate the underlying mechanisms.
2 Data
Less
Hydrographic data were collected during the 7th Chinese National Arctic Research Expedition in the summer of 2016 (CHINARE-2016). Conductivity–temperature–depth (CTD) profiles were acquired using a Sea-Bird Scientific, SBE 911 Plus system, where the pressure, temperature, and salinity sensors were accurate to ±5 kPa, ±2×10–3°C, and ±3×10–3, respectively. Ocean current data were collected using shipboard Acoustic Doppler Current Profiles (sADCP). The system frequency was 38.4 kHz, and the measurement frequency was 1/3 Hz. The corresponding first bin was measured at 33.55 m depth, with vertical resolution of 16 m. And the temporal averaged interval was 2 min. The dissipation rate of the turbulent kinetic energy per unit mass (denoted by ε) was obtained by a Vertical Microstructure Profiler (VMP-200). Four microstructure probes, including one micro-conductivity, one micro-thermistor, and two velocity shear probes, were equipped in VMP-200. Unfortunately, the micro-conductivity and micro-thermistor probes were damaged during the expedition; thus, only the two shear probes were used. The typical free-fall speed of the VMP was approximately 0.75 m/s. The noise level was lower than 10–11 W/kg. Good-quality measurements were then averaged over two measurements, but when the relative difference between the two measurements was over a factor of 10, the minimum dissipation was used (Fer et al., 2018).

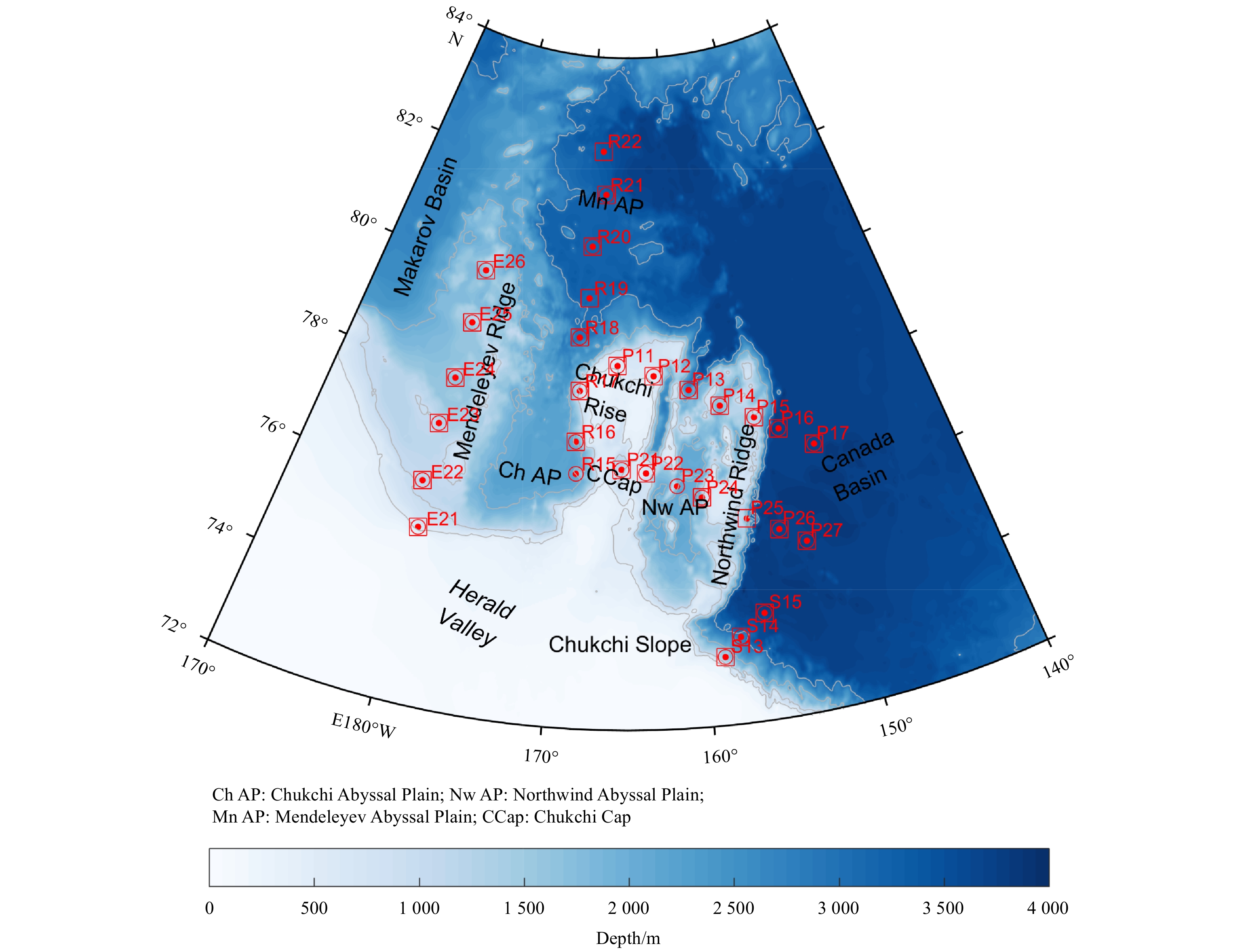

We defined five sections according to the CTD stations (Fig. 1). Section E lies on the Mendeleyev Ridge (MR). Section R is distributed from the Chukchi Cap (CCap) to the Mendeleyev Abyssal Plain (Mn AP) along the longitude of 170°W, with R15–R17 on the CCap and R18–R22 in the Mn AP. Sections P1 and P2 extend from the west of the CCap to the western Canada Basin (CB), with P11–P15 and P21–P25 on the CCap and P16–P17 and P26–P27 in the western CB. Section S is located from the Chukchi shelf (S13–S14) to the southern CB (S15).
3 Results
Less
3.1 Water mass

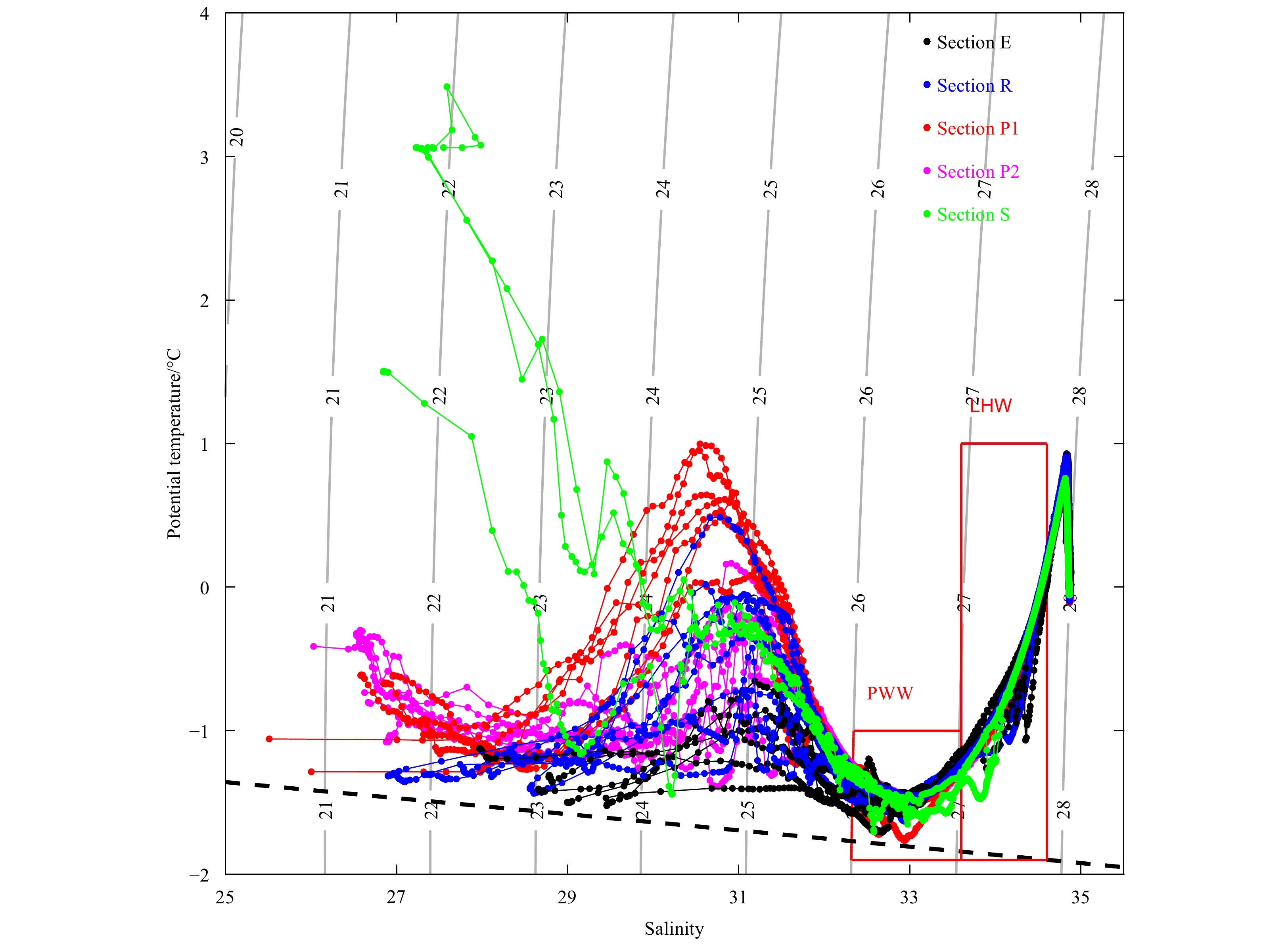

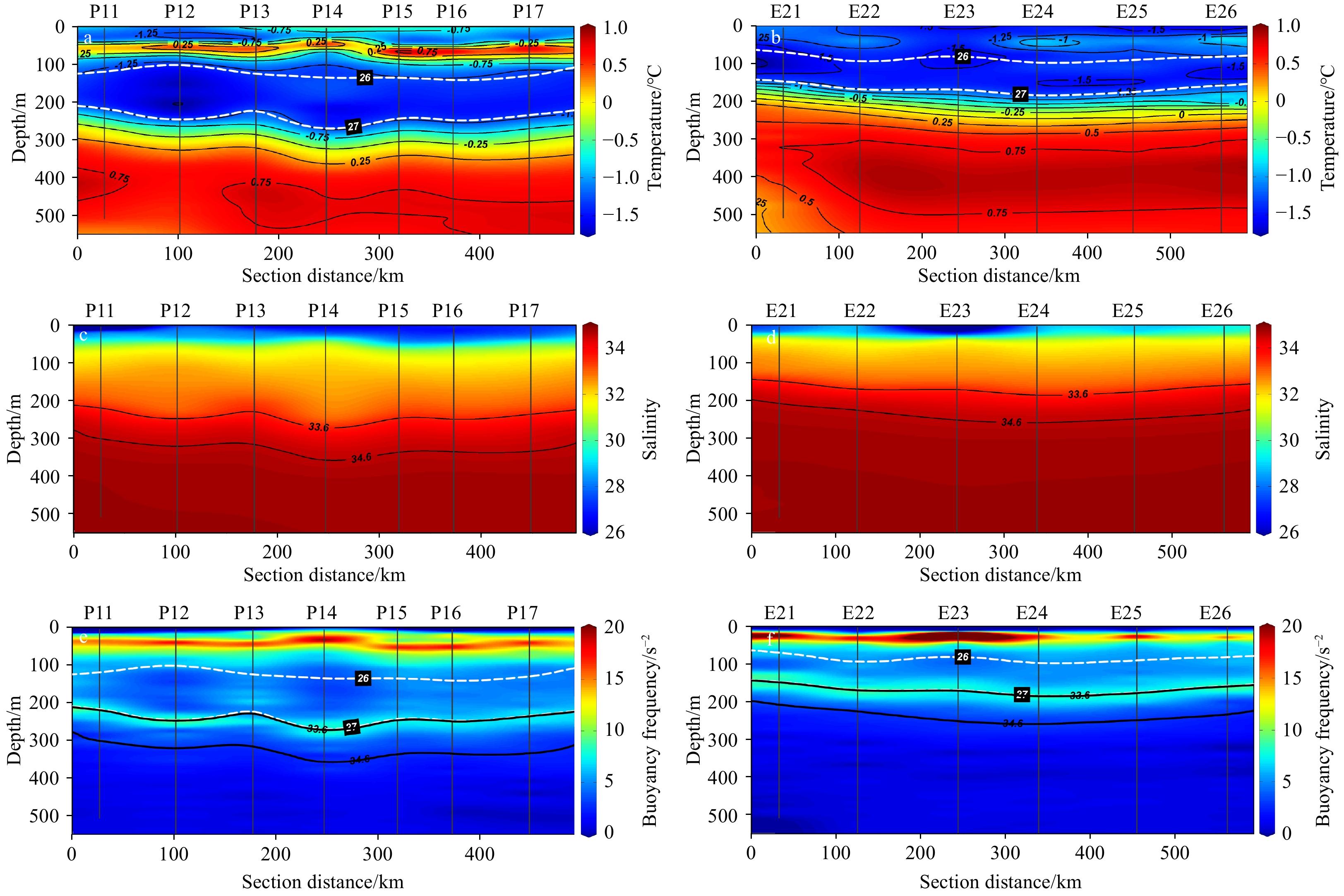

Figure 2 is the T-S diagram of all stations, and Fig. 3 shows the potential temperature, salinity, and buoyancy sections of Sections P1 and E, for identifying the water masses. The AW existed at the intermediate depths over the entire CBLMR, with a potential temperature maximum, which is defined as the Atlantic Water Core (AWC; Zhong and Zhao, 2014). In CBLMR, AW was carried by a circuitous boundary current, owning to its complex topography (Woodgate et al., 2007). The upper ocean overlying the AW shows a distinct spatial difference. Pacific Water extends horizontally over almost all the Chukchi Borderland, except on the MR. As Section P1 shows, there is a prominent temperature maximum in the subsurface layer, with a salinity range between 30 and 33, which is identified as Pacific Summer Water (PSW; Shimada et al., 2001; Timmermans et al., 2014). Same do Section R, Section P2 and Section S (not shown). There is also a temperature minimum between PSW and AW, with salinity centered at 33.1, which is Pacific Winter Water (PWW; Jones and Anderson, 1986; Itoh et al., 2012). Zhong et al. (2019) also identified PWW as the water mass between the isopycnal of 26.0 kg/m3 and 27.0 kg/m3. However, the potential temperature profile of Section E on the MR does not present a similar feature. The subsurface water on the MR was colder and saltier than the other sections. According to previous studies with CTD observations and additional nutrient and optical parameters, Jones et al. (1998) and Zhao et al. (2015) identified the subsurface water above AW on the MR as a mixing of Atlantic-origin and Pacific-origin water.
In the Arctic Ocean, the pycnocline between the polar mixed layer and the Atlantic layer is commonly called the halocline (Coachman and Aagaard, 1974). With the existence of Pacific Water, the halocline in the Canadian Basin was divided into the upper halocline and lower halocline. The former was dominated by PSW and PWW, and the latter was defined as having a potential temperature of θ<0°C and salinity range of 33.6<S<34.6 (Rudels et al., 2004). Aksenov et al. (2011) also defined AW with 34.70≤S≤34.95, and halocline water with θ<0°C, S<34.70. The buoyancy frequency sections of both P1 and E show a peak between the subsurface layer and lower halocline water, and the depth of this peak corresponds well with the isopycnal of 27.0 kg/m3 and isohaline of 33.6. Therefore, we focus on the lower halocline water between the two isohalines of 33.6 and 34.6 to estimate the turbulent dissipation rate, diffusivity, and vertical heat flux from Atlantic Water to upper Pacific Water.

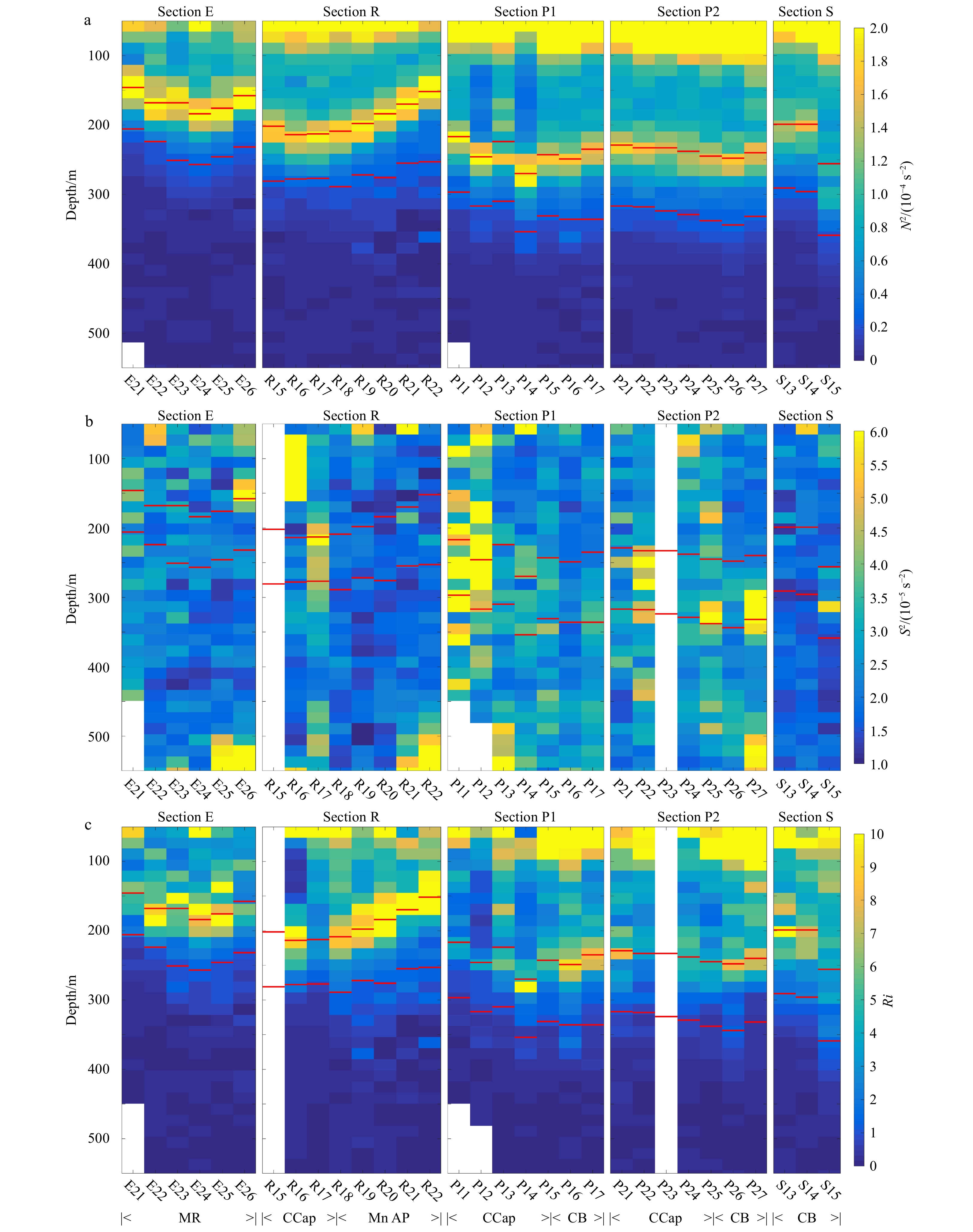

3.2 Richardson number
The buoyancy frequency (N2) characterizes the intensity of stratification, as $ {N}^{2}=-(g/\rho)(\partial \rho/\partial z) $, where g is the gravity acceleration, ρ is the density, and z is the vertical coordinate (upward is positive). Sectional snapshots of N2 are shown in Fig. 4a. A distinct peak of N2 exists just at the top of the lower halocline water. This strong stratification separated the lower halocline water from the upper ocean, and acted as a barrier to prevent upward and downward mixing. Regarding the depth of this stratification peak, it was shallowest in Section E on the MR, at approximately 170 m. From south to north of the MR, the depth of this stratification peak first deepens from E21 to E24, and then shallows from E24 to E26. The distribution of this stratification peak in Section R was similar to that in Section E, although the depth in Section R was slightly deeper (the mean depth was approximately 180 m). The stratification peak in Sections P1 and P2 was the deepest, with an average depth of 250 m. In addition, this stratification peak also showed spatial variation. The stratification peak on the MR (E21–E26), Mn AP (R18–R22), and northwest of CCap (P11–P14) was strongest, from 1.9×10–4 s–2 to 2.4×10–4 s–2. It was considerably smaller in the south and east of the CCap and western CB (P15–P17, P21–P27), from 1.3×10–4 s–2 to 1.7×10–4 s–2. Section S (S13–S15) showed the weakest stratification among all sections, from 1.0×10–4 s–2 to 1.6×10–4 s–2. The pattern revealed that the water closer to the central CB (Sections P1, P2, and S) was accompanied by weaker stratification.
Vertical shear S2 was obtained from sADCP measurements as $ {S}^{2}={\left(\partial u/\partial z\right)}^{2}+{\left(\partial v/\partial z\right)}^{2} $, where u and v are the zonal and meridional currents respectively. As shown in Fig. 4b, S2 was strongest at CCap, and the depth-averaged value in the LHW was 3.8×10–5 s–2 from western CCap to the western CB (Sections P1 and P2, R15–R17). In particular, at Stations R17, P11, P12, and P22 on the Chukchi Rise, S2 was larger than 4.9×10–5 s–2. Accordingly, S2 on the MR (E21–E26), Mn AP (R18–R22), and southern CB (S13–S15) was much weaker (1.6–3.3×10–5 s–2) than that at the CCap.
The Richardson number (Ri) was obtained from the buoyancy frequency over vertical shear, $ {R}{{i}}={N}^{2}/{S}^{2} $. As shown in Fig. 4c, most values of Ri in the LHW at the CCap were relatively smaller due to higher vertical shear, which implied that turbulent mixing from the AW to the upper ocean through the LHW at the CCap was more intensive than in other regions. The Ri in the LHW was relatively higher on the MR and Mn AP due to stronger stratification. The results supported that the shear instability was not significant with stronger stratification.
3.3 Dissipation rate, diapycnal diffusivity and vertical heat flux

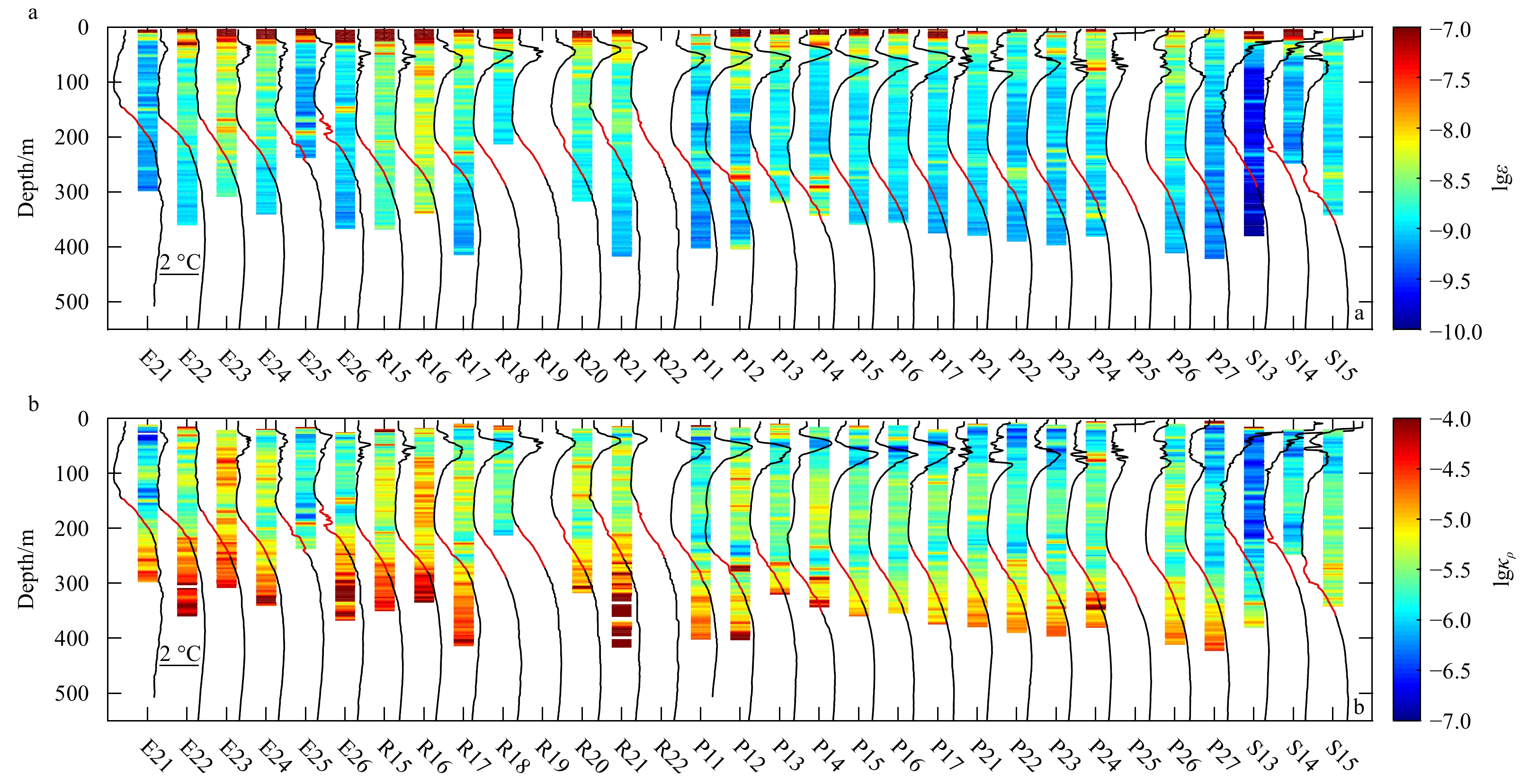

We used high-frequency VMP-200 shear data to obtain the dissipation rate of turbulent kinetic energy (ε), $ \varepsilon =\dfrac{15}{2}\nu \bar{{\left(\dfrac{\partial u}{\partial z}\right)}^{2}} $, where $ \nu $ is the kinematic viscosity (Fig. 5a). The shear variance was obtained by integrating the wavenumber spectrum of shear from 1 cycle per meter (cpm) to Kolmogoroff wave number based on the empirical mode from Nasmyth (1970). As Fig. 6a shows, the observed depth-averaged dissipation rate of the LHW in the western CB (P16–P17, P26–P27) ranged from 6.4×10–10 W/kg to 1.2×10–9 W/kg. However, in S15, the depth-averaged dissipation rate attained 2.0×10–9 W/kg. It is slightly higher in Mn AP than CB with a mean value of 1.5×10–9 W/kg. The results were close to but above the instrument noise level (10–11 W/kg) and comparable with those of previous studies (Fer, 2009; Lenn et al., 2009; Guthrie et al., 2013; Rippeth et al., 2015; Zhong et al., 2018). The depth-averaged dissipation rates on the MR (E21–E26) and in the northwest CCap (R15–R17, P11–P14) were considerably higher than those in the deep basin, with a mean value of 2.4×10–9 W/kg and 3.7×10–9 W/kg, respectively.
Then, diapycnal diffusivity κρ can be deduced from the dissipation rate ε as $ {\kappa }_\rho =0.2\varepsilon {N}^{-2} $ (Osborn, 1980; Gregg et al., 2018; Fig. 5b). The results of the depth-averaged diapycnal diffusivity κρ in the LHW are shown in Fig. 6b. Depth-averaged κρ in LHW is 4.3×10–6 m2/s in the southwest CB (P17, P26–P27, S15), and 4.7×10–6 m2/s in Mn AP, approximately 2 times larger than that estimated in the central CB (Lique et al., 2014) and numerical model (Zhang and Steele, 2007). It increases to 5.6×10–6 m2/s on the MR (E21–E26), and 7.0×10–6 m2/s on CCap (P11–P15, P21–P25, R15–R17), respectively. The mean value of depth-averaged κρ of all section in the CBLMR in the LHW was 5.6×10–6 m2/s. This value was comparable with the previous observation within the depth range of 200 m to 300 m in the same region in 2014 (Zhong et al., 2018), but about 4 to 5 times larger than that estimate in the central Canada Basin (Lique et al., 2014) and numerical model (Zhang and Steele, 2007).

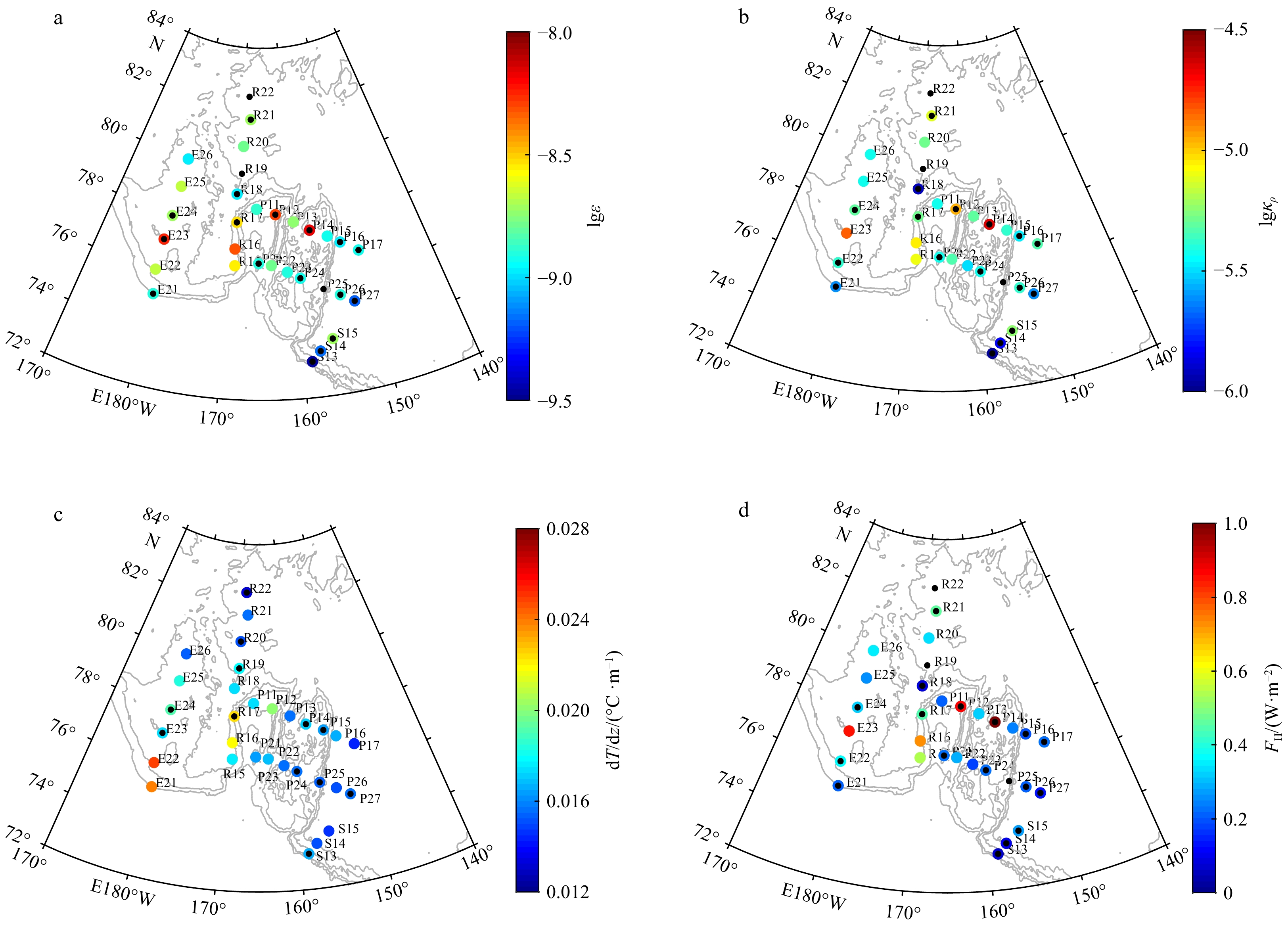

Finally, we computed the vertical heat flux as $ {F}_{\mathrm{H}}=\rho {c}_{\mathrm{p}}\kappa \dfrac{\partial T}{\partial z} $, where ρ is the sea water density, cp is the heat capacity of seawater, and κ is the vertical diffusivity. FH is positive upward. Depth-averaged vertical heat fluxes are shown in Fig. 6d. In the southwest CB (S15, P17, P26–P27), the mean vertical heat flux in the LHW is 0.21 W/m2. It is slightly higher in Mn Ap than in the CB, with a mean value of 0.30 W/m2. These values of vertical heat flux in the deep basin corresponded well with previous studies (Timmermans et al., 2008; Lique et al., 2014; Zhong et al., 2018). The mean depth-averaged vertical heat flux of the LHW was 0.39 W/m2 on the MR and 0.46 W/m2 on the CCap, respectively. The observed maximum vertical heat flux of the LHW was 0.28 W/m2 in S15 in the southern CB, 0.85 W/m2 in E23 on the MR, and 1.3 W/m2 in P14 on the CCap, which was ascribed to either strong surface (S15, E23, and P14) wind forcing or strong semidiurnal tidal energy (E23). However, the temperature gradient between the PSW and PWW is reversed, when compared with that it in the LHW. As a result, we suggest that the upward heat released from AW through the lower halocline could hardly contribute to the surface ocean.
3.4 Mechanisms of the diaypcnal mixing in LHW
Carmack et al. (2015) summarized that two mechanisms —double diffusion and shear instabilities—were thought to be responsible for most upward diapycnal fluxes from AW. Double-diffusive staircases were observed in 8 stations, including P26 in the Canada Basin, E24–E26 on MR, and R19–R22 in Mn AP. Within them, 5 stations were measured by VMP. This staircase structure between PWW and AWC is believed to be maintained by double-diffusive convection, when colder and fresher Pacific water lies above warmer and salty Atlantic water (Timmermans et al., 2008). Here, we only focused on the double diffusion in LHW. The depth averaged dissipation rate in double-diffusive staircases in LHW ranges from 1.01×10–9 W/kg to 1.57×10–9 W/kg (Table 1). It is relatively smaller than that in most of other stations where there are no double-diffusive staircases.

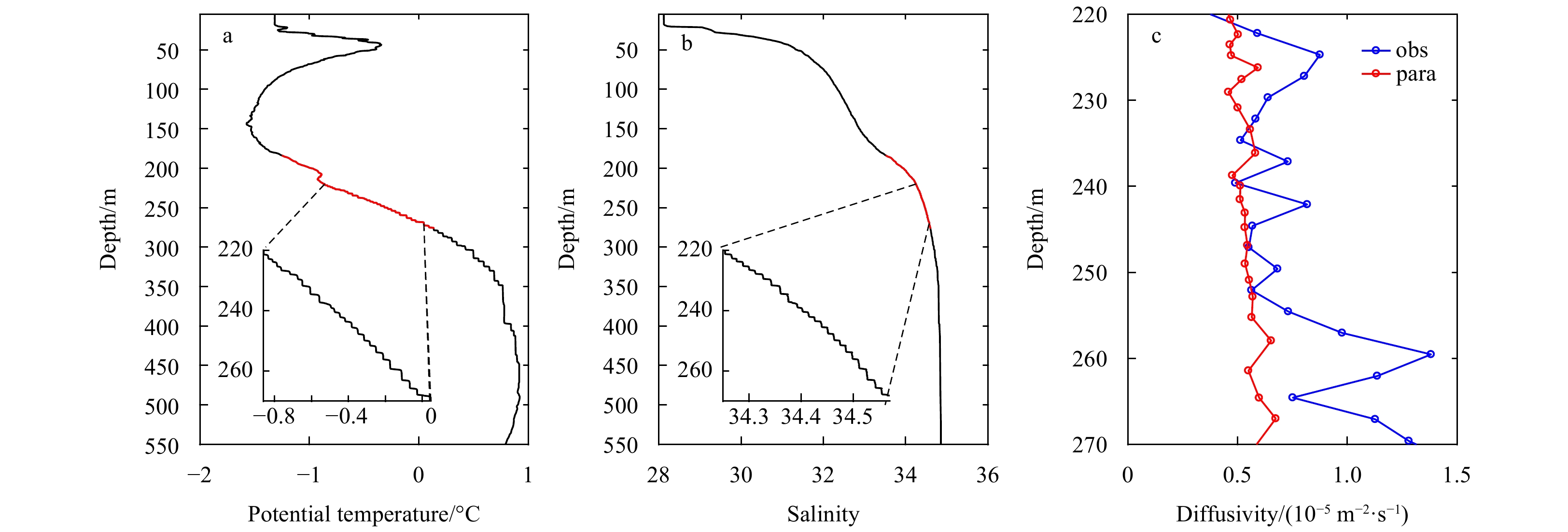

We also compared the diffusivity between VMP observation and parameterization. Diffusivity of double-diffusive can be described by a relationship of the form, kT=k0(1–R–Rρ)–3/2 with k0=3.9×10–6 m2/ s. Rρ=βΔS/αΔθ is the density ratio, where α and β are thermal expansion coefficient and saline contraction coefficient, respectively, and ΔS and Δθ are changes in potential temperature and salinity across the stair interface (Shaw and Stanton, 2014b; Flanagan et al., 2014). As Fig. 7 and Table 1 show, the observed diffusivities in double-diffusive staircases ranged from 6.69×10–6 m2/s2 to 9.55×10–6 m2/s2. It was usually 1.3 to 1.6 times larger than it by the parameterization, except in E26. Generally, the double-diffusive staircase always represents weak diapycnal mixing.

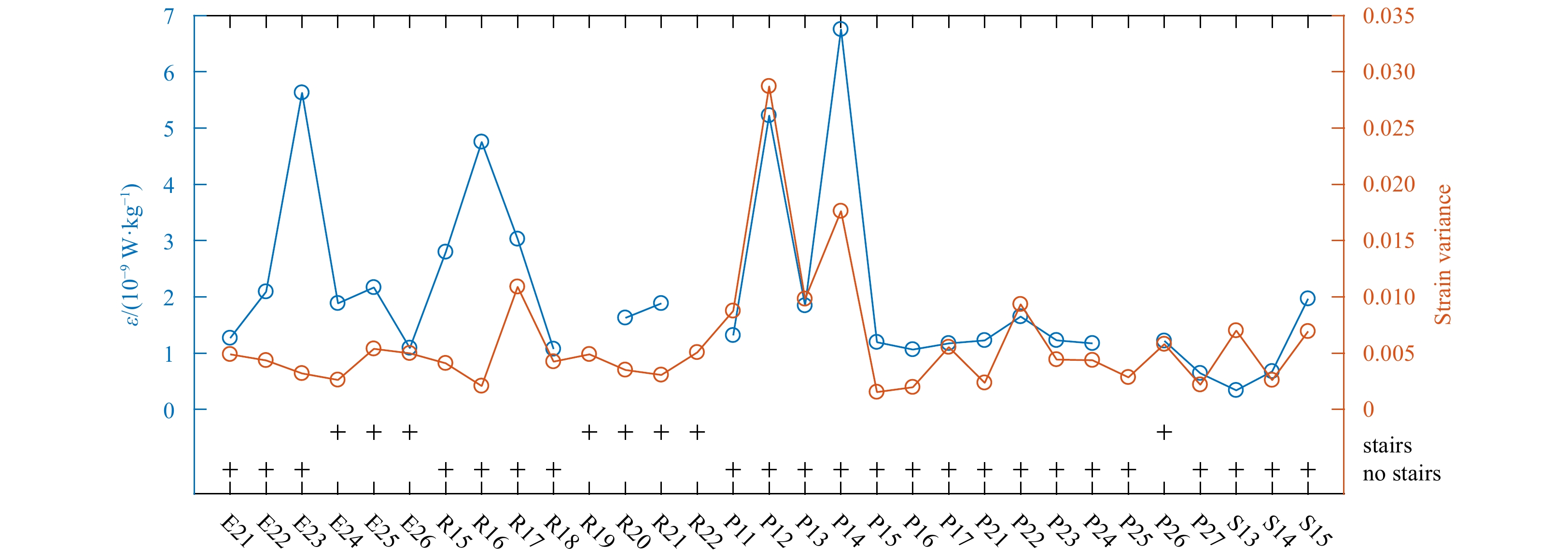

We further explored the underlying mechanism of the depth-averaged turbulent dissipation rate in the LHW with the internal wave activities, which can cause shear instability and lead to generation of turbulence. Halocline strain variance ($ \left\langle { {\xi }_{z}^{2} } \right\rangle $) is always considered as a surrogate for internal wave activity, which can be estimated from buoyancy $ {\xi }_{z}=\left({N}^{2}-{\bar{N}}^{2}\right)/{\bar{N}}^{2} $, where mean stratification $ {\bar{N}}^{2} $ is based on quadratic fits to each profile segment (Polzin et al., 1995; Kunze et al., 2006; Qiu et al., 2012). Herein, a segment of 20 m was applied. And we took the depth-averaged strain variance within the LHW. In general, the turbulent dissipation rate increases with the increasing strain variance (Fig. 8). For most stations, the strain variance in the LHW was less than 0.011. However, it reached 0.018 and 0.029 in P14 and P12, respectively. The turbulent dissipation rate and CTD-derived halocline strain variance were significantly correlated (at a confidence level of greater than 95%), with a correlation coefficient of 0.55 and p<0.003. This result demonstrates a close physical linkage between the turbulent mixing and internal wave activities.

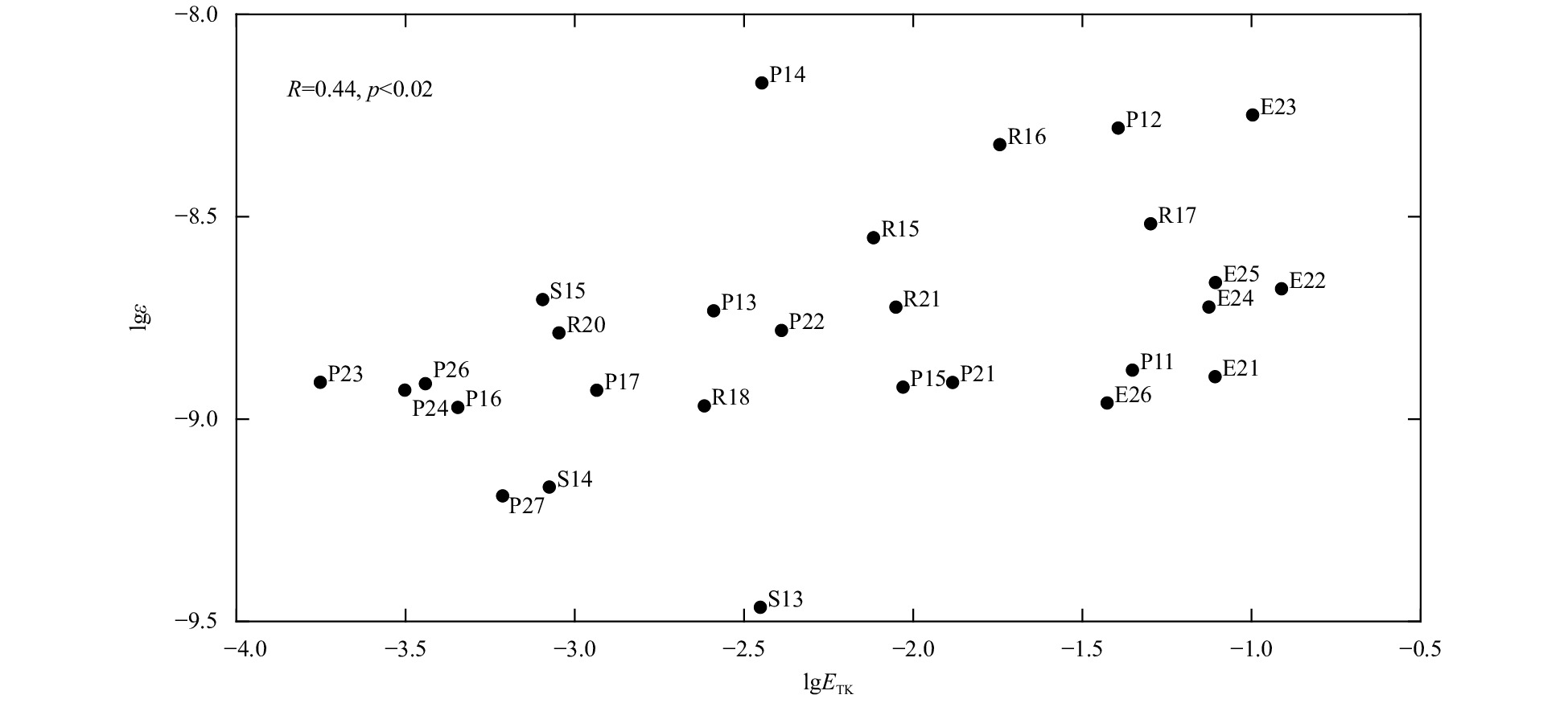

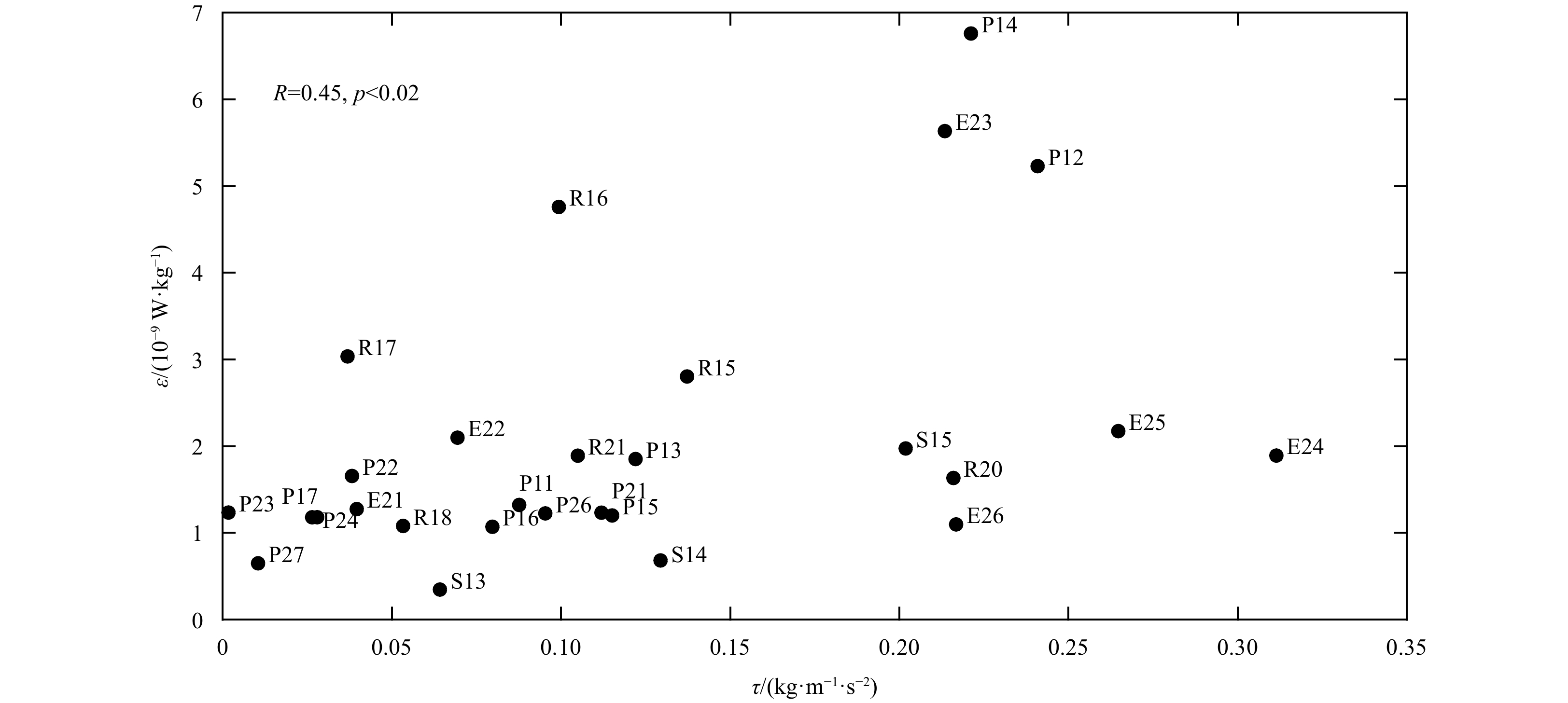

Wind and tides are two main sources of kinetic energy, involved in driving turbulent mixing in the ocean. Sea surface forcing by surface winds can contribute to deeper ocean turbulent mixing by generating near-internal currents within the surface mixed layer, which then penetrate downward (Nagasawa et al., 2000; Alford, 2003; Liu and Lozovatsky, 2012; Lincoln et al., 2016; Yang et al., 2017; Qiu et al., 2019). We further explored the connection between the turbulent dissipation rate and surface wind stress. The total surface stress of sea-ice-covered ocean in CBLMR at each station was calculated based on in situ 10 m surface wind, and sea ice concentration data derived from Advanced Microwave Scanning Radiometer 2 (AMSR2; Spreen et al., 2008), which was suggested by Yang (2009) as ${\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } _{{\rm{total}}}}{\rm{ = }} \left( {{{1 - }}\alpha } \right){\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } _{{\rm{air-water}}}}{\rm{ + }}\alpha {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } _{{\rm{ice-water}}}}$, where $ \alpha $ is the average sea ice concentration around the station within a radius of less than 50 km. $ {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } _{{\rm{air-}} {\rm{water}}}} = {\rho _{{\rm{air}}}}{C_{\rm{d}}}\left| {{{\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} }_{\rm{s}}}} \right|{\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} _{\rm{s}}} $, where $ {\rho }_{\mathrm{a}\mathrm{i}\mathrm{r}}=1.25\;\mathrm{k}\mathrm{g} / {\mathrm{m}}^{3} $ is the air density, $ C_{\text{d}}\text{=0.001\;25} $ is the drag coefficient, and $ {\mathop u \limits^{\rightharpoonup}}_{\text{s}} $ is 10 m surface wind. $ {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } _{{\rm{ice - water}}}} = {\rho _{{\rm{water}}}}{C_{{\rm{iw}}}}\left| {({{\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} }_{{\rm{ice}}}} - {{\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} }_{{\rm{ocean}}}})} \right|({\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} _{{\rm{ice}}}} - {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over u} _{{\rm{ocean}}}}) $, where $ \rho _{\text{water}}\text{=1\;024}\;\text{kg} / {\text{m}}^{{3}} $ is the sea water density, $ C_{\text{iw}}\text{=0.005\;5} $ is the ice-water drag coefficient (Hibler III, 1979), and $ {\mathop u \limits^{\rightharpoonup}}_{\text{ice}}-{\mathop u \limits^{\rightharpoonup}}_{\text{ocean}} $ is simplified as 2% of surface wind (Thorndike and Colony, 1982). The connection between the turbulent dissipation rate and surface wind stress was evident, with a correlation coefficient of 0.45 and p<0.02 (Fig. 9). In P12, P14, and E23, the observed surface wind velocity was more than 10 m/s and with surface stress ${\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } }_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}} > 0.2$, which resulted in a dissipation rate more than 5×10–9 W/kg. For most stations where $ {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } }_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}<0.15 $, the turbulent dissipation rate was no more than 2×10–9 W/kg. However, for some stations, such as E25 and E24 on the MR with $ {\mathord{\buildrel{\lower3pt\hbox{$\scriptscriptstyle\rightharpoonup$}} \over \tau } }_{\mathrm{t}\mathrm{o}\mathrm{t}\mathrm{a}\mathrm{l}}>0.25 $, the dissipation rate remained at a lower level of ~2×10–9 W/kg, despite stronger surface wind forcing. To some extent, this still implies that the surface wind supplies energy to turbulent mixing at intermediate depths.
Tides also play a key role in global ocean circulation through the supply of mechanical energy to turbulence that stirs the ocean, thereby promoting mixing (Munk and Wunsch, 1998; Simmons et al., 2004; Lozovatsky et al., 2013; Yang et al., 2017). Rippeth et al. (2015) showed that the enhanced levels of turbulent dissipation rate observed over the Arctic Ocean continental shelf break are correlated to the rate of conversion of tidal energy. CBLMR lies slightly north of the critical latitude, at which the local inertial period matches the period of the semidiurnal tides (M2 and S2). To clarify the connection between the turbulent dissipation rate and the intensity of the regional semidiurnal tides, we extracted the M2 and S2 tidal current information from the output of the Arctic Ocean Tidal Inverse Model (Arc5km2018, Erofeeva and Egbert, 2020). We calculated the depth-average tidal energy as $ {{E}}_{\text{TK}} = \dfrac{1}2 \rho \left({{u}}^2+{{v}}^2\right) $, where $ \rho $ is the seawater density, and u and v are the model outputs of the tidal velocities. The results show that the turbulent dissipation rate and semidiurnal tidal energy are also well correlated, with a correlation coefficient of 0.44 and p<0.02 (Fig. 10). The semidiurnal tide is relatively strong at stations on the MR and in the western of CCap, leading to a larger turbulent dissipation rate. In western CB and Mn AP, where semidiurnal tide is weak, the dissipation rate is relatively smaller. Thus, the semidiurnal tide also significantly contributes to turbulent mixing in the LHW.
4 Summary
Less
Oceanic vertical mixing of the LHW above the AW was investigated using hydrographic and turbulent data over the CBLMR during the summer of 2016. The shipboard ADCP showed that the vertical shear in LHW was remarkable over the CCap, moderate over the MR, and relatively weak in the surrounding deep basin.
The observed depth-averaged dissipation rate of the LHW ranged from 6.4×10–10 W/kg to 1.2×10–9 W/kg in the west Canada Basin, approximately 1.5×10–9 W/kg in the Mn AP, 2.4×10–9 W/kg on the MR, and 3.7×10–9 W/kg in the northwest of Chukchi Cap. Correspondingly, the depth-averaged vertical heat flux is 0.21 W/m2 in the southwest Canada Basin, 0.30 W/m2 in Mn Ap, 0.39 W/m2 on MR, and 0.46 W/m2 on the Chukchi Cap. However, in the presence of PWW, the upward heat released from Atlantic Water through the lower halocline could hardly contribute to the surface ocean.
Two mechanisms—double diffusion and shear instability—of the turbulent mixing in LHW were investigated. The double diffusion were observed in 8 stations, and always accompanied by weak mixing with dissipation rate range from 1.01×10–9 W/kg to 1.57×10–9 W/kg. And, there is a significant connection between the dissipation rate and strain variance of the LHW, which indicates that the mixing in LHW induced by shear instabilities could be ascribed to internal wave activities. In addition, both surface wind stress and semidiurnal tidal energy have considerable contribution to the turbulent mixing in the LHW.
Acknowledgements
Less
We thank the research groups of the 7th Chinese National Arctic Research Expedition for assistant of collecting the CTD, sADCP, VMP, and meteorological data. The sea ice concentration data is downloaded from https://seaice.uni-bremen.de/sea-ice-concentration/amsre-amsr2/#Data_Archive. The Arctic Ocean Tidal Inverse Model is from http://people.oregonstate.edu/~erofeevs/Arc.html.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 42006037; the Chinese Polar Environmental Comprehensive Investigation & Assessment Programs, Grant from the Scientific Research Fund of the Second Institute of Oceanography, MNR under contract No. JB904; the National Key R&D Program of China under contract No. 2019YFC1509102.
References
Less
Aagaard K, Coachman L K, Carmack E. 1981. On the halocline of the Arctic Ocean. Deep-Sea Research Part A: Oceanographic. Research Papers, 28(6): 529–545
Aksenov Y, Ivanov V V, Nurser A J G, et al. 2011. The Arctic circumpolar boundary current. Journal of Geophysical Research: Oceans, 116(C9): C09017
Alford M H. 2003. Improved global maps and 54-year history of wind-work on ocean inertial motions. Geophysical Research Letters, 30(8): 1424
Carmack E, Polyakov I, Padman L, et al. 2015. Toward quantifying the increasing role of oceanic heat in sea ice loss in the new Arctic. Bulletin of the American Meteorological Society, 96(12): 2079–2105, doi: 10.1175/BAMS-D-13-00177.1
Coachman L K, Aagaard K. 1974. Physical oceanography of Arctic and subarctic seas. In: Herman Y, ed. Marine Geology and Oceanography of the Arctic Seas. Berlin, Heidelberg: Springer: 1–72
D'Asaro E A, Morison J H. 1992. Internal waves and mixing in the Arctic Ocean. Deep-Sea Research Part A: Oceanographic. Research Papers, 39(2): S459–S484
Dmitrenko I A, Kirillov S A, Serra N, et al. 2014. Heat loss from the Atlantic water layer in the northern Kara Sea: Causes and consequences. Ocean Science, 10(4): 719–730, doi: 10.5194/os-10-719-2014
Erofeeva S, Egbert G. 2020. Arc5km2018: Arctic Ocean Inverse Tide Model on a 5 kilometer grid, 2018. https:/doi.org/10.18739/A21R6N14K [2021-02-10]
Fer I. 2009. Weak vertical diffusion allows maintenance of cold halocline in the central Arctic. Atmospheric and Oceanic Science Letters, 2(3): 148–152, doi: 10.1080/16742834.2009.11446789
Fer I, Voet G, Seim K S, et al. 2010. Intense mixing of the Faroe Bank Channel overflow. Geophysical Research Letters, 37(2): L02604
Fer I, Bosse A, Ferron B, et al. 2018. The dissipation of kinetic energy in the Lofoten Basin Eddy. Journal of Physical Oceanography, 48(6): 1299–1316, doi: 10.1175/JPO-D-17-0244.1
Flanagan J D, Radko T, Shaw W J, et al. 2014. Dynamic and double-diffusive instabilities in a weak pycnocline: Part II. Direct numerical simulations and flux laws. Journal of Physical Oceanography, 44(8): 1992–2012, doi: 10.1175/JPO-D-13-043.1
Gregg M C, D'Asaro E A, Riley J J, et al. 2018. Mixing efficiency in the ocean. Annual Review of Marine Science, 10: 443–473, doi: 10.1146/annurev-marine-121916-063643
Guthrie J D, Morison J H, Fer I. 2013. Revisiting internal waves and mixing in the Arctic Ocean. Journal of Geophysical Research: Oceans, 118(8): 3966–3977, doi: 10.1002/jgrc.20294
Hibler III W D. 1979. A dynamic thermodynamic sea ice model. Journal of Physical Oceanography, 9(4): 815–846, doi: 10.1175/1520-0485(1979)009<0815:ADTSIM>2.0.CO;2
Itoh M, Shimada K, Kamoshida T, et al. 2012. Interannual variability of Pacific Winter Water inflow through Barrow Canyon from 2000 to 2006. Journal of Oceanography, 68(4): 575–592, doi: 10.1007/s10872-012-0120-1
Jackson J M, Carmack E C, McLaughlin F A, et al. 2010. Identification, characterization, and change of the near-surface temperature maximum in the Canada Basin, 1993–2008. Journal of Geophysical Research: Oceans, 115(C5): C05021
Jones E P, Anderson L G. 1986. On the origin of the chemical properties of the Arctic Ocean halocline. Journal of Geophysical Research: Oceans, 91(C9): 10759–10767, doi: 10.1029/JC091iC09p10759
Jones E P, Anderson L G, Swift J H. 1998. Distribution of Atlantic and Pacific waters in the upper Arctic Ocean: implications for circulation. Geophysical Research Letters, 25(6): 765–768, doi: 10.1029/98GL00464
Kunze E, Firing E, Hummon J M, et al. 2006. Global abyssal mixing inferred from lowered ADCP shear and CTD strain profiles. Journal of Physical Oceanography, 36(8): 1553–1576, doi: 10.1175/JPO2926.1
Lenn Y D, Wiles P J, Torres-Valdes S, et al. 2009. Vertical mixing at intermediate depths in the Arctic boundary current. Geophysical Research Letters, 36(5): L05601
Lincoln B J, Rippeth T P, Lenn Y D, et al. 2016. Wind-driven mixing at intermediate depths in an ice-free Arctic Ocean. Geophysical Research Letters, 43(18): 9749–9756, doi: 10.1002/2016GL070454
Lique C, Guthrie J D, Steele M, et al. 2014. Diffusive vertical heat flux in the Canada Basin of the Arctic Ocean inferred from moored instruments. Journal of Geophysical Research: Oceans, 119(1): 496–508, doi: 10.1002/2013JC009346
Liu Zhiyu, Lozovatsky I. 2012. Upper pycnocline turbulence in the northern South China Sea. Chinese Science Bulletin, 57(18): 2302–2306, doi: 10.1007/s11434-012-5137-8
Lozovatsky I, Liu Zhiyu, Fernando H J S, et al. 2013. The TKE dissipation rate in the northern South China Sea. Ocean Dynamics, 63(11–12): 1189–1201, doi: 10.1007/s10236-013-0656-7
Meyer A, Fer I, Sundfjord A, et al. 2017. Mixing rates and vertical heat fluxes north of Svalbard from Arctic winter to spring. Journal of Geophysical Research: Oceans, 122(6): 4569–4586, doi: 10.1002/2016JC012441
Munk W, Wunsch C. 1998. Abyssal recipes II: energetics of tidal and wind mixing. Deep-Sea Research Part I: Oceanographic Research Papers, 45(12): 1977–2010, doi: 10.1016/S0967-0637(98)00070-3
Nagasawa M, Niwa Y, Hibiya T. 2000. Spatial and temporal distribution of the wind-induced internal wave energy available for deep water mixing in the North Pacific. Journal of Geophysical Research: Oceans, 105(C6): 13933–13943, doi: 10.1029/2000JC900019
Nasmyth P W. 1970. Oceanic turbulence [dissertation]. Vancouver: University of British Columbia
Osborn T R. 1980. Estimates of the local rate of vertical diffusion from dissipation measurements. Journal of Physical Oceanography, 10(1): 83–89, doi: 10.1175/1520-0485(1980)010<0083:EOTLRO>2.0.CO;2
Padman L, Dillon T M. 1991. Turbulent mixing near the Yermak Plateau during the coordinated Eastern Arctic Experiment. Journal of Geophysical Research: Oceans, 96(C3): 4769–4782, doi: 10.1029/90JC02260
Perovich D K, Light B, Eicken H, et al. 2007. Increasing solar heating of the Arctic Ocean and adjacent seas, 1979–2005: attribution and role in the ice-albedo feedback. Geophysical Research Letters, 34(19): L19505, doi: 10.1029/2007GL031480
Polzin K L, Toole J M, Schmitt R W. 1995. Finescale parameterizations of turbulent dissipation. Journal of Physical Oceanography, 25(3): 306–328, doi: 10.1175/1520-0485(1995)025<0306:FPOTD>2.0.CO;2
Qiu Bo, Chen Shuiming, Carter G S. 2012. Time-varying parametric subharmonic instability from repeat CTD surveys in the northwestern Pacific Ocean. Journal of Geophysical Research: Oceans, 117(C9): C09012
Qiu Chunhua, Huo Dan, Liu Changjian, et al. 2019. Upper vertical structures and mixed layer depth in the shelf of the northern South China Sea. Continental Shelf Research, 174: 26–34, doi: 10.1016/j.csr.2019.01.004
Rainville L, Winsor P. 2008. Mixing across the Arctic Ocean: microstructure observations during the Beringia 2005 expedition. Geophysical Research Letters, 35(8): L08606
Rippeth T P, Lincoln B J, Lenn Y D, et al. 2015. Tide-mediated warming of Arctic halocline by Atlantic heat fluxes over rough topography. Nature Geoscience, 8(3): 191–194, doi: 10.1038/ngeo2350
Rudels B, Anderson L G, Jones E P. 1996. Formation and evolution of the surface mixed layer and halocline of the Arctic Ocean. Journal of Geophysical Research: Oceans, 101(C4): 8807–8821, doi: 10.1029/96JC00143
Rudels B, Jones E P, Schauer U, et al. 2004. Atlantic sources of the Arctic Ocean surface and halocline waters. Polar Research, 23(2): 181–208, doi: 10.1111/j.1751-8369.2004.tb00007.x
Shaw W J, Stanton T P. 2014a. Vertical diffusivity of the Western Arctic Ocean halocline. Journal of Geophysical Research: Oceans, 119(8): 5017–5038, doi: 10.1002/2013JC009598
Shaw W J, Stanton T P. 2014b. Dynamic and double-diffusive instabilities in a weak pycnocline: Part I. observations of heat flux and diffusivity in the vicinity of Maud Rise, Weddell Sea. Journal of Physical Oceanography, 44(8): 1973–1991, doi: 10.1175/JPO-D-13-042.1
Shimada K, Carmack E C, Hatakeyama K, et al. 2001. Varieties of shallow temperature maximum waters in the western Canadian Basin of the Arctic Ocean. Geophysical Research Letters, 28(18): 3441–3444, doi: 10.1029/2001GL013168
Simmons H L, Hallberg R W, Arbic B K. 2004. Internal wave generation in a global baroclinic tide model. Deep Sea Research Part II: Topical Studies in Oceanography, 51(25/26): 3043–3068, doi: 10.1016/j.dsr2.2004.09.015
Sirevaag A, Fer I. 2012. Vertical heat transfer in the Arctic Ocean: the role of double-diffusive mixing. Journal of Geophysical Research: Oceans, 117(C7): C07010
Spreen G, Kaleschke L, Heygster G. 2008. Sea ice remote sensing using AMSR-E 89-GHz channels. Journal of Geophysical Research: Oceans, 113(C2): C02S03
Steele M, Morison J H. 1993. Hydrography and vertical fluxes of heat and salt northeast of Svalbard in autumn. Journal of Geophysical Research: Oceans, 98(C6): 10013–10024, doi: 10.1029/93JC00937
Steele M, Morison J, Ermold W, et al. 2004. Circulation of summer Pacific halocline water in the Arctic Ocean. Journal of Geophysical Research: Oceans, 109(C2): C02027
Thorndike A S, Colony R. 1982. Sea ice motion in response to geostrophic winds. Journal of Geophysical Research: Oceans, 87(C8): 5845–5852, doi: 10.1029/JC087iC08p05845
Timmermans M L, Proshutinsky A, Golubeva E, et al. 2014. Mechanisms of Pacific summer water variability in the Arctic's Central Canada Basin. Journal of Geophysical Research: Oceans, 119(11): 7523–7548, doi: 10.1002/2014JC010273
Timmermans M L, Toole J, Krishfield R, et al. 2008. Ice-tethered profiler observations of the double-diffusive staircase in the Canada Basin thermocline. Journal of Geophysical Research: Oceans, 113(C1): C00A02
Toole J M, Timmermans M L, Perovich D K, et al. 2010. Influences of the ocean surface mixed layer and thermohaline stratification on Arctic Sea ice in the central Canada Basin. Journal of Geophysical Research: Oceans, 115(C10): C10018
Turner J S. 2010. The melting of ice in the Arctic Ocean: the influence of double-diffusive transport of heat from below. Journal of Physical Oceanography, 40(1): 249–256, doi: 10.1175/2009JPO4279.1
Woodgate R A, Aagaard K, Swift J H, et al. 2007. Atlantic water circulation over the Mendeleev Ridge and Chukchi Borderland from thermohaline intrusions and water mass properties. Journal of Geophysical Research: Oceans, 112(C2): C02005
Yang Jiayan. 2009. Seasonal and interannual variability of downwelling in the Beaufort Sea. Journal of Geophysical Research: Oceans, 114(C1): C00A14
Yang Qingxuan, Zhao Wei, Liang Xinfeng, et al. 2017. Elevated mixing in the periphery of mesoscale eddies in the South China Sea. Journal of Physical Oceanography, 47(4): 895–907, doi: 10.1175/JPO-D-16-0256.1
Zhang Jinlun, Steele M. 2007. Effect of vertical mixing on the Atlantic Water layer circulation in the Arctic Ocean. Journal of Geophysical Research: Oceans, 112(C4): C04S04
Zhao Jinping, Wang Weibo, Kang S H, et al. 2015. Optical properties in waters around the Mendeleev Ridge related to the physical features of water masses. Deep-Sea Research Part II: Topical Studies in Oceanography, 120: 43–51, doi: 10.1016/j.dsr2.2015.04.011
Zhong Wenli, Zhao Jinping. 2014. Deepening of the Atlantic Water core in the Canada Basin in 2003–11. Journal of Physical Oceanography, 44(9): 2353–2369, doi: 10.1175/JPO-D-13-084.1
Zhong Wenli, Guo Guijun, Zhao Jinping, et al. 2018. Turbulent mixing above the Atlantic Water around the Chukchi Borderland in 2014. Acta Oceanologica Sinica, 37(3): 31–41, doi: 10.1007/s13131-018-1198-0
Zhong Wenli, Steele M, Zhang Jinlun, et al. 2019. Circulation of Pacific winter water in the Western Arctic Ocean. Journal of Geophysical Research: Oceans, 124(2): 863–881, doi: 10.1029/2018JC014604
