Application research of narrow band Internet of things buoy and surface hydrodynamics monitoring
收藏切换
PDF
Yiqun Xu1, 2, *, Jia Wang1, 2, Li Guan1, 2
Acta Oceanologica Sinica | 2021, 40(8) : 176 - 181
Less
收藏切换
Acta Oceanologica Sinica | 2021, 40(8): 176-181
• Marine Information Science •
Application research of narrow band Internet of things buoy and surface hydrodynamics monitoring
Full
Yiqun Xu1, 2, *, Jia Wang1, 2, Li Guan1, 2
Affiliations
  • 1 School of Marine Engineering, Jimei University, Xiamen 361021, China
  • 2 Fujian Key Laboratory of Ship and Ocean Engineering, Xiamen 361021, China
Published: 2021-08-25 doi: 10.1007/s13131-021-1884-1
Outline
收藏切换

This paper applies the narrow band Internet of things communication technology to develop a wireless network equipment and communication system, which can quickly set up a network with a radius of 100 km on water surface. A disposable micro buoy based on narrow-band Internet of things and Beidou positioning function is also developed and used to collect surface hydrodynamic data online. In addition, a web-based public service platform is designed for the analysis and visualization of the data collected by buoys. Combined with the satellite remote sensing data, the study carries a series of marine experiments and studies such as sediment deposition tracking and garbage floating tracking.

narrow band Internet of things  /  abandoned buoy  /  hydrodynamics  /  ocean monitoring  /  satellite remote sensing image
Yiqun Xu, Jia Wang, Li Guan. Application research of narrow band Internet of things buoy and surface hydrodynamics monitoring[J]. Acta Oceanologica Sinica, 2021 , 40 (8) : 176 -181 . DOI: 10.1007/s13131-021-1884-1
Full Text
Less
1 Introduction
Less
Network communication is the foundation of ocean research. Due to the vast ocean area and complex environment, the offshore area (usually 12 nautical miles away) mainly relies on high-throughput satellite communication and Beidou short message communication. The coastal area can rely on mobile operator networks. As a matter of fact, the costs of satellite communication are high, the antenna is complex and difficult to implement, and the information circulation of Beidou short messages is small. Besides that, mobile operators have limited network coverage, so communication is still an obstacle in marine research and utilization (Xia et al., 2017; Gao, 2018; Wang et al., 2019).
Due to the characteristics of surface currents in coastal waters directly affect coastal erosion, sediment deposition, garbage floating, oil spill diffusion, aquaculture environment, ship navigation, red tide migration and other production activities, it indicates the important practical application value of hydrodynamic monitoring. There are two main methods for monitoring small-scale surface flow hydrodynamics in coastal waters: numerical simulation and physical model. However, the numerical simulation methods have large errors which need to be corrected by the in situ measurement, but the costs of physical models are high. Therefore it is necessary to establish a dynamic, low-cost, and refined surface flow monitoring method.
This paper uses the open frequency band 433 MHz to design a wireless communication base station which is carried by ships, navigation beacons, buoys, shore-based system, islands and even UAVs. These base stations can rapidly set up wireless ad hoc networks with a radius of 100 km. Meanwhile, a wireless self-organizing network with a radius of 100 km can be implemented. Furthermore, the paper designs a micro buoy based on narrow-band Internet of things, which has the functions of wireless narrow-band communication, Beidou positioning, timing and sensor interface. The paper also conducts monitoring tests on some sea areas. By placing a large number of micro buoys, the position and speed of the buoys in real time, are collected continuously, accurately and finely for a long time. Then the surface hydrodynamic data, such as velocity, flow direction and wave height data are obtained. This study uses micro-buoy to track the route of sediment deposition, and the obtained data are highly consistent with the satellite remote sensing image, which proves that the micro-buoy has high application value to the research of sea surface hydrodynamics (Gao, 2018; Moffatt, 2005; Du et al., 2010).
2 Design of disposable micro buoy based on narrowband Internet of things communication on water
Less
2.1 Construction of narrow band Internet of things network

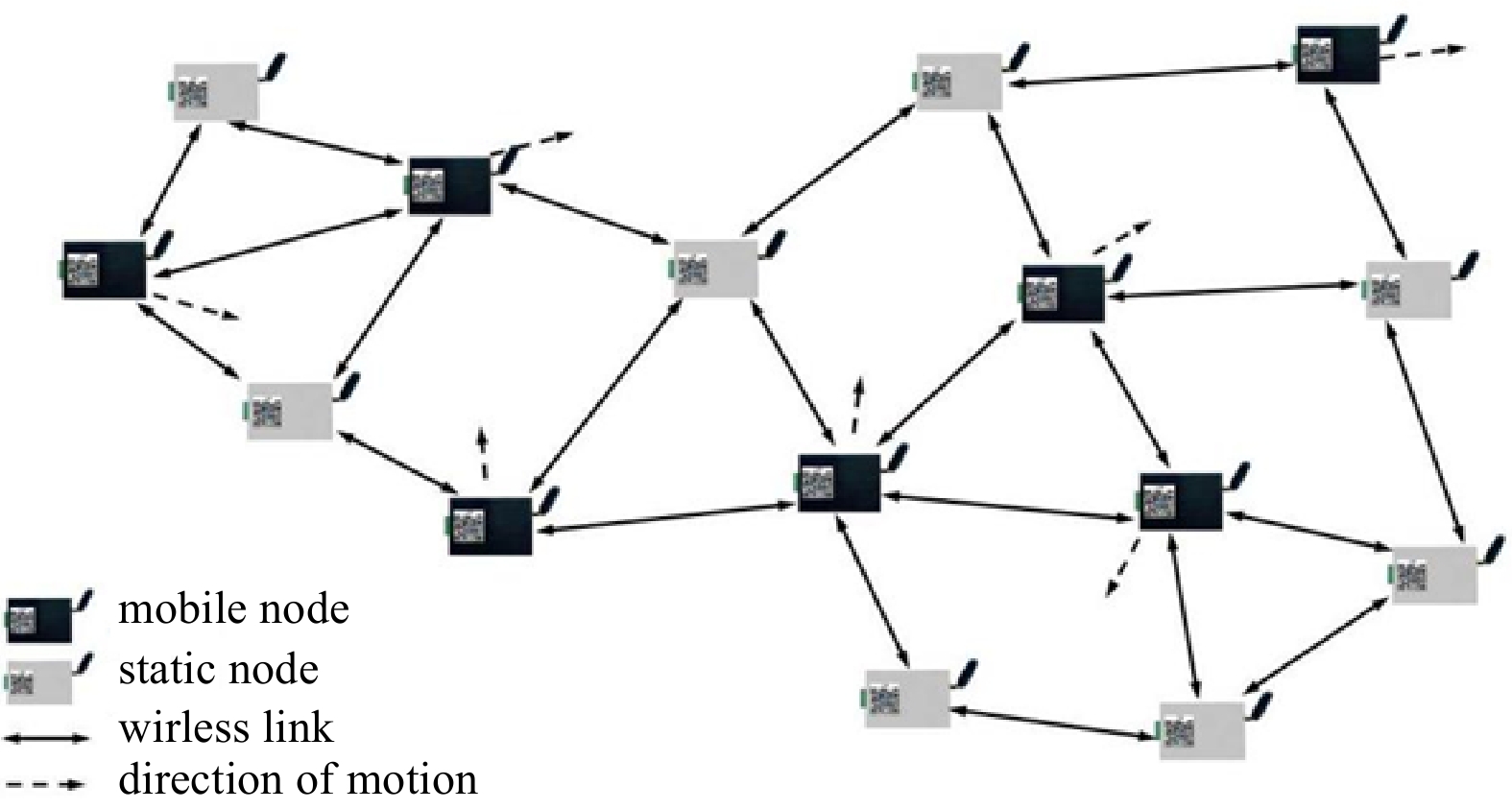

The communication system of marine narrow band Internet of things is composed of fixed base stations and mobile communication nodes. A fixed base station can achieve wireless data communication in waters with a radius of 20 km. Base station is the communication hub between the cloud server and the communication node. Communication nodes can be mobile or fixed, and buoys or moving ships can be used as mobile communication nodes. In addition, communication node can also act as a relay to achieve communication relay transmission. Several base stations and mobile nodes are transmitting signals through communication relays, forming a wireless network with a radius of 100 km. Water surface wireless ad hoc network structure is shown in Fig. 1.
2.2 Design of disposable buoys for self-organized network communication
The paper designs a micro buoy based on the 433 MHz frequency band and LoRa communication mechanism narrowband wireless ad hoc network.

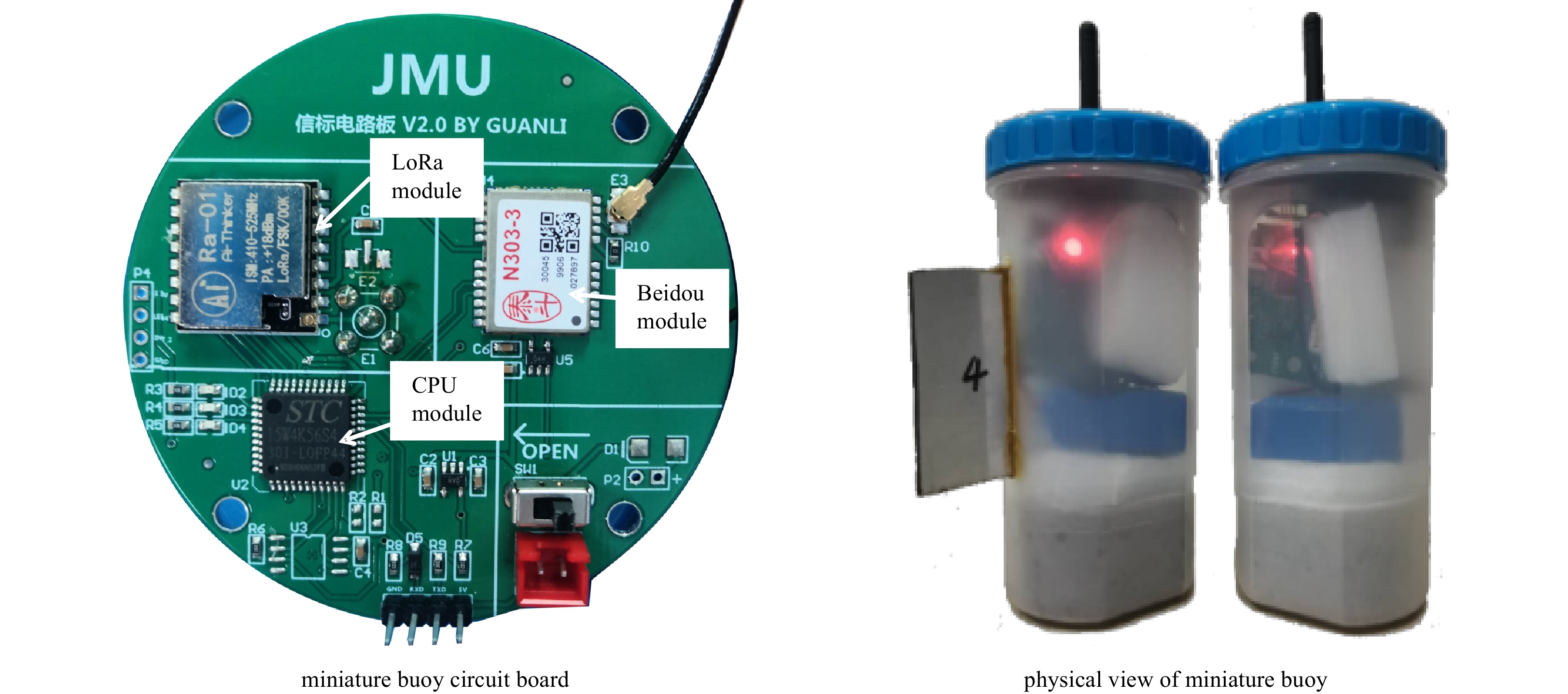

The circuit board and object of the miniature buoy are shown in Fig. 2. It mainly includes central processing unit, LoRa module, Beidou module and RS485 interface module. The RS485 interface can be connected to ocean monitoring sensors to collect ocean parameters such as temperature, dissolved oxygen, pH value, and salinity.
The micro buoys can be placed uniformly in the test waters, drifting with the tide, and periodically (default 1 min) sending information with latitude, longitude, wave height, speed and others to the base station, which can collect surface water dynamic data accurately, and precisely in real time. With the support of the differential system, the accuracy of bouy’s location can reach 2.5 cm. The buoys have their own power supply and can last for one month, which is a very good method for small-scale offshore hydrodynamic research. And by the way, because of their low cost, they can not be recycled. (Zhuang, 2006; Wang et al., 2014; Srinivasan et al., 2019)
3 Experimental study on velocity characteristics of micro buoy
Less
The velocity characteristics of the buoy need to be obtained through experiments in a pool, which is 60 m long, 2 m wide and 1 m deep.
The inlet velocity is controlled by adjusting the frequency of the motor, and a steady flow pipe is placed at the inlet to ensure uniform flow. The velocity is measured by Doppler current meter and the actual flow rate of the pool is 0.390 6 m/s based on the average flow rate data of 3 000 groups.

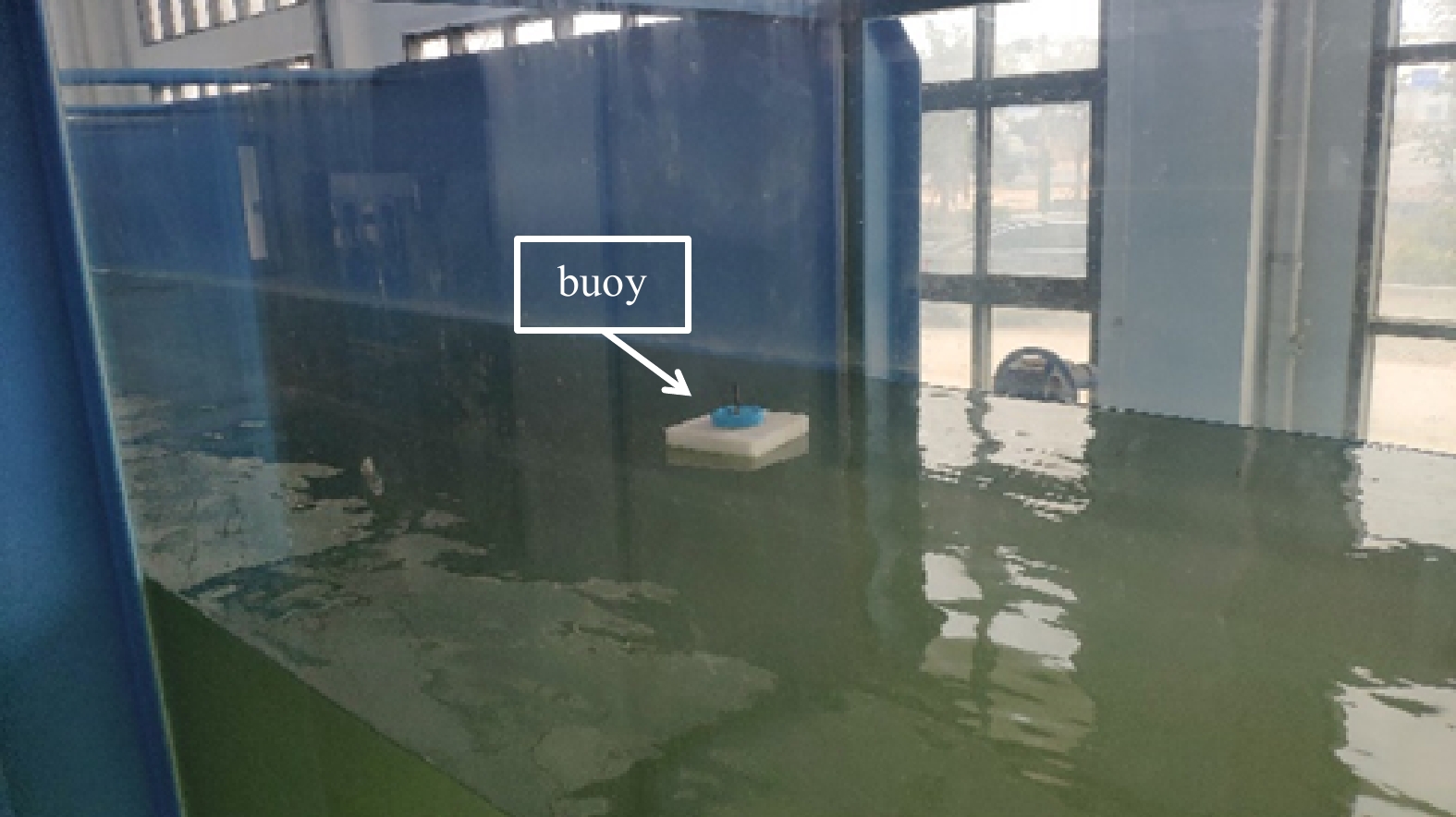

The buoys are placed from the middle section of the pool. The experimental process is shown in Fig. 3. The experimental distance is 16 m. The elapsed time of the buoy is recorded with a stopwatch. The buoys are divided into 10 groups. Groups 1–4 are the buoys with the aspect ratio of rudder blades of 0.5, 1, 1.5 and 2 respectively. Group 5–8 are buoys with foam and the ratio of rudder blades to side of 0.5, 1, 1.5 and 2, respectively. Group 9 is buoys without rudder blades and group 10 is buoys without rudder blades and with foam. Each group is measured three times. The experimental data are shown in Table 1.
The experimental data show that the error between buoy velocity value and actual velocity value is within the range of 0.13–0.15 m/s, and the error is relatively stable. While the ratio of the rudder blade is changed and the foam is increased, the measured velocity of the buoy has little change. It indicates that the disposable buoy can reflect the flow velocity to some extent and has practical application value.
4 Research on the application of micro buoy surface flow monitoring
Less
The buoys are released-into the sea. The information of longitude, latitude, velocity and wave height data of buoy is sent to the cloud server with a period of 1 min. With the purpose of visually displaying the trajectory of the buoys and analyzing the dynamic characteristics of surface flow, a public service platform is developed independently based on cloud architecture, which can be used to the public service platform analysis and data mining to form a visual application. In addition, it can intuitively express practical applications such as oil spill diffusion, marine debris drift, sedimentation tracking, sea hydrodynamic balance, tide stroke measurement, etc.
4.1 Application test of floating garbage tracking in the Jiulong River Estuary

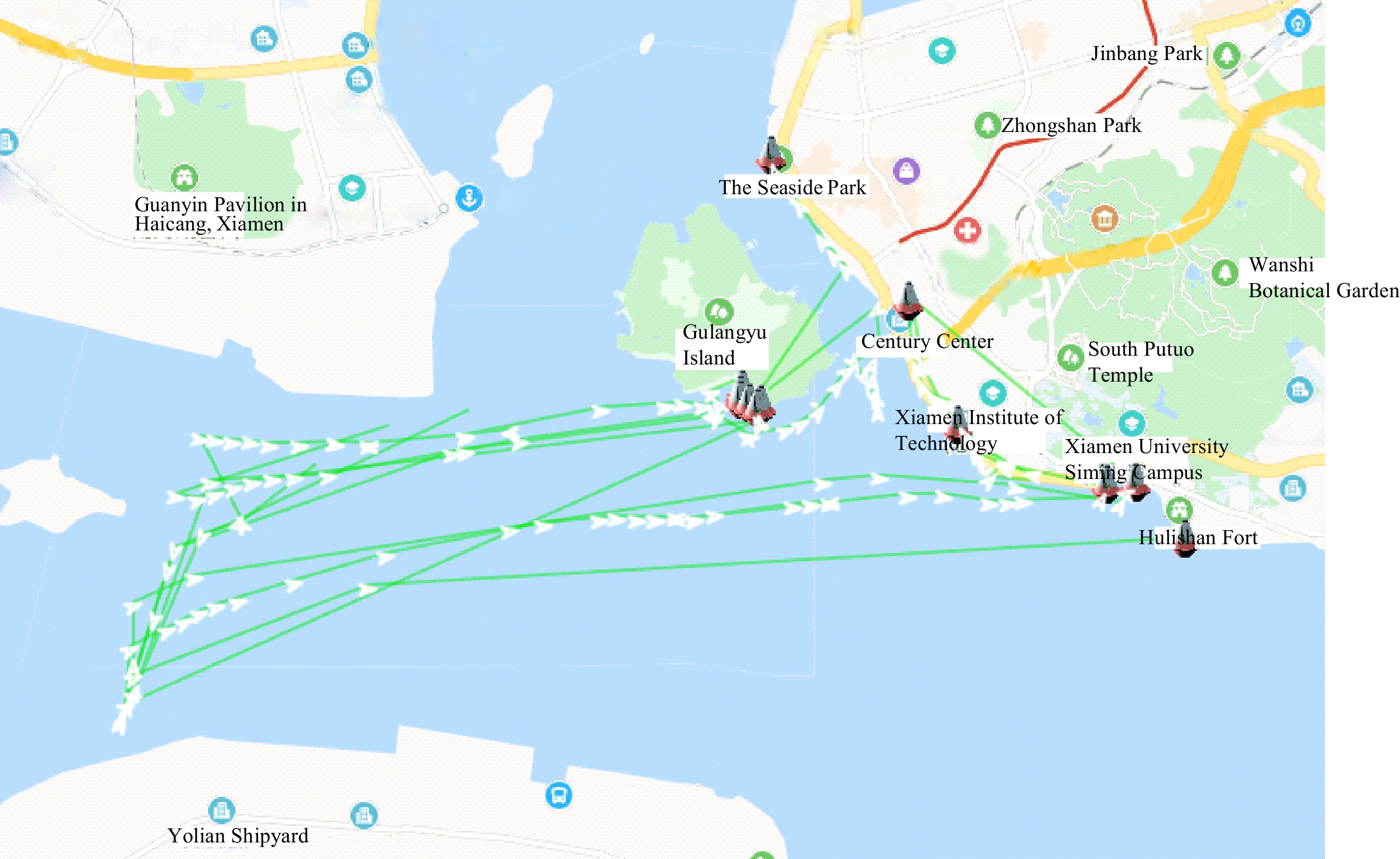

On July 13, 2019, it was cloudy, and the tide height was 513 cm. In the Jiulong River Estuary, 20 buoys were released in line, floating with the tide and sending a set of data to a cloud server every minute. The software platform marks the buoy position and track in the GIS system as shown in Fig. 4, that a set of trajectory curves with arrows indicating the direction of flow. The test results show that all buoys float to the regions around Gulangyu Island and Baicheng Beach of Xiamen University, proving that most of the garbage in the waters around Gulangyu Island and Baicheng Beach of Xiamen University comes from the floating objects of Jiulong River.
4.2 Application of sediment tracking in the Jiulong River Estuary

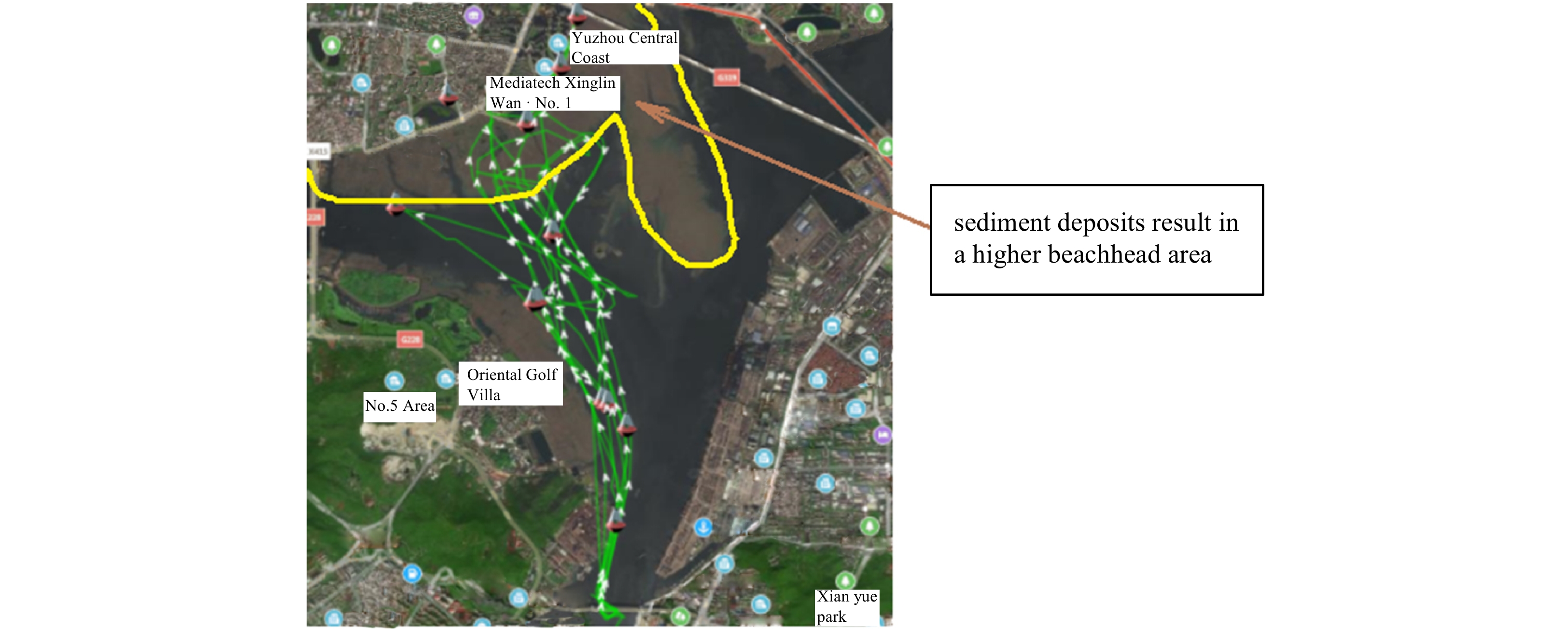

To a large extent, loating garbage flows reflects the direction of sediment flow in the Jiulong River Estuary. In order to continuously track the Jiulong River sediment, buoys are placed under the Haicang Bridge near Gulangyu Island.

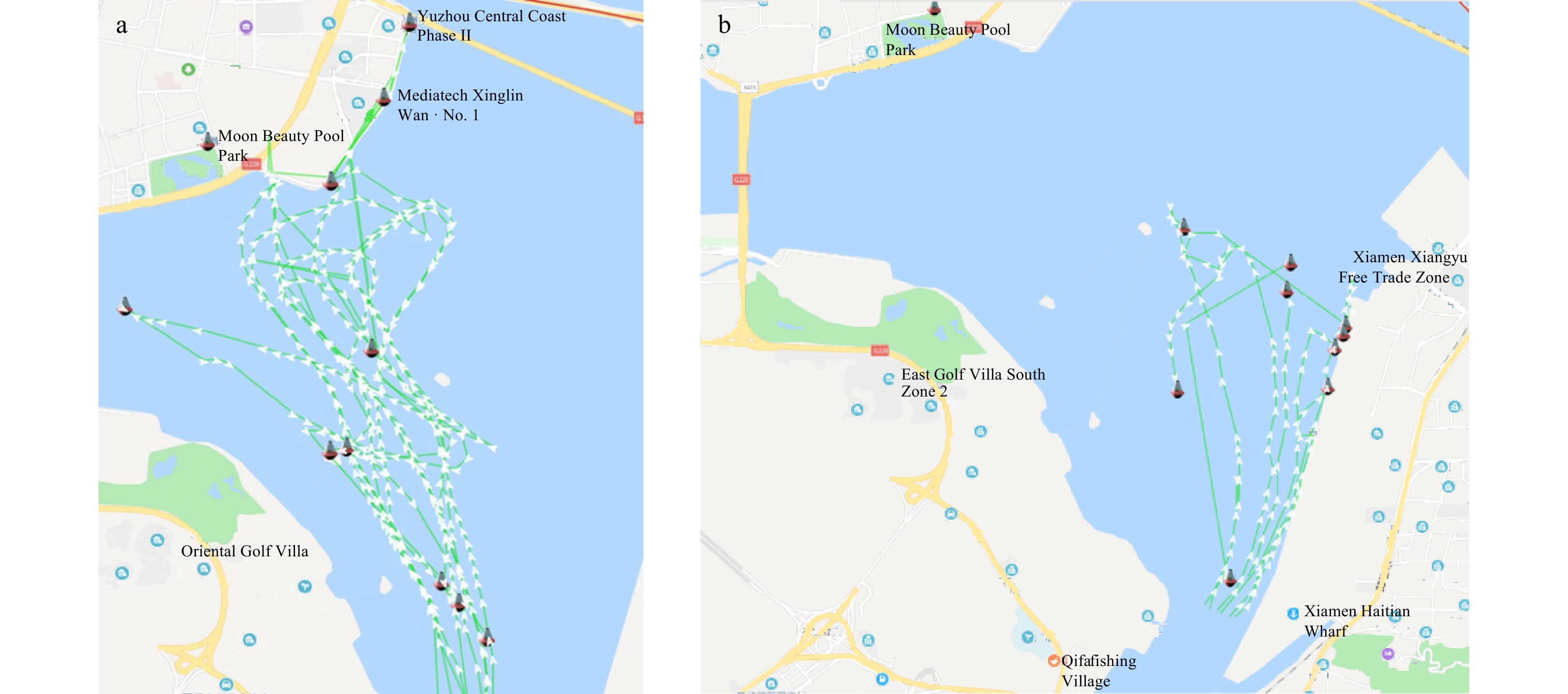

A series of buoys were released near Haicang Bridge in Xiamen on the spring tide on April 19 and the small tide on April 27, 2019. Figure 5a shows the tracking chart of real-time monitoring buoy during the spring flood tide. And the Fig. 5b shows the trajectory during the neap flood tide. Buoys’ trajectory reveal that the buoys return at spring tide in the sea area of Gaopu Village in Xinglin on high tide day, and return at neap tide in the sea area between Dongdu Port and Baozhu Island on low tide day. While the buoys turn back at the stand tide, the current slows down and the sediment deposition. Satellite remote sensing image shows a “7” high beachhead area from Gaopu Village to Baozhu Island, as shown in Fig. 6. It is highly consistent with the test results, which also explains the reason for the large workload of dredging the waters from Baozhu Island to Dongdu Port.
4.3 Hydrodynamic balance test in the sea area of Xiamen Island

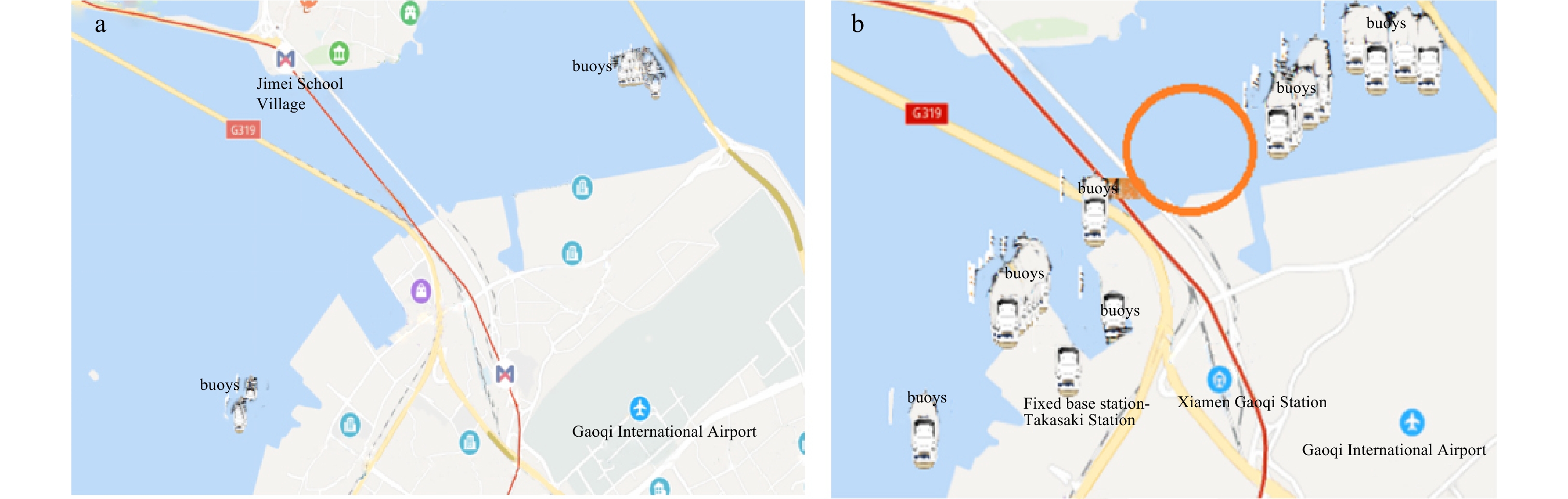

On November 26, 2018, it was light rain, and the tide height was 615 cm. This experiment placed 30 buoys at the beginning of flood tide in the sea area of 3 km from the east and west sides of the Xiamen Bridge from Gaoqi to Jimei. From the position shown in Fig. 7a, the buoys start to follow the tide and drift towards the Xiamen Bridge from the both sides. Figure 7b shows the position of the float during slack tide. After many tests, the data proves that the buoys on both sides did not drift over the Xiamen Seawall, that is shown by the red circle near the Xiamen Bridge in Fig. 7b.

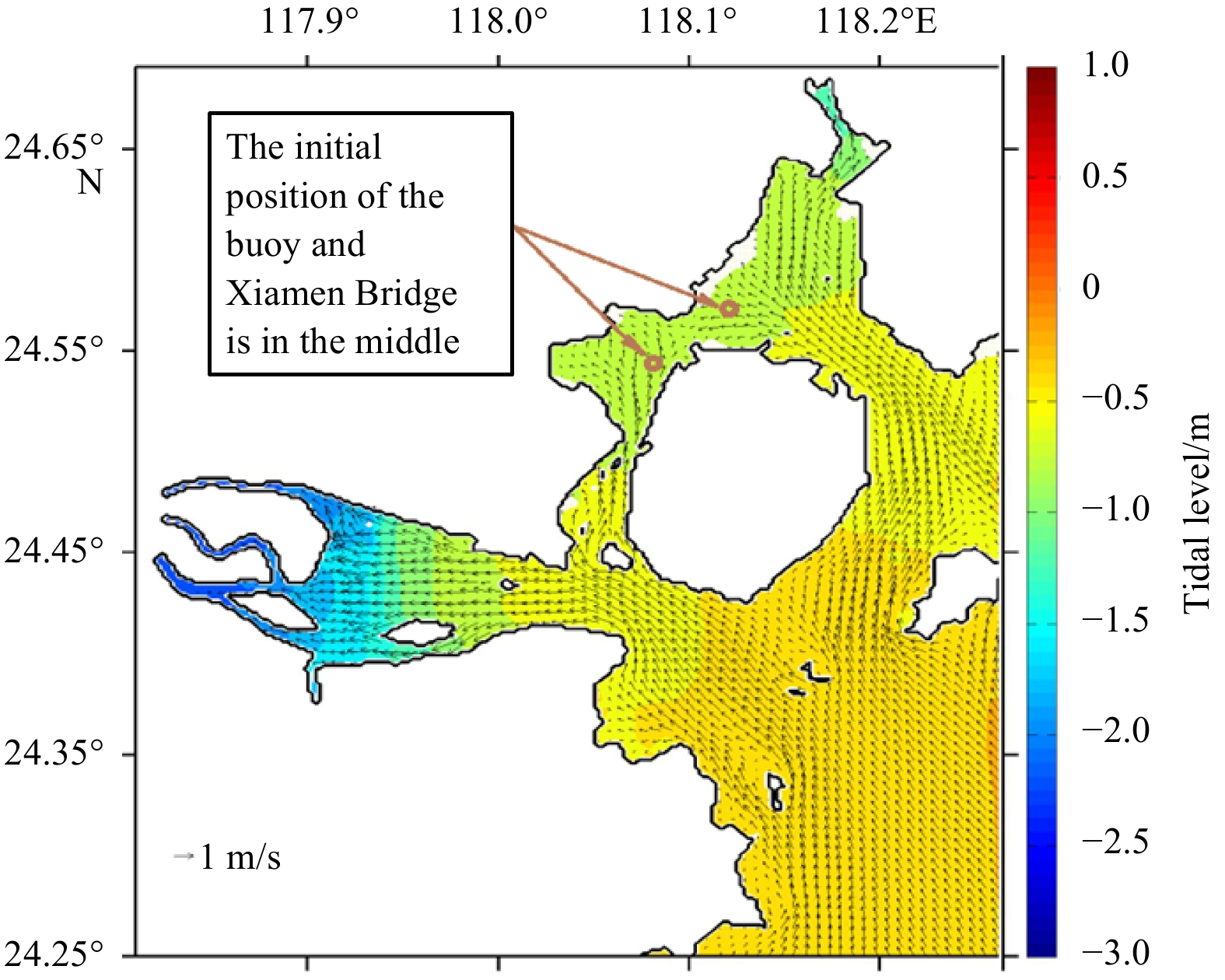

The monitoring data of microbuoys can also be used to verify the numerical simulation model of hydrodynamics. Figure 8 shows the numerical simulation results of hydrodynamics in the sea area around Xiamen Bridge using Regional Oceanic Modelling System. The two red dots in the figure are the initial positions of the throwing buoy, with Xiamen Bridge in the middle. The calculated results are consistent with the monitoring results of buoy experiments, and the hydrodynamic balance of tidal current is found near Xiamen Bridge.
The north end of the Xiamen Bay tide flows in from Tong’an Bay, and the south end flows from the Jiulong River Estuary through the Gulangyu waters. Then the two currents will meet near the Xiamen Bridge. The dynamic balance of the tidal current formed by this intersection makes the tidal pressure difference small or even zero, which is called “dynamic dike”. The experiment prove that the Xiamen seawall is in the hydrodynamic balance area, which prove that the seawall has little influence on the tidal circulation of Xiamen Island, and the impact of tidal power on the seawall is also small. Therefore, it is appropriate to build a seawall at this location.
5 Conclusion
Less
Narrow band Internet of things has the advantages of convenient networking, portability, low power consumption and long distance coverage. It is a brand-new real-time dynamic monitoring method of ocean hydrodynamics. Compared with the satellite remote sensing image data, the buoy based on narrow-band Internet of things is more effective for the fine monitoring of surface flow hydrodynamics in small-scale offshore waters. In addition, the narrow band Internet of things can also be used in other marine monitoring applications.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 41606004.
References
Less
Du Wencai, Ma Zhengxin, Bai Yong, et al. 2010. Integrated wireless networking architecture for maritime communications. In: Proceedings of the 11th ACIS International Conference on Software Engineering, Artificial Intelligence, Networking and Parallel/Distributed Computing. London: IEEE, 134–138
Gao Qiang. 2018. Ocean buoy wireless communication protocol research and systemim plementation (in Chinese)[dissertation]. Harbin: Harbin Institute of Technology
Moffatt C D. 2005. High-data-rate, line-of-site network radio for mobile maritime communications (using Harris WetNetTM technology). In: Proceedings of OCEANS 2005 MTS/IEEE. Washington: IEEE, 1–8
Srinivasan R, Rajendran V, Zacharia S, et al. 2019. A study of ocean parameters in Bay of Bengal (BoB) using indigenised drifting buoys. Journal of Earth System Science, 128(7): 196, doi: 10.1007/s12040-019-1242-2
Wang Bo, Li Min, Liu Shixuan, et al. 2014. Current status and trend of ocean data buoy observation technology applications (in Chinese). Chinese Journal of Scientific Instrument, 35(11): 2401–2414
Wang Quan, Liu Qingbo, Wang Yue, et al. 2019. Application research of space-based communications system in wisdom ocean. Spacecraft Engineering (in Chinese), 28(2): 126–133
Xia Minghua, Zhu Youmin, Chen Erhu, et al. 2017. The state of the art and challenges of marine communications. Scientia Sinica: Informationis (in Chinese), 47(6): 677–695, doi: 10.1360/N112017-00016
Zhuang Hongru. 2006. Application of automatic monitoring system of water quality on short-term prediction of red tide in Tongan Bay, Xiamen. Marine Environmental Science (in Chinese), 25(2): 58–61
