An evaluation of the Arctic clouds and surface radiative fluxes in CMIP6 models
Full
Jianfen Wei1, 2, Zhaomin Wang3, 4, *, Mingyi Gu5, Jing-Jia Luo2, 6, *, Yunhe Wang7, 8
Affiliations
  • 1 School of Environmental Science and Engineering, Nanjing University of Information Science and Technology, Nanjing 210044, China
  • 2 Institute for Climate and Application Research (ICAR), Nanjing University of Information Science and Technology, Nanjing 210044, China
  • 3 College of Oceanography, Hohai University, Nanjing 210098, China
  • 4 Southern Marine Science and Engineering Guangdong Laboratory (Zhuhai), Zhuhai 519082, China
  • 5 School of Atmospheric Science, Nanjing University of Information Science and Technology, Nanjing 210044, China
  • 6 Key Laboratory of Meteorological Disaster of Ministry of Education/Joint International Research Laboratory of Climate and Environment Change/Collaborative Innovation Center on Forecast and Evaluation of Meteorological Disasters, Nanjing University of Information Science and Technology, Nanjing 210044, China
  • 7 CAS Key Laboratory of Marine Geology and Environment, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
  • 8 University of Chinese Academy of Sciences, Beijing 100049, China
Published: 2021-01-25 doi: 10.1007/s13131-021-1705-6
Outline
收藏切换

To assess the performances of state-of-the-art global climate models on simulating the Arctic clouds and surface radiation balance, the 2001–2014 Arctic Basin surface radiation budget, clouds, and the cloud radiative effects (CREs) in 22 coupled model intercomparison project 6 (CMIP6) models are evaluated against satellite observations. For the results from CMIP6 multi-model mean, cloud fraction (CF) peaks in autumn and is lowest in winter and spring, consistent with that from three satellite observation products (CloudSat-CALIPSO, CERES-MODIS, and APP-x). Simulated CF also shows consistent spatial patterns with those in observations. However, almost all models overestimate the CF amount throughout the year when compared to CERES-MODIS and APP-x. On average, clouds warm the surface of the Arctic Basin mainly via the longwave (LW) radiation cloud warming effect in winter. Simulated surface energy loss of LW is less than that in CERES-EBAF observation, while the net surface shortwave (SW) flux is underestimated. The biases may result from the stronger cloud LW warming effect and SW cooling effect from the overestimated CF by the models. These two biases compensate each other, yielding similar net surface radiation flux between model output (3.0 W/m2) and CERES-EBAF observation (6.1 W/m2). During 2001–2014, significant increasing trend of spring CF is found in the multi-model mean, consistent with previous studies based on surface and satellite observations. Although most of the 22 CMIP6 models show common seasonal cycles of CF and liquid water path/ice water path (LWP/IWP), large inter-model spreads exist in the amounts of CF and LWP/IWP throughout the year, indicating the influences of different cloud parameterization schemes used in different models. Cloud Feedback Model Intercomparison Project (CFMIP) observation simulator package (COSP) is a great tool to accurately assess the performance of climate models on simulating clouds. More intuitive and credible evaluation results can be obtained based on the COSP model output. In the future, with the release of more COSP output of CMIP6 models, it is expected that those inter-model spreads and the model-observation biases can be substantially reduced. Longer term active satellite observations are also necessary to evaluate models’ cloud simulations and to further explore the role of clouds in the rapid Arctic climate changes.

Arctic Basin  /  surface radiation budget  /  cloud radiative effect (CRE)  /  CMIP6 models  /  CERES  /  CloudSat-CALIPSO  /  APP-x
Jianfen Wei, Zhaomin Wang, Mingyi Gu, Jing-Jia Luo, Yunhe Wang. An evaluation of the Arctic clouds and surface radiative fluxes in CMIP6 models[J]. Acta Oceanologica Sinica, 2021 , 40 (1) : 85 -102 . DOI: 10.1007/s13131-021-1705-6
Full Text
Less
1 Introduction
Less
Over the Arctic, surface radiation budget, including the incoming solar radiation, reflected shortwave (SW) radiation, and downwelling/outgoing longwave (LW) radiation, is of great importance for the changes of surface temperature and the Arctic sea-ice melt onset and retreat. Arctic surface radiation budget has been widely evaluated in previous studies using observations (Dong et al., 2010; Kay and L’Ecuyer, 2013; Riihelä et al., 2017), reanalysis products (Perovich et al., 2007; Huang et al., 2017a), and output from climate models (English et al., 2015; Boeke and Taylor, 2016; Lenaerts et al., 2017; Taylor et al., 2019). Many scientific projects or research campaigns have been designed and implemented in the Arctic to understand the underlying processes influencing the Arctic surface energy budget, such as the Surface Heat Budget of the Arctic Ocean (SHEBA, October 1997–October 1998) (Perovich et al., 1999; Uttal et al., 2002; Shupe et al., 2006), the Atmospheric Radiation Measurement (ARM, started in 1989) (Stokes and Schwartz, 1994; Verlinde et al., 2016) and the Arctic Summer Cloud Ocean Study (ASCOS, August–September 2008) (Shupe et al., 2013; Tjernström et al., 2014). The physical processes that determine surface radiation budget in the Arctic involve complicated thermodynamic processes. Up to now, these processes are still poorly understood, especially with the dramatic Arctic climate changes including the rapid sea ice retreat (Kapsch et al., 2013; Huang et al., 2017a; Lee et al., 2017; Huang et al., 2019; Yu et al., 2019) and surface accelerated warming (Serreze and Barry, 2011; Cohen et al., 2014; Walsh, 2014) in recent decades.
Changes in the amount, temperature and optical characteristics (liquid/ice water content, number of droplets and their size) of clouds can modify the surface radiative balance in different ways, known as the surface cloud radiative effect (CRE) or cloud radiative forcing. The cloud water path (CWP), including ice water path (IWP) and liquid water path (LWP), indicates the amount of condensed water (liquid or ice) in a cloud column from cloud base to cloud top of a unit area. In the Arctic, clouds are mainly low-level mixed-phase cloud (Cesana et al., 2012; Van Tricht et al., 2016; Wendisch et al., 2019). CWP is a fundamental physical property of clouds and an important influencing factor determining the radiative effect with different cloud phases. The uncertainty in CWP contributes significantly to the overall uncertainty in cloud-climate feedbacks (Fu and Liou, 1993; Cesana and Storelvmo, 2017). Also, clouds in different height levels and different latitudes have different radiative effects due to discrepancies in temperature and optical depth. Clouds could impact surface radiation budget through two competing processes: reflecting solar SW radiation to space (cooling effect) and trapping the outgoing LW radiation (greenhouse effect) (IPCC, 2014; Li et al., 2011; Matus and L’Ecuyer, 2017). In general, the LW CRE is primarily determined by cloud temperature, height, and emissivity, while SW CRE is determined by the solar zenith angle, surface albedo, and cloud transmittance and albedo. Goosse et al. (2018) summarized several important feedbacks in the polar regions that could influence surface radiative fluxes in a rapidly changing Arctic. Several of those feedbacks are related to changes in the polar cloud cover, such as the positive cloud-sea ice feedback in non-summer months and negative cloud optical depth feedback. The positive feedback depicts that the decrease of Arctic sea ice extent in non-summer months could result in a more low-cloud cover that emits more LW to surface and increases downwelling LW, leading to further sea ice loss. For the latter feedback, the liquid clouds may increase with the Arctic climate warming, which could result in higher cloud albedo and more reflection of SW, dampening the warming process.
Many studies have discussed the surface CREs and their influences on surface temperature or sea ice cover in the Arctic (Liu et al., 2008; Mace and Benson, 2008; Liu and Key, 2014; Letterly et al., 2016; Jun et al., 2016; Huang et al., 2017a, 2019) and Antarctic (Wang et al., 2019). For instance, research in Jun et al. (2016) shows that a large reduction of winter sea ice cover decreased lower tropospheric static stability, leading to enhanced cloud formation and considerable LW radiative forcing based on observations and atmospheric general circulation model (AGCM) experiments. Considering the scarcity and the large uncertainties in the available data sets of Arctic clouds, the variability and changes of Arctic cloud characteristic properties are known little. Until now, no consensus exists on the long-term trend of Arctic total cloud fraction (CF) in the past decades due to the differences of observation methods or available observation periods among different datasets. Possible future trends of Arctic CF projected by different models also show large inter-model spread (Liu et al., 2008; Eastman and Warren, 2010; Liu et al., 2012; Comiso and Hall, 2014; Letterly et al., 2016).
Due to some limitations of the cloud retrieval (availability of daylight and the problems with water path retrieval over ice and snow), available observations of cloud optical parameters in the polar regions are very rare. For instance, most in situ observations of Arctic surface radiation and cloud cover during some scientific programs were implemented on a short-term scale and in specific ground sites, such as SHEBA and ASCOS, which are rather limited both temporally and spatially. CWP in moderate resolution imaging spectroradiometer (MODIS) (Platnick et al., 2003) cloud observations only covers the central Arctic during several warm months (April to August) too, as well as another data set CLARA-A2, which stands for “CM SAF cLouds, Albedo RAdiation data record, AVHRR-based, Edition 2” (Karlsson et al., 2017). Thus only a few studies documented the radiative properties of clouds according to their phase in the Arctic. Climate models are great tools for related research. The simulation of cloud physical and optical properties is very important for determining the reliability of climate modeling and climate prediction. Based on available simulation results from coupled model intercomparison project, phase 6 (CMIP6, Eyring et al., 2016) models and several satellite observations, this study intends to evaluate the surface radiation budget and analyze the influence of model-generated cloud properties on surface radiative fluxes over the Arctic.
2 Models, observations and methods
Less
The CMIP6 model outputs of cloud properties and surface radiative fluxes from the atmospheric model intercomparison project (AMIP) experiments (up to December 2014) were analyzed in this study. AMIP experiments were forced by the observed sea surface temperature and sea ice boundary conditions and the model output of these experiments is proper for the comparison with observation products. Only outputs from the first ensemble of each model were analyzed. To date, 22 CMIP6 models provide all variables needed for this study, including CF, cloud LWP, IWP, and surface short-wave/long-wave fluxes in all-sky and clear-sky conditions. The relevant information, including the name, the institution, the atmospheric component and spatial resolution, the cloud fraction scheme, and the references of each model are given in Table 1. According to the work of Qu et al. (2014) and Wang et al. (2015), cloud schemes used in all the 22 models are divided into two diagnostic and one prognostic schemes depending on whether cloud cover is a diagnostic or a prognostic variable. Two types of diagnostic schemes, relative humidity (RH)-based empirical and probability distribution function (PDF)-based statistical schemes, are defined based on the treatment of the stratiform clouds. For RH-based scheme, fractional cloud cover CF is an empirical function of RH. Some RH-based scheme uses the large-scale average condensate (cloud water/ice) as the primary predictor in addition to the grid-mean RH, based on the research of Xu and Randall (1996). In PDF-based statistical scheme, cloud cover is determined by accounting for the sub-grid scale variability in both total water content and temperature. This variability often assumes some simple probability density functions (PDFs).
We use surface monthly radiative fluxes from the Clouds and Earth’s Radiant Energy System Energy Balanced and Filled (CERES-EBAF) version 4.0 (CERES EBAF-Surface_Ed4.0, Kato et al., 2018) onboard the Terra and Aqua NASA satellites. These data can be obtained from the NASA Langley Research Center CERES ordering tool at (http://ceres.larc.nasa.gov/). This product provides global gridded (with 1°×1° spatial resolution), monthly mean clear-sky fluxes, all-sky fluxes, and CREs at the surface from March 2000 to March 2018. It is the first long-term measurements for estimating the Earth’s radiation budget (Wielicki et al., 1998). Cloud cover properties in CERES-EBAF (CERES EBAF-TOA_Ed4.0, Loeb et al., 2018) are derived from simultaneous measurements by MODIS Terra between March 2000 to June 2002 and MODIS Terra+Aqua from July 2002 onwards. CERES-EBAF provides a great observational constraint on Arctic Ocean radiative fluxes, but one should keep in mind that the data quality in high latitudes is lower than at lower latitudes because of the viewing geometry, the lower sun elevation angles and clouds being more difficult to discriminate against a cold and/or bright background such as sea ice. In addition, compared to the observed top of atmosphere (TOA) radiative fluxes, surface radiative fluxes in CERES-EBAF are calculated based on the CERES-EBAF TOA observations along with other satellite observations. Previous studies have indicated that this surface radiation product performs better than other products (Zhang et al., 2015; Slater, 2016) due to the TOA observation constraint. However, the validation of these surface radiative fluxes can only be done at specific surface sites with available radiative measurements, which are rare in the Arctic and may thus lead to uncertainties in evaluating the Arctic surface radiation budget. It has been found that the estimated root-mean-square errors (RMSEs) of CERES-EBAF surface downward SW and LW irradiance in the Arctic are 14 W/m2 and 12 W/m2 compared to surface observations, while they are 16 W/m2 and 12 W/m2 for upward SW and LW (see Table 8 in Kato et al., 2018).
The CERES-MODIS Edition 4A CF observations (Wielicki et al., 1996) are used for the model assessment of the Arctic cloud properties in this study. Different daytime and nighttime retrieval methods for snow or ice-covered surfaces, along with ancillary data and empirical parameterizations are used to derive cloud properties for both pixel and CERES footprint levels (Minnis et al., 2011). Detailed algorithms for CERES-MODIS cloud properties can be referred to previous studies (Minnis et al., 2011; Huang et al., 2017b; Trepte et al., 2019). CFs in CERES-MODIS have been extensively compared with other products and are representative of passive satellite cloud amounts globally (Stubenrauch et al., 2013). The uncertainty of CF in this product is about 7% globally (Minnis et al., 2011). The cloud mask used in this product could identify cloudy or clear areas 90%–91% and 80%–81% of the time during polar day and night (Trepte et al., 2019). When compared to the results based on cloud mask from the ARM/North Slope of Alaska (NSA) surface lidar observations in Barrow, it is found that CERES-MODIS values of CF agrees well with lidar observed CF in late summer and autumn. It only underestimates the lidar observations by less than 10%. However, in spring months, CERES-MODIS values fall short of their lidar counterparts by 20%–30%. The RMSE between them peaks in March to April (~40%) and bottoms out to about 10% in August (Spangenberg et al., 2004). CWPs obtained from CERES-MODIS show large uncertainties compared to other observation products especially in high latitudes. For example, over the Arctic, the mean differences and correlation coefficients of the retrieved LWPs relative to the ARM/NSA ground-based observations are 5.6 g/m2 and 0.59 over snow conditions (Dong et al., 2016). Thus they are not used in this study.
To better investigate cloud conditions over the Arctic region, we also utilized CF data from Extended AVHRR Polar Pathfinder (APP-x) (Wang and Key, 2005a, 2005b; Key et al., 2014, 2016). The retrieval of APP-x cloud properties is specifically designed for polar AVHRR daytime and nighttime data. CF is retrieved at high and low sun times using a radiative transfer model FluxNet and a suite of algorithms (Wang and Key, 2005a). APP-x data products are mapped to a 25 km EASE-grid. Daily APP-x cloud observations are available from the year 1982 until present and can be obtained from the National Centers for Environmental Information (NCEI) of National Oceanic and Atmospheric Administration NOAA (https://www.ncdc.noaa.gov/cdr/atmospheric/extended-avhrr-polar-pathfinder-app-x). It is a thematic climate data record to provide information on surface and cloud properties and radiative fluxes. The uncertainty of APP-x CF over the study area of SHEBA is about 26% (Key et al., 2016). The comprehensive set of variables in APP-x can be used to study trends and interactions within the Arctic climate systems, yet the cloud water path data is not available.
Another data set, which is known as the collocated radar CloudSat and lidar CALIPSO, hereafter abbreviated as CloudSat-CALIPSO, is of even superior quality to the CERES-MODIS and APP-x cloud property data sets. This data set merges the CloudSat geometrical profiling product (GEOPROF) (with a vertical resolution of 240 m) (Marchand et al., 2008) and the CALIPSO Vertical Feature Mask (VFM) (with a vertical resolution of 60 m) (Vaughan et al., 2009). The CALIPSO VFM data is valuable for assessing changes in low (<720 m) and geometrically thin cloud cover (Kay and Gettelman, 2009; Mace et al., 2009). A combination of the data obtained with both sensors allows obtaining an almost complete characterization of the vertical cloud structure because the two sensors couple with their different wavelengths used to the different cloud and precipitation particles of both phases, liquid and solid. The uncertainty of global CF in CloudSat-CALIPSO monthly mean product is about 5% (Mace et al., 2009). As pointed out by Kay and L’Ecuyer (2013), CloudSat-CALIPSO is highly valuable to cloud study due to the active cloud detection technique and the ability to provide vertical cloud distributions. However, the collocated data set is only available for a much shorter period (from June 2006 to February 2011) and has an observational “pole hole” from 82°N to 90°N. Thus the gridded monthly CloudSat-CALIPSO cloud cover data offered by the Integrated Climate Data Centre (ICDC), CEN, University of Hamburg (https://icdc.cen.uni-hamburg.de) was only used to verify the CF observations from CERES-EBAF and APP-x in this study.
Previous studies have pointed out that the large model-observation bias and the inter-model spread of the CF amount are partly due to the lack of a common algorithm and spatial scale used when calculating cloud properties in models and in satellite observations (Webb et al., 2017). Yu et al. (1996) firstly introduced the “satellite simulator” method based on satellite observations from the International Satellite Cloud Climatology Project (ISCCP), which uses the same data processing system as the satellite to handle and output the model data. Thus a satellite simulator integrated in a certain model can be used to diagnose the directly observed cloud and radiation parameters by the satellite sensor, making the model assessment against satellite observations more accurate and credible (Bodas-Salcedo et al., 2011). In the first phase of the Cloud Feedbacks Model Intercomparison Project (CFMIP-1) implemented by the World Climate Research Programme (WCRP) (McAvaney and Le Treut, 2003), only two groups of experiments (AMIP and 2xCO2) including ISCCP simulator were executed. Since CFMIP-2, the CFMIP Observation Simulator Package (COSP) (Bodas-Salcedo et al., 2011), including the ISCCP simulator, CALIPSO simulator, MODIS simulator, et al., was provided for different model development centers. Satellite simulators in COSP have also been integrated into CMIP6 models for implementing the CFMIP-3 model experiments.
The reference area analyzed in this study is the Arctic Basin. The domain of the Arctic Basin is defined the same as that in Wei et al. (2019) (in their Fig. 1), which covers the ocean area north of 70°N, excluding the Nordic Seas, the Barents sea, and the Baffin Bay (Fig. 1). Basin-averaged values are calculated on the original grid of each CMIP6 model and each observation dataset, while for the spatial maps of multi-model mean and inter-model spread, as well as the spatial distribution of model-observation differences, all data sets are re-gridded onto a 2° (longitude) × 1° (latitude) grid. Note that in this study the four seasons are defined as follows: winter (December–February), spring (March–May), summer (June–August) and autumn (September–November).
3 Results
Less
3.1 Mean Arctic Basin surface radiative fluxes

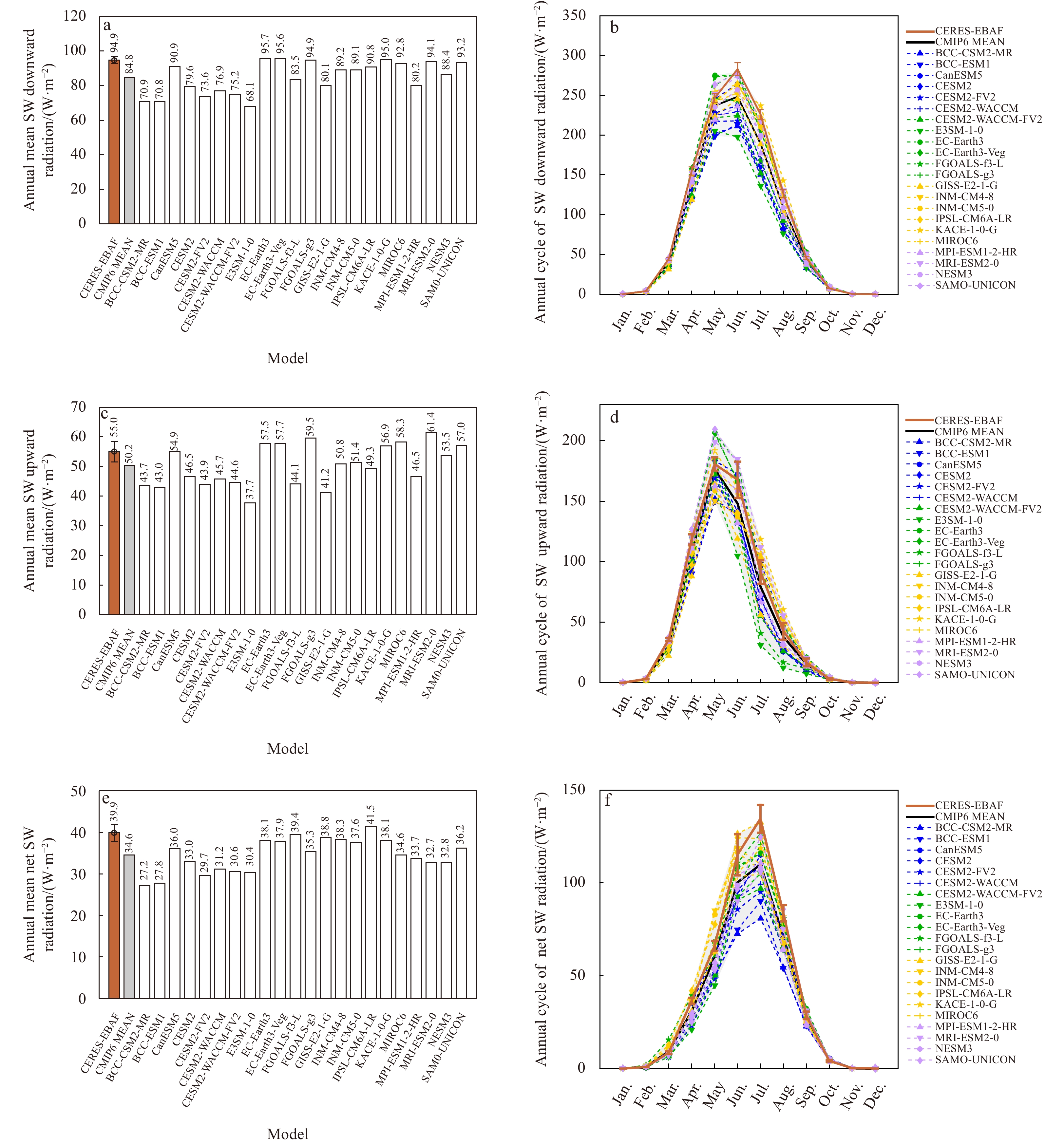

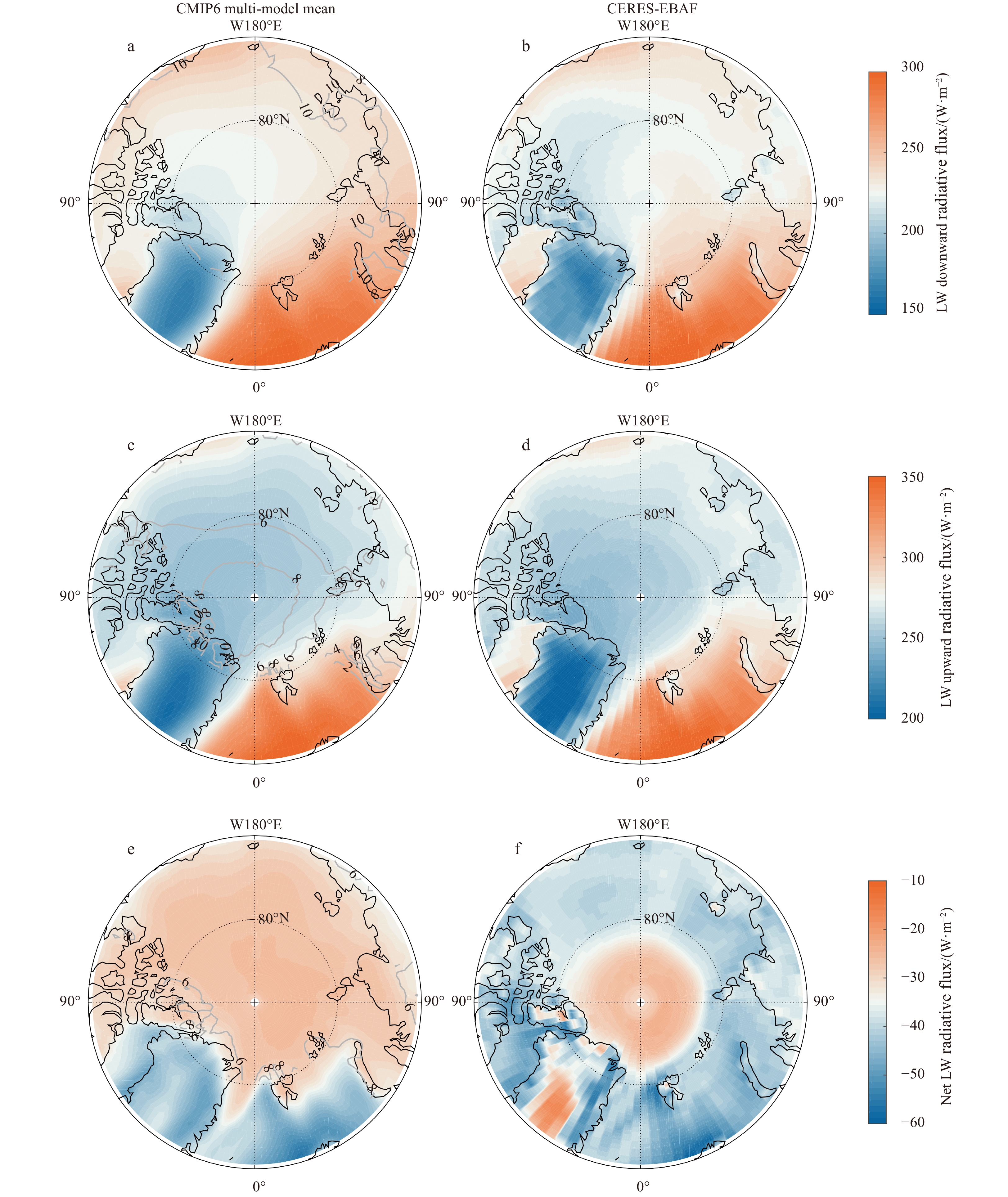

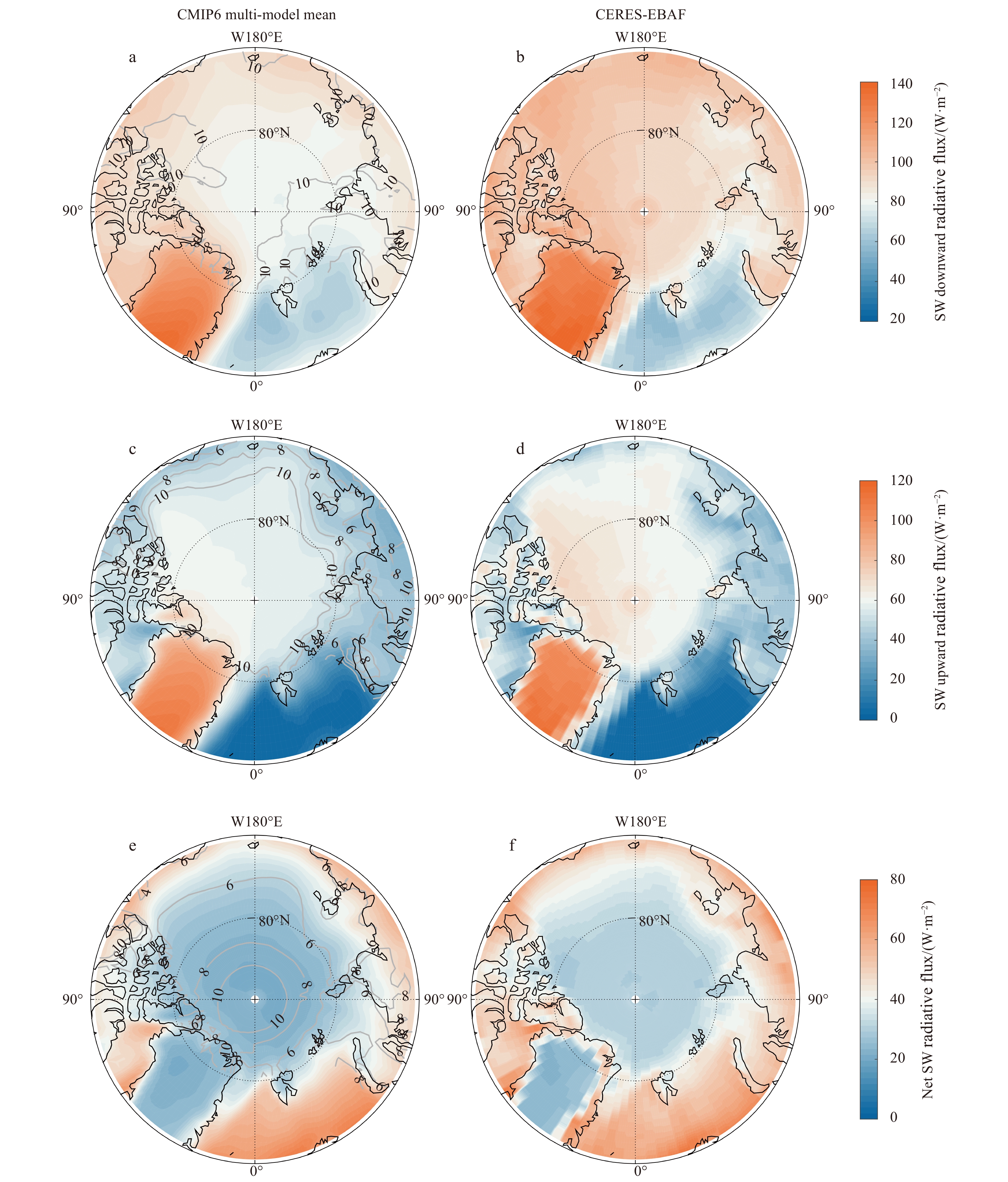

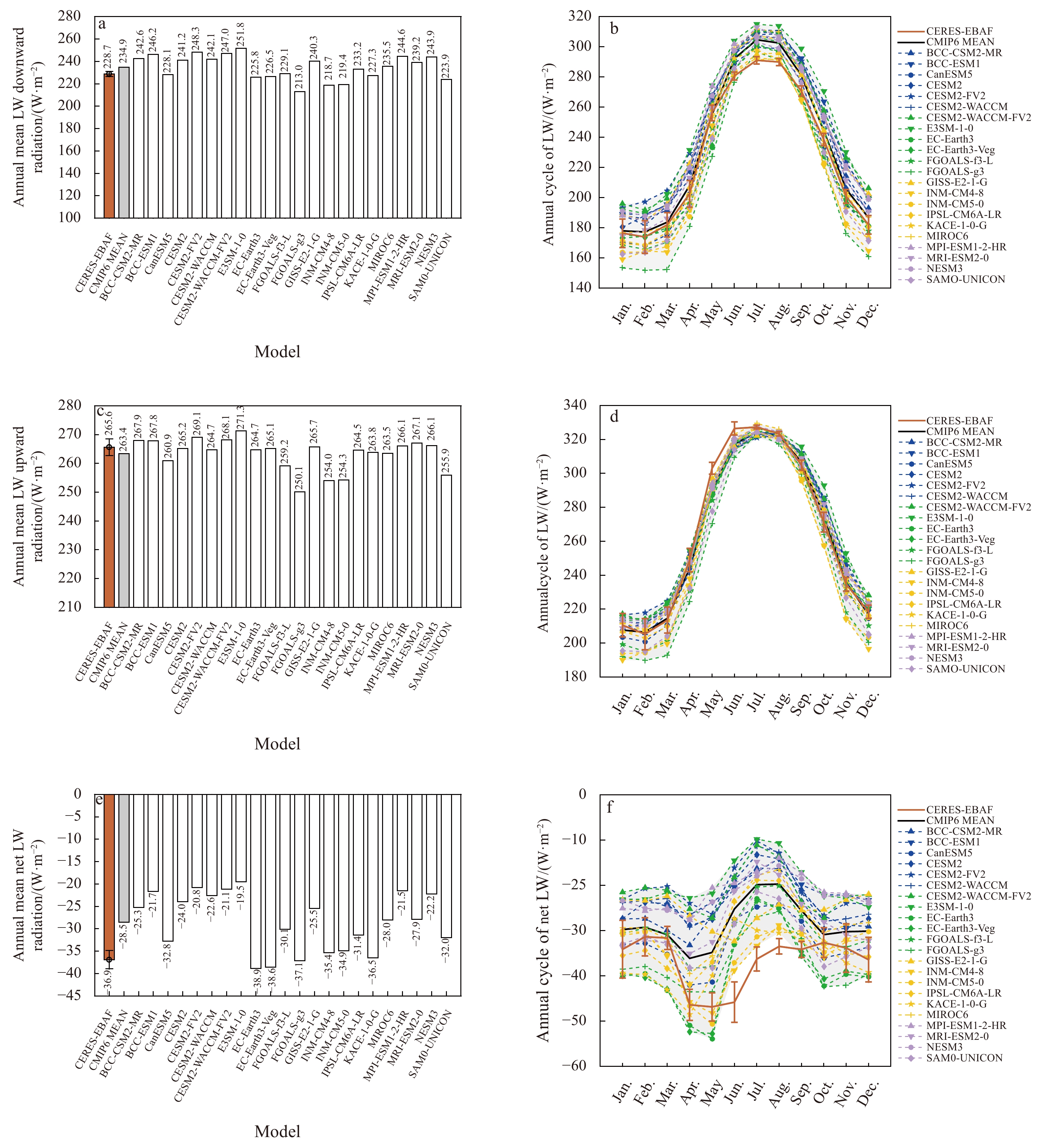

Figures 2–7 present the spatial patterns, climatological annual means, and seasonal cycles of Arctic Basin surface radiative fluxes from both CMIP6 models and CERES-EBAF. For the Arctic Basin, both the individual radiation component and the net radiation fluxes show consistent spatial patterns in the multi-model mean and in CERES-EBAF, with obvious latitudinal gradients modified by the occurrence of topography (Figs 2, 4 and 6). Simulated incoming shortwave (SW) radiative flux is lower than observation within the Arctic Basin. Surface upward SW radiative flux is mainly determined by the surface albedo and the amount of downward component, with maximum values in the Greenland due to the high albedo of the Greenland Ice sheet (Fig. 2). Surface SW radiative flux from October to February is nearly zero, while the maximum SW occurs in summer months (June, July, and August) following the seasonal variation of solar elevation angle (Fig. 3). Net annual SW radiative flux within the Arctic Basin is about 5.3 W/m2 lower than in the CERES-EBAF (Fig. 3). The spread among different models and the model-observation bias may come from different surface or cloud properties.
The spatial distribution and the variation of downward longwave (LW) radiative flux are closely related to the vertical structures of the boundary layer and the cloud fraction and optical properties, while upward LW radiative flux highly depends on the surface temperature. On the contrary to net SW radiative flux, net LW radiative flux is increasing with latitude in the Arctic Ocean (Fig. 4). Compared to CERES-EBAF, downward LW is overestimated by the models, which may be related to the model biases in cloud properties and the cloud radiative forcing. Net LW radiation in the Arctic Basin is negative all year round (Fig. 5). In CMIP6 multi-model mean, net LW radiative flux is greater than CERES-EBAF for all 12 months (especially in warm months), leading to 8.4 W/m2 overestimation of annual mean LW radiative flux (Fig. 5e). This overestimation means that the surface energy loss by LW is not enough in the models. Annual mean LW radiative flux from FGOALS-g3 (–37.1 W/m2) and KACE-1-0-G (–36.5 W/m2) is mostly close to CERES-EBAF (–36.9 W/m2). The seasonal variation of net LW radiative flux differs significantly between CMIP6 and CERES-EBAF. Winter net LW radiative flux in CMIP6 is lower than summer, quite different from that in CERES-EBAF (Fig. 5f).

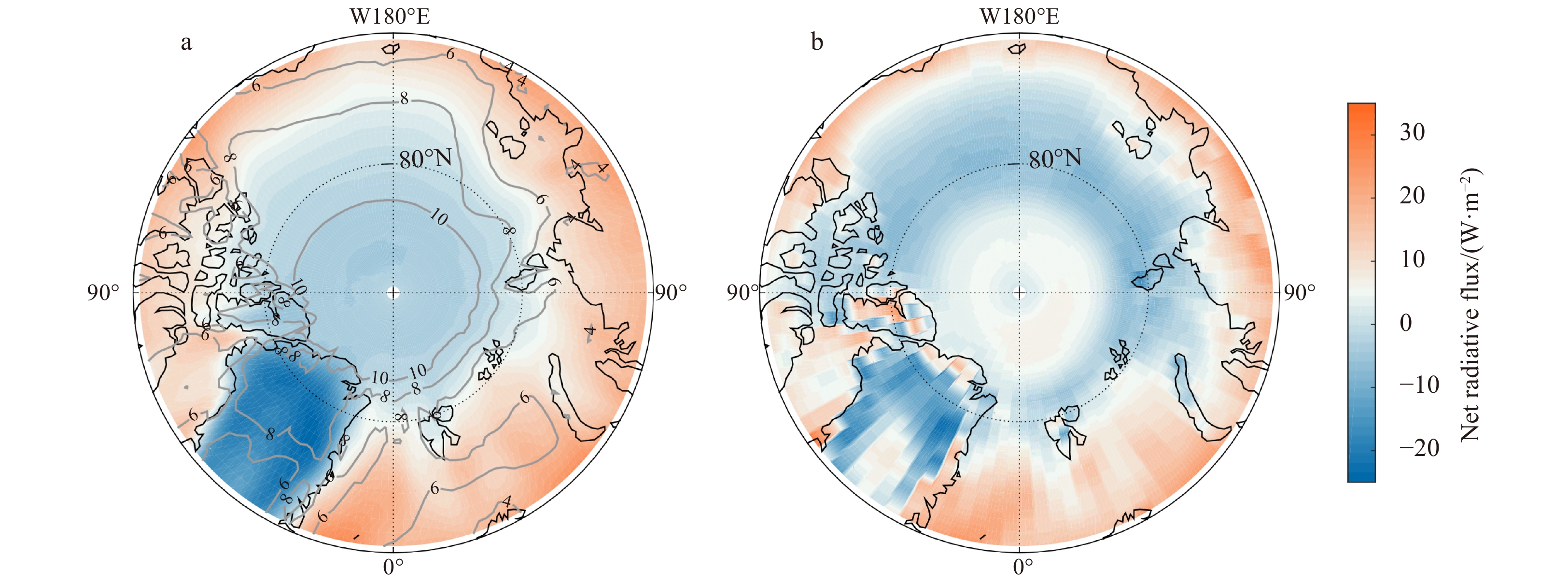

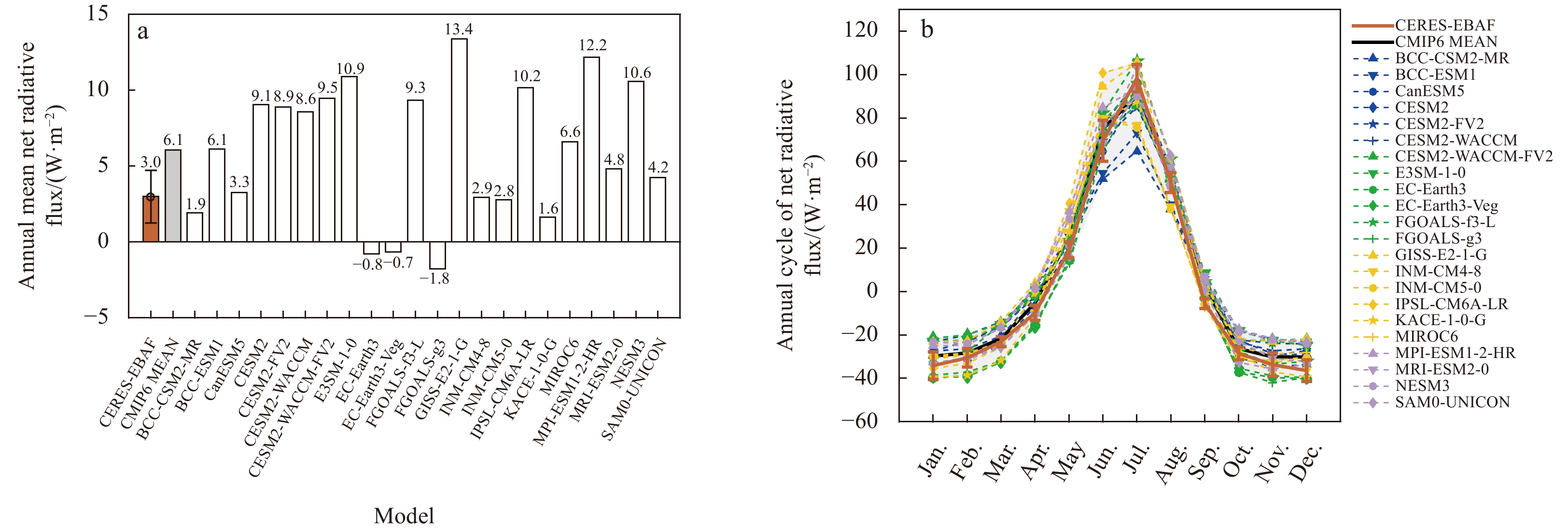

For net surface radiation, underestimation of SW radiative flux and overestimation of LW radiative flux in CMIP6 are partially canceled each other out and result in an overestimation of 3.1 W/m2 in annual net surface radiation in the Arctic Basin (Figs 6 and 7). Simulated annual mean net surface radiation fluxes are positive in most models except for EC-Earth3, EC-Earth3-Veg and FGOALS-g3. In the Arctic Basin, the RMSEs of basin-wide annual averaged radiation between CMIP6 multi-model mean and CERES-EBAF are 5.5 W/m2, 8.6 W/m2 and 3.5 W/m2 for net SW, net LW and net radiation, respectively. According to previous studies, large biases in surface radiation budget stem from improper parameterizations of radiative transfer algorithms or cloud schemes in different climate models (Christensen et al., 2016). The spatial pattern of SW, i.e., decreasing with latitude, is consistent between models and CERES-EBAF, while for LW and net radiation, some distinct discrepancies exist. While CMIP6 multi-model mean reveals a uniform distribution of net SW within central Arctic Basin, the unrealistically net LW/net radiation increase north of about 82°N in CERES-EBAF seems to result from the limitation for MODIS cloud detection in very high-latitudes, as mentioned in Section 2.
3.2 The cloud climatology over the Arctic Basin

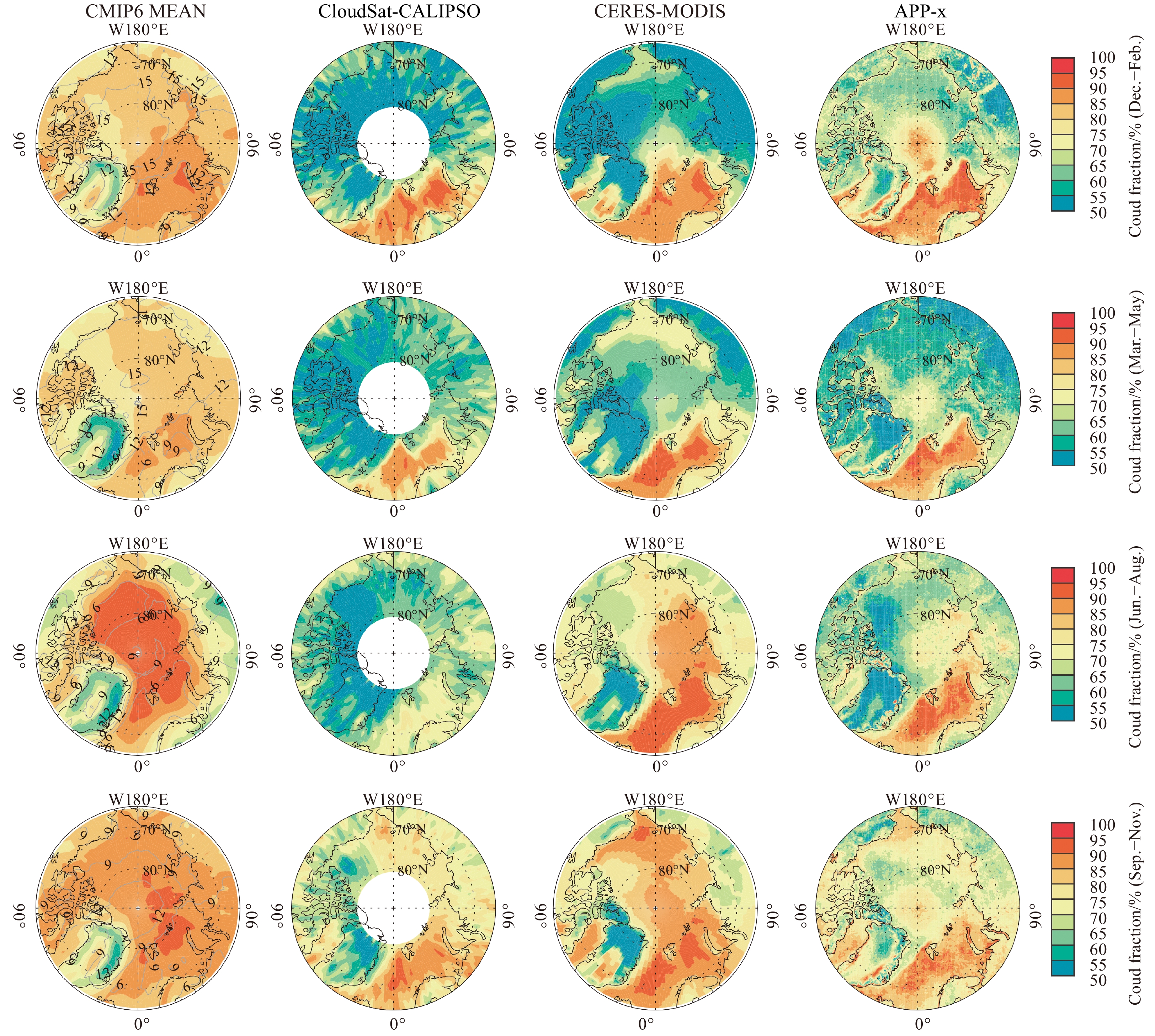

Figure 8 shows the spatial distribution of seasonal mean Arctic CF in CMIP6 model and satellite observations during the available period for CloudSat-CALIPSO (2007–2010). In summer and autumn, CERES-MODIS CF is much higher than the other two observations, while the winter CF in APP-x is higher than that in CloudSat-CALIPSO and CERES-MODIS. The general spatial patterns of CF in 3 observation products are successfully reproduced in CMIP6 models except for summer. High CF is located in the Atlantic sector, which is mainly due to the high atmospheric humidity and temperature over the open water and the frequent storm activity over this area. Low CF in the Pacific sector, the central Arctic Ocean and the Canadian Archipelago is related to the strong anticyclones over those regions and lack of moisture (Liu et al., 2012). However, the simulated CF amounts over the whole study region are substantially overestimated compared to observations.

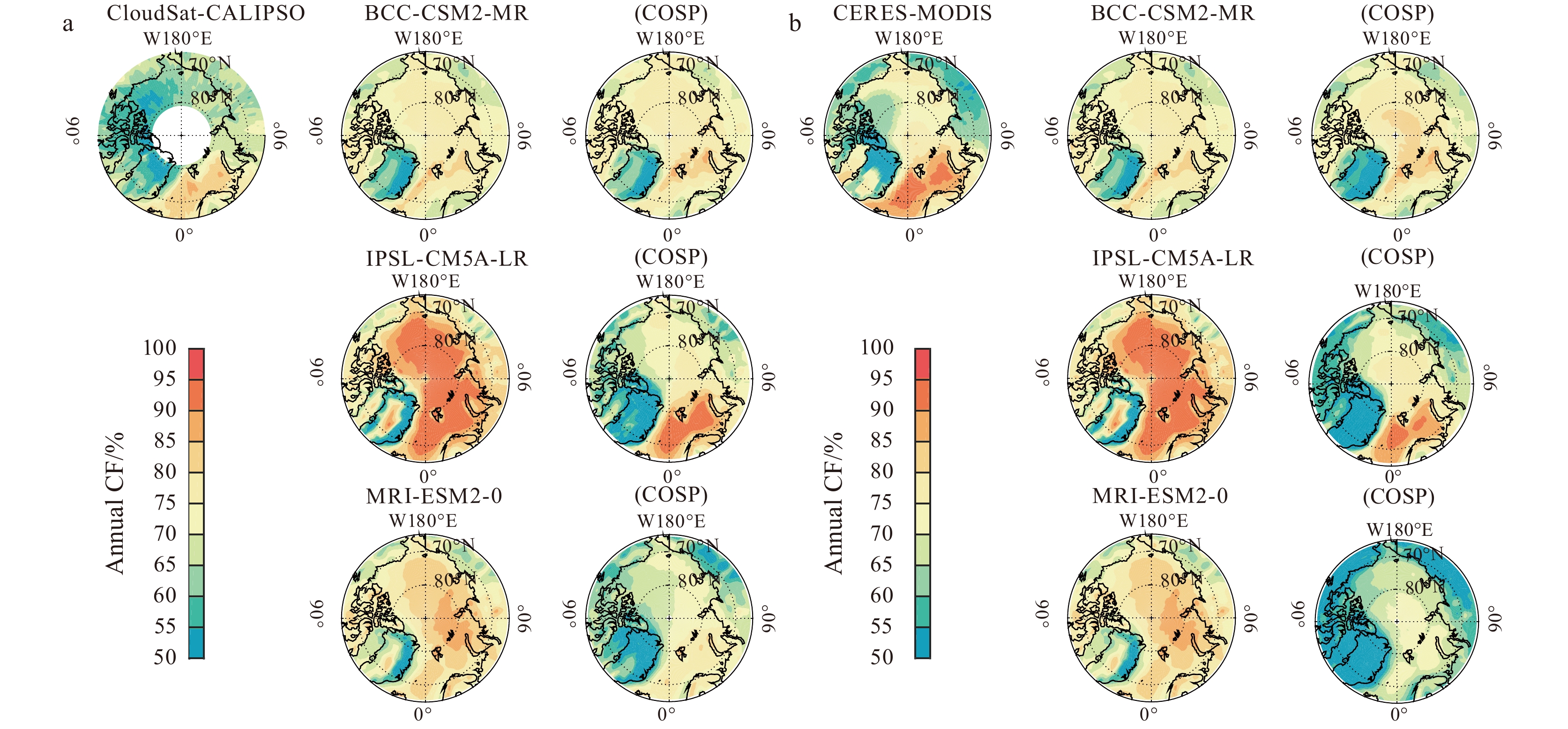

To compare the modeled area-weighted average of annual mean and seasonal cloud fractions with results from different remote sensing products (CERES-MODIS, APP-x, and CloudSat-CALIPSO), the analysis of all datasets is constrained in the same region (Arctic Basin) and within the same time period (2007–2010). Table 2 shows that there are some common features among different cloud products. For all data sets, largest CF occurs in autumn, while winter and spring experience the least cloud cover. CFs detected in CloudSat-CALIPSO are lower than in CERES-MODIS and APP-x in all seasons, partly due to the “pole hole” in CloudSat-CALIPSO observations. Winter CF in APP-x is much higher than those in the other two observations, possibly resulting from the poor discrimination of thick clouds and ice-covered surface (with comparable reflectance) in APP-x. The RMSE of 2007–2010 annual mean Arctic Basin CF between CloudSat-CALIPSO and CERES-MODIS (about 7.6%) is slightly lower than that between CloudSat-CALIPSO and APP-x (around 8.0%).

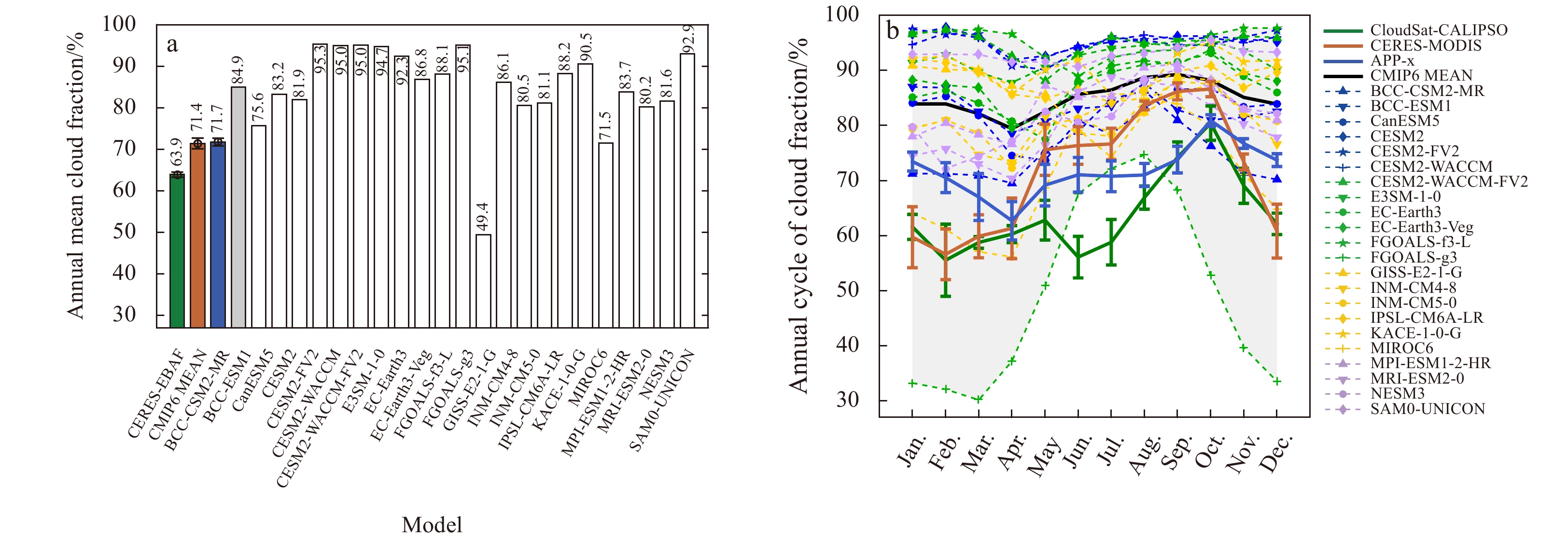

For 2001–2014, the annual CF in CMIP6 multi-model mean is about 84.9%, closer to APP-x and slightly higher than CERES-MODIS (Fig. 9). Obviously, the error bars show that the observed inter-annual variation of the CF is much lower in July–October than in other months (same as in CMIP6 multi-model mean, but not shown in the figure). Cloud formation are mainly controlled by large-scale atmospheric circulation and local turbulent fluxes between ocean and atmosphere (Kay and Gettelman, 2009). From winter to spring, atmospheric circulation generally shows more significant variations, which may explain the higher variations of CF than in late summer and autumn. More cloud in autumn and less cloud in winter and spring are consistent in two observations and in CMIP6 multi-model mean. A more cloudy state in autumn is related to the surface properties and the air-sea interactions in the Arctic. Near-surface static stability significantly affects cloud formation and evolution. Low clouds form extensively over newly open water in the early autumn. The relatively low static stability in autumn favors the upward turbulent fluxes of heat and moisture, which may result in more CF in autumn than in spring (Kay and Gettelman, 2009). CF in CERES-MODIS shows a more “fluctuating” seasonal changes, while in CMIP6 multi-model mean and APP-x, the seasonal variation is much weaker.

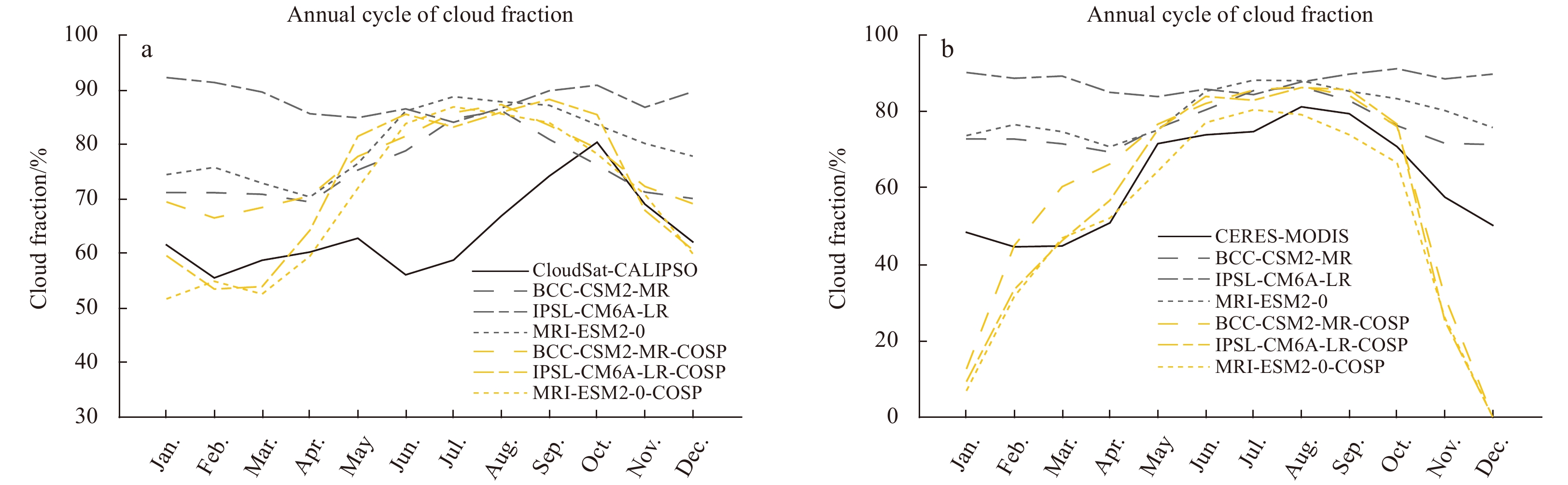

Generally, seasonal variations of CF modeled by different models are consistent with observations. However, the great spread of CF (especially in winter and spring) among the CMIP6 models makes it difficult for the comparison between different data sets. For example, BCC-CSM2-MR, FGOALS-g3, and MIROC6 exhibit strong seasonal cycles similar to CERES-MODIS, but four CESM2 models (CESM2, CESM2-FV2, CESM2-WACCM, and CESM2-WACCM-FV2) have small fluctuations with the CF being larger than observations throughout the year. Seasonal cycles of CF in CMIP6 models are consistent with CMIP5 models, but the spread of CF among CMIP6 models is much smaller than that in CMIP5 (Boeke and Taylor, 2016) if the extremely low CF from FGOALS-g3 is excluded. The negative net radiative flux in FGOALS-g3 (Fig. 7a) is probably related to its underestimation of CF. Note that the methods to calculate CF are totally different between models and satellite retrievals, resulting in the large inter-model spread and the differences between modeled and observed CF (Qu et al., 2014; Huang et al., 2017a). In general, models using PDF-based (e.g., four CESM2 models and E3SM-1-0) and prognostic (e.g., two INM-CM models and two EC-Earth3 models) CF schemes simulate more cloud cover than those using RH-based empirical scheme (e.g., MIROC6 and FGOALS-g3), although most models overestimate the total CF compared to observations. The different horizontal and vertical resolutions are also potentially inducing large inter-model spreads and large differences between modeled and observed CF, especially when doing the regional averaged analysis after resampling the data.
In order to minimize the impacts of inconsistent algorithms and spatial resolutions used to calculate CF in models and observations, COSP outputs of CMIP6 models are also analyzed. At present, COSP outputs of CALIPSO and MODIS from three models (BCC-CSM2-MR, IPSL-CM6A-LR and MRI-ESM2-0) are available. The derived climatological spatial patterns and seasonal cycles of CF are compared with the original model outputs and the corresponding observations (Figs 10 and 11). It is obvious that the use of satellite simulator could significantly reduce the model-observation differences of CF in cold seasons and in the central Arctic Ocean, especially for the model IPSL-CM6A-LR. Moreover, the inter-model spreads of monthly CF are also smaller than those in the original model results in autumn, winter, and spring (Fig. 11). Therefore, reduced model-observation discrepancies can be expected if more COSP outputs of CMIP6 models are released.

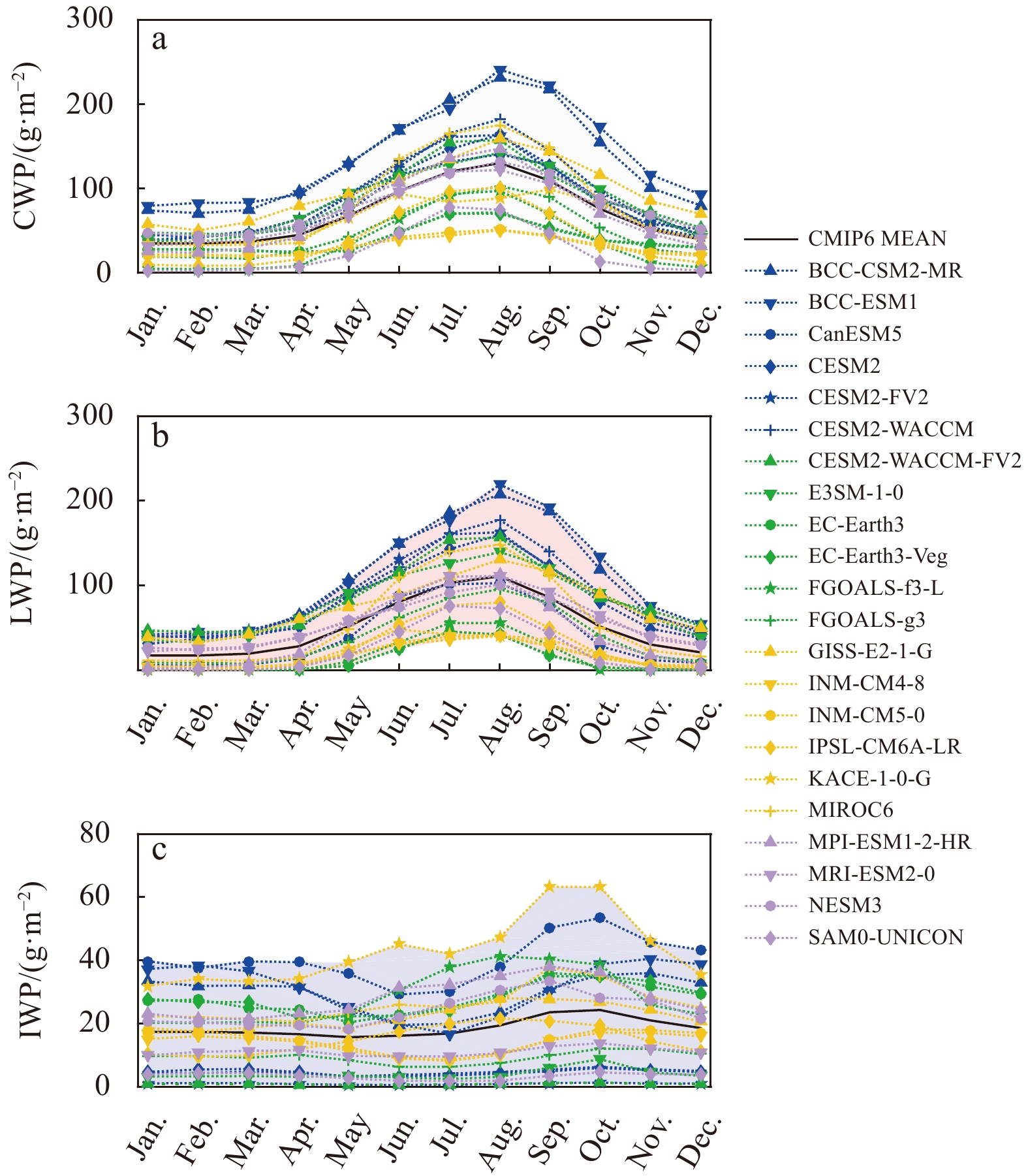

Basin-averaged cloud CWP and LWP in Arctic Basin show common seasonal changes in all CMIP6 models, with the highest in July to September and lower in other months (Figs 12a and b). The persistent high LWP in summer and fall is consistent with the results based on the GCM-Oriented CALIPSO (CALIPSO-GOCCP) product (Cesana et al., 2012), although a different area of 60°–82°N was focused due to the pole hole in CALIPSO observations. Compared to LWP, the IWP of clouds over the Arctic Ocean is relatively constant over the year, with little seasonal variation (Fig. 12c). This is in consistent with the 4-year CloudSat-CALIPSO observations for the whole Arctic shown in Lenaerts et al. (2017). IWP seasonal cycles present a relatively large inter-model spread. Multi-model mean IWP is the smallest in early summer (May–July) and the greatest in early autumn (September and October). The disagreements in CWPs among different models possibly result from different cloud parameterization schemes used to determine polar cloud properties.
3.3 Arctic Basin cloud radiative effect (CRE)

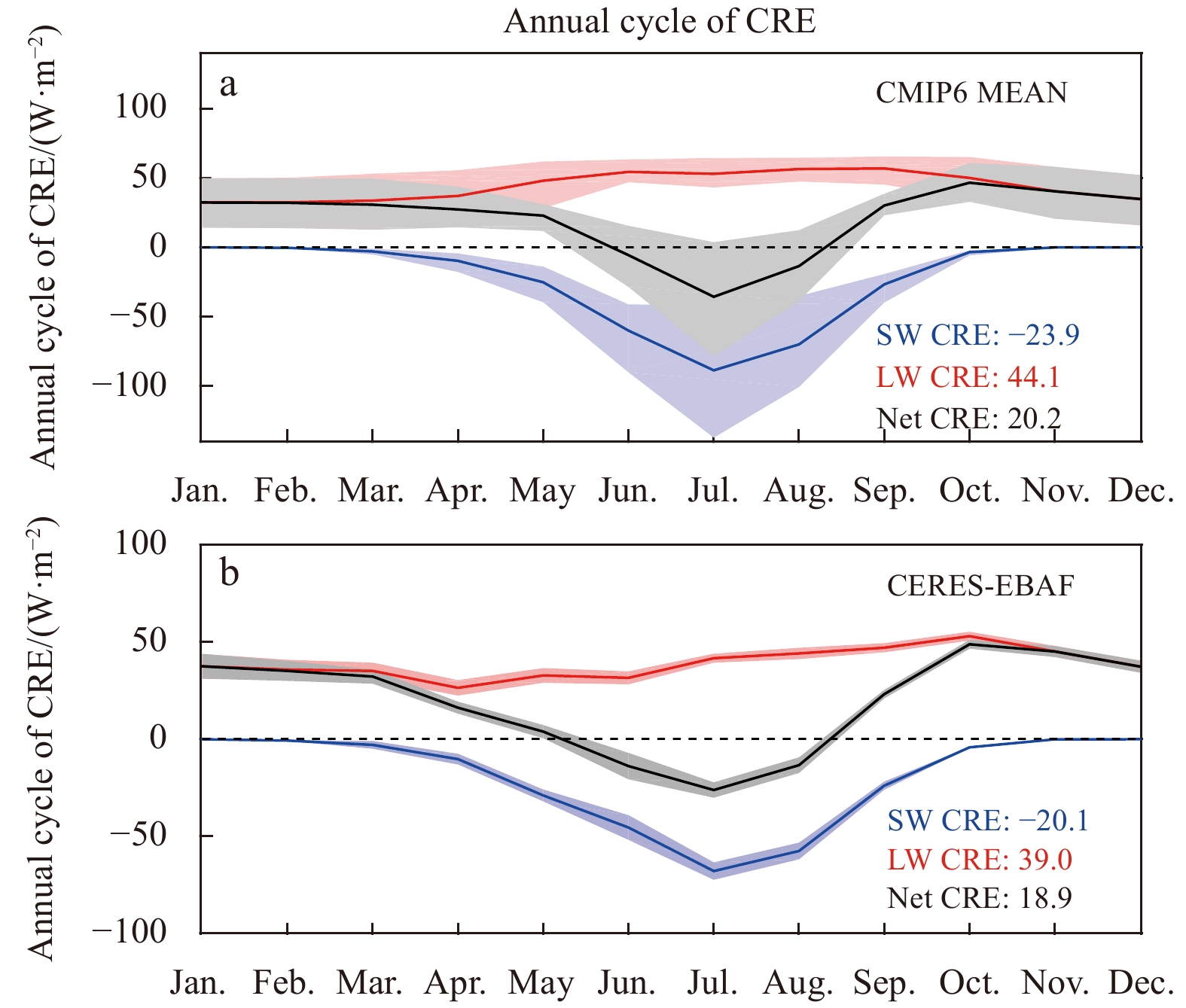

It is shown in Fig. 13 that the seasonal evolution of net surface CRE in the Arctic is mainly dominated by the SW CRE both in CMIP6 and in CERES-EBAF. The cloud SW cooling effect and LW warming effect all year round in CMIP6 are also consistent with previous studies (Kay and L’Ecuyer, 2013; Boeke and Taylor, 2016). Annually, both the cooling effect and the warming effect in CMIP6 mean are slightly overestimated compared to CERES-EBAF. Net CRE in Arctic Basin is only negative from June to August, indicating the significant “cloud SW albedo effect” that surpasses the “cloud LW warming effect” in summer months. Annual mean total net CRE is 20.2 W/m2 in CMIP6 model mean, about 1.3 W/m2 slightly higher than CERES-EBAF. In comparison, globally, clouds contribute to a negative surface radiative effect by reflecting more SW than they trap LW radiation (Cesana and Storelvmo, 2017), reflecting the spatial discrepancy of cloud effects on surface radiation. In the next section, the impacts of Arctic Basin CF and CWP onto the CREs in different seasons are preliminarily estimated.

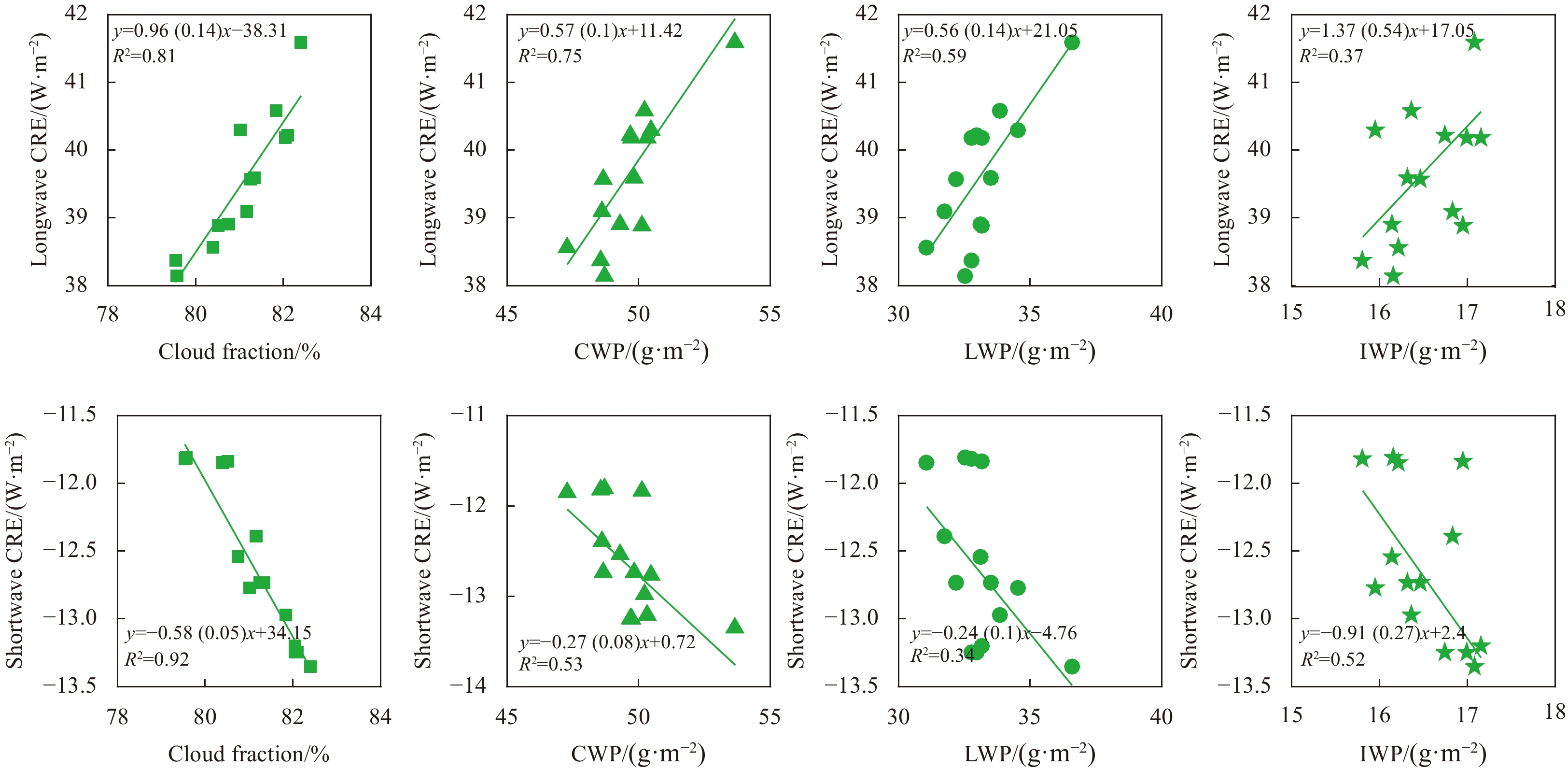

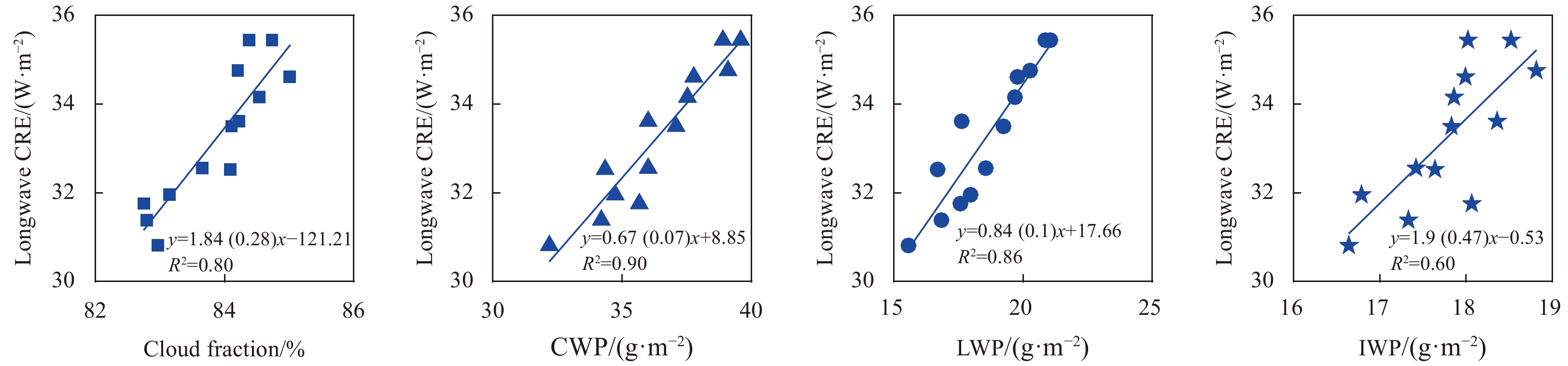

Based on CMIP6 model results, the area-weighted averaged CF and CWP in the Arctic Basin show sufficiently different impacts onto CREs. The scatterplots in Figs 14 and 15 represent the relationships between Arctic cloud properties and different components of CREs. Each dot stands for the seasonal mean value of CF/CWP (horizontal axis) and CRE (vertical axis) in each year. The linear regression lines for the dots on each scatterplot are given. According to the determination coefficient (R2) of each fitting line, it is found that the “greenhouse effects” of CF, CWP and LWP on net LW are prominent during winter (Fig. 14), while these effects are significant for CF and CWP in spring (Fig. 15). In the CERES observations, the LW warming effect of CF in winter is also significant (figure is omitted). The SW cooling effect of CF is prominent in spring. The relationships between CREs and CF/CWPs shown in the scatterplots are only based on short-term (14-year) model outputs and CERES observations, and are limited only in part of the Arctic. In the near future, detailed analysis will be conducted on the different CREs from different cloud properties, such as cloud base height, cloud size, cloud types, et al., using more available observations in the Arctic. As pointed by Goosse et al. (2018), the presence of different phases of water in polar regions implies that many processes and feedbacks are highly non-linear. Results in Figs 14 and 15 may include effects from other climate parameters or other climate feedbacks (such as the positive cloud-sea ice feedback).
3.4 Variability of and changes in the Arctic Basin surface radiation budget

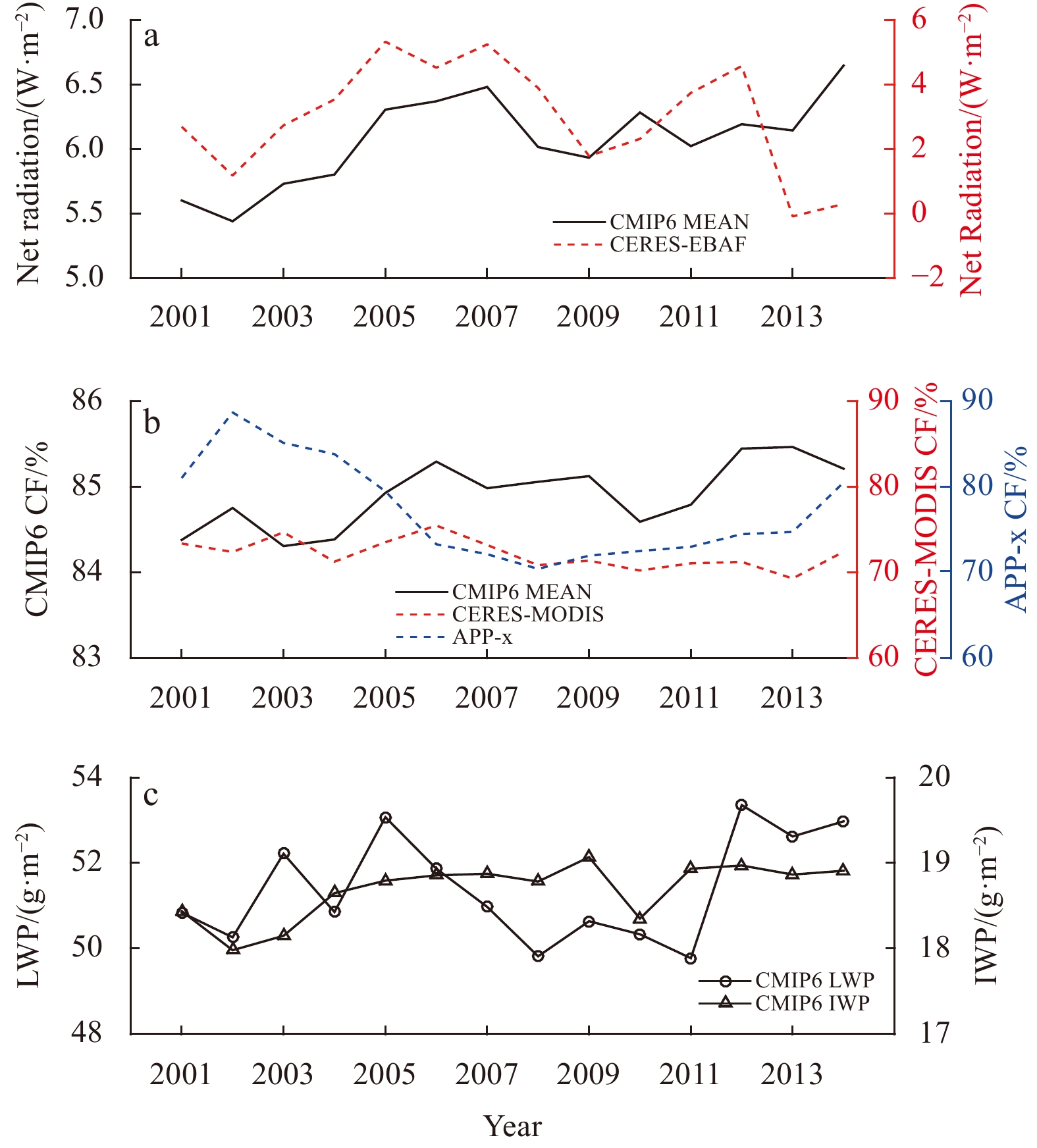

Figure 16 shows the annual mean net surface radiation in the Arctic Basin during 2001–2014, as well as the annual CF and CWPs. The year-to-year changes in CMIP6 net surface radiation is well correlated with those in CERES-EBAF before the year 2008 (with a correlation coefficient of 0.95). Possible causes for the weak correlation after 2008 is unknown at present. Several possible reasons could result in the difference in cloud inter-annual variation between models and observations shown in Fig. 16b, including the poor satellite cloud detection quality in winter and in polar regions (Liu et al., 2010), as well as the deficiencies in the model’s cloud parameterization schemes (Qu et al., 2014).

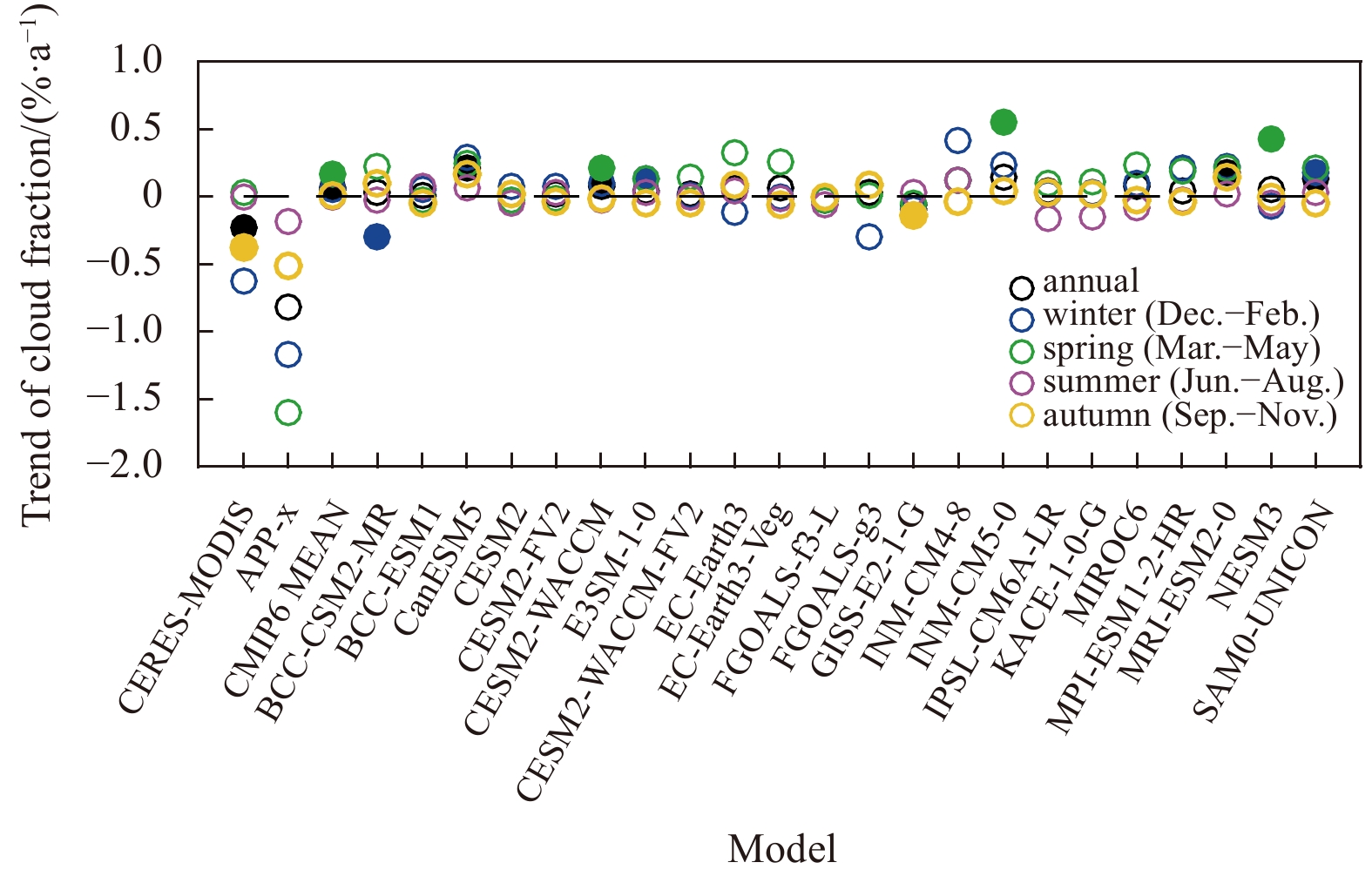

Net surface radiation shows no obvious trend in both CERES-EBAF and CMIP6 model mean (figure omitted). Among all seasons, autumn CF in CERES-MODIS shows significant decreasing trend (–0.38% per year, figure is omitted) that is consistent with in situ observations from ARM/NSA (Dong et al., 2010), but not consistent with other studies such as Huang et al. (2017a). Annual and spring CFs in CMIP6 multi-model mean increase significantly, with the linear trends of 0.07% and 0.16% per year (Fig. 17). Generally, most models show increasing trends of seasonal mean CF (especially spring CF) during 2001–2014, but only a few are significant enough. Different study regions and time periods analyzed in different studies are responsible for those discrepancies in Arctic CF trends. No significant trend was found in CMIP6 LWP/IWP during the 14-year study period either, while the inter-annual variations are large for both parameters.
4 Summary and discussion
Less
Arctic Basin surface radiation budget, clouds and the cloud radiative effects (CREs) in the atmospheric model intercomparison project (AMIP) experiments of 22 CMIP6 models have been evaluated against satellite observations for 2001–2014. The main conclusions are summarized below.
(1) Most of the 22 CMIP6 models show smaller annual net shortwave (SW) radiation than CERES-EBAF. The multi-model mean net longwave (LW) radiation in CMIP6 models is much larger than CERES-EBAF during spring and summer. The mean bias and the root-mean-square error (RMSE) of annual averaged net LW between multi-model mean and CERES-EBAF are 8.4 W/m2 and 8.6 W/m2, larger than those for net SW (–5.3 W/m2 and 5.5 W/m2). The underestimation of SW radiation and overestimation of LW radiation in CMIP6 are partially canceled each other out, resulting in a 3.1 W/m2 bias in annual mean net radiation compared to CERES-EBAF. The spatial variations of SW, LW and net radiation within the Arctic Basin are small in the CMIP6 multi-model mean result. Simulated annual mean net surface radiation fluxes are positive in most models except for three models (EC-Earth3, EC-Earth3-Veg and FGOALS-g3).
(2) Generally, Arctic Basin cloud fraction (CF) in CMIP6 models shows consistent spatial patterns with the observations from CloudSat-CALIPSO, CERES-MODIS, and APP-x during the period (2007–2010) when all these data were available, with lower fraction in the Pacific sector than in the Atlantic sector. During 2001–2014, the multi-model mean annual CF in CMIP6 is closer to APP-x than CERES-MODIS, but the seasonal variation is similar to CERES-MODIS. The spread of CF among the CMIP6 models is much smaller than in CMIP5 if excluding the extremely low CF in FGOALS-g3. The seasonal cycles of cloud liquid water path (LWP) and ice water path (IWP) present large inter-model spreads, which are possibly resulted from the discrepancies of cloud microphysical parameterizations.
(3) Annually, net surface cloud radiative effect (CRE) in the Arctic Basin is positive. SW CRE is negative all year round, while LW CRE keeps positive except for summer months. The warming effects of CF, CWP and LWP on net LW are prominent in winter, while these effects are also significant for CF and CWP in spring. The cooling effect of CF on net SW is prominent in spring. The LW warming effect from CF in winter is also detected in CERES cloud and radiation observations.
(4) During 2001–2014, modeled net surface radiation within the Arctic Basin is well correlated with CERES-EBAF observation before the year 2008. Spring CF increases significantly in CMIP6 multi-model mean, which is in agreement with previous work based on AVHRR longer-term observations. The inter-annual variability of CF in CMIP6 models differs greatly from observations. Cloud LWP and IWP in CMIP6 models show great inter-annual variation but no obvious trend during the 14 years.
The model-observation discrepancies of Arctic cloud properties and surface radiation budget may have several sources. Passive remote sensing like MODIS has its challenges due to the poor thermal and visible contrast between clouds and the underlying snow and ice surface (especially at nighttime), small radiances from the cold polar atmosphere, and temperature inversions in the lower troposphere of polar regions (Liu et al., 2010). The spatial interpolation of satellite tracks may introduce errors in the gridded products in CERES-MODIS, APP-x, and CloudSat-CALIPSO. Moreover, the crude representation of surface albedo in the satellite product algorithms may lead to significant uncertainties in downwelling shortwave radiation retrievals, especially over the ice sheets and over sea ice in high latitudes.
More importantly, different cloud parameterization schemes used in different models lead to the large inter-model spreads in Arctic CF and surface radiation fluxes. In CMIP6 climate models, cloud cover is either parameterized through the relative humidity with some consideration of thermal stability effects (RH-based empirical or semi-empirical schemes) (e.g., BCC-CSM2-MR, FGOALS-g3, GISS-E2-1-G, NESM3), or determined by accounting for the sub-grid scale variability in both water content and temperature using PDF-based scheme (e.g., CESM2, E3SM-1-0, IPSL-CM6A-LR). As pointed out by previous studies, climate models cannot reproduce realistic strong inversions especially those in the polar region due to their insufficient vertical resolution (e.g., Kawai et al., 2019). In addition, five models (EC-Earth3, EC-Earch3-Veg, INM-CM4-8, INM-CM5-0, and KACE-1-0-G) take CF as a prognostic variable. The source and sink terms of the prognostic equation include boundary layer turbulence and large-scale condensation and evaporation. Thus the models’ abilities of simulating cloud cover and CREs are also related to the different planetary boundary layer (PBL) schemes used in different models. Therefore, inter-model spreads and model-satellite observation differences are introduced by those problems.
Due to the short and incomplete observational records, as well as the limited COSP output of CMIP6 models, large uncertainties exist in the analyses of the Arctic surface radiation budget and the role clouds play. Surface cloud radiative forcing depends not only on the cloud macrophysical properties (e.g., cloud fraction), but also the microphysical properties. We suggest that future studies and model simulations should focus on better constraining physical processes related to cloud formation and cloud radiative feedback using more observational data sets.
