Linking bacterial and archaeal community dynamics to related hydrological, geochemical and environmental characteristics between surface water and groundwater in a karstic estuary

Full

Xiaogang Chen¹^,², Qi Ye¹^,^*, Jinzhou Du¹, Neven Cukrov³, Nuša Cukrov³, Yan Zhang², Ling Li², Jing Zhang¹

Affiliations

¹ State Key Laboratory of Estuarine and Coastal Research, East China Normal University, Shanghai 200241, China

² Key Laboratory of Coastal Environment and Resources of Zhejiang Province, School of Engineering, Westlake University, Hangzhou 310024, China

³ Division for Marine and Environmental Research, Ruđer Bošković Institute, Zagreb 10000, Croatia

Published: 2023-08-25 doi: 10.1007/s13131-023-2185-7

Outline

Abstract

Less

Subterranean estuaries (STEs) are characterized by the mixing of terrestrial fresh groundwater and seawater in coastal aquifers. Although microorganisms are important components of coastal groundwater ecosystems and play critical roles in biogeochemical transformations in STEs, limited information is available about how their community dynamics interact with hydrological, geochemical and environmental characteristics in STEs. Here, we studied bacterial and archaeal diversities and distributions with 16S rRNA-based Illumina MiSeq sequencing technology between surface water and groundwater in a karstic STE. Principal-coordinate analysis found that the bacterial and archaeal communities in the areas where algal blooms occurred were significantly separated from those in other stations without algal bloom occurrence. Canonical correspondence analysis showed that nutrients and salinity can explain the patterns of bacterial and archaeal community dynamics. The results suggest that hydrological, geochemical and environmental characteristics between surface water and groundwater likely control the bacterial and archaeal diversities and distributions in STEs. Furthermore, we found that some key species can utilize terrestrial pollutants such as nitrate and ammonia in STEs, indicating that these species (e.g., Nitrosopumilus maritimus, Limnohabitans parvus and Simplicispira limi) may be excellent candidates for in situ degradation/remediation of coastal groundwater contaminations concerned with the nitrate and ammonia. Overall, this study reveals the coupling relationship between the microbial communities and hydrochemical environments in STEs, and provides a perspective of in situ degradation/remediation for coastal groundwater quality management.

Key words

submarine groundwater discharge / surface water and groundwater interaction / algal bloom / microbial ecology / nutrient biogeochemistry / ammonia-oxidizing archaea / nitrate-utilizing bacteria / Krka River Estuary

Cite this Article

Xiaogang Chen, Qi Ye, Jinzhou Du, Neven Cukrov, Nuša Cukrov, Yan Zhang, Ling Li, Jing Zhang. Linking bacterial and archaeal community dynamics to related hydrological, geochemical and environmental characteristics between surface water and groundwater in a karstic estuary[J]. Acta Oceanologica Sinica, 2023 , 42 (8) : 158 -170 . DOI: 10.1007/s13131-023-2185-7

Full Text

Less

1 Introduction

Less

The subterranean estuary (STE) is a reactive mixing zone between fresh groundwater and recirculated seawater (Moore, 1999; Rocha et al., 2021), which is considered to be a significant contributor of bacteria (Boehm et al., 2004; Knee et al., 2008; Ruiz-González et al., 2021) and biogenic elements such as nutrients (Cai et al., 2015; Wang et al., 2018; Chen et al., 2021a; Santos et al., 2021; Zhao et al., 2021), carbon (Liu et al., 2014; Wang et al., 2014; Chen et al., 2018b, 2022; Yau et al., 2022), metals (Wang et al., 2019; Mayfield et al., 2021; Zhong et al., 2022) and greenhouse gases (Chen et al., 2021b, 2023; Reading et al., 2021; Zhu et al., 2022) to coastal waters. Biogeochemical reactions in STEs are often mediated by microorganisms, which can modify the chemical composition of submarine groundwater (Santoro et al., 2008; Adyasari et al., 2019, 2020; Chen et al., 2019, 2020b; Zhang et al., 2021). For example, bacterial processes contribute to the nitrate removal and dissolved inorganic carbon (DIC) addition in a sandy STE (Chen et al., 2020b). However, compared with inland groundwater, the microbial dimension of submarine groundwater discharge (SGD) remains poorly understood (Archana et al., 2021; Ruiz-González et al., 2021).

As the most abundant and diverse group of life on the Earth, microbial communities have an integral function and play a pivotal role in biogeochemical cycling to marine ecosystem, and that has no exception for SGD (DeLong and Karl, 2005; Ye et al., 2016; Adyasari et al., 2020). Several studies of microbial communities in STEs were reported and novel insights involve using 16S rRNA (Ye et al., 2016; Adyasari et al., 2019, 2020; Chen et al., 2019, 2020b; Wu et al., 2021) and functional genes (Santoro et al., 2006, 2008) to reveal microbial communities in STE systems. Large amounts of nutrients, carbon and greenhouse gases entering the coastal waters via SGD may lead to outbreaks of eutrophication (Hwang et al., 2005), algal blooms (Chen et al., 2020a; Zhao et al., 2021), deoxygenation (Guo et al., 2020) and localized coastal acidification (Wang et al., 2014; Cardenas et al., 2020). However, the coupling of microbial communities and environmental problems (e.g., red tides) in SGD is less reported, which limits the understanding on the biogeochemical cycle and environmental management in STE ecosystems.

The Krka River Estuary is a salt-wedge, highly stratified estuary, located in the central part of the eastern Adriatic coast (Croatia) (Liu et al., 2019). As in other Mediterranean karstic shorelines, anchialine environments are common in the Krka River Estuary. These types of environments are characterized by highly stratified water column and connection with the open sea, usually through the karst carbonate rock, showing noticeable marine as well as terrestrial influences (Žic et al., 2008; Kwokal et al., 2014). Previous ²²²Rn mass balance has shown that anchialine caves or springs can deliver point-source, nitrogen enriched groundwater with high N/P molar ratio to the coastal waters in the Krka River Estuary, which trigger and sustain red tide outbreaks (Chen et al., 2020a). Therefore, these anchialine caves or springs are reasonable and representative groundwater end-members in the Krka River Estuary (Liu et al., 2019; Chen et al., 2020a). As one kind of the important STEs, anchialine system has complex and variable hydrological, geochemical and environmental characteristics in the Krka River Estuary and provides direct access to the aquifer source (Bishop et al., 2015). However, the coupling relationship between these complex characteristics and bacterial and archaeal community dynamics is still poorly understood despite their potentially important implications for nutrient and carbon cycling.

Here, we hypothesize that bacterial and archaeal community dynamics interact with the hydrological, geochemical and environmental characteristics in STEs. We investigated the bacterial and archaeal diversities by utilizing 16S rRNA-based Illumina MiSeq sequencing technology and related salinity, ²²²Rn (a groundwater tracer), nutrients and carbon in submarine groundwater (including anchialine caves and springs) and surface water along the Krka River Estuary. This study aims to (1) explore coupling relationship between bacterial and archaeal community dynamics and related hydrological, geochemical and environmental characteristics (e.g., algal blooms) in karstic STEs, and (2) provide insights on the mechanisms of controlling the input or removal of terrigenous materials affected by bacterial and archaeal communities in STE ecosystems, and (3) find the related key candidates for bioremediation in the polluted SGD.

2 Materials and methods

Less

2.1 Study area

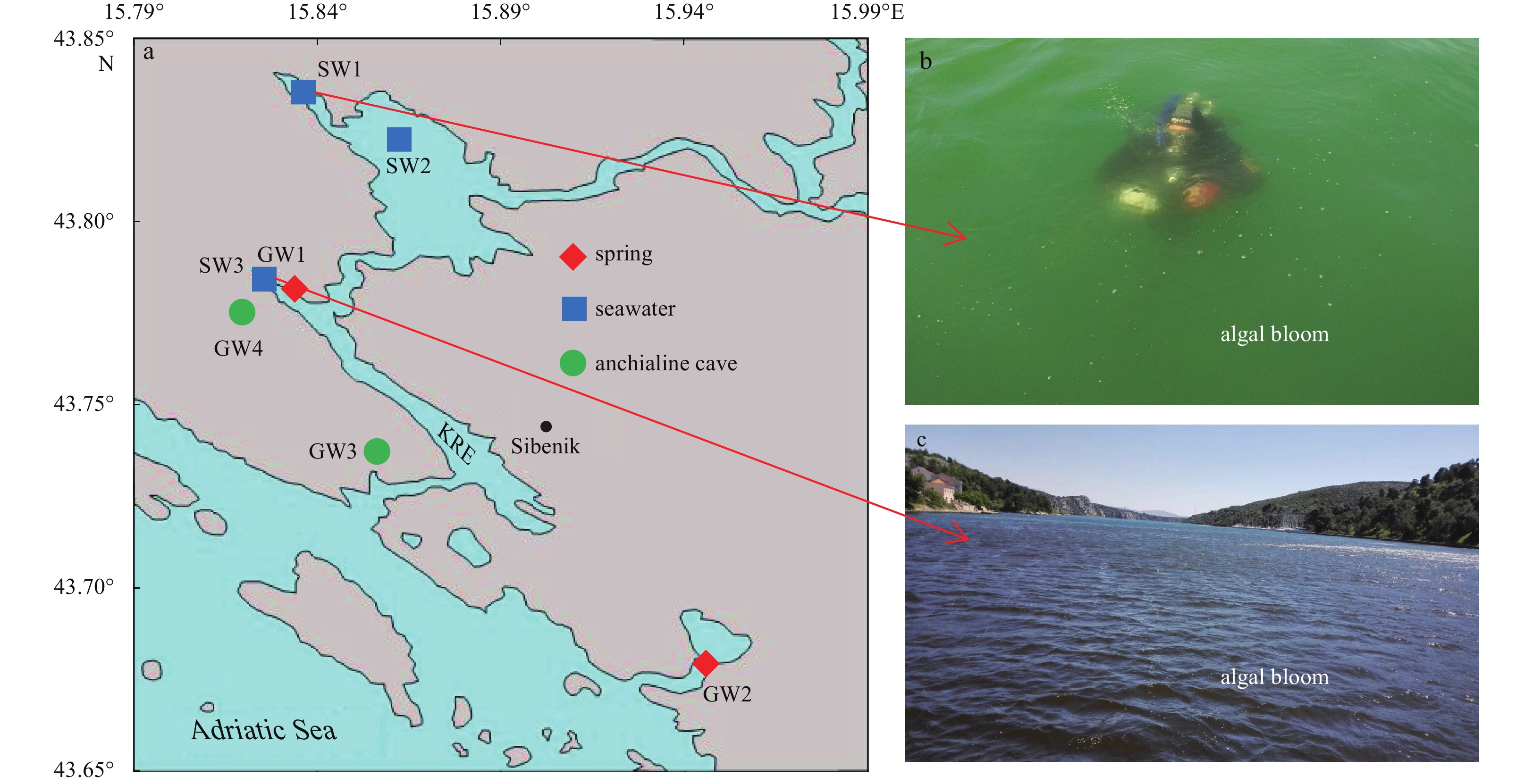

The Krka River Estuary is an oligotrophic stratified karstic estuary, which is sensitive to inputs of external substances such as nutrients and carbon (Liu et al., 2019; Chen et al., 2020a). The mean water flow of the Krka River is between 40 m³/s and 60 m³/s (Bonacci et al., 2006). Algal blooms were observed in the estuary and showed obvious seasonal outbreaks (Chen et al., 2020a). The Krka River Estuary has a micro-tidal nature (tidal range: 0.2−0.5 m) with strong stratification. The area is characterized by mild, wet winters and warm, dry summers, with an annual average precipitation of ~900 mm (http://klima.hr/klima_arhiva.php).

2.2 Sample collection and measurements of physic-chemical parameters

In this study, seven bacterial and archaeal samples (anchialine cave, spring and surface water) were collected along the Krka River Estuary in April, 2016 (Fig. 1). Each sample (~5 L) was collected on a 0.22 µm pore size polycarbonate filter (Nuclepore Track-Etched Membrane, Whatman, UK), then placed in a sterile 1.5 mL microcentrifuge tube and was immediately placed and kept in the fridge (−20℃). ²²²Rn samples were collected in 250 mL glass bottles and analyzed by RAD7 detector immediately. Nutrient and carbon samples were collected with polyethylene bottles, then stored at −20℃ and kept away from light. The nutrients (

${{\rm {NO}}_2^-} $

${{\rm {NO}}_3^-} $

${{\rm {NH}}_4^+} $

and

${{\rm {PO}}_4^{3-}} $

) were analyzed using the method of Strickland and Parsons (1972). The DIC and dissolved organic carbon (DOC) were determined using TOC-V Analyser (Shimadzu®, Japan). Salinity and temperature were measured directly in the field using a multi parametric probe (Hach Lange HQ40D, USA).

2.3 DNA extraction, polymerase chain reaction (PCR), and sequencing

Total DNA was extracted from each filter using a MoBio PowerWater® DNA Isolation Kit (MOBIO Laboratories, Carlsbad, USA). DNA concentration and purity were quantified spectrophotometrically with NanoDrop ND2000 (USA).

To decrease PCR bias, minimum numbers of PCR cycles were performed and three independent PCR mixtures were pooled for each sample. The bacterial 16S rRNA genes were amplified using the specific barcoded universal primer pairs 515F (5′-GTGCCAGCMGCCGCGG-3′) and 907R (5′-CCGTCAATTCMTTTRAGTTT-3′) spanning the V4-V5 hypervariable regions (Xiong et al., 2012). Cycling conditions were an initial denaturation at 95℃ for 2 min, 25 cycles of 95℃ for 30 s, 55℃ for 30 s, 72℃ for 30 s and a final 5-min extension at 72℃. Meanwhile, the archaeal 16S rRNA genes were amplified using specific barcoded universal primer pairs 524F10extF (5′-TGYCAGCCGCCGCGGTAA-3′) and Arch958RmodR (5′-YCCGGCGTTGAVTCCAATT-3′) (Pires et al., 2012) using the following amplification conditions: 3 min at 95℃, followed by 35 cycles with 30 s at 95℃, 30 s at 55℃, 45 s at 72℃, and a final extension period of 10 min at 72℃. PCR products from each tagged primer were purified using the AxyPreDNA gel extraction kit (Axygen Biosciences, USA) and then quantified by QuantiFluorTM-ST (Promega, USA). Finally, reaction mixtures were pooled in equimolar ratios and paired-end reads were generated on an Ilumina MiSeq PE250 (Majorbio Bio-Pharm Technology Co., Ltd., China, http://www.majorbio.bioon.com.cn/).

Raw Illumina FASTQ files were demultiplexed, quality-filtered, and analyzed using Quantitative Insights into Microbial Ecology (QIIME) (version 1.9.1) (Caporaso et al., 2010) as the criteria described previously (Chen et al., 2020b). Reads that could not be assembled were discarded. The UCHIME algorithm in the USEARCH platform was used to detect and remove chimeric sequences, which performs both de novo chimera and reference-based detection (Edgar et al., 2011). Operational taxonomic units (OTUs) with 97% similarity cutoff were clustered using UPARSE (Edgar, 2013). The OTU Cluster was used to determine OTU abundances. The number of reads from each sample that was assigned to each OTU was generated as an “OTU table” by using the Usearch_global command. The sequence reads of all samples were randomly resampled to the smallest sample size. The taxonomic assignment of representative OTU sequences was analyzed by the Ribosomal Database Project Classifier (version 2.11, http://rdp.cme.msu.edu/).

2.4 Phylogenetic analyses

The sequences of the representative OTUs obtained in this study were compared to those in the National Center for Biotechnology Information (NCBI) nucleotide database by using Basic Local Alignment Search Tool (BLAST, Altschul et al., 1997) searching. The closest sequences and selected reference sequences were downloaded and aligned using Clustal W. Phylogenetic trees were generated in MEGA7 using the neighbor-joining method with a bootstrap test of 1000 replicates and maximum composite likelihood model (Tamura et al., 2013).

2.5 Statistical analyses

Alpha diversity metrics and coverage were measured and calculated using the Mothur Program (Schloss et al., 2009). Hierarchical clustering of the samples was performed with the complete method using the function hclust of stats package in R (R Development Core Team, 2013; http://www.R-project.org/). Principal-coordinate analyses (PCoA) were performed to show if distinct separations in bacterial or archaeal community structures were present between groundwater and surface water. To determine which environmental variables best explained patterns of bacterial and archaeal communities, canonical correspondence analysis (CCA) was applied (ter Braak, 1986).

3 Results and discussion

Less

3.1 Site description and environmental characteristics

Surface water and submarine groundwater (spring and anchialine cave water) samples were collected in this study (Fig. 1). Groundwater (including spring water and anchialine cave water) had lower salinity and higher nutrient concentrations than surface water (Table 1). Based on this, seven samples were separated into two groups: Group G included 2 spring samples (GW1 and GW2) and 2 anchialine cave samples (GW3 and GW4), and the salinity of Group G ranged from 0.7 to 3.4 with a mean of 1.5; Group S included three surface water samples (SW1, SW2 and SW3) with relatively higher salinity, which ranged from 3.1 to 9.2 with a mean of 6.2. Group S had mean values of 396 Bq/m³, 79.67 μmol/L and 0.42 μmol/L for²²²Rn,

${{\rm {NO}}_3^-} $

and

${{\rm {PO}}_4^{3-}} $

. However, Group G had higher mean values of 1103 Bq/m³, 90.82 μmol/L and 1.28 μmol/L for²²²Rn,

${{\rm {NO}}_3^-} $

and

${{\rm {PO}}_4^{3-}} $

, respectively.

${{\rm {NO}}_2^-} $

concentrations ranged from 0.03 μmol/L to 0.12 μmol/L in Group G, lower than those in Group S (0.26−0.67 μmol/L). Mean

${{\rm {NH}}_4^+} $

concentration in Group S (1.89 μmol/L) was slightly higher than that in Group G (1.32 μmol/L). There was no distinct pattern of DIC concentration between Group G and Group S. DOC concentration in Group S (1.13 mg/L) was higher than that in Group G (0.68 mg/L). The temperature values (13.5−15.3℃) were relatively constant at all sites.

For surface water, the ²²²Rn and

${{\rm {NO}}_3^-} $

concentrations of Stations SW1 and SW3 were significantly higher than those of Station SW2, indicating that SW1 and SW3 were significantly affected by high concentrations of groundwater ²²²Rn and

${{\rm {NO}}_3^-} $

. Algal blooms occurred at surface water stations SW1 and SW3 during the sampling period, which further indicates that groundwater provides the major nutrients such as

${{\rm {NO}}_3^-} $

for algae blooms due to the lack of other significant nutrient sources in the Krka River Estuary (Chen et al., 2020a).

3.2 Microbial diversity and distribution in groundwater-surface water interaction

Totally seven bacterial and archaeal samples were analyzed by using high throughput sequencing, and a total of 195 417 high-quality bacterial V4-V5 Illumina sequences and 139 040 high-quality archaeal V4-V5 Illumina sequences were retrieved. There were 2830 bacterial OTUs and 680 archaeal OTUs in the complete OTU data set at the 97% similarity cutoff. Good coverage was 99.5%−99.9% for all samples after subsampling (Table 2). Richness index (including ACE and Chao) of bacterial community ranged from 332 to 398 in surface water, significantly lower than those in groundwater (434−797). There was no significant difference in archaeal richness between surface water (59−138) and groundwater (81−136). Bacterial and archaeal diversities (e.g., Shannon index) showed variability in both surface water and submarine groundwater (Table 2).

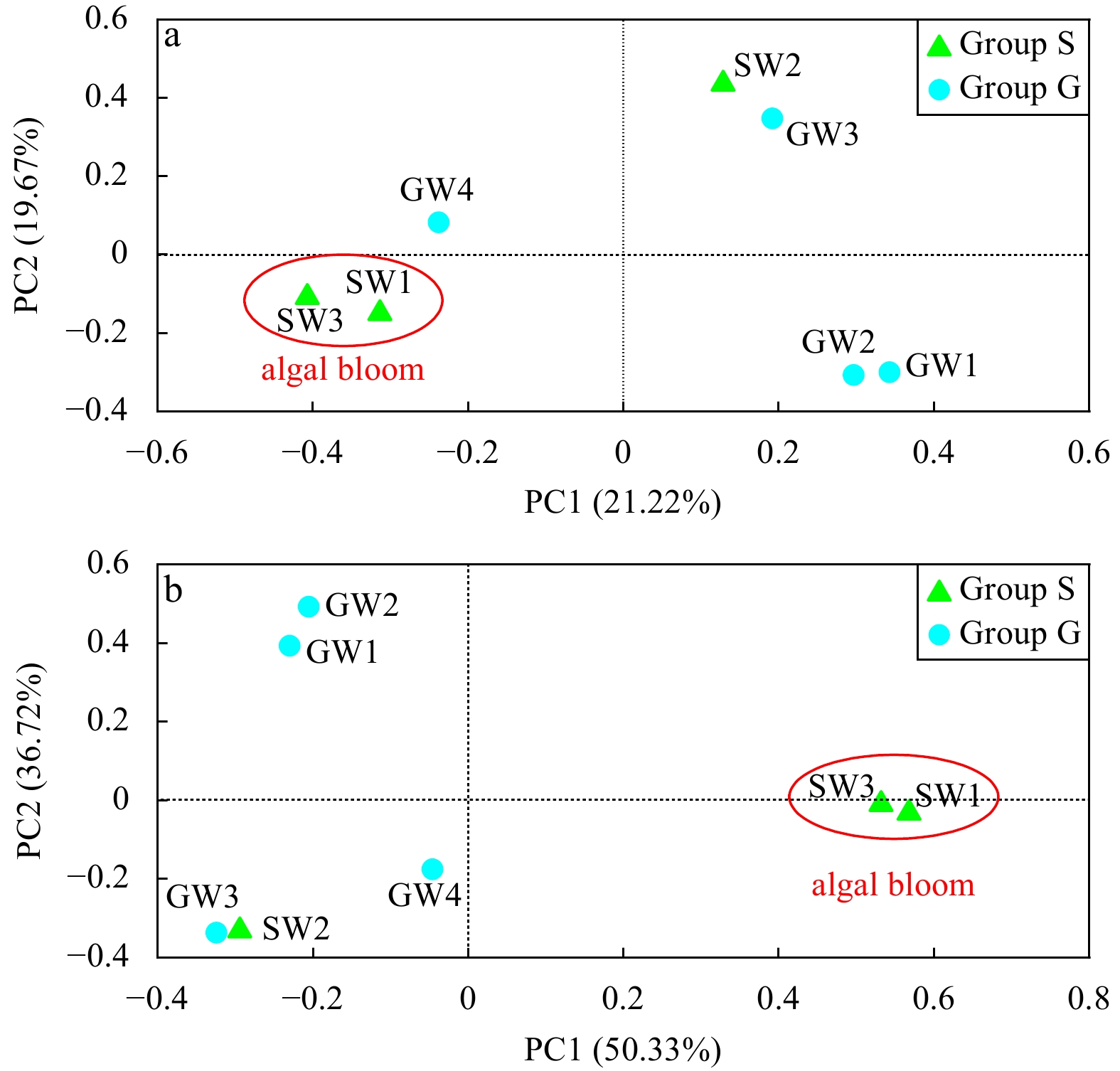

PCoA analyses showed that both the bacterial and archaeal communities in the areas where algal blooms occurred (i.e., Stations SW1 and SW3) were significantly separated from those in other stations along the first axis explaining 21.2% and 50.3% of the variations (Fig. 2), respectively, which may indicate that the spatial niche partitioning of the bacterial and archaeal communities at Stations SW1 and SW3 and related ecological function were different from other stations (Chen et al., 2019).

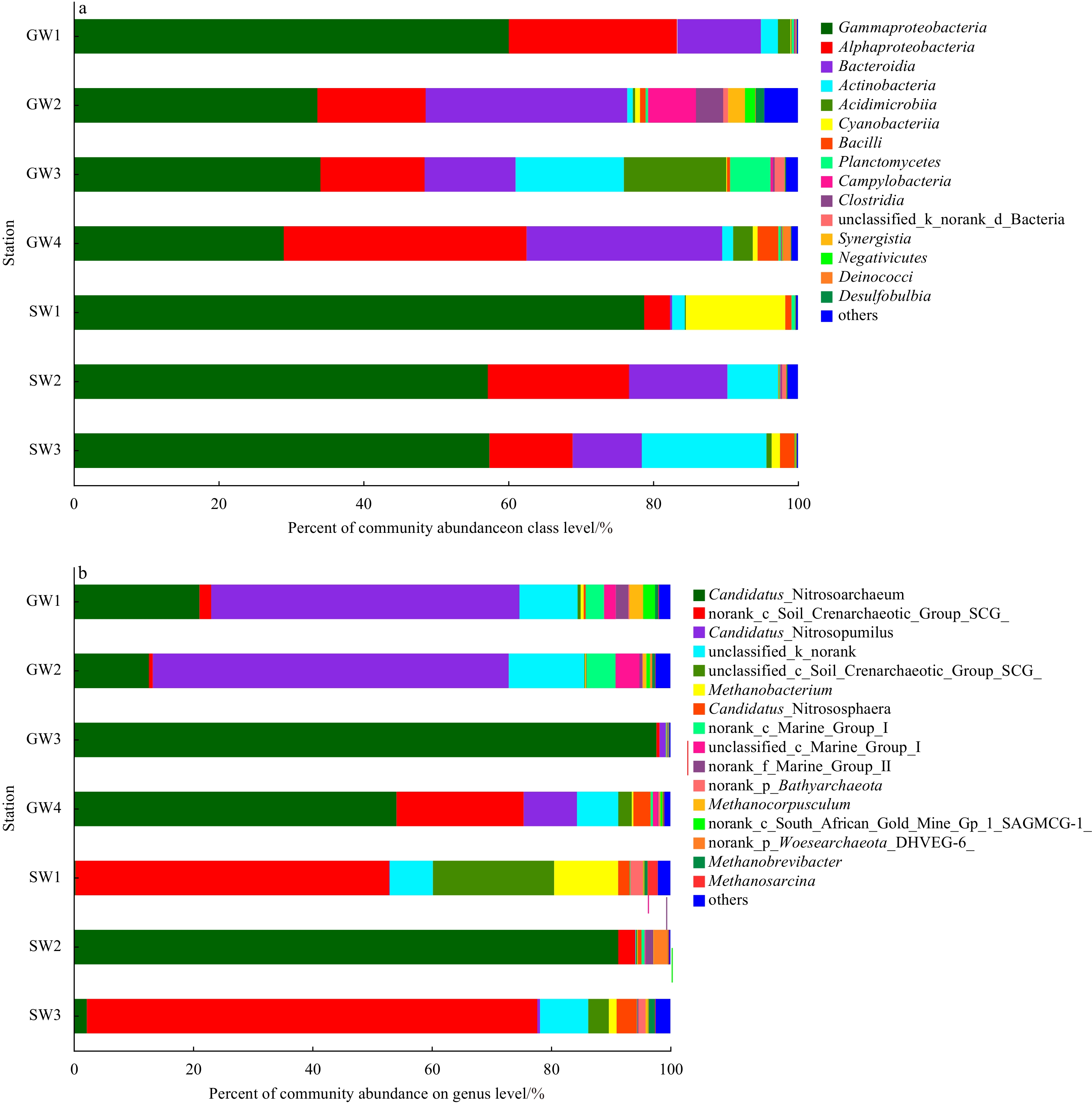

Taxonomic distributions showed that there were no significant variations in the proportion of Illumina sequences among the bacterial samples, but there were some differences among archaeal samples (Fig. 3). For all bacterial samples, Gammaproteobacteria (29.0%−78.8%), Alphaproteobacteria (3.6%−33.5%) and Bacteroidia (0.3%−27.8%) were the three main bacterial taxa. Cyanobacteriia and Actinobacteria also accounted for a larger proportion at surface water stations SW1 (13.7%) and SW3 (17.2%), respectively. For archaeal samples, the most dominant genus at spring water stations GW1 (51.7%) and GW2 (59.7%) was Candidatus Nitrosopumilus. The genus of Candidatus Nitrosoarchaeum was found abundantly at anchialine cave stations GW3 (97.7%) and GW4 (54.1%) and surface water station SW2 (91.3%), and Candidatus Nitrosoarchaeum was also the second dominant genus at spring water stations GW1 (21.1%) and GW2 (12.6%). However, the genera of Candidatus Nitrosopumilus and Candidatus Nitrosoarchaeum were seldom detected at surface water stations SW1 (<1%) and SW3 (0.5%−2.2%) where algal blooms occurred. Crenarchaeotic Group archaea was the most abundant group at surface water stations SW1 and SW3, which further indicates that Crenarchaeotic Group archaea may be related to algal bloom outbreaks at these stations.

In previous studies, Proteobacteria dominated all bacterial groundwater samples, which belongs to Alphaproteobacteria, Betaproteobacteria and Gammaproteobacteria at the genus level (Archana et al., 2021). In our study, the microbial diversity and distribution in groundwater samples were consistent with these previous results (Fig. 3). Although previous data on groundwater archaea are limited, these archaea results indicate that Euryarchaeota, Crenarchaeota, Bathyarchaeota and Thaumarchaetoa were widely distributed in groundwater samples (Archana et al., 2021), but the dominant groundwater archaea in this study was Candidatus Nitrosopumilus (Fig. 3).

3.3 Ecological niches of microbial community in groundwater-surface water interaction

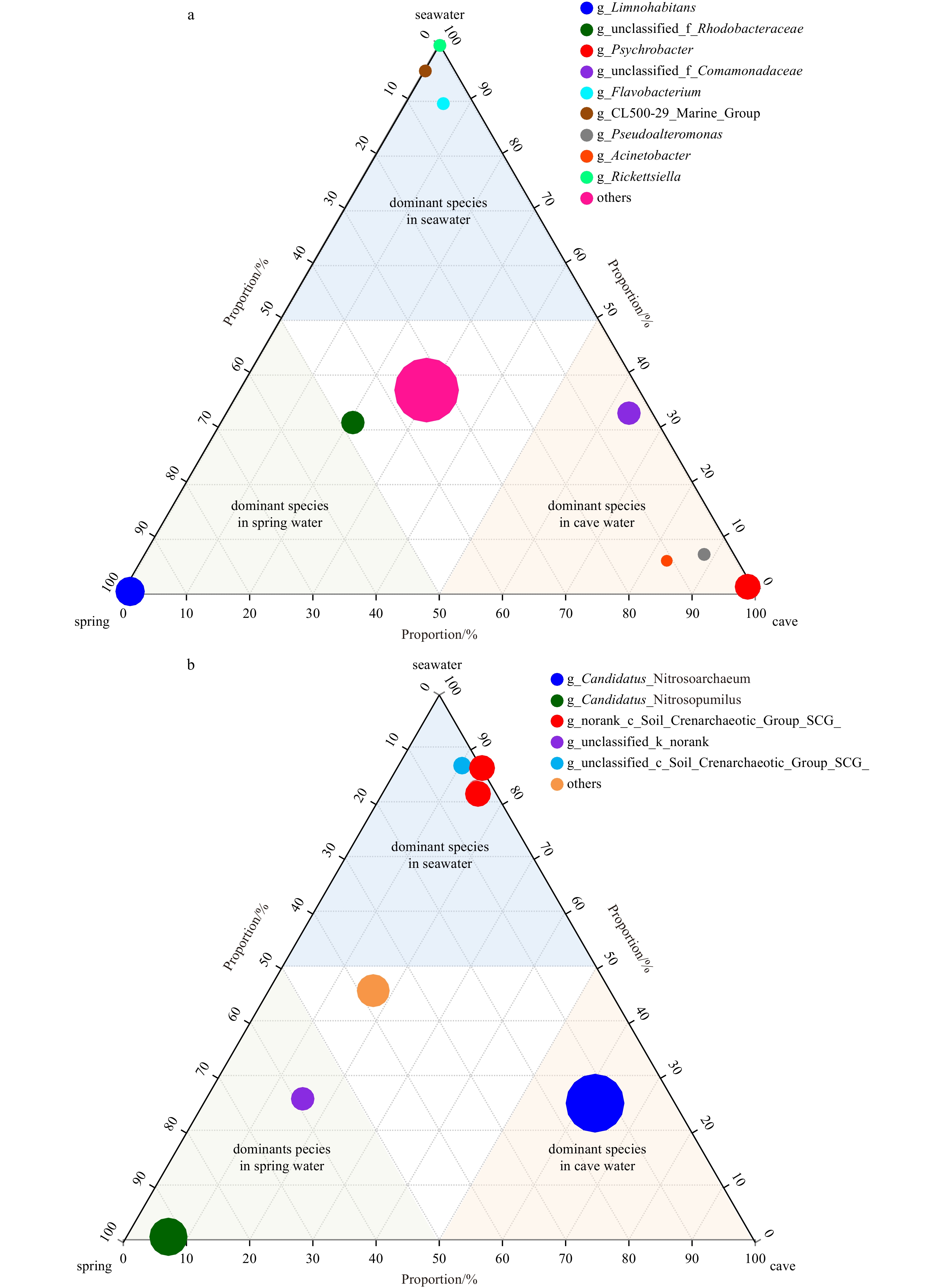

Surface water and groundwater interactions in coastal areas are active mixing zones with characteristic ecological functions (Lee et al., 2017). The dominant bacterial and archaeal communities were significantly different in submarine groundwater and surface water (Fig. 4). For example, the dominant bacterial communities in groundwater samples were Limnohabitans and Psychrobacter while that in the surface water were Flavobacterium and Rickettsiella. The results suggest that the environmental differences between the subterranean and surface estuaries may affect the microbial diversity and distribution, which in turn affect their biogeochemical and ecological functions.

Previous studies emphasized that microbes participate in the carbon and nutrient cycling in STEs and determined the chemistry of the groundwater reaching the ocean (Chen et al., 2019, 2020b; Ruiz-González et al., 2021). In this study, the neighbor-joining method was adopted to construct the bacterial phylogenetic tree (Fig. 5). The sequences of OTU32B were frequently obtained from groundwater (proportion of OTUs: 1.3%−45.5%) and exhibited 99.0% similarity with Limnohabitans parvus strain II-B4 (NR_125542), which may serve as ammonium oxidizer (Kasalický et al., 2010). Some OTU sequences such as OTU515B, OTU593B, OTU352B, OTU193B and OTU672B were detected in some groundwater stations (proportion of OTUs: 3.2%−6.5%), which had 99.5%−100% matches to Simplicispira limi strain EMB325 (NR_043773) (Lu et al., 2007), Novosphingobium naphthae strain D39 (NR_151934) (Chaudhary and Kim, 2016), Pseudorhodobacter aquaticus strain DC2N1-10 (NR_151912) (Li et al., 2016), Marivivens donghaensis strain AM-4 (NR_148632) (Park et al., 2016) and Aquirufa antheringensis strain 30S-ANTBAC (NR_165029) (Pitt et al., 2019), respectively. These strains can strongly reduce nitrate through nitrate reduction. These OTU sequences (except OTU193B) were also frequently found in surface water, indicating the connectivity in groundwater-surface water interaction.

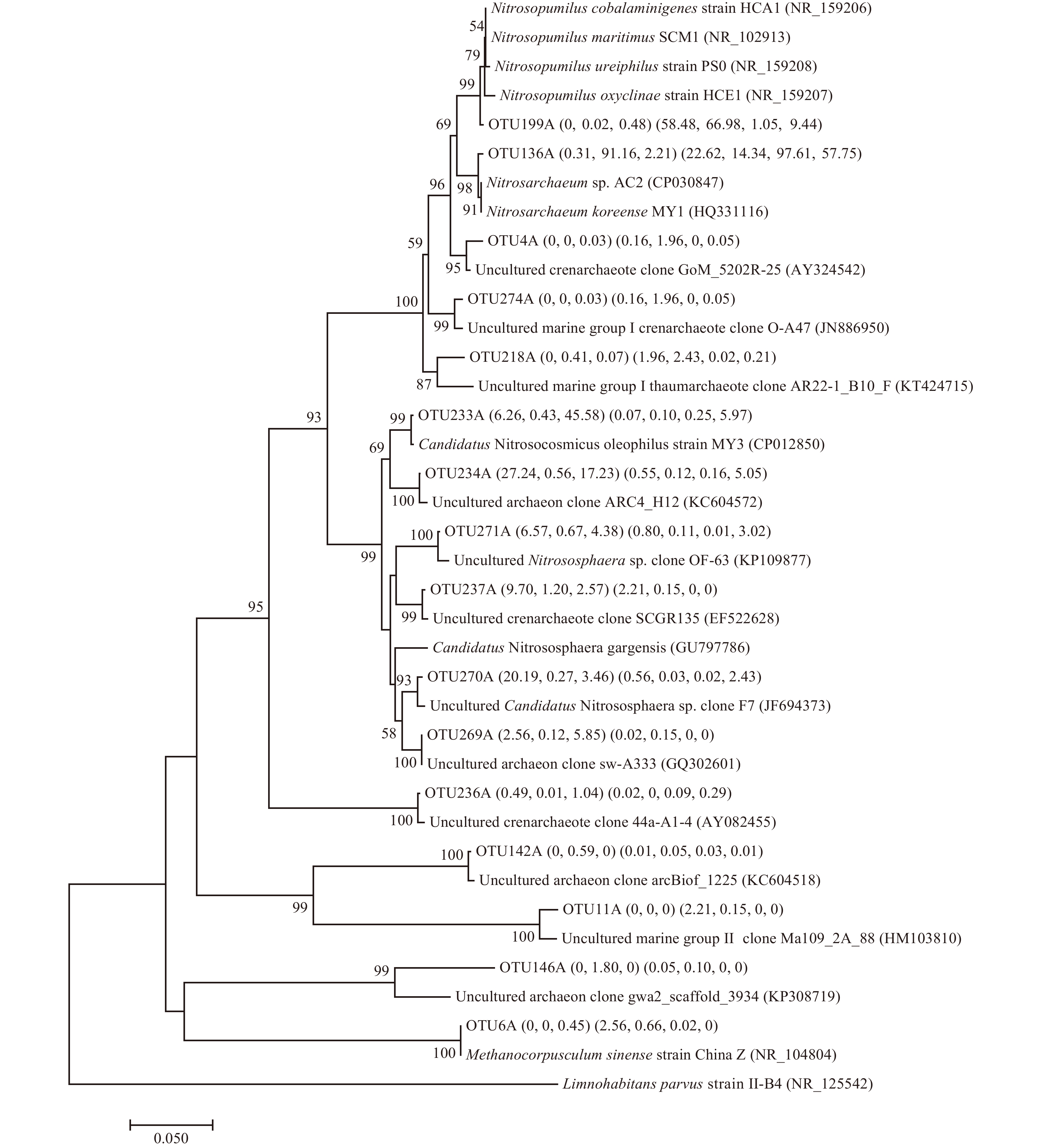

In the archaeal analysis, neighbor-joining tree was used to show phylogenetic relationships among the representative OTUs (Fig. 6). The sequences of OTU199A were frequently obtained from groundwater (proportion of OTUs: 1.1%−67.0%) but rarely in surface water (proportion of OTUs: 0−0.5%), and showed >99% similarity with Nitrosopumilus cobalaminigenes strain HCA1 (NR_159206) (Qin et al., 2017), N. maritimus SCM1 (NR_102913) (Walker et al., 2010), N. ureiphilus strain PS0 (NR_15920) (Qin et al., 2017) and N. oxyclinae strain HCE1 (NR_159207) (Walker et al., 2010), which belong to marine ammonia-oxidizing archaea. For example, N. maritimus performs a far unrecognized pathway of ammonia conversion to N₂ when oxygen is depleted (Kraft et al., 2022; Martens-Habbena and Qin, 2022). OTU136A, also known as the ammonia-oxidizing archaea sequence, was found in both groundwater (proportion of OTUs: 14.3%−97.6%) and surface water (proportion of OTUs: 0.3%−91.2%), which had 99.6% match to Nitrosarchaeum sp. AC2 (CP030847). In addition, the sequences of OTU233A, OTU234A and OTU270A were obtained from surface water (proportion of OTUs: 0.3%−45.6%) but relatively few in groundwater (proportion of OTUs: 0−6.0%). These sequences exhibited 95.8%−97.1% similarity with N. viennensis strain EN76 (NR_134097) (Stieglmeier et al., 2014), which is also considered as an aerobic and mesophilic, ammonia-oxidizing archaea. Although archaeal analysis was mainly dominated by ammonia-oxidizing process, different strains showed obvious site selectivity, suggesting that high spatial heterogeneity of dominant archaeal species occurred in groundwater-surface water interaction (Ruiz-González et al., 2022).

Therefore, these main species can utilize excess nutrients (e.g., nitrate and ammonia) at groundwater-surface water interface and reduce the amounts of nutrients entering the ocean, thereby affecting the ecological function of the interface by changing the biomass and community structure of the phytoplankton (Chen et al., 2018a; Torre et al., 2019). The utilization of nutrients by these bacteria and archaea communities seems to match the oligonutrients in the Krka River Estuary (Liu et al., 2019). Note that although nutrients can be utilized by microorganisms in STEs, significant input of point-source nutrients may still lead to water quality degradation. For example, large nutrient discharge with high N/P molar ratios (190−320) from Litno Cave (i.e., Station GW1) likely trigger and sustain red tide outbreaks (i.e., Station SW3) (Chen et al., 2020a).

3.4 Connection between microbial community and hydrochemical environment

Hydrochemical parameters such as salinity, temperature and nutrients have commonly been identified as potential environmental drivers of the observed compositional variations in microbial communities at coastal groundwater-surface water interface (Ye et al., 2016; Chen et al., 2020b; Ruiz-González et al., 2022; Yang et al., 2022). We used CCA analysis (Fig. 7) to determine the interaction between microbial communities and hydrochemical environment, and to clarify which environmental factors govern the bacterial and archaeal communities, respectively.

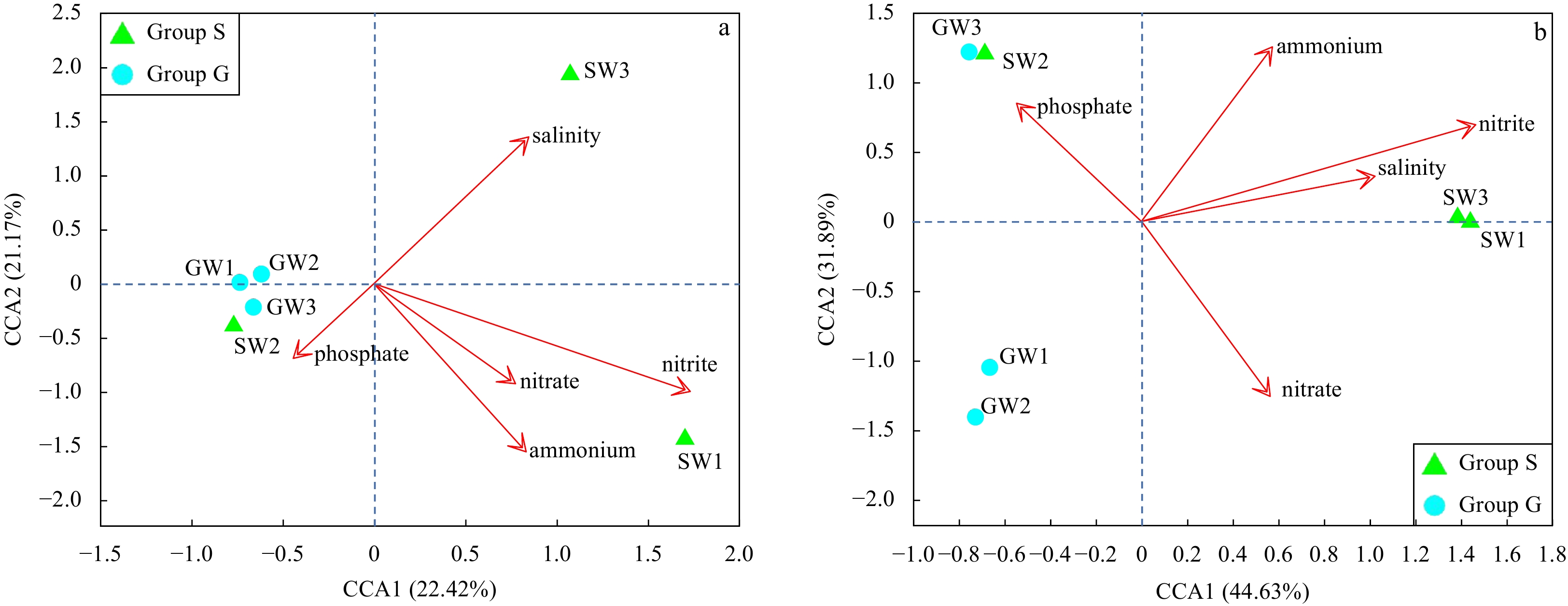

In the current study, CCA analysis revealed that salinity and nutrients (including nitrate, nitrite, ammonia and phosphate) were correlated with the changes of bacterial and archaeal communities (Fig. 7), and in agreement with previous studies in STEs (Ye et al., 2016; Adyasari et al., 2019; Chen et al., 2020b; Ruiz-González et al., 2022). Salinity and nutrient variations may affect microbial metabolism, thus affecting the life-sustaining activities and abundance of microbial communities (Santoro et al., 2006; Xie et al., 2018; Wang et al., 2020; Ruiz-González et al., 2022). In the bacterial analysis, although there were algal bloom outbreaks at both Stations SW1 and SW3, the bacterial communities at Station SW1 were associated with high nutrient concentrations, while a positive association was found between the bacterial communities and salinity at Station SW3 (Fig. 7a). However, salinity and nitrite (a nitrogen cycle intermediate) had a positive association with the archaeal communities at both Stations SW1 and SW3 (Fig. 7b). The results not only indicate that salinity and nutrients play critical roles in the distributions of bacterial and archaeal communities, but also further indicate that variable environmental factors may drive the heterogeneity of bacterial and archaeal communities.

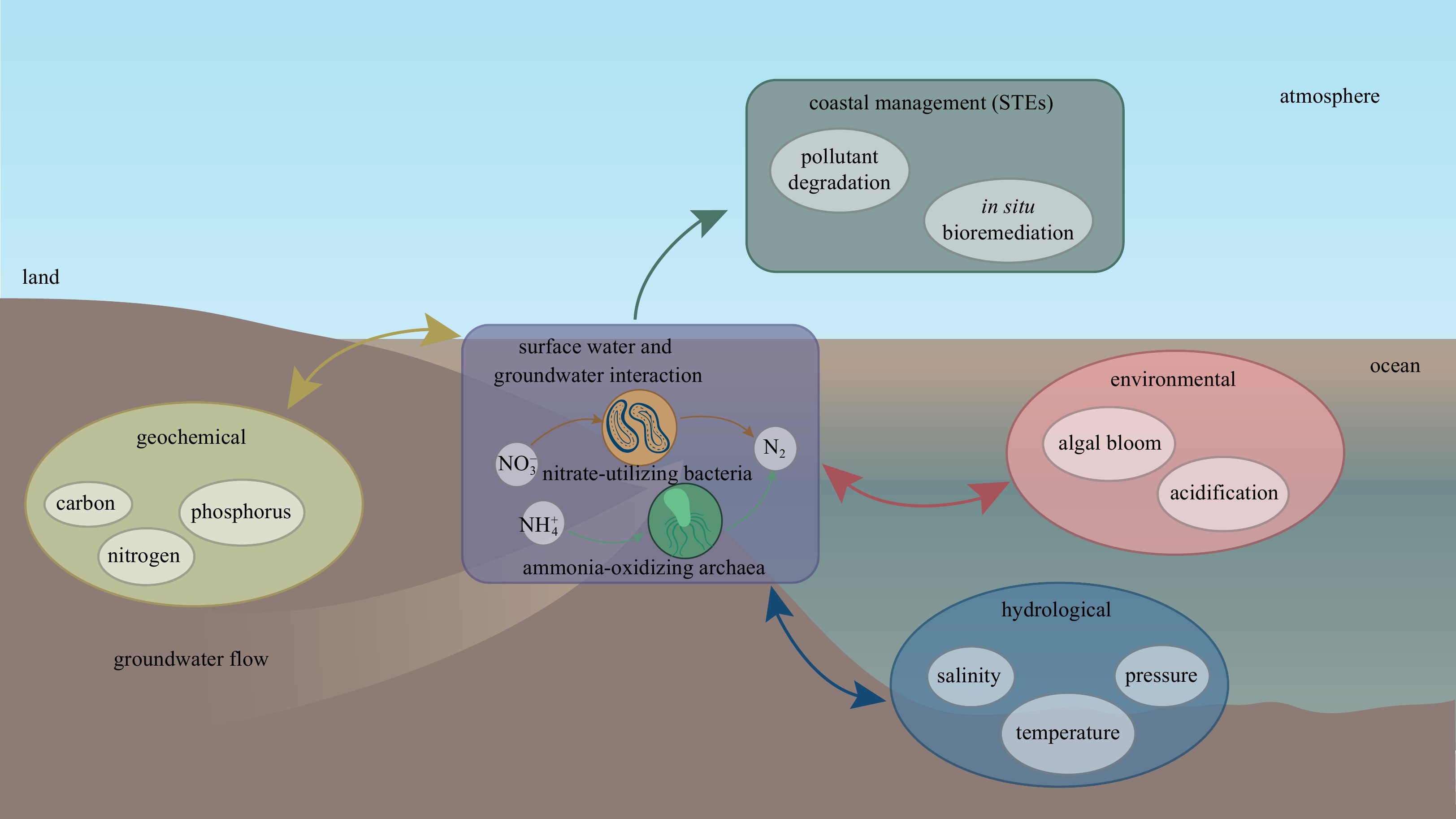

3.5 Ecological implication of microbial community in STEs

SGD has been recognized as one of the most significant pathways for terrestrial dissolved solutes such as nutrients and carbon entry into coastal waters (Santos et al., 2021), but the nature and magnitude of SGD-derived solute inputs depend largely on microbial-dominated biogeochemical transformations in STEs (Ruiz-González et al., 2022). The distribution patterns of microbial communities were closely related to hydrological, geochemical and environmental characteristics in STEs (Fig. 8). Previous studies (including our study site) have shown that the significant changes of nutrients or salinity associated with SGD could result in variations in the phytoplankton biomass or ecological impairments such as hypoxia, eutrophication or algal bloom (Lecher and Mackey, 2018; Adolf et al., 2019; Chen et al., 2020a; Guo et al., 2020; Zhao et al., 2021), which are adding its share of pressure on the coastal zone and increasing pressure on these coastal resources, especially in mariculture regions (Wang et al., 2021; Yu et al., 2022).

In the present work, we found that some of the bacterial sequences were related to cultured isolates (e.g., Simplicispira sp., Novosphingobium sp., Pseudorhodobacter sp., Marivivens sp. and Aquirufa sp.), and archaeal sequences were close to ammonia-oxidizing archaea (e.g., Nitrosopumilus spp. and Nitrosarchaeum sp.). These microbes could significantly and effectively participate in the removal of groundwater pollutants such as nitrate or ammonia (Table 3). Not only in karstic STEs, several previous studies have also found that microorganisms can significantly degrade pollutants in different STEs such as estuary, bay, sandy beach, submarine spring, volcanic island and marginal sea before they are discharged into coastal waters (Ye et al., 2016; Adyasari et al., 2019; Chen et al., 2019, 2020b; Jiang et al., 2020; Huang et al., 2021) (Table 3). For example, Limnohabitans, Novosphingobium, Marivivens and Nitrosopumilus are widely distributed in different STEs, which can significantly remove the nitrate, ammonia and organic pollutants in coastal groundwater. Therefore, these potential key species likely play important ecological roles in the in situ degradation of terrestrial pollutants in STEs (Fig. 8), which can be selected as excellent candidates for bioremediation of polluted groundwater, especially coastal saline groundwater.

4 Conclusions

Less

In this study, we provided perspective into the correlations and heterogeneity of representative microbial taxonomic groups and related ecological functions in groundwater-surface water interaction. The nutrients and salinity were the primary factors in determining the diversity and distribution of microbial communities. Taxonomic composition suggests that the key microbial communities, such as Simplicispira sp., Novosphingobium sp., Pseudorhodobacter sp., Marivivens sp., Aquirufa sp., Nitrosopumilus spp. and Nitrosarchaeum sp., can effectively remove the nitrate and ammonia at groundwater-surface water interface in the Krka River Estuary, which can provide a new perspective for coastal groundwater management such as in situ degradation/remediation of pollutants in STEs. As STEs are affected by high intensity human activities such as nutrient pollution, this study is essential to understanding the linkages between the distribution patterns of microbial communities and hydrological, geochemical and environmental characteristics in STEs.

Funding

Less

The National Key R&D Program of China under contract No. 2022YFE0209300; the National Natural Science Foundation of China under contract No. 42006152; the Zhejiang Provincial Natural Science Foundation of China under contract No. LQ21D060005; the 111 Project under contract No. BP0820020.
