Hequan Gu¹^,²^,³^,T, Feng Zhao¹^,²^,³, Zhixin Ni¹^,²^,³^,^*, Meigui Wu¹, Li Zhao¹^,²^,³, Aicui Dang¹, Dongmei Li¹^,²^,³, Minxia Zhang⁴, Qin Hu⁴

Acta Oceanologica Sinica | 2023, 42(8) : 24 - 31

Less

Acta Oceanologica Sinica | 2023, 42(8): 24-31

• Articles •

Using radium isotopes to evaluate the uncertainty of submarine groundwater discharge in the northeast and entirety of Daya Bay

Full

Hequan Gu¹^,²^,³^,T, Feng Zhao¹^,²^,³, Zhixin Ni¹^,²^,³^,^*, Meigui Wu¹, Li Zhao¹^,²^,³, Aicui Dang¹, Dongmei Li¹^,²^,³, Minxia Zhang⁴, Qin Hu⁴

Affiliations

¹ South China Sea Environment Monitoring Center, State Oceanic Administration, Guangzhou 510300, China

² Nansha Islands Coral Reef Ecosystem National Observation and Research Station, Guangzhou 510300, China

³ Key Laboratory of Marine Environmental Survey Technology and Application, Ministry of Natural Resources, Guangzhou 510300, China

⁴ CNOOC Research Institute Co., Ltd., Beijing 100028, China

Published: 2023-08-25 doi: 10.1007/s13131-023-2181-y

Outline

Abstract

Less

Submarine groundwater discharge (SGD), which can be traced using naturally occurring radium isotopes, has been recognized as a significant nutrient source and land-ocean interaction passage for the coastal waters of the Daya Bay, China. However, uncertainties in assessing SGD fluxes must still be discussed in detail. In this study, we attempted to utilize the Monte Carlo method to evaluate the uncertainties of radium-derived SGD flux in the northeast and entirety of the Daya Bay. The results show that the uncertainties of the SGD estimate in the northeast bay are very sensitive to variations in excess radium inventories as well as radium inputs from bottom sediments, while the uncertainties of the SGD estimate for the entire bay are strongly affected by fluctuations in radium inputs from bottom sediments and radium end-members of SGD. This study will help to distinguish the key factors controlling the accuracy of SGD estimates in similar coastal waters.

Key words

submarine groundwater discharge (SGD) / radium isotopes / Monte-Carlo method / Daya Bay / uncertainty analysis

Cite this Article

Hequan Gu, Feng Zhao, Zhixin Ni, Meigui Wu, Li Zhao, Aicui Dang, Dongmei Li, Minxia Zhang, Qin Hu. Using radium isotopes to evaluate the uncertainty of submarine groundwater discharge in the northeast and entirety of Daya Bay[J]. Acta Oceanologica Sinica, 2023 , 42 (8) : 24 -31 . DOI: 10.1007/s13131-023-2181-y

Full Text

Less

1 Introduction

Less

Submarine groundwater discharge (SGD) has received widespread attention because even small amounts of SGD can provide important material fluxes (e.g., nutrients) to coastal waters, thus significantly impacting coastal ecosystems (Wang et al., 2018; Gu et al., 2012; Moore, 2010; Burnett et al., 2003; Charette et al., 2001). SGD is not necessarily a freshwater flow but can be composed of fresh groundwater and seawater that has infiltrated coastal aquifers or permeable sediments along the shoreline (Moore, 2010). Naturally occurring radium isotopes, which have district timescales of half-lives, can help identify and assess the flux of SGD flowing into coastal waters because their supply and loss are constrained by radioactive decay (Rodellas et al., 2017; Moore et al., 2006; Rama and Moore, 1996).

The Daya Bay is one of the largest and most important gulfs in the South China Sea. Several researchers have reported that SGD is an important nutrient source that influences the nutrient structure and coastal primary production in the Daya Bay (Zhang et al., 2020; Wang et al., 2018; Gao et al., 2018). However, considering the variation in sampled radium data and the complexity of the constructed radium mass balance models, the SGD estimate uncertainties in the Daya Bay must still need be discussed in detail. The Monte Carlo method, which is a class of computational algorithms, can generate random numbers by relying on probability distributions of inputs, perform thousands of simulations with specific mathematical models, and help obtain the uncertainties of the final output results. The objective of this study is to utilize the Monte Carlo method to evaluate the uncertainty of radium-derived SGD in the northeast and entirety of the Daya Bay. This study will help to identify the important factors affecting the accuracy of SGD estimates in coastal bays.

2 Study area

Less

The Daya Bay (22.45°–22.83°N, 114.50°–114.89°E) is a semi-closed subtropical bay located east of the Zhujiang River Estuary, China. The annual average temperature in the Daya Bay is 22℃ and the annual precipitation mainly concentrated in the summer, with an average of 1700 mm. There are some small islands in the bay and the surrounding mountains are composed of various metamorphic rocks, purple sandstones, tuffs, and granites that were formed during the Paleozoic and Mesozoic periods (Cheng, 2000). The water depth in the Daya Bay gradually increases from north to south, with an average value of 11 m. The bottom sediments are mainly composed of silt and clay. There is no large river inflow along the coast, that can carry small amounts of riverine particulates (Han, 1995). The tide in the Daya Bay is irregular semi-diurnal, with an average tidal range of 0.49 m and a maximum tidal range of 2.5 m. As one of the three major economic development areas in Guangdong Province, the economy around the Daya Bay has rapidly developed since the 1980s. Large numbers of anthropogenic pollutants and maricultural activities have led to an increasingly serious environmental pollution problem in the Daya Bay (Li et al., 2015).

3 Sample collection and analysis

Less

3.1 Field sampling

In September 2019 and August 2015, two voyages were conducted to investigate the ²²⁴Ra, ²²³Ra, ²²⁸Ra activities in the surface waters of the northeast and entirety of the Daya Bay. Additionally, 11 coastal groundwater samples were collected separately at five stations along the shoreline in April 13–14 and July 25–26, 2018. The sampling stations for surface seawater and pore water are shown in Fig. 1.

Surface seawater samples were pumped using a submerged pump with a 60 L sampling volume, then stored in plastic PP buckets. For the collection of pore water samples from beaches along the coastline, we followed the procedures of Hancock and Murray (1996). Briefly, when the beach was exposed to air during low tide, 25–45 cm deep holes with different offshore distances were created to extract intersitial water from the surrounding sediments; after the intersitial water was evacuated twice, and one pore-water sample (i.e., ~10 L) was finally collected from the supernatant of each hole.

All the water samples were immediately filtered using filtration cartridges (pore size: 0.5 μm) to remove suspended particulates. The filtered water was passed through a column filled with 15 g of MnO₂-impregnated acrylic fiber at a flow rate of approximately 0.5 L/min to ensure quantitative radium adsorption (Moore, 1976). Subsequently, the residual water of the Mn-fibers was extracted using a vacuum pump, and the fibers were washed 1–2 times with deionized water to remove the salt covering. The humidity of the fibers was controlled at approximately 0.75 (water/manganese fiber mass ratio) (Garcia-Solsona et al., 2008).

3.2 Analysis method

The amount of ²²⁴Ra, ²²³Ra, ²²⁸Ra collected on the Mn fibers was measured using a radium delayed coincidence counter (Moore and Arnold, 1996). After the on-site sample collection, ²²⁴Ra was determined as soon as possible to avoid significant decay. Based on the design principles of RaDeCC, high ²²⁴Ra activity would interfere with the ²²³Ra measurement; therefore, ²²³Ra counts were determined within 7–12 d after sample collection (approximately three ²²⁴Ra half-life periods). The Mn-fibers were then stored for six weeks and measured again to obtain the supported ²²⁴Ra from its parent, ²²⁸Th. Here the ²²⁴Ra data are given as excess ²²⁴Ra since they are obtained by subtracting supported ²²⁴Ra from the total ²²⁴Ra. After the fibers were stored for more than half a year, the fourth sample measurement was carried out to obtain ²²⁸Ra activities, which were dependent on measuring ²²⁸Th ingrown from ²²⁸Ra. Most of the uncertainties of the ²²⁴Ra, ²²³Ra, and ²²⁸Ra activities were estimated to be 4%–16%, 7%–23% and 6%–30%, respectively, using the equations derived by Garcia-Solsona et al. (2008).

3.3 Radium mass balance model

Zhang et al. (2020) further improved the radium mass balance model to estimate the residence time and SGD flux in the Daya Bay. The principle of the model is as follows: assuming that the system is in a steady state, the radium sources, such as river input, atmospheric deposition, external input, release from intertidal and bottom sediments, and SGD contribution, should equal the radium losses, which include radioactive decay, net tidal export from the bay, and losses in seawater caused by recirculated SGD. Here, we employ the improved model and utilize our data to assess the residence time and SGD flux in the northeast and the entirety of the Daya Bay. Based on previous conclusions (Wang et al., 2018; Zhang et al., 2020), riverine input and atmospheric deposition are omitted from the improved model. When ²²⁴Ra and²²⁸Ra are used as tracer nuclides, the residence time (τ, d) can be expressed as follows (Zhang et al., 2020):

(1)

$ \tau =\left[k\right({I}_{228}-{10}V{}^{228}{{\rm{Ra}}}_{{\rm{op}}})-\left({I}_{224}-{10}V{}^{224}{{\rm{Ra}}}_{{\rm{op}}}\right)]/({I}_{224}{\text{λ}}_{224}-{{}^{224}F}_{{\rm{BS}}}), $

where I₂₂₄ and I₂₂₈ are the ²²⁴Ra and ²²⁸Ra inventories (Bq) in the study area, respectively; V is the water volume (m³); ²²⁴Ra_op and ²²⁸Ra_op are the end-member activity concentration (Bq/m³) of ²²⁴Ra and ²²⁸Ra in open sea water; ²²⁴F_BS is the ²²⁴Ra input from bottom sediments (Bq/d); λ₂₂₄ is the decay constant of ²²⁴Ra (d⁻¹); and k is referred to as the ²²⁴Ra/²²⁸Ra activity ratio difference between groundwater and near-shore seawater, that is,

(2)

$ k=[{}^{224}{{\rm{Ra}}}_{{\rm{gw}}}-(1-{R}_{{\rm{F}}}\left){}^{224}{{\rm{Ra}}}_{{\rm{ns}}}\right]/[{}^{228}{{\rm{Ra}}}_{{\rm{gw}}}-(1-{R}_{{\rm{F}}}\left){}^{228}{{\rm{Ra}}}_{{\rm{ns}}}\right], $

where ²²⁴Ra_gw and ²²⁸Ra_gw are the end-member activity concentrations (Bq/m³) of ²²⁴Ra and ²²⁸Ra in groundwater, ²²⁴Ra_ns and ²²⁸Ra_ns are the end-member activity concentrations (Bq/m³) of ²²⁴Ra and ²²⁸Ra in near-shore seawater, and R_F is the ratio of the fresh SGD flux to the SGD flux. Combined with the obtained residence time, the SGD flux (Q_SGD, m³/d) calculated by the activity of ^224/223Ra or ²²⁸Ra can be expressed as Eq. (3) and Eq. (4), respectively.

(3)

${Q}_{{\rm{SGD}}} = \frac{\left[({I}_{224/223} - V^{{224/223}} {R{\rm{a}}}_{{\rm{op}}})/\tau + \left({I}_{{224/223}}{\text{λ}}_{{224/223}} - {{}^{{224/223}}F}_{{\rm{BS}}}\right)\right]}{\left[{}^{{224/223}}{{\rm{Ra}}}_{{{\rm{gw}}}} - \left(1-{R}_{{\rm{F}}}\right){}^{{224/223}}{{\rm{Ra}}}_{{\rm{ns}}}\right]}, $

(4)

$ {Q}_{{\rm{SGD}}}=\frac{({I}_{228}-V{}^{228}{{\rm{Ra}}}_{{\rm{op}}})}{\tau \cdot [{}^{228}{{\rm{Ra}}}_{{\rm{gw}}}-(1-{R}_{{\rm{F}}}){}^{228}{{\rm{Ra}}}_{{\rm{ns}}}]} .$

4 Results and discussion

Less

4.1 Radium in water column

The results of the survey conducted in the northeast Daya Bay in September 2019 are shown in Table S1. The surface salinity exhibited insignificant variations among the stations, with an average of 31.4. However, surface seawater samples showed drastic changes in ²²⁴Ra activity concentration, ranging from 2.1 Bq/m³ to 18.8 Bq/m³, with an average of (8.1 ± 4.3) Bq/m³. Meanwhile, those of ²²³Ra and ²²⁸Ra had less obvious changes ranging from 0.35 Bq/m³ to 0.73 Bq/m³ and from 2.1 Bq/m³ to 3.3 Bq/m³, with averages of (0.57 ± 0.11) Bq/m³ and (2.8 ± 0.3) Bq/m³, respectively.

The horizontal distributions of ²²⁴Ra, ²²³Ra, and ²²⁸Ra in the northeast bay surface water are shown in Fig. 2. The highest values of the isotopes that appeared in the study area were all located in the near-shore areas, such as the northwest and east coastlines, while the lowest values appeared in the center of the bay. This typical distribution characteristic of radium isotopes, especially ²²⁴Ra, indicated that coastal groundwater, diluted by tidal water, gradually spread into the inner part of the bay.

During the cruise in August 2015, we investigated the activity levels of radium isotopes in the entirety of the Daya Bay; the results are listed in Table S1. Unlike previous observations by Zhang et al. (2020), there was less significant spatial variation in surface salinity from the north coast to the mouth of the bay, which ranged from 30.7 to 34.2. The activities of short half-life isotopes ranged from 0.6 Bq/m³ to 12.8 Bq/m³ for ²²⁴Ra and 0.16 Bq/m³ to 1.25 Bq/m³ for ²²³Ra, with averages of (6.1 ± 3.8) Bq/m³ and (0.59 ± 0.30) Bq/m³, respectively. The corresponding values for ²²⁸Ra ranged from 0.4 Bq/m³ to 3.0 Bq/m³, with an average of (1.8 ± 0.7) Bq/m³.

As is shown in Fig. 3, the highest ²²⁴Ra activity occurred in the area near the northern coastline of the bay (i.e., Station W4), followed by that near the western coastline (i.e., Station W2). Similar features were observed for the ²²⁸Ra distribution trend. The maximum ²²³Ra activity value was observed at the Station W2 near the western coast, but contrary to what one might suppose, no obvious high values were observed at the site near the northern coast. The lowest values of the three isotopes were observed at the Station W10, far from the mouth of the bay.

The activities of radium isotopes in the surface seawater of the Daya Bay have been investigated during distinct sampling periods by many researchers, such as Wang et al. (2018), Gao et al. (2018), and Zhang et al. (2020). Compared to previous studies, this study used fewer sampling stations. As is shown in Table 1, a comparison of the mean values showed that the radium activity levels in this study were lower than those reported by Zhang et al. (2020). We can briefly explain that the variations of radium activities in water depend more on the control of water mixing process; the water sampling of this study happened to be conducted during the flood tide, and thus the salinities were generally larger than those reported by Zhang et al. (2020). The flood water carried offshore water with low radium level into the bay, which might make the radium activities collected in this study lower than their results.

4.2 Radium in pore water

The ²²⁴Ra, ²²³Ra, ²²⁸Ra activities for coastal pore water samples in the Daya Bay exhibited significant variations among stations, as listed in Table S2. The activities of short-lived radium isotopes ranged from 3.0 Bq/m³ to 105.5 Bq/m³ with an average of (48.5 ± 31.8) Bq/m³ for ²²⁴Ra, and from 0.08 Bq/m³ to 6.20 Bq/m³ with an average of (1.4 ± 2.0) Bq/m³ for ²²³Ra, respectively. The corresponding values for ²²⁸Ra ranged from 0.9 Bq/m³ to 18.0 Bq/m³, with an average of (6.9 ± 4.8) Bq/m³. According to the comparison of averages, the radium activities in groundwater were lower in this study than those reported by previous authors (Table 1). It can be explained that our samples collected on the beach are the mixed pore-waters from surface layer to the depth of 25−45 cm, and near-shore seawater with low radium activities is more likely to remain in the surface of beach sediment, making the radium activities reported in this study lower than the previous ones.

4.3 Residence time and SGD estimation

The topography of the northeast bay and the location of the sampling stations are converted to plane coordinates using the Universal Transverse Mercator Projection method. An orthogonal horizontal linear grid is designed to map the two zones at a spatial scale of 100 m×100 m. Since the water depth of the northeast bay is smaller than 20 m (the average: 7.5 m), we consider that the water column is not stratified. Then the radium activities and water depth at each station are interpolated to grid cells using the Kriging method. The ²²⁴Ra, ²²⁸Ra inventories (I₂₂₄, I₂₂₈) are the sums of the activities multiplied by the water depth in each grid cell; the results are shown in Table 2. The I₂₂₄, I₂₂₈ of the entire bay is calculated in the same way.

Considering that the northeast bay is located in the inner part of the bay, the external input refers to its most fringe station, closest to the center of the bay. As shown in Fig. 2, the activities of radium isotopes observed at Station D19 are supplied as the conservative end-members of the external input, that is, ²²⁴Ra_op = 2.1 Bq/m³, ²²³Ra_op = 0.47 Bq/m³ and ²²⁸Ra_op = 2.1 Bq/m³, respectively. For the entire bay, the activities of radium isotopes obtained at Station W10 located at the outside of the bay are used as conservative end-members of open seawater inputs, i.e., ²²⁴Ra_op = 0.6 Bq/m³, ²²³Ra_op = 0.16 Bq/m³, and ²²⁸Ra_op = 0.4 Bq/m³, respectively. Then, the conservative fractions of inventories are estimated by the product of the radium end-members of offshore inputs times the water volume (V = 5.61 × 10⁸ m³ for the northeast bay or V = 5.62 × 10⁹ m³ for the whole bay). The excess inventories are finally evaluated by deducting the conservative fractions from the total inventories. Then, the non-conservative inventory ratio of ²²⁴Ra to ²²⁸Ra, i.e., (I₂₂₄−10V²²⁴Ra_op)/(I₂₂₈−10V²²⁸Ra_op) was determined, 8.3 for the northeast bay and 3.5 for the entire bay.

The ²²⁴Ra and ²²³Ra inputs from bottom sediments in the Daya Bay are estimated by previous authors and ranged from 3.97 Bq/(m²·d) to 9.70 Bq/(m²·d) and 0.04 Bq/(m²·d) to 0.15 Bq/(m²·d), respectively (Wang et al., 2018; Gao et al., 2018; Zhang et al., 2020). Based on previous results, we calculate average values of 6.58 Bq/(m²·d) for ²²⁴Ra and 0.09 Bq/(m²·d) ²²³Ra, respectively. Combined with the study area (7.47 × 10⁷ m² for the northeast bay or 5.11 × 10⁸ m² for the entire bay), the ²²⁴Ra, ²²³Ra inputs from the bottom sediments are obtained as ²²⁴F_BS = 4.92 × 10⁸ Bq/d and ²²³F_BS = 7.03 × 10⁶ Bq/d for the northeast bay and ²²⁴F_BS = 3.37 × 10⁹ Bq/d and ²²³F_BS = 4.80 × 10⁷ Bq/d for the entire bay, respectively. The ²²⁸Ra input from the bottom sediments is omitted because of its long 5.7 a half-life. The radioactive decay losses of ²²⁴Ra, ²²³Ra in the water column are estimated by multiplying the radium inventories by the decay constants; the results are shown in Table 2. Clearly, the ²²⁴Ra, ²²³Ra decay losses are much larger than the ²²⁴Ra, ²²³Ra inputs from bottom sediments, regardless of whether they are in the northeast bay or the entire bay.

Zhang et al. (2020) believed that when radium losses caused by recirculated SGD flowing through coastal aquifers were neglected, the water age would be underestimated to a certain extent. Based on their suggestion, we choose the average activities obtained at near-shore stations as representative values of the recirculated SGD. Assuming that the ratio of fresh SGD flux to SGD flux (i.e., R_F) would be considered as 10% (Moore, 1996), the corrected groundwater ²²⁴Ra and ²²⁸Ra activities of each station are calculated, as shown in Table S2.

The radium inputs released from bottom sediments are much lower than the radium decay losses; in principle, the residence time must be positive. Thus, the k value should be larger than the non-conservative ratio of ²²⁴Ra to ²²⁸Ra inventory, which is 8.3 for the northeast bay or 3.5 for the entire bay. Therefore, some groundwater radium activities, the corrected ²²⁴Ra/²²⁸Ra activity ratio (AR) of which are lower than the non-conservative inventory ratio of ²²⁴Ra to ²²⁸Ra, would not represent the SGD end-members. Therefore, the above data are removed and then the remaining data are used to calculate the k value by the least squares method, which is k = 11.3 (R² = 0.83, n = 5, p < 0.05) for the northeast bay and k = 10.3 (R² = 0.74, n = 6, p < 0.05) for the entire bay. It can be concluded that k of the entire bay is quite consistent with that of the northeast bay.

Using Eq. (1), the residence time is estimated to be 4.4 d for the northeast bay and 21.4 d for the entire bay. The radium fluxes through SGD are also evaluated using Eqs (3) and (4). Similarly, the activities of radium in groundwater with corrected ²²⁴Ra/²²⁸Ra AR larger than the non-conservative ratio of ²²⁴Ra to ²²⁸Ra inventory are averaged as the corresponding end-members of SGD (Table 2). The radium fluxes from SGD are converted to a total SGD flux by dividing by the radium end-members in the local groundwater; and the results are shown in Table 2.

Regarding the entire bay, the SGD flux estimated by the ²²³Ra tracer is consistent with those estimated by ²²⁴Ra and ²²⁸Ra, but the flux obtained by ²²³Ra is much lower in the northeast bay. As a member of the naturally occurring decay series of ²³⁵U, ²²³Ra normally has a low level of activity and dramatic variation in the marine environment; thus, the SGD flux estimated by the ²²³Ra tracer would probably show significant uncertainty. Compared with previous studies, our SGD estimates for the entire bay fall within the ranges evaluated by Zhang et al. (2020), but slightly exceed those estimated by Wang et al. (2018) and Gao et al. (2018). Considering that SGD flux is strongly related to local rainfall (Chen et al., 2018), the surveys conducted in both this study and Zhang et al. (2020) were conducted during flood season; thus, the SGD estimates are also quite consistent. When the results estimated by ²²⁴Ra, ²²⁸Ra are adopted, the SGD flux of the northeast bay accounts for approximately 20% of the entire bay.

4.4 Uncertainty analyses

Four factors mainly affect the uncertainties in estimating the SGD flux in the Daya Bay, including the excess radium inventories, radium fluxes released from bottom sediments, corrected groundwater ²²⁴Ra/²²⁸Ra AR, and radium end-members of SGD. Each of the above factors is evaluated using the Monte Carlo method on a MATLAB platform (version MATLAB R2016a). Specifically, it is divided into the following steps: (1) the above four factors are all assumed to conform to a normal distribution, then four groups of random numbers are generated; (2) judge whether each random number of each group falls within the actual measuring range of the corresponding factor; if it exceeds the range, it will be regenerated until the number of random numbers per group is 10 000; (3) assuming that the other three factors remain invariant, each random number in one group is substituted into Eqs (1)−(4) to calculate the values of residence time and SGD flux, and then all the results are separately counted for the corresponding mean and standard deviation; (4) rotate the next group and repeat step (3).

4.4.1 Excess radium inventories

Here, we ignore the bathymetric surveying errors (i.e., <1%) in the Daya Bay, so that the radium inventory uncertainty is only contributed by the radium activity error in the measurement. For convenience, the maximum radium activity errors are separately selected to represent uncertainties of radium activities at each sampling station, which are 16% for ²²⁴Ra, 23% for ²²³Ra, and 30% for ²²⁸Ra. Therefore, the variations in the radium inventories in the water column are calculated to be I²²⁴Ra 0.35%, I²²³Ra 0.22%, and I²²⁸Ra 0.52% for the northeast bay, and I²²⁴Ra 0.13%, I²²³Ra 0.09%, and I²²⁸Ra 0.20% for the entire bay. It can be concluded that the measurement errors of radium activities have little influence on radium inventories.

However, the uncertainties of excess radium inventories depend not only on the variation of radium inventories but also on the fluctuation of external inputs of radium isotopes. The conservative end-members of external radium inputs for the northeast bay and entire bay specifically reference the radium activities observed at Stations D19 and W10, where the uncertainties were ²²⁴Ra: 16%, ²²³Ra: 16%, and ²²⁸Ra: 9% (northeast bay), and ²²⁴Ra: 15%, ²²³Ra: 15%, and ²²⁸Ra: 22% (entire bay), respectively. Based on the error propagation theory, the uncertainties of excess radium inventories in the two regions are calculated to be (I₂₂₄−10V²²⁴Ra_op) 7%, (I₂₂₃−10V²²³Ra_op) 82%, and (I₂₂₈−10V²²⁸Ra_op) 33% for the northeast bay and (I₂₂₄−10V²²⁴Ra_op) 2.0%, (I₂₂₃−10V²²³Ra_op) 6.2%, and (I₂₂₈−10V²²⁸Ra_op) 6.4% for the entire bay. Apparently, for some small regions, the uncertainties of excess radium inventories are mainly controlled by the fluctuation of radium external inputs.

As Table 3 shows, the uncertainties of the residence times are up to 126% for the northeast bay, but only 9.9% for the entire bay. Furthermore, the uncertainties of the SGD fluxes are estimated to be 78%–94% for the northeast bay and 3.6%–5.1% for the entire bay. Clearly, the smaller the study area, the greater the variation in SGD estimates caused by the uncertainty of excess radium inventories, which are quite sensitive to the fluctuation of radium external inputs.

4.4.2 k in groundwater

The k uncertainties are mainly constituted by the analysis errors of the groundwater ²²⁴Ra, ²²⁸Ra activities. In this section, 10 000 random digits are generated from each groundwater sampling data point in the form of a normal distribution, then combined into 10 000 sets of groundwater random data at all sampling sites. The least-squares method is used to calculate the corresponding linear regression coefficient for each set, producing 10 000 results. Finally, the standard deviation counted from these 10 000 coefficients is regarded as the uncertainty of k in groundwater, that is, 6.1% for the northeast bay and 5.4% for the entire bay.

The effect of the uncertainty of k in the groundwater on the estimates of residence time and SGD flux in the Daya Bay is shown in Table 3. When k fluctuates by approximately 6%, an uncertainty of 30% is generated in the residence time estimated for the northeast bay and the impact on the entire bay is only 8.2%. The uncertainties of the SGD estimated by distinct radium tracers are up to 41%–76% in the northeast bay, whereas the uncertainties of the SGD estimates range only 6.5%–14.8% in the entire bay. By comparison, it can be concluded that the k fluctuation in groundwater has a significant impact on the estimates of residence time or SGD flux for small regions; in other words, when the study area is relatively large, the assessments of residence time and SGD flux are less sensitive to the k uncertainty in groundwater.

Zhang et al. (2020) reported that k in groundwater ranged from 4.78 to 20.4 in the Daya Bay, with a median of 17.1, which is approximately 50% higher than our estimates. Assuming that the k value given by Zhang et al. (2020) is used to evaluate the residence time and SGD flux for the entire bay, we can predict that the residence time would increase to 42.5 d, while the SGD fluxes would be reduced by 17% for ²²⁴Ra, 21% for ²²³Ra, and 50% for ²²⁸Ra.

4.4.3 Radium input from bottom sediments

Based on previous estimates for the radium fluxes released from bottom sediments (i.e., F_BS) in the Daya Bay (Wang et al., 2018; Gao et al., 2018; Zhang et al., 2020), we further calculate their standard deviations to be regarded as the F_BS uncertainty, which is 44% for ²²⁴Ra and 82% for ²²³Ra. Then, the influence of F_BS fluctuation on the residence time and SGD flux for the two regions is inferred by the Monte Carlo method. The results are shown in Table 3. We can conclude that estimates for the residence time and SGD flux are quite sensitive to F_BS fluctuations, especially in some small regions. Specifically, the uncertainty of the residence time in the northeast bay is as high as 95%, whereas that of the entire bay is estimated to be 55%. In terms of the SGD estimates, the F_BS fluctuation has an impact of 54%–95% for the northeast bay and 29%–55% for the entire bay.

4.4.4 Radium end-members of SGD

Radium end-members of coastal groundwater have no effect on the evaluation of residence time but play a major role in determining SGD flux; that is, the greater the fluctuation of the end-members, the greater the fluctuation of the estimated SGD fluxes. The groundwater radium activities corrected by the near-shore radium loss are selected as the SGD end-members, and their standard deviations are calculated to be [²²⁴Ra_gw−(1−R_F)²²⁴Ra_ns] 50%, [²²³Ra_gw−(1−R_F)²²³Ra_ns] 25%, and [²²⁸Ra_gw−(1−R_F)²²⁸Ra_ns] 37% in the northeast bay, and [²²⁴Ra_gw−(1−R_F)²²⁴Ra_ns] 54%, [²²³Ra_gw−(1−R_F)²²³Ra_ns] 25%, and [²²⁸Ra_gw−(1−R_F)²²⁸Ra_ns] 33% in the entire bay. The uncertainties of the SGD fluxes caused by fluctuating radium end-members ranged from 10% to 29% in the northeast bay and 10% to 33% in the entire bay.

Zhang et al. (2020) also used the corrected radium activities of groundwater as the SGD end-members in the Daya Day, of which the median values were counted as [²²⁴Ra_gw−(1−R_F)²²⁴Ra_ns]=163 Bq/m³, [²²³Ra_gw−(1−R_F)²²³Ra_ns]=5.3 Bq/m³, and [²²⁸Ra_gw−(1−R_F)²²⁸Ra_ns]=11 Bq/m³, respectively. Their ²²⁴Ra, ²²⁸Ra end-members are more than twice our values, and the ²²³Ra end-member is almost similar to ours. When the SGD fluxes in our study were estimated by the groundwater end-members evaluated by Zhang et al. (2020), the SGD fluxes estimated by ²²⁴Ra, ²²⁸Ra decrease by approximately 50%, while that of ²²³Ra remains fairly consistent with our result.

5 Conclusions

Less

This study utilizes an improved radium mass balance model to evaluate radium-derived SGD fluxes in the northeast and the entirety of the Daya Bay. The results show that the estimated SGD flux in the northeast bay is equivalent to approximately 20% of that in the entire bay during the flood season. The SGD estimate uncertainties, which are mainly controlled by the fluctuations of four factors including excess radium inventories, radium fluxes released from bottom sediments, corrected groundwater ²²⁴Ra/²²⁸Ra AR, and SGD radium end-members, are separately evaluated using the Monte Carlo method. Except for the SGD radium end-members, the fluctuations in the other three factors affecting the estimated SGD fluxes are all related to the size of the study area. Especially for small regions, such as the northeast bay, the uncertainty for estimating SGD flux is very sensitive to variations in excess radium inventories and radium inputs from bottom sediments. Regarding large regions, such as the entire bay, variations in radium inputs from bottom sediments and radium end-members of SGD have the greatest impact on the uncertainties of SGD estimates. Evaluating SGD fluxes for small areas is considered more difficult and thus future research should be strengthened to improve the accuracy of estimating excess radium inventories and radium inputs from bottom sediments. For larger areas, it is critical to promote the evaluation accuracy of radium inputs from bottom sediments and radium end-members of SGD.

Acknowledgements

Less

We thank Willard S Moore give us useful comments to improve this manuscript. We thank laboratory colleague for their help during the expeditions and two anonymous reviewers for very constructive and detailed comments.

Funding

Less

The Project of Key Laboratory of Marine Environmental Survey Technology and Application, Ministry of Natural Resources under contract No. MESTA-2021-D006; the China Ocean Development Foundation under contract No. CODF-002-ZX-2021; the Science and Technology Plan Projects of Guangdong Province under contract No. 2021B1212050025; the Director’s Foundation of South China Sea Bureau of Ministry of Natural Resources under contract No. 230201; the Research Fund Program of Guangdong Provincial Key Laboratory of Applied Marine Biology under contract No. LAMB20221007; the Natural Science Foundation of Guangdong Province of China under contract No. 2017A030310592; the Key Program of Bureau Director of State Oceanic Administration under contract No. 180104; the Open Project of State Key Laboratory of Tropical Oceanography, South China Sea Institute of Oceanology, Chinese Academy of Sciences under contract No. LTO1709.

References

Less

Burnett W C, Bokuniewicz H, Huettel M, et al. 2003. Groundwater and pore water inputs to the coastal zone. Biogeochemistry, 66(1–2): 3–33

Charette M A, Buesseler K O, Andrews J E. 2001. Utility of radium isotopes for evaluating the input and transport of groundwater-derived nitrogen to a Cape Cod estuary. Limnology and Oceanography, 46(2): 465–470, doi: 10.4319/lo.2001.46.2.0465

Chen Xiaogang, Lao Yanling, Wang Jinlong, et al. 2018. Submarine groundwater-borne nutrients in a tropical bay (Maowei Sea, China) and their impacts on the oyster aquaculture. Geochemistry, Geophysics, Geosystems, 19(3): 932–951

Cheng Qingxian. 2000. Guangdong Province Chronicle-Ocean and Island Chronicles (in Chinese). Guangzhou: Guangdong Peoples Publishing House, 79–80

Gao Jingyan, Wang Xuejing, Zhang Yan, et al. 2018. Estimating submarine groundwater discharge and associated nutrient inputs into Daya Bay during spring using radium isotopes. Water Science and Engineering, 11(2): 120–130, doi: 10.1016/j.wse.2018.06.002

Garcia-Solsona E, Garcia-Orellana J, Masqué P, et al. 2008. Uncertainties associated with ²²³Ra and ²²⁴Ra measurements in water via a Delayed Coincidence Counter (RaDeCC). Marine Chemistry, 109(3–4): 198–219

Gu Hequan, Moore W S, Zhang Lei, et al. 2012. Using radium isotopes to estimate the residence time and the contribution of submarine groundwater discharge (SGD) in the Changjiang effluent plume, East China Sea. Continental Shelf Research, 35: 95–107, doi: 10.1016/j.csr.2012.01.002

Han Wuying. 1995. Chemistry in Daya Bay, in Marine Chemistry of the Nansha Islands and South China Sea (in Chinese). Beijing: China Ocean Press, 60–103

Hancock G J, Murray A S. 1996. Source and distribution of dissolved radium in the Bega River estuary, southeastern Australia. Earth and Planetary Science Letters, 138(1–4): 145–155

Li Chunhou, Xu Shannan, Du Feiyan, et al. 2015. Responses of the Daya Bay ecosystem to human activities and health assessment. Chinese Fishery Quality and Standards (in Chinese), 5(1): 1–10

Moore W S. 1976. Sampling ²²⁸Ra in the deep ocean. Deep Sea Research and Oceanographic Abstracts, 23(7): 647–651, doi: 10.1016/0011-7471(76)90007-3

Moore W S. 1996. Large groundwater inputs to coastal waters revealed by ²²⁶Ra enrichment. Nature, 380(6575): 612–614, doi: 10.1038/380612a0

Moore W S. 2010. The effect of submarine groundwater discharge on the ocean. Annual Review of Marine Science, 2: 59–88, doi: 10.1146/annurev-marine-120308-081019

Moore W S, Arnold R. 1996. Measurement of ²²³Ra and ²²⁴Ra in coastal waters using a delayed coincidence counter. Journal of Geophysical Research, 101(C1): 1321–1329, doi: 10.1029/95JC03139

Moore W S, Blanton J O, Joye S B. 2006. Estimates of flushing times, submarine groundwater discharge, and nutrient fluxes to Okatee Estuary, South Carolina. Journal of Geophysical Research: Oceans, 111(C9): C09006, doi: 10.1029/2005JC003041

Rama, Moore W S. 1996. Using the radium quartet for evaluating groundwater input and water exchange in salt marshes. Geochimica et Cosmochimica Acta, 60(23): 4645–4652, doi: 10.1016/S0016-7037(96)00289-X

Rodellas V, Garcia-Orellana J, Trezzi G, et al. 2017. Using the radium quartet to quantify submarine groundwater discharge and porewater exchange. Geochimica et Cosmochimica Acta, 196: 58–73, doi: 10.1016/j.gca.2016.09.016

Wang Xuejing, Li Hailong, Zheng Chunmiao, et al. 2018. Submarine groundwater discharge as an important nutrient source influencing nutrient structure in coastal water of Daya Bay, China. Geochimica et Cosmochimica Acta, 225: 52–65, doi: 10.1016/j.gca.2018.01.029

Zhang Yan, Li Hailong, Guo Huaming, et al. 2020. Improvement of evaluation of water age and submarine groundwater discharge: a case study in Daya Bay, China. Journal of Hydrology, 586: 124775, doi: 10.1016/j.jhydrol.2020.124775

Appendix

Less

Year 2023 volume 42 Issue 8

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-023-2181-y

Receive Date：2023-01-28
Online Date：2025-11-22
Published：2023-08-25

Article Data

Affiliations

History

Received：2023-01-28
Accepted：2023-03-11

Funding

The Project of Key Laboratory of Marine Environmental Survey Technology and Application, Ministry of Natural Resources under contract No. MESTA-2021-D006; the China Ocean Development Foundation under contract No. CODF-002-ZX-2021; the Science and Technology Plan Projects of Guangdong Province under contract No. 2021B1212050025; the Director’s Foundation of South China Sea Bureau of Ministry of Natural Resources under contract No. 230201; the Research Fund Program of Guangdong Provincial Key Laboratory of Applied Marine Biology under contract No. LAMB20221007; the Natural Science Foundation of Guangdong Province of China under contract No. 2017A030310592; the Key Program of Bureau Director of State Oceanic Administration under contract No. 180104; the Open Project of State Key Laboratory of Tropical Oceanography, South China Sea Institute of Oceanology, Chinese Academy of Sciences under contract No. LTO1709.

Affiliations

¹ South China Sea Environment Monitoring Center, State Oceanic Administration, Guangzhou 510300, China

² Nansha Islands Coral Reef Ecosystem National Observation and Research Station, Guangzhou 510300, China

³ Key Laboratory of Marine Environmental Survey Technology and Application, Ministry of Natural Resources, Guangzhou 510300, China

⁴ CNOOC Research Institute Co., Ltd., Beijing 100028, China

Corresponding:

* nzx2004@163.com

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-023-2181-y

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Comparison of radium isotope activity concentrations (Bq/m³) in the surface water and coastal pore water of the Daya Bay

Sampling date	²²⁴Ra		²²³Ra		²²⁸Ra		Source
Sampling date	Range	Average	Range	Average	Range	Average	Source
Surface water
December 2015	1.7−44.3	6.6 ± 8.2	−	−	−	−	Wang et al. (2018)
March 2016	2.5−23.3	6.7 ± 4.7	ND−1.2	0.34 ± 0.22	−	−	Gao et al. (2018)
July 2015	2.5−49.0	11.7 ± 10.5	0.18−1.5	0.58 ± 0.31	2.3−16.7	6.62 ± 2.93	Zhang et al. (2020)
August 2015	0.6−12.8	6.1 ± 3.8	0.16−1.3	0.59 ± 0.30	0.42−3.0	1.8 ± 0.68	this study
Coastal groundwater
December 2015	32.3−1512	451 ± 396	−	−	−	−	Wang et al. (2018)
March 2016	0.9−1314	220 ± 324	0.45−23.2	4.32 ± 5.72	−	−	Gao et al. (2018)
July 2015	1.1−1299	330 ± 445	0.11−102	17.5 ± 33.0	0.37−234	37.7 ± 74	Zhang et al. (2020)
July 2018	3.0−106	49 ± 32	0.08−6.2	1.4 ± 2.0	0.86−18	6.9 ± 4.8	this study

Note: ND: lower than the detection limit. − represents no data.

Table 2. Values used for radium mass balance to estimate submarine groundwater discharge (SGD) flux to the northeast and the entirety of the Daya Bay

Parameter	²²⁴Ra		²²³Ra		²²⁸Ra
Parameter	Northeast bay	Entire bay	Northeast bay	Entire bay	Northeast bay	Entire bay
I/Bq	3.75 × 10⁹	3.15 × 10¹⁰	3.18 × 10⁸	3.07 × 10⁹	1.51 × 10⁹	1.03 × 10¹⁰
(I − 10VRa_op)/Bq	2.58 × 10⁹	2.78 × 10¹⁰	5.32 × 10⁷	2.15 × 10⁹	3.12 × 10⁸	7.92 × 10⁹
F_BS/(Bq·d⁻¹)	1.03 × 10¹⁰	4.92 × 10⁸	3.37 × 10⁹	7.03 × 10⁶	−	−
$({\text{λ}}I )$/(Bq·d⁻¹)	7.92 × 10⁹	7.02 × 10⁸	5.90 × 10⁹	1.93 × 10⁷	−	−
(Ra_gw− (1 − R_F)Ra_ns)/(Bq·m⁻³)	6.15	5.8	0.48	0.48	0.56	0.59
Q_SGD/(m³·d⁻¹)	1.30 × 10⁷	6.63 × 10⁷	5.06 × 10⁶	5.03 × 10⁷	1.27 × 10⁷	6.37 × 10⁷
	−	3.05 × 10^7a	−	2.89 × 10^7a	−	−
	−	(0.28−1.03) × 10^7b	−	−	−	−
	−	(1.97−6.49) × 10^7c	−	(1.51−4.79) × 10^7c	−	(3.33−5.51) × 10^7c

Note: Supscripts a, b, and c of Q_SGD data were from Gao et al., (2018), Wang et al., (2018), and Zhang et al., (2020), respectively. I: the radium isotope inventory in the study area; V: the water volume (m³); Ra_op: the end-member activity concentrations (Bq/m³) of radium isotopes in open sea water; F_BS: the radium isotope input from bottom sediments (Bq/d);

${\text{λ}} $

: the decay constant of radium isotope (d⁻¹);

${\rm{Ra}}_{{\rm{gw}}}$

and Ra_ns are the end-member activity concentrations (Bq/m³) of radium in groundwater and near-shore seawater; R_F is the ratio of the fresh SGD flux to the SGD flux; Q_SGD: SGD flux (m³/d) calculated by the radium activity. − represents no data.

Table 3. Four factors affecting residence time and submarine groundwater discharge (SGD) flux in the Daya Bay

${\rm{Factor}} $	${\rm{Region}} $	${\rm{Value}} $	$\tau $/d	Q$_{{\rm{SGD}} }^{224}$/ (10⁷ m³·d⁻¹)	Q$_{{\rm{SGD}} }^{223}$/ (10⁷ m³·d⁻¹)	Q$_{{\rm{SGD}} }^{228}$/ (10⁷ m³·d⁻¹)
Excess radium inventory (I − 10VRa_op)/Bq	northeast bay	²²⁴Ra: (2.58 ± 0.18) × 10⁹; ²²³Ra: (5.32 ± 4.37) × 10⁷; ²²⁸Ra: (3.12 ± 1.02) × 10⁸	4.0 ± 5.1	1.4 ± 1.3	0.53 ± 0.41	1.4 ± 1.3
Excess radium inventory (I − 10VRa_op)/Bq	entire bay	²²⁴Ra: (2.78 ± 0.05) × 10¹⁰; ²²³Ra: (2.15 ± 0.13) × 10⁹; ²²⁸Ra: (7.92 ± 0.50) × 10⁹	21 ± 2.1	6.6 ± 0.24	5.0 ± 0.26	6.4 ± 0.23
k in groundwater	northeast bay	11.3 ± 0.9	4.2 ± 1.3	1.5 ± 0.85	0.55 ± 0.22	1.5 ± 1.1
k in groundwater	entire bay	10.3 ± 0.9	20 ± 1.7	6.8 ± 0.36	5.1 ± 0.33	6.7 ± 1.0
Radium inputs from bottom sediments (F_BS)/(Bq·d⁻¹)	northeast bay	²²⁴Ra: (4.92 ± 2.17) × 10⁸; ²²³Ra: (7.03 ± 5.78) × 10⁶	4.0 ± 3.8	1.4 ± 1.3	0.53 ± 0.28	1.4 ± 1.3
Radium inputs from bottom sediments (F_BS)/(Bq·d⁻¹)	entire bay	²²⁴Ra: (3.37 ± 1.48) × 10⁹; ²²³Ra: (4.80 ± 3.97) × 10⁷	20 ± 11	7.1 ± 3.9	5.2 ± 1.5	6.8 ± 3.7
Radium end-members (Ra_gw − (1 − R_F)Ra_ns)/(Bq·m⁻³)	northeast bay	²²⁴Ra: 62 ± 31; ²²³Ra: 4.8 ± 1.2; ²²⁸Ra: 5.6 ± 2.1	4.4 ± 0	1.4 ± 0.39	0.51 ± 0.05	1.4 ± 0.37
Radium end-members (Ra_gw − (1 − R_F)Ra_ns)/(Bq·m⁻³)	entire bay	²²⁴Ra: 58 ± 31; ²²³Ra: 4.8 ± 1.2; ²²⁸Ra: 5.9 ± 1.9	21 ± 0	6.9 ± 2.3	5.1 ± 0.52	6.7 ± 1.6

Note: I: the radium isotope inventory in the study area; V: the water volume (m³); Ra_op: the end-member activity concentrations of radium isotopes in open sea water (Bq/m³); k: ²²⁴Ra/²²⁸Ra activity ratio difference between groundwater and near-shore seawater; F_BS: the radium isotope input from bottom sediments; R_F: the ratio of the fresh SGD flux to the SGD flux; Ra_gw and Ra_ns are the end-member activity concentrations of radium in groundwater and near-shore seawater.

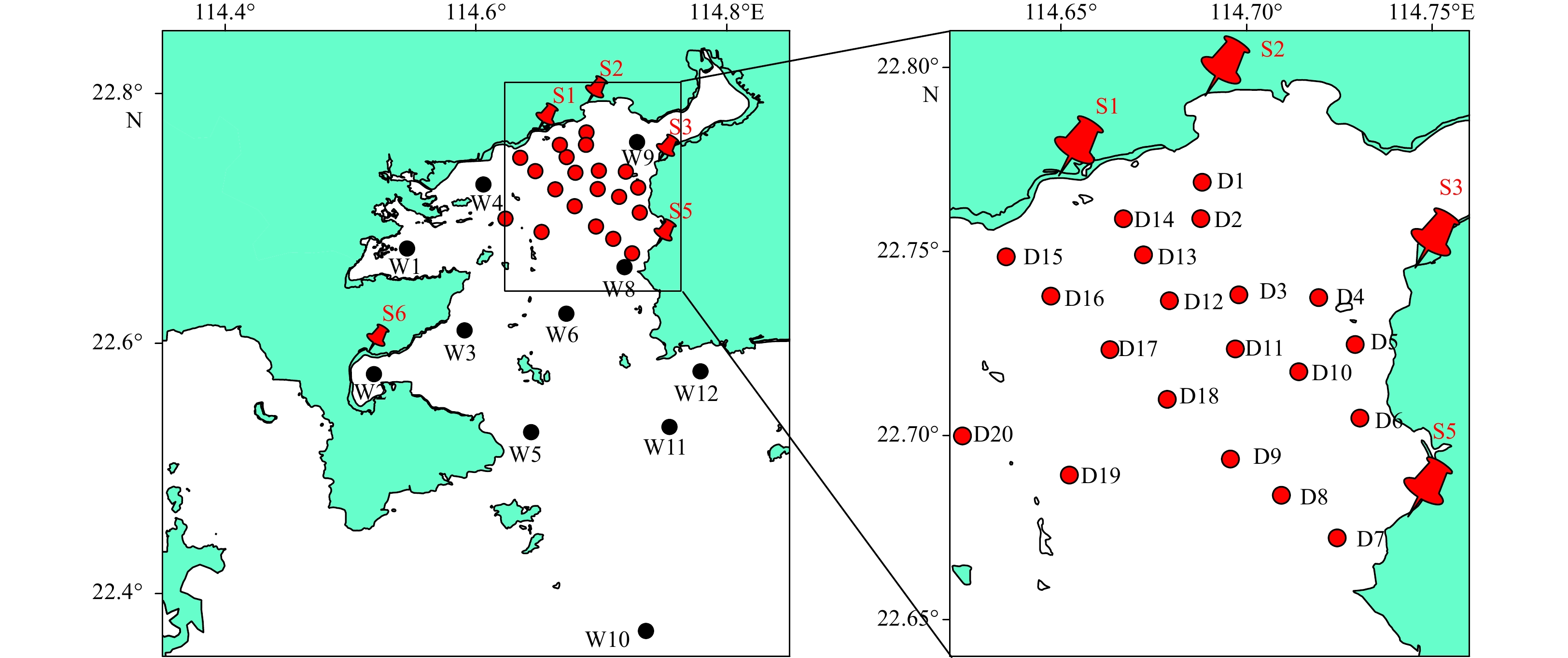

Fig. 1. Sampling stations in the northeast and entirety of the Daya Bay. The red dots indicate the radium sampling sites in the northeast bay during September 2019; the black dots show the radium sampling sites in the entire bay during August 2015; pore water samples are noted with red pins.

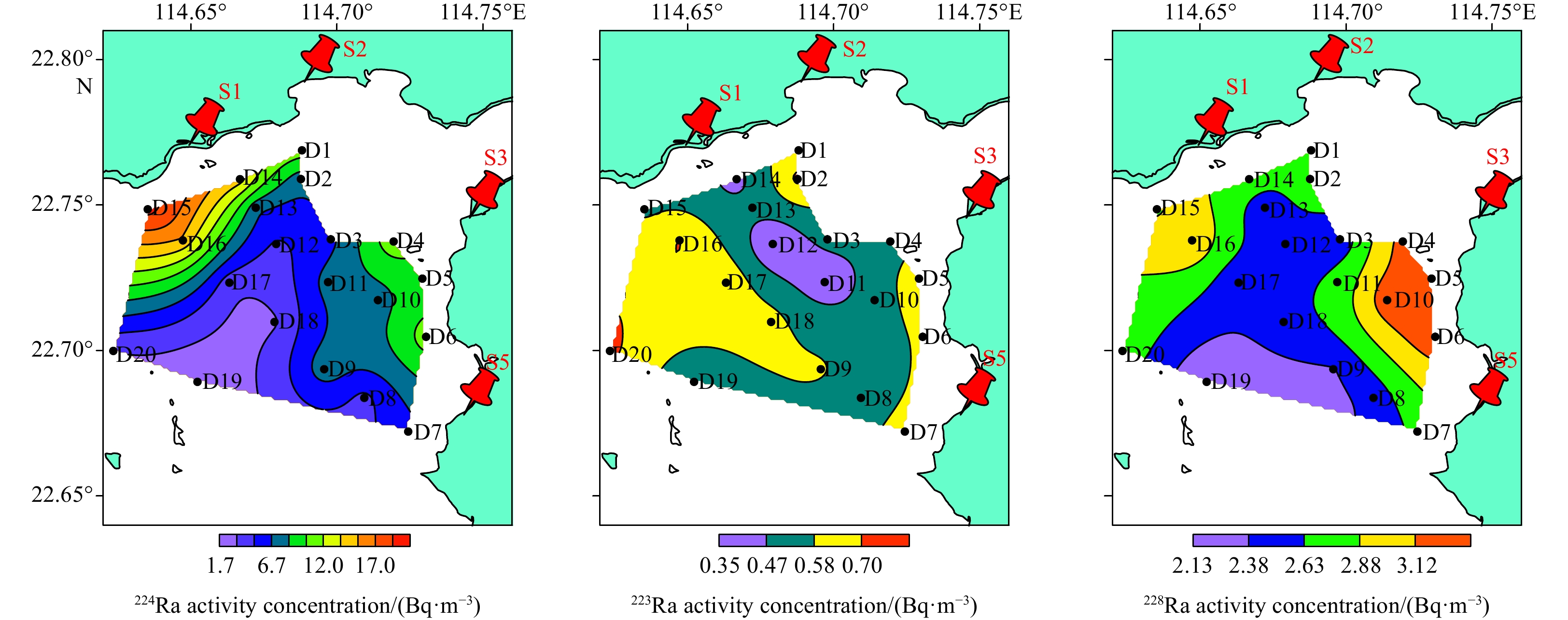

Fig. 2. Horizontal distributions of ²²⁴Ra, ²²³Ra, ²²⁸Ra in the surface water of the northeast bay during the September 2019 cruise.

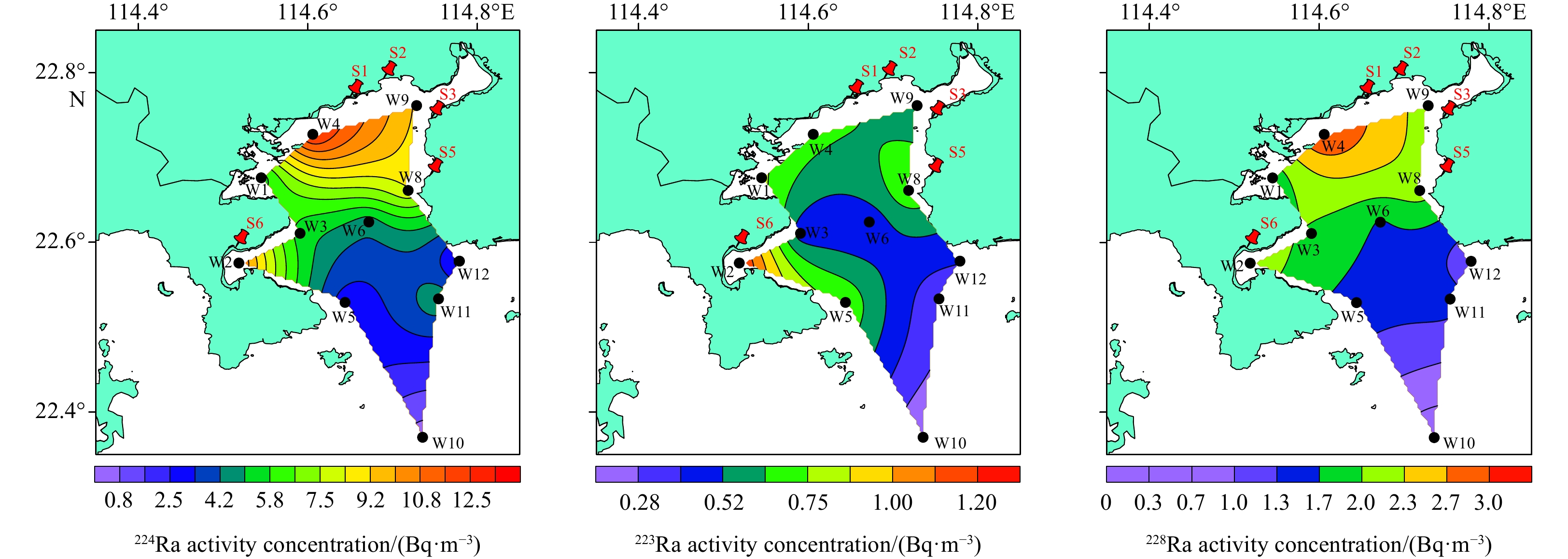

Fig. 3. Horizontal distributions of ²²⁴Ra, ²²³Ra, ²²⁸Ra in the surface water of the entire bay during the August 2015 cruise.
