Acta Oceanologica Sinica | 2023, 42(6): 33-38
• Marine Biology •
Assessment of prediction model of the CPUE of neon flying squid with different sources of remote sensing data
Full
Liang Chang1, 2, 3, 4, 5, 6, Yanli Yang1, Xinjun Chen1, 3, 4, 5, 6, *, Wei Yu1, 2, 3, 4, 5, 6, Yangdong Li1, 3, 4, 5, 6, Guiping Feng1, 3, 4, 5, 6, Yang Zhang2
Affiliations
  • 1 College of Marine Sciences, Shanghai Ocean University, Shanghai 201306, China
  • 2 State Key Laboratory of Satellite Ocean Environment Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China
  • 3 National Engineering Research Centre for Oceanic Fisheries, Shanghai Ocean University, Shanghai 201306, China
  • 4 Key Laboratory of Sustainable Exploitation of Oceanic Fisheries Resources of Ministry of Education, Shanghai Ocean University, Shanghai 201306, China
  • 5 Key Laboratory of Oceanic Fisheries Exploration, Ministry of Agriculture and Rural Affairs, Shanghai 201306, China
  • 6 Scientific Observing and Experimental Station of Oceanic Fishery Resources, Ministry of Agriculture and Rural Affairs, Shanghai 201306, China
Published: 2023-06-25 doi: 10.1007/s13131-022-2049-6
Outline
收藏切换

Accurately building the relationship between the oceanographic environment and the distribution of neon flying squid (Ommastrephes bartramii) is very important to understand the potential habitat pattern of O. bartramii. However, when building the prediction model of O. bartramii with traditional oceanographic variables (e.g., chlorophyll a concentration (Chl a) and sea surface temperature (SST)) from space-borne observations, part of the important spectrum characteristics of the oceanic surface could be masked by using the satellite data products directly. In this study, the neglected remote sensing information (i.e., spectral remote sensing reflectance (Rrs) and brightness temperature (BT)) is firstly incorporated to build the prediction model of catch per unit effort (CPUE) of O. bartramii from July to December during 2014–2018 in the Northwest Pacific Ocean. Results show that both the conventional oceanographic variables and the neglected remote sensing data are suitable for building the prediction model, whereas the overall root mean square error (RMSE) of the predicted CPUE of O. bartramii with the former is typically less accurate than that with the latter. Hence, the Rrs and BT could be a more suitable data source than the Chl a and SST to predict the distribution of O. bartramii, highlighting that the potential value of the neglected variables in understanding the habitat suitability of O. bartramii.

Ommastrephes bartramii  /  CPUE prediction  /  remote sensing  /  Rrs  /  BT.
Liang Chang, Yanli Yang, Xinjun Chen, Wei Yu, Yangdong Li, Guiping Feng, Yang Zhang. Assessment of prediction model of the CPUE of neon flying squid with different sources of remote sensing data[J]. Acta Oceanologica Sinica, 2023 , 42 (6) : 33 -38 . DOI: 10.1007/s13131-022-2049-6
Full Text
Less
1 Introduction
Less
The neon flying squid, Ommastrephes bartramii, is one of the most important cephalopod with great potential for economic development, widely distributed over the Pacific Ocean (Roper et al., 1984). The life history stages of O. bartramii are affected by the ambient oceanographic regimes and the epipelagic environment (Alabia et al., 2016; Igarashi et al., 2017), and its spatial and temporal distributions are highly related to the variability in various oceanographic variables (Yu et al., 2015). Additionally, based on the relationships between the environmental variables and the distribution of the O. bartramii, the potential fishing ground and the habitat suitability of the O. bartramii can also be detected and assessed (e.g., Cao et al., 2009; Chen et al., 2011; Nishikawa et al., 2014). As such, understanding of the relationship between the oceanographic environmental factors and the spatio-temporal distributions of O. bartramii is essential for predicting its potential habitat pattern in the Pacific Ocean.
Several oceanographic variables, such as chlorophyll a concentration (Chl a) (e.g., Chen et al., 2010; Yu et al., 2017; Nishikawa et al., 2014) and sea surface temperature (SST) (e.g., Chen et al., 2007; Yatsu et al., 2010; Yu et al., 2020) are demonstrated to affect the habitat variations of O. bartramii in the Northwest Pacific Ocean. In order to deduce the distribution of O. bartramii, previous studies (e.g., Gong et al., 2012; Alabia et al., 2015; Wang et al., 2015, 2016; Yu et al., 2016a, 2016b, 2021) usually build the model between the distribution of O. bartramii and the environmental factors. Generally, traditional models are directly built based on the satellite-based oceanographic environment variables (e.g., Chl a and SST). However, the Chl a and SST data products cannot fully describe the spectrum characteristics of the oceanic surface. On one hand, Chl a and SST are not the only indicators for the ocean water. On the other hand, uncertainties in Chl a and SST remain after making several corrections during the data processing (e.g., Cui et al., 2020; Gentemann and Hilburn, 2015). As a result, the connection between conventional satellite-based oceanographic variables and distribution of O. bartramii may be not able to accurately represent the habitation of O. bartramii under different oceanic conditions.
In fact, the Chl a and SST measurements are not the raw information of the satellite observations. The Chl a can be estimated based on the ratio (O’Reilly et al., 1998; O’Reilly and Werdell, 2019) or difference (Hu et al., 2012, 2019) of spectral remote sensing reflectance (Rrs) at blue and green bands. In addition, the SST can be retrieved with different algorithms (e.g., Shibata, 2006; Wentz and Meissner, 2007; Meissner and Wentz, 2012; Merchant et al., 2008, 2009) based on the brightness temperature (BT). As such, the Rrs and BT measurements are the more neglected remote sensing information than the Chl a and SST, respectively.
In this study, the neglected remote sensing Rrs and/or BT data are firstly introduced to simulate and predict the distribution of O. bartramii with the feed-forward back propagation (BP) artificial neural network (ANN) model in the Northwest Pacific Ocean. In order to assess the performance of Rrs and/or BT on representing the distribution of O. bartramii, the ANN- stimulated and -predicted CPUE of O. bartramii are compared with the nominal CPUE from in situ daily fishery logbook data. Moreover, in order to clarify the superiority of the neglected remote sensing data to the conventional oceanographic variables, the performance differences between them on predicting the distribution of O. bartramii are also investigated.
2 Materials and methods
Less
2.1 Data sources
The O. bartramii daily fishery logbook data were obtained from the Chinese Squid-Jigging Technology Group of Shanghai Ocean University from July to December during 2004–2018. These data include fishing dates, daily catch (tonnes), fishing effort (days fished) and fishing locations (latitude and longitude) for the Chinese commercial squid fishery operating on the traditional fishing ground between 35°–50°N and 145°–175°E in the Northwest Pacific Ocean. The western stock of winter–spring O. bartramii accounted for most of the catch in the western Pacific Ocean with no bycatch. Chinese squid-jigging fishing vessels were equipped with almost identical engine, lamp and fishing power. These data were compiled into monthly data and grouped using 1°×1° grid cells. As a result, a total of 416 grids (26 columns by 16 rows) are generated. The monthly nominal catch per unit effort (CPUE) in one fishing unit of 1°×1° can then be calculated by
$ {\mathrm{CPUE}}_{y,m,i}=\frac{{C}_{y,m,i}}{{F}_{y,m,i}}, $
where $ {\mathrm{C}\mathrm{P}\mathrm{U}\mathrm{E}}_{y,m,i} $ is the monthly nominal CPUE, $ {C}_{y,m,i} $ is the total catch for all the fishing vessels within a fishing grid, $ {F}_{y,m,i} $ is the number of fishing vessels within one fishing grid, i is fishing unit at 1°×1° grids, m is month and y is year. In this paper, the derived monthly nominal CPUE was used as a reliable index of squid abundance, as well as the response variable to assess the performance of the prediction model.
The Level-3 Moderate Resolution Imaging Spectroradiometer (MODIS) Chl a and the neglected Rrs monthly data, collected by both Terra and Aqua from 2004 to 2018, were acquired from National Aeronautics and Space Administration (NASA) Goddard Space Flight Center (http://oceancolor.gsfc.nasa.gov). Both Chl a and Rrs data are at a 9 km×9 km (at nadir) spatial resolution. The MODIS Chl a is calculated using an empirical relationship derived from in situ measurements and Rrs in the blue-to-green region of the visible spectrum. Specifically, Rrs at 465 nm, 555 nm and 645 nm spectral regimes are used to estimate the near-surface MODIS Chl a product via merging the standard OC3/OC4 (OCx) band ratio algorithm (O’Reilly et al., 1998) and the color index of Hu et al. (2012). Therefore, only MODIS Rrs data at 465 nm, 555 nm and 645 nm spectral regimes are incorporated for further analysis in this paper. In addition, after averaging the monthly Chl a (and Rrs) data from Terra and Aqua platforms, the averaged Chl a (and Rrs) data were resampled according to the location of the monthly nominal CPUE grids (i.e., at a horizontal resolution of 1°).
SST and the neglected BT measurements were retrieved from Advanced Microwave Scanning Radiometer for Earth Observing System (AMSR-E) onboard Aqua launched in May 2002 and decommissioned in October 2011, as well as the follow-on instrument AMSR2 flown on the Global Change Observing Mission (GCOM-1) launched in May 2012. In this paper, BT measurements at 6 GHz horizontal (H) and vertical (V) polarization, 10H, 10V, 23 V, 37H and 37V are used for comparisons with SST. Both AMSR-E and AMSR2 Level-3 monthly data products, with a spatial resolution of 25 km and 10 km, respectively, were obtained from Japanese Aerospace Exploration Agency (JAXA; https://sharaku.eorc.jaxa.jp/AMSR/index.html). In order to obtain the spatiotemporally synchronized matchups between CPUE and SST (and BT) data, SST and BT data are also resampled at 1°×1° grid cells.
2.2 CPUE modelling
In this paper, we use the ANN to build the prediction model between the CPUE of O. bartramii and oceanographic information. The ANN is a model that is motivated by the biological neural network of the human brain and is used to simulate the processes that depends on a huge number of unknown inputs (Priddy and Keller, 2005). ANN is the collections of interconnected neurons that interchanges information among each other, and the connections are weighted and adjusted to get appropriate results. ANN contains mainly input layer, hidden layer and output layer. Neurons in the input layer accept the inputs for further processing. Neurons in the hidden layer accept the input from input layer with allotted weights, as well as forward the output to the output layer. In the output layer, neurons are represented with expected attribute values to the external world as output.
Back propagation (BP) algorithm is utilized in the layered feed-forward ANN in this study to build the prediction model of O. bartramii in the Northwest Pacific Ocean. The feed-forward BP neural network is a supervised learning ANN and based on the learning rule for decreasing error till the ANN becomes skilled at the data training (Wang et al., 2015). In addition, the Levenberg–Marquardt algorithm (trainlm) training algorithms is selected during the implementation of the feed-forward BP ANN (Zhang et al., 2015). Trainlm training function is based on Levenberg–Marquardt optimization and updates the bias to weight values. Trainlm falls in the supervised training algorithm category and serves as the fastest BP algorithm (Sangwan et al., 2020). The disadvantage of trainlm is that it takes more memory than other algorithms.
In this study, the input layer of the feed-forward BP ANN may include one or more kinds of remote sensing data, and the output layer is the CPUE of O. bartramii. Additionally, we implement the ANN training at each grid cell in each month. In order to assess the performance of conventional oceanographic variables and neglected remote sensing information on building the prediction model of O. bartramii in the Northwest Pacific Ocean, six schemes are designed to build the feed-forward BP ANN model in this paper (see Table 1). The schemes differ from each other by using different data sources as the model input. Schemes Ⅰ, Ⅱ and Ⅲ use the conventional Chl a, SST and their combination as the input, and Schemes Ⅳ, Ⅴ and Ⅵ use the corresponding neglected Rrs, BT and their combination as the input. Additionally, performances of the schemes also provide us an opportunity to examine the potential of neglected remote sensing information on improving our understanding of the distribution of O. bartramii. Moreover, both the O. bartramii fishery data and remote sensing measurements are split into two temporal groups for model training and validating, respectively. The first group in July–December of 2004–2013 is used to build the prediction model between the remote sensing data and the CPUE of O. bartramii, and estimate the internal coincidence precision of the model by comparing the model output with the monthly nominal CPUE of O. bartramii. The other group in July–December of 2014–2018 is used to validate the performance of the built model in terms of external coincidence precision via comparing the model predictions with the nominal CPUE
3 Results
Less

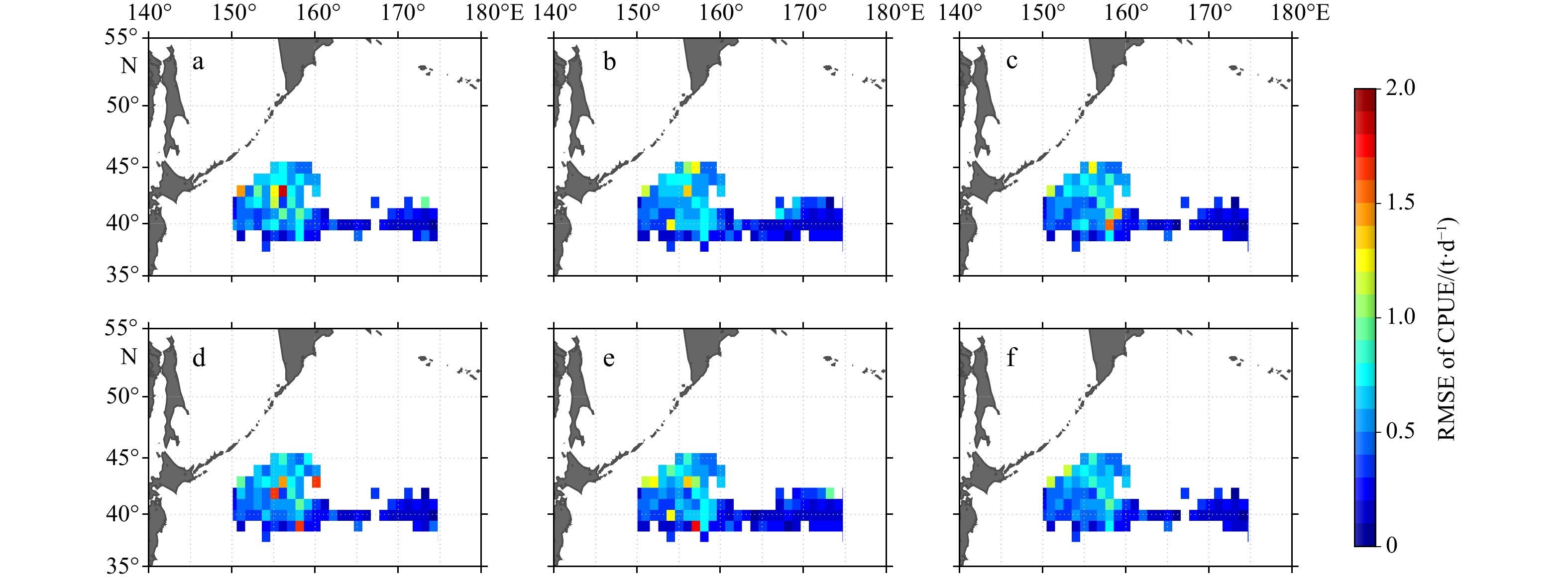

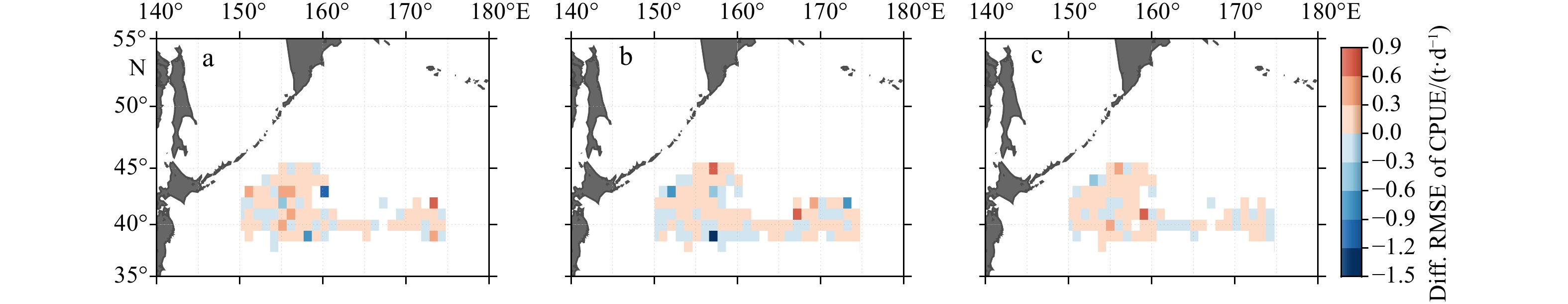

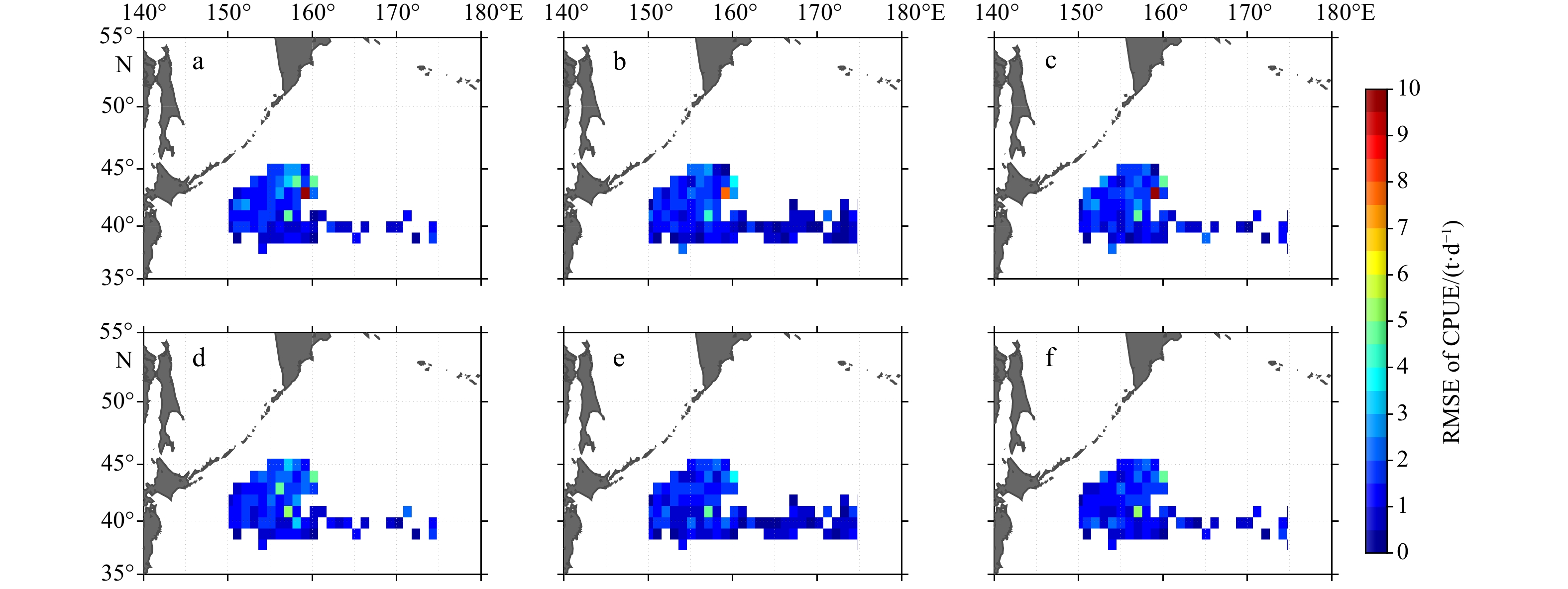

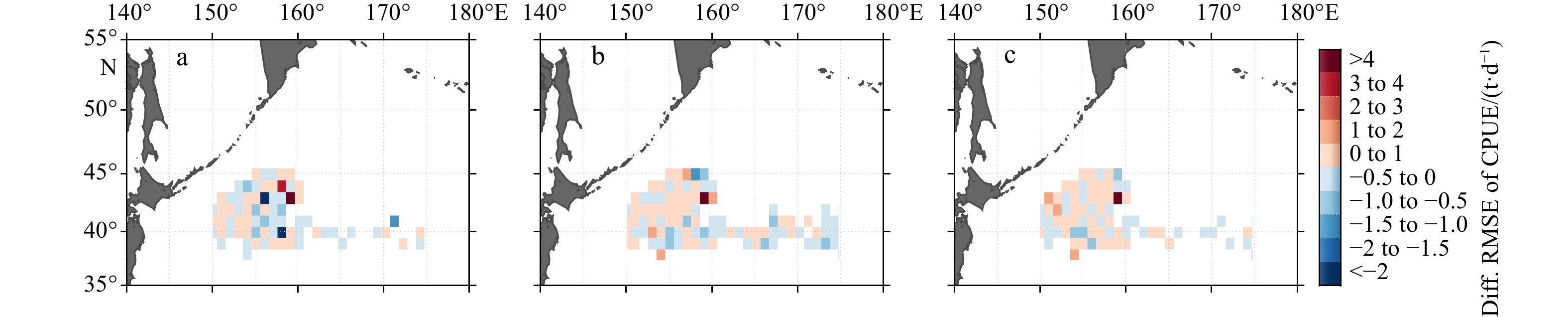

In order to assess the performance of the ANN-derived distribution of CPUE of O. bartramii in the Northwest Pacific Ocean, we analyzed the precision of the prediction model of O. bartramii. Figure 1 displayed the root mean square error (RMSE) of the ANN-simulated CPUE of O. bartramii from July to December during 2004–2013 with the conventional oceanographic variables (Figs 1a–c) and the neglected remote sensing data (Figs 1d–f) as input. Uncertainties in the ANN-simulated CPUE of O. bartramii with Chl a as input (Fig. 1a) generally exhibited similar spatial distribution to those with Rrs as input (Fig. 1d). Additionally, the overall RMSE of the ANN-simulated CPUE in Schemes Ⅰ and Ⅳ was approximately 0.49 t/d and 0.47 t/d, respectively, indicating both Chl a and Rrs were suitable to simulate the CPUE of O. bartramii with the feed-forward BP ANN. Moreover, the overall RMSE of the ANN-simulated CPUE of O. bartramii with both SST (Fig. 1b) and BT (Fig. 1e) as input was about 0.45 t/d. When the conventional Chl a and SST from July to December during 2004–2013 were combined as the input to the feed-forward BP ANN (i.e., Scheme Ⅲ), the ANN-simulated CPUE of O. bartramii agreed well with the nominal CPUE (Fig. 1c). Moreover, the combined Rrs and BT also successfully simulated the CPUE of O. bartramii (i.e., Scheme Ⅵ). The overall RMSE of ANN-simulated CPUE was approximately 0.46 t/d and 0.42 t/d in Schemes Ⅲ and Ⅵ, respectively. In general, when the conventional oceanographic variables were input to build the prediction model (i.e., Schemes Ⅰ, Ⅱ and Ⅲ), the RMS of the ANN-simulated CPUE of O. bartramii was greater than the simulation results with the corresponding neglected remote sensing data as input (i.e., Schemes Ⅳ, Ⅴ and Ⅵ) (Fig. 2).
When the conventional oceanographic variables are inputted to the ANN, remarkable uncertainties (e.g., RMSE > 7.0 t/d) were observed in the predicted CPUE of O. bartramii (Figs 3a–c). After replacing with the neglected remote sensing data as input, the uncertainties of the ANN-predicted CPUE of O. bartramii were obviously mitigated (Figs 3d–f). The overall RMSE of the ANN-predicted CPUE with conventional oceanographic variables as input was approximately 1.55 t/d, 1.29 t/d and 1.51 t/d in Schemes Ⅰ, Ⅱ and Ⅲ, as well as 1.48 t/d, 1.18 t/d and 1.30 t/d with the neglected remote sensing data as input in Schemes Ⅳ, Ⅴ and Ⅵ, respectively. Although the incorporation of the neglected remote sensing data also worsened the RMS of the ANN-predicted CPUE of O. bartramii at some grids, the RMS improvements were more widely observed in the Northwest Pacific Ocean (Fig. 4).
4 Discussion
Less
The distribution of fish species is highly related with the environmental variations (Chen, 2004). Hence, accurately building the relationship between fish species and ambient environment is essential to understand the habitat preferences of fish species and predict the dynamics of the fish population (Dickey, 2003; Ishikawa et al., 2009; Nakada et al., 2014). The ANN model has been used to predict the distributions of capelin (Mallotus villosus) (Huse, 2001), European eel (Anguilla anguilla) (Laffaille et al., 2003, 2004), Eurasian perch (Perca fluviatilis) (Brosse and Lek, 2002), neon flying squid (O. bartramii) (Wang et al., 2015) and skipjack tuna (Katsuwonus pelamis) (Wang et al., 2018). The input parameters of the ANN model in previous studies were mostly the conventional oceanographic variables, such as Chl a, SST, and/or sea surface height (SSH). However, these conventional oceanographic variables are not representative of the oceanic environment. In this study, the neglected Rrs and/or BT data were firstly proposed to simulate and predict the spatio-temporal distributions of O. bartramii in the Northwest Pacific Ocean based on the feed-forward BP ANN model.
The robust connections between the distributions of O. bartramii and SST have also been demonstrated by previous studies (e.g., Chen and Tian, 2005; Chen et al., 2007, 2008). Wang et al. (2015) also suggested that the favourable range of SST for O. bartramii was 11–18°C in the Northwest Pacific Ocean based on the BP ANN model. This article further demonstrated that the neglected BTs have consistent effects with SST on simulating the CPUE of O. bartramii with the feed-forward BP ANN in the Northwest Pacific Ocean (Figs 1b, e and 2b; Table 2). Moreover, we also found that BT was better than SST in predicting the distribution of O. bartramii, since the RMSE of the CPUE of O. bartramii is decreased by approximately 9% for the former (Figs 3b, e and 4b; Table 2).
Considering that the Chl a is a good indicator of the food availability for squid (Nishikawa et al., 2014), it is an important environmental variables that significantly affects the distribution of O. bartramii (Xu et al., 2004). This study confirmed the importance of Chl a during the simulation and prediction of the CPUE of O. bartramii in the Northwest Pacific Ocean with the BP ANN (Figs 1a and 3a). Additionally, we also found that the Rrs measurements at 465 nm, 555 nm and 645 nm were more suitable than the Chl a to simulate and predict the distribution of O. bartramii (Figs 1d, 2a, 3d and 4a; Table 2). As such, the neglected Rrs (and BT) could be a prefer data source than the conventional Chl a (and SST) in studying the habitat suitability of O. bartramii in the Northwest Pacific Ocean.
While the RMSEs of the simulated and predicted CPUE of O. bartramii with the combined Chl a and SST (Rrs and BT) as the model input were less than those with Chl a (Rrs) as the model input, they were greater than those with SST (BT) as the model input (Table 2). Moreover, the uncertainties in the simulated and predicted CPUE of O. bartramii with the Chl a (Rrs) as model input were remarkably larger than those with the SST (BT) as model input (Table 2). This indicated that the RMSE improvements with the combined parameters as input were mainly owe to the SST (BT), and that the SST (BT) was better than the Chl a (Rrs) in simulating and predicting the CPUE of O. bartramii in the Northwest Pacific Ocean. The results were also consistent with Wang et al. (2015), who found that the SST was the most important environmental factor in the formation of fishing grounds and it had the greatest influence on the prediction model.
It is also worth mentioning that despite only the CPUE of O. bartramii in the Northwest Pacific Ocean is simulated and predicted in this paper, the neglected Rrs (and BT) data could be further popularized to build the prediction model of other marine species over other sea areas. Furthermore, the corresponding neglected remote sensing information to other conventional oceanographic variables (e.g., SSH, sea surface salinity and wind stress curl) can be also further explored for studying the habitat suitability of the marine species.
Acknowledgements
Less
The authors thank two anonymous reviewers for their constructive suggestions and insightful criticisms that substantially improved the quality of our work.
Funding
Less
  • The National Key Research and Development Program of China under contract No. 2019YFD0901404; the National Natural Science Foundation of China under contract No. 42174016; the Shanghai Science and Technology Innovation Action Plan under contract No. 19DZ1207502; the Open Fund of State Key Laboratory of Satellite Ocean Environment Dynamics, Second Institute of Oceanography, Ministry of Natural Resources under contract No. QNHX2324.
References
Less
Alabia I D, Saitoh S I, Hirawake T, et al. 2016. Elucidating the potential squid habitat responses in the central North Pacific to the recent ENSO flavors. Hydrobiologia, 772(1): 215–227, doi: 10.1007/s10750-016-2662-5
Alabia I D, Saitoh S I, Mugo R, et al. 2015. Seasonal potential fishing ground prediction of neon flying squid (Ommastrephes bartramii) in the western and central North Pacific. Fisheries Oceanography, 24(2): 190–203, doi: 10.1111/fog.12102
Brosse S, Lek S. 2002. Relationships between environmental characteristics and the density of Age-0 Eurasian perch Perca fluviatilis in the littoral zone of a lake: a nonlinear approach. Transactions of the American Fisheries Society, 131(6): 1033–1043, doi: 10.1577/1548-8659(2002)131<1033:RBECAT>2.0.CO;2
Cao Jie, Chen Xinjun, Chen Yong. 2009. Influence of surface oceanographic variability on abundance of the western winter-spring cohort of neon flying squid Ommastrephes bartramii in the NW Pacific Ocean. Marine Ecology Progress Series, 381: 119–127, doi: 10.3354/meps07969
Chen Xinjun. 2004. Fisheries Resources and Oceanography (in Chinese). Beijing: China Ocean Press, 116–134
Chen Xinjun, Liu Bilin, Chen Yong. 2008. A review of the development of Chinese distant-water squid jigging fisheries. Fisheries Research, 89(3): 211–221, doi: 10.1016/j.fishres.2007.10.012
Chen Xinjun, Tian Siquan. 2005. Study on the catch distribution and relationship between fishing ground and surface temperature for Ommastrephes bartrami in the northwestern Pacific Ocean. Periodical of Ocean University of China (in Chinese), 35(1): 101–107
Chen Xinjun, Tian Siquan, Chen Yong, et al. 2010. A modeling approach to identify optimal habitat and suitable fishing grounds for neon flying squid (Ommastrephes bartramii) in the Northwest Pacific Ocean. Fishery Bulletin, 108(1): 1–14
Chen Xinjun, Tian Siquan, Liu Bilin, et al. 2011. Modeling a habitat suitability index for the eastern fall cohort of Ommastrephes bartramii in the central North Pacific Ocean. Chinese Journal of Oceanology and Limnology, 29(3): 493–504, doi: 10.1007/s00343-011-0058-y
Chen Xinjun, Zhao Xiaohu, Chen Yong. 2007. Influence of El Niño/La Niña on the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) in the northwestern Pacific Ocean. ICES Journal of Marine Science, 64(6): 1152–1160, doi: 10.1093/icesjms/fsm103
Cui Tingwei, Zhang Jie, Wang Kun, et al. 2020. Remote sensing of chlorophyll a concentration in turbid coastal waters based on a global optical water classification system. ISPRS Journal of Photogrammetry and Remote Sensing, 163: 187–201, doi: 10.1016/j.isprsjprs.2020.02.017
Dickey T D. 2003. Emerging ocean observations for interdisciplinary data assimilation systems. Journal of Marine Systems, 40–41: 5–48
Gentemann C L, Hilburn K A. 2015. In situ validation of sea surface temperatures from the GCOM-W1 AMSR2 RSS calibrated brightness temperatures. Journal of Geophysical Research: Oceans, 120(5): 3567–3585, doi: 10.1002/2014JC010574
Gong Caixia, Chen Xinjun, Gao Feng, et al. 2012. Importance of weighting for multi-variable habitat suitability index model: a case study of winter-spring cohort of Ommastrephes bartramii in the northwestern Pacific Ocean. Journal of Ocean University of China, 11(2): 241–248, doi: 10.1007/s11802-012-1898-6
Hu Chuanmin, Feng Lian, Lee Zhongping, et al. 2019. Improving satellite global chlorophyll a data products through algorithm refinement and data recovery. Journal of Geophysical Research: Oceans, 124(3): 1524–1543, doi: 10.1029/2019JC014941
Hu Chuanmin, Lee Zhongping, Franz B. 2012. Chlorophyll a algorithms for oligotrophic oceans: a novel approach based on three-band reflectance difference. Journal of Geophysical Research: Oceans, 117(C1): C01011
Huse G. 2001. Modelling habitat choice in fish using adapted random walk. Sarsia, 86(6): 477–483, doi: 10.1080/00364827.2001.10420487
Igarashi H, Ichii T, Sakai M, et al. 2017. Possible link between interannual variation of neon flying squid (Ommastrephes bartramii) abundance in the North Pacific and the climate phase shift in 1998/1999. Progress in Oceanography, 150: 20–34, doi: 10.1016/j.pocean.2015.03.008
Ishikawa Y, Awaji T, Toyoda T, et al. 2009. High-resolution synthetic monitoring by a 4-dimensional variational data assimilation system in the northwestern North Pacific. Journal of Marine Systems, 78(2): 237–248, doi: 10.1016/j.jmarsys.2009.02.016
Laffaille P, Baisez A, Rigaud C, et al. 2004. Habitat preferences of different european eel size classes in a reclaimed marsh: a contribution to species and ecosystem conservation. Wetlands, 24: 642–651, doi: 10.1672/0277-5212(2004)024[0642:HPODEE]2.0.CO;2
Laffaille P, Feunteun E, Baisez A, et al. 2003. Spatial organisation of European Eel (Anguilla anguilla L. ) in a small catchment. Ecology of Freshwater Fish, 12(4): 254–264, doi: 10.1046/j.1600-0633.2003.00021.x
Meissner T, Wentz F J. 2012. The emissivity of the ocean surface between 6 and 90 GHz over a large range of wind speeds and Earth incidence angles. IEEE Transactions on Geoscience and Remote Sensing, 50: 3004–3026, doi: 10.1109/TGRS.2011.2179662
Merchant C J, Le Borgne P, Marsouin A, et al. 2008. Optimal estimation of sea surface temperature from split-window observations. Remote Sensing of Environment, 112(5): 2469–2484, doi: 10.1016/j.rse.2007.11.011
Merchant C J, Le Borgne P, Roquet H, et al. 2009. Sea surface temperature from a geostationary satellite by optimal estimation. Remote Sensing of Environment, 113(2): 445–457, doi: 10.1016/j.rse.2008.10.012
Nakada S, Hirose N, Senjyu T, et al. 2014. Operational ocean prediction experiments for smart coastal fishing. Progress in Oceanography, 121: 125–140, doi: 10.1016/j.pocean.2013.10.008
Nishikawa H, Igarashi H, Ishikawa Y, et al. 2014. Impact of paralarvae and juveniles feeding environment on the neon flying squid (Ommastrephes bartramii) winter-spring cohort stock. Fisheries Oceanography, 23(4): 289–303, doi: 10.1111/fog.12064
O’Reilly J E, Maritorena S, Mitchell B G, et al. 1998. Ocean color chlorophyll algorithms for SeaWiFS. Journal of Geophysical Research: Oceans, 103(C11): 24937–24953, doi: 10.1029/98JC02160
O’Reilly J E, Werdell P J. 2019. Chlorophyll algorithms for ocean color sensors-OC4, OC5 & OC6. Remote Sensing of Environment, 229: 32–47, doi: 10.1016/j.rse.2019.04.021
Priddy K L, Keller P E. 2005. Artificial Neural Networks: An Introduction. Bellingham: SPIE Press, 113
Roper C F E, Sweeney M J, Nauen C E. 1984. Cephalopods of the World: An Annotated and Illustrated Catalogue of Species of Interest to Fisheries. Rome, Italy: FAO Fish Finder, 1–277
Sangwan P, Deshwal D, Kumar D, et al. 2020. Isolated word language identification system with hybrid features from a deep belief network. International Journal of Communication Systems. https://onlinelibrary.wiley.com/doi/10.1002/dac.4418[2020-04-26/2022-02-13]
Shibata A. 2006. Features of ocean microwave emission changed by wind at 6 GHz. Journal of Oceanography, 62(3): 321–330, doi: 10.1007/s10872-006-0057-3
Wang Jintao, Chen Xinjun, Staples K W, et al. 2018. The skipjack tuna fishery in the west-central Pacific Ocean: applying neural networks to detect habitat preferences. Fisheries Science, 84(2): 309–321, doi: 10.1007/s12562-017-1161-6
Wang Jintao, Yu Wei, Chen Xinjun, et al. 2015. Detection of potential fishing zones for neon flying squid based on remote-sensing data in the Northwest Pacific Ocean using an artificial neural network. International Journal of Remote Sensing, 36(13): 3317–3330, doi: 10.1080/01431161.2015.1042121
Wang Jintao, Yu Wei, Chen Xinjun, et al. 2016. Stock assessment for the western winter-spring cohort of neon flying squid (Ommastrephes bartramii) using environmentally dependent surplus production models. Scientia Marina, 80(1): 69–78
Wentz F J, Meissner T. 2007. AMSR-E Ocean Algorithms. Santa Rosa, CA, USA: Remote Sensing Systems, 6
Xu Zhaoli, Cui Xuesen, Huang Hongliang. 2004. Distribution of zooplankton in Ommastrephes batrami fishing ground of the North Pacific Ocean and its relationship with the fishing ground. Journal of Fisheries of China (in Chinese), 28(5): 515–521
Yatsu A, Watanabe T, Mori J, et al. 2000. Interannual variability in stock abundance of the neon flying squid, Ommastrephes bartramii, in the North Pacific Ocean during 1979–1998: impact of driftnet fishing and oceanographic conditions. Fisheries Oceanography, 9(2): 163–170, doi: 10.1046/j.1365-2419.2000.00130.x
Yu Wei, Chen Xinjun, Yi Qian. 2017. Fishing ground distribution of neon flying squid (Ommastrephes bartramii) in relation to oceanographic conditions in the Northwest Pacific Ocean. Journal of Ocean University of China, 16(6): 1157–1166, doi: 10.1007/s11802-017-3354-0
Yu Wei, Chen Xinjun, Yi Qian, et al. 2015. Variability of suitable habitat of western winter-spring cohort for neon flying squid in the Northwest Pacific under anomalous environments. PLoS ONE, 10(4): e0122997, doi: 10.1371/journal.pone.0122997
Yu Wei, Chen Xinjun, Yi Qian, et al. 2016a. Impacts of climatic and marine environmental variations on the spatial distribution of Ommastrephes bartramii in the Northwest Pacific Ocean. Acta Oceanologica Sinica, 35(3): 108–116, doi: 10.1007/s13131-016-0821-1
Yu Wei, Chen Xinjun, Yi Qian, et al. 2016b. Spatio-temporal distributions and habitat hotspots of the winter-spring cohort of neon flying squid Ommastrephes bartramii in relation to oceanographic conditions in the Northwest Pacific Ocean. Fisheries Research, 175: 103–115, doi: 10.1016/j.fishres.2015.11.026
Yu Wei, Wen Jian, Chen Xinjun, et al. 2021. Trans-Pacific multidecadal changes of habitat patterns of two squid species. Fisheries Research, 233: 105762, doi: 10.1016/j.fishres.2020.105762
Yu Wei, Wen Jian, Zhang Zhong, et al. 2020. Spatio-temporal variations in the potential habitat of a pelagic commercial squid. Journal of Marine Systems, 206: 103339, doi: 10.1016/j.jmarsys.2020.103339
Zhang Ping, Hong Bo, He Liang, et al. 2015. Temporal and spatial simulation of atmospheric pollutant PM2.5 changes and risk assessment of population exposure to pollution using optimization algorithms of the back Propagation-Artificial Neural Network Model and GIS. International Journal of Environmental Research and Public Health, 12(10): 12171–12195, doi: 10.3390/ijerph121012171
