Hydrate formation and distribution within unconsolidated sediment: Insights from laboratory electrical resistivity tomography
Full
Yanlong Li1, 2, 3, Nengyou Wu1, 2, *, Changling Liu1, 2, Qiang Chen1, 2, Fulong Ning2, 3, Shuoshi Wang4, Gaowei Hu1, 2, Deli Gao3, 5, *
Affiliations
  • 1 Key Laboratory of Gas Hydrate of Ministry of Natural Resources, Qingdao Institute of Marine Geology, Qingdao 266237, China
  • 2 Laboratory for Marine Mineral Resources, Pilot National Laboratory of Marine Science and Technology (Qingdao), Qingdao 266237, China
  • 3 Faculty of Engineering, China University of Geosciences (Wuhan), Wuhan 430074, China
  • 4 School of Chemical, Biological & Materials Engineering, University of Oklahoma, Norman, Oklahoma 73019, USA
  • 5 MOE Key Laboratory of Petroleum Engineering (China University of Petroleum), Beijing 102249, China
Published: 2022-09-25 doi: 10.1007/s13131-021-1972-2
Outline
收藏切换

Laboratory visual detection on the hydrate accumulation process provides an effective and low-cost method to uncover hydrate accumulation mechanisms in nature. However, the spatial hydrate distribution and its dynamic evolutionary behaviors are still not fully understood due to the lack of methods and experimental systems. Toward this goal, we built a two-dimensional electrical resistivity tomography (ERT) apparatus capable of measuring spatial and temporal characteristics of hydrate-bearing porous media. Beach sand (0.05–0.85 mm) was used to form artificial methane hydrate-bearing sediment. The experiments were conducted at 1°C under excess water conditions and the ERT data were acquired and analyzed. This study demonstrates the utility of the ERT method for hydrate mapping in laboratory-scale. The results indicate that the average electrical conductivity decreases nonlinearly with the formation of the hydrate. At some special time-intervals, the average conductivity fluctuates within a certain scope. The plane conductivity fields evolve heterogeneously and the local preferential hydrate-forming positions alternate throughout the experimental duration. We speculate that the combination of hydrate formation itself and salt-removal effect plays a dominant role in the spatial and temporal hydrate distribution, as well as geophysical parameters changing behaviors during hydrate accumulation.

natural gas hydrate  /  electrical resistivity  /  electrical resistivity tomography  /  accumulation mechanism  /  electrical conductivity
Yanlong Li, Nengyou Wu, Changling Liu, Qiang Chen, Fulong Ning, Shuoshi Wang, Gaowei Hu, Deli Gao. Hydrate formation and distribution within unconsolidated sediment: Insights from laboratory electrical resistivity tomography[J]. Acta Oceanologica Sinica, 2022 , 41 (9) : 127 -136 . DOI: 10.1007/s13131-021-1972-2
Full Text
Less
1 Introduction
Less
Natural gas hydrate attracted tremendous attentions in the last few decades due to its promising energy potential (Chong et al., 2016; Koh et al., 2012; Wu et al., 2021). Considerable efforts have been directed to explore submarine accumulations of natural gas hydrate using geophysical methods, drilling, and coring (Li et al., 2019a; McConnell et al., 2012; Permyakov et al., 2017). The occurrence of hydrate in marine sediment is normally characterized as high sonic velocity and electrical resistivity in the geophysical aspect (Cui et al., 2018; Fu et al., 2019; Li et al., 2021; Liu et al., 2020b). Both field interpretations and laboratory studies show discrepancies among hydrate saturations derived from different geophysical methods (Attias et al., 2020; Jana et al., 2017; Shankar and Riedel, 2014; Wang et al., 2011), which is mainly caused by uncertainties in the relationships between these parameters and hydrate content (Pan et al., 2020). Therefore, quantitatively predicting hydrate accumulating morphologies and saturations within the sediment requires verification from visualized experiments (Wu et al., 2018).
Laboratory-scale monitoring of hydrate formation processes is an effective and low-cost method to investigate the hydrate accumulation mechanisms (Liu et al., 2017). Hydrate is highly resistive compared to the host sediments, the anomalous increase of resistivity is used as a proxy for the delineation of gas hydrates (Jana et al., 2017; Liu et al., 2020c). Abundant experimental work has been devoted to evaluate hydrate formation-dissociation processes and to calibrate the electrical resistivity models (Chen et al., 2013; Santamarina and Ruppel, 2008; Ye et al., 2020). Based on the analogies between hydrate-bearing sediments and permafrost, Pearson et al. (1983) firstly suggested the use of Archie’s law to quantitatively evaluate hydrate content in the sediment.
The prediction of the hydrate saturation using Archie equation requires knowledge of the saturation exponent (Cook and Waite, 2018). The value n≈2, as a constant, is widely used within the gas hydrate community (Pandey et al., 2019; Waite et al., 2009), although it was originated from ice-bearing sediment (Pearson et al., 1983). In hydrate geophysical community, saturation exponent is usually calibrated by chlorinity measurement (Harinarayana et al., 2012; Malinverno et al., 2008), compressional-wave velocity (Cook and Waite, 2018; Shankar and Riedel, 2014), and pressure core (Jana et al., 2017; Konno et al., 2019). At the laboratory-scale, formulated (Spangenberg, 2001) and experimentally verified (Spangenberg and Kulenkampff, 2006; Spangenberg et al., 2005) the saturation exponent as a function of hydrate saturation and host-sediment contacting behavior.
In the last decade, a variety of experimental technologies were developed to calibrate the relationship between resistivity and hydrate formation-dissociation processes. The sizes of the experimental devices vary from micro-CT scale (Dong et al., 2019) to pilot scale (Lim et al., 2017; Liu et al., 2020a). The test results covered both single-phase hydrate (Du Frane et al., 2011) and hydrate-sediment-water multi-component systems (Chen et al., 2016; Lu et al., 2019). These experimental technologies provide point measurements of gas hydrate concentration versus resistivity (Du Frane et al., 2015), without mapping hydrate spatial and temporal distributions. Nonetheless, the relevant mechanisms of gas migration and gas hydrate formation are still not fully understood. Some micro-sized technologies such as X-CT (Chaouachi et al., 2015; Li et al., 2019b; Yang et al., 2016) and SEM (Sun et al., 2020) were widely used to obtain tomographic hydrate distribution behaviors in the host sediments. The research results from micro-sized observation provide significant reference for unveiling hydrate mechanisms. However, the sample sizes for X-CT and SEM are usually in millimeter-scale, which is not sufficient to quantify hydrate dissociation and/or formation behaviors in a larger scale. Some optically visualized experimental devices were also developed (Li et al., 2020a), but the optical results could be used to determine hydrate process quantitatively.
Electrical resistivity tomography (ERT) provides a favorable way of visualizing hydrate formation processes both at the core-scale and pilot-scale, owing to its non-invasion and high measuring efficiency characteristics (Li et al., 2020c; Priegnitz et al., 2014). ERT-based hydrate lab-monitoring method was firstly reported by Priegnitz et al. (2013). Previous application of ERT in monitoring hydrate forming process covered both gas-water flow loop (free of sediment) (Heeschen et al., 2014) and high-pressure vessels containing saline solution and sediment (Priegnitz et al., 2015; Sun et al., 2019; Walsh, 2014). Sahoo et al. (2018) highlighted the potential usage of ERT in explaining the consequences of coexisting methane gas with hydrate under two-phase water-hydrate stability conditions. However, little community consensus on the relationship between hydrate accumulation mechanism and ERT conductivity field was developed so far.
It is worth noting that all the reported ERT data were collected through circular two-dimensional (2D) measurements. Then the 2D results can be extended with additional 3D cross measurements to provide supplemental data (Priegnitz et al., 2013). Therefore, a 2D measurement is the base for spatial hydrate distribution detection. Aimed at investigating hydrate accumulation mechanisms under the existence of various geological structures, we developed a 2D ERT high-pressure vessel (Li et al., 2019c, 2020d). This paper provides a preliminary ERT-responses analysis of hydrate formation under excess water conditions. Both the plane-average resistivity and local resistivity field changing behaviors during hydrate synthesizing would be comprehensively studied.
2 Experimental section
Less
2.1 Experimental setup and materials

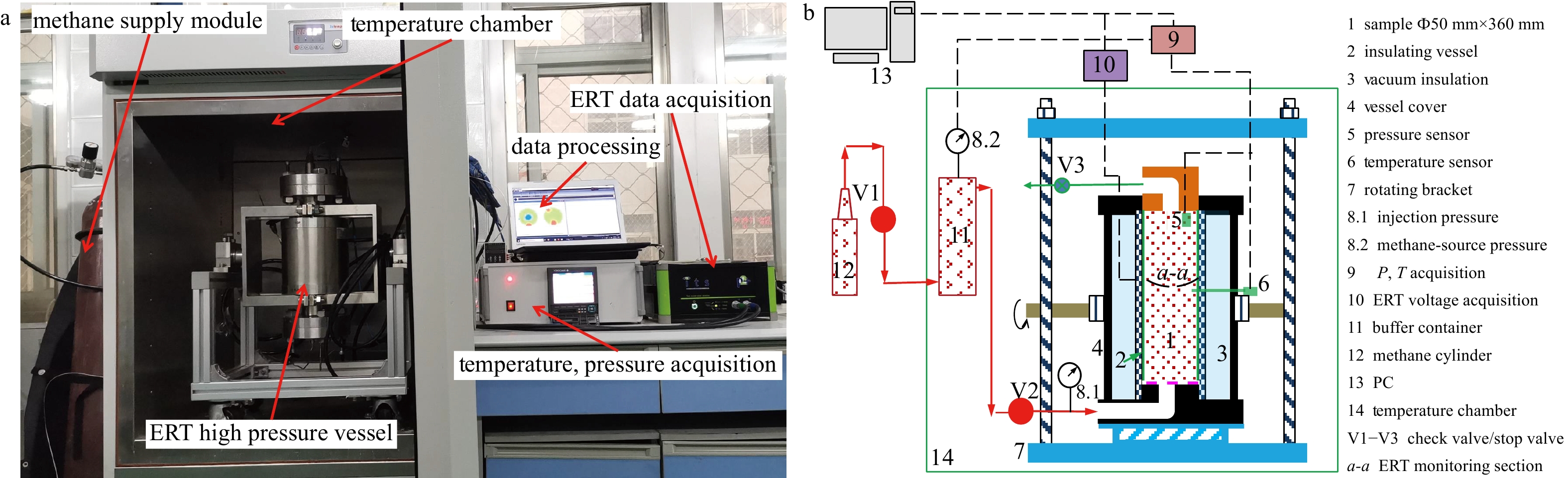

The 2D ERT hydrate monitoring device consists of a high-pressure vessel, a gas supply module, a temperature control module, a data acquisition module, and a PC (Fig. 1). The high-pressure vessel has an inner diameter of 50 mm and a height of 360 mm, and the maximum working pressure is 150×105 Pa (Li et al., 2020d). The gas injection inlet is located at the center of the bottom flange. There is a fluid outlet at the center of the top flange. Both the diameters of the fluid inlet and outlet are 2 mm.
To provide relatively low and stable temperature conditions, the high-pressure vessel is placed in a temperature chamber. The gas supply module, data acquisition and processing module are connected with the high-pressure vessel through pressure-resisting pipe and wire, respectively. A methane pump controls the pressure of the system. The data acquisition module collects the real-time pressure, temperature within the vessel. The ERT detection is also initiated and monitored by the data acquisition module.

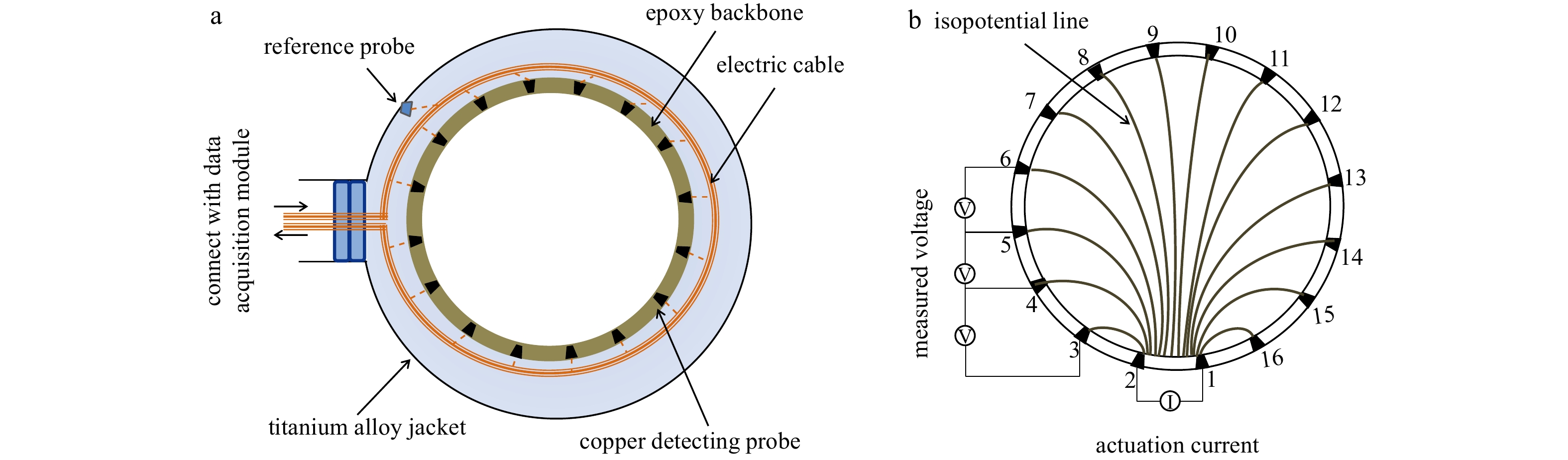

An epoxy tube fitted with connecting electrical cable serves as the insulating backbone of the electrical probes. Totally 16 copper electrodes are embedded in the epoxy tube at the same height (120 mm from the bottom of the vessel, “a-a” in Fig. 1b). Hereafter, the “a-a” plane is called the ERT monitoring plane. The epoxy tube is enclosed and sealed into a titanium alloy jacket to form a high-pressure vessel (Fig. 2a). The width and length of each electrode are 5 mm and 20 mm, respectively, and the distance between the electrodes is 5 mm (Li et al., 2020d). A ground electrode is installed to provide a ground reference to the sixteen measuring electrodes. These electrodes are connected to the data acquisition module (ITS P2000; Industrial Tomography Systems Ltd, UK), which is controlled by software provided by the manufacturer. The temperature and pressure are acquired by a self-developed code.
In this experiment, medium–coarse sand from Qingdao beach was used as host sediment. Grain size of the beach sand ranges from 0.05 mm to 0.85 mm, with a medium grain size of 0.31 mm. A detailed discussion about the particle size distribution characteristics, as well as the determination of total porosity and permeability, could be found in our previous work (Dong et al., 2020; Li et al., 2018). Sodium chloride solution with a salinity of 3.5 wt.% was used to simulate the pore water. The purity of the methane gas is 99.99%.
2.2 ERT data acquisition and processing method
To visually observe and monitor the real-time reaction processes inside the high-pressure vessel, different multi-electrode driving patterns have been documented by previous studies (Cui et al., 2016). In this work, a four-electrode initiating and measuring method is involved and connected with the ITS P2000.
The actuation current, which remains constant throughout the process, is injected and exported from each of two of the neighboring electrodes by turns, and then the dynamic voltages between each two of the other fourteen neighboring electrodes are obtained and transformed into conductivities (Fig. 2b). Therefore, 104 conductivity (the inverse of electrical resistivity) values are obtained within one measuring circle. The average of the 104 conductivities reflects the overall transient state of the ERT monitoring plane, which is defined as the average plane conductivity in this manuscript.
A variety of algorithms were reported in reconstructing the dynamic electrical conductivity field. The non-linear method was supposed to be more accurate and tends to reduce artifacts (Asgarifar et al., 2010; Kotzé et al., 2019). However, it will consume many computational resources and therefore may not be suitable for high-speed and real-time industrial applications.
The linear back projection (LBP) methodology is considered to be the most robust methodology due to its fast-computational speed and algorithm simplicity (Bolton et al., 2007; Smyl, 2020). The LBP method is used in our study to reconstruct the dynamic real-time electrical conductivity field during hydrate formation.
The average hydrate saturation in the sediment is determined independently from pore pressure and temperature.
$ {\overline{S}}_\mathrm{h}=\left(\frac{{P}_{1}}{{T}_{1}}-\frac{{P}_{2}}{{T}_{2}}\right)\cdot \frac{{V}_\mathrm{g}{M}_\mathrm{h}}{R{\rho }_\mathrm{h}{V}_\mathrm{p}} , $
where P1 (MPa) represents the pressure in the vessel at initial state; T1 (K) represents the temperature at initial state; P2 and T2 represent the real-time pressure-temperature conditions in the vessel; Mh is the molar mass of natural gas hydrate, Mh=122.02 g/mol; R is universal gas constant, R=8.314 J/(mol·K); ρh is the density of the methane hydrate, ρh =0.91 g/cm3; Vp is the pore volume of the sediment pressed into the vessel, Vp= 249.56 mL; whereas the Vg is the real-time gas volume contained in the system, Vg =153.5 mL.
It should be noted that the volume occupied by fluid in the sediment decreases with the increase in hydrate saturation, leading to a decrease in Vg. However, the pore volume in this experiment is much smaller than the volume of gas supply pipe. Therefore, the influence of Vp on Vg is neglected in this paper.
The Archie equation is an empirical relation to calculate hydrate saturation from electrical resistivity. The electrical resistivity index is introduced to describe the increase in electrical resistivity caused by hydrate formation within the sediment. Hence the Archie equation for hydrate saturation prediction could be written as Eq. (2).
$ \left\{\begin{array}{l}F=\dfrac{{R}_\mathrm{0}}{{R}_\mathrm{w}}=\dfrac{{\sigma }_\mathrm{w}}{{\sigma }_\mathrm{0}}=\dfrac{a}{{\text{φ} }^{m}},\\ I=\dfrac{{R}_\mathrm{t}}{{R}_\mathrm{0}}=\dfrac{{\sigma }_\mathrm{0}}{{\sigma }_\mathrm{t}}=\dfrac{1}{{\left(1-{S}_\mathrm{h}\right)}^{n}},\\ \end{array}\right. $
where F is the formation factor; $ I $ represents the electrical resistivity index; Rw, R0, and Rt are electrical resistivity of the connate water, hydrate-free water-saturated sediments, and hydrate-bearing sediment in Ω·m, respectively; σw, σ0, and σt are electrical conductivity of the connate water, hydrate-free water-saturated sediments, and hydrate-bearing sediment in S/m, respectively; φ is the total porosity of the sediment, φ=41%; a and m are Archie constant; Sh is the hydrate saturation; n is the saturation exponent, which is mainly determined by hydrate saturation itself providing the host sediment is definite (Cook and Waite, 2018).
In field geophysical application, $ \varphi $ is normally derived from bulk density logging, whereas a and m are derived based on the cross plot between the porosity and formation factor. There are great discrepancies among hydrate saturation prediction results from different literatures because of the value of a and m. However, in this experiment, the formation factor and the resistivity of hydrate-bearing sediment could be obtained directly from the experiment. The hydrate saturation could be derived from Eq. (3).
$ {S}_\mathrm{h}=1-{S}_\mathrm{w}=1-{\left(\frac{F\cdot {\sigma }_\mathrm{t}}{{\sigma }_\mathrm{w}}\right)}^{1/n} . $
Providing that hydrate is uniformly distributed in the sediment, Eq. (3) could be modified as
$ {\bar{S}}_\mathrm{h}=1-{S}_\mathrm{w}=1-{\left(\frac{F\cdot {\bar{\sigma }}_\mathrm{t}}{{\sigma }_\mathrm{w}}\right)}^{1/n} , $
where $\bar{{\sigma }_\mathrm{t}}$ represents the average plane conductivity obtained from ERT module. The average hydrate saturation ${\bar{S}}_\mathrm{h}$ could be derived from Eq. (1). Therefore, we obtain an equation for saturation exponent by the combination of Eqs (4) and (1).
$ \left\{\begin{array}{l}n=1/{\mathrm{log}}_{\text{δ} }\left(1-{\bar{S}}_\mathrm{h}\right),\\ \text{δ} =F\cdot {\bar{\sigma }}_\rm{t}/{\sigma }_\rm{w}.\end{array}\right. $
Finally, we could predict hydrate distribution within the sediment from the real-time electrical conductivity distribution field through Eq. (3). It is worthy noting that the above equations are based on the assumptions that no free gas exist in the system. Once we inject free gas directly into the vessel, the ERT results might underestimate the absolute hydrate saturation due to existence of free gas. However, this would have little influence for relative accumulation state in an enclosed system.
2.3 Experimental procedures
To clarify the comparability of this study to field conditions, we firstly tested the conductivity change behaviors of both brine and brine-saturated sediment with temperature using the 2D ERT hydrate monitoring device. This process also helps to determine the formation factor, which was defined as the ratio of the resistivity of fully brine-saturated sediment (R0) to the resistivity of the connate water (Rw) in Eq. (2).
Firstly, the vessel was filled with the brine at room temperature (20°C). Then we started the temperature control module to cool the vessel at a rate of 1°C/min and initiated the ERT monitoring process simultaneously. The average plane conductivity was recorded during cooling. The beach sand was washed carefully with distilled water and dried. Then the sand was poured into the brine gradually to avoid the formation of gas bubbles in the sediment. Then constant axial stress of 0.5 MPa was applied to the sample for 2 h. Excessive water located above the saturated-sediment was pumped out. This process ensures that the sediment was saturated homogeneously. Finally, the vessel was warmed-up at a rate of 1°C/min and the ERT values were acquired simultaneously.
The relationships between temperature and conductivity of pore-water and saturated sediment could be obtained from the above procedures. Figure 3 shows a comparison of pore water, brine-saturated sediment, and typical marine field conditions. The correlation data are from the GMGS-W18 in the Shenhu area, northern South China Sea (Li et al., 2019a; Li et al., 2019b; Li et al., 2020b; Li et al., 2020e; Zhang et al., 2019; Zhao et al., 2020) and the AT1 and GC955-H, Gulf of Mexico, USA (Merey, 2019). It is obvious that the laboratory brine-saturated sediment system is very close to the marine sediment. Therefore, the experiment in this manuscript is comparable to field conditions.

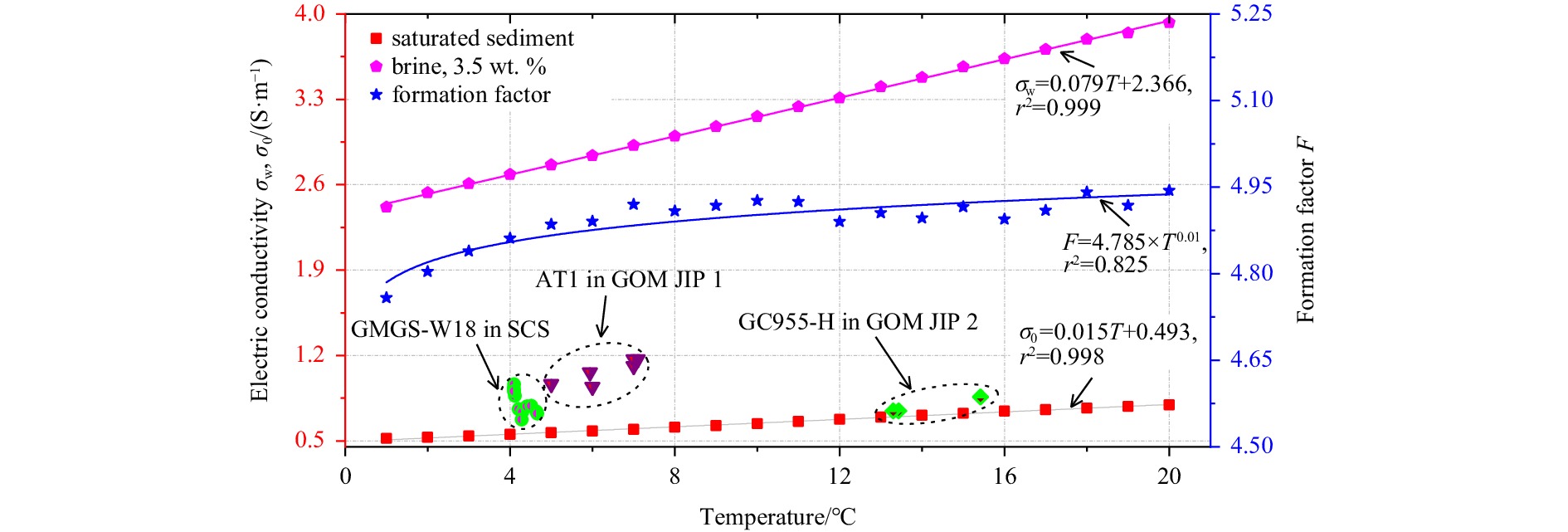

Figure 3 also depicts the relationship between temperature and formation factor. It is clear to see that both the electrical conductivity of the brine and brine-saturated sediment decrease linearly with the decrease in temperature. The formation factor of the sediment fluctuates between 4.76 and 4.94, with an average value of 4.85. The best-fit empirical function for the conductivity of the pore-water, the conductivity of the brine-saturated sediment, and the formation factor are shown in Eqs (6)–(8), respectively.
$ {\sigma }_\mathrm{w}=0.079T+2.366,r^2=0.999, (1^{\circ}{\rm{C}}\leqslant T\leqslant 20^{\circ}{\rm{C}}) , $
$ {\sigma }_0=0.015T+0.493,r^2=0.998, (1^{\circ}{\rm{C}}\leqslant T\leqslant 20^{\circ}{\rm{C}}) , $
$ F=4.785\times {T}^{0.01},r^2=0.825, (1^{\circ}{\rm{C}}\leqslant T\leqslant 20^{\circ}{\rm{C}}) . $
The hydrate distribution field on the ERT monitoring plane could be obtained by combining Eqs (3)–(8).
The hydrate forming processes were carried out following the procedures described below. Two parallel experiments were conducted in this study. The duplicated test showed good agreement with the tested one. One of the experiments is discussed.
The vessel is fully filled with brine-saturated sediment and placed into the cold-chamber (1°C). The temperature of the sediment was maintained at 1°C for more than 5 h before gas injection. Conductivity distribution at 1°C was taken as reference (Fig. 4a). Figure 4a indicates that conductivity at the ERT monitoring plane is evenly distributed before gas injection. The average plane conductivity is 5.22 mS/cm at 1°C, which is consistent with that observed in Fig. 4. Then methane was injected into the vessel from the gas injection inlet. The gas injection rate was controlled at 10 standard cubic centimeters per minute (SCCM) by a mass flow controller. The targeted pore pressure of the experiment is controlled around 80×105 Pa.
We observed that gas injection process broke-up the uniformly distributed conductivity field. Conductivity at the center of the ERT monitoring plane decreased greatly while the peripheral part remains unchanged. As a result, concentric-zonal conductivity distribution characteristics were observed and expanded gradually from the center to the periphery, which is shown in Fig. 4b.

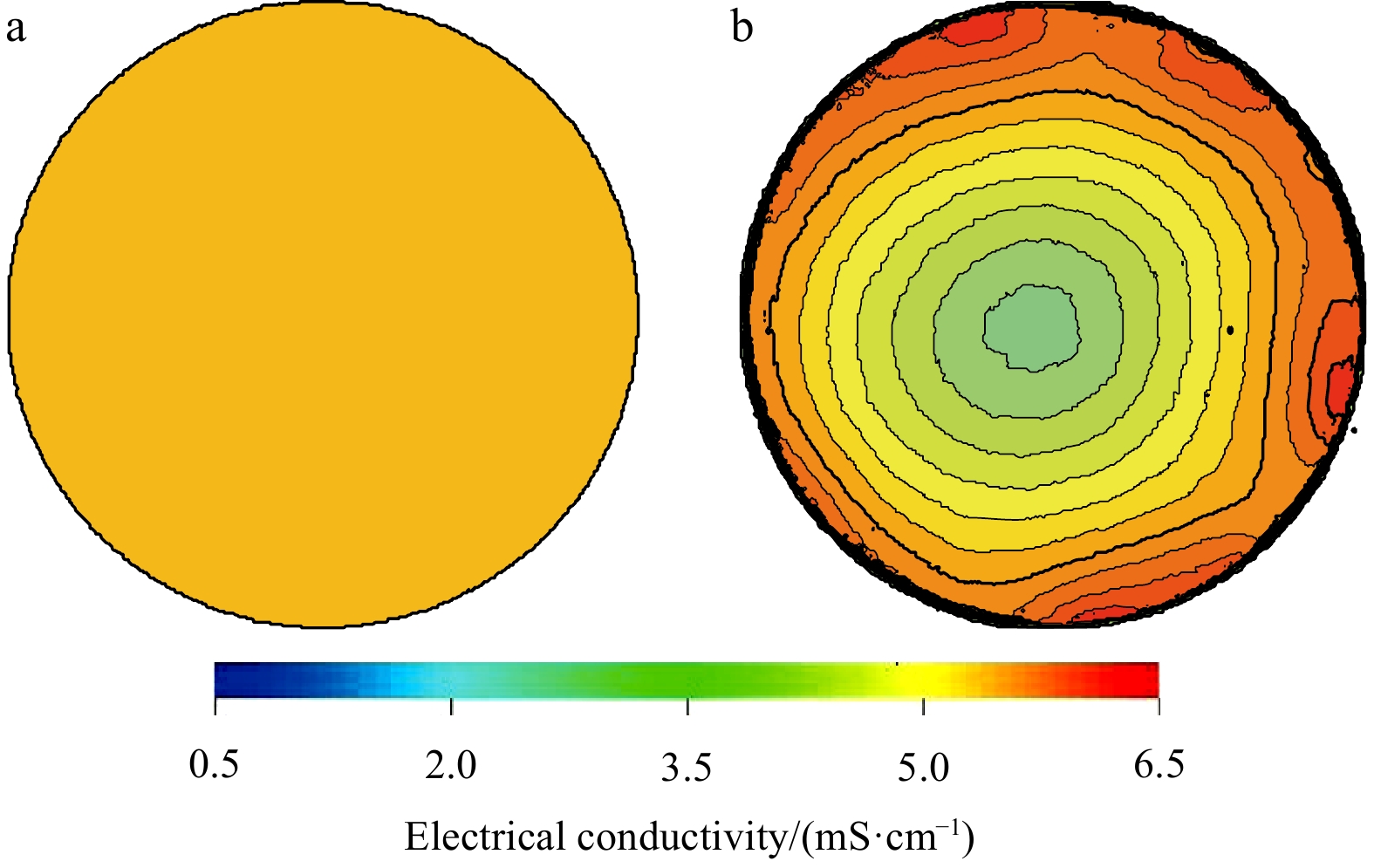

Concentric-zonal conductivity distribution implies a concentric-zonal distribution of gas and water within the sediment. Gas diffusion is markedly strong at the center while weak at the peripheral part. Figure 4b could be viewed as the initial conductivity distribution state for the hydrate-forming simulation. The temperature of the sediment now remained at 1°C. The pressure in the vessel would drop due to the formation of hydrate. When the pressure in the vessel remains unchanged for more than 5 h, the vessel was reloaded with methane to about 80×105 Pa.
3 Results and discussion
Less
3.1 Average conductivity and saturation exponent
During the entire hydrate formation process, the temperature in the sediment was kept stable at 1°C (±0.5°C). The pore pressure of the sediment, the average conductivity at the ERT monitoring plane, and the average hydrate saturation from Eq. (1) are shown in Fig. 5. The pore pressure decreases with the formation of the hydrate. When the pressure decreased to a certain value and kept constant for more than 5 h, gas was injected at a rate of less than 10 SCCM until the pore pressure reached 80×105 Pa. Three gas injection cycles were applied in this experiment (t1, t2, and t3 in Fig. 5).

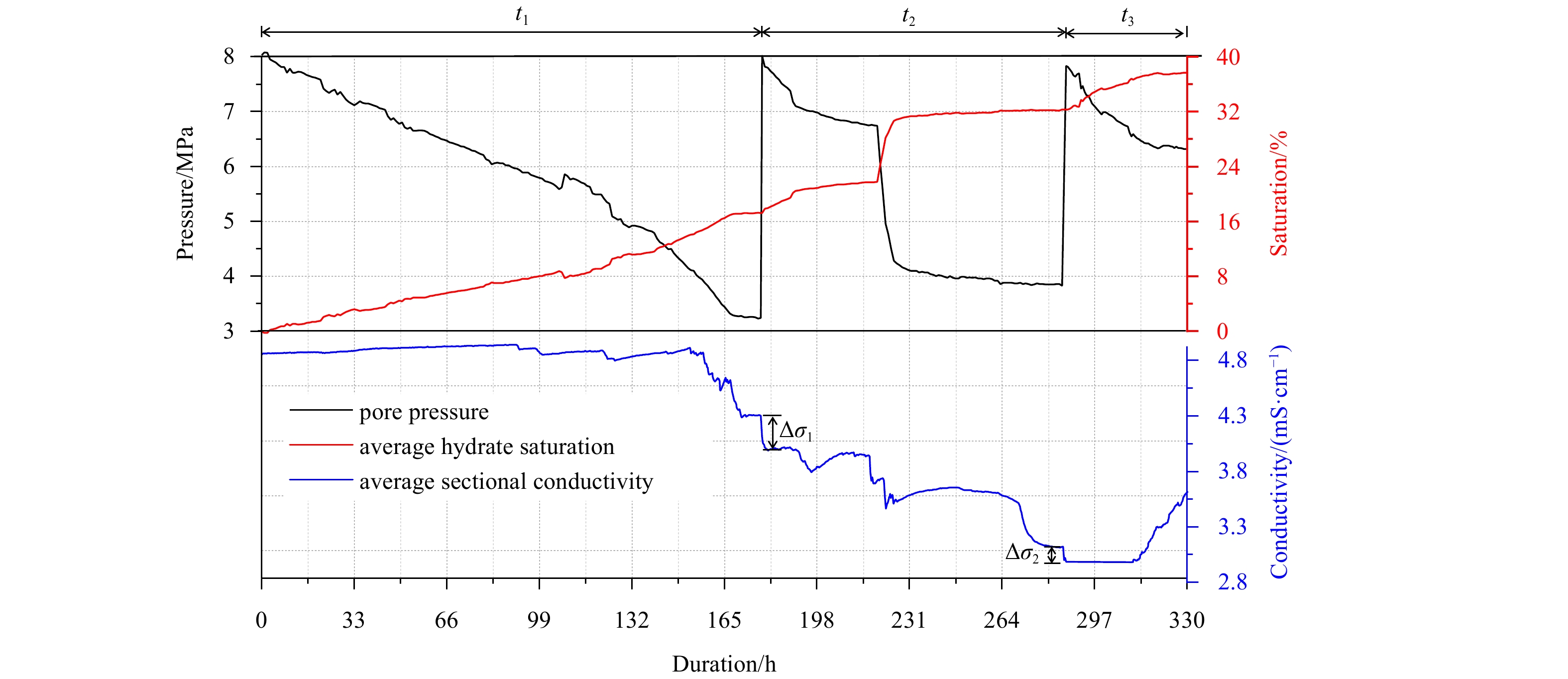

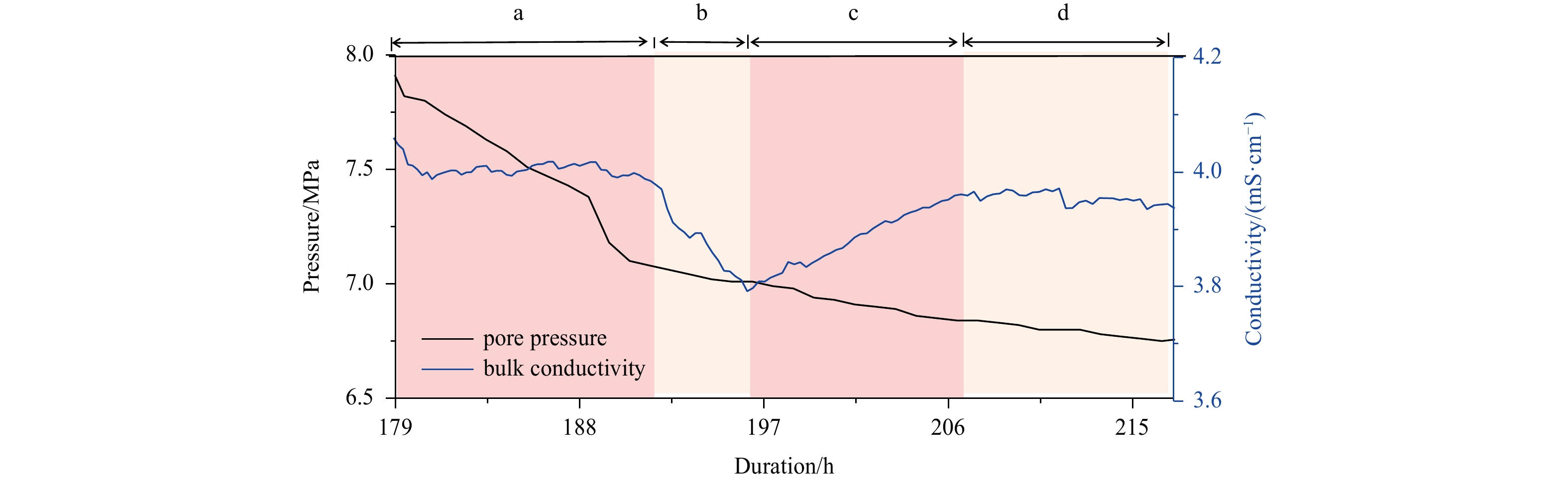

It could be seen from Fig. 5 that the pore pressure rises continuously to 80×105 Pa within each pressure loading cycle. However, each gas injection operation causes a plummet in the average conductivity (Δσ1 and Δσ2 in Fig. 5). In the early stages of the experiment (≤155 h) when hydrate saturation is less than 11%, we could see little change in the average conductivity. After that, the average conductivity decreases nonlinearly with the formation of the hydrate. The average conductivity fluctuates within certain scopes at some special time-intervals. Furthermore, the magnitude of the average conductivity fluctuation becomes larger with the increase in average hydrate saturation.
To further investigate the fluctuation behaviors in the average conductivity, we made a comparison between the pore pressure and average conductivity at the early stage of t2 (time interval of 179–217 h) in Fig. 6. According to the changes in the average conductivity, the experimental duration from 179 h to 217 h is divided into four sub-intervals, noted as a–d in Fig. 6. The pore pressure declines rapidly during sub-interval a, and then decreases gradually and smoothly during sub-intervals b–d. Nevertheless, the average conductivity showed four-stages behavior, which is characterized by constant (a) → decline (b) → rebound (c) →constant (d).
Hydrate formation itself tends to reduce the conductivity, while salt-removing tends to enhance the conductivity of the sediment. Therefore, the average conductivity of the hydrate-bearing sediment is determined by the combination of hydrate formation and associated salt-removing effect. Providing that hydrate formation induced conductivity decline rate is ${d}{\rho }_\mathrm{h}$, while the salt-removing induced conductivity rise rate is ${d}{\rho }_\mathrm{s}$. The difference between the ${d}{\rho }_\mathrm{h}$ and ${d}{\rho }_\mathrm{s}$ determines the change in average conductivity. The fluctuation of the average conductivity disappears when ${d}{\rho }_\mathrm{h}\approx {d}{\rho }_\mathrm{s}$. When the hydrate formation process becomes dominant (with a high synthesizing rate), the average plane conductivity tends to decline, and vice versa.
As mentioned above, the fluctuation magnitude of the average conductivity becomes stronger with the increase in average hydrate saturation, which could be attributed to the re-distribution of salt concentration. Motivated by the local salinity differences, salt ions would disperse and migrate once the salt-removing effect happens. Thereby low hydrate saturation indicates enough pore space for ions transformation, which may also enhance the moderating effect of pore water on ions concentration. However, with the increase in hydrate saturation, part of the salt ion transformation pathways might be blocked by hydrate (Chen et al., 2018). The moderating effect of pore water on ions concentration becomes weaker. Consequently, there is a severe fluctuation in average conductivity.

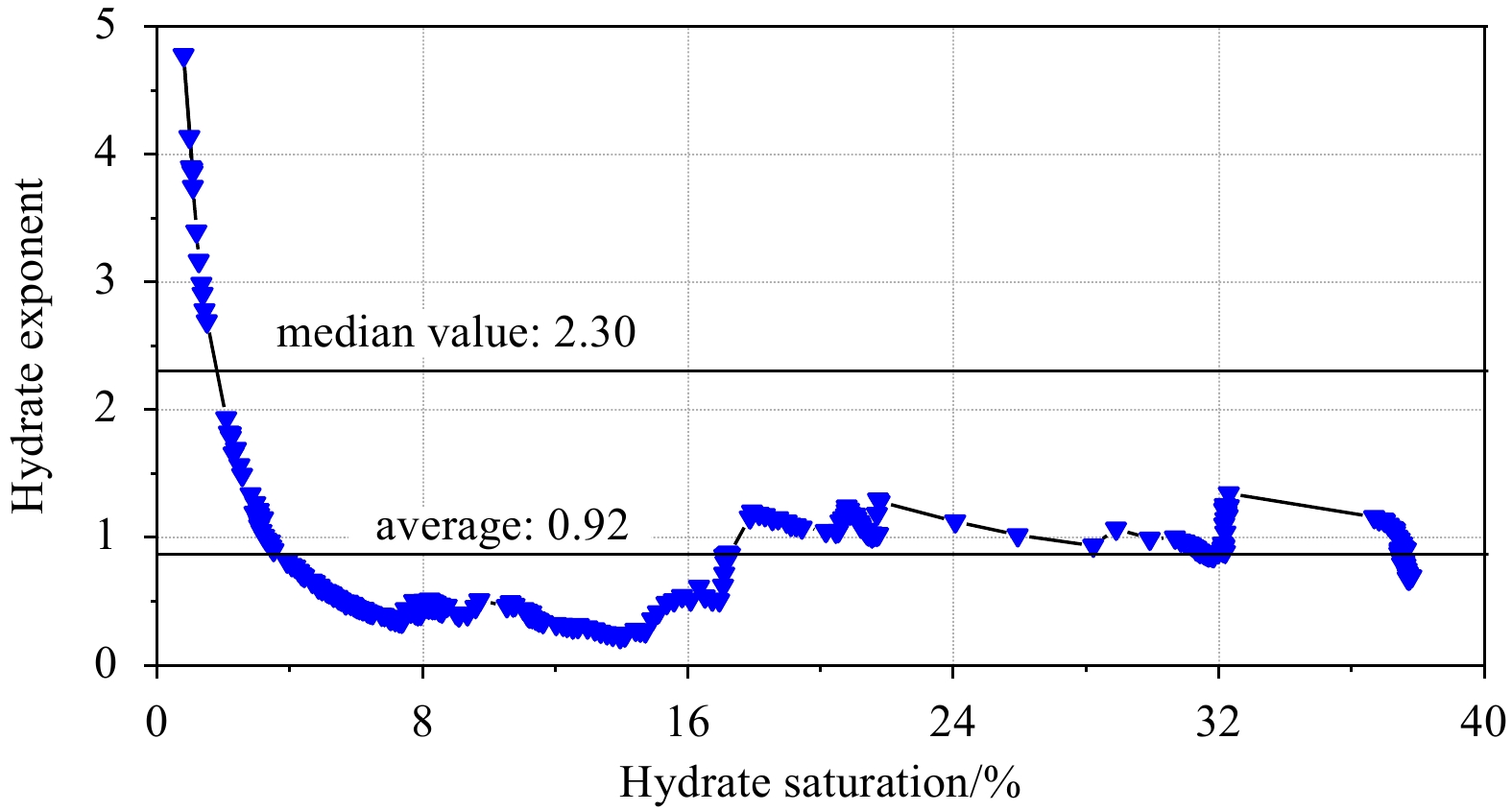

We evaluated the hydrate saturation exponent based on the average hydrate saturation and average conductivity showed in Fig. 6. The result is shown in Fig. 7, the saturation exponent ranges between 0.25 and 4.85, with an average of 0.92 and a mathematical median value of 2.30. The saturation exponent decreases rapidly below 7% hydrate saturation. When average hydrate saturation exceeds 16%, the predicted saturation exponent remains stable at 1±0.2, which is much lower than the value n=2) suggested by Pearson et al. (1983). The result in Fig. 7 would be coupled with Eq. (4) to estimate spatial and temporal distributions of hydrate.
3.2 Hydrate distribution characteristics
Although the average conductivity fluctuates because of the influence of the salt-removing effect, the final conductivity value is determined by the amount of hydrate in the sediment. Therefore, the deviation of real-time ERT monitoring results to the initial state (shown in Fig. 4b) could be used as an indicator for hydrate saturation distribution. To identify local preferential hydrate-forming positions and their alteration with time, real-time ERT data were acquired and imaged via ITS P2000. Some of the real-time conductivity fields at the ERT monitoring plane are imaged in Fig. 8.

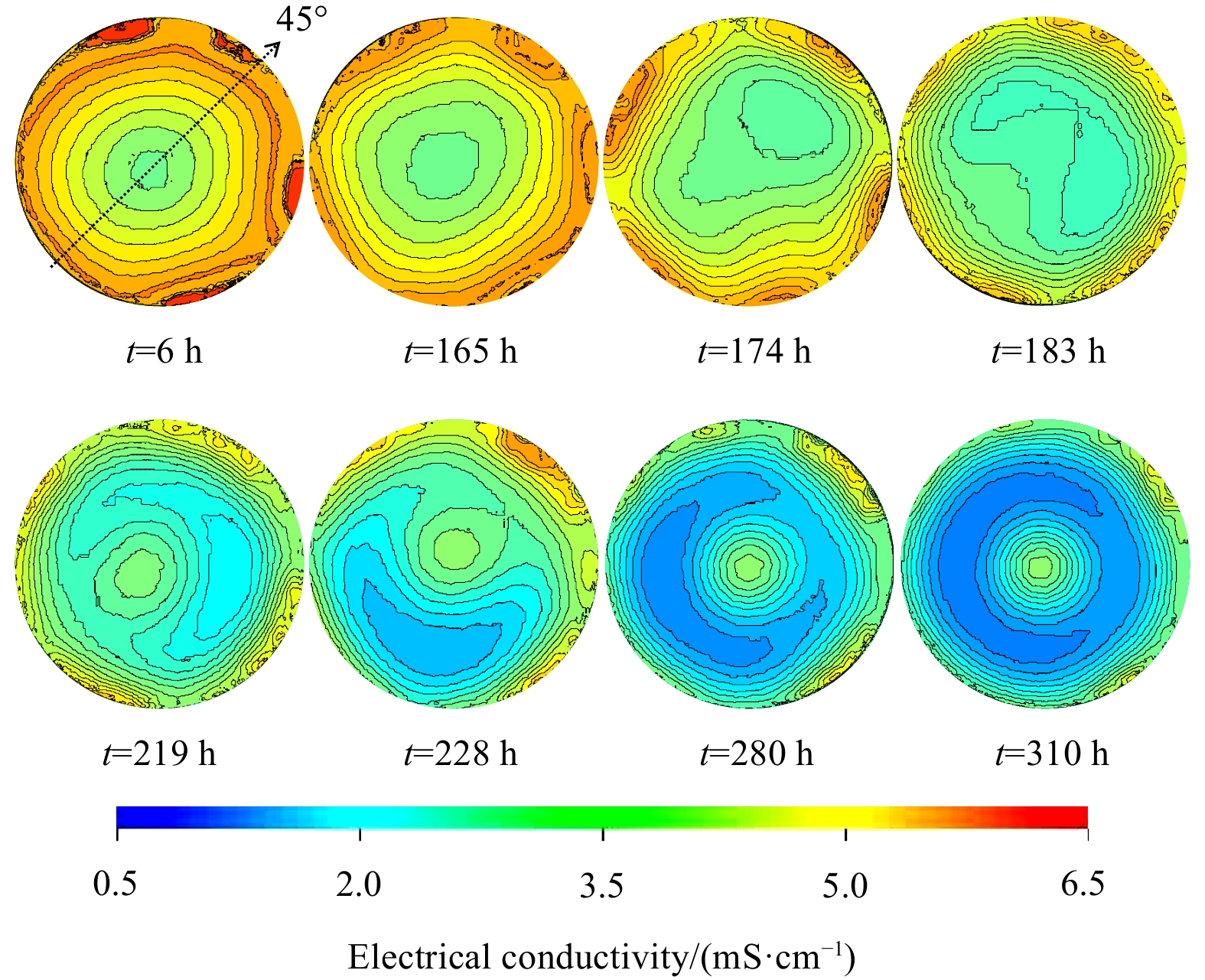

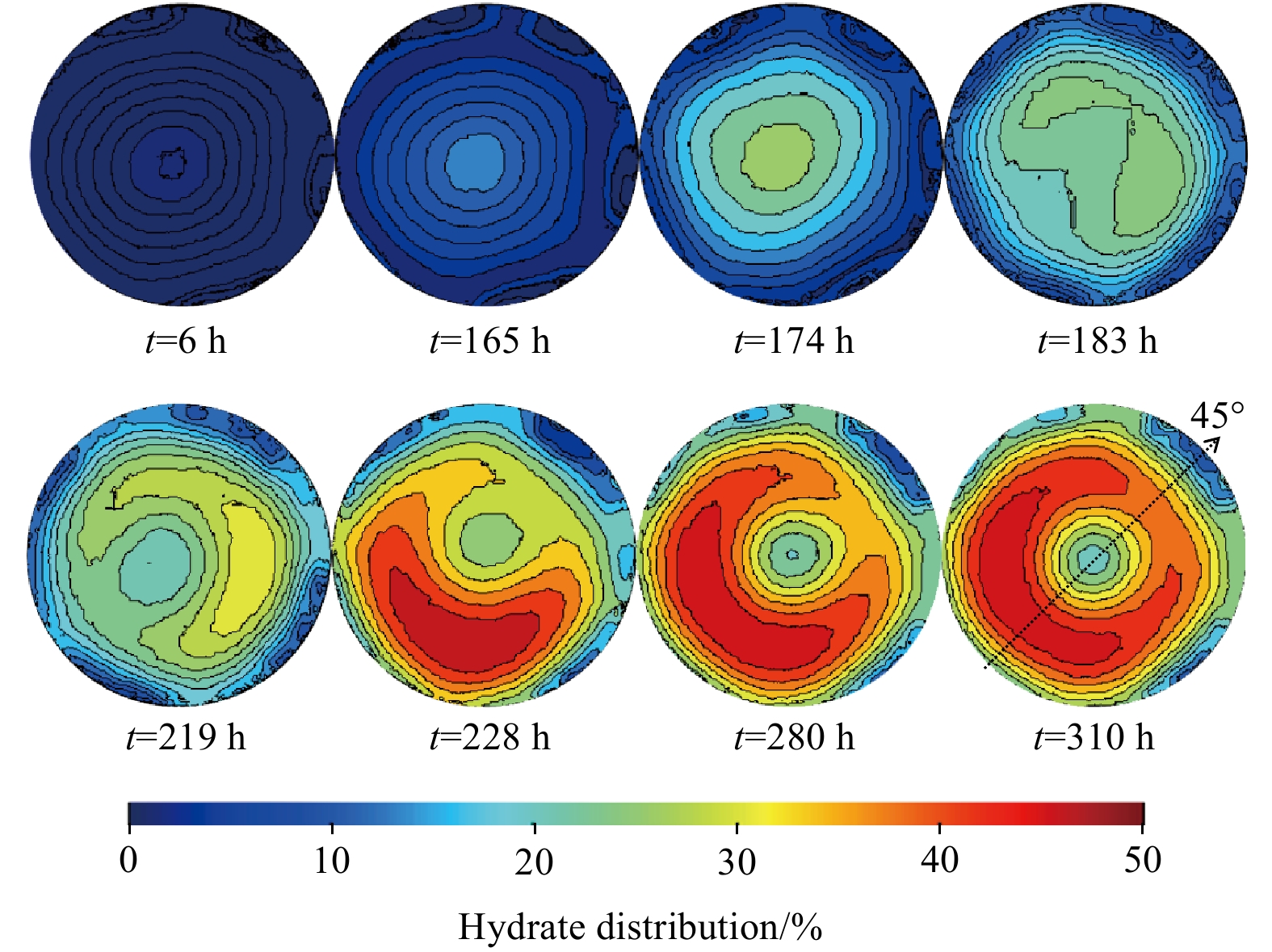

The conductivity fields evolve heterogeneously throughout the experiment. In Fig. 8, the conductivity distribution seems to be scattered within the first few hours (Fig. 8, t=6 h). We attribute this to the randomness of hydrate nucleation. The magnitude of the conductivity field decreases with time. Finally, a concentric-zonal structure of conductivity field forms (Fig. 8, t=310 h). The conductivity intensity within the same concentric-zonal area becomes evenly distributed.
The discrete plane conductivity distribution could be expressed via a continuous survey line in each sectional conductivity field. Herein, the 45° line in the 2D conductivity field was taken as the survey line (see Fig. 8, t=6 h). The ERT measuring results on the survey line were taken at two minutes interval and then stacked based on time series. The dynamic evolutionary behavior of the conductivity along the 45° line is shown in Fig. 9.

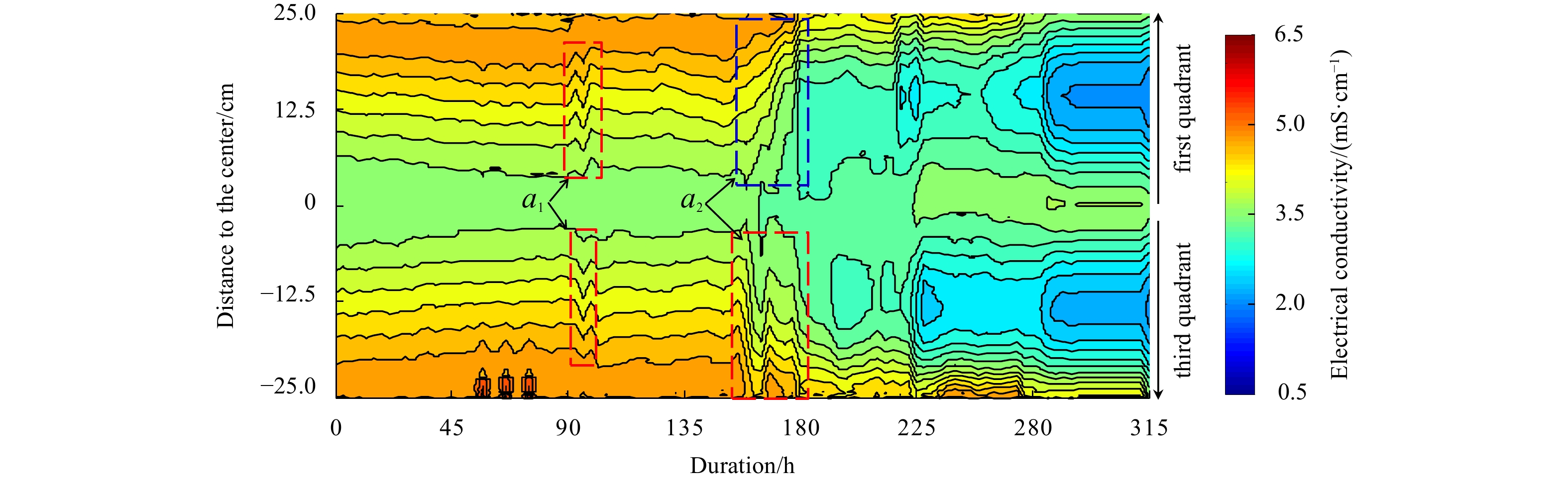

The middle of the Y-axis in Fig. 9 represents the original gas injection tunnel. Concentric-zonal conductivity distribution characteristics could be observed throughout the experiment. At the early stage of the experiment, the lateral diffusion of methane gas controlled the concentric-zonal conductivity distribution. The conductivity rises laterally with the increase of the distance to the center. At the late stages of the experiment, the concentric-zonal conductivity distribution is mainly controlled by the distribution of hydrate. The “phase inverse” in the concentric-zonal conductivity distribution was observed during the middle stage of the experiment (170–200 h). The minimum conductivity zonal area distributed at a specific radius ranges to the center part since phase inverse.
Heterogeneous conductivity distribution could be observed during sub-interval a1 and a2 in Fig. 9. The local conductivity around the center decreased with time, followed by a slight inclination before becoming stable. This is consistent with the fluctuation of average conductivity (Fig. 6). Therefore, the combination of hydrate formation and salt-removing effect is confirmed to be the main controlling factor for fluctuation of the conductivities at the ERT monitoring plane.
The heterogeneous conductivity decreasing process indicates heterogeneous hydrate synthesizing process. We calculate hydrate spatial and temporal distribution at the ERT monitoring plane by a combination of Eqs (4)–(8). Since the temperature is controlled at 1°C, the conductivity of the brine and the brine-saturated sediment are 2.415 S/m and 0.518 S/m, respectively. The formation factor is 4.76. Hydrate saturation distributions at the ERT monitoring plane are shown in Fig. 10.
Figure 10 shows real-time preferential hydrate-forming positions. Alteration in preferential hydrate-forming positions tends to improve the homogeneity within the same concentric zonal area, while enhances anisotropy among different concentric zonal areas. At the end of the experiment (t=310 h in Fig. 10), we could see an obvious radial saturation gradient at the ERT monitoring plane. The maximum hydrate saturation within the sediment is 49.5%, with an average hydrate saturation of 38.5%. The alteration in local preferential hydrate-forming positions could also be attributed to the combination of hydrate formation and salt-removing effect.
This study demonstrates the utility of the ERT method for hydrate mapping in lab-scale. The results indicate that the average electrical conductivity decreases nonlinearly with the formation of the hydrate. At some special time-intervals, the average conductivity fluctuates within a certain scope. The plane conductivity fields evolve heterogeneously and the local preferential hydrate-forming positions alternate throughout the experiment.
Current study implies the utility of the ERT method for hydrate mapping in lab-scale. We attempted to match hydrological regimes and geological conditions of those of a real submarine environment. However, some factors involved in real submarine sediments were not taken into consideration due to experimental scale limitations. To meet the need of complicated simulation conditions requires an upgrade of the experimental scale or the installation of special structures into the vessel.
4 Conclusions
Less
This study developed a remote hydrate detecting experimental device based on ERT technology. Methane gas was injected from the center of the bottom flange with several cycles to simulate hydrate formation process at gas-water-sediment multi-phase scenarios. Hydrate formation was conducted at 1°C. Both the average conductivity and the conductivity field were comprehensively studied. The Archie equation is introduced to derive spatial and temporal distributions of hydrate within the sediment. The experiment yielded the following results.
(1) Generally, the average electrical conductivity decreased nonlinearly with the increase of average hydrate saturation. However, we still observed certain fluctuations of the average conductivity at some special time-intervals, namely, the average electrical conductivity increased slightly with the gas consumption (i.e. hydrate formation). This phenomenon was unlikely to occur if the average electrical conductivity is dominated solely by hydrate formation. As a result, we speculate that the hydrate formation process was accompanied by a certain remarkable mass-transfer, either three-dimensional or two-dimensional. And the salt-removal effect was responsible for such a remarkable mass-transfer.
(2) The conductivity field changed non-homogeneously throughout the experimental duration, indicating that the preferential hydrate-forming positions alternated throughout the experiment. Under the condition that gas was injected at the center of bottom flange, the hydrate distribution at the ERT monitoring plane showed obvious concentric-zonal characteristics with a radial saturation gradient. This was quite important since it inspired us the importance of water activity (seepage dominated by salinity difference) in hydrate accumulation processes in nature.
(3) The current study indicates anisotropic and heterogeneous hydrate formation processes under the condition of gas-water two-phase conditions. We speculate that salt-removal effect and hydrate formation itself are the main determinants of spatial and temporal hydrate distribution characteristics. Owing to the limitation of the experimental scale, the current experiment doesn’t take the influences of geochemical and geophysical characteristics into consideration, although they might play crucial roles in hydrate accumulation mechanisms in nature. Updating the experimental scale or installing some special structures into the vessel are needed to simulate more complicated situations.
