Acta Oceanologica Sinica | 2022, 41(6): 99-113
• Marine Chemistry •
Responses of nutrient biogeochemistry and nitrogen cycle to seasonal upwelling in coastal waters of the eastern Hainan Island
Full
Nan Zhou1, 2, Sumei Liu1, 2, *, Guodong Song1, 2, Yunyan Zhang1, 2, Lingyan Wang1, 2, Xiaoyan Ning1, 2
Affiliations
  • 1 Frontiers Science Center for Deep Ocean Multispheres and Earth System, and Key Laboratory of Marine Chemistry Theory and Technology of Ministry of Education, Ocean University of China, Qingdao 266100, China
  • 2 Laboratory for Marine Ecology and Environmental Science, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China
Published: 2022-06-25 doi: 10.1007/s13131-021-1934-8
Outline
收藏切换

The coastal upwelling has profound influence on the surrounding ecosystem by supplying the nutrient-replete water to the euphotic zone. Nutrient biogeochemistry was investigated in coastal waters of the eastern Hainan Island in summer 2015 and autumn 2016. From perspectives of nutrient dynamics and physical transport, the nutrient fluxes entered the upper 50 m water depth (between the mixed layer and the euphotic zone) arisen from the upwelling were estimated to be 2.5−5.4 mmol/(m2·d), 0.15−0.28 mmol/(m2·d), and 2.2−7.2 mmol/(m2·d) for dissolved inorganic nitrogen (DIN), phosphate (DIP), and dissolved silicate (DSi), respectively, which were around 6- to 12-fold those in the background area. The upwelled nutrients supported an additional plankton growth of (14.70±8.95) mg/m2 for chlorophyll a (Chl a). The distributions of nitrate δ15N and δ18O above the 300 m water depth (top of the North Pacific Intermediate Water) were different among the upwelling area, background area in summer, and the stations in autumn, and the difference of environmental and biogeochemical conditions between seasons should be the reason. The higher DIN/DIP concentration ratio, nitrate concentration anomaly, and lower nitrate isotope anomaly (Δ(15, 18)) in the upper ocean in summer than in autumn indicated the stronger nitrogen fixation and atmospheric deposition, and the following fixed nitrogen regeneration in summer. The higher values of Chl a and nitrate δ15N and δ18O within the euphotic zone in autumn than the background area in summer suggested the stronger nitrate assimilation in autumn. The differences in relatively strength of the assimilation, nitrogen fixation and atmospheric deposition, and the following remineralization and nitrification between the two seasons made the higher δ18O:δ15N and larger difference of enzymatic isotope fractionation factors 15ε and 18ε for nitrate assimilation in summer than in autumn above the North Pacific Tropical Water.

nutrients  /  upwelling  /  nitrate δ15N and δ18O  /  nitrogen cycle  /  South China Sea
Nan Zhou, Sumei Liu, Guodong Song, Yunyan Zhang, Lingyan Wang, Xiaoyan Ning. Responses of nutrient biogeochemistry and nitrogen cycle to seasonal upwelling in coastal waters of the eastern Hainan Island[J]. Acta Oceanologica Sinica, 2022 , 41 (6) : 99 -113 . DOI: 10.1007/s13131-021-1934-8
Full Text
Less
1 Introduction
Less
The upwelling is an important physical process as it can bring cold, nutrient-replete water to the euphotic zone to support the growth of primary producers, which plays a significant role in the biogeochemistry, primary production, and fisheries in the marine ecosystem (Hu and Wang, 2016; McGregor et al., 2007; Pauly and Christensen, 1995). The Ekman transport and Ekman pumping induced by wind combined with the bottom topography and tidal mixing make the marginal seas be the hot place for upwellings (Lin et al., 2016; Su and Pohlmann, 2009; Wang et al., 2013, 2015). The area of the coastal upwelling occupies only 1% of the global oceans, but contributes more than 10% of the new production and 20% of the fisheries in the world oceans (Chavez and Toggweiler, 1995; Pauly and Christensen, 1995). The Chinese marginal seas are abundant with coastal upwelling systems and more than half of them are in the South China Sea (SCS) (Hu and Wang, 2016).
The Hainan Island is situated in the southern part of China in the SCS with the surface area of 3.54×104 km2 and is dominated by the tropical maritime monsoon climate with southwesterly monsoon in summer and northeasterly monsoon in winter. There are dozens of small rivers in the Hainan Island empty into the SCS with a total annual discharge of 3.1×1010 m3 (Zhang et al., 2013), and the annual precipitation is 1 500 mm to 2 000 mm. More than 80% of the riverine discharge and rainfall is in the wet season (May to October) (Herbeck et al., 2020; Li et al., 2013, 2014; Liu et al., 2011; Zhang et al., 2006). The coast of the Hainan Island with the coastline length of 1550 km has various biological habitat types including mangroves, coral reefs, and lagoons (Li et al., 2014). The seasonal upwelling in coastal waters of the eastern Hainan Island (EHI) is one of the most famous coastal upwelling systems in the SCS and has been studied since the 1960s (Guan and Chen, 1964). Generally, the upwelling starts in April, develops to the peak period during June and July, dissipates in September, and locates at the area between 18.5°N to 20°N and west of 111.5°E, and the upward speed is in the order of 10 −5 m/s (Chai et al., 2001; Deng et al., 1995; Jing et al., 2009; Su et al., 2011b). The coastal upwelling system of the EHI varies interannually because of being affected by multiple environmental factors (e.g., East Asian summer monsoon, ENSO, rainfall, and tide) (Jing et al., 2011; Liu et al., 2013; Wang et al., 2015).
Nutrients are the essential, and usually, the limiting elements for the growth and reproduction of marine primary producers. Nitrogen cycle is a hot and difficult topic in the nutrient biogeochemical studies because of its multiple cycling processes and directly coupling with other biogenic elements (e.g., C, P and Si) through biological activities. The nitrate dual isotopes provide a powerful tool to constrain nitrogen cycle because of the characteristic δ15N and δ18O values (the computing method of δ15N (‰) or δ18O (‰) is (Rsample/Rstandard–1)×1 000, referenced to air N2 or the Vienna Standard Mean Ocean Water, where R is concentration ratio of 15N/14N or 18O/16O) of various nitrate sources; and the different enzymatic isotope fractionation factor (ε, 15ε (‰)=[(14k/15k)–1]×1 000, where 14k and 15k represent the rate constants for the light and heavy N isotopes, respectively, and similarly for 18ε with respect to O) among different nitrogen cycling processes. For example, the δ15N of new fixed N introduced from marine nitrogen fixation is approximately −1‰±1‰ (Hoering and Ford, 1960); the ε of nitrate assimilation is obviously lower than that of denitrification in water column (~5‰ vs. ~20‰; Granger et al., 2004, 2008); nitrate assimilation and denitrification in the ocean produce a 1:1 increase in the residual nitrate δ18O and δ15N, and the coexisting nitrification would result in a higher or lower deviation from this ratio, depending on the initial composition of sinking N (Casciotti et al., 2013; Granger and Wankel, 2016). Besides, nitrogen sources and their relative contribution can be estimated using the isotope balance model (Bourbonnais et al., 2013; Liu et al., 2020b).
The nutrient biogeochemical studies on the upwelling systems in the western SCS are mainly focused on the Vietnamese coast (Bombar et al., 2010; Loick et al., 2007; Voss et al., 2006). For the upwelling system in the coastal EHI, a few studies focusing on the nitrate biogeochemistry and nutrient distributions influenced by the upwelling have been reported (Chai et al., 2001; Han et al., 1990; Zhang et al., 2015; Chen et al., 2020), and the main research works are related to the nutrient budgets in estuaries and lagoons and their nutrient transport to the ocean (Li et al., 2013, 2014; Liu et al., 2011; Su et al., 2011a). However, the seasonal nutrient dynamics, especially, the sources and transfer processes of nitrogen in coastal waters of the EHI under the influence of the seasonal upwelling are still seldom.
As coastal area of the EHI is affected by the strong upwelling in summer, the seasonal nutrient dynamics and nitrogen cycling processes are complicated. Two field observations were carried out in coastal waters of the EHI during the peak and end period of the upwelling in summer 2015 and autumn 2016. With the dataset of hydrological parameters, nutrient concentrations, nitrate nitrogen and oxygen isotopes, chlorophyll a (Chl a), and dissolved oxygen (DO), we aim to elaborate the importance of nutrients supplied by the upwelling for supporting the primary production within the euphotic zone, and the nitrogen sources as well as the main nitrogen cycling processes in the coastal EHI under influence of the seasonal upwelling in this study.
2 Materials and methods
Less
2.1 Sampling

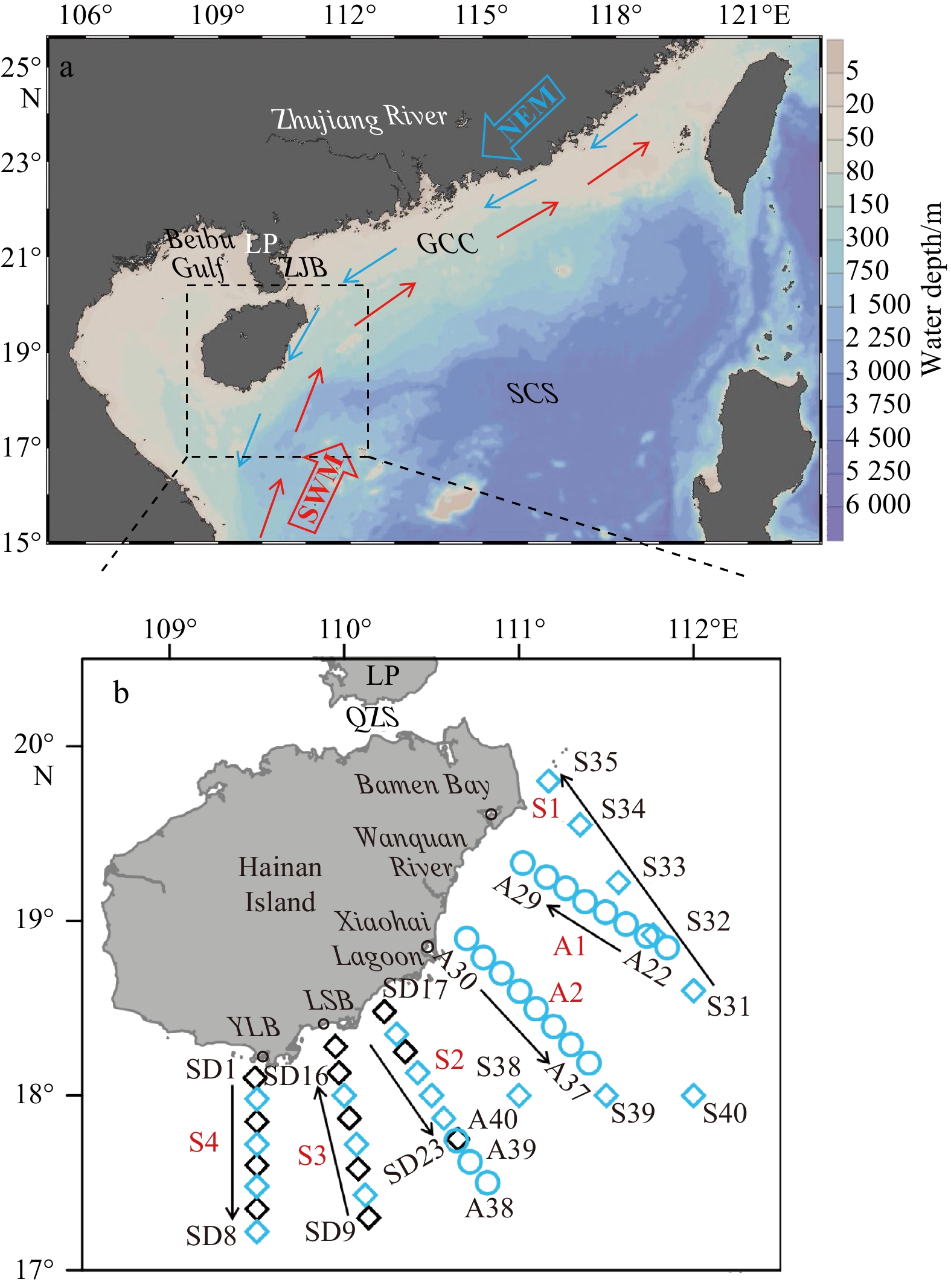

Two field cruises were conducted in coastal area of the EHI on July 1 to 10, 2015 (summer) and September 18 to 20, 2016 (autumn). There were 31 hydrological stations in the summer investigation and 19 of them were collected the biogeochemical samples; and during the autumn investigation, the biogeochemical samples were collected at all the 19 hydrological stations (Fig. 1). A conductivity-temperature-depth (CTD) rosette system (Seabird 911 plus) attached with 5 L Niskin bottles was used to collect discrete water samples from surface to near bottom, and the sampling layers was decided based on in situ ecological environment parameters, including temperature, salinity, fluorescence, and DO. When the CTD rosette was settled down on the deck from the water column, silicone tubes were connected to the Niskin bottles; then water samples were collected using glass bottles for DO determination and Nalgene high-density polyethylene (HDPE) bottles for nutrients measurement. Before filtration, part of water sample was stored in Axygen polypropylene tubes for ammonium analysis on board. Then, the rest was filtered through 0.4 μm Whatman Nuclepore polycarbonate membrane (precleaned with 1% HCl and rinsed to neutral with Milli-Q water) using 500 mL Nalgene filtration apparatus. The filter was folded and preserved in aluminum foil and stored at –20°C until being measured the Chl a back to laboratory. After being rinsed three times by the filtrate, two 125 mL Nalgene HDPE bottles were filled with 100 mL filtrate subsamples, the one for analyzing the nitrate nitrogen and oxygen isotopes was added 1 mL 2.5 mmol/L sulfamic acid in 25% HCl to remove nitrite (Weigand et al., 2016) and stored at room temperature; and another one was stored at −20°C for nutrient species analyses. We precleaned the HDPE bottles and filtration apparatuses by soaking them into 10% HCl for three days and rinsing to neutral with deionized water.
2.2 Measurements of nutrients, DO, and Chl a
On board, ammonium was analyzed using the fluorometric ortho-phthaldialdehyde method and DO was measured using a DO benchtop meter (JENCO 9173, America) (Kérouel and Aminot, 1997). Nitrate, nitrite, DIP, and DSi were quantified using a QuAAtro autoanalyzer (SEAL Analytical, Germany) back to laboratory. The limitations of detection were 0.02 μmol/L, 0.02 μmol/L, 0.01 μmol/L, 0.01 μmol/L, and 0.03 μmol/L for ammonium, nitrate, nitrite, DIP, and DSi, respectively, and the precision was better than 3%. The total dissolved nitrogen (TDN) and total dissolved phosphorus (TDP) were analyzed using basic-persulfate oxidation (a solution of K2S2O8 and H3BO3 in NaOH) in an autoclave at 120°C for 30 min to decompose to nitrate and phosphate (Liu et al., 2017). The concentration of dissolved organic nitrogen (DON) and dissolved organic phosphorus (DOP) were calculated from the differences between TDN and DIN (the sum of nitrate, nitrite, and ammonium) and between TDP and DIP. The filter samples for Chl a measurement were analyzed by acetone extraction fluorometric determination method (Parsons et al., 1984) with the Chl a standard from spinach (Sigma-Aldrich C5753).
2.3 Nitrate δ15N and δ18O analyses
The water samples for nitrate δ15N and δ18O measurement were adjusted the pH to 6−8 by adding 2 mol/L NaOH and analyzed using the denitrifier method (Sigman et al., 2001; Casciotti et al., 2002). In this method, nitrate is converted to N2O by the denitrifier: Pseudomonas aureofaciens which lacks the N2O reductase. Following, the N2O was purified and analyzed for the isotopic ratios, R, using a purge, cryogenic trap and gas chromatographic separation continuous flow system coupled to an isotope ratio mass spectrometer (IRMS; IsoPrime100, Elementar, Germany). The results were calibrated by the isotope standards: IAEA-N3, USGS34, and USGS35. The δ15N and δ18O values of these standards are 4.7‰ and 25.6‰, –1.8‰ and –27.9‰, 2.7‰ and 57.5‰, respectively. An additional lab mixed standard which was made by USGS32 (1 mL, 0.05 mol/L) and USGS34 (10 mL, 0.05 mol/L) was added to calibrate the results to cover all possible δ15N values of our water samples. The δ15N value of the lab mixed standard was 14.3‰ that was determined by an elemental analysis IRMS (Vario Micro Cube, Elementar, Germany). The analytical precision was better than 0.2‰ and 0.5‰ for δ15N and δ18O, respectively.
The isotopic effect of algal nitrate assimilation could be described by the Rayleigh model and depended on whether the nitrate was continuous supplied to the system or not, Rayleigh model was divided to the open system model and closed system model (Liu et al., 2017; Mariotti et al., 1981).
$ {\rm{Open\;system}}: \delta^{15}{\rm N} (\delta^{18}{\rm O}) = \delta^{15}{\rm N} (\delta^{18}{\rm O}) _{f=1} + ^{15}\varepsilon (^{18}\varepsilon) \times (1-f), $
$ {\rm{Closed\;system}}: \delta^{15}{\rm N} (\delta^{18}{\rm O}) = \delta^{15}{\rm N} (\delta^{18}{\rm O}) _{f=1} - ^{15 }\varepsilon (^{18}\varepsilon) × {\rm {ln}}(f), $
where f was the fraction of unassimilated nitrate in the water column, and 15ε (18ε) was the isotope fractionation factor of nitrogen (oxygen) for nitrate assimilation.
2.4 Satellite data
The satellite images of surface seawater potential temperature (SST), surface seawater salinity (SSS), and surface seawater velocity (SSV) were provided by the Copernicus Marine Environment Monitoring Service (http://marine.copernicus.eu/). The reanalysis satellite datasets are the level-4 with spatial and temporal resolutions of (1/12)° and monthly averaged.
2.5 Statistical analysis
Statistical analyses were conducted using the SPSS 22 software. The Pearson correlation coefficient was used to determine the correlation between two variables when p<0.05. The independent t-test was employed to compare the difference between two variables and the difference is significant when p<0.05.
3 Results
Less
3.1 Characteristics of the upwelling

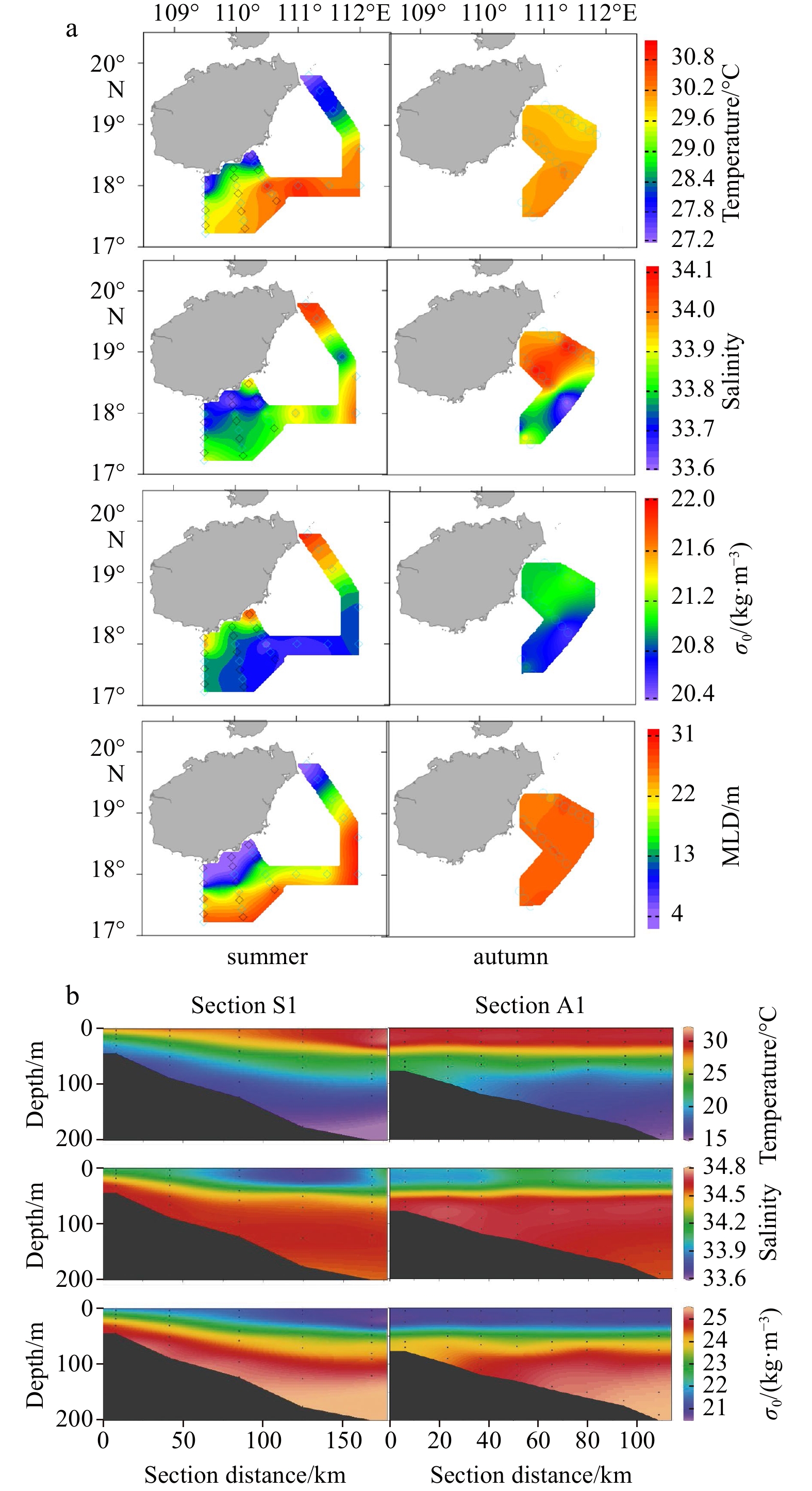

Indicated from the satellite datasets of SST, SSS, and SSV in the northwestern SCS, performance of the coastal upwelling in the EHI matched evolution of the East Asia monsoon very well (Figs S1 and S2). The sampling of summer 2015 was in the peak period of the upwelling and the sampling period of autumn 2016 was just after the upwelling was dissipated. The difference in distribution of hydrological parameters between summer and autumn was consistent with characteristic driven by this seasonal upwelling (Fig. 2a). In summer, the upwelling brought the cold, salty, and dense deep water to surface and shallowed the mixed layer depth (MLD, which was defined as the water depth that its temperature was 0.5°C lower than that of the surface water; Kara et al., 2000), which made the surface distribution of hydrological parameters display obvious gradient. The nearshore stations had colder and denser surface water as well as shallower MLD than those of the offshore stations, where the differences could reach more than 3°C, 1 kg/m3, and 20 m, respectively. The salinity of nearshore stations was high in Sections S1 and S2, however, there was a water tongue with slightly lower salinity (around 33.6 to 33.8) from the southwest toward the northeast covered the nearshore stations of Sections S3 and S4, and the middle area of Sections S1 and S2. In contrast, the surface hydrological characteristics were rather constant in autumn.

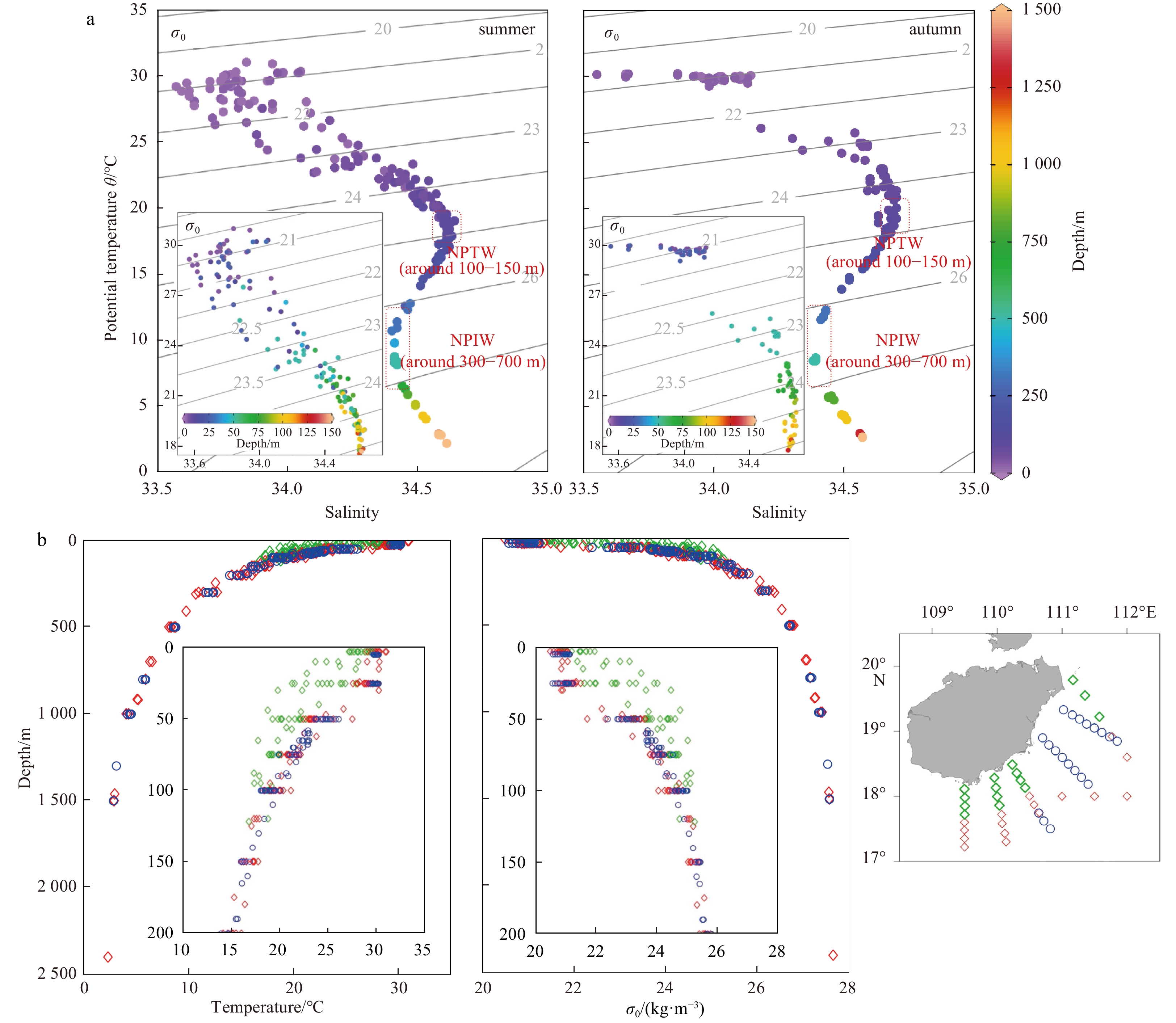

The temperature, salinity, and density presented an uplifted trend from the offshore toward the nearshore stations in the upper ~150 m in all sections in summer, but the isopleths of hydrological parameters were parallel to the water depth in autumn (Fig. 2b, to reduce the figures, Sections S1 and A1 were shown as the representatives). The temperature-salinity (T-S) diagram was overall in concordance with each other for both seasons and presented the classic “reverse S” shape of the SCS (Fig. 3a), which suggested that though the survey area was not exactly coincident with each other, the water masses were the same. The high salinity water (around 34.6 to 34.7) with the potential density anomaly (σ0, kg/m3) from around 24 to 25 indicated the North Pacific Tropical Water (NPTW, around 100–150 m), and the low salinity water (~34.4) with the σ0 from around 26 to 27 indicated the North Pacific Intermediate Water (NPIW, around 300–700 m) (Liu et al., 1996; Tian et al., 2009). When σ0 was lower than 25, the water depth presented more related to density in autumn, but it was rather scattered in summer (shallow samples could appear in high-density area), which was resulted from the nearshore upwelling brought the cold, salty, and dense water to the shallow water depth from below in summer (Fig. 3a). The sampling stations in summer 2015 were divided into nearshore upwelling stations (including Stations SD1 to SD4 in Section S4, Stations SD13 to SD16 in Section S3, Stations SD17 to SD20 in Section S2, and Stations S33 to S35 in Section S1) and offshore stations to illustrate how far the coastal upwelling can extend and how deep it could affect (Fig. 3b). The depth profiles for temperature and density of offshore stations in summer were consistent with the sampling stations in autumn; however, the upwelling stations in summer had obviously lower temperature and higher density above 125 m. Along with the sectional distribution of the hydrological parameters, the nearshore upwelling in summer extended to at least 50 km off the coastline for Sections S2 to S4, and 85 km for Section S1; and it could affect at least 125 m water depth.
3.2 Nutrients, Chl a, and DO
3.2.1 Distribution

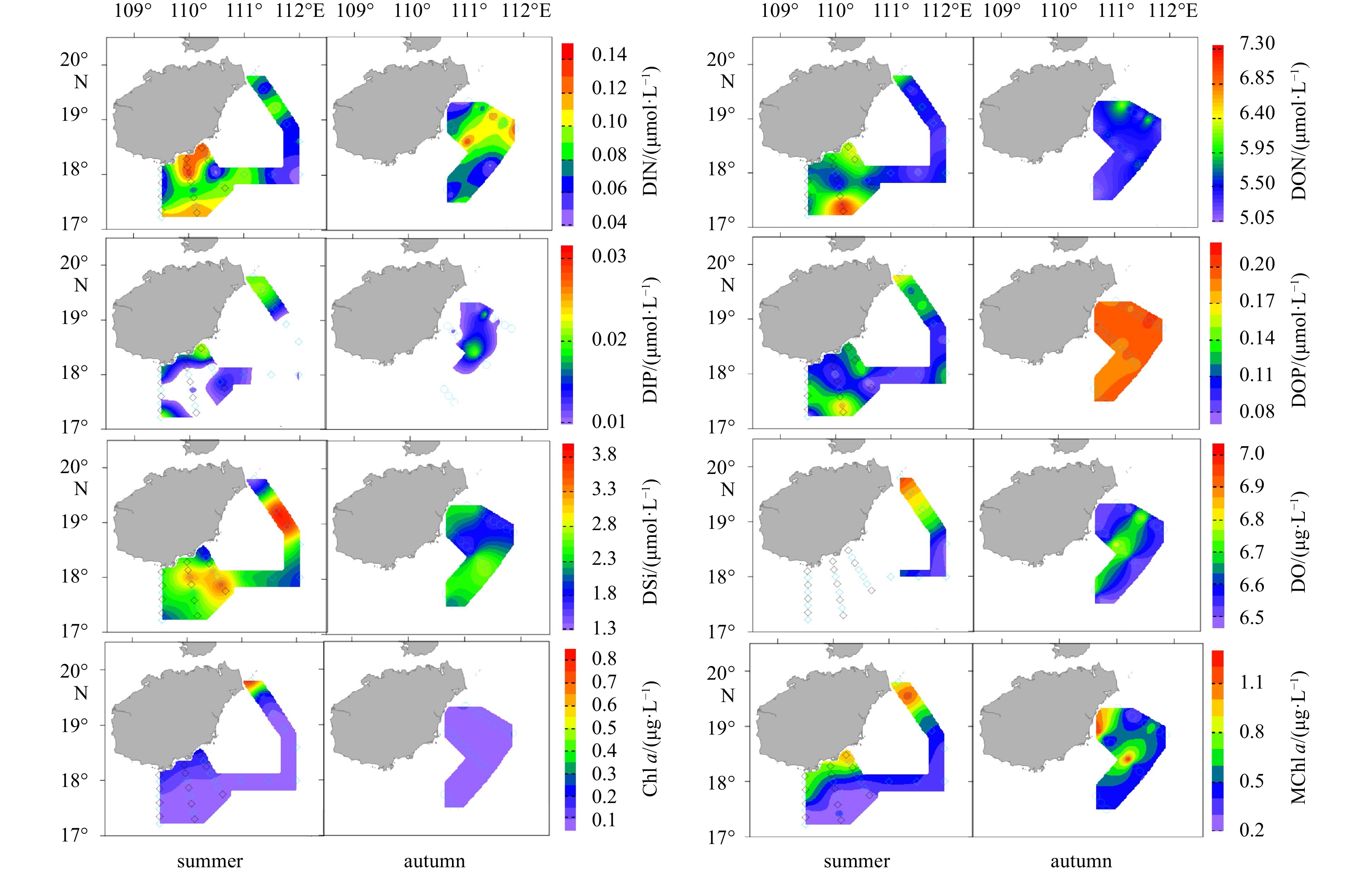

The surface dissolved inorganic nutrients were very low and even below the detection limit (nitrate, nitrite, and DIP) in some regions except for DSi. Ammonium was the main specie of DIN in surface water and the average percentage was 66%±21% in summer and 76%±11% in autumn. The dissolved organic nutrients dominated the total dissolved nutrients at the surface and the percentages of DON and DOP in TDN and TDP were both larger than 90% in two seasons. There were relatively high concentrations of DIN, DIP, DON, DOP, Chl a, and DO in coastal upwelling regions of the EHI in summer (Fig. 4). The DSi was higher in the water tongue with slightly lower salinity. In contrast, the surface distribution of biogeochemical parameters was relatively constant in autumn.

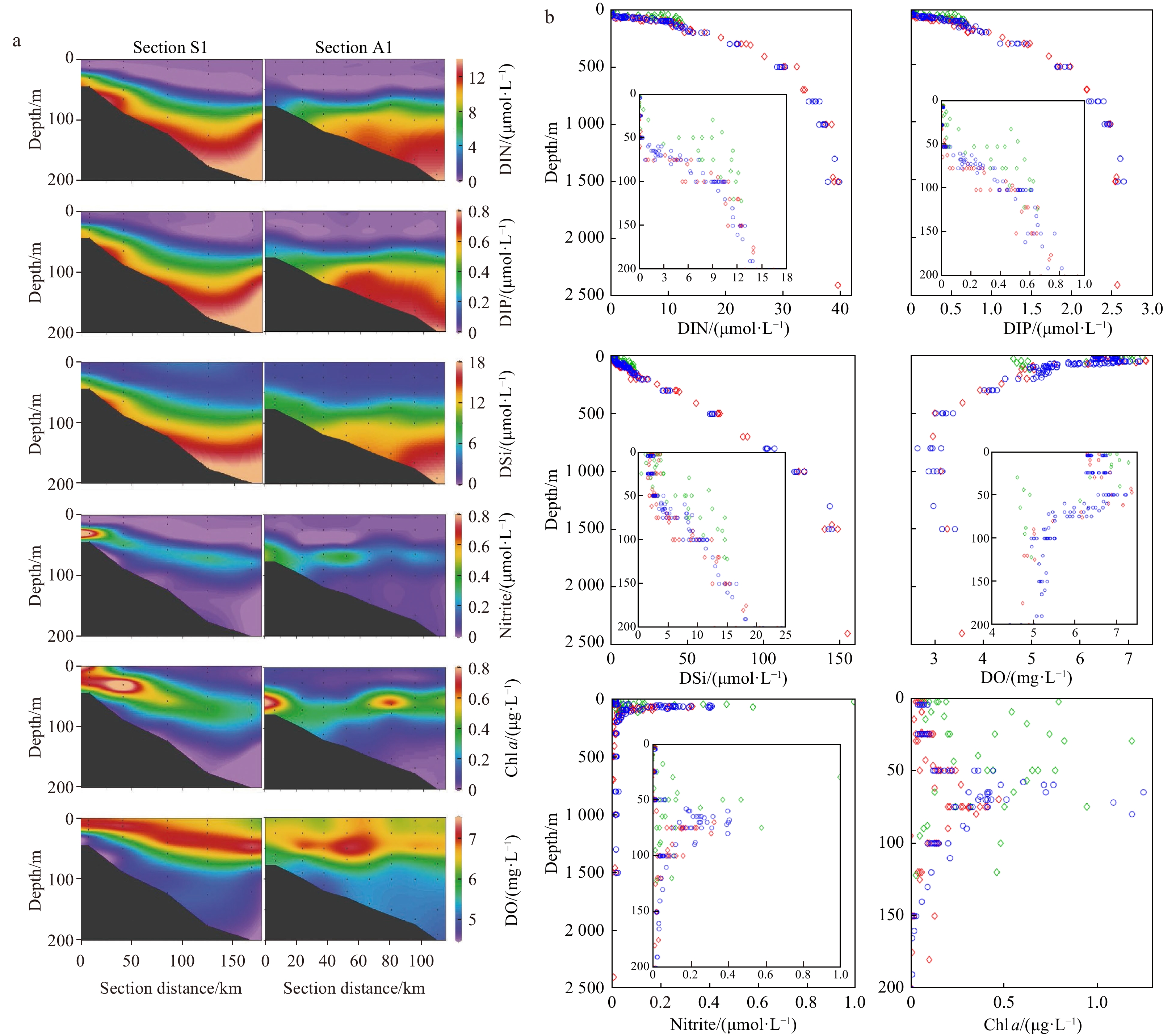

The sectional distribution of biogeochemical parameters from offshore toward the nearshore stations in summer and autumn were similar to those of hydrological parameters, which the isopleth presented a tilted-up trend in summer because of the nearshore upwelling, and were parallel with the water depth in autumn (Fig. 5a, to reduce the figures, Sections S1 and A1 were shown as the representatives). Resulted from that the nearshore upwelling supplied the nutrient-replete deep water to the shallower water depth, the DIN, DIP, and DSi of nearshore upwelling stations had higher concentrations in the upper 125 m than those of offshore stations in summer and the stations in autumn (Fig. 5b), even within the nutricline (the water depth that had the biggest increase of nutrient gradient). The depth profiles for DIN, DIP, and DSi of offshore stations in summer and stations in autumn were nearly consistent with each other, which were very low within the nutricline; below the nutricline, concentrations of DIN and DIP increased sharply down to about 500 m, then the increase trend became mildly and were stable at 38 μmol/L to 40 μmol/L and 2.6 μmol/L to 2.9 μmol/L, respectively, below 1 500 m; DSi increased constantly down to about 1 000 m, and the concentration exceeded 150 μmol/L at 2 400 m. DO decreased sharply from the surface to about 500 m, corresponding to the range of water depth for DIN and DIP sharply increased. Then, DO presented the minimum values between around 700 m and 1 000 m at 2.7 mg/L to 3.2 mg/L and increased slightly downward. Nitrite presented a subsurface maximum value in both seasons, which reached 1 μmol/L at the nearshore upwelling stations in summer. The depth of nitrite subsurface maximum values was in concordance with the Chl a maximum layer (DCM) for offshore stations in summer and stations in autumn, which was between around 50 m to 100 m. Chl a of nearshore upwelling region in the upper 125 m was higher than that of offshore stations in summer (p=0.000, n=41 and n=63 for upwelling and offshore stations, respectively) and stations in autumn (p=0.005, n=41 and n=95 for upwelling stations in summer and stations in autumn, respectively) but scattered. For the offshore stations in summer and stations in autumn, Chl a and nitrite in the upper 125 m were significantly higher in autumn (p=0.002 and p=0.01 for Chl a and nitrite; n=63 and n=95 for summer and autumn).
3.2.2 Nutrient ratios

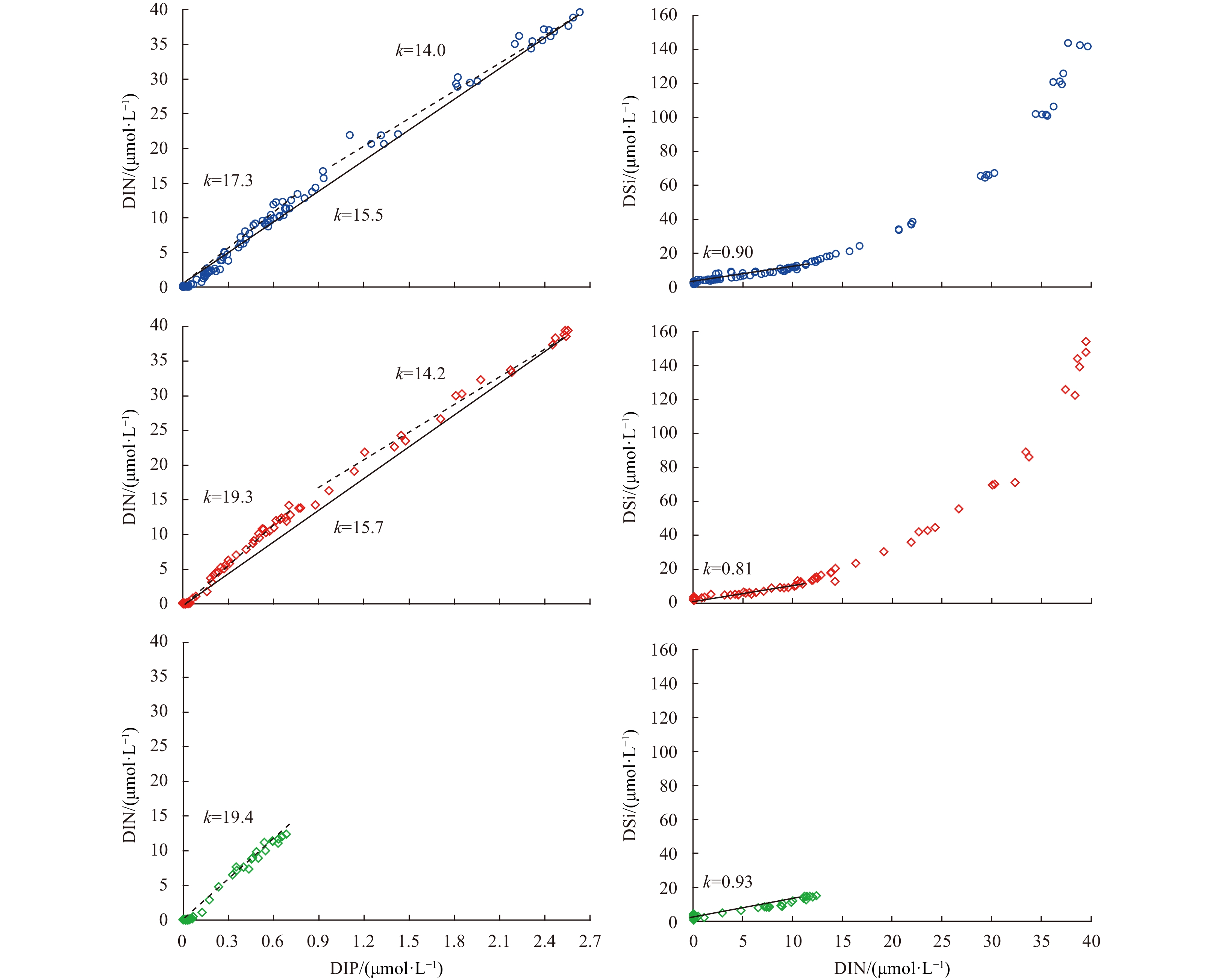

The slopes of the regression line of DIN to DIP for samples in autumn and offshore stations in summer (Fig. 6) were similar and were consistent with the Redfield ratio (the regression equations were y=15.5x+0.22, r=0.996 and y=15.7x+0.53, r=0.997, respectively). The relationship between DSi and DIN was linear for samples above the salinity maximum layer (i.e., NPTW) (k=0.90, r=0.966 for stations in autumn; k=0.81, r=0.971 for offshore stations in summer; k=0.93, r=0.974 for upwelling region in summer, respectively), and the slope of DIN to DIP was higher than that of samples below the NPTW. The slope of DIN to DIP for samples below the NPTW in autumn was similar to that in offshore stations in summer (k=14.0, r=0.994 and k=14.2, r=0.998). However, the slope was significantly higher for samples above the NPTW in summer than those in autumn (k=19.3, r=0.995 for offshore stations in summer; k=19.4, r=0.995 for upwelling region in summer; k=17.3, r=0.991 for stations in autumn, respectively).
3.3 Dual-isotopic composition of nitrate

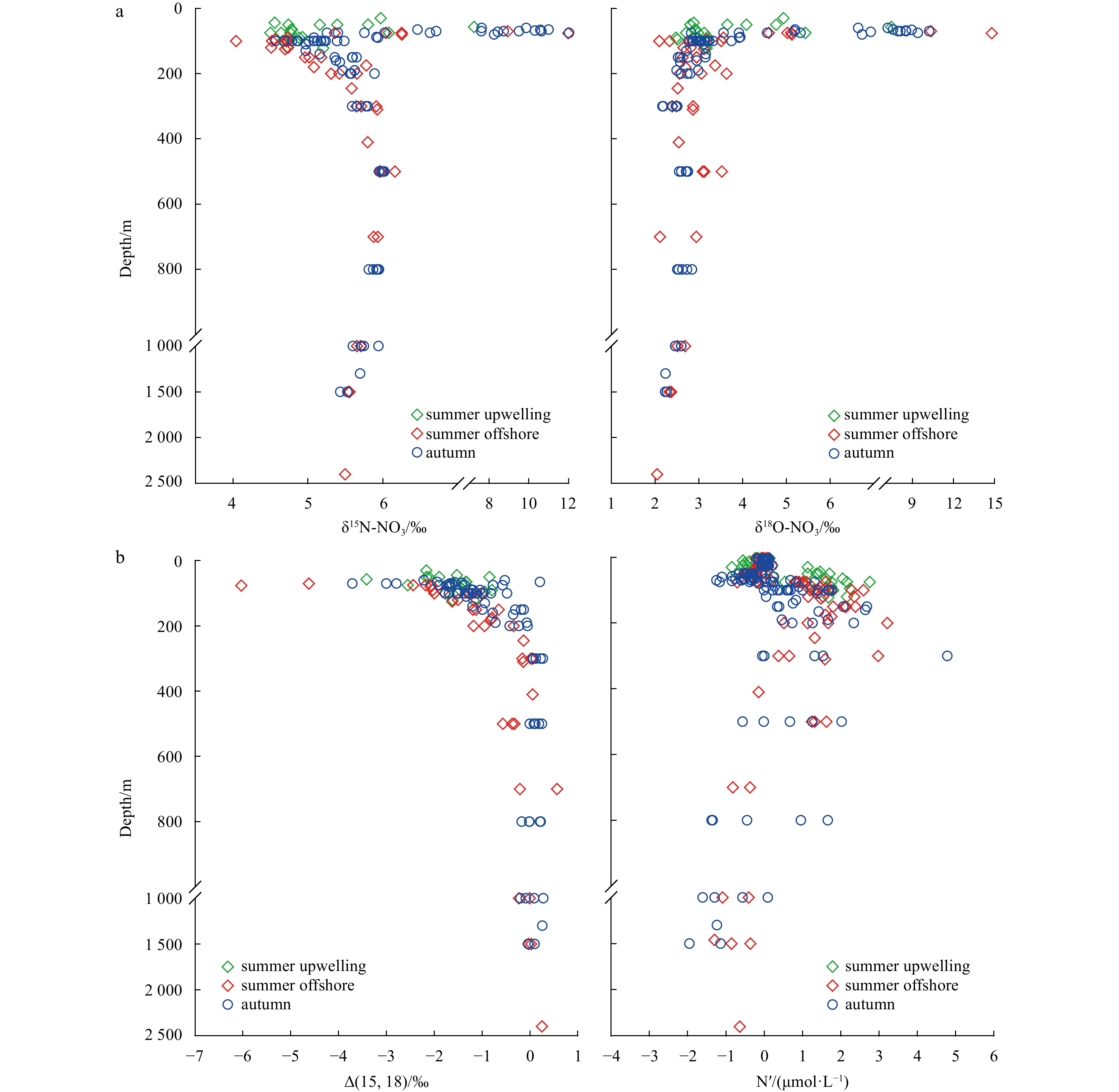

Depth profiles of nitrate δ15N and δ18O were generally similar between summer and autumn (Fig. 7a). The δ15N presented a relatively high value of 6.0‰±0.1‰ at 500 m that was the water depth of the core of the NPIW in the SCS (You et al., 2005). Downward, the values of δ15N decreased slowly and were stable below 1 500 m at 5.5‰; upward, δ15N decreased more sharply to their minimum at 100 m water depth with the lowest values of 4.0‰ and 4.6‰ for summer and autumn, respectively; and the values between 100 m and 300 m was slightly lower in summer than that in autumn (p=0.006). Above 100 m, δ15N increased severely to the maximum value of 12.0‰ for both seasons, however the overall values were significantly higher in autumn than those in summer (p=0.006; average values were 5.2‰±0.7‰, 6.8‰±2.5‰, and 7.9‰±2.2‰ for upwelling region, offshore stations in summer, and stations in autumn, respectively). The distribution trend of δ18O below 500 m coincided with that of δ15N and the value was 2.3‰±0.2‰ below 1 500 m. The values of δ15N and δ18O below 1 500 m in coastal waters of the EHI in summer and autumn were consistent with those in the world deep oceans (Sigman et al., 2009; Lehmann et al., 2018). However, δ18O was relatively constant from 500 m to 100 m, which did not show a decreased trend and there were no obviously minimum values at 100 m water depth as the δ15N did. Above 100 m, similar to δ15N, the values of δ18O increased sharply, but the increased extent was bigger than that of δ15N; and also, the values of δ18O in upwelling region were significantly lower than those in the summer offshore stations and stations in autumn (p<0.02; the average values were 3.7‰±1.4‰, 6.5‰±4.0‰, and 6.3‰±2.2‰ for upwelling region, summer offshore stations, and stations in autumn, respectively).
4 Discussion
Less
4.1 The vertical supply of nutrients caused by upwelling
To comprehensively assess the importance of nutrients supplied by the coastal upwelling to the upper ocean for supporting the growth of plankton and primary production in coastal ecosystem of the EHI, we estimated ranges of the upwelled nutrient amounts from the aspects of nutrient dynamics and physical transport (Lips et al., 2009; Bombar et al., 2010; Su et al., 2011b).
4.1.1 Estimation from the nutrient dynamics
The amounts of nutrients supplied by upwelling could be overall estimated from the difference of the nutrient loads with and without the upwelling (Lips et al., 2009). The isopleths of hydrological and biogeochemical parameters along sections in September (just after the peak period of the upwelling; Figs S1 and S2), compared with those in July, were overall parallel to the water depth (Figs 2b and 5a). There were no significant differences in these parameters above 125 m (the upwelling influencing depth in summer) between offshore and nearshore stations (except for a weak difference in ammonium in Section A2 (p=0.047); Table S1), which strongly suggested that when there was no influence of the upwelling, the hydrological and biogeochemical conditions in the nearshore region in coastal waters of the EHI were similar to those in the offshore stations. Thus, we used the hydrological and biogeochemical parameters of offshore stations above 125 m in summer as the background parameters for nearshore stations, and the differences of these parameters between offshore (background) and nearshore stations in summer should be attributed to the effect of the upwelling. However, because the water depth became shallow toward the shore and the shape of water column along sections was irregular (Figs 2b and 5a), it was difficult to get the background conditions of those irregular sections from the offshore background stations. So, we took water depth of the shallowest station (S35, 50 m). We sampled in the upwelling region in summer to assess the nutrients supplied by upwelling to the upper ocean. This water depth is deeper than the MLD and shallower than the euphotic zone in the study area (Zhou, 2020); therefore, the upwelled nutrients within this water depth would be significant for nearby coastal ecosystem. Besides upwelling, the nearshore area could be affected by the river discharge, especially in the wet season. The Wanquan River is the largest river in the EHI, and reportedly, the low salinity (S<33) and high nutrient (e.g., DIN>1 μmol/L, DIP>0.1 μmol/L, and DSi>5 μmol/L, respectively) diluted water was limited within ~20 km off the estuary during July and September, and even within ~10 km for the smaller Wenchang River and Wenjiao River (Li et al., 2014). Indicated from our observation in September, the Wanquan River diluted water could not affect the coastal area we investigated (Figs 2a and 4). This finding corresponds with the study in similar region by Su et al. (2011b) which reported that freshwaters from Wanquan River, Wenchang River, and Wenjiao River were confined to the coastal area with less than 20–30 m deep and estuarine water did not have a significant impact on upwelling strength on shelf of the EHI. Furthermore, considering that the average discharge and precipitation in the Wanquan River estuary are usually higher in September than in July (Li et al., 2013) and there is no river larger than the Wanquan River in the nearshore area of the three southern sections (i.e., S2 to S4), the coastal area of the investigation in July was unlikely to be affected by the river discharge either. The shallow water tongue (<25 m) from the southwest toward the northeast with slightly lower salinity (around 33.6–33.8) and higher DSi (around 2.4–3.8 μmol/L) than the surrounding water observed in July extended quite far off the shore (>100 km), and its DIN (<0.1 μmol/L) and DIP (<0.02 μmol/L) were rather low (Figs 2a and 4), which probably did not result from the river discharge in the EHI. Indicated from the images of SSS and SSV, the water tongue was probably originated from other riverine input in the western and northwestern SCS, such as the Beibu Gulf (Figs S1b and S2a). Though decomposition of organic carbon from these areas might provide nutrients (Huang et al., 2017), the low DIN and DIP in the water tongue implied that the consumption might be more pronounced and the contribution from these long-range transports in the study area should be limited.
The water depth weighted inorganic nutrient and Chl a concentrations above 50 m of upwelling stations were significantly higher than those of the background stations and the stations in autumn (Table 1). The difference of DSi between the upwelling and background stations was rather small compared with that of DIN and DIP, which might be due to the dominant fast-growing diatoms in the coastal upwelling regions during summer (Wu et al., 2014; Zhang et al., 2015) consumed DSi rapidly and the rate of the remineralization of Si-rich sinking particles was slow (Han et al., 2012). The bigger standard deviation (SD) of the inorganic nutrients and Chl a in the upwelling area was caused by the obvious onshore gradients (Fig. 5a). The relatively constant concentrations of DON and DOP among upwelling, the background stations, and the stations in autumn implied the biologically recalcitrant nature of dissolved organic matter (Knapp et al., 2005). By subtracting the background values from the nutrient concentrations of upwelling stations, the increased nutrient concentrations caused by the seasonal upwelling in coastal area of the EHI were (75.1±82.6) mmol/m2, (4.47±4.63) mmol/m2, and (66.0±67.1) mmol/m2 for DIN, DIP, and DSi, respectively, which supported the additional growth of plankton for (14.7±8.95) mg/m2 of Chl a in the upper 50 m. The DIN/DIP and DSi/DIN of the average increased nutrient concentrations caused by the upwelling were 16.8 and 0.9. Indicated from the SST, SSS, and SSV in 2015 (Figs S1 and S2a), the upwelling in coastal waters of the EHI was strongest during May to July, and the upwelling took approximate one month (April) to get its peak status (similar to the reports in Su and Pohlmann (2009) and Su et al. (2011b)). We took the increased nutrient concentrations represented the biogeochemical conditions during the peak period of the upwelling, then the fluxes of nutrients supplied by the coastal upwelling were (2.5±2.7) mmol/(m2·d), (0.15±0.15) mmol/(m2·d), and (2.2±2.2) mmol/(m2·d) for DIN, DIP, and DSi, respectively. Considering of the higher Chl a in nearshore stations than the background value and the nutrient consumption by planktons, the increased nutrient concentrations caused by the upwelling might be higher, especially when the upwelling just achieved its peak status, so the nutrient fluxes estimated by this way should be the lower limit.
4.1.2 Estimation from the physical transport
The vertical velocity of the upwelling at base of the mixed layer could be roughly estimated using the method suggested in Su et al. (2011b): the thickness of the mixed layer in the stations closest to the shore of each section was averaged 4 m and that in the outermost offshore stations of each section was averaged 29 m, then the mixed layer was uplifted 25 m by the coastal upwelling in April. Then, the overall vertical velocity of the upwelling at base of the mixed layer was simply estimated to be 0.83 m/d (25 m divided by 30 d, ca. 1×10–5 m/s). The upwelling in the ocean typically has the upward speed of 10–6 m/s to 10–4 m/s (Hu and Wang, 2016). The speed would exceed 4×10–4 m/s in the ocean near Peru where has one of the strongest upwelling system in the world (Albert et al., 2010; Wang et al., 2013). While for coastal waters of the northwestern SCS, the upward speed of upwelling was relatively lower, such as ranged from 1.6×10–5 m/s to 2.5×10–5 m/s in the 40 m to 100 m water depth of the southeastern Vietnamese coast (Bombar et al., 2010), and 0.7×10–5 m/s to 4.5 × 10–5 m/s within the tens of meters water depth of the coastal water of EHI (Deng et al., 1995; Guo et al., 1998; Han et al., 1990; Jing et al., 2009; Su et al., 2011b). Our result, though relatively lower, was within the reported results. The outermost stations of the four sections that affected by the upwelling were averaged about 60 km away from the shore and the length of the coastline in our study area was about 270 km, then the water flux entered the mixed layer driven by upwelling was 6.75×109 m3/d (~0.08×106 m3/s), which was slightly higher than that estimated by Su et al. (2011b) in summer 2007 and 2008. A decade (2000–2009) average total water flux uplifted by the upwelling in coastal area of the EHI estimated by Wang et al. (2013) was 0.21×106 m3/s and based on our result, only ~37% of it entered the mixed layer. According to this result, the upwelling would uplift ~6.1×1011 m3 water entered the mixed layer from below during its peak period (May to July), which was approximate 10 times bigger than the sum of the annual total riverine discharge in the Hainan Island into the SCS (ca. 3.1×1010 m3, Zhang et al., 2013) and the annual rainfall in the study area (~3.2×1010 m3, based on the annual rainfall of no more than 2 000 mm and the study area of 60×270 km2; Herbeck et al., 2020; Li et al., 2013, 2014; Liu et al., 2011; Zhang et al., 2006).
The nutrients supplied by upwelling could also be evaluated from the aspect of the upward physical transport (Bombar et al., 2010). Fupwelling=v×Cnutrient, where v was the vertical velocity of the upwelling and Cnutrient was the nutrient concentrations. We took 0.83 m/d (ca. 1×10–5 m/s) as the v in our calculation and the fluxes of nutrients supplied by the upwelling to the upper 50 m would be (4.18±3.24) mmol/(m2·d), (0.23±0.16) mmol/(m2·d), (5.59±2.67) mmol/(m2·d), (4.58±0.60) mmol/(m2·d), and (0.13±0.05) mmol/(m2·d) for DIN, DIP, DSi, DON, and DOP, respectively. The fluxes of DIN and DIP calculated by this way were slightly higher than those entered the mixed layer estimated by Luo et al. (2018). The upwelled DIN/DIP and DSi/DIN (18 and 1.3) were slightly higher than those estimated from the nutrient dynamics, but also did not distinguish from the Redfield ratios. Furthermore, the vertical inorganic nutrient fluxes of background area (the offshore stations) could be estimated by considering the turbulent diffusion, which was calculated by combining the turbulent diffusion and vertical gradient of the nutrient concentration (Li et al., 2021) using the following: Fdiffusion=–Kz×(∂Cnutrient/∂z), where Kz was the turbulent diffusion coefficient and the negative sign represented that direction of the diffusion was opposite to the concentration gradient direction; ∂Cnutrient/∂z was the gradient of nutrient concentrations, which was determined from differences of nutrient concentration and water depth. Kz was reported to be 1×10–4 m2/s in the 30 m to 60 m water depth of the Vietnamese coast (Bombar et al., 2010) and in coastal waters of the EHI (Guo et al., 1998). Thus, the vertical nutrient fluxes of background area were (1.05±0.75) mmol/(m2·d), (0.05±0.03) mmol/(m2·d), and (0.68±0.43) mmol/(m2·d) for DIN, DIP, and DSi, respectively. The inorganic nutrient fluxes supplied by the upwelling were several times higher than those by turbulent diffusion in the background area. It should be noted that the nutrient fluxes supplied by turbulent diffusion in the upwelling area, ((2.26±0.86) mmol/(m2·d), (0.10±0.04) mmol/(m2·d), and (2.25±0.62) mmol/(m2·d) for DIN, DIP, and DSi, respectively) were also obviously higher than those in the background area. Considering that there were processes of nutrient addition and consumption (e.g., mineralization and assimilation) both in areas of upwelling and background, the high nutrient fluxes supplied by turbulent diffusion in the upwelling area should be attributed to the nearshore upwelling enhancing the nutrient concentration gradient of the upper ocean. Upwelling not only brought the nutrient-replete water to the upper ocean directly, but also further promoted the vertical nutrient fluxes of turbulent diffusion by enhancing the nutrient concentration gradient. Then, the total vertical nutrient fluxes in the upwelling area were around 6- to 12- fold those in the background area, which reflects the significance of upwellings to nearby coastal ecosystems.
Based on different approaches, the average nutrients entered the upper 50 m water depth in the coastal EHI arisen from the upwelling were estimated at the ranges of 2.5 mmol/(m2·d) to 5.4 mmol/(m2·d), 0.15 mmol/(m2·d) to 0.28 mmol/(m2·d), and 2.2 mmol/(m2·d) to 7.2 mmol/(m2·d) for DIN, DIP, and DSi, respectively. The upwelling nutrient fluxes were at least two orders of magnitude higher than the annual atmospheric nutrients input in the SCS (Wu et al., 2018; Chen et al., 2001). The average upwelled nutrient amounts during its peak period (May to July) were 5.8×109 mol for DIN, 3.1×108 mol for DIP, 6.8×109 mol for DSi, 6.7×109 mol for DON, and 1.8×108 mol for DOP. The inorganic nutrients were about 10 times higher than the annual nutrient fluxes transported from land to the coastal EHI estimated by Su et al. (2011a); and DIN and DSi were 10 times and 4 times, DIP, DON, and DOP were about 25 times higher than those of the total annual discharges from the Wenchang River estuary, Wenjiao River estuary, Wanquan River estuary, and Xiaohai Lagoon and Laoye Lagoon to the coastal EHI (Li et al., 2013, 2014; Liu et al., 2011). As nitrogen was the primary limited factor in upper ocean of the study area (the obviously low N/P and high Si/N above the DCM compared with those below), based on the Redfield ratio, the upwelled DIN could support 16.6 mmol/(m2·d) to 35.8 mmol/(m2·d) of carbon fixation. The primary production around our study area ranged from 26.4 mmol/(m2·d) to 58.4 mmol/(m2·d) (in terms of C) (Ning et al., 2004; Song et al., 2012; Zhang et al., 2015), which implied that, averagely, the carbon fixation supported by the upwelling in summer 2015 was about 62% of the primary production in the study area.
4.2 Nitrogen cycling constrained by nitrate δ15N and δ18O
The nitrogen fixation, remineralization, nitrification, and assimilation are usually the most important nitrogen cycling processes in oxygen-rich water. The nitrate concentration and δ15N synchronized decreased upward between 500 m and 100 m of the coastal water of EHI (Figs 5b and 7a). This similar trend was widely observed in the tropical and subtropical open oceans and was mainly attributed to the nitrogen fixation and its following remineralization and nitrification bringing 15N depleted nitrogen sources to the upper ocean (Bourbonnais et al., 2009; Casciotti et al., 2008; Lehmann et al., 2018). While for the marginal seas, input from atmospheric deposition might be another important source of light nitrogen (Liu et al., 2017; Umezawa et al., 2014). For the SCS, the reported annual reactive nitrogen input from atmospheric deposition (around 9–50 mmol/(m2·a); Kim et al., 2014; Yang et al., 2014) was comparable with the measured rate of nitrogen fixation (around 17–50 mmol/(m2·a); Bombar et al., 2010; Chen et al., 2014; Voss et al., 2006; Zhang et al., 2015). Nitrogen fixation induces the δ15N value of (–1‰±1‰) (Hoering and Ford, 1960; Minagawa and Wada, 1986) and atmospheric deposition led to slightly lower δ15N values in the SCS (averagely, –2.7‰ for nitrate and –1.7‰ for ammonium; Jia and Chen, 2010; Yang et al., 2014). Both of them were significantly lower than the average δ15N in the world oceans (4.7‰, Altabet, 2006). However, the δ18O in atmospheric deposition ranged from 59‰ to 79‰ (Yang et al., 2014), which was extremely high compared with the δ18O in the world oceans, whereas the δ18O introduced by nitrification was similar to or slightly higher (around 1.1‰−1.3‰) than its ambient water (Buchwald et al., 2012; Casciotti et al., 2008; Marconi et al., 2019; Sigman et al., 2009). Though the δ18O was as high as nearly 15‰ above 100 m water depth, the concomitant of high δ15N implied that algal nitrate assimilation was the reason causing the high δ18O (see below). Combined with the low DIN concentration and DIN/DIP within the mixed layer (Figs 5b and 6), the reactive nitrogen from atmospheric deposition should be assimilated rapidly. Nitrogen fixation (and atmospheric deposition) and the following degradation of N-rich organic matter would result in higher DIN/DIP and lower DSi/DIN above the NPTW (Wong et al., 2007), thus, the higher slope of DIN to DIP and lower of DSi to DIN above the NPTW in summer than that in autumn (Fig. 6) probably resulted from the stronger nitrogen fixation (Chen et al., 2008) and atmospheric deposition in summer than autumn in the SCS (the high slope of DSi to DIN in upwelling region in summer was resulted from the southwestern high DSi and low salinity water tongue). Together with the higher biological activities (indicated from the Chl a and nitrite, Fig. 5b and Section 3.2.1) in the upper ocean in autumn than background stations in summer (Shen et al., 2008; Cai et al., 2015; Li et al., 2018) resulted in the higher δ15N values in autumn than summer above 300 m (Fig. 7a). The δ15N and δ18O of nearshore stations in summer were significantly lower than those of offshore stations and stations in autumn, which probably attributed to that more nitrate was supplied to the nearshore stations by upwelling and the nitrate from below had relatively lower δ15N and δ18O (Figs 5b and 7a). The obvious spatial and temporal differences of nitrate isotope composition above 300 m water depth (top of the NPIW) implied the nitrogen cycling was sensitive to the environmental conditions in the upper ocean.
Nitrate isotope anomaly, Δ(15, 18)=(δ15Nnitrate–δ15Nm)–15ε/18ε×(δ18Onitrate–δ18Om) (Sigman et al., 2005) was widely used to analyze the processes that drove the relationship of δ15Nnitrate and δ18Onitrate deviated from the 1:1 pattern caused by nitrate consumption (e.g., assimilation and denitrification; Granger et al., 2004, 2008; Sigman et al., 2005), where δ15Nm and δ18Om were the nitrate isotope composition sourced from the deep ocean. Because of the seasonal stability for nitrate isotope composition in deep ocean near the EHI (Fig. 7a), we took 5.5‰ and 2.3‰ as the δ15Nm and δ18Om in our calculations. Meanwhile, the nitrate anomaly relative to DIP, Nʹ=[DIN]–k×[DIP], could reflect the processes of nitrogen addition and removal in the ocean (Deutsch et al., 2001; Gruber and Sarmiento, 1997), where k was the slope of the linear regression of DIN and DIP in the study area (Fig. 6). The Δ(15, 18) was relatively constant below 300 m water depth for both seasons with average value of (0.0‰±0.2‰) (Fig. 7b). Above 300 m, Δ(15, 18) decreased upward and the values in summer were significantly lower than those in autumn (p=0.018; the minimum values for summer and autumn were –6.0‰ and –3.7‰, respectively); meanwhile, the Nʹ presented the maximum values around the 300 m water depth (Fig. 7b) and the values in summer were significantly higher than those in autumn (p=0.000). The average values of Δ(15, 18) and Nʹ above 300 m in summer and autumn were –1.5‰±1.1‰, (1.43±0.69) μmol/L and –1.1‰±0.8‰, (0.66±1.06) μmol/L, respectively. The higher Nʹ in summer indicated the higher new nitrogen inputs from nitrogen fixation and atmospheric deposition as well as the following nitrate regeneration affected the nutrient compositions deep to 300 m. The nitrate originated from the nitrogen fixation and atmospheric deposition would decrease the values of Δ(15, 18) by adding more negative 15N relative to 18O, which probably was the main reason for the lower Δ(15, 18) in summer than autumn. For coastal waters of the EHI, the decreased Δ(15, 18) in the upper ocean might also be caused by the cycles of incomplete nitrate assimilation and regeneration (Casciotti et al., 2008). The relationships between nitrate δ18O and δ15N for samples above the NPTW (center at around 100 m to 150 m) presented linearly both in summer and autumn (Fig. 8a). The salinity decreased upward and downward from the NPTW (Fig. 3a) together with the differences of slopes for regressions of DIN to DIP and DSi to DIN above and below the NPTW (Fig. 6) implied the processes of remineralization and mixing between the waters above and below the NPTW were different, and the algal nitrate assimilation regulated the nitrate isotope composition just above the NPTW. The δ18O:δ15N above the NPTW in autumn was nearly the same as that expected from nitrate consumption of 1:1, which indicated the assimilation was the dominated nitrogen cycling process above the NPTW in autumn (Fig. 8a). While in the summer, the higher δ18O:δ15N above the NPTW (1.6 to 1.7) implied the nitrification was more important compared with the autumn (Granger and Wankel, 2016; Liu et al., 2017; Umezawa et al., 2014; Wankel et al., 2007).

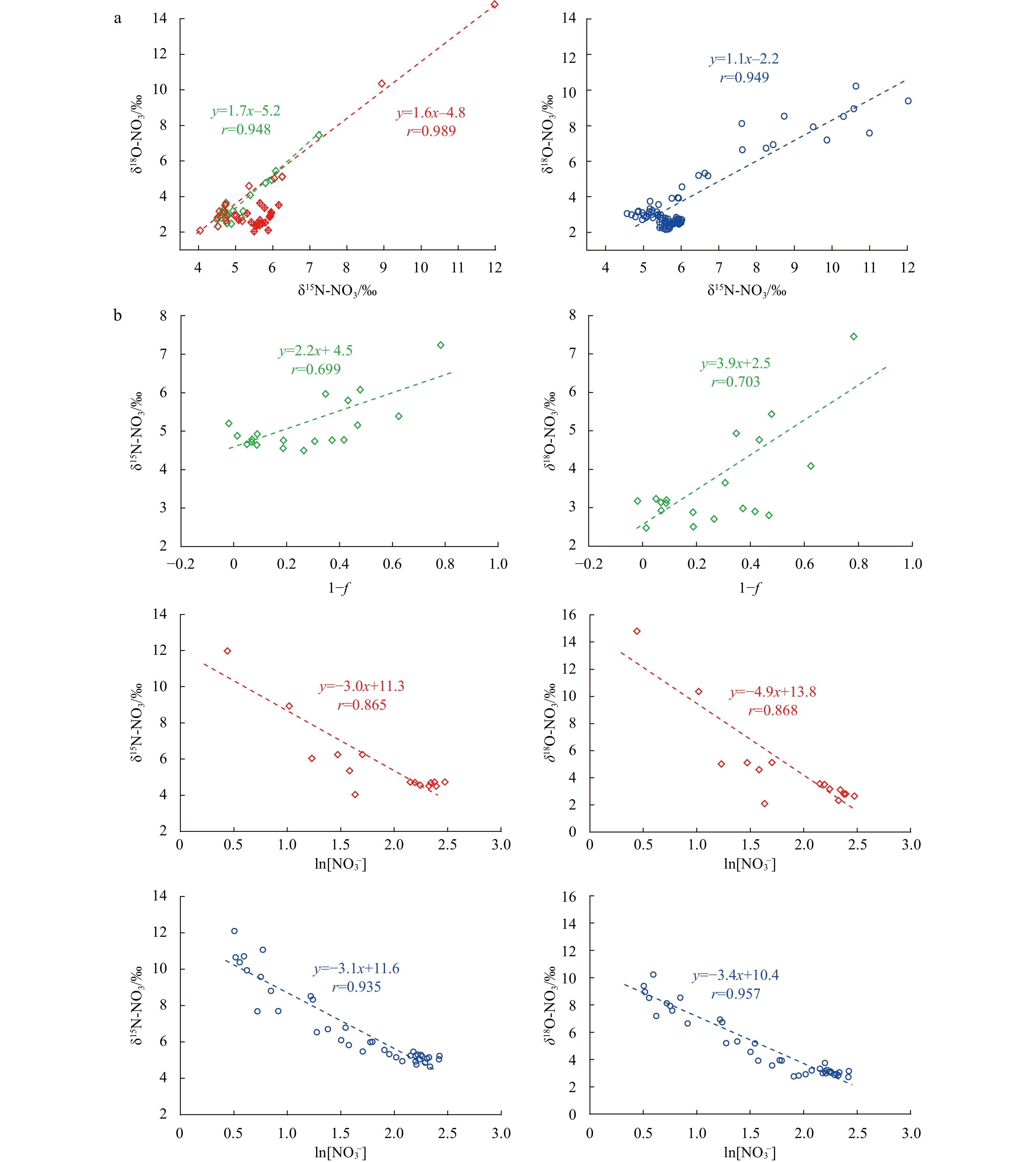

The open and closed systems of Rayleigh model (Eqs (1) and (2)) were applied to get the isotopic effect of algal nitrate assimilation. For the upwelling stations in summer, nitrate was provided by the coastal upwelling continuously, so we attempted to use the open Rayleigh model to get the isotopic fractionation factor. Then the f could be computed as the nitrate measured in the upwelling stations divided by the initial upwelled nitrate. Because of the depth of the upwelling extended to at least 125 m (Figs 3b and 5b), which at the center of the NPTW, we took the concentrations of nitrate at the NPTW as the initial nitrate concentration for upwelling stations in summer. For the background stations in summer and all stations in autumn, we applied the closed system model. As the initial nitrate concentration is a constant value, the Eq. (2) could be written as δ15N (δ18O)=δ15N (δ18O)f=1+15ε(18ε)× ln[${\rm{NO}}_3^- $]i–15ε (18ε)×ln[${\rm{NO}}_3^- $]m, where [${\rm{NO}}_3^- $]i and [${\rm{NO}}_3^- $]m were the concentrations of initial nitrate and measured nitrate above the NPTW. Then the slope of the linear regression for δ15N (δ18O) and ln[${\rm{NO}}_3^- $]m could be regarded as the 15ε (18ε) in the closed system model. The 15ε and 18ε were estimated to be 2.2‰ and 3.9‰, 3.0‰ and 4.9‰, and 3.1‰ and 3.4‰ for upwelling, background stations in summer, and all stations in autumn, respectively (Fig. 8b). The isotopic fractionation factors of nitrate nitrogen and oxygen were obviously smaller in upwelling stations than those in background stations in summer, which was probably arisen from the difference of plankton species between the two areas and the isotopic fractionation factors for nitrate assimilation were variable between plankton species (Granger et al., 2004). The diatoms were reported to be favored with the nutrient abundance environment and were the dominant species in coastal upwelling regions (Umezawa et al., 2014; Wu et al., 2014; Zhang et al., 2015) and some species were with relatively small isotopic fractionation factor when proceeding the nitrate assimilation (e.g., ~2.7‰ for Chaetoceros spp.; Needoba et al., 2003). Reportedly, diatom accounted for about half of phytoplankton biomass at the upwelling area of the coastal water of EHI in summer 2015 and its abundance was decreased to ~10% at the offshore area (Liu et al., 2020a). Additionally, the 15ε was lower than 18ε in all three conditions, which was probably due to the nitrification of fixed nitrogen from nitrogen fixation and atmospheric deposition introduced nitrate with lower 15N relative to 18O, and increased the nitrate concentration simultaneously. Furthermore, compared with the autumn, the difference between 15ε and 18ε were significantly larger in summer (averagely 1.8‰ for summer and 0.3‰ for autumn), which was another evidence for the stronger nitrogen fixation and atmospheric deposition and the following nitrate regeneration in summer than in autumn.
5 Conclusions
Less
The upwelling in the coastal EHI in summer 2015 extended to the water depth of at least 125 m and distance of 50 km to 85 km away from the shore. The values of nutrients and Chl a in upwelling influencing area were significantly higher than non-upwelling area. Estimated from aspects of nutrient dynamics and physical transport, the nutrients entered the upper 50 m water depth arisen from the upwelling averagely ranged from 2.5 mmol/(m2·d) to 5.4 mmol/(m2·d), 0.15 mmol/(m2·d) to 0.28 mmol/(m2·d), and 2.2 mmol/(m2·d) to 7.2 mmol/(m2·d) for DIN, DIP, and DSi, respectively, which supported the additional growth of plankton for (14.7±8.95) mg/m2 of Chl a, and the DIN could support, maximally, 62% of the primary production in the study area. The vertical nutrient fluxes in the upwelling area were around 6- to 12-fold those in the background area.
The distributions of nitrate δ15N and δ18O below 300 m water depth (top of the NPIW) were stable among seasons in coastal area of the EHI, while above the NPIW, the nitrogen cycling processes were different between summer and autumn. The 15ε and 18ε of nitrate assimilation were estimated to be 2.2‰ and 3.9‰, 3.0‰ and 4.9‰, and 3.1‰ and 3.4‰ for upwelling stations, background stations in summer, and all stations in autumn, respectively. The larger difference between 15ε and 18ε in summer than that in autumn along with the higher DIN/DIP and δ18O:δ15N above the NPTW; the lower δ15N and Δ(15, 18), and higher Nʹ above the NPIW in summer strongly suggested the nitrogen fixation and atmospheric deposition, and the following remineralization and nitrification were stronger in summer. Nevertheless, the nitrate assimilation was stronger in autumn than background area in summer, which made the nitrate isotopes in the upper ocean higher in autumn, and the δ18O:δ15N close to the ratio that was expected from nitrate assimilation.
Acknowledgements
Less
We are grateful to Zhaomeng Xu and Yuwei Ma for their help with field studies. We greatly acknowledge the crew members of the R/V Shiyan3 for their assistance, all the participants for their help and contribution during the investigation.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 41376086; the Taishan Scholars Programme of Shandong Province; the Aoshan Talents Program supported by the Pilot National Laboratory for Marine Science and Technology (Qingdao) under contract No. 2015ASTP-OS08.
