Li Zhang¹^,³^,⁴, Yumin Yang⁵, Weihong He¹^,³^,⁴, Jie Xu²^,³^,⁴^,⁶, Ruihuan Li²^,³^,⁴^,^*

Acta Oceanologica Sinica | 2022, 41(6) : 88 - 98

Less

Acta Oceanologica Sinica | 2022, 41(6): 88-98

• Marine Chemistry •

Fluxes of riverine nutrient to the Zhujiang River Estuary and its potential eutrophication effect

Full

Li Zhang¹^,³^,⁴, Yumin Yang⁵, Weihong He¹^,³^,⁴, Jie Xu²^,³^,⁴^,⁶, Ruihuan Li²^,³^,⁴^,^*

Affiliations

¹ Marine Environmental Testing Center, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China

² State Key Laboratory of Tropical Oceanography, South China Sea Institute of Oceanology, Chinese Academy of Sciences, Guangzhou 510301, China

³ Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China

⁴ Innovation Academy of South China Sea Ecology and Environmental Engineering, Chinese Academy of Sciences, Guangzhou 510301, China

⁵ Guangdong Environmental Monitoring Center, Guangzhou 510308, China

⁶ College of Marine Science, University of Chinese Academy of Sciences, Qingdao 266404, China

Published: 2022-06-25 doi: 10.1007/s13131-021-1919-7

Outline

Abstract

Less

The Zhujiang River Estuary is becoming eutrophic due to the impact of anthropogenic activities in the past decades. To understand nutrient dynamics and fluxes to the Lingdingyang water via four outlets (Humen, Jiaomen, Hongqimen and Hengmen), we investigated the spatial distribution and seasonal variation of dissolved nutrients in the Zhujiang River Estuary, based on fourteen cruises conducted from March 2015 to October 2017, covering both wet (April to September) and dry (October to March next year) seasons. Our results showed that riverine fluxes of dissolved inorganic nitrogen (DIN) and dissolved silicate (DSi) into the Lingdingyang water through four outlets varied seasonally due to the influence of river discharge, with the highest in spring and the lowest in winter. However, riverine flux of phosphate exhibited little significant seasonal variability. Riverine nutrients into the Lingdingyang water most resulted through Humen Outlet. The estuarine export fluxes of DIN out of the Zhujiang River Estuary derived from a box model were higher than fluxes of riverine nutrients in May, likely due to the influence of local sewage, while lower than riverine flux in August. The export fluxes of phosphate were higher than the fluxes of riverine phosphate in May and August. In contrast, large amounts of DSi were buried in the estuary in May and August. Although excess DIN was delivered into the Zhujiang River Estuary, eutrophication effect was not as severe as expected in the Zhujiang River Estuary, since the light limitation restricted the utilization of nutrients by phytoplankton.

Key words

riverine nutrient / flux / Lingdingyang / Zhujiang River Estuary / eutrophication

Cite this Article

Li Zhang, Yumin Yang, Weihong He, Jie Xu, Ruihuan Li. Fluxes of riverine nutrient to the Zhujiang River Estuary and its potential eutrophication effect[J]. Acta Oceanologica Sinica, 2022 , 41 (6) : 88 -98 . DOI: 10.1007/s13131-021-1919-7

Full Text

Less

1 Introduction

Less

The massive anthropogenic activities have dramatically increased the loading of riverine nutrients on a global scale (Nixon, 1995). Increasing nutrient export from land to sea is considered as an important source of coastal pollution (Wang et al., 2006; http://www.nmdis.org.cn/hygb/zghyhjzlgb/). Riverine nutrient input leads to nutrient enrichment in estuarine and coastal waters, simulating primary production and causing hypoxic events (Turner and Rabalais, 1994; Cloern, 2001; Rabalais et al., 2007; Liang and Xian, 2018), which is recognized as a major threat to ecosystems (Billen and Garnier, 2007). For example, increasing nutrient export out of the Changjiang River Estuary has resulted in eutrophication in coastal waters of the East China Sea and increases the frequency of algal blooms (Qu and Kroeze, 2010). Hypoxia in the northern Gulf of Mexico is driven by the increased input of nutrients from Mississippi River (Malakoff, 1998).

The Zhujiang River (ZJR) is the third longest river (2 200 km) in China with a drainage area of 453 700 km². The ZJR Estuary (ZJRE) is located within the subtropical monsoonal climate zone with annual rainfall of 1 600–2 300 mm (Huang et al., 2003). The physical and biogeochemical processes in the ZJRE system vary seasonally due to the exchange between southwesterly and northeasterly monsoon wind and seasonal variations of river discharge (Huang et al., 2003). The annual river discharge from the ZJR is approximately 3.3×10¹¹ m³/a, 70%–80% of which occurs from April to September (wet season) and 20%–30% from October to March (dry season) (Wei and Wu, 2014). The ZJR discharges to the South China Sea (SCS) through three waters, Lindingyang (LDY), Modaomen and Huangmaohai (Fig. 1). This study will focus on LDY, the principal estuary of the ZJR, which is traditionally known as the ZJRE (Cai et al., 2004). It is estimated that the ZJRE receives 50%–55% of the ZJR freshwater discharge through four outlets (Humen (HM), Jiaomen (JM), Hongqimen (HQM) and Hengmen (HeM)) (Cai et al., 2004).

The ZJR delta region is located in a highly populated and economically developed region. The discharge of industrial and domestic wastewater in Guangdong Province increased from 4.48×10¹⁰ t/a in 2 000 to 9.04×10¹⁰ t/a in 2018 due to economic development ( http://stats.gd.gov.cn/). Large amounts of nutrients are delivered to the LDY through four outlets (Harrison et al., 2008; Dai et al., 2014). The concentrations of dissolved inorganic nitrogen (DIN) in the ZJR delta have increased from 110 μmol/L in 1984 to 149 μmol/L (Lu et al., 2009). Nitrate (

${\rm{NO}}_3^-$

) concentrations in the ZJR are extremely high (up to 100 μmol/L) (Xu et al., 2008b), while phosphate concentrations are relatively low (~1 μmol/L), resulting in high N:P concentration ratio in the ZJRE, ranging from ~30 in the lower estuary to over 100 in the upper estuary (Huang et al., 2003; Harrison et al., 2008). P limitation might restrict N utilization by phytoplankton. Meanwhile, eutrophication and hypoxia have emerged in the estuarine and coastal waters and become an issue of concern (Dai et al., 2014; Qian et al., 2018; Li et al., 2020). Much attention has been paid to tempo-spatial in the nutrient levels (Cai et al., 2004; He et al., 2014; Li et al., 2017), nutrient fluxes at the sediment-water interface (Zhang et al., 2014), export fluxes of nutrients from the ZJRE to coastal water (Liu, 2006; Liu et al., 2009), fluxes of riverine nutrients from the river network based on physical-biological model (Hu and Li, 2009; Hu et al., 2012; Gan et al., 2014), physical processes (Cai et al., 2018; Gong et al., 2018) and harmful algal blooms (Tang et al., 2003; Lu and Gan, 2015) in the ZJRE. However, little was known the fluxes of riverine nutrients via various outlets to the ZJRE, which was important to quantify the contribution of riverine nutrients to the nutrient inventory in the estuary.

The objectives of the present study were to quantify riverine nutrient fluxes to the LDY through four outlets on the seasonal basis, and to assess potential eutrophication effects induced by riverine nutrients in the ZJRE.

2 Materials and methods

Less

2.1 Study area

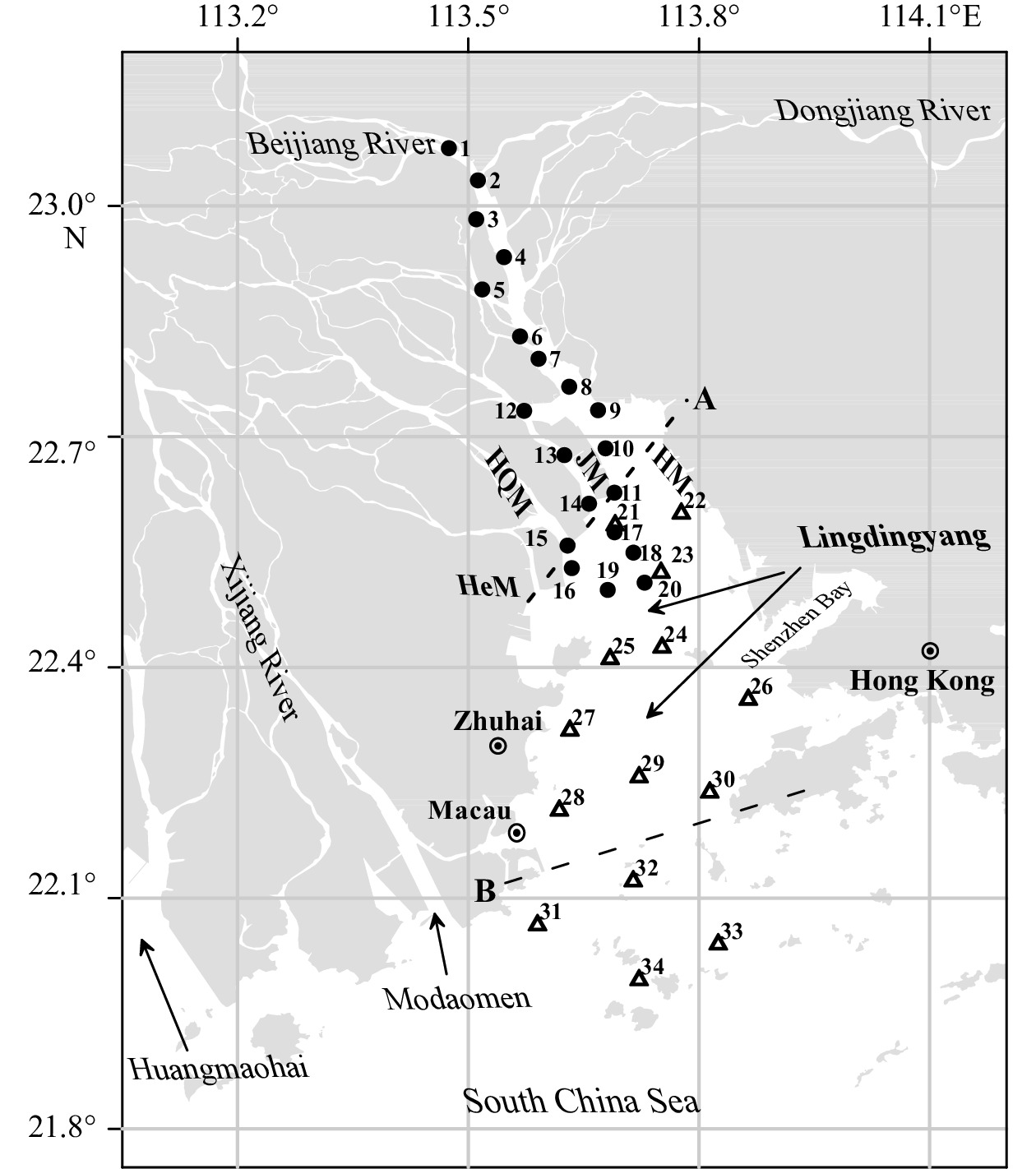

The ZJRE was divided into three zones following previous studies (Dai et al., 2014; Guo et al., 2009). The upstream of HM Outlet was defined as the upper estuary, the inner LDY as the middle estuary and the region in the outer LDY as the lower estuary (Fig. 1). Cruises were carried out in the upper reach of the ZJRE and the top of the LDY (Stations 1 to 20 for each cruise) which stretched from the HM Outlet upward to the suburbs of Guangzhou on the seasonal basis (March, May, August and October) during 2015–2017 and in the middle and lower parts of the ZJRE (Stations 21–34) in May and August 2015 (Fig. 1). Salinity and temperature were determined by a Seabird 911 plus conductivity-temperature-depth (CTD). Samples for nutrients, chlorophyll a (Chl a) and dissolved oxygen (DO) concentrations were taken at the surface.

The determination of nitrite (

${\rm{NO}}_2^- $

) is based on the reaction of

${\rm{NO}}_2^- $

with an aromatic amine, and the product is quantified by spectrophotometry (Hansen and Koroleff, 1999).

${\rm{NO}}_3^- $

and ammonium (

${\rm{NH}}_4^+ $

) were determined using the Cu-Cd column reduction method and the indophenol blue color formation, respectively (Hansen and Koroleff, 1999). The concentration of DIN was the sum of

${\rm{NO}}_3^- $

${\rm{NO}}_2^- $

and

${\rm{NH}}_4^+ $

. Dissolved inorganic phosphate (DIP) was measured by the ascorbic acid method (Hansen and Koroleff, 1999). Dissolved silicate (DSi) was analyzed using molybdate, oxalic acid and a reducing reagent (Hansen and Koroleff, 1999). The analytical precision for

${\rm{NO}}_3^- $

${\rm{NO}}_2^- $

${\rm{NH}}_4^+ $

, DIP and DSi was <5%.

Chl a was extracted in 10 mL of 90% (v/v) acetone at 4°C in the dark for 14–24 h and then determined before and after the acidification with 1 μmol/L HCl using a Turner designs Trilogy fluorometer (Parsons et al., 1984). DO concentration was determined using the Winkler method (Oudot et al., 1988).

2.2 Estimation of riverine nutrient fluxes into the estuary

2.2.1 Riverine nutrient fluxes into the estuary

Based on nutrient concentrations of the freshwater end-members and on the assumption that the nutrients remained in a steady state during the investigation, we used Eq. (1) to calculate the riverine fluxes through the outlet into the estuary:

(1)

$ F = C × Q , $

where F is the flux of each nutrient species during investigation; C is nutrients concentration in the freshwater end-member; Q is the freshwater discharge during the study periods (March 2015−October 2017) which was obtained from http://www.pearlwater.gov.cn/. HM, JM, HQM and HeM provide 35%, 33%, 20% and 12% of the bulk freshwater discharge of the ZJR, respectively (Kot and Hu, 1995).

2.2.2 Export fluxes of nutrients from the estuary into the sea

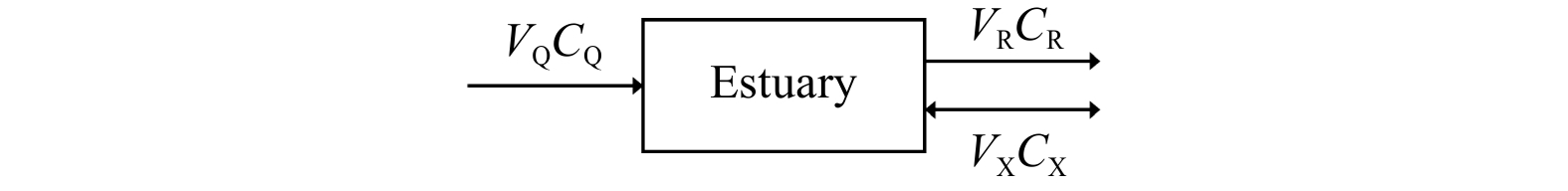

Dissolved nutrient budgets for the study system were constructed based on the Land-Ocean Interactions in the Coastal Zone box model (Gordon et al., 1996). This model has been widely used to construct nutrient budgets defining the internal biogeochemical processes (e.g., denitrification) and external nutrient inputs of estuarine and coastal ecosystems (Savchuk, 2005; Liu et al., 2009). In this model, the study system is assumed to be single box, which is well-mixed and assumed to be at a steady state. Taking salinity as 0 for fresh water (water from the river discharge, rainfall and evaporation), therefore, the water mass balance and salinity balance based on water budgets were estimated according to Eqs (2) and (3), respectively:

(2)

$ V_{{\rm{R}}} = V_{{\rm{in}}} - V_{{\rm{out}}} = -V_{{\rm{Q}}} - V_{{\rm{P}}} - V_{{\rm{G}}} - V_{{\rm{W}}} + V_{{\rm{E}}}, $

(3)

$ V_{{\rm{X}}}(S_{1} - S_{2}) = S_{{\rm{R}}}V_{{\rm{R}}} ,$

where V_R is the residual water flow exported from the estuary into the adjacent coastal zone, and V_Q, V_P, V_G, V_W, V_E, V_in, V_out and V_X are the river discharge, precipitation, groundwater, wastewater, evaporation, inflow of water to the system of interest, outflow of water from the system of interest and the mixing flow between the system of interest and adjacent system, respectively. In Eq. (3), S_R = (S₁ + S₂)/2, where S₁ and S₂ are the average salinity of the system of interest and the adjacent system, respectively.

For the water budget, the daily precipitation and evaporation in the wet season were estimated using the following equations:

(4)

$ V_{{\rm{P}}} = 80\% \times a \times H/t , $

(5)

$ V_{\rm E} = 63\% \times a \times H/t , $

where a denoted the area of the ZJRE, which is reported to be 1 180 km² (Liu et al., 2009). H denoted rainfall or evaporation, t denoted the days of the wet season. Precipitation is significantly correlated with the water discharge (Dai et al., 2014). The 80% of the ZJR discharge occurs in the wet season (Huang et al., 2003). Hence, it was assumed that 80% of the annual rainfall took place in the wet season (April to September). The evaporation in winter was approximately accounted for 60% of the evaporation in summer (Liu et al., 2009). Thus, it was assumed that the evaporation in the dry season was accounted for 60% of the evaporation in the wet season. Hence, it was estimated that 63% of the annual evaporation took place in the wet season. Previous study pointed out that the section from the HM Outlet upward to Guangzhou received most of the waste water and sewage discharged from Guangzhou (Dai et al., 2006). Hence, sewage discharge (V_W) was included in river discharge to compute the water budget of the estuary. Groundwater (V_G) in Chinese rivers and coastal areas contributed to a small fraction of nutrient fluxes (Liu et al., 2009). In addition, recirculated seawater could account for 75% to 90% of the bulk submarine groundwater discharge (Moore, 1996; Beck et al., 2008), which increases with precipitation (Guo et al., 2008). Hence, V_G is negligible in the calculation of the water budget. The residual flow (V_R) was calculated from the sum of (−V_Q − V_P + V_E) as a result.

Non-conservative fluxes of nutrient can be derived based on water budgets and nutrient concentrations (Fig. 2). Nutrient fluxes from the estuary to the adjacent system were estimated as the sum of the net residual flux (V_RC_R) and the mixing flux (V_XC_X) (Fig. 2), where C_R is the average element concentration in the residual flow boundary, C_R = (C₁ + C₂)/2; C_X is the mixing flow, C_X = (C₁ − C₂)/2. C₁ and C₂ are the average nutrient concentrations of the estuary and the adjacent system, respectively. The difference (Δ) between the sum of (V_RC_R + V_XC_X) and the riverine input (F = CQ) was used to estimate the estuarine processes that may magnify the riverine flux (Fig. 2).

2.3 Statistical analysis

Statistical analyses were performed using the software SPSS 20.0 by IBM. The Pearson’s correlation efficient was performed to determine the correlation between two variables at the level of p<0.05. The independent t-test was employed to compare in difference between two variables at the level of p<0.05. ANOVA was used to analyze the individual effects of seasons on variations in nutrient concentrations at the level of p<0.05.

3 Results and discussion

Less

3.1 Spatial and temporal variations in nutrient concentrations

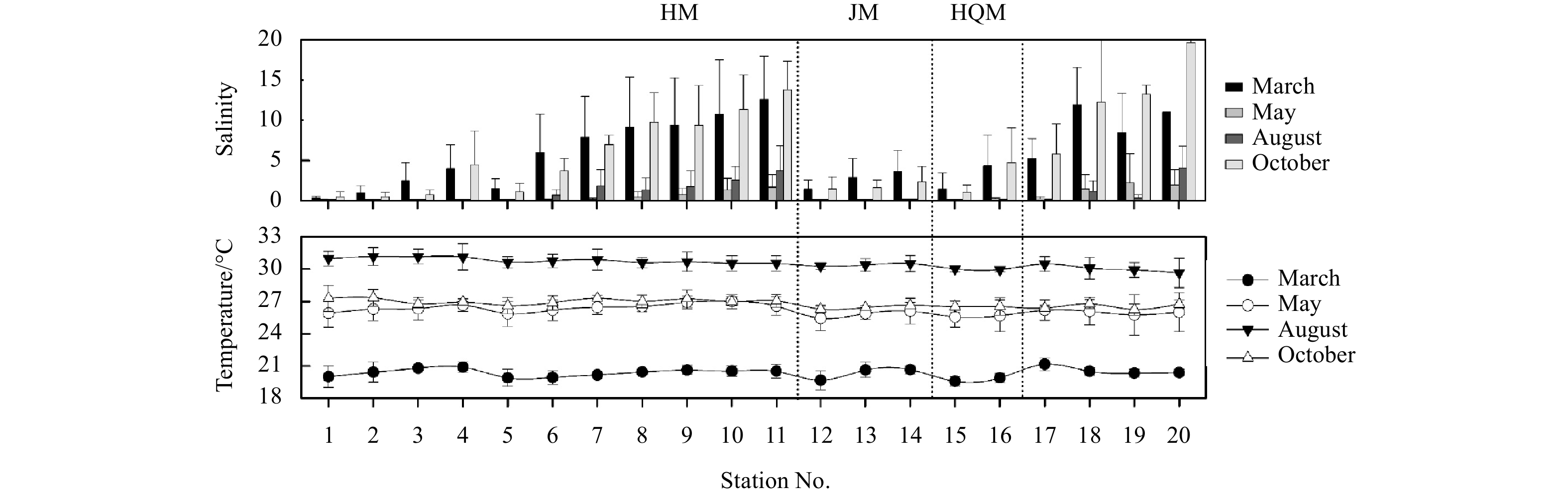

Temperature and salinity exhibited clear seasonal variability (Fig. 3, Table 1) (p<0.05). In the wet season (May and August), salinity at Station 1 to Station 20 was low (0.08−7.41, the average of 0.54). In the dry season (March and October), salinity increased from Station 1 to Station 11 (Fig. 3). Salinity in the wet season was significantly (p<0.05) lower than in the dry season. Similarly, discharge was higher in the wet season than the dry season (p<0.05) (Table 1). Temperature was the highest (23.9−28.6°C) in summer (August), followed by spring (13.6−27.9°C) and fall (25.8−28.6°C), the lowest (18.7−21.6°C) in winter (March) (Table 1) (p<0.05).

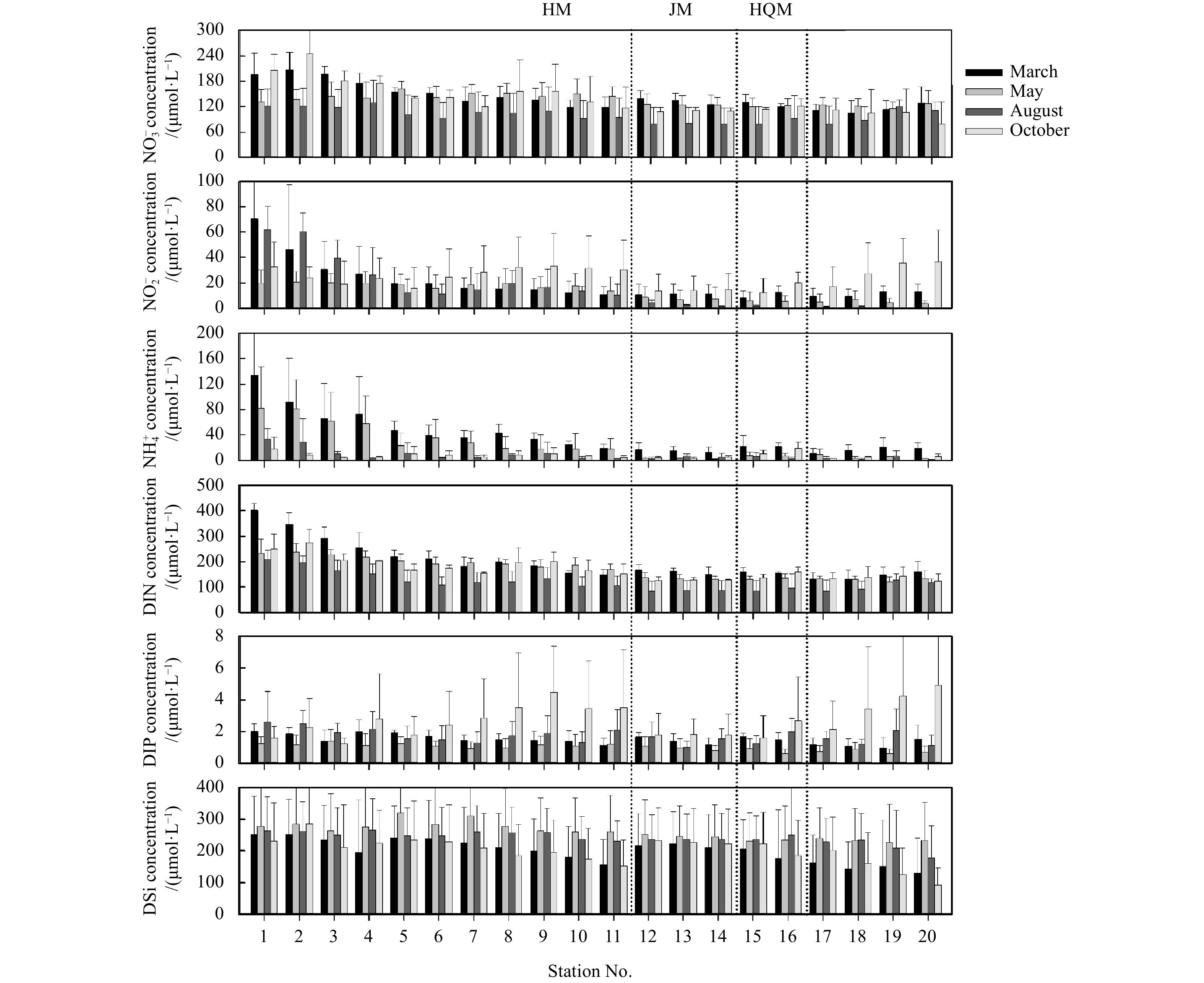

The highest

${\rm{NO}}_3^- $

and

${\rm{NH}}_4^+ $

concentrations (up to 270 μmol/L for

${\rm{NO}}_3^- $

and 180 μmol/L for

${\rm{NH}}_4^+ $

) occurred in waters (Station 1 and Station 2) near the HM Outlet. In general,

${\rm{NO}}_3^- $

concentrations were significantly higher ((141.0±44.3) μmol/L) in the dry season (March and October) than those ((117.0±33.1) μmol/L) in the wet season (May and August) (p<0.05) (Fig. 4).

${\rm{NH}}_4^+ $

concentrations reached the highest ((147.0±35.7) μmol/L) in March. In contrast, DSi concentrations were generally higher ((278.0±85.2) μmol/L) in the wet season (May and August) than the dry season ((228.0±89.1) μmol/L) (Fig. 4). The highest DSi concentration ((313.0±65.8) μmol/L) occurred in spring (May) among four seasons, when the river discharge reached a peak (Fig. 4 and Table 1). DIP concentrations were higher ((2.20±1.91) μmol/L) in the dry season (March and October) than those ((1.44±0.85) μmol/L) in the wet season (May and August) (p<0.05) (Fig. 4). However, DIP showed the different pattern from DIN. The DIP concentrations were the highest ((2.65±2.26) μmol/L) in October and the lowest ((1.16±0.55) μmol/L) in May (p<0.05) (Fig. 4). DIN:DIP concentration ratios were generally more than 100:1 (Fig. 5), suggesting that P was potentially limiting phytoplankton growth in the study area, in agreement with the early reports (Xu et al., 2008b). Similarly, high N:P concentration ratio is also reported in the Changjiang River Estuary (Liang and Xian, 2018). DSi:DIN concentration ratios were higher in the wet season than the dry season due to relatively high concentration of DSi (Fig. 5).

Temporal variability in

${\rm{NO}}_3^- $

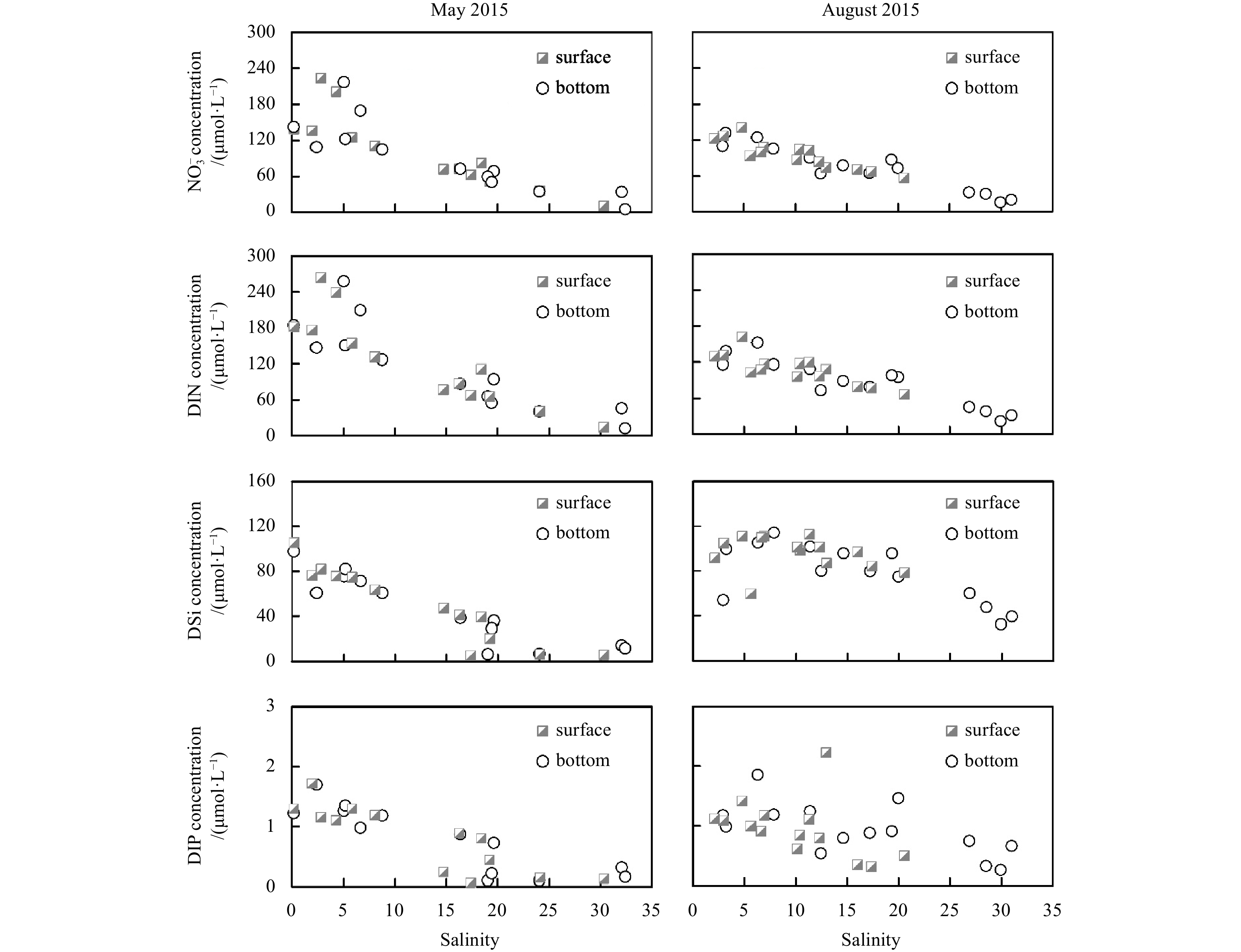

, DIN and DSi concentrations was obvious in the ZJR (Fig. 6). The concentrations of

${\rm{NO}}_3^- $

, DIP and DSi declined from the middle to lower estuary (Fig. 6). Both DIN and DSi had a significant (p<0.05) relationship with salinity (Fig. 6). Chl a concentration was the highest in August ((17.2±12.3) μg/L) and the lowest in May ((11.4±9.34) μg/L) (Fig. 7a). The concentration of Chl a could reached a peak ((50.4±15.1) μg/L) at Station 2 in October.

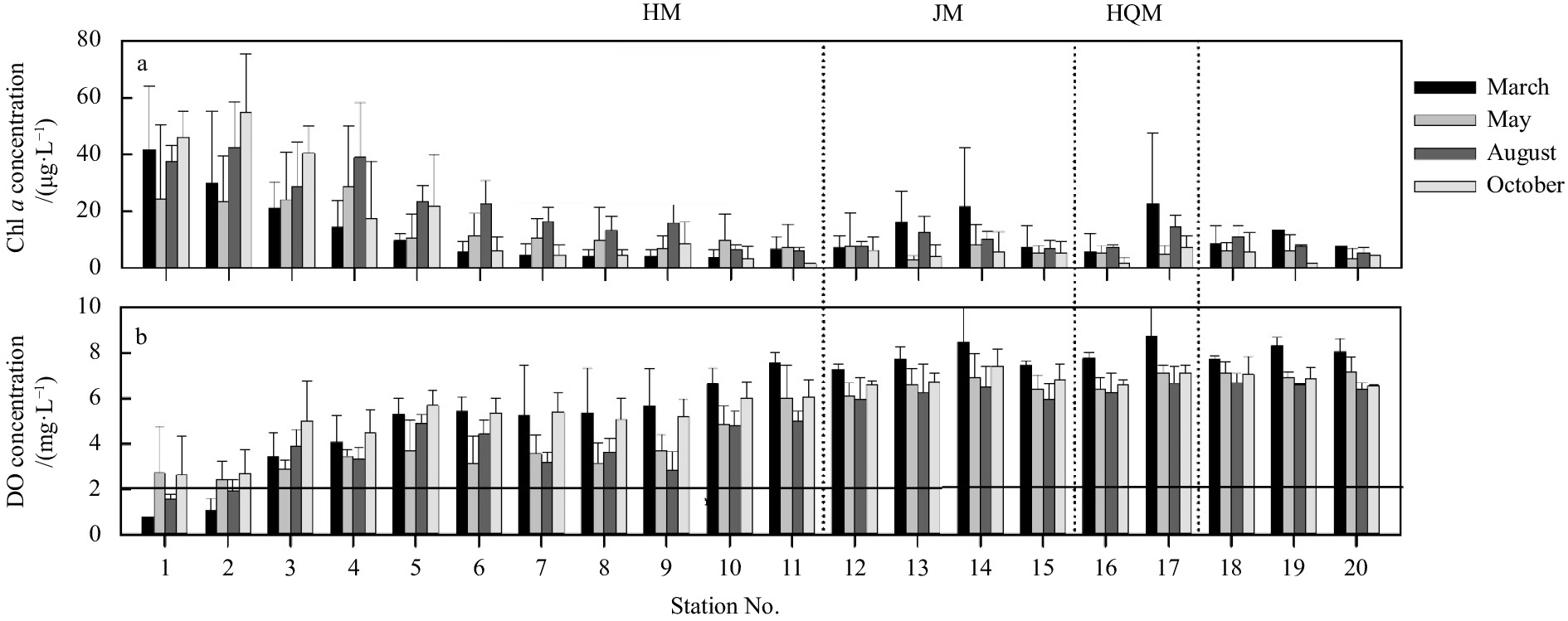

In general, surface DO concentration was higher ((5.77±1.96) mg/L) in the dry season than that ((4.91±1.86) mg/L) in the wet season, especially in HM channel (Fig. 7b). The lowest surface DO was 0.77 mg/L in March at Stations 1 and 2 (Fig. 7b). Surface DO concentration increased gradually from suburbs of Guangzhou to HM Outlet and upper reach of the LDY, in agreement with previous reports (Dai et al., 2006; He et al., 2014). In the dry season, seawater could intrude up to 50 km of the upstream of HM Outlet (Harrison et al., 2008). The seawater-freshwater mixing resulted in a seaward increase in DO in the dry season when DO rich seawater intruded the upper reach of the LDY (Figs 3 and 7b). In addition, the highest rate of the total oxygen consumption normalized to the substrate was observed in summer (He et al., 2014), which might also lead to the lower level of DO in the wet season.

3.2 Riverine nutrient fluxes to the Lingdingyang water via four outlets

The fluxes of DIN and DSi to LDY via four outlets varied seasonally (Table 2). The fluxes of DIN and DSi reached a peak ((6.37±1.67)×10⁷ mol/d for DIN and (9.68±3.73)×10⁷ mol/d for DSi via the HM Outlet, (3.30±0.76)×10⁷ mol/d for DIN and (7.65±2.58)×10⁷ mol/d for DSi via the JM Outlet, (1.10±0.38)×10⁷ mol/d for DIN and (2.60±0.95)×10⁷ mol/d for DSi via the HQM Outlet, 1.98×10⁷ mol/d for DIN via the HeM Outlet) in spring. In contrast, the lowest fluxes of DIN and DSi ((2.50±0.99)×10⁷ mol/d for DIN and (2.47±1.21)×10⁷ mol/d for DSi via the HM Outlet, (1.23±0.45)×10⁷ mol/d for DIN and (2.05±0.84)×10⁷ mol/d for DSi via the JM Outlet, (0.45±0.16)×10⁷ mol/d for DIN and (0.71±0.28)×10⁷ mol/d for DSi via the HQM Outlet, 0.55×10⁷ mol/d for DIN via the HeM Outlet) occurred in winter (Table 2) (p<0.05).

Riverine nutrient fluxes via four outlets differed. Nutrient fluxes via the HM Outlet were the highest (1.57×10⁵ t/a for

${\rm{NO}}_3^- $

, 2.30×10⁵ t/a for DIN, 1.11×10³ t/a for DIP, 3.03×10⁵ t/a for DSi) among four outlets, followed by the JM and HeM outlets, the lowest (3.84×10⁴ t/a for

${\rm{NO}}_3^- $

, 4.36×10⁴ t/a for DIN, 4.80×10² t/a for DIP, 8.82×10⁴ t/a for DSi) for the HQM Outlet (Table 3) (p<0.05).

The difference in nutrient fluxes was primarily attributed to different river discharge. The fluxes of

${\rm{NO}}_3^- $

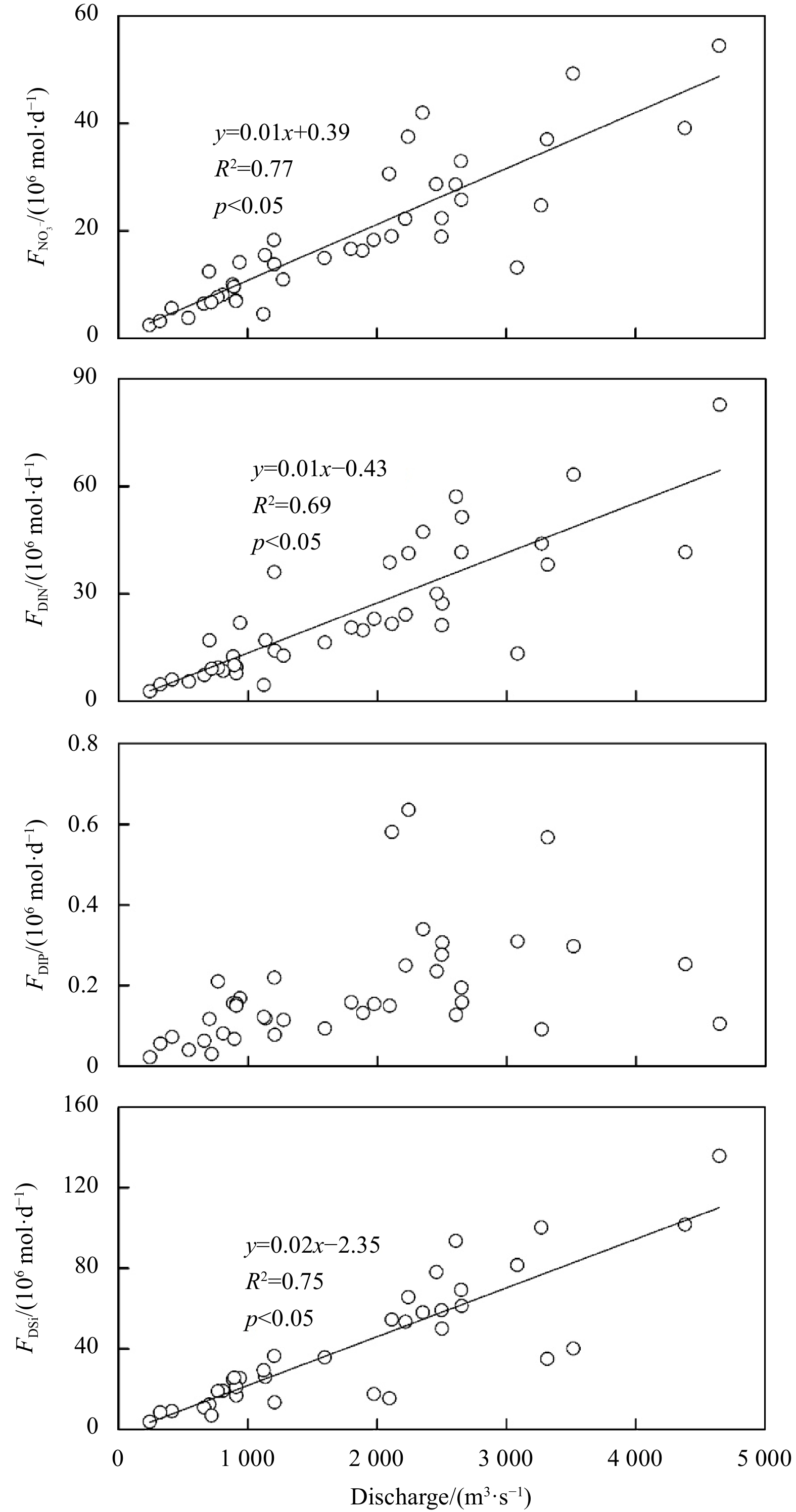

, DIN and DSi were significantly (p<0.05) correlated with river discharge, rather than DIP (Fig. 8). Seasonality in the river discharge was responsible for seasonal variability in nutrient fluxes to the LDY (Table 2). The maximum nutrient fluxes of DIN and DSi in spring were related to the highest river discharge. However, fluxes of DIP lacked seasonality (Table 2). Furthermore,

${\rm{NO}}_3^- $

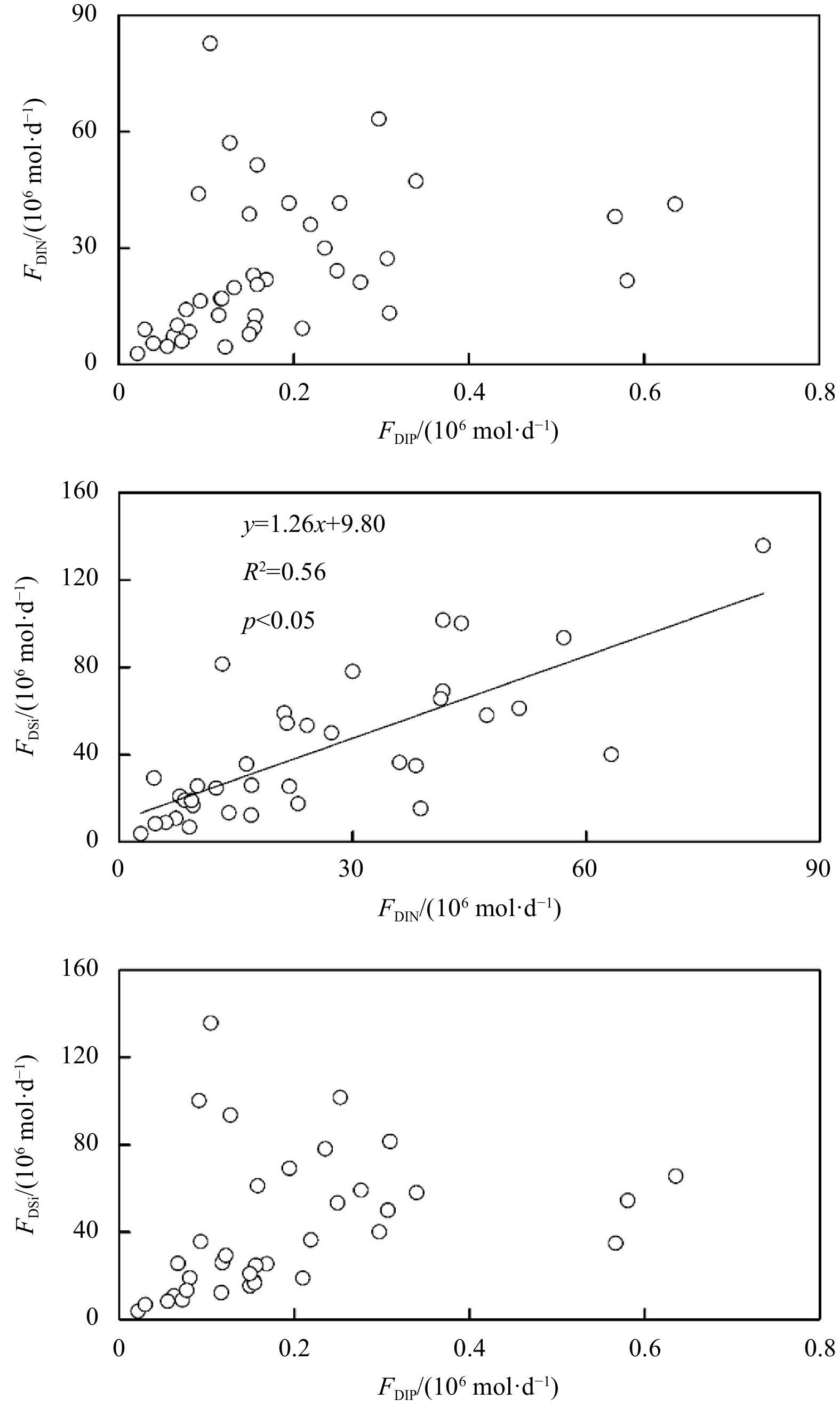

was significantly (p<0.05) correlated with DSi, while DIP was not significantly correlated with

${\rm{NO}}_3^-$

and DSi, respectively (Fig. 9). These results suggested that

${\rm{NO}}_3^- $

and DSi primarily resulted from the watershed while DIP most likely originated from the local sewage. Our results agreed with previous reports that the river discharge delivered

${\rm{NO}}_3^- $

and DSi (Yin et al., 2000; Xu et al., 2008b) and P results from the point sources of industrial and domestic waste (Zhang et al., 1995; Strokal et al., 2015).

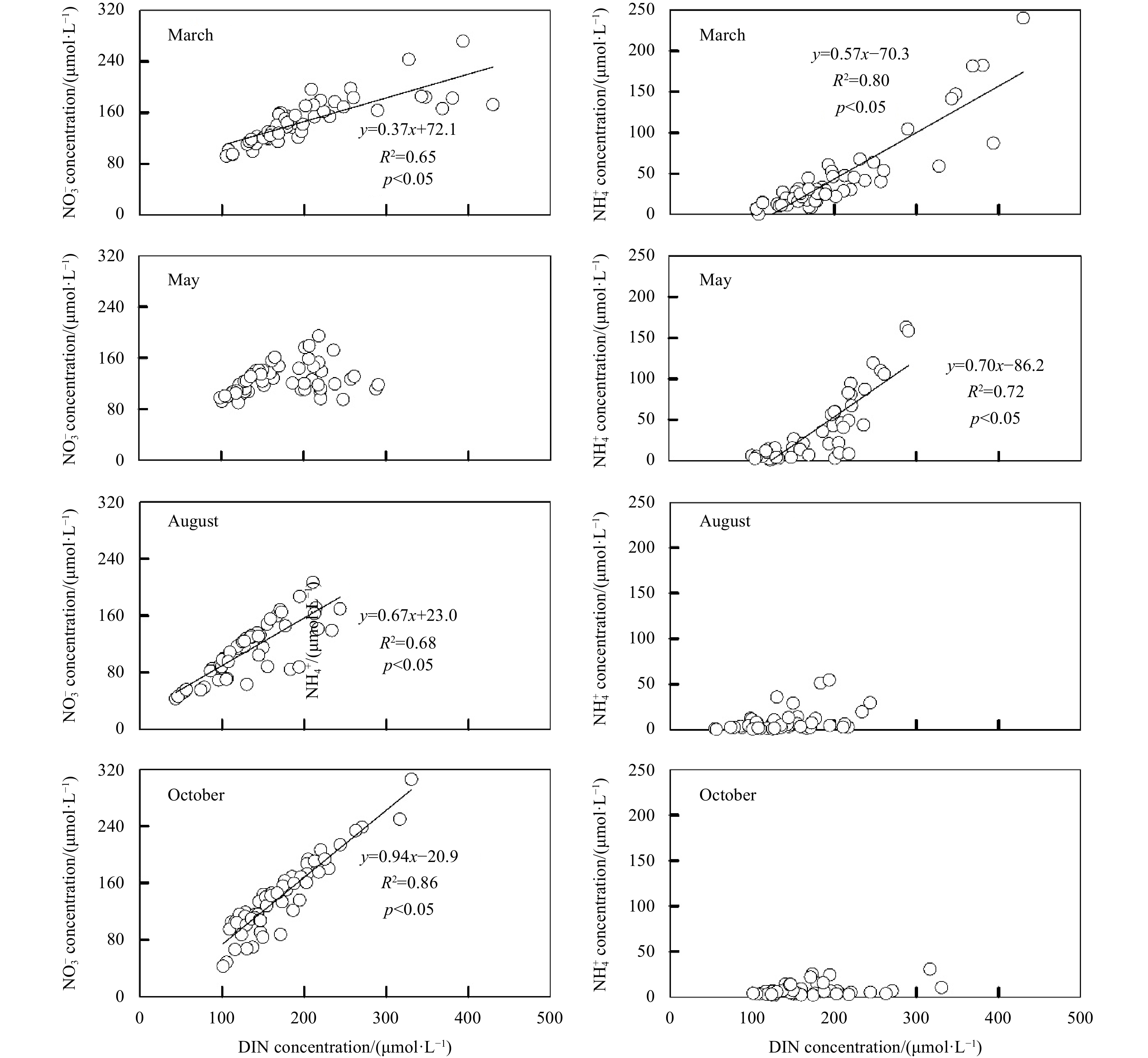

There was a significant (p<0.05) correlation between

${\rm{NO}}_3^- $

and DIN in three seasons (March, August and October) (Fig. 10). In contrast,

${\rm{NH}}_4^+ $

was significantly (p<0.05) correlated with DIN in March and May. Furthermore, the peak of

${\rm{NH}}_4^+ $

occurred in March (Fig. 10).

${\rm{NH}}_4^+ $

primarily originates from the local sewage, especially in the upstream in the surface waters (Dai et al., 2006), while

${\rm{NO}}_3^- $

comes from the agriculture (Turner and Rabalais, 1991; Strokal et al., 2015). These results indicated that N source of DIN changed seasonally, which was possibly linked to seasonal changes in anthropogenic activities (e.g., fertilization in agriculture and sewage discharge). It is also reported that nitrate concentrations in the Changjiang River likely are associated with the intensive agricultural activities over the drainage region (Zhang et al., 1995; Liang and Xian, 2018).

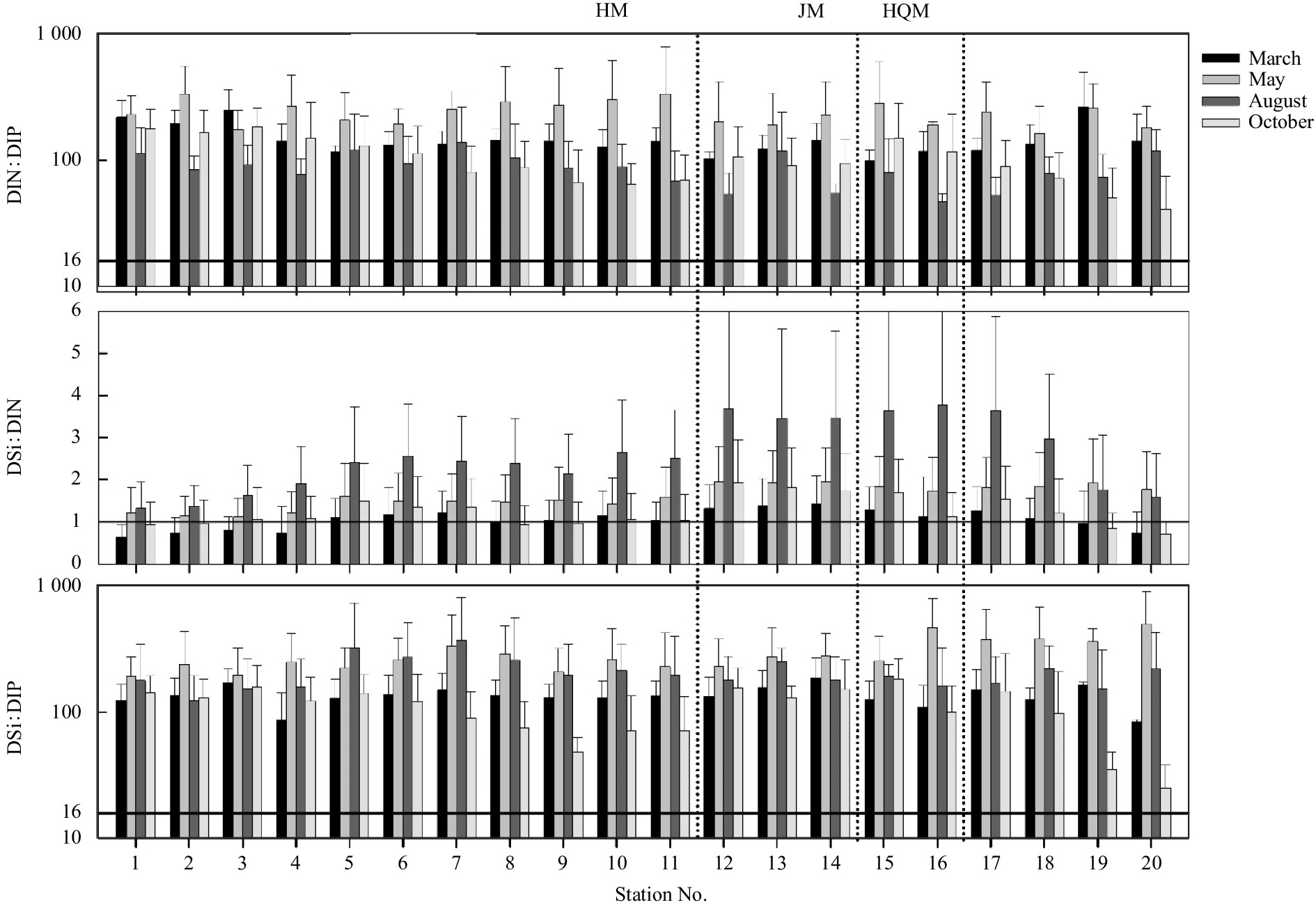

The flux ratio of DIN:DIP varies seasonally and with the outlets (Table 2). In the HM Outlet, the flux ratio of DIN:DIP was the highest among four outlets, likely owing to higher

${\rm{NO}}_3^- $

loading from the watershed, since N:P flux ratio of nutrients from agricultures is high while N:P flux ratio of nutrients in the sewage is less than Redfield ratio (Xu et al., 2008a). The discrepancy in N:P flux ratio corroborated the statement that nutrient sources were different through various outlets.

3.3 The export fluxes of nutrients out of the Zhujiang River Estuary during the wet season

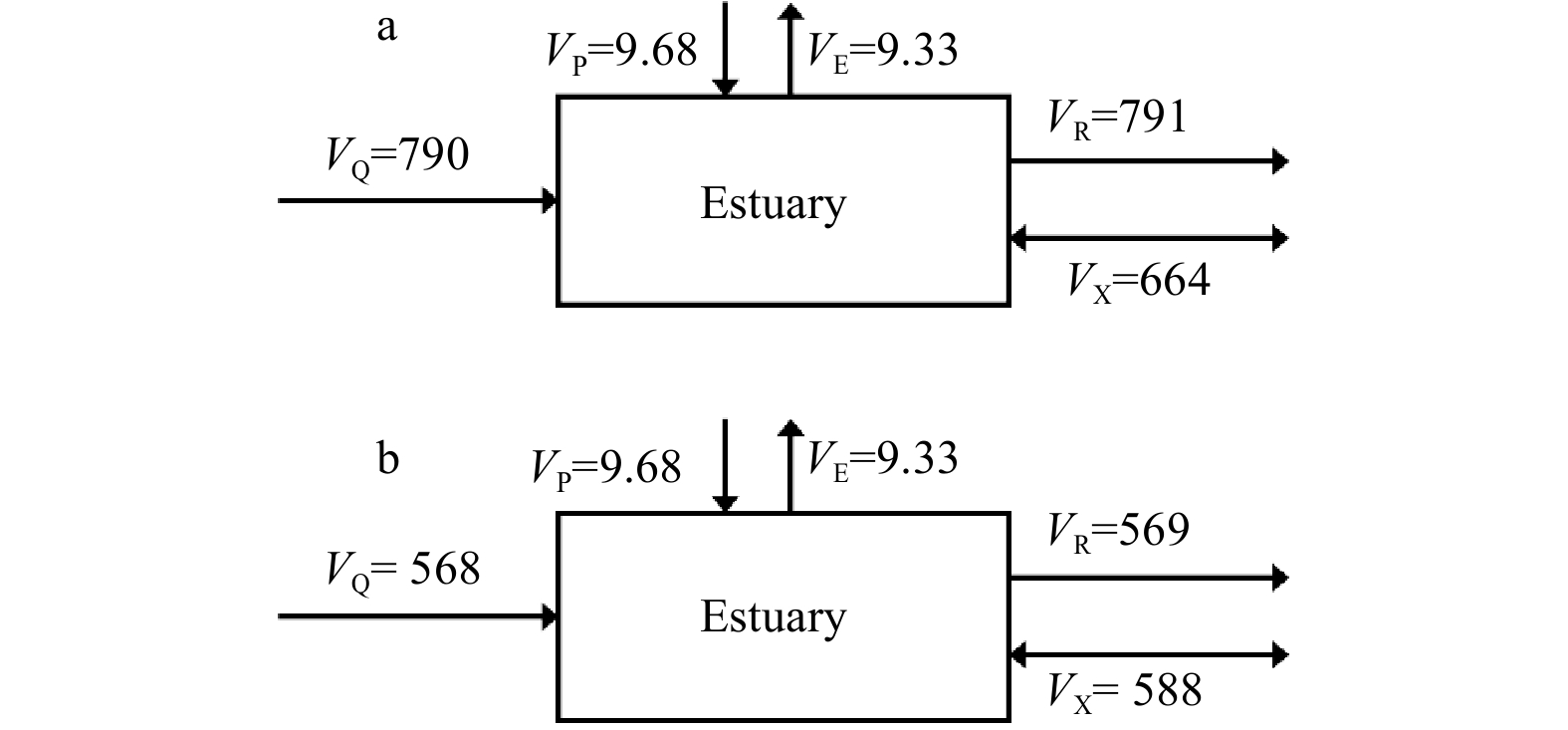

The water budget was calculated according to Eq. (4), where the annual rainfall (1 845 mm/a) and evaporation (2 160 mm/a) data of Guangdong in 2015 (Statistical Bureau of Guangdong Province, 2015) were used. Thus, the daily water budgets derived from precipitation and evaporation both in May and August were estimated to 9.68×10⁶ m³/d and 9.33×10⁶ m³/d, respectively (Fig. 11). The bulk freshwater discharge (V_Q) into the ZJRE through four outlets during our observation period was 9 141 m³/s in May and 6 572 m³/s in August 2015, respectively (the water discharge data were collected from http://www.pearlwater.gov.cn/). Based on the water mass balance, the residual flow (V_R) from the estuary to the SCS was estimated to be 7.91×10⁸ m³/d in May and 5.69×10⁸ m³/d in August, respectively. The water exchange flow (V_X) between the SCS and the estuary was 6.64×10⁸ m³/d in May and 5.88×10⁸ m³/d in August, respectively (Fig. 11).

Nutrient fluxes from the estuary to the SCS were the sum of the net residual flux (V_RC_R) and the mixing flux (V_XC_X) based on the water budget (Fig. 2 and Table 4). The export fluxes of

${\rm{NO}}_3^- $

, DIN, DIP and DSi to the ZJRE were 1.21×10⁸ mol/d, 1.49×10⁸ mol/d, 1.05×10⁶ mol/d and 5.97×10⁷ mol/d in May, respectively (Table 4). The net fluxes of

${\rm{NO}}_3^- $

, DIN, DIP and DSi in May were −4.93×10⁷ mol/d, −4.67×10⁷ mol/d, −3.00×10⁵ mol/d and 8.53×10⁷ mol/d, respectively. These results suggested that the export fluxes of

${\rm{NO}}_3^- $

, DIN and DIP to the ZJRE exceeded the fluxes of nutrients to ZJR via four outlets except for DSi. Hence, extra nutrients (

${\rm{NO}}_3^- $

, DIN and DIP) most likely originated from the local sewage. Interestingly, the net flux of

${\rm{NO}}_3^- $

was more than DIN in May, implying that the quantity of riverine

${\rm{NH}}_4^+ $

loss induced by biological utilization or nitrification. Riverine

${\rm{NH}}_4^+ $

was transformed to

${\rm{NO}}_3^- $

in the ZJRE, leading to an increase in the net flux of

${\rm{NO}}_3^- $

, rather than the input of

${\rm{NO}}_3^- $

. In addition,

${\rm{NH}}_4^+ $

was preferentially taken up by phytoplankton over

${\rm{NO}}_3^- $

(McCarthy, 1981; Xu et al., 2012; Glibert et al., 2016). Riverine

${\rm{NH}}_4^+ $

loss induced by biological utilization resulted in a decline in the export flux of DIN out of the ZJRE, rather than

${\rm{NO}}_3^- $

, which might partly interpret higher net flux of

${\rm{NO}}_3^- $

than DIN.

In comparison, the export fluxes of

${\rm{NO}}_3^- $

, DIN, DIP and DSi out of the ZJRE were 7.18×10⁷ mol/d, 8.04×10⁷ mol/d, 8.60×10⁵ mol/d and 6.00 × 10⁷ mol/d in August, respectively. Furthermore, the export fluxes of

${\rm{NO}}_3^- $

, DIN, DIP and DSi were lower than the fluxes of nutrients to the ZJRE via four outlets. As a result, the net fluxes of

${\rm{NO}}_3^- $

, DIN, DIP and DSi in August were 3.60×10⁶ mol/d, 1.07×10⁷ mol/d, −8.00×10⁴ mol/d and 1.10×10⁸ mol/d, respectively (Table 4). This indicated that large amounts of

${\rm{NO}}_3^- $

, DIN and DSi were buried in the sediment or biologically utilized. The net fluxes of DSi did not follow the pattern of DIN and DIP, which were 8.53×10⁷ mol/d and 1.10×10⁸ mol/d in May and August, respectively.

In addition, the export fluxes of DIP out of the ZJRE were higher than the fluxes of DIP to the ZJRE via four outlets in May and August, indicating that DIP derived from local sewage which was possibly an important source of DIP in the ZJRE. N:P concentration ratio in the sewage is 8:1−10:1 (Xu et al., 2008a), less than the Redfield ratio (16:1). Hence, nutrient from the local sewage played an important role in regulating nutrient dynamics in the ZJRE (Xu et al., 2008a). Riverine DIN:DIP concentration ratios (Table 2) differed from the concentration ratio of N:P in the local sewage (8:1−10:1), which was responsible for the fact that the net export of DIP out of the ZJRE was distinct from DIN in August.

3.4 Eutrophication effects in the ZJRE

High loading of riverine nutrients has caused severe eutrophication in estuaries and coasts (Jickells, 1998). The river source was one of the most important sources through four outlets to LDY (Table 3). Large amounts of anthropogenic nutrients input led to nitrogen over-enrichment in the estuary and coastal region (Tables 3 and 4). Severe eutrophication effects, such as algal blooms and hypoxic events, occur in the ZJRE and adjacent coastal waters (Lu and Gan, 2015; Qian et al., 2018). Nutrient concentrations in the upper reach of the ZJRE (Fig. 4) were always greater than the half saturation constants (DIP: 0.1−0.5 μmol/L; DIN: 1−2 μmol/L; DSi: 1−5 μmol/L; Fisher et al., 1988) for nutrient uptake of phytoplankton. However, phytoplankton biomass was not as high as expected (Fig. 4). The maximum phytoplankton biomass was regulated by DIP availability in the ZJRE where P was the potential limiting nutrient. At Stations 1−20, the DIP and Chl a were on average 1.80 μmol/L and 14.7 μg/L during our study period, respectively. Assuming the ratio of Chl a : DIN concentration ratio (0.9 μg/μmol) (Yin et al., 1996) and Redfield ratio (16DIN:1DIP), Chl a concentrations reached 40.6 μg/L when DIP were converted to phytoplankton biomass. Therefore, nutrients were underutilized in the upper ZJRE. Our results were similar to previous observations (Yin and Harrison, 2008). Previous studies point out that suspended particulate matter (SPM) control primary productivity by reducing the light level in the water column (Cloern, 1987; David et al., 2005; Liu et al., 2018), especially in the upper estuary with high turbidity. There exists a turbidity maximum zone near the four outlets (Wai et al., 2004). Phytoplankton growth was primarily light-limited due to high SPM concentrations (on average 32.5 mg/L) during the study period which reduced light levels. Our results agreed with previous reports that phytoplankton growth was primarily limited by light in the ZJRE (Shen et al., 2011; Li et al., 2017). Excess N was transported to the coastal waters of the ZJRE and the shelf of the northern SCS.

Eutrophication mitigates the levels of DO in the bottom waters of estuaries and leads to large area of hypoxia (Harrison et al., 2008). Low DO (<2 mg/L) in the surface water in the upper reach of the ZJRE is observed (Dai et al., 2006; He et al., 2014; Fig. 8). Recent studies have confirmed that nutrient enrichment leads to eutrophication over large area (several thousand square kilometer) in the transition region between the lower ZJRE and the adjacent shelf of the SCS (Lu et al., 2018; Zhao et al., 2020). Zhao et al. (2020) pointed out that 45%±13% of the eutrophication-driven production of organic matter in the plume fuels oxygen consumption, which is the most likely responsible for hypoxia in the coastal transition zone between the lower ZJRE and the adjacent continental shelf off Hong Kong (Qian et al.,2018; Li et al., 2020).

4 Conclusions

Less

The river discharge played an important role in regulating riverine fluxes of DIN and DSi. Humen Outlet is the main path that riverine nutrient transported to the ZJRE. The box model results indicated that the export fluxes of phosphate out of the ZJRE were higher than the fluxes of riverine phosphate to ZJRE in May and August due to the influence of local sewage. Meanwhile, local sewage also led to higher export fluxes of DIN out of the ZJRE than fluxes of riverine DIN in May. Large amounts of DSi would be buried in the estuary in May and August. However, large amounts of nutrients transported to the ZJRE did not induce massive algal blooms due to the influence of light limitation.
