Aliphatic biomarker signatures of early Oligocene−early Miocene source rocks in the central Qiongdongnan Basin: Source analyses of organic matter
收藏切换
PDF
Min Xu1, 2, 3, Dujie Hou1, 2, 3, *, Xiong Cheng1, 2, 3, Jun Gan4, Xinde Xu4, Gang Liang4, Wenjing Ding5
Acta Oceanologica Sinica | 2023, 42(3) : 1 - 18
Less
收藏切换
Acta Oceanologica Sinica | 2023, 42(3): 1-18
• Genesis of Coal-type Petroleum in China Offshore •
Aliphatic biomarker signatures of early Oligocene−early Miocene source rocks in the central Qiongdongnan Basin: Source analyses of organic matter
Full
Min Xu1, 2, 3, Dujie Hou1, 2, 3, *, Xiong Cheng1, 2, 3, Jun Gan4, Xinde Xu4, Gang Liang4, Wenjing Ding5
Affiliations
  • 1 School of Energy Resources, China University of Geosciences, Beijing 100083, China
  • 2 Key Laboratory of Marine Reservoir Evolution and Hydrocarbon Accumulation Mechanism, Ministry of Education, Beijing 100083, China
  • 3 Beijing Key Laboratory of Unconventional Natural Gas Geological Evaluation and Development Engineering, Beijing 100083, China
  • 4 Exploration and Development Resource Institute, Hainan Branch of China National Offshore Oil Corporation, Hainan 570300, China
  • 5 China National Offshore Oil Corporation (CNOOC) Research Institute Co., Ltd., Beijing 100028, China
Published: 2023-03-25 doi: 10.1007/s13131-022-2082-5
Outline
收藏切换

The geochemical signatures of fifty-four rock samples and three supplementary drill stem test (DST) oils from the Yacheng-Sanya formations in the central Qiongdongnan Basin (CQB) were analysed. Reconstruction of the early Oligocene−early Miocene (36–16 Ma) palaeovegetation and source analyses of organic matter (OM) were conducted using aliphatic biomarkers in ancient sediments and DST oils. Both the interpreted aquatic and terrigenous OM contributed to the CQB source rocks (SRs) but had varying relative proportions. The four distribution patterns derived from n-alkanes, terpanes, and steranes are representative of four OM composition models of the Yacheng-Sanya SRs, including model A, model B, model C, and model D, which were classified based on the increasing contribution from terrigenous OM relative to aquatic OM. Some terrigenous higher plant-derived biomarkers, including oleanane, des-A-oleanane, C29 ααα 20R sterane, bicadinanes, the C19/(C19 + C23) tricyclic terpane ratio, and other n-alkane-derived ratios suggest that angiosperms had increased proportions in the palaeoflora from early Oligocene to early Miocene, and the bloom of terrigenous higher plants was observed during deposition of upper Lingshui Formation to lower Sanya Formation. These findings are consistent with the incremental total organic carbon and free hydrocarbons + potential hydrocarbons (S1 + S2) in the lower Lingshui-lower Sanya strata with a significant enrichment of OM in the E3l1-N1s2 shales. The maturity- and environment-sensitive aliphatic parameters of the CQB SRs and DST oils suggest that all the samples have predominantly reached their early oil-generation windows but have not exceeded the peak oil windows, except for some immature Sanya Formation shales. In addition, most of the OM in the analysed samples was characterised by mixed OM contributions under anoxic to sub-anoxic conditions. Furthermore, terrestrial-dominant SRs were interpreted to have developed mainly in the Lingshui-Sanya formations and were deposited in sub-oxic to oxic environments, compared to the anoxic to sub-anoxic conditions of the Yacheng Formation.

aliphatic biomarkers  /  early Oligocene−early Miocene  /  organic matter sources  /  palaeovegetation reconstruction  /  Qiongdongnan Basin
Min Xu, Dujie Hou, Xiong Cheng, Jun Gan, Xinde Xu, Gang Liang, Wenjing Ding. Aliphatic biomarker signatures of early Oligocene−early Miocene source rocks in the central Qiongdongnan Basin: Source analyses of organic matter[J]. Acta Oceanologica Sinica, 2023 , 42 (3) : 1 -18 . DOI: 10.1007/s13131-022-2082-5
Full Text
Less
1 Introduction
Less
The Qiongdongnan Basin, which is adjacent to south-eastern Hainan Island and located on the north-western continental shelf of the South China Sea, is one of the most prolific Cenozoic petroliferous basins along the continental margin of the South China Sea. The South China Sea is a relatively vast and profound marginal sea, the tectonic location of which is in the joint area shared by the Pacific and Tethys tectonic domains, and the South China Sea plays a role in connecting the Southeast Asia continent with the southwestern Pacific Ocean (Ding et al., 2021; Ren et al., 2011; Zhu et al., 2021). Due to its special geographical position, the South China Sea is very sensitive to variations in the global climate and palaeomarine environment (Webster, 1994), and these processes are closely related to the terrestrial organic matter (OM) influx (Ding et al., 2021; Liu et al., 2016b; Tamburini et al., 2003). Large amounts of fluvial sediments are transported along waterways and deposited primarily on the continental margins and slopes of marginal seas, usually forming either terminal sedimentary sinks or passageways to open-ocean regions (Liu et al., 2016b).
The Qiongdongnan Basin is a Cenozoic extensional basin based on pre-Paleogene igneous rocks, sedimentary rocks, and metamorphic rocks (Huang et al., 2003; Lai et al., 2021; Li et al., 2020; Zhu et al., 2021). This basin is NE−SW-trending overall and covers a total area of approximately 65 000 km2, nearly 70% of which is deep-water (water depths>300 m), and its exact longitudinal and latitudinal coordinates lie between 108°52′−110°47′E and 16°47′−19°00′N, respectively (Huang et al., 2016; Wang et al., 2015a) (Fig. 1). The Qiongdongnan Basin can be structurally divided into four first-order tectonic belts, including the northern depression, the central uplift, the central depression, and the southern uplift. Furthermore, it can be subdivided into 20 secondary tectonic units (e.g., the Songtao Uplift, Songnan Sag, Baodao Sag, Songnan Low Uplift, and Lingshui Sag, as shown in Fig. 1b).
The basin has experienced two tectonic evolution stages during the Cenozoic (Huang et al., 2016; Lai et al., 2021; Su et al., 2018), including the Paleogene rifting stage and the post-Paleogene depression stage. The Cenozoic depositional sequences in the Qiongdongnan Basin are recorded by five diverse successions, that is, Eocene lacustrine sediments, early Oligocene continental-to-marine transitional to semi-enclosed neritic successions, late Oligocene−mid-Miocene littoral-to-neritic facies, late Miocene−Pliocene littoral-to-bathyal deposits, and a Quaternary littoral sequence (Ding et al., 2021; Lai et al., 2021; Su et al., 2018; Zhu et al., 2021) (Fig. 1c, modified from Lai et al. (2021); Su et al. (2018)). The stratigraphy has been recorded through drilling, and the successive layers are as follows, from old to new: the late Eocene Lingtou Formation (E2l), early Oligocene Yacheng Formation (E3y), late Oligocene Lingshui Formation (E3l), early Miocene Sanya Formation (N1s), mid-Miocene Meishan Formation (N1m), late Miocene Huangliu Formation (N1h), Pliocene Yinggehai Formation (N2y) and Quaternary Ledong Formation (Ql). The Yacheng and Lingshui formations can be trisected into E3y1-3 and E3l1-3, respectively, and the Sanya Formation can be dichotomized into N1s1 and N1s2. The regional tectonic features and sedimentary facies indicate that the palaeowater gradually deepened spatially from the northwest to the southeast and temporally from the early Oligocene to the Miocene in the Qiongdongnan Basin; in addition, the palaeovegetation compositions and source inputs of the ancient sediments changed similarly.
The Qiongdongnan Basin has experienced more than 40 years of petroleum exploration since the Y-9 well was first drilled in 1979. During recent decades, a sequence of giant gas fields and hydrocarbon-bearing structures has been established in this basin, including but not limited to the YA13-1, LS17-2, LS25-1, LS25-1 W, LS18-1, and LS18-2 gas fields, in which the YA13-1 gas field is the largest and first-discovered commercial gas field in the Qiongdongnan Basin (Xiao et al., 2006; Zhou et al., 2003). The other gas fields listed above are all located in the central depression, and the LS17-2 gas field is the largest among these fields; this field is located in a deep-water area and has an initial gas-in-place reserve of approximately 110×109 m3 (Zhang et al., 2016; Zhu et al., 2021). Due to the tremendous sedimentary volumes and extensive gas potentials in the Qiongdongnan Basin, this region has become an important exploration hotspot along the continental marginal basins of China (Zhu et al., 2021). In the last decade, numerous studies have been conducted on the Qiongdongnan Basin, predominantly concerning the petroleum geological conditions (Liu et al., 2016a; Wang et al., 2014a; Zhu et al., 2021), regional tectonic evolution (Ren et al., 2011; Wang et al., 2014b; Yang et al., 2022), petroleum and source rock geochemistry (Lai et al., 2021; Zhu et al., 2018, 2021), source rock developmental controls (Li and Zhang, 2017; Li et al., 2013; Miao et al., 2018), and sedimentary characteristics (Cao et al., 2017; Lei et al., 2019; Liu et al., 2016b; Ren et al., 2014; Wang et al., 2015a; Wu et al., 2018b); topics of specific focus include hydrocarbon-generation potentials of coal-bearing source rocks (SRs) (Huang et al., 2012, 2016; Lai et al., 2021; Li et al., 2012, 2020; Ren et al., 2015; Wang et al., 2020, 2021; Zhang et al., 2019) and natural gas-related research (Ding et al., 2018; Huang et al., 2012, 2016, 2017; Su et al., 2012, 2017, 2018; Wang et al., 2015c; Zhang et al., 2016).
The lower Oligocene-lower Miocene SRs in the central Qiongdongnan Basin (CQB) revealed by drilling are predominantly terrigenous-marine SRs, and this type of source rock is specific to continental marginal sedimentary basins. There has been an increase in research interest for terrigenous-marine SRs due to their great resource potential coupled with their wide distribution and large thickness in the South China Sea (Fan et al., 2021; Gao et al., 2018; Huang et al., 2016; Li and Zhang, 2017; Wang et al., 2015b). However, owing to the low-exploration stage of the deep-water region, where no more than 11 wells have been drilled into the lower Oligocene E3y stratum thus far, the diverse OM composition models in the lower Oligocene−lower Miocene terrigenous-marine SRs have not been investigated in detail, and relatively few published studies have focused on the systematic reconstruction of palaeovegetation or palaeoenvironmental conditions during early Oligocene to early Miocene in the CQB or even in the South China Sea using geochemical parameters, especially few analyses have been conducted in combination with the latest petroleum exploration.
In previously published reports, Ding et al. (2021) discussed the palaeovegetation variations that occurred in response to the late Oligocene−early Miocene East Asian summer monsoon in the Ying-Qiong Basin and reconstructed the palaeovegetation and palaeoclimate during the late Oligocene−early Miocene in their study area. Wu et al. (2018a) analysed the palaeoenvironmental conditions of Oligocene SRs in the Baodao-Changchang sags based on evidence from organic geochemistry and palynology. Both Ding et al. (2021) and Wu et al. (2018a) generally agreed that tropical/subtropical angiosperm- and pteridophyte-derived OM dominated the Oligocene SRs and younger sediments (i.e., N1s1). However, there are some different opinions herein in the OM sources of the lower Oligocene-lower Miocene (Yacheng Formation-Sanya Formation) SRs. Given that, terrigenous-marine SRs are widespread in the CQB, and hence, terrestrial materials have been nonnegligibly incorporated into deposits in the CQB since the early Oligocene. Nevertheless, the composition models and traits of the OM involved in the original sediments, as well as ultimately preserved geochemical compounds, exhibited variations due to many controlling factors, e.g., the source materials, redox potential, and palaeowater depth, thereby finally representing the diversities of palaeovegetation and palaeoenvironmental conditions.
Numerous molecular biomarkers in petroleum and extractable hydrocarbons from ancient sediments can be linked with corresponding geologically ancient counterparts and have hence been widely used to reconstruct palaeovegetation compositions and depositional palaeoenvironments (Didyk et al., 1978; Ding et al., 2021; Hautevelle et al., 2006; Jiang et al., 2020; Jiang and George, 2018; La Croix et al., 2020). For example, the n-alkane ratios, including the wax index, terrigenous/aquatic ratio (TAR) and average chain length (ACL) (for all abbreviations and definitions of biomarkers, please see Table 1), are widely used to evaluate relative variations in terrigenous higher plant- versus aquatic-derived OM in original sediments (Blocho et al., 2021; Bourbonniere and Meyers, 1996; Ding et al., 2021; Hoş-Çebi, 2017; Jiang and George, 2018, 2019; Peters et al., 2005; Samad et al., 2020). Tricyclic terpanes (<C30) seem to derive from a regular C30 isoprenoid, which could be constituents in prokaryotic membranes, and hopanes appear to originate from precursors in bacterial membranes; moreover, tricyclic terpanes are thought to be more resistant to thermal maturation and biodegradation than hopanes (Ourisson et al., 1979, 1982; Peters et al., 2005). Ding et al. (2021) have firstly defined the angiosperm-related indicator (oleanane + des-A-oleanane + taraxastane)/C30 αβ hopane [(O + DAO + Ta)/C30 H]. Bicadinanes, including cis-cis-trans-bicadinane (W), trans-trans-trans-bicadinane (T), and R, are pentacyclic triterpanes derived from the dammar-type resins of tropical angiosperms, such as Dipterocarpaceae plants (Murray et al., 1997; Nytoft et al., 2010; Van Aarssen et al., 1992); these biomarkers were first detected by Grantham et al. (1983) in South Asian oils. Steranes are sterol-derived cycloalkanes derived from ancient eukaryotic photosynthetic algae and higher plants; the distribution patterns and relative abundances of regular steranes are source-related and generally indicative of the sedimentary environment (Ding et al., 2021; Jiang and George, 2018; Peters et al., 2005); pregnanes and homopregnanes were identified as the predominant steranes in ancient sediments deposited under hypersaline environments (Ten Haven et al., 1985), and the relative abundances of pregnanes compared with regular steranes tend to increase with incremental thermal maturity (Wingert and Pomerantz, 1986). The ratio of pristane (Pr) versus phytane (Ph), the two most common aliphatic isoprenoids, has been widely applied to indicate depositional environments (Didyk et al., 1978; Large and Gize, 1996; Ten Haven et al., 1988), although the Pr/Ph ratio is susceptible to thermal maturation (Albrecht et al., 1976; Peters et al., 2005; Vuković et al., 2016). The carbon preference index (CPI), the odd-to-even predominance (OEP) and the Ts/(Ts + Tm) ratio can be applied to evaluate the mature stage of SRs and oils but are also inescapably influenced by the variations in parent materials and the depositional environment (Ding et al., 2021, 2022; Jiang and George, 2018; Seifert and Moldowan, 1978; Xu et al., 2022). Furthermore, maturity-sensitive stereoisomers of hopanes and steranes are widely used to assess the thermal maturity of original sediments and petroleum; configurational isomerization occurs only when cleavage and renewed formation of the bonds has resulted in an inverted configuration in contrast with the original asymmetric centre; the R and S isomeric configurations of asymmetric carbon atoms in acyclic chains generally have similar thermal stabilities, while asymmetric centres that are part of a saturated ring system usually show two configurations (α and β) with entirely distinct thermal stabilities due to steric forces imposed by a rigid cyclic structure (Peters et al., 2005).
In this paper, aliphatic biomarkers obtained from extractable hydrocarbons and drill stem test (DST) oils were predominantly used, including oleanane, 10β(H)-des-A-oleanane, 10β(H)-des-A-lupane, 10β(H)-des-A-ursane, taraxastane, bicadianes, C19−C24 tricyclic terpanes, C24 tetracyclic terpane, and C27−C29 regular steranes. The latest test data from the new BD-3 drilling well were applied to extend the sample capacity. All above steps are prerequisites for systematically reconstructing the early Oligocene-early Miocene palaeovegetation and palaeoenvironmental conditions and ascertaining OM sources of terrigenous-marine SRs from the Yacheng-Sanya formations in the CQB.
2 Materials and methods
Less
2.1 Samples

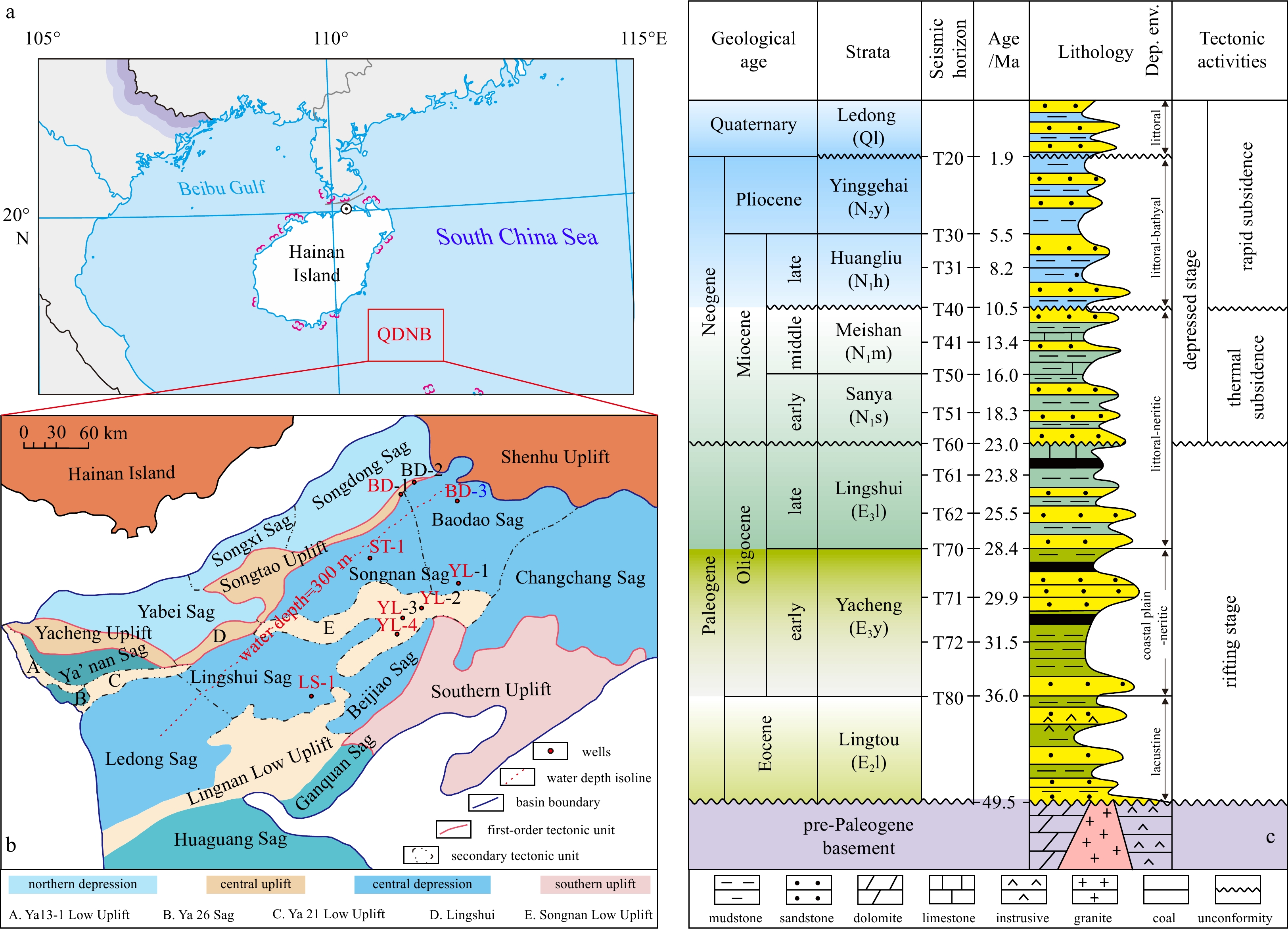

All the materials and samples used in this work were collected from the Hainan Branch of China National Offshore Oil Corporation (CNOOC) Co., Ltd. Sufficient samples were obtained for this study, including 30 cuttings and 24 sidecores derived from 9 wells in the CQB, among which 15 samples were from the N1s stratum, 28 samples were from the E3l stratum and 11 samples were from the E3y stratum. In addition, 3 DST oils from Well BD-3 in the E3l3 stratum were included in this study. The details of representative rock samples obtained from 9 wells are shown in Table 2. The locations of the wells referred to in this paper are illustrated in Fig. 1b.
2.2 Analytical methods
Before their soluble hydrocarbons were extracted, we pre-treated all rock samples by washing them with deionized water, wiping them with ethanol, powdering the samples to less than 100 mesh, and performing Soxhlet extraction for 72 h using chloroform. The following method to separate aliphatic hydrocarbons from the extractable organic matter (EOM) and crude oils was discussed in detail in Xu et al. (2022). Then, the aliphatic hydrocarbon fractions were analysed using the gas chromatography-mass spectrometry (GC-MS) method to determine the geochemical signatures, further reconstruct early Oligocene-early Miocene palaeovegetation and ascertain the sources of OM in the lower Oligocene−lower Miocene SRs. The GC-MS was performed on an Agilent 7890A GC apparatus equipped with a DB-5ms fused silica capillary column (with a 60 m×0.25 mm internal diameter and a film thickness of 0.25 μm) associated with an Agilent 5975C mass selective detector (with an ionization energy of 70 eV). The vapourization temperature in the inlet was set to 300°C, and the samples were injected in splitless mode using helium as the carrier gas at a stable flow velocity of 1.5 mL/min. The initial oven temperature was maintained at 50°C for 1 min, then programmed to 120°C at 20°C/min and further increased to 300°C at 2°C/min and maintained for 30 min. The samples were detected in full-scan mode. Additionally, the compound abundance normalization and calculation steps were performed on Chemstation based on the peak areas integrated into the mass chromatograms.
3 Results
Less
3.1 n-Alkanes and isoprenoids

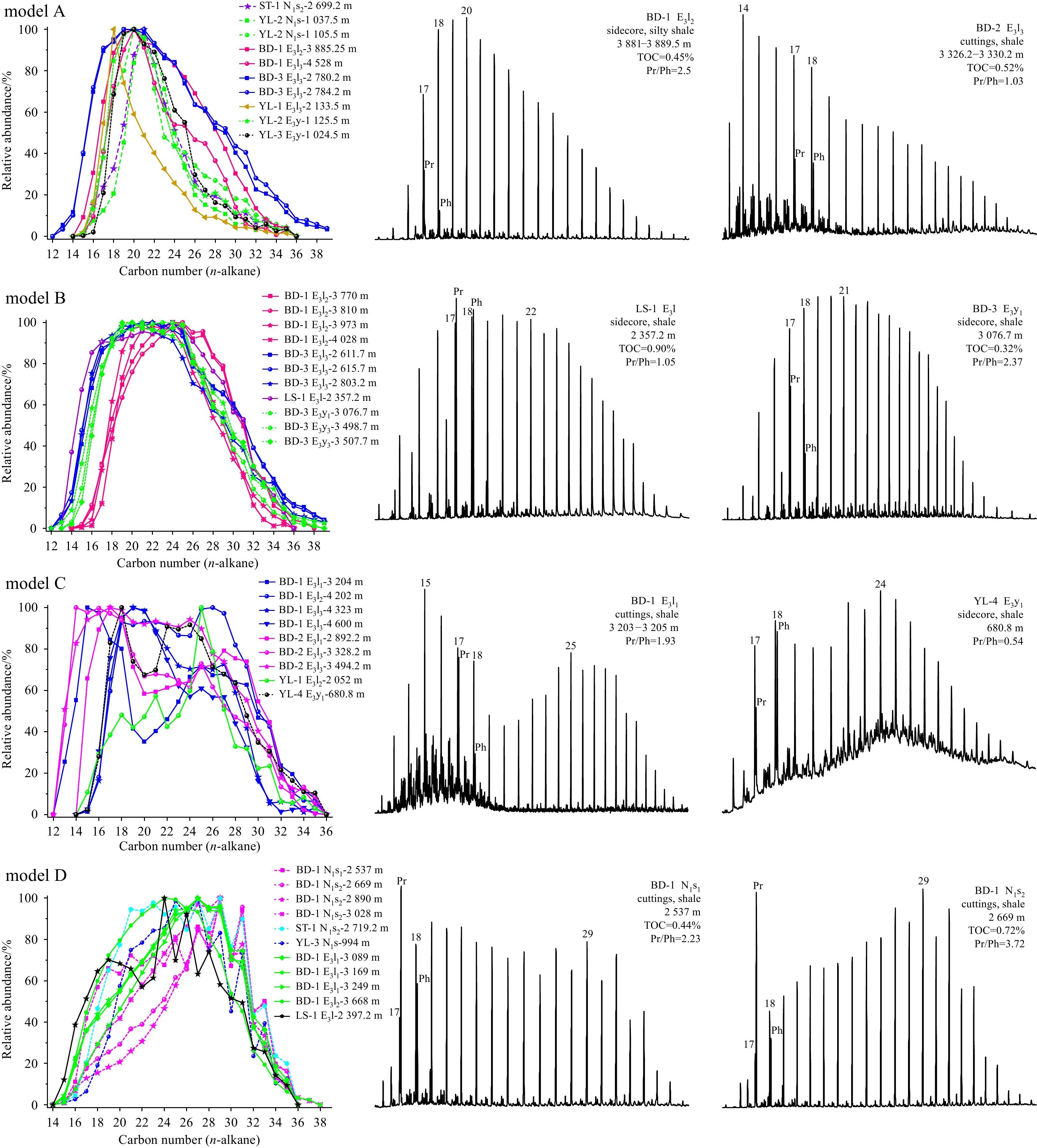

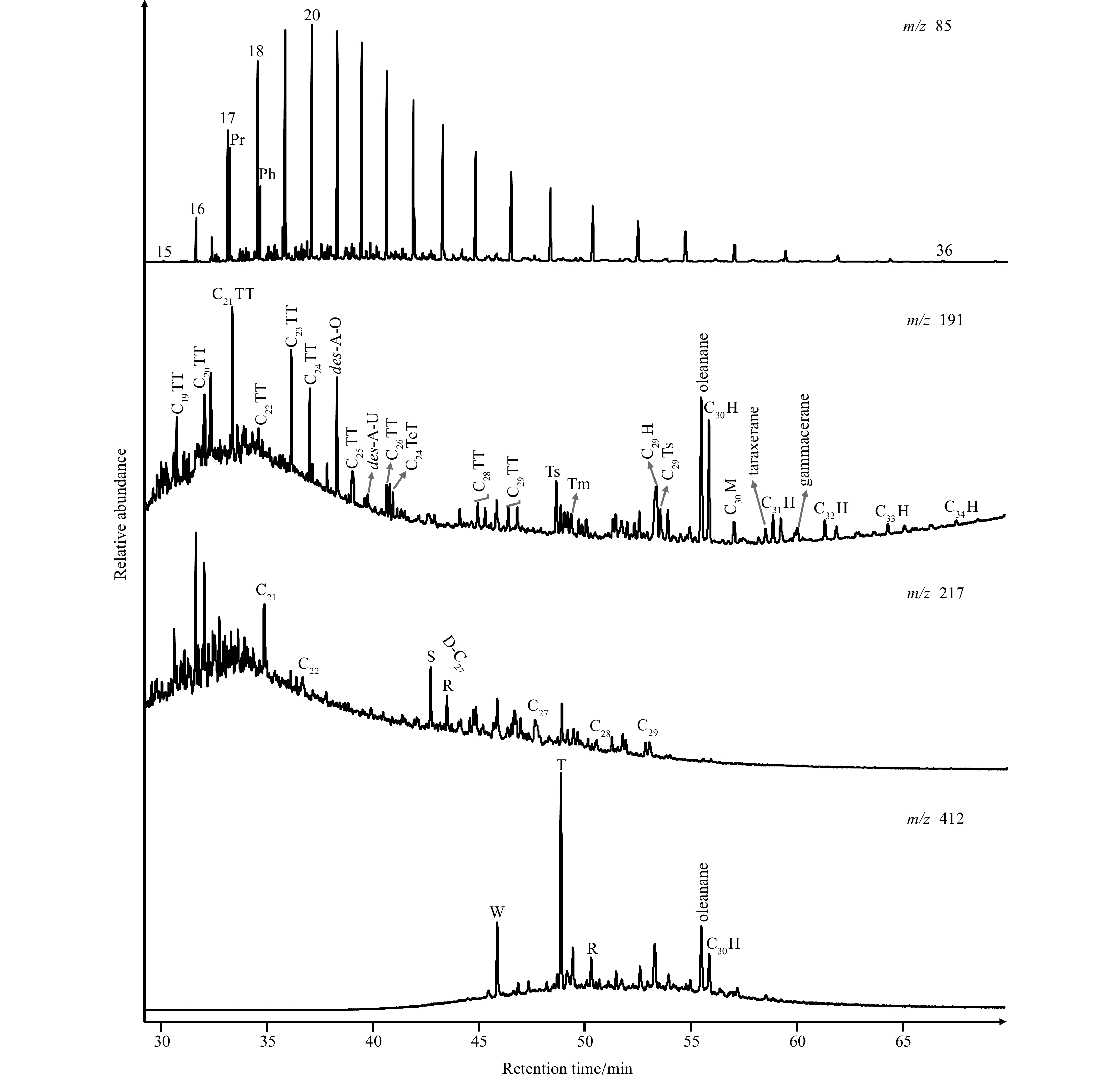

As illustrated in the m/z 85 mass chromatograms, the distributions of n-alkanes and isoprenoids in the aliphatic hydrocarbon fractions differed among SRs from the lower Oligocene E3y to lower Miocene N1s strata (Fig. 2). The n-alkanes of these rock samples exhibited a range of carbon numbers from C12 to C39, and four n-alkane distribution patterns were present: (1) a unimodal distribution pattern with an anteverted maximum≤C21, which was widespread in the E3y-N1s SRs represented in samples from the E3l stratum of Well BD-1, with a 3 881.0–3 889.5-m sidecore, and BD-2, with 3 326.2–3 330.2-m cuttings (Fig. 2a); (b) a unimodal, approximately symmetric pattern with a maximum between C19 and C25, which was predominantly present in E3y–E3l SRs, e.g., the sidecore samples of LS-1 at 2 357.2 m and of BD-3 at 3 076.7 m from the E3l and E3y strata, respectively (Fig. 2b); (3) a bimodal model with maxima at C15-20 and C24-27, which were principally found in E3y-E3l strata, for example, in shales from well BD-1 with 3 203–3 205-m cuttings from E3l1 and from Well YL-4 with a 680.8-m sidecore from E3y1, the presence of unresolved complex mixture humps in these two representative samples indicated that the samples have undergone moderate biodegradation (Ahmed et al., 2012), as was validated by the prior loss of light-molecular-weight less than C17 n-alkanes attributed to the inclination of the low carbon number of n-alkanes to lose their variable contents (Alkhafaji, 2021; Fazeelat et al., 2011; Galarraga et al., 2010) (Fig. 2c); and (d) a unimodal distribution model with moderate OEP at high molecular weights, which mainly occurred in the E3l-N1s SRs, for instance, in the cutting samples obtained from Well BD-1, N1s1 (2 537 m) and N1s2 (2 669 m) strata (Fig. 2d). The n-alkane distribution patterns illustrated different input proportions from terrestrial higher plant- and aquatic-derived OM, and the four patterns correspondingly represented four diverse OM composition models of the lower Oligocene-lower Miocene SRs in the study area, that is, model A, model B, model C, and model D.
Light-molecular-weight n-alkanes (≤C17) in aliphatic hydrocarbon fractions are inclined to stem from lower aquatic organisms, including algae, while long-chain odd n-alkanes (≥C27) are chiefly derived from the leaf wax components of terrigenous higher plants (Bourbonniere and Meyers, 1996; Peters et al., 2005). Generally, marine-sourced organic compounds have lower ACL values of 14 to 24, while terrestrial higher plant-derived organic components have higher ACL values ranging from 21 to 39 (Blocho et al., 2021; Eglinton and Hamilton, 1967; Jeng, 2006). Taking chain lengths 15 to 33 into account, the ACL values in the N1s SRs ranged from 18.15 to 26.70, those in the E3l SRs were in a range of 18.48–25.61 and those in the Yacheng SRs had a range of 20.44–24.29, showing a slight increase in the peak ACL values from E3y to N1s and the presence of moderate values, indicating mixed organic component inputs with some marine-over-terrestrial OM predominance. The CPI22-32 values of all 54 rock extracts ranged from 0.84 to 1.30, with an average of 1.07, and the OEP had an approximate range of 0.70–1.38 (average of 1.03); in four samples present in the N1s SRs, the values of these two parameters were higher than 1.20, indicating low maturity and higher plant inputs, while the other CPI values close to one are thought to have been caused by the dominant input of marine microorganisms and/or recycled OM (Kennicutt et al., 1987) or thermal maturation (Peters et al., 2005). The wax index values of all 54 samples were between 0.31 and 8.09, approximately 20.4% of which were lower than 1.0, and these samples were from the E3l–N1s strata, also suggesting the noticeable contribution of terrigenous higher plant-derived OM, while the wax index in the E3y SRs ranged from 1.44 to 5.87, indicating lower contributions of terrigenous OM compared to the E3l and N1s strata discussed above. The n-alkanes of the aliphatic hydrocarbon fractionations of the N1s SRs exhibited large TAR values from 0.08 to 8.03, while the ranges of this index in the E3l and E3y strata were 0.10–4.46 and 0.20–3.29, respectively.
Among the 54 rock extracts examined in this paper, the Pr/Ph ratios were mostly less than 3.0, and only seven samples exhibited Pr/Ph values larger than 3 (within the range of 3.12–4.18, with an average of 3.63), six of which were obtained from Well BD-1 in the upper Lingshui Formation (E3l1) and the lower Sanya Formation (N1s2). High Pr/Ph values (>3) indicated obvious terrigenous OM inputs under oxic depositional environments (Peters et al., 2005). Specifically, a low Pr/Ph ratio (<0.8) points to an anoxic depositional environment that is generally related to hypersaline or carbonate conditions (Peters et al., 2005). In this study, approximately 26% of all analysed samples had Pr/Ph values<0.8, corresponding to the period throughout the Oligocene to early Miocene. Additionally, the measured isoprenoid/n-alkane ratios were indicative of both the thermal maturity and depositional environment of OM in SRs and oils (Peters et al., 1999, 2005). The cross-plot of Ph/nC18 versus Pr/nC17 shows that the E3y-N1s SRs were deposited in mixed and varied environments containing partial Type-II OM in a reducing environment and Type-III OM in an oxidizing environment, as well as mixed OM types in transitional environments (Fig. 3). The aliphatic isoprenoids of the N1s SRs exhibited large-scale Pr/Ph ratio variations (0.27–4.18) and Pr/nC17 ratio variations (0.28–5.46), among which the lowest Pr/Ph values observed in the YL-3 shales were caused by the strong biodegradation of light molecular n-alkanes (<C18). In the upper Oligocene SRs, the Pr/Ph ratios ranged from 0.45 to 3.88, the Pr/nC17 ratios exhibited a similar range of 0.41–3.37, and the Ph/nC18 ratios ranged from 0.18 to 2.17. However, the isoprenoid-related ratios in the rock extracts derived from E3y were lower than those in the overlying strata, with Pr/Ph ratios ranging from 0.23 to 2.37, Pr/nC17 ratios ranging from 0.22 to 0.79, and Ph/nC18 ratios ranging from 0.15 to 1.07.
Overall, the n-alkane ratios and isoprenoid characteristics described above illustrated the increasing trend of terrigenous OM input from the E3y stratum to the N1s stratum.
3.2 Terpanes
Tricyclic terpanes (TTs, for the compound structure see I in Appendix), C24 tetracyclic terpane (TeT; II), and hopanes (pentacyclic terpanes containing 27–35 carbon atoms; III), which are the common terpane types in the aliphatic hydrocarbon fractions of the E3y-N1s SRs within the CQB, together with oleanane-derived pentacyclic triterpanes, e.g., angiosperm-derived biomarkers including oleanane (IV), des-A-oleanane (V), des-A-lupane (VI), des-A-ursane (VII) and taraxastane (VIII), contribute to the terpane fingerprint (monitored in m/z 191, Fig. 4), which can indicate the depositional environment of ancient sediments and OM input (Peters et al., 2005); in contrast, diterpenoids are in minute abundance or are not detectable by GC-MS.

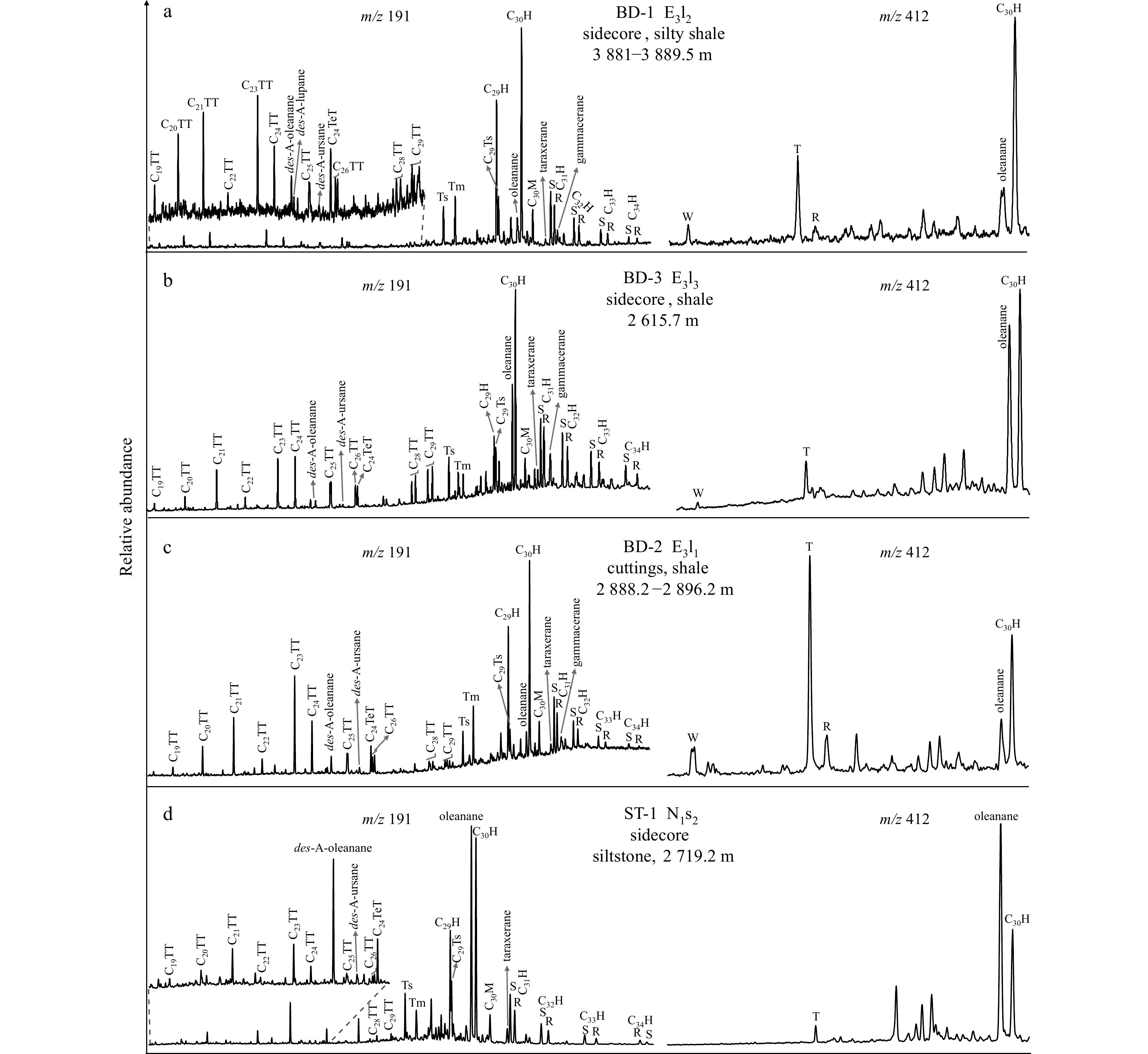

The terpane distribution profiles present in the m/z 191 mass chromatograms were different in the four OM composition models interpreted in Section 3.1; in particular, a lower relative content of TTs compared to hopanes was present in model A, in contrast with the other three models. The earlier eluted compounds in m/z 191 mass chromatograms included TTs, des-A-oleanane, des-A-lupane, des-A-ursane, and C24 TeT, and their distribution profiles reflected in model A were characterized by a unimodal distribution pattern with a peak at C23 TT, followed by C21 TT, and the des-A-oleanane was accompanied by the des-A-lupane (Fig. 4a); their counterparts present in model B exhibited a flat peak pattern with roughly equal C23 TT and C24 TT and had higher C28 TT and C29 TT abundances compared to other models, with a small peak of des-A-oleanane (Fig. 4b); the distribution pattern in model C shared a similar characteristic with model A of a unimodal distribution profile with a maximum at C23 TT, indicating conspicuous contributions from aquatic OM (Ahmed et al., 2012; Hakimi et al., 2021; Mohamed et al., 2018; Xu et al., 2022), but the des-A-lupane was undetectable in model C (Fig. 4c); and in model D these compounds were dominated by des-A-oleanane, with the C24 TeT content significantly higher than that of C26 TT, and the relative abundances of C21 TT, C23 TT and C24 TeT were very similar (Fig. 4d). Model C was dominant in all analysed samples. High abundances of C19 TT and C24 TeT relative to C23 TT are indicative of significant OM contributions from higher plants (Ding et al., 2022; Preston and Edwards, 2000). The source-related ratios of C19/(C19+C23) TT in all 54 rock samples ranged from 0.02 to 0.77 (with an average of 0.19), one-ninth of which in the E3l1 and N1s2 strata exhibited higher C19 TT contents with C19/(C19+C23) TT ratios of 0.57–0.77, indicating significant inputs from terrigenous OM in these rock samples. While the C24 TeT/C23 TT ratios exhibited wide-ranging values of 0.10–3.54, with an average of 0.66, one in six samples had a value larger than 1, and these samples were also representative of E3l-N1s. In contrast, the C23/C21 TT ratios in the E3y SRs range from 1.33 to 2.61, with an average of 1.95, and the ratios in the E3l and N1s SRs were 0.82–2.40 (average of 1.54) and 0.93–2.25 (average of 1.64), respectively.
The distribution of hopanes in the CQB reflected a general range of C27−C35 hopanes, with C29/C30 αβ hopane ratios<1, and homohopanes with S and R epimers decreasing steadily from C31 to C35 (Fig. 4). Nevertheless, the specific distributions were diverse among these four models; e.g., model A and model C had the same characteristics of Ts/Tm ratios<1, low C29Ts/C29 αβ hopane values, and low oleanane, with the peak at C30 αβ hopane; model B corresponded to low C29 αβ hopane but with higher C29Ts/C29 αβ hopane ratios, moderate oleanane abundances, and Ts/Tm ratios>1, and model B exhibited higher gammacerane (IX) abundances than the other models; model D was characterized by Ts/Tm ratios>1, moderate C29 αβ hopane and higher oleanane than C30 αβ hopane.
The Ts/(Ts+Tm) ratios in lower Oligocene-lower Miocene rock extracts ranged from 0.07 to 0.68, among which 18.5% of samples from the E3y-E3l strata had values larger than 0.5, indicating relatively mature SRs. The C29 Ts/C29 αβ hopane ratios ranged from 0.06 to 0.81, with an average of 0.32. The C29 αβ/(βα+αβ) hopane and C30 αβ/(βα+αβ) hopane ratios exhibited similar ranges of 0.54–0.94 (average of 0.81) and 0.47–0.89 (average of 0.79), respectively. In the E3y SRs, the oleanane index (oleanane/C30 αβ hopane) and gammacerane index (gammacerane/C30 αβ hopane) values ranged from 0.04 to 1.40 and 0.11 to 0.23, respectively; in the E3l stratum, these two ratios were in the ranges of 0.04–1.21 and 0.04–0.31, respectively; and in the N1s stratum, the counterparts had ranges of 0.03–1.07 and 0.04–0.23, respectively. The differences among strata seemed to reflect diverse depositional environments. The relative abundances of des-A-oleanane and taraxerane versus C30 αβ hopane were subtle in the SRs derived from E3y-N1s, with des-A-oleanane/C30 αβ hopane and taraxerane/C30 αβ hopane ratios ranging from 0.006–0.172 and 0.008–0.149, respectively. The angiosperm-related indicator of (O+DAO+Ta)/C30 H ranged from 0.07 to 1.62 (with an average of 0.27) in the E3y SRs in this study, from 0.06 to 1.47 (average of 0.42) in the E3l SRs and from 0.06 to 1.32 (average of 0.49) in N1s. The values of this index in the E3l and N1s strata were slightly higher than those in the underlying E3y stratum, which was consistent with the characteristics illustrated by the n-alkanes and isoprenoids described in Section 3.1. The C31 22S/(22S+22R) homohopane ratio can be used as a maturity indicator; this value very specifically denotes OM input before the mid-oil-generation window (Peters et al., 2005), and in all analysed samples, this ratio ranged from 0.31 to 0.60. Of the analysed samples, 26% reached equilibrium values of 0.57–0.62.

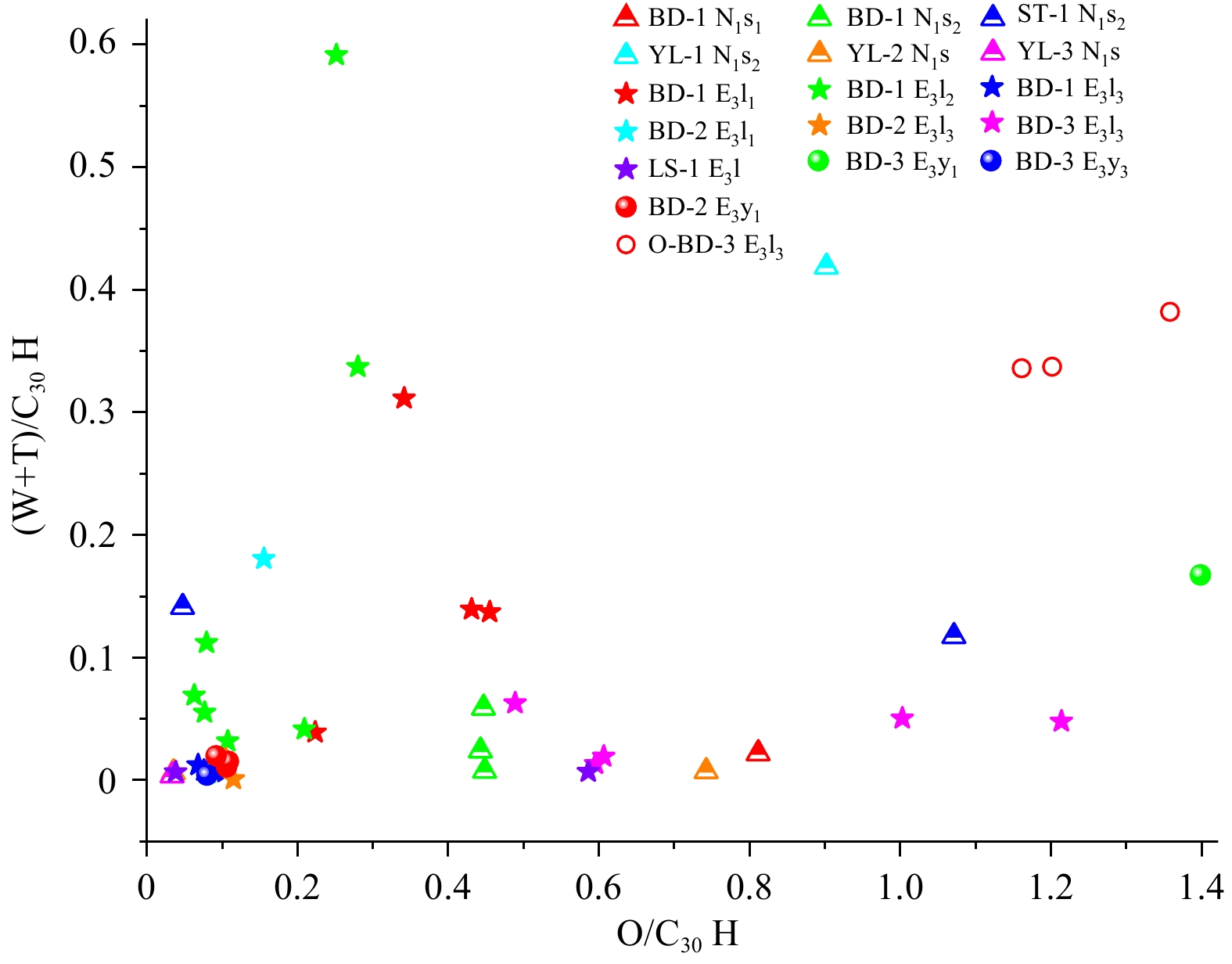

C30 bicadinane isomers varied accordingly among the four models shown in the m/z 412 mass chromatograms in Fig. 4. The isomers W (X) and bicadinane R were inconspicuous relative to the isomer T (XI). The isomer T was remarkably abundant in model C but had a relatively minor abundance in model D and a moderate content in model A. The (W+T)/C30 H ratios ranged from 0.004 to 0.167 (average of 0.038) in the E3y SRs and were obviously lower than those measured in E3l (0.001−0.591, average of 0.089) and N1s (0.004−0.419, average of 0.081). Dipterocarpaceae has been reported to have flourished from 24.9 Ma in the late Oligocene and before declining in the early Miocene (Ding et al., 2021).
3.3 Steranes

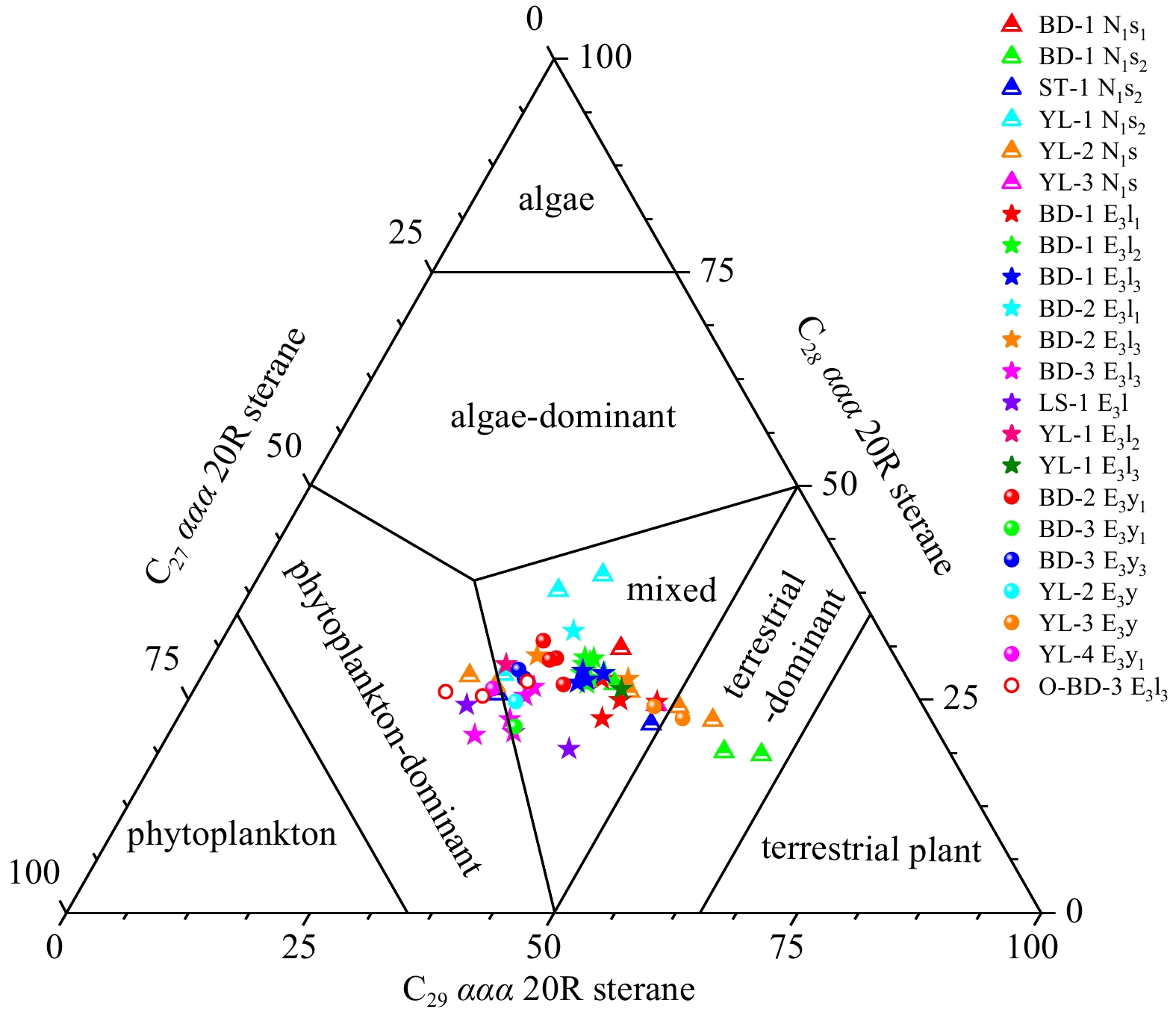

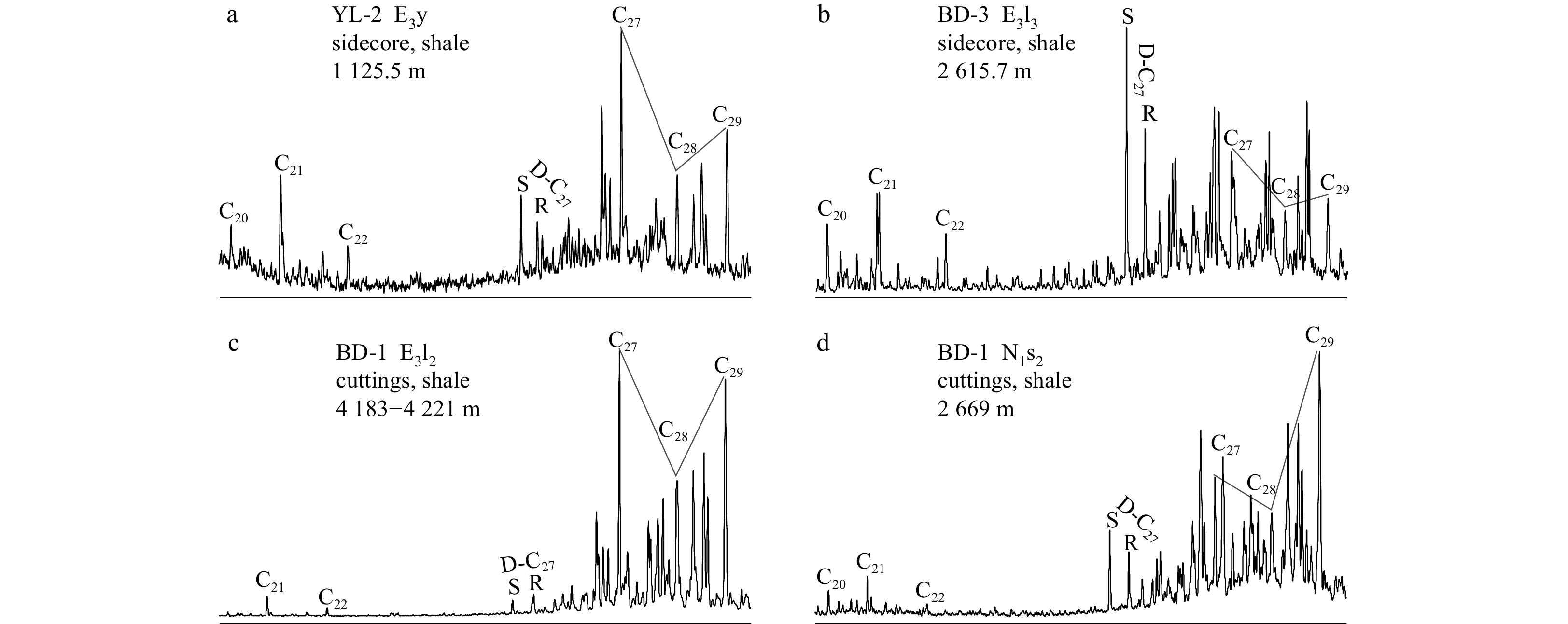

The distributions of regular C27, C28 and C29 ααα 20R steranes (XII), pregnanes, and partial diasteranes predominantly presented four patterns corresponding to four OM composition models, as illustrated in the m/z 217 mass chromatograms (Fig. 5). The distribution of C20, C21 and C22 pregnanes was in a unimodal pattern with a peak at C21 pregnane, and regular steranes dominated over pregnanes and C27 diasteranes in most of the analysed samples; however, diasterane dominance was exhibited in model B, as represented by the BD-3-2615.7 m sidecore shale (E3l3), and the C27 ααα 20R sterane showed a slight advantage over the C29 ααα 20R sterane (Fig. 5b), indicating its sediments under a more saline water environment and in a higher stage of maturity compared to other models. The relative contents of the C27–C28–C29 ααα 20R steranes can be used to ascertain the types of parent materials, among which C27 ααα 20R sterane is indicative of algae-derived OM, while C29 ααα 20R sterane is typical of higher plant-derived OM (Peters et al., 2005). The distributions of C27, C28, and C29 ααα 20R steranes were present with “L” “V” and “anti-L” shapes in model A, model C and model D, respectively (Figs 5a, c, d), suggesting the dissimilarity of the respective contributions from aquatic-dominant, mixed OM and terrestrial-dominant OM. The C27/C29 ααα 20R steranes ratios in the N1s SRs ranged from 0.31 to 1.63, and 4 out of 15 samples had ratios larger than 1.0, suggesting more terrigenous OM input than aquatic organism OM input in most samples. Accordingly, the C27/C29 ααα 20R steranes ratios in the E3l SRs ranged from 0.56 to 1.62, and 9 out of 28 samples had ratios larger than 1.0; the ratios measured in the E3y SRs were in the range of 0.49–1.41, and 4 out of 11 samples had ratios less than 1.0, showing high inputs from algae- or phytoplankton-derived OM. It can thus be inferred from these values measured in all analysed samples that the contribution of terrigenous plant-derived OM was incremental from the E3y to N1s strata.
C29 sterane stereoisomers are maturity-sensitive biomarkers that can be used to specifically assess the thermal maturity of OM in the immature to mature stages (Peters et al., 2005). The C29 20S/(20S+20R) steranes and C29 ββ/(αα+ββ) steranes ratios in all associated samples were below or at their corresponding equilibrium values of 0.52–0.55 and 0.67–0.71, respectively (Peters et al., 2005; Seifert and Moldowan, 1986), with respective ranges of 0.24–0.47 and 0.40–0.53 in the E3y SRs, 0.12–0.53 and 0.11–0.60 in the E3l SRs, and 0.05–0.47 and 0.14–0.53 in the N1s SRs. These stereoisomer ratios suggest that these samples did not evolve beyond the oil-generation window. The maturity- and source-related indicators associated with the partially representative samples of steranes and terpanes are listed in Table 3.
3.4 Geochemical signatures of three supplementary DST oils
Samples of the three analysed oils were collected from three DST sample batches in Well BD-3 of the E3l3 stratum; these oils had previously been confirmed to originate from the E3y SRs (Guo et al., 2021). The three DST oils shared similar geochemical characteristics; their detailed parameters are listed in Table 3. The n-alkane distributions ranged from C15 to C37, with maxima at either C19 or C20. The evident baseline fluctuations present in the m/z 191 and 217 mass chromatograms are due to its light oil properties; this occurrence was validated by the relatively complete but lower abundance of high carbon number of n-alkanes (Fig. 6 m/z 85) and the apparent deficiency of steranes (Fig. 6 m/z 217). In the m/z 191 mass chromatograms, C21 TT, C23 TT and C24 TT peaks were predominant in the TTs distributions, and pentacyclic terpanes were dominated by des-A-oleanane, oleanane and C30 αβ hopane. In particular, a remarkable abundance of the T isomer was found in the analysed bicadinanes (Fig. 6 m/z 412), and oleanane reflected a higher abundance relative to C30 αβ hopane (Fig. 6 m/z 191), indicating significant OM contributions from terrigenous higher plants, including typical Dipterocarpaceae plants.
4 Discussion
Less
4.1 Thermal maturity

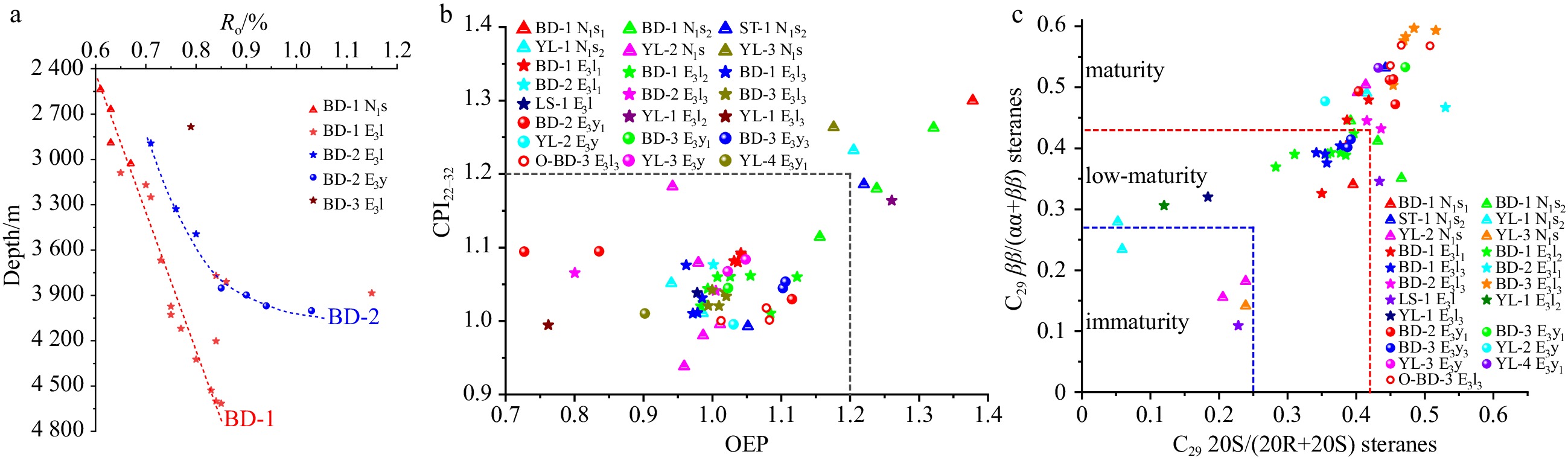

The twenty-seven available vitrinite reflectance (Ro) values collected in this study ranged from 0.61% to 1.15%, and all reached the oil-generation threshold of 0.5%, and 77.8% of those were within their thermally mature stage (0.7%–1.3%). Ro and burial depth exhibited a positive correlation (with a reduction in water depth) (Fig. 7a), and the Ro values of the lower Oligocene SRs (average of 0.93%) were generally higher than those of the overlying E3l (average of 0.80%) and N1s (average of 0.64%) strata. Consistently, the thirty-seven available Tmax values (for the methods of Ro and Tmax measurements, refer to Ding et al. (2021)) were in the range of 400–451°C, among which 86.5% of these values reached the low-maturity threshold of 435°C, and 71.4% of samples were in their mature stage (440–460°C). Peters et al. (2005) reported that oils and SRs with high CPI or OEP ratios (experientially, >1.2) indicate low maturity and land plant inputs, while values of ~1.0 may arise from a predominance of marine inputs and/or thermal maturation; in particular, the values less than 0.8 are specific for low-maturity oils or bitumens from carbonatite. The relative amounts of sterane and terpanes isomerization are highly related to the parent material source, depositional environment and thermal maturity of OM, i.e., the C30 αβ/(αβ+βα) hopane, C31 22S/(22S+22R) homohopane, sterane stereoisomers C29 ββ/(αα+ββ) and C29 20S/(20R+20S) ratios are specific for OM in the immature to mature stages (Ahmed et al., 2012; Hakimi et al., 2018; Peters et al., 2005). During burial heating, the biologically-carried R-configurations at C-20 in steroid precursors or at C-22 in hopane precursors are converted gradually to a mixture of R and S diastereomers; for example, the endpoints of the C29 20S/(20R+20S) steranes are 0.52–0.55, and the equilibrium values of the C31- or C32 22S/(22S+22R) homohopane are 0.57–0.62. While a more stable β-configuration is formed with increasing thermal maturity when the asymmetric centre is not part of a ring, for instance, the high contents of C30 αβ hopane relative to moretane indicate a peak hydrocarbon generation window (Ahmed et al., 2012), and the endpoints of the C29 ββ/(αα+ββ) steranes ratios are 0.67–0.71 (Peters et al., 2005; Seifert and Moldowan, 1986). As shown in Figs 7b and c, the CPI and OEP values of most samples were between 0.9 and 1.2; correspondingly, the sterane stereoisomer ratios of C29 20S/(20R+20S) steranes and C29 ββ/(αα+ββ) steranes were mostly near or at their corresponding thermal equilibrium values, indicating that these samples were dominant in the low-maturity to mature stage, except for several Sanya SRs that exhibited either low maturity or terrigenous OM inputs. This finding can also be supported by the maturity-related biomarkers mentioned in Section 3.2, including the Ts/(Ts+Tm), C30 αβ/(βα+αβ) hopane and C31 22S/(22S+22R) homohopane ratios. Additionally, the geochemical signatures of DST oils from Well BD-3 in E3l3, which originated from the E3y SRs, can be used to verify that the lower Oligocene SRs reached the oil window due to the Ts/(Ts+Tm) (average of 0.68), C30 αβ/(βα+αβ) hopane (average of 0.91) and C31 22S/(22S+22R) homohopane (average of 0.45) ratio indicators, as well as the standard plates shown in Figs 7b and c.
4.2 Depositional environment
The depositional environments of ancient sediments can be inferred using aliphatic biomarkers, e.g., the n-alkane distributions and relative abundances of isoprenoids (discussed in Section 3.1), the gammacerane content over C30 αβ hopane (mentioned in Section 3.2), and the relative proportions of C27-C29 ααα 20R steranes (described in Section 3.3).

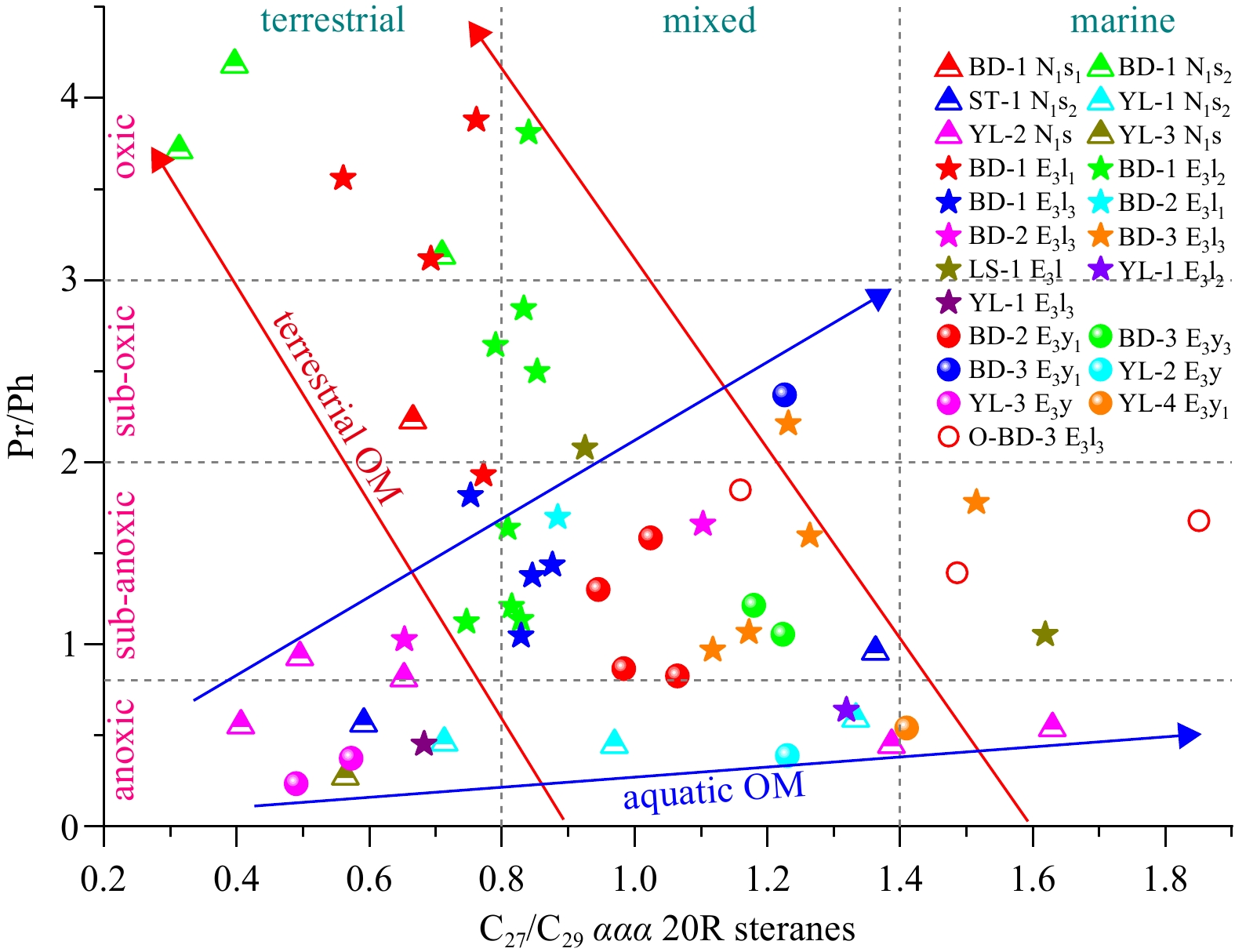

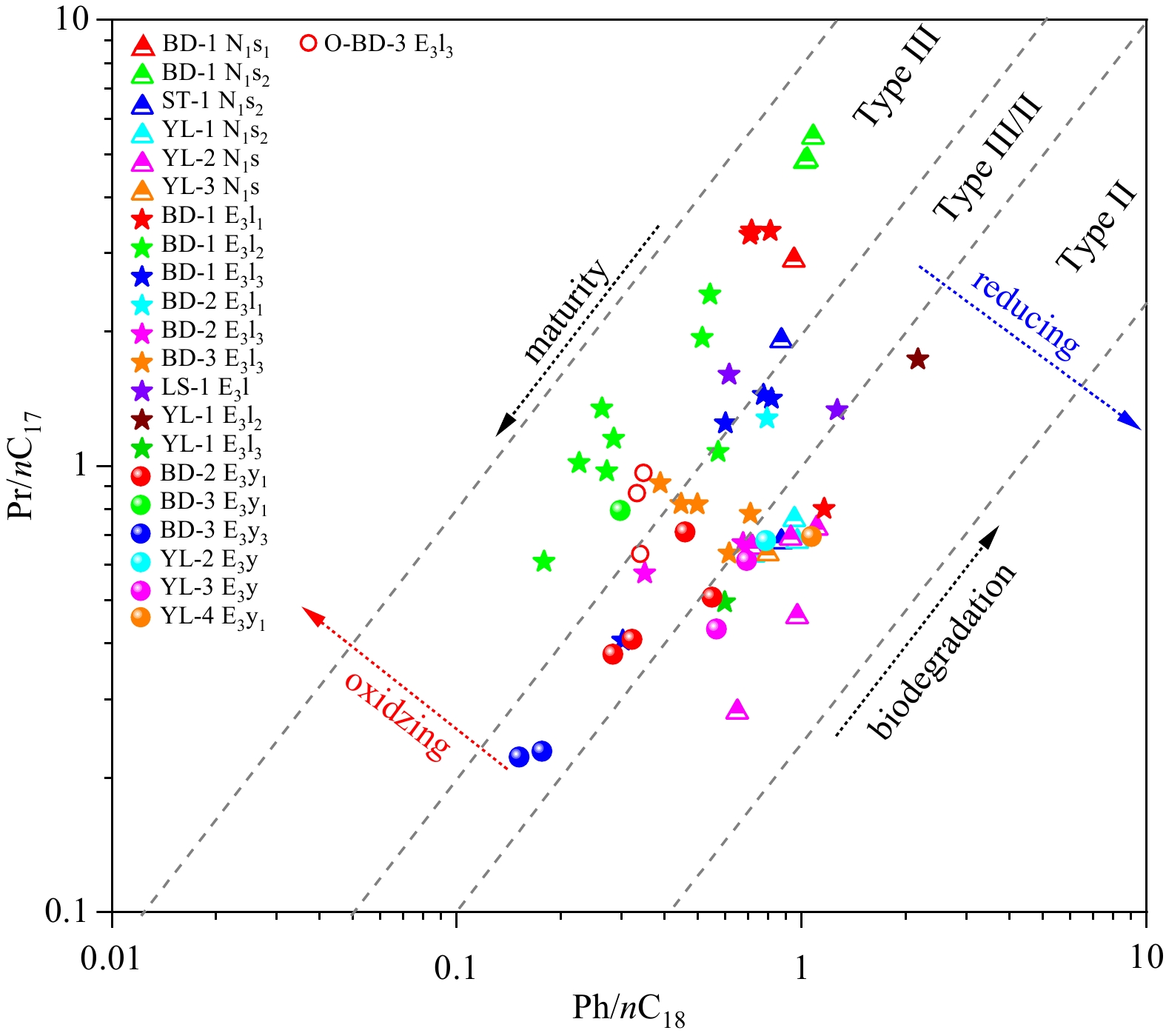

The cross-plots of Ph/nC18 versus Pr/nC17 (Fig. 3) and C27/C29 ααα 20R steranes versus Pr/Ph ratios (Fig. 8) constructed herein illustrate that the sediments deposited during the early Oligocene to early Miocene contained dual terrestrial and marine OM deposited under anoxic-oxic environments. The various gammacerane contents (0.04–0.31 over C30 αβ hopane) in all samples indicated that these marine-terrigenous sediments were deposited in a transitional water environment within the study area corresponding to the incremental water depth from the early Oligocene to the early Miocene.
4.3 Composition of OM
Source-related biomarkers derived from aliphatic hydrocarbon fractions in sediment extracts have been widely applied to reconstruct palaeovegetation compositions over geologic time (Alexander et al., 1988; Chattopadhyay and Dutta, 2014; Ding et al., 2021; Haberer et al., 2006; Hautevelle et al., 2006; Izart et al., 2015; Jiang and George, 2018; Otto et al., 2005; Paul et al., 2015; Van Aarssen et al., 2000). For instance, a high C23 TT peak is indicative of abundant aquatic OM contribution (Preston and Edwards, 2000); oleanane peaks are a sign of angiosperm OM that evolved during the late Cretaceous or younger (Andrusevich et al., 1998; Grantham et al., 1983; Ten Haven and Rullkötter, 1988; Mathur, 2014; Moldowan et al., 1994; Philp and Gilbert, 1986; Rudra et al., 2017; Simoneit et al., 2020); C29 steranes likely stem from vascular plant-derived C29 sterols (Huang and Meinschein, 1979; Volkman, 2005); and the W, T isomers of bicadinanes are thought to be derived from the dammar-type resins of tropical Dipterocarpaceae plants.

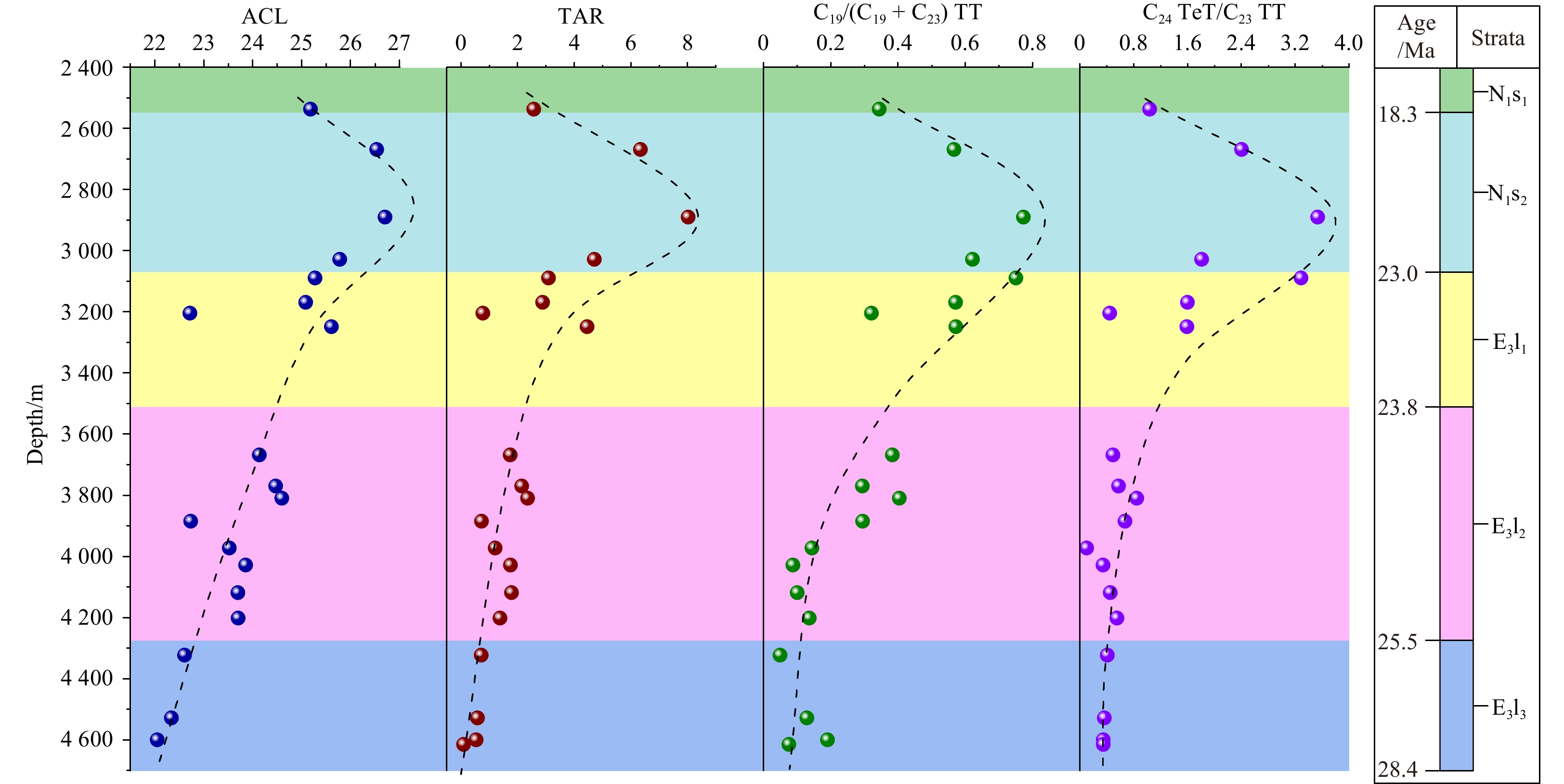

Taking a series of n-alkane ratios into consideration, the moderate ACL values and large TAR ratio ranges measured in all samples indicated mixed OM inputs to the analysed lower Oligocene-lower Miocene SRs, while the partial presence of shorter n-alkane chain lengths and minor TAR values also pointed to dominant contributions from marine phytoplankton- and algal-derived OM, and the relatively high CPI and OEP values (>1.2), extremely high TAR values (up to 8.03) and long n-alkane chain lengths were indicative of terrestrial higher plant-dominant sources.
The general presence of angiosperm-derived biomarkers, including oleanane, des-A-oleanane, des-A-ursane, and taraxerane peaks, as well as the varying bicadinane amounts in all analysed samples, indicate the wide contributions of angiosperms such as myrtles and Dipterocarpaceae. Moreover, the extremely high oleanane amount in model C suggested angiosperm-dominant OM to its SRs. However, no explicit correlation between oleanane and the (W+T) isomers of bicadinanes was found (Fig. 9). The (O+DAO+Ta)/C30 H values measured in all the samples exhibited an increase in average values from the lower Oligocene (0.27) to the upper Oligocene (0.42) and to the lower Miocene (0.49), indicating that angiosperms (e.g., myrtles) played an elevated role in palaeofloras from the early Oligocene to the early Miocene. This finding is further corroborated by the higher C19 TT abundances and larger C24 TeT/C23 TT values in the E3l-N1s sediments relative to those in the E3y SRs. In contrast, moderate to high abundances of C23 TT (C23 TT/C21 TT ratios≈0.82–2.61) in the CQB SRs pointed to significant contributions from aquatic OM, and the higher values in the E3y SRs (average of 1.95) compared to those in E3l-N1s strata (average of 1.57) are indicative of more contributions from aquatic OM to the E3y sediments than to the E3l-N1s SRs.
Steranes are derived from sterols in algal organisms and higher land plants. Regular C27 steranes are generally accepted to be indicative of marine phytoplankton, zooplankton and algal sources, while regular C29 steranes have been regarded as features of terrestrial plants and diatoms. Moreover, significant abundances of regular C28 steranes are highly specific in their indication of lacustrine algal organisms (Jiang and George, 2018; Volkman, 2005). As shown in the ternary diagram displaying the relative proportions of C27, C28, and C29 ααα 20R steranes (Fig. 10), the positions of all available samples were intensively located in the region where suggesting mixed terrestrial and aquatic OM sources (corresponding to model C), with partial N1s SRs dominated by terrestrial sources (corresponding to model D). The cross-plot of the C27/C29 ααα 20R steranes versus the Pr/Ph ratio (Fig. 8) shows that the compounds in all the samples were characterised by mixed contribution from terrigenous and marine OM under sub-anoxic to anoxic environmental conditions. The terrestrial-dominant SRs were interpreted to be developed mainly in the Lingshui-Sanya formations and deposited in sub-oxic to oxic environments, compared to the anoxic to sub-anoxic conditions of Yacheng Formation.
The Red River has been reported to be a stable source provenance for the central Canyon in the CQB, exhibiting a large transport rate (>100 Mt/a) since the late Oligocene (Fyhn et al., 2019; Lei et al., 2019; Zhao et al., 2015); in contrast, along the north-western margin of the CQB, the deposits are dominated by the subordinate Hainan Island provenance (Fyhn et al., 2019; Li et al., 2019; Wang et al., 2016; Zhao et al., 2019). Terrigenous OM and clastic fragments were transported into this studied marginal marine environment through the source-to-sink Red River and Hainan Island systems, causing the marine-terrigenous SRs analysed herein to be specific to the transitional water environments in continental marginal basins, such as the Qiongdongnan Basin.
In summary, aquatic organisms and terrigenous higher plants are vital components of OM in CQB SRs. Combined with the above interpreted aliphatic biomarker signatures of early Oligocene−early Miocene SRs in the CQB, the roughly increased terrigenous OM input to ancient sediments from the E3y stratum to the N1s stratum was observed in this study. The exact variations in the contribution from terrestrial higher plant-derived OM during the late Oligocene−early Miocene could be visually exhibited in Well BD-1 (Fig. 11), characterized by a terrigenous OM enrichment in the E3l1-N1s2 transitional period; this finding was consistent with the indication of the bulk geochemical parameters of the SRs herein, in which the total organic carbon (TOC) and free hydrocarbons + potential hydrocarbons (S1+S2) (the analytical methods for TOC, S1 and S2, refer to Ding et al. (2021)) gradually increased during the depositional period from E3l3 to N1s2, and they were especially enriched in E3l1−N1s2 strata (Fig. 12); however, this discovery was realized on the basis of a finite dataset; nevertheless, it can also be reinforced by the idea that a prominently higher abundance of angiosperm-dominated OM was deposited in the E3l1-N1s2 strata (approximately 24.9–18.3 Ma) than in the other underlying formations (during 28.4–24.9 Ma) (Ding et al., 2021), and the discovery was further corroborated by Oligocene palynological records in the South China Sea, which indicated that the palaeoclimate gradually changed from tropical/subtropical conditions to temperate conditions after the late Oligocene (Ding et al., 2021; Wu et al., 2003).
5 Conclusions
Less
The aliphatic hydrocarbons in the fifty-four lower Oligocene-lower Miocene rock samples and three oils from the CQB were analysed in this study to investigate their thermal maturity, depositional environments and OM sources.
(1) Maturity-sensitive indicators such as isomerisation ratios of sterane and hopanes, together with Ro and Tmax values, suggest that the thermal maturity of the samples have predominantly reached the early oil-generation window but have not exceeded the peak oil windows, except for some immature Sanya Formation shales.
(2) The terrestrial-dominant SRs developed mainly in the Lingshui-Sanya formations and were deposited in sub-oxic to oxic environments compared to the anoxic to sub-anoxic conditions of the Yacheng Formation. The OM in all the samples was predominantly characterised by mixed contributions from terrigenous and marine OM under anoxic to sub-anoxic environments, suggesting a transitional aquatic environment of these terrigenous-marine SRs in the continental margin basin.
(3) Both terrestrial higher plant- and aquatic-derived OM contributed to the lower Oligocene−lower Miocene SRs in the CQB but have varying relative contributions to the OM. Four source analytical models of OM in CQB SRs were interpreted in this study. Model A to model D have increased contributions of terrigenous OM. Additionally, angiosperms played an enhancing role in palaeofloras from the early Oligocene to the early Miocene, and the bloom of terrigenous higher plants was observed during the deposition of E3l1 to N1s2 strata.

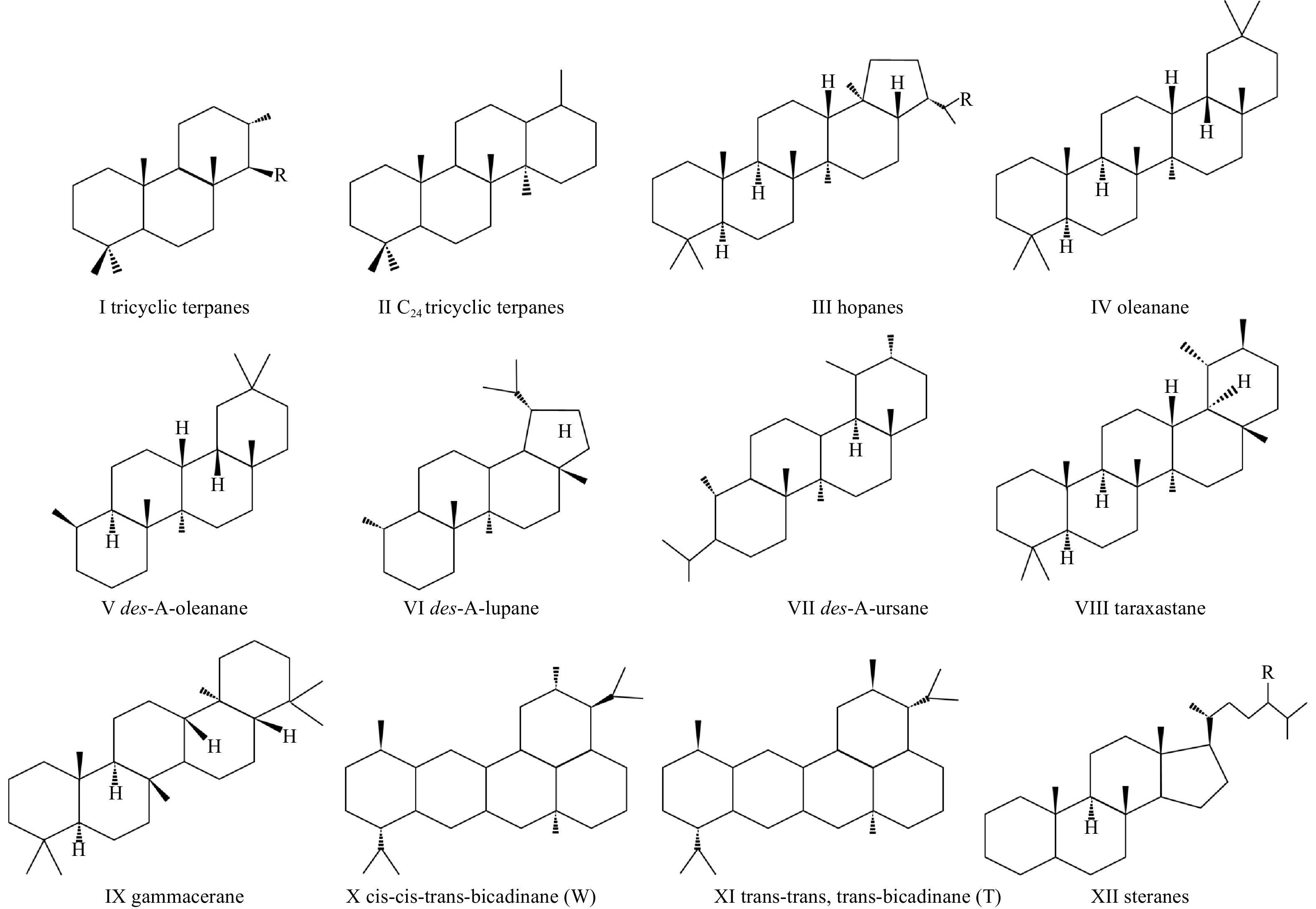

Appendix: Structures of some compounds mentioned in the text
Less
Funding
Less
  • The National Natural Science Foundation of China under contract No. 41872131.
