Huarong Xie¹, Qing Xu²^,^*, Quanan Zheng³, Xuejun Xiong⁴, Xiaomin Ye⁵, Yongcun Cheng⁶^,⁷

Acta Oceanologica Sinica | 2022, 41(6) : 137 - 145

Less

Acta Oceanologica Sinica | 2022, 41(6): 137-145

• Marine Technology •

Assessment of theoretical approaches to derivation of internal solitary wave parameters from multi-satellite images near the Dongsha Atoll of the South China Sea

Full

Huarong Xie¹, Qing Xu²^,^*, Quanan Zheng³, Xuejun Xiong⁴, Xiaomin Ye⁵, Yongcun Cheng⁶^,⁷

Affiliations

¹ Key Laboratory of Marine Hazards Forecasting of Ministry of Natural Resources, Hohai University, Nanjing 210098, China

² College of Marine Technology, Faculty of Information Science and Engineering, Ocean University of China, Qingdao 266100, China

³ Department of Atmospheric and Oceanic Science, University of Maryland, College Park, Maryland 20742, USA

⁴ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

⁵ National Satellite Ocean Application Service, State Oceanic Administration, Beijing 100081, China

⁶ Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China

⁷ PIESAT Information Technology Co., Ltd., Beijing 100195, China

Published: 2022-06-25 doi: 10.1007/s13131-022-2015-3

Outline

Abstract

Less

This study assesses the accuracy and the applicability of the Korteweg-de Vries (KdV) and the nonlinear Schrödinger (NLS) equation solutions to derivation of dynamic parameters of internal solitary waves (ISWs) from satellite images. Visible band images taken by five satellite sensors with spatial resolutions from 5 m to 250 m near the Dongsha Atoll of the northern South China Sea (NSCS) are used as a baseline. From the baseline, the amplitudes of ISWs occurring from July 10 to 13, 2017 are estimated by the two approaches and compared with concurrent mooring observations for assessments. Using the ratio of the dimensionless dispersive parameter to the square of dimensionless nonlinear parameter as a criterion, the best appliable ranges of the two approaches are clearly separated. The statistics of total 18 cases indicate that in each 50% of cases, the KdV and the NLS approaches give more accurate estimates of ISW amplitudes. It is found that the relative errors of ISW amplitudes derived from two theoretical approaches are closely associated with the logarithmic bottom slopes. This may be attributed to the nonlinear growth of ISW amplitudes as propagating along a shoaling thermocline or topography. The test results using three consecutive satellite images to retrieve the ISW propagation speeds indicate that the use of multiple satellite images (>2) may improve the accuracy of retrieved phase speeds. Meanwhile, repeated multi-satellite images of ISWs can help to determine the types of ISWs if mooring data are available nearby.

Key words

internal solitary waves / KdV equation / NLS equation / South China Sea / satellite images

Cite this Article

Huarong Xie, Qing Xu, Quanan Zheng, Xuejun Xiong, Xiaomin Ye, Yongcun Cheng. Assessment of theoretical approaches to derivation of internal solitary wave parameters from multi-satellite images near the Dongsha Atoll of the South China Sea[J]. Acta Oceanologica Sinica, 2022 , 41 (6) : 137 -145 . DOI: 10.1007/s13131-022-2015-3

Full Text

Less

1 Introduction

Less

The ocean internal waves (IWs) play a significant role in the nutrient transport, underwater acoustic propagation, offshore engineering, and submarine navigation (Osborne and Burch, 1980; Jackson, 2007; Xu et al., 2008; Guo and Chen, 2014; Zhao et al., 2014; Alford et al., 2015; Dong et al., 2016; Huang et al., 2016; Xie et al., 2016). Satellite observations show that the IWs are broadly distributed in the northern South China Sea (NSCS) from the Luzon Strait to Hainan Island, especially near the Dongsha Atoll and generally propagate westward in the form of internal solitary wave (ISW) packets (Hsu and Liu, 2000; Zhao et al., 2004; Zheng et al., 2008, 2020; Wang et al., 2013; Zheng, 2017). Before reaching the continental shelf, the ISWs typically have the transbasin evolution and dissipate almost all their energy (Chang et al., 2006; Dai et al., 2011; Xie et al., 2019). These waves are more active from April to July and occur less frequently in winter owing to the deep surface mixed layer and weaker stratification (Zheng et al., 2007; Ramp et al., 2010). Three types of ISWs with different re-appearance periods have been observed in the NSCS. Type-A ISWs re-appear regularly at the same time each day, while type-B and type-C waves re-appear one hour later and earlier each day, respectively (Ramp et al., 2004; Chen et al., 2018).

Previous investigators have addressed that satellite remote sensing technology is an important tool for observing ISWs. Besides the spatial and temporal distribution characteristics, the quantitative data of dynamic parameters, such as the amplitude, the propagation speed and the mixed layer depth, are possible to be extracted from satellite images using suitable theoretical models. Zheng et al. (2001) first proposed a method to estimate the ISW amplitude by the Korteweg-de Vries (KdV) equation and the characteristic half width determined from synthetic aperture radar (SAR) images. With this method, the amplitudes of ISWs in different regions such as the NSCS (Yang et al., 2003; Huang and Zhao, 2014) and the East China Sea (Li et al., 2008) have been derived from high-resolution SAR images and the Moderate-resolution Imaging Spectroradiometer (MODIS) images with reasonable accuracy compared with the field measurements. For large-amplitude ISWs, the extended KdV (eKdV) equation has also been used for the amplitude estimation (Stanton and Ostrovsky, 1998; Helfrich and Melville, 2006; Xue et al., 2013; O’Driscoll and Levine, 2017). A recent study based on two consecutive SAR images shows that the ISW amplitude values calculated by the KdV and eKdV equations are very close (Jia et al., 2019).

In some cases, however, the accuracies of ISW amplitudes derived from the KdV-family equations are not satisfactory. Hence, the nonlinear Schrödinger (NLS) equation which emphasizes the role of nonlinearity and dispersion in the propagation of ISWs, has been adopted to derive the IW amplitude from satellite images (Pelinovsky, 1995; Xu et al., 1996; Agafontsev et al., 2007). Wang et al. (2012) analyzed the ISWs in the South China Sea (SCS) observed on MODIS images and found that the NLS equation described well the wave form during their propagation. Li et al. (2013) compared the amplitudes of MODIS observed ISWs at Malin Shelf edge calculated by the KdV and the NLS equations, and came to the conclusion that the amplitude derived from the NLS equation was much closer to the in situ measurements with a relative error of around 20%, while the error of the KdV equation derived amplitude could be up to 60%. Similar results were also found by Zhang et al. (2016) when they analyzed the ISWs in the SCS captured by SAR and MODIS.

These study results indicate that the performance of the KdV or the NLS equation-based method (hereafter called the KdV and the NLS equation approachs) in estimating the ISW amplitude is quite different under different conditions. However, it is unclear which one should be used for a specific ISW packet observed by different satellite sensors, especially in regions without field observations. Moreover, most of the research focuses on the analysis of ISW parameters based on a single satellite image, from which it is difficult to understand the propagation and evolution of ISWs. In this paper, we aim to investigate the characteristics of ISWs in the NSCS by estimating their amplitudes, propagation speeds and types from a series of successive satellite images with different spatial resolutions. In particular, we try to find out a criterion to describe the applicability of ISW amplitude extraction method based on the KdV or the NLS equation.

This paper is organized as follows. The data and methods for ISW parameter extraction are described in Section 2. The accuracy of the KdV and the NLS equation approaches in estimating the ISW amplitude is investigated by comparing satellite derived results with mooring measurements in the NSCS. The propagation characteristics and types of the ISWs are also analyzed in Section 3. The conclusions are given in Section 4.

2 Data and methods

Less

2.1 Data

2.1.1 Satellite images

From July 10 to 13, 2017, satellite sensors with spatial resolution ranging from 5 m to 250 m captured several ISW packets on the slope of the NSCS with water depth of 300−400 m. These sensors include the panchromatic camera (PAN) onboard China-Brazil Earth Resource Satellite-4 (CBERS-4), wide field of view (WFV3) sensor onboard Chinese GaoFen-1 (GF-1), Enhanced Thematic Mapper Plus (ETM+) onboard Landsat-7 and MODIS onboard Terra/Aqua satellites. As shown in Fig. 1, total seven images were collected. Their observation time and spatial resolution are listed in Table 1. One can see that the ISWs are clearly shown as alternating bright and dark curves and propagated westwards. On 12 July, the same ISW packet was continuously observed by CBERS-4, GF-1 and MODIS (Figs 1c-e) within two and a half hours. One day later, Landsat-7 ETM+ and MODIS detected another ISW packet at almost the same time.

2.1.2 Mooring observations

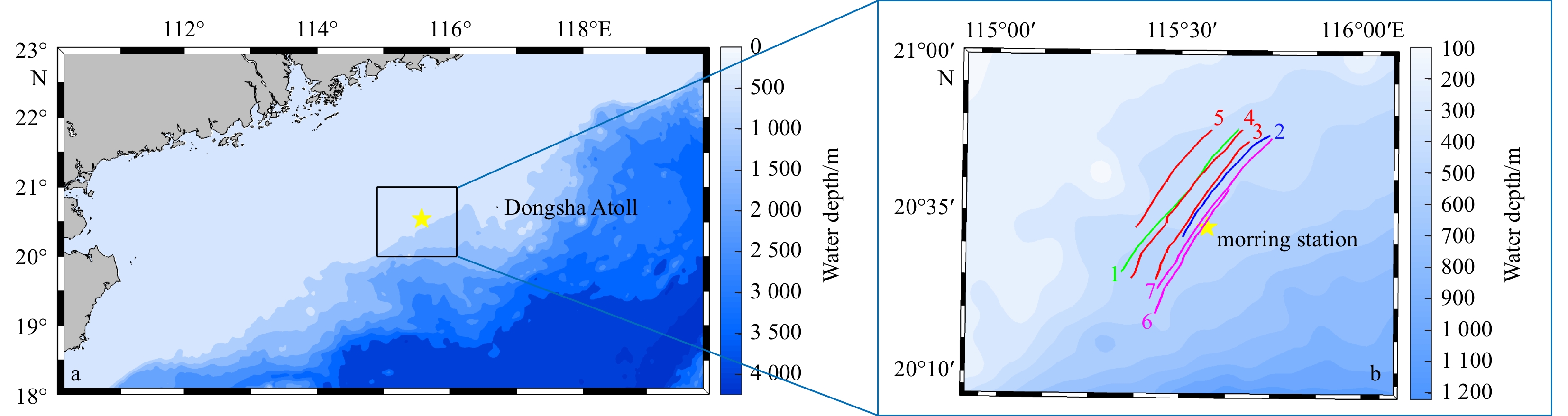

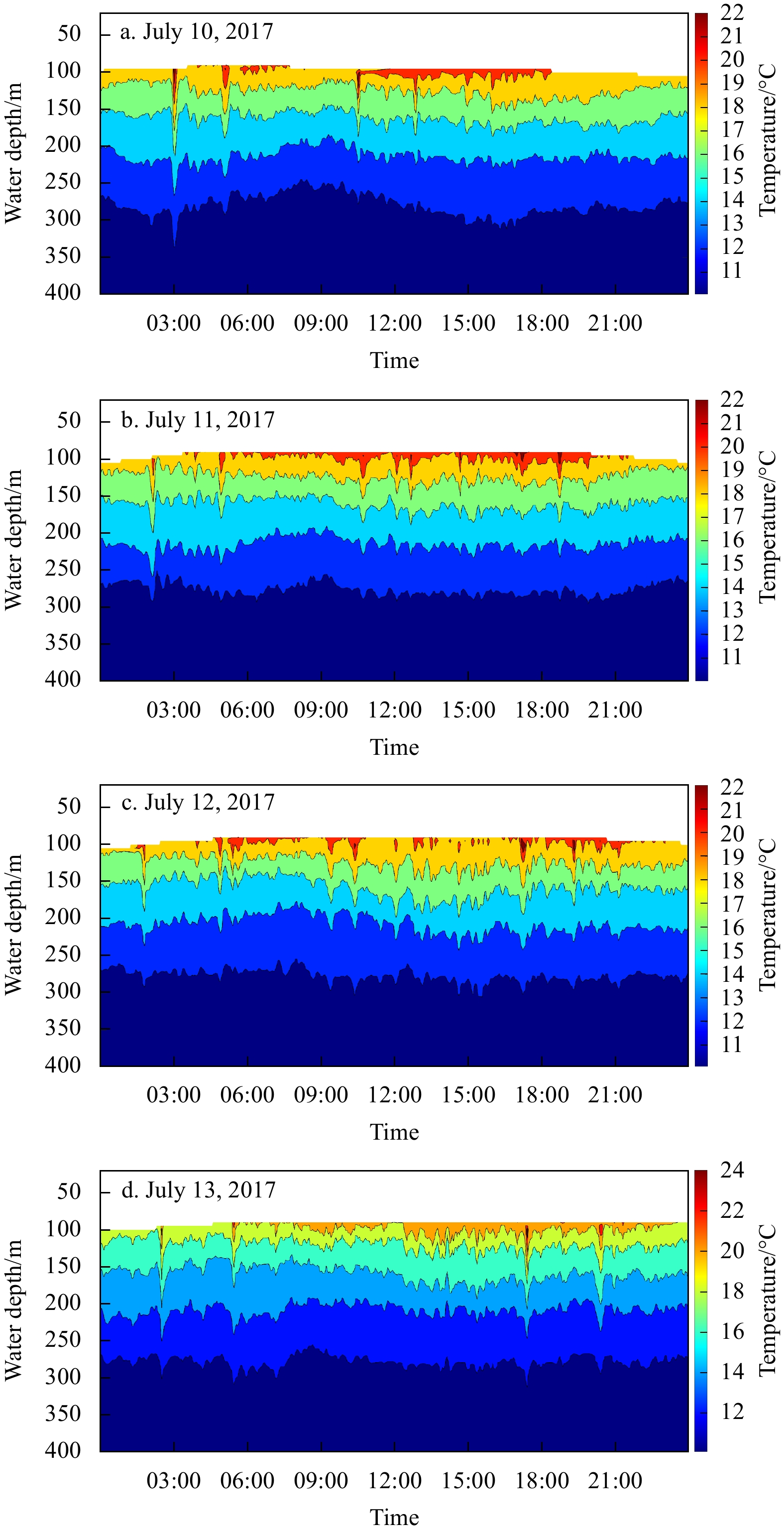

The ISWs observed by different satellites were also recorded by a mooring deployed at 20.542°N, 115.574°E in the west of the Dongsha Atoll as shown in Fig. 2. The vertical profiles of water temperature below 90 m concurrently measured by the mooring chain of conductivity-temperature-depth (CTD) instruments from July 10 to 13, 2017 are shown in Fig. 3. One can see that the warmer waters in the upper layer were depressed into the lower layer, showing the existence of solitary depression wave packets clearly. For example, at about 1:30 UTC in Fig. 3c, a pulse of 18°C isotherm depressed quickly from 110 m to 156 m within 15 min.

2.1.3 Ocean reanalysis data and bathymetry data

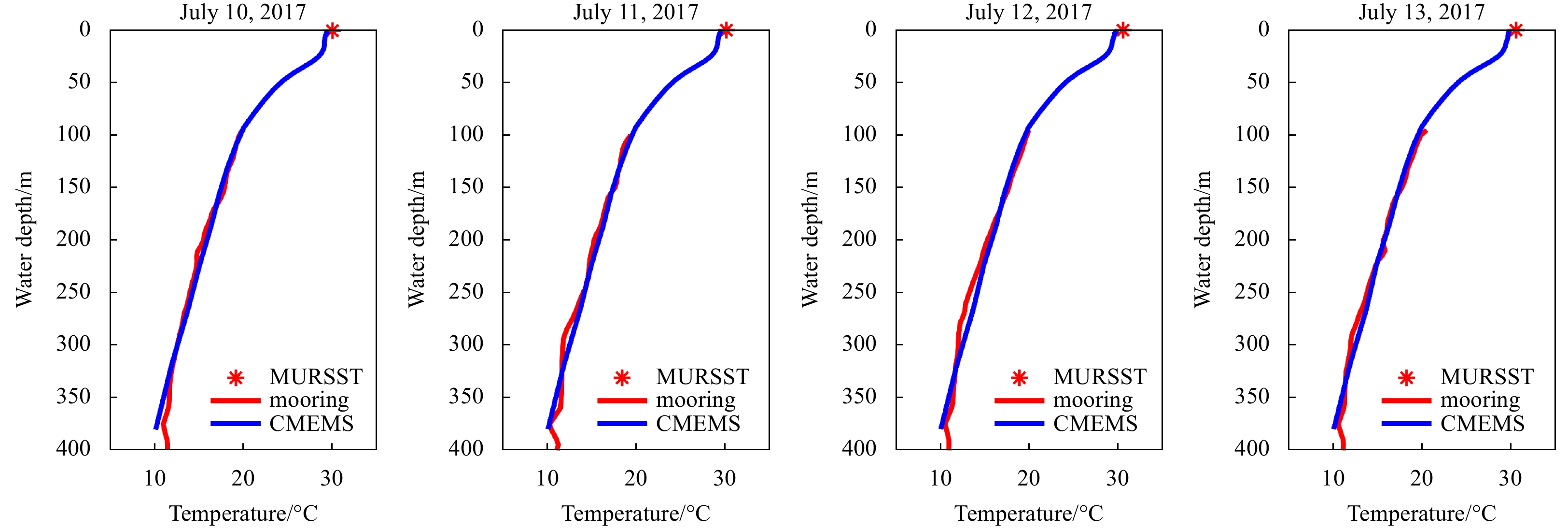

To extract the ISW amplitude from satellite images, the ocean stratification data are necessary. In this study, the global reanalysis data provided by the Copernicus Marine Environment Monitoring Service (CMEMS) (http://marine.copernicus.eu) are used for calculating the upper layer depth. This product is the global ocean eddy-resolving reanalysis with (1/12)° horizontal resolution and 50 vertical levels based on joint assimilation of along-track altimeter data, satellite sea surface temperature, sea ice concentration and in situ temperature and salinity profiles. It contains three-dimensional daily mean fields of temperature, salinity and current, and covers the period when altimetry data are available (Lellouche et al., 2018).

Daily multi-scale ultra-high resolution sea surface temperature data with spatial resolution of about 0.01° (Chin et al., 2017) developed by Jet Propulsion Laboratory/National Aeronautics and Space Administration, as well as the mooring measurements, are used to evaluate the accuracy of CMEMS data in the study area. As shown in Fig. 4, one can see that the reanalysis datasets reproduce the sea surface temperature and mooring observed vertical profiles of temperature well.

For the two-layer ocean approximation, once the upper layer depth h₁ is calculated from the CMEMS data, the lower layer depth h₂ can be obtained by subtracting this value from the total water depth h, which comes from the ETOPO1 data (https://www.ngdc.noaa.gov/mgg/global/global.html) with spatial resolution of 1 arc-minute (Amante and Eakins, 2009).

2.2 Estimation of ISW amplitudes from satellite images

In this study, the KdV and the NLS equations are used to extract the ISW amplitude from satellite images to assess their suitability under a given circumstance using in situ measurements as a standard.

2.2.1 KdV equation approach

In a two-layer fluid, the KdV equation (Ostrovsky and Stepanyants, 1989) can be expressed as

(1)

$ \frac{{\partial \eta }}{{\partial t}} + C\frac{{\partial \eta }}{{\partial x}} + {\alpha _1}\eta \frac{{\partial \eta }}{{\partial x}} + {\beta _1}\frac{{{\partial ^3}\eta }}{{\partial {x^3}}} = 0,$

where

$\eta (x,t)$

is the vertical displacement of the ISW as a function of horizontal displacement x and time t; and the linear phase speed

(2)

$ C = {\left[ {\frac{{g({\rho _2} - {\rho _1}){h_1}{h_2}}}{{{\rho _2}{h_1} + {\rho _1}{h_2}}}} \right]^{{1/ 2}}}; $

${\alpha _1}$

is defined as the nonlinear parameter, which can be expressed as

(3)

$ {\alpha _1} = \frac{{3C\left( {{\rho _2}h_1^2 - {\rho _1}h_2^2} \right)}}{{2{h_1}{h_2}\left( {{\rho _2}{h_1} + {\rho _1}{h_2}} \right)}}; $

${\beta _1}$

is defined as the dispersive parameter, which can be expressed as

(4)

$ {\beta _1} = \frac{{C{h_1}{h_2}\left( {{\rho _1}{h_1} + {\rho _2}{h_2}} \right)}}{{6\left( {{\rho _2}{h_1} + {\rho _1}{h_2}} \right)}}. $

Here g is the gravitational acceleration;

${\rho _1}$

and

${\rho _2}$

are the water densities of the upper and lower layers, respectively.

The solution of Eq. (1) is

(5)

$ \eta = {\eta _0}{{{\rm{sech}}} ^2}\left( {\frac{{x - Vt}}{\Delta }} \right), $

where

${\eta _0}$

is the initial amplitude of the ISW; V is the nonlinear phase speed:

(6)

$ V = C + \frac{{{\alpha _1}{\eta _0}}}{3}; $

Δ is the characteristic half width:

(7)

$ \varDelta = {\left( {\frac{{12{\beta _1}}}{{{\alpha _1}{\eta _0}}}} \right)^{{1 \mathord{\left/ {\vphantom {1 2}} \right. } 2}}}. $

The characteristic half width has a relation with the distance l between the brightest spot and the darkest spot (hereafter called peak-to-peak distance) of the ISW crest lines on a satellite image (Zheng et al., 2001) which can be expressed as

(8)

$ \varDelta = \frac{l}{{1.32}}. $

Combining Eq. (7) and Eq. (8), the amplitude of the ISWs can be obtained by

(9)

$ {\eta _0} = \frac{{20.91{\beta _1}}}{{{\alpha _1}{l^2}}}. $

2.2.2 NLS equation approach

The NLS equation derived from the dynamic equation of two-layer fluid (Pelinovsky, 1995; Zhang et al., 2016) is expressed as

(10)

$ {\text{i}}\frac{{\partial \eta }}{{\partial t}} + {\beta _2}\frac{{{\partial ^2}\eta }}{{\partial {x^2}}} + {\alpha _2}{\left| \eta \right|^2}\eta = 0,$

where the nonlinear parameter

(11)

$ \begin{split} {\alpha _2} =& \left( { - {\varepsilon ^2}} \right)({\alpha ^{(1)}} + {\alpha ^{(2)}}) \\ = &\left( { - {\varepsilon ^2}} \right)\left( { - \frac{{{f_6}{f_3}{c_{\text{g}}}}}{{{c_1}}} + \frac{{{f_7}}}{{{c_1}}} + k{f_3} - \frac{{{f_{25}}}}{{{c_1}}}} \right), \end{split} $

and the dispersive parameter

(12)

$ {\beta _2} = {\beta ^{(1)}} + {\beta ^{(2)}} = \frac{{3{\omega ^2}{h_2}{c_{\text{g}}}}}{{{c_1}k}} + \frac{{3c_{\text{g}}^2}}{{2\omega }} + \frac{{\omega {h_2}}}{{2k\tanh q}} . $

Here

${\alpha ^{(2)}}$

and

${\ \beta ^{(2)}}$

are the correction terms introduced to the nonlinear parameter and dispersive parameter;

$\varepsilon $

is a small parameter;

$\omega $

is the frequency

(13)

$ \omega = \sqrt {{c_1}k\tanh q} , $

and

(14)

$ q = k{h_2}, $

where k is the wave number; c₁, f₃, f₆, f₇ and f₂₅ are coefficients produced during the deviation, and the group velocity of the ISW is

(15)

$ {c_{\text{g}}} = \frac{\omega }{{2k}}\left( {1 + \frac{{2q}}{{\sinh 2q}}} \right). $

There are two possibilities for the solution of Eq. (10). When

${\alpha _2}{\beta _2} > 0$

, the solution is

(16)

$ \left| \eta \right| = {\eta _0}{{\rm{sech}}} \left(\frac{{x - Vt}}{\varDelta }\right), $

where the characteristic half width

(17)

$ \varDelta = \frac{1}{{{\eta _0}}}\sqrt {\frac{{2{\beta _2}}}{{{\alpha _2}}}} . $

When

${\alpha _2}{\beta _2} < 0$

, the solution is

(18)

$ \left| \eta \right| = \sqrt {\frac{2}{{\left| {{\alpha _2}{\beta _2}} \right|}}} - {\eta _0}{{{\rm{sech}}} ^2}\left(\frac{{x - Vt}}{\varDelta }\right), $

where the characteristic half width

(19)

$ \varDelta = \frac{1}{{{\eta _0}}}\sqrt {\frac{{{\beta _2}}}{{2{\alpha _2}}}}. $

The peak-to-peak distance is 1.76 times of the characteristic half width here for

${\alpha _2}{\beta _2} > 0$

, i.e.,

$l = 1.76\varDelta $

. For

${\alpha _2}{\beta _2} < 0$

$l = 1.{\text{32}}\varDelta $

. Therefore, the amplitude of the ISW on a satellite image is obtained by

(20)

$ \left\{ \begin{gathered} {\eta _{\text{0}}} = \frac{{{\text{1}}{\text{.76}}}}{l}\sqrt {\left| {\frac{{2{\beta _2}}}{{{\alpha _2}}}} \right|}, \begin{array}{*{20}{c}} {}&{{\alpha _2}{\beta _2} > 0} \end{array} \\ {\eta _{\text{0}}} = \frac{{{\text{1}}{\text{.32}}}}{l}\sqrt {\left| {\frac{{{\beta _2}}}{{2{\alpha _2}}}} \right|}, \begin{array}{*{20}{c}} {}&{{\alpha _2}{\beta _2} < 0} \end{array} \\ \end{gathered} \right..$

3 Results and discussion

Less

3.1 Amplitudes of ISWs

With Eq. (9) or Eq. (20), the amplitude of an ISW can be estimated based on the peak-to-peak distance extracted from a satellite image and values of nonlinear and dispersive parameters calculated from CMEMS and ETOPO data. For each ISW, the center position of the leading crest line on the image is taken as its location. Table 2 lists the water depth where satellite-observed ISWs occurred, the peak-to-peak distance extracted from these images, and the derived ISW amplitudes by using the KdV and NLS equation approaches. Compared with mooring measurements, the characteristics of ISW packets on three high-resolution images are well described by the KdV equation, meanwhile the amplitudes of ISWs estimated from MODIS images using the NLS equation approach are all in better agreement with the mooring observations. The amplitudes of the same ISW packets calculated by the two methods, however, are quite different. The maximum deviation reaches up to one order of magnitude. Hereafter, the reasons to cause the difference and the suitability of the two methods will be analyzed.

From the seven cases listed in Table 2, one can see that the accuracies of the two methods in estimating the ISW amplitude seem to be slightly associated with the spatial resolution of satellite images. According to the theoretical expressions Eqs. (9) and (20), the amplitude obtained by the KdV equation is inversely proportional to the square of the peak-to-peak distance, rather than to the peak-to-peak distance itself as described in the NLS equation. As a result, the accuracy of the KdV equation derived amplitude is more dependent on the measurement of the peak-to-peak distance or the characteristic half width, which can be extracted more accurately from images with higher spatial resolution.

Table 3 lists details of results by previous investigators. Huang and Zhao (2014) analyzed the characteristics of an ISW packet in deep waters of the SCS based on a MODIS image with 250 m resolution. They used the KdV equation approach to calculate the ISW amplitude and obtained the results very close to the field observation with a relative error of only 1.6%. Li et al. (2013) estimated the amplitude of an internal wave in Malin Shelf from an ERS-1 SAR image with spatial resolution of 30 m using the NLS equation approach and the obtained result agreed fairly well with the in situ measurement. All these studies indicate that there are other reasons leading to the large difference in the amplitudes derived by the KdV and the NLS equation approaches. Thus, it is necessary to determine the criterion and certain conditions for application of these two methods.

Here we define a determination parameter

$\chi $

(21)

$ \chi = \frac{B}{{{A^2}}}, $

where

$ A = \dfrac{{4\pi h_1^2h_2^2}}{{3{\varDelta ^2}h\left( {{h_2} - {h_1}} \right)}} $

is the dimensionless nonlinear parameter and

$B = {\left( {\dfrac{h}{{\pi \varDelta }}} \right)^{ 2}}$

is the dimensionless dispersive parameter (Lee and Beardsley, 1974). Substituting A and B into Eq. (21) yields

(22)

$ \chi = {\left( {\frac{{3\varDelta \left( {{h_2} - {h_1}} \right){h^2}}}{{4{\pi ^2}h_1^2h_2^2}}} \right)^2}.$

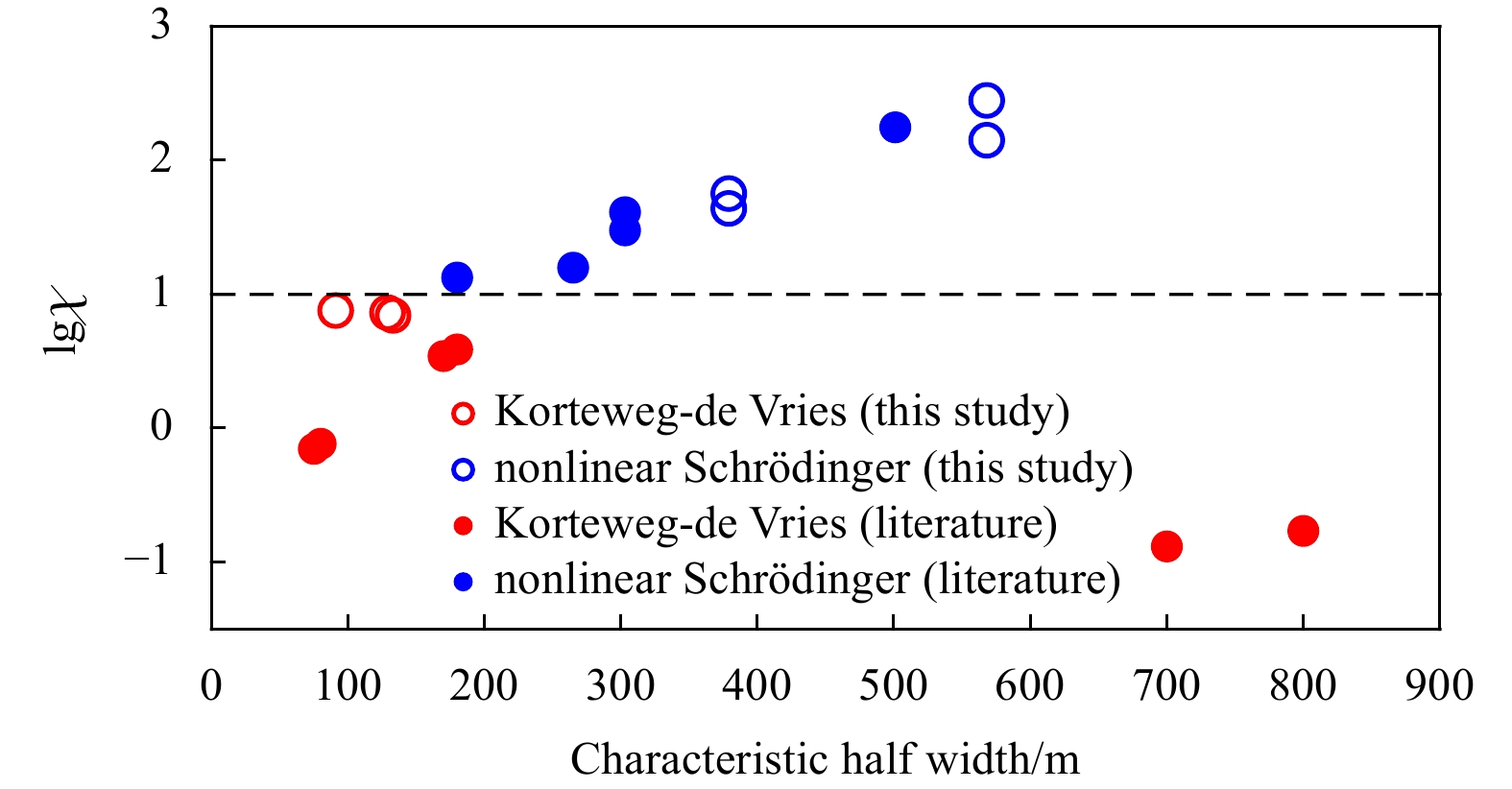

Figure 5 shows a scatter plot of lg

$\chi $

and characteristic half width of ISWs. The data points include the results derived from this study and that from the literature (Zheng et al., 2001; Li et al., 2008, 2013; Zhang et al., 2016). One can see that the data points are divided into two groups bounded by a line of lg

$\chi $

=1. The upper group for lg

$\chi $

>1 is corresponding to the cases, in which the NLS equation approach gives more accurate estimates of ISW amplitudes. The lower group for lg

$\chi $

<1 corresponds to the cases, in which the KdV equation approach gives more accurate estimates. This result implies that the determination parameter

$\chi $

may serve as a good criterion to assess the suitability of the two amplitude estimation methods.

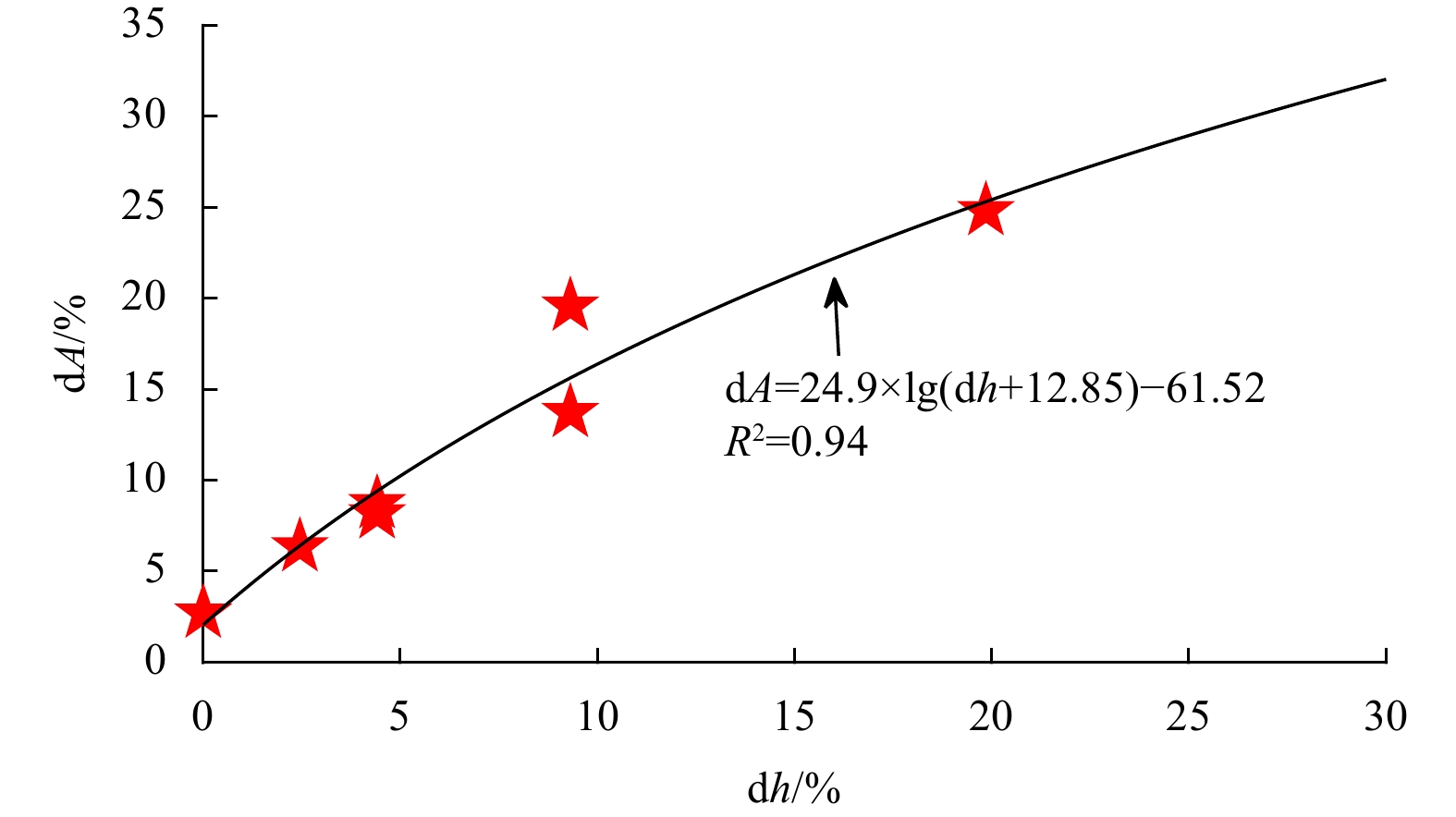

Furthermore, the errors of the ISW amplitudes estimated from seven satellite images using the KdV and the NLS equation approaches are analyzed based on the above criterion. The results are shown in Table 4 and Fig. 6. One can see that the relative error (dA) of satellite observed amplitudes with respect to the mooring observations ranges from 2.7% to 24.8% and is highly associated with the bottom slope, which is defined as

$ \text{d}{h}{=}\text{|}{{h}}_{\rm{s}}{-}{{h}}_{\rm{o}}\text{|}/{{h}}_{\rm{o}} $

, where

$ {{h}}_{\rm{s}} $

and

$ {{h}}_{\rm{o}} $

are the depths at satellite observed ISW location and the mooring station. The determination coefficient R² of the logarithmic fit curve in Fig. 6 is 0.94, indicating a close relation of the ISW amplitude error to the bottom slope. This may be attributed to the ISW dissipation during their evolution process along a shoaling topography or thermocline (Zheng et al., 2007; Geng et al., 2019; Xie et al., 2019).

3.2 Propagation of ISWs

The propagation speed is an important parameter of the ISWs, which can be calculated by the KdV Eq. (6) and the propagation distance measured from two consecutive satellite images with a known time interval (Liu et al., 2014). In cases that in situ measurements are available, this information together with the satellite observation can be also used to obtain the propagation speed (Huang and Zhao, 2014). In this study, the detection of the same ISW packet by multiple satellite images with concurrent mooring observations provides a great opportunity to investigate the propagation characteristics of ISWs. In addition to the above methods, a distance-weighted averaging method is also used to calculate the propagation speed of the ISWs observed by CBERS-4/PAN, GF-1/WFV3 and MODIS on July 12, 2017 (Figs 1c-e). With this method, the propagation speed V of an ISW packet observed by the second satellite image is expressed as

(23)

$ V = {w_1}{V_1} + {w_2}{V_2}, $

where

${V_1} = {{{d_1}}/ {\Delta {t_1}}}$

and

${V_2} = {{{d_2}}/ {\Delta {t_2}}}$

are the propagation speeds calculated from the first or last two consecutive images acquired at a time interval of Δt₁ or Δt₂ with a distance of d₁ or d₂, respectively;

$ {w_1} = \dfrac{{{d_2}}}{{{d_1} + {d_2}}} $

and

$ {w_2} = \dfrac{{{d_1}}}{{{d_1} + {d_2}}} $

are the corresponding weighted coefficients.

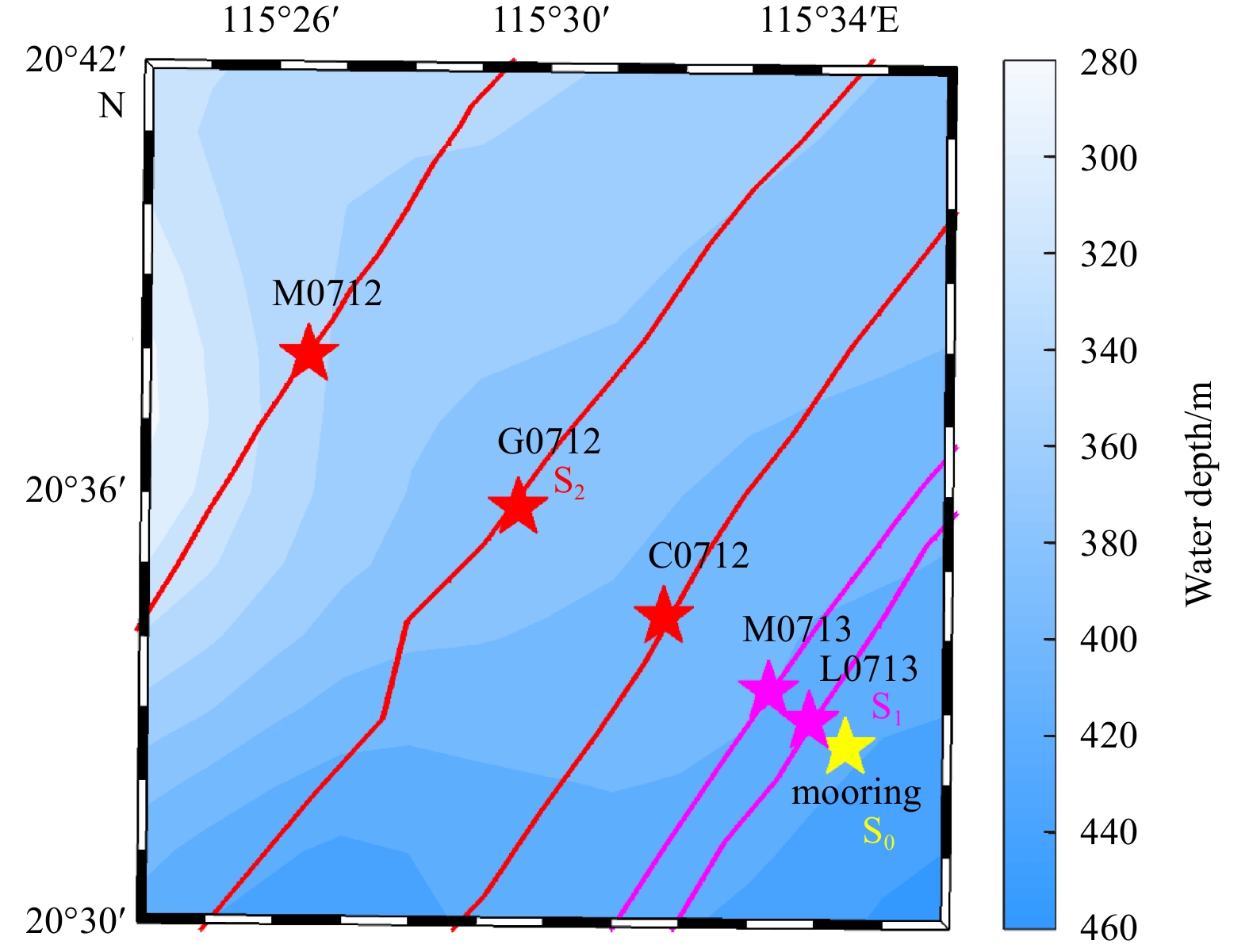

Figure 7 shows the mooring location and leading ISW crest lines observed by the satellites. The time interval between three satellite images is shorter than 3 h. As mentioned in the previous section, the characteristics of ISWs on CBERS-4 and GF-1 images can be well described by the KdV equation, thus the propagation speeds of ISWs observed by CBERS-4 and GF-1 should be consistent with the theoretical results by Eq. (6). Table 5 lists the propagation speeds of the ISWs at CBERS-4 and GF-1 locations. One can see that the results derived from different methods are comparable to the theoretical propagation speeds derived from the KdV equation. Particularly, the phase speeds retrieved from multiple satellite images or satellite and in situ observations are much closer to the theoretical results, demonstrating the advantage of multiple observations (i.e., >2 observations) in ISW phase speed estimation. At CBERS-4 and GF-1 locations, the relative errors of the mean propagation speeds are 4.9% and 0.6% with respect to the theoretical results, respectively.

3.3 Type of ISWs

As shown in Fig. 2, the ISWs on the seven satellite images from July 10 to 13, 2017 occurred in almost the same geographical region. Therefore, there might not be much difference in their propagation speed especially on the same day. The locations of the mooring station and ISWs observed by Landsat-7/ETM+ on July 13 and GF-1/WFV3 on July 12 are marked as S₀, S₁ and S₂ in Fig. 7, respectively. When the ISW packet passed S₀, it was recorded by the mooring chain. With the propagation speed derived from the KdV equation, the wave arrival time at S₁ or S₂ can be estimated and used to determine the type of the ISWs as listed in Table 6. The most significant difference between three types of ISWs is the re-appearance period, which is about 24 h for type-A ISWs, 25 h for type-B ISWs and 23 h for type-C ISWs. In addition, some statistics show that the amplitude of type-B ISWs is larger than that of type-A and type-C ISWs (Chen et al., 2018). In Table 6, each row represents the ISW arrival time on the same day at different locations and each column represents the ISW arrival time at the same location on different days. One can see that the ISWs arrived at S₀, S₁ and S₂ earlier each day from July 10 to 12, implying that the waves were all type-C ISWs. This is consistent with the mooring observations. On the other hand, the ISW arrival time at S₀, S₁ and S₂ was delayed by about 43 min, 26 min and 42 min on July 13 compared with that on July 12, implying that the wave was a type-B ISW.

4 Conclusions

Less

This study aims to assess the accuracy and the applicability of theoretical approaches including the KdV and NLS equation solutions to derivation of dynamic parameters of internal solitary waves from satellite images. Multi-satellite images and concurrent mooring observations near the Dongsha Atoll of the NSCS from July 10 to 13, 2017 are used as a baseline, from which the amplitudes of ISWs are estimated by the KdV and the NLS equation solutions. The assessment results and major findings are summarized as follows.

(1) We propose the ratio of the dimensionless dispersive parameter to the square of dimensionless nonlinear parameter

$\chi $

to serve as a criterion, which is used to assess the accuracy and the applicability of the KdV and NLS equation approaches to estimating the ISW amplitudes based on the characteristic half width extracted from the satellite images. The statistics of total 18 cases indicate that in 50% of cases for lg

$\chi $

>1, the NLS approach gives more accurate estimates of ISW amplitudes and in the other 50% of cases for lg

$\chi $

<1, the KdV approach does.

(2) We find that the relative errors of ISW amplitudes derived from the KdV or NLS approach are closely associated with the logarithmic bottom slopes. This may be attributed to the nonlinear growth of ISW amplitudes as the waves propagate along a shoaling thermocline or topography (Zheng et al., 2007). Thus, proper determination of the slopes of shoaling thermocline or topography is a key factor for improving the accuracy of ISW amplitude estimation.

(3) The test results using three consecutive satellite images to retrieve the ISW propagation speeds indicate that the use of multiple satellite images (>2) may improve the accuracy of retrieved phase speeds. Meanwhile, repeated multi-satellite images of ISWs can help to determine the types of ISWs if mooring data are available nearby.

With the improvement of the temporal and spatial resolution of satellite images, remote sensing is now playing an increasingly important role in the study of ISWs. In the near future, more data including SAR images with spatial resolution up to 1 m, such as Chinese Gaofen-3 SAR, will be collected for further investigation of the wave parameter estimation methods and wave characteristics.

Funding

Less

The National Key Project of Research and Development Plan of China under contract No. 2016YFC1401905; the National Natural Science Foundation of China under contract No. 41976163; the Key Special Project for Introduced Talents Team of Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou) under contract No. GML2019ZD0602; the Guangdong Special Fund Program for Marine Economy Development under contract No. GDNRC[2020]050.

References

Less

Agafontsev D S, Dias F, Kuznetsov E A. 2007. Deep-water internal solitary waves near critical density ratio. Physica D: Nonlinear Phenomena, 225(2): 153–168, doi: 10.1016/j.physd.2006.10.010

Alford M H, Peacock T, MacKinnon J A, et al. 2015. The formation and fate of internal waves in the South China Sea. Nature, 521(7550): 65–69, doi: 10.1038/nature14399

Amante C, Eakins B W. 2009. ETOPO1 arc-minute global relief model: procedures, data sources and analysis. In: NOAA Technical Memorandum NESDIS NGDC-24. https://repository.library.noaa.gov/view/noaa/1163https://repository.library.noaa.gov/view/noaa/1163[2019-03-05/2020-12-26]

Chang Ming-Huei, Lien Ren-Chieh, Tang Tswen Yung, et al. 2006. Energy flux of nonlinear internal waves in northern South China Sea. Geophysical Research Letters, 33(3): L03607

Chen Liang, Zheng Quanan, Xiong Xuejun, et al. 2018. A new type of internal solitary waves with a re-appearance period of 23 h observed in the South China Sea. Acta Oceanologica Sinica, 37(9): 116–118, doi: 10.1007/s13131-018-1252-y

Chin T M, Vazquez-Cuervo J, Armstrong E M. 2017. A multi-scale high-resolution analysis of global sea surface temperature. Remote Sensing of Environment, 200: 154–169, doi: 10.1016/j.rse.2017.07.029

Dai Dejun, Wang Wei, Zhang Qinghua, et al. 2011. Eigen solutions of internal waves over subcritical topography. Acta Oceanologica Sinica, 30(2): 1–8, doi: 10.1007/s13131-011-0099-2

Dong Di, Yang Xiaofeng, Li Xiaofeng, et al. 2016. SAR observation of eddy-induced mode-2 internal solitary waves in the South China Sea. IEEE Transactions on Geoscience and Remote Sensing, 54(11): 6674–6686, doi: 10.1109/TGRS.2016.2587752

Geng Minghui, Song Haibin, Guan Yongxian, et al. 2019. Analyzing amplitudes of internal solitary waves in the northern South China Sea by use of seismic oceanography data. Deep-Sea Research Part I: Oceanographic Research Papers, 146: 1–10, doi: 10.1016/j.dsr.2019.02.005

Guo Chuncheng, Chen Xueen. 2014. A review of internal solitary wave dynamics in the northern South China Sea. Progress in Oceanography, 121: 7–23, doi: 10.1016/j.pocean.2013.04.002

Helfrich K R, Melville W K. 2006. Long nonlinear internal waves. Annual Review of Fluid Mechanics, 38: 395–425, doi: 10.1146/annurev.fluid.38.050304.092129

Hsu M K, Liu A K. 2000. Nonlinear internal waves in the South China Sea. Canadian Journal of Remote Sensing, 26(2): 72–81, doi: 10.1080/07038992.2000.10874757

Huang Xiaodong, Chen Zhaohui, Zhao Wei, et al. 2016. An extreme internal solitary wave event observed in the northern South China Sea. Scientific Reports, 6(1): 30041, doi: 10.1038/srep30041

Huang Xiaodong, Zhao Wei. 2014. Information of internal solitary wave extracted from MODIS image: a case in the deep water of northern South China Sea. Periodical of Ocean University of China, 44(7): 19–23

Jackson C. 2007. Internal wave detection using the Moderate Resolution Imaging Spectroradiometer (MODIS). Journal of Geophysical Research: Oceans, 112(C11): C11012, doi: 10.1029/2007JC004220

Jia Tong, Liang Jianjun, Li Xiaoming, et al. 2019. Retrieval of internal solitary wave amplitude in shallow water by tandem spaceborne SAR. Remote Sensing, 11(14): 1706, doi: 10.3390/rs11141706

Lee C Y, Beardsley R C. 1974. The generation of long nonlinear internal waves in a weakly stratified shear flow. Journal of Geophysical Research, 79(3): 453–462, doi: 10.1029/JC079i003p00453

Lellouche J M, Le Galloudec O, Greiner E, et al. 2018. The Copernicus Marine Environment Monitoring Service global ocean 1/12° physical reanalysis GLORYS12V1: description and quality assessment. In: Proceedings of the Geophysical Research Abstracts, Vol. 20. Vienna, Austria: EGU

Li Xiaoyong, Wang Jing, Sun Meiling, et al. 2013. Internal wave parameter inversion at Malin Shelf edge based on the nonlinear Schrödinger equation. Applied Mechanics and Materials, 441: 388–392, doi: 10.4028/www.scientific.net/AMM.441.388

Li Xiaofeng, Zhao Zhongxiang, Han Zhen, et al. 2008. Internal solitary waves in the East China Sea. Acta Oceanologica Sinica, 27(3): 51–59

Liu Bingqing, Yang Hong, Zhao Zhongxiang, et al. 2014. Internal solitary wave propagation observed by tandem satellites. Geophysical Research Letters, 41(6): 2077–2085, doi: 10.1002/2014GL059281

O'Driscoll K, Levine M. 2017. Simulations and observation of nonlinear internal waves on the continental shelf: Korteweg-de Vries and extended Korteweg-de Vries solutions. Ocean Science, 13(5): 749–763, doi: 10.5194/os-13-749-2017

Osborne A R, Burch T L. 1980. Internal solitons in the Andaman Sea. Science, 208(4443): 451–460, doi: 10.1126/science.208.4443.451

Ostrovsky L A, Stepanyants Y A. 1989. Do internal solitions exist in the ocean. Reviews of Geophysics, 27(3): 293–310, doi: 10.1029/RG027i003p00293

Pelinovsky D. 1995. Intermediate nonlinear Schrödinger equation for internal waves in a fluid of finite depth. Physics Letters A, 197(5–6): 401–406, doi: 10.1016/0375-9601(94)00991-W

Ramp S R, Tang Tswen Yung, Duda T F, et al. 2004. Internal solitons in the northeastern South China Sea. Part I: Sources and deep water propagation. IEEE Journal of Oceanic Engineering, 29(4): 1157–1181, doi: 10.1109/JOE.2004.840839

Ramp S R, Yang Y J, Bahr F L. 2010. Characterizing the nonlinear internal wave climate in the northeastern South China Sea. Nonlinear Processes in Geophysics, 17(5): 481–498, doi: 10.5194/npg-17-481-2010

Small J, Hallock Z, Pavey G, et al. 1999. Observations of large amplitude internal waves at the Malin Shelf edge during SESAME 1995. Continental Shelf Research, 19(11): 1389–1436, doi: 10.1016/S0278-4343(99)00023-0

Stanton T P, Ostrovsky L A. 1998. Observations of highly nonlinear internal solitons over the continental shelf. Geophysical Research Letters, 25(14): 2695–2698, doi: 10.1029/98GL01772

Wang Jing, Guo Kai, Meng Junmin. 2012. Study of the propagation model for large-amplitude internal waves in deep sea. Chinese Journal of Lasers, 39(S2): S214004

Wang Juan, Huang Weigen, Yang Jingsong, et al. 2013. Study of the propagation direction of the internal waves in the South China Sea using satellite images. Acta Oceanologica Sinica, 32(5): 42–50, doi: 10.1007/s13131-013-0312-6

Xie Jieshuo, He Yinghui, Cai Shuqun. 2019. Bumpy topographic effects on the transbasin evolution of large-amplitude internal solitary wave in the northern South China Sea. Journal of Geophysical Research: Oceans, 124(7): 4677–4695, doi: 10.1029/2018JC014837

Xie Jieshuo, He Yinghui, Lü Haibin, et al. 2016. Distortion and broadening of internal solitary wavefront in the northeastern South China Sea deep basin. Geophysical Research Letters, 43(14): 7617–7624, doi: 10.1002/2016GL070093

Xu Zhaoting, Lou Shunli, Tian Jiwei, et al. 1996. NLS equation of internal waves in weakly stratified ocean. Chinese Journal of Oceanology and Limnology, 14(2): 121–127, doi: 10.1007/BF02850368

Xu Qing, Zheng Quan’an, Lin Hui, et al. 2008. Dynamical analysis of mesoscale eddy—induced ocean internal waves using linear theories. Acta Oceanologica Sinica, 27(3): 60–69

Xue Jingshuang, Graber H C, Lund B, et al. 2013. Amplitudes estimation of large internal solitary waves in the mid-Atlantic bight using synthetic aperture radar and marine X-band radar images. IEEE Transactions on Geoscience and Remote Sensing, 51(6): 3250–3258, doi: 10.1109/TGRS.2012.2221467

Yang Jingsong, Huang Weigen, Zhou Chenghu, et al. 2003. The International Society for Optical Engineering. Proceedings of SPIE, 4892: 450–454, doi: 10.1117/12.466772

Zhang Xudong, Wang Jing, Sun Lina, et al. 2016. Study on the amplitude inversion of internal waves at Wenchang area of the South China Sea. Acta Oceanologica Sinica, 35(7): 14–19, doi: 10.1007/s13131-016-0902-1

Zhao Zhongxiang, Klemas V, Zheng Quanan, et al. 2004. Remote sensing evidence for baroclinic tide origin of internal solitary waves in the northeastern South China Sea. Geophysical Research Letters, 31(6): L06302

Zhao Zhongxiang, Liu Bingqing, Li Xiaofeng. 2014. Internal solitary waves in the China seas observed using satellite remote-sensing techniques: a review and perspectives. International Journal of Remote Sensing, 35(11–12): 3926–3946, doi: 10.1080/01431161.2014.916442

Zheng Quanan. 2017. Satellite SAR Detection of Sub-Mesoscale Ocean Dynamic Processes. London: World Scientific, 121–178

Zheng Quanan, Song Y T, Lin Hui, et al. 2008. On generation source sites of internal waves in the Luzon Strait. Acta Oceanologica Sinica, 27(3): 38–50

Zheng Quanan, Susanto R D, Ho C R, et al. 2007. Statistical and dynamical analyses of generation mechanisms of solitary internal waves in the northern South China Sea. Journal of Geophysical Research: Oceans, 112(C3): C03021

Zheng Quanan, Xie Lingling, Xiong Xuejun, et al. 2020. Progress in research of submesoscale processes in the South China Sea. Acta Oceanologica Sinica, 39(1): 1–13, doi: 10.1007/s13131-019-1521-4

Zheng Quanan, Yuan Yeli, Klemas V, et al. 2001. Theoretical expression for an ocean internal soliton synthetic aperture radar image and determination of the soliton characteristic half width. Journal of Geophysical Research: Oceans, 106(C12): 31415–31423, doi: 10.1029/2000JC000726

Appendix

Less

Year 2022 volume 41 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-022-2015-3

Receive Date：2021-03-15
Online Date：2025-11-21
Published：2022-06-25

Article Data

Affiliations

History

Received：2021-03-15
Accepted：2021-05-08

Funding

The National Key Project of Research and Development Plan of China under contract No. 2016YFC1401905; the National Natural Science Foundation of China under contract No. 41976163; the Key Special Project for Introduced Talents Team of Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou) under contract No. GML2019ZD0602; the Guangdong Special Fund Program for Marine Economy Development under contract No. GDNRC[2020]050.

Affiliations

¹ Key Laboratory of Marine Hazards Forecasting of Ministry of Natural Resources, Hohai University, Nanjing 210098, China

² College of Marine Technology, Faculty of Information Science and Engineering, Ocean University of China, Qingdao 266100, China

³ Department of Atmospheric and Oceanic Science, University of Maryland, College Park, Maryland 20742, USA

⁴ First Institute of Oceanography, Ministry of Natural Resources, Qingdao 266061, China

⁵ National Satellite Ocean Application Service, State Oceanic Administration, Beijing 100081, China

⁶ Southern Marine Science and Engineering Guangdong Laboratory (Guangzhou), Guangzhou 511458, China

⁷ PIESAT Information Technology Co., Ltd., Beijing 100195, China

Corresponding:

* E-mail: xuqing@ouc.edu.cn

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-022-2015-3

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Information of satellite images

Image No.	Image ID	Time	Satellite (senor)	Spatial resolution/m
1	M0710	July 10, 2017, 05:30 UTC	Aqua (MODIS)	250
2	M0711	July 11, 2017, 03:10 UTC	Terra (MODIS)	250
3	C0712	July 12, 2017, 02:59 UTC	CBERS-4 (PAN)	5
4	G0712	July 12, 2017, 03:37 UTC	GF-1 (WFV3)	16
5	M0712	July 12, 2017, 05:20 UTC	Aqua (MODIS)	250
6	L0713	July 13, 2017, 02:43 UTC	Landsat-7 (ETM+)	15
7	M0713	July 13, 2017, 02:55 UTC	Terra (MODIS)	250

Table 2. The characteristic parameters of the ISWs observed by satellites and the mooring CTD chain

Image ID	Water depth/m	l/m	Amplitude/m
Image ID	Water depth/m	l/m	S-KdV	S-NLS	Mooring
M0710	370	500	4.9	55.1	68.5
M0711	390	750	2.3	44.0	48.1
C0712	390	175	42.0	189.6	45.7
G0712	370	176	39.4	158.4	45.7
M0712	327	500	4.3	34.3	45.7
L0713	408	120	67.9	419.5	66.1
M0713	398	750	1.7	61.9	66.1

Note: l is the peak-to-peak distance; S-KdV and S-NLS are amplitudes estimated using the KdV and the NLS equation approaches, respectively; the number in bold represents that the estimated amplitude is closer to the mooring observation.

Table 3. ISW amplitudes derived from satellite observations in previous studies

Literature	Satellite (sensor)	Spatial resolution/m	Region	Water depth/m	l/m	Amplitude/m
Literature	Satellite (sensor)	Spatial resolution/m	Region	Water depth/m	l/m	KdV	NLS	Observation
Small et al. (1999)	ERS-1 (SAR)	30	Malin Shelf	500	350	24.2	−	49.0
				600	400	26.0	−	49.0
				700	400	31.7	−	49.0
				500	350	49.6	−	30.0
Zheng et al. (2001)	ERS-1 (SAR)	30	Portugues Continental Shelf	140	110	26.0	−	23.0
				140	220	7.0	−	10.0
				140	240	6.0	−	5.0
	Radarsat-1 (SAR)	100	SCS	350	900	48.0	−	−
	Radarsat-1 (SAR)	100	SCS	350	1100	37.0	−	−
Li et al. (2008)	Envisat (ASAR)	150	SCS	70	99	8.0	−	6.0−10.0
Li et al. (2013)	ERS-1 (SAR)	30	Malin Shelf	500	350	−	42.2	49.0
				600	400	−	37.8	49.0
				700	400	−	40.8	49.0
Huang and Zhao (2014)	Aqua (MODIS)	250	SCS	3179	4301	124.0	−	126.0
Zhang et al. (2016)	Envisat (ASAR)	150	SCS	92	317	0.7	18.1	18.0
Zhang et al. (2016)	Aqua (MODIS)	250	SCS	117	882	−	14.2	15.0

Note: l is the peak-to-peak distance; − represents no data.

Table 4. The relative error of satellite estimated ISW amplitude and bottom slope

Image ID	Relative error dA/%	Bottom slope dh/%
M0710	19.5	9.3
M0711	8.7	4.4
C0712	8.1	4.4
G0712	13.7	9.3
M0712	24.8	19.9
L0713	2.7	0
M0713	6.3	2.5

Table 5. Propagation speeds of the ISWs at CBERS-4 and GF-1 locations

	Data sources	Satellite derived propagation speed/(m·s⁻¹)	KdV-derived propagation speed/(m·s⁻¹)
CBERS-4	CBERS-4 and GF-1	2.04	1.62
	CBERS-4 and MODIS	1.34
	CBERS-4, GF-1 and mooring	1.73
	mean	1.70±0.35
GF-1	GF-1 and CBERS-4	2.04	1.58
	GF-1 and MODIS	1.08
	GF-1, CBERS-4 and MODIS	1.65
	mean	1.59±0.48

Table 6. The time that the ISWs passed the locations of the mooring (S₀), Landsat-7 (S₁) and GF-1 (S₂)

	Time at S₀	Time at S₁	Time at S₂
July 10, 2017	03:01	04:10	05:27
July 11, 2017	02:08	02:42	04:13
July 12, 2017	01:48	02:17	03:37
July 13, 2017	02:31	02:43	04:19

Note: Time at S₀ is mooring measured. The number in italic represents the ISW arrival time at S₁ or S₂ calculated by the phase speed derived from the KdV equation. The number in bold represents satellite-imaging time.

Fig. 1. Satellite images of the internal solitary waves in the northern South China Sea. MODIS images were acquired on July 10 (a), July 11 (b), July 12 (e) and July 13, 2017 (g); CBERS-4 image (c) and GF-1 image (d) were acquired on July 12, 2017; Landsat-7 image (f) was acquired on July 13, 2017.

Fig. 2. Location of the mooring station (yellow pentagram) and crest lines (color lines) of the leading ISWs extracted from satellite images in the northern South China Sea. Numbers 1 to 7 denote the ISWs on Images 1 to 7 in Table 1, respectively.

Fig. 3. Vertical profiles of water temperature measured by the mooring CTD chain deployed near Dongsha Atoll in the northern South China Sea from July 10−13, 2017.

Fig. 4. Comparisons of daily multi-scale ultra-high resolution sea surface temperature (MURSST), mooring observed temperature and Copernicus Marine Environment Monitoring Service (CMEMS) temperature at the mooring location during July 10−13, 2017.

Fig. 5. A scatter plot of lg$\chi $ and characteristic half width of ISWs. Open and solid circles represent the data derived from this study and cited from previous studies, respectively.

Fig. 6. Relation of the relative error (dA) of satellite estimated ISW amplitude to the bottom slope (dh). Data points represent the results of ISWs observed on the seven satellite images during July 10−13, 2017.

Fig. 7. Locations of the mooring station (yellow pentagram), ISWs observed by CBERS-4/PAN (C0712), GF-1/WFV3 (G0712) and Aqua/MODIS (M0712) (red pentagrams) on July 12, 2017 and Landsat-7/ETM+ (L0713) and Terra/MODIS (M0713) (purple pentagrams) on July 13, 2017. The locations of the mooring station and ISWs observed by Landsat-7/ETM+ on July 13 and GF-1/WFV3 on July 12 are marked as S₀, S₁ and S₂.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
