Long-term nutrient variation trends and their potential impact on phytoplankton in the southern Yellow Sea, China
收藏切换
PDF
Yan Wang1, Yongjian Liu2, Hao Guo1, *, Haibo Zhang1, Dongmei Li1, Ziwei Yao1, Xiaocheng Wang1, Chuan Jia1
Acta Oceanologica Sinica | 2022, 41(6) : 54 - 67
Less
收藏切换
Acta Oceanologica Sinica | 2022, 41(6): 54-67
Dynamics of ecosystems and anthropogenic drivers in the Yellow Sea Large Marine Ecosystem
Long-term nutrient variation trends and their potential impact on phytoplankton in the southern Yellow Sea, China
Full
Yan Wang1, Yongjian Liu2, Hao Guo1, *, Haibo Zhang1, Dongmei Li1, Ziwei Yao1, Xiaocheng Wang1, Chuan Jia1
Affiliations
  • 1 State Environmental Protection Key Laboratory of Coastal Ecosystem, National Marine Environmental Monitoring Center, Dalian 116023, China
  • 2 Yellow Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Qingdao 266071, China
Published: 2022-06-25 doi: 10.1007/s13131-022-2031-3
Outline
收藏切换

The concentration and composition of nutrients, such as N, P, and Si, respond to biogeochemical processes and in turn, impact the phytoplanktons’ community structure and primary production. In this study, historical data was systematically analyzed to identify long-term variations in nutrient trends, red tide frequency, phytoplankton community abundance, and dominant species succession in the southern Yellow Sea (SYS). Results showed that N/P concentration ratios dramatically increased as a function of increasing dissolved inorganic nitrogen concentrations, and Si/N concentration ratios were generally larger than 1, indicating that N limitation morphed to P limitation and potentially to Si limitation, which impacted the phytoplankton community. Furthermore, inter-annual trends over the past 50 years show that phytoplankton community abundance has been higher in spring and summer, relative to autumn and winter. Moreover, with respect to red tide frequency, diatom abundance gradually decreased, while that of dinoflagellates gradually increased. Dominant species succession showed that the phytoplankton community exhibited an evident tendency to transform from diatoms to dinoflagellates. These research results clearly depict the presence of an important correlation between the phytoplankton community and nutrient structure in the SYS.

southern Yellow Sea  /  nutrients structure  /  succession of phytoplankton community  /  diatom  /  dinoflagellate
Yan Wang, Yongjian Liu, Hao Guo, Haibo Zhang, Dongmei Li, Ziwei Yao, Xiaocheng Wang, Chuan Jia. Long-term nutrient variation trends and their potential impact on phytoplankton in the southern Yellow Sea, China[J]. Acta Oceanologica Sinica, 2022 , 41 (6) : 54 -67 . DOI: 10.1007/s13131-022-2031-3
Nutrients, including nitrogen (N), phosphorus (P), and silicon (Si), are essential biogenic elements, as they are required for marine phytoplankton reproduction and growth and support their primary productivity (Grasshoff et al., 1999). Phytoplankton are generally regarded as the foundation to maintain and affect the material cycle and energy flow in aquatic systems. Variations in nutrient concentrations and compositions are closely coupled with biogeochemical processes, and heavily impact the phytoplankton community structure and primary production (Jin et al., 2013; Wang et al., 2003). Due to rapid industrial and agricultural development, large amount of N and P has been transported offshore through terrestrial inputs (aquaculture wastewater; industrial, agricultural, and domestic sewage) which transport high concentrations of nutrients to estuary and influence the environment of coastal waters, and atmospheric transport which can impact on remote oceanic regions due to the long-range transport of dust (Chung et al., 1998; Guo et al., 2020; Liu et al., 2000; Seok et al., 2021; Shen et al., 2006; Shi et al., 2013; Wang et al., 2019; Zhang and Liu, 1994; Zheng and Zhai, 2021). In response, the nutrient composition and stoichiometry in coastal areas have been significantly altered, resulting in increased dissolved inorganic nitrogen (DIN) and asymmetric ratios between N, P, and Si (Wei et al., 2015; Wang et al., 2021a). A serious consequence of this imbalance is eutrophication, which facilitates catastrophic marine ecological phenomena, such as red tides, green tides, ocean hypoxia, and acidification (Lund, 1967; Wang et al., 2018; Chen et al., 2021; Xiao et al., 2021).
Because C:N:P=106:16:1 is the main element stoichiometry in phytoplankton, it serves as the foundation for aquatic biogeochemistry studies, and is widely used to evaluate various marine environments (Redfield et al., 1963; Fisher et al., 1992; Sterner et al., 2008). Extensive research has shown that over the past 40 years, nutrient limitation conditions in the Bohai Sea have changed from N control to P and Si control (Xin et al., 2019; Wang et al., 2019). Due to excessive DIN entering via terrestrial runoff and anthropogenic activities, coastal area of the southern Yellow Sea (SYS) showed strong signs of potential P limitation (Guo et al., 2020). Furthermore, in response to global climate change and anthropogenic activities, offshore phytoplankton biomass increased in the Baltic Sea, Black Sea, and Northeast Atlantic (Suikkanen et al., 2007; Mikaelyan, 1997; Edwards et al., 2001). In addition, analysis of phytoplankton community succession showed that abundance of diatoms are decreasing, while that of dinoflagellates are increasing, indicating that long-term environmental variation trends favor dinoflagellate growth (Wasmund et al., 1998; Lin et al., 2005; Yang, 2016; Ma, 2019; Yang et al., 2018; Ning et al., 2010; Zhou et al., 2008; Zhang et al., 2020).
The SYS is a semi-closed marginal sea that is located in the Northwest Pacific Ocean between Chinese mainland and Korean Peninsula. It is bounded to the north by the northern Yellow Sea (NYS) and the south by the East China Sea, and is impacted by the Yellow Sea Coastal Current, Korean Coastal Current, and Yellow Sea Warm Current (Hwang et al., 2014). Since 1978, China’s economy has undergone expansive changes, which came hand-in-hand with environmental problems (Wang et al., 2014, 2018). Since the 1980s, anthropogenic activity has resulted in consistently increasing concentrations of DIN and phosphate (${\rm{PO}}^{3-}_4 $) being transported to the ocean; while silicate (H4SiO4) concentrations remained relatively stable, due to transport being prevented by dams (Liang and Xian, 2018; Wang et al., 2018; Humborg et al., 2008; Guo et al., 2020a). Coastal cities around the SYS are highly developed and densely populated, and thus, have an important impact on marine environment. As such, inter-annual nutrient variation studies in the SYS and their potential impact on marine ecosystems have gained significant attention from the scientific community (Wang et al., 2003; Lin et al., 2005; Fu et al., 2009; Shi et al., 2013; Li et al., 2015; Liu et al., 2015; Wei et al., 2015).
Unlike previous phytoplankton nutrient limitation studies conducted in the SYS, this work mainly focused on local waters, while large scale interannual variations were only minutely considered. In this study, the correlation between nutrients and the phytoplankton community in the Haizhou Bay area was analyzed; and long-term nutrient variations and ecosystem coupling changes in the SYS, including red tides, phytoplankton abundance, and community composition, are discussed (Fig. 1). The results from this analysis shed light on the relationship between nutrient structure and the phytoplankton community, thereby enhancing our understanding of how anthropogenic activities impact the foundation of marine primary productivity.
Nutrient data, including DIN, ${\rm{PO}}^{3-}_4 $, and H4SiO4 concentrations for the SYS and Changjiang River, were mainly obtained from the following sources: (1) Summer values from 1990 to 2019 were acquired from the marine environmental quality monitoring work of China’s State Oceanic Administration (SOA) and Ministry of Ecology and Environment (MEE). To improve the comparability of the nutrient data, DIN and ${\rm{PO}}^{3-}_4 $ long-term data were classified as nearshore and offshore using the National Marine Functional Zoning (Ministry of Ecology and Environment of the People’s Republic of China, 2020). The mean values of nutrients in surface layer and bottom layer in the nearshore (defined by National Marine Functional Zoning) and offshore (adjacent seas of China excluding the nearshore) were calculated to determine the annual variations in the SYS. (2) SOA and MEE H4SiO4 data were available only for 2014−2019, and therefore inadequate. Additional H4SiO4 data for 1958−1959 and 1997−1999 were obtained from published work by Wei (2015), Wang (2003), and Wang et al. (2003). Because H4SiO4 was not sufficiently represented (data of H4SiO4 in the offshore is less than 20 per year), the H4SiO4 data was averaged and discussed for the SYS as a whole. (3) Nutrient data for the Haizhou Bay for 2003−2017 were obtained from the work of SOA’s red tide monitoring. Surface water nutrient mean values were calculated and used to represent monthly concentrations. (4) Changjiang River DIN and ${\rm{PO}}^{3-}_4 $ data was collected from Wang et al. (2018), while that of H4SiO4 was obtained from Ma (2015).
The SYS red-tide event data from 1990−2019 were obtained from the work of red-tide monitoring of SOA and Ministry of Natural Resources. For each red tide event, the occurrence time, location, distribution area, and dominant species were recorded. Cumulative frequency, cumulative area, and the occurrence of diatom and dinoflagellate red tides were calculated respectively.
The SYS phytoplankton (net sample) abundance and species data were obtained for the period 1959−2015 from Wang (2001), Fu et al. (2012), Yang (2016), Xu (2007) , Jiang et al. (2020) and Luan et al. (2020) (Table 1). The data were analyzed and discussed in quarterly and annual increments. In addition, the Haizhou Bay phytoplankton data (surface water sample) from 2003 to 2017 were obtained from the work of SOA’s red tide monitoring, while frequency and abundance of the phytoplankton community’s dinoflagellates and diatoms were characterized monthly and annually.

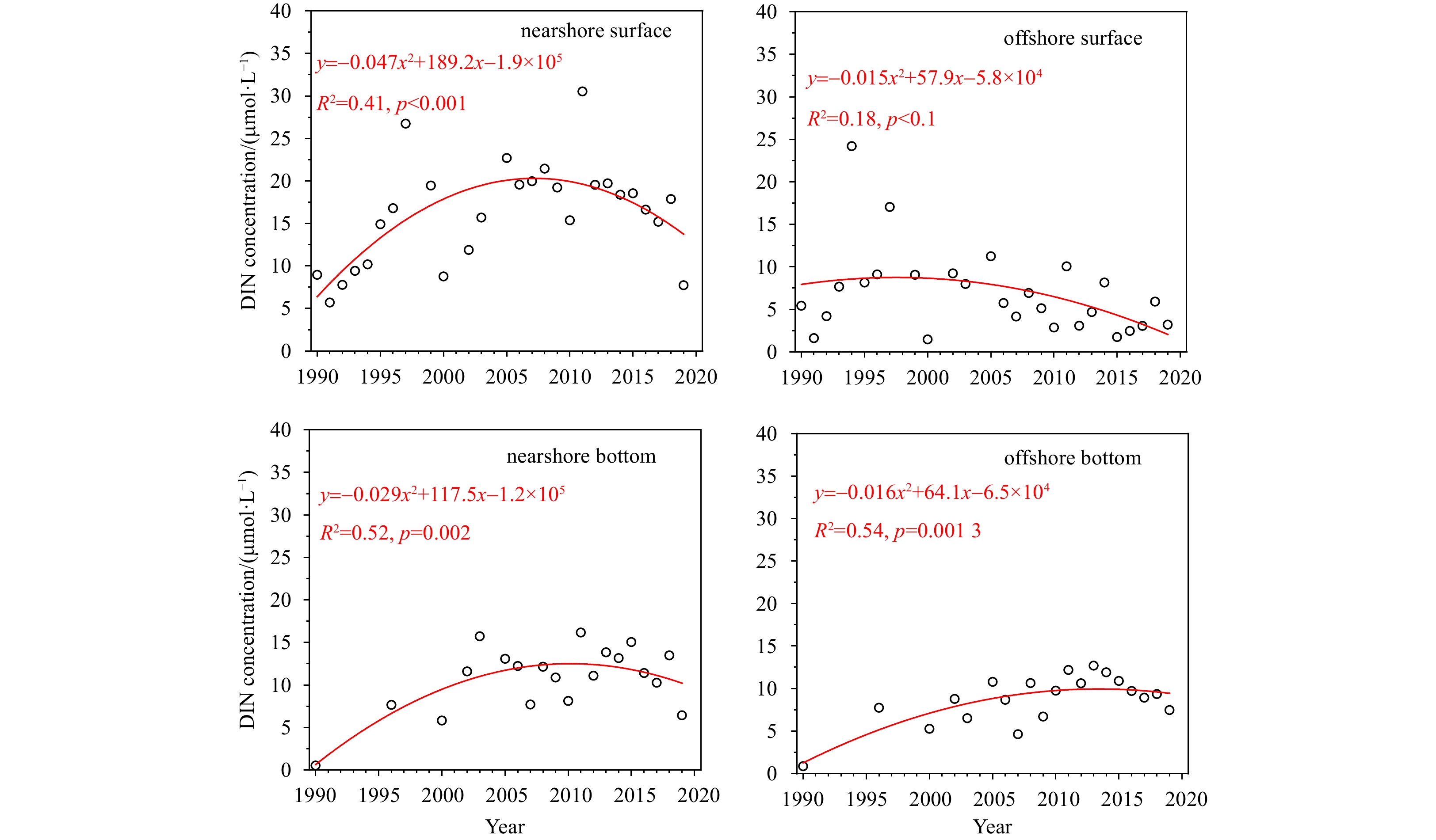

Examination of long-term DIN variability in the SYS (i.e., 1990 to 2019) showed that the surface and bottom waters both exhibited a similar DIN concentrations trend characterized by an initial increase that was followed by a decrease (Fig. 2). Furthermore, due to intense anthropogenic activity and terrestrial input, the nearshore DIN concentrations were substantially higher than those measured offshore, and the DIN concentrations in surface layer were significantly higher than those in the bottom layer. Specifically, nearshore surface layer concentrations increased significantly from 1990 to 2012, with the highest values generally observed from 2005−2012 (excepting 2010). During the peak, the average DIN concentration was >19.0 μmol/L. Beginning in 2013, the DIN concentration gradually decreased with the lowest value (7.73 μmol/L) recorded in 2019. DIN concentrations in the nearshore bottom layer showed a similar trend to that of the surface layer, although the concentrations were substantially lower. With respect to the offshore environment, DIN surface water trends also showed an increase followed by a decrease, while the bottom water DIN concentrations remained relatively stable throughout the DIN study period. Moreover, because the offshore environment is not directly affected by pollutants delivered from rivers, DIN concentrations in this locale were much lower than those in the nearshore and showed only slight interannual fluctuations.

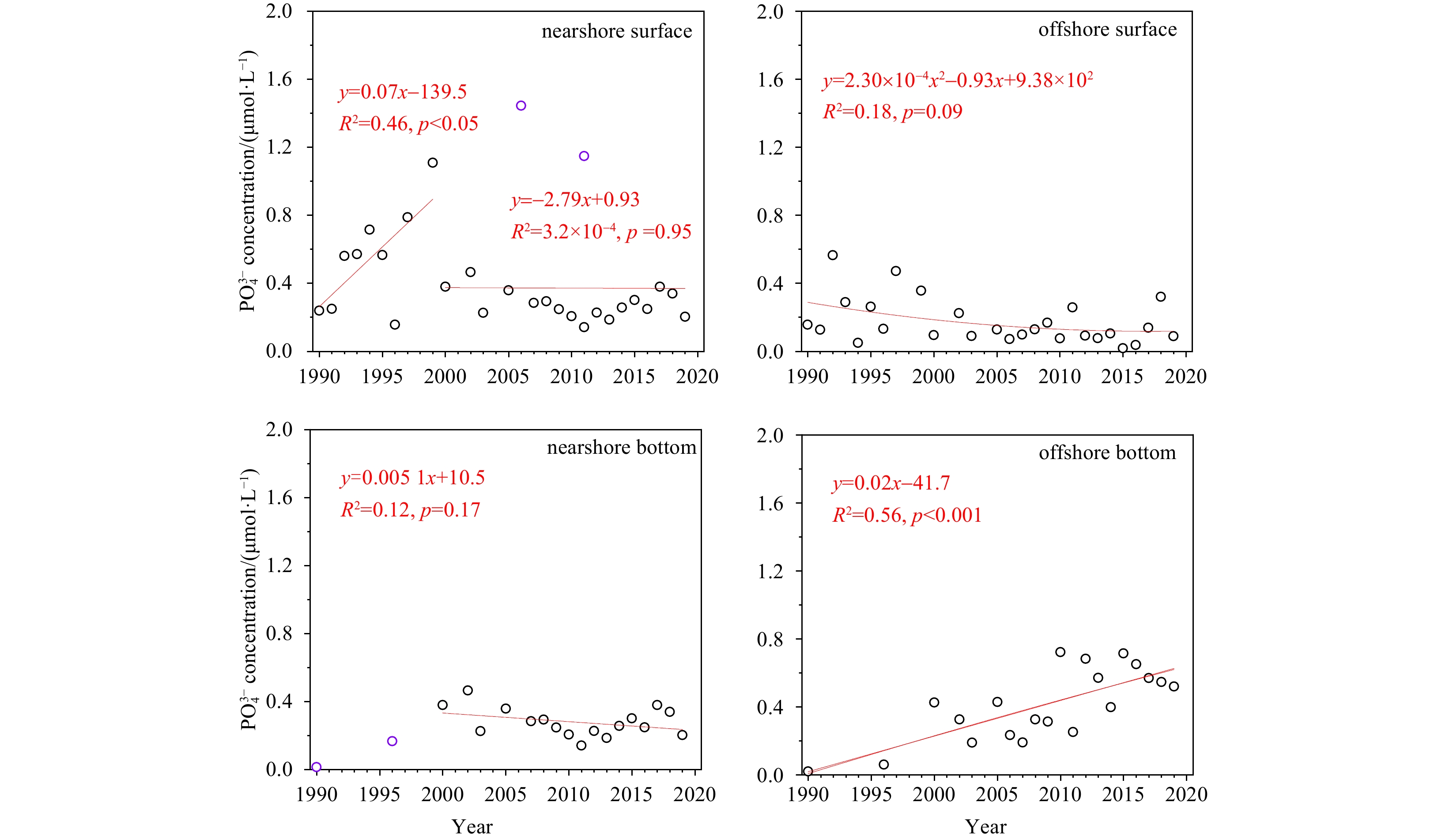

Long-term ${\rm{PO}}^{3-}_4 $ variation trends in the SYS were different from those of DIN (Fig. 3). The nearshore surface and bottom water ${\rm{PO}}^{3-}_4 $ concentrations showed slightly different variation characteristics. Mainly different variations were observed from 1990 to 1999 and then concentration variation tended to have a similar variation from 2000 to 2019. Specifically, concentrations in the nearshore surface layer gradually increased from 1990 to 1999 and then were maintained between 0.25−0.56 μmol/L (i.e., fluctuating ~0.40 μmol/L) from 2000 to 2019, excepting 2006 and 2011. In contrast, with the exception of 1990, ${\rm{PO}}^{3-}_4 $ concentrations in the nearshore bottom fluctuated between 0.14−0.47 μmol/L throughout the ${\rm{PO}}^{3-}_4 $ study period. Offshore ${\rm{PO}}^{3-}_4 $ trends differed significantly from those observed nearshore. With respect to offshore surface water, ${\rm{PO}}^{3-}_4 $ concentrations gradually decreased from 1990 to 2000, then remained stable at ~0.10 μmol/L from 2000 to 2019. In contrast, offshore bottom water ${\rm{PO}}^{3-}_4 $ concentration has increased since 1990.

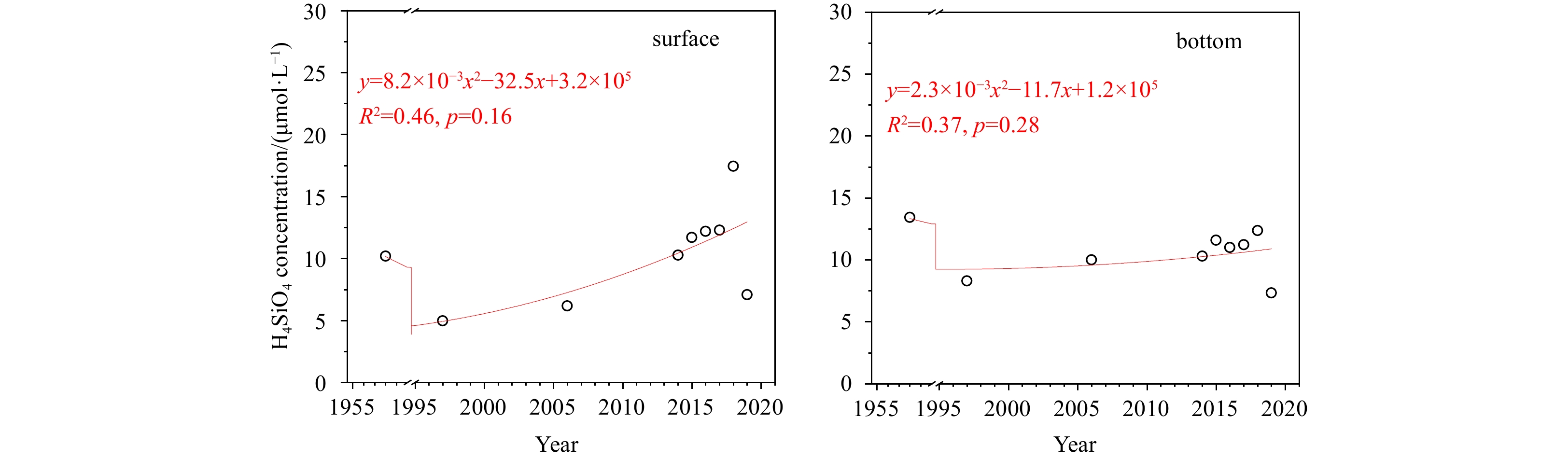

Inter-annual variations of H4SiO4 in the SYS showed that H4SiO4 concentrations initially decreased, then subsequently increased from 1958 to 2019 (Fig. 4). Surface water concentrations decreased from 10.19 μmol/L in 1958 to 4.97 μmol/L in 1990s, and then steadily increased with values generally larger than 10.00 μmol/L in 2010s (excepting 2019). The bottom layer H4SiO4 concentration trend parallels that of the surface layer, with values of 13.42 μmol/L in 1958, 8.31 μmol/L in 1990s, and >10.00 μmol/L in 2010s (excepting 2019).

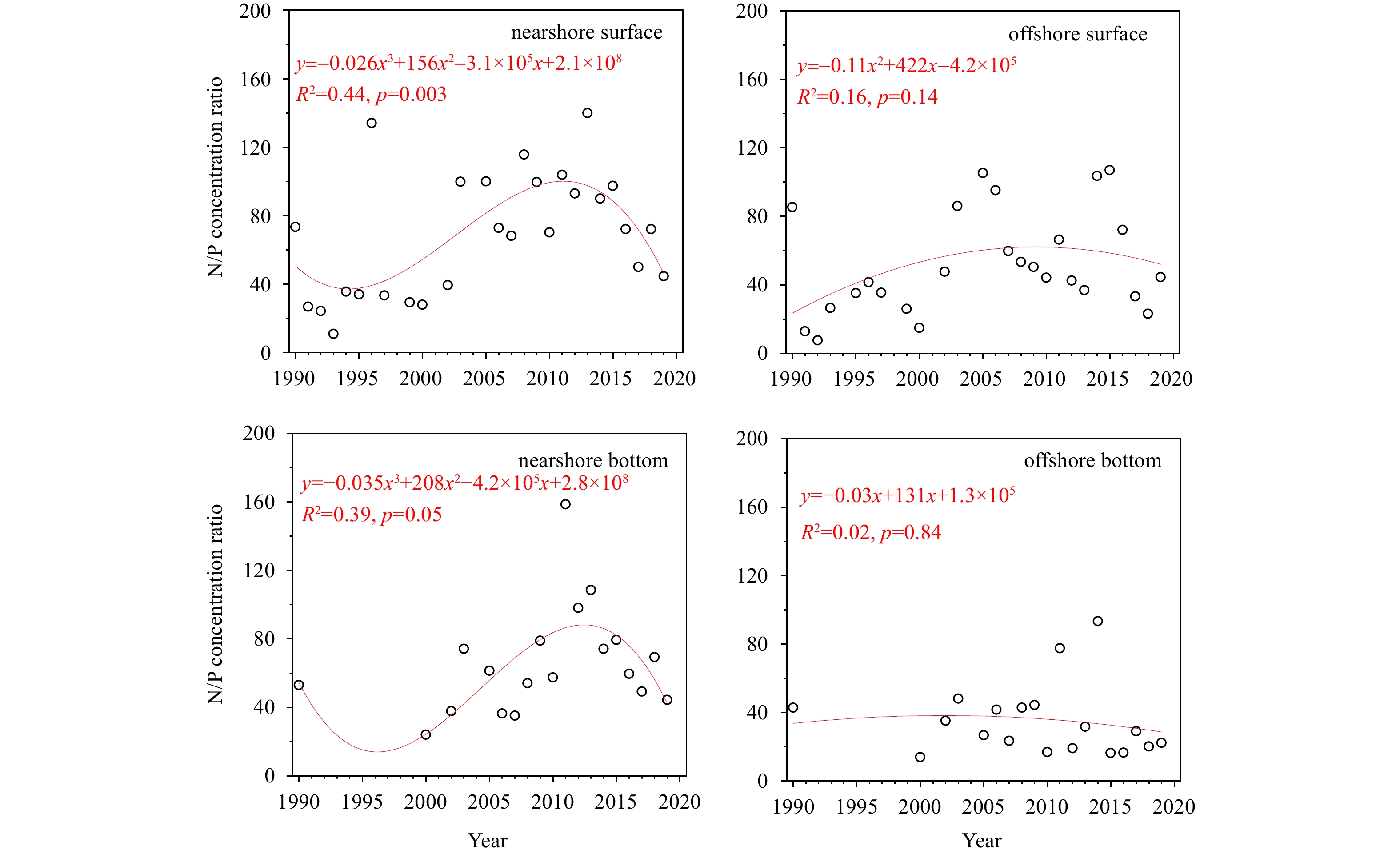

N/P concentration ratios results from the surface and bottom layers of the SYS were greater than the Redfield ratio (16), demonstrating the presence of an evident P limitation (Fig. 5). In addition, N/P ratios were greater nearshore than offshore, and surface layer values were higher than those in bottom layer. With respect to long term trends, N/P ratios in the nearshore and offshore surface water, as well as the nearshore bottom water, depicted a similar variation pattern, i.e., an increase followed by a decrease. Higher values were primarily observed from 2003−2015, during which time, the average ratios were 96 (nearshore surface), 76 (nearshore bottom), and 71 (offshore surface). The N/P ratios gradually decreased from 2016 to 2019. The lowest value, i.e., 44, was recorded in 2019, and approximated values were observed in 1990s. This change in N/P ratios is consistent with the DIN fluctuations in the SYS. In contrast, N/P ratios in the offshore bottom layer were relatively stable, and generally fluctuated in the range of 14−48 with an average value of 28 (excepting 2011 and 2014).

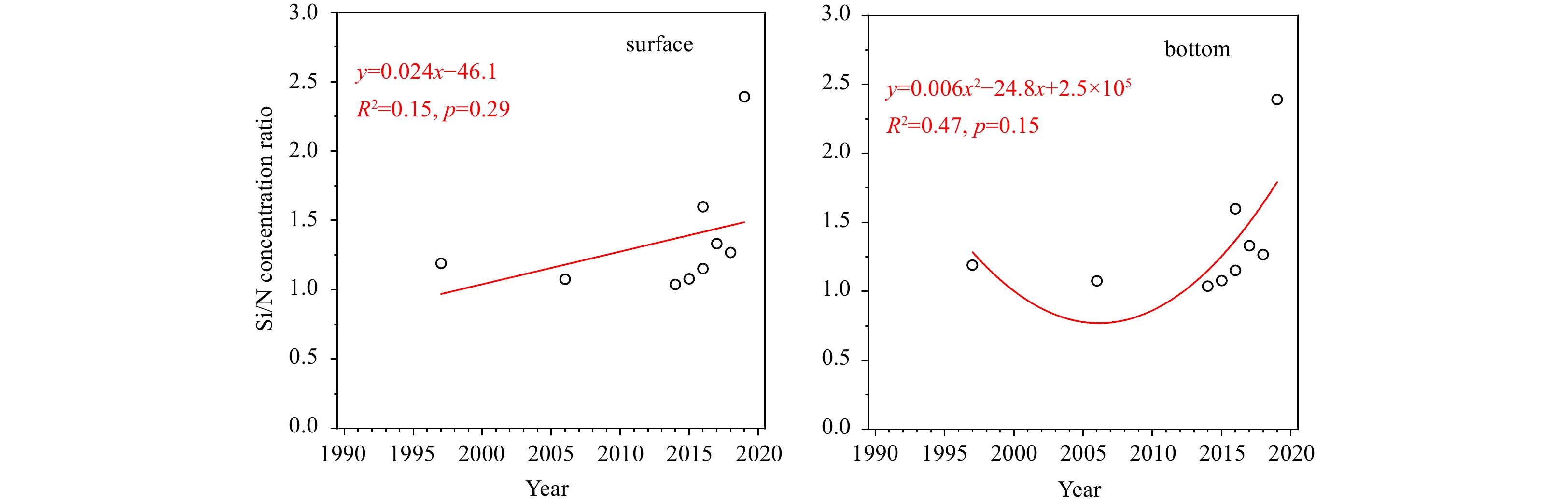

From 1997 to 2019, Si/N ratios were increasing, while in general, the values were >1 (Fig. 6). These results indicate that Si was not the main limiting factor in the SYS. However, there may be Si limitation in some areas in response to massive dam construction and the subsequent freshwater inflow decrease.

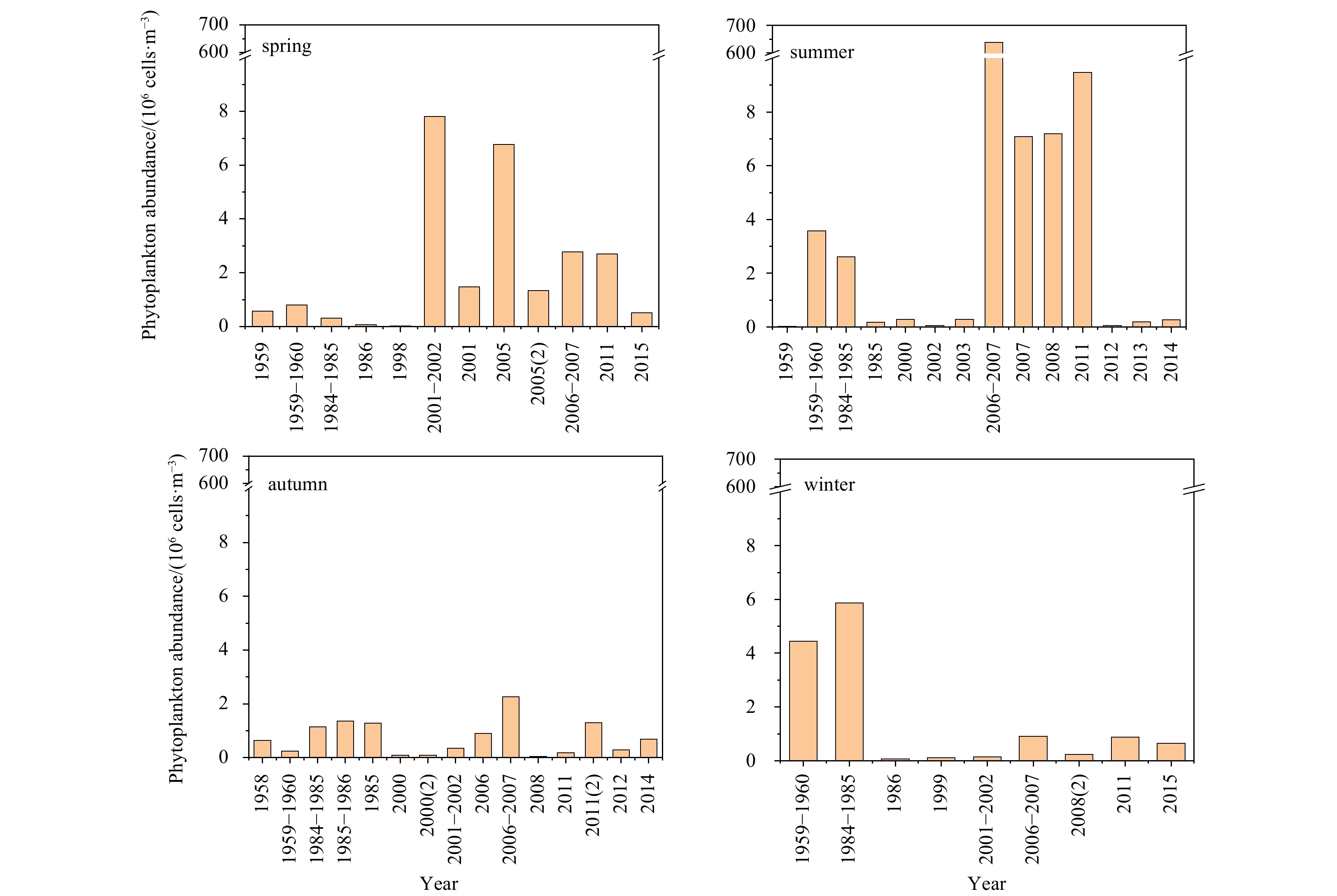

Interannual changes of phytoplankton abundance in the SYS are shown in Fig. 7. Since 1958, phytoplankton abundance has fluctuated significantly, in some cases by up to 8 orders of magnitude. The highest phytoplankton abundance value, i.e., >600×106 cells/m3, was observed in the summer of 2006−2007. With respect to seasonal changes, the values in spring and summer were generally higher than those in autumn and winter. Maximum seasonal values for spring, summer, fall, and winter were approximately 8×106 cells/m3, 600×106 cells/m3, 2×106 cells/m3, and 6×106 cells/m3, respectively. From 1958 to 2015, long-term phytoplankton abundance variations depicted an increasing trend in spring and summer, but this trend was not evident in autumn and winter.

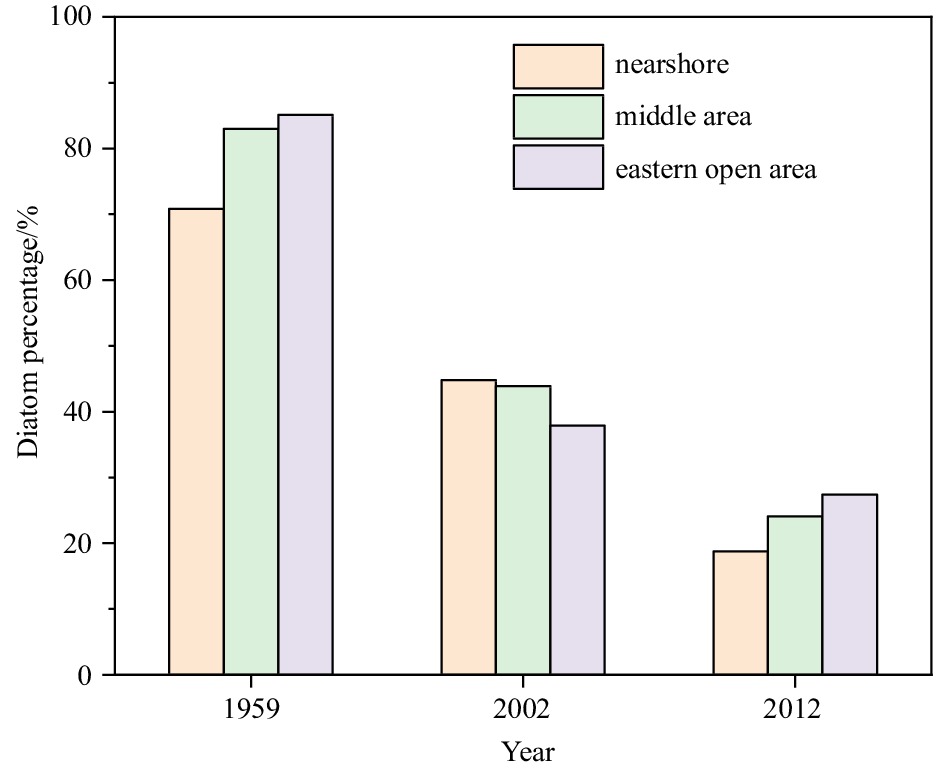

Figure 8 and Table 2 show the percentage of total phytoplankton abundance represented by diatoms and dinoflagellates. The summer diatom percentage contribution in the SYS dropped from 70.8%−85.1% in 1959 to 18.8%−27.4% in 2012. Spring (May) diatom abundances also showed a similar decrease (Table 2), dropping from 88.9% in 1986, to 69.5% in 1998, and 50.9% in 2005. In contrast, the spring (May) dinoflagellate abundance in the SYS increased from 11.1% in 1986, to 30.5% in 1998, and 49.1% in 2005 (Wang, 2001). The gradually decreasing diatom and increasing dinoflagellate trends demonstrate that, over the last 50 years, the phytoplankton community exhibited an evident tendency to shift from diatoms to dinoflagellates.
Tables 3-5 depict the phytoplankton community’s dominant genera and dominance index. From 1958 to 1959, diatoms were the dominant species in the SYS. While dinoflagellates were presented during this time, they did not occupy a dominant position in the phytoplankton community. From 2011 to 2013, dinoflagellates such as Ceratium and Noctiluca gradually became the dominant genera in the phytoplankton community, creating an environment in which both dinoflagellates and diatoms were dominant species. The shift shows that the dominant position of dinoflagellates in phytoplankton community has gradually prominent in recent years.

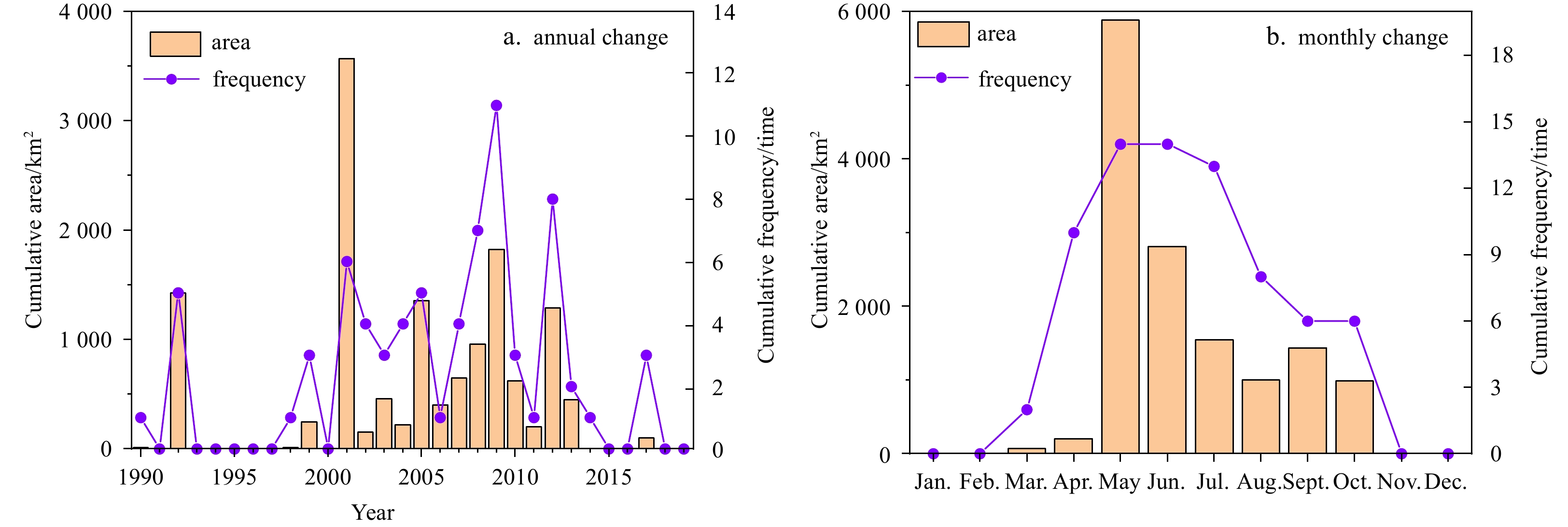

Figure 9 shows the cumulative frequency and cumulative area of red tide occurrences in the SYS, from 1990 to 2019. During this period, red tides occurred 73 times and covered a total area of 13918 km2. Red tide events were mainly recorded in coastal regions, with hotspots located in the Jiaozhou Bay, Haizhou Bay, and Rudong coastal waters (Fig. S1). Red tide occurrences corresponded with sites characterized by high pollution and eutrophication.
Red tides were relatively rare from 1990 to 2000, but large events were frequent from 2001 to 2013. The maximum annual frequency occurred in 2009, when 11 red tide events were recorded; while 2001 holds the record for the maximum affected area (3 500 km2) (Fig. 9a). After 2013, the frequency and scale of red tides in the SYS showed a clear decreasing trend. Because these events are seasonal, the red tides occurred from March to October, with most taking place between May and October. In fact, 83.6% of the total red tide events and 98.1% of the total affected area occurred during these six months (Fig. 9b).

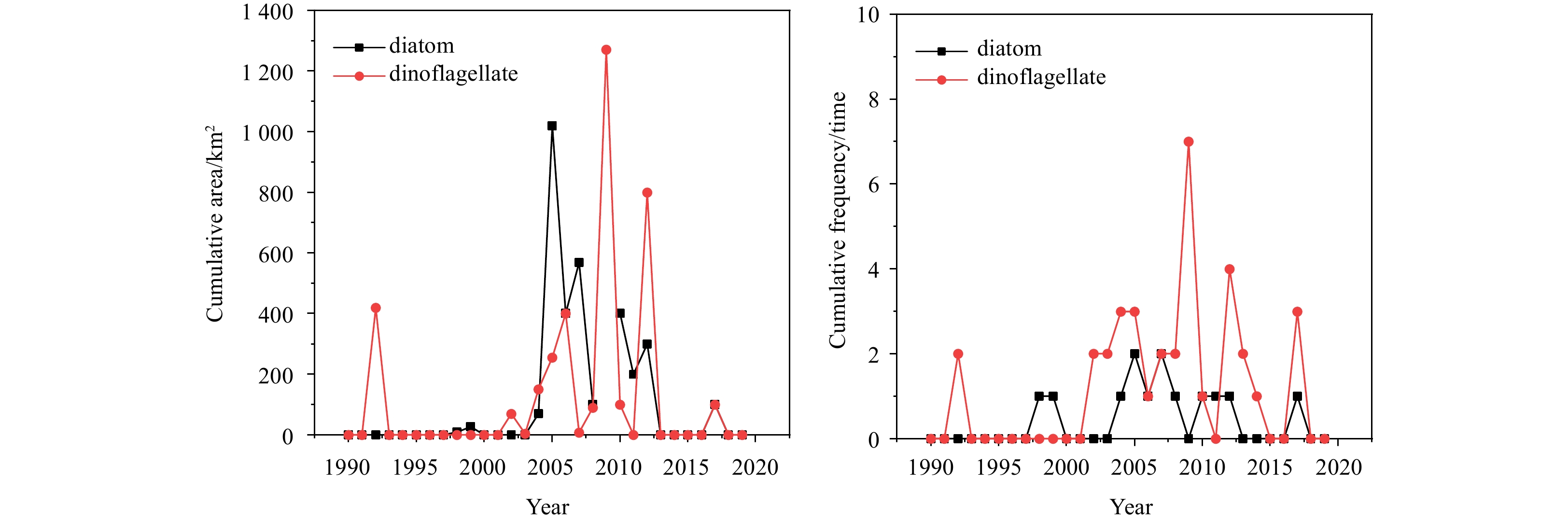

Changes in algal species over time are also observable in the red tides. The frequency and area of dinoflagellate red tides in the SYS increased significantly from 1990 to 2019. Furthermore, dinoflagellate red tides were significantly more frequent than diatom red tides, although both types covered a similar size area (Fig. 10). Specifically, dinoflagellate red tides accounted for 47.9% of the red tide events in the SYS and covered a cumulative area up to 26.6%; while diatom red tides were responsible for 17.8% of the red tide events and covered a cumulative area up to 16.5%. Studies in the Changjiang River Estuary and Yellow Sea show that dinoflagellate abundance and dinoflagellate red tides have both increased significantly (Zhou et al., 2008; Jiang et al., 2014).

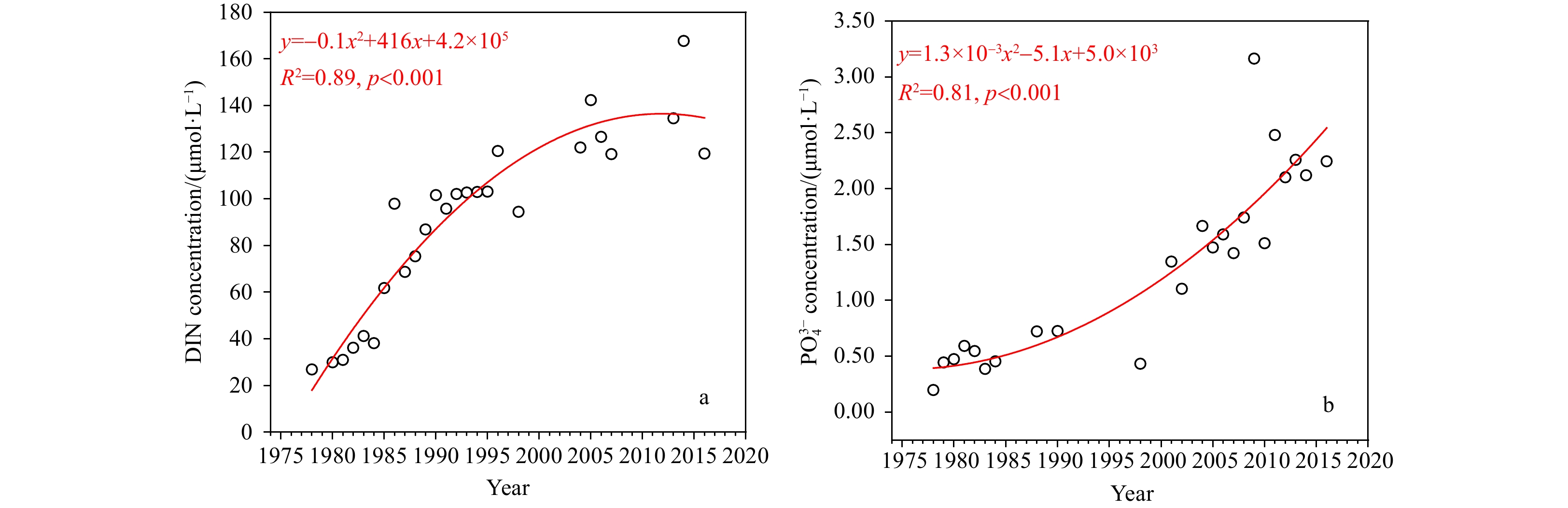

Terrestrial inputs in general, and river input specifically, are the most important external source of nutrients affecting coastal waters in the adjacent seas of China (Qu and Kroeze, 2010). The Changjiang River, which is characterized by an annual runoff of 9.2×1011 m3/a, is the main nutrient input source for the SYS, and the discharge is carried into the Yellow Sea by Changjiang River effluent waters (Le, 1984; Tian et al., 1993). Considering Yellow Sea riverine nutrient inputs from China and Korea, ${\rm{NO}}_3^- $ mainly originates from the Changjiang (40%) and Yalu (50%) rivers; ${\rm{NH}}_4^+ $ and ${\rm{PO}}^{3-}_4 $ are primarily delivered by the Han (50%) and Changjiang (20%−30%) rivers, while H4SiO4 is mainly contributed by Changjiang (57%) and Yalu (30%) rivers (Liu et al., 2003).
Increased use of fertilizers, exceptionally high sewage discharge, and the exacerbation of soil erosion led to an increase in the concentration of N-based species entering the ocean. Chemical fertilizer used in the Changjiang River basin increased threefold from 1980 (3.02×106 t) to 1996 (9.37×106 t) (Yan et al., 2003; Gao and Li, 2009). Inter-annual changes in the DIN concentration throughout the Changjiang River significantly increased from the 1970s to 2016. Notably, an exceptionally rapid increase began in the mid-1980s. Since that time, the concentration has fluctuated, but has remained at high levels (Fig. 11a) (Wang et al., 2018). The increasing DIN concentration carried by the Changjiang River to the sea is consistent with the increasing DIN measured in the Yellow Sea from 1990 to 2016. Due to national management policies that aimed at reducing land-based emissions and curbing marine environment deterioration, the DIN concentration in the Yellow Sea decreased from 2017 to 2019.
Approximately 75% of the ${\rm{PO}}^{3-}_4 $ in the Yellow Sea is inputted from external sources (Liu et al., 2003). From the 1970s to 2016, the ${\rm{PO}}^{3-}_4 $ concentration in the Changjiang River has steadily increased, with the most significant increase being observed since the end of the 1990s. Since 2012, the ${\rm{PO}}^{3-}_4 $ concentration has fluctuated, but has remained at high levels (Wang et al., 2018) (Fig. 11b). Interestingly, the interannual variation of ${\rm{PO}}^{3-}_4 $ in the SYS differs significantly from that in the Changjiang River. This inconsistency may be attributed to two factors: First, the increase rate of ${\rm{PO}}^{3-}_4 $ input from the rivers is lower than that of DIN. DIN input promotes phytoplankton absorption of ${\rm{PO}}^{3-}_4 $ indirectly, resulting in oceanic ${\rm{PO}}^{3-}_4 $ concentrations to depict slightly increasing or decreasing trends. Second, oceanic ${\rm{PO}}^{3-}_4 $ has endogenous cycling characteristics, and is therefore closely related to both terrestrial input and a series of additional interactions. Examples of the latter include, but are not limited to: absorption and utilization of marine phytoplankton and adsorption/desorption of particulate matter in the sea.

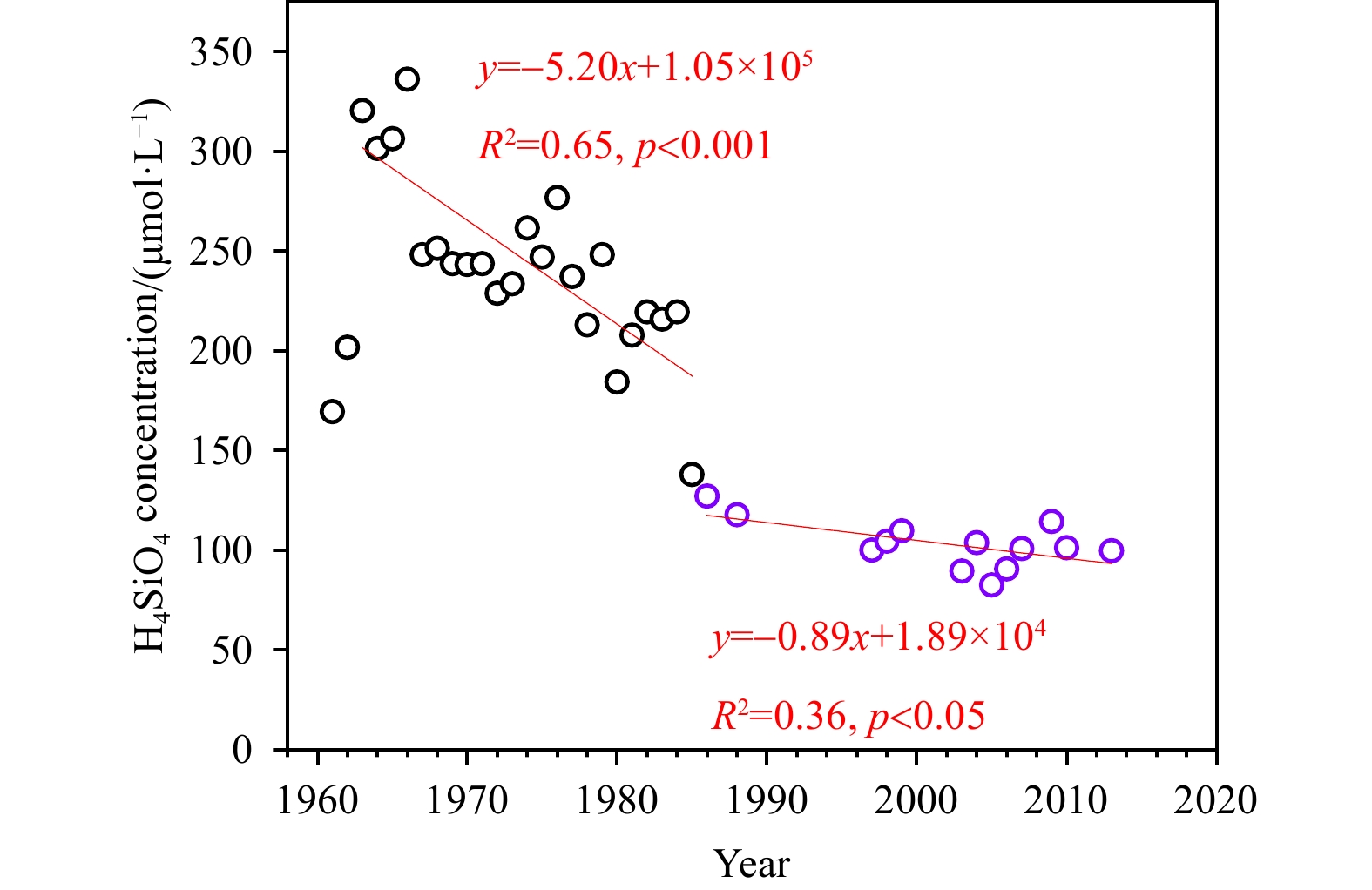

The “artificial lake effect” produced by anthropogenic activities like dam building, dry flow, and farmland irrigation has resulted in dissolved H4SiO4 depicting a notable decreasing trend in rivers all over the world (Wang et al., 2018). The H4SiO4 concentration in the Changjiang River Estuary decreased by a factor of three from 1960 to 1985 and has basically remained stable (Ma, 2015) (Fig. 12). Lin et al. (2005) found that the Yellow Sea H4SiO4 concentration showed a gradual decrease from 1976 to 2000.
Atmospheric deposition is considered an important external nutrient source for the upper ocean and has been shown to impact phytoplankton growth and community structure (Jickells et al., 2005; Shi et al., 2012; Chien et al., 2016; Zhang et al., 2019). On the global scale, atmospheric N input to the coastal waters is generally equivalent to riverine N input (Qi et al., 2013). DIN and ${\rm{PO}}^{3-}_4 $ from atmospheric deposition in the western Yellow Sea account for 58% and 75% of terrigenous input, respectively (Zhang et al., 1999; Gao and Zhang, 2019). Studies have shown that for external sources, i.e., atmospheric and riverine inputs, the former provides 94% ${\rm{NH}}_4^+ $ and 68% ${\rm{PO}}^{3-}_4 $ to the Yellow Sea, while the latter provides 95% H4SiO4 and 66% ${\rm{NO}}_3^- $ (Liu et al., 2003). Song et al. (2019) conducted a study from 2009 to 2010 and demonstrated that when considering the entire Yellow Sea, the nutrient contribution from dry deposition was equivalent to that of wet deposition. Furthermore, annual ${\rm{NH}}_4^+ $, ${\rm{NO}}_2^- $ + ${\rm{NO}}_3^- $, H4SiO4, and ${\rm{PO}}^{3-}_4 $ dry atmospheric deposition input to the Yellow Sea accounts for 87%, 53%, 3%, and 50%, respectively, of the total input from atmospheric deposition and rivers combined. Shi et al. (2013) analyzed the impact of sandstorms on the Yellow Sea in 2007 and showed that the dry deposition nutrient flux during sandstorms is five times higher than that during normal periods. Atmospheric deposition significantly influences marine ecosystems, and total atmospheric N deposition can support 0.3%−6.7% of the new productivity in the Yellow Sea (Qi et al., 2013). What’s more, on-board microcosm experiments showed that dust additions supplied a considerable amount of N and negligible P to the seawater. The primary beneficiary was the nano-sized phytoplankton (primarily consisting of dinoflagellates) in the eutrophic zone (Zhang et al., 2019), and the atmospheric deposition’s fertilization effect was evident in the SYS during spring (Liu, 2014).
In recent years, the significant increasing dinoflagellate abundance trend in the SYS has been observed and confirmed by many scholars. The escalating dominance of dinoflagellate red tides with respect to frequency and scale was recorded in the Yellow Sea, and is closely related to eutrophication and the development of mariculture industry (Guo et al., 2015; Li et al., 2021). Yang (2016) found that dinoflagellate abundance in the SYS has increased significantly compared to that in 1959 and the percent carbon content from dinoflagellates contributing to the total carbon content has also increased. The increasing proportion of dinoflagellate phytoplankton abundance depicts an evident evolution in the phytoplankton community in China’s offshore waters (Yang, 2016). According to the observation from 1985 to 2015, diatom abundance had been supplanted by dinoflagellate abundance in the Yellow Sea was confirmed. The average diatom abundance in the Yellow Sea accounted for 80.3% of the total average abundance for the period from 1985 to 2015, and only 67.5% in 2010. In contrast, the average dinoflagellate abundance accounted for 19.7% of the total average abundance for the period from 1985 to 2015, and 32.5% in 2010 (Fig. 13) (Luan et al., 2020). Xiao (2018) forecasted that by the end of the 21st century, diatom biomass in 60% of the East China Sea will have decreased and the dinoflagellate biomass in 70% of the East China Sea will have increased. These results imply that dinoflagellate blooms will become more frequent and intense, and will impact coastal ecosystem functions (Xiao et al., 2018; Huang et al., 2021).
Previous studies have established that changes in nutrient concentrations and structure have dramatic impacts on marine phytoplankton. With respect to nutrient structure, some phytoplankton species can absorb and utilize low-molecular-weight dissolved organic nitrogen (DON) or dissolved organic phosphorus (DOP) directly (Huang et al., 2005; Xiao et al., 2019; Wang et al., 2021a, 2021b). Compared with nitrate, ammonium can be preferentially up-taken by phytoplankton species due to the unchanged valence state of N (Glibert et al., 2014). Nutrient stoichiometry is one of the most important factors impacting changes in phytoplankton species composition and dominant species shifts (Mathew et al., 2021). Long-term N/P ratios in the SYS showed a rapidly increasing trend from 1990 to 2015 and a decreasing trend from 2016 to 2019 (Fig. 5). Si/N ratios depicted a slightly increasing trend from 1958 to 2019, with ratio values that were generally larger than 1 (Fig. 6). Asymmetric changes in nutrient structure indicated the presence of obvious P-limitation and potential Si limitation in some areas, which impacted the SYS phytoplankton community. Nutrient limitation studies have shown that the phytoplankton’s growth threshold is a key factor dictating their community characteristics. Under normal conditions, when the phytoplankton has not reached the maximum growth rate, the phytoplankton N/P concentration demand ratio is positively correlated with the N/P supply ratio in the surrounding environment (Klausmeier et al., 2004; Zhang et al., 2018). This relationship reflects the phytoplanktons’ ability to adapt to the surrounding environment by efficiently adjusting their physiological state and modifying the phytoplankton community structure (Gao and Zhang, 2019). Li (2008) and Xiao et al. (2018) studied the phytoplankton community changes in the Changjiang River Estuary and showed that the higher N/P ratio or higher N concentration was beneficial to dinoflagellate growth. The reduction of nutrients caused by climate warming (layers) and the increase of nutrients imported from land sources facilitated dinoflagellates to supplant diatoms as the dominant species (Li, 2008; Xiao et al., 2018; Huang et al., 2021). Lin et al. (2005) reported that when the northern Yellow Sea was in a P-limited and N-sufficient state, the main phytoplankton community species transformed from diatoms to dinoflagellates. In this work, the significant summertime increase in the SYS phytoplankton abundance observed after 2000 is attributed to the DIN and N/P ratio fluctuations in the SYS surface water, which maintained a high concentration from 2000 to 2015. This indicates that these nutrients are an important control on phytoplankton growth (Figs 2, 5 and 7).

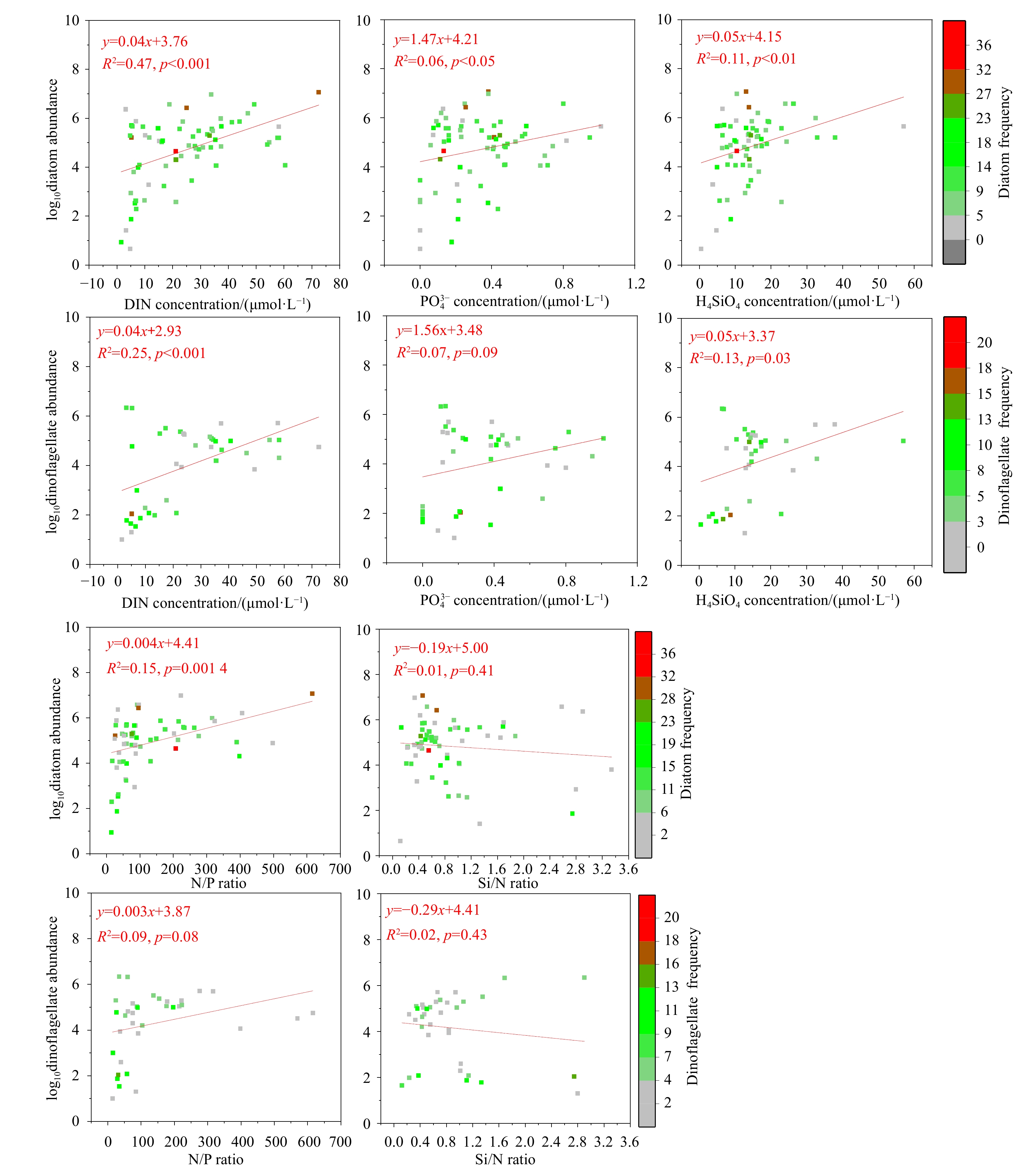

Figure 14 depicts the relationship between nutrients and phytoplankton communities in the Haizhou Bay from 2003 to 2017. Asymmetric changes were observed between N/P and Si/N ratios, demonstrating evident P-limitation and potential Si-limitation. Specifically, N/P ratios ranged primarily from 16 to 100 with the maximum value larger than 600, while Si/N ratios ranged mainly from 0.2 to 1.2 with the maximum value larger than 3. Results from the phytoplankton community study showed that diatoms were the dominant species. However, other species, such as dinoflagellates, frequently appeared in the bay, indicating that diatoms and dinoflagellates coexisted in the Haizhou Bay. Furthermore, results from a correlation analysis between diatom/dinoflagellate abundance/frequency and nutrients are presented in Table 6. As shown, diatom abundance is significantly correlated with DIN concentration and N/P ratio, while frequency is correlated with Si/N ratio. Contrarily, dinoflagellate abundance is significantly correlated with Si/N ratio and frequency is correlated with DIN and H4SiO4. This phenomenon indicates that although the diatom abundance/frequency correlated slightly differently with the nutrients as compared to that of dinoflagellates, DIN and H4SiO4 were the main factors impacting phytoplankton growth.
Herein, long-term variations in nutrient concentration and structure, inter-annual phytoplankton community trends, and the relationship between nutrients and phytoplankton community were systematically analyzed in the SYS. Over the past 30 years, due to influences from both anthropogenic activities and terrestrial inputs, nearshore nutrient concentrations have been significantly higher and the structures more diverse than those observed in the offshore. Nutrient limitation conditions of the SYS changed from N limitation to P limitation and potentially to Si limitation, which impacted the phytoplankton community. The phytoplankton species composition change and dominant species shift from diatoms to dinoflagellates have been validated by annual changes in red tide frequency and composition. Although diatoms still are the dominant species in phytoplankton community, an evident succession from diatoms to dinoflagellates has exhibited over the last 50 years.
Because the nutrient, red tide, and phytoplankton data discussed herein are relatively independent, it is impossible to quantitatively assess the impact of nutrients on the phytoplankton community. Thus, the relationship between these factors was only qualitatively analyzed. Moreover, although nutrients are the foundation of phytoplankton growth, it is a complex process that is also impacted by factors like light, temperature, and salinity, etc. Thus, the phytoplankton community is not static, and often changes with the marine environment, and this ongoing transition requires further systematic exploration. Therefore, long-term comprehensive investigations that integrate environmental factors with phytoplankton community changes are needed to better understand ecosystem response in the SYS.
We are grateful to colleagues from the National Marine Environmental Monitoring Center and Yellow Sea Fisheries Research Institute for the help of data and constructive comments.
  • The UNDP/GEF YSLME Phase II Project.
Chen Baohong, Wang Kang, Dong Xu, et al. 2021. Long-term changes in red tide outbreaks in Xiamen Bay in China from 1986 to 2017. Estuarine, Coastal and Shelf Science, 249: 107095
Chien C T, Mackey K R M, Dutkiewicz S, et al. 2016. Effects of African dust deposition on phytoplankton in the western tropical Atlantic Ocean off Barbados. Global Biogeochemical Cycles, 30(5): 716–734, doi: 10.1002/2015GB005334
Chung C S, Hong G H, Kim S H, et al. 1998. Shore based observation on wet deposition of inorganic nutrients in the Korean Yellow Sea coast. The Yellow Sea, 4: 30–39
Edwards M, Reid P, Planque B. 2001. Long-term and regional variability of phytoplankton biomass in the Northeast Atlantic (1960–1995). ICES Journal of Marine Science, 58(1): 39–49, doi: 10.1006/jmsc.2000.0987
Fisher T R, Peele E R, Ammerman J W, et al. 1992. Nutrient limitation of phytoplankton in Chesapeake Bay. Marine Ecology Progress Series, 82: 51–63, doi: 10.3354/meps082051
Fu Mingzhu, Wang Zongling, Pu Xinming, et al. 2012. Changes of nutrient concentrations and N: P: Si ratios and their possible impacts on the Huanghai Sea ecosystem. Acta Oceanologica Sinica, 31(4): 101–112, doi: 10.1007/s13131-012-0224-x
Gao Lei, Li Daoji. 2009. Changes of nutrient concentrations in western areas of Yellow Sea and East China Sea in recent several decades. Marine Sciences (in Chinese), 33(5): 64–69
Gao Huiwang, Zhang Chao. 2019. Challenges in the study of atmospheric deposition over the ocean. Periodical of Ocean University of China (in Chinese), 49(10): 1–9
Glibert P M, Wilkerson F P, Dugdale R C, et al. 2014. Phytoplankton communities from San Francisco Bay Delta respond differently to oxidized and reduced nitrogen substrates—even under conditions that would otherwise suggest nitrogen sufficiency. Frontiers in Marine Science, 1: 17
Grasshoff K, Kremling K, Ehrhardt M, et al. 1999. Methods of Seawater Analysis. 3rd ed. New York: Wiley-VCH, 193
Guo Hao, Ding Dewen, Lin Feng’ao, et al. 2015. Characteristics and patterns of Red Tide in China coastal waters during the last 20a. Advances in Marine Science (in Chinese), 33(4): 547–558
Guo Xin, Wang Zhaohui, Zhao Jiangang, et al. 2020a. Effects of inorganic nutrients on the phytoplankton community in the sea surface microlayer of Daya Bay, South China Sea. Journal of Sea Research, 156: 101830, doi: 10.1016/j.seares.2019.101830
Guo Jinqiang, Yuan Huamao, Song Jinming, et al. 2020b. Hypoxia, acidification and nutrient accumulation in the Yellow Sea Cold Water of the South Yellow Sea. Science of the Total Environment, 745: 141050, doi: 10.1016/j.scitotenv.2020.141050
Guo Congcong, Zhang Guicheng, Sun Jun, et al. 2020c. Seasonal responses of nutrient to hydrology and biology in the southern Yellow Sea. Continental Shelf Research, 206: 104207, doi: 10.1016/j.csr.2020.104207
Huang Bangqin, Ou Linjian, Hong Huasheng, et al. 2005. Bioavailability of dissolved organic phosphorus compounds to typical harmful dinoflagellate Prorocentrum donghaiense Lu. Marine Pollution Bulletin, 51(8–12): 838–844, doi: 10.1016/j.marpolbul.2005.02.035
Huang Bangqin, Xiao Wupeng, Liu Xin. 2021. Spatial-temporal distributions and successional patterns of phytoplankton communities in the Chinese marginal seas. Journal of Xiamen University: Natural Science (in Chinese), 60(2): 390–397
Humborg C, Rahm L, Conley D J, et al. 2008. Silicon and the Baltic Sea: long-term Si decrease in the Baltic Sea—A conceivable ecological risk?. Journal of Marine Systems, 73(3–4): 221–222
Hwang J H, Van S P, Choi B J, et al. 2014. The physical processes in the Yellow Sea. Ocean & Coastal Management, 102: 449–457
Jiang Zhibing, Liu Jingjing, Chen Jianfang, et al. 2014. Responses of summer phytoplankton community to drastic environmental changes in the Changjiang (Yangtze River) Estuary during the past 50 years. Water Research, 54: 1–11, doi: 10.1016/j.watres.2014.01.032
Jiang Zhibing, Liu Jingjing, Zhu Xuyu, et al. 2020. Quantitative comparison of phytoplankton community sampled using net and water collection methods in the southern Yellow Sea. Regional Studies in Marine Science, 35: 101250
Jickells T D, An Z S, Andersen K K, et al. 2005. Global iron connections between desert dust, ocean biogeochemistry, and climate. Science, 308(5718): 67–71, doi: 10.1126/science.1105959
Jin Jie, Liu Sumei, Ren Jingling, et al. 2013. Nutrient dynamics and coupling with phytoplankton species composition during the spring blooms in the Yellow Sea. Deep-Sea Research Part II: Topical Studies in Oceanography, 97: 16–32, doi: 10.1016/j.dsr2.2013.05.002
Klausmeier C A, Litchman E, Levin S A. 2004. Phytoplankton growth and stoichiometry under multiple nutrient limitation. Limnology and Oceanography, 49(4, part2): 1463–1470, doi: 10.4319/lo.2004.49.4_part_2.1463
Le Kentang. 1984. A preliminary study of the path of the Changjiang diluted water I. Modei. Chinese Journal of Oceanology and Limnology (in Chinese), 15(2): 157–167
Li Jing. 2008. The research of nutrient structure and its function on the succession of phytoplankton predominant species in the high frequent harmful algae blooms occurrence areas in East China Sea (in Chinese)[dissertation]. Qingdao: Ocean University of China
Li Xiaoyu, Yu Rencheng, Geng Huixia, et al. 2021. Increasing dominance of dinoflagellate red tides in the coastal waters of Yellow Sea, China. Marine Pollution Bulletin, 168: 112439, doi: 10.1016/j.marpolbul.2021.112439
Li Hongmei, Zhang Chuansong, Han Xiurong, et al. 2015. Changes in concentrations of oxygen, dissolved nitrogen, phosphate, and silicate in the southern Yellow Sea, 1980–2012: sources and seaward gradients. Estuarine, Coastal and Shelf Science, 163(Part A): 44–55
Liang Cui, Xian Weiwei. 2018. Changjiang nutrient distribution and transportation and their impacts on the estuary. Continental Shelf Research, 165: 137–145, doi: 10.1016/j.csr.2018.05.001
Lin C, Ning X, Su J, et al. 2005. Environmental changes and the responses of the ecosystems of the Yellow Sea during 1976–2000. Journal of Marine Systems, 55(3–4): 223–234, doi: 10.1016/j.jmarsys.2004.08.001
Liu Ying. 2014. Influence of Asian dust deposition on the growth of phytoplankton in China marginal seas (in Chinese)[dissertation]. Qingdao: Ocean University of China
Liu Xin, Huang Bangqin, Huang Qiu, et al. 2015. Seasonal phytoplankton response to physical processes in the southern Yellow Sea. Journal of Sea Research, 95: 45–55, doi: 10.1016/j.seares.2014.10.017
Liu Sumei, Zhang Jing, Chen Hongtao. 2000. Chemical oceanography of bioactive elements in the Yellow Sea and the East China Sea. Marine Environmental Science (in Chinese), 19(1): 68–74
Liu Sumei, Zhang Jing, Chen S, et al. 2003. Inventory of nutrient compounds in the Yellow Sea. Continental Shelf Research, 23(11–13): 1161–1174, doi: 10.1016/S0278-4343(03)00089-X
Luan Qingshan, Kang Yuande, Wang Jun. 2020. Long-term changes within the phytoplankton community in the Yellow Sea (1985–2015). Journal of Fishery Sciences of China (in Chinese), 27(1): 1–11
Lund J W. 1967. Eutrophication. Nature, 214(5088): 557–558, doi: 10.1038/214557a0
Ma Yongxing. 2015. Transportation of silica in the lower reach of Yangtze and Yellow Rivers (in Chinese)[dissertation]. Qingdao: Qingdao University
Ma Wu. 2019. Dynamic changes of phytoplankton in the spring and autumn of the Bohai Sea and the summer and autumn of the Yellow Sea (in Chinese)[dissertation]. Nanjing: Nanjing Agricultural University
Mathew T, Prakash S, Baliarsingh S K, et al. 2021. Response of phytoplankton biomass to nutrient stoichiometry in coastal waters of the western Bay of Bengal. Ecological Indicators, 131: 108119, doi: 10.1016/j.ecolind.2021.108119
Mikaelyan A S. 1997. Long-term variability of phytoplankton communities in Open Black Sea in relation to environmental changes. In: Özsoy E, Mikaelyan A, eds. Sensitivity to Change: Black Sea, Baltic Sea and North Sea. Dordrecht: Springer, 105–116
Ministry of Ecology and Environment of the People’s Republic of China. 2020. Bulletin of marine ecology and environment status of China in 2019 (in Chinese). https://www.mee.gov.cn/hjzl/sthjzk/jagb/[2021-05-26/2021-06-21]
Ning Xiuren, Lin Chuanlan, Su Jilan, et al. 2010. Long-term environmental changes and the responses of the ecosystems in the Bohai Sea during 1960–1996. Deep-Sea Research Part II: Topical Studies in Oceanography, 57(11–12): 1079–1091, doi: 10.1016/j.dsr2.2010.02.010
Qi J H, Shi J H, Gao H W, et al. 2013. Atmospheric dry and wet deposition of nitrogen species and its implication for primary productivity in coastal region of the Yellow Sea, China. Atmospheric Environment, 81: 600–608, doi: 10.1016/j.atmosenv.2013.08.022
Qu Hongjuan, Kroeze C. 2010. Past and future trends in nutrients export by rivers to the coastal waters of China. Science of the Total Environment, 408(9): 2075–2086, doi: 10.1016/j.scitotenv.2009.12.015
Redfield A C, Ketchum B H, Richards F A. 1963. The influence of organisms on the composition of sea-water. In: Hill M N, ed. The Composition of Seawater: Comparative and Descriptive Oceanography. The Sea: Ideas and Observations on Progress in the Study of the Seas. New York: Wiley, 26–77
Seok M W, Kim D, Park G H, et al. 2021. Atmospheric deposition of inorganic nutrients to the western North Pacific Ocean. Science of the Total Environment, 793: 148401, doi: 10.1016/j.scitotenv.2021.148401
Shen Zhiliang, Liu Qun, Wu Yulin, et al. 2006. Nutrient structure of seawater and ecological responses in Jiaozhou Bay, China. Estuarine, Coastal and Shelf Science, 69(1–2): 299–307
Shi Jinhui, Gao Huiwang, Zhang Jing, et al. 2012. Examination of causative link between a spring bloom and dry/wet deposition of Asian dust in the Yellow Sea, China. Journal of Geophysical Research: Atmospheres, 117(D17): D17304
Shi Jinhui, Zhang Jing, Gao Huiwang, et al. 2013. Concentration, solubility and deposition flux of atmospheric particulate nutrients over the Yellow Sea. Deep-Sea Research Part II: Topical Studies in Oceanography, 97: 43–50, doi: 10.1016/j.dsr2.2013.05.004
Song Jinming, Wang Qidong, Zhang Run, et al. 2019. Main progress on chemical oceanography in China over the past 70 years. Haiyang Xuebao (in Chinese), 41(10): 65–80
Sterner R W, Andersen T, Elser J J, et al. 2008. Scale-dependent carbon: nitrogen: phosphorus seston stoichiometry in marine and freshwaters. Limnology and Oceanography, 53(3): 1169–1180, doi: 10.4319/lo.2008.53.3.1169
Suikkanen S, Laamanen M, Huttunen M. 2007. Long-term changes in summer phytoplankton communities of the open northern Baltic Sea. Estuarine, Coastal and Shelf Science, 71(3–4): 580–592
Tian R C, Hu F X, Martin J M. 1993. Summer nutrient fronts in the Changjiang (Yantze River) Estuary. Estuarine, Coastal and Shelf Science, 37(1): 27–41
Wang Jun. 2001. Study on phytoplankton in the Yellow Sea in Spring. Marine Fisheries Research (in Chinese), 22(1): 56–61
Wang Baodong. 2003. Nutrient distributions and their limitation on phytoplankton in the Yellow Sea and the East China Sea. Chinese Journal of Applied Ecology (in Chinese), 14(7): 1122–1126
Wang Wei, Liu Hui, Li Yongqi, et al. 2014. Development and management of land reclamation in China. Ocean & Coastal Management, 102(Part B): 415–425
Wang Yujue, Liu Dongyan, Xiao Wupeng, et al. 2021a. Coastal eutrophication in China: trend, sources, and ecological effects. Harmful Algae, 107: 102058, doi: 10.1016/j.hal.2021.102058
Wang Baodong, Wang Xiulin, Zhan Run. 2003. Nutrient conditions in the Yellow Sea and the East China Sea. Estuarine, Coastal and Shelf Science, 58(1): 127–136
Wang Baodong, Xin Ming, Wei Qinsheng, et al. 2018. A historical overview of coastal eutrophication in the China Seas. Marine Pollution Bulletin, 136: 394–400, doi: 10.1016/j.marpolbul.2018.09.044
Wang Junjie, Yu Zhigang, Wei Qinsheng, et al. 2019. Long-term nutrient variations in the Bohai Sea over the past 40 years. Journal of Geophysical Research: Oceans, 124(1): 703–722, doi: 10.1029/2018JC014765
Wang Dazhi, Zhang Shufeng, Zhang Hao, et al. 2021b. Omics study of harmful algal blooms in China: current status, challenges, and future perspectives. Harmful Algae, 107: 102079, doi: 10.1016/j.hal.2021.102079
Wasmund N, Nausch G, Matthäus W. 1998. Phytoplankton spring blooms in the southern Baltic Sea—spatio-temporal development and long-term trends. Journal of Plankton Research, 20(6): 1099–1117, doi: 10.1093/plankt/20.6.1099
Wei Qinsheng, Yao Qingzhen, Wang Baodong, et al. 2015. Long-term variation of nutrients in the southern Yellow Sea. Continental Shelf Research, 111: 184–196, doi: 10.1016/j.csr.2015.08.003
Xiao Xi, Agustí S, Pan Yaoru, et al. 2019. Warming amplifies the frequency of harmful algal blooms with eutrophication in Chinese Coastal Waters. Environmental Science & Technology, 53(22): 13031–13041
Xiao Wupeng, Liu Xin, Irwin A J, et al. 2018. Warming and eutrophication combine to restructure diatoms and dinoflagellates. Water Research, 128: 206–216, doi: 10.1016/j.watres.2017.10.051
Xiao Jie, Wang Zongling, Liu Dongyan, et al. 2021. Harmful macroalgal blooms (HMBs) in China's coastal water: green and golden tides. Harmful Algae, 107: 102061, doi: 10.1016/j.hal.2021.102061
Xin Ming, Wang Baodong, Xie Linping, et al. 2019. Long-term changes in nutrient regimes and their ecological effects in the Bohai Sea, China. Marine Pollution Bulletin, 146: 562–573, doi: 10.1016/j.marpolbul.2019.07.011
Xu Zongjun. 2007. The effect of atmosphere nitrogen deposition on phytoplankton community and marine primary productivity in Yellow Sea and South China Sea in spring (in Chinese)[dissertation]. Qingdao: Ocean University of China
Yan Weijin, Zhang Shen, Sun Pu, et al. 2003. How do nitrogen inputs to the Changjiang basin impact the Changjiang River nitrate: a temporal analysis for 1968–1997. Global Biogeochemical Cycles, 17(4): 1091
Yang Yang. 2016. Seasonal and interannual changes of net phytoplankton biomass and community structure in the South Yellow Sea (in Chinese)[dissertation]. Qingdao: Institute of Oceanology, Chinese Academy of Science
Yang Fuxia, Wei Qinsheng, Chen Hongtao, et al. 2018. Long-term variations and influence factors of nutrients in the western North Yellow Sea, China. Marine Pollution Bulletin, 135: 1026–1034, doi: 10.1016/j.marpolbul.2018.08.034
Zhang J, Chen S Z, Yu Z G, et al. 1999. Factors influencing changes in rainwater composition from urban versus remote regions of the Yellow Sea. Journal of Geophysical Research: Atmospheres, 104(D1): 1631–1644, doi: 10.1029/1998JD100019
Zhang Chao, Gao Huiwang, Yao Xiaohong, et al. 2018. Phytoplankton growth response to Asian dust addition in the Northwest Pacific Ocean versus the Yellow Sea. Biogeosciences, 15(3): 749–765, doi: 10.5194/bg-15-749-2018
Zhang Jing, Liu Minguang. 1994. Observations on nutrient elements and sulphate in atmospheric wet depositions over the Northwest Pacific coastal oceans—Yellow Sea. Marine Chemistry, 47(2): 173–189, doi: 10.1016/0304-4203(94)90107-4
Zhang Shasha, Xu Hangzhou, Zhang Yanfang, et al. 2020. Variation of phytoplankton communities and their driving factors along a disturbed temperate river-to-sea ecosystem. Ecological Indicators, 118: 106776, doi: 10.1016/j.ecolind.2020.106776
Zhang Chao, Yao Xiaohong, Chen Ying, et al. 2019. Variations in the phytoplankton community due to dust additions in eutrophication, LNLC and HNLC oceanic zones. Science of the Total Environment, 669: 282–293, doi: 10.1016/j.scitotenv.2019.02.068
Zheng Liwen, Zhai Weidong. 2021. Excess nitrogen in the Bohai and Yellow seas, China: distribution, trends, and source apportionment. Science of the Total Environment, 794: 148702, doi: 10.1016/j.scitotenv.2021.148702
Zhou Mingjiang, Shen Zhiliang, Yu Rencheng. 2008. Responses of a coastal phytoplankton community to increased nutrient input from the Changjiang (Yangtze) River. Continental Shelf Research, 28(12): 1483–1489, doi: 10.1016/j.csr.2007.02.009
