Acta Oceanologica Sinica | 2022, 41(12): 105-114
• Marine Biology •
Applying a fish expert system for ranking the biological effects of polycyclic aromatic hydrocarbons on the rockfish Sebastiscus marmoratus in the Maowei Sea, China
Full
Ronghui Zheng1, Chao Fang1, 2, Fukun Hong1, Weiming Kuang3, Yulu Jiang1, 4, Jincan Chen1, 4, Yusheng Zhang1, Jun Bo1, *
Affiliations
  • 1 Laboratory of Marine Biology and Ecology, Third Institute of Oceanography, Ministry of Natural Resources, Xiamen 361005, China
  • 2 Observation and Research Station of Coastal Wetland Ecosystem in Beibu Gulf, Ministry of Natural Resources, Beihai 536015, China
  • 3 Laboratory of Marine Ecological Environment Monitoring Pre-Warning Technology, Third Institute of Oceanography, Ministry of Natural Resources, Xiamen 361005, China
  • 4 State Key Laboratory of Marine Environmental Science (Xiamen University), Xiamen 361102, China
Published: 2022-12-25 doi: 10.1007/s13131-022-2033-1
Outline
收藏切换

Polycyclic aromatic hydrocarbons (PAHs) pollution, particularly in coastal environments, is a global concern. In this study, the biomonitoring and ranking effects of PAHs in the rockfish Sebastiscus marmoratus were determined in the Maowei Sea, China. The results showed that the concentrations of the 16 priority PAHs detected in the surface seawater were moderate compared with those in other coastal areas worldwide, and the possible sources were rapid industrialization and urbanization combined with atmospheric deposition and runoff. Nested analysis of variance (ANOVA) suggested significant differences in the hepatic ethoxyresorufin-O-deethylase (EROD) activities and phenanthrene-derived metabolites in bile between the port area and the oyster farming area. The fish expert system (FES) was applied to evaluate the biological effects of PAHs on fish. The FES data demonstrated that the biological effect levels of Site S1 (level III, medium stress) were higher than those of the other sampling sites (level II, low stress).

field monitoring  /  integrated biomarker response  /  fish expert system  /  EROD  /  fluorescent aromatic compounds  /  nested ANOVA
Ronghui Zheng, Chao Fang, Fukun Hong, Weiming Kuang, Yulu Jiang, Jincan Chen, Yusheng Zhang, Jun Bo. Applying a fish expert system for ranking the biological effects of polycyclic aromatic hydrocarbons on the rockfish Sebastiscus marmoratus in the Maowei Sea, China[J]. Acta Oceanologica Sinica, 2022 , 41 (12) : 105 -114 . DOI: 10.1007/s13131-022-2033-1
Full Text
Less
1 Introduction
Less
Coastal areas are the most developed regions and typically have high biological diversity and provide essential ecosystem services to human settlements (Barbier et al., 2011; Fang et al., 2020). However, the human population growth along coastal areas increases chemical discharges from industrial, agricultural, and domestic activities, leading to a potential threat to biota. Therefore, it is important to develop and apply methodologies that enable assessment and monitoring of the exposure and effects of these chemicals on local biota (Amiard-Triquet and Rainbow, 2009).
The Beibu Gulf has become one of the most important economic development areas in China due to its bountiful resources to both China and Southeast Asian countries. As a semienclosed shallow inland bay, the Maowei Sea is located at the top of Qinzhou Bay in the Beibu Gulf and receives freshwater discharges from the Qinjiang River, the Maoling River, and the Dalan River. The Maowei Sea covers an area of approximately 135 km2, with an average bathymetric water depth of less than 10 m. The Maowei Sea is one of the most important agricultural regions for oyster nurseries (approximately 23.4 km2) in southern China (Meng et al., 2016; Wang et al., 2017). The last decade has witnessed the emergence of cement, petrochemical, power, pharmaceutical, and paper factories in the coastal areas of Qinzhou, which may have resulted in the frequent occurrence of polycyclic aromatic hydrocarbons (PAHs), chlorinated PAHs (ClPAHs), polychlorinated biphenyls (PCBs), heavy metals, phthalic acid esters (PAEs), chlorobenzene compounds (CBs) and microplastic pollution in recent years (Li et al., 2015b, 2019; Liao et al., 2015, 2019; Tian et al., 2014; Wang et al., 2017; Zhang et al., 2014; Zhu et al., 2021). Thus, studies on the biological effects of pollutants in marine organisms in the Maowei Sea are urgently needed. However, detailed information on the biological effects of pollutants in the Maowei Sea is lacking.
To address this gap in the literature, we developed a new fish expert system (FES) following modifications of the expert system that have been previously developed for marine mussels (Dagnino et al., 2007) and earthworms (Sforzini et al., 2011), and the integrated biomarker response version 2 (IBRv2) (Sanchez et al., 2013), for evaluating the biological effects of endocrine-disrupting compounds (EDCs) on the male rockfish Sebastiscus marmoratus in the Maowei Sea (Zheng et al., 2021). According to the annual reports of the Bulletin of Marine Ecology and Environment Status of China, petroleum hydrocarbon pollution has been a major issue for a long time (Ministry of Ecology and Environment of the People’s Republic of China, 2021). PAHs are regarded as the most toxic chemical component of petroleum. The sediments in the Maowei Sea are regarded as an important reservoir for PAHs but with a low ecological risk (Li et al., 2015b). However, the water quality parameters of petroleum in some sites in the Maowei Sea only meet the requirement of Ⅱwater quality standard in China (GB 3097−1997) (State Environmental Protection Administration, 2004), and the environmental situation here has not been significantly improved in comparison with the past few years (Li et al., 2015a). Thus, knowledge of the biological effects of PAHs is essential for a better understanding of the ecological risk of PAHs in the Maowei Sea.
PAHs are a group of organic contaminants containing two or more fused benzene rings in various structural configurations and are typically characterized by low water solubility and high lipid solubility (Gachanja and Maritim, 2019), which are produced from a variety of anthropogenic and natural sources. Anthropogenic PAH sources include coal tar, burning of fossil fuel, wood, garbage, used lubricating oil and oil filters (Kaushik and Haritash, 2006). Natural sources are forest and rangeland fires, volcanic eruptions, oil seeps, and exudates from trees (Kaushik and Haritash, 2006; Dudhagara et al., 2016; Thompson et al., 2017). Consumption of oil products comprises the single largest inputs from land-based sources to coastal waters (National Research Council (US) Committee, 2003).
In general, PAHs have been associated with teratogenic, carcinogenic, and mutagenic effects in living organisms (Hąc-Wydro et al., 2019; Santos et al., 2019). Field and laboratory studies with fishes from marine, freshwater, temperate and tropical environments have been extensively used to assess and understand the mechanisms of single and mixed PAH toxicity (Payne et al., 2003). The primary biotransformation system for detoxifying/bioactivating PAHs is cytochrome P450 (CYP450) (Aas et al., 2000; Jewett et al., 2002; Lee and Anderson, 2005; Uno et al., 2012). The most studied phase I enzyme in fish is CYP1A, and the expression of cyp1a as well as its catalytic activity, measured by ethoxyresorufin-O-deethylase (EROD) activity, are commonly used as biomarkers for exposure to organic compounds such as dioxins, PAHs, PCBs, organochlorine pesticides (OCPs), petroleum compounds, and pesticides (Zhang et al., 2011; Koglin et al., 2016; Bo et al., 2017). PAHs are rapidly metabolized in fish and metabolites excreted into the bile (Balk et al., 1984; Stein et al., 1984), and the metabolite content in bile is a widely used technique to characterize the exposure of organisms to PAHs (Koglin et al., 2016; Pampanin et al., 2016; Rey-Salgueiro et al., 2011), especially for short-term pollution of PAHs (1–2 weeks) (Hosnedl et al., 2003).
Sebastiscus marmoratus is an economically important species for farming and sport fisheries in Asian countries (Bo et al., 2019) and is indigenous to the nearshore waters of the West Pacific Ocean, including China, Japan, and Korea (Bo et al., 2017). It is a small benthic fish (approximately 25 g body weight for an adult), with a wide geographical distribution, restricted home range and high disease resistance, easy to culture in an aquarium and exhibits uniform growth. These attributes render it a good marine sentinel species in environmental monitoring and ecotoxicological studies (Bo et al., 2017; He et al., 2011; Zhang et al., 2013; Zheng et al., 2019, 2021).
In the present study, we assessed the biological effects of PAHs on S. marmoratus in the Maowei Sea. More specifically, the aims were (1) to evaluate the levels and sources of PAHs in the Maowei Sea; (2) to determine a battery of selected physiological, molecular, and cellular biomarkers of S. marmoratus through a field monitoring experiment; and (3) to apply FES to rank the biological effects of PAHs.
2 Materials and methods
Less
2.1 Fish
Adult S. marmoratus were obtained from the Qinzhou Bay, Guangxi, China. All animal procedures were conducted in accordance with the animal care and use guidelines of the China Council on Animal Care (Regulations for the Administration of Affairs Concerning Experimental Animals approved by Decree No. 2 of the State Science and Technology Commission on November 14, 1988). The mean weight and length of the fish were (24.59±0.65) g and (12.09±0.10) cm (mean±SE). The fish were acclimatized at a temperature of (20±1)℃, salinity of (28±1) and pH (8.0±0.1) for 2 weeks before the experiment in a 3-ton cement tank containing seawater treated with sand filtration; kept on a natural daylight cycle; and fed commercial fish bait at 1% of their body weight (BW) daily during the acclimation period.
2.2 Field monitoring

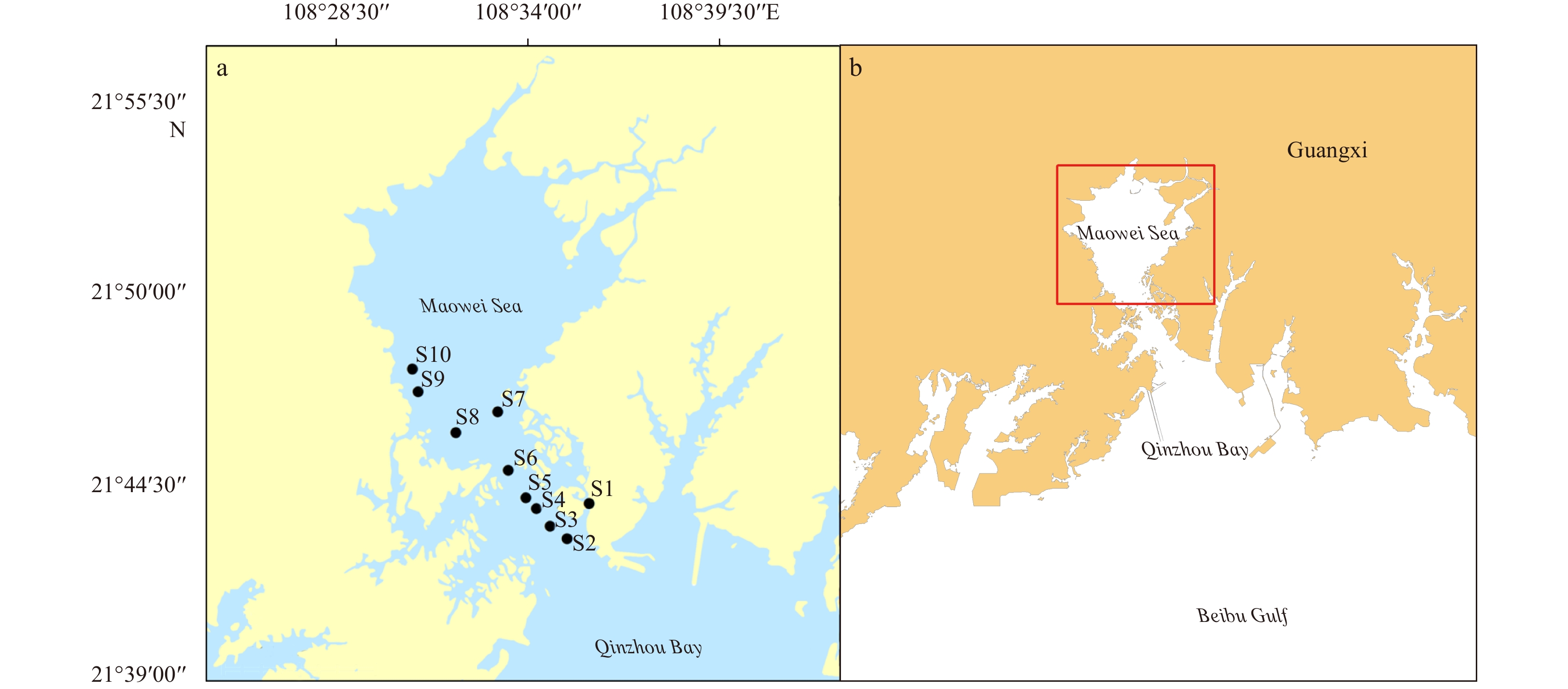

To assess the effects of PAHs on a battery of selected biomarkers, fish were caged in the Maowei Sea at ten sites in April 2017 (Fig. 1). The sites were divided into two areas based on different industrial structures and human activities: the port area (four sites including S1–S4) with maritime and land transportation activities and the oyster farming area (six sites including S5–S10) for aquaculture and oyster nursery. S7, located at the outer edge of the oyster farming area, relatively far from industrial and mariculture activities, was selected as a reference site.
Sebastiscus marmoratus were transported from the laboratory to the Maowei Sea in large plastic buckets (50 L) containing oxygenated water. Once at the field sites, ten fish were randomly selected and placed into one cage per site. There were ten replicates (one fish per replicate) per site. Polyethylene baskets (0.6 m×0.3 m×0.5 m) were used, with regular-sized holes to allow water circulation through the cage, and the basket was wrapped with a net (1.0 m in length). The cages were completely immersed under the surface water at a depth of approximately 1 m and firmly anchored on the monitoring buoys. The fish were placed at each site for two weeks. No apparent injury or mortality was observed during the field study.
Following an exposure period of two weeks, the fish were retrieved and rapidly transported back to the laboratory for sampling. The fish were anesthetized in seawater containing MS-222 (110 mg/mL, Sigma-Aldrich, Burlington, USA) and subsequently weighed and measured. Freshly dissected liver samples were immediately flash-frozen in liquid nitrogen and then stored at −80℃. Samples were collected between 8:00 a.m. and 11:00 a.m. to minimize diurnal variability.
2.3 Analyses of PAH concentrations in seawater samples
The PAH concentrations in the surface seawater were analyzed by gas chromatography-mass spectrometry (GC-MS) as described in our previous study (Bo et al., 2017), including 16 priority PAHs defined by the US Environmental Protection Agency (EPA) (Table 1). In addition, the concentrations of seven indicator PCB congeners (PCB28, PCB52, PCB101, PCB118, PCB138, PCB153, and PCB180) suggested by the International Committee for the Exploration of the Sea (ICES), hexachlorocyclohexanes (HCHs) (α-, β-, γ-, and δ-HCH), and dichlorodiphenyltrichloroethanes (DDTs) (p,p'-DDE, p,p'-DDD, o,p'-DDT, and p,p'-DDT) in the surface seawater were measured to better understand the potential impact on the fish (Bo et al., 2017). The detection limits of PAHs, PCBs, HCHs and DDTs all are 1 ng/L.
2.4 Source identification of PAHs in seawater samples
To identify the sources of PAHs, the different ring numbers of PAHs and the ratios of anthracene (Ant), phenanthrene (Phe), benzo(a)anthracene (BaA), chrysene (Chr), fluoranthene (Flt), and pyrene (Pyr) levels were quantified and plotted as follows: Ant/(Ant+Phe) and BaA/(BaA+Chr) vs. Fla/(Fla+Pyr) (Yuan et al., 2016).
2.5 Analyses of biomarker responses
2.5.1 Physiological indexes
The physiological indexes comprising the hepatosomatic index (HSI) and the gonadosomatic index (GSI) of the fish were measured. Each index was calculated as described in previous studies (Lincoln and Scott, 1984; Bolger and Connolly, 1989).
2.5.2 Hepatic EROD activity
Homogenate of the individual liver was prepared in 0.1 mol/L cold phosphate buffer (pH=7.4, w:v=1:5; w is the sample weight in g, and v is the buffer volume in mL) containing 150 mmol/L KCl using a tissue grinder in an ice bath (n=10). The homogenates were centrifuged at 10 000×g for 20 min at 4℃ (Hettich Universal 320R, Kirchlengern, Germany), and the resultant supernatants were collected. EROD activity was determined in two technical replicates using a fluorometric assay as described in our previous study (Zhang et al., 2011) at an excitation wavelength of 530 nm and an emission wavelength of 585 nm by an Infinite M1000 microplate reader (TECAN, Grödig, Austria). The total protein contents of supernatants were measured at 595 nm using Bradford’s reagent and bovine serum albumin as a standard curve.
2.5.3 Biliary fluorescent aromatic compounds (FACs)
The bile was removed from the individual gallbladder and diluted in absolute ethanol (Sigma Aldrich, Burlington, USA) at a ratio of 1:2 000 (n=10). The assays were conducted on a microplate reader (TECAN Infinite M1000, Grödig, Austria) and determined in two technical replicates by four fixed wavelength fluorescence (FF) analyses of bile. Naphthalene, pyrene, and benzo[a]pyrene-derived metabolites were detected at emission/excitation wavelength spectra of 290 nm/335 nm, 341 nm/383 nm, and 380 nm/430 nm, respectively (Aas et al., 2000). Phenanthrene type-derived metabolites were detected at 256 nm/380 nm, according to Roy et al. (2003).
2.6 Application of fish expert system
The FES was used to evaluate the biological effects of PAHs on the fish, according to a previous report (Zheng et al., 2021). The final estimation of stress level in fish was mainly based on (1) the level of the biological organization affected by the stress syndrome (i.e., molecular/cellular, tissue and organism); (2) the response profile (i.e., increasing, decreasing, bell-shaped) of each selected biomarker; and (3) the magnitude of the alteration of the IBRv2 values based on the selected biomarkers.
2.6.1 Determination of the biological effect index
The FES determines a biological effect index (BEI), ranking biological effects according to a 5-tier scale, from level I (no stress) to level V (pathological stress). The stress level is attributed by considering the level of the biological organization affected by the stress syndrome and by comparing the IBRv2 values (see Section 2.6.2) with the modified alteration levels (see Section 2.6.3): first, if the fish show alterations at the organism level, then the BEI was ranked as level V (pathological stress); second, if the fish do not show alterations at the organism level but at the tissue level, then the BEI was ranked as level IV (high stress); third, if the fish do not show alterations at the tissue/organism level, but only at the molecular/cellular level, then the BEI was ranked as level I (no stress), level II (low stress) and level III (medium stress) by comparing the IBRv2 values (see Section 2.6.2) with the modified alteration levels (see Section 2.6.3).
2.6.2 Calculating the IBRv2 of the sensitive biomarkers
The IBRv2 calculation followed the description in our previous study (Zheng et al., 2021).
2.6.3 Determination of the alteration level of sensitive biomarkers
The biomarker data were converted into one of three alteration levels (AL) (from NA, i.e., no alteration, to ++/−−, i.e., moderate alteration), following modification and refinement of the alteration levels and biological relevance that had been developed previously for marine mussels (Dagnino et al., 2007) (Table 2). Critical values (CV), representing varying degrees of severity from normal reference responses, were calculated according to Wan et al. (2018) and Zheng et al. (2021) as follows:
$ {\rm{CV}}_{{n}} =m_{\rm c}\times \beta_{ n}, $
where mc is the data of the selected biomarkers in the control; βn is threshold value of alteration level for the selected biomarker response, which is selected according to the alteration factor (AF) in Table 2. If the selected biomarker shows a decreasing response, then βn is 0.80 and 0.50 in sequence; otherwise, βn is 1.20 and 2.00. Thus, calculating the alteration level based on the CVn of the sensitive biomarkers is the same as that of IBRv2. The modified alteration level was then divided into three categories that were the IBRv2 of each AL.
2.7 Statistical analyses
Statistical analyses were performed using SPSS 19.0 for Windows software (SPSS Inc., Chicago, IL, USA). The results are reported as the mean±standard error (SE). The data were first tested for normality (Shapiro-Wiks) and homogeneity (Levene’s test). To identify significant differences in the data between the exposed and reference sites, one-way analysis of variance (ANOVA) was assessed, and a post hoc comparison was applied to test the significance of each data set (Student-Newman-Keuls’s test for homogenous data or Dunnett’s T3 test for nonhomogenous data) (Brink et al., 2012). In the case where data sets did not meet assumptions of normality, Kruskal-Wallis ANOVA was used (Wang and Riffel, 2011). Nested ANOVA analyses were performed for each biomarker to test the null hypothesis that means do not differ between the port area and the oyster farming area. Pearson’s correlation analysis was applied to compare relationships between the IBRv2 index and chemical variables. For all analyses, the significance level was noted when p<0.05.
3 Results
Less
3.1 Chemical concentrations in surface seawater
The total concentrations of sixteen PAHs (Ʃ16PAHs) in the water phase ranged from 33.50 ng/L (S3) to 48.49 ng/L (S10) with an average of (45.10±5.48) ng/L (Table 1). The individual PAH congener with the highest concentration in the seawater was naphthalene (Nap) at all of the sampling sites. The following seven individual congeners were not detectable at all sites: acenaphthylene (Acy), benzo(b)fluoranthene (BbF), benzo(k)fluoranthene (BkF), benzo(a)pyrene (BaP), indeno(1,2,3-cd)pyrene (InP), dibenz(a,h)anthracene (DiB), and benzo(g,h,i)perylene (BgP). The compositions of the PAHs in the seawater according to the different ring numbers are presented in Fig. 2. The 2- to 3-ring PAHs were dominant in the seawater from each site, which accounted for 75%–85% of the total PAHs (Table 1, Fig. 2).

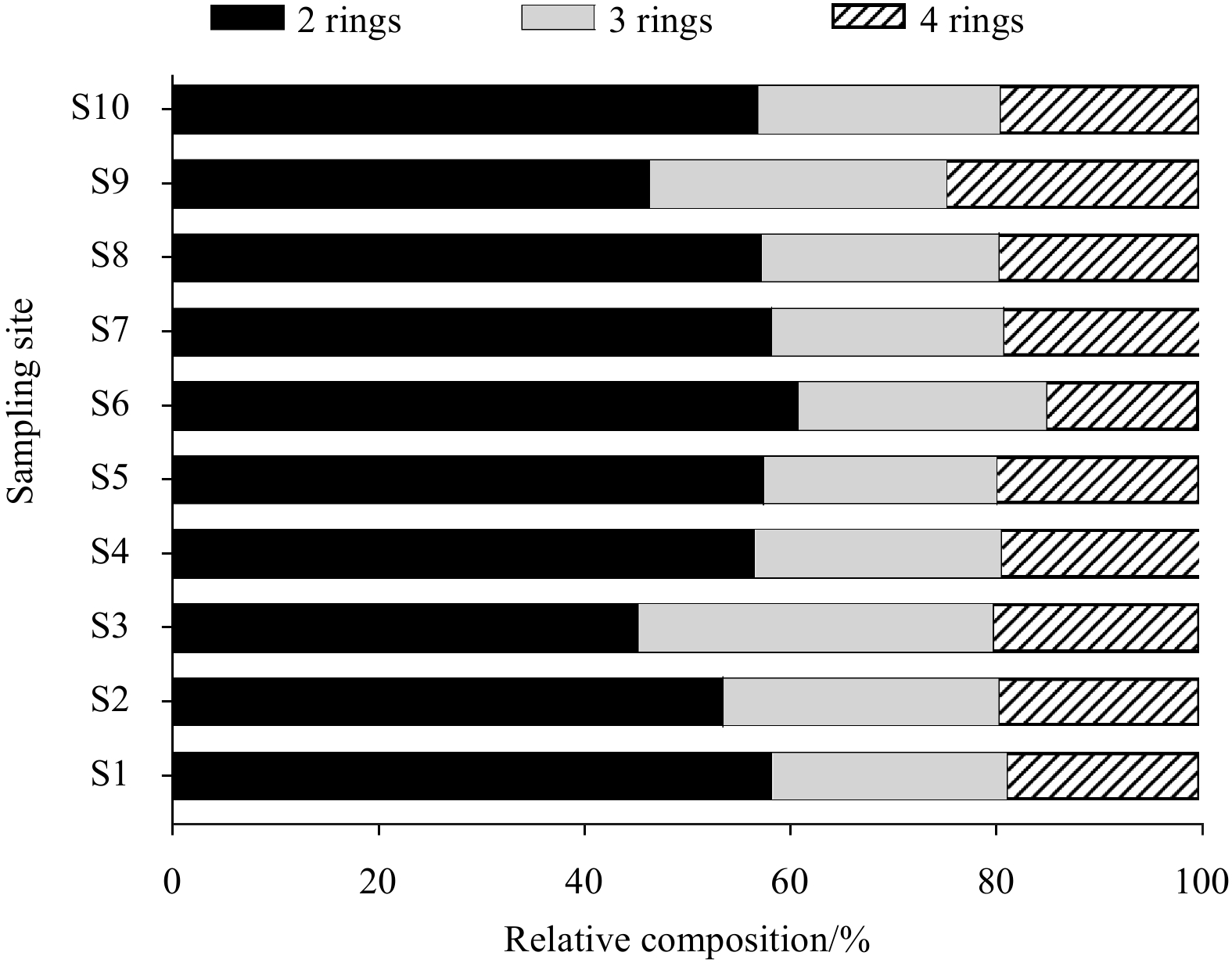

Table 3 lists the indexes of the molecular diagnostic ratios based on ratios of selected PAHs in the seawater from the Maowei Sea. The values of Ant/(Ant+Phe) were higher than 0.10 at all sites. The values of BaA/(BaA+Chr) were higher than 0.35 at all sites. The values of Fla/(Fla+Pyr) were higher than 0.50 at all sites.
The HCHs (sum of α-, β-, γ-, and δ- HCH), DDTs (sum of 2,4′-DDT, 4,4′-DDT, 4,4′-DDD, and 4,4′-DDE) and 7 indicator PCB congeners (PCB28, PCB52, PCB101, PCB118, PCB138, PCB153, and PCB180) were nondetectable in the present study.
3.2 Variations in physiological indexes
There were no significant differences in the two physiological indexes of HSI and GSI between the fish caged at the nine sites and the reference site (S7) (Table S1).
3.3 Variations of biomarker responses

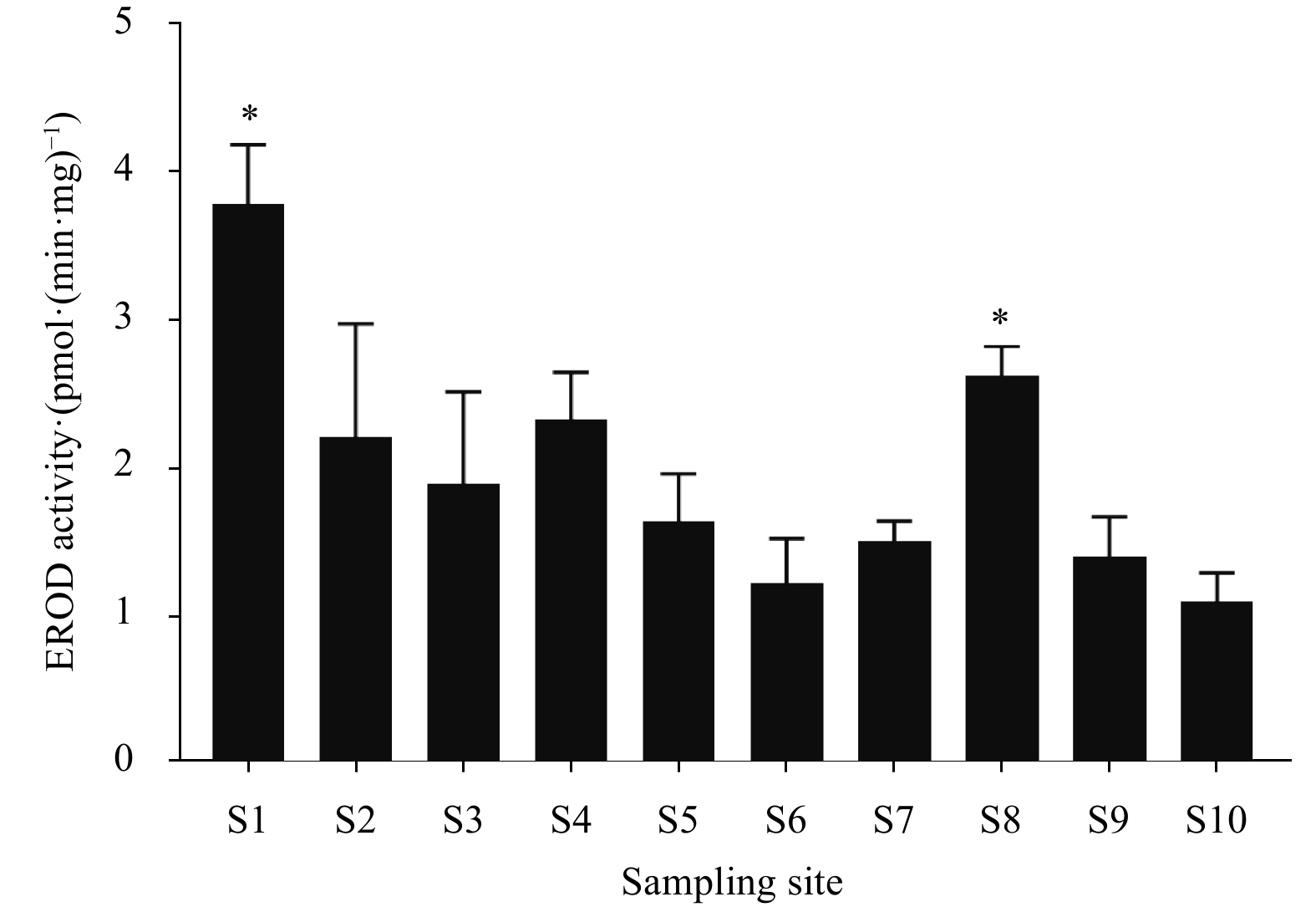

The EROD activities in S. marmoratus liver were significantly induced at S1 (2.51-fold) and S8 (1.74-fold) compared with those from S7 (p<0.05) (Fig. 3). There was no significant difference in naphthalene or benzo[a]pyrene-derived metabolites in bile across the sampling sites (Fig. 4). In contrast, the concentrations of pyrene and phenanthrene-derived metabolites in bile were obviously higher at S1 (1.38-fold and 1.42-fold, respectively) than at S7 (p<0.05) (Fig. 4). The nested ANOVA model comparing biomarkers between the port area and the oyster farming area indicated significant differences in EROD activities and phenanthrene type-derived metabolites (Table 4).
3.4 Assessments of biological effects

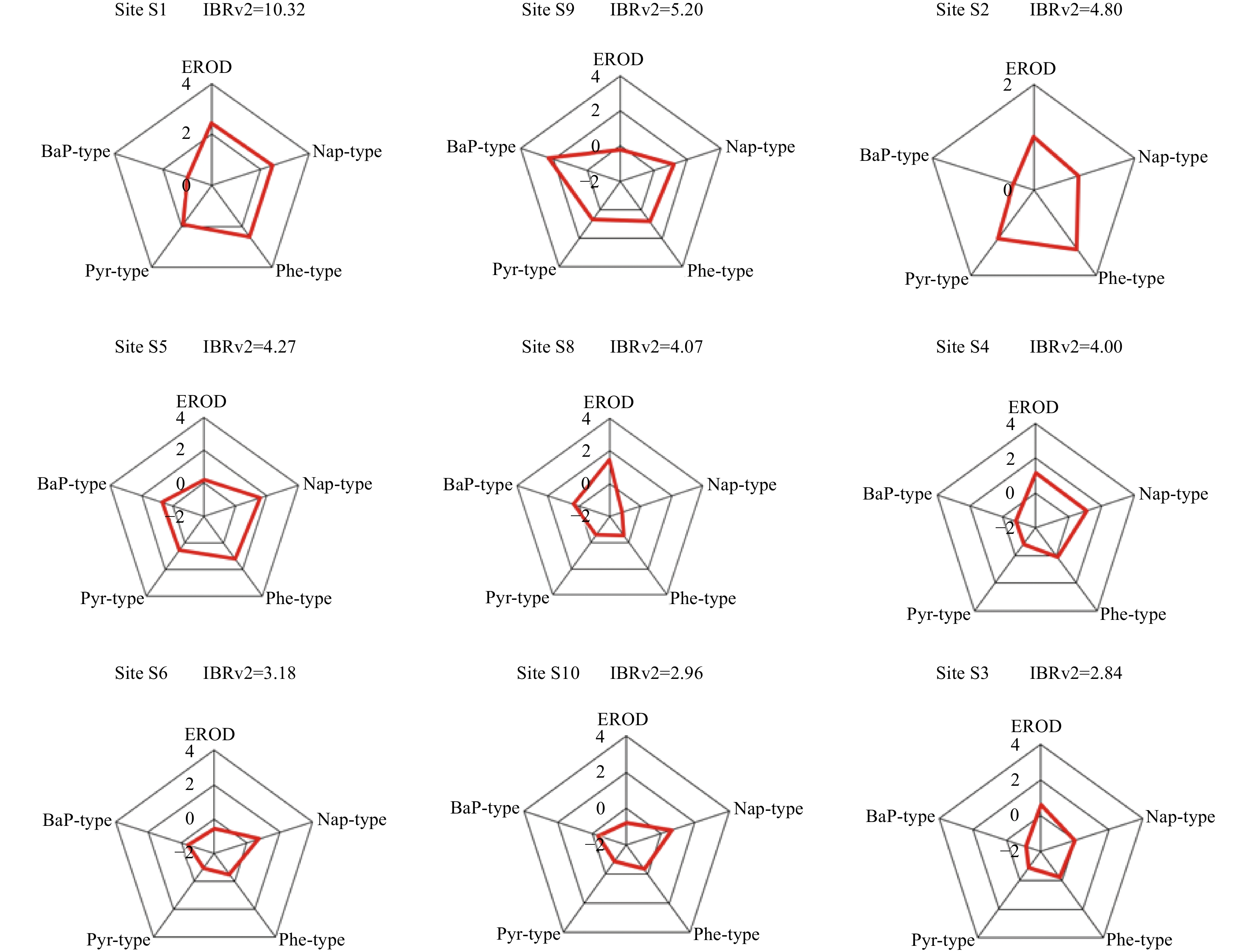

To assess the biological effects of PAHs on S. marmoratus, the data were processed as described in Section 2.6. First, the response profile of the biomarkers and the level of biological organization were determined according to a previous study (Hegde et al., 2019; McDaniel et al., 2008; Schlenk et al., 2008; Aas et al., 2000) (Table 5). Second, alterations at the tissue/organism level were not found in fish from any sites; alterations were only found at the molecular/cellular level. Therefore, the BEI ranges from level I (no stress) to level III (medium stress). Third, the alteration levels based on the CV of the sensitive molecular/cellular biomarkers were calculated to be the same as those in IBRv2 (Table 6). Finally, by comparing the IBRv2 index of each site (Fig. 5) with the threshold values of the BEI (Table 6), the BEIs of Sites S2, S3, S4, S5, S6, S8, S9, and S10 were all ranked as level II (low stress), while the BEI of Site S1 was ranked as level III (medium stress).
4 Discussion
Less
4.1 Occurrence and sources of PAHs in the Maowei Sea
The concentrations of Ʃ16PAHs in surface seawater varied from 33.50 ng/L to 48.49 ng/L in the present study, which was moderate compared with the data from Kongsfjorden (Ʃ16PAHs: 33.4–79.8 ng/L), Arctic (Li et al., 2020), the northern Gulf of Mexico (Ʃ43PAHs: 40 ng/L) (Adhikari et al., 2015), the northeastern Mediterranean (Ʃ15PAHs: 2.4–25.9 ng/L) (Guitart et al., 2010), a coastal area of Dalian (Ʃ9PAHs: 50.5–74.7 ng/L), China (Zhang et al., 2020), the East China Sea (Ʃ15PAHs: 54 ng/L) (Ya et al., 2017), and the western Taiwan Strait (Ʃ16PAHs: 12.3–58.0 ng/L), China (Wu et al., 2011), but one order of magnitude lower than those in the Thane Creek (Ʃ16PAHs: 337–706 ng/L), India (Tiwari et al., 2017), the Persian Gulf (Ʃ30PAHs: 70–884 ng/L), Iran (Jafarabadi et al., 2017), Dalian Coast (Ʃ46PAHs: 136–621 ng/L in winter; 65–1 130 ng/L in summer), China (Hong et al., 2016), and Hai River Estuary (Ʃ15PAHs: 1 065 ng/L), China (Yan et al., 2016).
PAHs in the environment are derived from natural processes and anthropogenic activities. There are two types of anthropogenic sources of PAHs: pyrogenic and petrogenic. Some PAH pair ratios, including Ant/(Ant+Phe), BaA/(BaA+Chr), and Fla/(Fla+Pyr), have been used as distinct chemical tracers to infer possible sources of PAHs in environmental samples (Arias et al., 2010; Dsikowitzky et al., 2011). In this study, analysis based on the PAH diagnostic ratio showed that the PAHs in seawater from all the sites were mainly derived from pyrogenic sources, especially the combustion of grass, wood, and coal, which are consistent with previous findings in this region (Li et al., 2015b; Ma et al., 2017; Fang et al., 2020). In addition, combustion is an important method for the disposal of municipal solid waste along the Maowei Sea, which could lead to the discharge of large amounts of low molecular weight (LMW) PAHs, particularly 3-ring PAHs (Peng et al., 2016). Thus, rapid industrialization and urbanization combined with atmospheric deposition and runoff were responsible for contamination with PAHs in this region (Sun et al., 2016; Fang et al., 2020).
4.2 Biomarkers of PAHs
Both IBRv2 and BEI are calculated based on biomarkers; therefore, it is critical to select sensitive biomarkers for FES. In the present study, a battery of sensitive biomarkers at different levels was employed to evaluate the biological effects of PAHs on the S. marmoratus.
EROD activity, a catalytic measurement of cytochrome P4501A induction, is generally involved in the binding of contaminants to the aryl hydrocarbon receptor (AhR). PAHs have different affinities for AhR and, therefore, different potencies to induce EROD, and unsubstituted Nap and Phe have negligible potency to induce EROD, whereas Chr and BaP are significant EROD inducers (Barron et al., 2004; Pathiratne and Hemachandra, 2010). The data in this study indicated positive Pearson correlation coefficients (p<0.05) between hepatic EROD activity and phenanthrene type-derived metabolites in bile (r=0.63). It is likely that the elevated concentrations of phenanthrene type-derived metabolites in fish at S1 contributed to EROD induction (Figs 3 and 4). These findings are consistent with a recent report on baseline information regarding the contamination and effects of PAHs in four important estuaries along the northeastern Brazilian coast (Silva et al., 2021) and other reports (Dabrowska et al., 2014; Freire et al., 2020). However, it is important to note that neither EROD activity nor FACs were associated with the LMW, high molecular weight, or total PAH concentrations in the surface seawater (data not shown). It should be considered that the bioaccumulation of pollutants in aquatic organisms can lead to toxic effects (van der Oost et al., 2003; D’Costa et al., 2017), thereby explaining the strong induction of biomarkers.
The nested ANOVA model comparing biomarkers between the port area and the oyster farming area indicates that the oyster farming area is less contaminated by PAHs. However, the area is suffering increasing occupation and exploration by touristic activities that include leisure boat traffic. The Maowei Sea is an important region for oyster farming in southern China, and continuous monitoring of PAH pollution is recommended in this region.
4.3 Fish expert system
To rank the biological effects of PAHs on S. marmoratus in the Maowei Sea, the responses of a specific suite of biomarkers of exposure or effect were submitted to the algorithm. The results demonstrated that the BEI level of S1 (level III, medium stress) in the port area was higher than that of the other sampling sites (level II, low stress). This result was verified by nested ANOVA analyses. The ranking of level III suggests a medium potential ecological risk in S1, which might be due to the frequent human activities around this site since this site is different from the reference site in terms of human activity. In particular, S1 is adjacent to poorly managed shipside and drainage pipes, which may have experienced PAH pollution from ship leakage, architectural emissions, and domestic sewage (Fig. S1). In contrast, the ranking of level II suggests a low potential ecological risk in the oyster farming area, which is consistent with previous reports in the Maowei Sea (Gu et al., 2018; Li et al., 2015b; Liu et al., 2019; Zheng et al., 2021). Our findings show that FES is an effective tool in environmental risk assessment studies of PAHs.
5 Conclusions
Less
The concentrations of Σ16PAHs in seawater in the present study were moderate compared to those found on other coasts worldwide. Pyrogenic sources played a key role in PAH pollution in the local coastal environment based on the diagnostic ratio analysis of specific PAHs. There are significant differences in the hepatic EROD activities and phenanthrene-derived metabolites in bile between the port area and the oyster farming area by nested ANOVA analyses. The biological effects may be related to PAHs, which are released from urban and industrial activities, especially in the port area. Additionally, the FES developed for integration and interpretation of biomarker data on S. marmoratus can objectively rank the level of PAH-induced biological effects. This system could facilitate the application of the multiple biomarker approach in ecological risk assessment and marine biomonitoring.
Funding
Less
  • The Scientific Research Foundation of the Third Institute of Oceanography, Ministry of Natural Resources under contract Nos 2015008, 2020014 and 2020017; the National Natural Science Foundation of China under contract No. 41977211; the National Key Research and Development Program of China under contract No. 2019YFD0901101; the National Program on Global Change and Air-Sea Interaction under contract No. GASI-02-SCS-YDsum.
References
Less
Aas E, Baussant T, Balk L, et al. 2000. PAH metabolites in bile, cytochrome P4501A and DNA adducts as environmental risk parameters for chronic oil exposure: a laboratory experiment with Atlantic cod. Aquatic Toxicology, 51(2): 241–258, doi: 10.1016/S0166-445X(00)00108-9
Adhikari P L, Maiti K, Overton E B. 2015. Vertical fluxes of polycyclic aromatic hydrocarbons in the northern Gulf of Mexico. Marine Chemistry, 168: 60–68, doi: 10.1016/j.marchem.2014.11.001
Amiard-Triquet C, Rainbow P S. 2009. Environmental Assessment of Estuarine Ecosystems: A Case Study. Boca Raton: CRC Press, 1–17
Arias A H, Vazquez-Botello A, Tombesi N, et al. 2010. Presence, distribution, and origins of polycyclic aromatic hydrocarbons (PAHs) in sediments from Bahía Blanca Estuary, Argentina. Environmental Monitoring and Assessment, 160(1–4): 301–314
Balk L, Meijer J, DePierre J W, et al. 1984. The uptake and distribution of [3H]benzo[a]pyrene in the northern pike (Esox lucius). Examination by whole-body autoradiography and scintillation counting. Toxicology and Applied Pharmacology, 74: 430–449, doi: 10.1016/0041-008X(84)90296-5
Barbier E B, Hacker S D, Kennedy C, et al. 2011. The value of estuarine and coastal ecosystem services. Ecological Monographs, 81(2): 169–193, doi: 10.1890/10-1510.1
Barron M G, Heintz R, Rice S D. 2004. Relative potency of PAHs and heterocycles as aryl hydrocarbon receptor agonists in fish. Marine Environmental Research, 58(2–5): 95–100
Bo Jun, Yang Ying, Zheng Ronghui, et al. 2019. Antimicrobial activity and mechanisms of multiple antimicrobial peptides isolated from rockfish Sebastiscus marmoratus. Fish & Shellfish Immunology, 93: 1007–1017
Bo Jun, Zheng Ronghui, Kuang Weiming, et al. 2017. The use of rockfish Sebastiscus marmoratus as a sentinel species to assess petroleum hydrocarbons pollution: a case study in Quanzhou Bay, China. Marine Pollution Bulletin, 124(2): 984–992, doi: 10.1016/j.marpolbul.2017.01.025
Bolger T, Connolly P L. 1989. The selection of suitable indices for the measurement and analysis of fish condition. Journal of Fish Biology, 34(2): 171–182, doi: 10.1111/j.1095-8649.1989.tb03300.x
Brink K, van Vuren J J, Bornman R. 2012. The lack of endocrine disrupting effects in catfish (Clarias gariepinus) from a DDT sprayed area. Ecotoxicology and Environmental Safety, 79: 256–263, doi: 10.1016/j.ecoenv.2012.01.006
Dabrowska H, Kopko O, Góra A, et al. 2014. DNA damage, EROD activity, condition indices, and their linkages with contaminants in female flounder (Platichthys flesus) from the southern Baltic Sea. Science of the Total Environment, 496: 488–498, doi: 10.1016/j.scitotenv.2014.07.079
Dagnino A, Allen J I, Moore M N, et al. 2007. Development of an expert system for the integration of biomarker responses in mussels into an animal health index. Biomarkers, 12(2): 155–172, doi: 10.1080/13547500601037171
D’Costa A, Shyama S K, Kumar M K P. 2017. Bioaccumulation of trace metals and total petroleum and genotoxicity responses in an edible fish population as indicators of marine pollution. Ecotoxicology and Environmental Safety, 142: 22–28, doi: 10.1016/j.ecoenv.2017.03.049
Dsikowitzky L, Nordhaus I, Jennerjahn T C, et al. 2011. Anthropogenic organic contaminants in water, sediments and benthic organisms of the mangrove-fringed Segara Anakan Lagoon, Java, Indonesia. Marine Pollution Bulletin, 62(4): 851–862, doi: 10.1016/j.marpolbul.2011.02.023
Dudhagara D R, Rajpara R K, Bhatt J K, et al. 2016. Distribution, sources and ecological risk assessment of PAHs in historically contaminated surface sediments at Bhavnagar Coast, Gujarat, India. Environmental Pollution, 213: 338–346, doi: 10.1016/j.envpol.2016.02.030
Fang Chao, Bo Jun, Zheng Ronghui, et al. 2020. Biomonitoring of aromatic hydrocarbons in clam Meretrix meretrix from an emerging urbanization area, and implications for human health. Ecotoxicology and Environmental Safety, 192: 110271, doi: 10.1016/j.ecoenv.2020.110271
Freire M M, Amorim L M F, Buch A C, et al. 2020. Polycyclic aromatic hydrocarbons in bays of the Rio de Janeiro state coast, SE-Brazil: effects on catfishes. Environmental Research, 181: 108959, doi: 10.1016/j.envres.2019.108959
Gachanja A N, Maritim P K. 2019. Polycyclic aromatic hydrocarbons determination. In: Worsfold P, Poole C, Townshend A, et al., eds. Encyclopedia of Analytical Science. 3rd ed. Amsterdam: Elsevier, 328–340
Gu Yangguang, Huang Honghui, Liu Yong, et al. 2018. Non-metric multidimensional scaling and human risks of heavy metal concentrations in wild marine organisms from the Maowei Sea, the Beibu Gulf, South China Sea. Environmental Toxicology and Pharmacology, 59: 119–124, doi: 10.1016/j.etap.2018.03.002
Guitart C, García-Flor N, Miquel J C, et al. 2010. Effect of the accumulation of polycyclic aromatic hydrocarbons in the sea surface microlayer on their coastal air-sea exchanges. Journal of Marine Systems, 79(1–2): 210–217
Hąc-Wydro K, Połeć K, Broniatowski M. 2019. The impact of selected Polycyclic Aromatic Hydrocarbons (PAHs) on the morphology, stability and relaxation of ternary lipid monolayers imitating soil bacteria membrane. Journal of Molecular Liquids, 276: 409–416, doi: 10.1016/j.molliq.2018.12.020
He Chengyong, Zuo Zhenghong, Shi Xiao, et al. 2011. Effects of benzo(a)pyrene on the skeletal development of Sebastiscus marmoratus embryos and the molecular mechanism involved. Aquatic Toxicology, 101(2): 335–341, doi: 10.1016/j.aquatox.2010.11.008
Hegde G, Krishnamurthy S V, Berger G. 2019. Common frogs response to agrochemicals contamination in coffee plantations, western Ghats, India. Chemistry and Ecology, 35(5): 397–407, doi: 10.1080/02757540.2019.1584613
Hong Wenjun, Jia Hongliang, Li Yifan, et al. 2016. Polycyclic aromatic hydrocarbons (PAHs) and alkylated PAHs in the coastal seawater, surface sediment and oyster from Dalian, Northeast China. Ecotoxicology and Environmental Safety, 128: 11–20, doi: 10.1016/j.ecoenv.2016.02.003
Hosnedl T, Hajšlová J, Kocourek V, et al. 2003. 1-Hydroxypyrene as a biomarker for fish exposure to polycyclic aromatic hydrocarbons. Bulletin of Environmental Contamination and Toxicology, 71(3): 465–472, doi: 10.1007/s00128-003-8857-2
Jafarabadi A R, Bakhtiari A R, Toosi A S. 2017. Comprehensive and comparative ecotoxicological and human risk assessment of polycyclic aromatic hydrocarbons (PAHs) in reef surface sediments and coastal seawaters of Iranian Coral Islands, Persian Gulf. Ecotoxicology and Environmental Safety, 145: 640–652, doi: 10.1016/j.ecoenv.2017.08.016
Jewett S C, Dean T A, Woodin B R, et al. 2002. Exposure to hydrocarbons 10 years after the Exxon Valdez oil spill: evidence from cytochrome P4501A expression and biliary FACs in nearshore demersal fishes. Marine Environmental Research, 54(1): 21–48, doi: 10.1016/S0141-1136(02)00093-4
Kaushik C P, Haritash A K. 2006. Polycyclic aromatic hydrocarbons (PAHs) and environmental health. Our Earth, 3(3): 1–7
Koglin S, Kammann U, Eichbaum K, et al. 2016. Toward understanding the impacts of sediment contamination on a native fish species: transcriptional effects, EROD activity, and biliary PAH metabolites. Environmental Sciences Europe, 28(1): 28, doi: 10.1186/s12302-016-0096-3
Lee R F, Anderson J W. 2005. Significance of cytochrome P450 system responses and levels of bile fluorescent aromatic compounds in marine wildlife following oil spills. Marine Pollution Bulletin, 50(7): 705–723, doi: 10.1016/j.marpolbul.2005.04.036
Li Ruijing, Gao Hui, Ji Zhongqiang, et al. 2020. Distribution and sources of polycyclic aromatic hydrocarbons in the water column of Kongsfjorden, Arctic. Journal of Environmental Sciences, 97: 186–193, doi: 10.1016/j.jes.2020.04.024
Li Xiaofei, Huang Hu, Tong Zhicheng. 2015a. Seawater quality assessment of the mariculture zone at the Maowei Sea of Guangxi Province. Journal of Qinzhou University, 30(2): 1–6
Li Pingyang, Xue Rui, Wang Yinghui, et al. 2015b. Influence of anthropogenic activities on PAHs in sediments in a significant gulf of low-latitude developing regions, the Beibu Gulf, South China Sea: distribution, sources, inventory and probability risk. Marine Pollution Bulletin, 90(1–2): 218–226
Li Ruilong, Zhang Linlin, Xue Baoming, et al. 2019. Abundance and characteristics of microplastics in the mangrove sediment of the semi-enclosed Maowei Sea of the South China Sea: new implications for location, rhizosphere, and sediment compositions. Environmental Pollution, 244: 685–692, doi: 10.1016/j.envpol.2018.10.089
Liao Riquan, Li Weitao, Kang Zhenjun, et al. 2019. Distribution characteristics and ecological evaluation of chlorobenzene compounds in surface sediment of the Maowei Sea, Guangxi, China. Environmental Monitoring and Assessment, 191(5): 309, doi: 10.1007/s10661-019-7397-0
Liao Riquan, Xu Youhou, Zhong Qiuping, et al. 2015. Distribution and chemical composition of phthalic acid esters in surface sediments in Guangxi Maowei Sea littoral. Ecology and Environmental Sciences, 24(8): 1342–1347
Lincoln R F, Scott A P. 1984. Sexual maturation in triploid rainbow trout, Salmo gairdneri, Richardson. Journal of Fish Biology, 25(4): 385–392, doi: 10.1111/j.1095-8649.1984.tb04886.x
Liu Baoliang, Chen Xuyang, Li Wuquan, et al. 2019. Assessment on the pollution and potential ecological risk of persistent toxic substances in the surface sediments at Maowei National Marine Park. Marine Environmental Science, 38(6): 856–861, 904
Ma Li, Lu Zhiqiang, Zhang Yuanbiao, et al. 2017. Distribution and sources apportionment of polycyclic aromatic hydrocarbons in the edible bivalves and sipunculida from coastal areas of Beibu Gulf, China. Applied Ecology and Environmental Research, 15(3): 1211–1225, doi: 10.15666/aeer/1503_12111225
McDaniel T V, Martin P A, Struger J, et al. 2008. Potential endocrine disruption of sexual development in free ranging male northern leopard frogs (Rana pipiens) and green frogs (Rana clamitans) from areas of intensive row crop agriculture. Aquatic Toxicology, 88(4): 230–242, doi: 10.1016/j.aquatox.2008.05.002
Meng Xianwei, Xia Peng, Li Zhen, et al. 2016. Mangrove degradation and response to anthropogenic disturbance in the Maowei Sea (SW China) since 1926 AD: mangrove-derived OM and pollen. Organic Geochemistry, 98: 166–175, doi: 10.1016/j.orggeochem.2016.06.001
Ministry of Ecology and Environment of the People’s Republic of China. 2021. Bulletin of Marine Ecology and Environment Status of China in 2020. http://english.mee.gov.cn/Resources/Reports/bomeaesoc/202203/P020220328611122958024.pdf[2021-04-07]
National Research Council (US) Committee. 2003. Oil in the Sea III: Inputs, Fates, and Effects. Washington, DC: National Academies Press, 19–62
Pampanin D M, Le Goff J, Skogland K, et al. 2016. Biological effects of polycyclic aromatic hydrocarbons (PAH) and their first metabolic products in in vivo exposed Atlantic cod (Gadus morhua). Journal of Toxicology and Environmental Health, Part A, 79: 633–646
Pathiratne A, Hemachandra C K. 2010. Modulation of ethoxyresorufin O-deethylase and glutathione S-transferase activities in Nile tilapia (Oreochromis niloticus) by polycyclic aromatic hydrocarbons containing two to four rings: implications in biomonitoring aquatic pollution. Ecotoxicology, 19(6): 1012–1018, doi: 10.1007/s10646-010-0482-3
Payne J F, Mathieu A, Collier T K. 2003. Ecotoxicological studies focusing on marine and freshwater fish. In: Douben P E T, ed. PAHs: An Ecotoxicological Perspective. Hoboken: John Wiley & Sons Ltd, 191–224
Peng Nana, Li Yi, Liu Zhengang, et al. 2016. Emission, distribution and toxicity of polycyclic aromatic hydrocarbons (PAHs) during municipal solid waste (MSW) and coal co-combustion. Science of the Total Environment, 565: 1201–1207, doi: 10.1016/j.scitotenv.2016.05.188
Rey-Salgueiro L, Costa J, Ferreira M, et al. 2011. Evaluation of 3-hydroxy-benzo[a]pyrene levels in Nile tilapia (Oreochromis niloticus) after waterborne exposure to Benzo[a]pyrene. Toxicological & Environmental Chemistry, 93(10): 2040–2054
Roy L A, Steinert S, Bay S M, et al. 2003. Biochemical effects of petroleum exposure in hornyhead turbot (Pleuronichthys verticalis) exposed to a gradient of sediments collected from a natural petroleum seep in CA, USA. Aquatic Toxicology, 65(2): 159–169, doi: 10.1016/S0166-445X(03)00135-8
Sanchez W, Burgeot T, Porcher J M. 2013. A novel “Integrated Biomarker Response” calculation based on reference deviation concept. Environmental Science and Pollution Research, 20(5): 2721–2725, doi: 10.1007/s11356-012-1359-1
Santos P M, del Nogal Sánchez M, Pavón J L P, et al. 2019. Determination of polycyclic aromatic hydrocarbons in human biological samples: a critical review. TrAC Trends in Analytical Chemistry, 113: 194–209, doi: 10.1016/j.trac.2019.02.010
Schlenk D, Handy R, Steinert S, et al. 2008. Biomarkers. In: Di Giulio R T, Hinton D E, eds. The Toxicology of Fishes. Boca Raton: CRC Press, 684–713
Sforzini S, Dagnino A, Oliveri L, et al. 2011. Effects of dioxin exposure in Eisenia andrei: integration of biomarker data by an Expert System to rank the development of pollutant-induced stress syndrome in earthworms. Chemosphere, 85(6): 934–942, doi: 10.1016/j.chemosphere.2011.06.059
Silva J S, Alves R N, de Paulo D V, et al. 2021. Biliary polycyclic aromatic hydrocarbons and enzymatic biomarkers in Eugerres brasilianus along four tropical estuaries. Marine Pollution Bulletin, 163: 111919, doi: 10.1016/j.marpolbul.2020.111919
State Environmental Protection Administration. 2004. GB 3097-1997 Sea water quality standard (in Chinese). Beijing: China Environmental Press
Stein J E, Hom T, Varanasi U. 1984. Simultaneous exposure of English sole (Parophrys vetulus) to sediment-associated xenobiotics: Part 1—uptake and disposition of 14C-polychlorinated biphenyls and 3H-benzo[a]pyrene. Marine Environmental Research, 13(2): 97–119, doi: 10.1016/0141-1136(84)90021-7
Sun Runxia, Lin Qin, Ke Changliang, et al. 2016. Polycyclic aromatic hydrocarbons in surface sediments and marine organisms from the Daya Bay, South China. Marine Pollution Bulletin, 103(1–2): 325–332
Thompson K L, Picard C R, Chan H M. 2017. Polycyclic aromatic hydrocarbons (PAHs) in traditionally harvested bivalves in northern British Columbia, Canada. Marine Pollution Bulletin, 121(1–2): 390–399
Tian Haitao, Hu Xisheng, Xie Jian, et al. 2014. Distribution patterns of heavy metals and pollution assessments of Maowei Sea. Transactions of Oceanology and Limnology, (1): 161–168
Tiwari M, Sahu S K, Pandit G G. 2017. Distribution of PAHs in different compartment of creek ecosystem: ecotoxicological concern and human health risk. Environmental Toxicology and Pharmacology, 50: 58–66, doi: 10.1016/j.etap.2017.01.008
Uno T, Ishizuka M, Itakura T. 2012. Cytochrome P450 (CYP) in fish. Environmental Toxicology and Pharmacology, 34(1): 1–13, doi: 10.1016/j.etap.2012.02.004
van der Oost R, Beyer J, Vermeulen N P E. 2003. Fish bioaccumulation and biomarkers in environmental risk assessment: a review. Environmental Toxicology and Pharmacology, 13(2): 57–149, doi: 10.1016/S1382-6689(02)00126-6
Wan Ru, Meng Fanping, Su Enping, et al. 2018. Development of a classification scheme for evaluating water quality in marine environment receiving treated municipal effluent by an integrated biomarker approach in Meretrix meretrix. Ecological Indicators, 93: 697–703, doi: 10.1016/j.ecolind.2018.05.062
Wang Yujie, Liao Riquan, Liu Wenlong, et al. 2017. Chlorinated polycyclic aromatic hydrocarbons in surface sediment from Maowei Sea, Guangxi, China: occurrence, distribution, and source apportionment. Environmental Science and Pollution Research, 24(19): 16241–16252, doi: 10.1007/s11356-017-9193-0
Wang M, Riffel M. 2011. Making the right conclusions based on wrong results and small sample sizes: interpretation of statistical tests in ecotoxicology. Ecotoxicology and Environmental Safety, 74(4): 684–692, doi: 10.1016/j.ecoenv.2010.10.019
Wu Yuling, Wang Xinhong, Li Yongyu, et al. 2011. Occurrence of polycyclic aromatic hydrocarbons (PAHs) in seawater from the western Taiwan Strait, China. Marine Pollution Bulletin, 63(5–12): 459–463
Ya Miaolei, Wang Xinhong, Wu Yuling, et al. 2017. Seasonal variation of terrigenous polycyclic aromatic hydrocarbons along the Marginal Seas of China: input, phase partitioning, and ocean-current transport. Environmental Science & Technology, 51(16): 9072–9079
Yan Jinxia, Liu Jingling, Shi Xuan, et al. 2016. Polycyclic aromatic hydrocarbons (PAHs) in water from three estuaries of China: distribution, seasonal variations and ecological risk assessment. Marine Pollution Bulletin, 109(1): 471–479, doi: 10.1016/j.marpolbul.2016.05.025
Yuan Hezhong, Zhang Enlou, Lin Qi, et al. 2016. Sources appointment and ecological risk assessment of polycyclic aromatic hydrocarbons (PAHs) in sediments of Erhai Lake, a low-latitude and high-altitude lake in Southwest China. Environmental Science and Pollution Research, 23(5): 4430–4441, doi: 10.1007/s11356-015-5626-9
Zhang Jinlian, Li Yuanyuan, Wang Yinghui, et al. 2014. Spatial distribution and ecological risk of polychlorinated biphenyls in sediments from Qinzhou Bay, Beibu Gulf of South China. Marine Pollution Bulletin, 80(1–1): 338–343
Zhang Lijie, Wang Yan, Tan Feng, et al. 2020. Tidal variability of polycyclic aromatic hydrocarbons and organophosphate esters in the coastal seawater of Dalian, China. Science of the Total Environment, 708: 134441, doi: 10.1016/j.scitotenv.2019.134441
Zhang Yusheng, Zheng Ronghui, Chen Qingfu. 2011. A study on application of hepatic microsomal CYP1A biomarkers from Sebastiscus marmoratus to monitoring oil pollution in Xiamen waters. Haiyang Xuebao (in Chinese), 31(19): 5851–5859
Zhang Jiliang, Zuo Zhenghong, Xiong Jianli, et al. 2013. Tributyltin exposure causes lipotoxicity responses in the ovaries of rockfish, Sebastiscus marmoratus. Chemosphere, 90(3): 1294–1299, doi: 10.1016/j.chemosphere.2012.10.078
Zheng Ronghui, Fang Chao, Hong Fukun, et al. 2021. Developing and applying a classification system for ranking the biological effects of endocrine disrupting chemicals on male rockfish Sebastiscus marmoratus in the Maowei Sea, China. Marine Pollution Bulletin, 163: 111931, doi: 10.1016/j.marpolbul.2020.111931
Zheng Ronghui, Zhang Yusheng, Fang Chao, et al. 2019. Joint effects of chronic exposure to environmentally relevant levels of nonylphenol and cadmium on the reproductive functions in male rockfish Sebastiscus marmoratus. Comparative Biochemistry and Physiology Part C: Toxicology & Pharmacology, 215: 25–32
Zhu Jingmin, Zhang Qiang, Huang Yinan, et al. 2021. Long-term trends of microplastics in seawater and farmed oysters in the Maowei Sea, China. Environmental Pollution, 273: 116450, doi: 10.1016/j.envpol.2021.116450
