Baseline establishment for metals in the western Clarion-Clipperton Zone
收藏切换
PDF
Cai Lin1, Yang Liu1, *, Ronggen Jiang1, Jinmin Chen1, Baohong Chen1, Weili Wang1, Kaiwen Zhou1, Hui Lin1, *
Acta Oceanologica Sinica | 2022, 41(11) : 12 - 22
Less
收藏切换
Acta Oceanologica Sinica | 2022, 41(11): 12-22
• Ecosystem and Environmental Baseline in COMRA’s Contract Area in the Clarion-Clipperton Zone •
Baseline establishment for metals in the western Clarion-Clipperton Zone
Full
Cai Lin1, Yang Liu1, *, Ronggen Jiang1, Jinmin Chen1, Baohong Chen1, Weili Wang1, Kaiwen Zhou1, Hui Lin1, *
Affiliations
  • 1 Third Institute of Oceanography, Ministry of Natural Resources, Xiamen 361005, China
Published: 2022-11-25 doi: 10.1007/s13131-021-1908-x
Outline
收藏切换

Resource exploitation in the Clarion-Clipperton Zone (CCZ) is of major research interest worldwide, but its influence on the environment is poorly understood, especially due to the lack of baseline values for metals in the surrounding sediment. This work aimed to establish the baseline values of 17 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Hg, Ni, Pb, and Zn) using normalization, the cumulative frequency curve method considering a total of 172 samples taken from 8 multitube cores and 1 box sediment core collected in the western CCZ during the COMRA-45 cruise campaign from August to September 2017. The baseline values of the evaluated metals were as follows: 1 932 mg/kg for Ba, 29 512 mg/kg for Ca, 18 150 mg/kg for K, 17 120 mg/kg for Mg, 6 747 mg/kg for Mn, 28 546 mg/kg for Na, 0.571 mg/kg for Ag, 5.00 mg/kg for As, 94.4 mg/kg for B, 0.626 mg/kg for Cd, 104 mg/kg for Co, 76.1 mg/kg for Cr, 370 mg/kg for Cu, 0.028 mg/kg for Hg, 190 mg/kg for Ni, 27.5 mg/kg for Pb and 156 mg/kg for Zn. Our findings would fill the baseline value gap in the study area and further improve accuracy of environmental impact assessments on the impact of resource exploitation.

baseline  /  metals  /  normalization  /  cumulative frequency curve
Cai Lin, Yang Liu, Ronggen Jiang, Jinmin Chen, Baohong Chen, Weili Wang, Kaiwen Zhou, Hui Lin. Baseline establishment for metals in the western Clarion-Clipperton Zone[J]. Acta Oceanologica Sinica, 2022 , 41 (11) : 12 -22 . DOI: 10.1007/s13131-021-1908-x
Full Text
Less
1 Introduction
Less
Accompanied by the rapid development of modern industries, an increasing volume of heavy metals has been discharged into aquatic environment. These elements are mostly recalcitrant in the environment and thus pose considerable hazards to ecosystems and human health. Additionally, they can easily migrate across water bodies via suspended matter and sediment through adsorption and desorption. Furthermore, they can even be enriched exceeding 1 000 times via the food chain and generate adverse effects on the biota. Hence, heavy metal pollution has become a severe environmental issue of concern and attracted great attention.
Researchers have mainly focused on the distribution, speciation, source, and potential risk assessment of heavy metals in waters or sediments worldwide in addition to their influencing factors. The studied areas mainly focus on estuaries, lakes and nearshores, such as the Nile Delta in Egypt (Mandour et al., 2021); the Laucala Bay in Fuji (Pratap et al., 2020); the Swan River in western Australia (Rate et al., 2000) and the Finiss River in the Northern Territory, Australia (Taylor, 2007); the Nanhai Lake, the channel of Yellow River (Liang et al., 2009), the Changjiang River Estuary (Zhuang and Zhou, 2021), the Jiulong River or the Xiamen Bay (Lin et al., 2011, 2014), the offshore area of eastern Sanya (Zhang et al., 2018) and the Bohai Sea in China (Zhu et al., 2019); the Ganges Estuary at northeast of the Bay of Bengal in India (Chatterjee et al., 2007; Singh et al., 2017; Siddiqui and Pandey, 2019); the Al-Karak catchment area in the southern Jordan (El-Hasan and Jiries, 2001); and the Nahr-Ibrahim River in Lebanon (Korfali and Davies, 2003). Besides, in the open ocean especially in the Clarion-Clipperton Zone (CCZ), paleoceanographic, sedimentologic, structural geology, and volcanic geology studies have broadly reported the ferromanganese formation mechanism and sediment element distribution of heavy metals, platinum group elements and rare earth elements since the 1950s (Zhang et al., 2001; Kuang et al., 2004; Yang et al., 2007a, b; Huang et al., 2014; Ren et al., 2015; Wang, 2017; Deng et al., 2018), but the research about baseline value establish in the CCZ is almost none.
The CCZ in the East Pacific Ocean is a distribution area with the greatest abundance of polymetallic nodules in the world. Currently, deep-sea mining is becoming a topic of major interest, but its environmental impact is unclear. Hence, the International Seabed Authority attaches a great amount of importance to establishing environmental baselines in the CCZ, including physical, chemical, and biological baselines, because the assessment of the environmental impact of polymetallic mining is based on various parameters of mining activities. Resuspension of sediments, desorption of metals, and migration to mesopelagic waters may occur during mining activities. Changes in the abundance and biomass of meiofauna and megafauna might occur after the bio-absorption of metals, resulting in alteration of community structure and biodiversity. Hence, the baseline values of metals in the CCZ are the basic data reflecting the impact of polymetallic mining.
The baseline of certain metals (As, Co, Cr, Cu, Hg, Mn, Ni, Pb, and Zn) has been set through normalization and accumulative frequency curve methods in sediments of coastal waters and freshwaters (Singh et al., 2003; Wei and Wen, 2012; Jiang et al., 2013). However, a baseline of metals in the open ocean particularly in the CCZ, is unavailable. During the China Ocean Mineral Resources R&D Association-45 (COMRA-45) Cruise from August to September 2017, nine sediment core samples, including eight multitubes and one box-type sample, were collected in the COMRA contract and adjacent area in the western CCZ. This work aims to establish the baseline values of 17 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Hg, Ni, Pb, and Zn), which would fill the environmental baseline data gap and better carry out environmental impact assessments of mining exploitation.
2 Methods
Less
2.1 Sampling
Eight sediment cores from Stations 2 to 9 were collected using a multitube sampler and one core from Station 1 by a box sampler with a plexiglass tube in COMRA’s contract and its adjacent area of 8°−13°N, 153°−155°W in the western CCZ during the COMRA-45 Cruise from August to September 2017, as shown in Fig. 1.
The lengths of the sediment cores from Stations 1 through 9 were 34 cm, 26 cm, 32 cm, 30 cm, 36 cm, 30 cm, 40 cm, 46 cm and 52 cm, respectively. The sediment cores were sliced into 1 cm intervals from top to 2 cm depth and 2 cm intervals from 2 cm depth to the base using stainless steel cutters. A total of 172 samples were transferred into polyethylene storage bags and kept frozen for further laboratory analysis.
2.2 Chemical analysis
Samples were freeze-dried using a vacuum freeze dryer (LYOVAC GT2, Leybold-Heraeus, Germany) and ground with a mortar grinder (RM200, Retsch, Germany) to sift through a 200-mesh nylon sieve. Aliquots of 0.1 g of the ground samples were digested by a microwave digestion instrument (MARS6, CEM, USA) with a mixture of 6 mL subboiling distilled nitric acid (trace purity) and 2 mL hydrofluoric acid for 30 min at 180°C and 800 PSI. The resulting mixture was then added to 1 mL perchloric acid and steamed near dry at 150°C by an acid catcher (ZLT-GSB-20G, China). The residue was redissolved in 2 mL 1% nitric acid (trace purity), filtered, and diluted to 10 mL with Milli-Q water, after which 16 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Ni, Pb, and Zn) were measured using inductively coupled plasma mass spectrometry (ICP-MS, Agilent, USA). The solution was diluted to obtain three groups of different multiples (400 times, 10 times and no dilution) for measurement according to their metal content. Hg was digested with a mixture of 2 mL nitric acid (trace purity) and 6 mL hydrochloric acid, and was measured using atomic fluorescence photometer (AFS, Beijing Titan, China) according to General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of China (2008).
Grain size was measured according to General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China (2007). An appropriate amount of wet sample with 100 mL Milli-Q water was added to 10 mL 30% hydrogen peroxide solution, reacted at room temperature for 24 h to remove the organic matter. Then, 30 mL 10% hydrochloric acid was added to the liquor to remove the carbonate component after another 24 h at room temperature. The residue was then added to 10 mL 0.5 mol/L sodium hexametaphosphate, dispersed by ultrasonic oscillation for 10 min and measured by a laser particle size analyzer (Mastersizer 2000, Malvern, UK) with a relative error less than 3% for repeated measurement.
Certified reference materials GBW07316 and GBW07314 from the Center for Standard Reference of China were processed employing the same process as outlined above to ensure analytical accuracy. The measurement results, recoveries, accuracies of GBW07316 and GBW07314 and detection limits of methodology are shown in Table 1. Milli-Q water (18.2 MΩ·cm, 25°C) was used throughout the analysis. All the other reagents were of guaranteed reagent or better.
2.3 Baseline calculation
The baseline calculation includes normalization, statistical methods, and geochemical comparison methods (Colizza et al., 1996; Schiff and Weisberg, 1999; Matschullat et al., 2000; Newman and Watling, 2007; Teng et al., 2009; Wei and Wen, 2012; Karim et al., 2015; Niu et al., 2019; Sun et al., 2019; Wang et al., 2020). Most researches were about trace metals, but O’Donnell et al. (2004) established geochemical baseline data including constant elements (Fe, Mn, Ti) and trace elements (Sb, As, Ba, Cd, Cr, Co, Cu, Pb, Mo, Ni, Sn, U, V, Zn) for the urban area of Kingston-upon-Hull. Karim et al. (2015) and Teng et al. (2009) determined geochemical baseline for constant element Fe in Pakistan using cumulative frequency curves and that in South China by normalization respectively. Therefore, we adopted normalization and cumulative frequency curves to estimate the baseline value of 17 metals including constant and trace elements.
2.3.1 Normalization method
The normalization method selects the inert elements in the geochemical process as the standard elements through their correlation coefficient and the active metal contents. On the premise of meeting the significance level of P<0.05, the inert metal that is most strongly correlated with an active metal is then selected as the standard element. A scatter diagram was made between the active and chosen standard metals, and a 95% statistical test was carried out. After eliminating the points falling outside the 95% confidence limit, the regression equation is re-established with the remaining data. The average value of the chosen standard metal of all samples is substituted into the new regression equation to obtain the baseline value of the corresponding active metal.
Inert metals, including Al, Fe, La, Li, Sc, Ti, V, Cs, and Rb, used to establish the baseline value of 17 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Hg, Ni, Pb, and Zn) were also determined in this paper.
2.3.2 Cumulative frequency curve method
A cumulative frequency curve with decimal coordinates is plotted after inputting all metal contents on the x-axis and the cumulative frequency as the y-axis. The curve may have two inflection points: the lower point may represent the upper limit of natural origin metal contents, while the higher point represents the lower limit of abnormal contents (affected by human activities). The area between the two inflections may or may not be affected by human activities, or may not be related (Matschullat et al., 2000; Teng et al., 2009). In some cases, the distribution curve is approximately linear, implying that the concentration of metals in all samples represents the range of baseline values. Beyond that, the curve may have just one inflection, indicating a lesser anthropogenic influence (Li, 2013).
The baseline value of the evaluated metals was the median content of a given metal among samples with lower concentrations than the lower inflection when the curve had one or two inflections, which was adopted in Li (2013).
3 Results
Less
3.1 Metal contents in the sediment
The granularity of sediment (Md) in the research area ranged from Φ3.73 to Φ7.59 with an average value of Φ6.48, indicating that the sediment was mainly coastal silt or fine silt sand. The relatively uniform sediment types minimized the effect of grain size on metals, indicating the availability of the assessed metal baselines throughout the research area.

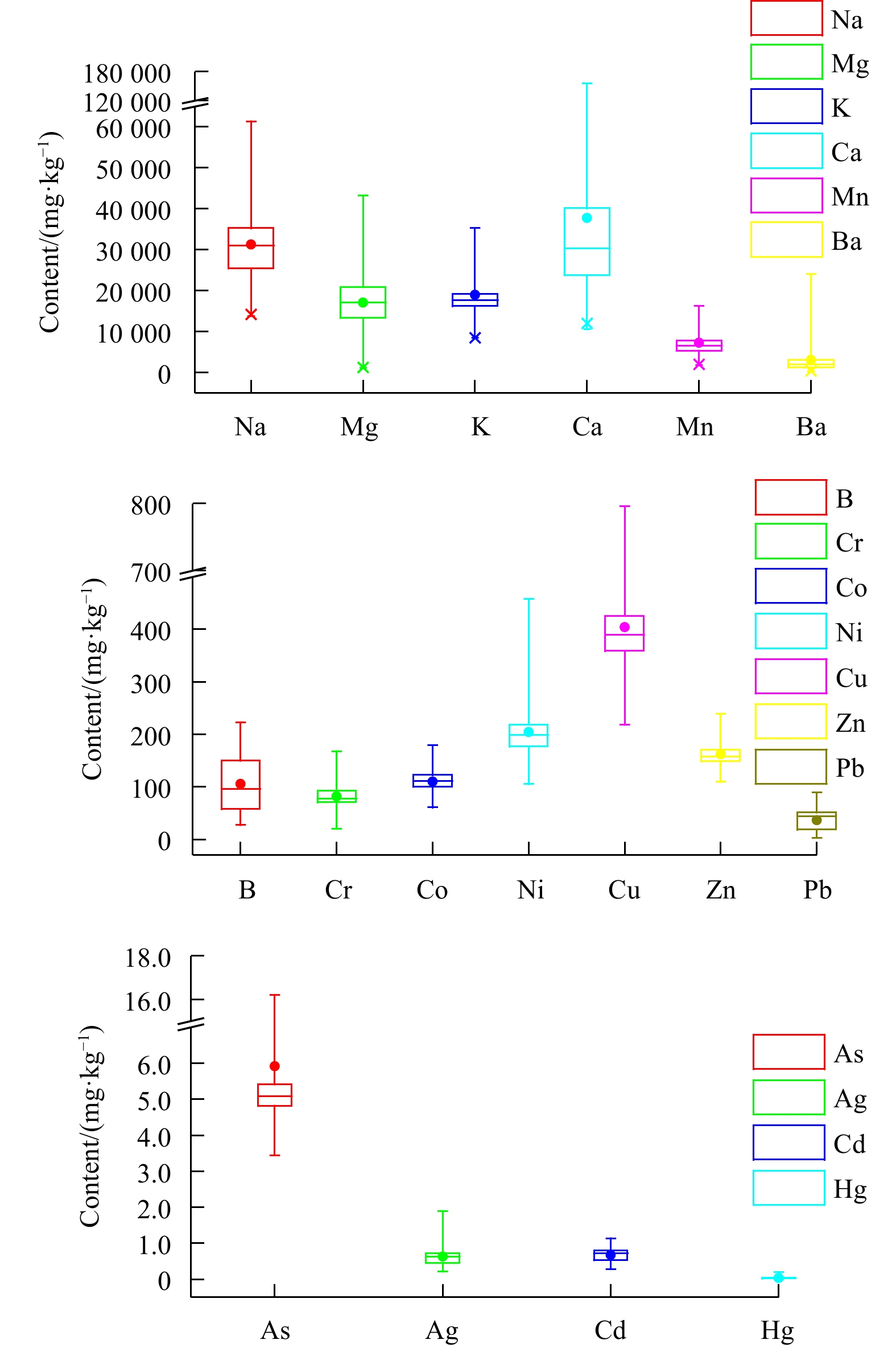

Figure 2 shows a box chart of depicting the measured metal contents. Expressed as average value±standard deviation (minimum value−maximum value), the contents of 17 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Hg, Ni, Pb, and Zn) were (3 112±3 717) mg/kg (306−24 029 mg/kg), (37 770±27 074) mg/kg (10 630−155 453 mg/kg), (18 998±5 652) mg/kg (8 494−35 244 mg/kg), (17 038±6 643) mg/kg (1 080−43 241 mg/kg), (7 303±3 172) mg/kg (1 833−16 261 mg/kg), (31 276±8 928) mg/kg (13 815−61 383 mg/kg), (0.62±0.26) mg/kg (0.21−1.89 mg/kg), (5.91±2.26) mg/kg (3.45−16.2 mg/kg), (105±50.6) mg/kg (27.1−222 mg/kg), (0.67±0.18 mg/kg) (0.28−1.13 mg/kg), (110±19.6 mg/kg) (60.4−179 mg/kg), (81.8±25.2) mg/kg (19.6−168 mg/kg), (404±87.1) mg/kg (218−796 mg/kg), (0.035±0.026) mg/kg (0.010−0.19 mg/kg), (204±60) mg/kg (105−458 mg/kg), (36.5±17.8) mg/kg (2.90−89.2 mg/kg), and (162±22.5) mg/kg (110−238 mg/kg), respectively. Compared with the abundance of metals in the crust of the oceanic lithosphere (Li and Yuan, 2011), the averages of the 17 metals studied in this area accumulated, excluding Co, Ni, Mg, and Cr. The enrichment factor was ordered as follows: B(52.5)>Ba(40.9)>Pb(17.4)>Ag(10.9)>K(10.6)> Cu(10.1)>Cd(8.32)>Na(6.95)>As(6.57)>Mn(5.22)>Zn(2.7)>Hg(2.48)>Ca(2.03)>Co(0.69)>Ni(0.09)>Mg(0.08)>Cr(0.03).
The contents of these 17 metals all wavily varied with depth without rules. The relative standard deviation of metals in every core indicated Ba, Hg and B varied greatest with average values of 60.7% (41.3%−93.4%), 52.6% (19.0%−117%) and 45.5% (26.6%−55.9%), respectively. Besides, Pb also varied greatly in Stations 2, 3, 4 and 7 with the relative standard deviation of 95.9%, 78.2%, 43.7% and 40.7% respectively due to high contents in some depths.
3.2 Baseline value establishment
In this paper, any metal content deviating away from its average value by ±5 standard deviations was removed from the data set to define the baseline value (Veinott et al., 2001). This screening process resulted in the identification of 7 anomalous points, including five data points for Ba and two data points for Hg, which were not calculated to define the baseline value.
The baseline values of the 17 evaluated metals were determined using the normalization method and the cumulative frequency curve method. The baseline values of the former were higher than those from the latter, which was caused by the elimination of values outside the 95% confidence interval of the linear regression equations in the standardization method. However, the baseline values obtained by the two methods agreed well with each other, excluding Pb. Therefore, the average baseline value was computed through the two methods as the final baseline value of metal in the research area (Table 2). The normalization and cumulative curves of metals are shown in Figs 3 and 4.
4 Discussion
Less
4.1 Different inert elements in normalization method

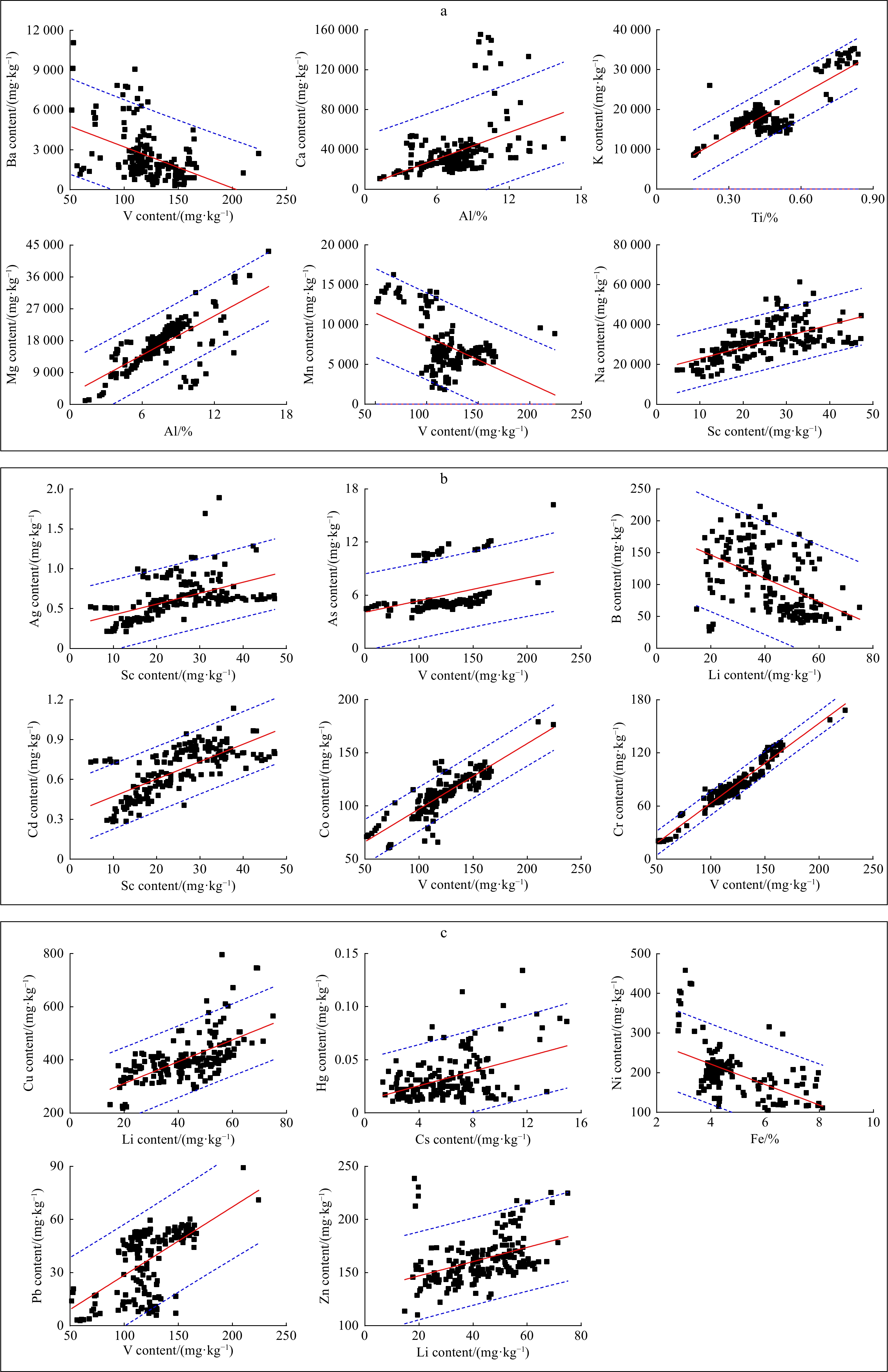

The highest correlation coefficients between active metals and inert elements are marked in gray in Table 3. Inert elements are known to induce metallogenesis; therefore, 17 metals were dominated by natural geological metallogenic processes, which was minimally influenced by human activities. Nevertheless, the correlation coefficient between the 17 metals and inert elements varied for each metal, indicating slight differences in the influence of mineralization and the variable sources of 17 metals. This may also explain the discrepancies between the 17 metals in the cumulative frequency at the inflection point.
4.2 Different cumulative frequencies corresponding to an inflection point in the cumulative frequency curve method

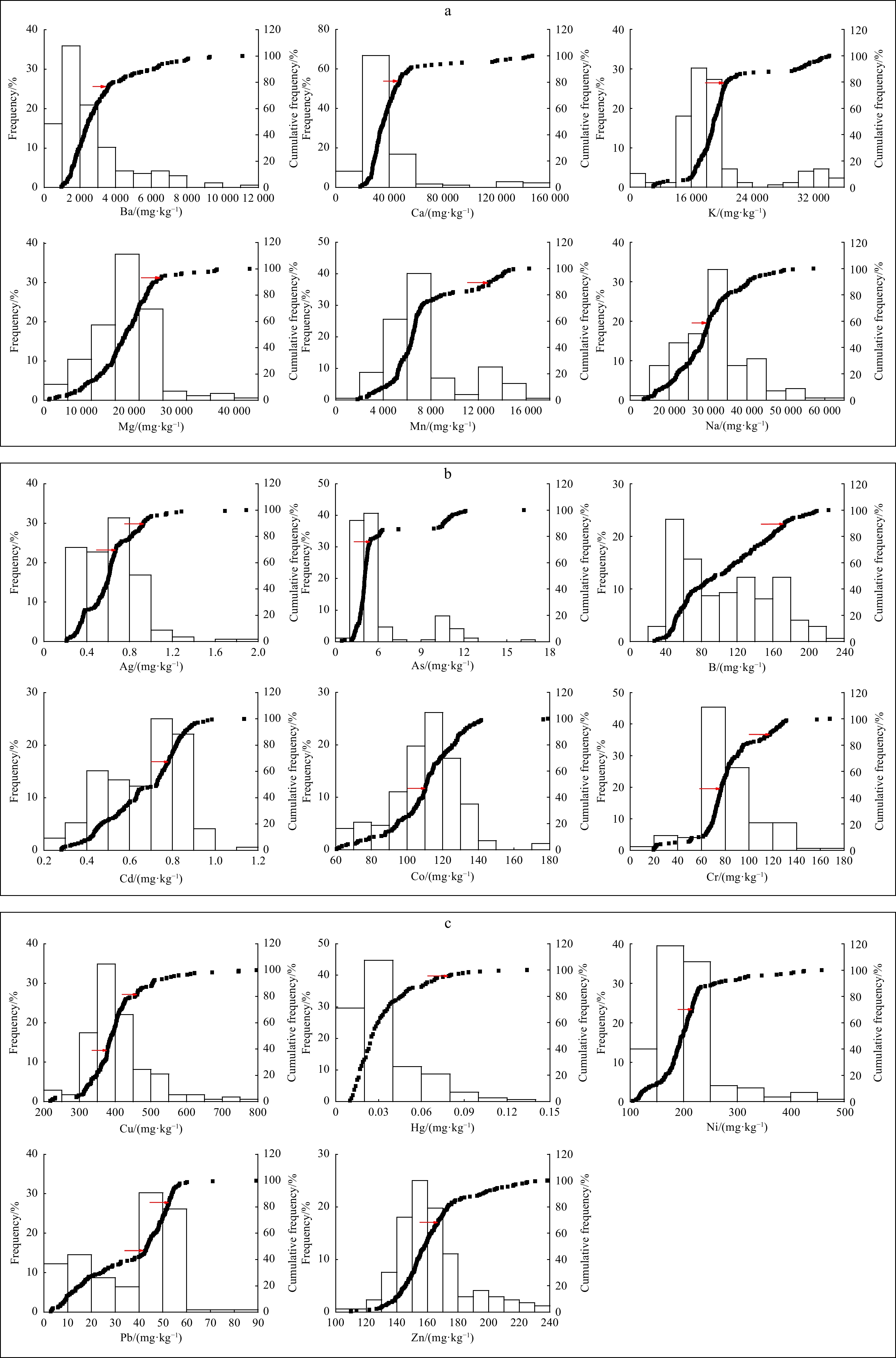

Figure 4 shows that two inflection points occurred in the cumulative frequency curve of four elements, i.e., Cu, Cr, Pb, and Ag. At the higher inflection point, the cumulative frequency for these metals was above 80%; the samples exceeding the higher inflection point may be influenced by human activities, but the ratio is small. In addition, only one inflection point appeared in the cumulative curves of the other thirteen metals (Ba, Ca, K, Mg, Mn, Na, As, B, Cd, Co, Hg, Ni, and Zn); these metals were all anthropogenically effected to a lesser extent (Li, 2013). Hence, the 17 metals in the study area were not substantially impacted by human activities.
According to Bischoff et al. (1979), $ \dfrac{{\omega ({\rm{Ti}}{{\rm{O}}_{\rm{2}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}} $ and $ \dfrac{{\omega ({\rm{F}}{{\rm{e}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}} $ could be used to indicate the sediment sources due to the dilution effect of Al relative to other elements. $ \dfrac{{\omega ({\rm{Ti}}{{\rm{O}}_{\rm{2}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=0.05 $ and $ \dfrac{{\omega ({\rm{F}}{{\rm{e}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}} =0.46$, $ \dfrac{{\omega ({\rm{Ti}}{{\rm{O}}_{\rm{2}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=0.09 $ and $ \dfrac{{\omega ({\rm{F}}{{\rm{e}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}} =0.55$, and $ \dfrac{{\omega ({\rm{Ti}}{{\rm{O}}_{\rm{2}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=0.11 $ and $ \dfrac{{\omega ({\rm{F}}{{\rm{e}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=1.18 $ represent pelagic clay sources, volcanic activities and biological activities, respectively. In this study, $\dfrac{{\omega ({\rm{Ti}}{{\rm{O}}_{\rm{2}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=0.02 - 0.36$, with a mean value of 0.06, while $\dfrac{{\omega ({\rm{F}}{{\rm{e}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}{{\omega ({\rm{A}}{{\rm{l}}_{\rm{2}}}{{\rm{O}}_{\rm{3}}})}}=0.22 - 2.42$ had an average value of 0.51. However, if we excluded the sample at Station 8 collected in the range of 34-cm depth to the bottom, the above ratios ranged from 0.02 to 0.09, with an average value of 0.05, and from 0.22 to 1.13, with an average of 0.48. This result indicated that the sediment in the research area originated mainly from pelagic clay sources followed by volcanic activities. At Station 8, within the 34-cm depth to bottom interval, the above ratios ranged from 0.15 to 0.36, with an average value of 0.23; and from 1.07 to 2.42, with an average value of 1.53. This result indicated that these sediments were dominated by biological activities. Therefore, anthropogenic activities played a minor role in the distribution of the 17 metals, which was in good agreement with the inflection points in the cumulative curves.
4.3 Differences in the baseline values from two methods
As shown in Table 4, the relative deviation between the average value and median value for the 17 metals was in the order of Ba>Hg>Ca>Pb>As>Mn>B>Cd>K>Cr>Cu>Ni>Zn>Ag>Mg>Na>Co. Additionally, for the four metals (Ba, Ca, Hg, and Pb), the relative deviation of the baseline values from the two methods was also ranked first. This was because with the higher relative deviation between the average value and the median value, the contents of metals were better characterized by a partial distribution pattern, which introduced error into the cumulative frequency curve method.
The relative deviation of the baseline values for metals obtained from the two methods was less than 16%, excluding Pb. Pb contents ranged mostly from 5.0 mg/kg to 25.0 mg/kg and from 40.0 mg/kg to 60.0 mg/kg, so for those samples with Pb concentrations lower than 42.6 mg/kg, which represented the lower inflection point in the cumulative frequency curve, the median Pb content was only 17.4 mg/kg. However, the baseline value of Pb derived through the standardization method was 37.6 mg/kg. The relative deviation of the Pb baseline value through the two methods reached 36.7%. Wei and Wen (2012) reported the baseline value of Cr in the Taihu Lake employing normalization and the cumulative frequency curve method, as 123.75 mg/kg and 77.37 mg/kg, respectively, with a relative deviation of 23.0%. They also obtained the baseline value of Zn in the Dianchi Lake from the two methods, which were 263.56 mg/kg and 153.95 mg/kg, respectively, with a relative deviation of 26.3%. Hence, the results of the two methods are considered reasonable for all 17 metals, including Pb.
4.4 Comparison of baseline values considering average and median values

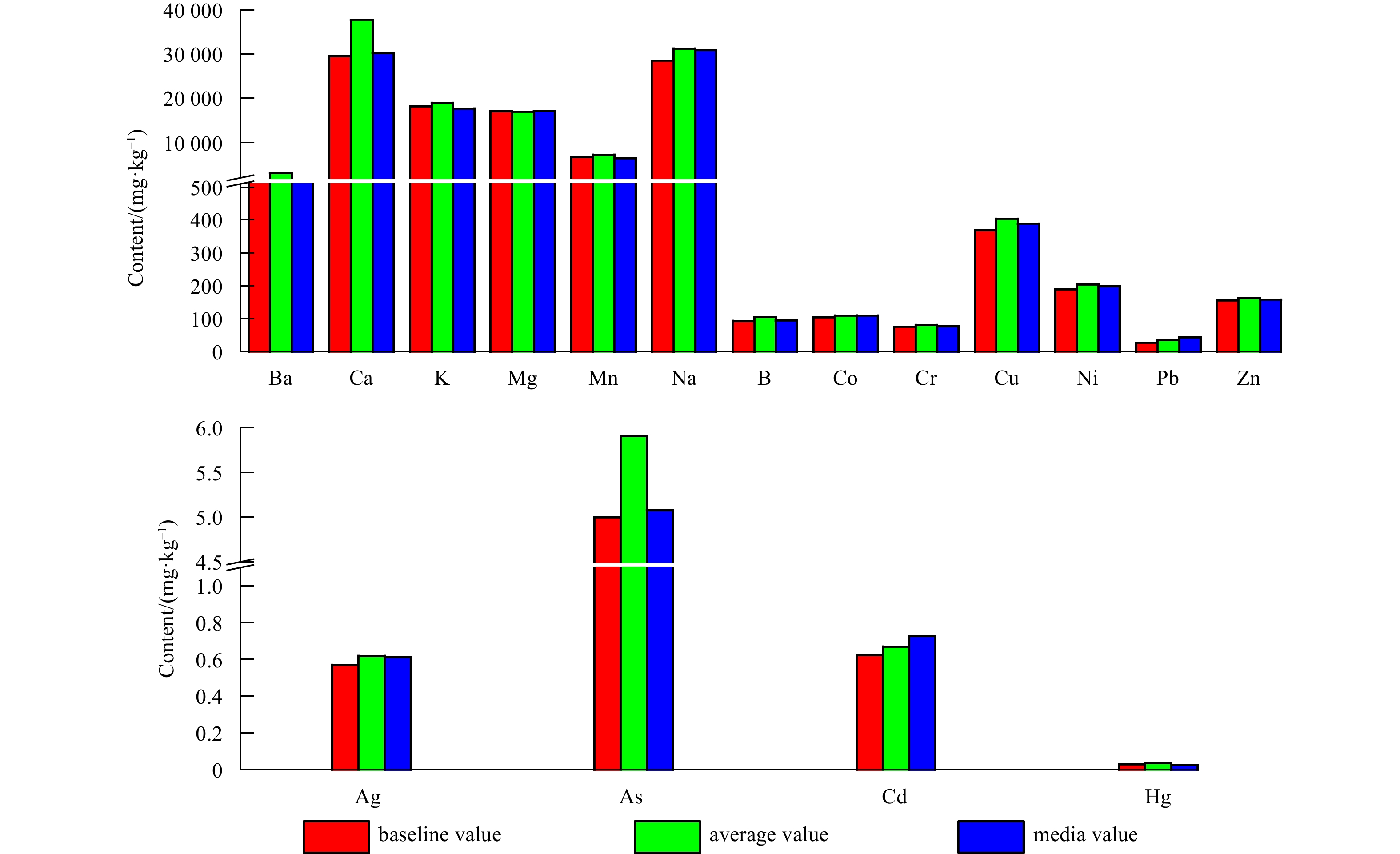

Figure 5 indicates no obvious difference between the baseline value and the average value or median value for the 17 metals. The average relative deviation of the baseline value and average value or the baseline value and median value for the 17 metals were 6.4% (0.3%−23.3%) and 3.4% (0.3%−22.6%), respectively, and both could be considered parallel samples for trace metals according to General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of China (2008). As described in Section 2.3.2, when the accumulative frequency curve was near linear, the baseline value was calculated using all samples; the baseline value was almost equal to the average or median value, so the metals in the study area were again considered less affected by human activities and the two methods were feasible.
4.5 Comparison of baseline values with other baseline values
A comparison between the baseline values of metal concentrations in the western CCZ and those in other areas in the world is shown in Table 5. The baseline values of Mn, Co, Cu, and Ni were all higher than those reported for oceanic sediments, Pacific pelagic clays, and coastal sediments, which was consistent with the high contents of metals caused by full polymetallic nodules in the study area. The Dianchi Lake is surrounded by mountains consisting of bedrock of limestone and shale, and contains pollutants discharged from rural industries, predominantly the chemical, textile, building material, metal processing, electroplate, engineering and electronic industries, so the high baseline values of As, Hg, Cr, Pb and Zn are caused by large anthropogenic inputs and high geochemical background concentrations ( Wei and Wen, 2013). Hence, the baseline values of the above five metals were 0.5 to 8 times higher than those in the study area. The Taihu Lake was also influenced by industrialization and urbanization but to a lesser extent than the Dianchi Lake, so the baseline values of As, Hg, Cr and Pb were approximately 50% of those in the Dianchi Lake but higher than those in the study area, especially that of Hg, which exhibited a 4-fold increase. Therefore, the variation in the baseline values of metals in different areas could be attributed to the combined effects of the geological sedimentary environment and human activities. On the other hand, it also indicated that the baseline values obtained through the two methods in this paper were reliable.
5 Conclusions
Less
Normalization and the cumulative frequency curve method were both employed to obtain the baseline values for certain metals. In the western CCZ, the baseline values of 17 metals (Ba, Ca, K, Mg, Mn, Na, Ag, As, B, Cd, Co, Cr, Cu, Hg, Ni, Pb, and Zn) were established with the values of 1 932 mg/kg, 29 512 mg/kg, 18 150 mg/kg, 17 120 mg/kg, 6 747 mg/kg, 28 546 mg/kg, 0.571 mg/kg, 5.00 mg/kg, 94.4 mg/kg, 0.626 mg/kg, 104 mg/kg, 76.1 mg/kg, 370 mg/kg, 0.028 mg/kg, 190 mg/kg, 27.5 mg/kg and 156 mg/kg, respectively. It would provide basic data support for the research of environmental baseline and may help to improve the accuracy of environment impact assessment of mining exploitation.
Acknowledgements
Less
The authors thank all crew member and researchers on R/V Xiangyanghong 03 aboard in COMRA-45 Cruise.
Funding
Less
  • The Eastern Pacific Eco-environment Monitoring and Protection Project under contract No. DY135-E2-5-02; the Scientific Research Foundation of Third Institute of Oceanography, Ministry of Natural Resources of China under contract No. 2017014; the Global Change and Air-Sea Interaction II under contract No. GASI-01-NPAC-STsum; the Fund of COMRA-45 Cruise under contract No. DYHC-135-45.
References
Less
Bischoff J L, Heath G R, Leinen M L. 1979. Geochemistry of deep-sea sediments from the Pacific manganese nodule province: DOMES sites A, B, and C. In: Bischoff J L, Piper D Z, eds. Marine Geology and Oceanography of the Pacific Manganese Nodule Province. New York: Plenum Press, 397–436
Chatterjee M, Filho E V S, Sarkar S K, et al. 2007. Distribution and possible source of trace elements in the sediment cores of a tropical macrotidal estuary and their ecotoxicological significance. Environment International, 33(3): 346–356, doi: 10.1016/j.envint.2006.11.013
Colizza E, Fontolan G, Brambati A. 1996. Impact of a coastal disposal site for inert wastes on the physical marine environment, Barcola-Bovedo, Trieste, Italy. Environmental Geology, 27(4): 270–285, doi: 10.1007/BF00766697
Deng Yinan, Ren Jiangbo, Guo Qingjun, et al. 2018. Geochemistry characteristics of REY-rich sediment from deep sea in Western Pacific, and their indicative significance. Acta Petrologica Sinica, 34(3): 733–747
El-Hasan T, Jiries A. 2001. Heavy metal distribution in valley sediments in Wadi Al-Karak catchment area, South Jordan. Environmental Geochemistry and Health, 23(2): 105–116, doi: 10.1023/A:1010918014577
General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of China. 2007. The Specification of Oceanographic Survey—Part 8: Marine Geology and Geophysics Survey (GB/T 12763.8–2007). Beijing: Standards Press of China, 7–9
General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of China. 2008. The Specification for Marine Monitoring—Part 5: Sediment Analysis (GB 17378.5–2007). Beijing: Standards Press of China, 80
Huang Mu, Liu Jihua, Shi Xuefa, et al. 2014. Geochemical characteristics and material sources of rare earth elements in sediments from the CC area in the eastern Pacific Ocean. Advances in Marine Science, 32(2): 175–187
Jiang Jianbin, Wang Jing, Liu Shaoqing, et al. 2013. Background, baseline, normalization, and contamination of heavy metals in the Liao River Watershed sediments of China. Journal of Asian Earth Sciences, 73: 87–94, doi: 10.1016/j.jseaes.2013.04.014
Karim Z, Qureshi B A, Mumtaz M. 2015. Geochemical baseline determination and pollution assessment of heavy metals in urban soils of Karachi, Pakistan. Ecological Indicators, 48: 358–364, doi: 10.1016/j.ecolind.2014.08.032
Korfali S I, Davies B E. 2003. A comparison of metals in sediments and water in the river Nahr-Ibrahim, Lebanon: 1996 and 1999. Environmental Geochemistry and Health, 25(1): 41–50, doi: 10.1023/A:1021284126632
Kuang Yaoqiu, Huang Yongyang, Zhong Hexian. 2004. Clues to the geochemical evolution of the sedimentary environment as revealed by factor analysis of sediments in area CC of the East Pacific oceanic basin. Geology in China, 31(3): 325–331
Li Zhichun. 2013. Research on the pollution characteristics of heavy metals in sediments from the Tuohe River, Suzhou City, Anhui Province (in Chinese) [dissertation]. Huainan: Anhui University of Science & Technology
Li Tong, Yuan Huaiyu. 2011. Element abundance in the oceanic and the continental lithospheres. Geochimica, 40(1): 1–5
Liang Ying, He Jiang, Lv Changwei, et al. 2009. Concentration and spatial distribution of bio-available fraction of heavy metals in the sediments from the Nanhai Lake. Journal of Agro-Environment Science, 28(6): 1208–1213
Lin Cai, Lin Hui, Chen Jinmin, et al. 2011. Pollution assessment of heavy metals in the sediment of Jiulong River Estuary. Marine Sciences, 35(8): 11–17
Lin Cai, Liu Yang, Li Wenquan, et al. 2014. Speciation, distribution, and potential ecological risk assessment of heavy metals in Xiamen Bay surface sediment. Acta Oceanologica Sinica, 33(4): 13–21, doi: 10.1007/s13131-014-0453-2
Lv Huahua. 2005. Study on the typical characteristics and application of clay sediments from the Northern Equatorial Pacific (in Chinese) [dissertation]. Qingdao: The Institute of Oceanology, Chinese Academy of Sciences
Mandour A, El-Sayed M K, El-Gamal A A, et al. 2021. Temporal distribution of trace metals pollution load index in the Nile Delta coastal surface sediments. Marine Pollution Bulletin, 167: 112290, doi: 10.1016/j.marpolbul.2021.112290
Matschullat J, Maenhaut W, Zimmermann F, et al. 2000. Aerosol and bulk deposition trends in the 1990’s, Eastern Erzgebirge, Central Europe. Atmospheric Environment, 34(19): 3213–3221, doi: 10.1016/S1352-2310(99)00516-6
Newman B K, Watling R J. 2007. Definition of baseline metal concentrations for assessing metal enrichment of sediment from the south-eastern Cape coastline of South Africa. Water SA, 33(5): 675–691
Niu Siping, Gao Liangmin, Wang Xuan. 2019. Characterization of contamination levels of heavy metals in agricultural soils using geochemical baseline concentrations. Journal of Soils and Sediments, 19(4): 1697–1707, doi: 10.1007/s11368-018-2190-1
O′Donnell K E, Freestone S E, Nice S E. 2004. Geochemical Baseline Data for the Urban Area of Kingston-upon-Hull. London: NERC
Pratap A, Mani F S, Prasad S. 2020. Heavy metals contamination and risk assessment in sediments of Laucala Bay, Suva, Fiji. Marine Pollution Bulletin, 156: 111238, doi: 10.1016/j.marpolbul.2020.111238
Rate A W, Robertson A E, Borg A T. 2000. Distribution of heavy metals in near-shore sediments of the Swan River Estuary, Western Australia. Water, Air, and Soil Pollution, 124(1): 155–168
Ren Jiangbo, Yao Huiqiang, Zhu Kechao, et al. 2015. Enrichment mechanism of rare earth elements and yttrium in deep-sea mud of Clarion-Clipperton Region. Earth Science Frontiers, 22(4): 200–211
Schiff K C, Weisberg S B. 1999. Iron as a reference element for determining trace metal enrichment in southern California coastal shelf sediments. Marine Environmental Research, 48(2): 161–176, doi: 10.1016/S0141-1136(99)00033-1
Siddiqui E, Pandey J. 2019. Assessment of heavy metal pollution in water and surface sediment and evaluation of ecological risks associated with sediment contamination in the Ganga River: a basin-scale study. Environmental Science and Pollution Research, 26(11): 10926–10940, doi: 10.1007/s11356-019-04495-6
Sim S F, Chai H P, Nyanti L, et al. 2016. Baseline trace metals in water and sediment of the Baleh River—a tropical river in Sarawak, Malaysia. Environmental Monitoring and Assessment, 188(9): 537, doi: 10.1007/s10661-016-5553-3
Singh M, Müller G, Singh I B. 2003. Geogenic distribution and baseline concentration of heavy metals in sediments of the Ganges River, India. Journal of Geochemical Exploration, 80(1): 1–17, doi: 10.1016/S0375-6742(03)00016-5
Singh H, Pandey R, Singh S K, et al. 2017. Assessment of heavy metal contamination in the sediment of the River Ghaghara, a major tributary of the River Ganga in Northern India. Applied Water Science, 7(7): 4133–4149, doi: 10.1007/s13201-017-0572-y
State Oceanic Administration. 2013. Code of Practice for Marine Monitoring Technology—Part 2: Sediment (HY/T 147.2–2013). Beijing: Standards Press of China, 55
Sun Houyun, Wei Xiaofeng, Gan Fengwei, et al. 2019. Determination of heavy metal geochemical baseline values and its accumulation in soils of the Luanhe River basin, Chengde. Environmental Science, 40(8): 3753–3763
Taylor M P. 2007. Distribution and storage of sediment-associated heavy metals downstream of the remediated Rum Jungle Mine on the East Branch of the Finniss River, Northern Territory, Australia. Journal of Geochemical Exploration, 92(1): 55–72, doi: 10.1016/j.gexplo.2006.07.005
Teng Yanguo, Ni Shijun, Wang Jinsheng, et al. 2009. Geochemical baseline of trace elements in the sediment in Dexing area, South China. Environmental Geology, 57(7): 1649–1660, doi: 10.1007/s00254-008-1446-2
Veinott G, Perron-Cashman S, Anderson M R. 2001. Baseline metal concentrations in coastal Labrador sediments. Marine Pollution Bulletin, 42(3): 187–192, doi: 10.1016/S0025-326X(00)00141-7
Wang Fenlian. 2017. The characteristics of REE and Nd isotopes and their provenance significance of the pelagic sediments from the Pacific Ocean. Geological Review, 2017,63(S1): 201–202
Wang Jiankang, Peng Wenqi, Wang Shaoming, et al. 2020. Establishment of geochemical baseline and multiple assessment of vanadium pollution in sediment cores from the two cascade reservoirs, North China. Environmental Science and Pollution Research, 27(11): 11565–11574, doi: 10.1007/s11356-020-07673-z
Wei Chaoyang, Wen Hailong. 2012. Geochemical baselines of heavy metals in the sediments of two large freshwater lakes in China: implications for contamination character and history. Environmental Geochemistry and Health, 34(6): 737–748, doi: 10.1007/s10653-012-9492-9
Yang Rui, Li Guosheng, Zhang Hongrui. 2007a. Analysis on the geochemical characteristics and material origin of the surface sediments in the Mid-Pacific Ocean. Geology and Resources, 16(3): 200–208
Yang Rui, Li Guosheng, Zhang Hongrui. 2007b. Geochemical characteristics of quaternary sediments in Mid-Pacific Ocean and an analysis of the material source in CC areas. Geophysical & Geochemical Exploration, 31(4): 293–297
Zhang Congwei, Li Liang, Long Genyuan, et al. 2018. Geochemical characteristics and environmental assessment of heavy metal elements in surface sediments from the offshore area of eastern Sanya. Journal of Marine Sciences, 36(2): 55–63
Zhang Fuyuan, Yang Qunhui, Yin Ruguang, et al. 2001. Material sources and distribution characteristics of polymetallic nodules in the Eastern Pacific. Acta Geologica Sinica, 75(4): 537–547
Zhu Aimei, Zhang Hui, Cui Jingjing, et al. 2019. Environmental quality assessment and influence factor of heavy metals in the surface sediments from the Bohai Sea. Haiyang Xuebao (in Chinese), 41(12): 134–144
Zhuang Wen, Zhou Fengxia. 2021. Distribution, source and pollution assessment of heavy metals in the surface sediments of the Yangtze River Estuary and its adjacent East China Sea. Marine Pollution Bulletin, 164: 112002, doi: 10.1016/j.marpolbul.2021.112002
