HY-1C Coastal Zone Imager observations of the suspended sediment content distribution details in the sea area near Hong Kong-Zhuhai-Macao Bridge in China
收藏切换
PDF
Lina Cai1, Minrui Zhou1, Xiaojun Yan1, Jianqiang Liu2, *, Qiyan Ji1, Yuxiang Chen3, Juncheng Zuo4
Acta Oceanologica Sinica | 2022, 41(11) : 126 - 138
Less
收藏切换
Acta Oceanologica Sinica | 2022, 41(11): 126-138
• Ocean Engineering •
HY-1C Coastal Zone Imager observations of the suspended sediment content distribution details in the sea area near Hong Kong-Zhuhai-Macao Bridge in China
Full
Lina Cai1, Minrui Zhou1, Xiaojun Yan1, Jianqiang Liu2, *, Qiyan Ji1, Yuxiang Chen3, Juncheng Zuo4
Affiliations
  • 1 Marine Science and Technology College, Zhejiang Ocean University, Zhoushan 316004, China
  • 2 Key Laboratory of Space Ocean Remote Sensing and Application, Ministry of Natural Resources, Beijing 100081, China
  • 3 South China Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Guangzhou 510300, China
  • 4 College of Marine Sciences, Shanghai Ocean University, Shanghai 201306, China
Published: 2022-11-25 doi: 10.1007/s13131-022-2107-0
Outline
收藏切换

The impacts of the Hong Kong-Zhuhai-Macao Bridge (HKZMB) on suspended sediment content (SSC) were analysed in the Zhujiang River Estuary based on data from HY-1C, which was launched in September 2018 in China, carrying Coastal Zone Imager (CZI) and Chinese Ocean Color and Temperature Scanner on it. A new SSC inversion model was established based on the relationship between in-situ SSC and the remote sensing reflectance in red and near-infrared bands of CZI image. HY-1C satellite data obtained from October to December 2019 were applied to retrieve SSC in the Zhujiang River Estuary. The results show that SSC around the HKZMB is ranging from 20 mg/L to 95 mg/L. SSC change obviously on two sides of the bridge. During flooding and ebbing period, SSC increases obviously downstream of the bridge. SSC difference between upstream and downstream is ranging from 5 mg/L to 20 mg/L. Currents flowing across the HKZMB, the change trend of SSC in most places upstream and downstream is almost the same that SSC downstream of the bridge is higher than SSC upstream. The tidal currents interact with bridge piers, inducing vortexes downstream, leading the sediment to re-suspend downstream of the bridge piers. Other factors, including seafloor topography and wind, can also contribute to the distribution of SSC in the Zhujiang River Estuary.

HY-1C Coastal Zone Imager (CZI)  /  Hong Kong-Zhuhai-Macao Bridge  /  suspended sediment content  /  Zhujiang River Estuary
Lina Cai, Minrui Zhou, Xiaojun Yan, Jianqiang Liu, Qiyan Ji, Yuxiang Chen, Juncheng Zuo. HY-1C Coastal Zone Imager observations of the suspended sediment content distribution details in the sea area near Hong Kong-Zhuhai-Macao Bridge in China[J]. Acta Oceanologica Sinica, 2022 , 41 (11) : 126 -138 . DOI: 10.1007/s13131-022-2107-0
Full Text
Less
1 Introduction
Less
Suspended sediment, as one of the major elements of ocean colour, plays an important role in coastal environment by affecting the process of biology, physics and geochemistry. It has an influence on luminous flux in water which is a key point to primary productivity (Shi et al., 2017) and can influence morph dynamical evolution of estuaries by process of depositing, flocculating and settling (Elias et al., 2012). The suspended sediments can be transferred by ocean current and they were redistributed in coastal waters. Therefore, analysing the distribution of suspended sediments in coastal waters is of great significance to the coastal environmental management (Cai et al., 2020), and it is a key point for the impact of offshore engineering on the marine environment (Chen and Gu, 2000; Li et al., 2017).
Prior researchers have developed many methods to detect suspended sediment content (SSC) based on remote sensing technology. The key of obtaining a SSC inversion model is to find the relationship between the sensitivity of satellite remote sensing data and suspended sediments (Cai et al., 2015; Lodhi et al., 1998). The relationship between the spectral reflectance of laboratory water and the total suspended particulate matter content showed that there exist non-linear relationships, such as exponential relationship, logarithmic relationship, quadratic relationship, cubic (Zhu et al., 2015; Nanu and Robertson, 1990; Forget et al., 2001; Yang et al., 2003, 2013) between them. In addition, liner relationship (Cai et al., 2020; Yang et al., 2003) was also revealed. In different bands, the red band (Novo et al., 1991) and the near-infrared band (Gordon and Morel, 1983) have the highest correlation with SSC.
Many offshore engineering facilities, such as Hangzhou Bay Bridge, airports in the Jinzhou Bay, and Ningbo North Dyke (Cai et al., 2019, 2020; Yan et al., 2015), have been built in coastal areas. These facilities have impacts on ocean dynamic environmental factors (Park and Park, 1998; Xu et al., 2004). The change of dynamical environmental factors will induce the change of phytoplankton, SSC (Yuan and Lu, 2001), and SST (Huang et al., 2020) in the ocean. Detection of the impact of coastal engineering on the ocean environment was difficult until the advent of satellite remote sensing technology. Prior researchers applied satellite data to detect the change of SSC induced by bridges and ports in coastal waters (Qiao et al., 2011; Feng et al., 2014; Dai et al., 2006) and found that these engineering have changed the distribution of SSC. For example, SSC change induced by Donghai Bridge was analysed using the Medium Resolution Imaging Spectrometer (MERIS) and Thematic Mapper (TM). SSC increased near the bridge and then decreased in the area 5 km away from the bridge downstream (Qiao et al., 2015). During the construction of the cross-sea bridge in the Jiaozhou Bay, the increased flow on the north side of the bridge brought coarser seabed sediments from north to south of the Jiaozhou Bay (Zhao et al., 2015). Furthermore, researchers revealed that the downstream SSC increased at 3.0–6.5 km away from the bridge when the upstream SSC was low in the Hangzhou Bay. However, when the upstream SSC was greater than 400 mg/L, SSC decreased downstream (Cai et al., 2019). Meanwhile, the impacts of small-scale coastal engineering on SSC based on remote sensing data have also been analysed (Cai et al., 2019). However, prior studies mainly focused on the influence of engineering on surrounding waters environment in high turbidity water. It is necessary to study the impacts of coastal constructions on surrounding ocean environmental factors in low turbidity water.
The HKZMB was completed and put into use in 2018, and its effect on the marine environment turbidity water of Zhujiang River Estuary is not clear. Studies of sediments containing metal contents in the Zhujiang River Estuary have been performed using satellite remote sensing data (Li et al., 2000, 2001). Based on long-term analysis of hydrological and meteorological data, some studies have found the decreased trend and annual cycle period (4–8 a) for sediment load in Zhujiang River Estuary (Dai et al., 2008; Wu et al., 2014). Many studies have focused on suspended sediments observation in the Zhujiang River Estuary, but few studies focus on the influence of the HKZMB on surrounding waters using HY-1C satellite observation.
HY-1C, launched in China in 2018 for ocean observations, is a new satellite carrying Coastal Zone Imager (CZI) and Chinese Ocean Colour and Temperature Scanner. HY-1C CZI has a high resolution of 50 m and a great potential for small-scale marine monitoring such as chlorophyll a concentration observation in the Bohai Sea (Chen et al., 2019) and SSC in the Hangzhou Bay (Cai et al., 2020). However, these studies mainly focus on high turbidity water. It is urgent to develop low turbidity water algorithm based on HY-1C for the Zhujiang River Estuary, and reveal SSC distribution details near the HKZMB in Zhuhai.
2 Data and methods
Less
2.1 Study area
The Zhujiang River Estuary (22.25°−22.90°N, 113.4°−114.2°E) is a composite delta, consisting of the west, the north and the east river deltas, from which three rivers flow into the sea (Fig. 1). The Zhujiang River is the third-largest river in China and its discharge in the basin mainly depended on the amount of rainfall (Chen and Chen, 2008). The average annual total runoff from the Zhujiang River Mouth to the sea ranks second compared to the Changjiang River in China, at about 3.26 km3, and the amount of sediment at the entrance is 70.98×106 t (Zu et al., 2014).
The Zhujiang River Estuary mainly includes three major estuaries of the Lingdingyang Bay, Modaomen Estuary, and Huangmao Bay (Fig. 1). Each estuary has different widths and topographic features (Wong et al., 2003). The Lingdingyang Bay is a wide, shallow water area, and the sediments are mainly trumpet-shaped and there are 350 islands of different sizes, such as Qi’ao Island and Neilingding Island. The average depth of the Zhujiang River Estuary is about 4.8 m, but it can reach 10−20 m in the west channel and the east channel. The flood season in the Zhujiang River Estuary is from May to October, and dry season is from November to next April. The Zhujiang River has a subtropical monsoon climate and the tide type is irregular semidiurnal tide (Wang et al., 2018).

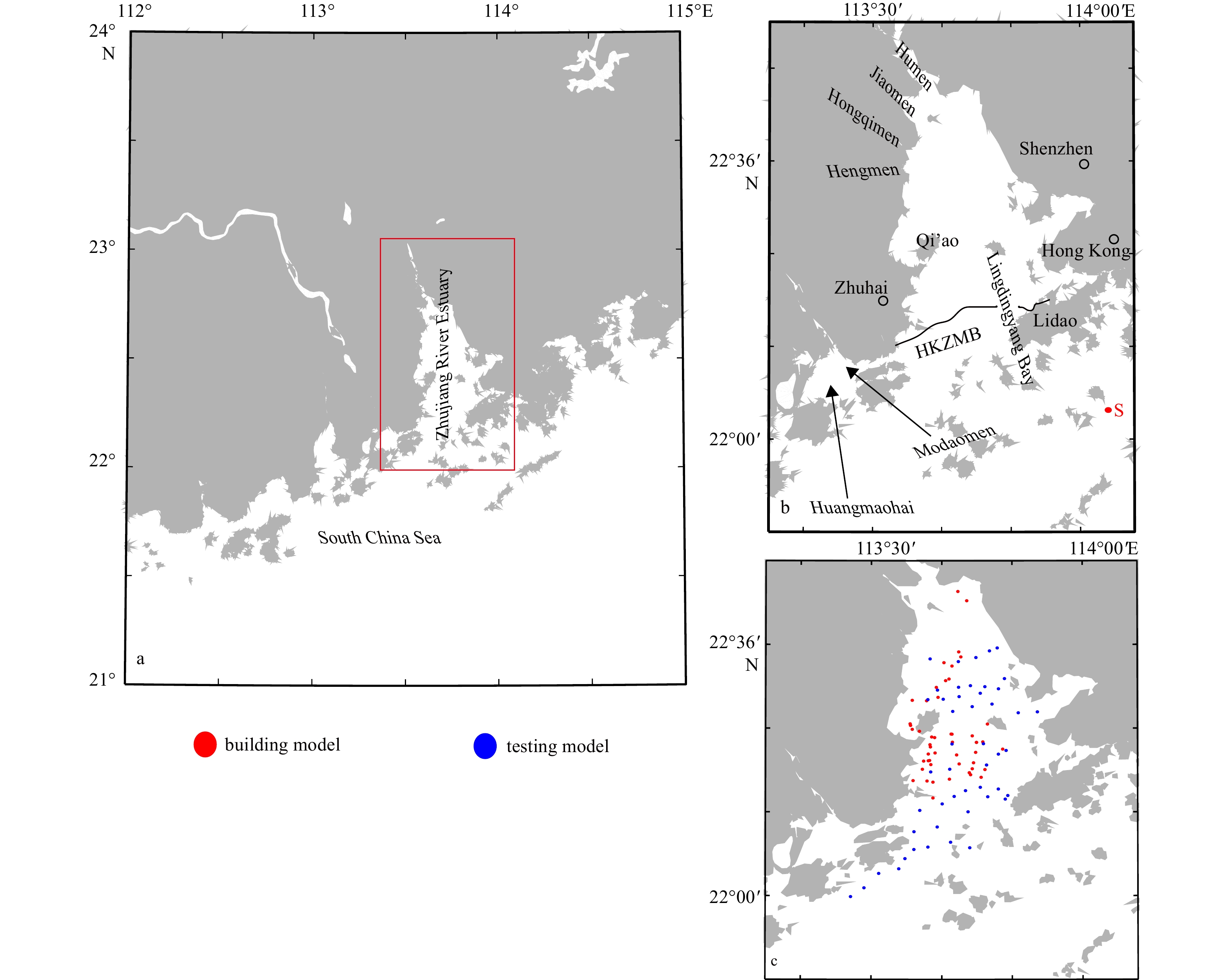

The HKZMB (black line in Fig. 1b) is a mega-size cross-sea bridge linking Hong Kong, Zhuhai and Macao. It is located in the Lingdingyang Bay, which is an estuary with weak tide, and the tide type is irregular semidiurnal mixed tide. The HKZMB is the longest bridge-tunnel system sea-crossing bridge in the world, crossing the waters of the Lingdingyang Channel in the Zhujiang River Estuary. The bridge starts from the artificial island of the Hong Kong Port near the Hong Kong International Airport in the east, crosses the Lingdingyang waters of the South China Sea to the west, connects Zhuhai and Macao artificial islands, and ends at Zhuhai Hongwan Interchange. The bridges and tunnels are 55 km in length, including the 29.6-km-length in main bridge, and 41.6-km-length from Hong Kong Port to Zhuhai-Macao Port. The information of the HKZMB was shown in Table 1.
2.2 Satellite data and data processing
The data product of HY-1C satellite was provided by National Satellite Ocean Application Service, Ministry of Natural Resources of the People’s Republic of China. Images of HY-1C CZI from October to December in 2019 were obtained from the National Satellite Ocean Application Service (https://osdds.nsoas.org.cn) in China. These images were obtained around 10:50 local time under clear sky condition. The preprocessing of CZI image and definition of products at all levels are as follows. The level 1A data are obtained from level 0 data after geometric correction, including the digital number values of blue, green, red, and near-infrared bands. After radiometric calibration and atmospheric correction, we got level 2A (L2A) data. Having been geometrically positioned and performed atmospheric correction, L2A CZI data can be applied to inverse the elements of ocean color. The detailed information of CZI images was shown in Table 2.
In this paper, values from the L2A remote sensing images of CZI were applied as the Rrc (sr−1) of the four bands corrected for Rayleigh scattering. A new SSC estimation model was established based on in-situ SSC and CZI L2A in the Zhujiang River Estuary. All calculations were performed in the softwares Python3.7 and ENVI5.3.
2.3 In-situ data and processing
We conducted data sampling activities around 10:52 on 14 December 2019 in the Zhujiang River. The ship traveled along the Zhujiang River to the Zhujiang River Estuary, collected data every 500 m, and obtained water samples for SSC measurement. Totally, 15 fishing ships at different positions in the sampling area, their locations were changed and water samples were collected around 10:52. Satellite data was acquired at 10:52 providing satellite Rrc synchronously. The matchup analysis between satellite Rrc and in-situ SSC can be performed. We acquired 100 in-situ data, 50 of them were used to build the inversion formula, and the left were for verifying the retrieved results. These sampling points evenly distributed in the areas of Zhujiang River Estuary with different SSC and different depth (Fig. 1c). On average, the resolution of the sampling sites is one effective sampling site per ten or fifteen square kilometers in study area. In addition, to find out the sensitive bands of SSC, we also selected 50 samples randomly in 100 in-situ values to analyze the correlation between Rrc (sr−1) of each band and SSC.
SSC means the per unit volume of particulate matter. We first filtered the water samples, then dried the filters for 24 h at 40°C and reweighed for obtaining SSC value (Qiu, 2013).
The tidal current velocity and direction of study area from 8:00 on June 7 to 8:00 on June 8, 2020 were measured using a flow profilometer named FlowQuest_ADCP 600 to analyze the changing regularity of tidal current velocity and flow direction. FlowQuest_ADCP 600 can measure the speed and direction of water flow in oceans, harbors, estuaries, lakes and rivers. It can measure effectively over long distance and withstand the pressure of deep water. The operating frequency of the ADCP is 600 kHz. Once mounted alongside the ship vertically, the instrument is about a meter underwater, and it can record a set of data every five seconds.
2.4 Current data
Tidal currents in the Zhujiang River Estuary can transport suspended sediments, influencing the distribution of SSC. Therefore, the tidal current information in the Zhujiang River Estuary is necessary for analyzing the distribution of SSC there. The tidal currents in study area have been predicted by an unstructured grid, finite-volume, primitive equation community ocean model (FVCOM) (Chen et al., 2006). FVCOM is well suited for the Zhujiang River Estuary, where is characterized by irregular complex coastlines, islands, and inter-tidal zones. The ocean model is forced by the tidal elevation and transport derived from eight tidal constituents (K1, O1, P1, Q1, K2, M2, N2 and S2). The tidal parameters come from the Oregon State University (OSU) global tidal data-base (Egbert et al., 1994; Egbert and Erofeeva, 2002; Chen et al., 2016). The numerical model has been validated in a prior study (Chen et al., 2016).
3 Results
Less
3.1 Current in study area

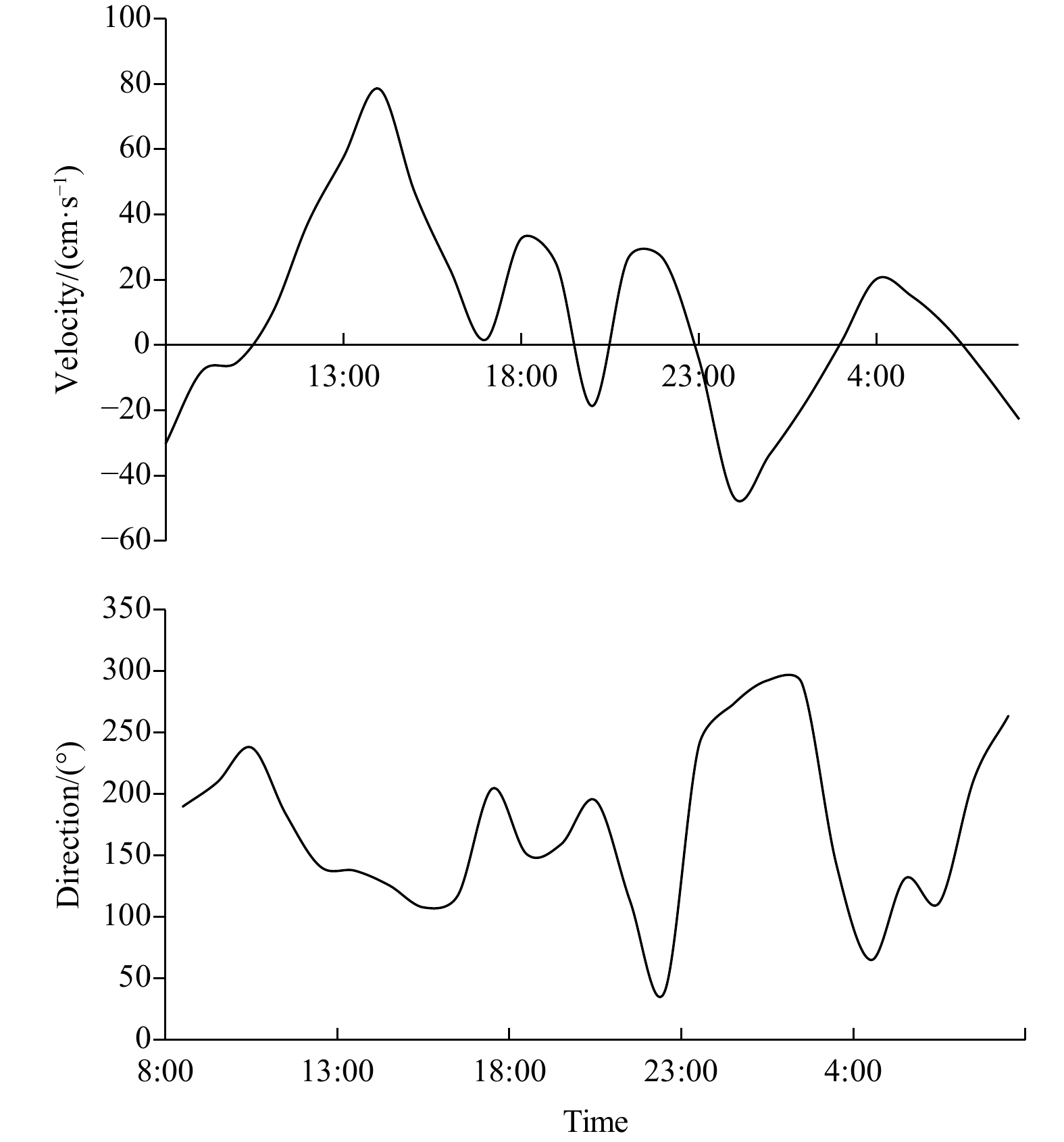

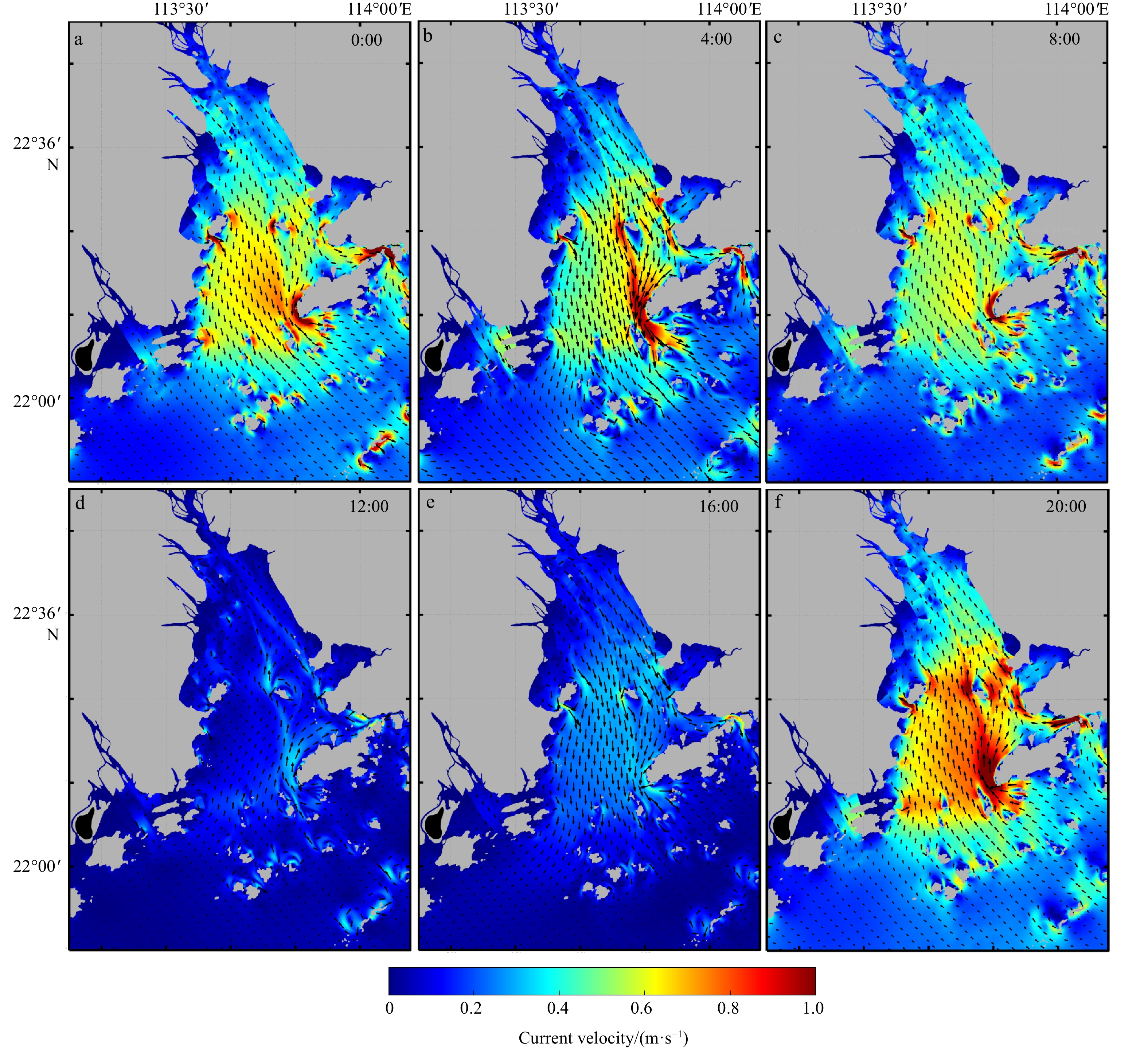

The tidal type of the Zhujiang River Estuary is irregular semi-diurnal tide. Take the current of the Zhujiang River Estuary on December 14, 2019 as an example (Fig. 2). During the ebbing period, the water flows southward from the tributaries and enters the South China Sea through the Zhujiang River Estuary. The flow velocity increases at first and then decreases. The flow velocity is the highest near Hong Kong Island. During the flooding period, the tidal current from the South China Sea poured into the Zhujiang River Estuary. The tide continued to rise until 12:00 noon (Fig. 2d), and the flow velocity decreased. Then ebb occurred again at 16:00 and flood at 20:00 in the evening. Characteristics of tidal current are regional. That is to say, the tidal type and characteristics of the same place are stable. We can apply the tidal pattern of an ordinary day as an example to illustrate this rule. In order to illustrate that the current velocity and direction of tidal current in the study area are constantly changing with time further, we applied 24 h continuous observation of in-situ current velocity and direction to illustrate the change of tidal current velocity with time (Fig. 3). The observation of in-situ current velocity and direction during 24 h at Station S from 8:00 on June 7 to 8:00 on June 8, 2020 also showed that the velocity and direction of tidal current have changed with time (Fig. 3), taking on irregular semi-diurnal characters.
3.2 Sensitive band of SSC

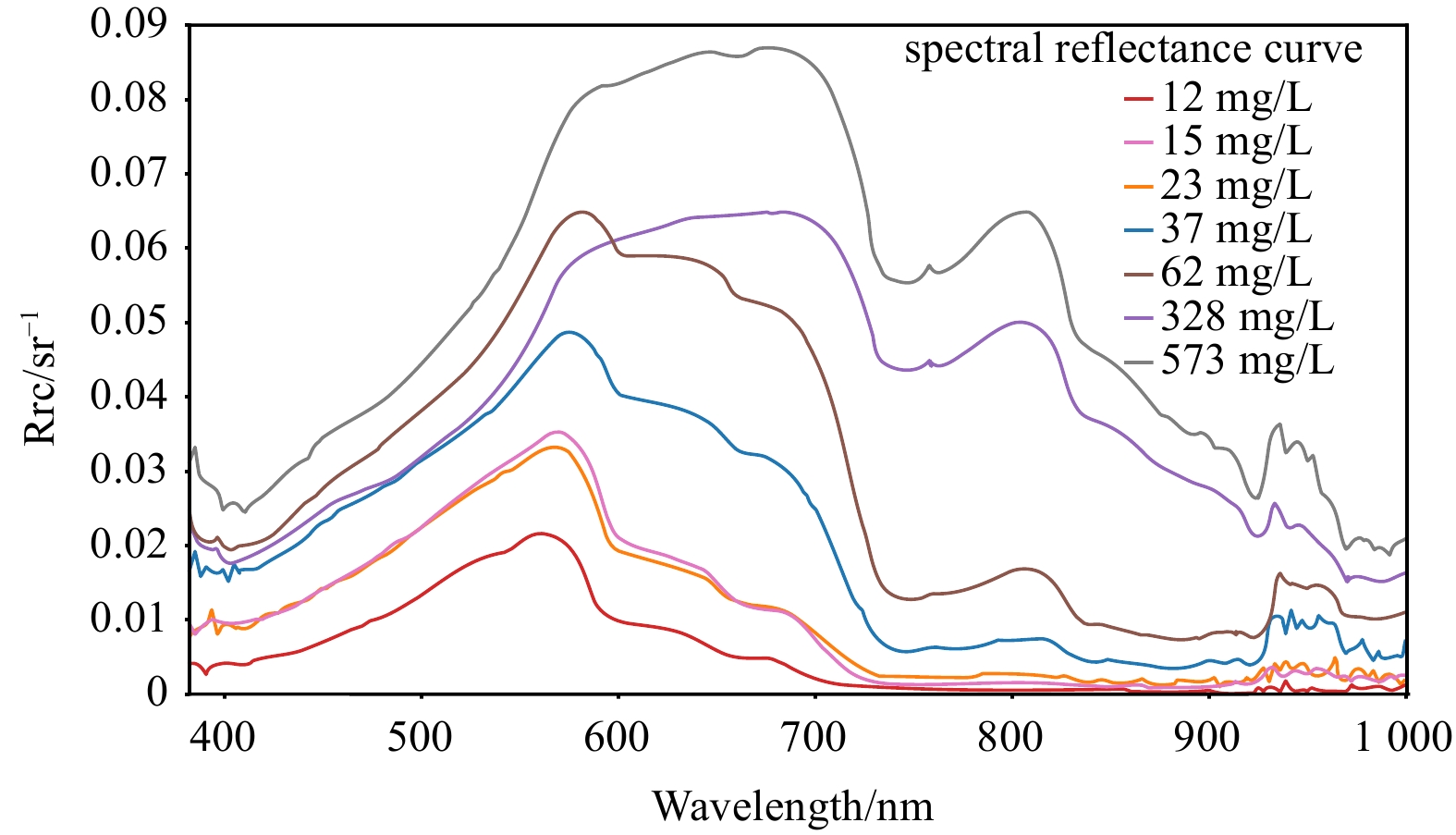

The change of SSC can induce the change of reflectance value, as shown in the red band with the highest value of reflectance around 0.087. The lowest value of reflectance is about 0.005 when SSC is 12 mg/L. With the increase of SSC from 12 mg/L to 62 mg/L, the value of reflectance is also increasing and there appears a peak value in the green band. In the near-infrared band, there is no significant change in the value of reflectance. When SSC is up to more than 300 mg/L, two reflectance peaks (Fig. 4) appear in the in-situ measured reflectance curve, in the ranges of 550−600 nm and 630−700 nm. Therefore, it is obvious that when SSC is low, the green band and the red band are more sensitive to the reflectance of the sediments, while the red and the near-infrared band are sensitive to high SSC water.

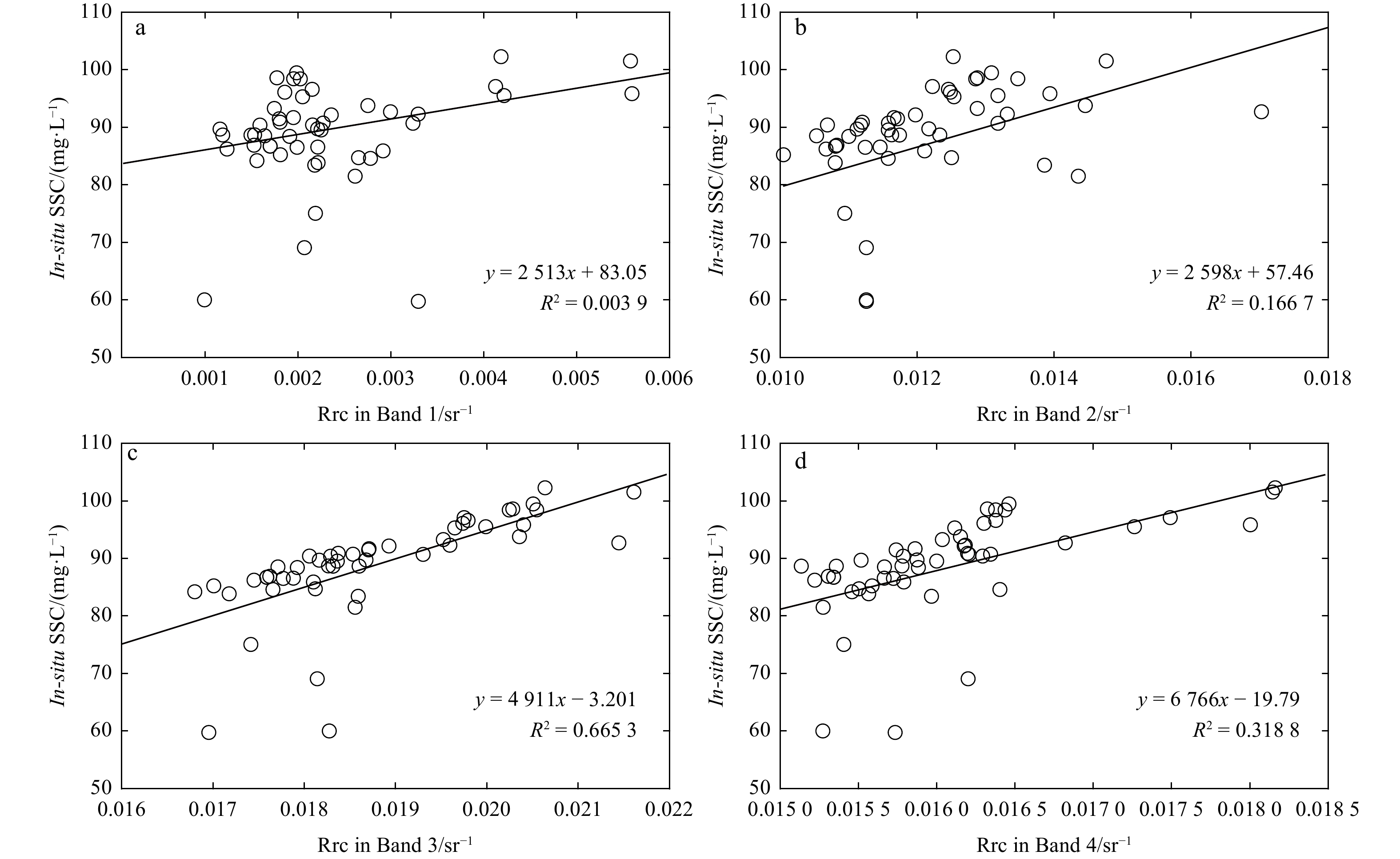

The correlation between the Rrc (sr−1) value of each band of CZI and the in-situ SSC was shown in Fig. 5. The coefficient of determination between the single band Rrc (sr−1) and in-situ SSC is in the range of 0.004−0.67. The lowest value of R2 is 0.003 9 for blue band (Fig. 5a) and the highest value is 0.665 3 for red band (Fig. 5c), indicating that the blue band is the least sensitive to the change of SSC, while the red band is the most sensitive to the change of SSC. The sensitivity of green band and near-infrared band to the change of SSC is stronger than blue band with the R2 value of 0.166 7 (Fig. 5b) and 0.318 8 (Fig. 5d), respectively. According to the coefficient of determination values, the red band is most sensitive to the change of SSC, followed by the near-infrared band, and the sensitivity of the blue band and the green band to SSC is relatively weak (Fig. 5). Therefore, the Band 3 and the Band 4 of CZI were selected to build SSC inverse model.
3.3 A new SSC estimation model for HY-IC
Based on the analysis of the water spectrum characteristics above, and combined with the band setting of the HY-1C satellite sensor and the response function of each band, the Band 3 and Band 4 were selected to build SSC inverse model (Table 3). The single band, band combination which is more sensitive to SSC was selected. The combination of Band 3 (red band) and Band 4 (near-infrared band) is sensitive to sediment concentration, as shown in Table 3 and we apply this combination to build SSC inversion model. Furthermore, previous studies have proved that the red and near-infrared bands combination method is more sensitive to changes of SSC (Wang et al., 2018).
Statistical regression remote sensing inversion models between single band or band combination and SSC in the water body were built and analyzed (Table 3). The winter voyage of the Zhujiang River Estuary has collected data from 100 points. To ensure the reliability of the model, half of the data was used for establishing the model and the remaining data was applied for verification. The model with the best stability and high accuracy will be applied to retrieve the distribution of SSC in the study area. The band combinations and the models were shown in Table 3.
Band combinations of B3 and B4 improve the fitting effect of the model, and the highest coefficient of determination can reach 0.981 2. Number 13 corresponds to the model with the highest correlation coefficient in Table 3.
$ \mathrm{SSC}=7\;011.61\times {R}_{\mathrm{red}}-3\;386.62\times {R}_{\mathrm{nir}}, $
where SSC is the suspended sediment concentration (mg/L), Rred and Rnir are Rrc (sr−1) of the third (red) and fourth (near-infrared) band after the atmospheric correction.

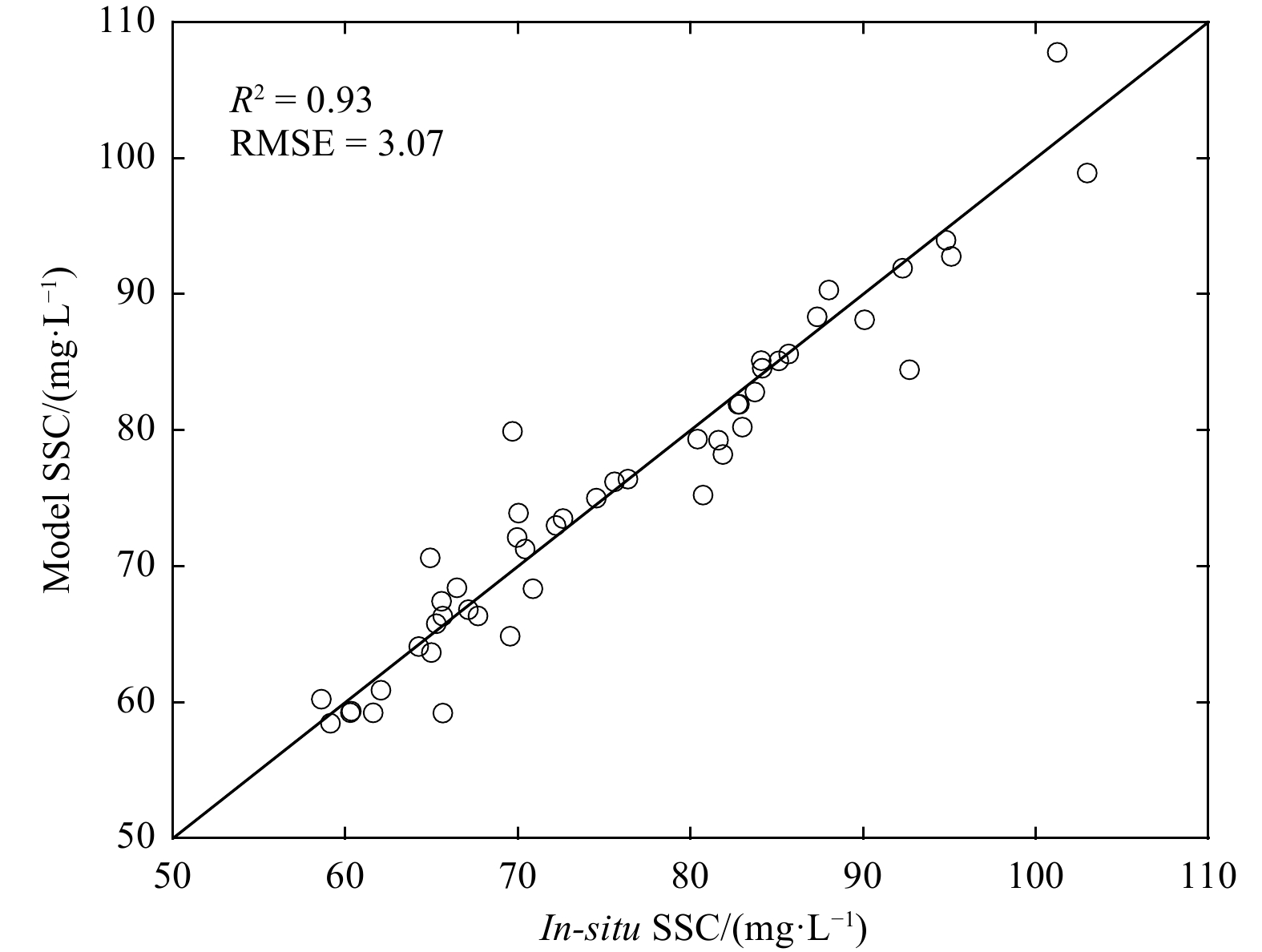

The model-estimated result shows a high consistency with in-situ SSC (RMSE is 3.07, R2 is 0.93) (Fig. 6). It is obvious that the new built model is suitable for SSC inversion in the Zhujiang River Estuary. Furthermore, in prior study, it is valid for SSC retrieving at the Zhujiang River Estuary by using the reflectance at 645 nm (red band) and 825 nm (near-infrared band) (Zhang et al., 2010).
3.4 SSC distribution in the Zhujiang River Estuary

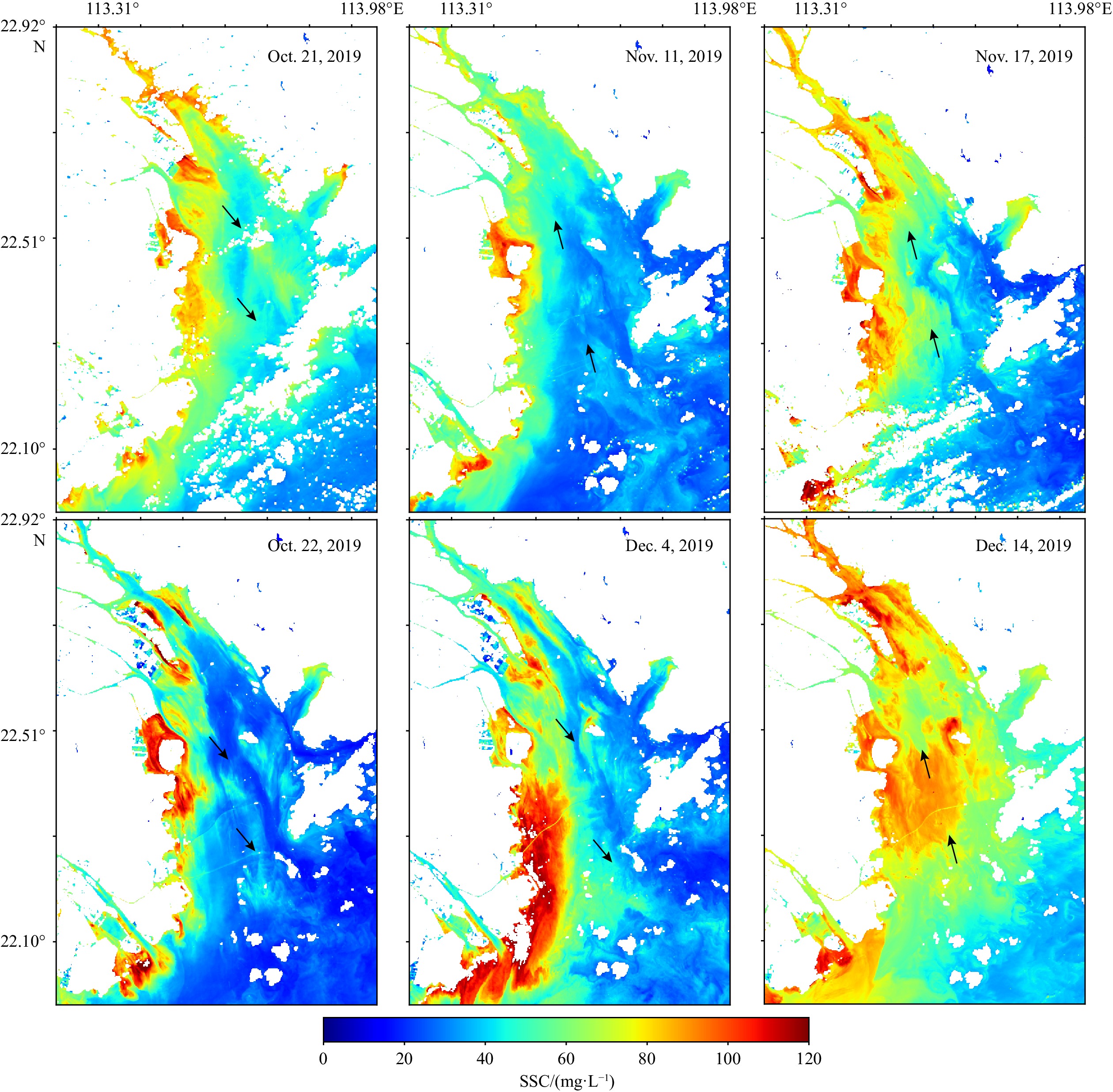

SSC in the Zhujiang River Estuary is ranging from 10 mg/L to 120 mg/L (Fig. 7) and is mainly lower than 100 mg/L. It is clear that SSC is higher in outlets of the west part than in the east part of the study area. SSC is high in the west and north parts of the Zhujiang River Estuary with SSC in the range of 80−120 mg/L. SSC in eastern coastal water near Hong Kong is the lowest, with SSC less than 40 mg/L. Among all the pictures in Fig. 7, SSC in the west shoal is the highest, and SSC in the middle shoal is lower than that of the west shoal.
3.5 SSC distribution near the HKZMB

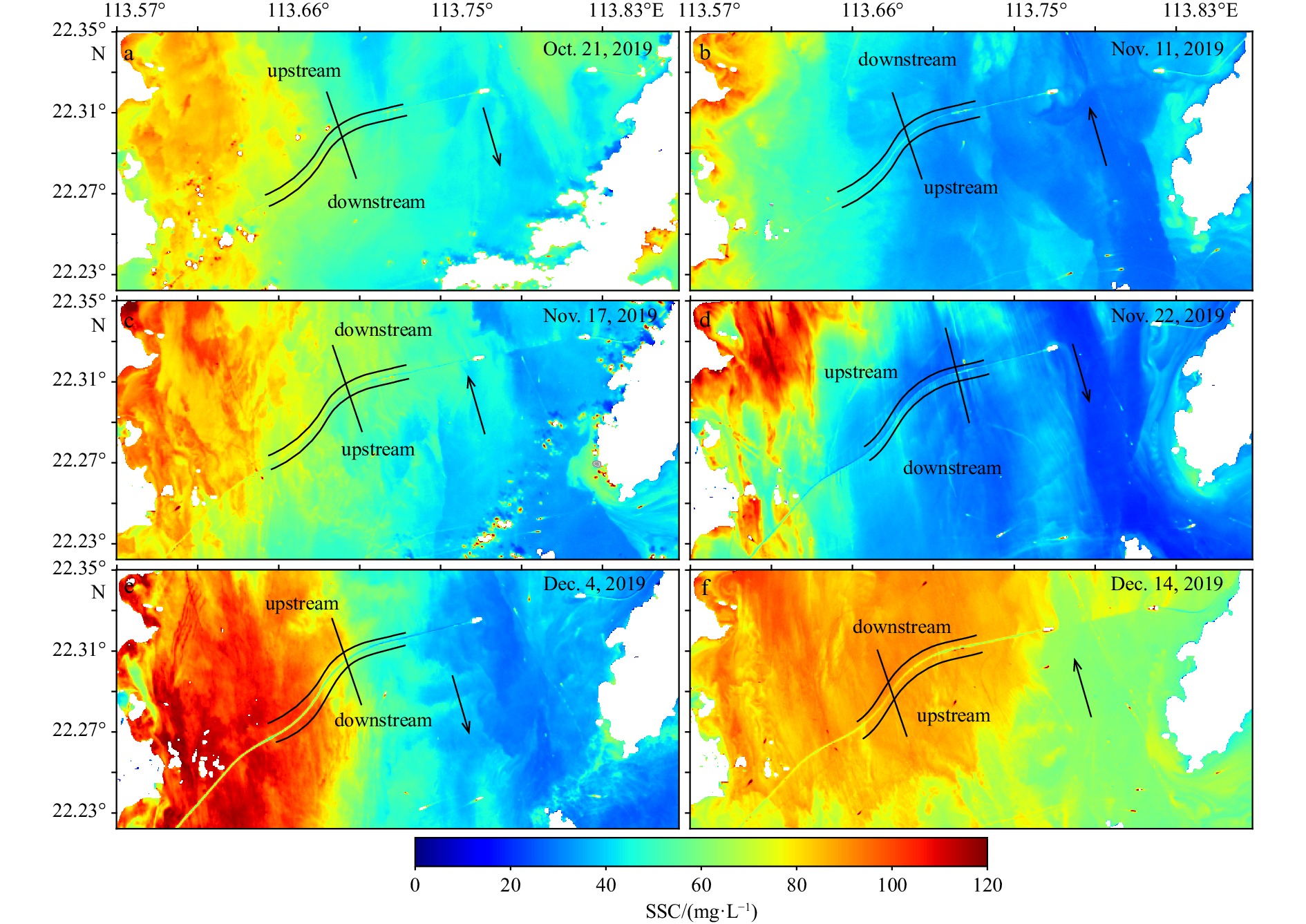

SSC around the HKZMB is ranging from 20 mg/L to 120 mg/L (Fig. 8). It is clear that SSC upstream and downstream of the bridge is different, and the difference of SSC value is in the range of 5−20 mg/L.

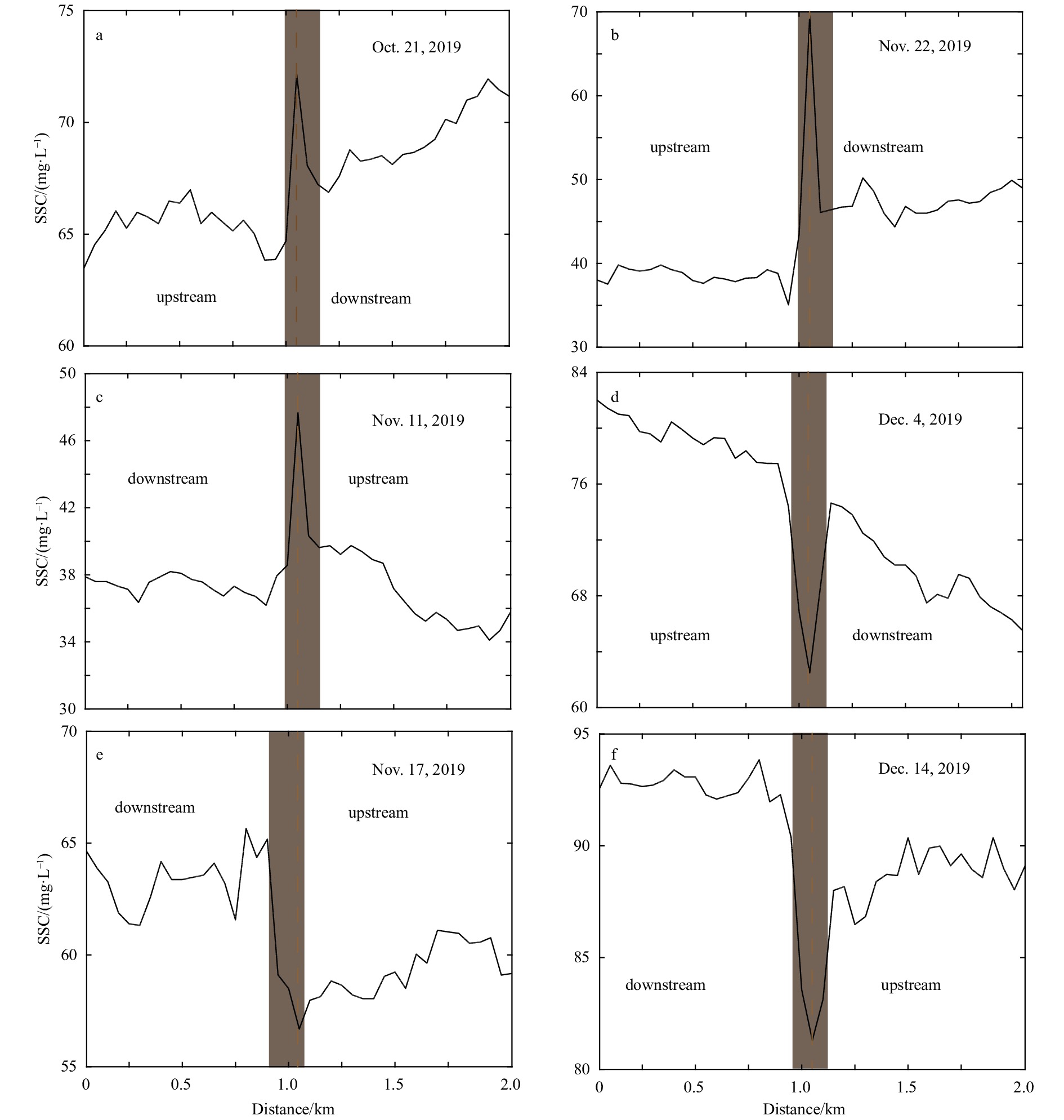

The value changes suddenly at the position of the bridge because of the influence of the bridge. At a distance of 0.5 km from the upstream and downstream of the bridge, SSC value profiles of 7.5 km parallel to the bridge (Figs 8 and 9) were taken. Meanwhile, SSC profiles along the direction of current crossing the bridge were also analyzed (Fig. 10). The changing trend of SSC upstream and downstream of the bridge is stable.

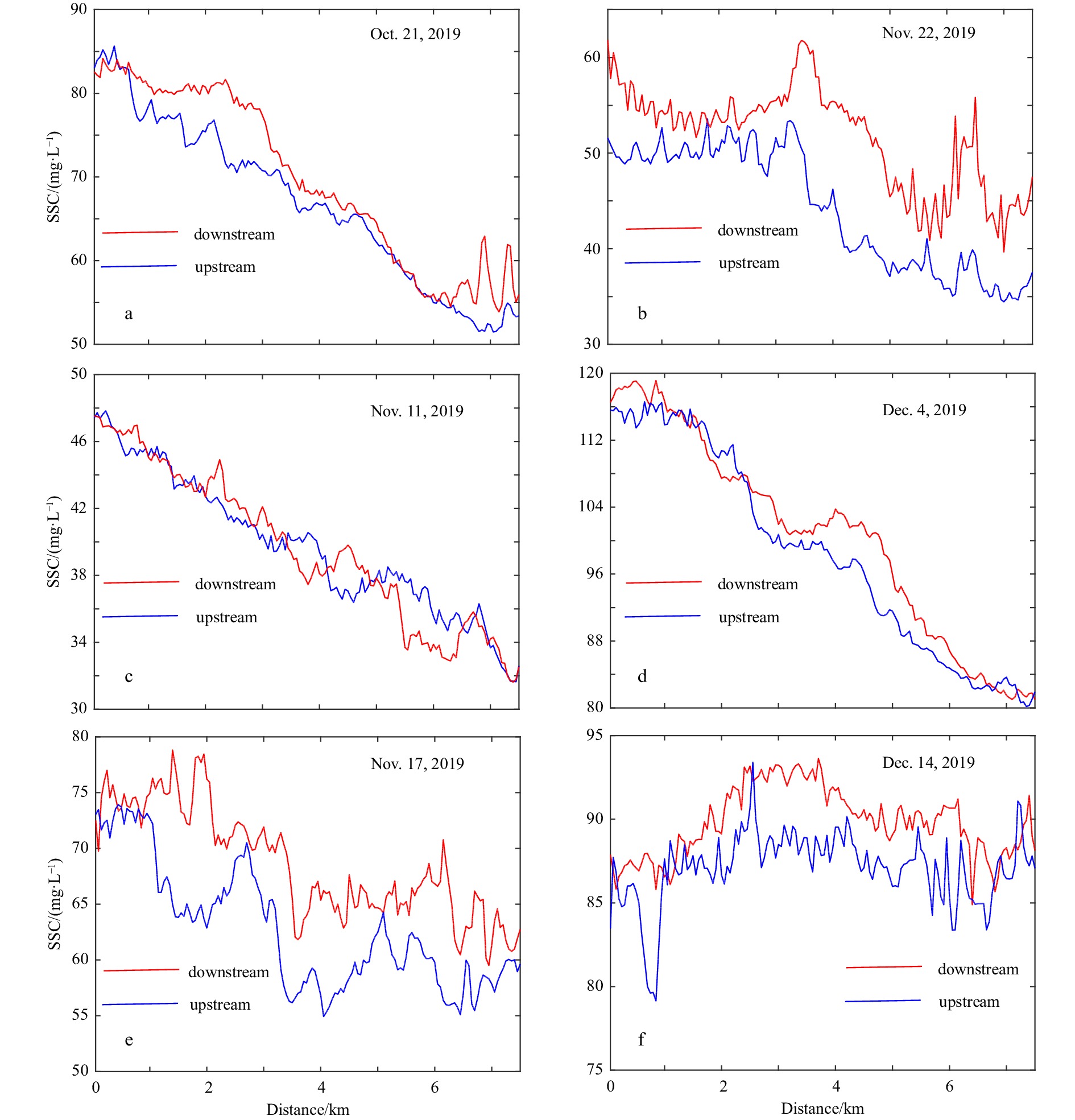

During flooding and ebbing period, it is clearly SSC downstream the bridge is higher than SSC upstream the bridge (Fig. 9, Figs 10 a, b, e and f). The current flowing across the HKZMB, the change trend of SSC in most places upstream and downstream is almost the same, SSC increased obviously downstream of the bridge. The maximum difference in SSC from upstream to downstream is about 20 mg/L. Only a few places in Figs 10c and d showing reverse change. Generally, SSC downstream increased obviously and the maximum difference in SSC from upstream to downstream is about 20 mg/L. While, during plain tide and slack tide, SSC change from upstream to downstream is not obvious with SSC value almost the same in Fig. 9c. Meanwhile, SSC on two side of the bridge decreased gradually along the bridge from the west to the east.
4 Discussion
Less
4.1 Applicability of SSC inversion model for the Zhujiang River Estuary
The correlation between the Rrc (sr−1) value of each band of CZI and the in-situ SSC showed that the coefficient of determination between the Rrc (sr−1) of single band and in-situ SSC is different in different bands. The highest value is 0.665 3 of the red band (Fig. 5c), indicating that the red band is the most sensitive band to the change of SSC. The sensitivity of the near-infrared band to the change of SSC is stronger than blue and green bands with the R2 value of 0.318 8. According to the R2 values, the red band is the most sensitive to the change of SSC, followed by the near-infrared band, therefore, the red band (Band 3) and near-infrared band (Band 4) of CZI are selected to build SSC inversion model. Many models have been developed to estimate SSC with empirical, semi-empirical, semi-analytical or analytical algorithms (Montanher et al., 2014; Wu et al., 2013; Zhang et al., 2014) based on satellite images, such as Moderate Resolution Imaging Spectroradiometer (Feng et al., 2014), MERIS (Loisel et al., 2014), and Landsat (Zhang et al., 2014) images. The near-infrared band and the red band appeared in most of these algorithms (Pope and Fry, 1997; Zhu et al., 2015). Our sensitive bands are consistent with prior studies (Pope and Fry, 1997; Zhu et al., 2015), which applied the red band and the near-infrared band to analyze SSC (Montanher et al., 2014; Wu et al., 2013; Zhang et al., 2014).
In total, water samples were collected from 100 sites, 50 of them were applied to establish SSC inversion model, and the other 50 values were used for calibration. These water samples evenly distributed in the Zhujiang River Estuary. The result estimated by the newly built model shows a high consistency with in-situ SSC (RMSE is 3.07, R2 is 0.93) (Fig. 6). It is obvious that the newly built model is suitable to inverse SSC in the Zhujiang River Estuary. Zhujiang River Estuary is dominated by SSC lower than 100 mg/L. Generally, SSC is higher in outlets of the west part, with SSC in the range of 80–120 mg/L, than the east part of Zhujiang River Estuary where SSC is less than 40 mg/L. SSC in the west shoal is the highest and SSC in middle shoal was lower than that of the west shoal. The modeled SSC in the Zhujiang River Estuary obtained from CZI data is consistent with the results in prior studies (Dai et al., 2008; Wu et al., 2014) as well as in-situ SSC, with R2 of 0.93.
SSC distribution detail near the HKZMB was revealed based on SSC obtained using the newly built model. SSC downstream of the HKZMB is higher than SSC upstream of the bridge (Fig. 9, Figs 10 a, b, e and f), no matter in the flooding period or in the ebbing period. SSC increased obviously downstream of the HKZMB, the maximum difference in SSC from upstream to downstream is about 20 mg/L. While, during plain tide and slack tide, SSC change from upstream to downstream is not obvious with SSC value almost the same (Fig. 9c). Meanwhile, SSC on two sides of the bridge decreased gradually along the bridge from the west to the east.
The sensors on CZI of HY-1C have four bands, including blue, green, red and near-infrared bands, and the spatial resolution is 50 m. In prior study, SSC in coastal zone obtained from CZI images has a good result (Cai et al., 2020), indicating its great potential for offshore observation.
4.2 The natural factors influencing the distribution of SSC in Zhujiang River Estuary
The spatial distribution of SSC in Zhujiang River Estuary is mainly influenced by the tidal currents, sea floor topography and wind. The fluctuation process of the tidal current directly affects the transport, settlement and re-suspension of suspended sediment, and thus influences the distribution of suspended sediment in the estuary (Xia et al., 2004). At the beginning and the middle stages of the flooding period, the low-sand water body of the continental shelf entered the Lingdingyang Bay, from the southeast along with the rising tide. The Lingdingyang Bay was wide and shallow. Under the influence of the ground transfer effect, the lateral tide is stronger than the west at the east part of the estuary. This makes the low-sand water body invade faster and farther to the east, and inhibits the transport of the high-sand water body at the entrance to the east, resulting in a flat distribution of low sand content in the east and low west (Fig. 11). During flooding period, high-sand water body in the west beach of the Lingdingyang Bay is partly covered by the rising tide and spreads like a tongue to the north side. During the ebbing period, the tidal current, together with the high SSC fresh water, flows out of the estuary bay toward the southeast, the high-sand water at the estuary gate and west side were transported by the tidal current (Liu and Cai, 2019; Wong et al., 2003).
Seasonal characteristics of SSC in the Zhujiang River Estuary is obvious (Wu et al., 2014). In winter, SSC is high at the western coast and the estuary of the Zhujiang River, while SSC in the southeast decrease gradually. SSC is lower in the open sea than it in other areas. This is mainly due to the influence of the northwestern winter monsoon and the runoff from the Zhujiang River. SSC is higher in the west coast than in the open sea in spring. There is a large runoff capacity during the summer and a flooding period, resulted that SSC in the west of the estuary is high. The runoff in autumn decreases, and the flush fresh water is weak, the high SSC only stays at the mouth of the Zhujiang River and near the coast (Dai et al., 2008; Wang et al., 2018).
The Lingdingyang Bay is large, where wind waves penetrate in, especially when a typhoon surge occurs, inducing the sediments re-suspension in the western shoals of Lingdingyang Bay with tidal floods. The sediments can be carried by waves to the east and southeast, evenly exposed to the mouth of Zhujiang River Estuary (Graber et al., 1989; Liu and Cai, 2019).

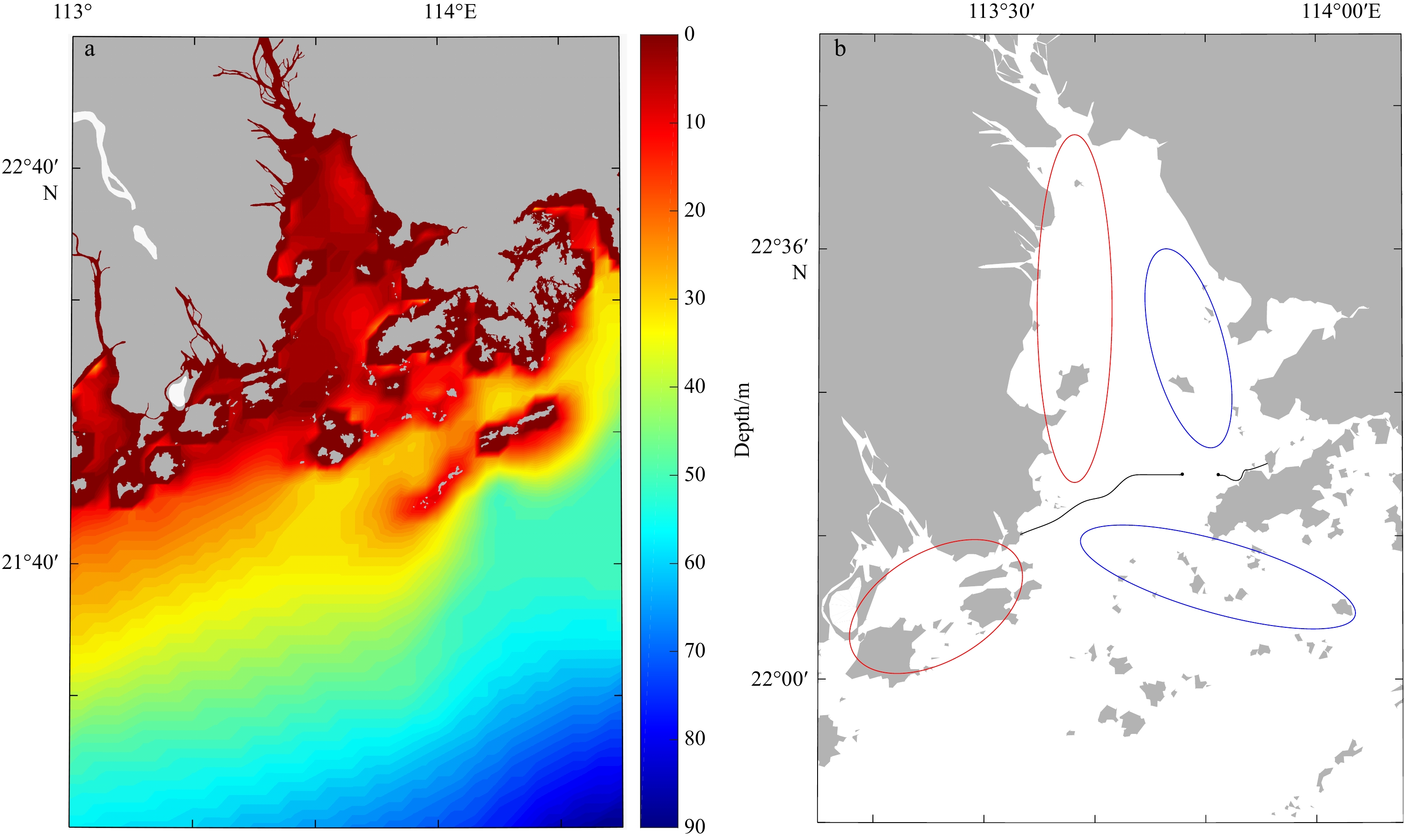

Seafloor topography also plays an important role in influencing the distribution of SSC. SSC is higher (red circles in Fig. 11) in areas with shallow water, and SSC is low (blue circles in Fig. 11) in deep areas, which is consistent with prior studies (Cai et al., 2015).
4.3 The influence of the HKZMB on SSC
Human activities, such as the construction of dams and bridges (Yuan et al., 2009; Zhu et al., 2015), can also contribute to the distribution of SSC. The HKZMB has blocked the radial transport of suspended sediment in the Zhujiang River Estuary, resulting in obvious differences in the spatial distribution of suspended sediment on two sides of the bridge. In the high-concentration area of suspended sediment in the east of the Zhujiang River and near the east artificial island, the HKZMB has a significant impact on the spatial distribution of suspended sediment showing a phenomenon of SSC jump on two sides of the bridge (Fig. 7).
The HKZMB is 55 km long and has 224 piers (Table 1). The scouring of the bridge piers by the tidal current will affect the distribution of sediments. The tidal currents interact with bridge piers, inducing vortex wakes downstream (Umeda et al., 2010). Near the bridge piers, velocity of the current is the largest, forming vortexes downstream, causing the sediments to re-suspend downstream the bridge piers (Cai et al., 2015, 2020). When the current shear stress is greater than the sediments initiation shear stress, resuspension of sediments around the piers will occur. Part of the sediments deposit downstream of the piers, and the other part will be carried away by the current (Yanmaz and Altinbilek, 1991), inducing higher SSC downstream of the bridge, as it was shown in Fig. 12.
Generally, in the water surrounding the HKZMB in the Zhujiang River Estuary, the distribution of SSC is influenced by the HKZMB significantly. The piers of the HKZMB interact with the currents, thereby inducing local scouring near the bridge and vortex streets downstream, resulting in sediment resuspension downstream and inducing the increase of SSC downstream accordingly. Before the presence of the HKZMB, with no piers interacting with the current, SSC there has no obvious difference.
5 Conclusions
Less
This study analyzed the spatial variation of SSC in the Zhujiang River Estuary. The new HY-1C CZI satellite images can well inverse the distribution of SSC in the Zhujiang River Estuary. There was a significant spatial variation of SSC from 20 mg/L to 200 mg/L. SSC is higher in the outlets of tributaries than the southeast study area. SSC reaches the highest from tributaries outlets to Qi’ao Island. SSC in eastern coastal water of Lidao Island of Hong Kong is the lowest, with SSC less than 40 mg/L.
SSC around the HKZMB is ranging from 20 mg/L to 120 mg/L. SSC changes obviously on two sides of the bridge, showing a sudden increase or decrease in SSC, and SSC change on the upstream and downstream of the bridge is stable. SSC upstream and downstream of the bridge has the same change trend, i.e., SSC upstream of the bridge is lower than SSC downstream of the bridge at most of the time. The difference of SSC is ranging from 5 mg/L to 20 mg/L.

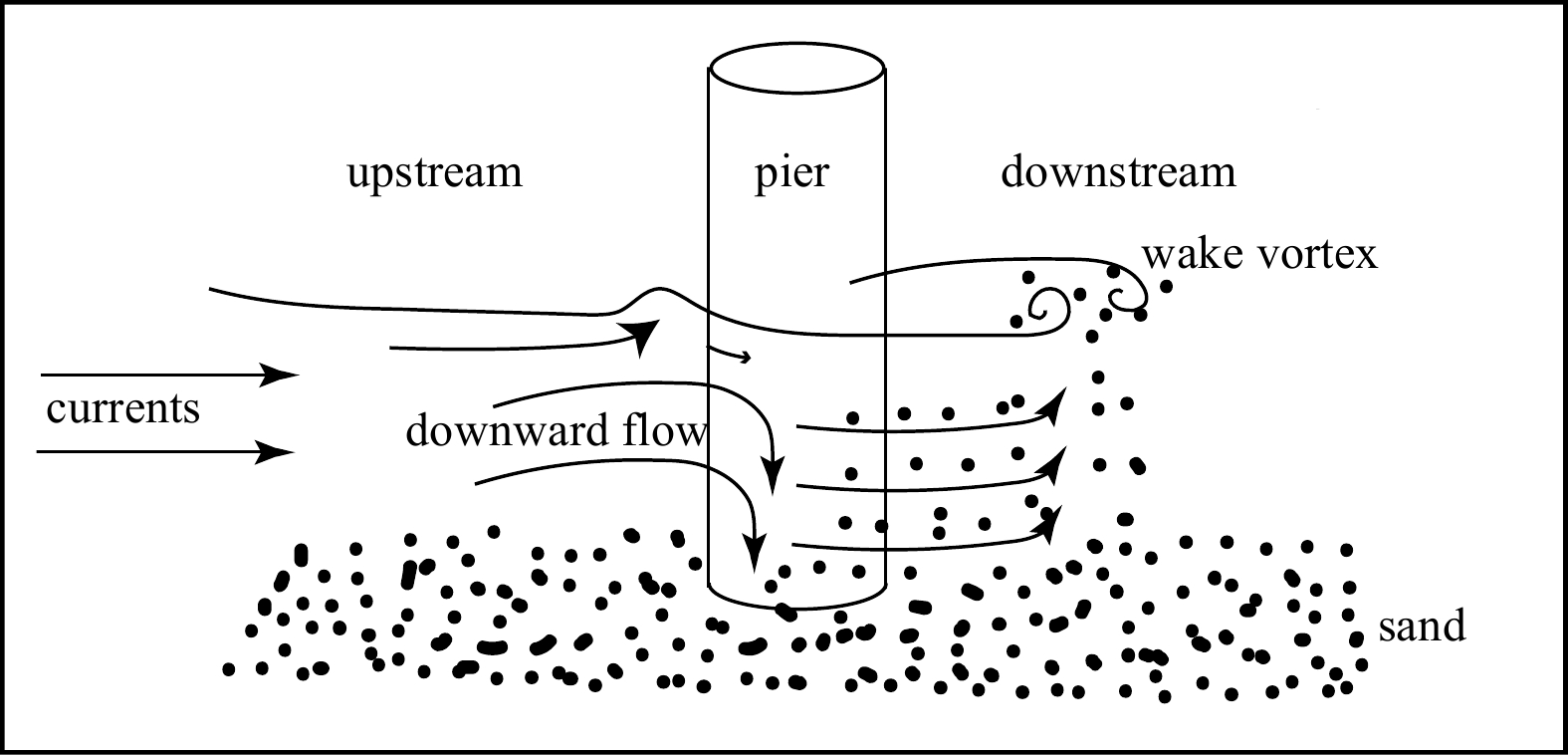

The tidal currents interact with bridge piers, inducing vortexes, leading the sediments to re-suspend downstream of the bridge piers (Fig. 12). Other factors, including sea floor topography and wind can also contribute to the distribution of SSC in the Zhujiang River Estuary.
