Forecasting the western Pacific subtropical high index during typhoon activity using a hybrid deep learning model

Forecasting the western Pacific subtropical high index during typhoon activity using a hybrid deep learning model

PDF

Jianyin Zhou¹^,^†, Mingyang Sun²^,^†, Jie Xiang¹^,^*, Jiping Guan¹, Huadong Du¹, Lei Zhou³

Acta Oceanologica Sinica | 2022, 41(4) : 101 - 108

Less

Acta Oceanologica Sinica | 2022, 41(4): 101-108

• Ocean Engineering •

Forecasting the western Pacific subtropical high index during typhoon activity using a hybrid deep learning model

Full

Jianyin Zhou¹^,^†, Mingyang Sun²^,^†, Jie Xiang¹^,^*, Jiping Guan¹, Huadong Du¹, Lei Zhou³

Affiliations

¹ College of Meteorology and Oceanography, National University of Defense Technology, Nanjing 211101, China

² School of Atmospheric Sciences, Sun Yat-sen University, Guangzhou 510275, China

³ School of Oceanography, Shanghai Jiao Tong University, Shanghai 200030, China

Published: 2022-04-25 doi: 10.1007/s13131-021-1965-1

Outline

Abstract

Less

Seasonal location and intensity changes in the western Pacific subtropical high (WPSH) are important factors dominating the synoptic weather and the distribution and magnitude of precipitation in the rain belt over East Asia. Therefore, this article delves into the forecast of the western Pacific subtropical high index during typhoon activity by adopting a hybrid deep learning model. Firstly, the predictors, which are the inputs of the model, are analysed based on three characteristics: the first is the statistical discipline of the WPSH index anomalies corresponding to the three types of typhoon paths; the second is the correspondence of distributions between sea surface temperature, 850 hPa zonal wind (u), meridional wind (v), and 500 hPa potential height field; and the third is the numerical sensitivity experiment, which reflects the evident impact of variations in the physical field around the typhoon to the WPSH index. Secondly, the model is repeatedly trained through the backward propagation algorithm to predict the WPSH index using 2011–2018 atmospheric variables as the input of the training set. The model predicts the WPSH index after 6 h, 24 h, 48 h, and 72 h. The validation set using independent data in 2019 is utilized to illustrate the performance. Finally, the model is improved by changing the CNN2D module to the DeCNN module to enhance its ability to predict images. Taking the 2019 typhoon “Lekima” as an example, it shows the promising performance of this model to predict the 500 hPa potential height field.

Key words

WPSH index / typhoon / hybrid deep learning model / predictors / numerical sensitivity experiment

Cite this Article

Jianyin Zhou, Mingyang Sun, Jie Xiang, Jiping Guan, Huadong Du, Lei Zhou. Forecasting the western Pacific subtropical high index during typhoon activity using a hybrid deep learning model[J]. Acta Oceanologica Sinica, 2022 , 41 (4) : 101 -108 . DOI: 10.1007/s13131-021-1965-1

Full Text

Less

1 Introduction

Less

The western Pacific subtropical high (WPSH) is an anticyclone circulation system over the West Pacific that is stronger and more stable in the lower- and mid-troposphere, and its variabilities are usually depicted by the 500 hPa or 850 hPa geopotential height fields (Tao and Zhu, 1964). Intraseasonal changes in the location and intensity of the WPSH can significantly influence the distribution and intensity of the persistent heavy rainfall events over eastern China by affecting low-level moisture transport (Wang et al., 2000; Mao and Wu, 2006; Liu et al., 2008; Mao et al., 2010; Guan et al., 2019; Gao et al., 2019, 2020). Therefore, the accurate forecast of the WPSH can help authorities take precautions and protect people’s lives and property. Typhoon is a powerful and deep low-pressure vortex that occurs in the western North Pacific (WNP), in which there occurs an important air–sea interaction process that transports massive amounts of heat and moisture (McBride, 1981; Subrahmanyam, 2015). The present study demonstrates that tropical cyclone (TC) activities over the WNP can strongly modulate the movement and intensity of the WPSH. The increment in scale and intensity of an initial TC will coerce a WPSH that tends eastward to withdraw, which makes the typhoon turn northward earlier (Wang et al., 2017; Sun et al., 2015b). Wang et al. (2019) maintains that TCs can affect the WPSH meridional movement by stimulating abnormal perturbations that disperse and propagate outwards. Sun et al. (2015a) used the Advanced Research version of the Weather Research and Forecasting (WRF) Model to conduct a sensitivity experiment on the impact of the microphysical parameterization scheme in a typhoon simulation on the WPSH. The results showed that the overestimated convection in the TC eyewall will result in the simulated WPSH’s weakened intensity and that the TC track will turn northward earlier than observations. However, in previous studies, the quantitative impact of typhoon activities on WPSH changes has not been sufficiently studied and are still in an ambiguous state. To quantify the changes in the location and intensity of the WPSH, the WPSH index is introduced, including the area index (Ai), intensity index (Ii), ridge line (Rl), and west ridge point (WRp). The definition of the index in this article comes from National Climate Center (NCC) monitoring service (https://cmdp.ncc-cma.net/download/precipitation/diagnosis/wpsh.doc).

In recent years, research on the prediction of the western Pacific subtropical high index has generally focused on climate prediction. Zhang et al. (2000) used the backpropagation (BP) model of artificial neural networks to establish the mapping relationship between the equatorial sea temperature and the area index of the WPSH. Dong and Zhang (2004) improved the prediction precision of the western Pacific subtropical high ridge line based on wavelet decomposition and an adaptive network-based fuzzy inference system. Jia et al. (2015) proposed a statistical forecasting model based on optimal predictors to predict the interannual forecast of the WPSH index in summer. However, there are relatively few studies on the intraseasonal forecast of WPSH index. Liu et al. (2009) used EOF decomposition, wavelet decomposition, and support vector machine technology to reconstruct the 500 hPa geopotential height field to obtain the prediction of the geopotential height field. Hong et al. (2013) adopted a genetic algorithm to optimize the parameters of the nonlinear dynamic model and used this model to predict the 500 hPa potential field.

The two main research directions can be summarized from the above methods of predicting the WPSH index. (1) statistical model: the advantage is that the main spatial and temporal patterns can be found from historical data, and the results have climate significance as well as low computational costs. (2) Atmospheric numerical model: the advantage lies in the use of atmospheric kinematics equations and thermodynamic equations to predict the atmospheric physical field, which combines the thermal relationship between various physical fields, and has high accuracy in short-term forecasts. The current studies about the forecast of the WPSH index are mostly on the seasonal and inter-annual scale, whereas forecasts of the WPSH index during typhoon activity are still scarce. At present, mature forecasting systems such as European Centre for Medium-Range Weather Forecasts (ECMWF), National Centers for Environmental Forecast (NCEP) and Global/Regional Assimilation Prediction System (GRAPES) are outstanding in short-term forecasting, but the accuracy of forecasting is related to the parameters debugging in the microphysical parameter scheme and the precision of the initial field. This article proposes a new method to train a WPSH index forecasting model by applying state-of-the-art deep learning technology with atmospheric field data during historical typhoon activities. This method considers the technical advantages and atmospheric physical meaning and also improves the calculation efficiency.

Predecessors’ predictions of the subtropical high are mostly concentrated on seasonal and interannual time spans; by contrast, the study on the prediction of WPSH index during typhoon activity is still scarce. Theoretical research for the short-term effects of high-frequency typhoons on low-frequency WPSHs are pivotal frontier topics, so we preliminarily studied the corresponding statistical relationship between the two in Section 3; then, we conduct a sensitivity experiment on the influence of physical field around the typhoon on the WPSH index. This analysis reconfirms the predictors affecting the WPSH index. In Section 4, the physical field of the predictor is inputted into the hybrid deep learning model, and the model parameters are updated through the BP algorithm, which effectively predicts the WPSH index in the next few moments. Section 5 shows the potential of the model in predicting the two-dimensional field of the WPSH. Section 6 presents an example of how the model performs in predicting the 500 hPa geopotential height field, and Section 7 summarizes the highlights of the paper.

2 Data

Less

The atmospheric reanalysis data sets used in this study include the 500 hPa geopotential field, the 850 hPa vorticity (relative) and wind, and the sea surface temperature field in coverage of (10°S–65°N, 99°–167°E) with a 0.25°×0.25° horizontal resolution from the ECMWF. The raw typhoon data collected at the National Institute of Informatics of Japan covers time, coordinates, and maximum wind speed of central bottom layer. The time corresponding to typhoon activities from 2011 to 2019 are analysed in this study. To test the effect of prediction, the data are divided into two parts. The data from 2011–2018 are used as the training set to train the model, and the data from 2019 are used as the verification set. The WPSH index corresponding to the date of the typhoon activity is provided by the National Climate Center monitoring service.

Anomalies are defined as the deviations from the climatological mean over the entire period. A composite analysis is performed in this study for the three types of typhoon tracks. Based on the three track types identified by Elsner and Liu (2003), fifteen of the 45 typhoon paths of each type (as listed in Table 1) are selected for analysis.

3 Predictors analysis

Less

The disturbance of the ocean temperature and mid-troposphere wind field caused by a typhoon will affect the atmospheric circulation and feedback to the WPSH (Emanuel, 2001; Sun et al., 2015a; Wang et al., 2017). Therefore, we chose the predictors fed in model. (1) One-dimensional data: the coordinates of the typhoon and the movement direction; and (2) two-dimensional data: the sea surface temperature (SST), the u and v wind speed on 850 hPa, and the geopotential height of 500 hPa. To study the relationship between typhoon activity and the WPSH index, the anomalies of the four WPSH indices corresponding to the three typhoon paths are analysed, and the anomalies of the 500 hPa geopotential height corresponding to the three types of typhoon paths, the SST, the u, v wind field and vorticity field of the 850 hPa are studied separately. We then carried out the sensitivity experiment on the change of the WPSH’s physical field during the typhoon activity.

Figure 1 shows the anomalies of the WPSH index corresponding to the three types of typhoons. It can be seen that when the typhoon’s path is westward, the area index and intensity index of the WPSH are the highest; the westward ridge point is closest to inland; and the latitude of the ridge line is near the historical average. When the typhoon’s path belongs to the northwest type, the ridge line of the WPSH reaches the highest latitude, the area index is slightly lower than the historical level; the strength index is higher than the average level; and the longitude of west ridge point extends between the westward and the steering type. When the typhoon’s path belongs to the turning type, the area index and intensity index of the WPSH are the smallest, which is lower than the historical average level; the anomaly of ridge line is negative, its location is at the southernmost latitude among three typhoon types; and the west ridge point extends the most eastward. It can be inferred that there are obvious differences in the three corresponding relationships between the WPSH index and the three types of typhoon paths, which are characterized by their coordinates and movement angle. Therefore, it is reasonable that the predictive factors contain coordinates and the angle of movement.

Figure 2 shows the distribution of the 500 hPa geopotential height field anomalies corresponding to the three typhoon paths. Most typhoons have paths between the positive and negative geopotential height anomalies and are close to the negative anomalies. It can be seen that when the path of the typhoon is westward, the geopotential anomaly of Southeast Asia and the northeastern Eurasian continent is negative, while the geopotential anomaly of the East China Sea is positive, indicating that the WPSH tends to extend westward. In the middle of the two negative anomalies, the position of the ridge line does not change much. When the typhoon’s path is northwest, the WPSH tends to move northward and extend westward. When the typhoon’s path is turning, the east side has weak positive anomalies and the north side has strong negative anomalies, indicating that the WPSH tends to move southward and extend eastward. The anomalies of the SST, 850 hPa wind field, and the vorticity field SST corresponding to the three types of typhoons are shown in Fig. 3. It can be seen that the negative SST anomaly of the westbound typhoon is located in the South China Sea, and the positive SST anomaly is located in the north of

$ 30^\circ {\rm{N}} $

. The negative SST anomaly of the northwest bound typhoon is located in the southern waters of the South China Sea, and its intensity and range have decreased compared to the westward typhoon. To the north of

$ 20^\circ {\rm{N}} $

, there is a positive SST anomaly with a northeast−southwest direction, which is stronger than the westward typhoon, while the SST anomaly decreases to the east of

$165^\circ {\rm{E}}$

. The SST anomaly of the steering typhoon is significantly lower than that of the previous two types of typhoons, with a decrease of more than 1°C in the north of

$25^\circ {\rm{N}}$

, while the SST anomaly in the southern South China Sea is significantly increased. The centre of the maximum wind speed anomaly of the three types of typhoons is between the WPSH positive anomalies and negative anomalies. The negative (positive) vorticity centre corresponds to the positive (negative) geopotential height anomaly, and vice versa.

To verify the influence of the SST, 850 hPa wind speed, and vorticity on the WPSH around the typhoon, we conducted sensitivity experiments based on the WRF model. The sensitivity coefficient of the WPSH index

$ p $

is defined as follows:

(1)

$ \left\{\begin{aligned} &p({\rm{Ai}}) = \frac{{\Delta ({\rm{Ai}})}}{{\sigma ({\rm{Ai}})}}, \\ &p({\rm{Ii}}) = \frac{{\Delta ({\rm{Ii}})}}{{\sigma ({\rm{Ii}})}}, \\ &p({\rm{Rl}}) = \frac{{\Delta ({\rm{Rl}})}}{{\sigma ({\rm{Rl}})}}, \\ &p({\rm{WRp}}) = \frac{{\Delta ({\rm{WRp}})}}{{\sigma ({\rm{WRp}})}},\end{aligned} \right.$

where

$\sigma ({\rm{Ai}})$

=38.15,

$\sigma ({\rm{Ii}})$

=167.22,

$\sigma ({\rm{Rl}})$

=5.74, and

$\sigma ({\rm{WRp}})$

=16.66;

$\Delta $

is the difference between the WPSH index obtained by the WRF model and the actual WPSH index.

In the experiment, we take the 2016 northwest typhoon “Nibert” as an example and use the controlled variable method to increase or decrease the 850 hPa wind speed, the vorticity, and the SST by 20% around

$15^\circ \times 15^\circ$

of the typhoon as the initial numerical integration field. The sensitivity coefficients for 24 h, 48 h, and 72 h are obtained, and the specific results are shown in Table 2. It can be seen that when the sea temperature increases by 20% and the wind speed of 850 hPa u, v (same as vorticity) decreases, the sensitivity coefficients of the area index and the intensity index will decrease, and the position of the ridge line will move to the north, and the west extension point will tend eastward, and vice versa. Based on the above results, we believe that it is reasonable to use the above physical fields as factors when predicting the WPSH index.

4 Model

Less

From the above analysis, it can be seen that the coordinate, maximum wind speed, and movement angle of the typhoon as well as the distribution of the SST, 850 hPa wind field, and 500 hPa geopotential height field all affect the WPSH index. Accordingly, this section will take the above variables as the predictor fed in the hybrid deep learning model.

Figure 4 illustrates the overall architecture of the hybrid WPSH index model. There are four main modules. (1) Input layer: the input of the convolutional long short-term memory network (ConvLSTM2D) layer are the 500 hPa geopotential height, the SST, and the u and v wind fields of 850 hPa at the first four moments, each shown as a

$4\times301\times273\times1$

grid dataset. After passing through the RNN module, the coordinates, movement direction and maximum wind speed information of the typhoon are merged with the first layer of the full connection layer. (2) ConvLSTM2D: there is a total of 4 paratactic ConvLSTM2D layers, which extract features of 2D pictures through the convolutional neural network (CNN) layer instead of fully connected layer in the long short-term memory (LSTM) network. (3) CNN: the operations performed on this layer include kernel convolution, max pooling and tanh activation. (4) Fully connected layer: the two-dimensional array output by the upper layer is flattened and merged with the typhoon’s latitude, longitude, maximum wind speed and direction, and the predicted WPSH index is obtained through the fully connected layer. More details of each module and specific parameters are shown in https://github.com/Happiyin/WPSH-index. The model uses the backward propagation method to calculate the weight gradient of the loss function, which is fed back to the optimization method to update the weight to minimize the loss function. Here, we select mean absolute error (MAE) for the loss function and select Adaptive Moment Estimation (Adam) as the optimization algorithm.

5 Results

Less

The data from 2011 to 2018 were taken as the training set, and the data from 2019 (245 input data in total) were taken as the validation set. The following scoring metrics, including MAE and Pearson correlation coefficient (CORR), are computed for quantitative assessment of the models:

(2)

$ {\text{MAE}} = \frac{{\displaystyle\sum\limits_{i = 1}^n {\left| {{y_i} - {{\hat y}_i}} \right|} }}{n} ,$

(3)

$ {\text{CORR}} = \frac{{\displaystyle\sum {\left( {{{\hat y}_i} - \left\langle {{{\hat y}_i}} \right\rangle } \right)} \left( {{y_i} - \left\langle {{y_i}} \right\rangle } \right)}}{{\sqrt {\displaystyle\sum {{{\left( {{{\hat y}_i} - \left\langle {{{\hat y}_i}} \right\rangle } \right)}^2}} } \sqrt {\displaystyle\sum {{{\left( {{y_i} - \left\langle {{y_i}} \right\rangle } \right)}^2}} } }}, $

where

$ {\hat y_i} $

denotes the values of the four indices predicted by the model;

${y_i}$

denotes the real value of the four indices;

$ \left\langle {{{\hat y}_i}} \right\rangle $

denotes the average of the predicted values; and

$ \left\langle {{y_i}} \right\rangle $

denotes the average of the real values.

Table 3 shows the comparison of the 6 h, 24 h, 48 h, and 72 h prediction results between the proposed hybrid model and the ground value. It can be found that the results of the four WPSH index scoring metrics are proportional to the variance of the index. Ri has the largest MAE and the lowest CORR. Rl has the smallest MAE and the highest CORR. The greater the variance, the greater the MAE, and the smaller the CORR, and vice versa. As the forecast time increases, the MAE increases and the CORR decreases. This finding shows that the results of the model are closely related to the variance of the target and steadily weaken over time. At the same time, since there will inevitably be errors in the reanalysis data and the typhoon data, the results of the model are still acceptable. Figure 5 visualizes the MAE of the WPSH index in a series of box plots, which show the measurement indicators: median, average, maximum and minimum values, and the outliers. We can see that as the forecast time increases, the above indictors increase. The longer the forecast time is, the weaker the correlation between the forecast time and the initial time. At the same time, the interference factors during the period will increase (such as the typhoon path and intensity changes), which makes the model more unstable. Therefore, the most effective way to train the model to learn how physical variables change over time is to increase the time length of the input data.

6 Discussion

Less

Deep learning models have powerful predictive capabilities and have now played an important role in the field of image prediction. Compared with various numerical models in the field of atmospheric science, such as WRF, the advantage of deep learning models is that they can potentially learn the physical laws within data through repeatedly training in the form of linear weights and convolution kernel weights through shallow physical laws. The prediction of the WPSH index during typhoon activity is a process on a sub-seasonal scale. This article first analyses the predictors and conducts a sensitivity experiment, which shows that the SST and 850 hPa u, v wind field are predictors of the WPSH index. The hybrid deep learning model combines ConvLSTM2D, Conv2D, RNN and an FC layer. The model updates the parameters through the backward propagation algorithm and the Adam optimization algorithm.

To explore the representativeness of this hybrid model, 500 hPa geopotential height field are also generated using an additional DeCNN model (Noh et al., 2015), which reconstruct the image with the same shape as the original input image by up-sampling. Table 4 illustrates the predicted experiment results for a standardized 500 hPa geopotential height field estimated by a renovated hybrid model based on reanalysis of the data every 6 h at 0.5°×0.5° resolution during typhoon “Lekima”, which occurred on August 9–10, 2019. MAE and structural similarity (SSIM) are selected as evaluation criteria. It can be seen from Table 4 that there is an obvious low centre of the typhoon in the real geopotential height field after 6 h, and the coordinate is

$({24{\text{°}}}{\rm{N}},{140{\text{°}}}{\rm{E}})$

. The image predicted by 6 h performs very well on this key feature, and SSIM is 0.92. We conclude that the two images agree with each other fairly well. In the real geopotential height field after 72 h, the low centre of the typhoon obviously moved to the northwest. Compared with the predicted image, we find that the position of the predicted typhoon centre is basically consistent, although there is still an error in the strength prediction, as SSIM is 0.71. Figure 6 shows the 32 feature maps of the CNN2D layer, from which it can be seen that the position and characteristics of the typhoon eye and the geopotential height centre are obvious. This finding indicates that the model has good explanatory properties in terms of the characteristics of the physical field.

In general, compared with the WRF numerical model, the hybrid depth model proposed in this paper has some advantages in that the model can learn the nonlinear relationship based on a large amount of historical data, which saving a lot of calculation time in short-term forecasting and obtaining better results. The shortcomings are that as a technology with only statistical significance, this hybrid cannot replace traditional numerical forecasts in medium-term and long-term forecasts, and even significantly surpass numerical forecasts. Future work should focus on the hybrid model of deep learning and physics to solve the forecast’s bottleneck problems while achieving breakthroughs in artificial intelligence theory.

7 Conclusions

Less

This paper proposes a hybrid deep neural network model for subtropical high index prediction. The subtropical high index during a typhoon affects the distribution and intensity of precipitation in East Asia. Atmospheric variable field data are from 9 years of ECMWF ERA-5 reanalysis in the West Pacific Ocean during the typhoon activity from 2011 to 2019. The typhoon data comes from Japan Meteorological Agency. This article first analyses the predictive factors and studies the impact of typhoon activity on the WPSH index in three parts. The first part is to count the WPSH index anomalies corresponding to the three typhoon paths; the second part is the corresponding relationship between the SST, the 850 hPa wind field, the vorticity field, and the geopotential height field during the three typhoon activities. In the third part, sensitivity experiments are carried out for the SST, wind field and vorticity field of 850 hPa within the

$15^\circ \times 15^\circ$

range of the typhoon, and the concept of a sensitivity coefficient is proposed and used as a standard to measure the influence of the above physical field on the WPSH index. Next, the model for predicting the WPSH index combines reanalysis data and typhoon information, and the data flow goes through a ConvLSTM module, CNN module, and Fully Convolutional Networks module. The parameters in the model are updated round by round through the backward propagation algorithm. The model’s prediction on the validation set demonstrated its promising performance. The hybrid model proposed in this study also has provided insights into the WPSH 500 hPa geopotential height field prediction by replacing the CNN module with DeCNN. The feature map of the model well reflects its physical interpretation and provides good evidence for the availability of deep learning in atmospheric science.

References

Less

Dong Zhaojun, Zhang Ren. 2004. A prediction of the western Pacific subtropical high based on wavelet decomposition and ANFIS model. Journal of Tropical Meteorology, 20(4): 419–425

Elsner J B, Liu K B. 2003. Examining the ENSO-typhoon hypothesis. Climate Research, 25(1): 43–54

Emanuel K. 2001. Contribution of tropical cyclones to meridional heat transport by the oceans. Journal of Geophysical Research: Atmospheres, 106(D14): 14771–14781, doi: 10.1029/2000JD900641

Gao Chujie, Chen Haishan, Li Gen, et al. 2019. Land–atmosphere interaction over the Indo-China Peninsula during spring and its effect on the following summer climate over the Yangtze River basin. Climate Dynamics, 53(9–10): 6181–6198, doi: 10.1007/s00382-019-04922-x

Gao Chujie, Li Gen, Xu Bei, et al. 2020. Effect of spring soil moisture over the Indo-China Peninsula on the following summer extreme precipitation events over the Yangtze River basin. Climate Dynamics, 54(9–10): 3845–3861, doi: 10.1007/s00382-020-05187-5

Guan Weina, Hu Haibo, Ren Xuejuan, et al. 2019. Subseasonal zonal variability of the western Pacific subtropical high in summer: climate impacts and underlying mechanisms. Climate Dynamics, 53(5–6): 3325–3344, doi: 10.1007/s00382-019-04705-4

Hong Mei, Zhang Ren, Liu Kefeng. 2013. Retrieving dynamic forecast model of the western Pacific subtropical high in abnormal years based on GA. Acta Physica Sinica, 62(7): 070505, doi: 10.7498/aps.62.070505

Jia Yajun, Hu Yijia, Zhong Zhong, et al. 2015. Statistical forecast model of western Pacific subtropical high indices in summer. Plateau Meteorology, 34(5): 1369–1378

Liu Kefeng, Zhang Ren, Hong Mei, et al. 2009. Subtropical high forecast model of least square support vector machine. Journal of Applied Meteorological Science, 20(3): 354–359

Liu Hongbo, Zhang Dalin, Wang Bin. 2008. Daily to submonthly weather and climate characteristics of the summer 1998 extreme rainfall over the Yangtze River Basin. Journal of Geophysical Research: Atmospheres, 113(D22): D22101, doi: 10.1029/2008JD010072

Mao Jiangyu, Sun Zhang, Wu Guoxiong. 2010. 20–50-day oscillation of summer Yangtze rainfall in response to intraseasonal variations in the subtropical high over the western North Pacific and South China Sea. Climate Dynamics, 34(5): 747–761, doi: 10.1007/s00382-009-0628-2

Mao Jiangyu, Wu Guoxiong. 2006. Intraseasonal variations of the Yangtze rainfall and its related atmospheric circulation features during the 1991 summer. Climate Dynamics, 27(7-8): 815–830, doi: 10.1007/s00382-006-0164-2

McBride J L. 1981. Observational analysis of tropical cyclone formation. Part I: basic description of data sets. Journal of the Atmospheric Sciences, 38(6): 1117–1131, doi: 10.1175/1520-0469(1981)038<1117:OAOTCF>2.0.CO;2

Noh H, Hong S, Han B. 2015. Learning deconvolution network for semantic segmentation. In: Proceedings of the IEEE International Conference on Computer Vision. Santiago, Chile: IEEE, 1520–1528

Subrahmanyam M V. 2015. Impact of typhoon on the north-west Pacific sea surface temperature: a case study of Typhoon Kaemi (2006). Natural Hazards, 78(1): 569–582, doi: 10.1007/s11069-015-1733-7

Sun Yuan, Zhong Zhong, Lu Wei. 2015a. Sensitivity of tropical cyclone feedback on the intensity of the western Pacific subtropical high to microphysics schemes. Journal of the Atmospheric Sciences, 72(4): 1346–1368, doi: 10.1175/JAS-D-14-0051.1

Sun Yuan, Zhong Zhong, Yi Lan, et al. 2015b. Dependence of the relationship between the tropical cyclone track and western Pacific subtropical high intensity on initial storm size: a numerical investigation. Journal of Geophysical Research: Atmospheres, 120(22): 11451–11467, doi: 10.1002/2015JD023716

Tao Shiyan, Zhu Fukang. 1964. The 100-mb flow patterns in southern Asia in summer and its relation to the advance and retreat of the West-Pacific subtropical anticyclone overthe far east. Acta Meteorologica Sinica, 34(4): 385–396

Wang W C, Gong Wei, Wei Helin. 2000. A regional model simulation of the 1991 severe precipitation event over the Yangtze–Huai River Valley. Part I: precipitation and circulation statistics. Journal of Climate, 13(1): 74–92, doi: 10.1175/1520-0442(2000)013<0074:ARMSOT>2.0.CO;2

Wang Yuxing, Sun Yuan, Liao Qianfeng, et al. 2017. Impact of initial storm intensity and size on the simulation of tropical cyclone track and western Pacific subtropical high extent. Journal of Meteorological Research, 31(5): 946–954, doi: 10.1007/s13351-017-7024-3

Wang Tianju, Zhong Zhong, Sun Yuan, et al. 2019. Impacts of tropical cyclones on the meridional movement of the western Pacific subtropical high. Atmospheric Science Letters, 20(5): e893, doi: 10.1002/asl.893

Zhang Ren, Jiang Guorong, Yu Zhihao, et al. 2000. Establishment of prediction model for the pacific subtropical high using neural network calculation method. Journal of Applied Meteorological Science, 11(4): 474–483

Appendix

Less

Year 2022 volume 41 Issue 4

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-021-1965-1

Receive Date：2020-08-17
Online Date：2025-11-21
Published：2022-04-25

Article Data

Affiliations

History

Received：2020-08-17
Accepted：2020-10-22

Affiliations

¹ College of Meteorology and Oceanography, National University of Defense Technology, Nanjing 211101, China

² School of Atmospheric Sciences, Sun Yat-sen University, Guangzhou 510275, China

³ School of Oceanography, Shanghai Jiao Tong University, Shanghai 200030, China

Corresponding:

* E-mail: xiangjie2021@163.com

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-021-1965-1

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Information from fifteen typhoons for each of three types of typhoons

West type	Northwest type	Steering type
Doksuri (20120625–20120630)	Haikui (20120801–20120811)	Aere (20110506–20110511)
Vicente (20120718–20120725)	Soulik (20130707–20130714)	Songda (20110519–20110602)
Kai-tak (20120812–20120818)	Cimaron (20130715–20130718)	Guchol (20120615–20120622)
Son-tinh (20121021–20121029)	Jebi (20130728–20130803)	Leepi (20130616–20160623)
Rumbia (20130627–20130702)	Fitow (20130627–20130702)	Danas (20131001–20131009)
Haiyan (20131103–20131111)	Matmo (20140716–20140726)	Halong (20140727–20140815)
Rammasun (20140709–20140720)	Kalmaegi (20140911–20140917)	Vongfong (20141002–20141016)
Mujigae (20150930–20151005)	Dujuan (20150919–20150930)	Dolphin (20150506–20150524)
Sarika (20161013–20161019)	Neparrtak (20160702–20160710)	Goni (20150813–20150830)
Doksuri (20170910–20170916)	Nida (20160729–20160803)	Meranti (20160909–20160917)
Khanun (20171011–20171016)	Megi (20160922–20160929)	Malakas (20160911–20160930)
Mangkhut (20180906–20180917)	Nesat (20170725–20170730)	Nanmmadol (20170701–20170708)
Son-tinh (20180716–20180724)	Maria (20180703–20180712)	Maliksi (20180603–20180612)
Kajiki (20190830–20190906)	Bailu (20190819–20190826)	Kong- rey (20180928–20181007)
Podul (20190824–20190831)	Fung- wong (20191117–20191125)	Danas (20190714–20190723)

Table 2. Comparison results of sensitivity coefficient of the western Pacific subtropical high index in sensitivity experiment. The content in the table is the sensitivity coefficient after 24 h, 48 h, and 72 h of Weather Research and Forecasting integration

	+20%SST/(°C)	−20%SST/(°C)	+20%u/(m·s⁻¹)	−20%u/(m·s⁻¹)	+20%v/(m·s⁻¹)	−20%v/(m·s⁻¹)
p(Ai)	−0.14/−0.21/−0.22	0.07/0.11/0.12	0.06/0.07/0.10	−0.03/−0.01/−0.01	0.01/0.02/0.01	−0.02/−0.02/−0.01
p(Ii)	−0.05/−0.14/−0.13	0.02/0.12/0.19	0.09/0.13/0.11	−0.02/−0.04/−0.04	0.05/0.09/0.11	−0.02/−0.01/−0.01
p(Rl)	0.12/0.19/0.16	−0.01/−0.01/−0.05	−0.02/−0.01/0.01	0.03/0.05/0.01	0.08/0.09/0.08	−0.05/−0.06/−0.01
p(WRp)	0.09/0.12/0.18	−0.26/−0.22/−0.10	−0.11/−0.03/−0.02	0.21/0.14/0.04	−0.06/−0.05/−0.02	0.07/0.02/0.02

Table 3. The scoring metrics of the four indices obtained by the hybrid deep learning model

Prediction time	MAE				CORR
Prediction time	Ai	Ri	Rl	WRp	Ai	Ri	Rl	WRp
6 h	2.72	5.95	1.22	2.04	0.92	0.91	0.98	0.94
24 h	3.51	8.73	1.69	2.55	0.90	0.90	0.95	0.93
48 h	5.19	14.55	1.97	2.71	0.88	0.87	0.92	0.90
72 h	8.58	21.11	2.94	3.44	0.83	0.81	0.90	0.88

Table 4. Comparison of the predicted experiment results for a standardized 500 hPa geopotential height field with real images in 6 h, 24 h, 48 h, and 72 h. The evaluation criteria are mean absolute error (MAE) and structural similarity (SSIM)

Time	Real	Predicted	MAE	SSIM
6 h			20.87	0.92
24 h			32.01	0.84
48 h			39.45	0.80
72 h			50.83	0.71

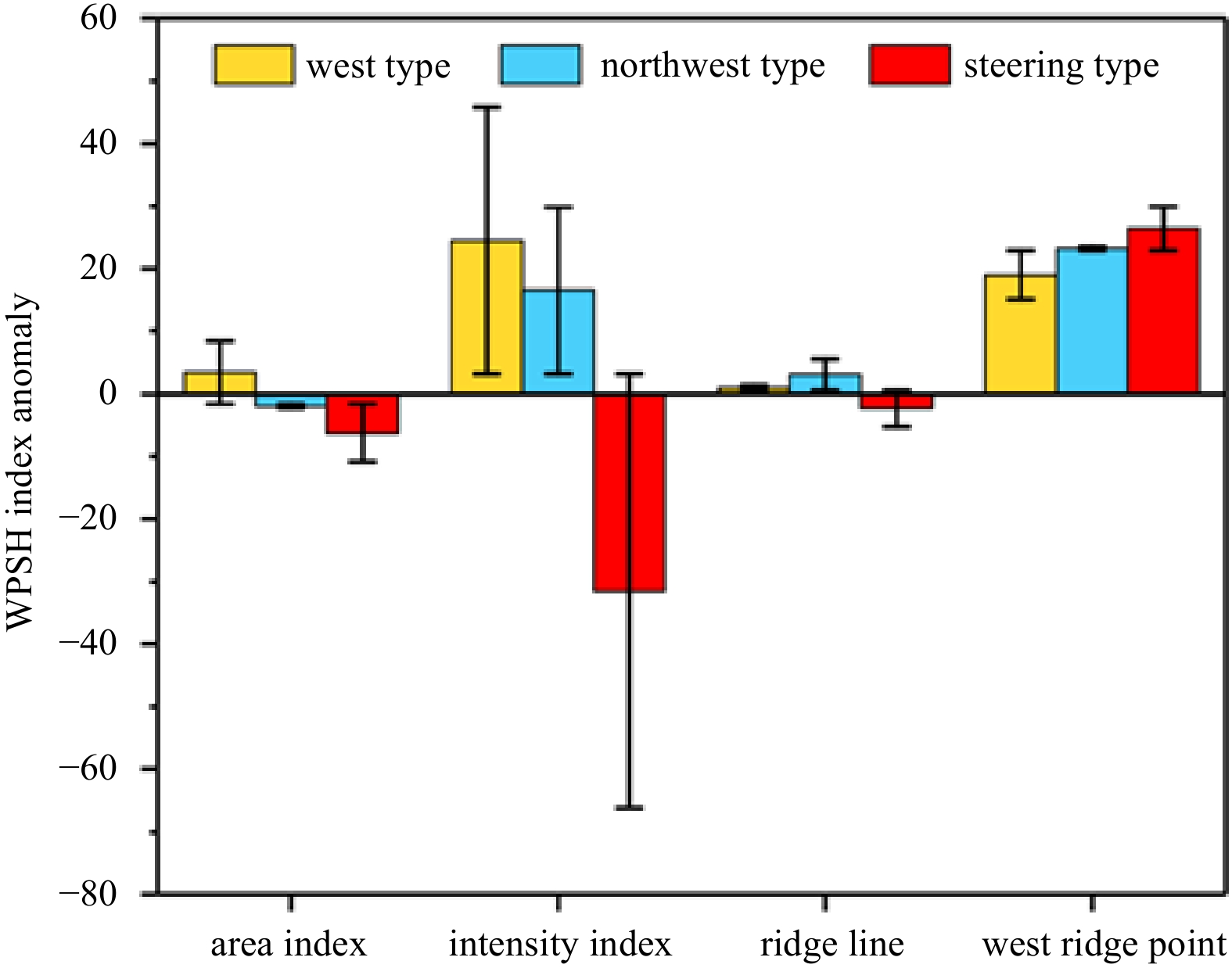

Fig. 1. The anomalies of the western Pacific subtropical high (WPSH) index corresponding to the three types of typhoon paths, and the error bar represents the standard deviation of the anomalies. The data used in the statistics are the WPSH index corresponding to the typhoon in Table 1.

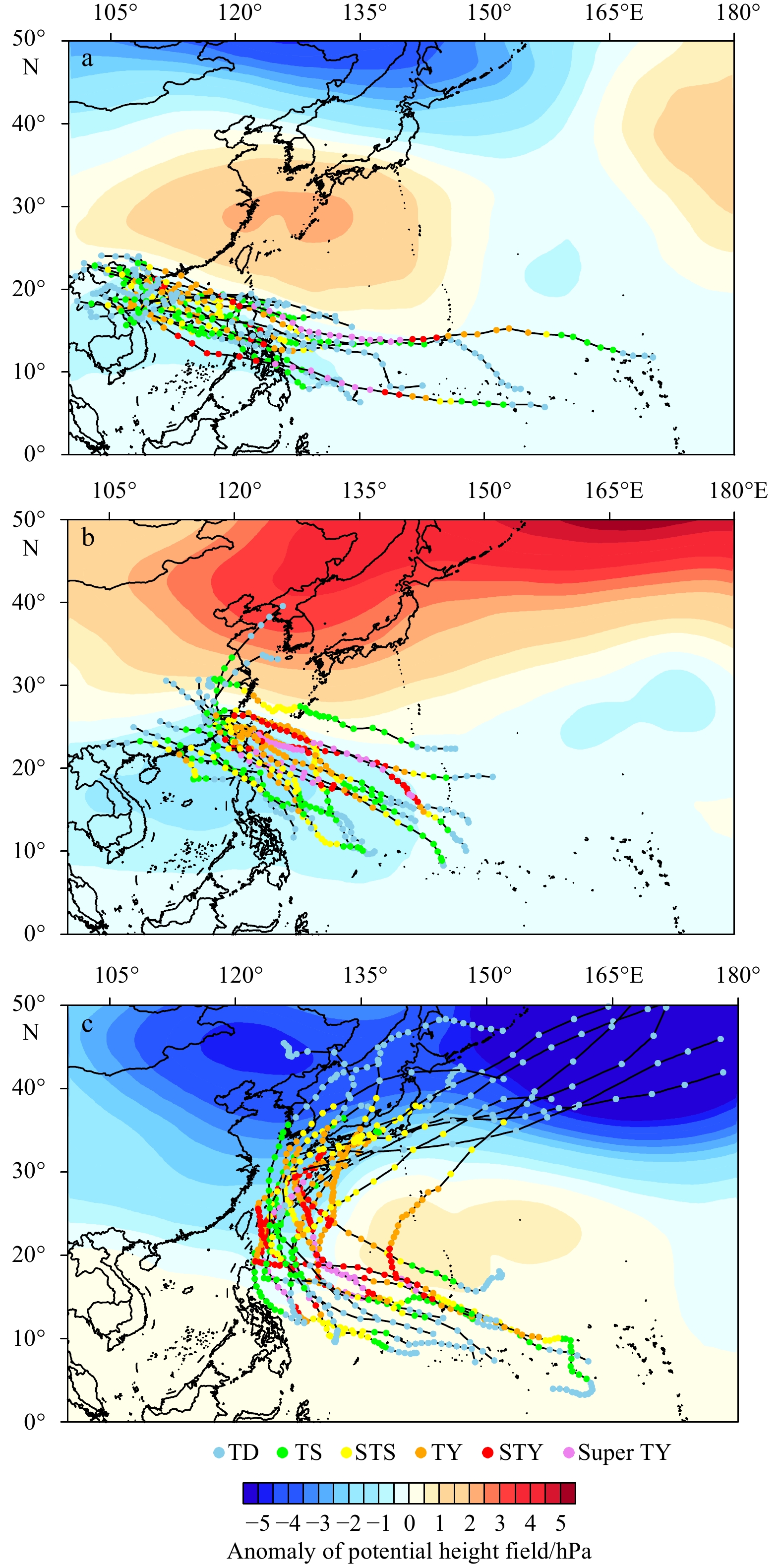

Fig. 2. The distribution of westbound (a), northwest bound (b), and steering (c) typhoon paths and intensity with corresponding 500 hPa pressure field anomalies.

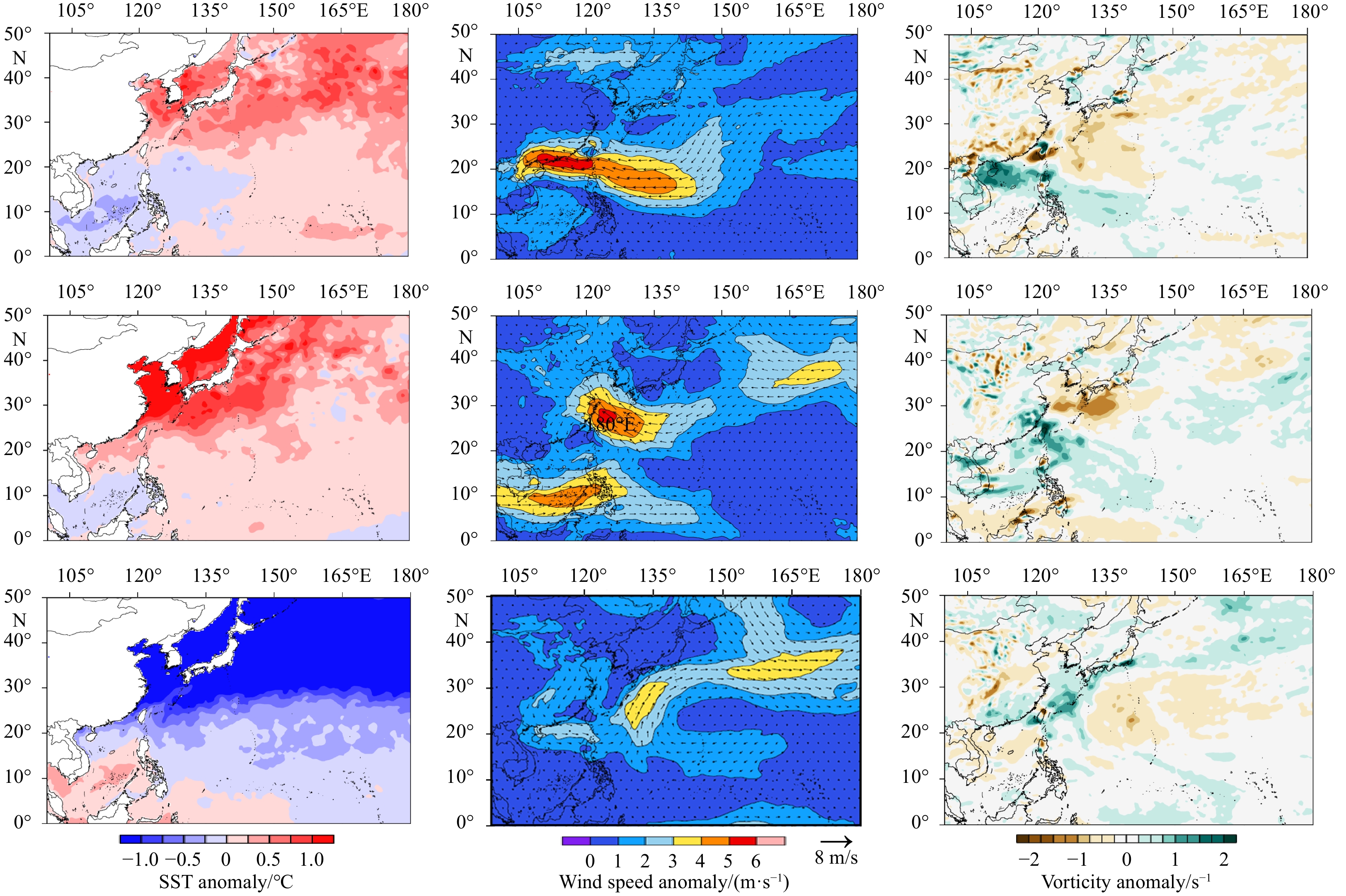

Fig. 3. The anomaly distribution of SST (left column), 850 hPa wind speed (middle column), and vorticity (right column) corresponding to the three types of typhoons. The first line of the picture represents west type; the second line represents northwest type; and the third line represents steering type.

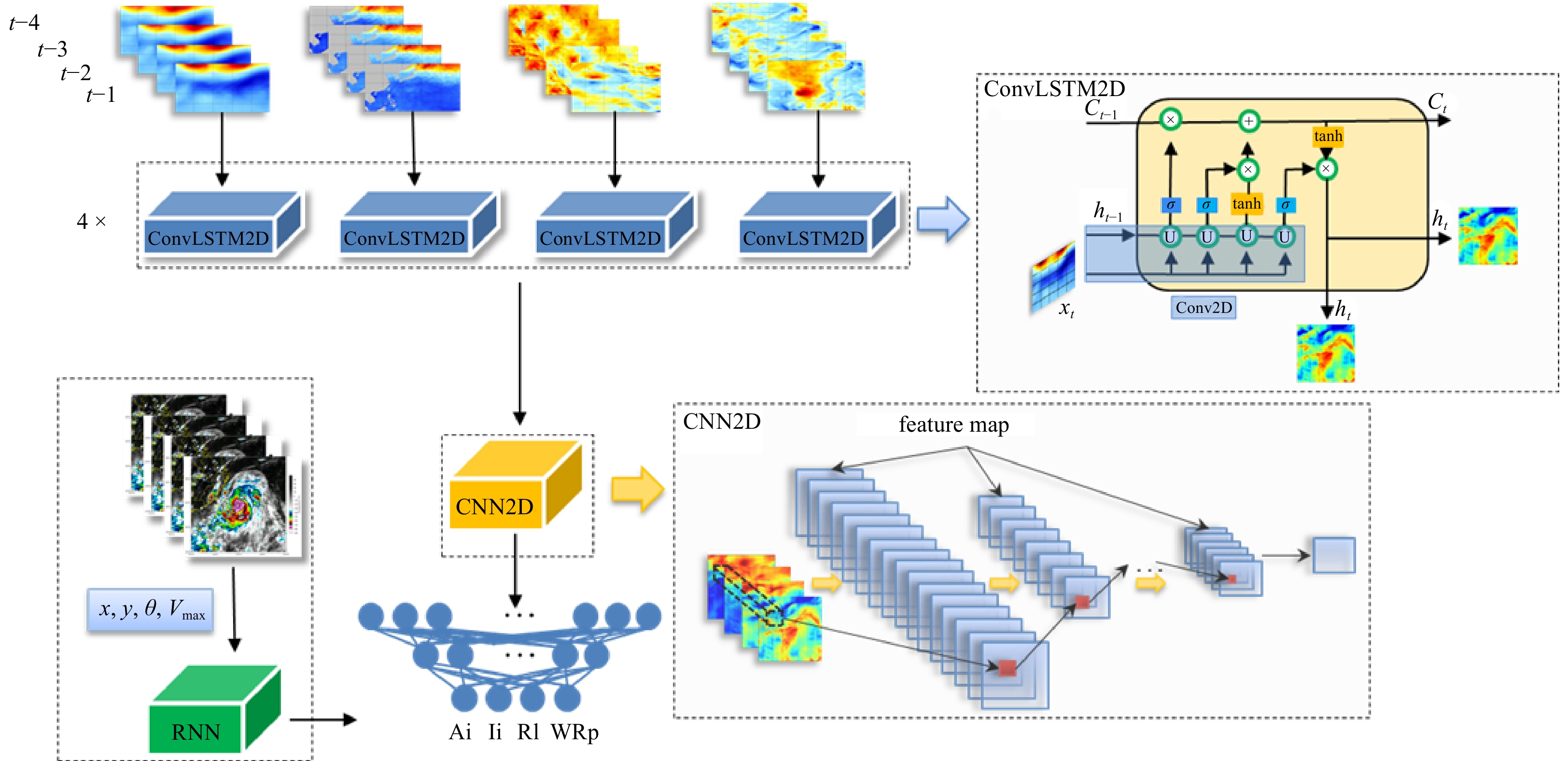

Fig. 4. The architecture of hybrid deep learning model used for forecasting the western Pacific subtropical high index.

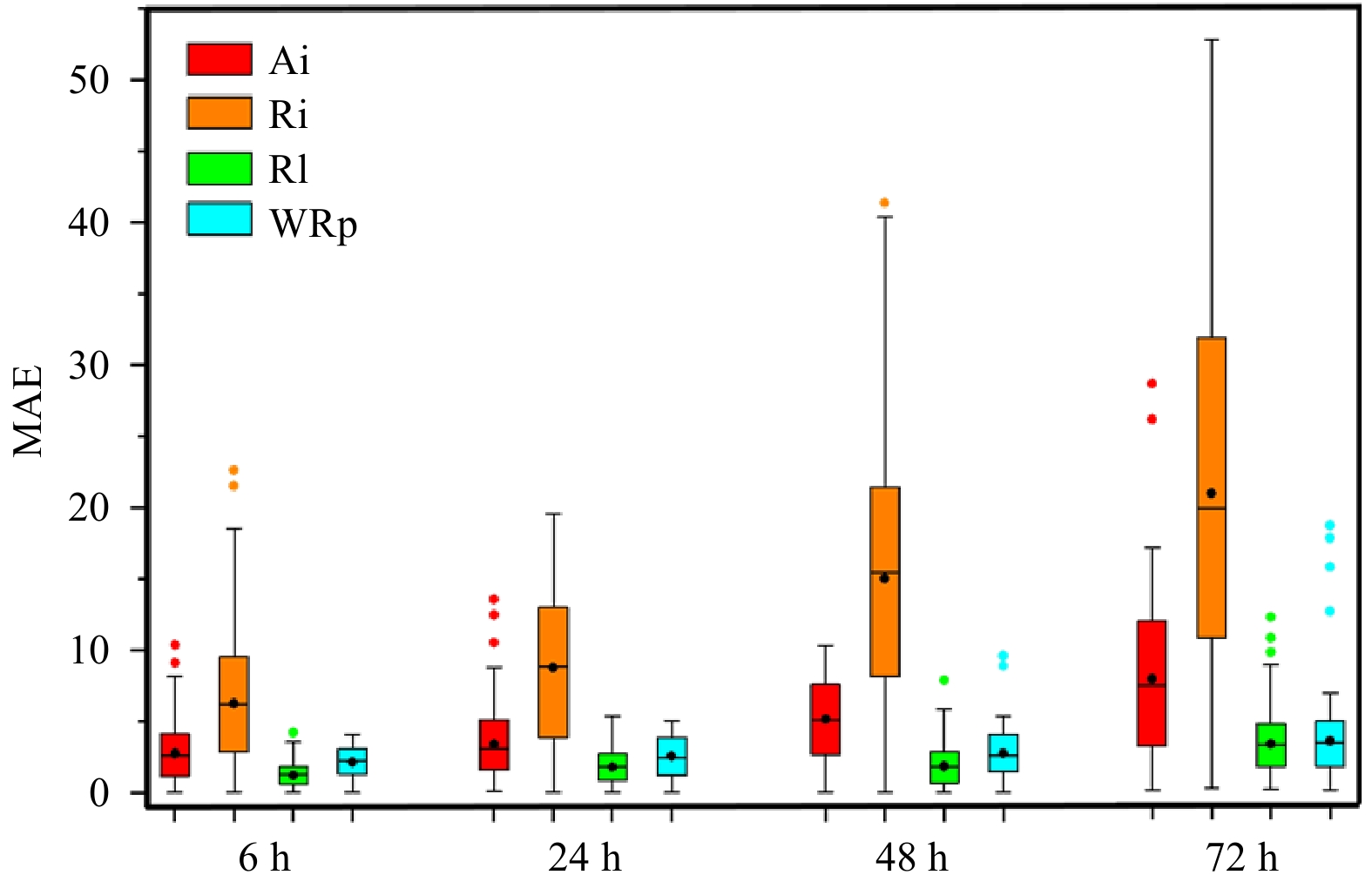

Fig. 5. Box plots depicting the mean absolute error (MAE) of model forecasted the western Pacific subtropical high index.

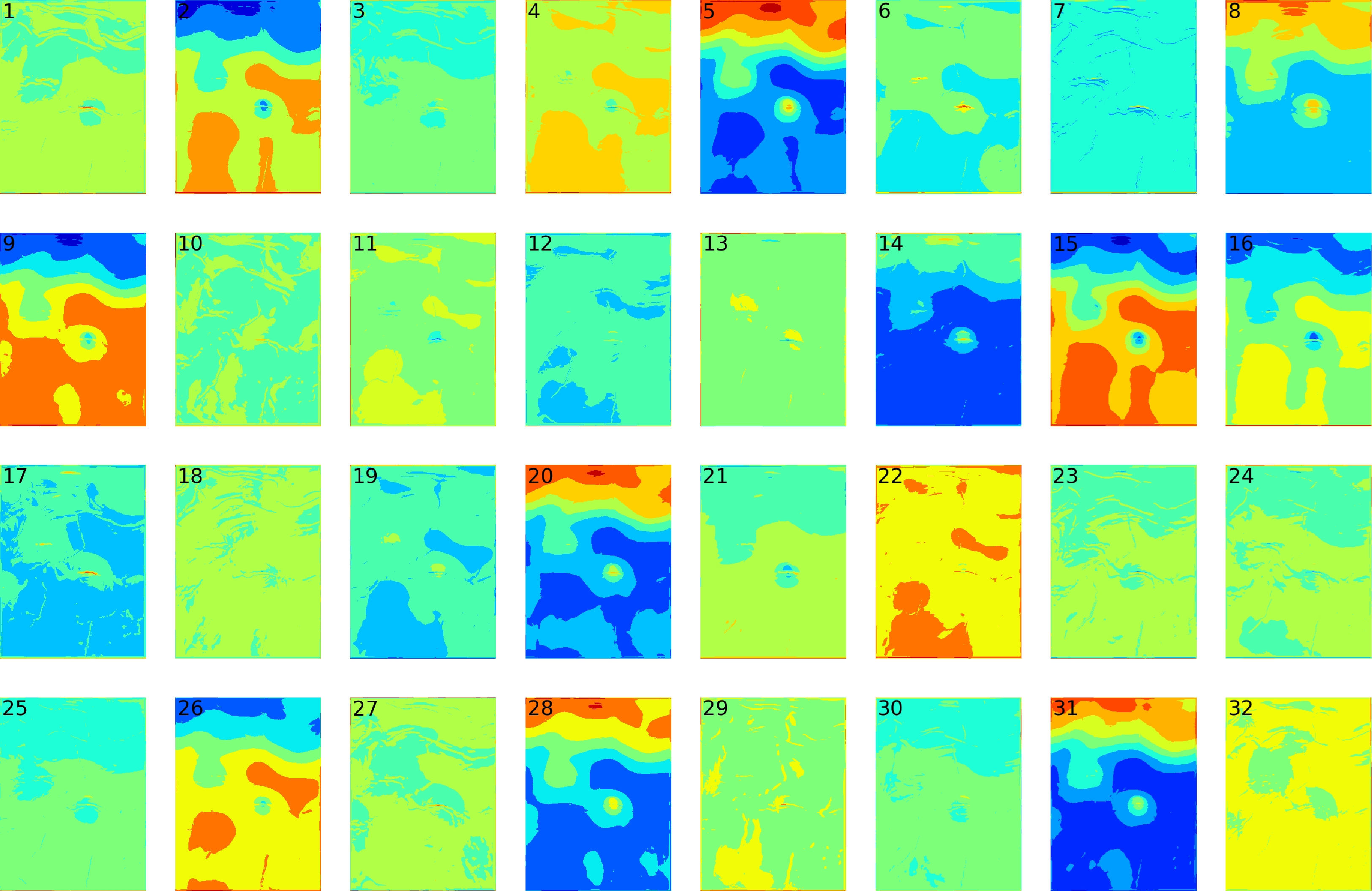

Fig. 6. The 32 feature maps of the convolutional neural network layer, taking the 24 h prediction model as an example.
