Signal quality analysis and quality check of BDS3 Precise Point Positioning in the Arctic Ocean
Full
Xiaoguo Guan1, *, Hongzhou Chai2, Guorui Xiao2, Zhenqiang Du2, Wenlong Qi2, Xueping Wang3
Affiliations
  • 1 College of Urban and Environmental Sciences, Xuchang University, Xuchang 461000, China
  • 2 Institute of Geospatial Information, Information Engineering University, Zhengzhou 450001, China
  • 3 Department of Civil Engineering, Henan Vocational College of Water Conservancy and Environment, Zhengzhou 450001, China
Published: 2022-02-25 doi: 10.1007/s13131-021-1704-7
Outline
收藏切换

This study analyzes the signal quality and the accuracy of BeiDou 3rd generation Satellite Navigation System (BDS3) Precise Point Positioning (PPP) in the Arctic Ocean. Assessment of signal quality of BDS3 includes signal to noise ratio (SNR), multipath (MP), dilution of precision (DOP), and code-minus-carrier combination (CC). The results show that, 5 to 13 satellites are visible at any time in the Arctic Ocean area as of September 2018, which are sufficient for positioning. In the mid-latitude oceanic region and in the Arctic Ocean, the SNR is 25–52 dB Hz and the MP ranges from −2 m to 2 m. As the latitude increases, the DOP values show large variation, which may be related to the distribution of BDS satellites. The CC values of signals B1I and BIC range from −5 m to 5 m in the mid-latitude sea area and the Arctic Ocean, which means the effect of pseudorange noise is small. Moreover, as to obtain the external precise reference value for GNSS positioning in the Arctic Ocean region is difficult, it is hard to evaluate the accuracy of positioning results. An improved isotropy-based protection level method based on Receiver Autonomous Integrity Monitoring is proposed in the paper, which adopts median filter to smooth the gross errors to assess the precision and reliability of PPP in the Arctic Ocean. At first, the improved algorithm is verified with the data from the International GNSS Service Station Tixi. Then the accuracy of BDS3 PPP in the Arctic Ocean is calculated based on the improved algorithm. Which shows that the kinematic accuracy of PPP can reach the decimeter level in both the horizontal and vertical directions, and it meets the precision requirements of maritime navigation.

BDS3  /  Arctic Ocean  /  signal quality analysis  /  protection level  /  quality check  /  Precise Point Positioning  /  satellite navigation
Xiaoguo Guan, Hongzhou Chai, Guorui Xiao, Zhenqiang Du, Wenlong Qi, Xueping Wang. Signal quality analysis and quality check of BDS3 Precise Point Positioning in the Arctic Ocean[J]. Acta Oceanologica Sinica, 2022 , 41 (2) : 166 -179 . DOI: 10.1007/s13131-021-1704-7
Full Text
Less
1 Introduction
Less
The BeiDou Navigation Satellite System (BDS), which was independently constructed and developed by China, aims to provide positioning, navigation, and timing (PNT) services globally (CSNO, 2019). The construction of BDS follows a “first-test, post-regional, and final-global” three-step strategy. The third-phase of this satellite navigation system is called BeiDou-3 (BDS3) (Yang, 2010). As a high-precision absolute positioning method, Precise Point Positioning (PPP) has extended its applications due to its global coverage, and high accuracy (Zumberge et al., 1997; Luo et al., 2018). In view of the advantages and characteristics of PPP technology, as well as the construction and development of BDS, BDS3 PPP has become one of the hot research topics in the field of satellite navigation and positioning technology (Xu et al., 2013; Tu et al., 2018). Moreover, the signal quality of BDS3 as well as the accuracy and reliability of positioning are of great significance for the promotion and application of satellite navigation in marine environment (Liu et al., 2017).
Factors affecting the signal quality of BDS have been analyzed in many studies including signal carrier-to-noise density ratio (SNR) (Hauschild et al., 2012; Xiao et al., 2016; Lou et al., 2018; Yang et al., 2018), the precision of observations (Montenbruck et al., 2013; Yang et al., 2014; Zhao et al., 2015), multipath effects (MP) (Li et al., 2014; Wang et al., 2015; Wanninger and Beer, 2015; Cai et al., 2016; Xu et al., 2018) and dilution of precision (DOP) (Gumilar et al., 2018; Wang et al., 2019). Although these investigations dealt with different aspects of BDS performance, most researches were focused on the conventional land-based environment. There are few studies on the signal quality of BDS3 in high latitudes Arctic Ocean (Luo et al., 2015). This is due to the fact that it is difficult to acquire the BDS3 data in high latitudes Arctic Ocean. The experiments always require a lot of manpower, material and financial resources. In addition, the BDS3 data is relatively new. Studies on the data quality and the positioning performance of PPP in the Arctic region are of great significance. Because it not only can provide information for broadening the application of BDS particularly for the marine and high latitude environment, but also can provide data for broadening the application of BDS in the global wide.
For evaluating the performance of BDS in Arctic environments, the GNSS quality has been analyzed comprehensively in terms of SNR, MP, and other indicators. The experimental data from the International GNSS Service (IGS) stations in the terrestrial Arctic but not the Arctic Ocean (Lu et al., 2011). Du et al. (2015), Yang and Xu (2016) used measurements from an Antarctic, but the performance of PPP was not analyzed. This paper aims to evaluate the signal quality of BDS and the quality of PPP in the Arctic region and high latitude oceans using data collected by the Sinan receiver aboard the Xuelong icebreaker from the 9th China Arctic Science Study (July 20, 2018 to September 11, 2018).
A GNSS user not only needs high-precision positioning results, but also the reliability of the results. Thus, it is important to assure the integrity of PPP. When an external check condition is available for the measurement environment, the PPP result can be compared with an external known point or other high-precision positioning results, such as the real-time kinematic (RTK) positioning result. However, in the Arctic Ocean, where there is an absence of external check conditions, ensuring the reliability of PPP results is a challenge. The measurement method, baseline difference method, as well as the half-analysis method were used to assess the reliability of PPP positioning results (Yan et al., 2012). Unfortunately, these methods are mainly used for post-static processing. Guo (2013) proposed three PPP quality inspection methods include speed/acceleration test, forward-backward filter test, and GNSS inter-system test. These methods can determine whether there is an abnormality in the dynamic positioning result, but these methods cannot evaluate the accuracy of the positioning result. Receiver autonomous integrity monitoring (RAIM), which allows the system to timely alert the user to any failure or error in the navigation and positioning system (Lee, 1986, 2006; Wang et al., 2018). The protection level method based on RAIM was adopted to evaluate the integrity of GNSS (Miguel and Joaquin, 2009; Merino and Lainez, 2012; Madrid et al., 2015a, b). The protection level method performs well in the normal open-sky environment. As data may contain gross errors in harsh environment, it is difficult to determine the performance of protection level method in the marine environment. This paper adopts the RAIM-based protection level method and applies it to the quality check of PPP results. In view of that the observation data may contain gross errors and unmodeled errors in the marine environment, this paper uses median filter to improve the isotropy-based protection level algorithm. The accuracy and reliability of PPP positioning can be calculated by adopting the proposed method, which can provide reliable accuracy guarantee for marine applications in the mid-latitude oceanic region and in the Arctic Ocean.
The rest of the paper continues with the theory of PPP and the indicator of data quality analysis in Section 2. The improved protection level algorithm are explained and verified by the IGS station of Tixi experiment in Section 3. The BDS3 data quality and the positioning performance of PPP in the Arctic region are explained in Section 4. Finally, the conclusions are summarized in Section 5.
2 Theory
Less
The PPP method was proposed by Zumberge et al. (1997) and it can provide centimeter to decimeter accuracy with the IGS precise products and advanced GPS error calibration methods.
2.1 Function model
The classical PPP function models include the ionospheric-free combination model (Zumberge et al., 1997), the UofC model (Gao and Shen, 2002) and the uncombined model (Abdel-Salam, 2005).
GNSS raw pseudorange and carrier phase observation equations are defined as
$ \left\{ {\begin{aligned}& P_{i,r}^j = \rho _r^j + \delta t_r^{} - \delta {t^j} + d_{{\rm{orb}}}^j + T_r^j + {\gamma _i}I_{1,r}^j +\\ &d_{i,r}^{} - d_i^j + \varepsilon (P_{i,r}^j ) ,\\ & L_{i,r}^j = \rho _r^j + \delta t_r^{} - \delta {t^j} + d_{{\rm{orb}}}^j + T_r^j - {\gamma _i}I_{1,r}^j + \\ &b_{i,r}^{} - b_i^j + \lambda _i^{}N_{i,r}^j + \varepsilon (L_{i,r}^j), \end{aligned}} \right. $
where $ L\,_{i,r}^{ j} $ and $P\,_{i,r}^{j}$ are the raw carrier phase and pseudorange observation in meters; the superscript $ j $ denotes the satellite number; the subscript $ r $ is the station number, and $ {i} $ indicates the carrier frequency. ${\rho}\,_{r}^{ j}$ is the geometric distance between the antenna phase center of the receiver and the antenna phase center of the satellite; $ \delta t\,_{r} $ and $ \delta t^{ j} $ are the receiver clock error and satellite clock error respectively. $ T\,_{r}^{ j} $is the tropospheric delay, and $ I\,_{1, r}^{ j} $ is the ionospheric delay of the first carrier frequency with $ \gamma\,_{i}=f\,_{1}^{\;2} / f\,_{2}^{\;2} $. $ d\,_{i, r} $ $ d\,_{i}^{j} $ and $ b\,_{i, r} $ $ b\,_{i}^{ j} $are the receiver and satellite pseudorange and carrier phase hardware delay, respectively; $ N\,_{i, r}^{ j} $ is the ambiguity parameter; $ \text{λ}\,_i$ is the carrier wavelength of carrier frequency i. $\varepsilon(L\,^{j}_{i,r})$ and $ \varepsilon(P\,^{j}_{i,r})$ are the noise of the carrier phase and pseudorange observations. The geometric distance between the station and the satellite $ {\rho}\,_{r}^{ j} $ can be further expressed as:
$ \rho _r^j = \sqrt {{{\left( {{x\,^j} - {x_r}} \right)}^2} + {{\left( {{y\,^j} - {y_r}} \right)}^2} + {{\left( {{z\,^j} - {z_r}} \right)}^2}} , $
where $ \left(x\;^j, y\;^j, z\;^j\right)^{{\rm{T}}} $ is the position of the satellite, which can be obtained from the precise ephemeris, and $\left(x_{r}, y_{r}, z_{r}\right)^{{\rm{T}}}$ is the position of the receiver to be estimated.
In order to eliminate the first-order term of ionospheric delay, the ionospheric-free combination is employed. In this case, the ionospheric-free combinations of the pseudorange and carrier phase observation equations are expressed as
$ \left\{ {\begin{aligned} P\,_{{\rm{IF}},r}^j = & \frac{{f\,_1^2 \cdot P\,_{1,r}^j - f\,_2^2 \cdot P\,_{2,r}^j}}{{f\,_1^2 - f\,_2^2}} = \rho\, _r^j + (\delta t\,_r^{} + d\,_{{\rm{IF}},r}^{}) -\\ & (\delta {t\,^j} + d\,_{{\rm{IF}}}^j) + d\,_{{\rm{orb}}}^j + T\,_r^j + \varepsilon (P\,_{{\rm{IF}},r}^j ), \\ L\,_{{\rm{IF}},r}^j =& \frac{{f\,_1^2 \cdot L\,_{1,r}^j - f\,_2^2 \cdot L\,_{2,r}^j}}{{f\,_1^2 - f\,_2^2}} \\= & \rho\, _r^j + (\delta t\,_r^{} + d\,_{{\rm{IF}},r}^{}) - (\delta {t\,^j} + d\,_{{\rm{IF}}}^j) + d\,_{{\rm{orb}}}^j + T\,_r^j + \\ &(b\,_{{\rm{IF}},r}^{} - d\,_{{\rm{IF}},r}^{} + d\,_{{\rm{IF}}}^j - b\,_{{\rm{IF}}}^j + \text{λ}\, _{{\rm{IF}}}^{}N\,_{{\rm{IF}},r}^j) + \varepsilon (L\,_{{\rm{IF}},r}^j) ,\end{aligned}} \right.$
where the subscript ${\rm{IF}}$ indicates the ionospheric-free combination, and the other symbols are the same as before.
2.2 Kalman filter
After the PPP observation equations are formed, Kalman filter is used to estimate the unknown parameters. Kalman filter uses a recursive algorithm that combines the estimated state vector of the previous epoch and the observations of the current epoch to estimate the current state (Xiao et al., 2018). The state vector consists of the parameters to be estimated in the PPP observation equation. The filtered state equation and observation equation are shown as
$ \left\{ {\begin{array}{*{20}{l}} {{{\boldsymbol{V}}_{{{\bar {\boldsymbol{X}}}_k}}} = {{\hat {\boldsymbol{X}}}_k} - {{\bar {\boldsymbol{X}}}_k}} ,\\ {{{\boldsymbol{V}}_k} = {{\boldsymbol{A}}_k}{{\hat {\boldsymbol{X}}}_k} - {{\boldsymbol{L}}_k}} ,\end{array}} \right. $
where ${\hat {\boldsymbol{X}}_k}$ is the estimated state vector at time $ k $, subscript is the current epoch $ k $. ${\hat {\boldsymbol{X}}_k}$ is the vector of parameters to be estimated ,which usually contains position parameters and other parameters . In general, the parameter vector to be estimated can be expressed as $(x,y,z,\delta t_r ,\cdots)$. $\displaystyle\sum {_{{{\hat {\boldsymbol{X}}}_k}}}$is the covariance matrix, which can be expressed as $\left( {\begin{array}{*{20}{c}} {{\sigma _{xx}}}&{}&{}&{}\\ {}&{\sigma _{yy}^{}}&{}&{} \\ {}&{}&{{\sigma _{zz}}}&{} \\ {}&{}&{}&{{\sigma _{\delta t_r^{}\delta t_r^{}}}}\end{array}} \right)$. ${\overline {\boldsymbol{X}}_k}$ is the predicted state vector at time $ k $ and $\displaystyle\sum {_{{{\bar {\boldsymbol{X}}}_k}}}$ is the covariance. ${{\boldsymbol{V}}_k}$ is the residual vector of ${{\boldsymbol{L}}_k}$; ${{\boldsymbol{V}}_{{{\bar X}_k}}}$ is the residual vector of ${\overline {\boldsymbol{X}}_k}$. ${{\boldsymbol{A}}_k}$ is the modulus matrix; ${{\boldsymbol{L}}_k}$ is the observation vector.
Given initial values of filtered state vector $\hat {\boldsymbol{X}}_0^{}$ and variance $ \displaystyle\sum\nolimits_0 {} $, the estimated state vector at time $ k $ can be calculated recursively. The predicted state vector ${\overline {\boldsymbol{X}}_k}$ at time $ k $and its covariance $\displaystyle\sum\nolimits_{\overline {{\boldsymbol{X}}}_k} ^{} {}$are determined as
$ \left\{ {\begin{array}{*{20}{l}} {{{\overline {\boldsymbol{X}}}_k} = {\Phi _{k,k - 1}}{{\hat {\boldsymbol{X}}}_{k - 1}}} ,\\ {\displaystyle\sum {_{{{\overline {\boldsymbol{X}}}_k}} = {\Phi _{k,k - 1}}_{}\sum {_{{{\hat {\boldsymbol{X}}}_{k - 1}}}} } \Phi _{k,k - 1}^{\rm{T}} + {Q_{k - 1}}}. \end{array}} \right. $
The estimated state vector $\hat {{\boldsymbol{X}}} _k$ at time $ k $ and its covariance matrix $\displaystyle\sum\nolimits_{{{\hat {\boldsymbol{X}}}_k}} {}$ are shown as
$ \left\{ {\begin{array}{*{20}{l}} {{{\hat {\boldsymbol{X}}}_k} = {{({\boldsymbol{A}}_k^{\rm{T}}{P_k}{{\boldsymbol{A}}_k} + {P_{{{\bar {\boldsymbol{X}}}_k}}})}^{ - 1}}({\boldsymbol{A}}_k^{\rm{T}}{P_k}{{\boldsymbol{L}}_k} + {P_{{{\bar {\boldsymbol{X}}}_k}}}{{\overline {\boldsymbol{X}}}_k})}, \\ {\displaystyle\sum\nolimits _{{\hat {\boldsymbol{X}}}_k} = \sum \nolimits_{{\bar {\boldsymbol{X}}}_k} - \sum \nolimits_{{\bar {\boldsymbol{X}}}_k}{\boldsymbol{A}}_k^{\rm{T}}\left({{\boldsymbol{A}}_k}\sum \nolimits_{{{\bar {\boldsymbol{X}}}_k}}{\boldsymbol{A}}_k^{\rm{T}} + \sum \nolimits_k\right)^{ - 1}{{\boldsymbol{A}}_k} \sum\nolimits _{{{\bar {\boldsymbol{X}}}_k}}} ,\end{array}} \right. $
where $\hat {{\boldsymbol{X}}} _{k - 1}$ and $ \displaystyle\sum\nolimits_{{{\hat {\boldsymbol{X}}}_{k - 1}}} {} $are estimated state vector and their variance matrices at time $ k - 1 $. $P_{{\overline {{\boldsymbol{X}}}}_k } =\displaystyle \sum\nolimits_{{\overline {\boldsymbol{X}}}_k }^{ - 1} {}$, $ {P_k} $ is the weight matrix of the observation.
2.3 PPP strategy
PPP uses ionospheric-free combination model and Kalman filter to estimate parameters. Data is processed by self-developed software, which based on the Visual Studio 2017 platform with the C/C++ language. The detailed parameter estimation strategy, the initial value of the filter, and the processing strategies are shown in Table 1.
2.4 Quality analysis of satellite signal
The quality of the satellite signal has an important impact on the positioning results. In order to comprehensively analyze the positioning performance of BDS3 in the Arctic Ocean, this paper uses five indicators to analyze the satellite signal quality: number of visible satellites, SNR, MP, DOP and code-minus-carrier combination (CC).
2.4.1 Number of visible satellites
The continuous visibility of satellites can ensure the convergence of position parameters in PPP. Generally speaking, if the number of visible satellites is greater than 4, the positional parameters can be effectively converged (Geng et al., 2009).
2.4.2 SNR
SNR is one of the most important indicators of satellite signal quality. The higher the value of SNR, the better the quality of the corresponding observed signal.
2.4.3 MP
Satellite receivers not only receive signals directly from satellites, but also receive satellite signals reflected by objects (such as water surfaces, buildings, …). If the received signal is reflected by several reflector surfaces, the signal will affect the accuracy of positioning. MP is an important factor that affecting the precision of PPP. The MP combination observation formula is as follows:
$ \left\{ {\begin{array}{*{20}{c}} {{\rm{MP}}\,_{i,r}^j = P\,_{i,r}^j - \dfrac{{f\,_i^2 + f\,_k^2}}{{f\,_i^2 - f\,_k^2}}{\text{λ} _i}\varphi\, _{i,r}^j + \dfrac{{2f\,_k^2}}{{f\,_i^2 - f\,_k^2}}{\text{λ} _k}\varphi \,_{k,r}^j - B\,_{i,r}^j} ,\\ {B\,_{i,r}^j = - \dfrac{{f\,_i^2 + f\,_k^2}}{{f\,_i^2 - f\,_k^2}}{\text{λ} _i}N\,_{i,r}^j + \dfrac{{2f\,_k^2}}{{f\,_i^2 - f\,_k^2}}{\text{λ} _k}N\,_{k,r}^j + (d\,_{i,r}^{} - d\,_i^j)} ,\end{array}} \right. $
where ${\rm{MP}}_{i,r}^j$ is the ${\rm{MP}}$ of frequency $i$, $ B_{i,r}^j $ is the float ambiguity which can be obtained by multi-epoch data smoothing. The other symbols are the same as before.
2.4.4 The geometry of constellations
The GNSS positioning accuracy is not only determined by the ranging accuracy, but also by the geometry of constellations (Wang et al., 2019). Geometrical dilution of precision (GDOP), Positional dilution of precision (PDOP), Horizontal dilution of precision (HDOP) and Vertical dilution of precision (VDOP) are selected as the index for assessing the quality of satellite geometric distribution. The formula is shown as:
$ \left\{ {\begin{array}{*{20}{l}} {{\rm{GDOP}} = \sqrt {{\sigma _{xx}} + {\sigma _{yy}} + {\sigma _{zz}} + {\sigma _{\delta {t_r}\delta {t_r}}}} } ,\\ {{\rm{PDOP}} = \sqrt {{\sigma _{xx}} + {\sigma _{yy}} + {\sigma _{zz}}} }, \\ {{\rm{HDOP}} = \sqrt {{\sigma _{xx}} + {\sigma _{yy}}} } ,\\ {{\rm{VDOP}} = \sqrt {{\sigma _{zz}}} } ,\end{array}} \right. $
the symbols are the same as before.
2.4.5 Pseudorange noise analysis
Pseudorange noise indicates the basic performance of GNSS receiver, which is usually calculated by the CC. The formula of CC is shown as (Xu et al., 2018)
$ {\rm{CC}}_{i,r}^j = P_{i,r}^j - L_{i,r}^j, $
the symbols are the same as before.
The CC performs the difference between the epochs, which can eliminates the carrier phase ambiguity and reduces the error such as ionospheric delay, hardware delay, and multipath. The residual part is mainly affected by pseudorange noise.
3 Quality inspection
Less
Integrity is the measure of the trust that can be placed in the correctness of the information supplied by navigation system. Integrity includes the ability of the system to provide timely warnings to users when the system should not be used for navigation (Merino and Lainez, 2012). To ensure the safety and reliability of GNSS, GNSS integrity monitoring can be divided into system-level integrity monitoring and user-level integrity monitoring. User-level integrity monitoring, also known as RAIM. As an important part of RAIM, the user's protection level is calculated based on redundant observations to monitors the integrity of user positioning result. This study adopts the RAIM-based protection level method for checking the reliability and the positioning accuracy of PPP.
3.1 The protection level method
The protection level is computed using the statistical bound error so as to guarantee that the probability of the absolute position error exceeding the said number is smaller than or equal to the target integrity risk (Merino and Lainez, 2012). The integrity risk is the risk that the position error exceeds the alert limit at any moment. The PL is divided into horizontal protection level (HPL) and vertical protection level (VPL). There are two ways to calculate the protection level. One way uses the variance information of the positional parameter, while the other way uses the posterior residual information (Feng et al., 2009).
The variance-based protection level can be expressed as
$ \left\{ {\begin{array}{*{20}{l}} {{\rm{HPL}} = {k_H}{\sigma _H} , {\sigma _H} = \sqrt {{\sigma _{xx}} + {\sigma _{yy}}} } ,\\ {{\rm{VPL}} = {k_U}{\sigma _U} , {\sigma _U} = \sqrt {{\sigma _{zz}}} }, \end{array}} \right. $
where $ {k_H} $ and $ {k_U} $ are factors that obey a normal distribution , and they can be determined according to the integrity risk. $ {\sigma _H} $ and $ {\sigma _U} $ are the middle errors in the horizontal and vertical directions respectively. $ {\sigma _{xx}} $, $ {\sigma _{yy}} $ , $ {\sigma _{zz}} $ are element in the parameter variance matrix.
The isotropy-based protection level (IBPL) assumes that the space vector is composed of the observation error. Both the size and the direction are arbitrary in the vector space, which means there is no priori information and the difference after the adjustment will be reflected in the posterior residual. The isotropy-based protection levels can be expressed as (Miguel and Joaquin, 2009)
$ \left\{ {\begin{aligned} {\rm{HPL}} =& {k_{{\rm{IBPL}}}}\left\| {{V}} \right\|{\sigma _H} , {\sigma _H} \\= &\sqrt {\frac{{{\sigma _{xx}} + {\sigma _{yy}}}}{2} + \sqrt {{{\left( {\frac{{{\sigma _{xx}} - {\sigma _{yy}}}}{2}} \right)}^2} + {{\left( {\frac{{{\sigma _{xx}} + {\sigma _{yy}}}}{2}} \right)}^2}} } , \\ {\rm{VPL}} =& {k_{{\rm{IBPL}}}}\left\| {{V}} \right\|{\sigma _U} , {\sigma _U} = \sqrt {{\sigma _{zz}}}, \end{aligned}} \right. $
where $\left\| {{V}} \right\|$ is the euclidean distance of the posterior residual and ${k_{{\rm{IBPL}}}}$ can be obtained according to the integrity risk checklist.
As isotropy-based protection level makes full use of the posterior residual information, it can reflect the undetected gross error. However, the variance-based protection level does not take advantage of the posterior residual information.
3.2 Experiment
The reliability and the accuracy of the protection level need to be verified by experiment. It is important to choose a suitable experiment station, which must meet two requirements. First, the measurement environment of station should be similar to the Arctic marine environment. Second, the station should have a high-precision external inspection standard. Based on the above requirements, the IGS station of Tixi was selected, which has known high precise coordinates. Experiment downloaded Tixi Station data of August 3, 2018 from the IGS website. Then the data was used to calculate the variance-based protection level and the isotropy-based protection level. The positional bias was obtained from the difference between the PPP result in pseudo-kinematic mode and the known coordinates of the IGS station with high precision.

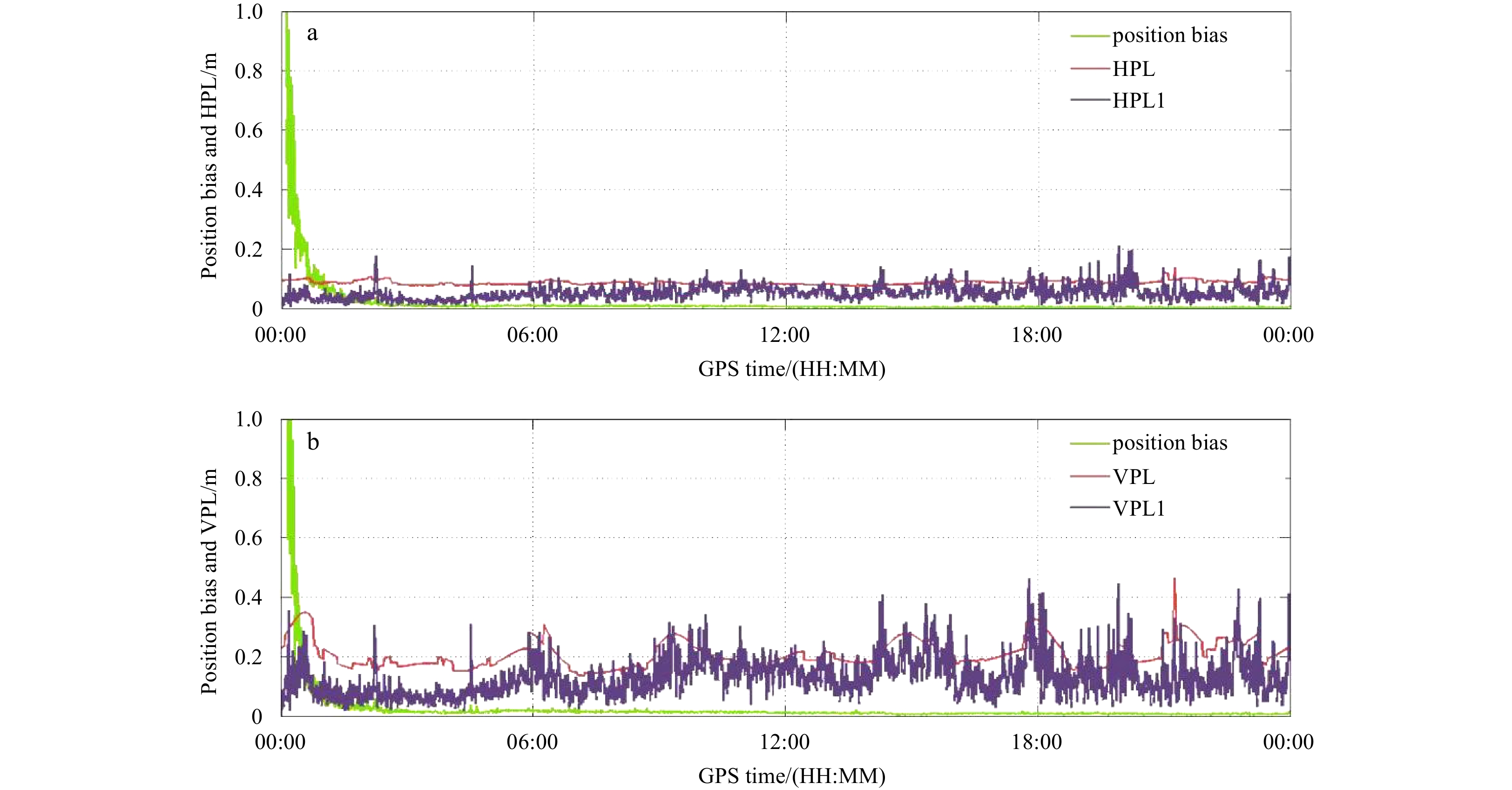

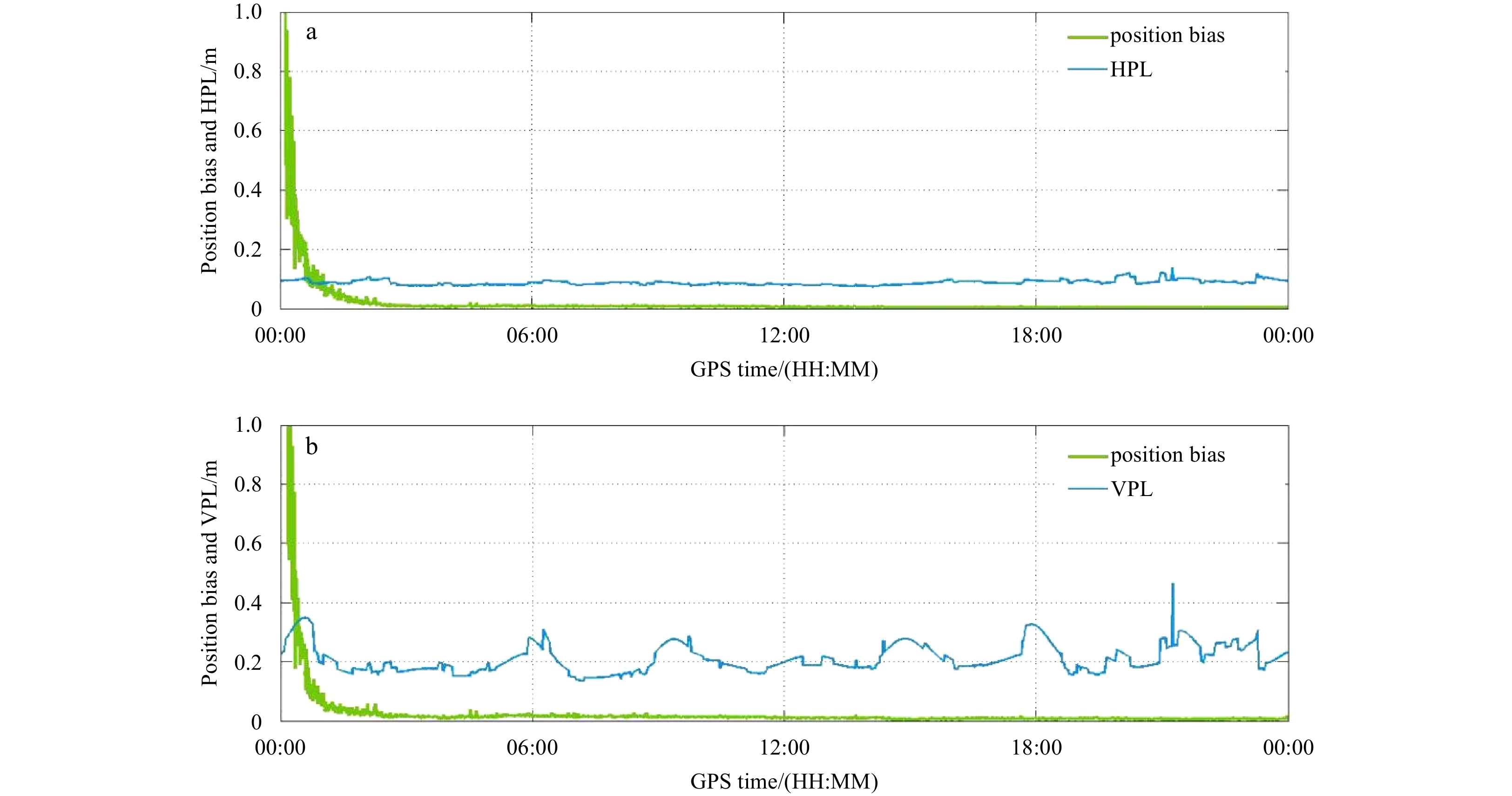

Figure 1 shows the relationship between the PPP positional bias and the variance-based protection level, while Fig. 2 shows the relationship between the PPP positional bias and the isotropy-based protection level. The green lines in Figs 1a and 2a represent the PPP positional bias in north and east direction. The blue line in Fig. 1a represents the horizontal variance-based protection level calculated by Eq. (10), in which $ {k_H} $ is 6.18. The red line in Fig. 2a represents the horizontal isotropy-based protection level calculated by Eq. (11), in which the confidence level is set to 99.9% (Miguel and Joaquin, 2009). Moreover, the green line in Fig. 1b represents the PPP positional bias in up direction. The blue line in Fig. 1b represents the vertical variance-based protection level calculated by Eq. (10), in which $ {k_U} $ is 5.33 . The red line in Fig. 2b represents the vertical isotropy-based protection level calculated by Eq. (11), in which the confidence level is set to 99.9% (Miguel and Joaquin, 2009).

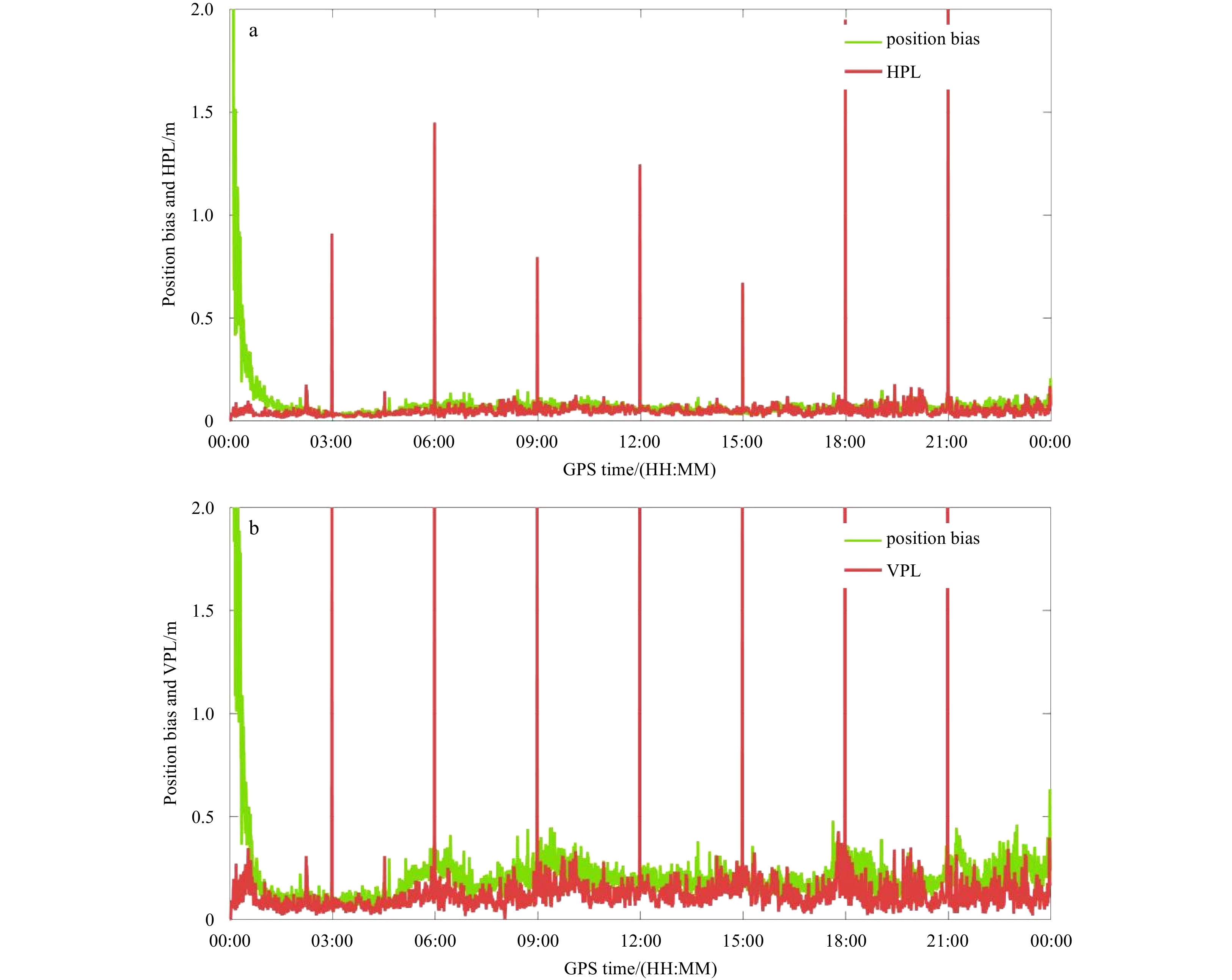

From Figs 1 and 2, it can be seen that there are short-term fluctuations at the beginning under the pseudo-kinematic conditions. However, all the position biases are below the protection level after a few hours, which means that the protection level calculated by the two methods can well define the position bias of PPP.
As residuals can reflect anomalies effectively, the isotropy-based protection level can reflect the influence of the gross errors on the positioning result theoretically. In view of observation data contains gross errors easily in the marine environment, an experiment involving gross errors was carried out. A gross error of 0.6 m was added to the carrier observation of the satellites every three hours during the PPP filter process in the test.

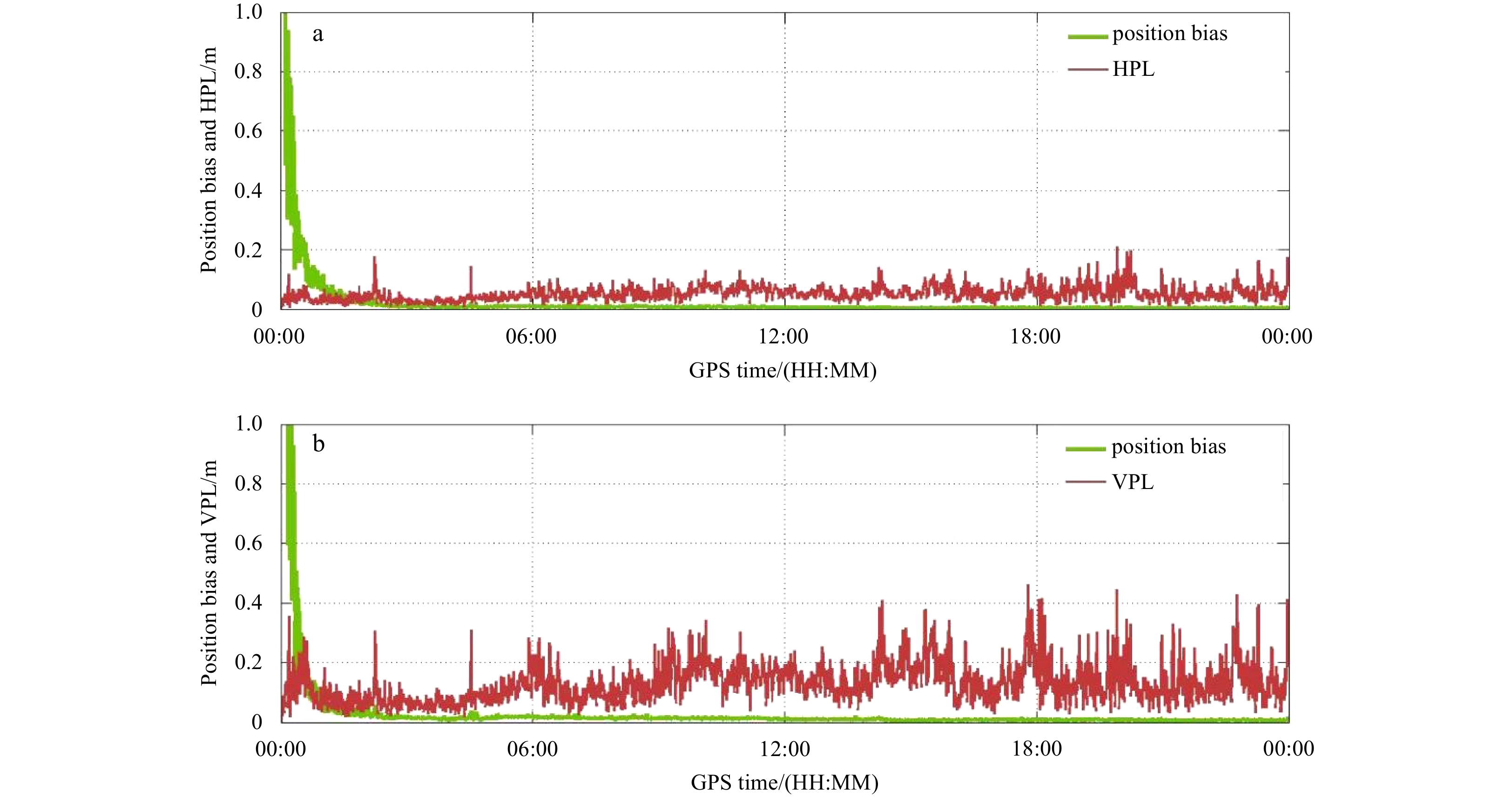

Figure 3 shows the relationship between the positional bias of the PPP and the variance-based protection level in the horizontal and vertical directions. Figure 4 shows the relationship between the positional bias of the PPP and the isotropy-based protection level in the horizontal and vertical directions. Both experiments were conducted under pseudo-kinematic conditions with a gross error of 0.6 m every three hours.
The green lines represent the positional biases of PPP in Figs 3 and 4. Due to the gross error of 0.6 m added to the carrier observation every three hours, the positional biases of PPP jump at the corresponding times. The red lines represent the isotropy-based protection level. The isotropy-based protection level show a large fluctuation every three hours, which caused by the gross error. The blue lines represent the variance-based protection level, and the variance-based protection level has no obvious fluctuations. Overall, the variance-based protection level is flat rather than unusually volatile. This is mainly because this method does not make full use of the post-test residual information of the observation. In general, the protection level in the case of artificially added errors is worse than the protection level without artificially added errors. Moreover, compared with the variance-based protection level, the isotropy-based protection level reflects the existence of gross errors better.
The isotropy-based protection level is roughly equal to the position bias in the horizontal direction. The isotropy-based protection level deviates from the position bias in the vertical direction, that is, the protection level is lower than the position bias. In this case, the protection level cannot reflect the position biases accurately. This is mainly because of the influence of the unmodeled errors in PPP such as residual ephemeris errors and MP. The errors are reflected in the posterior residual, which makes the protection level sequence fluctuate significantly.
The measurement environment is unstable and the observation data is susceptible to the gross errors and unmodeled errors in the marine environment. This paper proposes an improved isotropy-based protection level algorithm, which uses median filter to eliminate the influence of gross error. The improved protection level not only can reflect the fluctuation of gross error, but also can reflect the level of positional bias well.
3.3 Improved isotropy-based protection level algorithm
Considering the characteristics of the gross error, this paper uses a nonlinear algorithm based on median filter to smooth the euclidean distance of the posterior residual. The algorithm can improve the fluctuation of the isotropy-based protection level.
Median filter is a nonlinear signal processing technique based on sorting statistics, which can suppress isolated noise effectively. The basic principle of median filter involves first sorting the signals, followed by determining the sorting window size and sorting the signal values according to the window center point, and finally taking the middle value as the new value of the center signal. When the window moves, the signal can be smoothed by median filter to eliminate isolated noise points.
Suppose that the posterior residual euclidean distance of the i epoch is Vi, and the window size of the median filter is n, then the median filter variables at i epoch can be expressed as Median ${V_i} = ({V_{i - n}},{V_{i - n + 1}},\cdots,{V_{i - 1}},{V_i},{V_{i + 1}},{V_{i + 2}},\cdots,{V_{i + n}})$, the corresponding order statistics ${V_{(i - n)}} \leqslant {V_{(i - n + 1)}} \leqslant \cdots\leqslant {V_{(i)}} \leqslant \cdots\leqslant {V_{(i + n - 1)}} \leqslant {V_{(i + n)}}$ are random variables. The values of Vi sorts in an ascending order, then the median value of Vi is given as
$ {\rm{Median}}{V_i} = \left\{ {\begin{array}{*{20}{l}} {V_{(2k + 1)}^{},n = 2k} ,\\ {\dfrac{{{V_{(2k)}} + {V_{(2k + 1)}}}}{2},n = 2k + 1}. \end{array}} \right. $
The steps of the improved isotropy-based protection level algorithm are presented as follows: (1) median filter is used to smooth the window of the posterior residual euclidean distance of n epochs and the value of n is usually set to [5, 20]; (2) use the Eq. (12) to calculate the median value of posterior residual euclidean distance and take it as the current posterior residual euclidean distance estimate; (3) use the current post-test residual euclidean distance estimate to calculate the isotropy-based protection level.

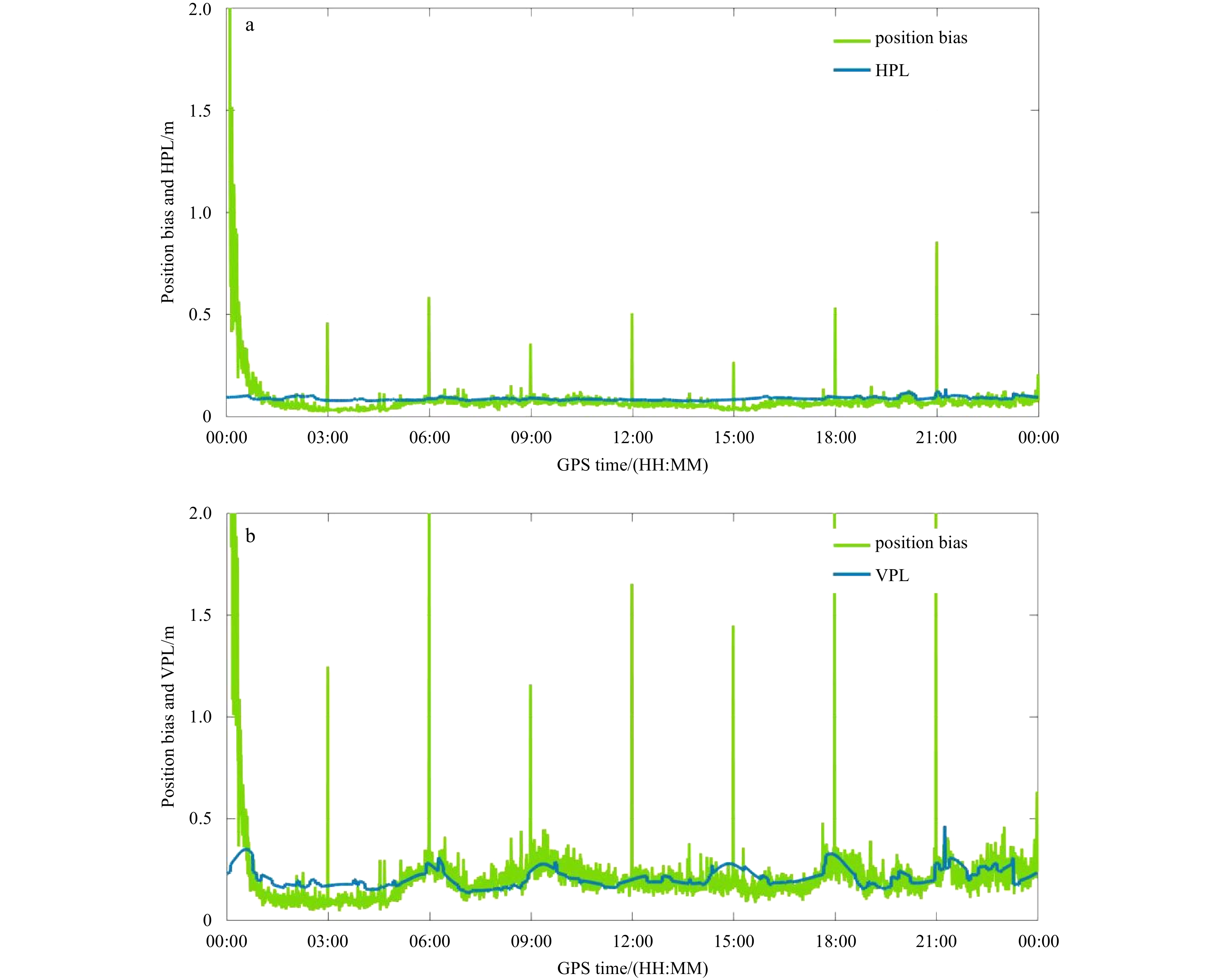

Figure 5 shows the relationship of the positional biases of PPP, the isotropy-based protection level, and the improved isotropy-based protection level in the horizontal and vertical directions. The experiment uses the data from Tixi Station and adopts pseudo-kinematic mode. The green lines represent the PPP positional bias. The red lines represent the isotropy-based protection level, and the improved isotropy-based protection level algorithm is represented by purple lines.
In Fig. 5, the purple lines are always above the green lines, which indicates the improved isotropy-based protection level algorithm can reflect the positioning precisely. Compared with the isotropy-based protection level algorithm, the improved algorithm produces result closer to the PPP position bias. Therefore, the improved isotropy-based protection level is more suitable for evaluating the position quality of dynamic PPP in Arctic Oceanic region.
4 Arctic Ocean experiment
Less
This study uses the data from the Sinan receiver mounted on the Xuelong icebreaker during the 9th China Arctic Science Study (July 20, 2018–September 11, 2018). The Xuelong icebreaker is the only Chinese icebreaker to mount a full scientific expedition of the polar regions. The data sampling rate is 1 s, and the height cutoff angle is 10°. The Xuelong icebreaker sailed for 53 days, and the highest latitude of the track reached 84.22° to the north. The Xuelong icebreaker is shown in Fig. 6. The expedition track is shown by the red line in Fig. 7.
In order to analyze the signal quality of BDS in the Arctic Ocean at different latitudes, representative data from Day of Year (DOY) 204 with latitude around 45°, DOY 209 with latitude around 60°, and DOY 215 with latitude around 75°, were selected. The collected datasets were processed to compare the number of visible satellites, SNR, MP, DOP and CC of BDS at different latitudes. The numbers of visible satellites at different latitudes are shown in Fig. 8.

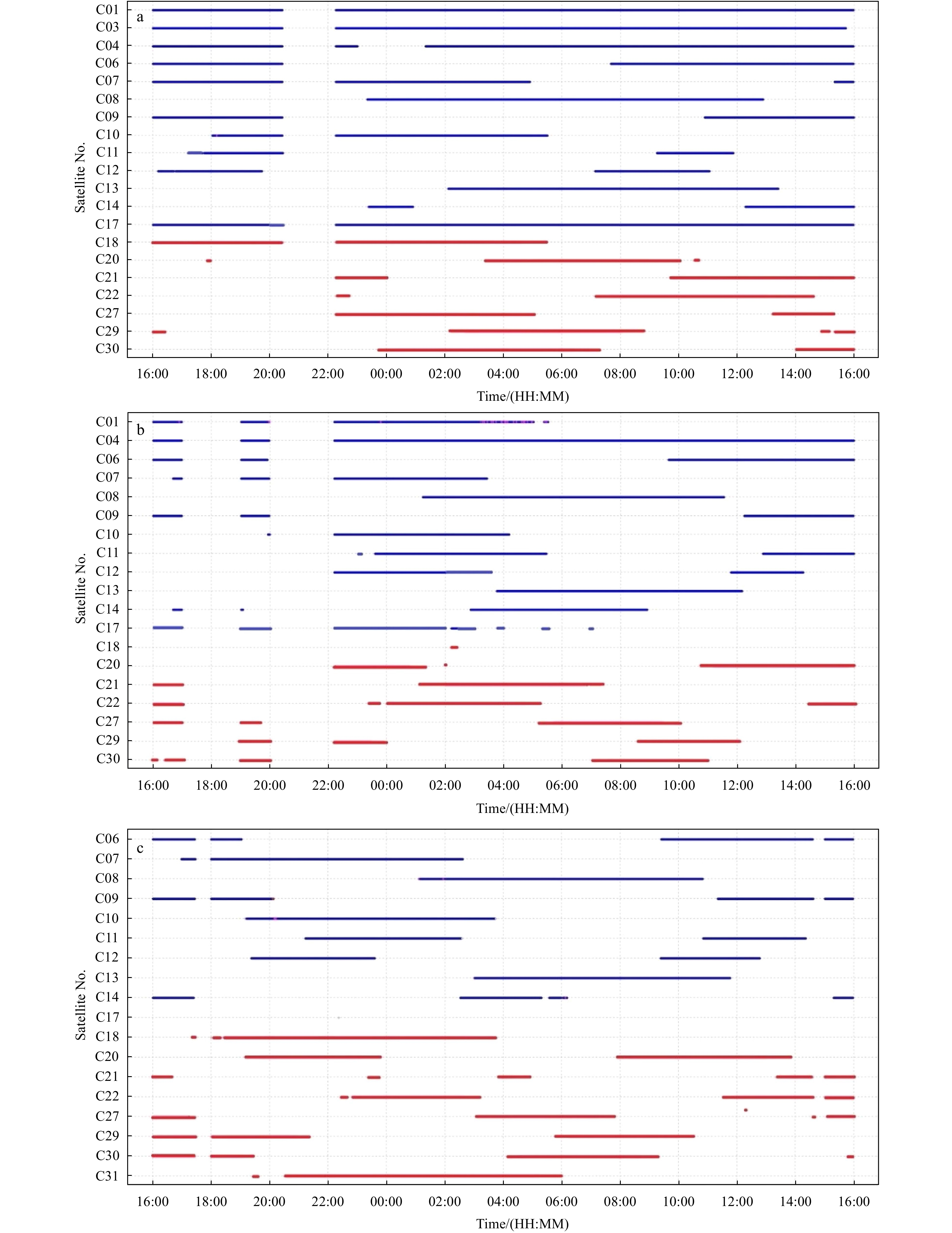

In Fig. 8, the blue lines represent the visible time period of the BeiDou 2nd generation satellite, while the red lines represent the visible time period of the BeiDou 3rd generation satellite. The number of visible BeiDou satellites is 8–13 at 45° latitude, 6–11 at 60° latitude and 5–8 at 75° latitude. This shows that more than 4 BDS satellites can be observed at any time in the mid-high latitude ocean area, which can ensure the positioning accuracy effectively.

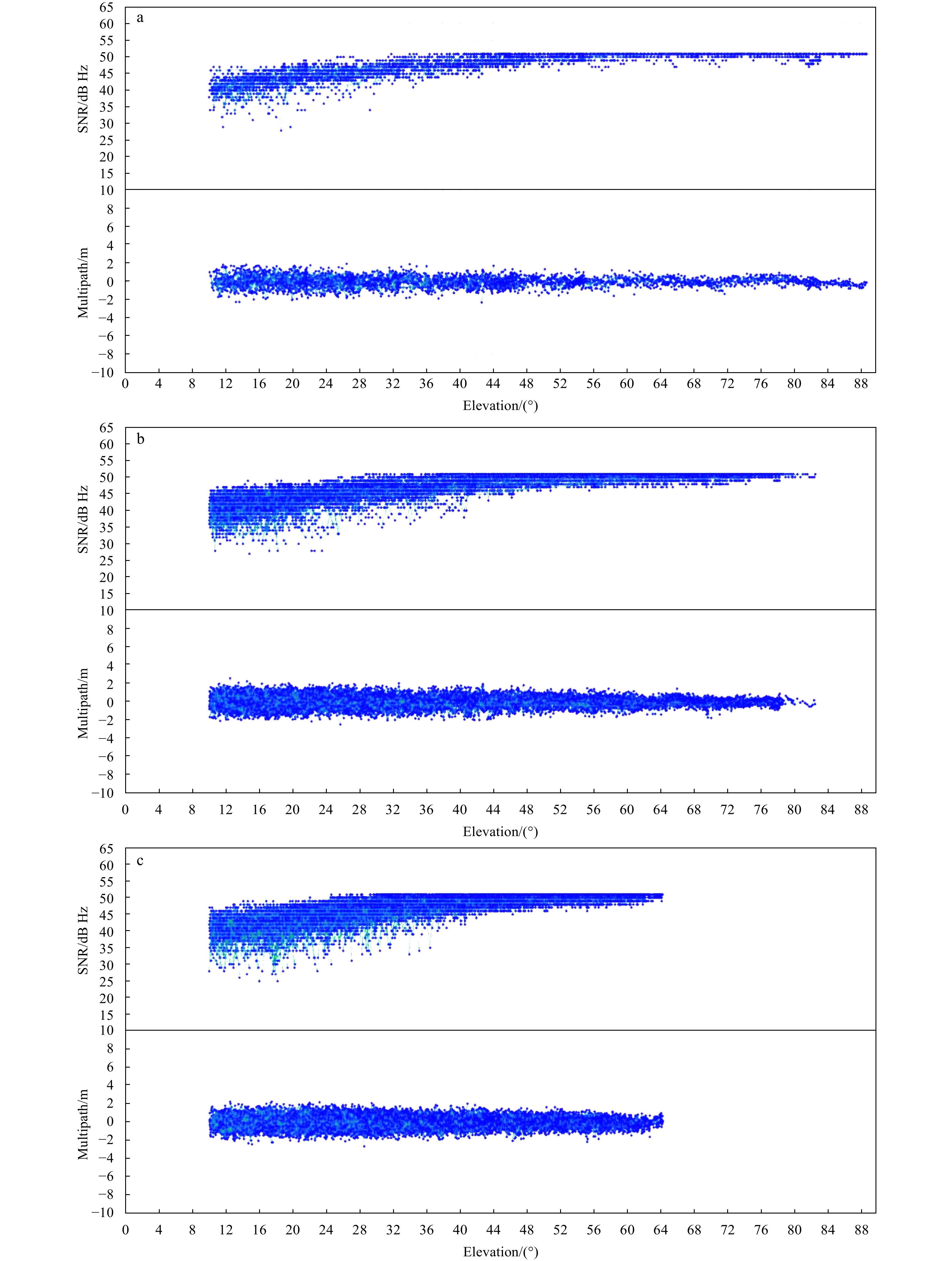

The SNR and MP results with respect to the elevation angle for the different latitudes are shown in Fig. 9.
From Fig. 9, it can be seen that the value range of SNR is [25, 52]dB Hz in the mid-latitude and high-latitude ocean regions. The data shows that the signal quality is quite good throughout the journey. As the elevation angle increases, the value of SNR increases slowly. The value range of MP is [−2, 2] m, which is not significantly different with the increase in latitude. The value of MP tends to decrease slowly as the elevation angle increases.

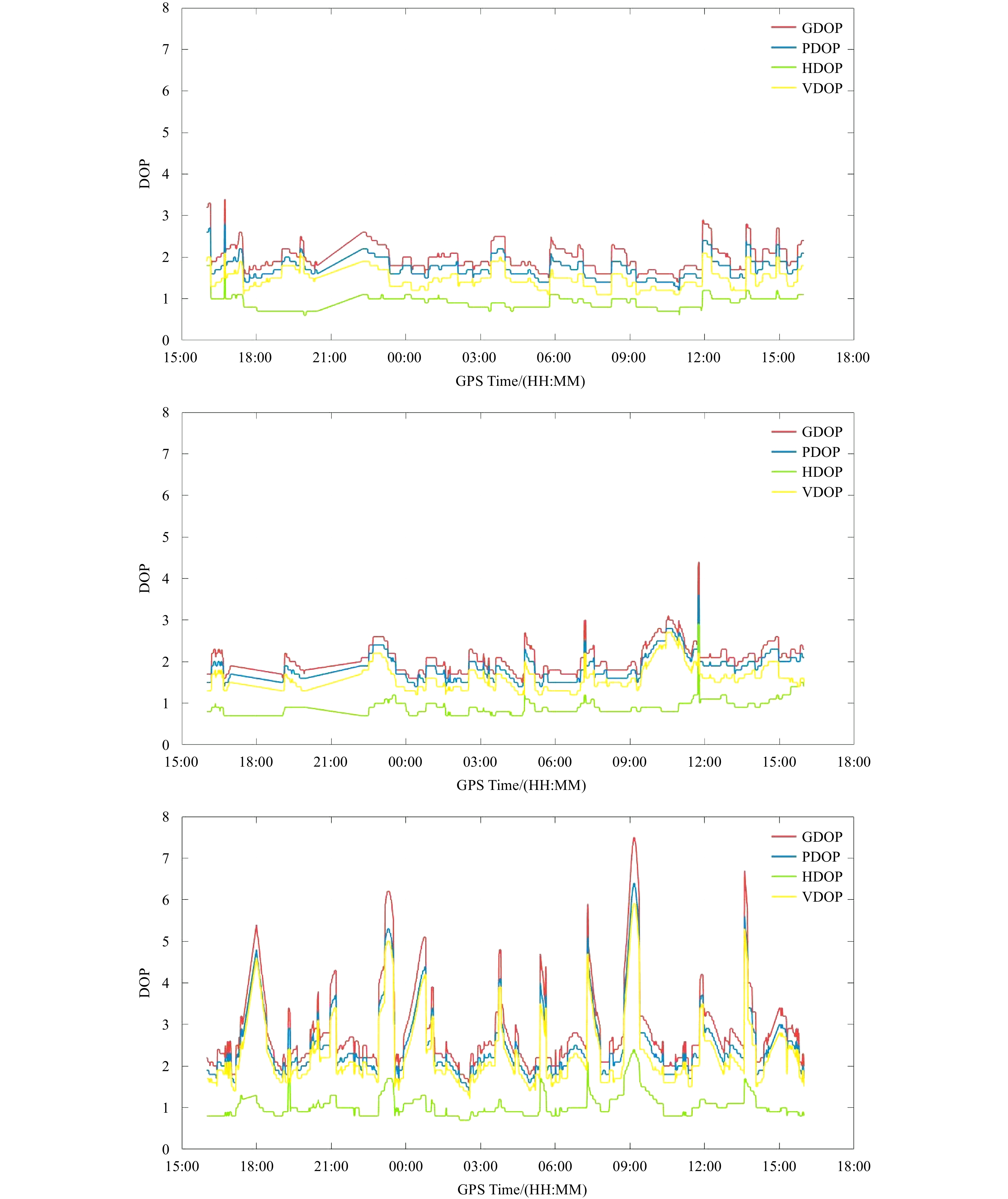

The geometry of the constellations for the different latitudes are shown in Fig. 10.
From Fig. 10, it can be seen that the value of geometric precision factor is similar in 45° latitudes and 60° latitudes ocean. Taking the value of GDOP as an example, most of the values are below 3. However, the value of GDOP is much larger in 70° latitudes ocean and the maximum is even reach to 7. This means that in the high latitudes, the BeiDou satellite geometry distribution is not as good as that in the mid-latitude area. BDS is still under construction, and it is expected to provide a more promising service on a global scale in the future.

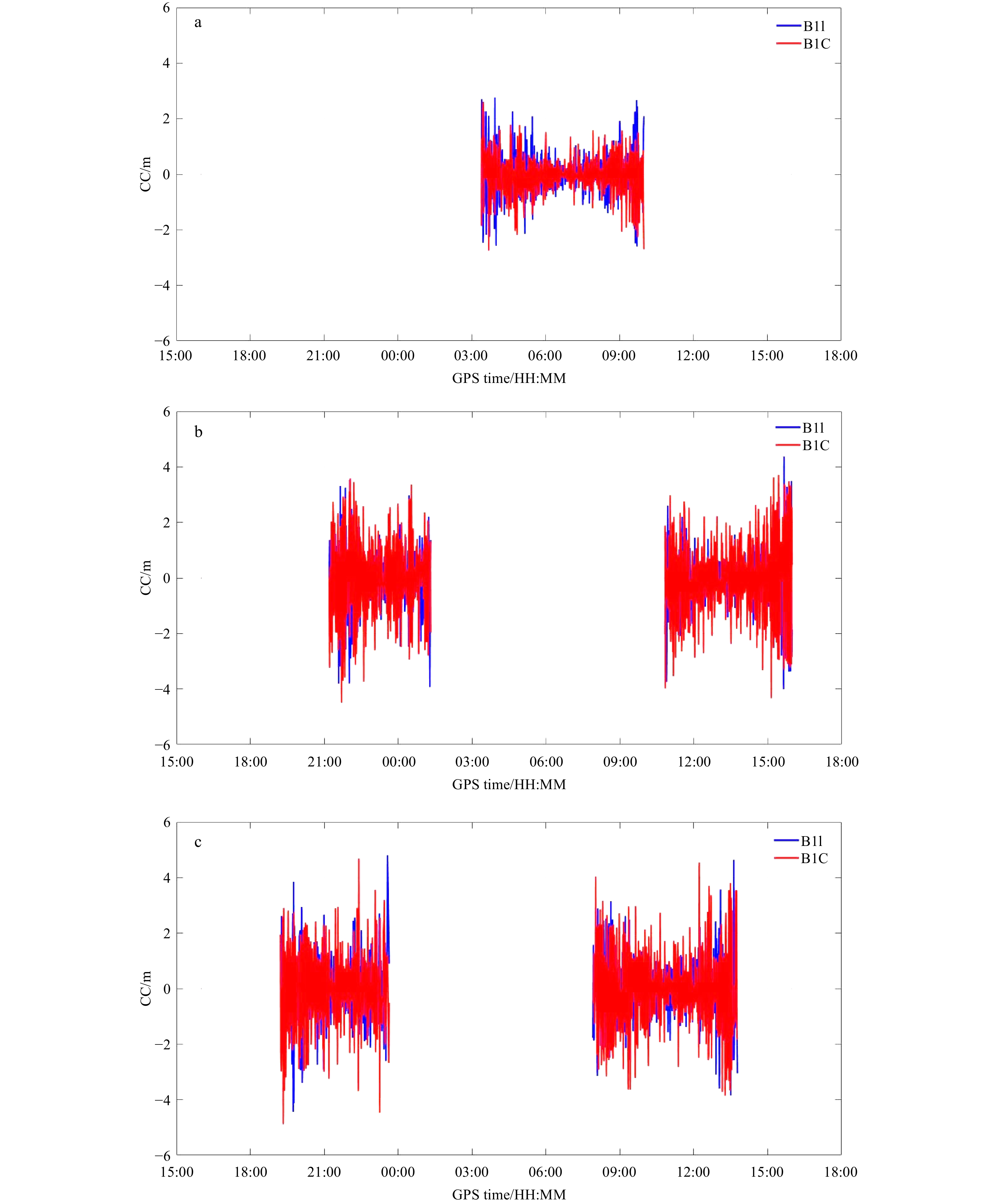

Taking the B1I and BIC frequencies of C20 satellite as an example, the CC at the different latitudes are shown in Fig. 11.
From Fig. 11, it can be seen that the CC of B1I and BIC frequencies have a similar curve in different latitudes ocean. Generally speaking, the values of CC are between −5 m and 5 m, which means the effect of pseudorange noise is small.
The positioning strategy described in Section 2.3 was used to process the data, and the accuracy of PPP was calculated by the improved protection level. Due to the similar positioning accuracy at mid-high latitudes, data from DOY217 (the approximate location is located at 76.95°N, 171.90°E) was selected for analysis. The performance of PPP on DOY217 is shown in Fig. 12.

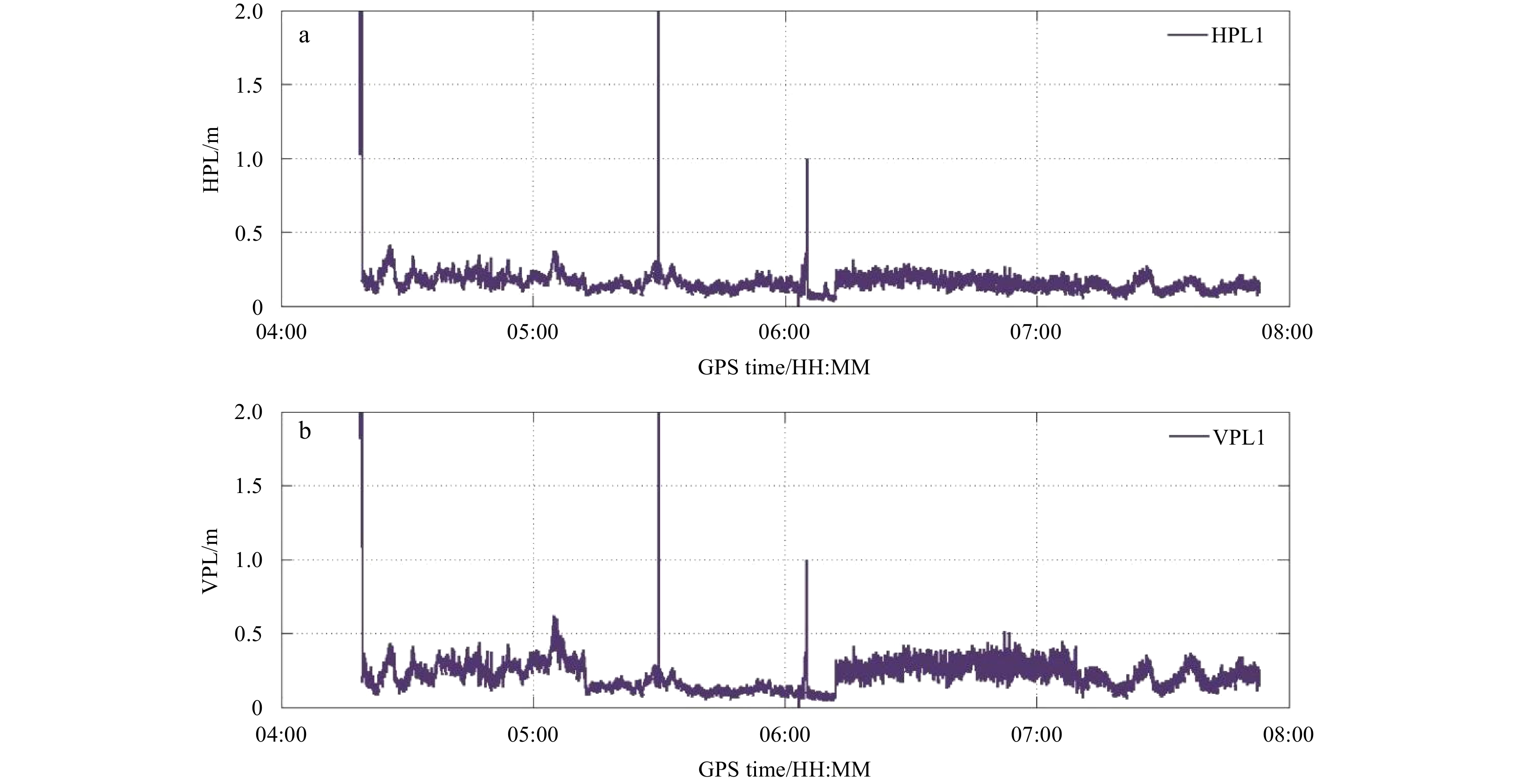

It can be seen from Fig. 12 that the improved isotropy-based protection level sometimes experiences drastic jumps. Due to the harsh Arctic marine environment, the observation may contain gross errors. The improved isotropy-based protection level experiences drastic fluctuations. This means that the improved isotropy-based protection level can reflect the gross errors reliably. More importantly, the improved isotropy-based protection level can reflect the precision of PPP. The improved isotropy-based protection level can reach the decimeter level in the horizontal and vertical direction, which means that the kinematic accuracy of PPP can reach the decimeter level in the Arctic Ocean and it meets the precision requirements of maritime navigation.
5 Conclusions
Less
Based on the BDS3 data collected by the Xuelong icebreaker during the 9th China Arctic expedition, this paper analyzes the data quality and the PPP performance of BDS3 in the Arctic Ocean. The following conclusions are drawn:
(1) The numbers of visible BDS3 satellites are more than four at any time in the mid-latitude sea area and the Arctic Ocean, which can ensure BDS provide positioning services on a global scale.
(2) The values SNR of BDS3 signals range from 25 dB Hz to 52 dB Hz and the value range of MP is [−2, 2] m in the mid-latitude sea area and the Arctic Ocean. As the elevation angle increases, the SNR value tends to increase slowly, while the MP value tends to decrease slowly.
(3) As the latitude increases, the value of DOP shows a large variation. Taking the value of GDOP as an example, most of the values are below 3 in the 45° latitudes and 60° latitudes ocean. However, the value of GDOP is much larger in 70° latitudes ocean and the maximum is even more than 7. The value of DOP is related to the distribution of BDS satellites closely. These results indicate that the BeiDou satellite geometry distribution in the high latitudes is not as good as in the mid-latitude area. With the construction of BDS, BDS will provide a better service on a global scale in the future.
(4) The CC values of B1I and BIC frequencies range from −5 m to 5 m in the mid-latitude sea area and the Arctic Ocean, which means the pseudorange noise is small.
(5) In order to evaluate the PPP performance of BDS in the Arctic Ocean, this paper proposes an improved isotropy-based protection level based on RAIM theory. The proposed method uses median filter to smooth the gross error. First, the effectiveness of the improved algorithm was verified by using data from the IGS Station Tixi. Then, the accuracy of BDS PPP in the Arctic Ocean was calculated by using this algorithm. The results show that the improved protection level can reflect the fluctuation of gross error and the level of position bias very well. The kinematic positioning accuracy can reach the decimeter level in the horizontal and vertical directions, which meets the precision requirements of maritime navigation.
Acknowledgements
Less
Thanks to China’s 9th Arctic Science Expedition for its support of data collection in this paper.
Funding
Less
  • The Science and Technology of Henan Province under contract No. 212102310029; the National Natural Science Founation Cultivation Project of Xuchang University under contract No. 2022GJPY007; the Educational Teaching Research and Practice Project of Xuchang University under contract No. XCU2021-YB-024.
References
Less
Abdel-Salam M. 2005. Precise point positioning using un-differenced code and carrier phase observations [dissertation]. Calgary, Canada: University of Calgary
Cai Changsheng, He Chang, Santerre R, et al. 2016. A comparative analysis of measurement noise and multipath for four constellations: GPS, BeiDou, GLONASS and Galileo. Survey Review, 48(349): 287–295, doi: 10.1179/1752270615Y.0000000032
CSNO. 2019. BeiDou Navigation Satellite System Signal in Space Interface Control Document Open Service Signal B1I A (Version 3.0). Beijing: China Satellite Navigation Office
Du Yujun, Wang Zemin, An Jiachun, et al. 2015. Positioning analysis of BeiDou navigation satellite system over ocean and Antarctic regions. Chinese Journal of Polar Research, 27(1): 91–97
Feng Shaojun, Ochieng W, Moore T, et al. 2009. Carrier phase-based integrity monitoring for high-accuracy positioning. GPS Solutions, 13(1): 13–22, doi: 10.1007/s10291-008-0093-0
Gao Yang, Shen Xiaobing. 2002. A new method for carrier-phase-based precise point positioning. Navigation, 49(2): 109–116, doi: 10.1002/j.2161-4296.2002.tb00260.x
Geng Jianghui, Teferle F N, Shi Chuang, et al. 2009. Ambiguity resolution in precise point positioning with hourly data. GPS Solutions, 13(4): 263–270, doi: 10.1007/s10291-009-0119-2
Gumilar I, Bramanto B, Kuntjoro W, et al. 2018. Contribution of BeiDou satellite system for long baseline GNSS measurement in Indonesia. IOP Conference Series: Earth and Environmental Science, 149(1): 012070, doi: 10.1088/1755-1315/149/1/012070
Guo Fei. 2013. Theory and methodology of quality control and quality analysis for GPS precise point positioning [dissertation] . Wuhan: Wuhan University
Hauschild A, Montenbruck O, Sleewaegen J, et al. 2012. Characterization of compass M-1 signals. GPS Solutions, 16(1): 117–126, doi: 10.1007/s10291-011-0210-3
Lee Y C. 1986. Analysis of range and position comparison methods as a means to provide GPS integrity in the user receiver. In: Proceedings of the 42nd Annual Meeting-Institute of Navigation. Washington, DC, USA: Institute of Navigation, 1–4
Lee Y C. 2006. A new improved RAIM method based on the optimally weighted average solution (OWAS) under the assumption of a single fault. In: Proceedings of the ION NTM. Monterey, CA, USA: ION
Li Min, Qu Lizhong, Zhao Qile, et al. 2014. Precise point positioning with the BeiDou navigation satellite system. Sensors, 14(1): 927–943, doi: 10.3390/s140100927
Liu Zenghong, Wu Xiaofen, Xu Jianping, et al. 2017. China Argo project: progress in China Argo ocean observations and data applications. Acta Oceanologica Sinica, 36(6): 1–11, doi: 10.1007/s13131-017-1035-x
Lou Yidong, Li Xianjie, Zheng Fu, et al. 2018. Assessment and impact on BDS positioning performance analysis of recent BDS IGSO-6 satellite. Journal of Navigation, 71(3): 729–748, doi: 10.1017/s0373463317000832
Lu Chengliang, Zhang Shengkai, E Dongchen. 2011. Analysis of GPS data in Antarctic. Journal of Geodesy and Geodynamic, 31(2): 117–120
Luo Xiaowen, Zhang Tao, Gao Jinyao, et al. 2015. Estimation of annual variation of water vapor in the Arctic Ocean between 80°–87°N using shipborne GPS data based on kinematic precise point positioning. Acta Oceanologica Sinica, 34(6): 1–4, doi: 10.1007/s13131-015-0680-1
Luo Xiaomin, Gu Shengfeng, Lou Yidong, et al. 2018. Assessing the performance of GPS precise point positioning under different geomagnetic storm conditions during solar cycle 24. Sensors, 18(6): 1784, doi: 10.3390/s18061784
Madrid P F N, Saenz M A, Varo C M, et al. 2015a. Computing meaningful integrity bounds of a low-cost Kalman-filtered navigation solution in urban environments. In: Proceedings of the 28th International Technical Meeting of the Satellite Division of the Institute of Navigation (ION GNSS+2015). Tampa, FL, USA: ION, 2914–2925
Madrid P F N, Saenz M A, Varo C M, et al. 2015b. New approach for integrity bounds computation applied to advanced precise positioning applications. In: Proceedings of the 28th International Technical Meeting of the Satellite Division of the Institute of Navigation. (ION GNSS+2015). Tampa, FL, USA: ION, 2821–2834
Merino M M R, Lainez M D. 2012. Integrity for advanced precise positioning applications. Transactions of the Japan Society of Mechanical Engineers C, 58(551): 2249–2254, doi: 10.1299/kikaic.58.2249
Miguel A S, Joaquin C S M. 2009. An error isotropy-based approach for multiple fault conditions. Inside CNSS, 2009,1: 28–36
Montenbruck O, Hauschild A, Steigenberger P, et al. 2013. Initial assessment of the COMPASS/BeiDou-2 regional navigation satellite system. GPS Solutions, 17(2): 211–222, doi: 10.1007/s10291-012-0272-x
Tu Rui, Zhang Pengfei, Zhang Rui, et al. 2018. Modeling and assessment of precise time transfer by using BeiDou navigation satellite system triple-frequency signals. Sensors, 18(4): 1017, doi: 10.3390/s18041017
Wang Guangxing, De Jong K, Zhao Qile, et al. 2015. Multipath analysis of code measurements for BeiDou geostationary satellites. GPS Solutions, 19(1): 129–139, doi: 10.1007/s10291-014-0374-8
Wang Ershen, Jia Chaoying, Tong Gang, et al. 2018. Fault detection and isolation in GPS receiver autonomous integrity monitoring based on chaos particle swarm optimization-particle filter algorithm. Advances in Space Research, 61(5): 1260–1272, doi: 10.1016/j.asr.2017.12.016
Wang Minghua, Wang Jiexian, Dong Danan, et al. 2019. Performance of BDS-3: satellite visibility and dilution of precision. GPS Solutions, 23(2): 56, doi: 10.1007/s10291-019-0847-x
Wanninger L, Beer S. 2015. BeiDou satellite-induced code Pseudorange variations: diagnosis and therapy. GPS Solutions, 19(4): 639–648, doi: 10.1007/s10291-014-0423-3
Xiao Wei, Liu Wenxiang, Sun Guangfu. 2016. Modernization milestone: BeiDou M2-S initial signal analysis. GPS Solutions, 20(1): 125–133, doi: 10.1007/s10291-015-0496-7
Xiao Guorui, Sui lifen, Herk B, et al. 2018. Estimating satellite phase fractional cycle biases based on Kalman filter. GPS Solutions, 22(3): 82, doi: 10.1007/s10291-018-0749-3
Xu Aigong, Xu Zongqiu, Ge Maorong, et al. 2013. Estimating zenith tropospheric delays from BeiDou navigation satellite system observations. Sensors, 13(4): 4514–4526, doi: 10.3390/s130404514
Xu Yangyin, Yang Yuanxi, He Haibo, et al. 2018. Quality analysis of the range measurement signals of test satellites in BeiDou global system. Geomatics and Information Science of Wuhan University (in Chinese), 43(8): 1214–1221
Yan Xincun, Ouyang Yongzhong, Sun Fuping. 2012. Reliability evaluation method of precise point positioning algorithm results. GNSS World of China, 37(6): 9–12,16
Yang Yuanxi. 2010. Progress, contribution and challenges of Compass/BeiDou satellite navigation system. Acta Geodaetica et Cartographica Sinica, 39(1): 1–6
Yang Yuanxi, Li Jinlong, Wang Aibing, et al. 2014. Preliminary assessment of the navigation and positioning performance of BeiDou regional navigation satellite system. Science China: Earth Sciences, 57(1): 144–152, doi: 10.1007/s11430-013-4769-0
Yang Yuanxi, Xu Junyi. 2016. Navigation performance of BeiDou in Polar Area. Geomatics and Information Science of Wuhan University (in Chinese), 41(1): 15–20
Yang Yuanxi, Xu Yangyin, Li Jinlong, et al. 2018. Progress and performance evaluation of BeiDou global navigation satellite system: Data analysis based on BDS-3 demonstration system. Science China: Earth Sciences, 61(5): 614–624, doi: 10.1007/s11430-017-9186-9
Zhao Qile, Wang Chen, Guo Jing, et al. 2015. Assessment of the contribution of BeiDou GEO, IGSO, and MEO satellites to PPP in Asia-Pacific region. Sensors, 15(12): 29970–29983, doi: 10.3390/s151229780
Zumberge J F, Heflin M B, Jefferson D C, et al. 1997. Precise point positioning for the efficient and robust analysis of GPS data from large networks. Journal of Geophysical Research: Solid Earth, 102(B3): 5005–5017, doi: 10.1029/96jb03860
Appendix
Less
Year 2022 volume 41 Issue 2
PDF
46
25
Cite this Article
BibTeX
Article Info
doi: 10.1007/s13131-021-1704-7
  • Receive Date：2019-06-25
  • Online Date：2025-11-20
  • Published：2022-02-25
Article Data
Affiliations
History
  • Received：2019-06-25
  • Accepted：2019-11-08
Funding
The Science and Technology of Henan Province under contract No. 212102310029; the National Natural Science Founation Cultivation Project of Xuchang University under contract No. 2022GJPY007; the Educational Teaching Research and Practice Project of Xuchang University under contract No. XCU2021-YB-024.
Affiliations
    1 College of Urban and Environmental Sciences, Xuchang University, Xuchang 461000, China
    2 Institute of Geospatial Information, Information Engineering University, Zhengzhou 450001, China
    3 Department of Civil Engineering, Henan Vocational College of Water Conservancy and Environment, Zhengzhou 450001, China

Corresponding:

References
Share
https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-021-1704-7
Share to
QR

Scan QR to access full text

Cite this article
BibTeX
Citations
表12种不同金属材料的力学参数
科
Family		 属数
Number of
genus		 种数
Number of
species		 占总种数比例
Percentage of
total species (%)		 属
Genus		 种数
Number of
species		 占总种数比例
Percentage of total
species (%)
鹅膏菌科Amanitaceae 2 11 5.26 鹅膏菌属 Amanita 10 4.78
小菇科 Mycenaceae 2 12 5.74 丝盖伞属 Inocybe 5 2.39
多孔菌科 Polyporaceae 8 14 6.70 蜡蘑属 Laccaria 5 2.39
红菇科 Russulaceae 3 23 11.00 小皮伞属 Marasmius 6 2.87
小菇属 Mycena 11 5.26
光柄菇属 Pluteus 5 2.39
红菇属 Russula 17 8.13
栓菌属 Trametes 5 2.39
关闭全屏
  • BibTeX
  • EndNote
  • RefWorks
  • TxT
Links
Articles
Latest Articles
Most Read
Collections
Updates
Events
News
Multimedia
About
About Us
Contact
No. 86 Xueyuan South Road, Haidian District, Beijing
100081
010-62199257
qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
