Daily fishery data from the WCPO purse seiners were obtained between January 1, 2008 and August 31, 2017 from 14 ocean-going fishing vessels (Jinhui 1, 2, 3, 6, 7, 8, 9, 18, and 58, Pohnpei1, LOJET, LOMETO, LOMALO, and MAJURO1) of the Shanghai Kaichuang Fishery Co., Ltd. (SKFC). These data included the date, longitude, latitude, operation type (free-swimming and fish-aggregating device used), ship name, daily catch per ship, and other production information. The amount of free-swimming was small, and we selected the fishery data of the fish aggregating device (FAD) used only (Fig.1a). There were 6354 fishery points used in this study. These fishing vessels have similar fishing capacities. Therefore, this study ignored the influence of ship properties on fishery catch data. We adopted the daily output per ship as the catch as the measure of the resource abundance.

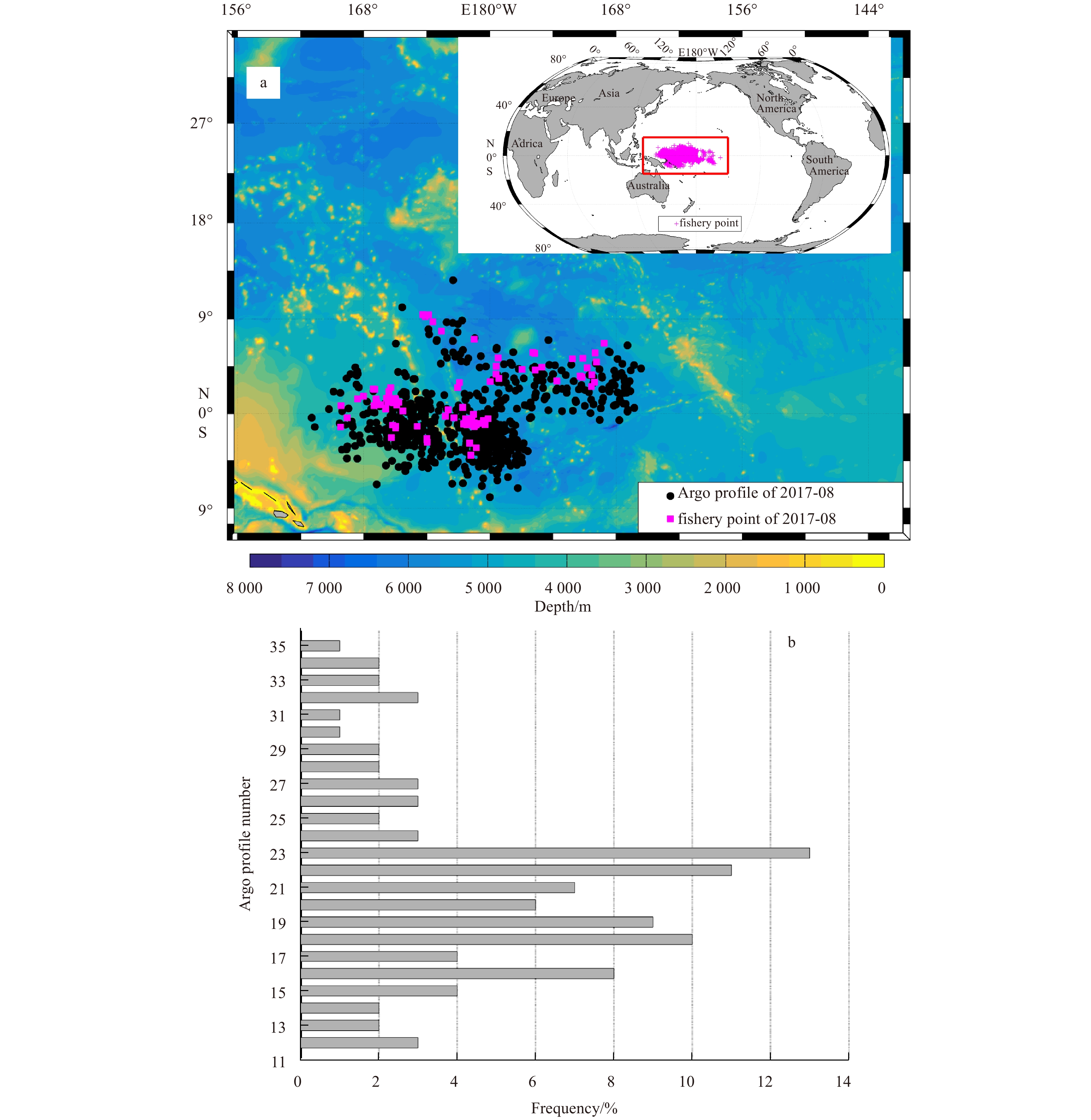

Two categories of environmental data were collected in this study: Argo profiles and WOA18 gridded data. The former were derived from the China Argo Real-Time-Data Center (ftp://ftp.argo.org.cn/pub/ARGO/global/). These include temperature, salinity, and pressure, which are processed in real-time and delayed-mode quality control (Tong et al., 2003; Liu et al., 2006). We collected Argo observations for the same period as the YFT catch data in the WCPO. A radial distance of 500 km was set to ensure that more than five Argo temperature and salinity profiles were obtained at every fishery point each day. Only profiles located within the specified range were used to establish subsurface environmental information for fishery points at depths between 5 m and 1500 m. A total of 62726 Argo profiles surround the 6354 fishery points. Figure 1a displays the locations of fishery points in August 2017 and their corresponding Argo profiles within the effective radius. The frequency statistics of the available Argo observations surrounding every fishery point are shown in Fig. 1b. All fishery points have more than 10 and sometimes as many as 35 environmental profiles within the specified range. Most fishery points have 15–23 available profiles. The World Ocean Atlas 2018 (WOA18) gridded data were used to calculate the horizontal gradients and provide the first guess field via bilinear interpolation at each fishery point. Two gridded datasets, longitude, latitude, pressure, temperature, and salinity were downloaded from the Ocean Climate Laboratory of NODC (https://www.nodc.noaa.gov/OC5/woa18/). These data have a pixel resolution of (1/4)° and span the area from 30°S to 30°N and 120°E to 140°W.

The purpose of the scheme was to obtain an optimal analysis value for the goat point based on least squares theory. The analysis results at the fishery point was used as the background value plus the innovation value weighted by the optimal weights. As for the fishery point influenced by M observations, the standard analysis equation is given by Eq. (1). A critical part of the scheme is to estimate the optimal weights. According to the minimum variance theory, the optimal weight can be determined by solving Eq. (2) (Kalnay, 2003):

where $ v_i^a $ is the analysis value and $ v $ can be any environmental variable, such as temperature or salinity. The first estimate $ v_i^b $ was given by the WOA18 monthly data via bilinear interpolation. The subscript i denotes the number of fishery sampling points, and j and k denote the number of available Argo profile sites. For observational increments, $ \delta y_j^o{{ = }}y_j^o{{ - }}H(v_j^b) $, the observational operator H converted the background field into the first guesses of the observation $ y_j^o $. In this study, a radial distance was set to ensure that only the Argo profiles located within a specified range surrounding each fishery point were counted. Each increment has an optimal weight $ {w_{ik}} $ associated with the background error correlation, $ {\mu _{jk}} $ and $ {\mu _{ik}} $. where $ {\mu _{jk}} $, $ {\mu _{ik}} $ are the correlations between the background errors at the two observational points, j and k, and at the fishery and observation points i and k, respectively. $ \eta $ is the mean square of the relative observation errors compared with the background errors, which was frequently “tuned” to vary the weights of the observation. We used the value of $ \eta {{ = 0}}{{.25}} $ for the Pacific Ocean in this study (Zhang et al., 2015). The correlations are usually assumed to follow a Gaussian exponential function (Zhang et al., 2013):

where x and y are the longitude and latitude, respectively, and $ {L_\phi }/G $ depend on the Rossby radius of deformation and the horizontal gradient changes, which define the background error correlation scale. $ {L_\phi } $ is the correlation scale that can be obtained from the scale parameter multiplied by the cosine function of the latitude ( $ \phi $) at fishery sampling point i. The radial distance was set to 500 km when constructing high-resolution profiles to ensure that a sufficient number of observations were considered. The parameter G, calculated using the WOA18 climatological data, is associated with the horizontal gradient (s) at location i. It contains a zonal component ( $ G_x $) and a meridional component ( $ G_y $). The Gaussian functions presented in Eqs (3–5) provide anisotropic background error correlations at each fishery point.

We randomly selected 30 Argo T/S profiles as the “true” observations and constructed the analysis profiles according to the Argo observation locations using the gradient-dependent OI shown in Section 2.2. The true observations at each location were not included when we constructed the analysis profiles using the Argo observation profiles located within the specified range. These analysis profiles were then used to verify the algorithm by comparing them with the corresponding “true” observations. The verification was carried by calculating the root mean square errors (RMSEs) and differences between analysis and “true” observations. The RMSEs of analysis results and those of nearest profiles at the depth range of 5 m to 1 500 m were shown in Fig. 2. Figure 3 displays the temperature and salinity differences between analysis results and “true” observations at depths of 5 m to 500 m.

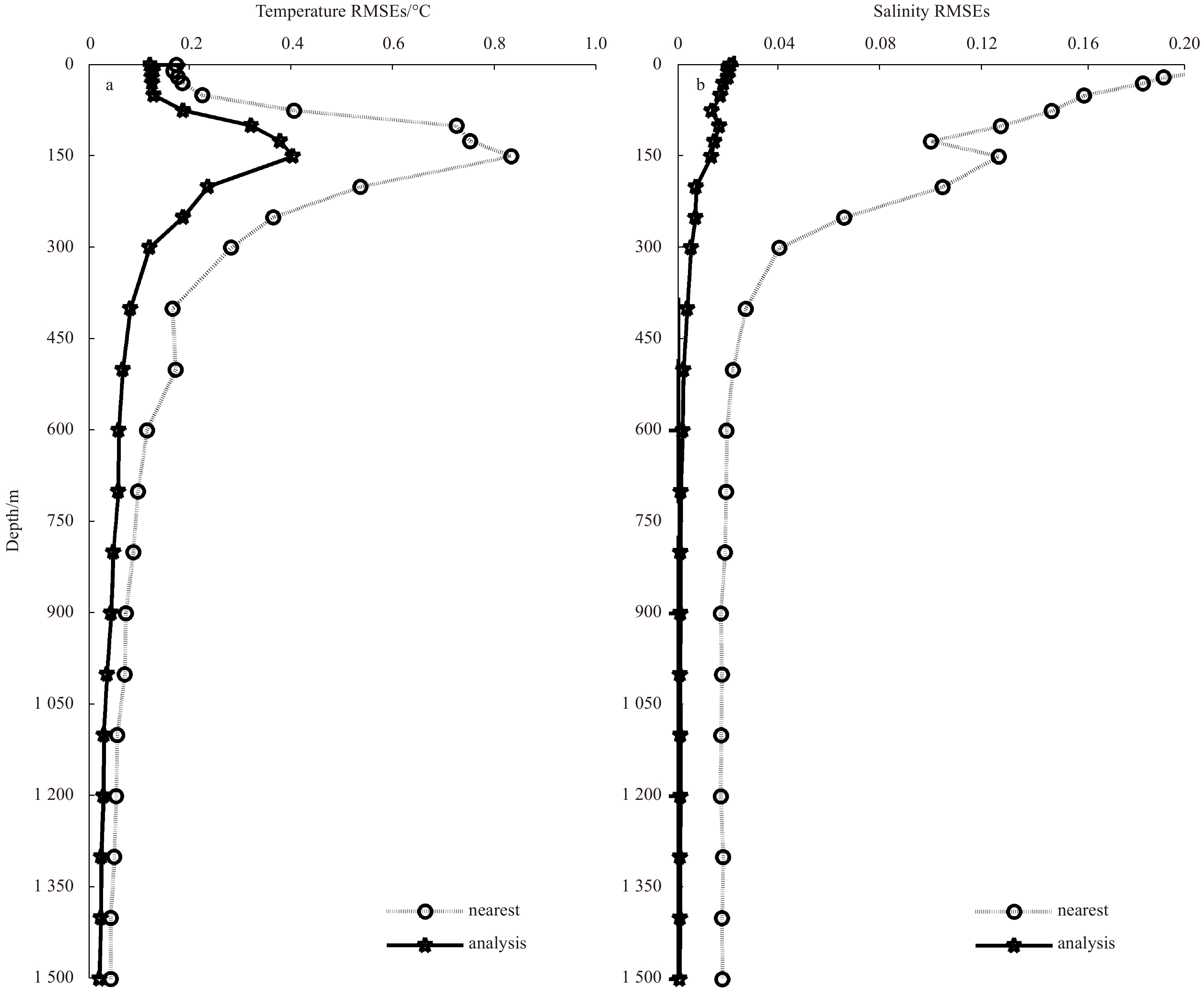

It can be seen that both temperature and salinity have larger RMSEs and differences at the upper depth than at the deep depth. The temperature differences were no more than 0.50°C and salinity differences were less than 0.01 above 500 m. Figures 3a and c indicate that the differences were near zero in the middle and deep layers. The maximum temperature RMSE is approximately 0.4°C. If the nearest temperature profiles are adopted, the corresponding RMSEs exceed 0.4°C at depths of 50 m to 300 m, which are the principal activity layers of YFT (Fig. 2a). As for the salinity RMSE (Fig. 2b), the difference was more significant. The salinity RMSEs of the analysis results present a value of less than 0.02 at a depth of 5–1500 m. At the nearest profiles, the salinity RMSEs are all larger than 0.04 above 300 m.

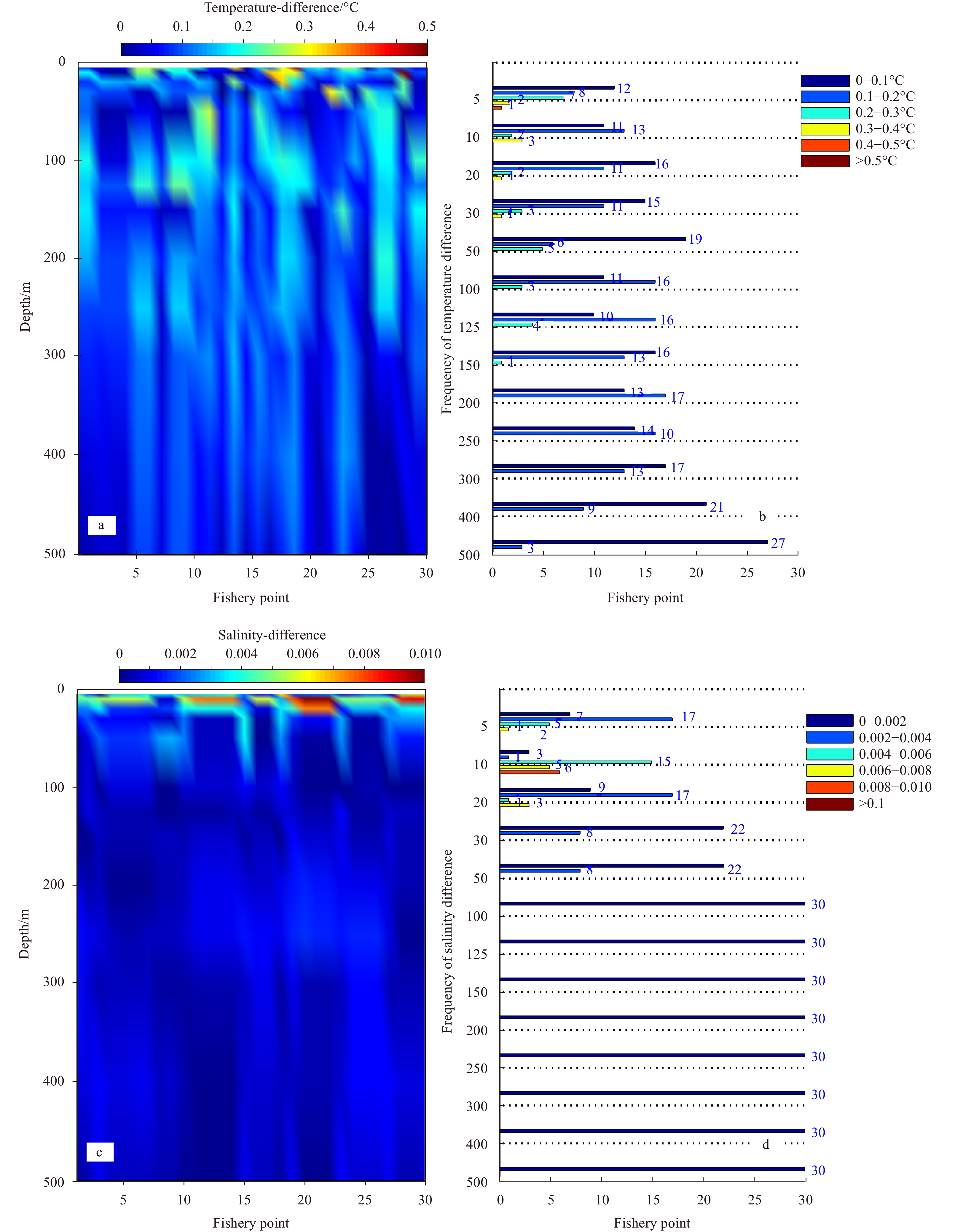

In other words, the analysis results were very close to the observations. Near the surface, the temperature and salinity differences were relatively significant. There were one-third profiles whose temperature differences are in 0.4–0.5°C at a depth of 5 m (Fig. 3b). At a depth of 10 m, 11 profiles in 30 had salinity differences of 0.006–0.01(Fig. 3d). The lack of surface observations in most Argo profiles made the true values scarce at 5 m, and the accuracy was lower. The salinity observations with more significant variances because of the salinity sensor drift at the near-surface would influence the accuracy of the analysis. However, most temperature and salinity differences at depths greater than 150 m were less than 0.2°C and 0.002, respectively. At depths deeper than 300 m, temperature RMSEs are less than 0.1°C, and salinity RMSEs are close to 0 for the analysis results. The nearest RMSEs are large, with a maximum RMSE of approximately 0.9°C for temperature and 0.17 for salinity, as shown in Fig. 2.

The temperature and salinity profiles of 6354 constructed using Eqs (1–5) were applied to discuss the relationship between the YFT catch data and several oceanic environmental factors, including temperature, thermocline, and salinity, using frequency statistics and contrastive analysis. Most of the YFT catch values corresponding to these profiles were concentrated in 1–50 t. To give the general vertical characteristics clearly, we interpolated the temperature and salinity of each water layer to YFT catch values of 1−50 t. The temperature and salinity sections with the change in catch are displayed in Figs 4 and 5. The YFT suitable temperature and salinity were statistically significant at 5 m, 150 m, and 300 m, as shown in Fig. 6. Finally, the relationship between the thermocline parameters and YFT catch is shown in Fig. 7 and Table 1.

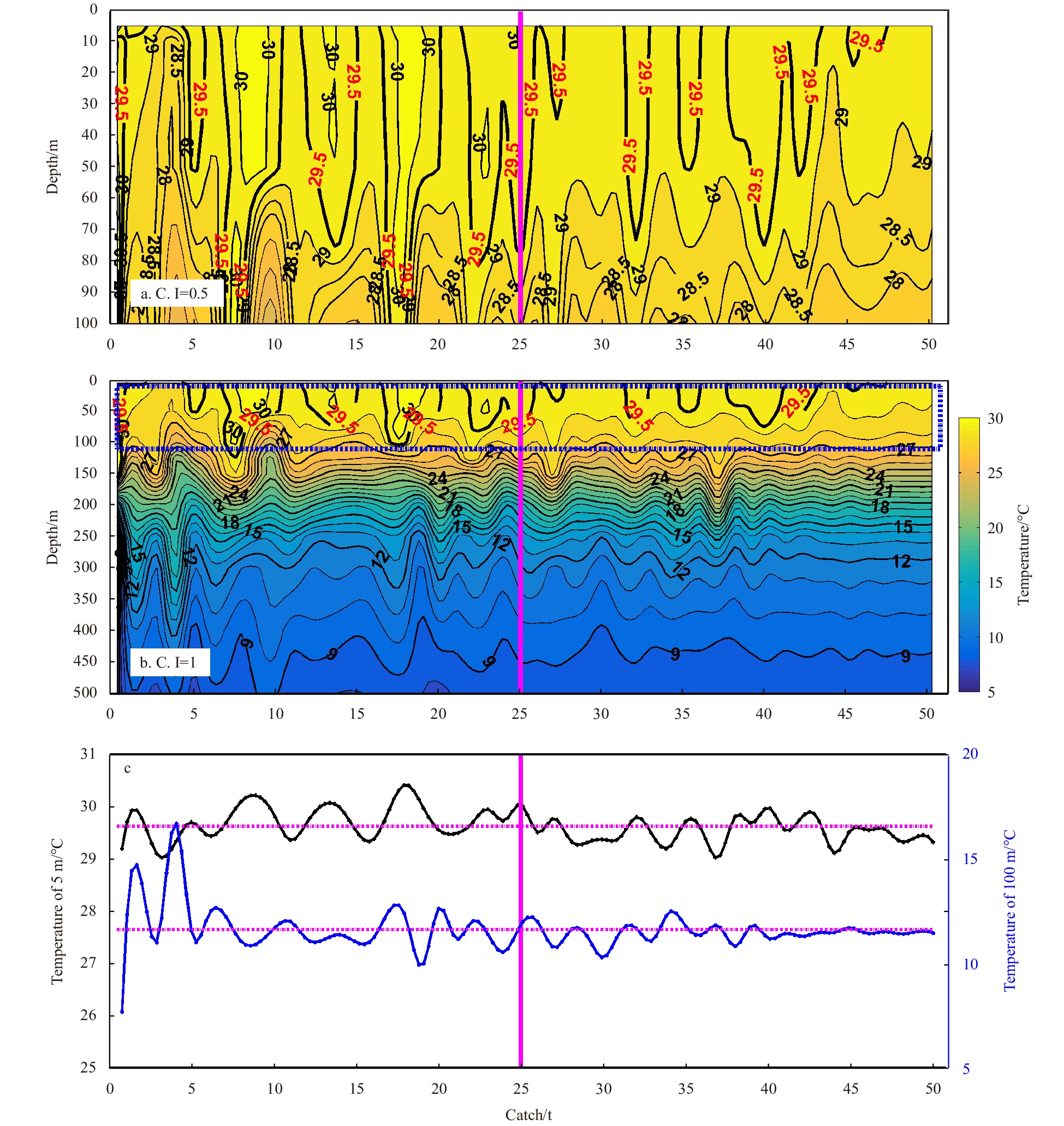

Figure 4b shows the general characteristics of the temperature distribution corresponding to different catches. At the fishery ground, the near-surface temperature was approximately 30°C. The temperature remained high (>27°C) up to a depth of 100 m. At a depth of 300 m, the temperature decreased significantly to 12°C. There was an evident thermocline corresponding to each catch value. When the catches were larger than 25 t, the temperature isopleths tended to be smooth. In contrast, the temperature fluctuated greatly with the catch change when the catch was small. The vertical temperature characteristics at the upper mixed layer (<100 m) are clearly displayed in Fig. 4a. It can be seen that many fishery points with lower catches had surface temperature values of 30°C at depths lower than 50 m and had temperature values of 28°C at depths of 50–100 m. At the fishery points with higher catches, their temperature was concentrated in the range of 28.5–29.5°C at depths of 5–100 m. The temperature curves shown in Fig. 4c clearly demonstrate the similar trends: (1) when the catches were higher (>25 t), the temperatures tended to be stable. Otherwise, the temperatures had large fluctuations at the YFT fishery points with lower catches. (2) At the near-surface, the temperatures of the fisher points with higher catches were slightly colder than those with a lower catch. (3) At all the fishery points, the vertical temperature change had a value of approximately 17°C at a depth of 5–300 m.

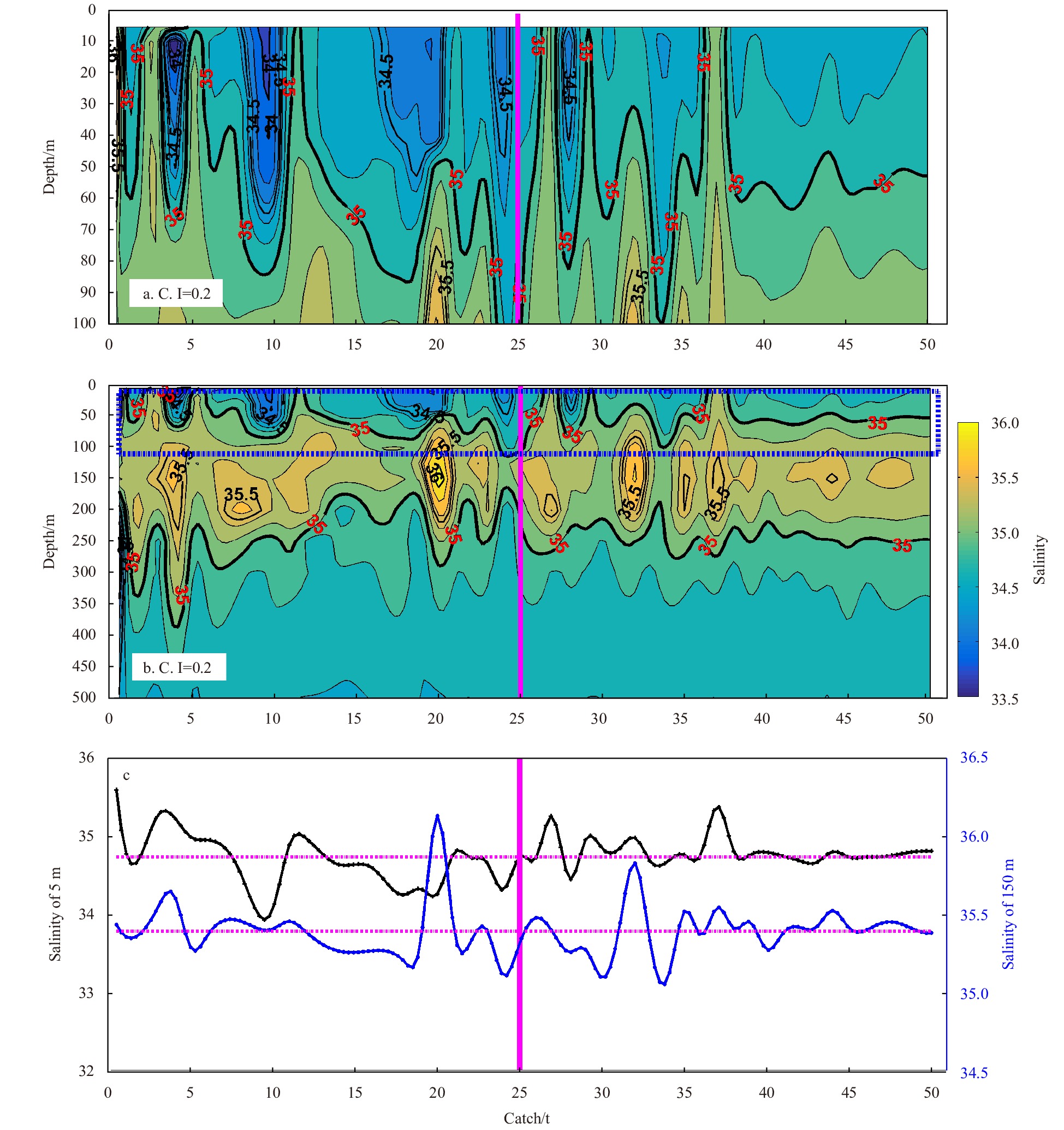

Figure 5 shows that the relationships between the YFT catch weights and seawater salinities had similar characteristics with temperature. Overall, the salinities presented high values of 35–36 at depths of 50–300 m (Fig. 5b). The near-surface salinity was approximately 34.5–35.5. Most salinities derived from higher catches (>25 t) were 34.5–35 at depths lower than 50 m. At the fishery points with lower catches, the near-surface salinities were concentrated in 34–35 (Fig. 5a) with salinity values near 35.5 at a depth of 150 m (Fig. 5c). When the catches were higher than 25 t, the salinity differences between the depths of 5 m and 150 m were less than 0.5. The vertical salinity change was smaller than that in the lower catch fishery points.

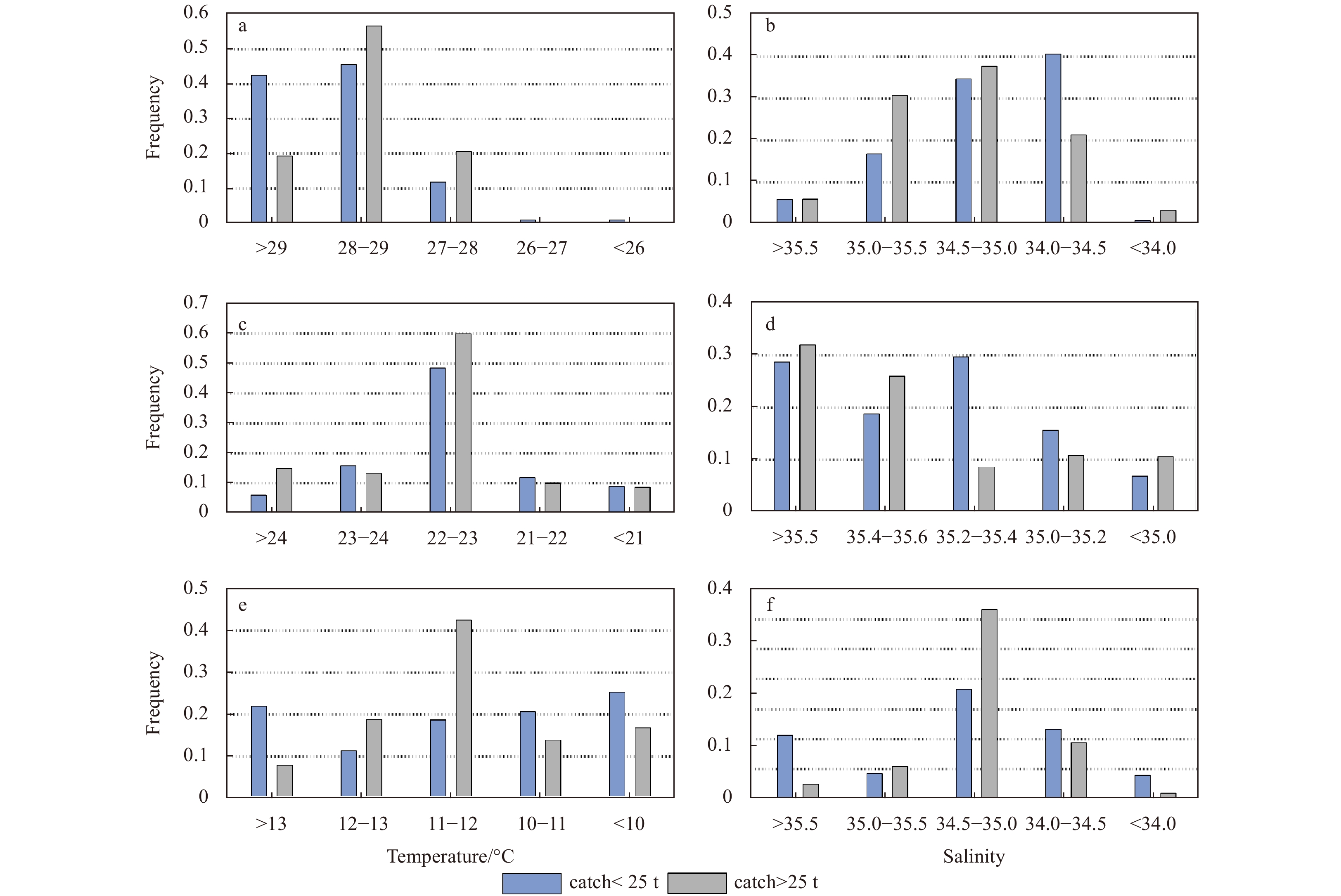

According to their weights, the YFT catches (daily output per ship) were divided into two groups: higher catch (>25 t) and lower catch (<25 t). Three representative layers (5 m, 150 m, and 300 m) were selected, and five parts were divided at each depth according to the temperature and salinity scale. Figure 6 displays the statistical results for suitable temperature and salinity for the YFT.

At the near-surface (<5 m), the suitable temperatures and salinity were 28–29°C and 34.5–35.0, respectively (see Figs 6a and b). The higher catches had smaller variations, and the lower catches had a large number of higher temperatures (> 30°C) and lower temperatures (<27°C). When the salinities were in the range of 35.0–35.5, the catches increased. However, the catches were lower with a salinity larger than 35.5 or smaller than 34.0. Suitable temperatures were 22–23°C at a depth of 150 m. This can be represented by both catch groups (Fig. 6c). Figure 6d shows that the suable salinities had a larger value of exceeding 35.6 at a depth of 150 m. When the salinities were between 35.4 and 35.6, the YFT were frequently active. At a depth of 300 m, the most suitable temperatures and salinities were 11–12°C and 34.5–35.0, respectively, just as shown in Figs 6e and f.

Thermoclines can be clearly observed in the upper ocean where the YFT migrates mainly. The thermocline, or the vertical temperature gradient, is an important factor influencing the YFT activities. Figure 7 shows the characteristics of the thermocline parameters corresponding to different catchments. The depth and strength of the thermocline were calculated using the maximum angle method (Chu and Fan, 2011). Here, we considered only the seasonal thermocline that existed in the top layer. The thermocline parameters were obtained first according to the Argo temperature profiles surrounding each fishery point. These parameters were then merged with the fishery points using the method described in Section 2.2. The thermocline parameters mainly included the upper bound depth (indicated by h1 in Fig. 7), the deeper bound depth (indicated by h2 in Fig. 7), and the temperature gradient that indicates the thermocline strength (indicated in the gth panel in Fig. 7). The thermocline thickness is represented by symbol thk.

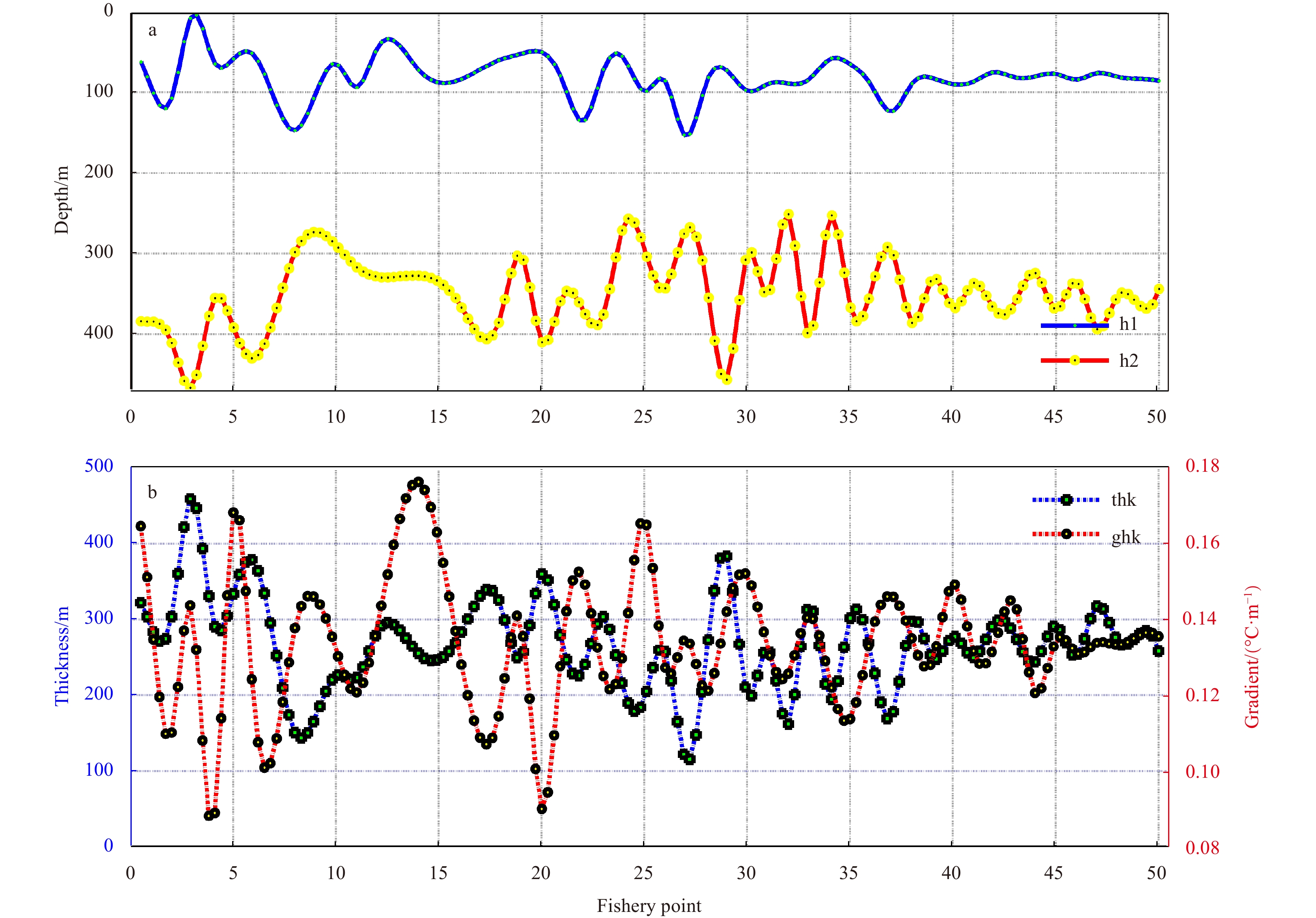

Combined with Fig. 1, these fishery points were primarily located in the tropical western Pacific. The location of the thermocline was evident. Figure 7a shows that most of the upper bounds of the thermocline (h1) are 50–150 m. At points whose catches exceeded 25 t, the upper bound of the thermocline was approximately 100 m, which was deeper than that of the lower catch points. The deeper bound depth of the thermocline (h2) was between 250 m and 450 m. Most of the large catch points had a value of 300–400 m. The mean thermocline thickness was approximately 250 m at most fishery points. Fishery catches were lower when the thermocline thickness exceeded 300 m. As can be seen in Fig. 7b, the stronger the thermocline, the lower the catch. For the higher catch fishery points, most of them had temperature gradients (gth) of 0.12–0.15°C/m. For the fishery points with catches lower than 25 t, their corresponding temperature gradients (gth) were very large (>0.16°C/m) or very small (< 0.10°C/m). The temperature gradients of the thermocline were larger than 0.08°C/m at all of the fishery points.

Based on their weight, YFT catches were divided into four groups: < 10 t, 10–20 t, 20–30 t, and > 30 t. In Table 1, matching the four catch clusters (< 10 t, 10–20 t, 20–30 t, and > 30 t), the thermocline parameter ranges with the largest proportion are given. The h1, h2, thk, and gth results were given by statistics with intervals of 10 m, 50 m, 10 m, and 0.01°C/m, respectively. The table shows that the suitable upper (h1) and deeper bound depths of the thermocline (h2) were 90–100 m and 300–350 m, respectively. The corresponding suitable thickness was 240–250 m. The larger the thickness and gradient, the smaller the catches became. The most suitable temperature gradients for YFT were 0.12–0.13°C/m.

The YFT is a warm-water fish that needs a specific water temperature to inhabit and spawn. Studies have shown that the highest yield of YFT comes from areas where the surface temperature is approximately 29°C (Wang et al., 2014). The statistical results indicated that the most suitable temperatures and salinities for the YFT were 28–29°C at 5 m. Most fishery points with high catch values had temperature values of 29–29.5°C. When the near-surface temperatures were above 30°C or below 28°C, there were few catches. The vertical temperature decreased with increasing depth. The temperature was reduced to 22–23°C at depths of 150 m, where the YFT spent 5% of their time staying in the water layer. The temperature difference between the surface and 150 m was approximately 8°C. This is consistent with previous research results (Schaefer et al., 2007; Weng et al., 2009).

Salinity is not as critical as temperature. The suitable near-surface salinities were found to be 34.5–35.0. The higher the catch, the smaller the change in the vertical salinity. These conclusions are similar to those obtained in previous studies (Song and Wu, 2011; Yang et al., 2015). Most of the time, YFT lived in the warm water layer below 100 m and migrated to food in the upper ocean. The tolerance time of YFT to environmental changes is limited. They were more suitable for less vertical temperature and salinity changes, as shown in this study.

The YFT can break through the temperature thermocline and enter the deep water layers, even deeper than 1000 m (Schaefer et al., 2011). However, it was also pointed out that the purpose of YFT frequently entering deep water was foraging. Thermocline may influence the diurnal vertical distribution of the YFT by affecting the diurnal vertical distribution of food organisms. Most of the time, the YFT lived in water layers lower than 100 m but rarely below 10 m in the western and central Pacific Ocean (Leroy et al., 2007). Compared with sea surface environmental information, the thermocline had a more significant effect on YFT catch. At the same time, the YFT catches were small when the thickness and gradient of the thermocline were very large. At the moment of thermocline formation, the temperature changed dramatically in the vertical direction. This is not conducive to forming a good fishing ground. As shown in Table 1, the catches were lower when the temperature gradient exceeded 0.13°C/m. The central fishing ground was concentrated in an area with an upper bound depth of ~90 m. Moreover, tuna were visual and opportunistic predators, and light was weak in deep water, which reduced the ability of YFT to hunt. It is difficult to form a fishing ground where the deep boundary of the thermocline is deep.
