Improved method for measuring the δ15N compound-specific amino acids: Application on mesopelagic fishes in the South China Sea
收藏切换
PDF
Fuqiang Wang1, 2, 3, Ying Wu1, *, Lin Zhang3, Jie Jin1, Zuozhi Chen4, 5, Jun Zhang4, 5, Wing-man Lee3
Acta Oceanologica Sinica | 2022, 41(1) : 30 - 38
Less
收藏切换
Acta Oceanologica Sinica | 2022, 41(1): 30-38
• Marine Chemistry •
Improved method for measuring the δ15N compound-specific amino acids: Application on mesopelagic fishes in the South China Sea
Full
Fuqiang Wang1, 2, 3, Ying Wu1, *, Lin Zhang3, Jie Jin1, Zuozhi Chen4, 5, Jun Zhang4, 5, Wing-man Lee3
Affiliations
  • 1 State Key Laboratory of Estuarine and Coastal Research, East China Normal University, Shanghai 200241, China
  • 2 Center for Blue Life, Pilot National Laboratory for Marine Science and Technology (Qingdao), Qingdao 266237, China
  • 3 Department of Physical and Environmental Science, Texas A&M University-Corpus Christi, Texa 78412, USA
  • 4 Key Field Scientific Experimental Station of South China Sea Fishery Resource and Environment, Ministry of Agriculture and Rural Affairs, Guangzhou 510300, China
  • 5 South China Sea Fisheries Research Institute, Chinese Academy of Fishery Sciences, Guangzhou 510300, China
Published: 2022-01-25 doi: 10.1007/s13131-021-1812-4
Outline
收藏切换

Compound-specific stable isotope analysis of individual amino acids (CSIA-AA) has been widely used in ecological and biogeochemical studies. It has been proven to be powerful in tracing the diet sources and trophic interactions. However, assessing the N sources of mesopelagic fishes has been inconclusive because the mesopelagic fishes’ unique domain (water depth ranged from 0 to 1000 m) and unresolved nitrogen isotopes of various forms. This study proposes a new method for coupling instruments (ion chromatography and Precon-IRMS) and chemical method of oxidation-reduction of amino acids, and also combined δ15N of AAs with δ13C of fatty acids (FAs) to analyze the trophic interactions of mesopelagic fishes in the South China Sea (SCS). AAs were isolated by ion chromatography with high peak resolution and collected by an automated fraction collector. The chemical method then converted the AAs into N2O with a robust oxidation yields and suitable molar ratio of NH2OH to ${\rm {NO}}_2^- $. Finally, the δ15N of AAs at 20 nmol were measured with a reasonable precision (<0.6‰). With this method, this study report the first batch high precision δ15N of AAs and δ13C of FAs of mesopelagic fishes collected from SCS. Diaphus luetkeni, Chauliodus minimus and Bathygadus antrodes showed similar δ13C values of 20:4n-6 (~ −28‰), while Argyropelecus affinis and Stomias had similar values (~ −32‰). These results reflect that mesopelagic fishes had complex diet sources. An increase of 4‰ in δ15N of glutamic acid (Glu) was found between piscivorous and planktivorous fishes, which might suggest a trophic discrimination factor of mesopelagic fishes in the SCS. This study used δ13C of 20:4n-6 to reveal the diet sources of mesopelagic fishes and δ15N of Glu to clarify trophic level between piscivorous and planktivorous fishes. Thus, this combinative method could therefore ultimately be applied in a variety of deep-sea ecosystem.

δ13C of fatty acids  /  δ15N of amino acids  /  ion chromatography  /  mesopelagic fishes  /  Precon-IRMS
Fuqiang Wang, Ying Wu, Lin Zhang, Jie Jin, Zuozhi Chen, Jun Zhang, Wing-man Lee. Improved method for measuring the δ15N compound-specific amino acids: Application on mesopelagic fishes in the South China Sea[J]. Acta Oceanologica Sinica, 2022 , 41 (1) : 30 -38 . DOI: 10.1007/s13131-021-1812-4
Full Text
Less
1 Introduction
Less
Compound-specific stable isotope analysis of individual amino acids (CSIA-AA) has become an important tool for resolving questions regarding source, transformation, and biogeochemical cycling of nitrogen (Arthur et al., 2014; McCarthy et al., 2013; McClelland and Montoya, 2002; Sherwood et al., 2011, 2014), with applications extending from archeology (Broek et al., 2013; Sherwood et al., 2014; Styring et al., 2010) to trophic ecology (Chikaraishi et al., 2009; Hetherington et al., 2017). The δ15N of amino acids (AAs) in particular has emerged as a powerful new proxy of food web study. Because the AAs can be separated into two specific groups for undergoing different δ15N fractionation with trophic transfer. One group of AAs maintains relatively unchanged δ15N values along the trophic transfer (termed as “source” AAs), whereas the second group undergoes predictable isotope fractionation (termed as “trophic” AAs) (Chikaraishi et al., 2009; Popp et al., 2007). Within these two groups, the “trophic” AAs have been used to indicate the extent of trophic transfer, and the “source” AAs have provided the original δ15N values of primary production (McMahon and McCarthy, 2016). Therefore, measuring δ15N values of “source” and “trophic” AAs together overcomes a basic problem in the interpretation of bulk δ15N data, because this approach requires no assumptions about baseline δ15N values. Thus, CSIA-AA typically revealed more details than bulk δ15N data, and has been widely applied in the trophic interactions of fishes (Bradley et al., 2015; Chikaraishi et al., 2009; Choy et al., 2012; Gerringer et al., 2017; Hetherington et al., 2017; McMahon et al., 2015).
In recent years, more ecological studies of mesopelagic and bathyal ecosystems were conducted based on AAs and fatty acids (FAs) (Choy et al., 2015; Décima et al., 2017; Hannides et al., 2013; Wang et al., 2019). Meanwhile, new challenges also arose when these methods were applied in those ecosystems. Firstly, low temperature restricted the metabolic rates of organisms in the deep ocean, and resulted in decreasing of the δ15N enrichment (Choy et al., 2012). Thus, trophic positions and relations of deep-sea organisms need to be reassessed. Secondly, the diel vertical migration (DVM) of zooplankton from deep layers also causes significant diversity of N isotopes (Bode and Hernández-León, 2018). Thirdly, the variation of heterotrophic degradation with water depth might alter δ15N enrichment (“source” AAs, like phenylalanine) of suspended particles (Hannides et al., 2013). This variation might introduce mistake when we directly use the δ15N of Phenylalanine (Phe) as the baseline of source AAs. Therefore, additional parameters are excepted to mirror the diet sources of deep-sea organisms. δ13C of FAs have been successfully used to trace the diets of organism (Bec et al., 2011; Braeckman et al., 2015; Budge et al., 2016). For most polyunsaturated fatty acids (PUFAs), there was no discrimination between sampled fishes and their diets, suggesting that isotope fractionation did not occur during transfer of PUFAs from diet to fish tissues (Budge et al., 2016). Therefore, δ13C of FAs might be an ideal substitution parameter of δ15N of Phe.
Currently, gas chromatography-combustion-isotope ratio mass spectrometry (GC-C-IRMS) is still the dominant CSIA technique being used (McCarthy et al., 2007; Ohkouchi et al., 2017). Meanwhile, high-pressure liquid chromatography and offline isotopic analysis have been raised in determining δ15N of AAs in recent years (Broek and McCarthy, 2014; Swalethorp et al., 2020; Takano et al., 2015). However, there are some restrictions to these methods. For example, the combined effects of the derivatization process and instrument components lead to a relatively low order of precision for GC-C-IRMS data (typically ±1.0‰) (McCarthy et al., 2007; McClelland and Montoya, 2002; Sherwood et al., 2011), which limits the potential precision of trophic position estimates. HPLC and offline isotopic analysis represent an alternate approach to GC-C-IRMS with higher inherent precision of offline stable isotope measurements and the potential of simultaneous δ15N and δ13C measurements by one time. However, this method could typically only resolve a limited suite of AAs and it needs a large sample size. Thus, this study tries to raise a new method which could simultaneously consider precision and sample amounts.
Here this study proposes a new method for coupling ion chromatography (IC) with Precon-IRMS and chemical method of oxidation-reduction of amino acids. The amounts of AAs are first quantified by the IC, and an adequate number of AAs are subsequently collected with an automated fraction collector. Second, this study optimizes a robust chemical method for converting the AAs into N2O. Finally, this study measures the δ15N of N2O and compares the advantages and disadvantages with other methods. A key goal here is to both assess the method performance in fish samples, and achieve sufficient separation of most AAs. As a secondary goal, this study firstly seeks to combine δ15N of AAs with δ13C of FAs to analyze the trophic interactions of mesopelagic fishes in the South China Sea (SCS), shedding the light on mesopelagic ecosystem studies.
2 Experimental section
Less
2.1 Isotopic amino acid standards
Standard amino acid powders were purchased from Sigma-Aldrich (Merck, USA). Based on structural and functional groups, AAs are divided into aliphatic AAs (alanine, Ala; glycine, Gly; isoleucine, Ile; leucine, Leu; valine, Val), hydroxyl AAs (threonine, Thr), sulfur-containing AAs (methionine, Met; cystine, Cys), acidic AAs (aspartic acid, Asp; glutamic acid, Glu), and aromatic AAs (phenylalanine, Phe) (Zhang et al., 2007). The δ15N of AAs were determined by EA-IRMS (Finngan Delta plus XP, Thermo-Fisher, USA) with the precision of ±0.1‰ (Std). Additionally, two certified amino acid standards were used to test analytical method (Glu, USGS40; Gly, USGS64; the Reston Stable Isotope Laboratory of the U.S. Geological Survey). Hydrochloric acid, sodium hypochlorite, sodium bromide, sodium arsenite, sodium hydroxide and ammonium chloride were purchased from either Fisher Scientific or Lab Chem and were used in our procedures. The purities of chemicals were larger than 99.9%.
2.2 Preparation of AAs

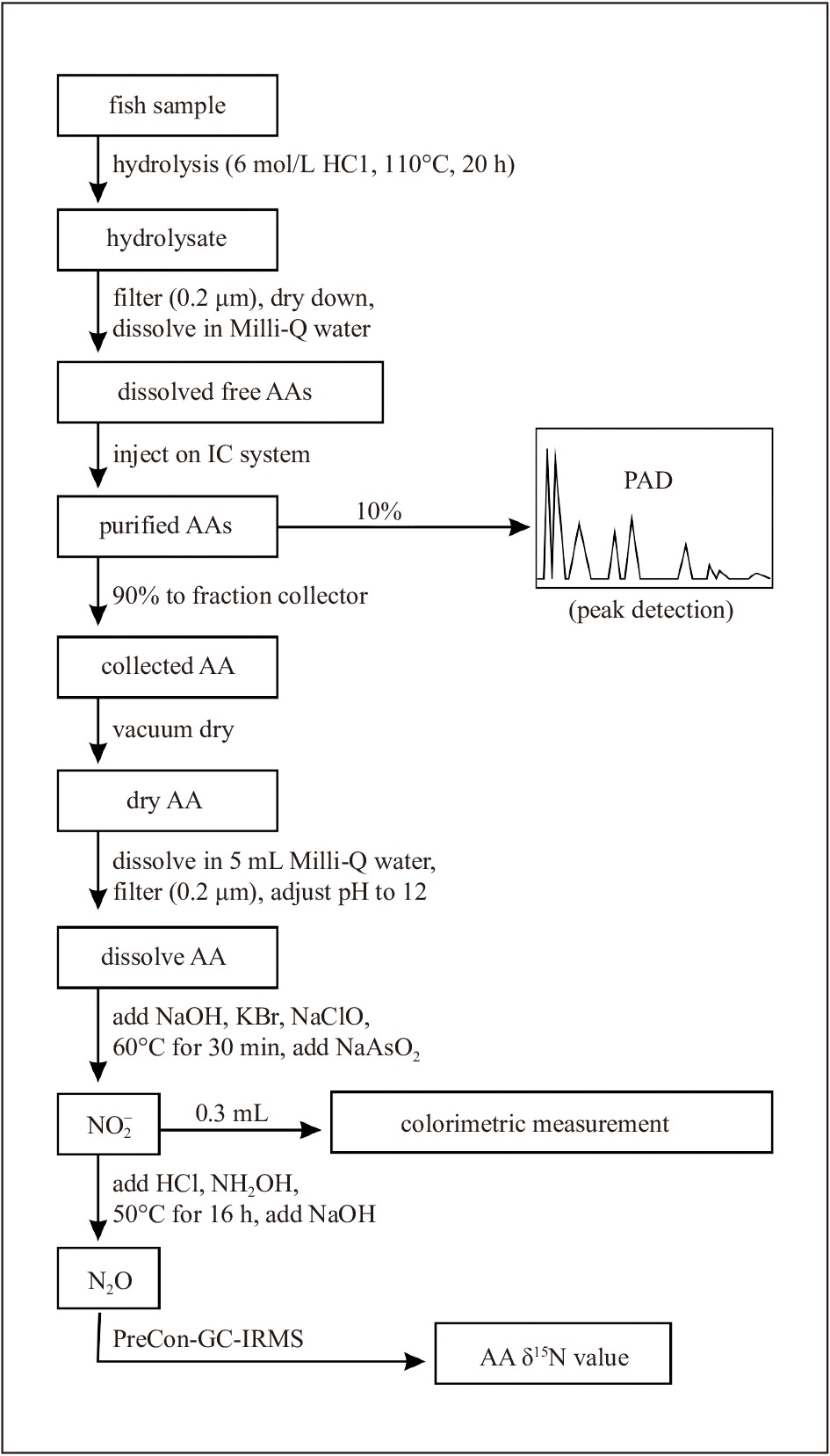

A schematic of the complete protocol from sample hydrolysis to determination of AA δ15N values, is shown in Fig. 1. The AAs of the samples were extracted by HCl hydrolysis (Ishikawa et al., 2018a). Briefly, the samples were hydrolyzed with 6 mol/L HCl at 110°C for 20 h. Each hydrolysate was washed with n-hexane/dichloromethane (2/1, V/V) to remove any hydrophobic constituents (e.g., lipids), subsequently dried under a vacuum system at the room temperature (Labconco, USA), and finally dissolved in deionized water (DIW) to a final volume of 5 mL and adjusted the pH to 11−12 before the IC separation (Ishikawa et al., 2018a).
2.3 Isolation of AAs
Amino acids separations were conducted using an IC system (Dionex, ICS-5000+, Thermo Scientific, USA) equipped with a pulsed amperometric detector (PAD) (Dionex, ICS-5000+ DC), two pumps (Dionex, ICS-5000+ DP), autosampler (Dionex, AS-AP) with an adjustable injection volume, and coupled to an automated fraction collector (Dionex, UltiMate 3000). To separate the amino acids, the IC was equipped with an IC column (DionexTM AminoPacTMPA10, 9 mm × 250 mm, Thermo Scientific, USA). The flow splitter was used inline following the column to direct 10% of the flow to the PAD for peak detection and quantification. To calculate the linear relations between concentrations and response values, the standard curves of amino acids were showed in Table 1.
The injection volume of the autosampler was set to 100 μL for each run, and every sample ran triplicate times. A solvent ramp program was used consisting of Milli-Q water (solvent A) and 1 mol/L NaOH solution (solvent B) at a flow rate of 5 mL/min. The gradient elution procedure was adopted as follows: 0 min (A: 88%, B: 12%) to 75 min (A: 75%, B: 25%), to 185 min (A: 35%, B: 65%), to 200 min (A: 0%, B: 100%), and then washed with 100% B for 10 min, followed by equilibration with 12% B for 30 min.
Purified AAs were collected into 40 mL glass vials via an automated fraction collector using time-based collections. The solvent was removed under vacuum system. Dried AA residues were then re-dissolved in 5 mL DIW and filtered through a membrane filter (Polyether sulfone, pore size: 0.22 μm, Fisher Scientific, USA) (Ishikawa et al., 2018b). The filtrates were then transformed to glass vials and adjusted to a pH around 12.
2.4 Conversion of AAs to $\boldsymbol {{NO}}^-_{\textit 2}$
The protocol for oxidizing AAs to ${\rm {NO}}_2^- $ was modified from the “Strecker degradation” (Schonberg and Moubacher, 1952; Zhang and Altabet, 2008). Firstly, 0.1 mL of the KBr solution (50 mmol/L) was added to the vials containing about 5 mL AA samples. The pH was adjusted to 12 by addition of 0.1 mL of 10 mol/L NaOH solution. Then 0.1 mL of 30 mmol/L NaClO solution was added immediately followed by shaking. The vials were sealed with PTFE septa and placed in a water bath at 60°C for 30 min. Finally, 0.2 mL of NaAsO2 solution was added to eliminate excess NaClO after the oxidation reaction. The concentration of the reaction product, ${\rm {NO}}_2^- $, was measured with colorimetry to determine the yields. Oxidation yields of individual AAs were shown in Table 2.
2.5 Conversion of $\boldsymbol {{NO}}^-_{\textit 2} $ to ${\boldsymbol{N}}_{\textit 2} {\boldsymbol{O}}$
Here, the NH2OH·HCl was used as the reductant to convert ${\rm {NO}}_2^- $ to N2O (Bothner-By and Friedman, 1952; Liu et al., 2014). Hydroxylamine hydrochloride stock solution was made by every week (40 mmol/L). The working solution of NH2OH·HCl was prepared daily by diluting stock solution. In the experiment, the ${\rm {NO}}_2^- $ solution was pipetted into 20 mL vials. Then 0.5 mL of 6 mol/L HCl solution was added to adjust pH to 0.2. Afterward, 0.5 mL of NH2OH·HCl working solution (molar ratio of NH2OH to ${\rm {NO}}_2^- $ was 3:1, 6:1, 10:1, 15:1 and 20:1) was added, and the vials were aluminum crimp sealed. The reaction took place at 45°C for 16 h. Finally, 0.5 mL of 5 mol/L NaOH solution was added to stop the reaction and made the solution basic to avoid remainder hydrochloric acid into the Precon-IRMS equipment when measuring the δ15N of N2O (Jin et al., 2020).
2.6 Measure the δ 15N of N2O
The δ15N of produced N2O was analyzed by Delta V Advantage isotope ratio mass spectrometer (Thermo Fisher Scientific, Germany) coupled with a PAL autosampler (CTC Analytics AG, Switzerland) and a Finnigan PreCon Interface (Thermo Fisher Scientific, Germany) (Jin et al., 2020). A laboratory NaNO2 standard was determined every 5 h to monitor the long-term consistency of the instrument (measured δ15N value: − 53.0‰±0.3‰, n=3). The content of N2O was controlled in the range of 15−25 nmol.
2.7 Calculate the δ 15N for AAs
In theory, the slope of the relationship between the measured δ15N of the produced N2O, and the δ15N of AAs should be 2 (Bothner-By and Friedman, 1952; Liu et al., 2014), since the N atoms of N2O are verified by the 1:1 combination of AAs and NH2OH (Bothner-By and Friedman, 1952). Thus, the calibration curve is
${{\rm{\delta }}^{15}}{{\rm{N}}_{{\rm{AA}}}} = {{a}}\times {{\rm{\delta }}^{15}}{{\rm{N}}_{{{\rm{N}}_2}{\rm{O}}}} + {{b}},$
where the a (slope) and b (intercept) were gained from the linear relationship of the δ15N of AA measured from the EA-IRMS and δ15N measured from the N2O produced by the standard AAs. Meanwhile, a laboratory NaNO2 (−99.7‰, determined by EA-IRMS) was used to monitor the reduction efficiency of ${\rm {NO}}_2^- $ to N2O and long-term consistency (the signal of 20 nmol N2O was ca. 4000 mV in the PreCon-IRMS).
2.8 Mesopelagic fish preparation
Mesopelagic fishes were collected in 2015 from the SCS (Wang et al., 2019). Based on their migrating habit and feeding behavior, they were assigned to five functional groups. The fish muscle tissue was excised from below the dorsal fin, and the tissue samples were lyophilized in a freeze-dryer (LOC-1; Christ, Germany). The dried samples were powdered using a mortar and pestle. Tissue (100 mg) was used to analyze the δ13C compound-specific FAs by GC-C-IRMS (Bec et al., 2011; Wang et al., 2019). Briefly, the dried tissue was extracted by dichloromethane/methanol (2/1, V/V) to get total lipids. Then the FAs were transesterified to fatty acid methyl esters (FAMEs) in a mixture of methanol (containing 5% HCl). The compound-specific δ13C FAMEs were analyzed using a Trace GC Ultra gas chromatograph coupled to a Delta V mass spectrometer via a GC combustion interface using helium as carrier gas (Thermo Scientific, Germany). To obtain the δ13C of FAs, the methanol impact on the FAME isotopes should be eliminated using the following formula:
${{\rm{\delta }}^{13}}{{\rm{C}}_{{\rm{FA}}}} = [\left( {{{n}} + 1} \right) \times {{\rm{\delta }}^{13}}{{\rm{C}}_{{\rm{FAME}}}} - {{\rm{\delta }}^{13}}{{\rm{C}}_{{\rm{MeOH}}}}]/{{n}} ,$
where δ13CFA is the isotope of the FAs; δ13CFAME is the isotope of the FAME; δ13CMeOH is the isotope of the methanol derivatization reagent (−37.4‰±0.1‰); n is the number of C atoms in the FAs (Wang et al., 2019). FAs were named using a shorthand notation of F:Dn-X, where F is the carbon number of FA, D is the number of double bonds, and X is the first double bond position relative to the terminal methyl group (Budge et al., 2008).
The remaining material (~5 mg) was hydrolyzed for the δ15N compound-specific amino acids. Each hydrolysate was washed with n-hexane/dichloromethane (3/2, V/V) to remove any hydrophobic constituents (e.g., lipids) (Ishikawa et al., 2018a).
3 Results and discussion
Less
GC-C-IRMS is the conventional analytical technique for AA nitrogen isotope analysis (Ohkouchi et al., 2017). However, the lower precision involved in the lengthy GC-C-IRMS analysis constrained its application, e.g., the evaluation of chemical preservation effects on δ15NAA (Swalethorp et al., 2020). HPLC and offline isotopic analysis have emerged as new method in recent years but this method is limited by sample content and AA varieties (Broek et al., 2013). IC combined Dionex AminoPac column was verified to separate free amino acids without the need for derivatization (Thermo Scientific, USA). Here this study combines the IC separation and Precon-IRMS to assess underivatized AAs nitrogen isotopes with lower nitrogen content and higher precision. Meanwhile, a practical application on mesopelagic fishes in the SCS was used to evaluate this method, where the variation of δ15NAA might limited.
3.1 Chromatographic optimization

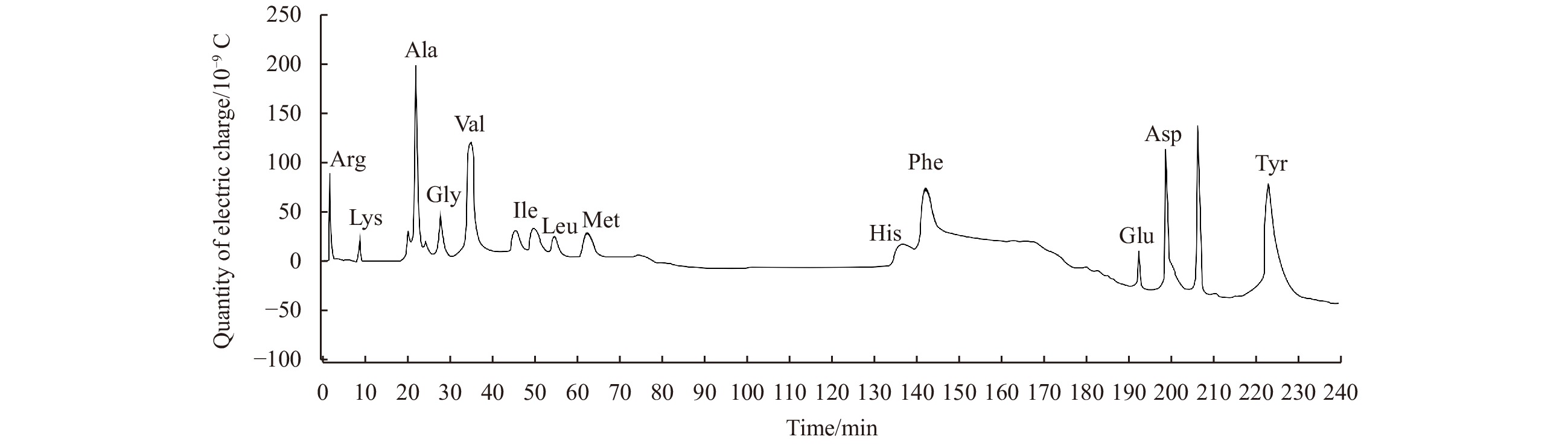

Optimization of column type, as well as solvent program were important considerations in achieving baseline separation. The best overall AA separation with the DionexTM AminoPacTMPA10 column (certified by the Thermo Scientific, USA) was achieved using a solvent system at a flow rate of 5 mL/min (Fig. 2). The use of water and 1 mol/L NaOH solution as mobile phase was showed to be particularly effective at resolving underivatized amino acids. Our optimized separation method (see experimental section) achieved almost all amino acids separation. Using the final protocol, complete baseline resolution was achieved for all AAs in mesopelagic fishes (Fig. 2).
The maximum sample loading (i.e., the maximum amount of compound injected on the column while maintaining baseline resolution) is also an important consideration for an offline isotopic measurement approach (Broek and McCarthy, 2014). Sample requirements for purified AAs were ultimately determined by oxidation yields. Considering the oxidation yields (Table 2), the collection of all AAs was found to be approximately 30−100 nmol of N per peak. Therefore, the major advantage of this method was the suitable chromatographic loading capacity, which allowed for collection of sufficient quantities of AAs from a single IC injection. If multiple IC injections and collections are conducted, these then represent independent replicates for the entire protocol, including isolation and collection.
3.2 AA oxidation efficiency
The second step of the δ15N-AAs measurement is the quantitative oxidation of AAs to ${\rm {NO}}_2^- $ (Zhang and Altabet, 2008). Oxidation yields were expressed as percentage of ${\rm {NO}}_2^- $ yield oxidized from AAs with respect to the initial amino acid amount. The oxidation efficiency ranged from 53.4% to 70.5%, in line with the results of Zhang and Altabet (2008) (Table 2).
3.3 ${\boldsymbol {NO}}_{\textit 2}^- $reduction efficiency

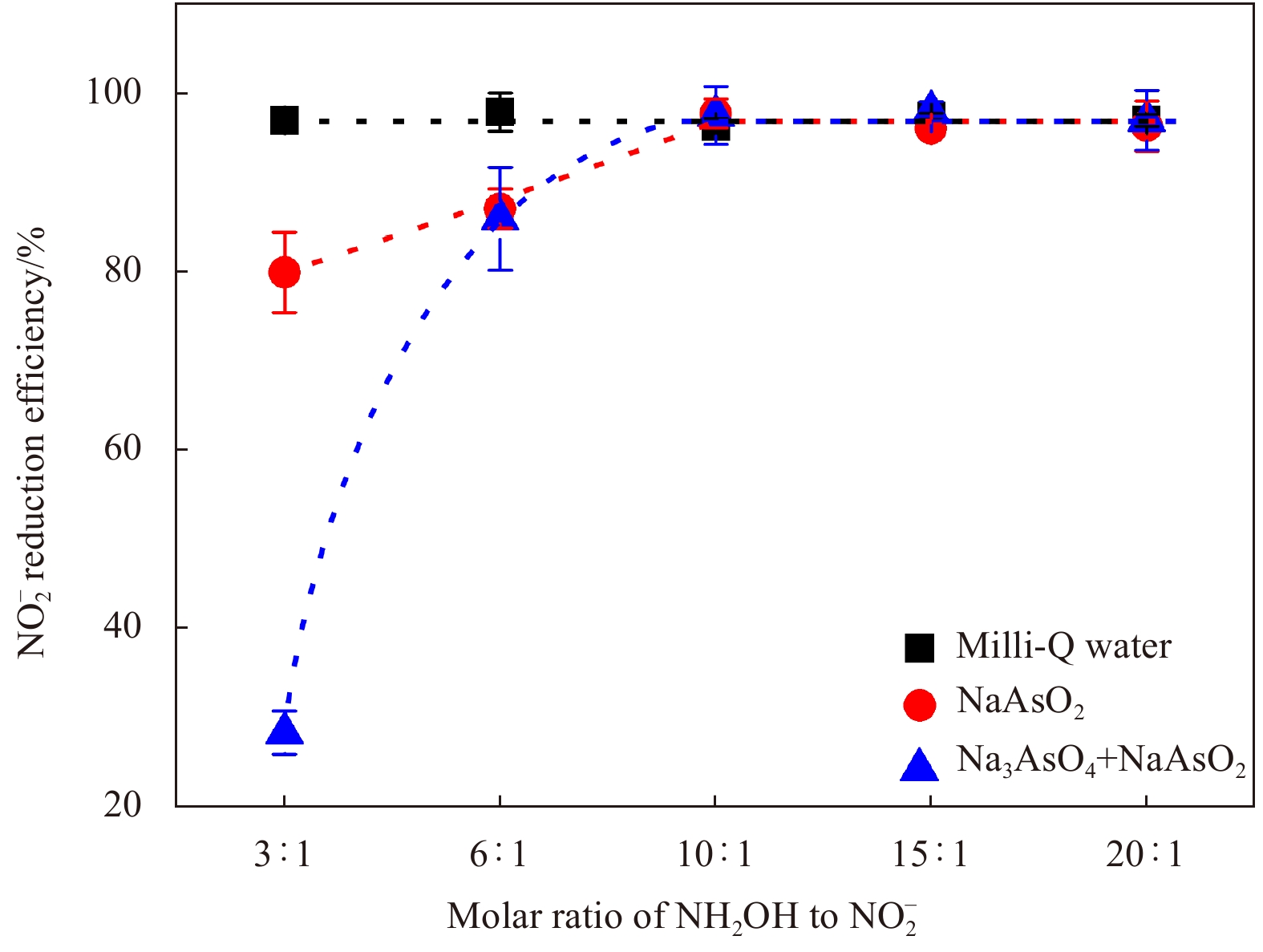

${\rm {NO}}_2^- $ reduction was conducted by NH2OH in low pH (<0.2). In this study, the dosage of NH2OH was evaluated. Nitrite reduction yield was highest with a molar ratio of NH2OH to ${\rm {NO}}_2^- $ at 2:1 in previous study (Liu et al., 2014). However, in our experiment, the reduction efficiency was only 28% with low molar ratio of NH2OH to ${\rm {NO}}_2^- $ (3:1) (Fig. 3), indicating an incomplete reduction from nitrite to N2O. Hence, three comparative experiments were conducted to explore which reagents restrained the ${\rm {NO}}_2^- $ reduction efficiency. Zhang et al. (2007) reported that excess BrO− should be removed after oxidation, because the remaining BrO− likely reacted with NH2OH in the reduction step to produce N2O blank (Liu et al., 2014). Excess ClO− was induced in the AA oxidation step. ClO− is a stronger oxidant compared with BrO−, leading to react with NH2OH. Excess ClO− reacted with NH2OH in the reduction step to increase the blank of N2O. Thus, NaClO was excluded in the comparative experiments.
In the final reaction system, NaAsO2 and Na3AsO4 co-existed in the 20 mL vials. Thus, the comparative experiments included water, NaAsO2 solution and mixture of Na3AsO4 and NaAsO2 (produced by mixture of NaClO and excess NaAsO2) to explore which reagents restrained the ${\rm {NO}}_2^- $ reduction efficiency. When the molar ratio of NH2OH to ${\rm {NO}}_2^- $ at 3:1, the addition of NaAsO2 and Na3AsO4 restrained the N2O reaction, but ${\rm {NO}}_2^- $ reduction efficiency was also high with the addition of NaAsO2 (80%, Fig. 3). The Na3AsO4 had more negative impact on N2O reaction than NaAsO2. Doubling the NH2OH amount improved the reduction efficiency, and NaAsO2 and Na3AsO4 had similar reduction efficiency. When the ratio of NH2OH to ${\rm {NO}}_2^- $ larger than 10:1, the effects of NaAsO2 and Na3AsO4 were removed and got stable reduction efficiency. Liu et al. (2014) found that nitrite reduction yield was highest with a molar ratio of NH2OH to ${\rm {NO}}_2^- $ at 2:1, which was inconsistent with this study. The oxidation of amino acids needed high hypochlorite concentration (Zhang and Altabet, 2008). Thus, the differences might be the Na3AsO4 concentration was high in this reaction system.
3.4 Isotope results of AAs

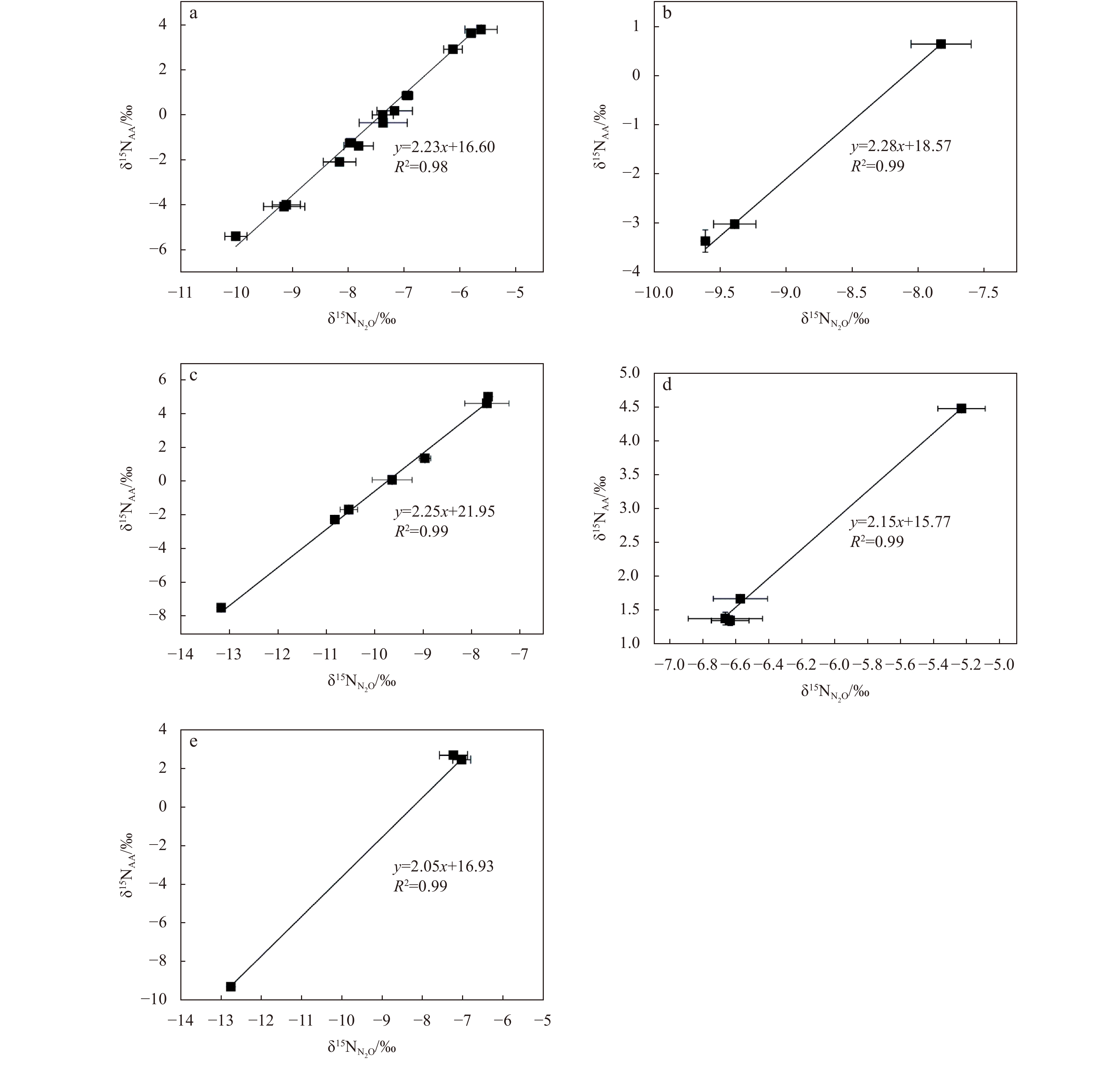

The linear relationship between the δ15NAA and the δ15 ${\rm{N}}_{{\rm{N}}_2{\rm{O}}}$ was significant (Fig. 4). The slopes of linear relationship were 2.05 to 2.28 and had no obvious changes by structural groups of amino acids. The slopes were slightly higher than the theoretical value as predicted by other study (Bothner-By and Friedman, 1952). The reasons for the small deviation from the theoretical slope might be the blank of reagents. However, the excellent correlation of δ15N demonstrated that this method was a robust and quantitative technique for measuring the δ15N of AAs (Liu et al., 2014).
The intercepts of the linear regressions were distinguishable for each structural group representative (Fig. 4). Theoretically, they reflected isotopic fractionation in the procedure. Hence, it was likely that the variation was caused by the discrimination or preference for 15N in the oxidation of amino acids (Schonberg and Moubacher, 1952; Zhang and Altabet, 2008). Overall, the δ15N of single-N-containing AAs can be determined quantitatively and precisely by this method, and the average standard deviation in the case of standard AA was 0.6‰ (n=3)(Zhang and Altabet, 2008).
4 Comments and recommendations
Less
In this study, the IC separation allowed fully automated peak collection without concern for coelution, and could simultaneously analyze 13 AAs from a single sample injection. Comparison of values for authentic standards showed that, for almost all AAs, our chromatographic resolution was sufficient to produce accurate δ15N values, which were less than or equivalent within error to values from GC-C-IRMS in most cases (Fig. 4). The standard errors of most AAs were less than 0.6‰ (Ala, Gly, Ile, Leu, Val, Thr, Glu, Phe, Met, Cys), only Asp had high standard errors reached near 1‰. The precision of this method had raised to some extent compared with GC-C-IRMS. In addition, the amount of sample required is also a consideration for any specific application. As discussed above, sample sizes required for this method are ultimately determined by Precon-IRMS sensitivity (20 nmol), and therefore minimum sample sizes required for this method will likely always be less than those for HPLC-EA-IRMS (Broek et al., 2013; Takano et al., 2015; Tripp and McCullagh, 2012).
Nonetheless, before opting for this method, this study should consider a number of issues as this approach may not always be better than existing methods. First of all, this new method need more times than others. Considering the separating and oxidizing times, this study just routinely processes seven samples every week, which is much less than GC-C-IRMS and HPLC-EA-IRMS (Swalethorp et al., 2020). Because the HPLC has the potential to save times, the study group is thinking to use HPLC as the choice next. Last, the standard errors of most AAs are about 0.6‰, slightly higher than GC-C-IRMS, it can be still not better than GC-C-IRMS if a large number of samples is analyzed, since time is the critical factor. However, this study provides a new thought, especially in terms of small sample sizes, for the development of CSIA, and yet, there is still far to go.

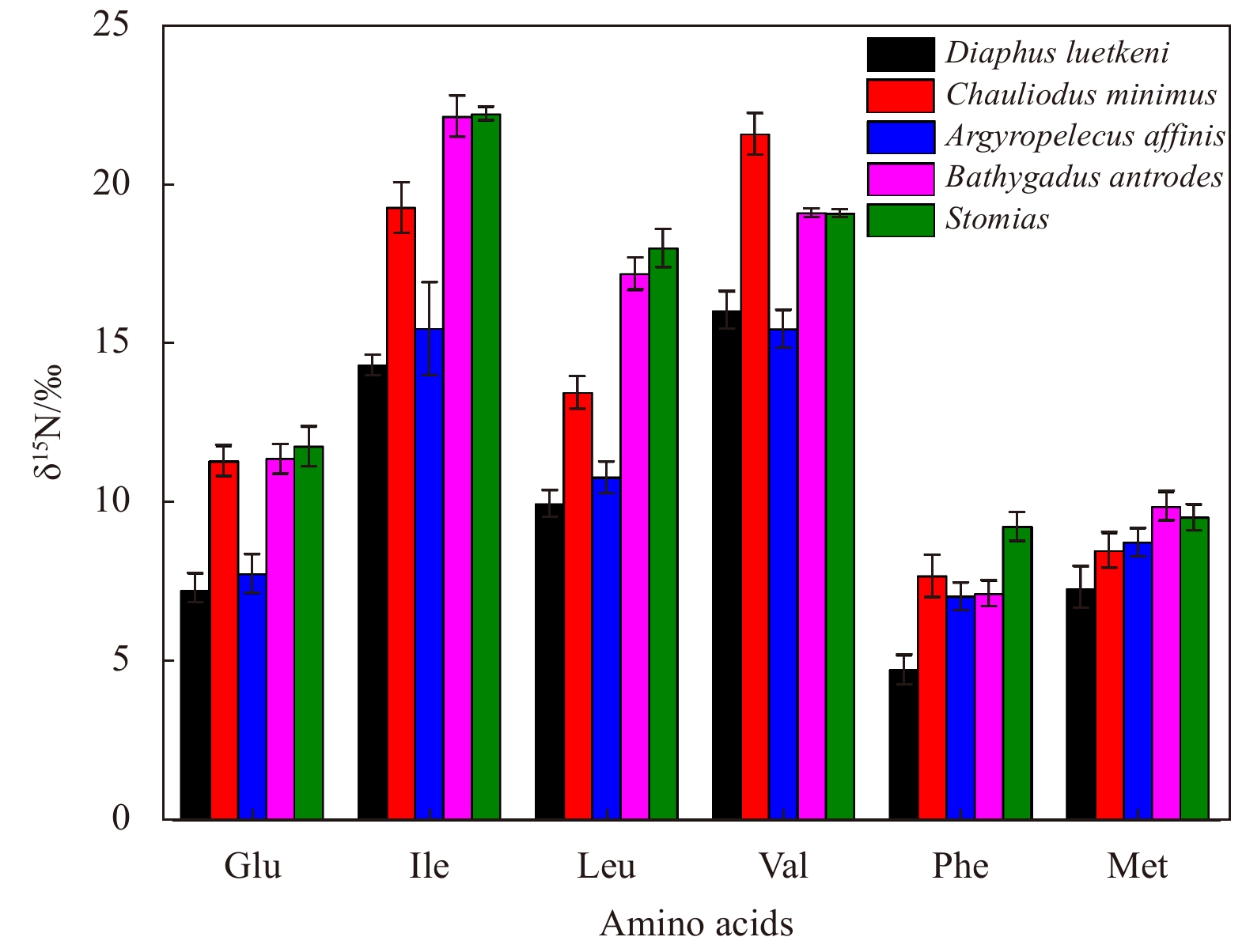

Source amino acids (i.e., Phe, Met) fractionate δ15N very little (<0.5‰) during trophic transfer, whereas trophic AAs (i.e., Glu, Ile, Leu, Val) are greatly enriched in δ15N during each trophic step (Chikaraishi et al., 2009; McClelland and Montoya, 2002). The differential fractionation of these two AA groups can provide a valuable estimate of consumer trophic position that is internally indexed to the baseline δ15N value of the integrated food web (McMahon and Newsome, 2019; Ohkouchi et al., 2017). However, the trophic positions of mesopelagic fishes revealed by GC-C-IRMS showed inconsistent with results derived from stomach content studies (Choy et al., 2012), which might be caused by the accuracy of GC-C-IRMS. Thus, this study tries to use the optimized method of δ15N-AAs to see whether it can reveal more details about the trophic interactions of mesopelagic fishes in the SCS.
The mesopelagic fishes were assigned to 5 functional groups based on their migrating habit and feeding behavior. More details were showed in Wang et al. (2019). Briefly, Diaphus luetkeni exhibits active DVM, feeds on plankton and is termed migrant planktivorous fishes. Chauliodus minimus shows passive DVM, mainly feeds on small mesopelagic fishes and is named migrant piscivorous fishes. Argyropelecus affinis has a non-migrating habit, feeds on plankton and is called non-migrant planktivorous fishes. Bathygadus antrodes has a non-migrating habit, mainly feeds on small fishes and is called non-migrant piscivorous fishes. Stomias nebulosus has a semi-migrating habit, mainly preys on small fishes and is named semi-migrant piscivorous fishes. The planktivorous fishes had lower δ15N of trophic AAs (Glu, Ile, Leu, Val) than piscivorous fishes (Fig. 5), which was consistent with previous studies (Bradley et al., 2015; Hetherington et al., 2017; Landry et al., 2017; McMahon et al., 2015). However, the source AAs (Phe, Met) showed different tendency: the migrant planktivorous fishes had lowest δ15N of source AAs in mesopelagic fishes, the non-migrant planktivorous fishes had similar source AAs with the migrant piscivorous fishes, the non-migrant and semi-migrant piscivorous fishes had higher δ15N of source AAs (Fig. 5). These results were inconsistent with most traditional studies (Gerringer et al., 2017; Hussey et al., 2014; McMahon and McCarthy, 2016), and they might be caused by many factors. Firstly, the DVM fishes mainly live in 0−450 m layers, the non-migrant fishes live in 450−600 m layers, and the semi-migrant fishes live in 450−800 m layers (Wang et al., 2019). Depth changes might cause the mesopelagic fishes being affected by the δ15N of particle matter in different layers (Hannides et al., 2013). Secondly, the DVM of zooplankton from deep layers also causes significant diversity of N isotopes. Thus, the source AAs (like Phe) were not suitable to study source diets of mesopelagic fishes from different layers. Other parameters were needed to excavate the diets of mesopelagic fishes.

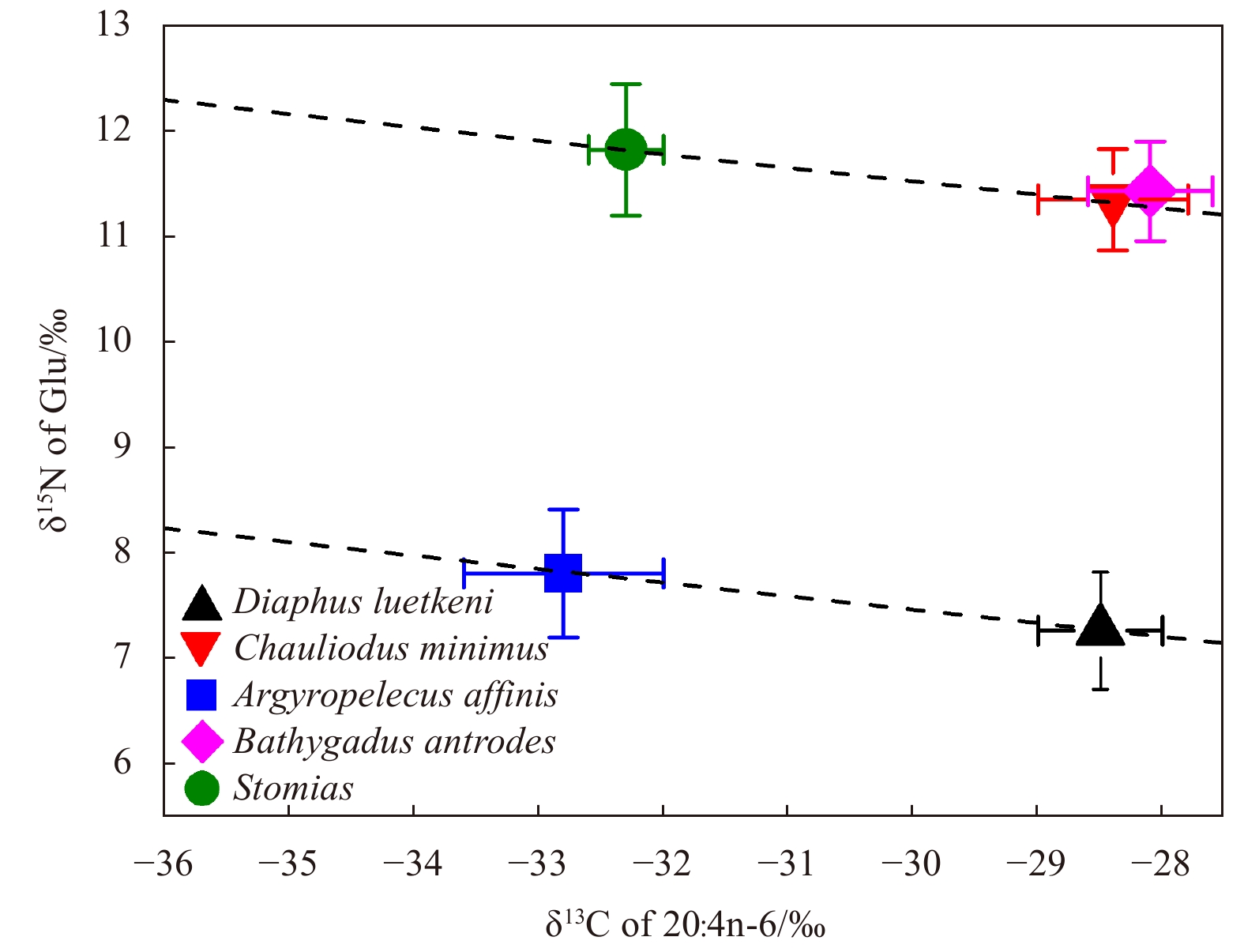

The compound-specific isotope analysis of FAs has been used to clarify complex trophic dynamics and produce more accurate dietary relationships that might be overlooked through stable isotopes or FAs (Bec et al., 2011; Budge et al., 2008; Gladyshev et al., 2016). The δ13C of 20:4n-6 revealed that the mesopelagic fishes in the SCS might have different diets, while no data was used to reflect their trophic interactions (Wang et al., 2019). Thus, the combination of δ13C values of 20:4n-6 and δ15N values of Glu was firstly used to reveal their trophic relations. In Fig. 6, non-migrant planktivorous fishes (−32.8‰±0.8‰) had similar δ13C of 20:4n-6 with semi-migrant piscivorous fishes (−32.3‰±0.3‰), the migrant planktivorous, migrant piscivorous and non-migrant piscivorous fishes had similar values (i.e., −28.5‰±0.6‰, −28.4‰±0.6‰ and −28.1‰±0.5‰, respectively). As described above, the piscivorous fishes had higher δ15N of Glu than planktivorous fishes. Meanwhile, the difference was about 4‰ between semi-migrant piscivorous fishes (11.8‰±0.6‰) and non-migrant planktivorous fishes (7.8‰±0.6‰), between migrant and non-migrant piscivorous fishes (11.4‰±0.5‰ and 11.3‰±0.5‰, respectively) and migrant planktivorous fishes (7.2‰±0.6‰) (Fig. 6). The 4‰ enrichment was much less than previous studies (~7.6‰) (McMahon and McCarthy, 2016; Ohkouchi et al., 2017). The discrepancy might be caused by low temperature, which resulted in low locomotory abilities and low metabolic rates (Caut et al., 2009; Choy et al., 2012; Hussey et al., 2014). Therefore, the trophic discrimination factor of trophic AAs needed to be recalculated when studying the mesopelagic fishes in mesopelagic and deep waters (Bradley et al., 2015; Choy et al., 2012). The combination of the δ13C of 20:4n-6 and δ15N of Glu was verified as a good method to study the trophic interactions of mesopelagic fishes from the SCS in this study.
5 Summary and future research
Less
The proposed method clearly achieved the main goals for testing the δ15N of AAs in mesopelagic fishes. Furthermore, the combination of the δ13C of FAs with δ15N of AAs has successfully mirrored the trophic interactions of mesopelagic fishes from the SCS. Therefore, such kind of tool would likely be suitable for similar application in bathyal ecosystems. Obviously, this method can be also adopted to those less nitrogen available samples (e.g., coral) or additional applications in marine biogeochemical studies (e.g., sediments, deep ocean suspended particles and dissolved organic matter) (McCarthy et al., 2013; Sherwood et al., 2011; Yamaguchi and McCarthy, 2018). The application of the modified method could reduce the sample requirements to near the same order as GC-C-IRMS when less material is available (Broek and McCarthy, 2014). Nonetheless, this method needed more time to isolate and transform AAs than GC-C-IRMS, and had lower accuracy compared to HPLC-EA-IRMS. Therefore, reducing time and improving accuracy is the main factors to develop this new method in the future. In recent study, multi-dimensional HPLC has been used to separate AAs in biological samples (Sun et al., 2020). Therefore, this study tries some mixed mode columns to achieve a better separation. Except for chemical methods, a bacterial method for the nitrogen isotopic analysis of nitrate promises a much lower detection limit (Sigman et al., 2001). Combining these methods, this study might get a higher accuracy. Some authors also have changed the EA protocols to reduce the atmospheric N to the sample signal (Broek et al., 2013; Broek and McCarthy, 2014; Swalethorp et al., 2020). Inspired by their examples, linking IC or HPLC to IRMS to improve accuracy and reduce time can be tried in the future.
Acknowledgements
Less
We greatly appreciate help from the captain and crew of the R/V Nan Feng. We thank Yuling Wu for assistance with laboratory work.
Funding
Less
  • The National Basic Research Program (973 Program) of China under contract No. 2014CB441502; the National Natural Science Foundation of China under contract No. 41876074; the Cross-research Center Project by QNLM under contract No. JCZX202007.
References
Less
Arthur K E, Kelez S, Larsen T, et al. 2014. Tracing the biosynthetic source of essential amino acids in marine turtles using δ13C fingerprints. Ecology, 95(5): 1285–1293, doi: 10.1890/13-0263.1
Bec A, Perga M E, Koussoroplis A, et al. 2011. Assessing the reliability of fatty acid–specific stable isotope analysis for trophic studies. Methods in Ecology and Evolution, 2(6): 651–659, doi: 10.1111/j.2041-210X.2011.00111.x
Bode A, Hernández-León S. 2018. Trophic diversity of plankton in the epipelagic and mesopelagic layers of the tropical and equatorial atlantic determined with stable isotopes. Diversity, 10(2): 48, doi: 10.3390/d10020048
Bothner-By A, Friedman L. 1952. The reaction of nitrous acid with hydroxylamine. The Journal of Chemical Physics, 20(3): 459–462, doi: 10.1063/1.1700442
Bradley C J, Wallsgrove N J, Choy C A, et al. 2015. Trophic position estimates of marine teleosts using amino acid compound specific isotopic analysis. Limnology and Oceanography: Methods, 13(9): 476–493, doi: 10.1002/lom3.10041
Braeckman U, Provoost P, Sabbe K, et al. 2015. Temporal dynamics in a shallow coastal benthic food web: insights from fatty acid biomarkers and their stable isotopes. Marine Environmental Research, 108: 55–68, doi: 10.1016/j.marenvres.2015.04.010
Broek T A B, McCarthy M D. 2014. A new approach to δ15N compound-specific amino acid trophic position measurements: preparative high pressure liquid chromatography technique for purifying underivatized amino acids for stable isotope analysis. Limnology and Oceanography: Methods, 12(12): 840–852, doi: 10.4319/lom.2014.12.840
Broek T A, Walker B D, Andreasen D H, et al. 2013. High-precision measurement of phenylalanine δ15N values for environmental samples: a new approach coupling high-pressure liquid chromatography purification and elemental analyzer isotope ratio mass spectrometry. Rapid Communications in Mass Spectrometry, 27(21): 2327–2337, doi: 10.1002/rcm.6695
Budge S M, AuCoin L R, Ziegler S E, et al. 2016. Fractionation of stable carbon isotopes of tissue fatty acids in Atlantic pollock (Pollachius virens). Ecosphere, 7(8): e01437
Budge S M, Wooller M J, Springer A M, et al. 2008. Tracing carbon flow in an arctic marine food web using fatty acid-stable isotope analysis. Oecologia, 157(1): 117–129, doi: 10.1007/s00442-008-1053-7
Caut S, Angulo E, Courchamp F. 2009. Variation in discrimination factors (Δ15N and Δ13C): the effect of diet isotopic values and applications for diet reconstruction. Journal of Applied Ecology, 46(2): 443–453, doi: 10.1111/j.1365-2664.2009.01620.x
Chikaraishi Y, Ogawa N O, Kashiyama Y, et al. 2009. Determination of aquatic food-web structure based on compound-specific nitrogen isotopic composition of amino acids. Limnology and Oceanography: Methods, 7(11): 740–750, doi: 10.4319/lom.2009.7.740
Choy C A, Davison P C, Drazen J C, et al. 2012. Global trophic position comparison of two dominant mesopelagic fish families (Myctophidae, Stomiidae) using amino acid nitrogen isotopic analyses. PLoS ONE, 7(11): e50133, doi: 10.1371/journal.pone.0050133
Choy C A, Popp B N, Hannides C C S, et al. 2015. Trophic structure and food resources of epipelagic and mesopelagic fishes in the North Pacific Subtropical Gyre ecosystem inferred from nitrogen isotopic compositions. Limnology and Oceanography, 60(4): 1156–1171, doi: 10.1002/lno.10085
Décima M, Landry M R, Bradley C J, et al. 2017. Alanine δ15N trophic fractionation in heterotrophic protists. Limnology and Oceanography, 62(5): 2308–2322, doi: 10.1002/lno.10567
Gerringer M E, Popp B N, Linley T D, et al. 2017. Comparative feeding ecology of abyssal and hadal fishes through stomach content and amino acid isotope analysis. Deep-Sea Research Part I: Oceanographic Research Papers, 121: 110–120, doi: 10.1016/j.dsr.2017.01.003
Gladyshev M I, Makhutova O N, Kravchuk E S, et al. 2016. Stable isotope fractionation of fatty acids of Daphnia fed laboratory cultures of microalgae. Limnologica, 56: 23–29, doi: 10.1016/j.limno.2015.12.001
Hannides C C S, Popp B N, Choy C A, et al. 2013. Midwater zooplankton and suspended particle dynamics in the North Pacific Subtropical Gyre: a stable isotope perspective. Limnology and Oceanography, 58(6): 1931–1946, doi: 10.4319/lo.2013.58.6.1931
Hetherington E D, Olson R J, Drazen J C, et al. 2017. Spatial food-web structure in the eastern tropical Pacific Ocean based on compound-specific nitrogen isotope analysis of amino acids. Limnology and Oceanography, 62(2): 541–560, doi: 10.1002/lno.10443
Hussey N E, MacNeil M A, McMeans B C, et al. 2014. Rescaling the trophic structure of marine food webs. Ecology Letters, 17(2): 239–250, doi: 10.1111/ele.12226
Ishikawa N F, Chikaraishi Y, Takano Y, et al. 2018a. A new analytical method for determination of the nitrogen isotopic composition of methionine: Its application to aquatic ecosystems with mixed resources. Limnology and Oceanography: Methods, 16(9): 607–620, doi: 10.1002/lom3.10272
Ishikawa N F, Itahashi Y, Blattmann T M, et al. 2018b. Improved method for isolation and purification of underivatized amino acids for radiocarbon analysis. Analytical Chemistry, 90(20): 12035–12041, doi: 10.1021/acs.analchem.8b02693
Jin Jie, Jiang Shan, Zhang Jing. 2020. Nitrogen isotopic analysis of nitrate in aquatic environment using cadmium-hydroxylamine hydrochloride reduction. Rapid Communications in Mass Spectrometry, 34(12): e8804
Landry M R, Décima M R, Plourde S. 2017. Protistan microzooplankton and the trophic position of tuna: quantifying the trophic link between micro- and mesozooplankton in marine foodwebs. ICES Journal of Marine Science, 74(7): 1885–1892, doi: 10.1093/icesjms/fsx006
Liu Dongwei, Fang Yunting, Tu Ying, et al. 2014. Chemical method for nitrogen isotopic analysis of ammonium at natural abundance. Analytical Chemistry, 86(8): 3787–3792, doi: 10.1021/ac403756u
McCarthy M D, Benner R, Lee C, et al. 2007. Amino acid nitrogen isotopic fractionation patterns as indicators of heterotrophy in plankton, particulate, and dissolved organic matter. Geochimica et Cosmochimica Acta, 71(19): 4727–4744, doi: 10.1016/j.gca.2007.06.061
McCarthy M D, Lehman J, Kudela R. 2013. Compound-specific amino acid δ15N patterns in marine algae: tracer potential for cyanobacterial vs. eukaryotic organic nitrogen sources in the ocean. Geochimica et Cosmochimica Acta, 103: 104–120, doi: 10.1016/j.gca.2012.10.037
McClelland J W, Montoya J P. 2002. Trophic relationships and the nitrogen isotopic composition of amino acids in plankton. Ecology, 83(8): 2173–2180, doi: 10.1890/0012-9658(2002)083[2173:TRATNI]2.0.CO;2
McMahon K W, McCarthy M D. 2016. Embracing variability in amino acid δ15N fractionation: mechanisms, implications, and applications for trophic ecology. Ecosphere, 7(12): e01511
McMahon K W, Newsome S D. 2019. Amino acid isotope analysis: a new frontier in studies of animal migration and foraging ecology. In: Hobson K A, Wassenaar L I, eds. Tracking Animal Migration with Stable Isotopes. 2nd ed. London, UK: Academic Press, 173–190
McMahon K W, Thorrold S R, Elsdon T S, et al. 2015. Trophic discrimination of nitrogen stable isotopes in amino acids varies with diet quality in a marine fish. Limnology and Oceanography, 60(3): 1076–1087, doi: 10.1002/lno.10081
Ohkouchi N, Chikaraishi Y, Close H G, et al. 2017. Advances in the application of amino acid nitrogen isotopic analysis in ecological and biogeochemical studies. Organic Geochemistry, 113: 150–174, doi: 10.1016/j.orggeochem.2017.07.009
Popp B N, Graham B S, Olson R J, et al. 2007. Insight into the trophic ecology of yellowfin tuna, Thunnus albacares, from compound-specific nitrogen isotope analysis of proteinaceous amino acids. Terrestrial Ecology, 1: 173–190
Schonberg A, Moubacher R. 1952. The strecker degradation of α-amino acids. Chemical Reviews, 50(2): 261–277, doi: 10.1021/cr60156a002
Sherwood O A, Guilderson T P, Batista F C, et al. 2014. Increasing subtropical North Pacific Ocean nitrogen fixation since the Little Ice Age. Nature, 505(7481): 78–81, doi: 10.1038/nature12784
Sherwood O A, Lehmann M F, Schubert C J, et al. 2011. Nutrient regime shift in the western North Atlantic indicated by compound-specific δ15N of deep-sea gorgonian corals. Proceedings of the National Academy of Sciences of the United States of America, 108(3): 1011–1015, doi: 10.1073/pnas.1004904108
Sigman D M, Casciotti K L, Andreani M, et al. 2001. A bacterial method for the nitrogen isotopic analysis of nitrate in seawater and freshwater. Analytical Chemistry, 73(17): 4145–4153, doi: 10.1021/ac010088e
Styring A K, Sealy J C, Evershed R P. 2010. Resolving the bulk δ15N values of ancient human and animal bone collagen via compound-specific nitrogen isotope analysis of constituent amino acids. Geochimica et Cosmochimica Acta, 74(1): 241–251, doi: 10.1016/j.gca.2009.09.022
Sun Yuchen, Ishikawa N F, Ogawa N O, et al. 2020. A method for stable carbon isotope measurement of underivatized individual amino acids by multi-dimensional high-performance liquid chromatography and elemental analyzer/isotope ratio mass spectrometry. Rapid Communications in Mass Spectrometry, 34(20): e8885
Swalethorp R, Aluwihare L, Thompson A R, et al. 2020. Errors associated with compound-specific δ15N analysis of amino acids in preserved fish samples purified by high-pressure liquid chromatography. Limnology and Oceanography: Methods, 18(6): 259–270, doi: 10.1002/lom3.10359
Takano Y, Chikaraishi Y, Ohkouchi N. 2015. Isolation of underivatized amino acids by ion-pair high performance liquid chromatography for precise measurement of nitrogen isotopic composition of amino acids: development of comprehensive LC×GC/C/IRMS method. International Journal of Mass Spectrometry, 379: 16–25, doi: 10.1016/j.ijms.2014.11.012
Tripp J A, McCullagh J S. 2012. Preparative HPLC separation of underivatized amino acids for isotopic analysis. In: Alterman M A, Hunziker P, eds. Amino Acid Analysis. Totowa, NJ, USA: Humana Press, 339–350
Wang Fuqiang, Wu Ying, Chen Zuozhi, et al. 2019. Trophic interactions of mesopelagic fishes in the South China Sea illustrated by stable isotopes and fatty acids. Frontiers in Marine Science, 5: 522, doi: 10.3389/fmars.2018.00522
Yamaguchi Y T, McCarthy M D. 2018. Sources and transformation of dissolved and particulate organic nitrogen in the North Pacific Subtropical Gyre indicated by compound-specific δ15N analysis of amino acids. Geochimica et Cosmochimica Acta, 220: 329–347, doi: 10.1016/j.gca.2017.07.036
Zhang Lin, Altabet M A. 2008. Amino-group-specific natural abundance nitrogen isotope ratio analysis in amino acids. Rapid Communications in Mass Spectrometry, 22(4): 559–566, doi: 10.1002/rcm.3393
Zhang Lin, Altabet M A, Wu Taixing, et al. 2007. Sensitive measurement of ${\rm{NH}}^+_4 $ 15N/14N (δ15 ${\rm{NH}}^+_4 $ ) at natural abundance levels in fresh and saltwaters. Analytical Chemistry, 79(14): 5297–5303, doi: 10.1021/ac070106d
