Environmental drivers of phytoplankton crops and taxonomic composition in northeastern Antarctic Peninsula adjacent sea area

Full

Yubin Feng¹, Dong Li¹^,^*, Jun Zhao¹, Zhengbing Han¹, Jianming Pan¹, Gaojing Fan¹, Haisheng Zhang¹, Ji Hu¹, Haifeng Zhang¹, Jiaqi Wu¹, Qiuhong Zhu¹

Affiliations

¹ Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China

Published: 2022-01-25 doi: 10.1007/s13131-021-1865-4

Outline

Abstract

Less

The ecosystem of the sea region adjacent to the Antarctic Peninsula is undergoing remarkable physical and biological changes, in the context of global warming. However, understanding of the dynamics of phytoplankton taxonomic composition in this marginal ice zone remains unclear. In this study, seawater samples collected from 36 stations in the northeastern Antarctic Peninsula were analyzed for nutrients and phytoplankton pigments. Combining with CHEMTAX analysis, remote sensing data, and physicochemical measurements, we investigated the relationships between phytoplankton crops, taxonomic composition, and marine environmental drivers. Integrated chlorophyll a (Chl a) concentrations (200 m) varied from 8.9 mg/m² to 64.2 mg/m², with an average of (23.2±12.0) mg/m² and higher phytoplankton biomass concentrated in the coastal region of South Orkney Island and South Shetland Island. Diatoms were the dominant functional group (63%±21%). Higher proportions of diatoms were associated with higher Chl a (r=0.40, p<0.01), stable water columns (r=0.20, p<0.01), higher Si/P ratios (r=0.34, p<0.01), higher photosynthetically active radiation intensity (r=0.64, p<0.01), and higher sea ice melt water contributions (MWC, r=0.20, p<0.01). Conversely, Phaeocystis antarctica contributed a smaller overall proportion (31%±18%) and was more concentrated in the offshore water masses (e.g., Philip Ridge and South Scotia Ridge) with lower light levels (r=−0.58, p<0.01), deeper mixed layer depths (r=0.17, p<0.05), higher nutrient concentrations (e.g., N, P, and Si, r>0.35, p<0.01), and lower MWC (r=−0.20, p<0.01). In comparison, the total contribution from green flagellates (4%±5%), cryptophyta (1%±3%), dinoflagellates (1%±4%), and cyanobacteria (1% ± 5%) was only 6%. In offshore regions with well-mixed water, less varied taxonomic composition and lower crops with a higher proportion of nanophytoplankton were observed. In contrast, significantly decreasing crops below the mixed layer depth was observed in water columns with strong stratification, where the dominant phytoplankter changed from diatoms to P. antarctica. These findings have important implications for better understanding the future dynamics of marine ecosystems in the sea area adjacent to the Antarctic Peninsula.

Key words

Antarctic Peninsula / phytoplankton crops / phytoplankton taxonomic composition / pigment / light intensity / mixed layer depth

Cite this Article

Yubin Feng, Dong Li, Jun Zhao, Zhengbing Han, Jianming Pan, Gaojing Fan, Haisheng Zhang, Ji Hu, Haifeng Zhang, Jiaqi Wu, Qiuhong Zhu. Environmental drivers of phytoplankton crops and taxonomic composition in northeastern Antarctic Peninsula adjacent sea area[J]. Acta Oceanologica Sinica, 2022 , 41 (1) : 99 -117 . DOI: 10.1007/s13131-021-1865-4

Full Text

Less

1 Introduction

Less

The ocean is an important carbon dioxide sink and plays key roles in buffering rising atmospheric carbon dioxide (CO₂) and climate change (Landschützer et al., 2016). Although the Southern Ocean (south of 50°S) accounts for only 10% of the ocean area, based on the efficient biological pump and solubility pump, it could account for 25% of the CO₂ consumption of the global ocean (Takahashi et al., 2002). Thus, the Southern Ocean acts as an important response and regulation area for global ocean carbon cycling (Sabine et al., 2004; Steig et al., 2009). In particular, due to its hydrological and trophic conditions (e.g., nutrients, light, and temperature) (Cheah et al., 2017; Deppeler and Davidson, 2017; Lee et al., 2016), the seasonal marginal ice zone distributed around the Antarctic continent is a highly productive region (Petrou et al., 2016) and supports massive biomass (Loeb et al., 2010; Pallin et al., 2018).

Phytoplankton serve as the major producer and food source for the entire marine ecosystem (Schloss et al., 2012). Different functional groups of the phytoplankton play distinct roles in marine primary productivity (Deppeler and Davidson, 2017), foodweb stability (Forcada et al., 2012), marine biological resource biomass (Loeb et al., 2010), and the biological pump efficiency (Kerr et al., 2018a; Tréguer et al., 2018). Moreover, the Antarctic Ocean is one of the largest ecosystems on Earth, with a unique and very short food chain (i.e., Diatom–Krill–Top predator) and a huge amount of biological resources. This simple food chain and limited biodiversity make the Antarctic Ocean sensitive to environmental change (Forcada et al., 2012; Kerr et al., 2018b). Previous studies have reported that climate-driven ice–sea interactions in Antarctica have accelerated the melting of ice shelves, leading to a series of environmental changes in the upper layers of the water column, such as decreased salinity, dissolved Fe input (Costa et al., 2020; Mendes et al., 2018b) and water column mixing (Peck et al., 2010; Stammerjohn et al., 2008). However, how this changing environmental drivers affect phytoplankton crops and community structure in key areas of the Antarctic Ocean is not clear yet, as there are currently scarce resources on this subject (Kerr et al., 2018b). Thus, to maintain the stability of the marine ecosystem and resources in the Antarctic Ocean, it is necessary to study the mechanism of ecological dynamics and key environmental factors.

The northern Antarctic Peninsula is a transition environment with sub-polar to polar influence (Rodriguez et al., 2002). It is considered to be a marine climate hotspot for rapid changes in sea ice (variations in glacier size, seasonal sea ice extent, and thickness of ice shelf), ocean (deep water cooling, freshening and lightening, and surface warming), and ecosystem dynamics (phytoplankton composition changes and krill and salp density) (Kerr et al., 2018b; Shepherd et al., 2018; Stammerjohn et al., 2008). The study area generally showed microelement deficiency (e.g., Fe) characteristics during summer (Wang et al., 2020), and Fe inputs sourced from meteoric and glacial meltwater may relieve the Fe limitation of the coastal region during the ice-melting season. Biologically, the Antarctic Peninsula serves as an important spawning ground for krill (Loeb et al., 2010) and whales (Secchi et al., 2011). Through regulating the hydrodynamic conditions and trophic status of seawater (Kerr et al., 2018b; Seyboth et al., 2018), the changes in the regional climate and sea ice dynamics could affect all trophic level organisms (from microbes, primary producers, zooplanktonic organisms, and fish to predators) despite different degrees of affinity to the sea ice (Ducklow et al., 2012). Furthermore, previous studies documented that the food chain and composition of the phytoplankton community are changing much more frequently (even annually) in some regions of the western Antarctica Peninsula (Garibotti et al., 2005; Mendes et al., 2013). Hence, tracking the spatial and temporal changes of phytoplankton crops and taxonomic composition in this highly productive region is of great significance for understanding the regional ecological response of the Southern Ocean in the context of climate change (Mendes et al., 2012, 2013, 2018a). Many studies have focused on the near-shore waters around the western Antarctic Peninsula (Clarke et al., 2007; Garibotti et al., 2005; Kozlowski et al., 2011; Montes-Hugo et al., 2009). However, due to the lack of continuous monitoring programs and scarcity of fundamental studies (Kerr et al., 2018b; Sanchez et al., 2019; Wang et al., 2020), there are needs to perform surveys with broader spatial and finer temporal scale in phytoplankton dynamics (i.e., crops and composition) of the northern and eastern Antarctic Peninsula sea area.

To probe the main drivers controlling the spatial dynamics of phytoplankton crops and taxonomic composition within the coastal region of the northeastern Antarctic Peninsula, water samples from 36 stations were collected. The in situ hydrological data (i.e., salinity, potential temperature, and potential density), macro-nutrients, and remote sensing data (e.g., photosynthetically active radiation (PAR)) were obtained to study the spatial distribution of environmental factors. Phytoplankton pigments were analyzed and the chemical taxonomy (CHEMTAX) method based on pigment composition was applied to carefully examine the phytoplankton crops and phytoplankton taxonomic composition for the entire area. This study thus provides insight into the spatial variability of phytoplankton crops and taxonomic composition in this fast-changing region, and sheds new light on the evolving trends of the phytoplankton community and food webs in the Antarctic Ocean under climate change.

2 Material and methods

Less

2.1 Field sampling and oceanographic measurements

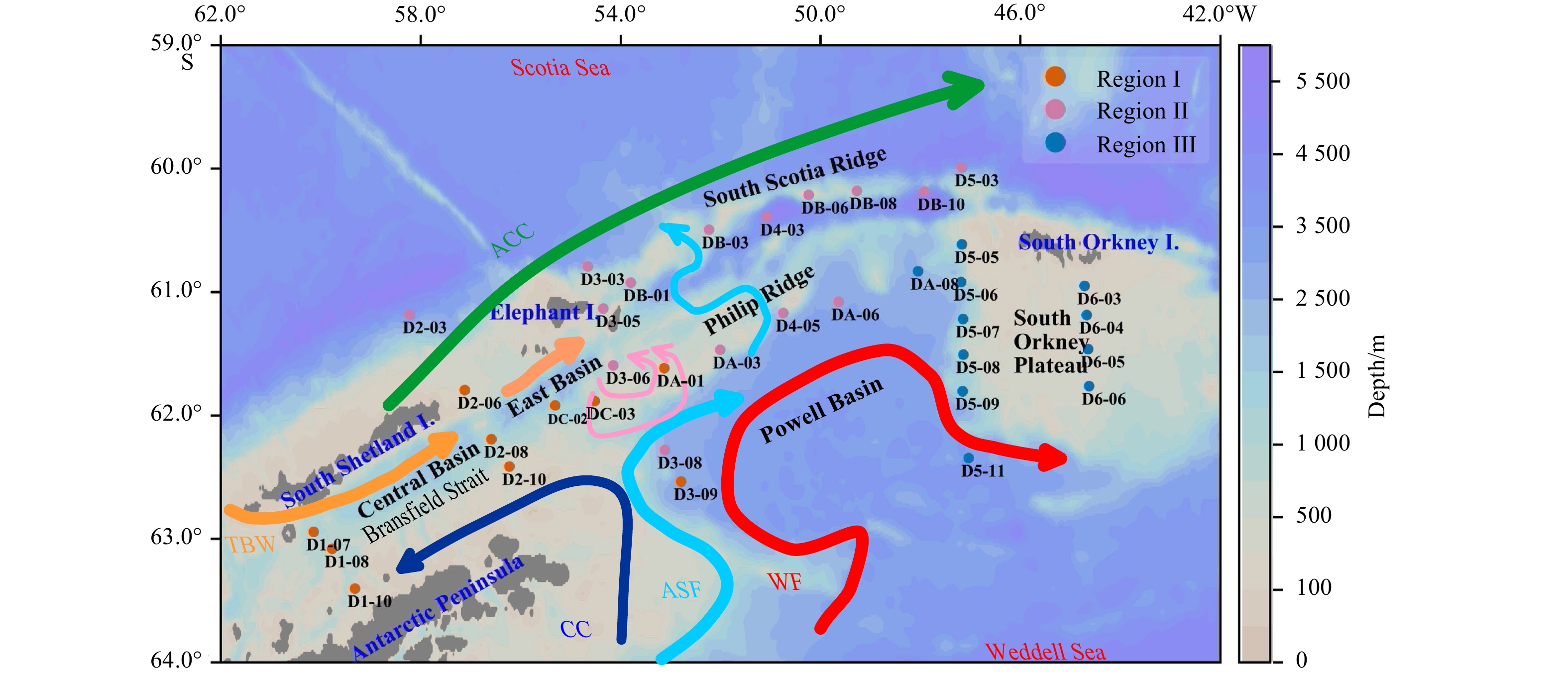

Thirty-six stations were sampled from the R/V Xuelong as a part of the 32nd Chinese National Antarctica Research Expedition (CHINARE) in the north tip of the Antarctic Peninsula, from 59°S to 64°S and from 43°W to 61°W, during the early summer from December 19, 2015 to January 14, 2016 (Fig. 1). Hydrological data (including temperature, salinity, and density) were measured by Sea-Bird SBE-9/11 plus CTD (conductivity-temperature-depth system, Bellevue, U.S.A.), which was pre-calibrated (Fig. 2a). Water samples were taken from five layers at 0 m, 25 m, 50 m, 100 m, and 200 m for phytoplankton pigment analysis and nutrient analysis.

2.2 Nutrient analysis

Seawater samples were filtered through pre-washed cellulose acetate membrane filters (0.45 µm) to determine dissolved inorganic nutrients (nitrate, phosphate, and silicate). Filtered water samples were stored at −20°C until further analysis. Nutrients were analyzed using a continuous flow analyzer (Skalar Analytical, Breda, Netherlands) following a method reported by Grasshoff et al. (1999). The detection limits were 0.1 μmol/L for nitrate, 0.1 μmol/L for silicate, and 0.03 μmol/L for phosphate.

2.3 UPLC pigment analysis and CHEMTAX analysis

For pigment samples, 3 L of seawater was filtered using GF/F glass fiber filter (Whatman, New Castle, U.S.A.) under gentle vacuum (<0.5 atm) and dim light conditions, and then stored at −80°C until lab analysis. Prior to instrumental analysis, samples were pre-treated according to the method described in Zapata et al. (2000). The pigments were extracted with 3 mL of acetone, ultrasonicated in an ice bath for 30 s, and then stored at −20°C for 2 h. The extract was separated from filter debris, and the supernatant was dried under gentle N₂ stream and re-dissolved with a 300 μL mixture of methanol and water (9:1, V/V). The analysis was completed within 4 h. Pigment extracts were analyzed using Acquity H-Class Ultra Performance Liquid Chromatography (UPLC, Waters Corp., Milford, U.S.A.) comprising UPLC-Quaternary Solvent Manager, Sample Manager-FTN, PDAeλ Detector, and FLR Detector. The analysis used the Acquity UPLC® BEH C18 Column (50 mm long, 2.1 mm in diameter, and 1.7 μm particle size) at a flow rate of 0.4 mL/min. A binary gradient elution program was used according to Zapata et al. (2000) (Table S1). Pigments were qualitatively and quantitatively detected by comparing retention time, absorption spectra, and area of the peaks in each sample chromatogram with those of authentic standards purchased from DHI Water and Environment (Hørsholm, Denmark) (Table S2, Fig. S1). Pigment standards used in this study were chlorophyll a (Chl a), chlorophyll b (Chl b), chlorophyll c ₃ (Chl c ₃), chlorophyll c ₂ (Chl c ₂), pheophytin a (Phytin-a), pheophobide a (Phide-a), alloxanthin (Allo), 19´-butanoyloxyfucoxanthin (But-fuco), fucoxanthin (Fuco), 19’-hexanoyloxyfucoxanthin (Hex-fuco), peridinin (Peri) and zeaxanthin (Zea), respectively. The precision and detection limits of the method were 0. 26 μg/L and 2.2 μg/L, respectively.

The CHEMTAX program (Version 1.95), proposed by Wright et al. (2009), used ten diagnostic pigments (Table 1) to differentiate the relative contributions of six major taxonomic groups to total Chl a biomass. It is assumed that different algae contain specific pigments and a defined proportion of pigment concentration (based on Chl a) in the study area (Garibotti et al., 2003; Mendes et al., 2012, 2013; Russo et al., 2018). For example, Chl c ₃ and Chl b are the diagnostic pigments of Phaeocystis antarctica (P. antarctica) and green flagellates (with Chl b), respectively. The green flagellates evaluated in this CHEMTAX analysis are not assigned to a distinct algal group, but referred as flagellates (e.g., Chlorophyceae, Prasinophyceae, and Pyramimonas) bearing Chl b (Peeken, 1997; Rodriguez et al., 2002; Mendes et al., 2012, 2013, 2018b; Russo et al., 2018). Previous studies have pointed out these green algae may originate from sea-ice and could survive under unfavourable seawater environments (Peeken, 1997). Moreover, Chl c ₂ and Fuco are found in both diatoms and P. antarctica., Allo, Peri, and Zea are the diagnostic pigments of the cryptophyta, dinoflagellates, and cyanobacteria, respectively. Comparing with optical microscopy observation, this CHEMTAX model has been successfully applied in characterizing phytoplankton assemblages in the Antarctic coastal waters (Rodriguez et al., 2002; Garibotti et al., 2003; Mendes et al., 2012, 2013; Van de Poll et al., 2011; Costa et al., 2020).

Based on our pigment data and the initial matrix of the literature, we identified six algae and pigment-algae initial matrices that may be present in the region (Table 1). The pigment-algae matrix is affected by environmental factors such as irradiance and nutrients (Barlow et al., 2008), so there is often a gap between the initial matrix and the actual value of the study area. CHEMTAX continually modifies the initial matrix by factor analysis and steepest descent algorithms, reducing the size of the residuals to make the matrix closer to the true value. To prevent the algorithm from identifying the local minimum as the result, we created 60 random starts based on the initial matrix. If they obtained the same result, we concluded that the final matrix was the real pigment-algae matrix of the study area, and the run result was the real phytoplankton taxonomic composition of the study area. To account for the variation of pigment ratios with irradiance and/or nutrient availability, data were also split into two bins according to sample depth (0–50 m and 100–200 m).

2.4 Integrated water column values

To overcome the statistical error caused by the analysis of non-equal sampling depth, this study used water column integral pigment concentration (Zhuang et al., 2014) to evaluate the regional distribution of diagnostic pigments and the Chl a degradation product. The integrated values were calculated as

(1)

$ {C}_{\text{int}}={{[C}_{1}\left({D}_{1}+{D}_{2}\right)+{C}_{2}\left({D}_{3}-{D}_{1}\right)+\cdots +C}_{n}\left({D}_{n}-{D}_{n-1}\right)]/2 , $

where D_n was the measured depth at a layer and C _n was the concentration at this layer.

2.5 Remote sensing data and physical measurements of marine environmental factors

The PAR and euphotic layer depth (Zeu) measured by remote sensing during our sampling time (8 d averaged) were downloaded from SeaWiFs (http://oceancolor.gsfc.nasa.gov/DOCS/seawifs_par_wfigs.pdf) and Morel et al. (2007). Data within 30 km×30 km of the observation stations were selected for evaluation.

To evaluate the influence of fresh water, the meltwater percentage (MWC) was calculated as the difference of salinity between surface water (S _surface) and deep water (S _deep, around 300 m) at the same station, according to the method reported by Mendes et al. (2018b), and Costa et al. (2020). The calculating equation is shown as below:

(2)

${\rm{MWC}} = \left( {1 - \frac{{{S_{{\rm{surface}}}} - 6}}{{{S_{{\rm{deep}}}} - 6}}} \right) \times 100,$

where in the S _deep was assumed not to be influenced by sea ice dilution and the salinity of sea ice was set as 6 (Ackley et al., 1979).

The potential density of seawater (ρ, kg/m³) was determined by the potential temperature, salinity, and pressure data. The mixed layer depth (MLD) was calculated by finding the depth of the maximum water column buoyancy frequency, max (N ², rad²/s²) (Carvalho et al., 2016), which is determined by

(3)

$ {N}^{2} = − \frac{g}{\rho } \frac{\partial \rho }{\partial z} , $

where g is gravity, z is the water depth. The stability of the water column (E _stability, 10^-6 rad²/m) was further estimated according to Eq. (4):

(4)

$ E_{\rm{stability}} = \frac{{N}^{2}}{g} . $

The average values of E _stability between 0 to 100 m depth were used in this study to represent the horizontal variation of the water column stability at each station (Costa et al., 2020; Mendes et al., 2018b).

2.6 Statistical analysis

Relationships between relative abundance of phytoplankton groups and environmental variables at the surface were explored by redundancy analysis (RDA) using the “vegan” package (Oksanen et al., 2013) in the program R. The variables used in the RDA included the percent of CHEMTAX-derived taxonomical groups to whole phytoplankton crops, PAR, MLD, sea surface temperature, sea surface salinity (salinity), MWC, E _stability, dissolved inorganic nitrogen (DIN; including nitrate, nitrite, and ammonium), phosphate, and silicate. Monte-Carlo tests were run in order to evaluate the significance of the RDA. Significant differences between treatments were tested using a one-way analysis of variance (ANOVA) (α=0.05). Pearson linear correlations between study parameters were calculated using SPSS.

3 Results

Less

To investigate the environmental factors regulating phytoplankton taxonomic groups, the study area was clustered into three regions from west to east according to the k-means clustering of CHEMTAX-derived phytoplankton taxonomic composition (Fig. 1). Region I is an area surrounded by islands (e.g., the tip of Antarctic Peninsula, South Shetland Island, and Elephant Island). Region II is a more open sea area dominated by ridges (e.g., South Scotia Ridge and Philip Ridge) and a deep basin (Powell Basin). Region III mainly lies south of the South Orkney Island and upon the South Orkney Plateau.

3.1 Environmental setting

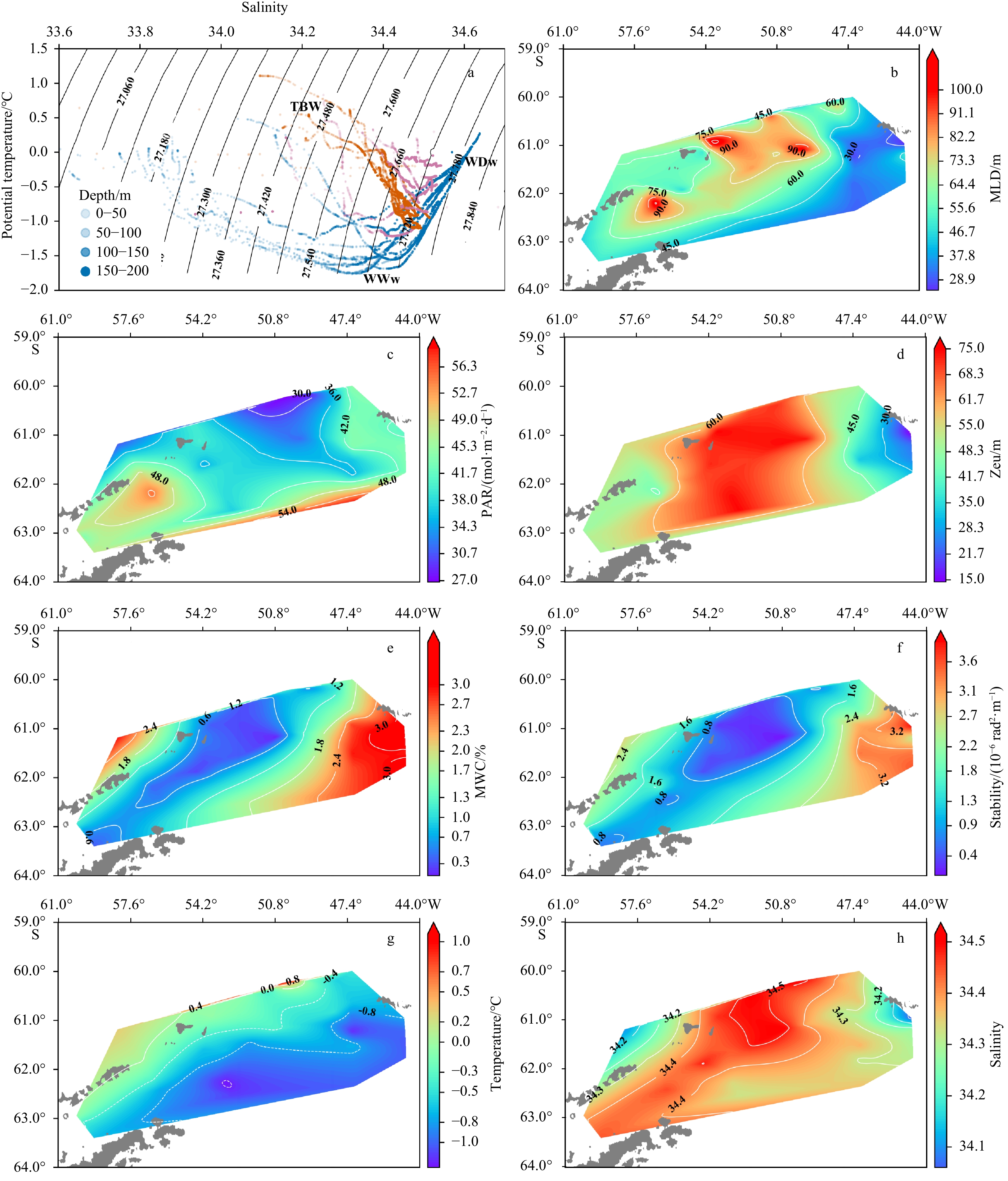

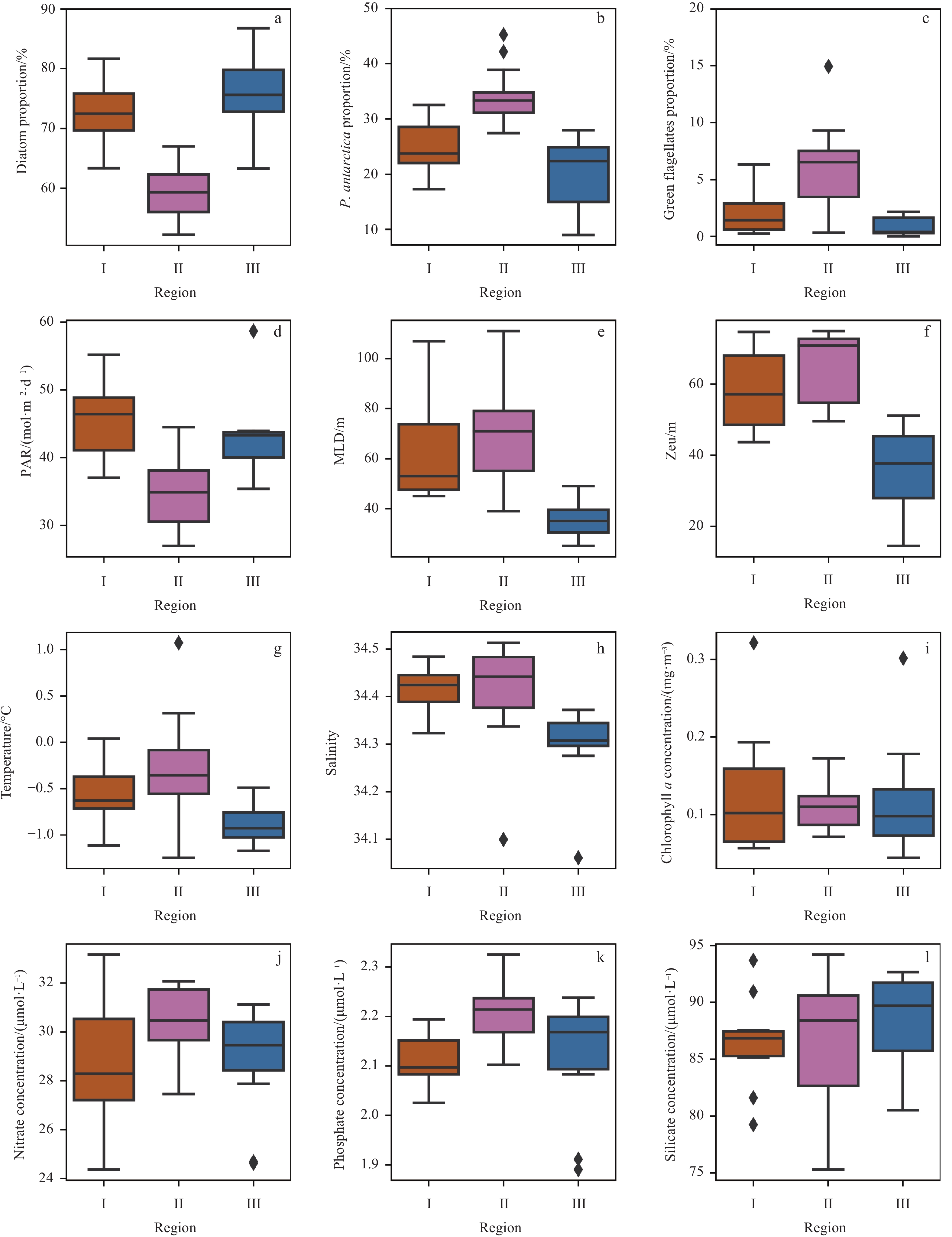

The environmental settings in the study area differ dramatically. For instance, Region III has the shallowest MLD [(36±7) m] and lowest water temperature [(−0.67±0.70)°C] and salinity (34.2±0.3) compared with Region I [(63±20) m, (−0.37±0.56)°C, 34.4±0.1] and Region II [(70±20) m, (−0.15±0.63)°C, 34.4±0.2] (p<0.05) (Table2). Correspondingly, Region III contributed 3–4 times more sea ice melt water (MWC, 2.8%±0.6%) and had the strongest stability of water column (3.0±0.6) compared with Region I (0.7%±0.4%, 1.1±0.6) and Region II (0.9%±0.7%, 0.9±0.7). Additionally, based on the remote sensing data, the calculated average PAR (during the past month before sampling) was higher in Region I [(46±6) mol/(m²·d)] and Region III [(43±6) mol/(m²·d)], with a significantly lower value in Region II [(34±5) mol/(m²·d)]. The estimated Zeu was shallowest in Region III [(36±12) m], with deeper values in Region I [(58±11) m] and Region II [(66±10) m] (Fig. 3). Additionally, MLD was deeper in the basin and ridge region and shallower in the South Orkney Plateau region (Fig. 2b). The area with high values of salinity and temperature changed from mostly concentrated in the upper layers of Regions I and II to lower layers of Region III (Fig. S2). Water temperature generally decreased with greater water depth (p<0.01), with a warm water mass upwelling in the 200 m layer of Region III. The salinity generally showed an increasing trend with increasing water depth (p<0.01, Fig. S1b). Generally, the physical characteristics of the three regions differed significantly, with maximum density variation in Region III and minimum variation in Region II (Fig. 2a). The distribution of Zeu was similar with MLD, and the average of Zeu was (54±16) m. The Zeu in Region III was lower than in Region I (Fig. 2d).

3.2 Nutrient concentrations and ratios

In this study, the silicate concentration ranged from 69.1 μmol/L to 111.2 μmol/L [mean: (85.6±7.6) μmol/L], the nitrate concentration ranged from 7.0 μmol/L to 36.8 μmol/L [(28.5±4.1) μmol/L], and the phosphate concentration ranged from 0.8 μmol/L to 2.6 μmol/L [mean: (2.1±0.3) μmol/L]. Regionally, significantly higher phosphate [(2.2±0.1) μmol/L] and nitrate [(29.8±2.5) μmol/L] were observed in Region II, and no significant differences existed between Region I [(2.1±0.2) μmol/L, (28.3±3.3) μmol/L] and III [(2.0±0.4) μmol/L, (26.9±5.7) μmol/L] (p<0.05, Fig. S3). No significant difference was observed for silicate among the three regions. Nutrient concentrations (nitrate, phosphate, and silicate) generally showed similar spatial distributions as salinity (p<0.01), with higher values in the upper layers of Region II and lower layers of Region III (Fig. S3). As for the vertical profiles of nutrient concentrations, increasing trends with greater water depth were observed (p<0.01, Fig. S3). The N/P, Si/P, and N/Si ratios were around 8.7–21.8 (average 13.6±1.2), 32.0–90.6 (average 41.5±5.7), and 0.1–0.5 (average 0.3±0.0), respectively. There was no significant difference in N/P ratios among the three regions, but significantly higher Si/P and lower N/Si ratios in Region III and moderate Si/P and N/Si ratios in Region I (Figs S3 and S4). Differences in the vertical profiles of nutrient concentrations, the N/P, Si/P, and N/Si ratios showed no remarkable vertical variation (Fig. S4). According to the stoichiometric criteria for phytoplankton physiology (silicate concentration>2 μmol/L, nitrate concentration >1 μmol/L, phosphate concentration >0.1 μmol/L, 10<N/P ratio<22, Si/P ratio>10) (Justić et al., 1995), the nutrient concentrations of the study area [silicate, (85.6±7.4) μmol/L; nitrate, (28.5±4.1) μmol/L; phosphate, (2.1±0.3) μmol/L] were much higher than the algal nutrient minimum demand, and no potential nutrient limitation was observed in the study area [N/P ratio, 13.6±1.2; Si/P ratio, 41.7±3.3] (Fig. S4), indicating a non-nutrient-limited environment.

3.3 Concentrations and distribution of phytoplankton pigments

The concentration of Chl a is usually used to estimate phytoplankton crops. As shown in Fig. 4, Chl a concentrations ranged from 0 to 0.73 mg/m³ with an average of (0.14±0.13) mg/m³. Concentrations of Chl a in Region I [(0.17±0.18) mg/m³] were much higher than the other two regions [Region II, (0.12±0.07) mg/m³; Region III, (0.13±0.13) mg/m³], which were similar with literature data (Table 3). Moreover, similar to the nutrient and hydrological data, different horizontal distribution trends existed between upper and lower layers (Fig. 4). In the upper layers, regions with high Chl a values were mainly distributed in the Sections D1 and D2 of Region I and Section D5 of Region III. In contrast, Section D3 of Region 2 demonstrated high Chl a concentrations in the lower layers of the study area (Fig. 4). Moreover, surface phytoplankton crops of early summer (early January, this study) were comparable with reported data detected in the same sampling period but generally lower than those of middle and late summer (February to March, Table 3).

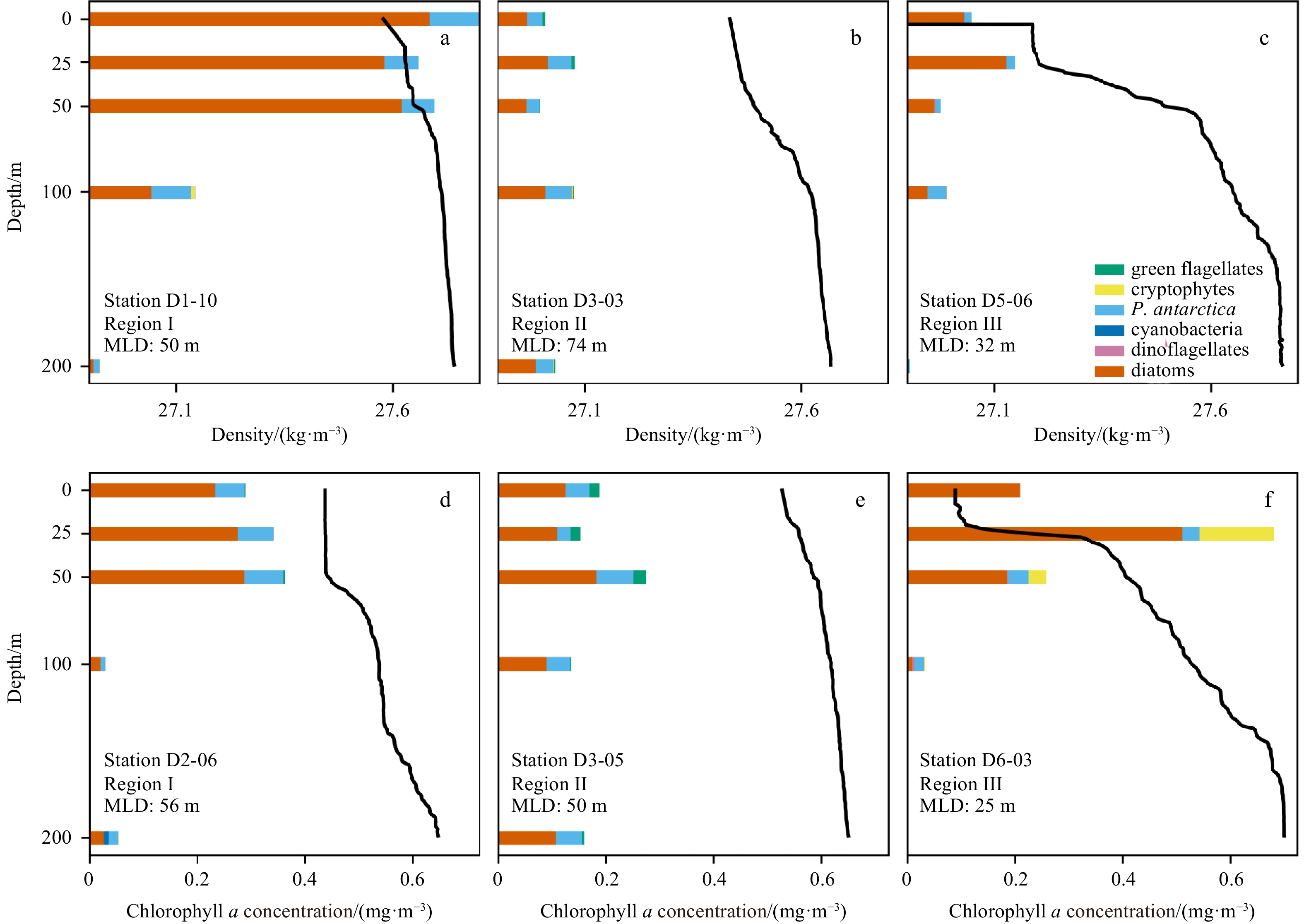

Vertically, the concentrations of Chl a decreased significantly with greater water depth (p<0.01), and subsurface maximum layers occurred in 25 stations. Phide-a and Phytin-a are primary degradation products of Chl a, which can be associated with the food web structure and the main predator. Variations of Phytin-a concentrations can be used to indicate the relative distribution of large zooplankton (e.g., krill and copepods), and Phide-a is an indicator of the distribution of smaller zooplankton (e.g., protozoa) ( Jeffrey et al., 1997). In this study, ranges of Phide-a concentration varied from 0 to 0.34 mg/m³ [average (0.05±0.12) mg/m³], with the lowest values in Region II and highest values in Region III (Fig. S5). The Phytin-a concentration ranged from 0 to 0.03 mg/m³ [(0.01±0.02) mg/m³] (Fig. S5). Similar to the vertical profiles of Chl a concentration, the Phide-a and Phytin-a both showed decreasing trends with increasing water column depths. The Fuco [(0.68±1.01) mg/m³], Chl c ₂ [(0.35±0.50) mg/m³] and Chl c ₃ [(0.18±0.23) mg/m³] were the most abundant diagnostic pigments in this study. Their spatial distribution patterns in different layers was similar to Chl a (Fig. S5). In comparison, the concentrations of Peri [(0±0.01) mg/m³], Allo [(0.01±0.03) mg/m³], Zea [(<0.04) mg/m³] and Chl b [(0.01±0.02) mg/m³] were fairly low.

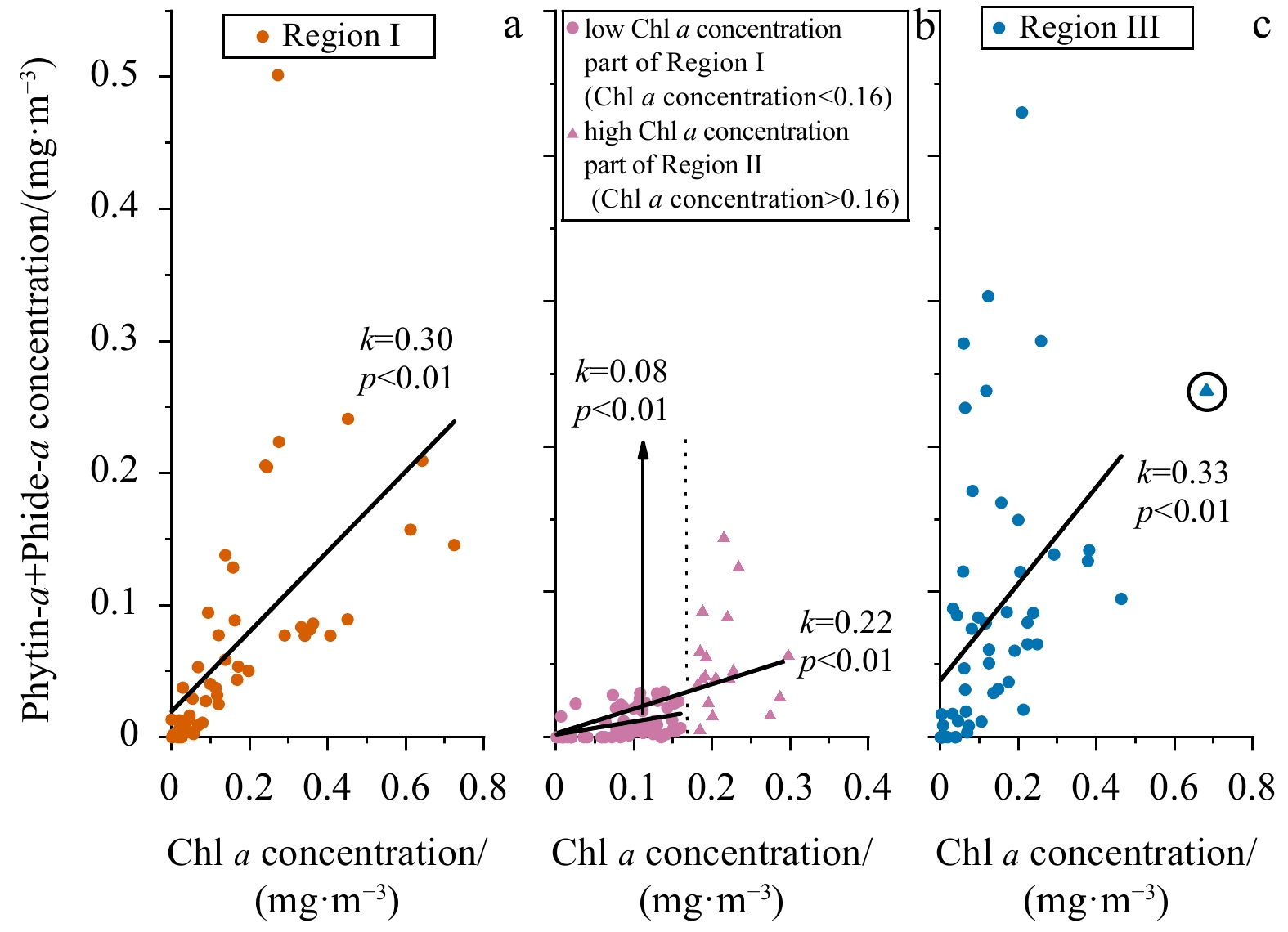

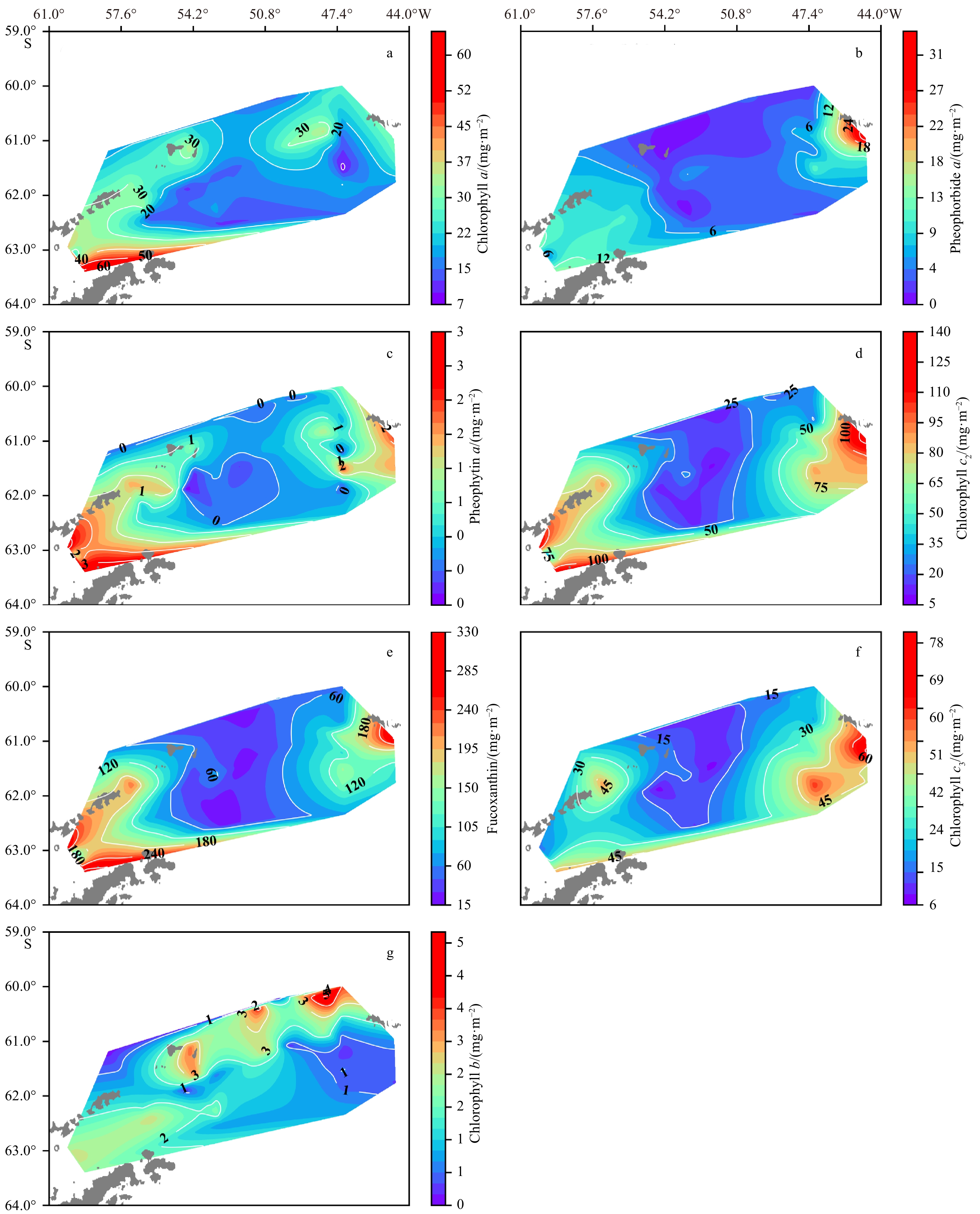

Spatial distributions of the integrated pigment concentrations in the water column are shown in Fig. 5. Higher concentrations of Chl a were found in the adjacent sea area of Antarctic Peninsula and South Orkney Island. The integrated Chl a concentration ranged from 8.9 mg/m² to 64.2 mg/m², with an average of 23.2 mg/m². The concentration of Phide-a [(7.0±11.1) mg/m²] was higher than Phytin-a [(1.3±1.1) mg/m²]. Both Phide-a and Phytin-a decreased significantly with higher offshore distance. Chl c ₂ [(50.7±50.1) mg/m²] and Fuco [(102.7±111.6) mg/m²] were the most abundant chlorophyll and carotenoid in the study area (Figs 5d and e), and lower average values were observed in Chl c ₃ [(28.6±23.4) mg/m²] and Chl b [(2.0±1.2) mg/m²]. Generally, most of the abundant diagnostic pigments showed similar spatial distributions (e.g., Chl c ₂, Chl c ₃, and Fuco, r>0.84, p<0.01), with higher values in areas adjacent to the islands and lower values in Region II (Figs 5d–f). In contrast, the diagnostic pigments (e.g., Chl b [(2.0±1.2) mg/m²], Allo [(1.8±7.5) mg/m²], Peri [(0.4±1.6) mg/m²], and Zea [(0.2±0.5) mg/m²] had very low concentrations and showed no obvious spatial distribution patterns.

3.4 Phytoplankton taxonomic composition based on CHEMTAX

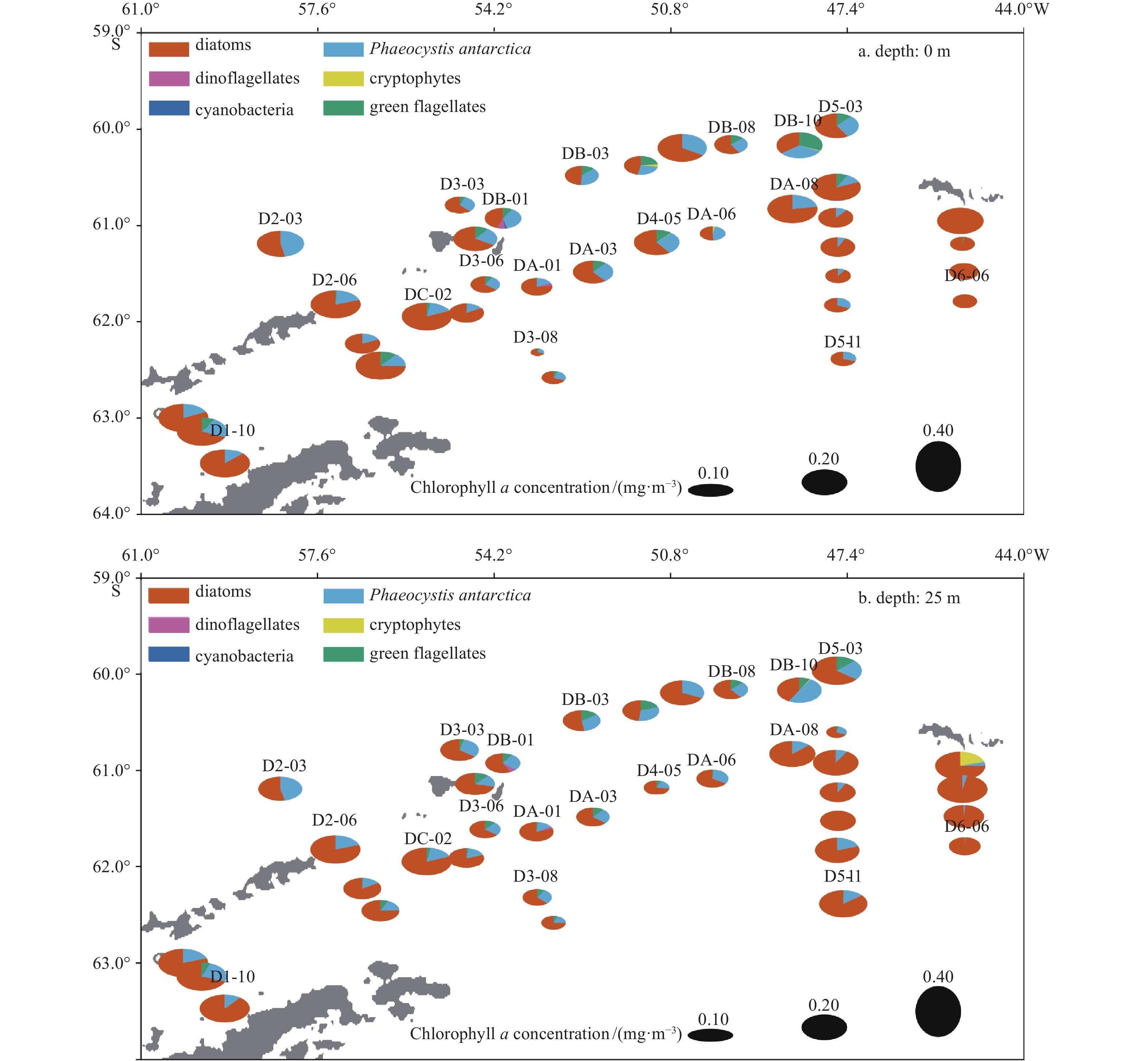

The calculated phytoplankton taxonomic groups based on the CHEMTAX model is shown in Figs 4 and 5. Generally, diatoms (63%±21%) and P. antarctica (31%±18%) were the two dominant algae in the study area. The ranges and average values of calculated six phytoplankton taxonomic groups in different layers are shown in Table S3. Similar to the Chl a concentration, relative proportions of diatoms showed decreasing trend offshore, with higher values in Regions I (72%±5%) and III (76%±6%) and lower value in Region II (59%±4%) (p<0.05) (Fig. 3a). In the lower layers, the relative abundance of diatoms was higher in stations near Elephant Island and the Philippine Ridge (Fig. 4). The percentage of diatoms generally showed a decreasing trend with greater water depth (p<0.01, Fig. 4). As for P. antarctica, higher average values were found in Regions I (25%±5%) and II (35%±12%) and the lowest average value in Region III (19%±6%) (Fig. 3b). In contrast to the diatoms, P. antarctica showed an increasing trend with water column depth (p<0.01) (Fig. 4). Furthermore, in most stations, the dominant species changed from diatoms to P. antarctica in the layers deeper than 75 m (Fig. 4). Compared with the dominant diatoms and P. antarctica, green flagellates (4%±5%), cryptophyta (1%±3%), dinoflagellates (1%±4%) and cyanobacteria (1%±5%) occupied only a minor proportion. Spatially, the green flagellates were mainly distributed in the upper layers of the South Scotia Ridge, cryptophyta occurred only in the upper layer of the Region III, and dinoflagellates (1%±4%) and cyanobacteria (1%±5%) were found only sporadically in lower layers of certain sites (Fig. 4). As for the vertical profiles, the relative proportion of green flagellates decreased with increasing water depth, while the cryptophyta, dinoflagellates, and cyanobacteria showed an increasing trend (p<0.05) (Table S3).

3.5 Phytoplankton response to environmental drivers

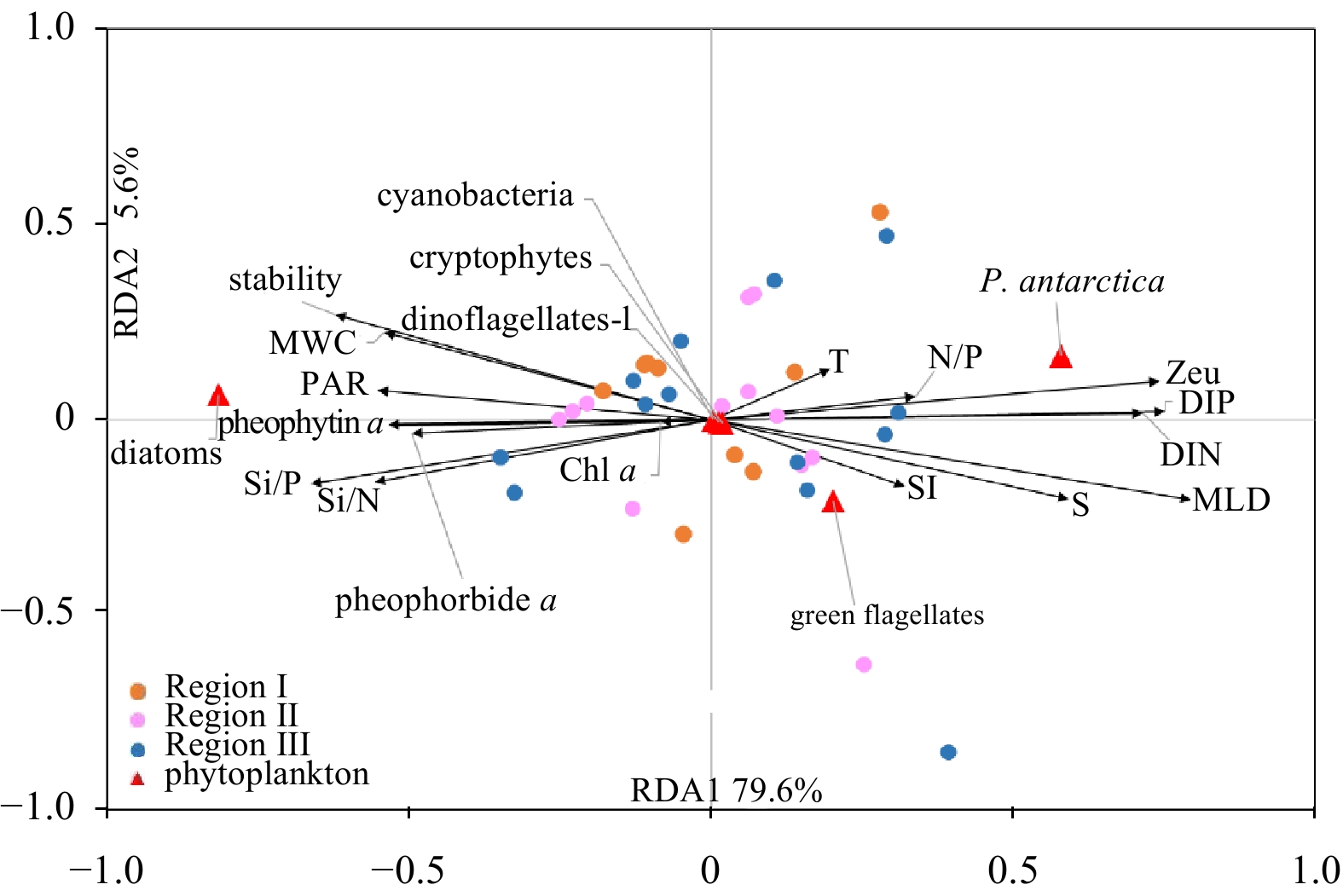

An RDA was conducted to reveal the potential response of phytoplankton crops and taxonomic groups to environmental factors of surface water (Fig. 6). Water environment factors, including MLD, stability of water column, MWC, PAR, salinity, and nutrient concentrations and structure, illustrated various contributions to the phytoplankton crops and taxonomic composition–environment relationships. The water environmental factors covered by the first two RDA axes explained 79.6% and 5.6% of the total variance in the phytoplankton crops and taxonomic composition (Fig. 6). These results indicate that the physical environment (e.g., PAR, MLD, salinity, E _stability) and nutrient compositions have a significant relationship with the phytoplankton species composition, and these terms together provided 85.2% of the total RDA explanatory power (Fig. 6). As the RDAs showed, the PAR, Si/P and Si/N ratios, E _stability, and MWC had a positive influence on the percentage of diatoms and Chl a and its degradation product concentration. In comparison, the water temperature, salinity, MLD, nutrient concentrations, and N/P and N/Si ratios showed a positive influence on the P. antarctica and green flagellate proportions (Fig. 6).

As for the whole water column, the Pearson linear correlations analysis was used to detect the relationship between the studied parameters (Table S4). The results suggested that the water temperature, MWC, E _stability, Si/P ratio, and percentages of diatoms were significantly correlated with concentrations of Chl a and its degradation products (p<0.01, Table S4). In contrast, the salinity, proportions of dinoflagellates and P. antarctica, concentrations of phosphate, nitrate, and silicate, and N/P ratio were significantly negatively correlated to the phytoplankton crops (p<0.01, Table S4). With respect to the phytoplankton taxonomic composition, the dominant diatoms positively correlated with MWC (r=0.20, p<0.01), E _stability (r=0.20, p<0.01), and Si/P ratio (r=0.34, p<0.01), and negatively correlated with MLD (r=0.17, p<0.05), salinity (r=0.57, p<0.01), nutrient concentrations (r>0.39, p<0.01), and N/Si ratio (r=0.37, p<0.01). By contrast, the second most abundant algae (P. antarctica) was positively correlated with MLD (r=0.17, p<0.01), salinity (r=0.52, p<0.01), nutrient concentration (r>0.57, p<0.01), and N/Si ratio (r=0.37, p<0.01), and negatively correlated with water temperature (r=0.18, p<0.01), E _stability, MWC, and Si/P ratio (r=0.34, p<0.01).

4 Discussion

Less

4.1 Regionally oceanographic and hydrological characteristics

The Southern Ocean is characterized by high hydrographic variability, and the ecosystem changes therein are linked to the regional intrinsic physicochemical properties and current circulation patterns. As shown by the cluster analyses, distinct environmental (oceanographic and hydrological) characteristics of three regions are accompanied by the variant phytoplankton crops and taxonomic composition therein (Figs 3 and 7).

Region I is the nearest area to the Antarctic Peninsula and the oceanographic environment is regulated by the warm and fresh water derived from the Antarctic Circumpolar Current (ACC, Fig. S2), Transitional Bellingshausen Water (TBW) (Fig. 2a), and the cold and saline coastal current (CC, regulated by glacial melt water, Fig. S6), which broadly exists over the continental shelf (Barlett et al., 2018; Thompson et al., 2009) (Fig. 1). The high salinity indicated that Region I was less affected by sea ice melt water (MWC, 0.7%±0.4%) (with the exception of Station D2-03, which was regulated by the ACC, Fig. 2c). Additionally, the fairly constant water density of the shallow water suggested moderate water mixing leading to a moderate MLD [(63±20) m] and slight weak water stability, especially in the basin region (Figs 1 and 2b). The relatively warm water of the Antarctic Slope Front (ASF) (Fig. S7) combined with the ACC dominated the shallow waters of Region II, where its hydrological conditions were modified due to the interaction with strong ACC in the region over and surrounding the South Scotia Ridge (Thompson et al., 2009). The high salinity of Region II indicated that the effect of MW was also limited (MWC, 0.9%±0.7%) (Figs 2c, Fig. S2b), and the water density showed a smoothly increasing trend with greater water depth, indicating strong water mixing and low stability (Figs 2 and 7). Region III had the lowest water temperature and salinity in the study area (p < 0.01). Lower temperature and salinity shallow waters surrounding the South Orkney Island (Figs 2a, Fig. S7), suggested stronger influence of locally formed winter water and sea ice melt water (MWC, >2%) compared with the other two regions (Fig. 2c). Additionally, the cold-water Weddell Front (WF) dominated the deep layers in the more open sea area (Fig. S2b). Due to the widely developed and higher contribution of sea ice melt water, a steeper slope of water physical properties with greater water depth resulted in much stronger water column stability and shallower MLD in Region III (Figs 2b and d). In contrast, stronger water mass mixing and low water stability led to a gradual thermocline and much deeper MLD in the other two regions (Figs 2a and 3e).

Current circulation near the tip of the Antarctic Peninsula not only conducts the thermohaline structures, but also influences the dissolved nutrient status and further ecosystem dynamics. The ASF, CC, and WF are considered to melt the underside of ice shelves and could transport substantial Antarctic krill and nutrients (Dotto et al., 2016; Fahrbach et al., 1994), especially for WF, which is considered to be Fe enriched (Ardelan et al., 2010). Correspondingly, higher nutrient concentrations (e.g. nitrate, phosphate, and silicate) were observed in Region II (50°–55°W, Fig. S3). In contrast, the ACC flows eastward through the Drake Passage to our study area and is believed to be Fe deficient (dissolved Fe, <0.5 nmol/L) (Hopkinson et al., 2007; Hewes et al., 2008). Additionally, the complex circulatory system of surface waters in Regions I and II produces many mesoscale processes, such as anticyclonic eddies, which have their own thermohaline structures and deep MLD, and become separated from adjacent currents (García-Muñoz et al., 2013; Heywood and Priddle, 1987; Sangrà et al., 2011, 2014; Thompson et al., 2009) (Fig. 2). For instance, a large-standing anticyclonic eddy (approximately 40 km in diameter, centered at 62°S and 54°W) maintained by regional topography and energy from strong shears of the ASF exists in region II (Thompson et al., 2009). This permanent feature of the surface circulation is dynamically significant for the mixing of water masses and dispersal of materials therein. For example, drifters deployed in the continental shelf east of the Antarctic Peninsula underwent remarkable oscillations (several months) which indicated significant eddy trapping (Thompson et al., 2009). The eddy could also trap phytoplankton for long periods of time and prolong their residence time in this region (Thompson et al., 2009), and even insulate the phytoplankton community from heavy grazing by zooplankton (e.g., krill) (Heywood and Priddle, 1987).

4.2 Interaction between nutrient status and phytoplankton

Significant correlations between nutrient conditions and phytoplankton crops, taxonomic composition, and further herbivore activities indicate strong interactions among them (Fig. 6, Table S4). In the study area, the nutrient concentrations were significantly negatively correlated with total Chl a concentrations and herbivore feeding products (Fig. 6, Table S4). Similarly, comparing with previous studies (Table 3), lower phytoplankton crops is usually accompanied by higher nutrient stock (especially for silicate, Mendes et al., 2013). This phenomena could be attributed to the consumption of large amounts of dissolved nutrient stocks by phytoplankton growth (Westwood et al., 2010). In addition, due to the efficient supply of micronutrients (i.e., iron) and the much more stable water column in the coastal area of Regions I (South Shetland Island and Antarctic Peninsula) and III (South Orkney Island), higher phytoplankton crops [(25.6±15.8) mg/m², (23.2±13.8) mg/m²] and subsequent strong feeding activities [Phytin-a, (1.6±1.1) mg/m², (1.8±1.3) mg/m²] accompanied by the lowest nutrient stocks [phosphate, (2.1±0.2) μmol/L, (2.0±0.4) μmol/L; nitrate, (28.3±3.3) μmol/L, (26.9±5.7) μmol/L] were found in Regions I and III compared with Region II [Chl a, (21.6±5.7) mg/m²; phosphate, (2.0±0.4) μmol/L; nitrate, (26.9±5.7) μmol/L]. Similarly, pretty high Chl a concentration (around 0.5–7 mg/m³) was also reported near James Ross Island and in the Bransfield Strait (Mendes et al., 2012). Moreover, although the nutrient concentrations of deep water ( >100 m) are comparable among the three regions (Figs S3a and b), shallower MLD in Regions I and III compared with Region II (p<0.01) would also limit the upwelling of nutrient-rich deep water, and further result in the lower nutrient concentration therein (Figs S3a and b). Furthermore, phytoplankton with different sizes and nutrient uptake efficiencies also have diverse preferences and tolerance to nutrient status (Gibb et al., 2001; Gibberd et al., 2013). For instance, diatoms favor silicate-enriched environments as silicate is an essential element for the formation of siliceous diatom shells, and is consistent with positive correlations between diatoms and Si/N ratios found in this study (Fig. 6). In contrast, P. antarctica and green flagellates could be much more adapted to nitrate- and phosphate-enriched environments with higher N/P (Arrigo et al., 1999) (Fig. 6). Despite the higher nutrient inventory of Region II (especially for nitrate and phosphate), the lowest Si/N and Si/P ratios in Region II (p<0.05) may partly contribute to the lower diatom percentage compared with that observed in the other two regions (Fig. 3).

Although the Fe concentration was not analyzed in this study, the MWC has been shown to be a good indicator for Fe-rich freshwater inputs in the continental marginal sea of the Antarctica continent (Costa et al., 2020; Mendes et al., 2018b; Wang et al., 2020; Zhang et al., 2019). In this study, although no significant correlation was observed between the MWC and Chl a concentrations due to complex hydrology conditions, negative relationships existed between MWC and P. antarctica percentage (r=−0.20, p<0.01). One possible reason is that nanophytoplankton (e.g., P. antarctica (<20 μm), cyanobacteria (1–2 μm), green flagellates (0.1–5 μm) and cryptophyta (6–20 μm)) with a small size and high specific surface area could favor their nutrient uptake, and thus have a competitive advantage under Fe-deficient environments (Gibb et al., 2001; Hassler et al., 2014). Also, the proportion of utilized Fe by the larger phytoplankton (e.g., diatoms ( >20 µm)) increases in strongly stratified waters with higher MWC (Wang et al., 2020). Similarly, Mendes et al. (2012) reported ice melting processes would trigger growth of large diatoms in coastal sea area of James Ross Island. Based on the efficient Fe supplement from upwelling and glacial melt water, the Fe concentration of Region III was around three times higher than that of Region II (Ardelan et al., 2010; McGillicuddy et al., 2015; Sanchez et al., 2019). This may have thus resulted in the low diatom and high P. antarctica proportions in Region II, and vice versa in Region III (Fig. 3), which was consistent with another study carried out in the South Scotia and Philip Ridge during late summer (Mendes et al., 2018b). The high-Fe cyclonic ASF flows clockwise along the Powell Basin and to the south (Wang et al., 2020) (Fig. 1), likely contributed to the limited Fe supply to Region II (0.31–0.73 nmol/L) (McGillicuddy et al., 2015; Sanchez et al., 2019). As shown in Fig. 7a, a region with high Chl a concentrations centered at 49°W and 61°S in Region II, far from an island, result the horizontal mixing of an Fe-rich ASF with the well-stratified but Fe-poor ACC. Similar phenomena were also described within the western Weddell-Scotia Confluence region (Heywood et al, 2004; Von Gyldenfeldt et al., 2002). Thus, the northbound horizontal delivery of nutrients by the ASF and release of demanded Fe onto the shelf and ridge area of Region II may be an important point source driving high biomass in the pathway of the ASF.

4.3 Effect of light intensity and water mixing on phytoplankton growth

4.3.1 Influence of light intensity

Light intensity affected by the weather conditions has been considered to be the primary factor determining the phytoplankton crops and taxonomic composition (Arrigo et al., 1999; Hoppe et al., 2017; Mendes et al., 2012; Wojtasiewicz et al., 2019). In this study, based on the PAR and Zeu data calculated from remote sensing data, the influence of light intensity on the phytoplankton growth was also estimated. The regional variation in PAR was the same as that of Chl a concentrations, with Region I having the highest PAR and Chl a concentration while Region II had the lowest PAR and Chl a concentration (Fig. 3). Only in Region II, which was mainly an open sea area, did a significantly positive relationship exist between PAR and phytoplankton crops (r=0.52, p<0.05), indicating the important regulating effect of light radiation intensity on phytoplankton crops in the well-mixed water column with deep MLD. Moreover, combing with the historical literature (Table 3) and remote sensing data (https://hermes.acri.fr/index.php) in this study area (e.g., Regions I and II), we find a time lag (around one month) between the most lightful (December and January) and the most productive months (January and February). Although with the highest PAR during early summer (https://hermes.acri.fr/index.php) in the study area, the Chl a concentrations during early austral summer (i.e., December and January) was even slightly lower than those studies carried out during mid and late austral summer (i.e., February and March) (Table 3). Similar monthly discrepancies on primary production rates (i.e., Region I) were reported: higher carbon assimilation rates were found during February and March (0.93−3.38 mg/(mg·h), assimilated carbon mass by per milligram Chl a per hour) and lower values during January (0.30−2.02 mg/(mg·h), assimilated carbon mass by per milligram Chl a per hour) (Russo et al., 2018 and references therein). This phenomenon probably was a compromise between light condition and water column structure, especially in this strong hydrodynamic environment.

Positive correlations were observed across the entire study area between PAR and diatoms in the water column (r=0.52, p<0.01), while a negative relationship with P. antarctica (r=−0.58, p<0.01) and green flagellates (r=−0.41, p<0.05) was observed (Fig. 6). This phenomenon is consistent with previous studies in the Ross Sea (Rozema et al., 2017) and West Antarctic Peninsula adjacent sea area (Joy-Warren et al., 2019), and could be attributed to the differences in photophysiology of diatoms and P. antarctica. For example, compared with P. antarctica, diatoms could produce less photosynthetic pigment and higher photoprotective pigment per cell, and thus are far less susceptible to photoinhibition and could sustain competitive advantage under environment with high light levels (Arrigo et al., 1999; Villafañe et al., 2008). By contrast, the P. antarctica can produce more light-harvesting pigments per cell, and are susceptible to photoinhibition, but could dominate waters where light levels are low (Alderkamp et al., 2010). This photophysiological characteristic may have contributed to the significantly lower percentage of diatoms (59%±4%) and higher percentage of P. antarctica (34%±5%) in Region II than Regions I and III (diatoms, 72%±6% and 76%±6%; P. Antarctica, 25%±5% and 20%±7%) (Fig. 3), and the vertically decreasing percentage of diatoms and increasing P. antarctica with greater water depth in the water column (Fig. 7). This was also supported by the monthly shift of the phytoplankton community from diatoms dominated to nanoflagellates dominated because the decreasing of light intensity from early summer to late summer (Table 3). Furthermore, cryptophyta, typically small flagellates that can successfully grow in highly illuminated conditions with shallow mixed layer (e.g. prevalence in the Gerlache Strait, Mendes et al., 2018a), also appeared in the upper layers of certain stations of Region III (e.g., Station D6-03, 16%) with higher PAR and strong water column stratification (Figs 2 and 4).

4.3.2 Influence of water mixing

Water stratification and mixing, which play an important role in shaping habitat environments (e.g., E _stability, Zeu, and MLD), are also limiting factors for the vertical distribution of phytoplankton crops and taxonomic composition (Cai et al., 2003; Hoppe et al., 2017; Mendes et al., 2012; Wojtasiewicz et al., 2019; Zhang et al., 2014, 2019). In this study, E _stability was significantly positively and negatively correlated with MWC (r=0.94, p<0.01) and MLD (r=−0.67, p<0.01), respectively, indicating the more MW contribution and shallower MLD, the higher the water stability. In other words, the melt water has a high concentration of dissolved iron, so the Fe limit may be lifted in high stability waters columns (Costa et al., 2020; Mendes et al., 2018a; Wang et al., 2020). Three regions both received considerable MW inputs; however, mesoscale processes such as anticyclonic eddies (e.g., approximately 40 km in diameter, centered at 62°S and 54°W) maintained by regional topography and energy from strong shears of the ASF exist in Region II (Thompson et al., 2009) resulting in stronger mixing and the most unstable water environment in this region (deepest MLD and lowest E _stability). In this study, although no significant statistical relationship was found between E _stability (or MLD) and phytoplankton crops, a stable water environment favors the growth of phytoplankton (Mendes et al., 2012) which is consistent with our observations of lower Chl a concentration in Region II where the water stability was lowest (Figs 2f and 5a).

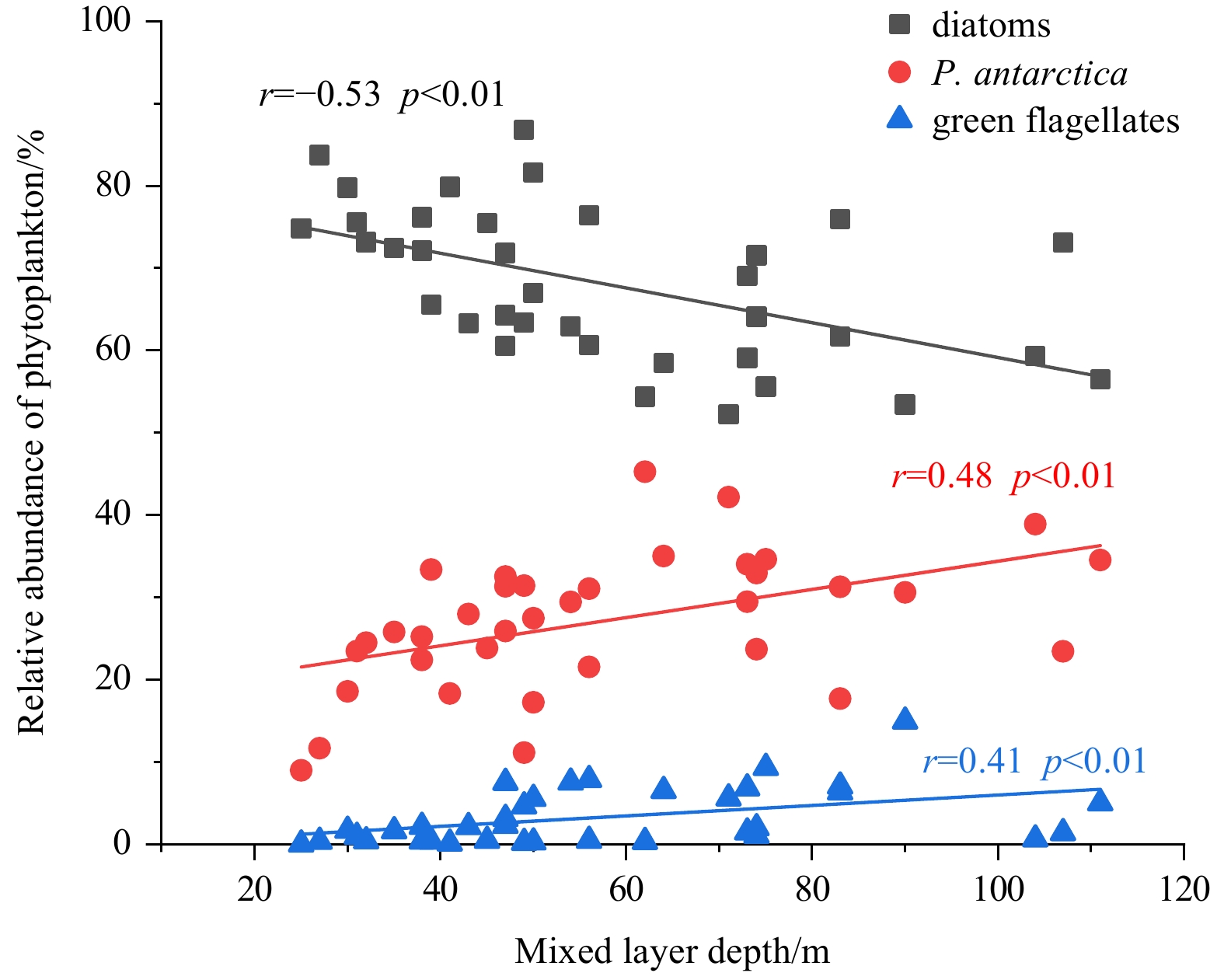

Moreover, E _stability and MLD showed significant correlation with the percentage of diatoms (r=0.20, p<0.01; r=−0.53, p<0.01), and inverse correlation with P. antarctica (r=−0.20, p<0.01; r=0.48, p<0.01) and green flagellates (r=−0.44, p<0.01; r=0.41, p<0.01) (Fig. 8). The vertical profiles of phytoplankton crops and taxonomic composition demonstrated obvious differences among stable and unstable water columns (Fig. 7). In the well-mixed water with deep MLD, the phytoplankton could be physically carried up and down and even below the Zeu depth, and the induced possible light limitation and unstable environments may result in a constant (0–200 m) but low crops having high and constant nanophytoplankton proportion in the water column (e.g., Stations D3-03 and D3-05 of Region II, Fig. 7). This is in line with dominance of nanoflagellates (e.g. cryptophytes and P. antarctica) in the open-ocean area of Weddell Sea (Mendes et al., 2012). In contrast, a high and dynamically decreasing crops below the mixed layer was observed in the water column with strong stratification and high stability, where the dominant phytoplankton changed from diatoms to P. antarctica (e.g., Stations D1-10 and D2-06 of Region I, Stations D5-06 and D6-03 of Region III, Fig. 7). The vertical changes of algal crops and taxonomic composition should be attributed to the rapid light attenuation caused by strong water stratification, as suggested by the negative relationship between E _stability and Zeu (r=−0.84, p<0.01). Additionally, the slope of linear regression between the sum of Phytin-a and Phide-a concentration with Chl a concentration is a strong indicator of grazing pressure (Mendes et al., 2012). Although no significant correlation was found in the high Chl a part (Chl a concentration>0.16 mg/m³) of Region II, the concentration of degradation products was significantly higher than that of the low Chl a part (Chl a concentration<0.16 mg/m³) (p < 0.01). The feeding activity of the stations with low Chl a concentrations (k=0.08) was much lower than that of the whole Region II (k=0.22) (Fig. 9b), which confirms that zooplankton has patchy distribution characteristics similar to phytoplankton (Jeffrey et al., 1997). The lower slope and concentrations of Chl a degradation products in the well-mixed (low Chl a concentration) water column indicates weak feeding activities by herbivorous zooplankton in Region II (Figs 3 and 9).

4.4 Perspective in evolution of the phytoplankton taxonomic composition and its ecological effect

As the northernmost region of Antarctica, the Antarctic Peninsula with limited glaciers is suffering rapid warming (more than twice as fast as the global average), accelerated retreat rates of sea ice, and attenuation of glaciers during the past decades, due to anthropogenic activity and natural circulation variability (Clem et al., 2020; Cook et al., 2016; Martinson et al., 2008; Rozema et al., 2017; Stammerjohn et al., 2008; Turner et al., 2017). Simultaneously, significantly earlier sea ice retreating (around 1 month), later sea ice advancing (around 2 months), and shortening of sea ice duration (around 3 months) in the Antarctic Peninsula regions were also reported through a 26 a period observation study (Stammerjohn et al., 2008). Austral summer is the most suitable season for phytoplankton growth and contributes nearly the whole year’s primary productivity in the continental marginal sea of Antarctica (Park et al., 2010). To track the succession of the phytoplankton taxonomic groups under climate change, it is important to explore the trends and monthly and annual variations of the phytoplankton composition, especially during the austral summer.

As discussed in previous sections, the study area is a sensitive region of ice−sea interactions, which could induce various changes in a variety of environmental drivers such as MLD, light conditions, and micronutrient inputs. According to previous studies, the schematic of the annual evolution of past phytoplankton taxonomic groups is presented in Fig. 10a. However, in the future, the occurrence of phenomena mentioned above could significantly affect the marine ecosystem and biological carbon pump therein. In early spring with relatively low light intensity, the increasing temperature of air and surface seawater could lead to earlier retreating of sea ice and melt water input, and result in a shallow MLD with Fe-rich upper-layer water. However, due to the light limitation in early spring, the phytoplankton crops would still be low, which is also a premature consumption and waste of this Fe-rich water (Fig. 10b). In late spring and the early summer, the influence of the increasing light intensity and continuous glacial melt water input could cause diatom blooms to occur earlier. The diatoms could contribute around 57%−80% to the phytoplankton community during early summer (Table 3). However, due to the premature consumption and loss of Fe-rich sea ice melt water in spring, the Fe availability may become worse and water stratification may weaken in the coastal region, resulting in a much shorter period of diatom blooms in early summer (Fig. 10b). After that, with the continuously decreasing sea ice melt water input and strong wind mixing, a deeper MLD with weak water column stability could significantly favor the growth of smaller phytoplankton in the remaining lighting time during the year (Fig. 10b). This is supported by the quickly shift (from simple to complex) of phytoplankton taxonomic composition from early summer to late summer (Table 3). As shown in Table 3, the first two major taxonomic groups could account for more than 90% of the total phytoplankton community during early summer. In contrast, the groups only accounted for around 70% in late summer, but the proportion of smaller phytoplankton (dinoflagellates, cryptophyta and P. antarctica) increased significantly (e.g., Region I, 36%−45%; Region II, 43%−72%; Region III, 30%−75%).

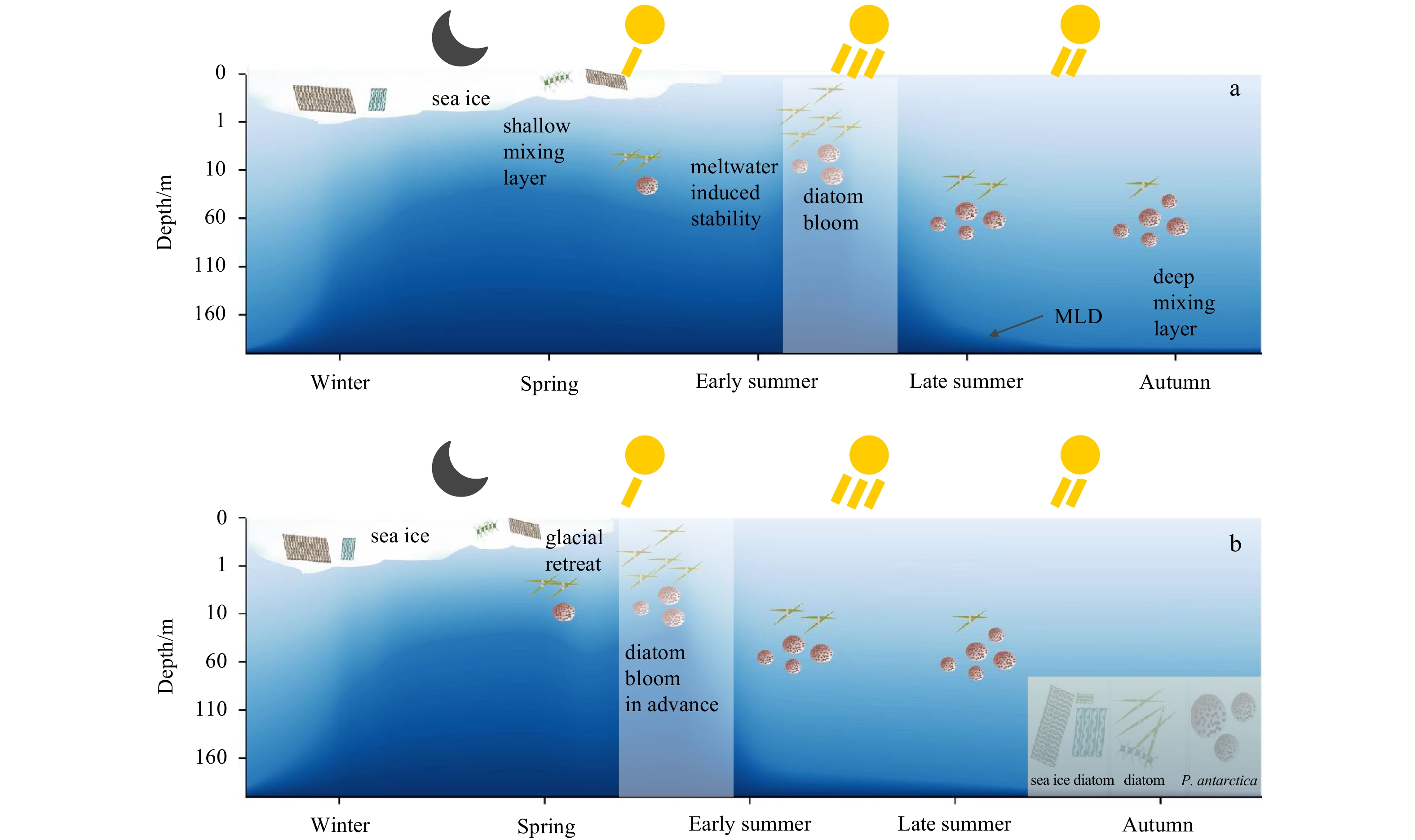

With the shortening of sea ice duration, the period with favorable environmental conditions (Fe-rich and shallower MLD) for large diatom blooms is continuously shortening, and the period with a deep MLD and Fe-poor conditions, which is favorable for smaller cryptophyta and P. antarctica, is much longer (Fig. 10b). For example, the proportions of diatoms in Region I during early summer decreased from ~80% in January 2010 (García-Muñoz et al., 2013) to ~64% in January 2016 (this study), and from ~60% in February and March 2008 (Mendes et al., 2012) to ~55% in February and March 2013 (Russo et al., 2018) during late summer. Moreover, the proportions of smaller phytoplankton (e.g., P. antarctica, Chemotaxonomic group and others) in Region I during early summer increased from ~20% in January 2010 (García-Muñoz et al., 2013) to ~36% in January 2016 (this study), and from ~40% in February and March 2008 (Mendes et al., 2012) to ~45% in February and March 2013 (Russo et al., 2018) during late summer. Because part of the original large diatom-derived primary production would be replaced by a miniaturized phytoplankton taxonomic groups, the induced increasing biomass of small herbivores (e.g., copepods) and carbon-poor gelatinous zooplankton (e.g., salps) would lead to much lower biological pump efficiency (Costa et al., 2020; Wang et al., 2020) due to the lower carbon sequestration and deposition flux (Belcher et al., 2017; Moline et al., 2004; Murphy et al., 2007; Tréguer et al., 2018). Moreover, the decreasing crops and proportion of large diatoms, which are a favorable food and major source of energy for krill in spring and summer (suggested by a significantly correlated percentage of diatoms and products of feeding activities (e.g., Phytin-a and Phide-a) (r>0.46, p<0.01)), and an increasing abundance and relative proportion of nanophytoplankton (e.g., cryptophyta and P. antarctica), which are more efficiently grazed by carbon-poor salps (Cadée et al., 1992; Kerr et al., 2018b; Moline et al., 2004), may lead to the degeneration of the spawning ground for krill and even the migration of higher predators in the Antarctic Peninsula coastal region (Forcada et al., 2012). The changing of keystone species (diatoms and krill) would result in further changes in this marine ecosystem.

5 Conclusions

Less

The northeastern Antarctic Peninsula is a region with complex environmental settings and variable phytoplankton taxonomic composition. In the coastal area (e.g., the South Orkney Island adjacent region and the region north of South Shetland Island), a strong intensity of PAR and high freshwater input from adjacent surface sea ice or glacial MW characterized the environmental settings therein. These environmental drivers promote water stability, induce shallow MLD, and relieve potential Fe limitations for phytoplankton growth. Consequently, significantly higher phytoplankton crops were observed in the coastal region of the Antarctic Peninsula and South Orkney Island. The relative proportion of diatoms, which favor high light intensity, a stable water column, and high-Fe waters, were more concentrated in this region. In offshore areas (e.g., Philip Ridge and South Scotia Ridge), despite much more abundant macronutrients, strong water mass interactions (ASF, WF, ACC, and eddies) provided an environment with a deep MLD and weak water column stability, and combined with relatively low PAR and limited Fe inputs. All of these environmental drivers contributed to low phytoplankton crops and less herbivore activities therein. Moreover, this environment favors the growth of small phytoplankton (e.g., P. antarctica and green flagellates), which have higher Fe-uptake efficiencies and are better adapted to light limitation and unstable environments compared to large diatoms. Since the Antarctic Peninsula has limited glaciers and is suffering rapid warming, it is experiencing an earlier sea ice retreat, shorter sea ice duration, and changes in the period and degree of water mixing (Stammerjohn et al., 2008). These changing ice−sea interactions would eventually lead to large changes to this ecosystem (e.g., miniaturization of the phytoplankton taxonomic groups) and a lower biological pump efficiency. More long-term observations are needed to further understand the ecosystem dynamics of this rapidly changing environment.

Acknowledgements

Less

We thank the crews of the R/V Xuelong for their assistance with sample collection and the hydrological data provided by the Physical Ocean Group. We also thank the editor and two anonymous reviewers for their constructive comments.

Funding

Less

The program of Impact and Response of Antarctic Seas to Climate Change under contract No. IRASCC2020-2022 (01-01-02 and 02-02); the National Natural Science Foundation of China under contract Nos 41976228, 41976227 and 41506223; the Scientific Research Fund of the Second Institute of Oceanography under contract Nos JG1805, JG2011 and JG2013.
