Carbonate system in the subtropical Jiulong River Estuary and CO₂ flux estimation under modulation of tidal cycle

Full

Weicong Chen¹, Heng Sun¹, Zhongyong Gao¹^,²^,^*, Jiaming Lin², Min Xu², Aijun Wang³^,⁴^,⁵, Shuqin Tao³^,⁴^,⁵

Affiliations

¹ Key Laboratory of Global Change and Marine Atmospheric Chemistry, Third Institute of Oceanography, Ministry of Natural Resources, Xiamen 361005, China

² School of Marine Biology, Xiamen Ocean Vocational College, Xiamen 361100, China

³ Laboratory of Coastal and Marine Geology, Third Institute of Oceanography, Ministry of Natural Resources, Xiamen 361005, China

⁴ Fujian Provincial Key Laboratory of Marine Physical and Geological Processes, Xiamen 361005, China

⁵ Observation and Research Station of Island and Costal Ecosystem in the Western Taiwan Strait, Ministry of Natural Resources, Xiamen 361005, China

Published: 2024-11-25 doi: 10.1007/s13131-024-2433-5

Outline

Abstract

Less

Estuaries are often a significant source of atmospheric CO₂. However, studies of carbonate systems have predominantly focused on large estuaries, while smaller estuaries have scarcely been documented. In this study, we collected surface and bottom seawater carbonate samples in the subtropical Jiulong River Estuary across different tidal levels from 2019 to 2021. The results showed that estuarine mixing of freshwater from the river with seawater was the dominant factor influencing the estuarine carbonate system. Moreover, estuarine mixing is concomitantly impacted by the net metabolism of biological production and decomposition, groundwater input, release of CO₂ from the estuary, and precipitation or dissolution of calcium carbonate. The estuarine partial pressure of CO₂ (pCO₂) varied from 530 μatm to 7715 μatm, which represents a strong source of atmospheric CO₂. The mean annual air-sea CO₂ flux estimated from three different parameterized equations was approximately (25.63 ± 10.25) mol/(m²·a). Furthermore, the annual emission to the atmosphere was approximately (0.031 ± 0.012) Tg C, which accounts for a mere 0.0077%−0.015% of global estuarine emissions. Dissolved inorganic carbon (DIC), total alkalinity (TA) and the pCO₂ exhibited high variability throughout the tidal cycle across all cruises. Specifically, the disparities observed between DIC and TA during low and high tides at identical stations during all cruises ranged from approximately 15% to 30%. The variance in the pCO₂ was even more pronounced, ranging from approximately 30% to 40%. Thus, tidal discrepancies may need to be taken into consideration to estimate the CO₂ flux from estuarine systems more accurately.

Key words

carbonate system / tidal cycle / estuarine mixing / Jiulong River Estuary

Cite this Article

Weicong Chen, Heng Sun, Zhongyong Gao, Jiaming Lin, Min Xu, Aijun Wang, Shuqin Tao. Carbonate system in the subtropical Jiulong River Estuary and CO₂ flux estimation under modulation of tidal cycle[J]. Acta Oceanologica Sinica, 2024 , 43 (11) : 12 -25 . DOI: 10.1007/s13131-024-2433-5

Full Text

Less

1 Introduction

Less

Estuaries are among the most productive marine ecosystems and are generally considered to be semienclosed areas connected to the outer sea, where seawater is significantly diluted by freshwater from land runoff (Gattuso et al., 1998; Pritchard, 1967). Estuaries are subject to both tidal and runoff actions; they are water bodies with short retention times and circulation periods and rapidly changing hydrodynamic conditions. In addition, estuarine deltas are often human gathering places, and rivers import large amounts of organic matter and nutrients into estuaries, which are generally characterized by pronounced physicochemical gradients, active biology, and strong sedimentation dynamics (Abril and Borges, 2005). After dividing the global ocean into estuaries (0.3%), the continental shelf (7.2%), and the open ocean (92.5%), the contribution of estuaries to the carbon balance is significant despite their small size (Walsh, 1988). The CO₂ fluxes released to the atmosphere from estuaries are numerically equal to those from the continental shelf, and both play a significant role in global carbon flux (Borges et al., 2005; Cai et al., 2006; Takahashi et al., 2002, 2009). Therefore, it is necessary to study the carbonate system in estuaries to evaluate the global carbon cycle.

Historical studies have shown that estuaries are generally sources of atmospheric CO₂, with inner estuaries being strong sources and outer estuaries being weak sources or weak sinks. Chen assessed air-sea CO₂ fluxes from 165 estuaries worldwide and found that mid-latitude estuaries export the most CO₂ to the atmosphere, followed by low-latitude estuaries and high-latitude estuaries. CO₂ flux is related to water temperature, seawater residence time, and complex biogeochemical processes (Chen et al., 2013). Due to shallow and easily churned water, turbidity in inner estuaries is usually high, biological photosynthesis is inhibited, and a high nutrient input leads to increased biological respiration. When organic carbon consumption is higher than production, the estuary is in a state of heterotrophic metabolism (Hellings et al., 2001), but this does not necessarily mean that the estuary is transporting CO₂ to the atmosphere.

Many studies have revealed that the carbonate system in estuaries is significantly influenced by tidal forcing in addition to processes such as riverine inputs, biological respiration and photosynthesis, mineralization of organic matter, and precipitation and dissolution of calcium carbonate. Dai et al. (2009) found a negative correlation between tidal height and pCO₂ in estuaries along the Taiwan Strait and suggested that tidal mixing is the main process controlling the change of pCO₂ in surface seawater. Liu et al. (2019) revealed that the sea surface pCO₂ was mainly controlled by tidal mixing except in summer on a daily scale in Hangzhou Bay.

Currently, most studies of estuarine carbonate systems and carbon fluxes have focused on large estuarine deltas, with less research having been done on smaller estuaries. There have been few studies on the carbonate system in the Jiulong River Estuary (JRE), although, in recent years, Yin et al. (2020) reported inorganic carbon dynamics in the Jiulong River basin and estuary and explored the process of additional inorganic carbon production through isotope analyses. However, Yin et al. (2020) did not consider the strong tidal action in the Jiulong River estuary. In this study, we analyze tidal variation for a more in-depth understanding of the JRE. We also report the level of air-sea CO₂ fluxes in the JRE, which has not been discussed previously.

The aim of this study was to analyze seawater samples collected throughout the salinity gradient in different seasons and at different tides and to use data on various parameters of the carbonate system, as well as temperature, salinity, dissolved oxygen, and turbidity, to investigate the mechanism of the rapid change in the estuarine carbonate system in the tidal cycle. In addition, we sought to clarify the sources and sinks of inorganic carbon and to evaluate the level of CO₂ fluxes at the air-sea interface of the JRE, thus contributing to the assessment of carbon emissions from subtropical estuaries.

2 Materials and methods

Less

2.1 Study site

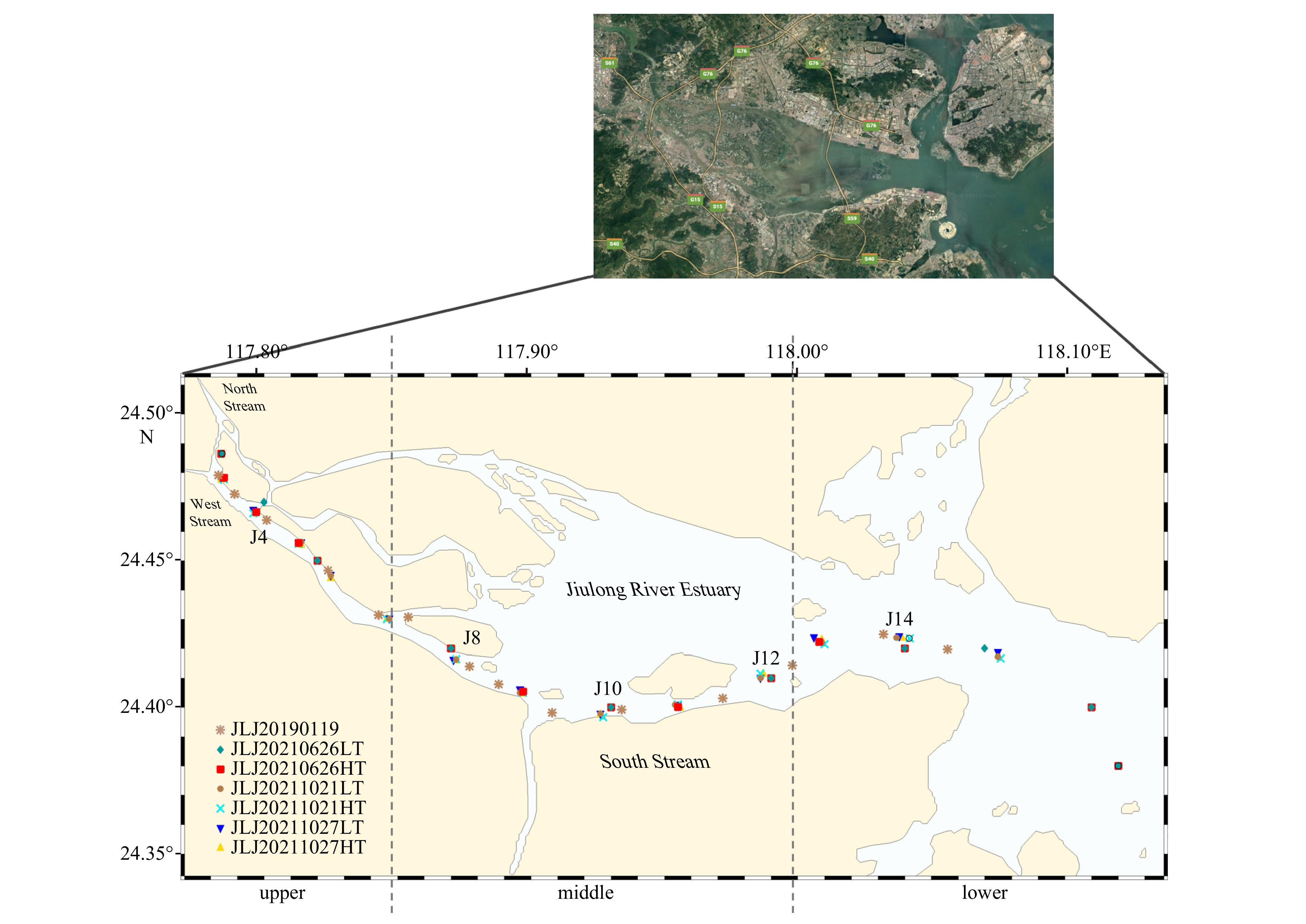

The JRE (Fig. 1) is located in the southeastern part of Fujian Province, China (24.37°–24.50°N, 117.75°–118.15°E) and is influenced by a monsoon climate, with obvious seasonal variation in rainfall. Annual precipitation falls within the range of 1400–1800 mm, precipitation is abundant from May to September and dry from October to January (Li et al., 2023). The JRE is a shallow estuary with a water depth of approximately 3–18 m (Li et al., 2011). The Jiulong River is the second largest river in Fujian Province, with a large catchment area and three major tributaries (the northern stream, western stream, and southern stream) converging in the JRE. The JRE is subject to variation in tidal influence and is dominated by semidiurnal tides, with a maximum difference of 5 m in tide level. The water is rapidly renewed, and Wang et al. (2015) used radium isotopes to calculate an estuarine water mass residence time of only 1 day to 3 days. The dual effect of land runoff and tides makes for complex hydrodynamic conditions in the estuary (Li et al., 2021). There is an inhabitant population of 6.5 million people within the watershed, rapid industrialization and urbanization have caused severe anthropogenic disturbance over the past few decades. Furthermore, livestock farming is widespread in the upper reaches of the northern streams and produces large amounts of organic waste, so the JRE maintains high nutrient levels (Wu et al., 2017).

The JRE is divided into the upper estuary (117.75°–117.85°E), middle estuary (117.85°–118°E), and lower estuary (118°–118.15°E) based on differences in physical, chemical, and geomorphic environments. The upper reaches are narrow and dominated by freshwater input from the river, the middle reaches have the strongest mixing and are dominated by brackish water, and the lower reaches are close to Xiamen Bay and are dominated by saltwater input from the ocean (Yan et al., 2012).

2.2 Surveys and sampling

In this study, surface and bottom seawater samples were collected in different seasons from the mouths of the northern stream and western stream along a salinity gradient to the mouth of Xiamen Bay. A total of seven cruises were made: 19 January 2019 (sampling occurred during the transition from low to high tide, which is more characteristic of low tide), 26 June 2021 during low tide and high tide, and 21 and 27 October 2021 for low and high tide (Fig. 1). On 21 and 27 October 2021 (the spring tide and neap tide of that month), high tide reached 603 cm and 528 cm, respectively, according to data from Xiamen Harbor, which is close to the mouth of Xiamen Bay (www.chaoxibiao.net). The stations were set up similarly on each cruise, primarily to achieve full coverage of the salinity gradient and to facilitate observations of tidal differences.

Parameters such as temperature, salinity, DIC, total alkalinity (TA), dissolved oxygen, and turbidity were measured. DIC and TA samples were collected according to the “Guide to best practices for ocean CO₂ measurements”. A 250 mL glass bottle was washed 2–3 times, the sampling tube was inserted into the bottom, and the tube was squeezed to allow seawater to spill out at a uniform rate at least half the volume of the bottle before the tube was slowly pulled out. After collecting samples, a saturated mercuric chloride solution was immediately added to the bottle to inactivate any biological activity. The bottle was then sealed by applying vacuum grease around the mouth and stopper and transported back to the land laboratory for analysis after the cruise. Temperature, salinity, dissolved oxygen, and turbidity were measured in situ. Temperature (±0.1℃) and salinity (±0.1) were measured with a conductivity meter (Cond 3110, WTW) and dissolved oxygen (DO) (±0.01 mg/L) was measured with a portable dissolved oxygen meter (HQ30d, HACH).

2.3 DIC and TA measurements

The DIC samples were analyzed with a total dissolved inorganic carbon analyzer (AS-C3, Apollo Co. USA) to quantify the total dissolved inorganic carbon in seawater based on the peak area of the infrared spectrum of the LI-7000 CO₂/H₂O analyzer with an accuracy of approximately ±2 μmol/kg. TA samples were analyzed by Gran potentiometric titration (Gran et al., 1950) using a high precision pH meter, pH electrode, and a TA titrator (AS-ALK2, Apollo Co. USA) with an accuracy of approximately ±2 μmol/kg. The methods used for DIC and TA are widely recognized (Sun et al., 2020, 2021; Wang et al., 2013).

The measurements were calibrated with Certified Reference Material (CRM) provided by Professor Dickson of the Scripps Institution of Oceanography, USA. The CRM was first analyzed to obtain 2–3 values with an error of less than 0.1% before the samples were measured. In this study, we used CRM batch #139.

2.4 Calculations

In this study, the carbonate system software CO2SYS was used to calculate pH and pCO₂ (Lewis and Wallace, 1998), and the value of the carbonate dissociation constant was chosen for a freshwater system (Millero, 2010). Orr et al. (2015) have pointed that the original version of Millero (2010)’s carbonate dissociation constant is subject to an error. Li et al. (2022) verified that used a value of α₅ for K₂ from Millero’s unpublished spreadsheet further reduced the error. Therefore, the value of α₅ = −3.3738 for K₂ was also used in this study to replace the α₅ = –3.374 in the original version for improved accuracy. The calculation of the sea surface pCO₂ by CO2SYS has been generally accepted as a simple and reliable method (Ries, 2011).

Temperature changes the solubility and dissociation constant of CO₂ and generally has an important influence on the sea surface pCO₂. According to the temperature effect coefficient, the sea surface pCO₂ increases by approximately 4.23% for each 1℃ increase (Takahashi et al., 1993). To eliminate the effect of temperature on the sea surface pCO₂, NpCO₂ was calculated by normalizing the temperature to the mean temperature.

(1)

${\mathrm{N}}{p{\rm{CO}}_2} =p \mathrm{CO}_2 \cdot \mathrm{e}^{ \mathrm{0.043} ({\overline{{\mathrm{SST}}}}-{\mathrm{SST}})}, $

where SST is the in situ sea surface temperature (℃),

$\overline {{\mathrm{SST}}} $

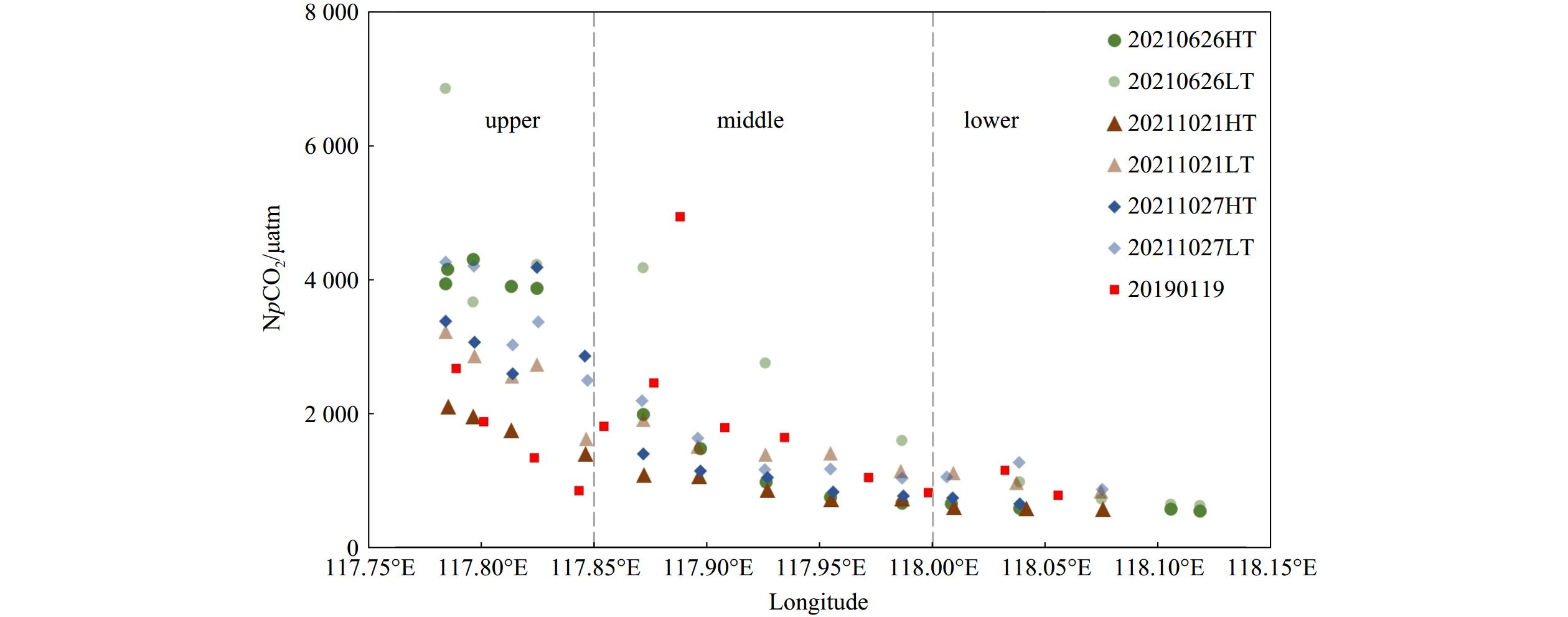

is the mean sea surface temperature (℃) and NpCO₂ was used to remove the effect of temperature to determine the influence of other factors on the pCO₂.

The air-sea CO₂ fluxes in this study were calculated using the air-sea CO₂ partial pressure difference method, calculated as

(2)

${\mathrm{F}} \mathrm{CO}_2 ={K}\cdot \alpha \cdot \Delta p \mathrm{CO}_2 . $

According to the new standard protocol HY/T 0343.4−2022 and HY/T 0343.7−2022 issued by the Ministry of Natural Resources of China for calculating air-sea CO₂ fluxes, and these were further amended as described below:

(3)

$ {\mathrm{FCO}_2} =({K}\times 24\times \alpha \times \rho \times \Delta p{\mathrm{CO}}_2 )/(1.013\;25\times 10 ^4), $

where K is the CO₂ transport rate, α is the solubility of CO₂ in seawater under certain temperature and salt conditions, and the calculation of α is now well established (Weiss, 1974). ρ is the density of surface seawater and ΔpCO₂ is the difference between the surface sea pCO₂ and atmospheric pCO₂.

(4)

$ {K}={ {k}}_{600}\times ( {Sc}/600)^{-0.5} ,$

where Sc is the Schmidt constant for a given temperature and salt condition (Amann et al., 2015). K is generally considered to be a function dominated by wind speed, and, in this study, different wind speed parametric equations proposed by Ho et al. (2011), Van Dam et al. (2019), and Jiang et al. (2008) for shallow estuaries were used to estimate K values.

(5)

$ {k}_{600}=0.06+0.266\times {U}_{10}^2( \mathrm{Ho\;et\;al}.,2011), $

(6)

$ {k}_{600} =1.3\times {U}_{10} +3.8\;( \mathrm{Van\;Dam\;et\;al.,}\;2019), $

(7)

$ {k}_{600} =3.99-0.436\times {U}_{10}+0.314\times {U}_{10}^2\;( \mathrm{Jiang\;et\;al.,}\;2008), $

where U₁₀ is the wind speed at a height of 10 m. Real-time wind speeds were not measured on the ship carrying the expedition, and the wind speed data used in this study were provided by the Xiamen Gao qi International Airport monitoring station (24.48°N, 118.08°E, 14 km straight-line distance from the JRE, https://www.wunderground.com). Real-time wind speeds vary rapidly, and to better investigate tide-induced flux differences, daily average wind speeds were used for the same sampling day.

3 Results

Less

3.1 General water properties

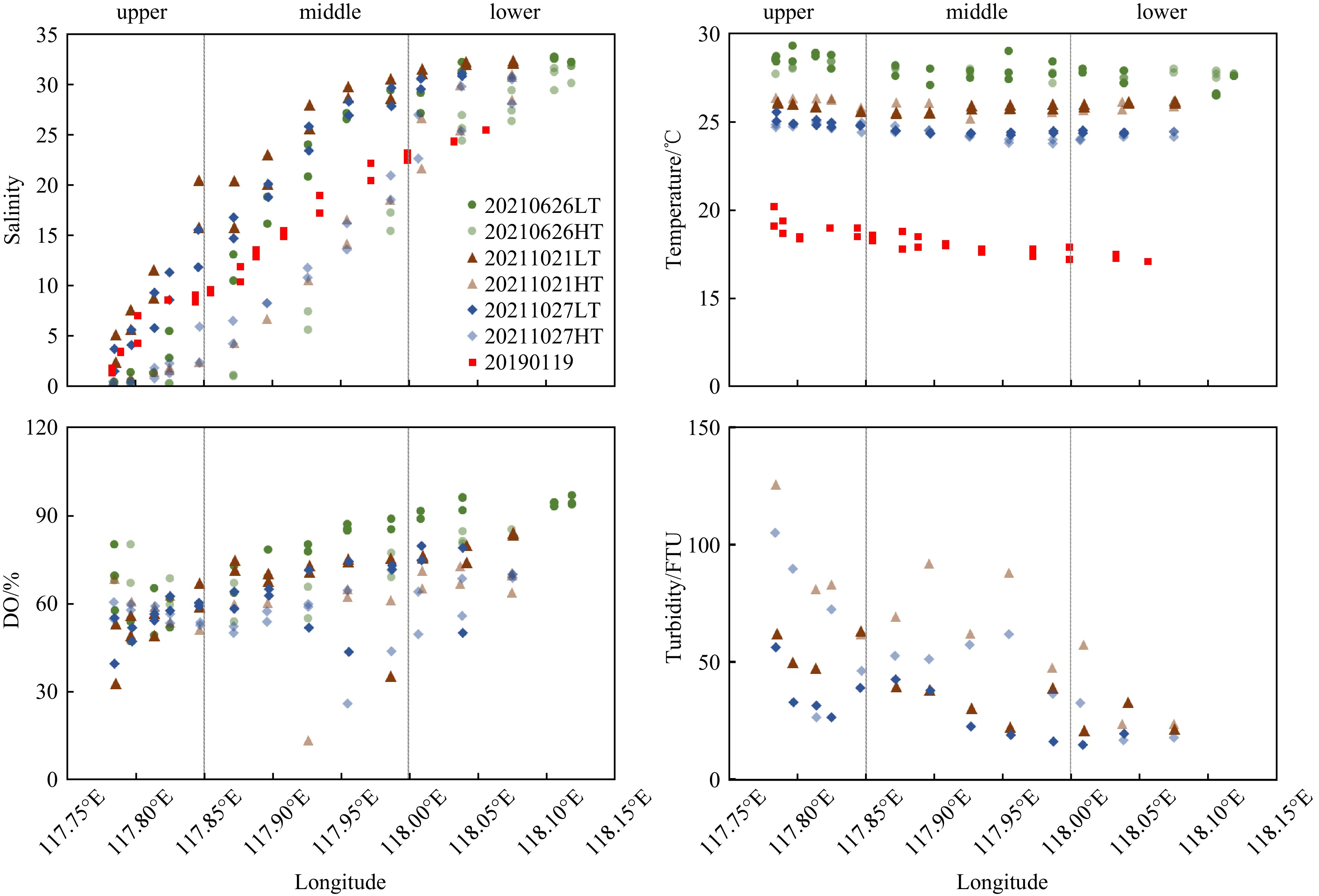

Salinity ranged from 0.15 to 32.70, generally increasing gradually from the upper to lower estuary (Table 1, Fig. 2), with low salinity near the river and high salinity near the ocean. Salinity was lowest in summer and highest in winter, but the seasonal differences were not significant. Differences in salinity due to tidal variation were pronounced, with mean salinity in the upper and middle estuary at high tide much greater than at low tide, thanks to an influx of highly saline water from the ocean to the deeper part of the estuary at high tide. Temperatures decreased slightly from the upper to lower estuary, with seasonal variation. The highest temperatures occurred in summer (as high as 30.2℃), followed by autumn, and the lowest temperatures occurred in winter (as low as 17.1℃). Overall, temperatures remained high, creating the ideal conditions for organic matter to decompose aerobically in the water column and anaerobically in the sediment.

Dissolved oxygen (DO) increased gradually from the upper to the lower estuary, approaching saturation in the lower estuary. An average dissolved oxygen value above 50% occurred for all cruises, with a maximum value of 96.8%. Although the estuary is not an anoxic environment, an overall oxygen deficit does not support the biosorption of inorganic carbon. Turbidity was greatest in the upper estuary, followed by the middle estuary, and turbidity was least in the lower estuary. This is due to the river scouring the mudflats and other environments and to the shallow depth of the estuary and the easy mixing of the water body. In surface waters, the distribution of turbidity and dissolved oxygen showed a negative correlation. High turbidity caused light limitation and inhibit biological photosynthesis, so the net effect of photosynthesis and respiration will be weakened.

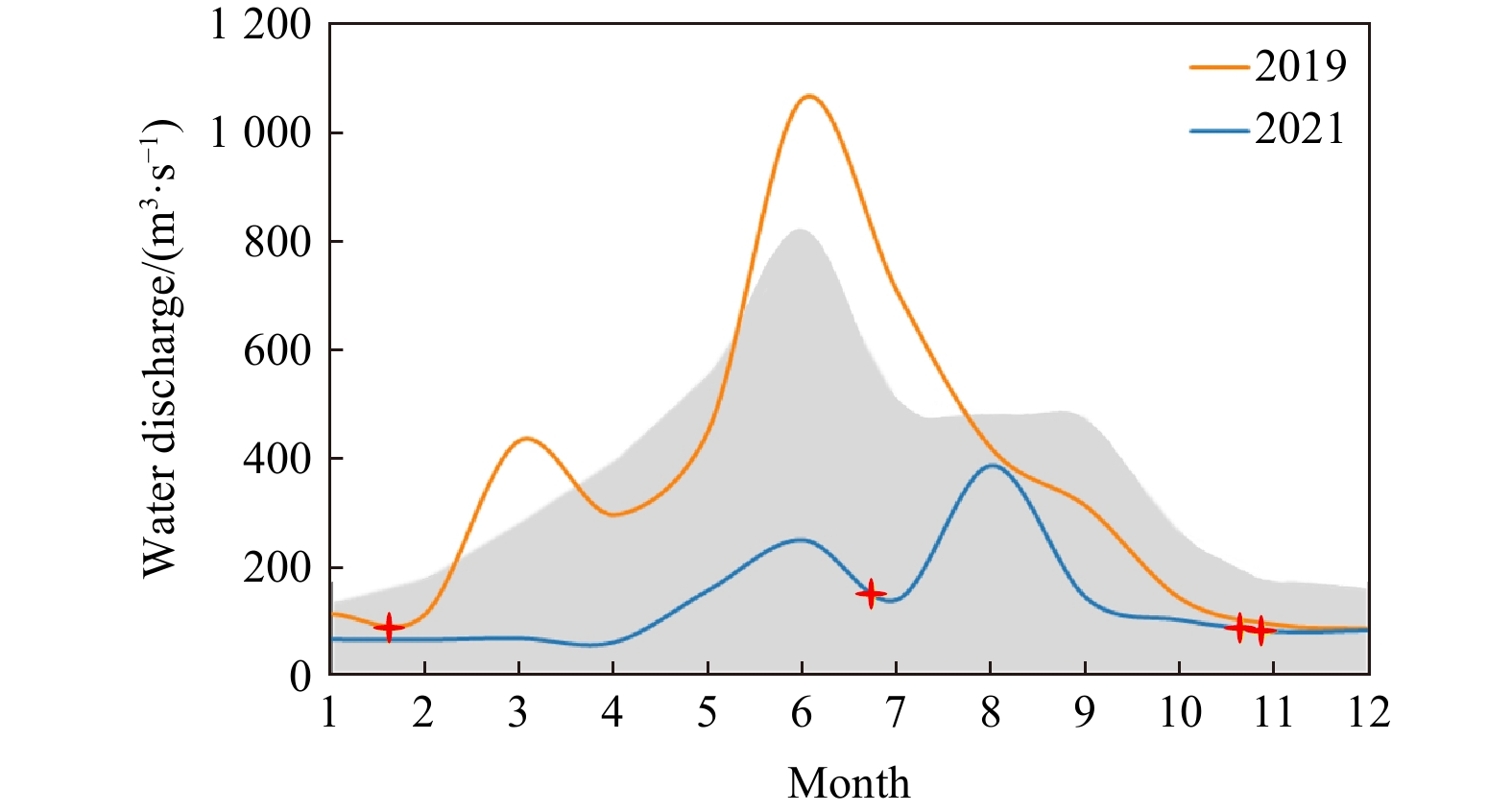

Without considering the state of anthropogenic factors, runoff into the JRE can be approximated as the sum of the runoff from the two hydrological stations: Punan in North Stream and Zhengdian in West Stream. Seasonal variation in runoff was plotted according to the river discharge data provided by the Ministry of Water Resources, China (http://xxfb.hydroinfo.gov.cn). The results showed that river discharge is highest in summer, followed by autumn and then winter (Fig. 3).

3.2 Distribution of carbonate system parameters during the tidal cycle

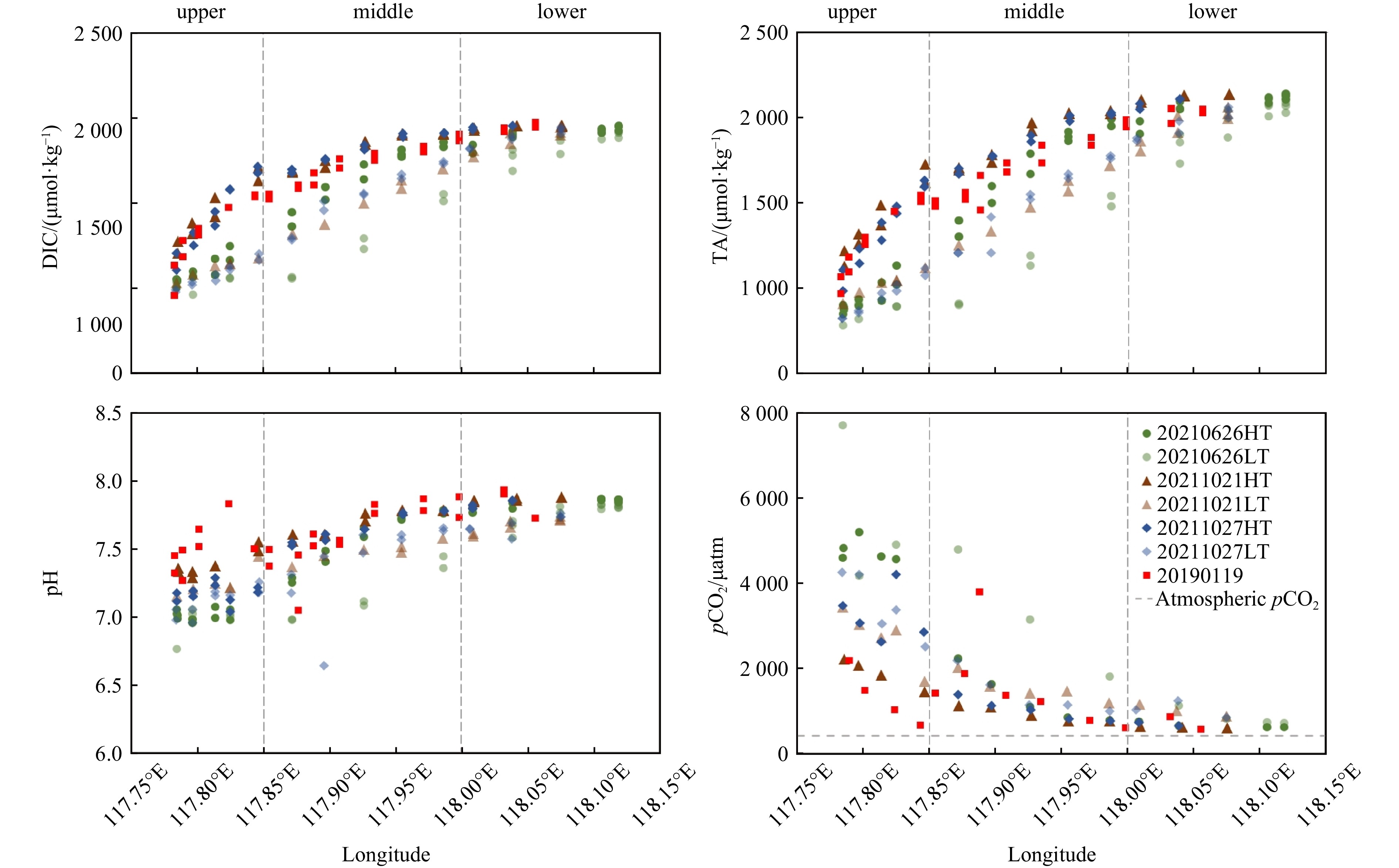

DIC concentrations in the JRE ranged of 956–1971 μmol/kg, with the highest mean concentration of (1633 ± 242) μmol/kg in winter, the second highest concentration of (1594 ± 314) μmol/kg in autumn, and the lowest concentration of (1549 ± 362) μmol/kg in summer (Table 2). TA varied from 790 μmol/kg to 2145 μmol/kg, with the highest mean value of (1633 ± 297) μmol/kg in winter, the second highest value of (1608 ± 408) μmol/kg in autumn, and the lowest value of (1574 ± 498) μmol/kg in summer, which was caused by dilution due to an increase in runoff after high precipitation in summer. The spatial distribution of DIC was similar to that of TA, being lowest at the riverine end, gradually increasing along the salinity gradient from the upper to lower estuary, and reaching its highest value at the oceanic end (Fig. 4) where it increased slightly with depth. pH ranged from 6.59 to 8.05, with the highest values in winter, followed by autumn, and then summer. pH also increased gradually along the salinity gradient, with low values and greater variability in the upper estuary and high, stable values in the lower estuary.

The pCO₂ in the surface waters of the JRE varied from 556 μatm to 7761 μatm, decreasing significantly from the upper to the lower estuary, which suggests the existence of a strong CO₂ release process. The pCO₂ in the lower estuary remained higher than the atmospheric equilibrium pCO₂ (approximately 406 μatm), suggesting that the whole estuary acted as a source of atmospheric CO₂. The pCO₂ showed great seasonal variability, with mean values of (2620 ± 2093) μatm in summer, (1771 ± 1060) μatm in autumn, and (1369 ± 880) μatm in winter. In addition, high pCO₂ values were found to be accompanied by low pH in combination with the distribution of pH.

According to tidal data from Xiamen Harbor, the difference in tidal height between high tide and low tide on the same sampling day was approximately 4–5 m, which was consistent with the water depth data obtained from sampling. High tide and low tide reflected the difference in the degree of mixing. DIC, TA, and pH in the JRE had significant tidal differences (Fig. 4): these factors were all high at high tide and low at low tide, while, in contrast, the pCO₂ is high at low tide and low at high tide. At high tide, marine salt water with high DIC, high TA, high pH, and a low pCO₂ pours deeper into the estuary, making the carbonate system throughout the estuary significantly different than it is at low tide. The 21st day, as the spring tide, compared to the 27th day, as the neap tide in October 2021, also shares the above characteristics.

The JRE is strongly influenced by tidal action, and tidal variation seriously affects the carbonate system in the estuary. The difference between DIC and TA at low tide and high tide at the same stations in all cruises ranged from approximately 15% to 30%, and the difference was approximately 30% to 40% for the pCO₂. The differences caused by tidal variation were most pronounced in the middle estuary, where the magnitude of change in DIC and TA at Station J8 was close to 40%, and the magnitude of change in the pCO₂ was close to 60%, which suggests that the changes in the estuarine carbonate system caused by the tidal cycle are more pronounced than those caused by other processes.

3.3 CO₂ fluxes at the air-sea interface in the JRE

Our calculations indicated that air-sea CO₂ fluxes in the JRE had significant spatial and temporal variability (Table 3). It decreased significantly from upper to lower estuary, with a mean CO₂ flux of (131.2 ± 65.07) mmol/(m²·d) in the upper, (47.7 ± 25.91) mmol/(m²·d) in the middle, and (16.64 ± 10.69) mmol/(m²·d) in the lower, which was highly similar to the spatial distribution of sea surface pCO₂. The change in ΔpCO₂ resulted in the variation of air-sea CO₂ fluxes. The ΔpCO₂ decreased significantly at high tide compared to low tide, due to the substantial intrusion of low pCO₂ seawater from offshore into the JRE. Thus, the air-sea CO₂ fluxes of the JRE (including the upper, middle, and lower) were markedly reduced at high tides than at low tides. The potential for the entirety of the estuary to release CO₂ to the atmosphere was thereby greatly curtailed during high tide. Air-sea CO₂ fluxes were lower in winter than in summer and autumn, but all show positive values, suggesting that the whole JRE was transporting CO₂ to the atmosphere.

To estimate the annual mean air-sea CO₂ flux of the JRE, the spring pCO₂ data of Yin et al. (2020) were used for additional calculations because spring data were not obtained in this study. Averaged over different seasons, the annual mean air-sea CO₂ flux from the JRE was estimated to be approximately (25.63 ± 10.25) mol/(m²·a). The JRE covers an area of approximately 100 km² (Zheng et al., 2011) and emits carbon approximately (0.031 ± 0.012) Tg to the atmosphere annually. Historical studies have estimated annual global estuarine CO₂ emissions (in terms of C) to be approximately 0.2 Pg/a to 0.4 Pg/a, so the JRE accounts for approximately 0.0077% to 0.015% of global estuarine emissions. Note that given many estuaries worldwide experience semi-diurnal tidal fluctuations akin to the JRE, scaling findings to the global scale impels quantifying uncertainties introduced when failing to account for such tidal oscillations in air-sea flux assessments. Annual flux estimates could underestimate or overestimate net CO₂ emissions depending on whether flux is predominately tallied during high or low tide periods.

4 Discussion

Less

4.1 Carbonate system during estuarine mixing

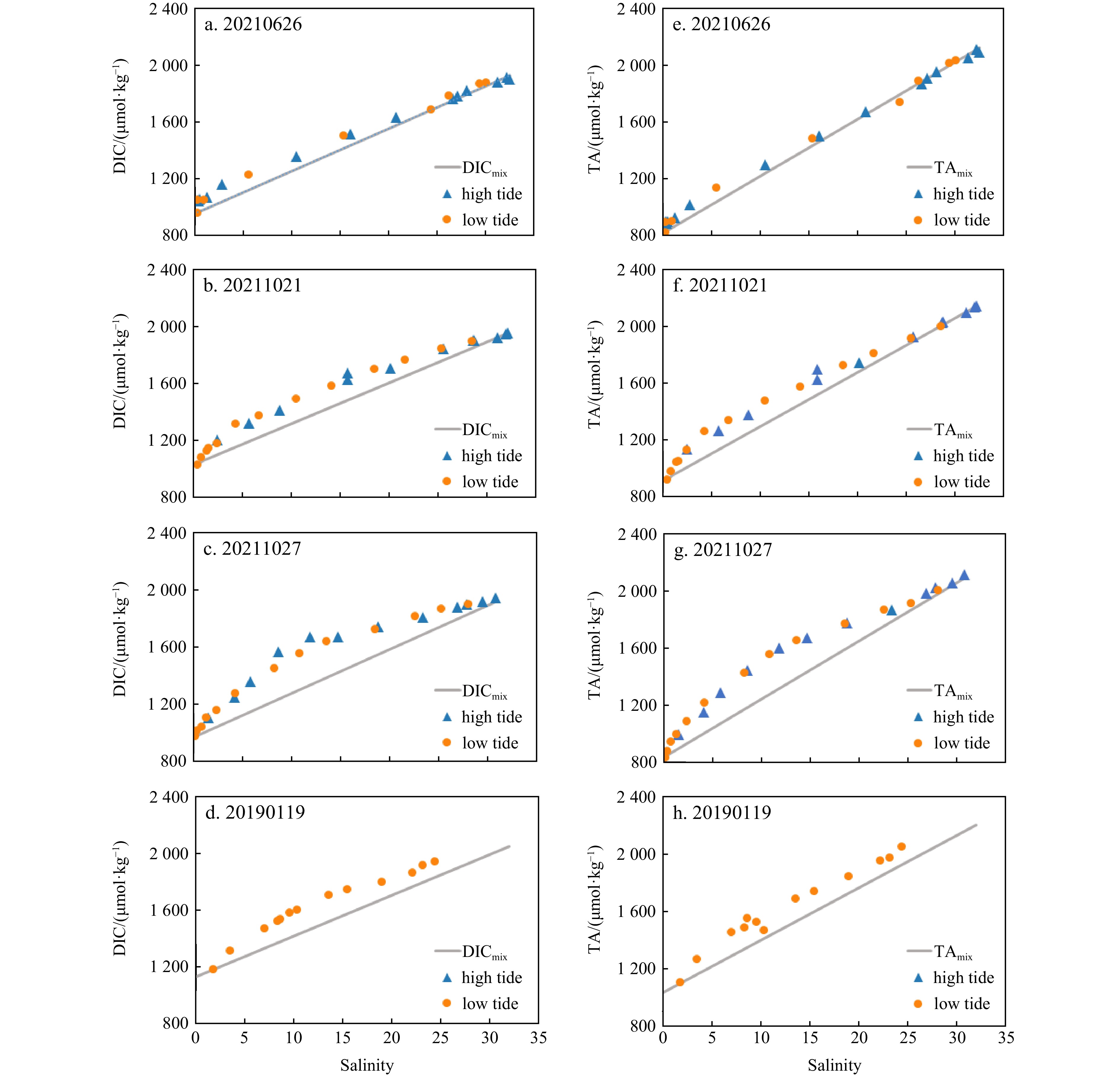

DIC and TA in the JRE were significantly and positively correlated with salinity, and both were near the conservative mixing line (Fig. 5), reflecting the fact that the exchange of river water and ocean water is close to conservative mixing, especially in summer.

To investigate the deviation of the sample DIC from conservative mixing, we used a two end-member mixing model to calculate the DIC concentration predicted by conservative mixing of riverine freshwater and marine hypersaline water at different salinities, referring to Samant’s study (Samanta et al., 2015). The DIC_mix value was calculated as follows:

(8)

$ \mathrm{DIC}_{\mathrm{mix}} =\mathrm{DIC}_{\mathrm{river}} \times(1-{S}_{\mathrm{sample}} /{S}_{\mathrm{ocean}} )+\mathrm{DIC}_{\mathrm{ocean}} ({S}_{\mathrm{sample}} /{S}_{\mathrm{ocean}}) .$

Deviation of the actual level from the conservative mix was evaluated by subtracting the DIC_mix value from the sample DIC value, and the excess of the sample DIC relative to the DIC_mix value was defined as excess DIC.

(9)

$ \mathrm{DIC}_{\mathrm{excess}} =\mathrm{DIC}_{\mathrm{sample}} -\mathrm{DIC}_{\mathrm{mix}}. $

Excess DIC is the sum of all DIC inputs from within the estuary. The mixing calculation for TA is similar to that for DIC and only requires that the corresponding DIC values are converted to TA values. DIC/TA is increased by respiration, decomposition of organic matter, and precipitation of calcium carbonate and decreased by photosynthesis, dissolution of calcium carbonate, and emission of CO₂. In addition, TA changes caused by the precipitation or dissolution of calcium carbonate alone are twice as large as those caused by DIC.

The DIC/TA concentrations at the stations during the summer were generally in line with the positions predicted by the conservative mixing of seawater and freshwater (Figs 5a, e). Less excess DIC/TA indicates that the variation in DIC/TA during the summer was almost entirely controlled by the conservative mixing of the river with seawater. Higher river discharge and short residence times reduce the reaction of water with the soil and sediment, allowing more carbon to flow out in a particulate state, thus making nonconservative DIC/TA inputs less pronounced. The high turbidity that prevents photosynthesis, combined with relatively low dissolved oxygen, indicates low primary production and no significant DIC removal in the estuary. Although the entry of rich DIC and TA pore water from the underground estuary of the Jiulong River into the JRE will increase DIC and TA, the output of groundwater is a nonpoint source of the estuary and will not lead to a significant increase in the mixing line under steady-state conditions (Wang et al., 2015). In addition, although the estuary is supersaturated with significant CO₂ emissions, it is likely to be compensated by CO₂ from processes such as respiration and denitrification and reach equilibrium, so no significant addition or removal of DIC occurs during mixing (Guo et al., 2008). Therefore, although a range of biogeochemical processes occur during mixing in the summer, their effects are limited relative to the mixing process.

However, in autumn and winter, several stations with significantly higher than conservative mixing concentrations (Figs 5b, c, d, f, g and h) were observed in the middle and upper estuary, suggesting that there are additional processes that produce DIC/TA. This phenomenon is slightly more pronounced at low tide than at high tide. As autumn and winter are dry seasons, low river runoff leads to less flushing, which may cause the addition of DIC/TA. CO₂ produced in sediments can increase DIC by mixing with estuarine water through tidal oscillations and pore water exchange (Jahnke et al., 2003). Additionally, under nonsteady-state conditions, groundwater output may cause DIC and TA to exhibit significant additions to the mixing line (Wang et al., 2015). Furthermore, aragonite saturation states (Ω) were calculated using CO2SYS software, and were found to be less than 1 in the upper estuary and in some parts of the middle estuary, demonstrating that the dissolution of calcium carbonate may have occurred. Overall, changes in DIC and TA in the JRE can be attributed to the combined effects of mixing processes, terrestrial runoff, aerobic respiration, remineralization of organic matter, precipitation and dissolution of CaCO₃, CO₂ release from the air-sea interface, and subterranean estuarine inputs.

To understand and quantify the composition of estuarine DIC, calculations were performed in conjunction with the Jiang et al. (2008) approach. It is assumed that the DIC value of the river end-member is 0, and the DIC concentration when no DIC is provided by the river and only provided by the ocean for mixing is calculated accordingly:

(10)

$ \mathrm{DIC}_{\text{mix--ocean}} =\mathrm{DIC}_{\mathrm{ocean}} ({S}_{\mathrm{sample}} /{S}_{\mathrm{ocean}} ). $

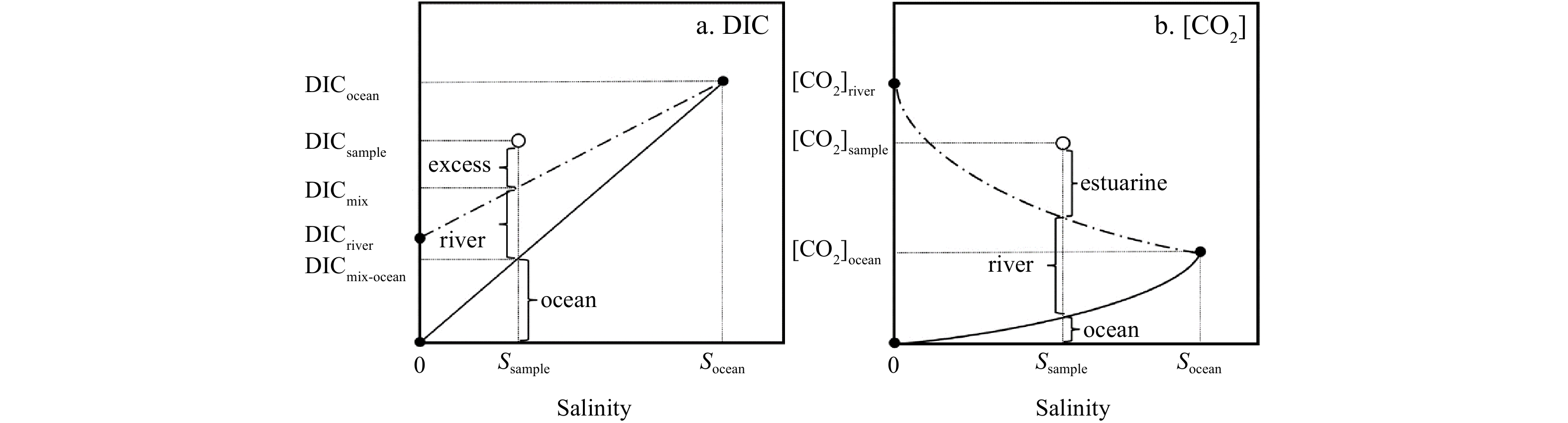

As shown in Fig. 6a, the sample DIC can be numerically equal to the sum of the excess DIC, the riverine DIC, and the oceanic DIC. According to Eqs (8), (9) and (10), the riverine DIC is numerically equal to the DIC_mix minus the DIC_mix-ocean, and the oceanic DIC is numerically equal to the DIC_mix-ocean. The choice of end-element values is shown in Table 4.

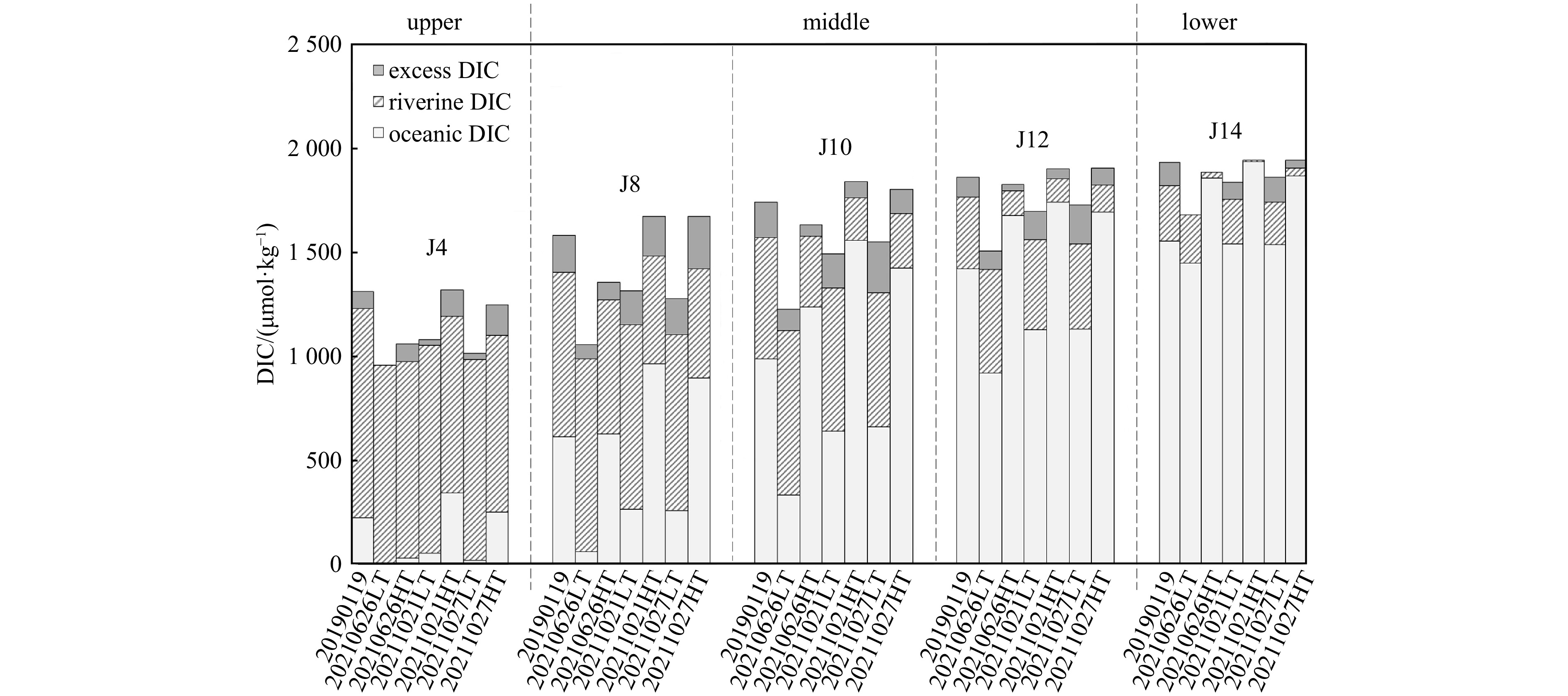

Data from Stations J4, J8, J10, J12, and J14 were selected to analyze the composition of DIC and the differences between tides and seasons. The results showed that riverine and seawater mixing processes dominate, while excess DIC caused by respiration and other biogeochemical processes accounts for a small proportion (Fig. 7). Considerable spatial variability in dissolved inorganic carbon composition was observed among various regions within the estuary. Station J4 in the upper was dominated by riverine inputs. Stations J8 and J10 in the middle exhibited a signature primarily affected by riverine and seawater mixing processes. Station J14 in the lower shifted to ocean domination. Thus, the longitudinal gradient conveyed a transitioning dominion over DIC patterns—from riverine domination in the upper estuary to ocean control over composition in the Lower estuary, with mid-estuary undergoing variably balanced mixed influence from the two endmember sources under tidal dispersion and biogeochemical modification.

The proportion of excess DIC was lowest in summer and increased in autumn and winter, which is consistent with our qualitative analysis. Compared with autumn, dissolved oxygen was higher and apparent oxygen consumption was lower in summer; thus, lower excess DIC in summer may be due to enhanced photosynthesis, which reduces more excess DIC to offset some of the increased excess DIC from decomposition. The riverine DIC contribution was highest in summer, a clear signal of higher runoff, and weaker in autumn and winter, which is consistent with the historical river discharge of the Jiulong River (Fig. 3).

Excess DIC and riverine DIC were significantly more concentrated at low tide than at high tide, while oceanic DIC was the dominant component of DIC at high tide, contributing more than 70%. The differences due to tidal variation were more pronounced than differences due to seasonal variation. This difference was most accentuated evident in the middle. Particularly illustrative of this phenomenon was Station J8, where tidal fluctuations engendered a near exclusive dominance of riverine input at low tide that transformingly gave way to preponderant oceanic DIC exceeding riverine proportions during high tide. Thus, under the oscillations of the semi-diurnal tidal cycle, the JRE conveyed a drastic pendular shifts between endmember carbon sources, especially in the middle. At low tides, river flows prominent control over DIC composition; whereas, oceanic DIC surges to the fore at high tides. Overall, our quantitative calculations clearly revealed the dynamic change of DIC components throughout the estuary under tidal effect, and DIC in the estuary was dominated by the mixing of the river and seawater, which is also consistent with the findings of Yin et al. (2020).

4.2 Factors affecting sea surface pCO₂ and dissolved CO₂ in the JRE

Generally, seasonal variation in the pCO₂ in river-dominated estuaries is influenced by temperature and river runoff inputs (Jiang et al., 2008). The NpCO₂ values obtained by normalization of average temperature have had the effect of temperature removed, enabling us to judge the role of other influences on the sea surface pCO₂. After normalizing to an annual mean temperature of 24.9℃ to remove the effect of temperature (Fig. 8), the NpCO₂ still showed distinct seasonal characteristics and tidal differences, suggesting that temperature may not be the main cause of seasonal variation in pCO₂. The NpCO₂ is highest in summer, followed by autumn, and lowest in winter, which is consistent with seasonal variation in river discharge (Fig. 3); thus, runoff may have a strong influence on estuarine pCO₂.

Intense anthropogenic activities and high levels of nutrients in the Jiulong River Basin have led to the production of large amounts of CO₂ from respiration, organic carbon degradation, and other processes. Yin et al. (2020) found that the surface water pCO₂ of the northern stream and western stream was high (2938–6794 μatm), so seasonal mixing of high pCO₂ river water with low pCO₂ marine water may cause spatial and temporal variation in the pCO₂ in the estuary. Rivers with a high pCO₂ flow into the upper estuary; at the same time, due to narrow river channels and fast flow rates, these rivers can stir the bottom, make the water more turbid, and reduce the efficiency of photosynthesis, resulting in the highest pCO₂ in the upper estuary. A large amount of CO₂ has already escaped to the atmosphere by the time the ocean mixes with the river, and the pCO₂ becomes lower in the middle estuary. In the lower estuary, the pCO₂ reaches its lowest value due to the increased deposition of suspended sediments, high transparency of the water body, and nutrients carried by the river that provide conditions for photosynthesis.

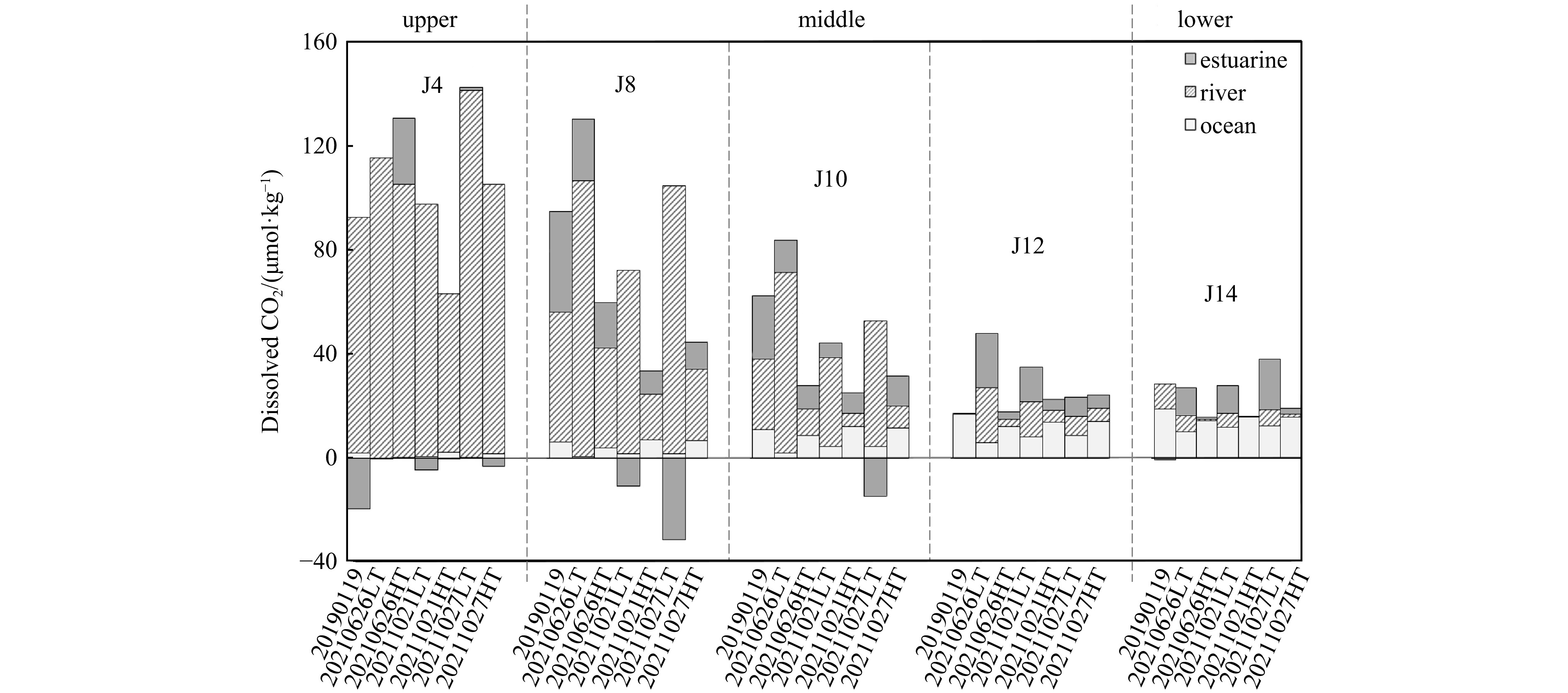

Dissolved CO₂ ([CO₂]) from the river, [CO₂] from the ocean, and [CO₂] generated within the estuary together contribute to the total [CO₂] in the estuary, and the method of Jiang et al. (2008) was used to quantify their respective contributions in a simple way. Similar to the calculation of DIC, estuarine [CO₂] can be calculated from the difference between the sample [CO₂] concentration and the [CO₂]_mix from conservative mixing of seawater and freshwater, and river [CO₂] is calculated from the difference between [CO₂]_mix and [CO₂]_mix-ocean. However, it should be noted that the change in [CO₂] during the mixing process is not conservative, so it cannot be calculated directly by end-member mixing (as DIC can be calculated), and it is necessary to calculate the DIC_mix, DIC_mix-ocean, TA_mix, and TA_mix-ocean and then calculate the corresponding [CO₂] by CO2SYS. In addition, since [CO₂] varies with the water temperature, the temperature was normalized to a mean annual temperature of 24.9℃. The calculation process is shown schematically in Fig. 6b.

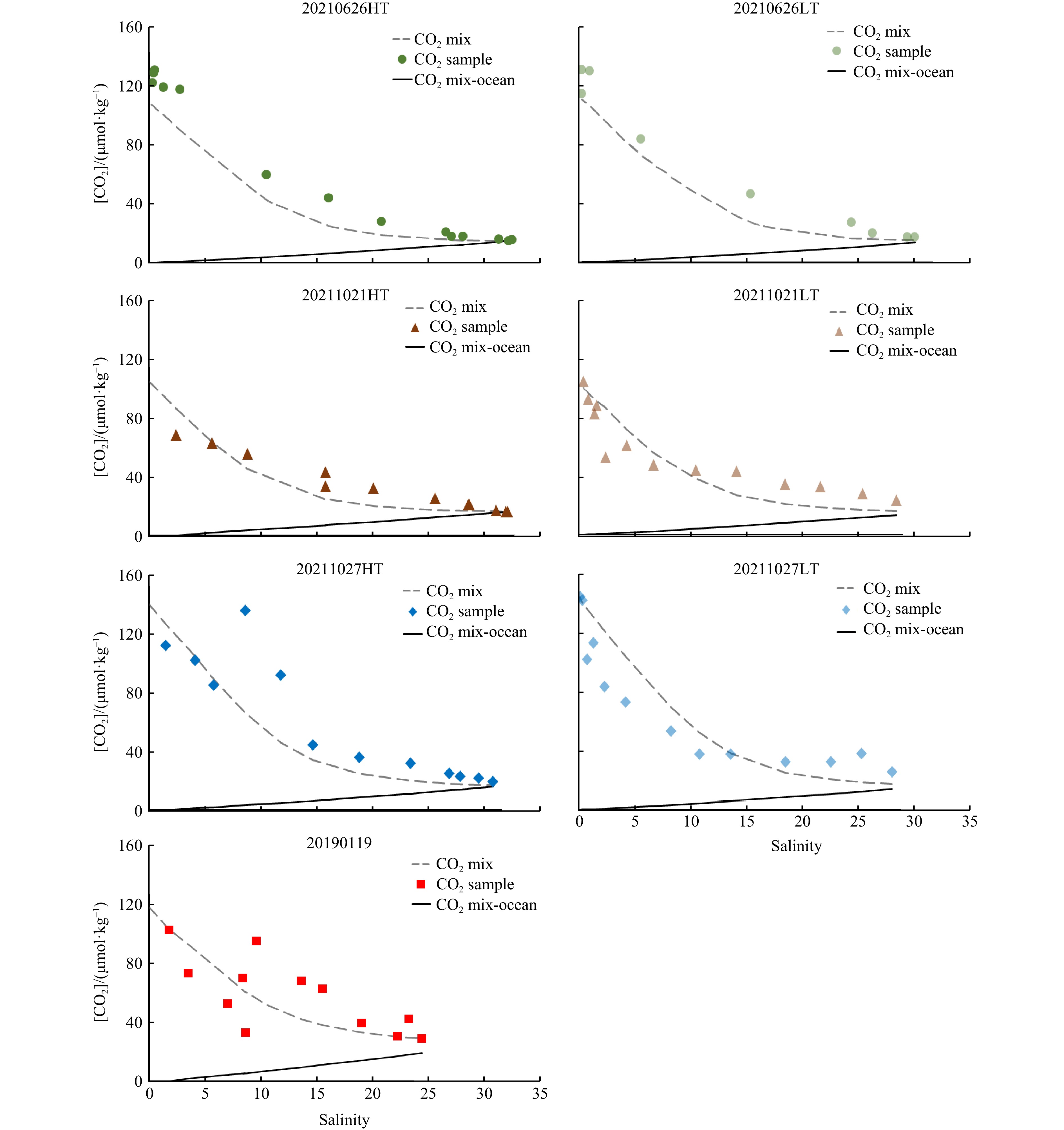

Data from Stations J4, J8, J10, J12, and J14 were selected to analyze the composition of [CO₂] and the differences between tides and seasons (Fig. 9). The results show that dissolved CO₂ in the estuary comes primarily from riverine [CO₂], especially at Station J4 in the upper and J8 in the middle which were close to the riverine source. At these locales, [CO₂] were observed to be nearly exclusively supplied by the river (Fig. 9). In contrast, at Stations J12 and J14, where the sea surface became more expansive down-estuary, the riverine contribution diminished while estuarine [CO₂] produced by biogeochemical processes became a notable component. Thus, the interplay of external and internal carbon dioxide sources shifted longitudinally in tandem with the fluctuating hydrodynamic dominance of marine versus riverine discharges under changing tidal and geomorphological influences.

Riverine [CO₂] was highest in summer, second highest in autumn, and lowest in winter, and its variation aligned with fluctuation in river discharge (Fig. 3). However, riverine inputs were severely attenuated at high tide, which greatly curtails riverine action, and the magnitude of tidal action surpassed seasonal variation. Within a one-day’s tidal cycle, the contribution of riverine [CO₂] to total [CO₂] was twice as pronounced during low tide compared to high tide, whereas the seasonal difference amounted to merely half of that. These findings underscore the overriding dominance of tidally modulated hydrodynamics relative to seasonal shifts in governing estuarine carbon dioxide distribution.

Furthermore, the sample [CO₂] was lower than the conservative mixing [CO₂] between the river and the ocean in autumn and winter in areas of lower salinity (S < 15, Figs 9 and 10), indicated that [CO₂] produced within estuaries through biogeochemical processes such as aerobic respiration could not compensate for the depletion caused by the release of CO₂ to the atmosphere. In addition, the calculated results show that [CO₂] generated in the estuary is also an important source of [CO₂] in the JRE, and the contribution of estuarine [CO₂] is enhanced during high tides.

4.3 Factors affecting air-sea CO₂ fluxes in the JRE

Air-sea CO₂ fluxes in estuarine ecosystems are usually influenced by a combination of factors, such as wind, turbulence, tidal currents, and water depth. Ho et al. (2011) used the ³He/SF₆ dual tracer technique in the strongly tidal Hudson River Estuary and demonstrated that wind was the main driver of gas exchange in the tidal Hudson River; other factors were negligible. In the JRE, where as another shallow estuary strongly influenced by tides, wind may also be the significant factor constraining air-sea CO₂ flux. However, the Ho model overemphasizes the role of wind speed, and if the wind speed is too low on the day of sampling, the calculated flux will be underestimated. While tidal oscillations exert primacy in propelling fluid motions through estuarine systems, additional hydrodynamic forces modulate gas transfer dynamics at the air-water interface. Current velocity was also an influencing factor should be considered in tidal estuary (Ho et al., 2016). Especially under low to moderate wind conditions, current velocity may even be a driver of gas exchange in shallow tidal estuary (Rosentreter et al., 2017). In this study, three parametric equations with different wind speeds proposed for shallow estuaries (Van Dam et al., 2019; Ho et al., 2011; Jiang et al., 2008), were used to estimate the transport rate of CO₂, and an averaging process was applied to these three models for the estimation of air-sea CO₂ fluxes. In this study, wind speeds on the sampling days were not high, which resulted in low fluxes calculated by the Ho2011 model; therefore, the air-sea CO₂ fluxes calculated in this study may be smaller than they actually are in the JRE.

CO₂ exchange fluxes were higher in summer and autumn than in winter, partly because of lower wind speeds (1.6 m/s) on the day of sampling in winter and partly because of lower CO₂ exchange rates. Temperature is an important limiting factor for gas exchange rates (Raymond and Cole, 2001), and lower surface water temperatures in winter result in lower air-sea CO₂ exchange rates, leading to lower CO₂ emissions. In contrast, a significant increase in surface water temperature in summer and autumn, combined with relatively high wind speeds on the sampling days, led to a further increase in CO₂ emissions.

By averaging the fluxes in different seasons, the annual mean air-sea CO₂ fluxes in the JRE were estimated to be approximately (25.63 ± 10.25) mol/(m²·a). Compared with estuaries in other regions of the world (Table 5), the results show that estimated annual mean air-sea CO₂ exchange fluxes in the JRE are slightly lower than those in the Modaomen Estuary in the Zhujiang River basin and higher than those in the Changjiang River and Huanghe River estuaries. Compared with other low-latitude estuaries in the world, CO₂ fluxes in the JRE remain at an intermediate level. The air-sea CO₂ fluxes in the JRE are similar to the average release by tidally influenced estuaries at low and middle latitudes, as suggested by Laruelle et al. (2013) and lower than the spatially limited estuarine fluxes suggested by Chen et al. (2012).

5 Conclusions

Less

In this study, we investigated the carbonate system and its controlling factors in the subtropical JRE during the tidal cycle. Additionally, we assessed the magnitude of air-sea CO₂ fluxes within the JRE for the first time, expanding our understanding of carbon cycling within small subtropical estuaries. The carbonate system in the JRE exhibited high spatial and temporal variability. DIC and TA steadily increased, whereas the pCO₂ progressively declined from summer to winter as a result of seasonal variation in runoff. DIC and TA rose continuously, while the pCO₂ dramatically dropped from the upper to the lower estuary. We also quantified the composition of estuarine DIC and dissolved CO₂. The results indicate that the conservative mixing of river water and seawater is the dominant factor that controls carbonate systems during estuarine mixing. Minor controlling factors include aerobic respiration, release of CO₂ from the estuary, groundwater input, and precipitation or dissolution of calcium carbonate.

Within a one-day tidal cycle, there was significant variability in the CO₂ system. Variation in carbonate parameters between low tide and high tide occurred at identical stations. The magnitude of these differences ranged from approximately 15% to 30% for DIC and TA, while for the pCO₂, the divergence reached approximately 30% to 40%. The differences caused by tidal variation were most pronounced in the middle estuary, where the magnitude of changes in DIC and TA at Station J8 approached 40% and alterations in the pCO₂ were even more profound, nearing approximately 60%. These tidal-induced discrepancies surpass the effects of other concurrent processes, thereby emphasizing the importance of investigating tidal variation in estuaries subject to strong tidal influences. Neglecting to do so may lead to egregious overestimations or underestimations of the genuine state of an estuarine system.

Funding

Less

The Scientific Research Foundation of Third Institute of Oceanography, MNR under contract Nos. 2022001, 2020017, 2023008 and 2019018; the Natural Science Foundation of Fujian Province of China under contract No. 2023J01209; the National Natural Science Foundation of China under contract No. 4237061213; the Fujian Science and Technology Innovation Leader Project.

References

Less

Abril G, Borges A V. 2005. Carbon dioxide and methane emissions from estuaries. In: Tremblay A, Varfalvy L, Roehm C, et al., eds. Greenhouse Gas Emissions—Fluxes and Processes: Hydroelectric Reservoirs and Natural Environments. Berlin, Heidelberg: Springer, 187–207

Akhand A, Chanda A, Watanabe K, et al. 2022. Drivers of inorganic carbon dynamics and air–water CO₂ fluxes in two large tropical estuaries: Insights from coupled radon (²²²Rn) and pCO₂ surveys. Limnology and Oceanography, 67(S2): S118–S132

Amann T, Weiss A, Hartmann J. 2015. Inorganic carbon fluxes in the Inner Elbe Estuary, Germany. Estuaries and Coasts, 38(1): 192–210, doi: 10.1007/s12237-014-9785-6

Borges A V, Abril G, Bouillon S. 2018. Carbon dynamics and CO₂ and CH₄ outgassing in the Mekong delta. Biogeosciences, 15(4): 1093–1114, doi: 10.5194/bg-15-1093-2018

Borges A V, Delille B, Frankignoulle M. 2005. Budgeting sinks and sources of CO₂ in the coastal ocean: Diversity of ecosystems counts. Geophysical Research Letters, 32(14): L14601

Cai Weijun, Dai Minhan, Wang Yongchen. 2006. Air-sea exchange of carbon dioxide in ocean margins: A province-based synthesis. Geophysical Research Letters, 33(12): L12603

Chen Chen-Tung Arthur, Huang Ting-Hsuan, Chen Y C, et al. 2013. Air–sea exchanges of CO₂ in the world’s coastal seas. Biogeosciences, 10(10): 6509–6544, doi: 10.5194/bg-10-6509-2013

Chen Chen-Tung Arthur, Huang Ting-Hsuan, Fu Yu-Han, et al. 2012. Strong sources of CO₂ in upper estuaries become sinks of CO₂ in large river plumes. Current Opinion in Environmental Sustainability, 4(2): 179–185, doi: 10.1016/j.cosust.2012.02.003

Crosswell J R, Wetz M S, Hales B, et al. 2012. Air-water CO₂ fluxes in the microtidal Neuse River estuary, North Carolina. Journal of Geophysical Research: Oceans, 117(C8): C08017

Dai Minhan, Lu Zhongming, Zhai Weidong, et al. 2009. Diurnal variations of surface seawater pCO₂ in contrasting coastal environments. Limnology and Oceanography, 54(3): 735–745, doi: 10.4319/lo.2009.54.3.0735

De la Paz M, Gómez-Parra A, Forja J. 2007. Inorganic carbon dynamic and air-water CO₂ exchange in the Guadalquivir Estuary (SW Iberian Peninsula). Journal of Marine Systems, 68(1–2): 265–277, doi: 10.1016/j.jmarsys.2006.11.011

Gattuso J P, Frankignoulle M, Wollast R. 1998. Carbon and carbonate metabolism in coastal aquatic ecosystems. Annual Review of Ecology and Systematics, 29: 405–434, doi: 10.1146/annurev.ecolsys.29.1.405

Gran G, Dahlenborg H, Laurell S, et al. 1950. Determination of the equivalent point in potentiometric titrations. Acta Chemica Scandinavica, 4: 559–577, doi: 10.3891/acta.chem.scand.04-0559

Guo Xianghui, Cai Weijun, Zhai Weidong, et al. 2008. Seasonal variations in the inorganic carbon system in the Pearl River (Zhujiang) estuary. Continental Shelf Research, 28(12): 1424–1434, doi: 10.1016/j.csr.2007.07.011

Hellings L, Dehairs F, Van Damme S, et al. 2001. Dissolved inorganic carbon in a highly polluted estuary (the Scheldt). Limnology and Oceanography, 46(6): 1406–1414, doi: 10.4319/lo.2001.46.6.1406

Ho D T, Coffineau N, Hickman B, et al. 2016. Influence of current velocity and wind speed on air-water gas exchange in a mangrove estuary. Geophysical Research Letters, 43(8): 3813–3821, doi: 10.1002/2016GL068727

Ho D T, Schlosser P, Orton P M. 2011. On factors controlling air-water gas exchange in a large tidal river. Estuaries and Coasts, 34(6): 1103–1116, doi: 10.1007/s12237-011-9396-4

Jahnke R A, Alexander C R, Kostka J E. 2003. Advective pore water input of nutrients to the Satilla River Estuary, Georgia, USA. Estuarine, Coastal and Shelf Science, 56(3–4): 641–653

Jeffrey L C, Maher D T, Santos I R, et al. 2018. The spatial and temporal drivers of pCO₂, pCH₄ and gas transfer velocity within a subtropical estuary. Estuarine, Coastal and Shelf Science, 208: 83–95

Jiang Liqing, Cai Weijun, Wang Yongchen. 2008. A comparative study of carbon dioxide degassing in river- and marine-dominated estuaries. Limnology and Oceanography, 53(6): 2603–2615, doi: 10.4319/lo.2008.53.6.2603

Laruelle G G, Dürr H H, Lauerwald R, et al. 2013. Global multi-scale segmentation of continental and coastal waters from the watersheds to the continental margins. Hydrology and Earth System Sciences, 17(5): 2029–2051, doi: 10.5194/hess-17-2029-2013

Lewis E R, Wallace D W R. 1998. Program developed for CO₂ system calculations. ORNL/CDIAC-105, Carbon Dioxide Information Analysis Center, Oak Ridge National Laboratory, US Department of Energy, Oak Ridge, Tennessee

Li Gong, Gao Kunshan, Yuan Dongxing, et al. 2011. Relationship of photosynthetic carbon fixation with environmental changes in the Jiulong River estuary of the South China Sea, with special reference to the effects of solar UV radiation. Marine Pollution Bulletin, 62(8): 1852–1858, doi: 10.1016/j.marpolbul.2011.02.050

Li Yuhong, Luo Yang, Liu Jian, et al. 2023. Sources and sinks of N₂O in the subtropical Jiulong River Estuary, Southeast China. Frontiers in Marine Science, 10: 1138258, doi: 10.3389/fmars.2023.1138258

Li Chenglong, Zhai Weidong, Qi Di. 2022. Unveiling controls of the latitudinal gradient of surface pCO₂ in the Kuroshio Extension and its recirculation regions (northwestern North Pacific) in late spring. Acta Oceanologica Sinica, 41(5): 110–123, doi: 10.1007/s13131-021-1949-1

Li Yuhong, Zhan Liyang, Chen Liqi, et al. 2021. Spatial and temporal patterns of methane and its influencing factors in the Jiulong River estuary, southeastern China. Marine Chemistry, 228: 103909, doi: 10.1016/j.marchem.2020.103909

Lin Hui. 2012. Seasonal and spatial variation of dissolved inorganic and organic carbon in Taiwan Strait and the Adjacent Sea Area (in Chinese)[dissertation]. Xiamen: Xiamen University

Liu Qian, Dong Xu, Chen Jinshun, et al. 2019. Diurnal to interannual variability of sea surface pCO₂ and its controls in a turbid tidal-driven nearshore system in the vicinity of the East China Sea based on buoy observations. Marine Chemistry, 216: 103690, doi: 10.1016/j.marchem.2019.103690

Millero F J. 2010. Carbonate constants for estuarine waters. Marine and Freshwater Research, 61(2): 139–142, doi: 10.1071/MF09254

Oliveira A P, Cabeçadas G, Mateus M D. 2017. Inorganic carbon distribution and CO₂ fluxes in a large European estuary (Tagus, Portugal). Scientific Reports, 7(1): 7376, doi: 10.1038/s41598-017-06758-z

Orr J, Epitalon J M, Gattuso J P. 2015. Comparison of ten packages that compute ocean carbonate chemistry. Biogeosciences, 12(5): 1483–1510, doi: 10.5194/bg-12-1483-2015

Pritchard D W. 1967. What is an estuary: physical viewpoint. In: Lauff G H, ed. Estuaries. Washington: American Association for the Advancement of Science

Raymond P A, Cole J J. 2001. Gas exchange in rivers and estuaries: Choosing a gas transfer velocity. Estuaries, 24(2): 312–317, doi: 10.2307/1352954

Ries J B. 2011. A physicochemical framework for interpreting the biological calcification response to CO₂ induced ocean acidification. Geochimica et Cosmochimica Acta, 75(14): 4053–4064, doi: 10.1016/j.gca.2011.04.025

Rosentreter J A, Maher D T, Ho D T, et al. 2017. Spatial and temporal variability of CO₂ and CH₄ gas transfer velocities and quantification of the CH₄ microbubble flux in mangrove dominated estuaries. Limnology and Oceanography, 62(2): 561–578, doi: 10.1002/lno.10444

Samanta S, Dalai T K, Pattanaik J K, et al. 2015. Dissolved inorganic carbon (DIC) and its δ¹³C in the Ganga (Hooghly) River estuary, India: Evidence of DIC generation via organic carbon degradation and carbonate dissolution. Geochimica et Cosmochimica Acta, 165: 226–248, doi: 10.1016/j.gca.2015.05.040

Shen Xiaomei, Su Meirong, Sun Tao, et al. 2020. Net heterotrophy and low carbon dioxide emissions from biological processes in the Yellow River Estuary, China. Water Research, 171: 115457, doi: 10.1016/j.watres.2019.115457

Sun Heng, Gao Zhongyong, Qi Di, et al. 2020. Surface seawater partial pressure of CO₂ variability and air-sea CO₂ fluxes in the Bering Sea in July 2010. Continental Shelf Research, 193: 104031, doi: 10.1016/j.csr.2019.104031

Sun Heng, Gao Zhongyong, Zhao Derong, et al. 2021. Spatial variability of summertime aragonite saturation states and its influencing factor in the Bering Sea. Advances in Climate Change Research, 12(4): 508–516, doi: 10.1016/j.accre.2021.04.001

Takahashi T, Olafsson J, Goddard J G, et al. 1993. Seasonal variation of CO₂ and nutrients in the high-latitude surface oceans: A comparative study. Global Biogeochemical Cycles, 7(4): 843–878, doi: 10.1029/93GB02263

Takahashi T, Sutherland S C, Sweeney C, et al. 2002. Global sea-air CO₂ flux based on climatological surface ocean pCO₂, and seasonal biological and temperature effects. Deep-Sea Research Part II: Topical Studies in Oceanography, 49(9–10): 1601–1622, doi: 10.1016/S0967-0645(02)00003-6

Takahashi T, Sutherland S C, Wanninkhof R, et al. 2009. Climatological mean and decadal change in surface ocean pCO₂, and net sea-air CO₂ flux over the global oceans. Deep-Sea Research Part II: Topical Studies in Oceanography, 56(8–10): 554–577, doi: 10.1016/j.dsr2.2008.12.009

Tang Wenkui, Gao Quanzhou, Zheng Xiongbo, et al. 2018. Air-water CO₂ exchange fluxes and its controlling mechanism in Modaomen Estuary of the Pearl River, China. Ekoloji, 27(106): e601

Van Dam B R, Edson J B, Tobias C. 2019. Parameterizing air-water gas exchange in the shallow, microtidal New River estuary. Journal of Geophysical Research: Biogeosciences, 124(7): 2351–2363, doi: 10.1029/2018JG004908

Walsh J J. 1988. On the Nature of Continental Shelves. New York: Academic Press, 367–437

Wang Guizhi, Wang Zhangyong, Zhai Weidong, et al. 2015. Net subterranean estuarine export fluxes of dissolved inorganic C, N, P, Si, and total alkalinity into the Jiulong River estuary, China. Geochimica et Cosmochimica Acta, 149: 103–114, doi: 10.1016/j.gca.2014.11.001

Wang Zhaohui, Wanninkhof R, Cai Weijun, et al. 2013. The marine inorganic carbon system along the Gulf of Mexico and Atlantic coasts of the United States: Insights from a transregional coastal carbon study. Limnology and Oceanography, 58(1): 325–342, doi: 10.4319/lo.2013.58.1.0325

Weiss R F. 1974. Carbon dioxide in water and seawater: the solubility of a non-ideal gas. Marine Chemistry, 2(3): 203–215, doi: 10.1016/0304-4203(74)90015-2

Wu Gaojie, Cao Wenzhi, Huang Zheng, et al. 2017. Decadal changes in nutrient fluxes and environmental effects in the Jiulong River Estuary. Marine Pollution Bulletin, 124(2): 871–877, doi: 10.1016/j.marpolbul.2017.01.071

Yan Xiuli, Zhai Weidong, Hong Huasheng, et al. 2012. Distribution, fluxes and decadal changes of nutrients in the Jiulong River Estuary, Southwest Taiwan Strait. Chinese Science Bulletin, 57(18): 2307–2318, doi: 10.1007/s11434-012-5084-4

Yin Xijie, Lin Yunpeng, Liang Cuicui, et al. 2020. Source and fate of dissolved inorganic carbon in Jiulong River, southeastern China. Estuarine, Coastal and Shelf Science, 246: 107031

Zhai Weidong, Dai Minhan, Guo Xianghui. 2007. Carbonate system and CO₂ degassing fluxes in the inner estuary of Changjiang (Yangtze) River, China. Marine Chemistry, 107(3): 342–356, doi: 10.1016/j.marchem.2007.02.011

Zheng Senlin, Qiu Xiaoyan, Chen Bin, et al. 2011. Antibiotics pollution in Jiulong River estuary: Source, distribution and bacterial resistance. Chemosphere, 84(11): 1677–1685, doi: 10.1016/j.chemosphere.2011.04.076
