Biogeochemical and physical properties influencing the nutrient reservoirs of subsurface water in the changing Canada Basin
收藏切换
PDF
Tianzhen Zhang1, 2, Qiang Hao1, Haiyan Jin1, Youcheng Bai1, Yanpei Zhuang3, Jianfang Chen1, *
Acta Oceanologica Sinica | 2024, 43(10) : 40 - 47
Less
收藏切换
Acta Oceanologica Sinica | 2024, 43(10): 40-47
• Marine Chemistry •
Biogeochemical and physical properties influencing the nutrient reservoirs of subsurface water in the changing Canada Basin
Full
Tianzhen Zhang1, 2, Qiang Hao1, Haiyan Jin1, Youcheng Bai1, Yanpei Zhuang3, Jianfang Chen1, *
Affiliations
  • 1 Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China
  • 2 Ocean College, Zhejiang University, Zhoushan 316021, China
  • 3 Polar and Marine Research Institute, Jimei University, Xiamen 361021, China
Published: 2024-10-25 doi: 10.1007/s13131-024-2414-8
Outline
收藏切换

The Canada Basin is the largest basin in the Arctic Ocean. Its unique physical features have the highest concentration of nutrients being found in the subsurface layer, referred to as the subsurface nutrient maximum layer (SNM). Under climate change in the Arctic, the SNM is an essential material base for primary productivity. However, long-term trends of nutrient variations and dominant factors related to nutrient levels in the SNM are still unclear. In this study, we analyzed the SNM variations and main influencing factors of the Canada Basin based on the Global Ocean Data Analysis Project Version 2 between 1990 and 2015 and the Chinese Arctic Research Expedition between 2010 and 2016. We found that the nutrient concentrations in the SNM were relatively stable for decades [average concentrations of nitrate, phosphate, and silicate were (13.6 ± 2.4) μmol/L, (1.8 ± 0.2) μmol/L, and (31.5 ± 5.7) μmol/L, respectively]. Nutrient reservoirs were dominated by physical processes. Inflow and outflow water of the SNM contributed about 60.4% and −50.2% to the nutrient stocks, respectively, while particle deposition and remineralization in the Canada Basin contributed approximately one-third to the nutrient stocks. Nitrogen fixation and denitrification in the Canada Basin had no substantial impact on nutrient stocks. The overall stabilization of the SNM over the past few decades implied that the SNM would not substantially affect short term primary productivity. Understanding the long-term trends and dominant factors of reservoirs in the SNM will provide useful insights into the changing Canada Basin ecosystem.

subsurface nutrients maximum layer  /  Canada Basin  /  biogeochemical cycles  /  Arctic climate changes
Tianzhen Zhang, Qiang Hao, Haiyan Jin, Youcheng Bai, Yanpei Zhuang, Jianfang Chen. Biogeochemical and physical properties influencing the nutrient reservoirs of subsurface water in the changing Canada Basin[J]. Acta Oceanologica Sinica, 2024 , 43 (10) : 40 -47 . DOI: 10.1007/s13131-024-2414-8
Full Text
Less
1 Introduction
Less
The subsurface nutrients maximum layer (SNM) present in global oceans is typically deeper than 500 m (Chen et al., 2001; Karl et al., 2001; Karstensen and Quadfasel, 2002; Lavı́n et al., 2003); however, the SNM of the Canada Basin is usually shallower than 200 m (Jin et al., 2004). This shallower, nutrient-rich layer makes the upward supply of nutrients more accessible, indicating potential material bases for primary production in the Canada Basin (Moore et al., 1983; Qi et al., 2017). However, in the Canada Basin, the perennial stratification between the upper layer and SNM hampers the nutrient supply to the phytoplankton, making the SNM a relatively stable reservoir of nutrients (Coachman and Aagaard, 1974). Recently, the SNM in the Canada Basin has been increasingly disturbed due to the dramatic retreat of sea ice, causing an upward supply of nutrients that has become more accessible to the phytoplankton and thereby promoting primary production (Stroeve et al., 2012; Lewis et al., 2020). The Canada Basin surface water is nutrient depleted (especially in nitrates) (Tremblay et al., 2008), but once the upward supply to the SNM increases, it will ultimately promote primary production and have notable effects on the biogeochemical cycle in the Canada Basin (Ardyna and Arrigo, 2020).

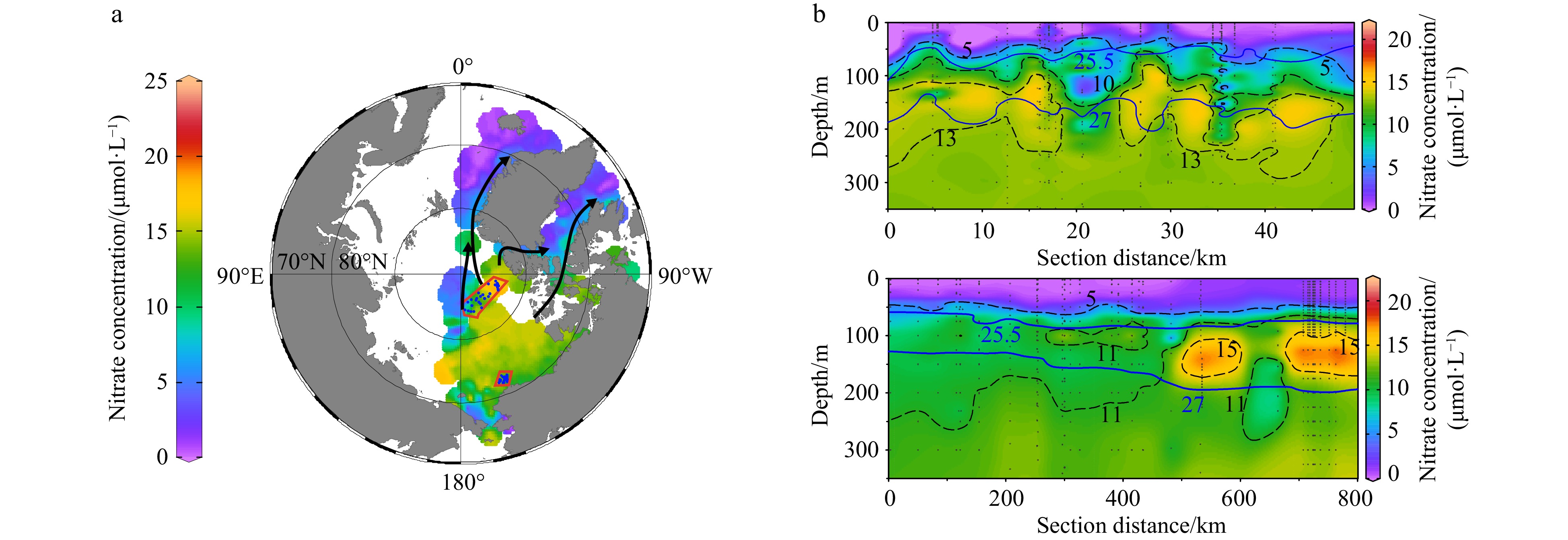

The Canada Basin is the only stock of SNM in the Arctic Ocean (Fig. 1a) (Jin et al., 2004; McLaughlin and Carmack, 2010), and it is generally accepted that the inflow water of the SNM is mainly composed of Pacific Winter Water (PWW) and Remnant Winter Water (RWW). Studies have been primarily focused on PWW, as it is the main component of SNM and is rich in nutrients (Simpson et al., 2008; Brown et al., 2016). The PWW from the Chukchi Shelf to the Canada Basin has three primary pathways (Fig. 1b)—(1) branch flowing northwest through Herald Canyon (Mathis et al., 2007; Pickart et al., 2010); (2) branch through the Central Channel; (3) branch northward along the Alaskan coast (Itoh et al., 2013; Brugler et al., 2014). Most PWW eventually converges in the Barrow Canyon and enters the Canada Basin, with a mean flux of ~0.35 × 106 m3/s (Weingartner et al., 2005; Corlett and Pickart, 2017). Mordy et al. (2020) detected high nitrate concentrations of ~24 μmol/L in winter water masses near Barrow Canyon, suggesting that PWW may substantially contribute to nutrient reservoirs in the SNM.
In the Canada Basin, the SNM water masses follow the Beaufort Gyre and flow in a clockwise direction, and the residence time of the SNM water masses is approximately ten years (Ekwurzel et al., 2001; Macdonald et al., 2005).
After leaving the Canada Basin, the water masses from the SNM continue to flow toward the Atlantic Ocean. There are two notable pathways for the water leaving the Arctic Ocean—one via the Fram Strait with the trans-polar drift, and the other passing through the Canadian Arctic Archipelago, with most of the water then leaving the Arctic Ocean via the Davis Strait (Anderson and Dryssen, 1981; Torres-Valdés et al., 2013).
Previous studies have focused on the physical characteristics of the SNM, while the long-term trends and influencing factors of nutrient reservoirs have rarely been studied (McLaughlin et al., 2004; Qi et al., 2017; Reeve et al., 2019). We hypothesize that with the rapid climate change in the Arctic, both the nutrient reservoirs and their influencing factors are changing. The aim of this study was to systematically understand the long-term trends of nutrient stocks in the SNM and study the dominant factors of these stocks on a basin scale. In a rapidly changing Arctic Ocean, understanding the long-term trends and dominant factors of reservoirs in the SNM will provide useful insights into the changing Canada Basin ecosystem.
2 Materials and methods
Less
2.1 Nutrient dataset acquisition
In this study, our nutrient data (nitrate, phosphate, and silicate) were derived from the Global Ocean Data Analysis Project v2 (GLODAPv2; https://www.glodap.info/index.php/merged-and-adjusted-data-product-v2-2022/) during 1985 to 2015 and from the 2010 to 2016 Chinese National Arctic Research Expedition (CHINARE) in the Canada Basin and the Chukchi Shelf. Nutrient samples from the 2010 to 2016 CHINARE were measured on board using standard colorimetric methods (Grasshoff et al., 2009) adapted for a continuous flow analyzer (Skalar Analytical BV, Breda, Netherlands). Since GLODAPv2 in the Canada Basin lacked data from 2010 to 2016, the 2010 to 2016 CHINARE data were suitable supplements.
2.2 Definition of the SNM boundary
To calculate the nutrient concentrations and nutrient stocks, we first needed to define the boundary of the SNM. Currently, there are several ways to determine the boundary. McLaughlin et al. (1996) and Jin et al. (2004) suggested that the depth between 50 m and 200 m of the Canada Basin can be defined as the SNM. However, the strengthening of the Beaufort Gyre and the “Atlantification” of the Arctic Ocean have gradually shifted the boundary of the SNM in recent years, making the above-mentioned definition no longer suitable (Polyakov et al., 2017; Proshutinsky et al., 2019; Zhong et al., 2019). In this study, we combined the definitions of the SNM in the Canada Basin by Nishino et al. (2008), Gong and Pickart (2015), Pickart et al. (2005), and Zhong et al. (2019) and defined the water mass between 25.5 kg/m3 and 27 kg/m3 as the SNM. This is because the physicochemical properties of this water mass are close to those of its origin water mass around Barrow Canyon (Nishino et al., 2008; Zhong et al., 2019). In addition, researchers usually consider the depth of (33.1 ± 0.1) isohaline or (26.5 ± 0.1) kg/m3 isopycnal as the core of the SNM, which coincides with the core of the PWW in the Canada Basin (Pickart et al., 2005; Zhong et al., 2018). However, it should be noted that the salinity of the PWW has been decreasing since 1990 (from 33.5 in the 1990s to 32.1 after 2014) (Woodgate and Peralta-Ferriz, 2021), which may promote the mixing of the SNM and the upper water, consequently shifting the boundary and making the SNM fresher. Therefore, long-term observations of the SNM are required to produce more accurate definitions of the SNM boundaries.
2.3 Nutrient reservoirs in the SNM
Averaged nutrient concentrations of the SNM and the area of the Canada Basin were used to calculate the reservoirs in the SNM for each year under investigation. We multiplied the mathematical averaged nutrient concentrations in the SNM for each year (shown in blue dots in Fig. 2) by the area of the Canada Basin (approximately 1.3 × 106 km2; Grantz et al., 1990) to calculate the nutrient stocks in the SNM over the study period.
2.4 Nutrient contribution of inflow and outflow water to the SNM
We used stations near the exit of Barrow Canyon to estimate the average nutrient (nitrate) concentration of inflow water (Fig. 3), which was estimated to be (11.6 ± 2.4) μmol/L (n = 117) and was consistent with those reported in previous studies (Gong and Pickart, 2015; Lowry et al., 2015). The annual contribution of inflow water to the SNM was determined by multiplying the average inflow water flux (~0.35 × 106 m3/s) (Corlett and Pickart, 2017) by the average nutrient (nitrate) concentration [(11.6 ± 2.4) μmol/L].
We used stations near the Mendeleev Ridge (Fig. 3) to calculate the average nutrient (nitrate) concentration, which was estimated to be (12.5 ± 3.5) μmol/L (n = 35). Based on the variations in the SNM nitrate reservoir over the study period, the contribution of outflow water to the SNM can be calculated by its difference with the contribution of inflow water (calculated above). The average outflow water flux and nutrient (nitrate) flux were then determined by the contribution of outflow water to the SNM and the average nutrient (nitrate) concentration [(12.5 ± 3.5) μmol/L].
2.5 Nutrient contribution of remineralization
In this study, we used two methods to estimate the nutrient contribution of remineralization to the SNM. First, we estimated this contribution from the new production, as follows:
$ N=f\times P \div R, $
where f represents the f-ratio (f-ratio equals new primary production divided by total primary production), P represents the total interannual primary production of the upper water, and R represents the C : N uptake ratio of phytoplankton in the study area.

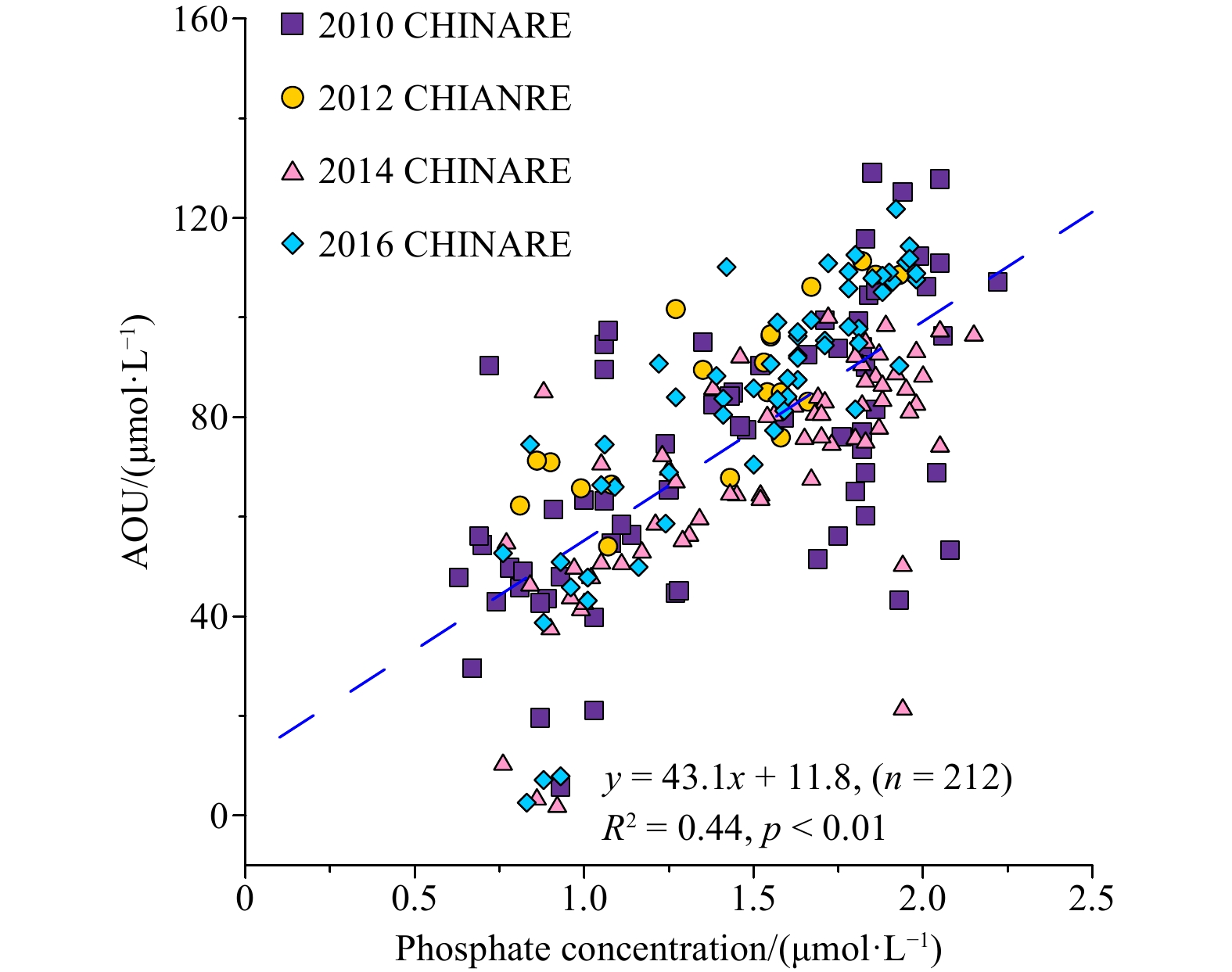

Second, we used the remineralization equation to estimate this contribution:
$ N=M\div O, $
where M represents the ratio of Apparent Oxygen Utilization (AOU) and nutrient concentrations measured in the SNM; O represents the ratio of AOU and nutrient concentrations (Sarmiento and Gruber, 2006).
2.6 Nutrient contribution of denitrification
Denitrification was one of the pathways for nutrient (nitrogen) export in the ocean (Gruber and Sarmiento, 1997). In this study, we used the parameter N* to evaluate the contribution of denitrification to the SNM, since N* indicates nitrogen deficit and the variation of N* can indicate the denitrification process in the water column (Sarmiento and Gruber, 2006; Zhuang et al., 2019):
$ {N}^{*}=([{{\mathrm{NO}}}_{3}^-]-16\times [{{\mathrm{PO}}}_{4}^{3-}]+2.9\;{\text{μ}}{\mathrm{mol}}/{\mathrm{L}})\times 0.87 ,$
where [ ${\mathrm{NO}}_{3}^- $] and [ ${{\mathrm{PO}}}_{4}^{3-} $] are the nitrate and phosphate concentrations (μmol/L), respectively; 16 represents the Redfield ratio of 16:1 (Redfield, 1934); 2.9 μmol/L was based on the global measurements to set the mean N * to 0 (Sarmiento and Gruber, 2006); 0.87 is a coefficient based on stoichiometric ratios during the denitrification and remineralization processes.
3 Results and discussion
Less
3.1 Nutrient concentrations and reservoirs in the SNM

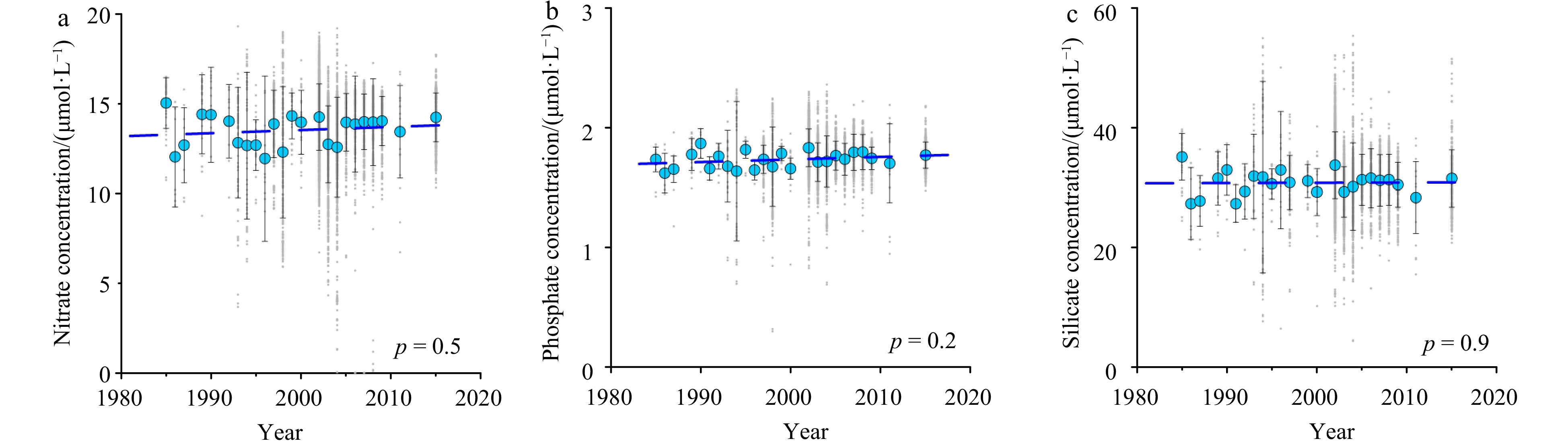

The average nutrient concentrations of the SNM remained relatively stable over the years studied, but the reservoirs exhibited a trend towards increasing. Previous studies indicate that the nutrient concentrations of the SNM have remained relatively stable over recent decades. Jones and Anderson (1986) reported a nitrate ( ${\mathrm{NO}}_{3}^- $) concentration of 17.1 μmol/L in the SNM in 1983, which is consistent with the findings of Simpson et al. (2008) and Brown et al. (2016), who reported ${\mathrm{NO}}_{3}^- $ concentrations of 17.3 μmol/L and 14.9 μmol/L, respectively. Nonetheless, the long-term trends in the nutrient concentrations of the SNM over the past few decades are not well understood. In this study, we calculated the annual averaged nutrient concentrations in the SNM. The results showed that ${\mathrm{NO}}_{3}^- $, phosphate ( ${\mathrm{PO}}_4^{3-} $), and silicate ( ${{\rm {SiO}}_3^{2-}} $) concentrations in the SNM of the Canada Basin have remained relatively stable since the 1980s (Fig. 2), with mean values of (13.6 ± 2.4) μmol/L, (1.8 ± 0.2) μmol/L, and (31.5 ± 5.7) μmol/L and with median values of 13.8 μmol/L, 1.7 μmol/L, and 31.3 μmol/L, respectively (data not shown). The size of the SNM reservoirs has increased over the study period. For example, the nitrate reservoir increased from (14.4 ± 2.2) × 1011 mol N in 1985 to (21.2 ± 1.5) × 1011 mol N in 2015. With nitrate concentration remaining relatively stable in the SNM, the increased reservoirs indicated the expansion of this layer (Qi et al., 2017; Zhuang et al., 2019). The nitrate reservoir in 2015 was 6 to 7 times larger than the interannual surface nitrate input to the Arctic (approximately 3.3 × 1011 mol/a (in terms of N), including oceanic and riverine input) (Tremblay et al., 2015). Assuming that the SNM is ventilated and all the nitrate is used by phytoplankton in the upper layer, the SNM can then provide (168.5 ± 11.9) × 1012 g C of primary production to the upper layer (converted by the Redfield ratio C : N = 106 : 16; Redfield, 1934). Considering the residence time of the SNM (about ten years), the SNM could contribute nearly 5% of the Arctic’s net primary productivity in 2018 (393.8 × 1012 g C) (Ardyna and Arrigo, 2020).
3.2 Physical processes controlling the nutrient reservoirs in the SNM
Inflow water was the main source of nutrients to the SNM. The contribution of inflow water to the SNM was (1.3 ± 0.3) × 1011 mol/a (in terms of N) [(11.6 ± 2.4) μmol/L × 0.35 × 106 m3/s × 3600 s × 24 h × 365 d = (1.3 ± 0.3) × 1011 mol/a (in terms of N)]. If we assumed the nitrate reservoir of the SNM as (21.2 ± 1.5) × 1011 mol N (equal to the nitrate reservoir in 2015), during the residence time (about ten years) of the SNM water masses, the inflow water could contribute about 60.4% to the nutrient reservoirs of the SNM. With increasing Pacific inflow (Woodgate, 2018), the contribution of inflow water to the SNM may be increasing. In addition, previous studies suggested that the formation of polynyas in the northern Chukchi Shelf during autumn and winter will change the physicochemical properties of PWW (Woodgate et al., 2005; Ladd et al., 2016). However, given the episodic occurrence of polynyas, we suggest that their effect on the nutrient stocks of PWW and SNM may be insignificant.
Outflow water was the main pathway for nutrient export in the SNM. Based on the increase in the SNM nitrate reservoir between 1985 and 2015 (21.2 × 1011−14.4 × 1011 mol N = 6.8 × 1011 mol N), we estimated that the SNM outflow water flux during 1985 to 2015 was ~0.27 × 106 m3/s and the nitrate flux was (1.1 ± 0.3) × 1011 mol/a (in terms of N). This nutrient flux was almost one-third of the interannual horizontal inflow (~3.3 × 1011 mol/a N) for the Arctic Ocean (Tremblay et al., 2015), which suggested that the SNM outflow water was an essential pathway for nutrient export from the Canada Basin to other Arctic seas. If we assume the nitrate reservoir as (21.2 ± 1.5) × 1011 mol N, during the residence time (about ten years) of the SNM water masses, the inflow water could contribute about −50.2% to the nutrient reservoirs of the SNM.
Recently, climate anomalies have led to more frequent events such as storms, upwellings, and mesoscale eddies as well as enhanced diffusion, influencing nutrient stocks in the SNM of the Canada Basin (Pickart et al., 2009, 2013; Spall et al., 2008; Dosser et al., 2021). The processes of turbulence and convection may promote the mixing of the SNM and the upper layer, which would enhance the primary productivity (Tremblay et al., 2011; Watanabe et al., 2014). Due to the lack of data in this study, we estimated only the contribution of diffusion to the nutrient reservoirs of the SNM. According to Randelhoff et al. (2020), the diffusion from the SNM to the upper water was relatively low [~3.7 × 10−3 mol/(m2·a) (in terms of N)]. Since the nitrate gradient between the SNM and the Atlantic Water (AW) was smaller than that between the SNM and the upper water (specific data not shown), the diffusion from the SNM to the AW should be less than 3.7 × 10−3 mol/(m2·a) (in terms of N). In summary, the diffusion from the SNM to its adjacent layers should be less than 7.4 × 10−3 mol/(m2·a ) (in terms of N) (equal to 9.6 × 109mol/(m2·a) (in terms of N) after multiplying by the area). During the residence time (about ten years) of the SNM water masses, the diffusion can contribute up to about −4.5% to the nutrient reservoirs of the SNM.
3.3 Biogeochemical processes controlling the nutrient reservoirs in the SNM
In the Canada Basin and Chukchi Shelf, we analyzed the effects of major biogeochemical processes, including particle deposition and remineralization, nitrogen fixation, and denitrification, on nutrient reservoirs of the SNM.
The contribution of particle deposition and remineralization to the nutrient reservoir of the SNM was relatively low. According to Honjo et al. (2010) and Randelhoff and Guthrie (2016), the particle organic carbon (POC) flux at a depth of 120 m to 200 m (near the lower boundary of the SNM) was 0.05 g/(m2·a) (in terms of C) to 0.65 g/(m2·a) (in terms of C), and the POC flux in the upper halocline (near the upper boundary of the SNM) was 1.5 g/(m2·a) (in terms of C) to 3 g/(m2·a) (in terms of C), which indicated that 56.7% to 98.3% of the POC from the upper layer remineralized within the SNM. Therefore, in the Canada Basin, we can use the new production in the upper layer to estimate the contribution of remineralization to the SNM. The C : N uptake ratio of phytoplankton in the Arctic Ocean is about 6 (Hansell et al., 1993), and the interannual f-ratio of the Canada Basin is approximately 0.66 (Simpson et al., 2013; Tremblay et al., 2015); additionally, the total interannual primary production of the upper water (0 m to 30 m) in the Canada Basin was estimated to be less than 5 g/(m2·a) (in terms of C) by Lee and Whitledge (2005) and Codispoti et al. (2013). Based on these results, the remineralization can be estimated to contribute up to 3.3 g/(m2·a) (in terms of C) to the SNM, which can provide approximately 0.05 mol/(m2·a) (in terms of C) to the SNM (converted C to N with the C : N molar ratio is = 6). Thus, particle deposition and remineralization over the whole Canada Basin can provide ~6.5 × 1010 mol/a (in terms of N) to the SNM [0.05 mol/(m2·a) (in terms of N) × 1.3 × 106 km2 = 6.5 × 1010 mol/a (in terms of N)]. During the residence time (about ten years), particle deposition and remineralization in the Canada Basin can contribute ~28.3% to the nutrient reservoirs of the SNM {6.0 × 1010 mol/a (in terms of N) × 10 a ÷ [(21.2 ± 1.5) × 1011 mol (in terms of N)] × 100% = 28.3%}, which is consistent with the findings of Tremblay et al. (2015) (30%) and Granger et al. (2018) (32%).
In this study, we also used the remineralization equation to estimate the contribution of remineralization (Sarmiento and Gruber, 2006). Using the AOU: [ ${\mathrm{PO}}_4^{3-} $] (~43.1) ([ ${\mathrm{PO}}_4^{3+} $]: phosphate. molar concentration) measured in the SNM of the Canada Basin during the 2010–2016 CHINARE (Fig. 4), we calculated the remineralization of ${\mathrm{PO}}_4^{3-} $ in the SNM, which accounted for ~28.7% of the total ${\mathrm{PO}}_4^{3-} $ (43.1 ÷ 150 × 100% = 28.7%). Overall, the contribution of particle deposition and remineralization to the nutrient reservoirs was relatively low, but with the increasing (albeit insignificant) primary production in the Canada Basin, the contribution of this process to the nutrient reservoirs is likely to increase (Lewis et al., 2020).
The SNM also contains nitrate produced via nitrogen fixation (Yamamoto-Kawai et al., 2006; Tremblay et al., 2008). However, its contribution was not substantial. The nitrogen-fixing bacterial communities (mainly composed of cyanobacteria) in the Canada Basin primarily originated from estuaries (e.g., the Mackenzie River) (Blais et al., 2012). Due to the stratification in the Canada Basin, the nitrogen fixation may have little effect on the SNM, which is generally deeper than 50 m (Randelhoff and Guthrie, 2016). Blais et al. (2012) estimated the average rate of nitrogen fixation in the upper water of the Southeast Beaufort Sea (averaged 54.7 m) to be (4.4 ± 3.3) × 10−5 mol/(m3·a) (in terms of N). If we extrapolate this figure to the whole Canada Basin, nitrogen fixation in the upper water can contribute up to ~3.9 × 109 mol/a (in terms of N) [4.4 × 10−5 mol/(m3·a) (in terms of N) × 54.7 m × 1.3 × 106 km2 = 3.1 × 109 mol/a (in terms of N)]. If the fixed nitrogen can be entirely transported to the SNM through biogeochemical progresses such as deposit and remineralization during the residence time, nitrogen fixation in the upper water can contribute up to ~1.5% to the nutrient reservoirs in the SNM [3.9 × 109 mol/a (in terms of N) × 10 a ÷ (21.2 × 1011) mol (in terms of N) × 100% = 1.8%], which suggests that the contribution of nitrogen fixation to the SNM was not considerable.

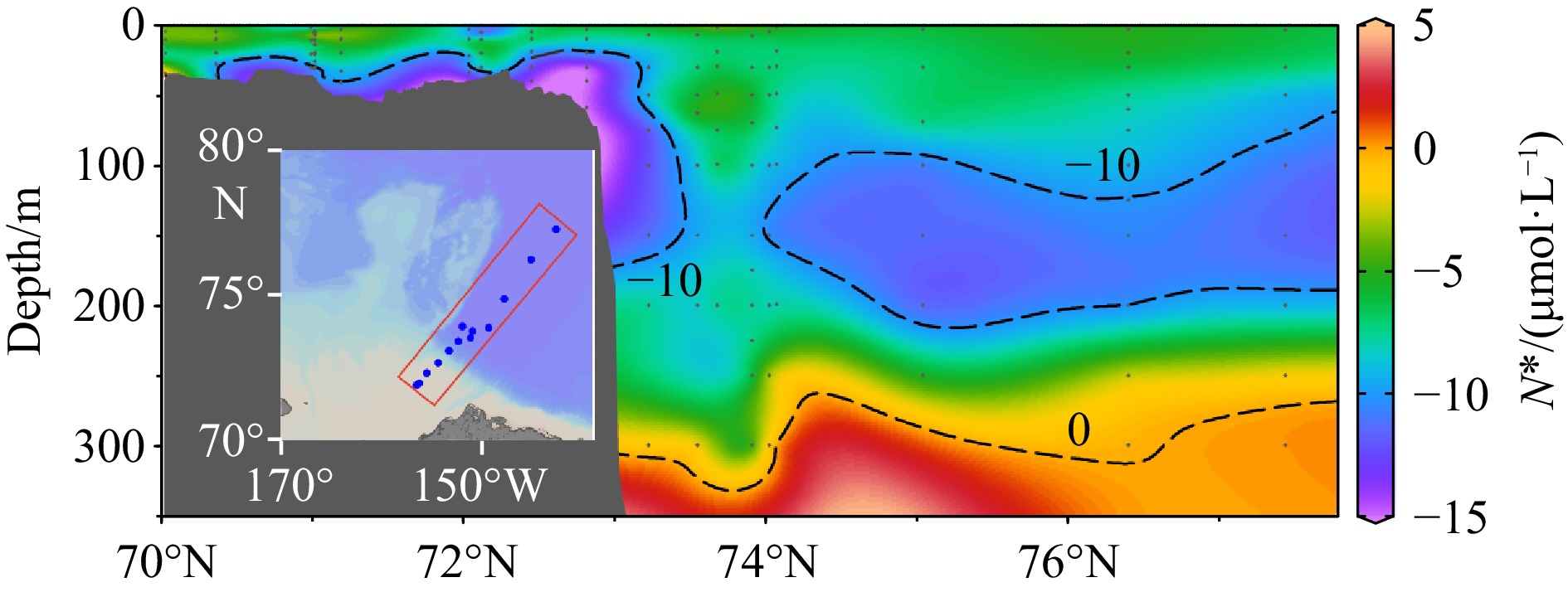

The contribution of denitrification to nutrient reservoirs in the SNM occurred mainly in the upstream Chukchi Shelf rather than in the Canada Basin. Reeve et al. (2019) detected total water column denitrification rates of 5 μmol/(m2·d) to 14 μmol/(m2·d) in the Canada Basin, where denitrification mainly occurred in deep waters and sediments at depths greater than 2000 m (Granger et al., 2018). Compared to that in other deep-sea basins, denitrification in the Canada Basin was weak. For example, Lehmann et al. (2005) detected the denitrification rate in the Bering Sea Basin’s sediments to be 230 μmol/(m2·d). In this study, N* for the 2010 to 2016 CHINARE stations was calculated (Fig. 5). Results showed that in the Chukchi Shelf, N* decreased with increasing depth, and the mean value of N* in the bottom water was (−8.7 ± 4.8) μmol/L. In the Canada Basin, with increasing depth, N* first decreased and then increased; the lowest N* value was found in the SNM. The mean value of N* in the SNM was (−8.5 ± 2.3) μmol/L, slightly higher than the N* in the Chukchi Shelf bottom water. This was probably due to the nitrate replenishment of the SNM by the winter water mass from the Chukchi Shelf (Lowry et al., 2015; Arrigo et al., 2017). In addition, N* values of both the SNM and the Chukchi Shelf bottom water were much lower than those of their source water in the Bering Sea (−3 μmol/L to −6 μmol/L) (Granger et al., 2011), suggesting that the bottom water experienced continual denitrification during the transport from the Bering Strait to the SNM in the Canada Basin. However, we noticed slight differences between the N* values in the Chukchi Shelf bottom water [(−8.7 ± 4.8) μmol/L] and the SNM [(−8.5 ± 2.3) μmol/L]; this result implies that the denitrification occurred mainly in the Chukchi Shelf bottom water during the transportation from the Bering Strait to the Canada Basin, and the denitrification in the Canada basin may have a minor influence on nutrient stocks in the SNM (Devol et al., 1997; Nishino et al., 2016).
3.4 Potential impacts of climate change on SNM stability

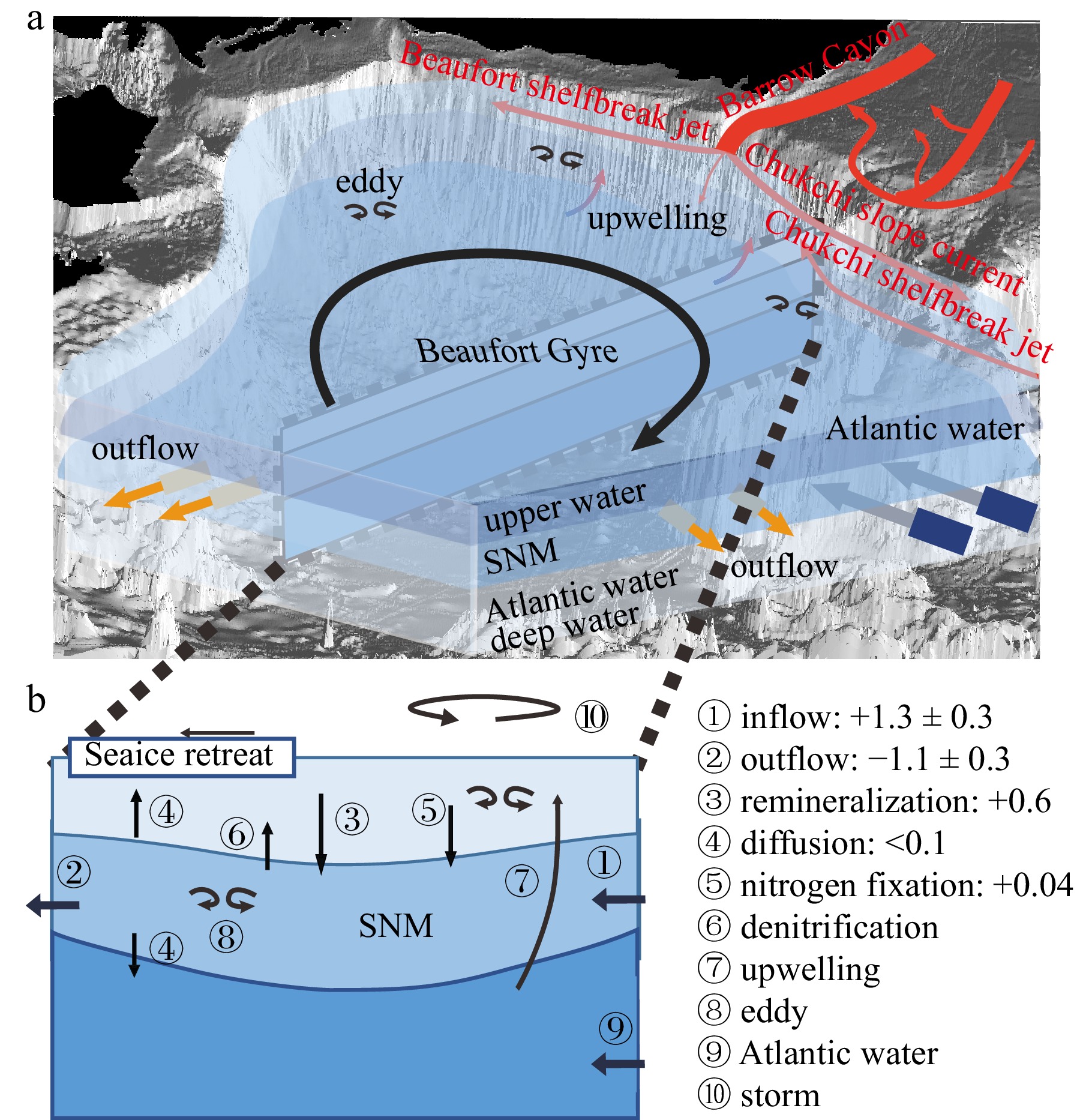

Figure 6 shows a schematic diagram of SNM stability under various physical and biogeochemical processes. The stratification maintains the stability of nutrient reservoirs in the SNM; however, with further climate change in the Arctic Ocean, these reservoirs are likely to experience increased disturbance. Nishino et al. (2013) suggested that as the area of open water will increase, the structure of the water column would be more susceptible to disturbance. Therefore, in the Canada Basin, the increased sea ice retreat and the prolonged open water periods may have weakened the stability of the SNM (Wang and Overland, 2009; Serreze and Meier, 2019). However, the Canada Basin converged freshwater under the intensified Beaufort Gyre and subsequently enhanced the stratification between the upper water and the SNM (Serreze et al., 2006; Yamamoto-Kawai et al., 2008; Proshutinsky et al., 2019), which implied that the SNM would not substantially affect primary production at this time. It is worth noting that storms and mesoscale eddy events were becoming more frequent in the Canada Basin and these have the potential to destabilize the SNM, especially in the marginal areas of the Canada Basin (Pickart et al., 2013; Rinke et al., 2017). Since the SNM in marginal areas was more susceptible to disturbances from atmospheric and hydrodynamic events due to the relatively shallow depth, the frequent disturbances might promote an upward supply of nutrients and thus enhance primary production (Timmermans and Toole, 2023; Pickart et al., 2011). Although we inferred that storms and mesoscale eddies events had substantial impacts on SNM stability and that such effects were likely to increase with further climate changes in the Arctic, we currently do not know the specific effects of these events on SNM stability. Therefore, future studies will be needed to further evaluate these events.
4 Conclusions
Less
In this study, we first analyzed the long-term trends of nutrient concentrations and stocks in the SNM. We then summarized the main factors influencing the nutrient reservoirs of the SNM and analyzed the dominant factors affecting these nutrient stocks. Finally, we discussed the potential impacts of climate change on SNM stability. We arrived at the following conclusions. (1) Nutrient concentrations in the SNM of the Canada Basin have remained relatively stable over the past four decades, but the absolute nutrient stocks in the SNM showed an increasing trend due to the expansion of this layer. (2) The nutrient stocks in the SNM were dominated by inflow water and outflow water, which contributed about 60.4% and about –50.2% to the nutrient stocks, respectively. (3) Biogeochemical processes such as particle deposition and remineralization in the Canada Basin contributed approximately one-third to the nutrient stocks. Nitrogen fixation in the Canada Basin contributed ~1.5% to the nutrient stocks in the SNM. The contribution of denitrification to the nutrient stocks in the SNM occurred mainly on the Chukchi shelf. (4) In recent years, the SNM would not substantially affect primary production. However, with further expected climate changes in the Arctic, storms and mesoscale eddies may have an increasing impact on the stability of SNM; this requires further evaluation in the future.
Funding
Less
  • The National Natural Science Foundation of China under contract No. 41941013; the National Key R&D Program of China under contract No. 2019YFE0120900.
References
Less
Anderson L, Dryssen D. 1981. Chemical-constituents of the Arctic Ocean in the Svalbard area. Oceanologica Acta, 4(3): 305–311
Ardyna M, Arrigo K R. 2020. Phytoplankton dynamics in a changing Arctic Ocean. Nature Climate Change, 10(10): 892–903, doi: 10.1038/s41558-020-0905-y
Arrigo K R, Mills M M, Van Dijken G L, et al. 2017. Late spring nitrate distributions beneath the ice-covered northeastern Chukchi Shelf. Journal of Geophysical Research: Biogeosciences, 122(9): 2409–2417, doi: 10.1002/2017JG003881
Blais M, Tremblay J É, Jungblut A D, et al. 2012. Nitrogen fixation and identification of potential diazotrophs in the Canadian Arctic. Global Biogeochemical Cycles, 26(3): GB3022
Brown K A, Mclaughlin F, Tortell P D, et al. 2016. Sources of dissolved inorganic carbon to the Canada Basin halocline: A multitracer study. Journal of Geophysical Research: Oceans, 121(5): 2918–2936, doi: 10.1002/2015JC011535
Brugler E T, Pickart R S, Moore G W K, et al. 2014. Seasonal to interannual variability of the Pacific water boundary current in the Beaufort Sea. Progress in Oceanography, 127: 1–20
Chen Chen-Tung Arthur, Wang Shulun, Wang Bing-Jye, et al. 2001. Nutrient budgets for the South China Sea basin. Marine Chemistry, 75(4): 281–300, doi: 10.1016/S0304-4203(01)00041-X
Coachman L K, Aagaard K. 1974. Physical oceanography of Arctic and subarctic seas. In: Marine Geology and Oceanography of the Arctic Seas. Berlin, Heidelberg: Springer, 1–72
Codispoti L A, Kelly V, Thessen A, et al. 2013. Synthesis of primary production in the Arctic Ocean: III. Nitrate and phosphate based estimates of net community production. Progress in Oceanography, 110: 126–150
Corlett W B, Pickart R S. 2017. The Chukchi slope current. Progress in Oceanography, 153: 50–65, doi: 10.1016/j.pocean.2017.04.005
Devol A H, Codispoti L A, Christensen J P. 1997. Summer and winter denitrification rates in western Arctic shelf sediments. Continental Shelf Research, 17(9): 1029–1050, doi: 10.1016/S0278-4343(97)00003-4
Dosser H V, Chanona M, Waterman S, et al. 2021. Changes in internal wave-driven mixing across the Arctic Ocean: Finescale estimates from an 18-year pan-Arctic record. Geophysical Research Letters, 48(8): e2020GL091747, doi: 10.1029/2020GL091747
Ekwurzel B, Schlosser P, Mortlock R A, et al. 2001. River runoff, sea ice meltwater, and Pacific water distribution and mean residence times in the Arctic Ocean. Journal of Geophysical Research: Oceans, 106(C5): 9075–9092
Gong Donglai, Pickart R S. 2015. Summertime circulation in the eastern Chukchi Sea. Deep-Sea Research Part II: Topical Studies in Oceanography, 118: 18–31, doi: 10.1016/j.dsr2.2015.02.006
Granger J, Prokopenko M G, Sigman D M, et al. 2011. Coupled nitrification-denitrification in sediment of the eastern Bering Sea shelf leads to 15N enrichment of fixed N in shelf waters. Journal of Geophysical Research: Oceans, 116(C11): C11006
Granger J, Sigman D M, Gagnon J, et al. 2018. On the properties of the Arctic halocline and deep water masses of the Canada Basin from nitrate isotope ratios. Journal of Geophysical Research: Oceans, 123(8): 5443–5458, doi: 10.1029/2018JC014110
Grantz A, May S D, Taylor P T, et al. 1990. Canada Basin. In: Grantz A, Johnson L, Sweeney J F, eds. The Arctic Ocean Region. Boulder, Colorado, U. S. A. : Geological Society of America
Grasshoff K, Kremling K, Ehrhardt M. 2009. Methods of Seawater Analysis. Weinheim, Germany: John Wiley & Sons
Gruber N, Sarmiento J L. 1997. Global patterns of marine nitrogen fixation and denitrification. Global Biogeochemical Cycles, 11(2): 235–266
Hansell D A, Whitledge T E, Goering J J. 1993. Patterns of nitrate utilization and new production over the Bering-Chukchi shelf. Continental Shelf Research, 13(5−6): 601–627, doi: 10.1016/0278-4343(93)90096-G
Honjo S, Krishfield R A, Eglinton T I, et al. 2010. Biological pump processes in the cryopelagic and hemipelagic Arctic Ocean: Canada Basin and Chukchi Rise. Progress in Oceanography, 85(3−4): 137–170, doi: 10.1016/j.pocean.2010.02.009
Itoh M, Nishino S, Kawaguchi Y, et al. 2013. Barrow Canyon volume, heat, and freshwater fluxes revealed by long-term mooring observations between 2000 and 2008. Journal of Geophysical Research: Oceans, 118(9): 4363–4379, doi: 10.1002/jgrc.20290
Jin Mingming, Wu Jinfeng, Chen Jianfang, et al. 2004. Nutrient maximum in the Canada Basin. Chinese Journal of Polar Research (in Chinese), 16(3): 240–252
Jones E P, Anderson L G. 1986. On the origin of the chemical properties of the Arctic Ocean halocline. Journal of Geophysical Research: Oceans, 91(C9): 10759–10767, doi: 10.1029/JC091iC09p10759
Karl D M, Björkman K M, Dore J E, et al. 2001. Ecological nitrogen-to-phosphorus stoichiometry at station ALOHA. Deep-Sea Research Part II: Topical Studies in Oceanography, 48(8−9): 1529–1566, doi: 10.1016/S0967-0645(00)00152-1
Karstensen J, Quadfasel D. 2002. Water subducted into the Indian Ocean subtropical gyre. Deep-Sea Research Part II: Topical Studies in Oceanography, 49(7−8): 1441–1457
Ladd C, Mordy C W, Salo S A, et al. 2016. Winter water properties and the Chukchi Polynya. Journal of Geophysical Research: Oceans, 121(8): 5516–5534, doi: 10.1002/2016JC011918
Lavı́n A M, Bryden H L, Parrilla G. 2003. Mechanisms of heat, freshwater, oxygen and nutrient transports and budgets at 24.5°N in the subtropical North Atlantic. Deep-Sea Research Part I: Oceanographic Research Papers, 50(9): 1099–1128, doi: 10.1016/S0967-0637(03)00095-5
Lee S H, Whitledge T E. 2005. Primary and new production in the deep Canada Basin during summer 2002. Polar Biology, 28(3): 190–197, doi: 10.1007/s00300-004-0676-3
Lehmann M F, Sigman D M, McCorkle D C, et al. 2005. Origin of the deep Bering Sea nitrate deficit: Constraints from the nitrogen and oxygen isotopic composition of water column nitrate and benthic nitrate fluxes. Global Biogeochemical Cycles, 19(4): GB4005
Lewis K M, Van Dijken G L, Arrigo K R. 2020. Changes in phytoplankton concentration now drive increased Arctic Ocean primary production. Science, 369(6500): 198–202, doi: 10.1126/science.aay8380
Lowry K E, Pickart R S, Mills M M, et al. 2015. The influence of winter water on phytoplankton blooms in the Chukchi Sea. Deep-Sea Research Part II: Topical Studies in Oceanography, 118: 53–72, doi: 10.1016/j.dsr2.2015.06.006
Macdonald R W, Harner T, Fyfe J. 2005. Recent climate change in the Arctic and its impact on contaminant pathways and interpretation of temporal trend data. Science of the Total Environment, 342(1−3): 5–86, doi: 10.1016/j.scitotenv.2004.12.059
Mathis J T, Pickart R S, Hansell D A, et al. 2007. Eddy transport of organic carbon and nutrients from the Chukchi Shelf: Impact on the upper halocline of the western Arctic Ocean. Journal of Geophysical Research: Oceans, 112(C5): C05011
McLaughlin F A, Carmack E C. 2010. Deepening of the nutricline and chlorophyll maximum in the Canada Basin interior, 2003–2009. Geophysical Research Letters, 37(24): L24602
McLaughlin F A, Carmack E C, Macdonald R W, et al. 1996. Physical and geochemical properties across the Atlantic/Pacific water mass front in the southern Canadian Basin. Journal of Geophysical Research: Oceans, 101(C1): 1183–1197, doi: 10.1029/95JC02634
McLaughlin F A, Carmack E C, Macdonald R W, et al. 2004. The joint roles of Pacific and Atlantic-origin waters in the Canada Basin, 1997–1998. Deep-Sea Research Part I: Oceanographic Research Papers, 51(1): 107–128, doi: 10.1016/j.dsr.2003.09.010
Moore R M, Lowings M G, Tan F C. 1983. Geochemical profiles in the central Arctic Ocean: Their relation to freezing and shallow circulation. Journal of Geophysical Research: Oceans, 88(C4): 2667–2674, doi: 10.1029/JC088iC04p02667
Mordy C W, Bell S, Cokelet E D, et al. 2020. Seasonal and interannual variability of nitrate in the eastern Chukchi Sea: Transport and winter replenishment. Deep-Sea Research Part II: Topical Studies in Oceanography, 177: 104807
Nishino S, Itoh M, Williams W J, et al. 2013. Shoaling of the nutricline with an increase in near-freezing temperature water in the Makarov Basin. Journal of Geophysical Research: Oceans, 118(2): 635–649, doi: 10.1029/2012JC008234
Nishino S, Kikuchi T, Fujiwara A, et al. 2016. Water mass characteristics and their temporal changes in a biological hotspot in the southern Chukchi Sea. Biogeosciences, 13(8): 2563–2578, doi: 10.5194/bg-13-2563-2016
Nishino S, Shimada K, Itoh M, et al. 2008. East–west differences in water mass, nutrient, and chlorophyll a distributions in the sea ice reduction region of the western Arctic Ocean. Journal of Geophysical Research: Oceans, 113(C1): C00A01
Pickart R S, Moore G W K, Torres D J, et al. 2009. Upwelling on the continental slope of the Alaskan Beaufort Sea: Storms, ice, and oceanographic response. Journal of Geophysical Research: Oceans, 114(C1): C00A13
Pickart R S, Pratt L J, Torres D J, et al. 2010. Evolution and dynamics of the flow through Herald Canyon in the western Chukchi Sea. Deep-Sea Research Part II: Topical Studies in Oceanography, 57(1−2): 5–26, doi: 10.1016/j.dsr2.2009.08.002
Pickart R S, Schulze L M, Moore G W K, et al. 2013. Long-term trends of upwelling and impacts on primary productivity in the Alaskan Beaufort Sea. Deep-Sea Research Part I: Oceanographic Research Papers, 79: 106–121
Pickart R S, Spall M A, Moore G W K, et al. 2011. Upwelling in the Alaskan Beaufort Sea: Atmospheric forcing and local versus non-local response. Progress in Oceanography, 88(1−4): 78–100, doi: 10.1016/j.pocean.2010.11.005
Pickart R S, Weingartner T J, Pratt L J, et al. 2005. Flow of winter-transformed Pacific water into the Western Arctic. Deep-Sea Research Part II: Topical Studies in Oceanography, 52(24−26): 3175–3198
Polyakov I V, Pnyushkov A V, Alkire M B, et al. 2017. Greater role for Atlantic inflows on sea-ice loss in the Eurasian Basin of the Arctic Ocean. Science, 356(6335): 285–291, doi: 10.1126/science.aai8204
Proshutinsky A, Krishfield R, Toole J M, et al. 2019. Analysis of the Beaufort Gyre freshwater content in 2003–2018. Journal of Geophysical Research: Oceans, 124(12): 9658–9689, doi: 10.1029/2019JC015281
Qi Di, Chen Liqi, Chen Baoshan, et al. 2017. Increase in acidifying water in the western Arctic Ocean. Nature Climate Change, 7(3): 195–199, doi: 10.1038/nclimate3228
Randelhoff A, Guthrie J D. 2016. Regional patterns in current and future export production in the central Arctic Ocean quantified from nitrate fluxes. Geophysical Research Letters, 43(16): 8600–8608
Randelhoff A, Holding J, Janout M, et al. 2020. Pan-Arctic Ocean primary production constrained by turbulent nitrate fluxes. Frontiers in Marine Science, 7: 150, doi: 10.3389/fmars.2020.00150
Redfield A C. 1934. On the proportions of organic derivatives in sea water and their relation to the composition of plankton. Liverpool, United Kingdom: University Press of Liverpool
Reeve J L, Hamme R C, Williams W J. 2019. Tracing denitrification in the Canada Basin: N2 loss to the atmosphere on the Chukchi Shelf and benthic inputs in deep waters. Deep-Sea Research Part I: Oceanographic Research Papers, 143: 127–138, doi: 10.1016/j.dsr.2018.11.003
Rinke A, Maturilli M, Graham R M, et al. 2017. Extreme cyclone events in the Arctic: Wintertime variability and trends. Environmental Research Letters, 12(9): 094006, doi: 10.1088/1748-9326/aa7def
Sarmiento J L, Gruber N. 2006. Ocean Biogeochemical Dynamics. Princeton: Princeton University Press, 178–179
Serreze M C, Barrett A P, Slater A G, et al. 2006. The large-scale freshwater cycle of the Arctic. Journal of Geophysical Research: Oceans, 111(C11): C11010
Serreze M C, Meier W N. 2019. The Arctic’s sea ice cover: trends, variability, predictability, and comparisons to the Antarctic. Annals of the New York Academy of Sciences, 1436(1): 36–53, doi: 10.1111/nyas.13856
Simpson K G, Tremblay J É, Brugel S, et al. 2013. Nutrient dynamics in the western Canadian Arctic. II. Estimates of new and regenerated production over the Mackenzie Shelf and Cape Bathurst Polynya. Marine Ecology Progress Series, 484: 47–62, doi: 10.3354/meps10298
Simpson K G, Tremblay J É, Gratton Y, et al. 2008. An annual study of inorganic and organic nitrogen and phosphorus and silicic acid in the southeastern Beaufort Sea. Journal of Geophysical Research: Oceans, 113(C7): C07016
Spall M A, Pickart R S, Fratantoni P S, et al. 2008. Western Arctic shelfbreak eddies: Formation and transport. Journal of Physical Oceanography, 38(8): 1644–1668
Stroeve J C, Serreze M C, Holland M M, et al. 2012. The Arctic’s rapidly shrinking sea ice cover: a research synthesis. Climatic Change, 110(3−4): 1005–1027, doi: 10.1007/s10584-011-0101-1
Timmermans M L, Toole J M. 2023. The Arctic Ocean’s Beaufort Gyre. Annual Review of Marine Science, 15: 223–248, doi: 10.1146/annurev-marine-032122-012034
Torres-Valdés S, Tsubouchi T, Bacon S, et al. 2013. Export of nutrients from the Arctic Ocean. Journal of Geophysical Research: Oceans, 118(4): 1625–1644
Tremblay J É, Anderson L G, Matrai P, et al. 2015. Global and regional drivers of nutrient supply, primary production and CO2 drawdown in the changing Arctic Ocean. Progress in Oceanography, 139: 171–196, doi: 10.1016/j.pocean.2015.08.009
Tremblay J É, Bélanger S, Barber D G, et al. 2011. Climate forcing multiplies biological productivity in the coastal Arctic Ocean. Geophysical Research Letters, 38(18): L18604
Tremblay J É, Simpson K, Martin J, et al. 2008. Vertical stability and the annual dynamics of nutrients and chlorophyll fluorescence in the coastal, southeast Beaufort Sea. Journal of Geophysical Research: Oceans, 113(C7): C07S90
Wang Muyin, Overland J E. 2009. A sea ice free summer Arctic within 30 years?. Geophysical Research Letters, 36(7): L07502
Watanabe E, Onodera J, Harada N, et al. 2014. Enhanced role of eddies in the Arctic marine biological pump. Nature Communications, 5(1): 3950, doi: 10.1038/ncomms4950
Weingartner T, Aagaard K, Woodgate R, et al. 2005. Circulation on the north central Chukchi Sea shelf. Deep-Sea Research Part II: Topical Studies in Oceanography, 52(24–26): 3150–3174, doi: 10.1016/j.dsr2.2005.10.015
Woodgate R A. 2018. Increases in the Pacific inflow to the Arctic from 1990 to 2015, and insights into seasonal trends and driving mechanisms from year-round Bering Strait mooring data. Progress in Oceanography, 160: 124–154, doi: 10.1016/j.pocean.2017.12.007
Woodgate R A, Aagaard K, Weingartner T J. 2005. A year in the physical oceanography of the Chukchi Sea: Moored measurements from autumn 1990–1991. Deep-Sea Research Part II: Topical Studies in Oceanography, 52(24–26): 3116–3149
Woodgate R A, Peralta-Ferriz C. 2021. Warming and Freshening of the Pacific Inflow to the Arctic from 1990–2019 implying dramatic shoaling in Pacific Winter Water ventilation of the Arctic water column. Geophysical Research Letters, 48(9): e2021GL092528, doi: 10.1029/2021GL092528
Yamamoto-Kawai M, Carmack E, McLaughlin F. 2006. Nitrogen balance and Arctic throughflow. Nature, 443(7107): 43, doi: 10.1038/443043a
Yamamoto-Kawai M, McLaughlin F A, Carmack E C, et al. 2008. Freshwater budget of the Canada Basin, Arctic Ocean, from salinity, δ18O, and nutrients. Journal of Geophysical Research: Oceans, 113(C1): C01007
Zhong Wenli, Steele M, Zhang Jinlun, et al. 2018. Greater role of geostrophic currents in Ekman dynamics in the western Arctic Ocean as a mechanism for Beaufort Gyre stabilization. Journal of Geophysical Research: Oceans, 123(1): 149–165, doi: 10.1002/2017JC013282
Zhong Wenli, Steele M, Zhang Jinlun, et al. 2019. Circulation of Pacific winter water in the Western Arctic Ocean. Journal of Geophysical Research: Oceans, 124(2): 863–881, doi: 10.1029/2018JC014604
Zhuang Yanpei, Li Hongliang, Jin Haiyan, et al. 2019. Observation of nitrate deficit along transects across the Canada Basin after major sea-ice loss. Polar Science, 21: 224–227
