Temporal variations of food web in a marine bay ecosystem based on LIM-MCMC model
收藏切换
PDF
Pengcheng Li1, 2, Hu Zhang3, Chongliang Zhang1, 2, Binduo Xu1, 2, Yupeng Ji1, 2, Yiping Ren1, 2, Ying Xue1, 2, *
Acta Oceanologica Sinica | 2024, 43(8) : 79 - 88
Less
收藏切换
Acta Oceanologica Sinica | 2024, 43(8): 79-88
• Marine Biology •
Temporal variations of food web in a marine bay ecosystem based on LIM-MCMC model
Full
Pengcheng Li1, 2, Hu Zhang3, Chongliang Zhang1, 2, Binduo Xu1, 2, Yupeng Ji1, 2, Yiping Ren1, 2, Ying Xue1, 2, *
Affiliations
  • 1 Laboratory of Fisheries Ecosystem Monitoring and Assessment, College of Fisheries, Ocean University of China, Qingdao 266003, China
  • 2 Field Observation and Research Station of Haizhou Bay Fishery Ecosystem, Ministry of Education, Qingdao 266003, China
  • 3 Jiangsu Marine Fisheries Research Institute, Nantong 226007, China
Published: 2024-08-25 doi: 10.1007/s13131-023-2273-8
Outline
收藏切换

Climate change has led to significant fluctuations in marine ecosystems, including alterations in the structure and function of food webs and ecosystem status. Coastal ecosystems are critical to the functioning of the earth’s life-supporting systems. However, temporal variations in most of these ecosystems have remained unclear so far. In this study, we employed a linear inverse model with Markov Chain Monte Carlo (LIM-MCMC) combined with ecological network analysis to reveal the temporal variations of the food web in Haizhou Bay of China. Food webs were constructed based on diet composition data in this ecosystem during the year of 2011 and 2018. Results indicated that there were obvious temporal variations in the composition of food webs in autumn of 2011 and 2018. The number of prey and predators for most species in food web decreased in 2018 compared with 2011, especially for Trichiurus lepturus, zooplankton, Amblychaeturichthys hexanema, and Loligo sp. Ecological network analysis showed that the complexity of food web structure could be reflected by comprehensive analysis of compartmentalized indicators. Haizhou Bay ecosystem was more mature and stable in 2011, while the ecosystem’s self-sustainability and recovery from disturbances were accelerated from 2011 to 2018. These findings contribute to our understanding of the dynamics of marine ecosystems and highlight the importance of comprehensive analysis of marine food webs. This work provides a framework for assessing and comparing temporal variations in marine ecosystems, which provides essential information and scientific guidance for the Ecosystem-based Fisheries Management.

LIM-MCMC  /  ecological network analysis  /  marine ecosystem  /  food web
Pengcheng Li, Hu Zhang, Chongliang Zhang, Binduo Xu, Yupeng Ji, Yiping Ren, Ying Xue. Temporal variations of food web in a marine bay ecosystem based on LIM-MCMC model[J]. Acta Oceanologica Sinica, 2024 , 43 (8) : 79 -88 . DOI: 10.1007/s13131-023-2273-8
Full Text
Less
1 Introduction
Less
Increasing human activities exert great influence on marine ecosystem, especially in coastal ecosystem (Anh et al., 2015). Climate changes, environment pollution, overfishing and many other aspects not only lead to the decline of fishery resources, but also destroy the marine ecological environment (Lin et al., 2016; Yang et al., 2018). Since the beginning of the 21st century, it is noteworthy that continuous high-intensity fishing pressure and climate changes have caused the unprecedented extinction rate of global fisheries (Ceballos et al., 2015). However, the impacts on marine ecosystems are generally not well known (Griffiths et al., 2010). Analysis of temporal variations in ecosystems can help to understand the effects of climate change and fishing pressure on food web characteristics and ecosystem status (Cloern et al., 2016; Wu et al., 2019; Li et al., 2021).
Food webs provide tractable representations of species interactions (Eskuche-Keith et al., 2023), which are the key to understand ecosystem dynamics. Examinations of the structural properties (Rooney and McCann, 2012), topological structure, and stability of the food web (Layman et al., 2015) are essential to reveal the status of marine ecosystems. Many ecosystem models have been used for understanding ecosystem dynamics, including the Atlantis model (Rose et al., 2010), OSMOSE (Xing et al., 2022), Ecopath model (Han et al., 2017; Yin et al., 2021), size-spectrum model (Yvon-Durocher et al., 2011), Linear inverse model (LIM) (Xu et al., 2021), and so on. Among these models, LIM is a valuable ecosystem modeling tool for describing the structure and function of food webs at the ecosystem level due to its moderate data requirements and flexibility to accommodate future updates (Leguerrier et al., 2007). Initially, Vézina and Platt (1988) adopted it from the physical sciences to ecology, and subsequently used for reconstruction of food webs (Van Oevelen et al., 2010) and ecological modeling (De Laender et al., 2010). The limitations in the model, such as underestimating the scale and complexity of food webs, can be effectively resolved by combining Markov Chain Monte Carlo (MCMC) algorithms (Johnson and McElhaney, 2009). Linear inverse model with Markov Chain Monte Carlo (LIM-MCMC) can estimate food webs from incomplete data sets (Marquis et al., 2007; Olsen et al., 2007; van Oevelen et al., 2010), allowing estimation of difficult-to-measure processes in the food web (Anh et al., 2015), and has been successfully applied in different regions (Daniels et al., 2006; Savenkoff et al., 2007; Chaalali et al., 2015; Xu et al., 2021).
Ecological network analysis (ENA) has been widely used to assess the status of ecosystems (Fetahi and Mengistou, 2007). ENA describes the function of trophic networks and emergent properties linked with species interactions, being capable of assessing complex interactions within ecosystems (Horn et al., 2019). In recent years, ENA has been widely used to identify key components (Borrett, 2013), stress characterization (Bondavalli et al., 2006), and define ecosystem health indicators (Fath et al., 2019; Safi et al., 2019). Ecological network analysis can provide a holistic representation of the food web including all system components, and assess the status of ecosystems (Mukherjee et al., 2015; Horn et al., 2019). Meanwhile, ENA can also be used to reveal the underlying responses of ecosystems to various pressures (Dubois et al., 2019; Wang et al., 2019), and provide a theoretical basis for the understanding and protection of marine ecosystems.
Haizhou Bay is a typical open bay ecosystem in the southern Yellow Sea, which is an important fishing ground and spawning habitat in the Yellow Sea (Zhang et al., 2015). However, intensive fishing pressure and climate changes have caused remarkable changes in fishery resources, including species community structure and biodiversity (Wu et al., 2019; Li et al., 2021). This study analyzed changes in the composition of food webs and diets in autumn of 2011 and 2018. The LIM-MCMC and ENA were combined to evaluate the status and temporal variations of the ecosystem in Haizhou Bay. This study helps construct a framework for assessing and comparing marine ecosystems and provide essential information and scientific guidance for the Ecosystem-based Fisheries Management (EBFM).
2 Methods
Less
2.1 Study area

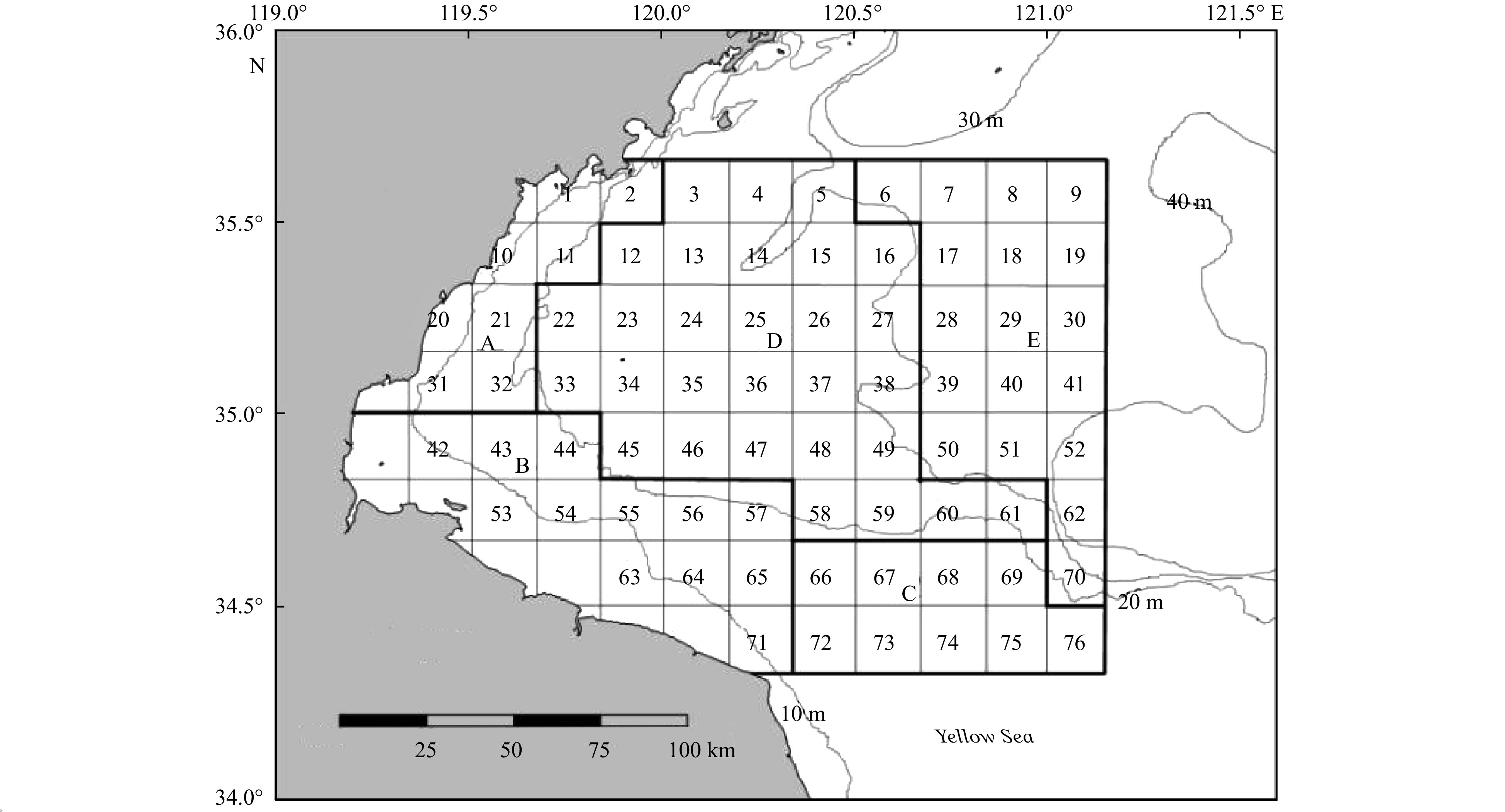

The survey area is in Haizhou Bay of China, ranging from 34°20′N to 35°40′N and 119°20′E to 121°20′E (Fig. 1). Bottom trawl surveys were conducted in autumn (September) of 2011 and 2018 using stratified random sampling. Detailed description of the survey design is available in the research of Xu et al. (2015). The trawl was towed for about 1 h at a speed of 2−3 kn. Catch data were standardized to 1 h haul at 2 kn.
2.2 The data
In this study, diet composition of marine organisms was obtained mainly from stomach contents analysis of samples collected from Haizhou Bay in autumn of 2011 and 2018, combined with some data from FishBase and related literatures (Xue, 2005; Sheng et al., 2009; Zhang et al., 2011; Xu et al., 2018; Song et al., 2020; Liu et al., 2021; Froese and Pauly, 2023). The biomasses [t/(km2·a)] of fish, cephalopods, and crustaceans were estimated using the sweep area method based on bottom trawl surveys conducted during autumn of 2011 and 2018, and the biomass of phytoplankton, zooplankton and detritus was based on references in Haizhou Bay and its adjacent waters (Nuttall et al., 2011; Lin et al., 2013; Han et al., 2017; Yuan et al., 2018). Environmental variables, such as temperature and salinity, were measured during bottom trawl surveys with probes equipped in a CTD recorder (CTD75M/1167) (Li et al., 2020). Moreover, parameters such as production/biomass (P/B), consumption/biomass (Q/B), respiration/biomass (R/B) and unassimilated/biomass (U/B) were sourced from published literatures (Lin et al., 2009, 2018; Li et al., 2010; Feng et al., 2010; Wang et al., 2018; Liu et al., 2019; Xu et al., 2019; Ren et al., 2020) (Table S1).
2.3 LIM-MCMC model
The LIM can be used to quantify a large number of unknown processes between compartments in the food web by combining a small amount of experimental data with parameters in the literature (van Oevelen et al., 2010; De Laender et al., 2011). This represents a key advantage of the LIM-MCMC model (i.e., its potential in under-sampled environments) (Kones et al., 2009). The general structure of a LIM consists of mass-balance equations (Equality) and constraints (Inequality). Their specific formulas are as follows (van Oevelen et al., 2010):
$ \mathrm{Equality:}\boldsymbol{\ E}(m\times n)\times x=F, $
$ \mathrm{Inequality:}\boldsymbol{\ G}(c\times n)\times x\geqslant h, $
where $ {\boldsymbol{E}}(m \times n) $ and $ {\boldsymbol{G}}(c \times n) $ are energy flow path coefficient matrices, and m is the mass balance of each compartment or the known energy flow path data measured by experiment. c represents the number of inequalities added to the model, and n is the number of energy flow paths (x1, x2, $\cdots $ , xn), $ {\boldsymbol{F}} $ is the matrix of equation values (m × 1), and $ h $ is the value of inequalities.
Furthermore, with the further development of the model, researchers have proposed combining it with the MCMC method to solve the limitations of underestimating the scale and complexity of the food web (Johnson and McElhaney, 2009). Thus, LIM-MCMC produces many potential solutions that satisfy the balance of the food web rather than a single food web. The model is developed by means of “Lim” and “LimSolve” (Soetaert and van Oevelen, 2009; Soetaert et al., 2009) and implemented in R (version 3.5.2). In this study, we calculated 1000 possible solutions to sample the entire solution space sufficiently using the function X-sample (Kones et al., 2009), and to calculate the average value, providing a more realistic estimate of the food web.
2.4 Ecological network analysis
In this study, we evaluated 26 indicators based on LIM-MCMC model outputs, reflecting the properties of the food web and the status of the ecosystem (Mukherjee et al., 2015). Specifically, these indicators were grouped into five categories (Kones et al., 2009; Yin et al., 2021), including (i) general measures, which consider a number of general properties of ecosystem; (ii) pathway analysis, which identifies the direct and indirect pathways in a network; (iii) network uncertainty, which are related to the whole network interactions; (iv) system development and growth, including ascendency (A), development capacity (DC), overhead (Φ) and extent of development (AC) to imply the development and growth of ecosystem; (v) environment analysis, including homogenization (HP), synergism index (b/c) and dominance indirect effects (i/d).
In this study, the relevant ENA indices were shown in Table 1, and the details are described in Latham (2006) and Julius et al. (2009). All indices were directly realized by NetMatCale-X software. In addition, the annual differences between 2018 and 2011 are reflected by relative percentage changes, which can effectively eliminate differences between indicators.
3 Results
Less
3.1 Temporal variations in food webs composition

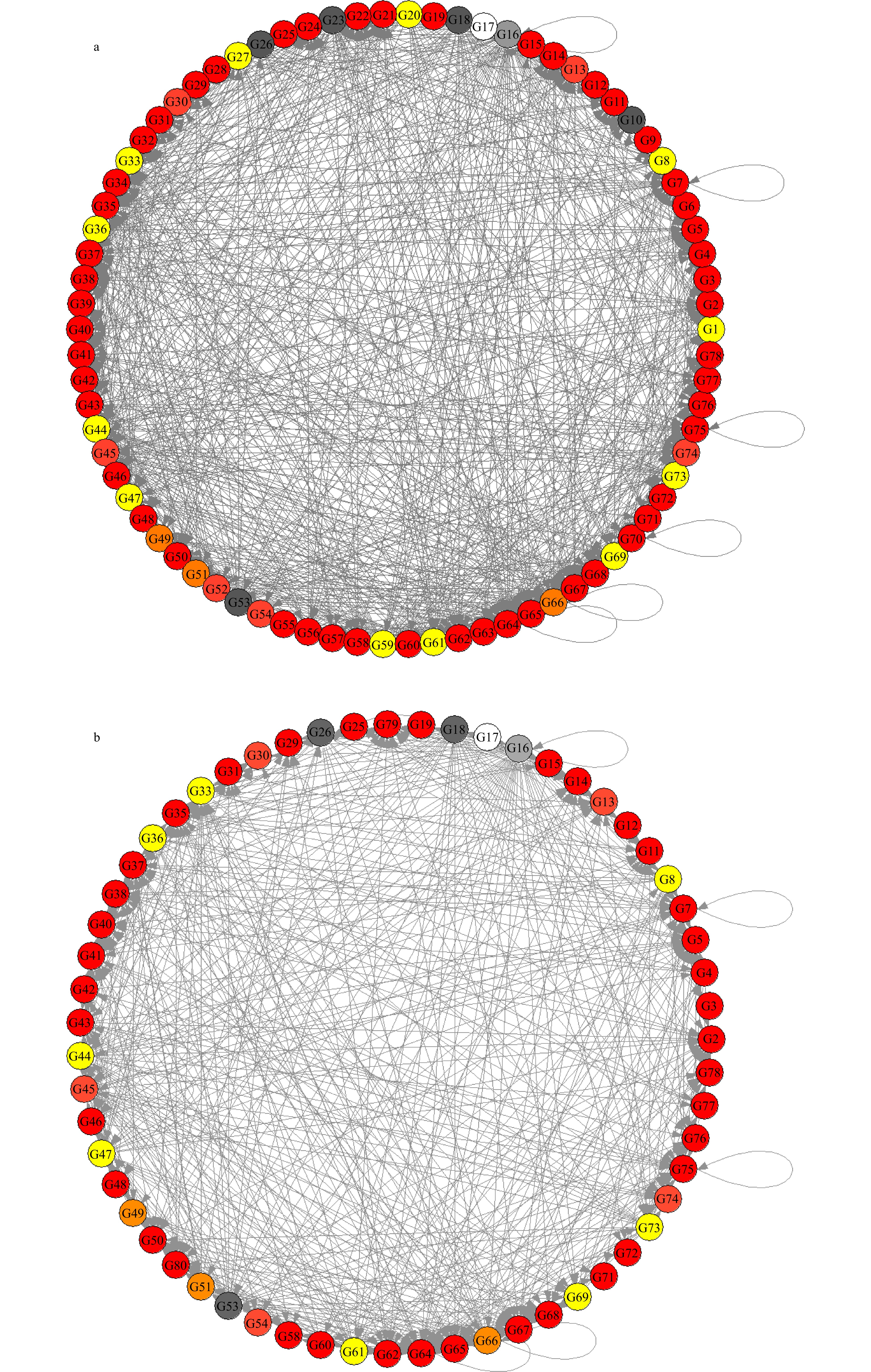

The food web of Haizhou Bay in autumns of 2011 and 2018 consisted of 78 and 59 species or taxa, respectively (Table 2), with the number of food web components decreasing significantly in 2018 compared to 2011. Notably, Lophius litulon and Liparis sp., were two species only appearing in the food web of 2018.
Changes in the composition of the food web are critical to the impact of diet composition. The results showed that food web diet composition of Haizhou Bay were markedly different between 2018 and 2011. The number of prey and predators for the same species in Haizhou Bay food web reduced in 2018 compared with 2011 (Fig. 2 and Table 3), especially for species of Trichiurus lepturus, zooplankton, Amblychaeturichthys hexanema, and Loligo sp. Notably, Syngnathus acus and Sepia esculenta remained relatively consistent among a large number of species or taxa.
3.2 Temporal variations in ENA indices

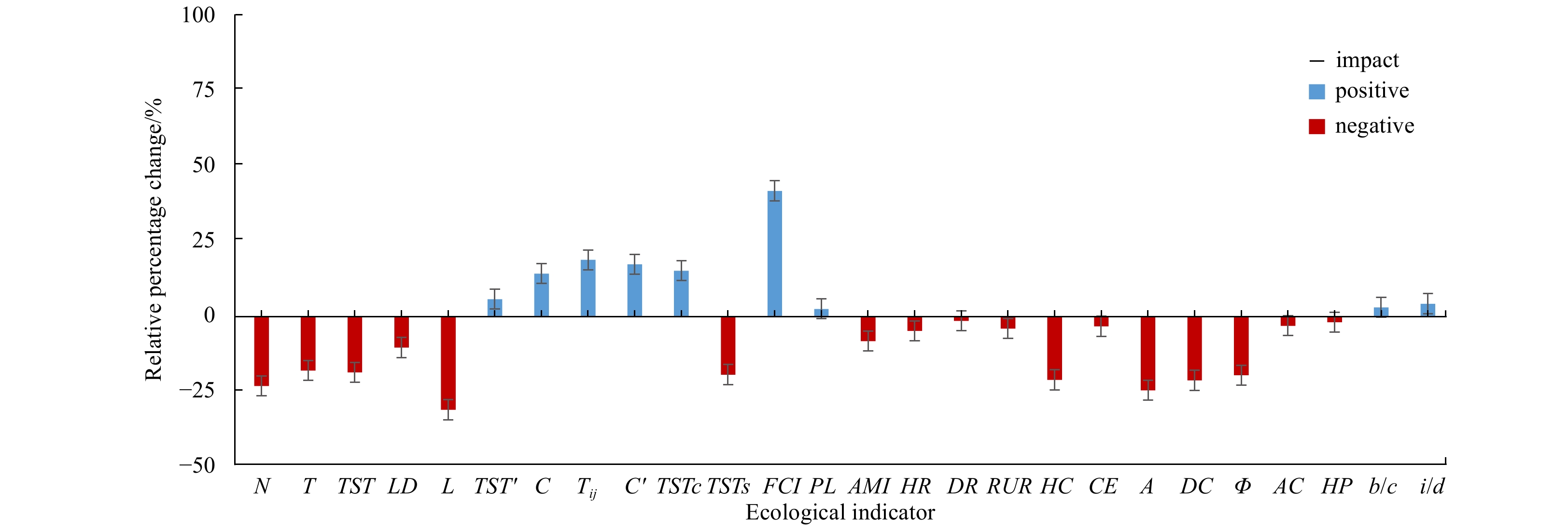

The specific results of ENA in the Haizhou Bay ecosystem in autumn of 2011 and 2018 are shown in Table 4. When paired with the relative percentage change in ENA (Fig. 3), clear temporal variations can be seen in the ENA indices. Temporal variations had a negative impact on general measures like N, T, TST, LD, and L, and but a positive effect on TST', C, Tij, and C'. Pathway analysis showed negative effects on TSTs and positive effects on TSTc, FCI, and PL. Notably, the impacts on all network uncertainty, system development and growth indicators were negative. In addition, the impact on the environment analysis was relatively low, especially the negative impact on HP (Fig. 3).
4 Discussion
Less
4.1 Changes in food web composition
In the context of climate change, continuous high fishing pressure causes drastic variations in the ecosystem, which bring great challenges to EBFM (Zhang et al., 2011). Understanding changes in ecosystems and their responses to climate changes is critical. Based on LIM-MCMC model and ENA, this study comprehensively evaluated the temporal variations in Haizhou Bay ecosystem.
The quantitative changes in food web composition may be the result of a combination of continued high-intensity fishing and climate change. Continuous high-intensity fishing is bound to cause over-exploitation of resources, which not only destroys the marine ecological environment, but also leads to the reduction or even extinction of fishery resources (Lin et al., 2016; Yang et al., 2018). In this study, the food web compositions in Haizhou Bay deceased from 78 to 59, which reflected the effects of high-intensity fishing pressure on the structure of marine ecosystems (Griffin et al., 2021). Moreover, the impacts of climate changes on biological and ecological systems are incontrovertible (Doney and Sailley, 2013; Beaugrand et al, 2015). Species can adapt to climate change by changing suitable habitats, which is also an important factor affecting the composition of food webs. Evidence for a shift in species distribution to deeper or higher-latitude waters has been widely documented (Perry et al., 2005; Dulvy et al., 2008). However, the addition in food web composition of Haizhou Bay in 2018 may be caused by the migration of species (such as L. litulon) in time or space. Yuan et al. (2023) found that the environmental factors that most affect the suitable habitat of L. litulon in autumn is sea bottom temperature. Meanwhile, the suitable temperature of this species in the central and southern Yellow Sea is low and narrow (Li et al., 2015). In addition, L. litulon has obvious migration ability (Yoneda et al., 2001) and migrates to higher latitudes to adapt to temperature changes caused by climate change (Cheung et al., 2009; Li et al., 2015).
4.2 Temporal variations in diet composition
Changes in the species composition and biomass of the food web will inevitably have an impact on diet composition. The number of food web components in 2018 was significantly less than that in 2011, which may be related to the increased fishing intensity. Overfishing is the pervasive human disturbance to coastal ecosystems, causing resource depletion or removal of target species and affecting biological communities at all trophic levels (Vasseur and McCann, 2005; Cloern et al., 2016). The loss of high-trophic level predators could reduce the predation mortality of low-trophic level species, allowing the increase of their biomass (Casini et al, 2008). Meanwhile, the diet structure of the entire food web is also affected through trophic cascading effects (Vasseur and McCann, 2005).
Ocean warming is the most intuitive manifestation of climate changes, which is one of the main drivers of variations in abundance and distribution of marine species (Perry et al., 2005; Poloczanska et al., 2013; Cloern et al., 2016). Ocean warming could result in the decline in phytoplankton biomass (Fernández-González et al., 2022) and decrease in the body size of zooplankton (Forster et al., 2012), which will affect energy transfer efficiency between different trophic levels. Meanwhile, changes in species distribution may alter the probability of encounters between predators and prey (Friedland et al., 2020). In this study, the reduction and increase of species or taxa directly affects the diet composition, requiring adjustment of feeding relationships to maintain the energy balance of the food web, which plays an important role in maintaining the stability of the ecosystem (Navia et al., 2019). Wei (2015) showed that the temperature rise under climate change was more sensitive to the metabolic activities of heterotrophs (Allen et al., 2005). The mean sea surface temperature (SST) during autumn of Haizhou Bay has increased by about 2.78℃ from 2011 to 2018 (Fig. S1). However, higher temperatures may cause fish to consume more food resources and excrete excess nutrients to maintain increased respiration (Hessen and Anderson, 2008). Therefore, whether the fish species have changed or are present in the composition of the food web, the diet composition needs to be adjusted to maintain the homeostasis of the food web.
4.3 Temporal variations of ecosystem based on ENA
Ecological network analysis can effectively reflect the properties of food web and the status of ecosystem (Mukherjee et al., 2015). Both the whole ecosystem and its individual compartments could serve as reference to reflect the structural characteristics of the food web. Krause et al. (2003) pointed out that the structural complexity of food webs reflected by wholes and compartments is different, and compartments can theoretically increase the stability of the network. In this study, N, LD, and L generally reflect the complexity of the structure of the food web (Latham, 2006), while TST', C, Tij, C', and PL are often used to determine the complexity of compartments (Pimm and Lawton, 1980; Rybarczyk and Elkaı̈m, 2003; Latham, 2006; Dunne, 2009). In particular, C and C' of the compartments in this study reflect the module, which are critical for the stability of the food web. The change in these indices in 2018 was caused by a decline in the composition of the food web and diet. Notably, the reduced species were at less connected nodes at the periphery of the network (e.g., Protosalanx hyalocranius, Coilia nasus, Sebastiscus marmoratus, Paralichthys olivaceus). In the process, the reduction of these species increases the complexity of compartments, although it reduces the overall complexity of the food web (Krause et al., 2003). Modularity has been suggested as a key structural feature linked to food web stability (Eskuche-Keith et al., 2023). Thus, to capture the intricacy of the food web structure, both the overall and compartmental indices should be taken into account.
However, functional properties of food webs are usually reflected by T, TST, TSTc, TSTs, and FCI (Vasconcellos et al., 1997; Julius et al., 2009). Most of these functional indicators declined in 2018 (with the exception of TSTc and FCI), indicating a reduction in the scale of the food web. FCI is an important indicator of food web function, reflecting the recovery time of the food web (Finn, 1980). In this study, FCI of Haizhou Bay food web were 2.15% (2011) and 3.05% (2018) respectively, which were relatively low. FCI increased slightly, mainly due to differences in food web and diet composition. In 2018, there was a decrease in overall complexity and an increase in compartment complexity associated with a decrease in the number of food web components in Haizhou Bay. After external disturbance, it is easier to return to a relatively stable status through the regulation of the food web compartment (Navia et al., 2019).
In addition, the status of Haizhou Bay ecosystem is comprehensively reflected through network uncertainty, system development and growth, and environment analysis. Compared with 2011, both network uncertainty (AMI, HR, DR, RUR, HC, and CE) and system development and growth (A, DC, Φ, and AC) in 2018 showed varying degrees of decline (Fig. 2). The temporal variations in these indicators indicate a decrease in uncertainty of the ecosystem in 2018, with lower system development and growth. The difference is that the 2018 environment analysis (HP, b/c, and i/d) increased slightly from 2011, indicating that the ecosystem is dominated by indirect effects and has a high degree of self-sustainability (Fath and Patten, 1998, 1999b; Latham, 2006; Kones et al, 2009). Notably, the variation trends of HP and FCI in this study are opposite, which is inconsistent with Fath and Patten (1999a) proposal that cycles are related to HP because cycles generally increase the evenness of flow in the network. Previous studies have shown that these modifications in ecosystem status are associated with obvious changes in low-trophic functional groups (Chaalali et al., 2016), such as primary producers, primary consumer, or plankton in ecosystems (Parmesan and Yohe, 2003; Parmesan, 2006). In addition, climate change tends to reduce the body size of zooplankton (Yvon-Durocher et al., 2011; Forster et al., 2012), which may lead to a weakening of the influence of their top-down effect on primary producers (Delong et al., 2015). In this study, a decline in HP (i.e., evenness) was observed under temporal variation, possibly due to the increased TSTc was not effectively transferred to higher trophic levels, but mainly concentrated at low trophic levels.
The ENA indices showed that the Haizhou Bay ecosystem was more mature and stable in 2011, while the ecosystem’s self-sustainability and recovery from disturbances were accelerated in 2018. These findings will enhance our understanding of the ecosystem responses and can inform the application of ENA indicators in EBFM. It also helps to understand the temporal variations in marine ecosystems, contributing to biodiversity conservation. In the future, the study of food web should pay more attention to the compartment-related indices, which is irreplaceable for the food web structure.
Acknowledgements
Less
We are grateful to the colleagues and graduate students in the Fisheries Ecosystem Monitoring and Assessment Laboratory for their assistance in field sampling and sample analysis.
Funding
Less
  • The Shandong Provincial Natural Science Foundation under contract No. ZR2023MD096; the National Key R&D Program of China under contract Nos 2018YFD0900904 and 2018YFD0900906.
References
Less
Allen A P, Gillooly J F, Brown J H. 2005. Linking the global carbon cycle to individual metabolism. Functional Ecology, 19(2): 202–213, doi: 10.1111/j.1365-2435.2005.00952.x
Anh P V, Everaert G, Goethals P, et al. 2015. Production and food web efficiency decrease as fishing activity increases in a coastal ecosystem. Estuarine, Coastal and Shelf Science, 165: 226–236
Beaugrand G, Edwards M, Raybaud V, et al. 2015. Future vulnerability of marine biodiversity compared with contemporary and past changes. Nature Climate Change, 5(7): 695–701, doi: 10.1038/nclimate2650
Bondavalli C, Bodini A, Rossetti G, et al. 2006. Detecting stress at the whole-ecosystem level: the case of a mountain lake (Lake Santo, Italy). Ecosystems, 9(5): 768–787, doi: 10.1007/s10021-005-0065-y
Borrett S R. 2013. Throughflow centrality is a global indicator of the functional importance of species in ecosystems. Ecological Indicators, 32: 182–196, doi: 10.1016/j.ecolind.2013.03.014
Casini M, Lövgren J, Hjelm J, et al. 2008. Multi-level trophic cascades in a heavily exploited open marine ecosystem. Proceedings of the Royal Society B: Biological Sciences, 275(1644): 1793–1801, doi: 10.1098/rspb.2007.1752
Ceballos G, Ehrlich P R, Barnosky A D, et al. 2015. Accelerated modern human–induced species losses: Entering the sixth mass extinction. Science Advances, 1(5): e1400253, doi: 10.1126/sciadv.1400253
Chaalali A, Beaugrand G, Raybaud V, et al. 2016. From species distributions to ecosystem structure and function: a methodological perspective. Ecological Modelling, 334: 78–90, doi: 10.1016/j.ecolmodel.2016.04.022
Chaalali A, Saint-Béat B, Lassalle G, et al. 2015. A new modeling approach to define marine ecosystems food-web status with uncertainty assessment. Progress in Oceanography, 135: 37–47, doi: 10.1016/j.pocean.2015.03.012
Cheung W W L, Lam V W Y, Sarmiento J L, et al. 2009. Projecting global marine biodiversity impacts under climate change scenarios. Fish and Fisheries, 10(3): 235–251, doi: 10.1111/j.1467-2979.2008.00315.x
Cloern J E, Abreu P C, Carstensen J, et al. 2016. Human activities and climate variability drive fast-paced change across the world’s estuarine–coastal ecosystems. Global Change Biology, 22(2): 513–529, doi: 10.1111/gcb.13059
Daniels R M, Richardson T L, Ducklow H W. 2006. Food web structure and biogeochemical processes during oceanic phytoplankton blooms: an inverse model analysis. Deep Sea Research Part II: Topical Studies in Oceanography, 53(5–7): 532–554, doi: 10.1016/j.dsr2.2006.01.016
De Laender F, Taub F B, Janssen C R. 2011. Ecosystem functions and densities of contributing functional groups respond in a different way to chemical stress. Environmental Toxicology and Chemistry, 30(12): 2892–2898, doi: 10.1002/etc.698
De Laender F, van Oevelen D, Soetaert K, et al. 2010. Carbon transfer in a herbivore- and microbial loop-dominated pelagic food webs in the southern Barents Sea during spring and summer. Marine Ecology Progress Series, 398: 93–107, doi: 10.3354/meps08335
DeLong J P, Gilbert B, Shurin J B, et al. 2015. The body size dependence of trophic cascades. The American Naturalist, 185(3): 354–366, doi: 10.1086/679735
Doney S C, Sailley S F. 2013. When an ecological regime shift is really just stochastic noise. Proceedings of the National Academy of Sciences of the United States of America, 110(7): 2438–2439
Dubois M, Gascuel D, Coll M, et al. 2019. Recovery debts can be revealed by ecosystem network-based approaches. Ecosystems, 22(3): 658–676, doi: 10.1007/s10021-018-0294-5
Dulvy N K, Rogers S I, Jennings S, et al. 2008. Climate change and deepening of the North Sea fish assemblage: a biotic indicator of warming seas. Journal of Applied Ecology, 45(4): 1029–1039, doi: 10.1111/j.1365-2664.2008.01488.x
Dunne J A. 2009. Food webs. In: Meyers R A, ed. Encyclopedia of Complexity and Systems Science. New York: Springer-Verlag, 3661–3682
Eskuche-Keith P, Hill S L, Hollyman P, et al. 2023. Trophic structuring of modularity alters energy flow through marine food webs. Frontiers in Marine Science, 9: 1046150, doi: 10.3389/fmars.2022.1046150
Fath B D, Asmus H, Asmus R, et al. 2019. Ecological network analysis metrics: the need for an entire ecosystem approach in management and policy. Ocean & Coastal Management, 174: 1–14
Fath B D, Patten B C. 1998. Network synergism: emergence of positive relations in ecological systems. Ecological Modelling, 107(2–3): 127–143, doi: 10.1016/S0304-3800(97)00213-5
Fath B D, Patten B C. 1999a. Quantifying resource homogenization using network flow analysis. Ecological Modelling, 123(2–3): 193–205, doi: 10.1016/S0304-3800(99)00130-1
Fath B D, Patten B C. 1999b. Review of the foundations of network environ analysis. Ecosystems, 2(2): 167–179, doi: 10.1007/s100219900067
Feng Jianfeng, Zhu Lin, Wang Hongli. 2010. Study on characters of coastal ecosystem in Bohai Bay with EwE. Marine Environmental Science (in Chinese), 29(6): 781–784,803
Fernández-González C, Tarran G A, Schuback N, et al. 2022. Phytoplankton responses to changing temperature and nutrient availability are consistent across the tropical and subtropical Atlantic. Communications Biology, 5(1): 1035, doi: 10.1038/s42003-022-03971-z
Fetahi T, Mengistou S. 2007. Trophic analysis of Lake Awassa (Ethiopia) using mass-balance Ecopath model. Ecological Modelling, 201(3–4): 398–408, doi: 10.1016/j.ecolmodel.2006.10.010
Finn J T. 1980. Flow analysis of models of the Hubbard Brook ecosystem. Ecology, 61(3): 562–571, doi: 10.2307/1937422
Forster J, Hirst A G, Atkinson D. 2012. Warming-induced reductions in body size are greater in aquatic than terrestrial species. Proceedings of the National Academy of Sciences of the United States of America, 109(47): 19310–19314
Friedland K D, Langan J A, Large S I, et al. 2020. Changes in higher trophic level productivity, diversity and niche space in a rapidly warming continental shelf ecosystem. Science of the Total Environment, 704: 135270, doi: 10.1016/j.scitotenv.2019.135270
Froese R, Pauly D. 2023. FishBase. World Wide Web electronic publication. http://www.fishbase.org [2023–02–17]
Griffin L P, Adam P A, Fordham G, et al. 2021. Cooperative monitoring program for a catch-and-release recreational fishery in the Alphonse Island group, Seychelles: From data deficiencies to the foundation for science and management. Ocean & Coastal Management, 210: 105681
Griffiths S P, Young J W, Lansdell M J, et al. 2010. Ecological effects of longline fishing and climate change on the pelagic ecosystem off eastern Australia. Reviews in Fish Biology and Fisheries, 20(2): 239–272, doi: 10.1007/s11160-009-9157-7
Han Dongyan, Xue Ying, Zhang Chongliang, et al. 2017. A mass balanced model of trophic structure and energy flows of a semi-closed marine ecosystem. Acta Oceanologica Sinica, 36(10): 60–69, doi: 10.1007/s13131-017-1071-6
Hessen D O, Anderson T R. 2008. Excess carbon in aquatic organisms and ecosystems: physiological, ecological, and evolutionary implications. Limnology and Oceanography, 53(4): 1685–1696, doi: 10.4319/lo.2008.53.4.1685
Horn S, De La Vega C, Asmus R, et al. 2019. Impact of birds on intertidal food webs assessed with ecological network analysis. Estuarine, Coastal and Shelf Science, 219: 107–119
Johnson R W, McElhaney J. 2009. Postherpetic neuralgia in the elderly. International Journal of Clinical Practice, 63(9): 1386–1391, doi: 10.1111/j.1742-1241.2009.02089.x
Julius R J, Novitsky M A, Dubin W R. 2009. Medication adherence: a review of the literature and implications for clinical practice. Journal of Psychiatric Practice, 15(1): 34–44, doi: 10.1097/01.pra.0000344917.43780.77
Kones J K, Soetaert K, van Oevelen D, et al. 2009. Are network indices robust indicators of food web functioning? A Monte Carlo approach. Ecological Modelling, 220(3): 370–382, doi: 10.1016/j.ecolmodel.2008.10.012
Krause A E, Frank K A, Mason D M, et al. 2003. Compartments revealed in food-web structure. Nature, 426(6964): 282–285, doi: 10.1038/nature02115
Latham L G. 2006. Network flow analysis algorithms. Ecological Modelling, 192(3–4): 586–600, doi: 10.1016/j.ecolmodel.2005.07.029
Layman C A, Giery S T, Buhler S, et al. 2015. A primer on the history of food web ecology: fundamental contributions of fourteen researchers. Food Webs, 4: 14–24, doi: 10.1016/j.fooweb.2015.07.001
Leguerrier D, Degré D, Niquil N. 2007. Network analysis and inter-ecosystem comparison of two intertidal mudflat food webs (Brouage Mudflat and Aiguillon Cove, SW France). Estuarine, Coastal and Shelf Science, 74(3): 403–418
Li Rui, Han Zhen, Cheng Heqin, et al. 2010. A preliminary study on biological resources energy flows bed on the ECOPATH model in the East China Sea. Resources Science (in Chinese), 32(4): 600–605
Li Zhonglu, Shan Xiujuan, Jin Xianshi, et al. 2015. Interannual variations in the biological characteristics, distribution and stock density of anglerfish Lophius litulon in the central and southern Yellow Sea. Acta Ecologica Sinica (in Chinese), 35(12): 4007–4015
Li Xuetong, Xu Binduo, Xue Ying, et al. 2021. Variation in the β diversity of fish species in Haizhou Bay. Journal of Fishery Sciences of China (in Chinese), 28(4): 451–459
Li Mingkun, Zhang Chongliang, Xu Binduo, et al. 2020. A comparison of GAM and GWR in modelling spatial distribution of Japanese mantis shrimp (Oratosquilla oratoria) in coastal waters. Estuarine, Coastal and Shelf Science, 244: 106928
Lin Qun, Jin Xianshi, Zhang Bo. 2013. Trophic interactions, ecosystem structure and function in the southern Yellow Sea. Chinese Journal of Oceanology and Limnology, 31(1): 46–58, doi: 10.1007/s00343-013-2013-6
Lin Qun, Jin Xianshi, Zhang Bo, et al. 2009. Comparative study on the changes of the Bohai Sea ecosystem structure based on Ecopath model between ten years. Acta Ecologica Sinica (in Chinese), 29(7): 3613–3620
Lin Qun, Wang Jun, Li Zhongyi, et al. 2018. Ecological carrying capacity of shellfish in the Yellow River estuary and its adjacent waters. Chinese Journal of Applied Ecology (in Chinese), 29(9): 3131–3138
Lin Qun, Wang Jun, Yuan Wei, et al. 2016. Effects of fishing and environmental change on the ecosystem of the Bohai Sea. Journal of Fishery Sciences of China (in Chinese), 23(3): 619–629
Liu Hongyan, Yang Chaojie, Zhang Peidong, et al. 2019. An Ecopath evaluation of system structure and function for the Laoshan Bay artificial reef zone ecosystem. Acta Ecologica Sinica (in Chinese), 39(11): 3926–3936
Liu Zhihao, Han Dongyan, Gao Chunxia, et al. 2021. Feeding habits of Bombay ducks (Harpadon nehereus) in the offshore waters of southern Zhejiang, based on predator CPUE weighting. Journal of Fishery Sciences of China (in Chinese), 28(4): 482–492
Marquis E, Niquil N, Delmas D, et al. 2007. Inverse analysis of the planktonic food web dynamics related to phytoplankton bloom development on the continental shelf of the Bay of Biscay, French coast. Estuarine, Coastal and Shelf Science, 73(1–2): 223–235
Mukherjee J, Scharler U M, Fath B D, et al. 2015. Measuring sensitivity of robustness and network indices for an estuarine food web model under perturbations. Ecological Modelling, 306: 160–173, doi: 10.1016/j.ecolmodel.2014.10.027
Navia A F, Maciel-Zapata S R, González-Acosta A F, et al. 2019. Importance of weak trophic interactions in the structure of the food web in La Paz Bay, southern Gulf of California: a topological approach. Bulletin of Marine Science, 95(2): 199–215, doi: 10.5343/bms.2018.0043
Nuttall M A, Jordaan A, Cerrato R M, et al. 2011. Identifying 120 years of decline in ecosystem structure and maturity of Great South Bay, New York using the Ecopath modelling approach. Ecological Modelling, 222(18): 3335–3345, doi: 10.1016/j.ecolmodel.2011.07.004
Olsen Y, Andersen T, Gismervik I, et al. 2007. Protozoan and metazoan zooplankton-mediated carbon flows in nutrient-enriched coastal planktonic communities. Marine Ecology Progress Series, 331: 67–83, doi: 10.3354/meps331067
Parmesan C. 2006. Ecological and evolutionary responses to recent climate change. Annual Review of Ecology, Evolution, and Systematics, 37: 637–669
Parmesan C, Yohe G. 2003. A globally coherent fingerprint of climate change impacts across natural systems. Nature, 421(6918): 37–42, doi: 10.1038/nature01286
Perry A L, Low P J, Ellis J R, et al. 2005. Climate change and distribution shifts in marine fishes. Science, 308(5730): 1912–1915, doi: 10.1126/science.1111322
Pimm S L, Lawton J H. 1980. Are food webs divided into compartments?. The Journal of Animal Ecology, 49(3): 879–898, doi: 10.2307/4233
Poloczanska E S, Brown C J, Sydeman W J, et al. 2013. Global imprint of climate change on marine life. Nature Climate Change, 3(10): 919–925, doi: 10.1038/nclimate1958
Ren Xiaoming, Liu Yang, Xu Binduo, et al. 2020. Ecosystem structure in the Haizhou Bay and adjacent waters based on Ecopath model. Haiyang Xuebao (in Chinese), 42(6): 101–109
Rooney N, McCann K S. 2012. Integrating food web diversity, structure and stability. Trends in Ecology & Evolution, 27(1): 40–46
Rose K A, Allen J I, Artioli Y, et al. 2010. End-to-end models for the analysis of marine ecosystems: Challenges, issues, and next steps. Marine and Coastal Fisheries: Dynamics, Management, and Ecosystem Science, 2(1): 115–130
Rybarczyk H, Elkaı̈m B. 2003. An analysis of the trophic network of a macrotidal estuary: the Seine Estuary (Eastern Channel, Normandy, France). Estuarine, Coastal and Shelf Science, 58(4): 775–791
Safi G, Giebels D, Arroyo N L, et al. 2019. Vitamine ENA: a framework for the development of ecosystem-based indicators for decision makers. Ocean & Coastal Management, 174: 116–130
Savenkoff C, Castonguay M, Chabot D, et al. 2007. Changes in the northern Gulf of St. Lawrence ecosystem estimated by inverse modelling: Evidence of a fishery-induced regime shift?. Estuarine, Coastal and Shelf Science, 73(3–4): 711–724
Sheng Fuli, Zeng Xiaoqi, Xue Ying. 2009. Study on propagation and feeding habits of Oratosquilla oratoria in the inshore waters of Qingdao. Periodical of Ocean University of China (in Chinese), 39(S1): 326–332
Soetaert K, van den Meersche K, van Oevelen D, et al. 2009. limSolve: Solving linear inverse models.https://cran.r-project.org/web//packages/limSolve/limSolve.pdf [2022–10–13]
Soetaert K, van Oevelen D. 2009. LIM: linear inverse model examples and solution methods.https://cran.r-project.org/web/packages/LIM/index.html [2022–05–11]
Song Yehui, Xue Ying, Xu Binduo, et al. 2020. Composition of food and niche overlap of three Sciaenidae species in Haizhou Bay. Journal of Fisheries of China (in Chinese), 40(12): 2017–2027
Van Oevelen D, van den Meersche K, Meysman F J R, et al. 2010. Quantifying food web flows using linear inverse models. Ecosystems, 13(1): 32–45, doi: 10.1007/s10021-009-9297-6
Vasconcellos M, Mackinson S, Sloman K, et al. 1997. The stability of trophic mass-balance models of marine ecosystems: a comparative analysis. Ecological Modelling, 100(1–3): 125–134, doi: 10.1016/S0304-3800(97)00150-6
Vasseur D A, McCann K S. 2005. A mechanistic approach for modeling temperature-dependent consumer-resource dynamics. The American Naturalist, 166(2): 184–198, doi: 10.1086/431285
Vézina A F, Platt T. 1988. Food web dynamics in the ocean. I. Best-estimates of flow networks using inverse methods. Marine Ecology Progress Series, 42(3): 269–287
Wang Yuanchao, Liang Cui, Xian Weiwei, et al. 2018. Ecopath based dynamic analyses of energy flows of Yangtze estuary and its adjacent waters. Marine Sciences (in Chinese), 42(5): 54–67
Wang Sai, Wang Lin, Zheng Yu, et al. 2019. Application of mass-balance modelling to assess the effects of ecological restoration on energy flows in a subtropical reservoir, China. Science of the Total Environment, 664: 780–792, doi: 10.1016/j.scitotenv.2019.01.334
Wei Jingjing. 2015. A preliminary study on microbial community structures and their influencing factors in the Western Pacific waters (in Chinese) [dissertation]. Xiamen: Xiamen University
Wu Xiaotong, Ding Xiangxiang, Jiang Xu, et al. 2019. Variations in the mean trophic level and large fish index of fish community in Haizhou Bay, China. Chinese Journal of Applied Ecology (in Chinese), 30(8): 2829–2836
Xing Lei, Chen Yong, Tanaka K R, et al. 2022. Evaluating the hatchery program of a highly exploited shrimp stock (Fenneropenaeus chinensis) in a temperate marine ecosystem. Frontiers in Marine Science, 9: 789805, doi: 10.3389/fmars.2022.789805
Xu Binduo, Ren Yiping, Chen Yong, et al. 2015. Optimization of stratification scheme for a fishery-independent survey with multiple objectives. Acta Oceanologica Sinica, 34(12): 154–169, doi: 10.1007/s13131-015-0739-z
Xu Congjun, Sui Haozhi, Xu Binduo, et al. 2021. Energy flows in the Haizhou Bay food web based on the LIM-MCMC model. Journal of Fishery Sciences of China (in Chinese), 28(1): 66–78
Xu Xue, Tang Weiyao, Wang Yingbin. 2019. Releasing capacity of Portunus trituberculatus enhancement in Zhoushan fishing ground and Yangtze river estuary fishing ground and their adjacent waters. South China Fisheries Science (in Chinese), 15(3): 126–132
Xu Chao, Wang Sikai, Zhao Feng, et al. 2018. Trophic structure and energy flow of the Yangtze Estuary ecosystem based on the analysis with Ecopath model. Marine Fisheries (in Chinese), 40(3): 309–318
Xue Ying. 2005. Studies on the feeding ecology of dominant fishes and food web of fishes in the central and southern Yellow Sea (in Chinese) [dissertation]. Qingdao: Ocean University of China
Yang Tao, Shan Xiujuan, Jin Xianshi, et al. 2018. Long-term changes in keystone species in fish community in spring in Laizhou Bay. Progress in Fishery Sciences (in Chinese), 39(1): 1–11
Yin Jie, Xu Jun, Xue Ying, et al. 2021. Evaluating the impacts of El Niño events on a marine bay ecosystem based on selected ecological network indicators. Science of the Total Environment, 763: 144205, doi: 10.1016/j.scitotenv.2020.144205
Yoneda M, Tokimura M, Fujita H, et al. 2001. Reproductive cycle, fecundity, and seasonal distribution of the anglerfish Lophius litulon in the East China and Yellow seas. Fishery Bulletin, 99(2): 356–370
Yuan Xingwei, Jiang Yazhou, Gao Xiaodi, et al. 2023. Spatiotemporal distribution of Lophius litulon in the southern Yellow Sea and East China Sea. Chinese Journal of Applied Ecology (in Chinese), 34(2): 519–526
Yuan Jianmei, Zhang Hu, Ben Chengkai, et al. 2018. Macrobenthic community composition and it’s secondary productivity in the Haizhou Bay. Marine Fisheries (in Chinese), 40(1): 19–26
Yvon-Durocher G, Montoya J M, Trimmer M, et al. 2011. Warming alters the size spectrum and shifts the distribution of biomass in freshwater ecosystems. Global Change Biology, 17(4): 1681–1694, doi: 10.1111/j.1365-2486.2010.02321.x
Zhang Chongliang, Chen Yong, Ren Yiping. 2015. Assessing uncertainty of a multispecies size-spectrum model resulting from process and observation errors. ICES Journal of Marine Science, 72(8): 2223–2233, doi: 10.1093/icesjms/fsv086
Zhang Wuchang, Zhang Cuixia, Wang Rong, et al. 2011. Grazing pressure of microzooplankton on phytoplankton in spring and autumn in the Yellow Sea and East China Sea. Marine Sciences (in Chinese), 35(1): 36–39
