Salinity fronts shape spatial patterns in zooplankton distribution in Hangzhou Bay

Salinity fronts shape spatial patterns in zooplankton distribution in Hangzhou Bay

PDF

Yepeng Xu¹^,², Yiqi Wang³, Lin Zhan¹^,², Yijun Ou¹^,², Kangning Jia¹^,², Ming Mao¹^,², Xuyu Zhu⁴, Zhibing Jiang¹^,²^,³^,⁵^,⁶, Yuanli Zhu¹^,²^,³^,⁶, Wei Huang¹^,²^,³^,⁵^,⁶, Ping Du¹^,²^,³^,⁵^,⁶^,^*, Jiangning Zeng¹^,²^,³^,⁶, Lu Shou¹^,²^,³^,⁵^,⁶, Feng Zhou³^,⁶

Acta Oceanologica Sinica | 2024, 43(6) : 96 - 106

Less

Acta Oceanologica Sinica | 2024, 43(6): 96-106

• Articles •

Salinity fronts shape spatial patterns in zooplankton distribution in Hangzhou Bay

Full

Affiliations

¹ Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China

² Key Laboratory of Nearshore Engineering Environment and Ecological Security of Zhejiang Province, Hangzhou 310012, China

³ State Key Laboratory of Satellite Ocean Environment Dynamics, Ministry of Natural Resources, Hangzhou 310012, China

⁴ Nantong Marine Environmental Monitoring Center, Ministry of Natural Resources, Nantong 226002, China

⁵ Key Laboratory of Ocean Space Resource Management Technology, Ministry of Natural Resources, Hangzhou 310012, China

⁶ Observation and Research Station of Marine Ecosystem in the Yangtze River Delta, Ministry of Natural Resources, Zhoushan 316021, China

Published: 2024-06-25 doi: 10.1007/s13131-024-2374-z

Outline

Abstract

Less

Ocean fronts play important roles in nutrient transport and in the shaping ecological patterns. Frontal zones in small bays are typically small in scale, have a complex structure, and they are spatially and temporally variable, but there are limited data on how biological communities respond to this variation. Hangzhou Bay, a medium-sized estuary in China, is an ideal place in which to study the response of plankton to small-scale ocean fronts, because three water masses (Qiantang River Diluted Water, Changjiang River Diluted Water, and the East China Sea current) converge here and form dynamic salinity fronts throughout the year. We investigate zooplankton communities, and temperature, salinity and chlorophyll a (Chl a) in Hangzhou Bay in June (wet period) and December (dry period) of 2022 and examine the dominant environmental factors that affect zooplankton community spatial variability. We then match the spatial distributions of zooplankton communities with those of salinity fronts. Salinity is the most important explanatory variable to affect zooplankton community spatial variability during both wet and dry periods, in that it contributes >60% of the variability in community structure. Furthermore, the spatial distributions of zooplankton match well with salinity fronts. During December, with weaker Qiantang River Diluted Water and a stronger secondary Changjiang River Plume, zooplankton communities occur in moderate salinity (MS, salinity range 15.6 ± 2.2) and high salinity (HS, 22.4 ± 1.7) regions, and their ecological boundaries closely match the Qiantang River Diluted Water front. In June, different zooplankton communities occur in low salinity (LS, 3.9 ± 1.0), MS (11.7 ± 3.6) and HS (21.3 ± 1.9) regions. Although the LS region occurs abnormally in the central bay rather than its apex because of the anomalous influence of rising and falling tides during the sampling period, the ecological boundaries still match salinity interfaces. Low-salinity or brackish-water zooplankter taxa are relatively more abundant in LS or MS regions, and the biomass and abundance of zooplankton is higher in the MS region.

Key words

zooplankton / spatial distribution / salinity fronts / Hangzhou Bay

Cite this Article

Yepeng Xu, Yiqi Wang, Lin Zhan, Yijun Ou, Kangning Jia, Ming Mao, Xuyu Zhu, Zhibing Jiang, Yuanli Zhu, Wei Huang, Ping Du, Jiangning Zeng, Lu Shou, Feng Zhou. Salinity fronts shape spatial patterns in zooplankton distribution in Hangzhou Bay[J]. Acta Oceanologica Sinica, 2024 , 43 (6) : 96 -106 . DOI: 10.1007/s13131-024-2374-z

Full Text

Less

1 Introduction

Less

Oceanic fronts are narrow three-dimensional structures that dynamically partition water masses of different properties. They are characterized by pronounced gradients in hydrographic features such as temperature and salinity (Liu et al., 2022; Zhou et al., 2021). Because of their abrupt nature, fronts are typically discontinuous. The spatial scale over which they occur can range from a few meters to several thousand kilometers. Temporally they can be transient, persisting for a few days only, to, for many oceanic fronts, being quasi-stationary and occurring seasonally; some persistent fronts also occur (Belkin et al., 2009). Frontal zones in small bays are typically narrower and shallower than larger-scale fronts, and cover ranges of a few hundred meters to several kilometers. Additionally, the frontal zones of small bays can be structurally more complex than larger-scale fronts (Hernández-Moresino et al., 2017). Hangzhou Bay, a small shallow coastal bay in the East China Sea, has a complex ecosystem that is influenced by multiple sources, including runoff from rivers, tidal movements, and seawater intrusion from East China Sea. It represents an ideal location in which to study frontal zones in small bays (Jia et al., 2022).

As vital components of marine ecosystems, zooplankton can be highly sensitive to changes in the environment such as in temperature, salinity, and chlorophyll a (Chl a) concentration. Zooplankton also plays an important role in ecosystems (Liu et al., 2023), constitutes a significant part of the marine food web, and significantly impacts energy transfer and nutrient cycling (Du et al., 2023; de Puelles and Molinero, 2008).

Significant physical, chemical, and biological differences exist among water masses originating from various sources within Hangzhou Bay (Zhang et al., 2022; Yan et al., 2021). These differences substantially impact the distribution and community structure of zooplankton in the bay’s waters (Sun et al., 2016). Several studies on the distribution and community structure of zooplankton in Hangzhou Bay and adjacent waters have been reported during last four decades (Zhu, 1988; Chen et al., 1992; Xu et al., 2003; Sun et al., 2016). In the 1980s, a comprehensive study on the ecological characteristics of zooplankton communities in Hangzhou Bay has been made (Zhu, 1988). Chen et al. (1992) analyzed the biomass, species composition and community structure of zooplankton in the north shore of Hangzhou Bay. In waters around Yangshan Islands in Hangzhou Bay, Xu et al. (2003) studied the distribution characteristics of zooplankton. Sun et al. (2016) pointed out that monsoon and the dissolved inorganic nitrogen (DIN) input from freshwater discharge of Qiantang River and Changjiang River resulted in temporal and spatial variations of environmental gradient in Hangzhou Bay, which significantly influenced the structure of mesozooplankton community. Several studies have investigated the response of plankton communities to frontal zones. Hernández-Moresino et al. (2017) reported structural differences in a mesozooplankton community in San Jose Bay between mixed and stratified environments in the frontal zone to be caused mainly by stratification and coastal upwelling. In the Zhujiang River Estuary in southern China, Zhou et al. (2020) found that variations in environmental factors within the plume front area resulted in significant spatial differences in the distribution of phytoplankton communities; Li et al. (2019) pointed out that the salinity gradient contributed to the diversity and distribution of tintinnid ciliates. As mentioned above, previous studies have explored the relationships between zooplankton and environmental factors in Hangzhou Bay, as well as the relationship between zooplankton and fronts in other bays. However, how zooplankton communities respond to frontal zones formed by water masses from different sources in Hangzhou Bay remains poorly known. Because the main fronts in this bay differ in salinity and temperature (Jia et al., 2022; Cao et al., 2021), we hypothesized that zooplankton communities in this region were similarly shaped by these two environmental variables. To test this hypothesis, we related environmental variables to zooplankton communities in Hangzhou Bay in June and December of 2022. Our results contribute to an improved understanding of the ecological response of zooplankton communities to hydrographic fronts and nutrient transport in estuarine and coastal waters.

2 Materials and methods

Less

2.1 Study area

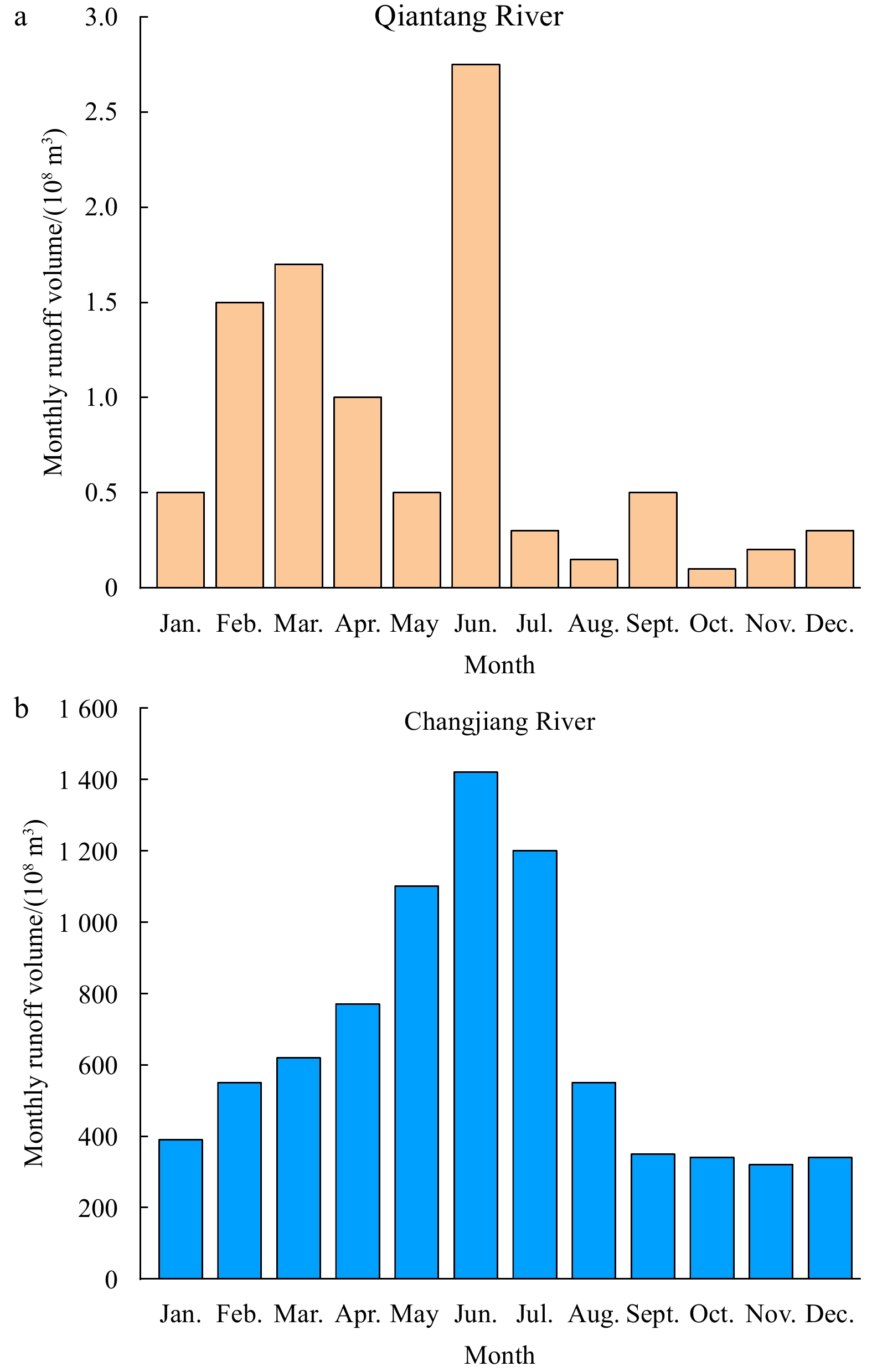

Hangzhou Bay, a typical trumpet-shaped estuary, is located close to the southern side of the Changjiang River Estuary. The bay width at its entrance is approximately 100 km, but it narrows to less than 20 km at its western end (Su and Wang, 1989). Hangzhou Bay is located along a meso-tidal coast, with an average tidal range of ~2.5 m at its entrance, but with a tidal range that increases rapidly towards the interior of the bay, leading to the formation of the famous Qiantang River tidal bore within the Qiantang River Estuary segment west of the bay’s apex (Yu et al., 2022; Su and Wang, 1989). The tidal bore typically reaches a height of 1–2 m, with occasional peaks to 3 m, and a tidal range that can extend to 9 m (Hu et al., 2019).

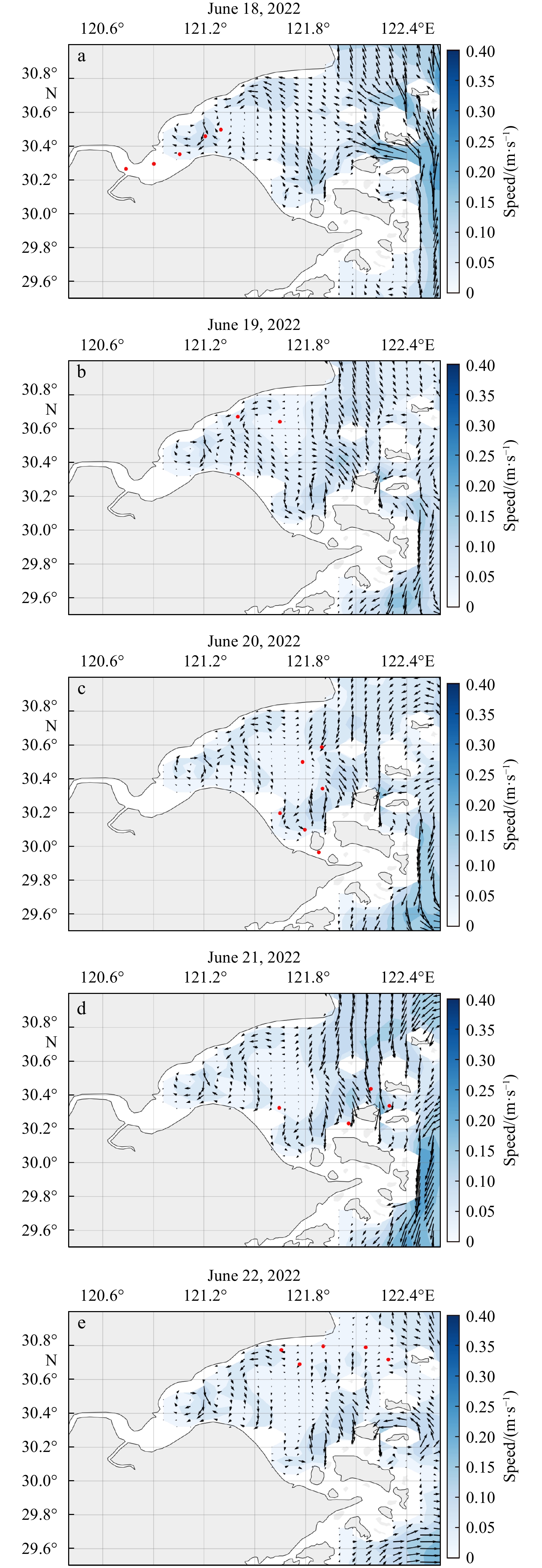

Within Hangzhou Bay, there is a year-round northeast–southwest oriented frontal zone that is composed of a diluted-water secondary front of Changjiang River in the northern part of the bay, and a diluted-water front from the Qiantang River at the bay’s apex. These two fronts separate during low tide in the dry season, but they form a continuous line at other times (Jia et al., 2022; Su and Wang, 1989). The wet period in Hangzhou Bay occurs in June when both the Qiantang and Changjiang rivers experience their highest freshwater input levels throughout the year. The dry period extends from October to December, during which time the freshwater input from the Qiantang and Changjiang rivers is at its lowest throughout the year (Fig. 1).

2.2 Sample collection and analysis

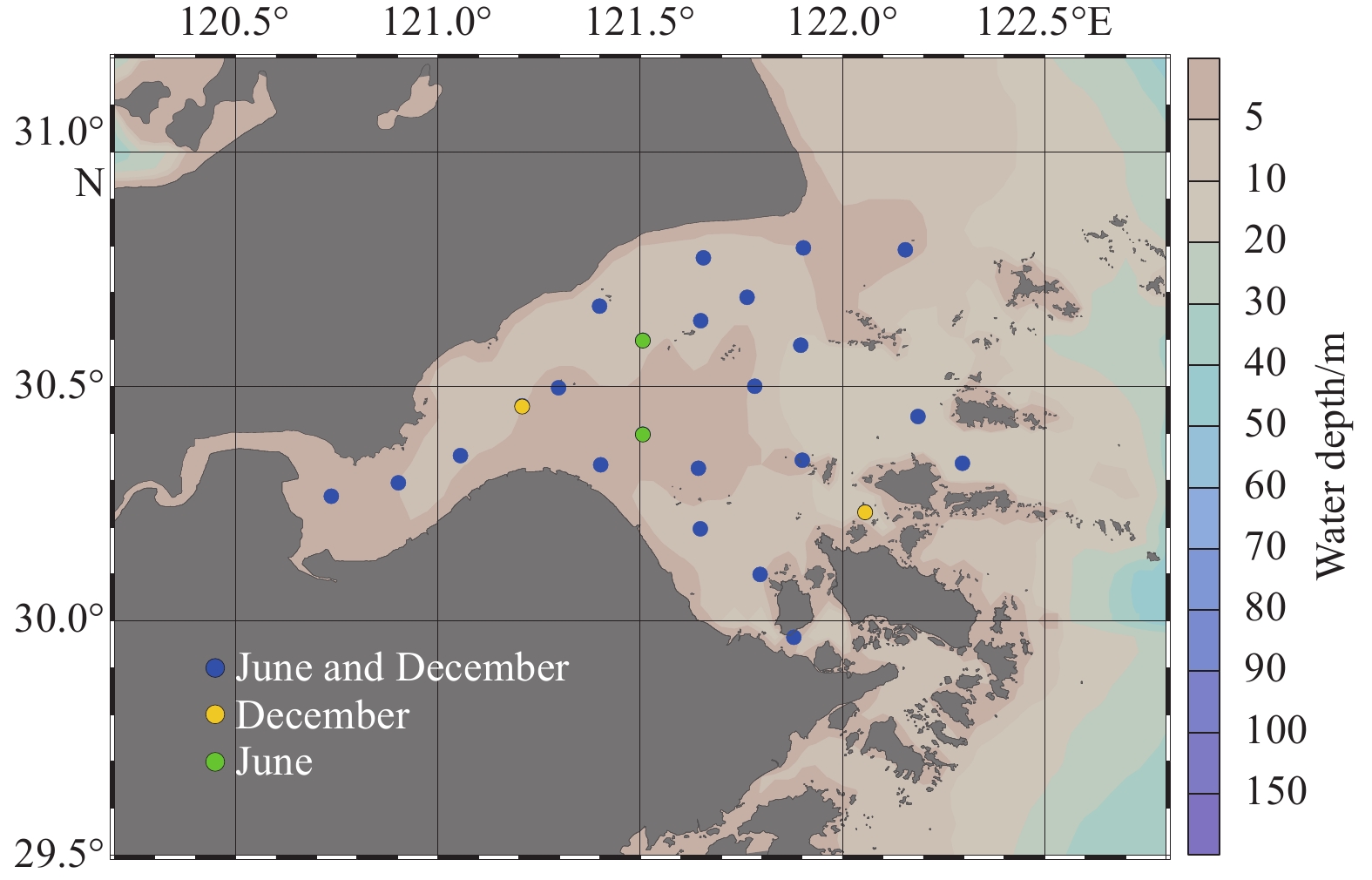

Two surveys were conducted at 22 stations during June 18th to 22nd, 2022 (wet season) and December 12nd to 20th, 2022 (dry season) aboard the R/V Zheluyugong99001 in Hangzhou Bay (Fig. 2). Zooplankton were sampled by plankton net (diameter 31.6 cm, mesh size 160 μm, length 140 cm) equipped with a flow meter, hauled vertically from the sea bed to the surface. Net-contents were fixed in a buffered 5% formalin solution in 1-L plastic bottles. The volume of filtered water was estimated using a digital flow meter.

In the laboratory, zooplankton were filtered over a mesh (160 μm) and weighed with a 0.1 mg electronic balance after picking out sundry items. Zooplankton abundance (ind./m³) was calculated by dividing the number of zooplankters by the volume of filtered water. Zooplankton biomass (mg/m³) was determined by dividing the sample wet weight by the volume of filtered water. Taxonomic identification and enumeration were performed beneath a Zeiss SteREO Discovery V8 stereomicroscope. Adult zooplankton, crustacean larvae, and other larvae were identified to species, family, and class levels, respectively.

Temperature and salinity were measured using a Sea-Bird 911 CTD (Sea-Bird Electronics Inc., USA). Seawater was collected from surface, and samples for Chl a were processed by filtering 100 mL of water through 0.7-μm GF/F filters (Whatman). Chl a retained on these filters was analyzed using a Turner Design Fluorometer after extraction in 90% acetone for 24 h at −20℃.

2.3 Data analysis

Before analysis, a Bray–Curtis similarity matrix was constructed, and zooplankton species abundance data for each station were square-root transformed. To characterize zooplankton communities, cluster analysis was then performed on the transformed data set. Clusters are depicted separately on station maps for each season. One-way analysis of similarity (ANOSIM) was used to test for any signiﬁcant differences between community groups. Similarity percentage (SIMPER) was employed to identify the dominant species contributing most to the similarity between groups. Differences in abundance and biomass of zooplankton and dominant species between ecological groups for these two seasons were tested by non-parametric Kruskal–Wallis tests. Relationships between zooplankton community structure and environmental variables were analyzed by canonical correspondence analysis (CCA), before which a detrended correspondence analysis (DCA) was performed.

Cluster analysis, analysis of similarities (ANOSIM), and similarity percentage (SIMPER) analysis were performed using Primer 6 (Plymouth Marine Laboratory, UK). Results of cluster analysis, and the spatial and temporal distributions of temperature, salinity, and Chl a were visualized using Surfer 18. The non-parametric Kruskal–Wallis test was performed using IBM SPSS Statistics 27. Correlation analysis was performed using Canoco 5.

3 Results

Less

3.1 Environmental variables

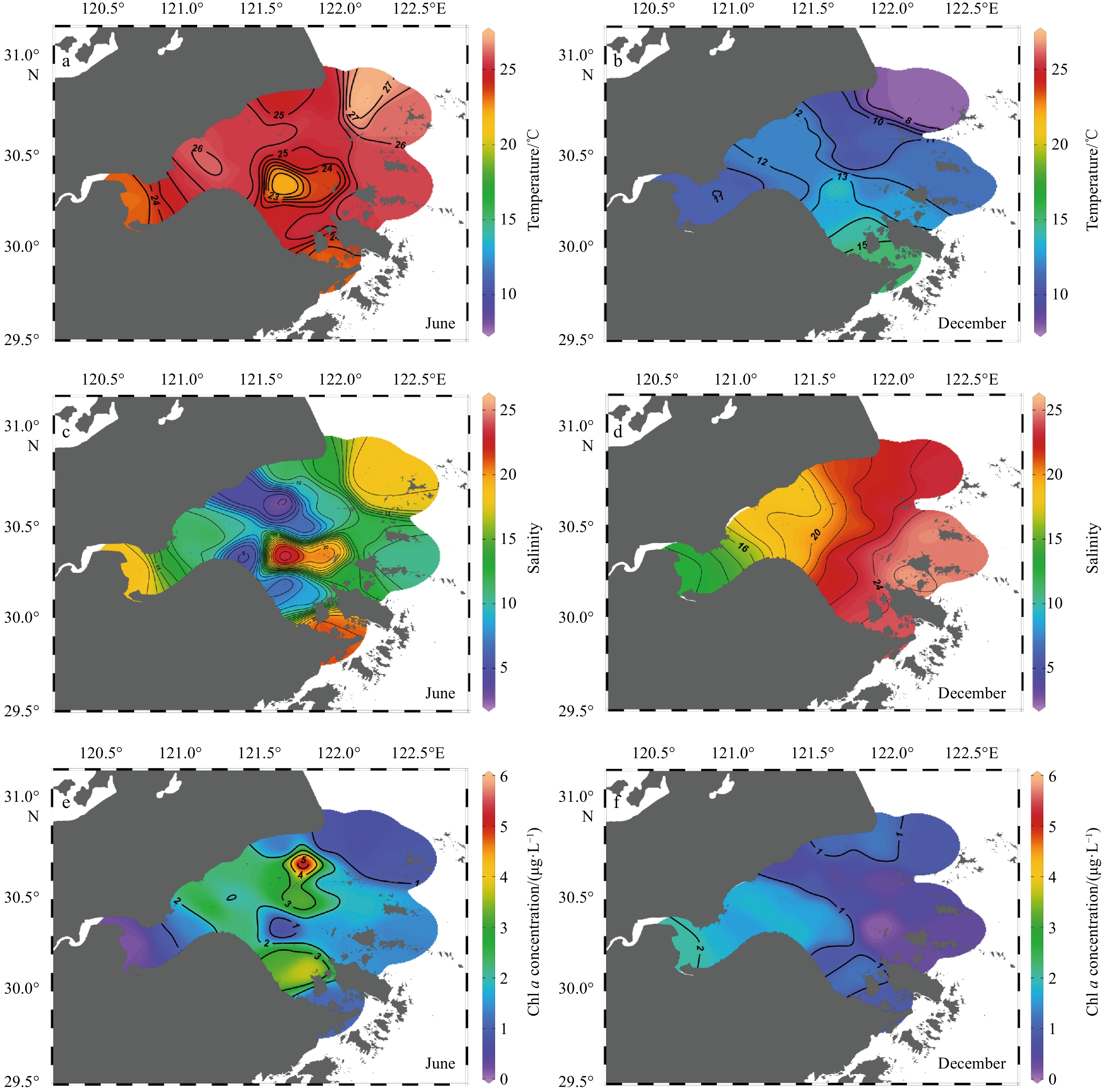

Surface water temperatures were higher in June, at (25.08 ± 1.11)℃ than December, at (11.55 ± 1.70)℃, while seawater surface salinity was higher in December (20.94 ± 3.41) and lower in June (12.24 ± 5.58). Seawater surface Chl a was higher in June at (1.90 ± 1.21) μg/L than during December at (1.04 ± 0.56) μg/L (Table 1).

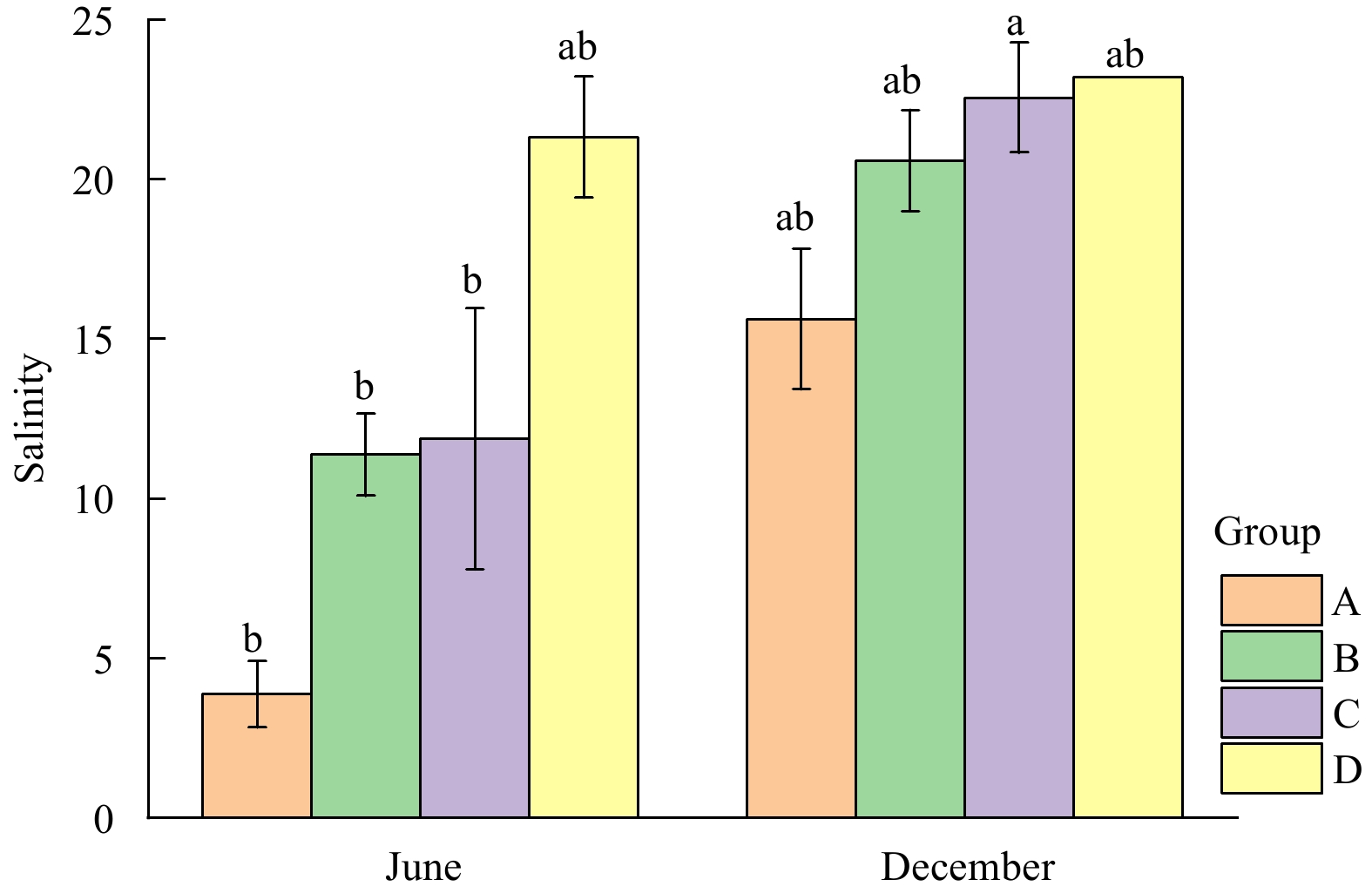

Surface water temperatures ranged 22.10–27.40℃ in June, and decreased from northeast to southwest (Fig. 3a). Surface water temperatures in December ranged 7.70–15.22℃, and decreased from south to north (Fig. 3b). Surface salinity ranged 2.42–23.69 in June, with a low-salinity patch in the middle of the bay and high-salinity patches at the bay’s apex and entrance (Fig. 3c). In December, surface salinity ranged 12.48–25.32, and increased from west to east (Fig. 3d). Surface Chl a ranged 0.17–5.61 μg/L in June, with lower concentrations at the bay’s apex and entrance, and higher concentrations in the central bay (Fig. 3e). In December, surface Chl a ranged 0.12–2.05 μg/L, and generally decreased from west to east (Fig. 3f).

3.2 Zooplankton community

3.2.1 Spatial and temporal variation in zooplankton communities

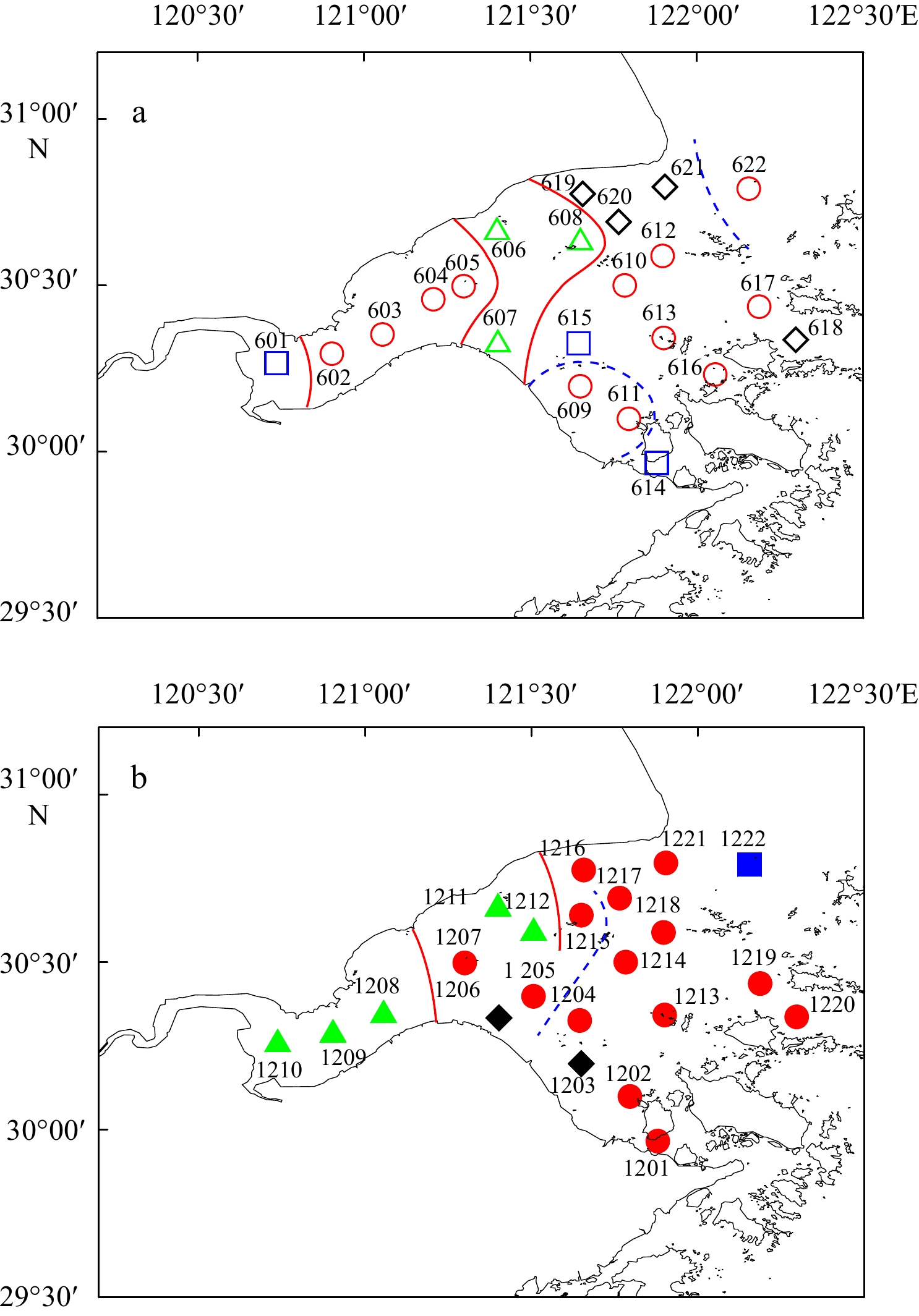

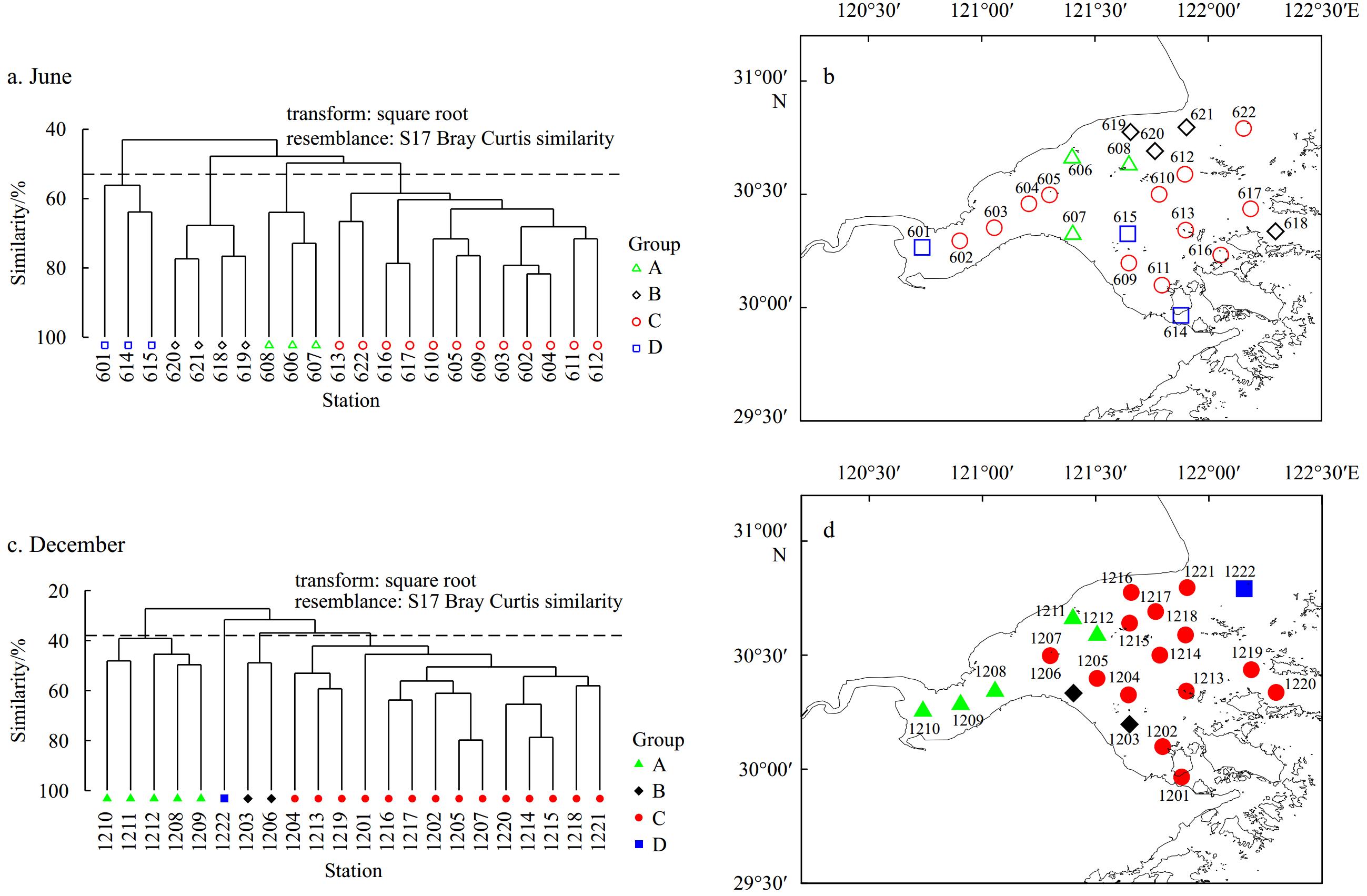

In June, four zooplankton communities were identified by cluster analysis at 53% similarity (Fig. 4). Differences in community structure between groups were significant except for Groups A and C (Table 2). The distribution of zooplankton communities in June generally corresponded with the distribution of salinity. Average salinities experienced by Groups A, B, C, and D were 3.87 ± 1.03, 11.38 ± 1.29, 11.87 ± 4.09, and 21.33 ± 1.90, respectively (Fig. 5).

In December, cluster analysis identified four zooplankton communities at 38% similarity (Fig. 4). Average salinities for Groups A, B, C, and D were 15.63 ± 2.20, 20.60 ± 1.59, 22.57 ± 1.72, and 23.19, respectively (Fig. 5). ANOSIM results indicate that differences in zooplankton communities between Groups A, B and C were significant (Table 2).

3.2.2 Spatial and temporal variation in zooplankter abundance and biomass

Kruskal-Wallis test results reveal zooplankter abundance to be significantly higher in June at (1771.9 ± 1930.9) ind./m³ than in December at (30.7 ± 31.8) ind./m³ (p < 0.001). Similarly, zooplankton biomass was also significantly higher in June at (697.8 ± 750.7) mg/m³ than in December at (30.3 ± 26.4) mg/m³ (p < 0.001).

In June, the abundances and biomasses of zooplankton in Group B were significantly higher than values for Group D (p = 0.001). In December, the biomass of zooplankton in Group A was significantly higher than it was for Group B (p = 0.041) (Table 3).

3.2.3 Spatial variation in dominant species

SIMPER analysis revealed that in June, the species that contributed most to dissimilarities between Groups A and D, B and D, C and D, and B and C was Paracalanus parvus (22.16%, 19.24%, 21.22%, 12.22%, respectively), while that species to contribute most to dissimilarities between Groups A and B, and A and C was Labidocera euchaeta (10.39%, 12.54%, respectively). In December, for Groups A and C, and B and C, the taxon that contributed most to dissimilarities was trochophore larvae (11.61%, 21.18%, respectively); for Groups A and B, and A and D, this was Sinocalanus sinensis (11.82%, 11.08%, respectively); and for Groups B and D, and C and D, these were Centropages sinensis (19.03%) and P. parvus (14.86%), respectively.

Based on Kruskal-Wallis test results for June, the relative abundance of L. euchaeta was significantly higher in Group A than it was in Group D; that of P. parvus was significantly higher in Groups C and B than in group A; that of Temora turbinata was significantly higher in Group D than in Groups A–C; and those of Oithona brevicornis and Gammaridea sp. were significantly higher in Group A than in Group B (Table 4). In December, those of Acartia pacifica, S. sinensis, Pseudodiaptomus poplesia, and Gammaridea sp. were significantly higher in Group A than in Groups B–D (Table 4).

3.3 Relationships between zooplankton communities and dominant environmental variables

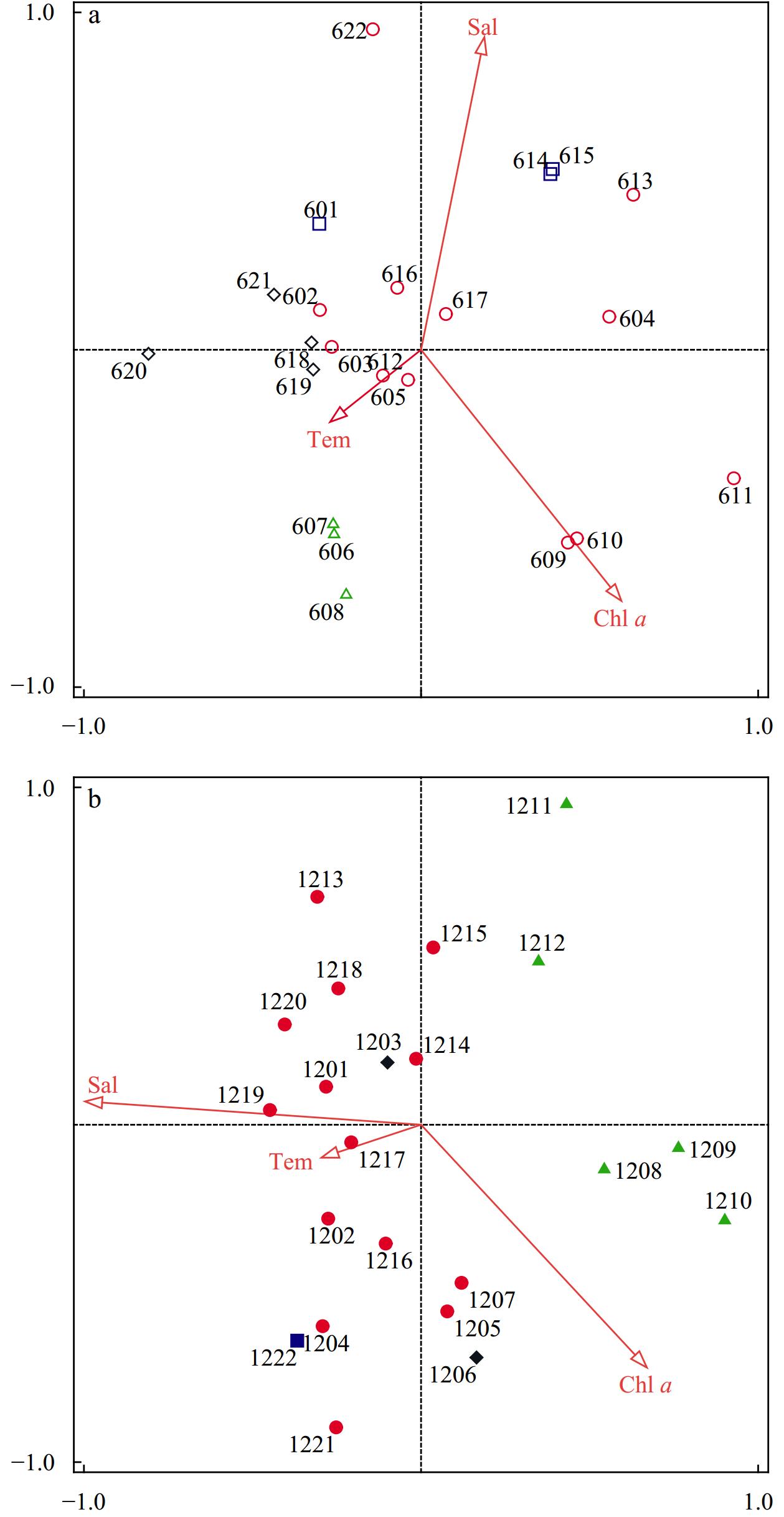

In June, salinity was the dominant environmental variable to affect the zooplankton communities (the contributions of temperature and Chl a were relatively weaker). In December, salinity again appeared to be the dominant environmental variable affecting zooplankton communities (Table 5, Fig. 6).

4 Discussion

Less

4.1 Salinity as a dominant factor affecting the spatial and temporal distributions of zooplankton communities

In the present study, salinity contributes >60% of the variability in community structure, serving as the dominant factor affecting spatial variation in the distributions of zooplankton communities in June and December. Salinity also serves as a primary factor affecting spatial variation in the distribution of zooplankton communities in many other estuaries (Venkataramana et al., 2023; Lucena-Moya and Duggan, 2017; Taglialatela et al., 2014; Mouny and Dauvin, 2002). This result likely reflects variation in the salinity tolerances of different zooplankters in each of the identified groups (Huynh and Gray, 2020). Different zooplankters have distinct physiological adaptations, including cell osmoregulation capabilities, the ability to balance ions, and metabolic adaptations (Charmantier et al., 1998; Yancey et al., 1982). Some zooplankters can maintain osmotic equilibrium by regulating the concentration of solutes within and outside of their cell membranes to maintain a stable physiological state in conditions of variable salinity (von Weissenberg et al., 2022; Castellano et al., 2018). These physiological characteristics influence their survival and reproductive capacities in environments that experience different salinities (Shang et al., 2005). However, this result is different from Sun et al. (2016), which pointed out the DIN significantly influenced the structure of mesozooplankton community. The reasons are as follows. Firstly, we studied zooplankton with a size of 160 μm and above, while Sun et al. (2016) studied 505 μm and above. The dominant species and abundance levels differ between the two zooplankton communities, resulting in their different responses to salinity. Secondly, we acknowledge the significant variability in nutrients levels, such as DIN, in Hangzhou Bay (Wu et al., 2019). These nutrient levels often change synchronously with salinity, exhibiting a negative correlation (Chen et al., 2018). Our study did not analyze DIN, due to its indirect impact on mesozooplankton, as mentioned in Sun’s discussion, which is one of the reasons our results differ from Sun et al. (2016).

The sampling periods of June and December correspond to Hangzhou Bay’s wet and dry periods, respectively (Fig. 1). The Qiantang and Changjiang rivers, and East China Sea water masses converge in Hangzhou Bay. Because of the different contributions of these three water masses at different times of the year, the salinity of waters in Hangzhou Bay differs between these two seasons (Sun et al., 2016). We report salinity to range 2.42–23.69 in June and 12.48–25.32 in December. Based on differences in the salinity ranges of the various groups, we divided zooplankton communities into those inhabiting low salinity (Group A), moderate salinity (Groups B and C), and high salinity (Group D) in June. Similarly, zooplankton communities were categorized into moderate salinity (Group A) and high salinity (Groups B–D) in December (Fig. 5). Spatial differences in the distributions of zooplankton communities are caused mainly by the differences in dominant taxa.

One species, P. parvus, tolerant of a wide range in salinity and temperature (Zhang et al., 2016), played a significant role as a key contributing species, and was generally more abundant in all regions during June and December (Table 6). Labidocera euchaeta, a nearshore low-salinity species, was more abundant in the low salinity region during June. Another nearshore low-salinity species, A. pacifica was more abundant in moderate salinity regions during both June and December (Table 6)—possibly because of distinct salinity preferences (~10 for L. euchaeta and 15–25 for A. pacifica), with salinities for L. euchaeta being more suitable for growth at higher temperatures (Guo et al., 2008; Huang and Zheng, 1984). The estuarine/brackish-water-dwelling S. sinensis was dominant in the moderate salinity region during December (Table 6), possibly because S. sinensis grows better at lower temperatures (Guo et al., 2008; Lin et al., 2001). The moderate salinity region was most influenced by interactions between water masses, which provided a diverse environment, and contributed to higher taxon abundance and biomass, such as the elevated abundance and biomass zones in Groups B and C in June, and in Group A in December (Table 3). This phenomenon is consistent with the occurrence of ocean fronts at the Changjiang River Estuary (Liu et al., 2022).

4.2 Relationships between spatial patterns in the distribution of zooplankton communities and salinity fronts

Hangzhou Bay water masses are derived from inputs of the Qiantang and Changjiang rivers, and the outer sea (Sun et al., 2016; Su and Wang, 1989). Depending on the direction of a monsoon, most of the Changjiang River Plume flows northeast into the East China Sea during warm seasons, and southeast into this sea during cold seasons. A small portion of the Changjiang River Plume—the secondary Changjiang River Plume—exists continuously and flows around the promontory of the Changjiang River, entering Hangzhou Bay (Su and Wang, 1989). A northeast–southwest–oriented salinity front in Hangzhou Bay also occurs throughout the year, composed of the Qiantang River Diluted Water front and Changjiang River Diluted Water secondary front (Su and Wang, 1989).

The distributions of zooplankton throughout Hangzhou Bay in June were generally consistent with those of salinity fronts (Figs 3c, 4b). However, the distribution of salinity over the sampling period in June proved to be somewhat anomalous, having been affected by processes associated with rising and falling tides between June 18 and 22. Tides represent the periodic movement of seawater caused by the gravitational forces of celestial bodies, primarily the moon and the sun (Feng et al., 1999). In estuarine areas, the rise and fall of these tides can cause strong disturbances in the hydrodynamics of the water column as fresh- and seawaters mix (House et al., 1998). The strong southerly monsoon in June causes outer seawaters to significantly influence Hangzhou Bay. Additionally, the Changjiang River Plume flows northeastward during this time, and it is less strong than the secondary Changjiang River Plume (Zhu et al., 1998). Compared with the normal pattern where salinity increases from the west to the east, the areas with salinity anomalies in Fig. 3c were mainly associated with sampling locations on June 18 (higher salinity) and 19 (lower salinity) (Fig. 7). These correspond to sampling during a rising tide on June 18, and a falling tide on June 19. There was a close relationship between the tidal patterns and salinity fronts in June. During the rising tides on June 18, the intense exchange between offshore and nearshore waters led an abnormally high salinity area forming in the bay’s apex (Stations 601–605), where zooplankton communities were attributed to Groups C and D (Figs 3c, 4b). Among them, there is a significant variation in salinity gradient between Stations 601 and 602, forming a front (Figs 8a, 8b and 9a). During the falling tides on June 19, Qiantang River Diluted Water led to an abnormally low salinity area forming in the central bay (Stations 606–608), where zooplankton communities were attributed to Group A (Figs 3c, 4b). A dominant taxon in Group A, the low-salinity species L. euchaeta, was relatively, significantly more abundant in Group A than it was in Groups B–D (Table 4), and fronts formed on both sides of this group (Figs 8a, 8b and 9a). Over the ensuing three days (June 20–22), the exchange between offshore and nearshore waters decreased, causing previously formed fronts to disappear. This transitioned into two fronts, differentiating Groups B, C, and D (Figs 8a, 8b and 9a).

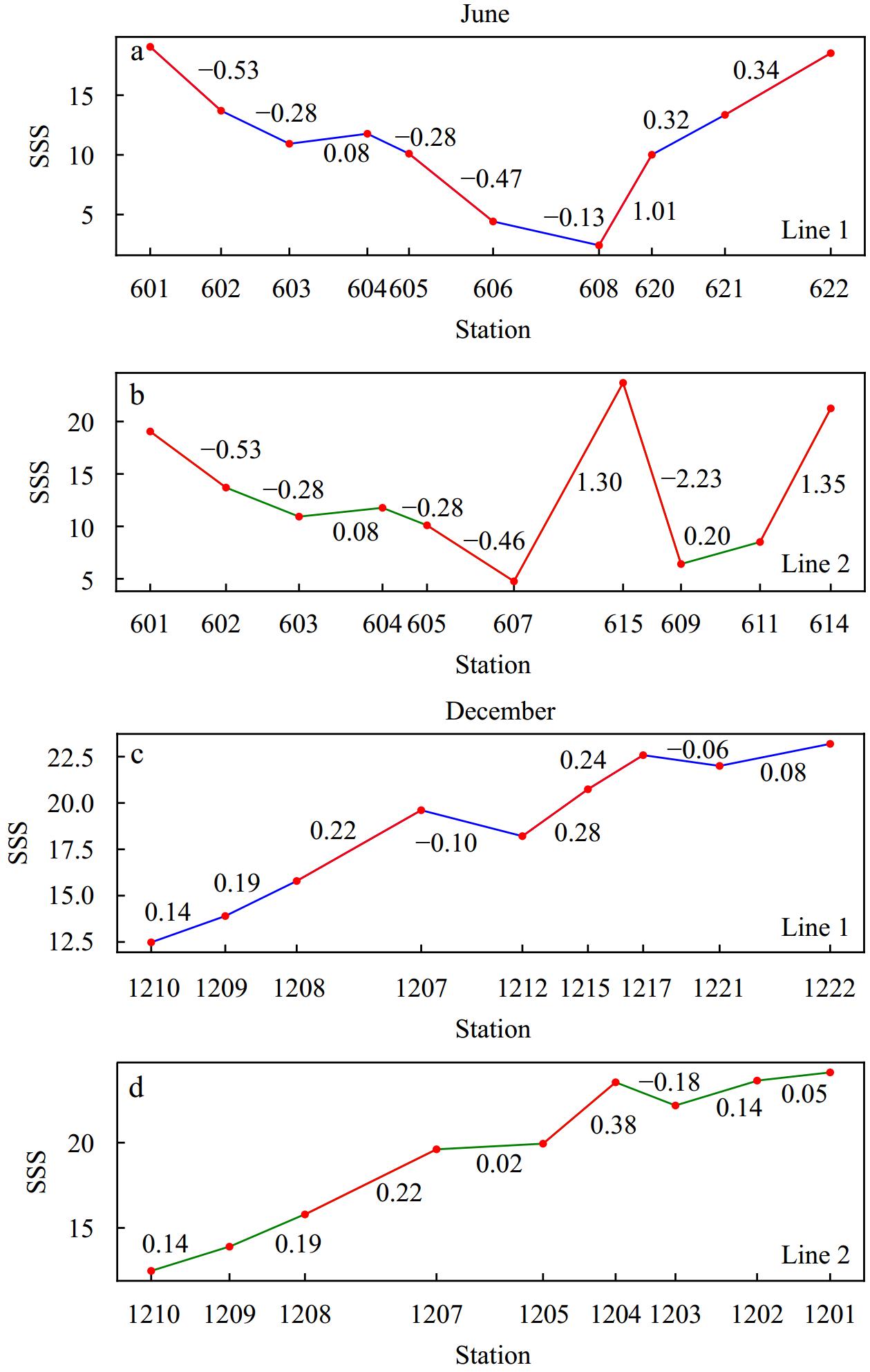

We report differences in salinity in December among Groups B, C, and D to be small, but for the salinity of Group A to be markedly lower (Fig. 5). In December, because of the influence of the northern monsoon, the Changjiang River Plume flows southeastward, and a stronger presence of the secondary Changjiang River Plume is felt (Liu et al., 2008). We attribute the relatively homogeneous environment with reduced salinity gradient for Groups B–D to the presence of a weaker Qiantang River Diluted Water and stronger secondary Changjiang River Plume. The Changjiang River Diluted Water secondary front extends through Groups B–D, while the Qiantang River Diluted Water front is less prominent (Figs 8c, 8d and 9b). Sinocalanus sinensis, a dominant zooplankton taxon in Group A, is an estuarine/brackish-water-dwelling species that manifested significantly higher relative abundances compared with values in Groups B–D (Tables 4, 6). As a result, an ecological boundary is formed between Group A and Groups B–D, which closely matches the location of the Qiantang River Diluted Water front (Figs 8c, 8d and 9b).

5 Conclusions

Less

We report spatial and temporal variation in the distributions of zooplankton communities in Hangzhou Bay to be influenced primarily by salinity during both June and December. The spatial distribution of zooplankton communities match those of salinity fronts. December zooplankton communities are dispersed in MS and HS regions, with zooplankton community boundaries aligning well with the Qiantang River Diluted Water front. While the influence of rising and falling tides contributed to formation of an LS region in the middle of the bay in June, the zooplankton community boundaries during this time continuing to correspond to a salinity interface. The relative abundances of low-salinity or brackish-water species are also higher in LS and MS regions, with the abundance and biomass of zooplankton notably higher in the MS region.

The study reported small-scale fronts within a bay to have a number of features in common with large-scale ocean fronts, in that the spatial distribution of zooplankton communities and their high biomass occur at the interface. We also report structural variability in small-scale fronts within bays or coastal waters, in that they are sensitive to tidal phenomena. Therefore, to better understand the spatial and temporal distributions of coastal zooplankton communities, nutrient transport and the physical environment neighboring the fronts should be more rigorously investigated.

Acknowledgements

Less

We thank Igor M. Belkin for providing comments and suggestions on this manuscript. We thank Steve O’Shea, from Liwen Bianji (Edanz) (www.liwenbianji.cn) for editing a draft of this manuscript. We express our gratitude to Lukuo Ma and Ran Guo for their help in the sampling process.

Funding

Less

The National Key Research and Development Program of China under contact No. 2021YFC3101702; the Natural Science Foundation of Zhejiang Province under contact Nos LY22D060006 and LY14D060007; the Key R&D Program of Zhejiang under contact No. 2022C03044; the Project of Long-term Observation and Research Plan in the Changjiang Estuary and Adjacent East China Sea (LORCE) under contact No. SZ2001.

References

Less

Belkin I M, Cornillon P C, Sherman K. 2009. Fronts in large marine ecosystems. Progress in Oceanography, 81(1–4): 223–236, doi: 10.1016/j.pocean.2009.04.015

Cao Lu, Tang Rui, Huang Wei, et al. 2021. Seasonal variability and dynamics of coastal sea surface temperature fronts in the East China Sea. Ocean Dynamics, 71(2): 237–249, doi: 10.1007/S10236-020-01427-8

Castellano G C, da Veiga M P T, Mazzini F S, et al. 2018. Paralarvae of Octopus vulgaris Type II are stenohaline conformers: relationship to field distribution and dispersal. Hydrobiologia, 808(1): 71–82, doi: 10.1007/s10750-017-3458-y

Charmantier G, Charmantier-Daures M, Anger K. 1998. Ontogeny of osmoregulation in the grapsid crab Armases miersii (Crustacea, Decapoda). Marine Ecology Progress Series, 164: 285–292, doi: 10.3354/meps164285

Chen Siyang, Song Lili, Yu Jun, et al. 2018. Temporal-spatial distribution and influencing factors of nutrients in the Hangzhou Bay. Ocean Development and Management (in Chinese), 35(11): 61–66

Chen Yaqu, Xu Zhaoli, Li Zhicheng, et al. 1992. Study on the ecology of zooplankton in the north shore of Hangzhou Bay Sea near Shanghai Petrochemical Plant. Marine Environmental Science (in Chinese), 11(1): 9–13

de Puelles M L F, Molinero J C. 2008. Decadal changes in hydrographic and ecological time-series in the Balearic Sea (western Mediterranean), identifying links between climate and zooplankton. ICES Journal of Marine Science, 65(3): 311–317, doi: 10.1093/icesjms/fsn017

Du Ping, Zeng Dingyong, Lin Feilong, et al. 2023. Epipelagic mesozooplankton communities in the northeastern Indian Ocean off Myanmar during the winter monsoon. Acta Oceanologica Sinica, 42(6): 57–69, doi: 10.1007/S13131-022-2090-5

Feng Shizuo, Li Fengqi, Li Shaojing. 1999. Introduction to Marine Sciences (in Chinese). Beijing: Higher Education Press, 208–232

Guo Peiyong, Shen Huanting, Liu Acheng, et al. 2008. Quantitative analysis of copepods distribution and seasonal variations in the Yangtze River Estuary. Acta Ecologica Sinica (in Chinese), 28(9): 4259–4267

Hernández-Moresino R D, Di Mauro R, Crespi-Abril A C, et al. 2017. Contrasting structural patterns of the mesozooplankton community result from the development of a frontal system in San José Gulf, Patagonia. Estuarine, Coastal and Shelf Science, 193: 1–11, doi: 10.1016/j.ecss.2017.05.012

House W A, Jickells T D, Edwards A C, et al. 1998. Reactions of phosphorus with sediments in fresh and marine waters. Soil Use and Management, 14(S4): 139–146, doi: 10.1111/j.1475-2743.1998.tb00632.x

Hu Yuekai, Yu Zhifeng, Zhou Bin, et al. 2019. Tidal-driven variation of suspended sediment in Hangzhou Bay based on GOCI data. International Journal of Applied Earth Observation and Geoinformation, 82: 101920, doi: 10.1016/j.jag.2019.101920

Huang Jiaqi, Zheng Zhong. 1984. The relation of copepods to salinity in the estuary of Jiulong River. Journal of Xiamen University: Natural Science (in Chinese), 23(4): 497–505

Huynh M, Gray D K. 2020. Can dispersal buffer against salinity-driven zooplankton community change in Great Plains' lakes?. Freshwater Biology, 65(2): 337–350, doi: 10.1111/fwb.13428

Jia Kangning, Tang Yanbin, Liu Qinghe, et al. 2022. Spatial and temporal distribution of macrobenthos communities and their relationship with secondary front in Hangzhou Bay. Frontiers in Marine Science, 9: 1037287, doi: 10.3389/FMARS.2022.1037287

Li Haibo, Wang Chaofeng, Liang Chen, et al. 2019. Diversity and distribution of tintinnid ciliates along salinity gradient in the Pearl River Estuary in southern China. Estuarine, Coastal and Shelf Science, 226: 106268

Lin Xia, Li Chunyue, Lu Kaihong. 2001. The effect of temperature and salinity on the survival of Sinocalanus tenellus. Journal of Ningbo University (NSEE) (in Chinese), 14(1): 43–46

Liu Dongyan, Lü Ting, Lin Lei, et al. 2022. Review of fronts and its ecological effects in the shelf sea of China. Advances in Marine Science (in Chinese), 40(4): 725–741

Liu Xiaohui, Song Jingjing, Ren Yiping, et al. 2023. Spatio-temporal patterns of zooplankton community in the Yellow River Estuary: effects of seasonal variability and water-sediment regulation. Marine Environmental Research, 189: 106060, doi: 10.1016/J.MARENVRES.2023.106060

Liu Xingquan, Yin Baoshu, Hou Yijun. 2008. The dynamic of circulation and temperature-salinity structure in the Changjiang mouth and its adjacent marine area Ⅱ. Major characteristics of the circulation. Oceanologia et Limnologia Sinica (in Chinese), 39(4): 312–320

Lucena-Moya P, Duggan I C. 2017. Correspondence between zooplankton assemblages and the Estuary Environment Classification system. Estuarine, Coastal and Shelf Science, 184: 1–9, doi: 10.1016/j.ecss.2016.10.028

Mouny P, Dauvin J C. 2002. Environmental control of mesozooplankton community structure in the Seine Estuary (English Channel). Oceanologica Acta, 25(1): 13–22, doi: 10.1016/S0399-1784(01)01177-X

Shang Xu, Wang Guizhong, Li Shaojing. 2005. Relationship between salinity tolerance during different developmental phase and ecological distribution of Schmackeria poplesia in Jiulongjiang Estuary in Fujian. Journal of Oceanography in Taiwan Strait (in Chinese), 24(3): 330–338

Su Jilan, Wang Kangshan. 1989. Changjiang River plume and suspended sediment transport in Hangzhou Bay. Continental Shelf Research, 9(1): 93–111, doi: 10.1016/0278-4343(89)90085-X

Sun Dong, Liu Zhensheng, Zhang Jing, et al. 2016. Environmental control of mesozooplankton community structure in the Hangzhou Bay, China. Acta Oceanologica Sinica, 35(10): 96–106, doi: 10.1007/s13131-016-0893-y

Taglialatela S, Ruiz J, Prieto L, et al. 2014. Seasonal forcing of image-analysed mesozooplankton community composition along the salinity gradient of the Guadalquivir Estuary. Estuarine, Coastal and Shelf Science, 149: 244–254, doi: 10.1016/j.ecss.2014.08.021

Venkataramana V, Gawade L, Bharathi M D, et al. 2023. Role of salinity on zooplankton assemblages in the tropical Indian estuaries during post monsoon. Marine Pollution Bulletin, 190: 114816, doi: 10.1016/J.MARPOLBUL.2023.114816

von Weissenberg E, Mottola G, Uurasmaa T M, et al. 2022. Combined effect of salinity and temperature on copepod reproduction and oxidative stress in brackish-water environment. Frontiers in Marine Science, 9: 952863, doi: 10.3389/FMARS.2022.952863

Wu Bin, Jin Haiyan, Gao Shengquan, et al. 2019. Nutrient budgets and recent decadal variations in a highly eutrophic estuary: Hangzhou Bay, China. Journal of Coastal Research, 36(1): 63–71, doi: 10.2112/JCOASTRES-D-18-00071.1

Xu Zhaoli, Shen Xinqiang, Yuan Qi, et al. 2003. Distribution characteristics of zooplankton in waters around Yangshan Islands in Hangzhou Bay. Journal of Fisheries of China (in Chinese), 27(S1): 69–75

Yan Runxuan, Wang Xiaobo, Wang Chunsheng, et al. 2021. Spatial and temporal distributions of macrobenthic feeding guilds and their influencing factors in Hangzhou Bay and its adjacent areas. Regional Studies in Marine Science, 48: 102029, doi: 10.1016/j.rsma.2021.102029

Yancey P H, Clark M E, Hand S C, et al. 1982. Living with water stress: evolution of osmolyte systems. Science, 217(4566): 1214–1222, doi: 10.1126/science.7112124

Yu Liangliang, Lu Shasha, Zhang Junbiao, et al. 2022. Effects of tide-surge interactions on the temporal distribution of the peak residual in Hangzhou Bay, China. Ocean Engineering, 266: 112705, doi: 10.1016/J.OCEANENG.2022.112705

Zhang Dongrong, Jia Guodong, Chen Lihong, et al. 2022. Seasonal succession and spatial heterogeneity of the nekton community associated with environmental factors in Hangzhou Bay, China. Regional Studies in Marine Science, 49: 102108, doi: 10.1016/j.rsma.2021.102108

Zhang Dongrong, Xu Zhaoli, Xu Jiayi, et al. 2016. Comparison of zooplankton communities inside and outside the Hangzhou Bay in autumn. Biodiversity Science (in Chinese), 24(7): 767–780, doi: 10.17520/biods.2015249

Zhou Weiwen, Li Qian, Ge Zaiming, et al. 2020. Response of phytoplankton community to atmospheric deposition along Pearl River plume front. Journal of Tropical Oceanography (in Chinese), 39(4): 50–60

Zhou Feng, Qian Zhouyi, Liu Anqi, et al. 2021. Recent progress on the studies of the physical mechanisms of hypoxia off the Changjiang (Yangtze River) Estuary. Journal of Marine Sciences (in Chinese), 39(4): 22–38

Zhu Qiqin. 1988. An investigation on the ecology of zooplankton in Changjiang Estuary and Hangzhou Bay. Journal of Fisheries of China (in Chinese), 12(2): 111–123

Zhu Jianrong, Xiao Chengyou, Shen Huanting. 1998. Numerical model simulation of expansion of Changjiang diluted water in summer. Haiyang Xuebao (in Chinese), 20(5): 13–22

Appendix

Less

Year 2024 volume 43 Issue 6

PDF

Cite this Article

BibTeX

Article Info

doi: 10.1007/s13131-024-2374-z

Receive Date：2023-11-22
Online Date：2025-11-19
Published：2024-06-25

Article Data

Affiliations

History

Received：2023-11-22
Accepted：2024-01-15

Funding

The National Key Research and Development Program of China under contact No. 2021YFC3101702; the Natural Science Foundation of Zhejiang Province under contact Nos LY22D060006 and LY14D060007; the Key R&D Program of Zhejiang under contact No. 2022C03044; the Project of Long-term Observation and Research Plan in the Changjiang Estuary and Adjacent East China Sea (LORCE) under contact No. SZ2001.

Affiliations

¹ Key Laboratory of Marine Ecosystem Dynamics, Second Institute of Oceanography, Ministry of Natural Resources, Hangzhou 310012, China

² Key Laboratory of Nearshore Engineering Environment and Ecological Security of Zhejiang Province, Hangzhou 310012, China

³ State Key Laboratory of Satellite Ocean Environment Dynamics, Ministry of Natural Resources, Hangzhou 310012, China

⁴ Nantong Marine Environmental Monitoring Center, Ministry of Natural Resources, Nantong 226002, China

⁵ Key Laboratory of Ocean Space Resource Management Technology, Ministry of Natural Resources, Hangzhou 310012, China

⁶ Observation and Research Station of Marine Ecosystem in the Yangtze River Delta, Ministry of Natural Resources, Zhoushan 316021, China

Corresponding:

* duping@sio.org.cn (Ping Du)

References

Share

https://castjournals.cast.org.cn/joweb/aos/EN/10.1007/s13131-024-2374-z

Share to

Scan QR to access full text

Cite this article

BibTeX

Citations

表12种不同金属材料的力学参数

科 Family	属数 Number of genus	种数 Number of species	占总种数比例 Percentage of total species (%)	属 Genus	种数 Number of species	占总种数比例 Percentage of total species (%)
鹅膏菌科Amanitaceae	2	11	5.26	鹅膏菌属 Amanita	10	4.78
小菇科 Mycenaceae	2	12	5.74	丝盖伞属 Inocybe	5	2.39
多孔菌科 Polyporaceae	8	14	6.70	蜡蘑属 Laccaria	5	2.39
红菇科 Russulaceae	3	23	11.00	小皮伞属 Marasmius	6	2.87
				小菇属 Mycena	11	5.26
				光柄菇属 Pluteus	5	2.39
				红菇属 Russula	17	8.13
				栓菌属 Trametes	5	2.39

关闭全屏

BibTeX
EndNote
RefWorks
TxT

Table 1. Seasonal means of environmental parameters in June and December, 2022

	June	December
Surface temperature/℃	25.08 ± 1.11	11.55 ± 1.70
Surface salinity	12.24 ± 5.58	20.94 ± 3.41
Chl a concentration/(μg·L⁻¹)	1.90 ± 1.21	1.04 ± 0.56

Table 2. Results of the analysis of similarities (ANOSIM) on zooplankton communities between community Groups A–D, for June and December 2022, within the Hangzhou Bay

	June
	A&B	A&C	A&D	B&C	B&D	C&D
R	0.712	1	1	0.862	0.833	1
P	0.002	0.1	0.029	0.002	0.001	0.029
	December
	A&B	A&C	A&D	B&C	B&D	C&D
R	0.745	0.776	1	0.627	1	0.758
P	0.048	0.001	0.167	0.008	0.333	0.067

Note: R indicates the statistical value, and P indicates the significance level.

Table 3. Spatial and temporal variation in zooplankton abundance (ind./m³) and biomass (mg/m³) for community Groups A–D, for June and December 2022, within the Hangzhou Bay

	June
	Group A	Group B	Group C	Group D
Abundance	790.8 ± 217.1^ab	4889.5 ± 733.7^a	922.6 ± 346.3^ab	318.8 ± 95.9^b
Biomass	321.6 ± 117.7^ab	1727.2 ± 382.1^a	392.7 ± 174.7^ab	154.2 ± 28.7^b
	December
	Group A	Group B	Group C	Group D
Abundance	43.0 ± 10.4	10.9 ± 3.5	35.1 ± 38.3	6.7
Biomass	50.5 ± 17.2^a	8.2 ± 0.8^b	31.7 ± 27.0^ab	9.9^ab

Note: The a and b indicate significant differences between groups.

Table 4. Spatial and temporal variation in the relative abundances (%) of dominant zooplankter species in Groups A–D, for June and December 2022, within Hangzhou Bay

Taxa	Dominant species	June
Taxa	Dominant species	Group A	Group B	Group C	Group D
Copepoda	Acartia larva	3.0 ± 0.5	7.0 ± 4.2	12.5 ± 11.3	10.4 ± 7.5
	Acartia pacifica	0.7 ± 0.7	0.4 ± 0.3	8.1 ± 9.3	0.5 ± 0.5
	Calanidae larva	2.5 ± 2.1	2.5 ± 2.0	1.3 ± 0.8	1.5 ± 0.1
	Labidocera euchaeta	25.6 ± 7.8^a	1.3 ± 0.8^ab	2.0 ± 1.6^ab	0.7 ± 0.4^b
	Labidocera larva	1.8 ± 1.1^ab	0.1 ± 0.1^b	3.2 ± 2.2^a	0.5 ± 0.5^ab
	Paracalanus parvus	12.3 ± 6.1^b	52.2 ± 18.1^a	42.9 ± 15.4^a	25.2 ± 5.7^ab
	Temora turbinate	0.0 ± 0.0^b	0.0 ± 0.0^b	0.2 ± 0.4^b	6.9 ± 3.8^a
	Tortanus derjugini	10.1 ± 5.6	6.6 ± 3.7	6.7 ± 7.4	1.7 ± 0.7
	Tortanus vermiculus	4.9 ± 5.3	1.1 ± 0.8	1.1 ± 1.1	0.0 ± 0.0
	Corycaeus dahli	0.0 ± 0.0	0.0 ± 0.0	0.3 ± 0.9	2.5 ± 2.2
	Oithona brebicornis	7.9 ± 4.3^a	0.3 ± 0.1^b	1.3 ± 1.2^ab	0.7 ± 0.7^ab
	Oithona larva	12.8 ± 6.3	2.9 ± 1.0	5.1 ± 4.1	2.9 ± 2.1
Mysidacea	Liella pelagicus	3.7 ± 3.8	0.0 ± 0.1	0.2 ± 0.3	0.4 ± 0.6
Amphipoda	Gammaridea sp.	2.4 ± 2.2^a	0.0 ± 0.0^b	0.1 ± 0.2^ab	0.7 ± 0.7^ab
Planktonic larva	Brachyura zoea	0.1 ± 0.2	0.7 ± 0.4	0.9 ± 1.3	4.1 ± 3.7
	Metazea zoea	0.0 ± 0.0	0.0 ± 0.1	0.0 ± 0.1	2.2 ± 2.8
	Copepoda zoea	2.7 ± 2.1	19.4 ± 20.6	4.1 ± 3.5	2.3 ± 1.0
	Trochophore larva	0.0 ± 0.0^b	0.9 ± 0.5^b	4.9 ± 3.0^a	29.0 ± 13.0^a
Taxa	Dominant species	December
Taxa	Dominant species	Group A	Group B	Group C	Group D
Copepoda	Acartia pacifica	15.1 ± 17.9^a	0.0 ± 0.0^b	1.8 ± 1.9^b	0.0^b
	Paracalanus crassirostris	1.2 ± 1.5	0.0 ± 0.0	1.3 ± 2.6	0.0
	Calanus sinicus	4.4 ± 4.4	4.8 ± 4.8	1.5 ± 2.2	0.0
	Sinocalanus sinensis	17.8 ± 17.0^a	0.0 ± 0.0^b	0.2 ± 0.6^b	0.0^b
	Centropages sinensis	2.8 ± 1.9	31.1 ± 2.2	6.1 ± 6.8	0.0
	Calanidae larva	3.7 ± 1.5	0.0 ± 0.0	2.4 ± 2.5	0.0
	Labidocera larva	1.0 ± 1.9	0.0 ± 0.0	1.1 ± 2.2	0.0
	Paracalanus parvus	17.5 ± 19.9	44.3 ± 5.7	46.8 ± 15.9	30.8
	Subeucalanus subcrassus	1.7 ± 2.1	8.3 ± 8.3	0.2 ± 0.5	0.0
	Pseudodiaptomus poplesia	2.6 ± 2.4^a	0.0 ± 0.0^b	0.0 ± 0.0^b	0.0^b
	Tortanus derjugini	6.9 ± 4.6	0.0 ± 0.0	1.2 ± 1.5	15.4
	Oithona similis	0.0 ± 0.0	0.0 ± 0.0	0.9 ± 1.9	0.0
	Oithona brebicornis	2.7 ± 2.2	4.8 ± 4.8	1.9 ± 3.2	0.0
	Oithona larva	5.2 ± 9.3	0.0 ± 0.0	1.4 ± 2.1	0.0
	Euterpe acutifrons	0.0 ± 0.0	0.0 ± 0.0	0.9 ± 2.3	7.7
Mysidacea	Orientomysis laticauda	1.6 ± 1.8	0.0 ± 0.0	0.4 ± 1.4	0.0
Cumacea	Leucon nasica	3.9 ± 6.9	0.0 ± 0.0	0.3 ± 1.0	0.0
Amphipoda	Gammaridea sp.	5.1 ± 4.7^a	0.0 ± 0.0^b	0.1 ± 0.3^b	0.0^b
Planktonic larva	Copepoda zoea	3.3 ± 6.5	0.0 ± 0.0	0.2 ± 0.5	38.5
Planktonic larva	Trochophore larva	0.0 ± 0.0^b	0.0 ± 0.0^b	27.6 ± 21.2^a	7.7^a

Note: Dominant species are defined as those with a relative abundance >5% in at least one community group. Different lowercase letters (a, b) in the same index indicate significant differences among groups (p < 0.05).

Table 5. Explanatory powers of the three environmental variables for the community structures

	Environmental variable	Explain/%	Contribution/%	p
June	Salinity	15.5	68.9	0.002
	Temperature	3.6	16.1	0.458
	Chl a concentration	3.4	15.0	0.580
December	Salinity	24.6	66.9	0.002
	Temperature	7.4	20.2	0.048
	Chl a concentration	4.8	12.9	0.176

Table 6. Relative abundances of representative dominant species in different salinity regions during June and December 2022, within the Hangzhou Bay

Species	June			December
	Relative abundance/%			Relative abundance/%
	LS	MS	HS	MS	HS
Paracalanus parvus *	12.3 ± 6.1	45.2 ± 16.6	25.2 ±5.7	17.5 ± 19.9	45.6 ± 15.0
Labidocera euchaeta ▲	25.6 ± 7.8^a	1.8 ± 1.5^ab	0.7 ± 1.4^b	\	\
Acartia pacifica ▲	0.7 ± 0.7	6.2 ± 8.7	0.5 ± 0.5	15.1 ± 17.9	1.5 ± 1.9
Sinocalanus sinensis ■	\	\	\	17.8 ± 17.0^a	0.2 ± 0.6^b

Note: Salinity regions: LS, low; MS, moderate; HS, high. Ecotype: *, euryhaline; ▲, nearshore low-salinity; ■, estuarine brackish-water. \ represents no data.

Fig. 1. Monthly flow data for the Qiantang and Changjiang rivers in 2022. Changjiang River flow data are sourced from the Datong station; Qiantang River flow data are sourced from the Zhuji station.

Fig. 2. Sampling stations in the Hangzhou Bay, June and December, 2022.

Fig. 3. Spatial distributions of environmental variables: surface temperature (a, b), surface salinity (c, d), and surface Chl a (e, f) for June and December, respectively.

Fig. 4. Zooplankton communities based on taxon abundance datasets for June and December, 2022, within Hangzhou Bay. Four community groups occurred in both June (hollow shapes, a, b) and December (solid shapes, c, d). Groups: A, green triangles; B, black rhombus; C, red circles; D, blue squares.

Fig. 5. Salinity in surface waters for stations with zooplankton community Groups A–D, June and December 2022, within Hangzhou Bay. The a and b indicate significant differences between groups.

Fig. 6. Relationships between three environmental variables and zooplankton communities in June (a) and December (b). Sal: salinity, Tem: temperature.

Fig. 7. Distribution of sea surface current fields in the Hangzhou Bay for each sampling day during June 2022.

Fig. 8. Sea surface salinity versus distance (SSS vs. distance) along two lines crossing salinity fronts in June (a, b) and December (c, d). The spacing between stations are set according to distance proportion. The number next to each segment of the polyline represents the slope. The red line indicates a significant salinity gradient between two stations, indicating the presence of a front.

Fig. 9. Approximate locations of fronts in June (a) and December (b). The solid red line and dashed blue line in June represent the fronts during falling and ebbing tides. Lines in December: solid red, Qiantang River Diluted Water front; dashed blue, Changjiang River Diluter Water secondary front.

Articles: Latest Articles; Most Read; Collections

Updates: Events; News; Multimedia

About: About Us

Contact

No. 86 Xueyuan South Road, Haidian District, Beijing

100081

010-62199257

qkjq@cast.org.cn

Copyright © 2025 China Association for Science and Technology. All rights reserved. For all open access content, the relevant licensing terms apply.
Sponsored by the Office of the Leading Group for Cybersecurity and Informatization of CAST, and supported by Science and Technology Review Publishing House
